features of your new VRT™ washer

• VRT™ (Vibration Reduction Technology)

This Samsung washer performs smoothly at top spin speeds, helping to minimize noise and vibration.

• Bubble Wash

Samsung’s Bubble Wash delivers cleanliness with fabric care. Bubble Wash combines water as detergent before the wash cycle commences.

• Smart Control

Samsung’s innovative Smart Control technology enables you to control your washer through personal technology devices such as smart phones. You don’t have to be on standby until the cycle ends. Smart Control allows you to monitor the washing process and lets you know when the cycle is complete.

• Diamond drum™

Take gentle care of your fabrics. With small inside holes, the diamond drum helps to prevent fabrics from being damaged.

• Stylish design

The stylish design of this washer blends well with your environment.

• Digital display & Center jog dial

The jog dial enables you to select cycles in both directions with ease, and the display is easy to use and understand.

• DD Motor

The power to handle anything! Our direct-drive inverter motor delivers power right to the washer tub from a variable speed, reversible motor. A beltless direct-drive motor generates a high spin speed of 1,200rpms for an effective, quiet operation. The washer also has few moving parts.

2_ features of your new VRT™ washer

YUKON-WIFI-03073U-01_EN_130828.indd Sec1:2YUKON-WIFI-03073U-01_EN_130828.indd Sec1:2 2013-08-28  10:24:092013-08-28  10:24:09

• Drum Clean

Using Drum Clean helps to maintain your washing machine with maximum hygiene. This feature has the option of using (or not using) drum cleaning chemical detergents, depending on your Performance preference – the cycle has been designed by Samsung to deliver results without chemical assistance. Keep your drum cleansed and odourless by using this specialised cleaning program which spins hot water (70 ºC) in the drum, with the thorough cleansing cycle lasting for just under 140 minutes. This helps to remove mould and bacteria present in the drum which could grow and lead to smells and discolouration if left alone. Works perfectly in support of Bubble Wash, allowing you to routinely wash your fabrics in cool temperatures and occasionally clean your wash drum to maintain hygiene levels.

• Air Wash - Sanitization and Deodorization without Water!

Refresh your favorite clothing simply by using air after you’ve been at a party or have gone out (food, cigarettes). Non-stained clothing shouldn’t need to be washed, simply refresh them using the 2 available cycles for different fabrics.

This manual contains important information on the installation, use, and care of your new Samsung washing machine. Refer to it for descriptions of the control panel, instructions on how to use the washing machine, and tips for making the most of its state-of-the-art features and functions. The “troubleshooting and information codes” section on page 64 tells you what to do if something goes wrong with your new washing machine.

features of your new VRT™ washer _3

YUKON-WIFI-03073U-01_EN_130828.indd Sec1:3YUKON-WIFI-03073U-01_EN_130828.indd Sec1:3 2013-08-28  10:24:102013-08-28  10:24:10

safety information

Congratulations on your new Samsung washer. This manual contains important information on the installation, use and care of your appliance. Please take time to read this manual to take full advantage of your washer’s many beneﬁ ts and features.

WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS

Please read this manual thoroughly to ensure that you know how to safely and efﬁ ciently operate the extensive features and functions of your new appliance and retain it at a safe place near the appliance for your future reference. Use this appliance only for its intended purpose as described in this instruction manual. Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your washer. Because these following operating instructions cover various models, the characteristics of your washer may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact your nearest service center or ﬁ nd help and information online at www.samsung.com.

IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS

What the icons and signs in this user manual mean:

Hazards or unsafe practices that may result in severe personal injury,

WARNING

CAUTION

death and/or property damage.

Hazards or unsafe practices that may result in personal injury and/or property damage.

To reduce the risk of ﬁ re, explosion, electric shock, or personal injury when using your washer, follow these basic safety precautions:

CAUTION

These warning signs are here to prevent injury to you and others. Please follow them explicitly. After reading this section, keep it in a safe place for future reference.

4_ safety information

YUKON-WIFI-03073U-01_EN_130828.indd Sec2:4YUKON-WIFI-03073U-01_EN_130828.indd Sec2:4 2013-08-28  10:24:102013-08-28  10:24:10

To reduce the risk of ﬁ re or explosion, follow these basic precautions.

Do NOT attempt.

Do NOT disassemble.

Do NOT touch.

Follow directions explicitly.

Unplug the power plug from the wall socket.

Make sure the machine is grounded to prevent electric shock.

Call the service centre for help.

Note

Read all instructions before using the appliance.

As with any equipment using electricity and moving parts, potential hazards exist. To safely operate this appliance, become familiar with its operation and exercise care when using it.

Do not let children (or pets) play on or in your washing machine. The washing machine door does not open easily from the inside, and children may be seriously injured if trapped inside.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

This appliance can be used by children aged from 8 years

WARNING

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. (Europe only)

Children should be supervised to ensure that they do not play with the appliance.

If the plug (power supply cord) is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualiﬁ ed person in order to avoid a hazard.

This appliance should be positioned to be accessible to the power plug, the water supply tabs and the drain pipes.

For washing machines with ventilation openings in the base, ensure that the opening is not obstructed by carpet or any other obstacles.

Use the new hose-sets and old hose-sets should not be reused.

safety information _5

YUKON-WIFI-03073U-01_EN_130828.indd Sec2:5YUKON-WIFI-03073U-01_EN_130828.indd Sec2:5 2013-08-28  10:24:102013-08-28  10:24:10

safety information

To minimize the risk of ﬁ re in a tumble dryer, the following should be observed:

CAUTION

Items that have been spotted or soaked with vegetable or cooking oil constitute a ﬁ re hazard and should not be placed in a tumble dryer. Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch ﬁ re. Piling, stacking or storing oil-affected items can prevent heat from escaping and so create a ﬁ re hazard. If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated by hair care products be placed in a tumble dryer they should ﬁ rst be washed in hot water with extra detergent – this will reduce, but not eliminate, the hazard. The ‘cool down’ cycle of tumble dryers should be used to reduce the temperature of the items. They should not be removed from the tumble dryer or piled or stacked while hot.

Items that have been previously cleaned in, washed in, soaked in or spotted with petrol/ gasoline, dry-cleaning solvents or other ﬂ ammable or explosive substances should not be placed in a tumble dryer. Highly ﬂ ammable substances commonly used in domestic environments include acetone, denatured alcohol, petrol/gasoline, kerosene, spot removers(some brands), turpentine, waxes and wax removers.

Items containing foam rubber(also known as latex foam) or similarly textured rubber. Like materials should not be dried in a tumble dryer on a heat setting. Foam rubber materials can, when heated, produce ﬁ re by spontaneous combustion.

Fabric softeners or similar products should not be used in a tumble dryer to eliminate the effects of static electricity unless this practice is speciﬁ cally recommended by the manufacturer of the fabric softener or product.

Undergarments that contain metal reinforcements should not be placed in a tumble dryer. Damage to the tumble dryer can result if metal reinforcements come loose during drying. When available a drying rack could be used for such items.

Plastic articles such as shower caps or babies’ waterproof napkin covers should not be placed in a tumble dryer.

Rubber-backed articles, clothes ﬁ tted with foam rubber pads, pillows, galoshes and rubbercoated tennis shoes should not be placed in a tumble dryer.

6_ safety information

YUKON-WIFI-03073U-01_EN_130828.indd Sec2:6YUKON-WIFI-03073U-01_EN_130828.indd Sec2:6 2013-08-28  10:24:102013-08-28  10:24:10

Do not dry unwashed items in the tumble dryer(or washing machine drying mode,etc).

WARNING

Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, Kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

Items such as foam rubber(latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows ﬁ tted with foam rubber pads should not be dried in the tumble dryer.

Fabric softeners, or similar products, should be used as speciﬁ ed by the fabric softener instructions.

The ﬁ nal part of a tumble dryer cycle occurs without heat(cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.

Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch ﬁ re. Piling, stacking or storing oil-affected items can prevent heat from escaping and so create a ﬁ re hazard.

If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated by hair care products be placed in a tumble dryer they should ﬁ rst be washed in hot water with extra detergent - this will reduce, but not eliminate, the hazard.

Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

CAUTION

safety information _7

YUKON-WIFI-03073U-01_EN_130828.indd Sec2:7YUKON-WIFI-03073U-01_EN_130828.indd Sec2:7 2013-08-28  10:24:102013-08-28  10:24:10

safety information

SEVERE WARNING SIGNS FOR INSTALLATION

WARNING

The installation of this appliance must be performed by a qualiﬁ ed technician or service company.

- Failure to do so may result in electric shock, ﬁ re, an explosion, problems with the product, or injury.

The appliance is heavy, take care upon lifting it

Plug the power cord into an AC 220-240 V / 50 Hz wall socket or higher and use the socket for this appliance only. In addition, do not use an extension cord.

- Sharing a wall socket with other appliances using a power strip or extending the power cord may result in electric shock or ﬁ re.

- Ensure that the power voltage, frequency and current are the same as those of the product speciﬁ cations. Failure to do so may result in electric shock or ﬁ re. Plug the power plug into the wall socket ﬁ rmly.

Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis.

- Unplug the power plug and clean it with a dry cloth.

- Failure to do so may result in electric shock or ﬁ re.

Plug the power plug into the wall socket in the right direction so that the cord runs towards the ﬂ oor.

- If you plug the power plug into the socket in the opposite direction, the electric wires within the cable may be damaged and this may result in electric shock or ﬁ re.

Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children.

- If a child places a bag over its head, it may result in suffocation.

When the appliance or power plug or power cord is damaged, contact your nearest service centre.

This appliance must be properly grounded. Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.

- This may result in electric shock, ﬁ re, an explosion, or problems with the product

- Never plug the power cord into a socket that is not grounded correctly and make sure that it is in accordance with local and national codes.

Do not install this appliance near a heater, inﬂ ammable material. Do not install this appliance in a humid, oily or dusty location, in a location exposed to direct sunlight and water (rain drops).

Do not install this appliance in a location of Low Temperature.

- Frost may cause tubes to burst

Do not install this appliance in a location where gas may leak.

- This may result in electric shock or ﬁ re.

Do not use an electric transformer.

- It may result in electric shock or ﬁ re.

Do not use a damaged power plug, damaged power cord or loose wall socket.

- This may result in electric shock or ﬁ re.

Do not pull or excessively bend the power cord. Do not twist or tie the power cord.

8_ safety information

YUKON-WIFI-03073U-01_EN_130828.indd Sec2:8YUKON-WIFI-03073U-01_EN_130828.indd Sec2:8 2013-08-28  10:24:102013-08-28  10:24:10

Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance.

- This may result in electric shock or ﬁ re.

Do not pull the power cord, when unplugging the power plug.

- Unplug the power plug by holding the plug.

- Failure to do so may result in electric shock or ﬁ re.

Do not lay the power cord and tubes where you may fall over them.

CAUTION

CAUTION SIGNS FOR INSTALLATION

This appliance should be positioned in such a way that it is accessible to the power plug.

- Failure to do so may result in electric shock or ﬁ re due to electric leakage.

Install your appliance on a level and hard ﬂ oor that can support its weight.

- Failure to do so may result in abnormal vibrations, moves, noise, or problems with the product.

SEVERE WARNING SIGNS FOR USING

WARNING

If the appliance is ﬂ ooded, Turn off the water & power supply immediately and contact your nearest service centre.

- Do not Touch the power plug with wet hands

- Failure to do so may cause electric shock

If the appliance generates a strange noise, a burning smell or smoke, unplug the power plug immediately and contact your nearest service centre.

- Failure to do so may result in electric shock or ﬁ re.

In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without touching the power plug. Do not touch the appliance or power cord.

- Do not use a ventilating fan.

- A spark may result in an explosion or ﬁ re.

Do not let children play in or on the washer. In addition, when disposing of the appliance, remove the washer door lever.

- If trapped inside, the child may become trapped and suffocate to death.

Make sure to remove the packaging (sponge, styrofoam) attached to the bottom of the washer before using it.

safety information _9

YUKON-WIFI-03073U-01_EN_130828.indd Sec2:9YUKON-WIFI-03073U-01_EN_130828.indd Sec2:9 2013-08-28  10:24:102013-08-28  10:24:10

safety information

Do not wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol or other ﬂ ammable or explosive substances.

- This may result in electric shock, ﬁ re or an explosion.

Do not open the washer door by force while it is operating (high-temperature washing/ drying/spinning).

- Water ﬂ owing out of the washer may result in burns or cause the ﬂ oor to be slippery.

This may result in injury.

- Opening the door by force may result in damage to the product or injury.

Do not insert your hand under the washer.

- This may result in injury.

Do not touch the power plug with wet hands.

- This may result in electric shock.

Do not turn the appliance off by unplugging the power plug while an operation is in progress.

- Plugging the power plug into the wall socket again may cause a spark and result in electric shock or ﬁ re.

Do not let children or inﬁ rm persons use this washer unsupervised. Do not let children climb in the appliance

- Failure to do so may result in electric shock, burns or injury.

Do not insert your hand or a metal object under the washer while it is operating.

- This may result in injury.

Do not unplug the appliance by pulling at the power cord, always grip plug ﬁ rmly and pull straight out from the outlet.

- Damage to the cord may cause short-circuit, ﬁ re and/or electric shock

Do not attempt to repair, disassemble, or modify the appliance yourself.

- Do not use any fuse (such as cooper, steel wire, etc.) other than the standard fuse.

- When repairing or reinstalling the appliance is required, contact your nearest service centre.

- Failure to do so may result in electric shock, ﬁ re, problems with the product, or injury.

If the water supply hose comes loose from the Water tap and ﬂ oods the appliance, unplug the power plug.

- Failure to do so may result in electric shock or ﬁ re.

Unplug the power plug when the appliance is not being used for long periods of time or during a thunder/lightning storm.

- Failure to do so may result in electric shock or ﬁ re.

10_ safety information

YUKON-WIFI-03073U-01_EN_130828.indd Sec2:10YUKON-WIFI-03073U-01_EN_130828.indd Sec2:10 2013-08-28  10:24:112013-08-28  10:24:11

CAUTION SIGNS FOR USING

CAUTION

When the washer is contaminated by a foreign substance such as detergent, dirt, food waste, etc., unplug the power plug and clean the washer using a damp and soft cloth.

- Failure to do so may result in discolouration, deformation, damage or rust.

The front glass may be broken by a strong impact. Take care when using the washer.

- When the glass is broken, it may result in injury.

After a water supply failure or when reconnecting the water supply hose, open the Water Tap slowly. Open the Water Tap slowly after a long period of non-use.

- The air pressure in the water supply hose or the water pipe may result in damage to a part or in water leakage.

If a drain error occurs during an operation, check if there is a draining problem.

- If the washer is used when it is ﬂ ooded because of a draining problem, it may result in electric shock or ﬁ re due to electric leakage.

Insert the laundry into the washer completely so that laundry does not get caught in the door.

- If laundry gets caught in the door, it may result in damage to the laundry or the washer, or result in water leakage.

Ensure that the Water Tap is turned off when the washer is not being used.

- Ensure that the screw on the water supply hose connector is properly tightened.

- Failure to do so may result in property damage or injury.

Take care that the rubber seal and the front door glass are not contaminated by a foreign substance (e.g. waste, thread, hair, etc.)

- If a foreign substance is caught in the door or the door is not completely closed, it may cause a water leakage.

Open the Water Tap and check if the water supply hose connector is ﬁ rmly tightened and that there is no water leaking before using the product.

- If the screws or the water supply hose connector are loose, it may result in water leakage.

The product you have purchased is designed for domestic use only. The use for business purposes qualiﬁ es as product misuse. In this case, the product will not be covered by the standard warranty provided by Samsung and no responsibility can be attributed to Samsung for malfunctions or damages resulting from such misuse.

If the wash is not started and the laundry is left for a period of time after you have added detergent or applied stain remover or pre-treatment onto the laundry, the laundry may be discolored.

Select the recommended cycle and temperature on the basis of the laundry items, sort the laundry by color on the basis of its colorfastness and select the appropriate cycle.

Make sure that foreign objects such as pins, buttons and coins are removed from clothing items when adding laundry to the washer. Wash dirty laundry separately from relatively clean items and wash fragile items separately from tougher textiles.

If an item is stained, wash it as soon as possible. Use stain remover or detergent only after testing the colorfastness of the item by applying a small quantity to an inside seam.

safety information _11

YUKON-WIFI-03073U-01_EN_130828.indd Sec2:11YUKON-WIFI-03073U-01_EN_130828.indd Sec2:11 2013-08-28  10:24:112013-08-28  10:24:11

safety information

Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.

- This may result in electric shock, ﬁ re, problems with the product, or injury.

Do not spray volatile material such as insecticide onto the surface of the appliance.

- As well as being harmful to humans, it may also result in electric shock, ﬁ re or problems with the product.

Do not place an object that generates a electromagnetic ﬁ eld near the washer.

- This may result in injury due to a malfunction.

Since the water drained during a high-temperature wash or drying cycle is hot, do not touch the water.

- This may result in burns or injury.

Do not wash, spin or dry water-proof seats, mats or clothing (*) unless your appliance has a special program for washing these items.

- Do not wash thick, hard mats even if the washer mark is on the care label.

- This may result in injury or damage to the washer, walls, ﬂ oor or clothing due to abnormal vibrations.

* Woollen bedding, rain covers, ﬁ shing vests, ski pants, sleeping bags, diaper covers,

sweat suits, and bicycle, motor cycle, car covers, etc.

Do not operate the washer when the detergent box is removed.

- This may result in electric shock or injury due to water leakage.

Do not touch the inside of the tub during or just after drying as it is hot.

- This may result in burns.

Do not insert your hand into the detergent box after opening it.

- This may result in injury as your hand may be caught by the detergent input device. Do not place any objects (such as shoes, food waste, animals) other than laundry into the washer.

- This may result in damage to the washer, or injury and death in the case of pets due to the abnormal vibrations.

Do not press the buttons using sharp objects such as pins, knifes, ﬁ ngernails, etc.

- This may result in electric shock or injury.

Do not wash laundry contaminated by oils, creams or lotions usually found in skincare shops or massage clinics.

- This may result in the rubber seal becoming deformed and water leakage.

Do not leave metal objects such as a safety pin or hair pin, or bleach in the tub for long periods of time.

- This may cause the tub to rust.

- If rust starts appearing on the surface of the tub, apply a cleansing agent (neutral) to the surface and use a sponge to clean it. Never use a metal brush.

Do not use dry cleaning detergent directly and do not wash, rinse, or spin laundry contaminated by dry cleaning detergent.

- This may result in spontaneous combustion or ignition due to the heat of the oxidation of the oil.

Do not use hot water from water cooling/heating devices.

- This may result in problems with the washer.

12_ safety information

YUKON-WIFI-03073U-01_EN_130828.indd Sec2:12YUKON-WIFI-03073U-01_EN_130828.indd Sec2:12 2013-08-28  10:24:112013-08-28  10:24:11

Do not use natural hand-washing soap for the washer.

- If it hardens and accumulates inside the washer, it may result in problems with the product, discolouration, rust or bad odors.

Do not wash large laundry items such as bedding in the washing net.

- Place socks and brassieres into the washing net and wash them with the other laundry.

- Failure to do so may result in injury due to abnormal vibrations.

Do not use hardened detergent.

- If it accumulates inside the washer, it may result in water leakage.

For washing machines with ventilation openings in the base, ensure that the opening is not obstructed by carpet or any other obstacles.

Make sure that the pockets of all clothing to be washed are empty.

- Hard, sharp objects, such as coins, safety pins, nails, screws, or stones can cause extensive damage to the appliance.

Do not wash clothing with large buckles, buttons, or other heavy metal.

The tumble dryer is not to be used if industrial chemicals have been used for cleaning.

Lint must not to be allowed to accumulate around the tumble dryer.

Do Not Dry Unwashed Items In The Tumble Dryer.

Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows ﬁ tted with foam rubber pads should not be dried in the tumble dryer.

Fabric softeners, or similar products, should be used as speciﬁ ed by the fabric softener instructions.

The ﬁ nal part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.

WARNING: Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

That the appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer.

SEVERE WARNING SIGNS FOR CLEANING

WARNING

Do not clean the appliance by spraying water directly onto it. Do not use the strong acid cleaning agent. Do not use benzene, thinner or alcohol to clean the appliance.

- This may result in discolouration, deformation, damage, electric shock or ﬁ re.

Before cleaning or performing maintenance, unplug the appliance from the wall socket.

- Failure to do so may result in electric shock or ﬁ re.

safety information _13

YUKON-WIFI-03073U-01_EN_130828.indd Sec2:13YUKON-WIFI-03073U-01_EN_130828.indd Sec2:13 2013-08-28  10:24:112013-08-28  10:24:11

contents

SETTING UP YOUR WASHING

MACHINE

WASHING A LOAD OF LAUNDRY

SMART CONTROL

16 Checking the parts 17 Meeting installation requirements

17 Electrical supply and grounding 17 Water Supply 18 Drain 18 Flooring 18 Surrounding temperature 18 Alcove or closet installation

18 Installing your washing machine 23 Environment

24 Washing for the ﬁ rst time 24 Basic instructions 25 Using the control panel

28 Child Lock 29 Smart Check 30 Sound off 30 Delay end 30 My cycle 31 Air Wash

32 Using dry course

33 Washing clothes using the cycle selector 34 Washing clothes manually

34 Laundry guidelines 36 Detergent and additives information

36 Which detergent to use 37 Detergent drawer

38 Setting the Smart Control

38 Conﬁ guring the wired/wireless router 38 Check before installation

39 Setting the network (ANDROID) 45 Setting the network (IOS) 50 Connecting to the network using the WPS

settings (for WPS-enabled routers only)

51 Indoor control

51 Quick authentication (recommended) 53 Authentication (if the quick authentication

method fails)

56 Using the mobile app

58 Outdoor control

58 Registering your washer 60 Using the mobile app

14_ contents

YUKON-WIFI-03073U-01_EN_130828.indd 14YUKON-WIFI-03073U-01_EN_130828.indd 14 2013-08-28  10:24:112013-08-28  10:24:11

CLEANING AND MAINTAINING YOUR

WASHING MACHINE

61 Cleaning the exterior 61 Cleaning the interior 61 Cleaning the dispensers 62 Storing your washer 62 Cleaning the debris ﬁ lter 63 Cleaning the door seal/bellow 63 Preserving the top cover and the front frame

TROUBLESHOOTING AND

INFORMATION CODES

CYCLE CHART

APPENDIX

64 Check these points if your washing machine... 66 Information codes

67 Cycle chart

68 Fabric care chart 68 Protecting the environment 69 Speciﬁ cations 70 Open Source Announcement 82 OpenSSL

contents _15

YUKON-WIFI-03073U-01_EN_130828.indd 15YUKON-WIFI-03073U-01_EN_130828.indd 15 2013-08-28  10:24:112013-08-28  10:24:11

setting up your washing machine

Be sure to have your installer follow these instructions closely so that your new washing machine works properly and so that you’re not at risk of injury when doing laundry.

CHECKING THE PARTS

Carefully unpack your washing machine, and make sure you’ve received all of the parts shown below. If your washing machine was damaged during shipping, or if you do not have all of the parts, contact Samsung Customer Service or your Samsung dealer.

Option

Hot water supply

hose

Detergent drawer

Control panel

Door

Tub

Debris ﬁ lter

Drain tube

Filter cover

Option

Spanner Bolt hole covers Water supply hose Hose guide

Cold water supply hose

Drain Hose

Adjustable legs

Plastic Zip Hose Tie Drain Hose

* Bolt hole covers : The number of bolt hole covers depends on the model (3~6 covers).

16_ setting up your washing machine

YUKON-WIFI-03073U-01_EN_130828.indd Sec9:16YUKON-WIFI-03073U-01_EN_130828.indd Sec9:16 2013-08-28  10:24:112013-08-28  10:24:11

MEETING INSTALLATION REQUIREMENTS

Electrical supply and grounding

Never use an extension cord. Use only the power cord that comes with your washing machine.

WARNING

When preparing for installation, ensure that your power supply offers:

• AC 220-240 V / 50 Hz fuse or circuit breaker

• Individual branch circuit serving only your washing machine

Your washing machine must be grounded. If your washing machine malfunctions or breaks down, grounding will reduce the risk of electric shock by providing a path of least resistance for the electric current. Your washing machine comes with a power cord having a three-prong grounding plug for use in a properly installed and grounded outlet.

Never connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.

Improperly connecting the equipment-grounding conductor can result in electric shock. Check with a qualiﬁ ed electrician or serviceman if you are unsure if the washing machine is properly grounded. Do not modify the plug provided with the washing machine. If it does not ﬁ t the outlet, have a proper outlet installed by a qualiﬁ ed electrician.

Water Supply

Your washing machine will ﬁ ll properly when your water pressure is 137 kPa ~ 800 kPa. Water pressure less than 137 kPa may cause water valve failure, not allowing the water valve to shut off completely. Or, it may take the washing machine longer to ﬁ ll than what the controls allow, resulting in your washing machine turning off. (A ﬁ ll-time limit, designed to prevent overﬂ ows/ ﬂ ooding if an internal hose becomes loose, is built into the controls.)

The water taps must be within 120cm of the back of your washing machine for the provided inlet hoses provided to reach your washing machine.

Most plumbing supply stores sell inlet hoses of various lengths up to 305 cm long.

You can reduce the risk of leaks and water damage by:

• Making water taps easily accessible.

• Turning off taps when the washing machine is not in use.

• Periodically checking for leaks at water inlet hose ﬁ ttings.

Before using your washing machine for the ﬁ rst time, check all connections at the water valve and taps for leaks.

WARNING

01 SETTING UP

setting up your washing machine _17

YUKON-WIFI-03073U-01_EN_130828.indd Sec9:17YUKON-WIFI-03073U-01_EN_130828.indd Sec9:17 2013-08-28  10:24:112013-08-28  10:24:11

setting up your washing machine

Drain

Samsung recommends a standpipe height of 46cm. The drain hose must be routed through the drain hose clip to the standpipe. The standpipe must be large enough to accept the outside diameter of the drain hose. The drain hose is attached at the factory.

Flooring

For best performance, your washing machine must be installed on a solidly constructed ﬂ oor. Wood ﬂ oors may need to be reinforced to minimize vibration and/or unbalanced loads. Carpeting and soft tile surfaces are contributing factors to vibrations and the tendency for your washing machine to move slightly during the spin cycle.

Never install your washing machine on a platform or poorly supported structure.

Surrounding temperature

Do not install your washing machine in areas where water may freeze, since your washing machine always retains some water in its water valve, pump, and hose areas. Frozen water in the lines can cause damage to belts, the pump, and other components.

Alcove or closet installation

To operate safely and properly, your new washing machine requires minimum clearances of:

Sides – 25 mm Rear – 150 mm

Top – 432 mm Front – 51 mm

If both the washing machine and a dryer are installed together, the front of the alcove or closet must have at least 465 cm² unobstructed air opening. Your washing machine alone does not require a speciﬁ c air opening.

INSTALLING YOUR WASHING MACHINE

STEP 1

Selecting a location

Before you install the washing machine, make sure the location:

• Has a hard, level surface without carpeting or ﬂ ooring that may obstruct ventilation

• Is away from direct sunlight

• Has adequate ventilation

• Will not be freezing (below 0 ˚C)

• Is away from heat sources such as oil or gas

• Has enough space so that the washing machine doesn’t stand on its power cord

18_ setting up your washing machine

YUKON-WIFI-03073U-01_EN_130828.indd Sec9:18YUKON-WIFI-03073U-01_EN_130828.indd Sec9:18 2013-08-28  10:24:122013-08-28  10:24:12

STEP 2

Removing the shipping bolts

Before installing the washing machine, you must remove all shipping bolts from the back of the unit.

1. Loosen all the bolts with the supplied wrench.

Option

01 SETTING UP

2. Hold the bolt with the spanner and pull it through the wide

Option

section of the hole. Repeat for each bolt.

3. Fill the holes with the supplied plastic covers.

Option

4. Store the shipping bolts away safely in case you have to move the washing machine in the future.

Packaging materials can be dangerous to children; keep all packaging material (plastic bags, polystyrene, etc.) well out of the reach of children.

WARNING

setting up your washing machine _19

YUKON-WIFI-03073U-01_EN_130828.indd Sec9:19YUKON-WIFI-03073U-01_EN_130828.indd Sec9:19 2013-08-28  10:24:122013-08-28  10:24:12

setting up your washing machine

STEP 3

Adjusting the Levelling feet

When installing your washing machine, ensure that the power plug, the water supply and the drain are easily accessible.

1. Slide the washing machine into position.

2. Level your washing machine by turning the levelling feet in

and out as necessary by hand.

3. When your washing machine is level, tighten the nuts using the wrench supplied with your washing machine.

STEP 4

Connecting the water and drain

Connecting the water supply hose

1. Take the L-shaped arm ﬁ tting for the cold water supply hose and connect it to the cold water supply intake on the back of the machine. Tighten by hand.

The water supply hose must be connected to the washing machine at one end and to the water tap at the other. Do not stretch the water supply hose. If the hose is too short, replace the hose with a longer, high pressure hose.

2. Connect the other end of the cold water supply hose to your sink’s cold water tap and tighten it by hand. If necessary, you can reposition the water supply hose at the washing machine end by loosening the ﬁ tting, rotating the hose, and retightening the ﬁ tting.

Option

For selected models with an additional hot water intake:

1. Take the red L-shaped arm ﬁ tting for the hot water supply hose and connect it to the hot water supply intake on the back of the machine. Tighten by hand.

2. Connect the other end of the hot water supply hose to your sink’s hot water tap and tighten it by hand.

3. Use a Y-piece if you only want to use cold water.

20_ setting up your washing machine

YUKON-WIFI-03073U-01_EN_130828.indd Sec9:20YUKON-WIFI-03073U-01_EN_130828.indd Sec9:20 2013-08-28  10:24:122013-08-28  10:24:12

Connecting the water supply hose

1. Remove the adaptor from the water supply hose.

2. First, using a ‘+’ type screwdriver, loosen the four screws

on the adaptor. Next, take the adaptor and turn part (2) following the arrow until there is a 5 mm gap.

3. Connect the adaptor to the water tap by tightening the screws ﬁ rmly while lifting the adaptor upwards. Turn part (2) following the arrow and connect (1) and (2).

01 SETTING UP

Adaptor

Water supply hose

5 mm

4. Connect the water supply hose to the adaptor. When you release part (3), the hose automatically connects to the adaptor making a ‘click’ sound.

After you have connected the water supply hose to the adaptor, ensure that it is connected correctly by pulling the water supply hose downwards.

5. Connect the other end of the water supply hose to the inlet water valve at the rear of the washing machine. Screw the hose clockwise all the way in.

setting up your washing machine _21

Water tap

Option

YUKON-WIFI-03073U-01_EN_130828.indd Sec9:21YUKON-WIFI-03073U-01_EN_130828.indd Sec9:21 2013-08-28  10:24:122013-08-28  10:24:12

setting up your washing machine

6. Turn on the water supply and ensure that no water leaks from the water valve, tap or adaptor. If there is a water leaks, repeat the previous steps.

Do not use your washing machine if there is a water leak. This may cause electric shock or injury.

WARNING

✗

• If the water tap has a screw type tap, connect the water supply hose to the tap as shown.

Use the most conventional type of tap for the water supply. In case the tap is square or too big, remove the spacing ring before inserting the tap into the adaptor.

✗

22_ setting up your washing machine

YUKON-WIFI-03073U-01_EN_130828.indd Sec9:22YUKON-WIFI-03073U-01_EN_130828.indd Sec9:22 2013-08-28  10:24:132013-08-28  10:24:13

Connecting the drain hose

The end of the drain hose can be positioned in three ways:

1. Over the edge of a wash basin: The drain hose must be placed at a height of between 60 and 90 cm. To keep the drain hose spout bent, use the supplied plastic hose guide. Secure the guide to the wall with a hook or to the tap with a piece of string to prevent the drain hose from moving.

Drain hose

60 ~ 90 cm

Hose guide

2. ln a sink drain pipe branch: The drain pipe branch must be above the sink siphon so that the end of the hose is at least 60 cm above the ground.

3. ln a drain pipe: We recommend using a 65 cm high vertical pipe; it must be no shorter than 60 cm and no longer than 90 cm.

STEP 5

Powering your washing machine

Plug the power cord into a wall sockets, an AC 220-240 V / 50 Hz approved electrical outlet protected by a fuse or circuit breaker. (For more information on electrical and grounding requirements, see page 17.)

Test run

Make sure that you install your washing machine correctly by running the Rinse + Spin cycle after the installation is complete.

01 SETTING UP

STEP 6

Calibration Mode

Run calibration mode, when the washing machine is installed for the ﬁ rst time (or you want to calibrate it at any time).

1. Ensure that you have removed laundry or any contents from inside the machine.

2. Press the Power button to turn on the machine, then press and hold the Temp. and Delay End buttons for few seconds. If done correctly, ‘Cb’ will be displayed on the screen.

3. Once “Cb” is displayed on the screen, press the Start/Pause button. The calibration mode

starts.

4. The drum will spin left and right several times. (The calibration mode will take about 4minutes.)

5. When the calibration is ﬁ nished, “END” message displays.

6. If the door is unlocked, the machine turns off automatically.

ENVIRONMENT

Please dispose of the packaging materials for this product in an “environmentally friendly” manner. For further detail, please contact your local area authority.

setting up your washing machine _23

YUKON-WIFI-03073U-01_EN_130828.indd Sec9:23YUKON-WIFI-03073U-01_EN_130828.indd Sec9:23 2013-08-28  10:24:132013-08-28  10:24:13

washing a load of laundry

With your new Samsung washing machine, the hardest part of doing laundry will be deciding which load to wash ﬁ rst.

WASHING FOR THE FIRST TIME

Before washing laundry for the ﬁ rst time, you must run a complete empty cycle (i.e. no laundry).

1. Press the Power button.

2. Add a little detergent to the detergent compartment

the detergent drawer.

3. Turn on the water supply to the washing machine.

4. Press the Start/Pause button.

This will remove any water that might be left over in the machine from the manufacturer’s test run.

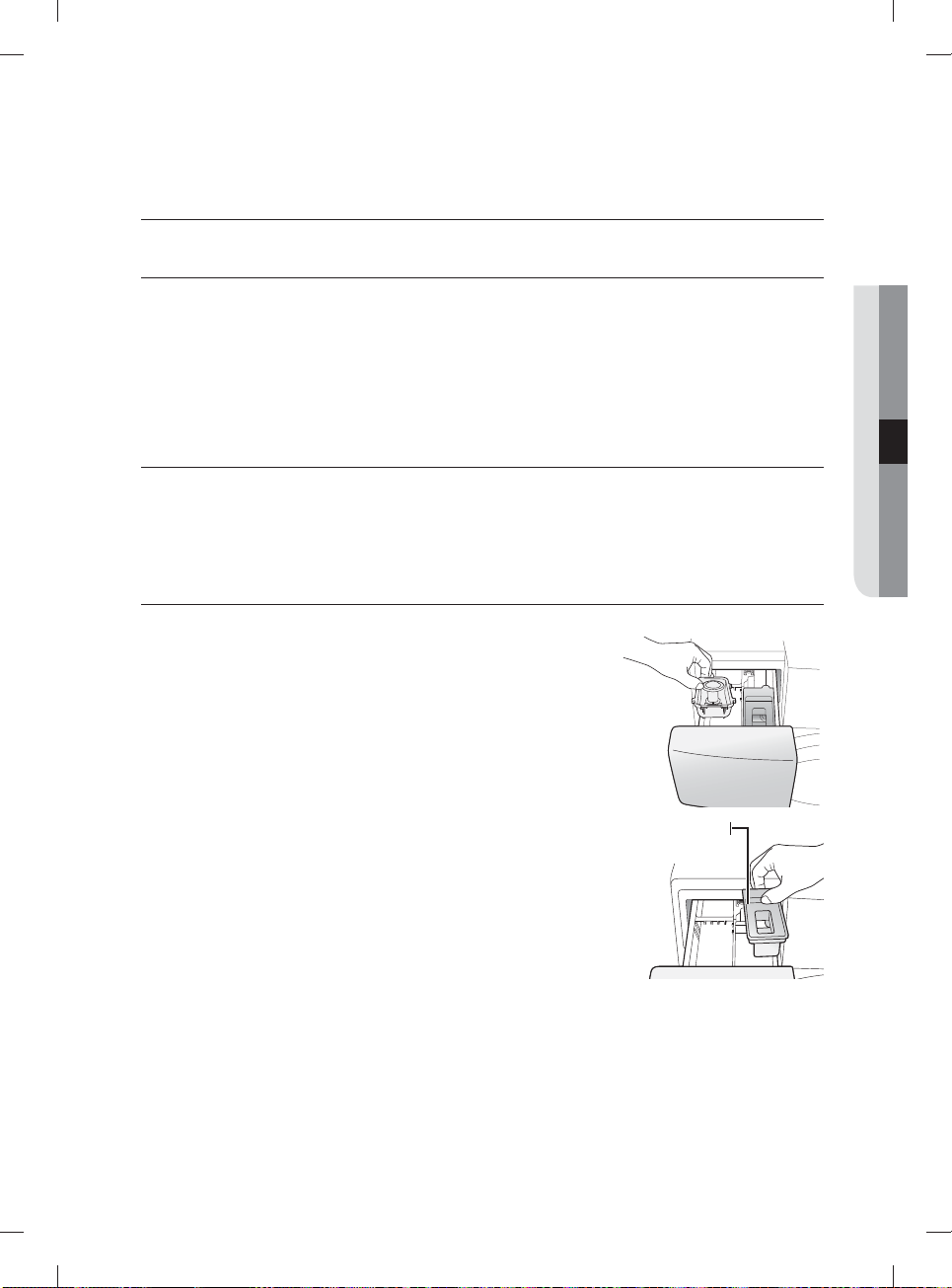

Compartment : Detergent for prewash, or starch. Compartment : Detergent for the main wash, water softener, pre-soaking agent, bleach and

Before using powdered detergent, remove the Liquid Detergent holder from the compartment. Powdered detergent will not dispense from the Liquid Detergent holder.

Compartment

stain removal product.

: Additives, e.g. fabric softener or former (ﬁ ll no higher than lower edge (MAX)

of “A”)

BASIC INSTRUCTIONS

1. Load your laundry into the washing machine. Do not overload the washing machine. To determine the load capacity for each type of

laundry, refer to the chart on page 32.

WARNING

• Make sure that laundry is not caught in the door, as this may cause a water leak.

• Washing detergent may remain in the front rubber part of the washer after a wash cycle.

Remove any remaining detergent, as they may cause a water leak.

• Do not touch the door glass while your washing machine is running or it may be hot.

• Do not open the detergent drawer or the debris ﬁ lter while your washing machine is

running or you might be exposed to hot water or steam.

• Do not wash water-proofed items in normal cycle except outdoor care program.

2. Close the door until it latches.

3. Turn the power on.

4. Add detergent and additives to the dispenser drawer.

5. Select the appropriate cycle and options for the load.

The Wash Indicator light will illuminate and the estimated cycle time will appear in the display.

6. Press the Start/Pause button.

24_ washing a load of laundry

YUKON-WIFI-03073U-01_EN_130828.indd Sec5:24YUKON-WIFI-03073U-01_EN_130828.indd Sec5:24 2013-08-28  10:24:132013-08-28  10:24:13

USING THE CONTROL PANEL

02 WASHING A LOAD OF LAUNDRY

CYCLE SELECTOR

1 654

Select the tumble pattern and spin speed for the cycle.

For detailed information, refer to “Washing clothes using the cycle selector”. (see page 33)

Cotton - For average or lightly soiled cottons, bed linen, table linen, underwear, towels, shirts, etc. Synthetics - For averagely or lightly soiled blouses, shirts, etc., made of polyester (diolen, trevira), polyamide (perlon, nylon) or other similar blends. Bedding - For bulky items such as blankets and sheets. When you are washing comforters, use liquid detergent.

Quick Wash - For lightly soiled garments needed quickly. Water Saving - This is a specially designed course that enables you to

wash laundry with the minimum amount of water. (Water Saving, 40 ˚C, 2 Rinses, 1200 rpm spin is suitable for a normally soiled cotton load. Energy and water labelling test programme in accordance with AS/NZS 2040.) Rinse + Spin - Use for a load that needs rinsing only or to add rinseadded fabric softener to a load.

Power Bubble - For heavily soiled garments. Outdoor Care - Use this cycle to wash exercise wear such as sports

jersey, training pants and shirts/tops. This cycle provides effective soil and sweat stains removal. Baby Care - High temperature wash and extra rinses helps to ensure that virtually no washing powder should remain to mark your thin clothes. Wool - This is the course for lingerie or clothing made from wool. For machine-washable wool.

• The wool course washes the laundry using gentle cradling actions. During the wash, the gentle cradling and soaking actions are continued to protect the wool ﬁ bers from shrinkage / distortion and for a super gentle clean. This stop operation is not a problem.

• Neutral detergent is recommended for wool course, for improved washing results and for improved care of the wool ﬁ bers.

Air Wash - This course is useful for removing bad odors. Turning the Cycle Selector cycles through the following operating modes.

• Deodorization - Helps to reduce bad smells from the laundry

• Sanitization - Deodorize and sanitize the laundry by strong air wash

action with higher temp.

Drying - Select to dry laundry automatically by detecting the amount and weight of the laundry.

7 9

82 3

washing a load of laundry _25

YUKON-WIFI-03073U-01_EN_130828.indd Sec5:25YUKON-WIFI-03073U-01_EN_130828.indd Sec5:25 2013-08-28  10:24:142013-08-28  10:24:14

washing a load of laundry

DIGITAL DISPLAY

SELECT CYCLE

OPTION

TEMPERATURE

BUTTON

RINSE BUTTON

SPIN BUTTON

The large Digital Display is easy to use. It provides instructions and diagnostics while keeping you updated on the cycle status and time remaining.

Smart Control - Smart Control technology enables you to control your washer through personal technology devices such as smart phones. You don’t have to be on standby until the cycle ends. Smart Control allows you to monitor the washing process and lets you know when the cycle is complete. Delay End - Any cycle can be delayed for up to 24 hours in one-hour increments. Displayed hour indicates the time at which the wash will be ﬁ nished. Pre Wash - To use this feature add detergent to the Pre Wash section of the detergent compartment. When turned on, the washer ﬁ lls with cold water and detergent, tumbles, then drains and advances to the selected wash cycle. Some cycles cannot be selected with this option.* * You cannot select the Pre Wash option in the Wool, Outdoor Care and Quick Wash cycles. My Cycle - Press this button when the laundry is heavily soiled and needs to be washed intensively. The cycle time will be increased if the intensive wash is on. Drum Clean - Use for drum cleaning. It helps to clean dirt and bacteria of drum. Regular use (after every 40 washes) is recommended. No detergent or bleach needed.

Sound Off - Press the button to turn on or off the sound. Garment+ - You can add or take out laundry items even after the

wash has started, as long as the “Garment+” light is on. Pushing the Start/Pause button unlocks the door, unless the water is too hot or if there is too much water in your Washer. If you are able to unlock the door and wish to continue the wash cycle, close the door and press the Start/Pause button.

Press this button repeatedly to cycle through the available water temperature options: (Cold Water, 30 ˚C, 40 ˚C, 60 ˚C and 95 ˚C).

Press this button to add additional rinse cycles. The maximum number of rinse cycles is ﬁ ve.

Press the button repeatedly to cycle through the available speeds for the spin cycle. “No spin ” - The laundry remains in the drum and no spin cycle is performed after the ﬁ nal drain.

26_ washing a load of laundry

YUKON-WIFI-03073U-01_EN_130828.indd Sec5:26YUKON-WIFI-03073U-01_EN_130828.indd Sec5:26 2013-08-28  10:24:142013-08-28  10:24:14

DRYING BUTTON

START/PAUSE

BUTTON

Pressing the button cycles through the following options. Cupboard  Iron  Small Load  Low Temp.  Time (30 min.  1:00h  1:30 h  2:00 h  2:30 h)  Cupboard Cupboard - Select to dry laundry automatically by detecting the amount and weight of the laundry. Select this to dry cotton clothing such as cotton trousers, T-shirts, and cotton underwear.

Iron - Finishes the dry cycle in a moist state appropriate for Ironing. Small Load - Select this course to dry a Small Load amount of laundry

(approximately 400g). (3~4 towels, a pair of pants (school uniform) or 2long-sleeve shirts.) Low Temp. - Dry clothing which may become deformed at high temperatures at a Low Temp. (Mixed fabrics and synthetic ﬁ bers such as polyester and nylon.) Time - Dry the laundry for the speciﬁ ed period of time.

• You must avoid washing laundry that may not be dried as it may be deformed even at Low Temp..

• The Normal, Extra, Iron and Light Dry options detect the weight of the laundry in order to display an accurate drying time and dry them more completely.

• The drying conditions may differ depending on the type and the amount of laundry.

Press to pause and restart programs.

02 WASHING A LOAD OF LAUNDRY

POWER BUTTON

Press once to turn your washer on, press again to turn your washer off. If the washer is left on for more than 10 minutes without any buttons being touched, the power automatically turns off.

washing a load of laundry _27

YUKON-WIFI-03073U-01_EN_130828.indd Sec5:27YUKON-WIFI-03073U-01_EN_130828.indd Sec5:27 2013-08-28  10:24:142013-08-28  10:24:14

washing a load of laundry

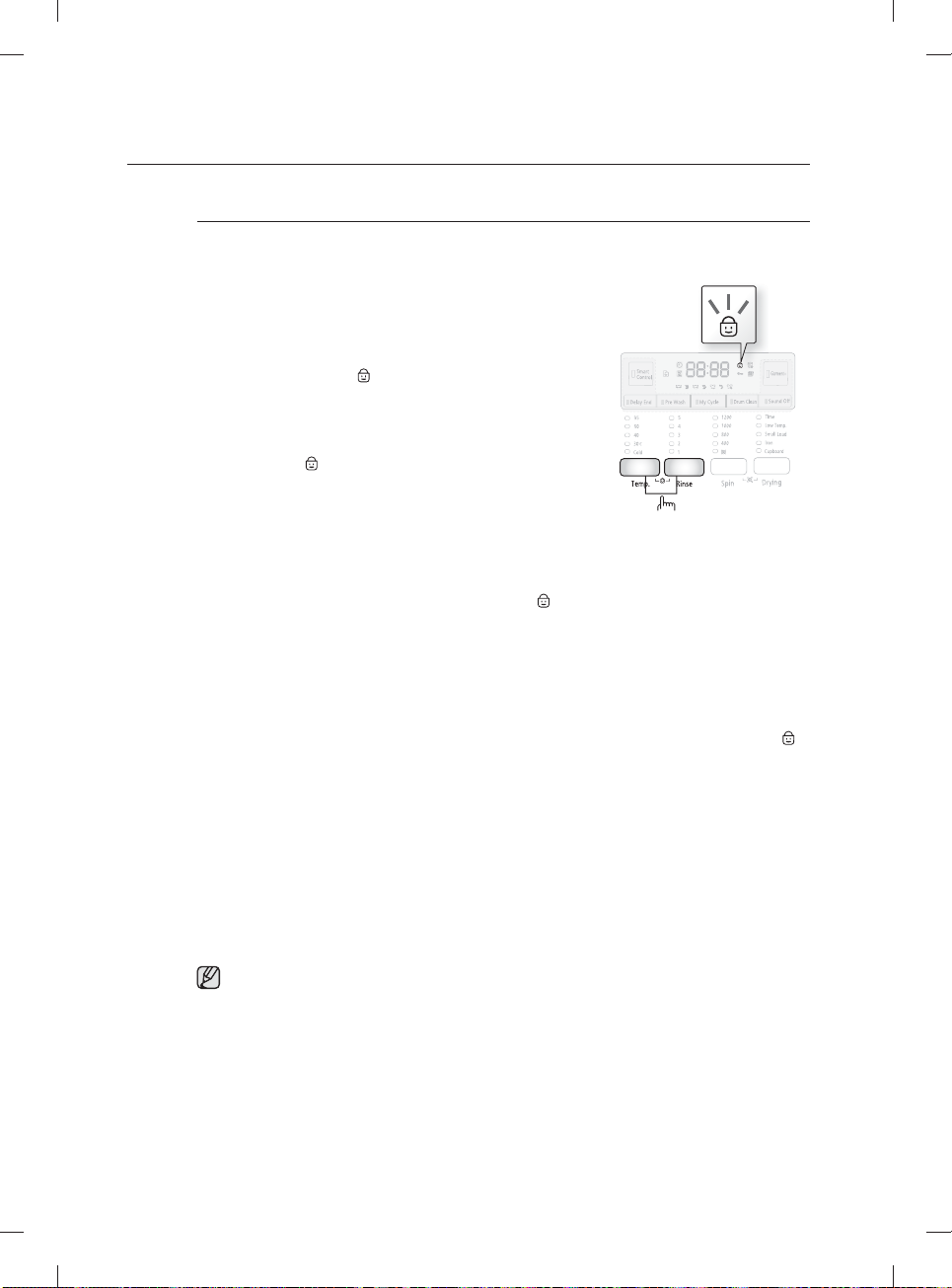

Child Lock

Child Lock prevents children from playing with your washer. Once you have activated the Child Lock function, the control panel cannot be activated, preventing children from playing with the washer.

Activating/Deactivating

Press and hold both the Temp. and Rinse buttons simultaneously for approximately 3 seconds.

• When you activate the Child Lock function, the door locks and the “Child Lock [ ]” lamp illuminates.

• If you press the Start/Pause button after you have activated the Child Lock function, none of the buttons will work except for the Power button.

• If you press a button when the buttons are locked, the “Child Lock [ ]” lamp blinks.

Pausing the Child Lock function

When the door is locked or the buttons are locked by the Child Lock function, you can pause the Child Lock operation for 1 minute by pressing and holding both the Spin and Drying buttons simultaneously for approximately 3 seconds.

• If you pause the Child Lock mode temporarily, the door lock is released for 1 minute for user convenience. During this period, the “Child Lock [ ]” lamp blinks.

• If you open the door after the minute is over, an alarm sounds for up to 2 minutes.

• If you close the door within the 2 minutes, the door is locked and the Child Lock function is

reactivated. If you close the door after the 2 minutes, the door is not locked automatically and no alarm sounds.

Deactivating the Child Lock function

Press and hold both the Temp. and Rinse buttons simultaneously for approximately 6 seconds.

• When you deactivate the Child Lock function, the door is unlocked and the “Child Lock [ ]”

is turned off.

• The Child Lock function prevents children or the inﬁ rm from accidently operating the washer and injuring themselves.

• If a child enters the washing machine, the child may become trapped and suffocate.

• Once you have activated the Child Lock function, it continues working even if the power is

turned off.

• Opening the door by force can result in injury due to damage to the product.

To add laundry after you have activated the Child Lock function, you must ﬁ rst pause or deactivate the Child Lock function. If you want to open the door of the washing machine when the Child Lock function is activated:

• Pause or deactivate the Child Lock function.

• Turn the washing machine off and then on again.

When the Child Lock function is activated, only the Power button works. The Child Lock function remains on even after the power is turned on and off or after the disconnecting and reconnecting the power cord.

3 SEC.

28_ washing a load of laundry

YUKON-WIFI-03073U-01_EN_130828.indd Sec5:28YUKON-WIFI-03073U-01_EN_130828.indd Sec5:28 2013-08-28  10:24:152013-08-28  10:24:15

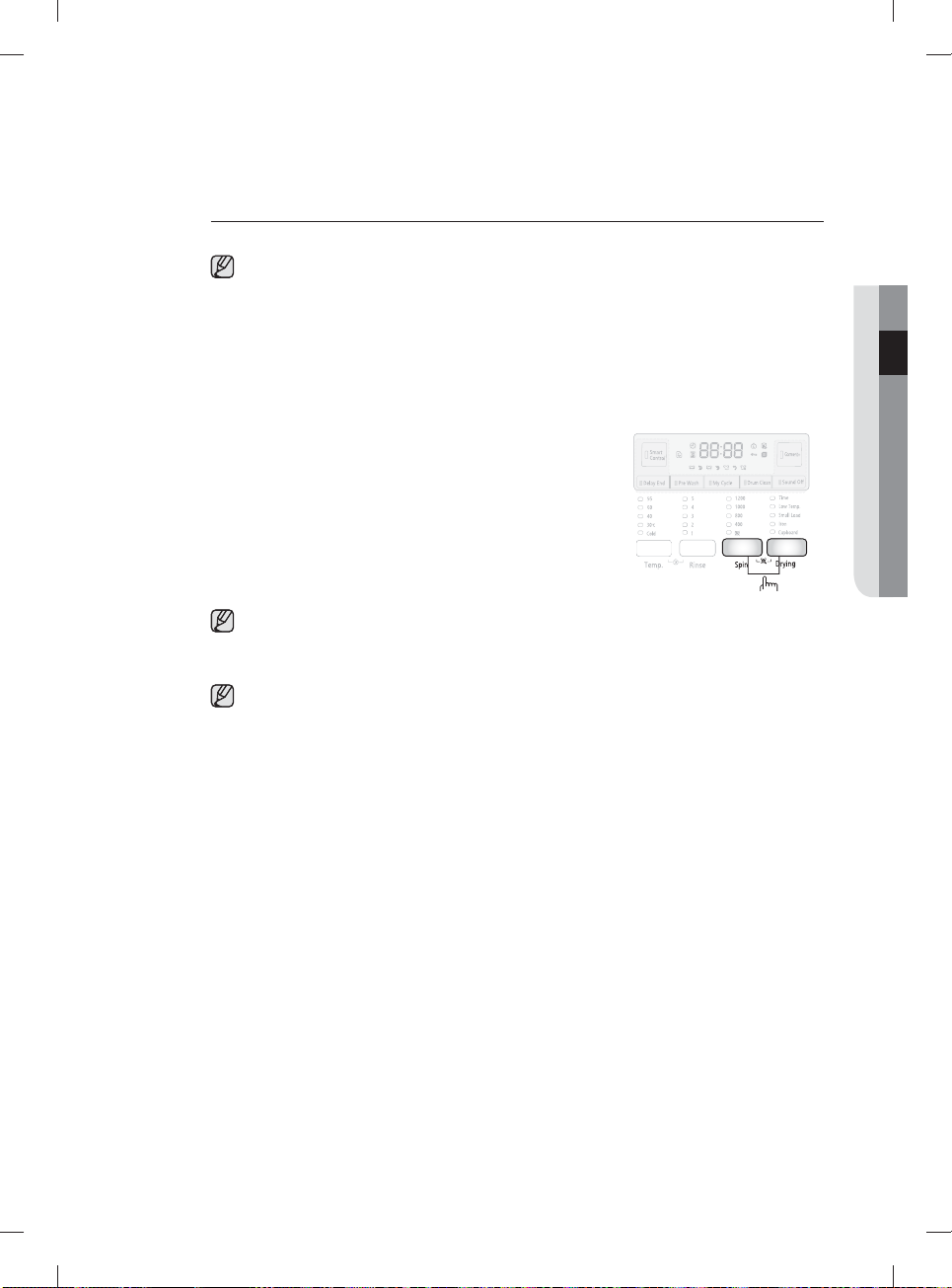

Smart Check

This function enables you to check the status of the washing machine using a smartphone.

The Smart Check function has been optimized for: Galaxy S and Galaxy S2 iPhone 4 and iPhone 4S

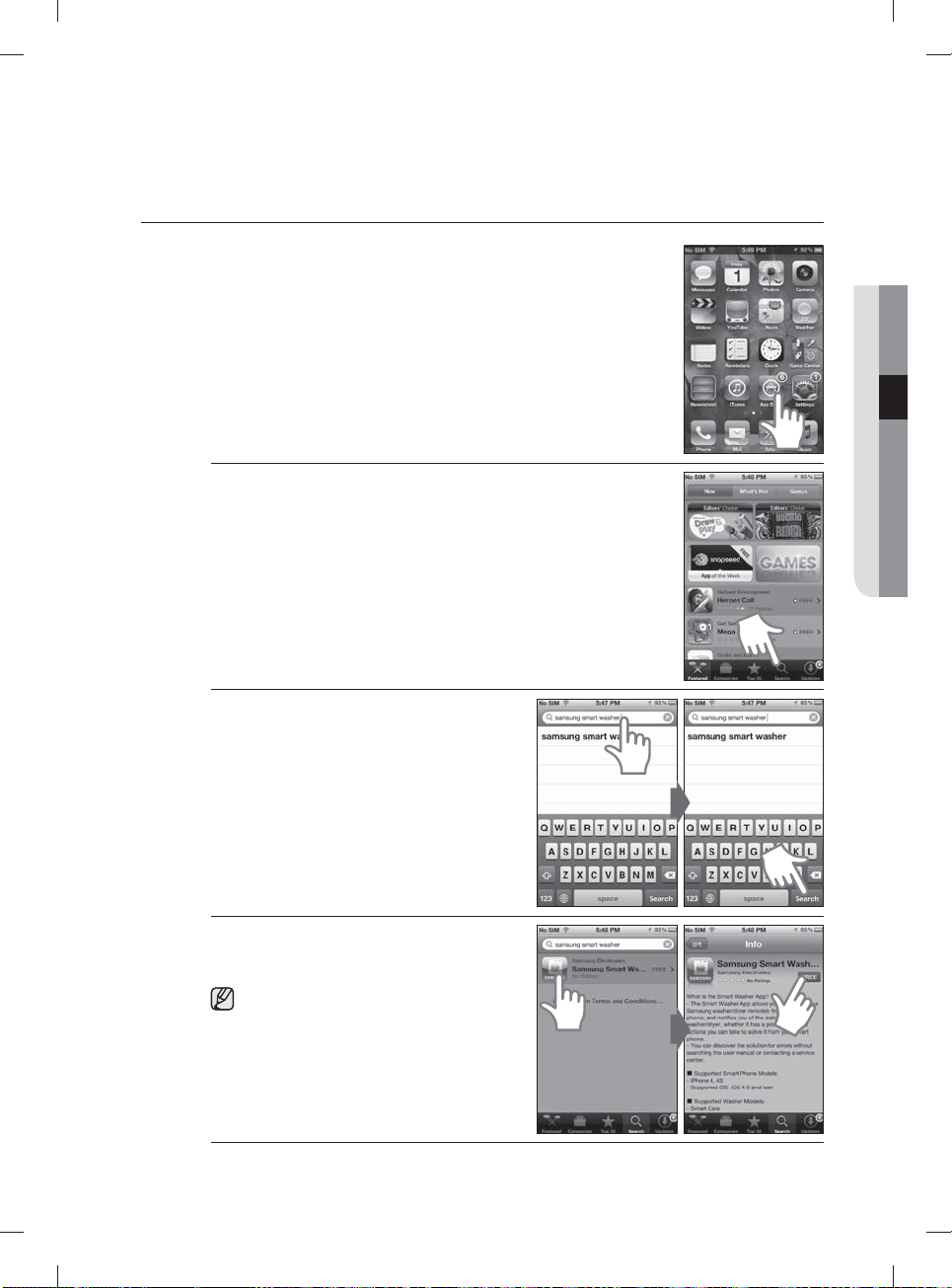

Downloading the Samsung Smart Washer app

Download the Samsung Smart Washer app to your mobile phone from the Android market (Play store) or Apple App store and install it. You can easily ﬁ nd it by searching for

“Samsung Smart Washer”.

Using the Smart Check function

1. Hold down the Spin and Drying buttons at the same time for 3 seconds when an error occurs to run the Smart Check function. Alternatively, the Smart Check function can be run if no button is pressed after the washing machine is turned on.

2. The LED segments on the display panel rotate for 2 or 3 seconds and the Smart Check code is displayed on the washing machine’s display panel.

3. Run the Samsung Smart Washer app on your smart phone and tap the Smart Check button.

‘Smart Check’ may be changed to ‘Smart Care’ according to the language selection.

4. Focus your smart phone’s camera on the Smart Check code displayed on the washing machine’s display panel.

• If light from a light bulb, ﬂ uorescent bulb or lamp is reﬂ ected on the display panel of the washing machine, the smart phone may not be able to easily recognize the Smart Check code.

• If you hold the smart phone at a too wide angle relative to the front of the display panel, it may not be able to recognize the error code. For best results, hold the smart phone so that the front of the display panel and the smart phone are parallel or nearly parallel.

5. If it focuses correctly, the Smart Check code is automatically recognized, and the detailed information of the status of your washing machine, the error and the countermeasures are displayed on your smart phone.

6. If the smart phone fails to recognize the Smart Check code more than twice, please enter the Smart Check code displayed on your washing machine’s display panel into the Samsung Smart Washer app manually.

3 SEC.

02 WASHING A LOAD OF LAUNDRY

washing a load of laundry _29

YUKON-WIFI-03073U-01_EN_130828.indd Sec5:29YUKON-WIFI-03073U-01_EN_130828.indd Sec5:29 2013-08-28  10:24:162013-08-28  10:24:16

washing a load of laundry

Sound off

The Sound Off function can be selected during all courses. When this function is selected, sound is turned off for all courses. Even if the power is turned on and off repeatedly, the setting is retained.

Activating/Deactivating

If you want to activate or deactivate the Sound Off function. The “Sound Off” will be lit when this feature is activated.

Delay end

You can set the washing machine to ﬁ nish your wash automatically at a later time, choosing a delay of max 24 hours (in 1 hour increments). The hour displayed indicates the time at which the wash will be ﬁ nished

1. Manually or automatically set your washing machine according to the type of laundry you are washing.

2. Press the Delay End button repeatedly until the delay time is set.

3. Press the Start/Pause button. The “Delay End ” indicator will be lit, and the clock will begin

counting down until it reaches the set time.

4. To cancel a Delay End function, press the Power button and then turn the washing machine on again.

My cycle

Allows you to activate your custom wash (temperature, spin, soil level, etc.) with one button convenience. By pushing the My Cycle button, you activate the settings used during the My Cycle mode. The “My Cycle” light goes on, indicating activation. You can select all options as follows in “My Cycle” mode.

1. Select the cycle using the Cycle Selector dial.

2. After cycle selection, set each option.

See the “cycle chart” on page 67 for available option settings with each cycle.

3. Start “My Cycle” by pushing the Start/Pause button in “My Cycle” mode.

The washer will display the cycle and options you selected the next time you choose “My Cycle”. You can change the “My Cycle” settings by repeating the same process above. The washer displays the last settings used the next time you choose “My Cycle”.

• When you hold down the My Cycle button for 3 seconds or longer, the My Cycle Save mode is activated, and the My Cycle Save alarm beeps.

• When you press and release the My Cycle button for less than 3 seconds, the My Cycle Load mode is activated, and the My Cycle Load alarm beeps.

• When the My Cycle Save mode is activated, the indicators of the selected cycle and functions will blink for 3 seconds. If you change the cycle or any functions while the indicators are blinking, the blinking stops and the indicators light up.

30_ washing a load of laundry

YUKON-WIFI-03073U-01_EN_130828.indd Sec5:30YUKON-WIFI-03073U-01_EN_130828.indd Sec5:30 2013-08-28  10:24:162013-08-28  10:24:16

Air Wash

Air Wash can refresh laundry without using water owing to its powerful airing system. Clothing that can be refreshed includes woolen coats, cotton jumpers, sweaters and suits. [Two items or less (less than 1 kg)]

1. Open the door, place the laundry into the washing machine and close the door.

2. Press the Power button.

3. Select Air Wash by turning the Cycle Selector.

MODE CYCLE TIME

Deodorization 26 min

Sanitization 35 min

• When one of these options has been selected, no other button can be selected and you can only select the delay end time from between 24:00.

4. Close the door and press the Start/Pause button.

• When there is water in the tub, Air Wash cannot be worked. Drain the water and select Air Wash.

• Press the Start/Pause or Power button to remove the laundry.

• Fragrance or dryer sheets can be used with Air Wash programs to add fragrance to your refreshed laundry (one sheet per one or two items).

Avoid Air Wash the following clothes:

• Sensitive clothes made of leather, mink, fur, silk, etc.

• Underwear trimmed with lace, ‘glued’ doll cushions, and dress suits may have their Vdecorations loosened.

• Clothes trimmed with buttons can cause them to break.

• Starchy clothes can become deformed.

• Hard bedding such as a wooden pillows (neck-rest)

- Pillows or blankets ﬁ lled with plastic or starch rather than cotton

- Electric blankets

• Furry blankets

• Bulky blankets

• Latex pillow

02 WASHING A LOAD OF LAUNDRY

washing a load of laundry _31

YUKON-WIFI-03073U-01_EN_130828.indd Sec5:31YUKON-WIFI-03073U-01_EN_130828.indd Sec5:31 2013-08-28  10:24:162013-08-28  10:24:16

washing a load of laundry

USING DRY COURSE

Refer to the label of drying capacity and be sure to put in the clothes to the lower level than the marked line for the dried clothes of 7.0kg.

1. Open the door, put in the clothes and close the door again.

2. Press the Power button and then press the Drying button.

: The standard course will be selected automatically. Drying is not available for Drum Clean, Outdoor Care, Wool, Bedding and Air Wash courses.

3. Select Drying button as follows.

Drying Programs

• Every press of this button will select drying type repeatedly in the following order: Cupboard  Iron  Small Load  Low Temp.  Time (30 min.  1:00 h  1:30 h  2:00 h  2:30 h)  Cupboard

Drying Type Information

Auto Drying

Time Drying

Cupboard Standard: Dries the laundry.

Iron For leaving items partially damp

Low Temp. Dries the laundry at a Low Temp.

Small Load Dries 3~4 towels or 2 shirts.

Time You can select the appropriate

so that it can be easily ironed.

to protect the texture of the laundry.

drying time depending on the texture, quantity, and moisture.

Max Load

Time (Max Load)

7.0 kg 340 min 30 min

7.0 kg 170 min 30 min

5.0 kg 300 min 30 min

0.4 kg 40 min 30 min

30/60/90/

120/150 min

• It automatically displays Drying Time by sensing the weight of clothes before drying for increasing the drying effect.

• For any loads of laundry, you can use the Auto Dry function. If you ﬁ nd that the laundry is not completely dried, use the Time Dry function additionally.

• If both the spin and drying cycles are selected, the spin speed is automatically selected to enhance the drying efﬁ ciency.

• When using the drying cycle, check if the water supply valve is opened.

• Soft Keep function is to prevent laundry from being wrinkled when the laundry is not immediately removed after drying.

• While the Soft Keep function is running, “END” is displayed waiting for you remove the laundry.

4. Press Start/Pause button. : It automatically performs an optimal function from washing to drying.

• The selected course can’t be altered after the start of drying.

• If cold water is not supplied, drying will not be performed.

• If you select Dry only, Spin is automatically selected as well to improve the drying performance (Cupboard only) If you don’t want the Spin operation, please manually unselect Spin by pressing the Spin button.

Time (Soft Keep)

30 min

32_ washing a load of laundry

YUKON-WIFI-03073U-01_EN_130828.indd Sec5:32YUKON-WIFI-03073U-01_EN_130828.indd Sec5:32 2013-08-28  10:24:172013-08-28  10:24:17

Washing clothes using the cycle selector

Your new washing machine makes washing clothes easy, using Samsung’s “Fuzzy Control” automatic control system. When you select a wash program, the machine will set the correct temperature, washing time, and washing speed.

1. Turn on your sink’s water tap.

2. Press the Power button.

3. Open the door.

4. Load the articles of clothing one at a time loosely into the drum, without overﬁ lling it.

5. Close the door.

6. Add detergent, softener, and pre-wash detergent (if necessary) into the appropriate

compartments.

Pre-wash is only available when selecting the Baby Care, Power Bubble, Cotton, Synthetics, Water Saving cycles. It is only necessary if your clothing is heavily soiled.

7. Use the Cycle Selector to select the appropriate cycle according to the type of material: Cotton, Synthetics, Bedding, Quick Wash, Power Bubble, Baby Care and Wool. The relevant indicators will illuminate on the control panel.

8. At this time, you can control the wash temperature, the number of rinse cycles, the spinning speed, and the delay time by pressing the appropriate option button.

9. Press the Start/Pause button on the Cycle Selector and the wash will begin. The process indicator will light up and the remaining time for the cycle will appear in the display.

Pause Option

1. Within 5 minutes of starting a wash, it is possible to add/remove laundry items to the wash.

2. Press the Start/Pause button to unlock the door.

3. The door cannot be opened when the water is too HOT or the water level is too HIGH.

4. After closing the door, press the Start/Pause button to restart the wash.

When the cycle is ﬁ nished:

After the total cycle has ﬁ nished, the power will turn off automatically.

1. Open the door.

2. Remove laundry.

02 WASHING A LOAD OF LAUNDRY

washing a load of laundry _33

YUKON-WIFI-03073U-01_EN_130828.indd Sec5:33YUKON-WIFI-03073U-01_EN_130828.indd Sec5:33 2013-08-28  10:24:172013-08-28  10:24:17

washing a load of laundry

Washing clothes manually

You can wash clothes manually without using the Cycle Selector.

1. Turn the water supply on.

2. Press the Power button on the washing machine.

3. Open the door.

4. Load the articles loosely into the drum one at a time, without overﬁ lling it.

5. Close the door.

6. Add detergent and, if necessary, softener or prewash detergent, into the appropriate

compartments.

7. Press the Temp. button to select the temperature. (Cold water, 30 ˚C, 40 ˚C, 60 ˚C, 95 ˚C)

8. Press the Rinse button to select the required number of rinse cycles.

The maximum number of rinse cycles is ﬁ ve. The wash duration is increased accordingly.

9. Press the Spin button to select the spin speed.( : No Spin)

10. Press the Delay End button repeatedly to cycle through the available Delay End options

(from 1 hour to 24 hours in one hour increments). The hour displayed indicates the time at which the wash will be ﬁ nished.

11. Press the Start/Pause button and the machine will begin the cycle.

LAUNDRY GUIDELINES

Follow these simple guidelines for the cleanest laundry and the most efﬁ cient wash.

Always check the Care label on clothing before washing.

Sort and wash your laundry according to the following criteria:

• Care Label: Sort laundry into cottons, mixed ﬁ bres, synthetics, silks, wools and rayons.

• Colour: Divide whites and colours. Wash new colour items separately.

• Size: Placing items of different sizes in the same load will improve the wash action.

• Sensitivity: Wash delicate items separately, using the Delicate wash cycle for pure, new

woollen items, curtains and silk articles. Check the labels on the items you are washing or refer to the fabric care chart in the appendix.

Emptying pockets

Before each wash, empty all the pockets of your laundry. Small Load, irregularly shaped hard objects, such as coins, knives, pins, and paperclips could damage your washing machine. Do not wash clothing with large buckles, buttons, or other heavy metal objects. Metal on clothing may damage your clothing as well as the tub. Turn clothing with buttons and embroidered clothes inside out before washing them. If zips of pants and jackets are open while washing, the spin basket may be damaged. Zips should be closed and ﬁ xed with a string before washing. Clothing with long strings may become entangled with other clothes damaging them. Be sure to ﬁ x the strings before starting the wash.

Prewashing cotton

Your new washing machine, combined with modern detergents, will give perfect washing results, thus saving energy, time, water and detergent. However, if your cotton is particularly dirty, prewash with a protein-based detergent.

34_ washing a load of laundry

YUKON-WIFI-03073U-01_EN_130828.indd Sec5:34YUKON-WIFI-03073U-01_EN_130828.indd Sec5:34 2013-08-28  10:24:172013-08-28  10:24:17

Determining the load capacity

Do not overload the washing machine or your laundry may not wash properly. Use the chart below to determine the load capacity for the type of laundry you are washing.

Fabric Type Load Capacity

Model

WD10F7S7SRP

Wool 3.0 kg

Baby Care 10.0 kg

Outdoor Care 3.0 kg

Power Bubble 10.0 kg

Cotton 10.0 kg

Synthetics 10.0 kg

Bedding 4.0 kg

Quick Wash 5.0 kg

Water Saving 10.0 kg

• When the laundry is unbalanced (“UE” lights up on the display), redistribute the load. If the laundry is unbalanced, the spin efﬁ ciency may be degraded.

• When washing Bedding or Duvet cover, the wash time may be lengthened or the spin efﬁ ciency may be degraded.

Make sure to insert brassieres (water washable) into a laundry net (to be purchased additionally).

• The metal parts of the brassieres may break through the material and damage the laundry. Therefore make sure to place them inside a ﬁ ne laundry net.

• Small Load, light clothing such as socks, gloves, stockings and handkerchiefs may become caught around the door. Place them inside a ﬁ ne laundry net.

Do not wash the laundry net by itself without other laundry. This may cause abnormal

vibrations that could move the washing machine and cause an accident resulting in

CAUTION

injury.

02 WASHING A LOAD OF LAUNDRY

washing a load of laundry _35

YUKON-WIFI-03073U-01_EN_130828.indd Sec5:35YUKON-WIFI-03073U-01_EN_130828.indd Sec5:35 2013-08-28  10:24:172013-08-28  10:24:17

washing a load of laundry

DETERGENT AND ADDITIVES INFORMATION

Which detergent to use

The type of detergent you should use is based on the type of fabric (cotton, synthetic, delicate items, wool), colour, wash temperature, and degree of soiling. Always use “low suds” laundry detergent, which is designed for automatic washing machines. Follow the detergent manufacturer’s recommendations based on the weight of the laundry, the degree of soiling, and the hardness of the water in your area. If you do not know how hard your water is, enquire at your local water authority.

Do not use detergent that has hardended or solidiﬁ ed as the detergent may remain in the rinse cycle. It may cause your washing machine to not rinse properly or result in the overﬂ ow becoming blocked.

Powdered detergent should be thoroughly dissolved in a small amount of warm water before adding to the machine.

Please note the following when using the Wool course.

• Use a neutral liquid detergent for wool only.

• When using a powder detergent, it may remain on the laundry and cause damage to the material (wool).

36_ washing a load of laundry

YUKON-WIFI-03073U-01_EN_130828.indd Sec5:36YUKON-WIFI-03073U-01_EN_130828.indd Sec5:36 2013-08-28  10:24:172013-08-28  10:24:17

Detergent drawer

Your washing machine has separate compartments for dispensing detergent and fabric softener. Add all laundry additives to the correct compartment before starting your washing machine.

Do not open the detergent drawer while your washing machine is running or you might be exposed to hot water or steam.

1. Pull out the detergent drawer on the left side of the control panel.

2. Add the recommended amount of laundry detergent directly into the detergent compartment your washing machine.

3. Add the recommended amount of fabric softener into the softener compartment MAX FILL ( ) line.

4. When using the Prewash option, add the recommended amount of laundry detergent into the prewash compartment .

When washing large items do NOT use the following detergetnt types.

• Tablet and capsule type detergents

• Detergents using a ball and net Concentrated or thick fabric softener, conditioner and liquid detergent must be diluted with

a little water before being poured into the dispenser (prevents the overﬂ ow from becoming blocked).

if required. DO NOT exceed the

before starting

02 WASHING A LOAD OF LAUNDRY

washing a load of laundry _37

YUKON-WIFI-03073U-01_EN_130828.indd Sec5:37YUKON-WIFI-03073U-01_EN_130828.indd Sec5:37 2013-08-28  10:24:172013-08-28  10:24:17

smart control

SETTING THE SMART CONTROL

Connect a wired/wireless router and the washer through a wireless connection, connect to www. samsungsmartappliance.com and register the washer to the Smart Control service.

This product does not contain a wireless router.

Conﬁ guring the wired/wireless router

• This product supports DHCP (Dynamic Host Conﬁ guration Protocol). Therefore, if a user wants to use an existing wired/wireless router, the router’s DHCP server function must be enabled.

• Set the channel for the connection with the wired/wireless router to a channel that is not being used.

• This washer only supports OPEN, WPA/TKIP and WPA2/AES modes. If the wireless router is set to a mode other than these three modes, the washer may not connect to it. We recommend that you use WPA2/AES for 802.11n.

• The quality of the wireless network may be affected by the surrounding environment.

• If your Internet service provider has registered and ﬁ xed the MAC address (unique

identiﬁ cation number of a device) of the user’s PC or modem, you may not be able to connect the washer to the Internet. Please ask your Internet service provider about the procedures to connect a device (e.g. washer) other than a computer to the Internet. If your Internet service provider requires an ID and password to connect to the Internet, you may not be able to connect the washer to the Internet. In this case, you have to enter the ID and password to connect to the Internet.

You may not be able to connect to the Internet due to a ﬁ rewall. In this case, ask your

Internet service provider for assistance.If you cannot connect the washer to the Internet even after contacting your Internet service provider, please contact a Samsung Electronics dealer or service center.

Check before installation

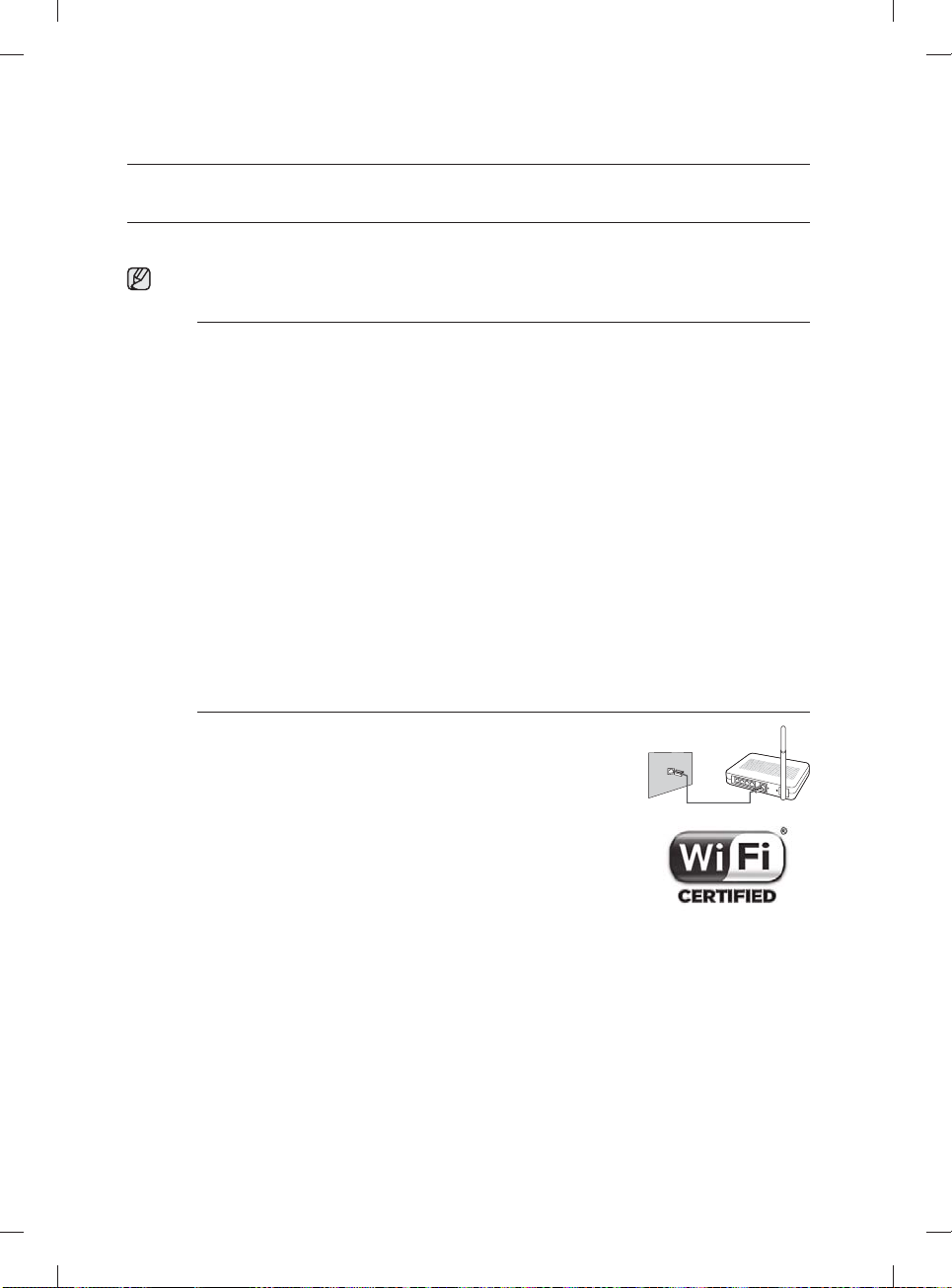

• For the procedures to install a normal wired/wireless router, refer to the user manual of the corresponding wired/wireless router.

• Samsung washers only support Wi-Fi 2.4Ghz.

• The Samsung washer supports the wireless communication

standard IEEE802.11 b/g/n (2.4 GHz).

• A certiﬁ ed wireless router has the Wi-Fi CERTIFIED logo on its packaging or user manual.

38_ smart control

YUKON-WIFI-03073U-01_EN_130828.indd 38YUKON-WIFI-03073U-01_EN_130828.indd 38 2013-08-28  10:24:182013-08-28  10:24:18

SETTING THE NETWORK (ANDROID)

1. Touch and bring up the applications menu on your phone. Then ﬁ nd

and open the “Play Store” icon.

2. Once the “Play Store” has been open, do a search.

3. Once the search box appears type in

“Samsung Smart Washer”.

03 SMART CONTROL

smart control _39

YUKON-WIFI-03073U-01_EN_130828.indd 39YUKON-WIFI-03073U-01_EN_130828.indd 39 2013-08-28  10:24:182013-08-28  10:24:18

smart control

4. Once the search is complete the App “Samsung Smart Washer” will be displayed. You need to download this App to your phone.

Make sure the app changes from “Free” to “Installed”

5. Once the phone app has been downloaded to your phone, you are now ready to set up the washer Wi-Fi control.

6. Press the “Settings” icon. Once the settings menu appears press the wireless and network section.

40_ smart control

YUKON-WIFI-03073U-01_EN_130828.indd 40YUKON-WIFI-03073U-01_EN_130828.indd 40 2013-08-28  10:24:182013-08-28  10:24:18

7. After selecting the wireless and network select

Wi-Fi setting. Then turn on the Wi-Fi.

8. Once the list of available networks appears,

select the network to be used and enter the password if necessary.

9. Once you are connected to the selected

network go back to the applications screen on your mobile phone. Once you are in the phones application screen touch the Samsung icon “Samsung Smart Washer” that was downloaded at the beginning of this process.

03 SMART CONTROL

smart control _41

YUKON-WIFI-03073U-01_EN_130828.indd 41YUKON-WIFI-03073U-01_EN_130828.indd 41 2013-08-28  10:24:182013-08-28  10:24:18

smart control

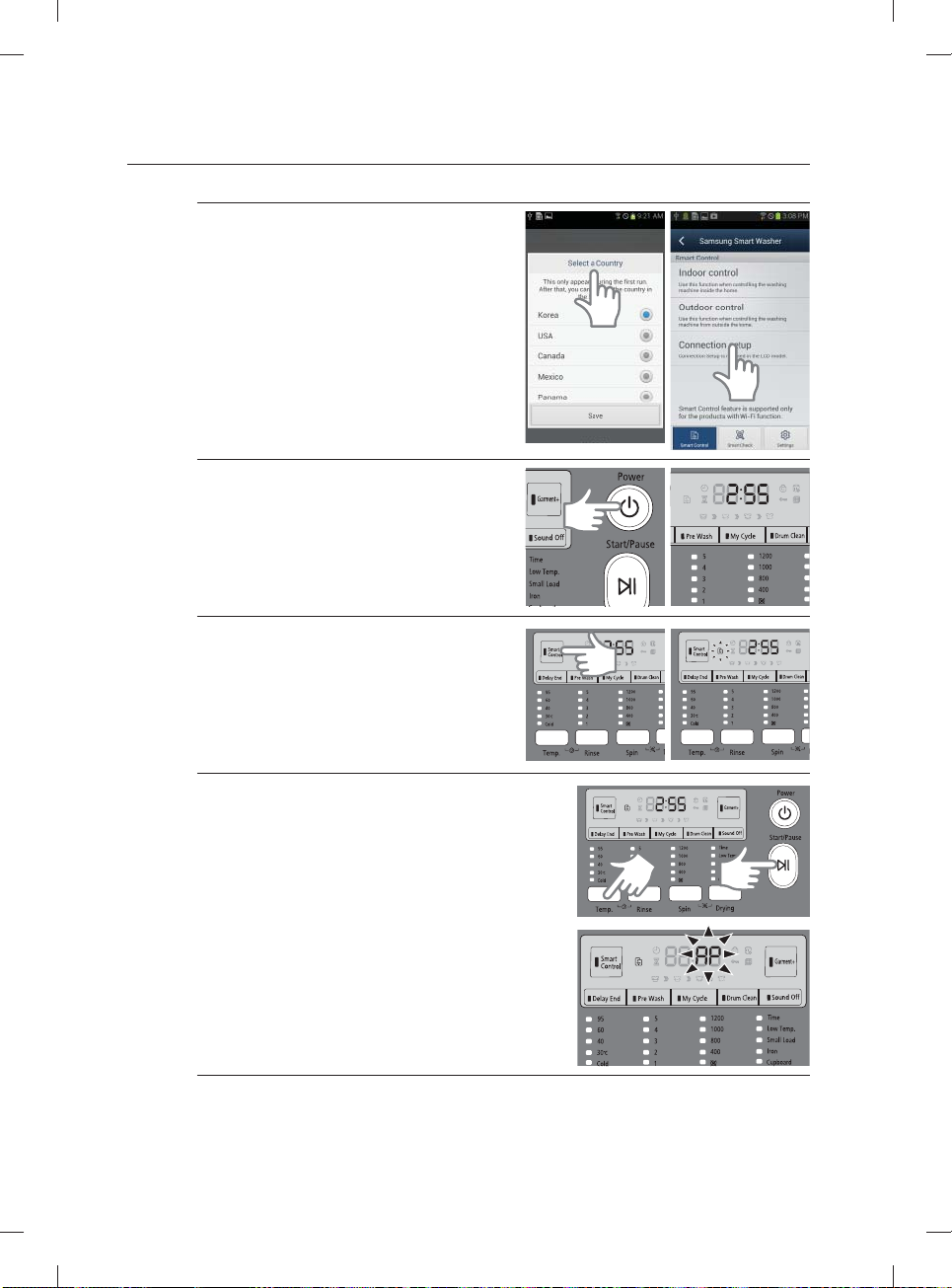

10. After opening the Samsung app, select “Select a Country” and then “Connection setup”.

11. You need to ﬁ rst press the Power button to activate the your machine. You can activate the machine to any wash cycle.

12. Simultaneously hold down the Smart Control + Delay End buttons for 5 seconds. The ‘Wi-Fi’ indicator blinks for approximately 60 ~ 90 seconds. After the indicator stops blinking, proceed to the next step.

13. After you activate the machine, press the Temp. + Start/Pause buttons simultaneously

for 5 seconds. Then the “AP” menu appears on the LED screen.

42_ smart control

YUKON-WIFI-03073U-01_EN_130828.indd 42YUKON-WIFI-03073U-01_EN_130828.indd 42 2013-08-28  10:24:182013-08-28  10:24:18

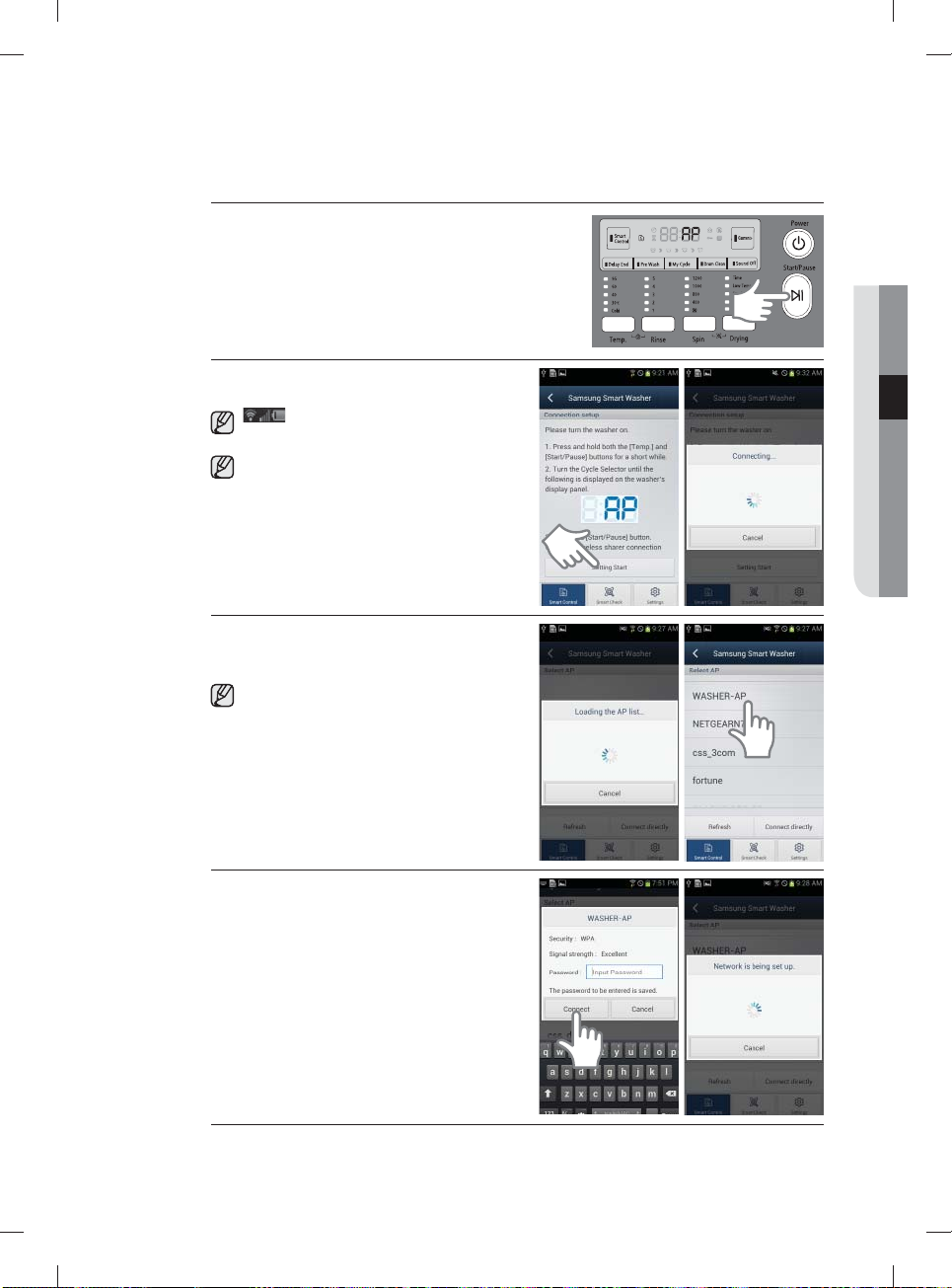

14. After the AP menu appears on the LED screen, press the Start/Pause button. Once the Start/Pause button is pressed the “AP” displayed on the LED screen should start to blink. If the you press the Start/Pause and the “AP” doesn’t blink try again after a moment.

15. Once the mobile app is open select the “Setting Start” key.

The Wi-Fi indicator will blink on & off

on the phone several times.

If the “FAP” code appears on the display panel, press the

Start/Pause button and

restart from Step 14.

16. Once the unit starts connecting the phone will load the AP list. When the AP list is loaded you need to select the network.

Please make sure the app and smart phone are connected to the same network/wireless AP.

03 SMART CONTROL

17. After selecting the network you need to enter your password. Once you enter your password select “Connect”. The unit start setting up the network. This process delivers the connection information of the “AP” that is connected to the mobile phone to the product.

smart control _43

YUKON-WIFI-03073U-01_EN_130828.indd 43YUKON-WIFI-03073U-01_EN_130828.indd 43 2013-08-28  10:24:192013-08-28  10:24:19

smart control

18. The ‘oAP’ code appears on the display

panel of the washing machine and the “Transfer complete” message appears on the mobile app. The phone is now connected to the machine through the network.

If the “FAP” code appears on the display panel, press the Start/Pause button and restart from Step 14.

19. After the phone is connected to the machine, press the Temp. + Start/Pause buttons simultaneously for 5 seconds. Then the original wash cycle will be displayed on the LED screen.

20. After the wash cycle has been displayed wait approximately 1 minute. You will then see the Smart Control icon start to blink.

When done, go to page 51.

44_ smart control

YUKON-WIFI-03073U-01_EN_130828.indd 44YUKON-WIFI-03073U-01_EN_130828.indd 44 2013-08-28  10:24:192013-08-28  10:24:19

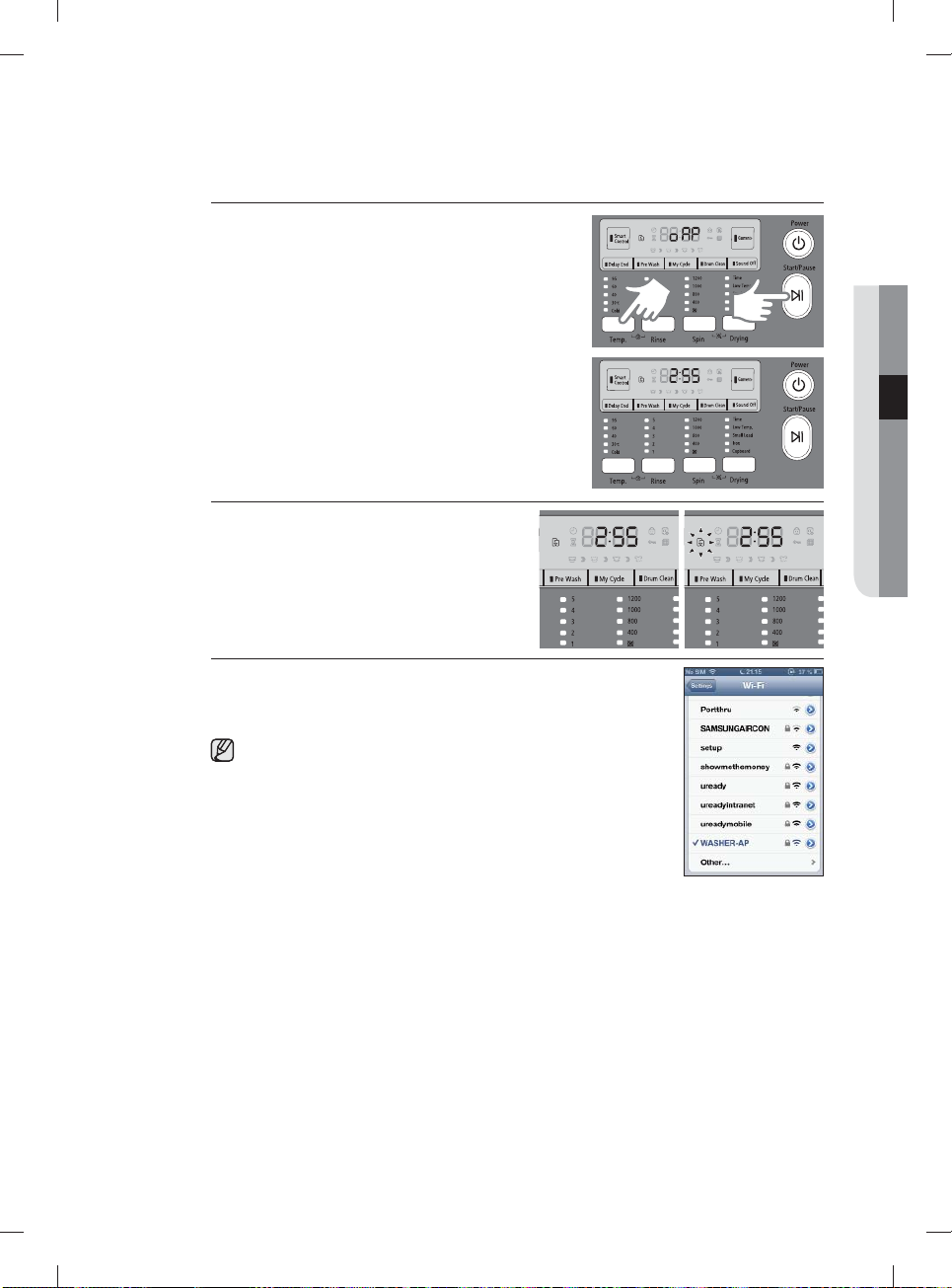

SETTING THE NETWORK (IOS)

1. Find and open the “App Store” icon.

2. Once the “App Store” has been open, do a search.

3. Once the search box appears type in

“Samsung Smart Washer”.

03 SMART CONTROL

4. Once the search is complete the App

“Samsung Smart Washer” will be displayed. You need to download this App to your phone.

Make sure the app changes from “Free” to “Installed”

smart control _45

YUKON-WIFI-03073U-01_EN_130828.indd 45YUKON-WIFI-03073U-01_EN_130828.indd 45 2013-08-28  10:24:202013-08-28  10:24:20

smart control

5. Once the phone app has been downloaded to your phone, you are now ready to set up the washer Wi-Fi control.

6. You need to ﬁ rst press the Power button to activate the your machine. You can activate the machine to any wash cycle.

7. Simultaneously hold down the Smart Control + Delay End buttons for 5 seconds. The ‘Wi-Fi’ indicator blinks for approximately 60 ~ 90 seconds. After the indicator stops blinking, proceed to the next step.

8. After you activate the machine, press the Temp. + Start/Pause buttons simultaneously

for 5 seconds. Then the “AP” menu appears on the LED screen.

46_ smart control

YUKON-WIFI-03073U-01_EN_130828.indd 46YUKON-WIFI-03073U-01_EN_130828.indd 46 2013-08-28  10:24:202013-08-28  10:24:20

9. After the AP menu appears on the LED screen, press the Start/Pause button. Once the Start/Pause button is pressed the “AP” displayed on the LED screen should start to blink. If the you press the Start/Pause and the “AP” doesn’t blink try again after a moment.

10. Press the “Settings” icon. Once the settings menu appears press the Wi-Fi icon.

11. You can see “SMARTWASHER” in the Wi-Fi list. Select the SMARTWASHER and input the password (WASHER2012). You have to input as Capital. After typing the password, select the join button.

03 SMART CONTROL

12. Once you are connected to the selected network go back to the applications screen on your mobile phone. Once you are in the phones application screen touch the Samsung icon “Samsung Smart Washer” that was downloaded at the beginning of this process.

smart control _47

YUKON-WIFI-03073U-01_EN_130828.indd 47YUKON-WIFI-03073U-01_EN_130828.indd 47 2013-08-28  10:24:212013-08-28  10:24:21

smart control

13. After opening the Samsung app, select “Connection setup”.

14. Tap the “Setting Start” and input your SSID,

Authentication Type, Encryption Type, password of AP. This process delivers the connection information of the “AP” that is connected to the mobile phone to the product.

Check the security option of the router and then set the wireless network conﬁ guration again as below.

- select the Security mode : WPA and Encryption:TKIP

- select the Security mode : WPA2 and Encryption:AES

- refer to wireless router manual for the security option of the wireless router.

15. The ‘oAP’ code appears on the display

panel of the washing machine and the “Transfer complete” message appears on the mobile app.

48_ smart control

YUKON-WIFI-03073U-01_EN_130828.indd 48YUKON-WIFI-03073U-01_EN_130828.indd 48 2013-08-28  10:24:212013-08-28  10:24:21

16. After the phone is connected to the machine, press the Temp. + Start/Pause buttons simultaneously for 5 seconds. After 5 seconds the original wash cycle will be displayed on the LED screen.

17. After the wash cycle has been displayed wait approximately 1 minute. You will then see the Smart Control icon start to blink.

18. Connect to the AP, which is connected with the washing machine, on your mobile. The phone is now connected to the washing machine through the network.

When done, go to page 51.

03 SMART CONTROL

smart control _49

YUKON-WIFI-03073U-01_EN_130828.indd 49YUKON-WIFI-03073U-01_EN_130828.indd 49 2013-08-28  10:24:222013-08-28  10:24:22

smart control

CONNECTING TO THE NETWORK USING THE WPS SETTINGS (FOR WPS-ENABLED ROUTERS ONLY)

• Samsung washers use PBC as the WPS type. Check if the current wired/wireless router supports Wi-Fi Protected Setup™(WPS).

• Check if the wired/wireless share has a WPS button.

1. Turn the washing machine on.

2. Press and hold both the

5 seconds.

3. Turn the Cycle Selector until “UP” is displayed on the display panel and press the Start/Pause button.

4. Press and hold the WPS button of the wired/wireless router that will be connected with the washer for 120 seconds or less to run the WPS function of the wired/ wireless router. If the WPS function runs, the wired/wireless router automatically fetches the necessary information from the washer and the washer is automatically connected to the Internet through the wired/wireless router.

5. When the WPS setting is complete, “OUP” will appear on the display.

If the connection is not established within 5 minutes, “FUP” is displayed on the display panel.

• How to use the WPS function of the wired/wireless router may differ depending on the manufacturer. Refer to the user manual of the corresponding wired/wireless router.

• Even after the WPS setup is complete, it may take some time until the actual connection is established to allocate an IP address through DHCP (up to 5 minutes).

• Note that if you use a wired/wireless router that is not WPS-certiﬁ ed, the washer

CAUTION

may not be connected through Wi-Fi or a device that was connected to the wired/ wireless router may be disconnected.

• Please note that for some wired/wireless routers, if you press and hold the WPS button for some time, the settings of the router may be reset.

Temp. + Start/Pause buttons for

6. Press the 5seconds. Then the original wash cycle will be displayed on the LED screen.

7. After the wash cycle has been displayed wait approximately 1 minute. You will then see the Smart Control icon start to blink.

Temp. + Start/Pause buttons simultaneously for

50_ smart control

YUKON-WIFI-03073U-01_EN_130828.indd 50YUKON-WIFI-03073U-01_EN_130828.indd 50 2013-08-28  10:24:222013-08-28  10:24:22

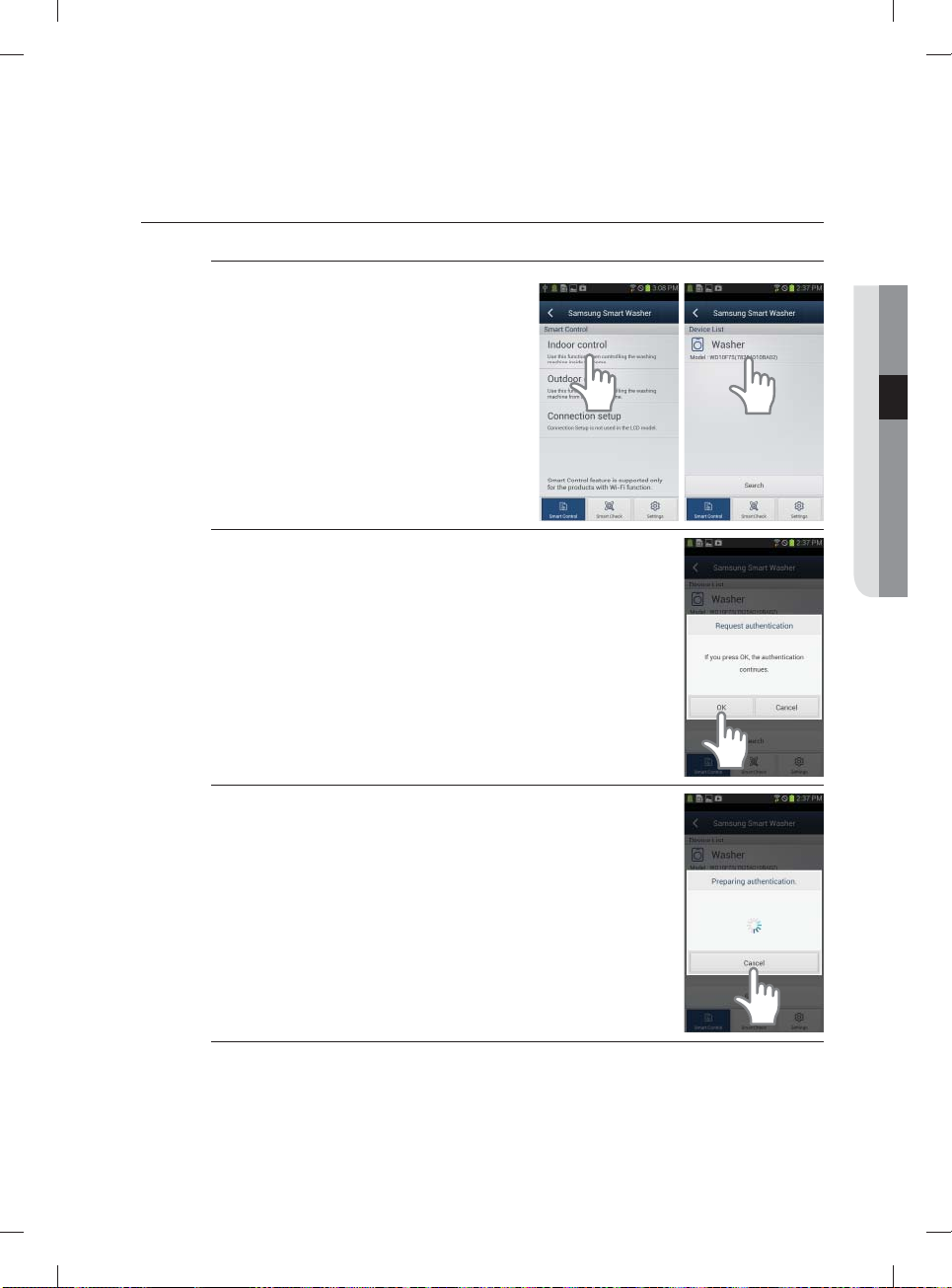

INDOOR CONTROL

Quick authentication (recommended)

1. The “Authentication” only needs to be run with

the initial setup. Touch the “Indoor control” tab to search for the washer’s name. Once the washer’s name(WD10F7S) is displayed touch tab.

2. After you touch the washer name tab you need to touch the “OK” tab

to proceed with the certiﬁ cation.

3. After you touch the conﬁ rm tab you will now start preparing the

certiﬁ cation.

03 SMART CONTROL

smart control _51

YUKON-WIFI-03073U-01_EN_130828.indd 51YUKON-WIFI-03073U-01_EN_130828.indd 51 2013-08-28  10:24:232013-08-28  10:24:23

smart control

4. Follow the instructions displayed on the phone to start the washer setup. The waiting time for authentication is 20 seconds. Perform step 5 below within 20 seconds.

5. Press the Smart Control button. If the lamp on the Smart Control button is on, press the Smart Control button once to turn it o . After waiting for 3 seconds, press the button again.

6. The washer is now connected. Touch the Course button and you can now control the washer from your phone.

52_ smart control

YUKON-WIFI-03073U-01_EN_130828.indd 52YUKON-WIFI-03073U-01_EN_130828.indd 52 2013-08-28  10:24:232013-08-28  10:24:23

Authentication (if the quick authentication method fails)

1. The “Authentication” only needs to be run with

the initial setup. Touch the “Indoor control” tab to search for the washer’s name. Once the washer’s name WD10F7S is displayed touch tab.

2. Verify the that the Wi-Fi icon is not blinking. Press the Temp. + Start/Pause buttons simultaneously for 5 seconds. “AP” will now be displayed.

03 SMART CONTROL

3. After you touch the washer name tab you need to touch the “OK” tab to proceed with the certiﬁ cation.

smart control _53

YUKON-WIFI-03073U-01_EN_130828.indd 53YUKON-WIFI-03073U-01_EN_130828.indd 53 2013-08-28  10:24:232013-08-28  10:24:23

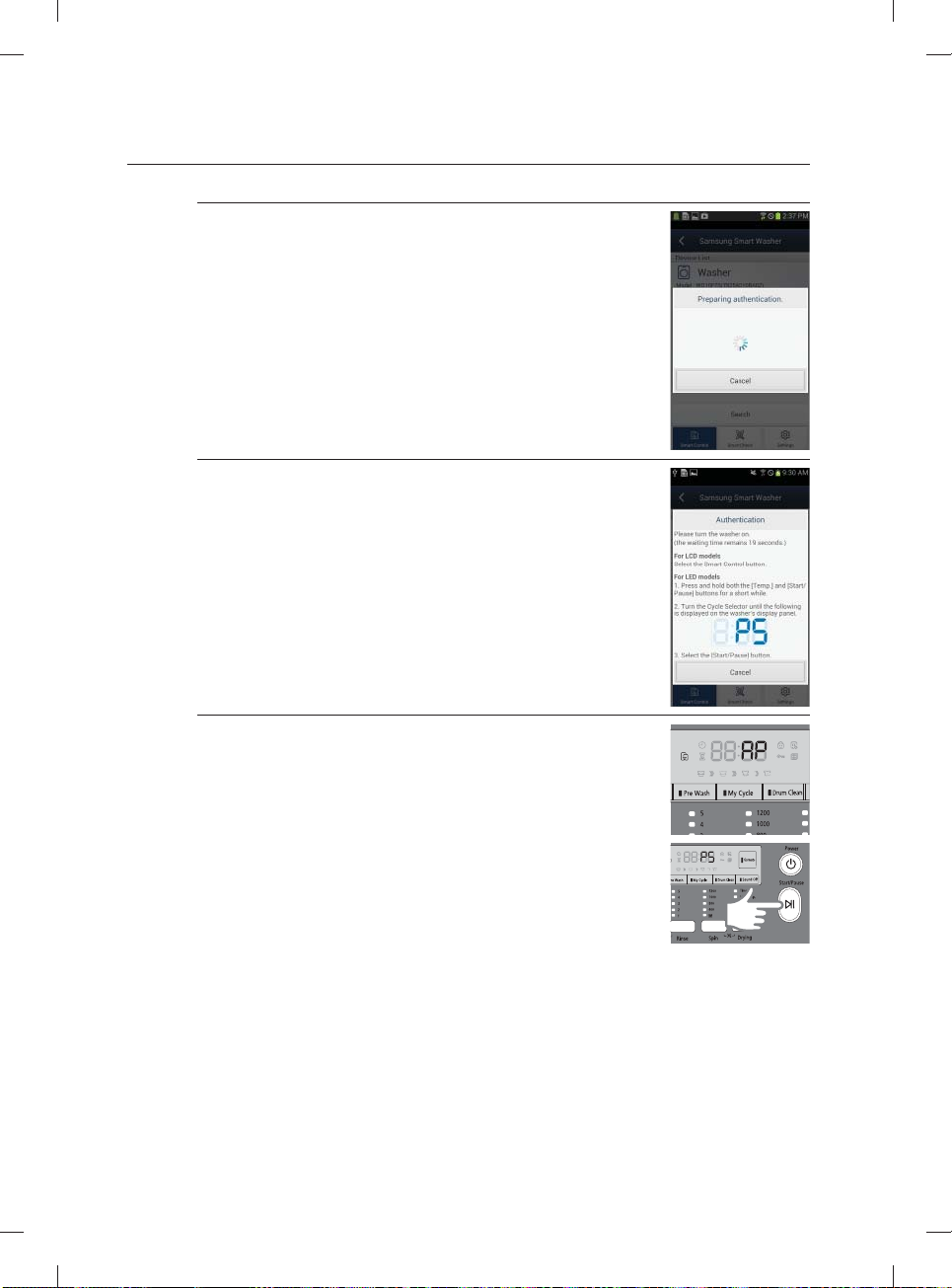

smart control

4. After you touch the conﬁ rm tab you will now start preparing the

certiﬁ cation.

5. Follow the instructions displayed on the phone to start the washer

setup. The waiting time for authentication is 20 seconds. Perform step 6 below within 20 seconds.

6. Once the “AP” is displayed you need to turn the knob counter

clockwise until “PS” is displayed. After the “PS” is displayed press the Start/Pause button.

54_ smart control

YUKON-WIFI-03073U-01_EN_130828.indd 54YUKON-WIFI-03073U-01_EN_130828.indd 54 2013-08-28  10:24:242013-08-28  10:24:24

7. Once the Start/Pause button is pressed the “PS” will start to blink. Once it starts blinking the phone will automatically start to connect.

8. After the “PS” is displayed, press the Temp. + Start/Pause buttons simultaneously for 5 seconds. Please wait until the Smart Control Enabled icon [

] starts blinking. If the Smart Control enabled icon starts blinking, press Smart Control button to activate the Smart Control. If the Smart Control is enabled, the Smart Control enabled icon [

] is turned on.

9. Press the washer name tab to connect to the washer.

The washer is now connected. Touch the Course button and you can now control the washer from your phone.

Check if the ‘Smart Control’ indicator turns on. If it turns on, the Smart Control function is activated. If it turns o , press the Smart Control button to activate the Smart Control function.

03 SMART CONTROL

smart control _55

YUKON-WIFI-03073U-01_EN_130828.indd 55YUKON-WIFI-03073U-01_EN_130828.indd 55 2013-08-28  10:24:242013-08-28  10:24:24

smart control

Using the mobile app

1. Make sure that the ‘Wi-Fi’ indicator is on.

Then press the Smart Control button to activate the Smart Control function. When this function is activated, the ’Smart Control’ indicator will light up. Now press the “Samsung Smart Washer” icon.

1. If you try to activate the Smart Control

function while the door is open, the function will be activated at ﬁ rst, but it will be automatically deactivated in a minute.

2. After you touch the

“Samsung Smart Washer” icon the will search for the washer. Once the phone connects the washer, the washer’s name, or “MAC” will appear. Now touch the washer name.

MAC address

3. Once the connection is established, touch the

“Course button”. The unit should display the “Option Pop-up” screen. Once Choose Cycle screen is displayed touch the “Start” tab at the bottom.

56_ smart control

YUKON-WIFI-03073U-01_EN_130828.indd 56YUKON-WIFI-03073U-01_EN_130828.indd 56 2013-08-28  10:24:242013-08-28  10:24:24

4. Now touch the “Start”

button and activate the wash cycle. You can monitor the wash cycle to check the status of the cycle. Once the cycle is ﬁ nished the phone will display “Cycle completes”.

For iPhones, you need to run the Outdoor control function in the app ﬁ rst to authenticate the Push Notiﬁ cation service after registering your washer to the Samsung Smart appliance (www.samsungsmartappliance.com) website.

03 SMART CONTROL

smart control _57

YUKON-WIFI-03073U-01_EN_130828.indd 57YUKON-WIFI-03073U-01_EN_130828.indd 57 2013-08-28  10:24:252013-08-28  10:24:25

smart control

OUTDOOR CONTROL

Registering your washer

1. Access Samsung Smart appliance website. (http://www.samsungsmartappliance.com)

2. Enter the User ID and Password to log in.

If you don’t have an account, press “Create a Samsung account” and ﬁ ll in the form to become a member.

3. Select “My page”  “My page”.

4. Select “Add device”.

5. After entering the MAC written from

following instruction. (Washing Machine)

1) Press and hold both the Temp., and

Start/Pause buttons for 5 seconds.

2) Turn the Cycle Selector until “Ad” is

displayed on the display panel and press the Start/Pause button.

3) Find out 12 Hexadecimal Address,

pressing Start/Pause buttons for 2 digit & text.

58_ smart control

YUKON-WIFI-03073U-01_EN_130828.indd 58YUKON-WIFI-03073U-01_EN_130828.indd 58 2013-08-28  10:24:252013-08-28  10:24:25

You can ﬁ nd it on your mobile app. (Refer to No.2 on page 56.)

6. Tap the ‘Washers/Dryers’ tab and enter the mac address. (Web)

7. Click the “Certify device”. (Web)

8. Turn the Cycle Selector until “PS” is displayed on the display panel and press the Start/Pause button. (Washing Machine)

9. When certify device checking window comes on, click the “Ok”. (Web)

• If the washer you are registering is already registered by other users, a window will come

on asking whether you want to delete the usage authority of the existing users, or not.

10. After the registration of the washer is completed, you can check the registered washer on the device information list.

03 SMART CONTROL

smart control _59

YUKON-WIFI-03073U-01_EN_130828.indd 59YUKON-WIFI-03073U-01_EN_130828.indd 59 2013-08-28  10:24:252013-08-28  10:24:25

smart control

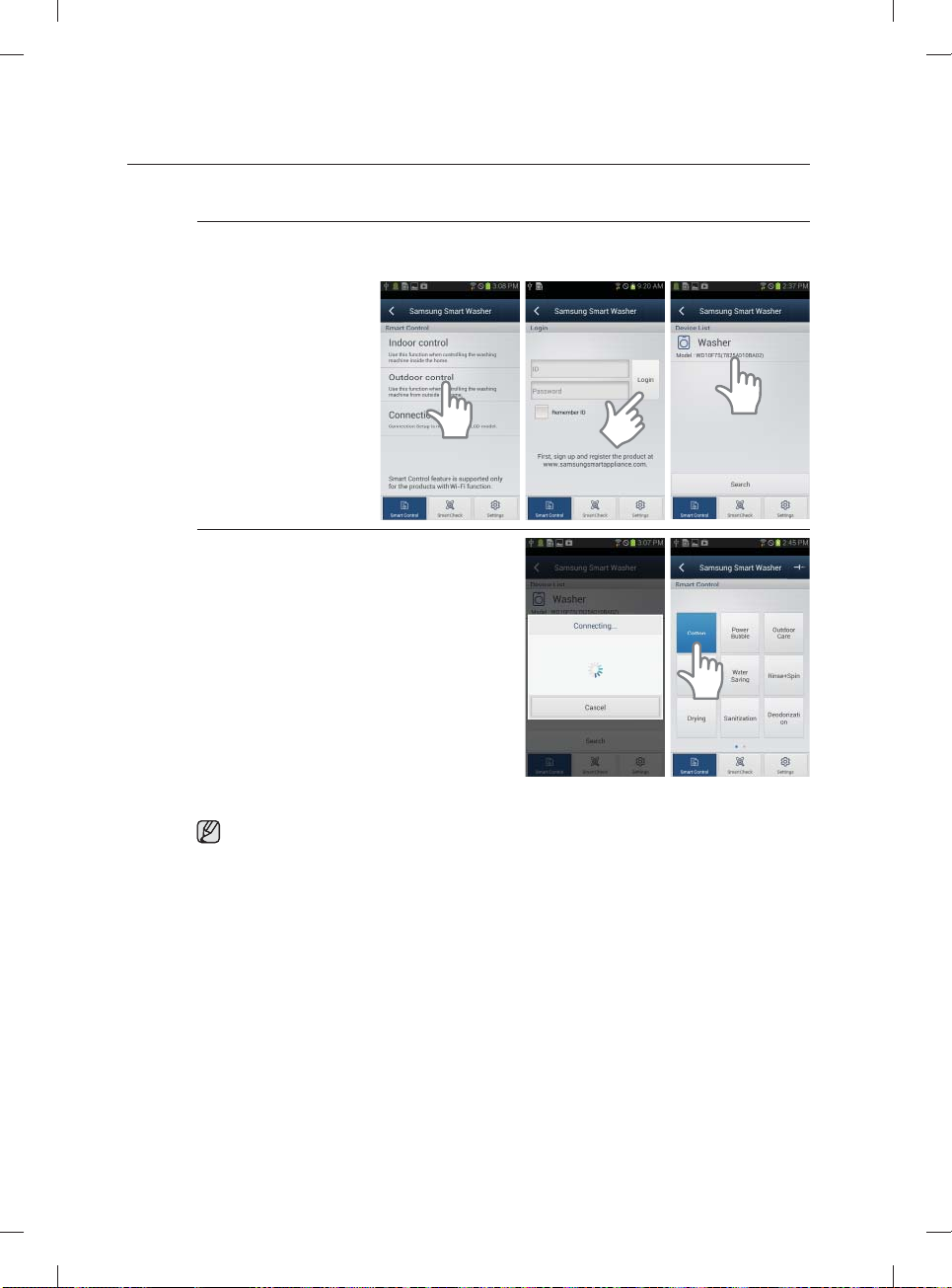

Using the mobile app

Register the appliance on the Samsung Smart Appliance website ﬁ rst to control the washing machine using the outdoor control function.

1. Press the Smart Control

button.

2. Tap the

“Outdoor control” tab.

3. Enter the ID and

password registered to the website and tap the Login button.

4. After logging in, the

model number of the registered washing machine appears in the appliance list.

5. Select the model you want to control to

connect to the appliance.

6. Now you can use the Outdoor control function

for the washing machine.

Hereby, Samsung Electronics, declares that this washing machine is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. This equipment may be operated in all EU countries. In France, this equipment may only be used indoors.

60_ smart control

YUKON-WIFI-03073U-01_EN_130828.indd 60YUKON-WIFI-03073U-01_EN_130828.indd 60 2013-08-28  10:24:252013-08-28  10:24:25

cleaning and maintaining your washing machine

CLEANING THE EXTERIOR

Turn off the water faucets after ﬁ nishing the day’s washing. This will shut off the water supply to your Washer and prevent the unlikely possibility of damage from escaping water. Leave the door open to allow the inside of your Washer to dry out. Use a soft cloth to wipe up all detergent, bleach or other spills as they occur. Clean the following as recommended: Control Panel – Clean with a soft, damp cloth. Do not use abrasive powders or cleaning pads. Do not spray cleaners directly on the panel. Cabinet – Clean with soap and water.

CLEANING THE INTERIOR

Clean the interior of your Washer periodically to remove any dirt, soil, odour, mould, mildew, or bacterial residue that may remain in your Washer as a result of washing clothes. Failure to follow these instructions may result in unpleasant conditions, including odors and/or permanent stains on your Washer or laundry. Hard water deposits may be removed, if needed. Use a cleaner labelled “Washer safe”.

CLEANING THE DISPENSERS

The automatic dispenser may need to be cleaned periodically due to laundry additive buildup.

1. Pull out the detergent liquid from detergent compartment.

2. Remove the siphon cap from the fabric softener and bleach

compartments.

3. Wash all of the parts under running water.

4. Clean the dispenser recess with a soft brush.

5. Reinsert the siphon cap and push it ﬁ rmly into place.

6. Push the dispenser back into place.

7. Run a Rinse+Spin cycle without any load in your washer.

04 CLEANING AND MAINTAINING

Siphon cap

cleaning and maintaining your washing machine _61

YUKON-WIFI-03073U-01_EN_130828.indd Sec6:61YUKON-WIFI-03073U-01_EN_130828.indd Sec6:61 2013-08-28  10:24:262013-08-28  10:24:26

cleaning and maintaining your washing machine

STORING YOUR WASHER

Washers can be damaged if water is not removed from hoses and internal components before storage. Prepare your Washer for storage as follows:

• Select the Quick Wash cycle and add bleach to the automatic dispenser. Run your Washer through the cycle without a load.

• Turn the water faucets off and disconnect the inlet hoses.

• Unplug your Washer from the electrical outlet and leave your Washer door open to let air circulate inside the

tumbler.

• If your Washer has been stored in below–freezing temperatures, allow time for any leftover water in your Washer to thaw out before use.

CLEANING THE DEBRIS FILTER

We recommend cleaning the debris ﬁ lter when water does not drain well or the “ND” error message is displayed.

1. Open the ﬁ lter cover by pressing and pulling the handle of the ﬁ lter cover with your ﬁ nger.

2. Unscrew the drain cap by turning it counterclockwise.

3. Hold the cap on the end of the drain tube and slowly pull it out about 6 inches (15 cm) and drain off all the water.

4. Remove the debris ﬁ lter cap.

5. Wash any dirt or other material from the

debris ﬁ lter. Make sure the drain pump propeller behind the debris ﬁ lter is not blocked.

6. Replace the debris ﬁ lter cap.

7. Replace the ﬁ lter cover.

For models with the safety ﬁ lter cap

• To open, push in, and then turn the safety ﬁ lter cap

counterclockwise. The spring in the cap will make opening the cap easy.

• To close, turn the safety ﬁ lter cap clockwise. As you turn the cap,

the spring will make a rattling sound. The rattling sound is normal.

Step 1 Step 2

62_ cleaning and maintaining your washing machine

YUKON-WIFI-03073U-01_EN_130828.indd Sec6:62YUKON-WIFI-03073U-01_EN_130828.indd Sec6:62 2013-08-28  10:24:262013-08-28  10:24:26

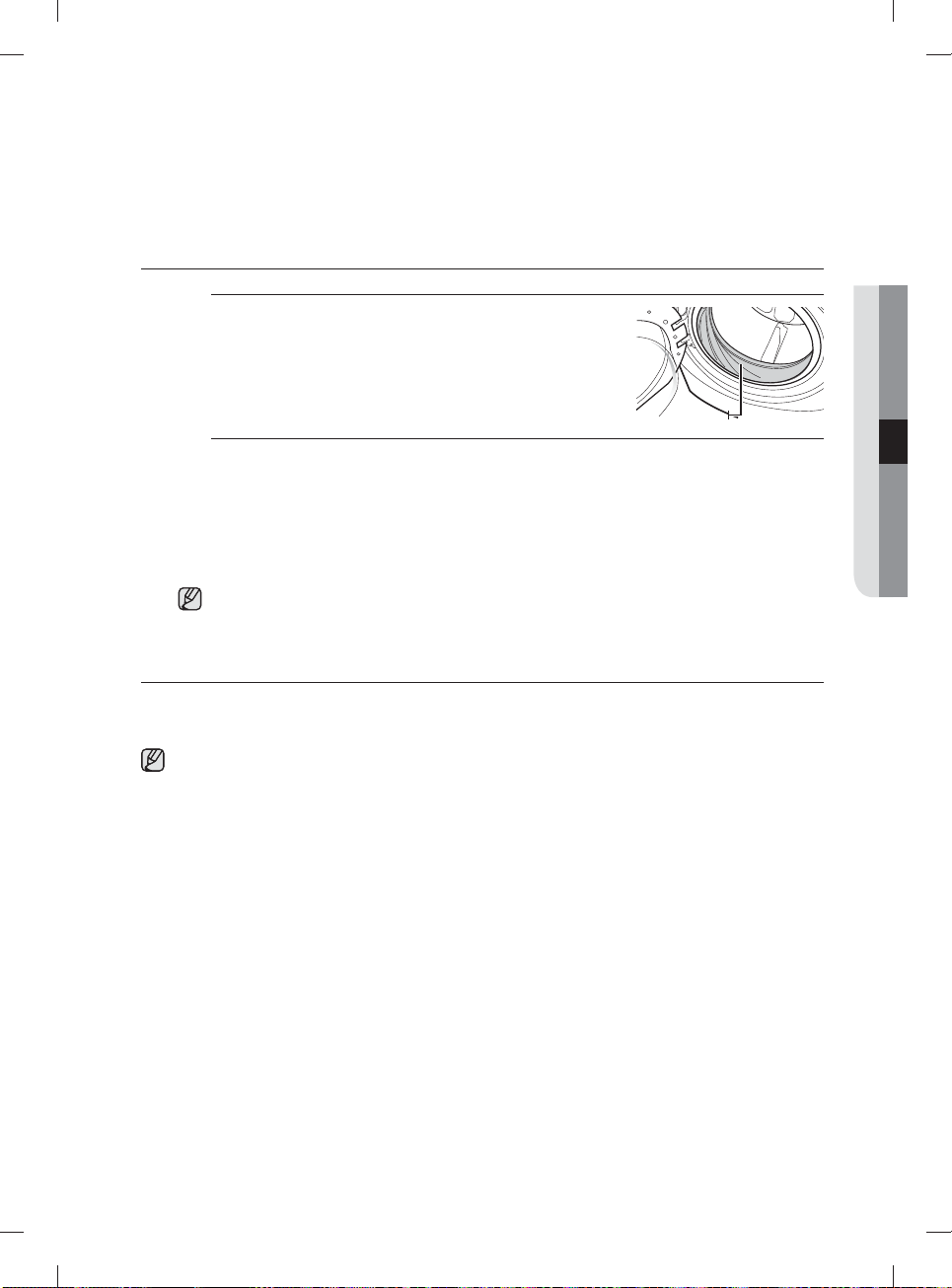

CLEANING THE DOOR SEAL/BELLOW

1. Open the washer door and remove any clothing or items from the washer.

2. Inspect the gray colored seal/bellow between the door

opening and the basket for stained areas. Pull back the seal/bellow to inspect all areas under the seal/bellow and to check for foreign objects.

seal/bellow

3. If stained areas are found, wipe down these areas of the seal/bellow, using the procedure

that follows.

a) Mix a dilute solution, using ¾ cup (177 mL) of liquid chlorine bleach, and 1 gal. (3.8 L) of

warm tap water.

b) Wipe the seal/bellow area with the dilute solution, using a damp cloth. c) Let stand 5 minutes. d) Wipe down area thoroughly with a dry cloth and let the washer interior air dry with door

open.

IMPORTANT:

• Wear rubber gloves when cleaning for prolonged periods.

• Refer to the bleach manufacturer’s instructions for proper use.

PRESERVING THE TOP COVER AND THE FRONT FRAME

Do not place any heavy or sharp objects or a detergent box on the washing machine. Keep them on the purchased pedestal or in a separate storage box. This may scratch or damage the top cover of the washing machine.

Since the entire washing machine has a high-gloss ﬁ nish, the surface can be scratched or damaged. Therefore, avoid scratching or damaging the surface when using the washing machine.

04 CLEANING AND MAINTAINING

cleaning and maintaining your washing machine _63

YUKON-WIFI-03073U-01_EN_130828.indd Sec6:63YUKON-WIFI-03073U-01_EN_130828.indd Sec6:63 2013-08-28  10:24:262013-08-28  10:24:26

troubleshooting and information codes

CHECK THESE POINTS IF YOUR WASHING MACHINE...

PROBLEM SOLUTION

Will not start.. • Make sure the door is ﬁ rmly closed.

Has no water or not enough water..

Has detergent remains in the automatic dispenser after the wash cycle is complete.

Vibrates or is too noisy. • Make sure your Washer is set on a level surface. If the surface is not

Stops • Plug the power cord into a live electrical outlet.

• Make sure your Washer is plugged in.

• Make sure the water source faucets are open.

• Make sure to press the Start/Pause Button to start your Washer.

• Make sure the Child Lock is not activated; see page 28.

• Before your Washer starts to ﬁ ll, it will make a series of clicking noises

to check the door lock and do a quick drain.

• Check the fuse or reset the circuit breaker

• Turn both faucets on fully.

• Make sure the door is tightly closed.

• Straighten the water inlet hoses.

• Disconnect hoses and clean screens. Hose ﬁ lter screens may be

clogged.

• Open and close the door, then press the Start/Pause Button.

• Make sure your Washer is running with sufﬁ cient water pressure.

• Make sure the Detergent Selector dial is in the upper position when

using granular detergent.

level, adjust your Washer feet to level the appliance.

• Make sure that the shipping bolts are removed.

• Make sure your Washer is not touching any other object.

• Make sure the laundry load is balanced.

• Check the fuse or reset the circuit breaker.

• Close the door and press the Start/Pause Button to start your

Washer. For your safety, your Washer will not tumble or spin unless the door is closed.

• Before your Washer starts to ﬁ ll, it will make a series of clicking noises to check the door lock and do a quick drain.

• There may be a pause or soak period in the cycle. Wait brieﬂ y and it may start.

• Check the screens on the inlet hoses at the faucets for obstructions. Clean the screens periodically.

64_ troubleshooting and information codes

YUKON-WIFI-03073U-01_EN_130828.indd Sec11:64YUKON-WIFI-03073U-01_EN_130828.indd Sec11:64 2013-08-28  10:24:262013-08-28  10:24:26

PROBLEM SOLUTION

Fills with the wrong temperature water.

• Turn both faucets on fully.

• Make sure the temperature selection is correct.

• Make sure the hoses are connected to the correct faucets.

Flush water lines.

• Check the water heater. It should be set to deliver a minimum 120°F (49 °C) hot water at the tap. Also check the water heater capacity and recovery rate.

• Disconnect the hoses and clean the screens. The hose ﬁ lter screens may be plugged.

• As your Washer is ﬁ lling, the water temperature may change as the automatic temperature control feature checks incoming water temperature. This is normal.

• While your Washer is ﬁ lling, you may notice just hot and/or just cold water going through the dispenser when cold or warm wash temperatures are selected. This is a normal function of the automatic temperature control feature as your Washer determines the temperature of the water.

Door locked or will not open.

• Press the Start/Pause Button to stop your Washer.

• Your Washer door will remain locked during the heating portion of the

Sanitize Cycle

• It may take a few moments for the door lock mechanism to disengage.

Does not drain and/or spin. • Check the fuse or reset the circuit breaker.

• Straighten the drain hoses. Eliminate kinked hoses. If there is a drain

restriction, call for service.

• Close the door and press the Start/Pause Button. For your safety, your Washer will not tumble or spin unless the door is closed.

• Make sure the debris ﬁ lter is not clogged.

Load is too wet at the end of the cycle.

• Use the High or Extra High spin speed.

• Use high efﬁ ciency detergent to reduce over–sudsing.

• Load is too Small Load. Very Small Load loads (one or two items)

may become unbalanced and not spin out completely.

Leaks water. • Make sure the door is ﬁ rmly closed.

• Make sure all hose connections are tight.

• Make sure the end of the drain hose is correctly inserted and secured

to the drainage system.

• Avoid overloading.

• Use high efﬁ ciency detergent to prevent over–sudsing.

Has excessive suds. • Use high efﬁ ciency detergent to prevent over-sudsing.

• Reduce the detergent amount for soft water, Small Load or lightly

soiled loads.

• Non-HE detergent is NOT recommended.

If the problem persists, contact your local Samsung Customer Service.

05 TROUBLESHOOTING

troubleshooting and information codes _65

YUKON-WIFI-03073U-01_EN_130828.indd Sec11:65YUKON-WIFI-03073U-01_EN_130828.indd Sec11:65 2013-08-28  10:24:262013-08-28  10:24:26

troubleshooting and information codes

INFORMATION CODES

If your washing machine malfunctions, you may see an information code on the display. If this happens, please check the table below and try the suggested solution before calling Customer Service.

CODE SYMBOL SOLUTION

cE/3E

Hot

For any codes not listed above, or if the suggested solution doesn’t ﬁ x the problem, call your Samsung Service Centre or local Samsung dealer.

• Close the door.

• Make sure the source water tap is turned on.

• Check the water pressure.

• Clean the debris ﬁ lter.

• Make sure the drainage hose is installed correctly.

• The laundry load is unbalanced. Redistribute the load. If only one item

of clothing needs washing, such as a bathrobe or pair of jeans, the ﬁ nal spin result might be unsatisfactory and an “UE” error message will be shown in the display window.

• Call the after-sales service.

• It appears when the internal temperature of the drum is high. The fan will

automatically function, so just wait until “Hot” indication disappeared.

66_ troubleshooting and information codes

YUKON-WIFI-03073U-01_EN_130828.indd Sec11:66YUKON-WIFI-03073U-01_EN_130828.indd Sec11:66 2013-08-28  10:24:262013-08-28  10:24:26

cycle chart

CYCLE CHART

( default option,  user option)

PROGRAM

Drying

Sanitization

Deodorization

Wool

Cotton

Power Bubble

Outdoor Care

Baby Care

Water Saving

Rinse + Spin

Quick Wash

Bedding

Synthetics

Drum Clean

Cold 30 ˚C 40 ˚C 60 ˚C 95 ˚C 1 2 3 4 5 no spin 400 800 1000 1200

---------- - - -

---------- - - - - -

---------------



      

 

 

      

  

-----

  

 

---

Temp. Rinse Spin

---

Functions





      



       

     

      

    

      

----- -

 

---



---



06 CYCLE CHART

PROGRAM

Drying

Sanitization

Deodorization

Wool

Cotton

Power Bubble

Outdoor Care

Baby Care

Water Saving

Rinse + Spin

Quick Wash

Bedding

Synthetics

Drum Clean

Pre Wash My Cycle Garment+ Delay End Sound Off

---



 





---

Option



1. A cycle with a prewash takes approx. 20 minutes longer.

2. The cycle duration data has been measured under the conditions speciﬁ ed in Standard IEC 60456 / EN 60456.

3. Course time in individual homes may differ from the values given in the table due to variations in the

pressure and temperature of the water supply, the load and the type of laundry.

cycle chart _67

YUKON-WIFI-03073U-01_EN_130828.indd Sec7:67YUKON-WIFI-03073U-01_EN_130828.indd Sec7:67 2013-08-28  10:24:272013-08-28  10:24:27

appendix

FABRIC CARE CHART

The following symbols provide garment care directions. The care labels include four symbols in this order: washing, bleaching, drying and ironing (and dry cleaning when necessary). The use of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow the care label directions to maximize garment life and reduce laundery problems.

Resistant material Can be ironed at 100 ˚C max

Delicate fabric Do not iron

Item may be washed at 95 ˚C

Item may be washed at 60 ˚C

Item may be washed at 40 ˚C

Item may be washed at 30 ˚C Do not dry clean

Item may be hand washed Dry ﬂ at

Dry clean only Can be hung to dry

Can be bleached in cold water Dry on clothes hanger

Do not bleach Tumble dry, normal heat

Can be ironed at 200 ˚C max Tumble dry, reduced heat

Can be ironed at 150 ˚C max Do not tumble dry

PROTECTING THE ENVIRONMENT

• This appliance is manufactured in part from recyclable materials. If you decide to dispose of this appliance, please observe local waste disposal regulations. Cut off the power cord so that the appliance cannot be connected to a power source. Remove the door so that animals and Small Load children cannot get trapped inside the appliance.

• Do not exceed the detergent quantities recommended in the detergent manufactures’ instructions.

• Use stain removal products and bleaches before the wash cycle only when strictly necessary.

• Save water and electricity by only washing full loads (the exact amount depends upon the program

used).

Can be dry cleaned using any solvent

Dry clean with perchloride, lighter fuel, pure alcohol or R113 only

Dry clean with aviation fuel, pure alcohol or R113 only

68_ appendix

YUKON-WIFI-03073U-01_EN_130828.indd Sec3:68YUKON-WIFI-03073U-01_EN_130828.indd Sec3:68 2013-08-28  10:24:272013-08-28  10:24:27

SPECIFICATIONS

TYPE FRONT LOADING WASHING MACHINE

DIMENSIONS

WATER PRESSURE

WATER VOLUME

NET WEIGHT

WASH AND SPIN CAPACITY

DRY CAPACITY

POWER CONSUMPTION

PACKAGE WEIGHT

SPIN REVOLUTIONS

WASHING

WASH AND

HEATING

DRYING

SPIN

PUMPING

PAPER

PLASTIC

rpm

230 V 250 W

230 V 2200 W

230V 2200W

220V 600 W

The appearance and speciﬁ cations of the product are subject to change without prior notice for purposes of product enhancement.

WD10F7S7SRP

W686mm X D820mm X H984mm

137 kPa ~ 800 kPa

129 ℓ

102 kg

10.0 kg [DRY LAUNDRY]

7.0 kg

30 W

1.3 kg

1.8 kg

1200

07 APPENDIX

appendix _69

YUKON-WIFI-03073U-01_EN_130828.indd Sec3:69YUKON-WIFI-03073U-01_EN_130828.indd Sec3:69 2013-08-28  10:24:272013-08-28  10:24:27

appendix

OPEN SOURCE ANNOUNCEMENT

The software included in this product contains copyrighted software that is licensed under the GPL/LGPL. You may obtain the complete Corresponding Source code from us for a period of three years after our last

shipment of this product by sending email to:

oss.request@samsung.com

If you want to obtain the complete Corresponding Source code in the physical medium such as CD-ROM, the cost of physically performing source distribution may be charged.

This o er is valid to anyone in receipt of this information.

GPL Software:

Bridge-Utils, BusyBox, DNRD, dosfstools, iproute2, IPTables, Linux Kernel, ntpclient, Open1x, RSDK toolchain, rtl819x - Bootloader, samba, squashfs, udhcp Server-Client Package, USB-ModeSwitch, wireless-tools

LGPL Software:

libnl-Netlink Library, Mini-XML

GNU GENERAL PUBLIC LICENSE

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation’s software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Lesser General Public License instead.)

You can apply it to your programs, too. When we speak of free software, we are referring to freedom, not price. Our General Public

Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.

We protect your rights with two steps: (1) copyright the software, and (2) o er you this license which gives you legal permission to copy, distribute and/or modify the software.

Also, for each author’s protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modiﬁ ed by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reﬂ ect on the original authors’ reputations.

70_ appendix

YUKON-WIFI-03073U-01_EN_130828.indd Sec3:70YUKON-WIFI-03073U-01_EN_130828.indd Sec3:70 2013-08-28  10:24:282013-08-28  10:24:28

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in e ect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone’s free use or not licensed at all.

The precise terms and conditions for copying, distribution and modiﬁ cation follow.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

1. This License applies to any program or other work which contains a notice placed by the

copyright holder saying it may be distributed under the terms of this General Public License. The “Program”, below, refers to any such program or work, and a “work based on the Program” means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modiﬁ cations and/or translated into another language. (Hereinafter, translation is included without limitation in the term “modiﬁ cation”.) Each licensee is addressed as “you”.

Activities other than copying, distribution and modiﬁ cation are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

2. You may copy and distribute verbatim copies of the Program’s source code as you receive

it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option o er warranty protection in exchange for a fee.

3. You may modify your copy or copies of the Program or any portion of it, thus forming a work

based on the Program, and copy and distribute such modiﬁ cations or work under the terms of Section 1 above, provided that you also meet all of these conditions:

1) You must cause the modiﬁ ed ﬁ les to carry prominent notices stating that you changed

the ﬁ les and the date of any change.

2) You must cause any work that you distribute or publish, that in whole or in part contains

or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.

3) If the modiﬁ ed program normally reads commands interactively when run, you must

cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)

These requirements apply to the modiﬁ ed work as a whole. If identiﬁ able sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative

07 APPENDIX

appendix _71

YUKON-WIFI-03073U-01_EN_130828.indd Sec3:71YUKON-WIFI-03073U-01_EN_130828.indd Sec3:71 2013-08-28  10:24:282013-08-28  10:24:28

appendix

or collective works based on the Program. In addition, mere aggregation of another work not based on the Program with the Program

(or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

4. 3. You may copy and distribute the Program (or a work based on it, under Section 2) in

object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:

1) Accompany it with the complete corresponding machinereadable source code, which

must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

2) Accompany it with a written o er, valid for at least three years, to give any third party,

for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or, c) Accompany it with the information you received as to the o er to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an o er, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modiﬁ cations to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface deﬁ nition ﬁ les, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

If distribution of executable or object code is made by o ering access to copy from a designated place, then o ering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source

along with the object code.

5. You may not copy, modify, sublicense, or distribute the Program except as expressly

provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

6. You are not required to accept this License, since you have not signed it. However, nothing

else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.

7. Each time you redistribute the Program (or any work based on the Program), the recipient

automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients’ exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.

8. If, as a consequence of a court judgment or allegation of patent infringement or for any

72_ appendix

YUKON-WIFI-03073U-01_EN_130828.indd Sec3:72YUKON-WIFI-03073U-01_EN_130828.indd Sec3:72 2013-08-28  10:24:282013-08-28  10:24:28

would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

9. If the distribution and/or use of the Program is restricted in certain countries either by patents

or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

10. The Free Software Foundation may publish revised and/or new versions of the General Public

License from time to time. Such new versions will be similar in spirit to the present version, but may di er in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Program speciﬁ es a version number of this License which applies to it and “any later version”, you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.

11. If you wish to incorporate parts of the Program into other free programs whose distribution

conditions are di erent, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

07 APPENDIX

NO WARRANTY

12. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY

FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

13. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING

WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOV E , BE L I ABL E TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY

appendix _73

YUKON-WIFI-03073U-01_EN_130828.indd Sec3:73YUKON-WIFI-03073U-01_EN_130828.indd Sec3:73 2013-08-28  10:24:282013-08-28  10:24:28

appendix

HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Programs

If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms.

To do so, attach the following notices to the program. It is safest to attach them to the start of each source ﬁ le to most e ectively convey the exclusion of warranty; and each ﬁ le should have at least the “copyright” line and a pointer to where the full notice is found.

one line to give the program’s name and an idea of what it does. Copyright (C) yyyy name of author

This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA.

Also add information on how to contact you by electronic and paper mail. If the program is interactive, make it output a short notice like this when it starts in an interactive

mode: Gnomovision version 69, Copyright (C) year name of author Gnomovision comes with

ABSOLUTELY NO WARRANTY; for details type `show w’. This is free software, and you are welcome to redistribute it under certain conditions; type `show c’ for details.

The hypothetical commands `show w’ and `show c’ should show the appropriate parts of the General Public License. Of course, the commands you use may be called something other than `show w’ and `show c’; they could even be mouse-clicks or menu items--whatever suits your program. You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright disclaimer” for the program, if necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the program `Gnomovision’ (which makes passes at compilers) written by James Hacker.

signature of Ty Coon, 1 April 1989 Ty Coon, President of Vice This General Public License does not permit incorporating your program into proprietary

programs. If your program is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is what you want to do, use the GNU Lesser General Public License instead of this License.

GNU LESSER GENERAL PUBLIC LICENSE

Version 2.1, February 1999 Copyright (C) 1991, 1999 Free Software Foundation, Inc. 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is

not allowed.

74_ appendix

YUKON-WIFI-03073U-01_EN_130828.indd Sec3:74YUKON-WIFI-03073U-01_EN_130828.indd Sec3:74 2013-08-28  10:24:282013-08-28  10:24:28

[This is the ﬁ rst released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License, version 2, hence the version number 2.1.]

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public Licenses are intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users.

This license, the Lesser General Public License, applies to some specially designated software packages--typically libraries--of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest you ﬁ rst think carefully about whether this license or the ordinary General Public License is the better strategy to use in any particular case, based on the explanations below.

When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish); that you receive source code or can get it if you want it; that you can change the software and use pieces of it in new free programs; and that you are informed that you can do these things.

To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if you modify it.

For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the library, you must provide complete object ﬁ les to the recipients, so that they can relink them with the library after making changes to the library and recompiling it. And you must show them these terms so they know their rights.

We protect your rights with a two-step method: (1) we copyright the library, and (2) we o er you this license, which gives you legal permission to copy, distribute and/or modify the library.

To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library is modiﬁ ed by someone else and passed on, the recipients should know that what they have is not the original version, so that the original author’s reputation will not be a ected by problems that might be introduced by others.

Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company cannot e ectively restrict the users of a free program by obtaining a restrictive license from a patent holder. Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom of use speciﬁ ed in this license.

Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the GNU Lesser General Public License, applies to certain designated libraries, and is quite di erent from the ordinary General Public License. We use this license for certain libraries in order to permit linking those libraries into nonfree programs.

When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally speaking a combined work, a derivative of the original library. The ordinary General Public License therefore permits such linking only if the entire combination ﬁ ts its criteria of freedom. The Lesser General Public License permits more lax criteria for linking other code with the library.

We call this license the “Lesser” General Public License because it does Less to protect the user’s freedom than the ordinary General Public License. It also provides other free software developers Less of an advantage over competing non-free programs. These disadvantages are the reason we use the ordinary General Public License for many libraries.

However, the Lesser license provides advantages in certain special circumstances. For example, on rare occasions, there may be a special need to encourage the widest possible

use of a certain library, so that it becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the library.

07 APPENDIX

appendix _75

YUKON-WIFI-03073U-01_EN_130828.indd Sec3:75YUKON-WIFI-03073U-01_EN_130828.indd Sec3:75 2013-08-28  10:24:282013-08-28  10:24:28

appendix

A more frequent case is that a free library does the same job as widely used non-free libraries. In this case, there is little to gain by limiting the free library to free software only, so we use the Lesser General Public License.

In other cases, permission to use a particular library in nonfree programs enables a greater number of people to use a large body of free software. For example, permission to use the GNU C Library in non-free programs enables many more people to use the whole GNU operating system, as well as its variant, the GNU/Linux operating system.

Although the Lesser General Public License is Less protective of the users’ freedom, it does ensure that the user of a program that is linked with the Library has the freedom and the wherewithal to run that program using a modiﬁ ed version of the Library.

The precise terms and conditions for copying, distribution and modiﬁ cation follow. Pay close attention to the di erence between a “work based on the library” and a “work that uses the library”. The former contains code derived from the library, whereas the latter must be combined with the library in order to run.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

1. This License Agreement applies to any software library or other program which contains a

notice placed by the copyright holder or other authorized party saying it may be distributed under the terms of this Lesser General Public License (also called “this License”). Each licensee is addressed as “you”.

A “library” means a collection of software functions and/or data prepared so as to be conveniently linked with application programs (which use some of those functions and data) to form executables.

The “Library”, below, refers to any such software library or work which has been distributed under these terms. A “work based on the Library” means either the Library or any derivative work under copyright law: that is to say, a work containing the Library or a portion of it, either verbatim or with modiﬁ cations and/or translated straightforwardly into another language. (Hereinafter, translation is included without limitation in the term “modiﬁ cation”.)

“Source code” for a work means the preferred form of the work for making modiﬁ cations to it. For a library, complete source code means all the source code for all modules it contains, plus any associated interface deﬁ nition ﬁ les, plus the scripts used to control compilation and installation of the library.

Activities other than copying, distribution and modiﬁ cation are not covered by this License; they are outside its scope. The act of running a program using the Library is not restricted, and output from such a program is covered only if its contents constitute a work based on the Library (independent of the use of the Library in a tool for writing it).

Whether that is true depends on what the Library does and what the program that uses the Library does.

2. You may copy and distribute verbatim copies of the Library’s complete source code as you

receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and distribute a copy of this License along with the Library.

You may charge a fee for the physical act of transferring a copy, and you may at your option o er warranty protection in exchange for a fee.

3. You may modify your copy or copies of the Library or any portion of it, thus forming a work

based on the Library, and copy and distribute such modiﬁ cations or work under the terms of Section 1 above, provided that you also meet all of these conditions:

1) The modiﬁ ed work must itself be a software library.

2) You must cause the ﬁ les modiﬁ ed to carry prominent notices stating that you changed

the ﬁ les and the date of any change.

76_ appendix

YUKON-WIFI-03073U-01_EN_130828.indd Sec3:76YUKON-WIFI-03073U-01_EN_130828.indd Sec3:76 2013-08-28  10:24:282013-08-28  10:24:28

3) You must cause the whole of the work to be licensed at no charge to all third parties

under the terms of this License.

4) If a facility in the modiﬁ ed Library refers to a function or a table of data to be supplied by

an application program that uses the facility, other than as an argument passed when the facility is invoked, then you must make a good faith e ort to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs whatever part of its purpose remains meaningful. (For example, a function in a library to compute square roots has a purpose that is entirely well-deﬁ ned independent of the application. Therefore, Subsection 2d requires that any application-supplied function or table used by this function must be optional: if the application does not supply it, the square root function must still compute square roots.)

These requirements apply to the modiﬁ ed work as a whole. If identiﬁ able sections of that work are not derived from the Library, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Library, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it. Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Library. In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

4. You may opt to apply the terms of the ordinary GNU General Public License instead of this

License to a given copy of the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU General Public License has appeared, then you can specify that version instead if you wish.) Do not make any other change in these notices.

Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License applies to all subsequent copies and derivative works made from that copy.

This option is useful when you wish to copy part of the code of the Library into a program that is not a library.

5. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in

object code or executable form under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange.

If distribution of object code is made by o ering access to copy from a designated place, then o ering equivalent access to copy the source code from the same place satisﬁ es the requirement to distribute the source code, even though third parties are not compelled to copy the source along with the object code.

6. A program that contains no derivative of any portion of the Library, but is designed to work

with the Library by being compiled or linked with it, is called a “work that uses the Library”. Such a work, in isolation, is not a derivative work of the Library, and therefore falls outside the scope of this License.

However, linking a “work that uses the Library” with the Library creates an executable that is a derivative of the Library (because it contains portions of the Library), rather than a “work that uses the library”. The executable is therefore covered by this License. Section 6 states terms for distribution of such executables.

When a “work that uses the Library” uses material from a header ﬁ le that is part of the Library, the object code for the work may be a derivative work of the Library even though

07 APPENDIX

appendix _77

YUKON-WIFI-03073U-01_EN_130828.indd Sec3:77YUKON-WIFI-03073U-01_EN_130828.indd Sec3:77 2013-08-28  10:24:282013-08-28  10:24:28

appendix

the source code is not. Whether this is true is especially signiﬁ cant if the work can be linked without the Library, or if the work is itself a library. The threshold for this to be true is not precisely deﬁ ned by law.

If such an object ﬁ le uses only numerical parameters, data structure layouts and accessors, and small macros and small inline functions (ten lines or less in length), then the use of the object ﬁ le is unrestricted, regardless of whether it is legally a derivative work. (Executables containing this object code plus portions of the Library will still fall under Section 6.) Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms of Section 6. Any executables containing that work also fall under Section 6, whether or not they are linked directly with the Library itself.

7. As an exception to the Sections above, you may also combine or link a “work that uses the

Library” with the Library to produce a work containing portions of the Library, and distribute that work under terms of your choice, provided that the terms permit modiﬁ cation of the work for the customer’s own use and reverse engineering for debugging such modiﬁ cations.

You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its use are covered by this License. You must supply a copy of this License. If the work during execution displays copyright notices, you must include the copyright notice for the Library among them, as well as a reference directing the user to the copy of this License. Also, you must do one of these things:

1) Accompany the work wi th the complet e corresponding machine-readable source

code for the Library including whatever changes were used in the work (which must be distributed under Sections 1 and 2 above); and, if the work is an executable linked with the Library, with the complete machine-readable “work that uses the Library”, as object code and/or source code, so that the user can modify the Library and then relink to produce a modiﬁ ed executable containing the modiﬁ ed Library. (It is understood that the user who changes the contents of deﬁ nitions ﬁ les in the Library will not necessarily be able to recompile the application to use the modiﬁ ed deﬁ nitions.)

2) Use a suitable shared library mechanism for linking with the Library. A suitable

mechanism is one that (1) uses at run time a copy of the library already present on the user’s computer system, rather than copying library functions into the executable, and (2) will operate properly with a modiﬁ ed version of the library, if the user installs one, as long as the modiﬁ ed version is interfacecompatible with the version that the work was made with.

3) Accompany the work with a written o er, valid for at least three years, to give the same

user the materials speciﬁ ed in Subsection 6a, above, for a charge no more than the cost of performing this distribution.

4) If distribution of the work is made by o ering access to copy from a designated place,

o er equivalent access to copy the above speciﬁ ed materials from the same place.

5) Verify that the user has already received a copy of these materials or that you have

already sent this user a copy.

For an executable, the required form of the “work that uses the Library” must include any data and utility programs needed for reproducing the executable from it. However, as a special exception, the materials to be distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally accompany the operating system. Such a contradiction means you cannot use both them and the Library together in an executable that you distribute.

8. You may place library facilities that are a work based on the Library side-by-side in a single

library together with other library facilities not covered by this License, and distribute such a combined library, provided that the separate distribution of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do these two

78_ appendix

YUKON-WIFI-03073U-01_EN_130828.indd Sec3:78YUKON-WIFI-03073U-01_EN_130828.indd Sec3:78 2013-08-28  10:24:282013-08-28  10:24:28

things:

1) Accompany the combined library with a copy of the same work based on the Library,

uncombined with any other library facilities. This must be distributed under the terms of the Sections above.

2) Give prominent notice with the combined library of the fact that part of it is a work based

on the Library, and explaining where to ﬁ nd the accompanying uncombined form of the same work.

9. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly

provided under this License. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your rights under this License.

However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

10. You are not required to accept this License, since you have not signed it. However, nothing

else grants you permission to modify or distribute the Library or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Library (or any work based on the Library), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Library or works based on it.

11. Each time you redistribute the Library (or any work based on the Library), the recipient

automatically receives a license from the original licensor to copy, distribute, link with or modify the Library subject to these terms and conditions. You may not impose any further restrictions on the recipients’ exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties with this License.

12. If, as a consequence of a court judgment or allegation of patent infringement or for any

other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Library at all. For example, if a patent license would not permit royalty-free redistribution of the Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Library.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply, and the section as a whole is intended to apply in other circumstances.

Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/ donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

13. If the distribution and/or use of the Library is restricted in certain countries either by patents

or by copyrighted interfaces, the original copyright holder who places the Library under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

14. The Free Software Foundation may publish revised and/or new versions of the Lesser

General Public License from time to time. Such new versions will be similar in spirit to the present version, but may di er in detail to address new problems or concerns.

07 APPENDIX

appendix _79

YUKON-WIFI-03073U-01_EN_130828.indd Sec3:79YUKON-WIFI-03073U-01_EN_130828.indd Sec3:79 2013-08-28  10:24:282013-08-28  10:24:28

appendix

Each version is given a distinguishing version number. If the Library speciﬁ es a version number of this License which applies to it and “any later

version”, you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Library does not specify a license version number, you may choose any version ever published by the Free Software Foundation.

15. If you wish to incorporate parts of the Library into other free programs whose distribution

conditions are incompatible with these, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

16. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY

FOR THE LIBRARY, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

17. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRI T ING

WI L L ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/ OR REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Libraries If you develop a new library, and you want it to be of the greatest possible use to the public, we recommend making it free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms (or, alternatively, under the terms of the ordinary General Public License).

To apply these terms, attach the following notices to the library. It is safest to attach them to the start of each source ﬁ le to most e ectively convey the exclusion of warranty; and each ﬁ le should have at least the “copyright” line and a pointer to where the full notice is found.

one line to give the library’s name and an idea of what it does.

This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version 2.1 of the License, or (at your option) any later version.

This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU

Lesser General Public License for more details.

80_ appendix

YUKON-WIFI-03073U-01_EN_130828.indd Sec3:80YUKON-WIFI-03073U-01_EN_130828.indd Sec3:80 2013-08-28  10:24:282013-08-28  10:24:28

You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA Also add information on how to contact you by electronic and paper mail.

You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright disclaimer” for the library, if necessary. Here is a sample; alter the names: Yoyodyne, Inc., hereby disclaims all copyright interest in the library `Frob’ (a library for tweaking knobs) written by James Random Hacker.

signature of Ty Coon, 1 April 1990 Ty Coon, President of Vice That’s all there is to it!

BSD LICENSE

ﬂ ex: the fast lexical analyser Copyright (c) 2001, 2002, 2003, 2004, 2005, 2006, 2007 The Flex Project. Copyright (c) 1990, 1997 The Regents of the University of California. All rights reserved. LibNet License Copyright (c) 1998 - 2001 Mike D. Schi man <mike@infonexus.com> PPP/ Debian Copyright (c) 1989 Regents of the University of California. All rights reserved. Redistribution and use in source and binary forms, with or without modiﬁ cation, are permitted provided that

the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the

following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the

following disclaimer in the documentation and/or other materials provided with the distribution.

3. Neither the name of the <organization> nor the names of its contributors may be used to endorse or

promote products derived from this software without speciﬁ c prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL <COPYRIGHT HOLDER> BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES ( INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

07 APPENDIX

appendix _81

YUKON-WIFI-03073U-01_EN_130828.indd Sec3:81YUKON-WIFI-03073U-01_EN_130828.indd Sec3:81 2013-08-28  10:24:282013-08-28  10:24:28

appendix

OPENSSL

This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http:// www.openssl.org/)

This product includes cryptographic software written by Eric Young (eay@cryptsoft.com)

LICENSE ISSUES

===================================================================== The OpenSSL toolkit stays under a dual license, i.e. both the conditions of the OpenSSL License

and the original SSLeay license apply to the toolkit. See below for the actual license texts. Actually both licenses are BSD-style Open Source licenses. In case of any license issues related to OpenSSL please contact openssl-core@openssl.org.

OpenSSL License

===================================================================== Copyright (c) 1998-2008 The OpenSSL Project. All rights reserved. Redistribution and use in source and binary forms, with or without modiﬁ cation, are permitted

provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions

and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of

conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. All advertising materials mentioning features or use of this software must display the following

acknowledgment: “This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)”

4. The names “OpenSSL Toolkit” and “OpenSSL Project” must not be used to endorse or

promote products derived from this software without prior written permission. For written permission, please contact openssl-core@openssl.org.

5. Products derived from this software may not be called “OpenSSL” nor may “OpenSSL”

appear in their names without prior written permission of the OpenSSL Project.

6. Redistributions of any form whatsoever must retain the following acknowledgment:

“This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)”

THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT “AS IS” AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

===================================================================== This product includes cryptographic software written by Eric Young (eay@cryptsoft.com). This

product includes software written by Tim Hudson (tjh@cryptsoft.com).

82_ appendix

YUKON-WIFI-03073U-01_EN_130828.indd Sec3:82YUKON-WIFI-03073U-01_EN_130828.indd Sec3:82 2013-08-28  10:24:282013-08-28  10:24:28

memo

YUKON-WIFI-03073U-01_EN_130828.indd Sec3:83YUKON-WIFI-03073U-01_EN_130828.indd Sec3:83 2013-08-28  10:24:282013-08-28  10:24:28

QUESTIONS OR COMMENTS?

Country CALL OR VISIT US ONLINE AT

ASTRALIA 1300 362 603 www.samsung.com

Code No. DC68-03073U-01_EN

YUKON-WIFI-03073U-01_EN_130828.indd Sec3:84YUKON-WIFI-03073U-01_EN_130828.indd Sec3:84 2013-08-28  10:24:292013-08-28  10:24:29

Samsung WD10F7S7SRP User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
