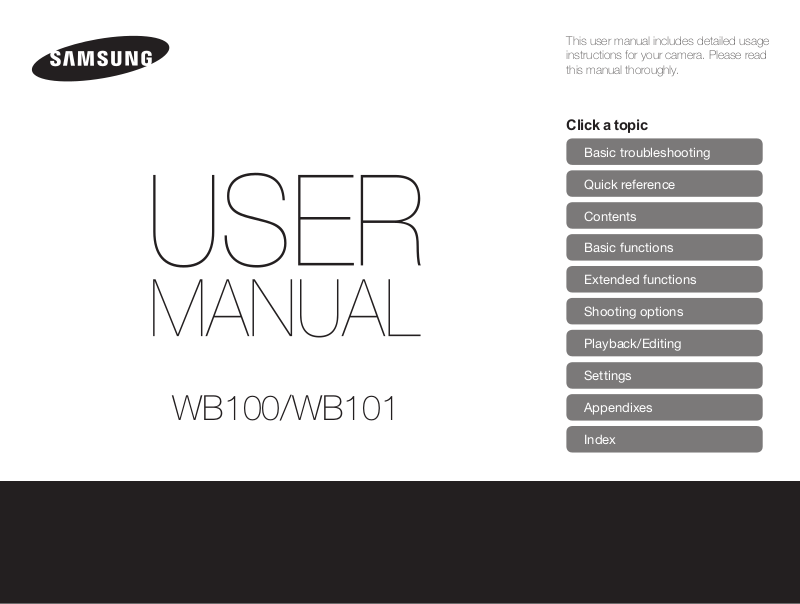

This user manual includes detailed usage
instructions for your camera. Please read
this manual thoroughly.
Click a topic
Basic troubleshooting
Quick reference
Contents
Basic functions
Extended functions
Shooting options
Playback/Editing
Settings
WB100/WB101
Appendixes
Index
Health and safety information
Always comply with the following precautions and usage tips to avoid dangerous situations and ensure peak performance of your camera.
Warning—situations that could cause injury to yourself or
others
Do not disassemble or attempt to repair your camera.
This may result in electric shock or damage to the camera.
Do not use your camera near flammable or explosive gases and
liquids.
This may cause a fire or explosion.
Do not insert flammable materials into the camera or store these
materials near the camera.
This may cause a fire or electric shock.
Do not handle your camera with wet hands.
This may result in electric shock.
Prevent damage to subjects’ eyesight.
Do not use the flash in close proximity (closer than 1 m/3 ft) to
people or animals. If you use the flash too close to your subject’s
eyes, this can cause temporary or permanent eyesight damage.
1
Keep your camera away from small children and pets.
Keep your camera and all accessories out of the reach of small
children and animals. Small parts may cause choking or serious
injury if swallowed. Moving parts and accessories may present
physical dangers as well.
Do not expose the camera to direct sunlight or high
temperatures for an extended period of time.
Prolonged exposure to sunlight or extreme temperatures can
cause permanent damage to your camera’s internal components.
Avoid covering the camera with blankets or clothes.
The camera may overheat, which may distort the camera or
cause a fire.
If liquid or foreign objects enter your camera, immediately
disconnect the power source and then contact a Samsung
service center.
Health and safety information
Caution—situations that could cause damage to your camera
or other equipment
Remove the batteries from your camera when storing it for an
extended period of time.
Installed batteries may leak or corrode over time and cause
serious damage to your camera.
Use only authentic, manufacturer-recommended batteries.
Do not damage or heat the battery.
This may cause a fire or personal injuries.
Use only Samsung-approved batteries, cables and accessories.
• Using unauthorized batteries, cables or accessories can cause
batteries to explode, damage your camera, or cause injury.
• Samsung is not responsible for damage or injuries caused by
unapproved batteries, cables or accessories.
Use the battery only for its intended purpose.
Misusing the battery may cause a fire or electric shock.
Do not touch the flash while it fires.
The flash is very hot when fired and may burn your skin.
Do not force the camera’s parts or apply pressure to the
camera.
This may cause your camera to malfunction.
Exercise caution when you connect cables and install batteries
and memory cards.
If you force the connectors, improperly connect cables, or
improperly install batteries and memory cards, you can damage
ports, connectors, and accessories.
Keep cards with magnetic strips away from the camera case.
Information stored on the card may be damaged or erased.
Never use a damaged battery or memory card.
This may result in electric shock or camera malfunction or cause
a fire.
Check that the camera is operating properly before use.
The manufacturer takes no responsibility for any loss of files or
damage that may result from camera malfunction or improper
use.
You must plug the small end of the USB cable into your camera.
If the cable is reversed, it may damage your files. The
manufacturer is not responsible for any loss of data.
2
Outline of the User Manual
Copyright information
• Microsoft Windows and the Windows logo are
registered trademarks of the Microsoft Corporation.
• Mac is a registered trademark of the Apple Corporation.
• HDMI, the HDMI logo and the term "High Definition
Multimedia Interface" are trademarks or registered
trademarks of HDMI Licensing LLC.
• Trademarks and trade names used in this manual are
the property of their respective owners.
• Camera specifications or contents of this manual may
be changed without prior notice due to upgrade of
camera functions.
• Use this camera responsibly and adhere to all laws
and regulations concerning its use.
• You are not allowed to reuse or distribute any part of
this manual without prior permission.
Basic functions 10
Learn about your camera’s layout, icons, and basic
functions for shooting.
Extended functions 31
Learn how to capture a photo and record a video by
selecting a mode.
Shooting options 48
Learn how to set the options in Shooting mode.
Playback/Editing 68
Learn how to play back photos or videos, and edit
photos or videos. Also, learn how to connect your
camera to your computer, TV, HDTV, or 3D TV.
Settings 91
Refer to options to configure your camera’s settings.
Appendixes 98
Get information about error messages, specifications,
and maintenance.
3
Indicators used in this manual
Adjustingbrightnessandcolor
Learn how to adjust the brightness and color for better image quality.
3
Select a value to adjust the exposure.
•
The photo will be brighter as the exposure value increases.
EV:+1.0
CancelSet
4
Press [ ] to save your settings.
Shooting modeIndicator
Smart Auto
Program
Scene
DUAL IS
Live Panorama
Magic Plus
Settings
Movie
Shooting mode icons
These icons appear in the text when a function is available in a
mode. See the example below.
Note: The
scenes or modes.
For example:
or mode may not support functions for all
Icons used in this manual
IconFunction
Additional information
Safety warnings and precautions
Camera buttons. For example, [Shutter] represents the
[ ]
shutter button.
( )Page number of related information
The order of options or menus you must select to
perform a step; for example: Select Face Detection→
→
Normal (represents Select Face Detection, and then
select Normal).
*Annotation
Screen displays used in this manual
The camera has 52 MB internal memory.
The on-screen displays appear based on the internal memory.
Adjusting the exposure manually (EV)
Depending on the intensity of the ambient light, your photos
may be too bright or dark. In these cases, you can adjust the
exposure to get a better photo.
Darker (-) Neutral (0) Brighter (+)
Available in Program,
DUAL IS, and Movie
modes
4
Expressions used in this manual
Pressing the shutter
• Half-press [Shutter]: Press the shutter halfway down
• Press [Shutter]: Press the shutter all the way down
Half-press [Shutter]Press [Shutter]
Subject, background, and composition
• Subject: The main object in a scene, such as a person,
animal, or still life
• Background: The objects around the subject
• Composition: The combination of a subject and background
Background
Composition
Subject
Exposure (Brightness)
The amount of light that enters your camera determines the
exposure. You can alter the exposure by changing the shutter
speed, aperture value, or ISO sensitivity. By altering the exposure,
your photos will be darker or lighter.
5
Normal exposure
Overexposure (too bright)
Basic troubleshooting
Learn to solve common problems by setting shooting options.
The subject’s eyes
appear red.
Photos have dust
spots.
Photos are blurred.
Photos are blurred
when shooting at
night.
Subjects come out
too dark because of
backlighting.
Red eye occurs when the subject's eyes reflect light from the camera flash.
•
Set the flash option to Red-eye or Red-eye Fix. (p. 52)
•
If the photo has already been captured, select Red-eye Fix in the edit menu. (p. 81)
If dust particles are present in the air, you may capture them in photos when you use the flash.
•
Turn off the flash or avoid capturing photos in a dusty place.
•
Set ISO sensitivity options. (p. 54)
Blurring can occur if you capture photos in low light conditions or hold the camera incorrectly.
•
Use the OIS function or half-press [Shutter] to ensure the subject is focused. (p. 29)
•
Use the mode. (p. 38)
As the camera tries to let in more light, the shutter speed slows. This can make it difficult to hold the
camera steady long enough to capture a clear photo and may result in camera shake.
•
Select Night in mode. (p. 34)
•
Turn on the flash. (p. 52)
•
Set ISO sensitivity options. (p. 54)
•
Use a tripod to prevent your camera from shaking.
When the light source is behind the subject or when there is a high contrast between light and dark
areas, the subject may appear too dark.
•
Avoid shooting toward the sun.
•
Select Backlight in mode. (p. 34)
•
Set the flash option to Fill in. (p. 52)
•
Adjust the exposure. (p. 62)
•
Set the Auto Contrast Balance (ACB) option. (p. 63)
•
Set the metering option to Spot if a subject is in the center of the frame. (p. 63)
6
Quick reference
Capturing photos of people
•
mode > Beauty Shot 35
•
mode > Picture in Picture 42
•
Red-eye/Red-eye Fix (to prevent or correct
52
red-eye)
•
Face Detection 59
•
Self-Portrait 60
Capturing photos at night or in
the dark
•
mode > Night, Sunset, Dawn 34
•
Flash options 52
•
ISO sensitivity (to adjust the sensitivity to light)
54
Capturing action photos
•
Continuous, Motion Capture 66
Capturing photos of text,
insects, or flowers
•
mode > Text 34
•
Macro 55
Adjusting the exposure
(brightness)
•
ISO sensitivity (to adjust the sensitivity to light)
54
•
EV (to adjust exposure) 62
•
ACB (to compensate for subjects against bright
backgrounds)
•
Metering 63
•
AEB (to capture 3 photos of the same scene
with different exposures)
63
66
Capturing photos of scenery
•
mode > Landscape 34
•
mode 39
Capturing 3D photos
•
mode > 3D Photo 41
Applying effects to photos
•
mode > Magic Frame 41
•
mode > Split Shot 42
•
mode > Photo Filter 44
•
Image Adjust (to adjust Sharpness, Contrast,
or Saturation)
Index ...........................................................................120
9
Basic functions
Learn about your camera’s layout, icons, and basic functions for shooting.
Unpacking
Camera layout
Inserting the battery and memory card
Turning on your camera
Performing the initial setup
Learning icons
………………………………… 11
……………………………… 12
Attaching a strap
Attaching a lens cap
Turning on your camera
………………………… 15
……………………… 15
…………………… 17
………………… 17
……………… 18
……………………………… 20
… 16
Selecting options or menus
Setting the display and sound
Setting the display type
Setting the sound
Capturing photos
Zooming
………………………………… 26
Reducing camera shake
Tips for getting a clearer photo
……………… 21
…………………… 23
………………………… 24
………………………… 25
………………… 28
…………… 23
…………… 29
Unpacking
The following items are included in your product box.
CameraUSB cable
Optional accessories
Camera caseA/V cable
AA Alkaline batteriesStrap
Lens cap/Lens cap strapQuick Start Guide
Basic functions
11
HDMI cableMemory card
Memory card/Memory card adapter
•
The illustrations may differ slightly from the items shipped with
your product.
•
You can purchase optional accessories at a retailer or a Samsung
service center. Samsung is not responsible for any problems
caused by using unauthorized accessories.
Camera layout
Before you start, familiarize yourself with your camera’s parts and their functions.
Mode dial
(p. 14)
POWER button
Recording button
Shutter button
AF-assist light/Timer lamp
Lens
Basic functions
Flash
Eyelet for camera strap
Flash pop-up button
Speaker
HDMI port
Accepts HDMI cable
USB and A/V port
Accepts USB cable and A/V cable
12
Camera layout
Microphone
Status lamp
•
Blinking: When the camera is
saving a photo or video, being
read by a computer when the
image is out of focus
•
Steady: When the camera is
connecting to a computer or
when the image is in focus
Tripod mount
Display
Basic functions
13
Zoom button
•
In Shooting mode: Zoom in or out
•
In Playback mode: Zoom in on part
of a photo or view files as thumbnails,
or adjust the volume
(p. 14)
Buttons
Battery chamber cover
Insert a memory card and battery
Camera layout
Mode dial
IconDescription
Smart Auto: Capture a photo with a scene mode selected
automatically by the camera.
Program: Capture a photo by setting options except the
shutter speed and aperture value which the camera sets
automatically.
Scene: Capture a photo with options preset for a specific
scene.
DUAL IS: Capture a photo with options that reduce
camera shake.
Live Panorama: Capture and combine a series of
photos to create a panoramic image.
Magic Plus: Capture a photo, record a video, or edit an
image with various effects.
Settings: Configure your camera’s settings.
Movie: Customize settings to record a video.
Basic functions
Buttons
ButtonDescription
Access options or menus.
Move back.
Basic functionsOther functions
Change the display option. Move up
Change the macro option.Move down
Change the flash option.Move left
Change the timer option.Move right
Confirm the highlighted option or menu.
Enter Playback mode.
Delete files in Playback mode.
14
Camera layout
Attaching a strap
Attach a strap to carry your camera conveniently.
Basic functions
Attaching a lens cap
Attach a lens cap with a lens cap strap to protect the camera
lens.
15
Inserting the battery and memory card
Learn how to insert the battery and an optional memory card into the camera.
Memory card
Insert a memory card with the
gold-colored contacts facing
up.
Removing the battery and memory card
Push the card gently until it
disengages from the camera,
and then pull it out of the slot.
Memory card
Battery
Check the polarity (+/-) of
the batteries before inserting
them.
Basic functions
Battery
Using the memory card adapter
To use micro memory cards with this product,
a PC, or a memory card reader, insert the
card into an adapter.
You can use the internal memory for temporary storage if a memory card is
not inserted.
16
Turning on your camera
Turning on your camera
Press [POWER] to turn your camera on or off.
• The initial setup screen appears when you turn on the camera
for the first time. (p. 18)
Basic functions
Turning on your camera in Playback mode
Press [ ]. The camera turns on and immediately accesses
Playback mode.
If you turn on your camera by pressing and holding [ ] until the status lamp
blinks, the camera does not emit any sounds.
17
Performing the initial setup
[GMT+00:00] 2012/01/01 12:00 PM
2012 01 01 12 00 PM
When you turn on your camera for the first time, the initial setup screen appears. Follow the steps below to configure the camera’s basic
settings.
Verify that Language is highlighted, and then press
1
[
] or [ ].
General
Language English
Time Zone London
Date/Time Set 01/01/...
Date Type MM/D...
Time Type 12 Hr
ExitSelect
Press [ / ] to select a language, and then press
2
[
].
Press [ ] to select Time Zone, and then press
3
[
] or [ ].
Basic functions
Press [ / ] to select a time zone, and then press
4
[
].
Time Zone Home
London
CancelSet
Press [ ] to select Date/Time Set, and then press
5
[
] or [ ].
Date/Time Set
Year Month Day Hr Min DST
CancelSet
•
The screen may differ depending on the language selected.
18
Performing the initial setup
Press [ / ] to select an item.
6
Press [ / ] to set the date, time, and daylight-
7
saving time, and then press [
Press [ ] to select Date Type, and then press
8
[
] or [ ].
Date Type
YYYY/MM/DD
MM/DD/YYYY
DD/MM/YYYY
BackSelect
Press [ / ] to select a date type, and then
9
press [
Press [ ] to select Time Type, and then press
10
[
].
] or [ ].
].
Basic functions
Press [ / ] to select a time type, and then
11
press [
Press [ ] to finish the initial setup.
12
19
].
Learning icons
The icons the camera displays on the screen change according to the mode you select or the options you set.
Shooting options (left)
1
IconDescription
Shooting mode
ISO sensitivity
White balance
Face detection
Face retouch
Face tone
Burst option
Focus area
1
2
3
Shooting options (right)
2
IconDescription
Intelli zoom on
Photo resolution
Video resolution
Metering
Frame rate
Flash
Zoom mute
Optical Image Stabilization (OIS)
Auto focus option
Image adjustment (sharpness,
contrast, and saturation)
Timer
Shooting information
3
IconDescription
Aperture value
Shutter speed
Basic functions
20
IconDescription
Available recording time
Exposure value
Current date
Current time
Available number of photos
Memory card inserted
•
: Sufficient
•
: Insufficient
•
: Replace the batteries
Auto focus frame
Camera shake
Zoom indicator
Photo resolution when the
Intelli zoom is on
Zoom ratio (Intelli zoom)
Histogram (p. 23)
Selecting options or menus
To select an option or a menu, press [ ], and then press [ / / / ] or [ ].
In Shooting mode, press [ ].
1
Select an option or a menu.
2
•
To move up or down, press [ ] or [ ].
•
To move left or right, press [ ] or [ ].
Press [ ] to confirm the highlighted option or menu.
3
Basic functions
Going back to the previous menu
Press [ ] to go back to the previous menu.
Half-press [Shutter] to return to Shooting mode.
21
Selecting options or menus
For example, to select a White Balance option in Program
mode:
Rotate the mode dial to .
1
Press [ ].
2
EV
White Balance
ISO
Flash
Focus
Focus Area
ExitSelect
Basic functions
Press [ / ] to select White Balance, and then
3
press [
] or [ ].
EV
White Balance
ISO
Flash
Focus
Focus Area
ExitSelect
Press [ / ] to select a White Balance option.
4
White Balance : Daylight
BackSelect
Press [ ] to save your settings.
5
22
Setting the display and sound
Learn how to change the basic display information and sound settings.
Setting the display type
You can select a display type for the Shooting or Playback mode.
Each type displays different shooting or playback information.
See the table below.
Press [ ] repeatedly to change thes display type.
Mode
Shooting
Playback
Display type
• Hide all information about shooting options.
• Show all information about shooting options.
• Show a histogram.
• Hide all information about the current file.
• Show information about the current file
(excluding the shooting settings and
histogram).
• Show all information about the current file.
Basic functions
About histograms
A histogram is a graph that illustrates how light is distributed
in your photo. If the histogram has a high peak on the left, the
photo is underexposed and will appear dark. A peak on the
right of the graph means that the photo is overexposed and will
appear washed out. The height of the peaks is related to color
information. The more of a particular color, the taller the peak.
Under-exposed Well-exposed Over-exposed
23
Setting the display and sound
Setting the option display view
You can hide or show the option display appearing in some
modes.
Press [ ] repeatedly.
• Hide the option display.
• Show the option display.
BeautyShot
Option display
PanelOff
For example, in Scene mode
Basic functions
Setting the sound
Turn the sound your camera emits when you perform functions
on or off.
Rotate the mode dial to .
1
Select Sound→Beep Sound.
2
Select an option.
3
Option
Off
On
24
Description
The camera does not emit any sounds.
The camera emits sounds.
Capturing photos
Learn how to capture photos easily and quickly in Smart Auto mode.
Rotate the mode dial to .
1
Align your subject in the frame.
2
Basic functions
Half-press [Shutter] to focus.
3
•
A green frame means the subject is in focus.
•
A red frame means the subject is out of focus.
Press [Shutter] to capture a photo.
4
Press [ ] to view the captured photo.
5
•
To delete the photo, press [ ], and then select Yes.
Press [ ] to return to Shooting mode.
6
See page 29 for tips to get clearer photos.
25
Capturing photos
Zooming
You can capture close-up photos by adjusting the zoom.
Zoom ratio
Zoom out
•
The farther you rotate the zoom button, the faster the camera zooms
in or out.
•
When you rotate the zoom button, the zoom ratio shown on the
screen may change inconsistently.
Zoom in
Basic functions
Digital zoom
The Digital zoom is supported by default in Shooting mode. If you
zoom in on a subject in Shooting mode and the zoom indicator
is in the digital range, your camera is using the Digital zoom. By
using both the 26X Optical zoom and 5X Digital zoom, you can
zoom in up to 130 times.
Optical range
Zoom indicator
Digital range
•
The Digital zoom is not available with theTracking AF option.
•
If you capture a photo with the Digital zoom, the photo quality may be
lower than normal.
26
Capturing photos
Intelli zoom
If the zoom indicator is in the Intelli range, your camera is using
the Intelli zoom. Photo resolution varies according to the zoom
rate if you use the Intelli zoom. By using both the Optical zoom
and Intelli zoom, you can zoom in up to 52 times.
Zoom
indicator
Photo resolution when
the Intellizoom is on
Optical range
Intelli range
•
Intelli zoom is not available with the Motion Capture, Selection AF
option or Tracking AF option.
•
The Intelli zoom helps you capture a photo with less quality
deterioration than the Digital zoom. However, the photo quality may
be lower than when you use the Optical zoom.
•
The Intelli zoom is available only when you set a 4:3 resolution ratio.
If you set another resolution ratio with Intelli zoom on, the Intelli zoom
will be turned off automatically.
Basic functions
Setting Intelli zoom
In Shooting mode, press [ ].
1
Select Intelli Zoom.
2
Select an option.
3
Icon
Description
Off: The Intelli zoom is deactivated.
On: The Intelli zoom is activated.
27
Capturing photos
Reducing camera shake
In Shooting mode, you can set either the Optical Image Stabilizer
(OIS) or the Dual Image Stabilizer (Dual IS) to reduce or eliminate
picture blurriness from camera shake.
Before correction
In Shooting mode, press [ ].
1
Select OIS.
2
Select an option.
3
Icon
Description
Off: The Image Stabilizer is deactivated.
On: The Optical Image Stabilizer (OIS) is activated.
Dual IS: The Dual Image Stabilizer (Dual IS) is
activated.
After correction
Basic functions
•
The Image Stabilizer may not function properly when:
- you move your camera to follow a moving subject
- you use the Digital zoom
- there is too much camera shake
- the shutter speed is slow (for example, when you capture night
scenes)
- the battery is low
- you capture a close-up shot
•
If you use the OIS function with a tripod, your images may be blurred
by the vibration of the OIS sensor. Deactivate the OIS function when
you use a tripod.
•
If the camera is hit or dropped, the display will be blurry. If this
occurs, turn off the camera, and then turn it on again.
28
Tips for getting a clearer photo
Holding your camera correctly
Half-pressing the shutter button
Half-press [Shutter] and adjust the
focus. The camera adjusts the focus and
exposure automatically.
The camera sets the aperture value
and shutter speed automatically.
Focus frame
•
Press [Shutter] to capture the photo
if the focus frame appears in green.
•
Change the composition and halfpress [Shutter] again if the focus
frame appears in red.
Ensure nothing is
blocking the lens, flash,
or microphone.
Basic functions
Reducing camera shake
•
Set the Optical Image Stabilization option to
reduce camera shake optically. (p. 28)
•
Select the mode or set the Dual IS option
to reduce camera shake both optically and
digitally. (p. 38, 28)
When is displayed
Camera shake
When you shoot in the dark, avoid setting the flash option to
Slow Sync or Off. The aperture remains open longer and it may be
harder to hold the camera steady long enough to capture a clear
photo.
•
Use a tripod or set the flash option to Fill in. (p. 52)
•
Set ISO sensitivity options. (p. 54)
29
Loading...
+ 94 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
