Samsung V6700 User Manual

Download

Page 1

Instruction Manual

DVD-V6700

www.samsung.com

Page 2

AFETYINSTRUCTIONS

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings, Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, or other apparatus (including

amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades

with one wider than the other. A grounding type plug has two blades and a third grounding prong.

The wide blade and the third prong are provided for your safety. If the provided plug does not fit into your

outlet, consult an electrician for replacement of the outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,

and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with a cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with the apparatus.

13) When a cart is used. Unplug this apparatus, use caution when moving the

cart/apparatus combination to avoid injury from tip-over.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been

damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or objects

have fallen into the apparatus. Service is also required if the apparatus has been exposed to rain or

moisture, does not operate normally, or has been dropped.

ENG-2

Page 3

AFETYINSTRUCTIONS

Precautions

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury.

Do not install this equipment in a confined space such as a bookcase or similar unit.

This symbol indicates important instructions accompanying the product.

WARNING : To prevent damage which may result in fire or electric shock hazard, do not expose

this appliance to rain or moisture.

Note to CATV system installer: This reminder is provided to call CATV system installer’s attention to Article

820-40 of the National Electrical Code (Section 54 of Canadian Electrical Code, Part I) that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

Caution: FCC regulations state that any unauthorized changes or modifications to this equipment may void

the user’s authority to operate it.

FCC NOTE (for U.S.A):

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on. The user is encouraged to try to correct the interference by one or more of the following measures.

• Reposition or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect this equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. This class B digital apparatus meets all requirements of the Canadian Interference -Causing Equipment Regulations.

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LÁSER CLASE 1

ENG-3

Page 4

AFETYINSTRUCTIONS

CAUTION

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR

PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVER AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

Note:

• This unit can be used only where the power supply is AC 100~240V, 50/60Hz. It cannot be used elsewhere.

• This DVD player is designed and manufactured to respond to the Region Management Information. If the Region number of a DVD disc does not correspond to the Region number of this DVD player, the DVD player cannot play the disc.

• The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. In particular, this product is licensed under the following US patents: 5,060,220 5,457,669 5,561,649 5,705,762 5,987,417 6,043,912 6,222,983 6,272,096 6,377,524 6,377,531 6,385,587 6,389,570 6,408,408 6,466,532 6,473,736 6,477,501 6,480,829 6,556,520 6,556,521 6,556,522 6,578,163 6,594,208 6,631,110 6,658,588 6,674,697 6,674,957 6,687,455 6,697,307 6,707,985 6,721,243 6,721,493 6,728,474 6,741,535 6,744,713 6,744,972 6,765,853 6,765,853 6,771,890 6,771,891 6 775,465 6,778,755 6,788,629 6,788,630 6,795,637 6,810,201 6,862,256 6,868,054 6,894,963 6,937,552.

This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for commercial use. The license does not cover any product unit other than this product unit and the license does not extend to any unlicensed product unit or process conforming to ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with this product unit. The license only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are granted under this license for product features or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3.

Handling Cautions

• Before connecting other components to this player, be sure to turn them all off.

• Do not move the player while a disc is being played, or the disc may be scratched or broken, and the player’s internal parts may be damaged.

• Do not put a flower vase filled with water or any small metal objects on the player.

• Be careful not to put your hand into the disc tray.

• Do not place anything other than the disc in the disc tray.

• Exterior interference such as lightning and static electricity can affect normal operation of this player. If this occurs, turn the player off and on again with the POWER button, or disconnect and then reconnect the AC power cord to the AC power outlet. The player will operate normally.

• Be sure to remove the disc and turn off the player after use.

• Disconnect the AC power cord from the AC outlet when you don’t intend to use the player for long periods of time.

• Clean the disc by wiping in a straight line from the inside to the outside of the disc.

Disc Storage

Be careful not to harm the disc because the data on these discs is highly vulnerable to the environment.

• Do not keep under direct sunlight.

• Keep in a cool ventilated area.

• Store vertically.

• Keep in a clean protection jacket.

Maintenance of Cabinet

For safety reasons, be sure to disconnect the AC power cord from the AC outlet.

• Do not use benzene, thinner, or other solvents for cleaning.

• Wipe the cabinet with a soft cloth.

ENG-4

Page 5

EFORE YOU START

Before you start

Accessories

Remote Control

(AK59-00051A)

Batteries-2EA

1.5V(AAA)

(AC43-12002H)

Video/Audio Cable

(AC39-00073A)

Install Batteries in the Remote Control

Open the battery cover on

the back of the remote control.

Insert two AAA batteries.

Make sure that the polarities (+ and -) are aligned correctly.

Replace the battery

cover.

Antenna Cable (AC39-42001J)

User’s Guide

(AK68-01304F)

EP-2 Plug Converter

3721-000117

If the remote control doesn’t operate properly:

■

Check the polarity +, - of the batteries (Dry-Cell)

■

Check if the batteries are drained.

■

Check if the remote control sensor is blocked by obstacles.

■

Check if there is any fluorescent lighting nearby.

ENG-5

Page 6

ABLE OFCONTENTS

Table of Contents

Safety Instructions ........................................................................................................................................2

Important Safety Instructions ................................................................................................................2

Precautions ..........................................................................................................................................3

Before you start ............................................................................................................................................5

Accessories............................................................................................................................................5

Install Batteries in the Remote Control ..................................................................................................5

Chapter 1: Setup

General Features............................................................................................................................................8

Disc Type and Characteristics ........................................................................................................................9

Description....................................................................................................................................................10

Tour of the Remote Control ..........................................................................................................................12

Chapter 2: Connections

Connecting the Antenna Cable ....................................................................................................................13

Method1: Antenna + DVD-VCR + TV: No Cable box ..........................................................................13

Method2: Antenna + DVD-VCR + TV: Cable box with many scrambled channels ..............................14

Method3: Antenna + DVD-VCR + TV: Cable box with a few scrambled channels ..............................14

Before Connecting the DVD-VCR ..............................................................................................................15

Connection to a TV ......................................................................................................................................15

Connection to a TV (Video)..................................................................................................................15

Connection to a TV (S-Video) ............................................................................................................16

Connection to a TV (Interlace) ............................................................................................................17

Connection to a TV (Progressive)........................................................................................................18

Connection to an Audio System ..................................................................................................................19

Connection to an Audio System (2 Channel Amplifier) ........................................................................19

Connection to an Audio System (Dolby digital, MPEG2 or DTS Amplifier) ..........................................20

Connecting a Power Cord & Auto Setup ......................................................................................................21

Chapter 3: Initial Setup

Selecting a Menu Language ........................................................................................................................22

Setting the Clock ........................................................................................................................................23

Setting the Clock Automatically............................................................................................................23

Setting the Clock Manually ................................................................................................................24

Memorizing the Channels ............................................................................................................................26

Selecting the Video Signal-source ......................................................................................................26

Storing Channels in Memory (Automatic Method) ..............................................................................27

Adding and Erasing Channels (Manual Method) ................................................................................27

Selecting the RF Output Channel ................................................................................................................28

Setting the Front Panel Display ..................................................................................................................29

Setting the Auto Power Off ..........................................................................................................................30

Chapter 4: DVD Operations

Playing a Disc ..............................................................................................................................................31

ENG-6

Page 7

ABLE OFCONTENTS

Using the Search and Skip Functions ........................................................................................................33

Using the Display Function ..........................................................................................................................34

Using the Disc and Title Menu (DVD) ..........................................................................................................36

Using the Function Menu (DVD) ..................................................................................................................37

Repeat Play ................................................................................................................................................38

Slow Repeat Play ........................................................................................................................................40

Adjusting the Aspect Ratio (EZ View) ..........................................................................................................41

Selecting the Audio Language ....................................................................................................................43

Selecting the Subtitle Language ................................................................................................................44

Changing the Camera Angle ......................................................................................................................45

Using the Bookmark Function ....................................................................................................................45

Using the Zoom Function (DVD) ..................................................................................................................47

Clips Menu for MP3/WMA/JPEG/MPEG4 ..................................................................................................48

Folder Selection ..........................................................................................................................................48

MP3/WMA Playback ....................................................................................................................................49

MPEG4 Playback ........................................................................................................................................51

Program Play & Random Play......................................................................................................................53

Picture CD Playback ....................................................................................................................................54

Using the Setup Menu ................................................................................................................................56

Setting Up the Language Features ..............................................................................................................57

Setting Up the Audio Options ......................................................................................................................59

Setting Up the Display Options ....................................................................................................................61

Setting Up the Parental Control ..................................................................................................................63

DivX(R) Registration ....................................................................................................................................66

Chapter 5: VCR Operations

Inserting and Ejecting a Video Cassette Tape ............................................................................................67

Playing a Pre-Recorded Video Cassette Tape ............................................................................................68

Special VCR Playback Features ................................................................................................................69

Using Automatic Tracking ............................................................................................................................70

Selecting the Cassette Type ........................................................................................................................71

Setting the Auto Play ..................................................................................................................................72

Setting the Auto Repeat ..............................................................................................................................73

Using the Tape Counter ..............................................................................................................................74

Using the Assemble Edit Function ..............................................................................................................75

Selecting the Audio Output Mode ................................................................................................................76

Searching for a Specific Sequence ............................................................................................................77

Basic Recording ..........................................................................................................................................79

Special Recording Features ........................................................................................................................80

Using One-Touch Recording ......................................................................................................................81

Selecting the Recording Speed ..................................................................................................................82

Making a Timer Recording ..........................................................................................................................83

Chapter 6: Reference

Troubleshooting ..........................................................................................................................................85

Technical Specifications ..............................................................................................................................87

ENG-7

Page 8

Chapter 1

ETUP

General Features

DVD-VCR Features

■

Perfect compatibility to play back DVDs, audio

CDs or VHS Tapes.

■

Enjoy a DVD movie while recording a TV show

to the VCR.

■

Auto Setup instantly finds the time and runs

channel search.

■

RF input and output.

■

Composite, S-Video, and Component Video

outputs.

■

On-Screen Program (English/French/Spanish).

DVD Features

■

10-bit video digital to analog converter and

54MHz advanced digital filter.

■

Playback of 96KHz/24-bit sources.

■

DTS digital output for DTS-enhanced DVDs.

■

This unit can play MPEG4 formats within an avi

file.

■

Play back MP3-CDs.

VCR Features

■

Hi-Fi Stereo VCR.

■

Superior slow motion and stop action (with 4

heads).

■

Playback of S-VHS tapes with a better than

standard resolution.

■

INTRO Scan, Zero Return, and END Search.

■

7-event/1 month timer recording.

■

Time remaining counter, real time counter.

Notes

■

Discs which cannot be played with this player.

- DVD-ROM/DVD-RAM/VCD

- CDI/CDV

- Super Audio CD (CD, HD layer)

- CDGs play audio only, not graphics.

- DVD-RW (VR mode)

- Non-finalized DVD-RW, -R, DVD+RW, and +R disc.

■

Ability to play back may depend on recording

conditions.

- DVD-RW, -R/CD-RW/DVD+RW, +R/CD-ROM

Note

This product incorporates copyright protection

technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

COPY PROTECTION

Many DVD discs are encoded with copy protection.

Because of this, you should only connect your DVDVCR directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copyprotected DVD discs. This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

PROGRESSIVE SCAN OUTPUT

SETTING

PLEASE NOTE THAT NOT ALL

HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IF PROGRESSIVE SCAN PICTURE PROBLEMS OCCUR, WE RECOMMEND SWITCHING THE CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING YOUR TV SET COMPATIBILITY WITH THIS DVD-VCR, PLEASE CONTACT SAMSUNG'S CUSTOMER SERVICE CENTER.

ENG-8

Page 9

ETUP

Disc Type and Characteristics

This DVD-VCR is capable of playing the following types of discs with the corresponding logos:

Disc Types (Logos)

DVD

AUDIO-CD

■

CD-R,CD-RW and DVD-RW, -R, DVD+RW, +R discs may not be playable in all cases due to the disc

Recording Types Disc Size Max. Playing Time Characteristics

- DVD contains excellent sound and video due to Dolby Digital and MPEG-2 system.

- Various screen and audio functions can be easily selected through the on-screen menu.

- CD is recorded as a Digital Signal with better audio quality, less distortion and less deterioration of audio quality over time.

Audio

Video

Audio

5”

3 1/2”

5”

3 1/2”

Single-sided 240 min.

Double-sided 480 min.

Single-sided 80 min.

Double-sided 160 min.

74 min.

20 min.

type or condition of the recording.

■

Do not run the player with two discs loaded at the same time.

Disc Markings Region Number

NTSC

STEREO

DIGITAL

SOUND

Play Region Number

NTSC broadcast system in U.S.A, Canada, Korea, Japan, etc.

Dolby Digital disc

Stereo disc

Digital Audio disc

Both the DVD-VCR and the discs are

coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play.

The Region Number for this player is described on the rear panel of the player.

DTS disc

MP3 disc

You must only insert one DVD disc at a time. Inserting two

or more discs will not allow playback and may cause damage to the DVD-VCR.

ENG-9

DivX Certification

DivX, DivX Certified, and associated

logos are trademarks of DivXNetworks, Inc and are used under license.

Page 10

Description

Front Panel Controls

ETUP

1 DISC TRAY

Place the disc here.

2 VCR Deck

Insert a standard VHS video tape.

3 EJECT

Press to eject a video tape if the tape is stopped.

4 (POWER)

Press to turn the DVD-VCR on and off.

5 LINE IN 2

Connects to the Video/Audio output jack of your

external device.

6 P.SCAN

Select the Progressive scan.

7 OPEN/CLOSE

Press to open and close the disc tray.

8 Front Panel Display

Operation indicators are displayed here.

9 CH and

Press to change channels.

11 12 13

10 DVD/VCR

Press to view DVD or VCR mode.

11 EZ VIEW

Press this button to easily adjust the aspect ratio

of a picture to your TV's screen size.

12 REC (VCR)

Press to begin recording.

13 (Reverse/Rewind)

Press to reverse/rewind a disc/video tape.

14 (STOP)

Press to stop a disc/video tape during playback

or record (VCR).

15 (Play/Pause)

Press to play or pause the disc/video tape.

16 (Forward/Fast Forward)

Press to forward/fast forward a disc/videotape.

Front Panel Display

❶ ❷ ❸

❹ ❺

1 DVD is activated. 2 The time, counter position, time remaining or

current deck status is indicated.

3 VCR is activated. 4 DVD or CD media is loaded. 5 Video tape is loaded.

ENG-10

Page 11

Rear Panel

ETUP

❶

❷ ❸ ❹ ➎

❻

1 AUDIO OUT

Connects to the Audio input jacks of your

television. You can use this connection as audio output jacks when Component or S-Video is connected.

2 COMPONENT VIDEO OUT

- Use these jacks if you have a TV with

Component Video in jacks. These jacks provide PR, PBand Y video.

- If Component (Progressive Scan) Video Output is selected in the Alt Video Out menu or by using the P.SCAN button on the front panel, progressive scan mode will be enabled.

- If Component (Interlace Scan) Video Output is selected in the Alt Video Out menu or by using the P.SCAN button on the front panel, interlaced scan mode will be enabled.

3 LINE IN 1 (VIDEO/AUDIO)

Connect to the Video/Audio output jack of your

external device.

4 LINE OUT (VIDEO/AUDIO)

Use the Video/Audio cable to connect to the

Video/Audio input jacks on your television. You must have these jacks connected to see

❼

❽

video playback from the VCR on your TV. You can use this connection as an audio output terminal when Component or S-Video is connected.

5 RF IN (FROM ANT.)

Connect the RF Antenna cable to your DVD-

VCR.

6 S-VIDEO OUT

Use the S-Video cable to connect this jack to the

S-Video input jack on your television for higher picture quality. You can use as audio output terminal when Component or S-Video is connected.

7 DIGITAL AUDIO OUT (COAXIAL)

- Use a Coaxial digital cable to connect to a

compatible Dolby Digital receiver.

- Use a Coaxial digital cable to connect to an A/V Amplifier that contains a Dolby Digital, MPEG2 or DTS decoder.

8 RF OUT (TO TV)

Connect your DVD-VCR to a TV.

DVD/VCR Output Chart

Type of Connection

S-VIDEO OUT

COMPONENT VIDEO OUT

AUDIO OUT (L,R)

DIGITALAUDIO OUT (COAXIAL)

LINE OUT (A/V)

RF OUT

Notes

■

Consult your TV User’s Manual to find out if your TV supports Progressive Scan. If Progressive Scan is

supported, follow the TV User’s Manual regarding Progressive Scan settings in the TV’s menu system.

■

See pages 61~ 62 to get more information on how to use the Alt Video Out menu.

DVD Output Jacks

VCR Output Jacks

▼

O : Active.

X : Inactive.

ENG-11

Page 12

ETUP

Tour of the Remote Control

1 POWER button

Press to turn the DVD-VCR

on and off.

2 NUMBER Buttons

3 AUDIO button

Use this button to access

various audio functions on a disc. (DVD)

4 Skip button

Press toskip a disc

backwards. Use to skip a title, chapter or track on a disc.

5 REC button

Press to begin recording.

(VCR)

6 Search button

Press to reverse search a

disc.

7 (STOP) button

Press to stop a disc/video

tape during play or record (VCR).

8 MENU button

Brings up the DVD-VCR

player’s menu.

9 ENTER/

/Tracking

This button functions as a

toggle switch. Press to change channels (TV). Press to adjust tape tracking (VCR).

10 DISC MENU button

Brings up the Disc menu.

(DVD)

11 SUBTITLE button

Press to display the subtitle

language name abbreviation on screen.

12 TV/VCR button

Press to switch between TV

and VCR mode.

13 MODE button

Use to select the program

or random play.

REPEAT button

Allows you to repeat play a

title, chapter, track, or disc. (DVD)

¦¦



or buttons

/Channel

ŒŒ

´´

ˇˇ

¨¨ ˆˆ

ØØ ∏∏

””

’’

˝˝ ÔÔ

 ÒÒ

14 VCR button

Use to operate the VCR.

15 DVD button

Use to operate the DVD.

16 F.ADV/SKIP/INPUT SEL.

ÚÚ

ÆÆ

ıı

˜˜ ¯¯

˘˘ ¿¿

¸¸

˛˛ ◊◊ ±±

≠≠

button

Press to advance play one

frame at a time (DVD and VCR). Press to fast forward a video tape (VCR). Press to select an external signal source.

17 Skip button

Press to forward skip a disc

forward. Use to skip a title, chapter or track on a disc.

18 PROGRESSIVE/SPEED

button

Press to select progressive

scan mode (DVD). Press to select the tape recording speed (VCR).

19 Search button

Press to search a disc

forward.

20 (Play/Pause) button

Press to play or pause the

disc/video tape.

21 RETURN button

Returns to a previous menu.

22 CLEAR button

Use to remove menus or

status displays from the screen.

23 INFO. button

Displays the current disc

mode. (DVD)

24 MARK/SEARCH button

Press to memorize scenes

for replay. (DVD) Displays the VCR Function

menu. (VCR)

25 ANGLE/TIMER button

Use to access various

camera angles on a disc (DVD). Displays the Timer

Program menu (VCR).

ENG-12

Page 13

Chapter 2

ONNECTIONS

Connecting the Antenna Cable

There are several ways to connect your DVD-VCR. Select one of the following antenna connections that best

suits you below.

■

Method 1: Antenna + DVD-VCR + TV: No Cable box

■

Method 2: Antenna +Cable box + DVD-VCR + TV: Cable box with many scrambled channels

■

Method 3: Antenna + DVD-VCR + Cable box +TV: Cable box with a few scrambled channels

- If you are using an off-air antenna that has 300-ohm twin flat leads, use an external antenna connector (300-75 ohm adaptor: not supplied) to connect the antenna to the DVD-VCR.

- If you have two separate antennas (one VHF and the other UHF), use a UHF/VHF combiner-adaptor (available at most electronics shops) to connect the antenna to the DVD-VCR.

- The RF OUT(TO TV) jack of this product sends signals received through the antenna and also outputs Audio/Video signals.

Method1: Antenna + DVD-VCR + TV: No Cable box

You can record non-scrambled channels by

selecting the channel on the DVD-VCR. Also use this Method if you watch channels without cable box.

To RF IN

To RF OUT

Antenna cable

To Antenna Input

ENG-13

Page 14

ONNECTIONS

Method2: Antenna + DVD-VCR + TV: Cable box with many

scrambled channels

You can record channels by selecting the channel

Wall

on the cable box. You cannot record one channel while watching another channel. Be sure that the cable box is turned on.

Cable Box

To Antenna Input

Method3: Antenna + DVD-VCR + TV: Cable box with a few

scrambled channels

To RF IN

To RF OUT

Antenna cable

You can record non-scrambled channels by

selecting the channel on the cable box. You cannot record scrambled channels that require a cable box.

Wall

To RF IN

To RF OUT

Cable Box

Antenna cable

To Antenna Input

ENG-14

Page 15

ONNECTIONS

Before Connecting the DVD-VCR

- Always turn off the DVD-VCR, TV, and other components before you connect or disconnect any cables.

- Refer to the user’s manual of the additional components (such as a TV) you are connecting for more information on those particular components.

Connection to a TV

The following shows examples of connections commonly used to connect the DVD-VCR with a TV and other

components.

Connection to a TV (Video)

Using video/audio cables, connect the VIDEO

(yellow)/AUDIO (red and white) OUT

the rear of the DVD-VCR to the

(yellow)/AUDIO (red and white) IN jacks of your

TV.

jacks on

VIDEO

Turn on the DVD-VCR and TV.

White

Audio Cable

Video Cable

White YellowRed

Yellow

Red

Press the input selector on your TV remote

control until the Video signal from the DVD-VCR appears on the TV screen.

Notes

- Noise may be generated if the audio cable is placed too close to the power cable.

- If you want to connect to an Amplifier, please refer to the Amplifier connection page.

(See pages 19 to 20).

- The number and position of jacks may vary depending on your TV set. Please refer to the user's manual of your TV.

- If there is one audio input terminal on the TV, connect it to the LINE OUT AUDIO OUT Left (white) terminal of the DVD-VCR.

- If you press the mode changes in the following sequence: (S-Video - Interlace - Progressive)

P.SCAN button when DVD-VCR is in stop mode or no disc is inserted, the Alt Video Out

ENG-15

Page 16

ONNECTIONS

Connection to a TV (S-Video)

- Connecting to your TV using an S-Video cable.

- You will enjoy high quality images. S-Video separates the picture element into black and white(Y) and color(C) signals to present clearer images than regular video input mode. (Audio signals are delivered through the audio out or line out audio).

Using an S-Video cable (not included), connect

the S-VIDEO OUT jack on the rear of the DVD- VCR to the S-VIDEO IN jack of your TV.

Using the audio cables, connect from the AUDIO

or LINE OUT AUDIO (red and white) jacks

OUT

on the rear of the DVD-VCR to the AUDIO (red

and white) IN jacks of your TV.

Turn on the DVD-VCR and TV.

White

Red

With the unit in stop mode, set the Alt video

output to pages

button on the remote control until S-Video is

output.

S-Video in the Display Setup menu (see

61 ~ 62)

or press the PROGRESSIVE

S-Video Cable (not included)

Audio Cable

Red White

Press the input selector on your TV remote

control until the S-Video signal from the DVDVCR appears on your TV screen.

Notes

- If you want to connect to an Amplifier, please refer to the Amplifier connection page. (See pages 19 to 20)

- The number and position of jacks may vary depending on the TV set. Please refer to the user's manual of your TV.

- The S-Video jack only outputs video from the DVD player. To view video from the VCR, you must have the Video Out (Yellow) or RF Out jack connected.

- You can hear sound from VCR audio only outputs through the Line Out Audio jacks (Red,White).

- Please do not connect S-Video and Component Video (Y, Pb, Pr) output simultaneously, as they may interfere and degrade both video output quality.

LINE OUT AUDIO or AUDIO OUT (red and white) jacks for S-Video connection.

ENG-16

Page 17

ONNECTIONS

Connection to a TV (Interlace)

- Connecting to your TV using Component video cables.

- You will enjoy high quality and accurate color reproduction images. Component video separates the picture element into black and white(Y), blue(PB), red(PR) signals to present clear and clean images. (Audio signals are delivered through the audio out or line out audio).

Using component video cables (not included),

connect the COMPONENT VIDEO OUT jack on the rear of the DVD-VCR to the COMPONENT IN

jacks of your TV.

Using the audio cables, connect from the AUDIO

OUT or LINE OUT AUDIO (red and white) jacks

on the rear of the DVD-VCR to the

and white) IN

jacks of your TV.

Turn on the DVD-VCR and TV.

With the unit in stop mode, set the Alt video

output to Component: Interlace in the Display Setup menu (see pages

PROGRESSIVE button on the remote control

until Interlace is output.

61 ~ 62)

AUDIO (red

or press the

Red

White

Red

Green

Audio Cable

Red

Blue

Green

Blue

Red

Component Cable (not included)

Press the input selector on your TV remote

control until the Component signal from the DVD-VCR appears on the TV screen.

Notes

- If you want to connect to an Amplifier, please refer to the Amplifier connection page. (See pages 19 to 20)

- The component terminal of your TV may be marked “R-Y, B-Y, Y” or “Cr, Cb, Y” instead of “PR, PB, Y” depending on the manufacturer. The number and position of jacks may vary depending on the TV set. Please refer to the user's manual of your TV.

- The Component Video Out jacks only output video from the DVD player. To view video from the VCR, you must have the Video Out (Yellow) or RF Out jack connected.

- You can hear sound from VCR audio only outputs through Line Out Audio jacks (Red,White).

LINE OUT AUDIO or AUDIO OUT (red and white) jacks for Component connection.

ENG-17

Page 18

ONNECTIONS

Connection to a TV (Progressive)

Using component video cables (not included),

connect the COMPONENT VIDEO OUT jack on the rear of the DVD-VCR to the COMPONENT IN

jack of your TV.

Using the audio cables, connect from the AUDIO

or LINE OUT AUDIO (red and white) jacks

OUT

on the rear of the DVD-VCR to the

AUDIO (red

and white) IN jacks of your TV.

Turn on the DVD-VCR and TV.

With the unit in stop mode, set the Alt video

output to Component: Progressive in the Display Setup menu (see pages

PROGRESSIVE button on the remote control

Progresive Scan mode prompt screen appears. Then press ENTER and progressive will be output.

61 ~ 62

) or press the

Red

White

Red

Green

Audio Cable

Red

Blue

Green

Blue

Red

Component Cable (not included)

Press the input selector on your TV remote

control until the Component signal from the DVD-VCR appears on the TV screen.

To see the progressive video output,

- Consult your TV User’s Manual to find out if your TV supports Progressive Scan. If Progressive Scan is supported, follow the TV User’s Manual regarding Progressive Scan settings in the TV’s menu system.

- Depending on your TV, the connection method may differ from the illustration above.

Note

What is "Progressive Scan"?

Progressive scan has twice as many scanning lines as the interlace output method.

Progressive scanning method provides better and clearer picture quality. The Component Video jacks only output video from the DVD player. To view video from the VCR, you must have

the Video Out (yellow) or RF Out jack connected.

ENG-18

Page 19

ONNECTIONS

Connection to an Audio System

Connection to an Audio System (2 Channel Amplifier)

Using the audio cables, connect the (LINE)

AUDIO (red and white) OUT

the DVD-VCR to the

jacks of the Amplifier.

AUDIO (red and white) IN

jacks on the rear of

Using the video signal cable(s), connect the VIDEO, S-VIDEO or COMPONENT OUT jacks on

the rear of the DVD-VCR to the VIDEO, S-VIDEO

or COMPONENT IN jack of your TV as described

on pages 15 to 18.

Red

White

Audio Cable

Turn on the DVD-VCR, TV, and Amplifier.

2-channel Stereo Amp.

Red

White

Press the input select button of the Amplifier to

select the External input in order to hear sound from the DVD-VCR.

Refer to your Amplifier's user manual to set the Amplifier's audio input.

Notes

- Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the speakers and your ears.

- Please set the audio in the menu screen according to the Amplifier. (See pages 59 to 60)

- The position of jacks may vary depending on the Amplifier. Please refer to your Amplifier's user manual .

- You can also connect the amplifier using AUDIO OUT (red and white) jacks from the DVD-VCR.

ENG-19

Page 20

ONNECTIONS

Connection to an Audio System (Dolby digital, MPEG2 or DTS

Amplifier)

Using a coaxial cable (not included), connect the

DIGITAL AUDIO OUT (COAXIAL) jack on the

rear of the DVD-VCR to the DIGITAL AUDIO IN

(COAXIAL)

jack of the Amplifier.

Using the video signal cable(s), connect the S-VIDEO or COMPONENT OUT jacks on the

rear of the DVD-VCR to the S-VIDEO or

COMPONENT IN jack of your TV as described on

pages 15 to 18.

Coaxial Cable (not included)

Turn on the DVD-VCR, TV, and Amplifier.

Press the input select button of the Amplifier to

select external input in order to hear sound from the DVD-VCR.

Refer to your Amplifier's user manual to set the Amplifier's audio input.

Notes

- When you connect the DVD-VCR to DTS Amplifier and play a DTS disc, set the DTS to On in Audio Setup menu. If it is set to Off, sound will not be heard, or there will be a loud sound.

- Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the speakers and your ears.

- Please set the audio in the menu screen according to the Amplifier. (See pages 59 to 60)

- The position of jacks may vary depending on the Amplifier. Please refer to the user's manual of the Amplifier.

Dolby digital or

DTS Amp.

ENG-20

Page 21

ONNECTIONS

Connecting a Power Cord & Auto Setup

Your DVD-VCR's power cord should be plugged

into a standard 100V-240V, 50/60Hz wall outlet. Avoid pressing any buttons on the remote control or on the unit during Auto Setup. While your DVDVCR is running Auto Setup, “Auto” will blink. When Auto Setup is complete, the current time will be displayed on the front panel. If Auto Setup fails to locate a channel to set the clock, you should set the clock manually. (See pages 23 to

25.)

You must have the antenna/cable

connected for the Auto Clock to set

Turn on the power by pressing the POWER button on the remote control or on the front

panel.

Turn on your TV by pressing the POWER button

on the TV remote control.

Press the input selector on your TV remote until

the signal from the DVD-VCR appears.

ENG-21

Page 22

Chapter 3

NITIALSETUP

Selecting a Menu Language

Follow these steps, to change the on-screen MENU language to English, French or Spanish.

Press the MENU button.

Press the  buttons to

select Setup, then press the 

or ENTER button.

Press the  buttons to

select Language, then press the  or ENTER button.

Press the  buttons to

select the appropriate language : English, Français or Español.

Press the ENTER button.

Press the MENU button to exit.

ENG-22

Page 23

NITIALSETUP

Setting the Clock

This menu is used to set the current time. You need to set the time to use timer recording.

Setting the Clock Automatically

Press the MENU button.

Press the  buttons to

select Setup, then press the 

or ENTER button.

Press the  buttons to

select Clock, then press the 

or ENTER button.

Press the  buttons to

Auto Clock, then press

select the  or ENTER button.

Select a channel that carries a

time signal by using the  or

ENTER button.

(Auto, 1, 2, ...., 125)

Notes

You must have the antenna connected to set

the Auto Clock. (See pages 13~14) The Clock will be automatically set when you

turn off the DVD-VCR.

ENG-23

Page 24

NITIALSETUP

Press the  buttons to

select Time Zone, then press the  or ENTER button.

Select the time zone of your area by using the

buttons, then press the ENTER button. Select Automatic to set

the time zone automatically.

,¦



Press the  buttons to

select Daylight Saving, then press the  or ENTER button to select Yes, No or Auto

Press the MENU button to exit.

Setting the Clock Manually

If Auto Setup fails to set the DVD-VCR’s internal clock by locating a local TV station, follow these steps to set

the data and time manually.

Note: For accurate Timer Recording, your DVD-VCR's internal clock must be set correctly.

Note

If your clock is set to the wrong Time Zone or

Daylight Saving, you can adjust these settings without turning off the Auto Clock Set function.

Press the MENU button.

ENG-24

Page 25

NITIALSETUP

Press the  buttons to

select Setup, then press the 

or ENTER button.

Press the  buttons to

select Clock, then press the 

or ENTER button.

Press the  buttons to

select

Manual Clock, then

press the  or ENTER button.

Use the ¦ buttons to select

each of the following options, then use the  buttons to set each option. Press the the clock.

ENTER button to set

Press the MENU button to exit.

Time Date Year

1 / 01

12 : 00 am

2007 MON

Manual Clock

ENG-25

Page 26

NITIALSETUP

Memorizing the Channels

Selecting the Video Signal-source

This feature allows you to manually set the DVD-VCR’s tuner band to Antenna or Cable, whichever you

connected to the Antenna In jack during initial setup.

Use this setting only if Auto Setup detected the incorrect tuner band, i.e. channels are coming in on the wrong channel numbers.

Press the MENU button.

Press the  buttons to

select Setup, then press the 

or ENTER button.

Press the  buttons to

select Channel, then press the

 or ENTER button.

Press the  or ENTER button

to select Cable TV or

Antenna.

ENG-26

▼

- Cable TV: Select this if the DVD-VCR

is connected to Cable TV.

- Antenna: Select this if the DVD-VCR is connected to an indoor or outdoor VHF/UHF antenna.

Page 27

NITIALSETUP

Storing Channels in Memory (Automatic Method)

Auto Channel Memory will automatically seek and store all active channels in your area.

Press the  buttons to

select Auto Channel Memory, then press the  or ENTER

button.

The DVD-VCR will automatically search for all available channels in the selected tuner band. This procedure may take a few minutes to complete.

When finished, the lowest channel found will be displayed.

Adding and Erasing Channels (Manual Method)

Note

Do not turn the power off when Auto

Channel Memory function is proceeding. If the power is off, Auto Channel Memory

should be reset.

Use this feature if Auto Channel Search missed a channel that you would like to add, or to delete a channel you

wish to remove.

Press the  buttons to

select Channel Add/Delete, then press the  or ENTER

button.

Press the CH buttons to

tune in the channel number you wish to add or delete. Use the number button to select the channel directly.

Press the ¦ or  button to

delete the channel from your channel list or to add.

Repeat steps 7 to add or to delete additional channels.

Press the

MENU button to exit.

CHANNEL ADD/DELETE

Select channel : [07]



and press [

Select channel : [07]

and press [

] to ADD

] to DELETE

press [

RETURN CH

CHANNEL ADD/DELETE

(in memory)



] to ADD

] to DELETE

press [

RETURN CH



Note

Use the number button to move the channel

directly.

ENG-27

Page 28

NITIALSETUP

Selecting the RF Output Channel

Use this feature if the DVD-VCR is connected to your TV using the RF antenna cable.

Press the MENU button.

Press the  buttons to

select Setup, then press the 

or ENTER button.

Press the  buttons to

select Channel, then press the

 or ENTER button.

Press the  buttons to

select RF Output CH, then press the  or ENTER button to select 3CH or 4CH.

Press the MENU button to exit.

ENG-28

Page 29

NITIALSETUP

Setting the Front Panel Display

You can set the Front Panel Display to be bright dim, or to automatically dim during power off.

Press the MENU button.

Press the  buttons to

select Setup, then press the 

or ENTER button.

Press the  buttons to

select Front Display, then press the  or ENTER button to select Auto, Bright or Dim.

Press the MENU button to exit.

■

Auto: Front Panel Display will dim automatically

during power off.

■

Bright: Front Panel Display will be bright all the time.

■

Dim: Front Panel Display will be dim.

ENG-29

Page 30

NITIALSETUP

Setting the Auto Power Off

This feature automatically turns off your DVD-VCR if no signal is received and you do not press any buttons for

the selected time.

Press the MENU button.

Press the  buttons to

select Setup, then press the 

or ENTER button.

Press the  buttons to

select Auto Power Off, then press the  or ENTER button to select Off, 1Hr or 2Hr.

Press the MENU button to exit.

■

Off: Auto power off is disabled.

■

1Hr: DVD-VCR will auto shut off 1 hour after the last button

is pressed or no signal is received.

■

2Hr: DVD-VCR will auto shut off 2 hours after the last button

is pressed or no signal is received.

ENG-30

Page 31

Chapter 4

DVD O

PERATIONS

Playing a Disc

Before Play

- Turn on your TV and set it to the correct Video Input on your TV's remote control.

- If you connected an external Audio System, turn on your Audio System and set it to the correct Audio Input.

Playback

Press the OPEN/CLOSE ( )

button on the front panel.

Place a disc gently into the tray

with the disc’s label facing up.

Press the (Play/Pause)

button on your remote control or on the front panel.

Most discs will start to play back as soon as the tray closes.

Stopping Play

Press the (Stop) button

during play.

ENG-31

▼

Stop/Resume

- Press the (Stop) button once to

stop playback. To resume the DVD/CD from the point where the disc was stopped, press the (Play/Pause) button.

- Press the (Stop) button twice to completely stop playback. The next time you press the (Play/Pause) button, the disc will start over from the beginning.

Page 32

DVD O

PERATIONS

Pausing Play

Press the (Play/Pause)

button on your remote control or on the front panel during play.

Step Motion Play (Except CD)

Press the F.ADV button on the

remote control during play.

Slow Motion Play (Except CD)

Press the (Forward) button to

choose the play speed between 1/8, 1/4 and 1/2 of the normal speed during PAUSE or STEP mode.

▼

- Screen stops, no sound.

- To resume, press the (Play/Pause) button once again.

Notes

If the player is left for about 5 minutes in

pause mode, it will stop.

▼

- Each time the button is pressed, a

new frame will appear.

- No sound is heard during STEP mode.

- Press the (Play/Pause) button to resume normal play.

- You can only perform step motion play in the forward direction.

▼

- No sound is heard during slow mode.

- Press the (Play/Pause) button to resume normal play.

- Reverse slow motion play will not work.

Notes

This ( ) icon indicates an invalid button

has been pressed.

Removing The Disc

Press the OPEN/CLOSE ( )

button on the front panel.

ENG-32

Page 33

DVD O

PERATIONS

Using the Search and Skip Functions

During play, you can search quickly through a chapter or track, and use the skip function to jump to the next

selection.

Searching through a Chapter or Track

During play, press the / (Search) buttons on the remote control.

Continuous Search Mode

During play, press and hold the / (Search) buttons on your remote control or on the front panel. The picture will search backward or forward at the 4X speed. If you release the / (Search) buttons, the picture will go back to playback mode.

Skipping Tracks

▼

If you want to search at a faster speed

on the DVD or CD, press the search button repeatedly.

2X, 8X, 32X, 128X

DVD

2X, 4X, 8X

Notes

- The speed marked in this function may be

different from the actual playback speed.

- No sound is heard during search mode (Except CD).

During play, press the / (Skip) buttons.

- When playing a DVD, if you press the (Skip) button,

it moves to the next chapter. If you press the (Skip) button, it moves to the beginning of the chapter. One more press makes it move to the beginning of the previous chapter.

ENG-33

Page 34

DVD O

ENG

MOVE

Off

MP3

MOVE

640 x 304

PERATIONS

Using the Display Function

When Playing a DVD/CD/MPEG4

During play, press the INFO button on the remote control.

Press the  buttons to

select the desired item.

DVD

▼

You can select information in the

DVD Function menu by pressing the MENU button.

Press the ¦ buttons to

select the desired setup and then press the ENTER button.

MPEG4

▼

You may use the number buttons of the

remote control to directly access a title, chapter or time to start the playback from a desired time.

ENG-34

Page 35

DVD O

TITLE

CHAPTER

TRACK

TIME

AUDIO

SUBTITLE

To exit the menu, press the

INFO button again.

Notes

To access the desired title when there is more than one on the disc.

For example, if there is more than one movie on a DVD, each movie will be identified.

Most DVD discs are recorded in chapters so that you can quickly find a specific scene (similar to tracks on an audio CD).

Allows playback of the film from a desired time. You must enter the starting time as a reference. The time search function does not operate on some discs.

Refers to the film's soundtrack language. In the example, the soundtrack is played in English 5.1CH. A DVD disc can have up to eight different soundtracks. The MP3, AC3 and WMA are supported. (DivX)

PERATIONS

Refers to the subtitle languages available in the disc. You will be able to choose the subtitle languages or, if you prefer, turn them off from the screen. A DVD disc can have up to 32 different subtitles.

(DivX)

DivX files recorded at higher resolutions will have better picture quality.

Even if the resolution of your DivX file is low, the recorder will automatically adjust the display to fit your TV screen.

ENG-35

Page 36

DVD O

PERATIONS

Using the Disc and Title Menu (DVD)

▼

During playback of a DVD disc,

press the MENU button on the remote control.

The MENU button can be used to

access Disc and title menus on a DVD during playback.

Press the  buttons to

Function, then press

select the  or ENTER button.

Press the  buttons to

select DVD Function, then press the  or ENTER button.

Press the  buttons to

select Title Menu or Disc

Menu then press the  or

ENTER button.

Notes

- Depending on the disc, the Disc Menu or

Title Menu may not work.

- You can also use the Disc Menu by using the DISC MENU button on the remote control.

- The Title Menu will only be displayed if there are at least two titles on the disc.

- The Title Menu works only with DVDs.

ENG-36

Page 37

DVD O

PERATIONS

Using the Function Menu (DVD)

During the playback of a DVD

disc, press the on the remote control.

MENU button

Press the  buttons to

select

Function, then press

the

 or ENTER button.

▼

The MENU button can be used to

access DVD functions such as Information, Zoom, Bookmark, Repeat and EZ view menu during DVD playback.

Press the  buttons to

select

DVD Function, then

press the

- Information (See pages 34 to 35)

- Zoom (See page 47)

- Bookmark (See pages 45 to 46)

- Repeat (See pages 38 to 39)

- EZ View (See pages 41 to 42)

 or ENTER button.

Press the  buttons to

select one of the five functions. Then press the

button to access the function.

 or ENTER

▼

You can also directly select these

functions using their respective buttons on the remote control.

- INFO

- MARK

- REPEAT

ENG-37

Page 38

DVD O

Off

Chapter Title A - B

Off

Chapter Title A - B

Off

Chapter

Off

Chapter Title AA - B

Off

Chapter

A -

Off

Chapter Title A - BB

PERATIONS

Repeat Play

Repeat the current track, chapter, title, a chosen section (A-B), or all of the disc.

When playing a DVD/CD

During play, press the REPEAT button on the remote control.

The Repeat screen appears.

▼

DVD repeats play by chapter or title,

and CD repeats play by track or disc.

- Chapter: repeats the chapter that is playing.

- Title: repeats the title that is playing.

- Track: repeats the track that is playing.

- Disc: repeats the disc that is playing.

- A-B: repeats a segment of the disc that you select.

Press the ¦ buttons to

select Chapter, Title or A-B, then press the ENTER

button.

DVD

To return to normal play,

press the REPEAT button again, then press the ¦

buttons to select Off and

press ENTER button.

Press the CLEAR button in order to stop repeat play.

DVD

Notes

- Depending on a disc, the Repeat function

may not work.

ENG-38

Page 39

DVD O

Off

Chapter

Off

Chapter Title AA - B

Off

Track Disc A - B

Off

Chapter

Off

Chapter Title AA - B

Off

Track Disc A - B

Off

Chapter

A -

Off

Chapter Title A - BB

Off

Track

A -

Off

Track Disc A - BB

Off

Chapter Title A - B

Off

Track Disc A - B

PERATIONS

Using the A-B Repeat function

During play, press the REPEAT button on the remote control.

Repeat screen appears.

Press the ¦ buttons to

select A-.

Mark the Starting Point

Press the ENTER button at

the beginning of the segment you want to repeat (Point A). Once you select point A, B

will be selected.

Mark the Ending Point

Press the ENTER button

again at the end of the segment you want to repeat (Point B). The segment will begin repeating in a continuous loop.

DVD

Notes

The minimum A -B Repeat time is 5

seconds.

DVD

Cancel A-B Repeat

Press the REPEAT button,

then press the ¦ buttons to select Off and press

ENTER button.

DVD

ENG-39

Page 40

DVD O

Off

Chapter

Off

Chapter Title AA - B

Off

Chapter

A -

Off

Chapter Title A - BB

Off

Chapter Title A - B

PERATIONS

Slow Repeat Play

This feature allows you to slowly to repeat scenes containing sports, dancing, musical instruments being

played etc., so you can study them more closely.

When playing a DVD

During play, press the

(Play/Pause) button.

Continuous Slow Mode

Press the (Forward) button

to choose the play speed between 1/8, 1/4 and 1/2 of normal during PAUSE or STEP mode.

Press the REPEAT button on

the remote control. Press the ¦ buttons to select A-.

In still mode, press and hold the button for 1 second. The picture will search forward at the 1/2X speed. If you release the (Search) button,

the picture will go back to still mode.

Notes

- You cannot search backwards in

continuous slow mode.

Press the ENTER button at

the point where you want repeat play to start (A).

B is automatically selected.

Press the ENTER button at the point where you want the repeat play to stop (B).

To return to normal play,

press the REPEAT button, then press the ¦ buttons to select Off and press

ENTER button.

ENG-40

▼▼

To set A-B repeat, set (A) first,

then set (B) after the following slow play time has elapsed: 1/8x: wait 40 seconds, then press B 1/4x: wait 20 seconds, then press B 1/2x: wait 10 seconds, then press B

▼

The disc will play from A to B repeatedly

at the speed you chose.

Page 41

DVD O

PERATIONS

Adjusting the Aspect Ratio (EZ View)

Set the aspect ratio (length x width) of your TV display so the DVD-VCR will display movies at the appropriate

size for your television.

To Playback using Aspect Ratio (DVD)

▼

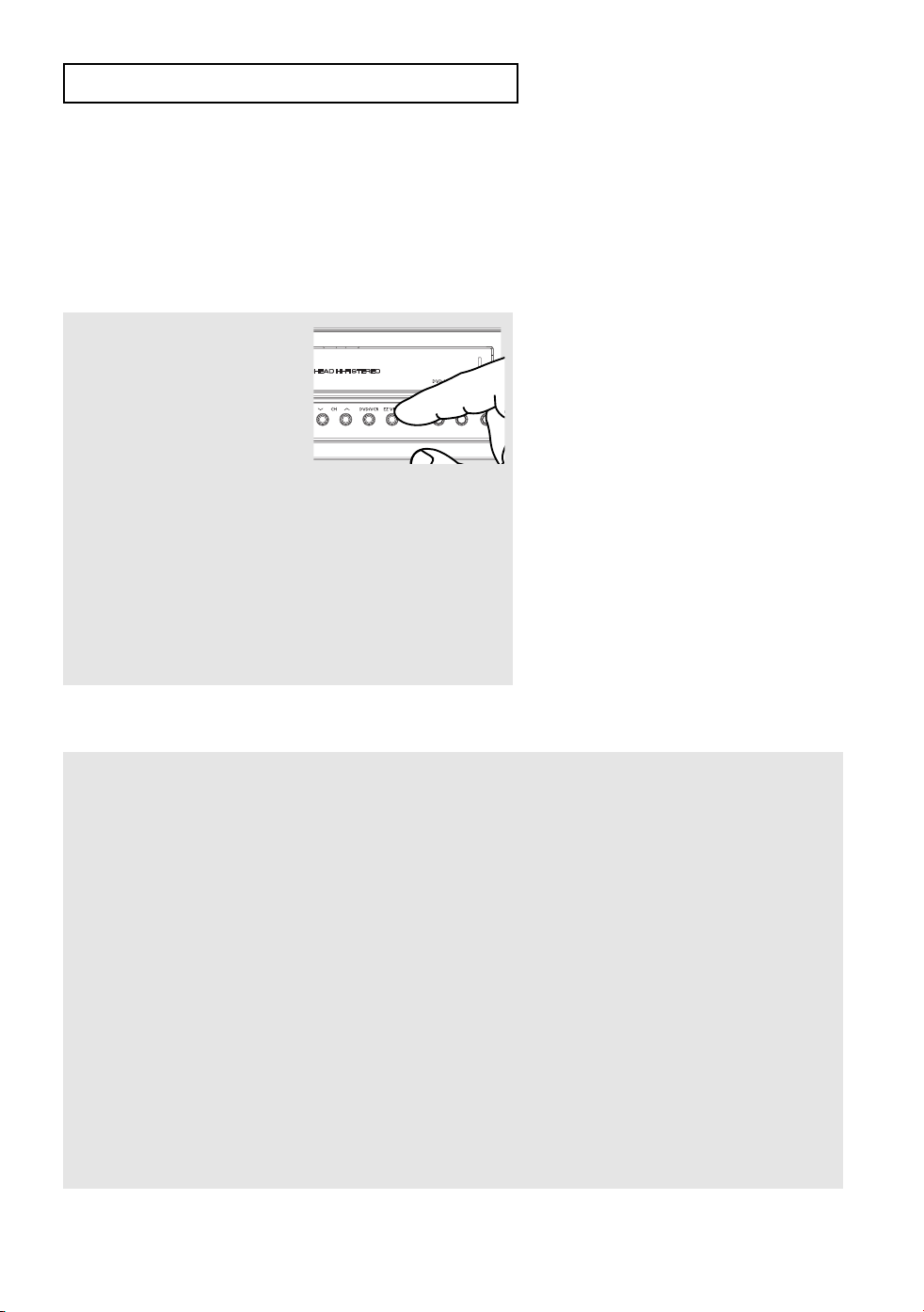

Press the EZ VIEW button on

the front panel.

- The screen size changes when the button is pressed repeatedly.

- The screen zoom mode operates differently depending on the screen setting in the Display Setup menu.

- To ensure correct operation of the EZ VIEW button, you should set the correct aspect ratio in the Display Setup menu. (See pages 61 to 62).

The EZ View feature is not available

when the A-B Repeat function is activated.

If you are using a 16:9 TV

For 16:9 aspect ratio discs

- WIDE SCREEN

Displays the content of the DVD title in 16:9

aspect ratio.

- SCREEN FIT

The top and bottom portions of the screen are

cut off. When playing a 2.35:1 aspect ratio disc, the black bars at the top and bottom of the screen will disappear. The picture will look vertically stretched. (Depending on a type of disc, the black bars may not disappear completely.)

- ZOOM FIT

The top, bottom, left and right of the screen are

cut off and the central portion of the screen is enlarged.

For 4:3 aspect ratio discs

- NORMAL WIDE

Displays the content of the DVD title in 16:9

aspect ratio. The picture will look horizontally stretched.

- SCREEN FIT

The top and bottom portions of the screen are

cut off and the full screen appears. The picture will look vertically stretched.

- ZOOM FIT

The top, bottom, left and right portions of the

screen are cut off and the central portion of the screen is enlarged.

- VERTICAL FIT

When a 4:3 DVD is viewed on a 16:9 TV, black

bars will appear at the left and right of the screen in order to prevent the picture from looking horizontally stretched.

ENG-41

Page 42

DVD O

If you are using a 4:3 TV

PERATIONS

For 16:9 aspect ratio discs

- 4:3 Letter Box

Displays the content of the DVD title in 16:9

aspect ratio. The black bars will appear at the top and bottom of the screen.

- 4:3 Pan Scan

The left and right portions of the screen are cut

off and the central portion of the 16:9 screen is displayed.

- SCREEN FIT

The top and bottom portions of the screen are

cut off and a full screen appears. The picture will look vertically stretched.

- ZOOM FIT

The top, bottom, left and right of the screen are

cut off and the central portion of the screen is enlarged.

Notes

This function may work differently depending on the type of disc.

For 4:3 aspect ratio discs

- NORMAL SCREEN

Displays the content of the DVD title in 4:3

aspect ratio.

- SCREEN FIT

The top and bottom portions of the screen are

cut off and the full screen appears. The picture will look vertically stretched.

- ZOOM FIT

The top, bottom, left and right portions of the

screen are cut off and the central portion of the screen is enlarged.

ENG-42

Page 43

DVD O

ENG

DOLBY DIGITAL 5.1CH

Stereo

PERATIONS

Selecting the Audio Language

You can select a desired audio language quickly and easily with the AUDIO button.

Using the AUDIO button (DVD/CD/MPEG4)

Notes

During play, press the AUDIO button.

Audio languages change when the button is pressed repeatedly.

The audio languages are represented by abbreviations.

DVD

- To change the desired audio in the Disc

Menu, press the

- This function depends on what audio languages are encoded on the disc and may not work on all DVDs.

- A DVD disc can contain up to 8 audio languages.

- To have the same audio language come up whenever you play a DVD, see pages 57 to 58.

DISC MENU button.

When playing a CD, you can select among Stereo, Right

or Left.

Press the ¦¦/buttons to select the desired Audio on a MPEG4 disc then press the ENTER button.

To remove the AUDIO icon,

press the AUDIO, CLEAR

or RETURN button.

MPEG4

PCM 1/2

ENG-43

Page 44

DVD O

ENG On

PERATIONS

Selecting the Subtitle Language

You can select a desired subtitle quickly and easily with the SUBTITLE button.

Using the SUBTITLE button (DVD/MPEG4)

Notes

During play, press the SUBTITLE button.

The subtitle changes when the

¦ button is pressed

repeatedly.

The subtitle languages are represented by abbreviations.

DVD

- To change the desired subtitle in the Disc

Menu, press the

- This function depends on what subtitles are encoded on the disc and may not work on all DVDs.

- A DVD disc can contain up to 32 subtitle languages.

- To have the same subtitle language come up whenever you play a DVD, see pages 57 to 58.

DISC MENU button.

Press the select the desired subtitle language on a MPEG4 disc then press the ENTER

button.

¦¦

buttons to

To remove the SUBTITLE icon, press the SUBTITLE, CLEAR or RETURN button.

MPEG4

NONE

ENG-44

Page 45

DVD O

PERATIONS

Changing the Camera Angle

When a DVD contains multiple angles of a particular scene, you can use the ANGLE function.

Using the ANGLE button (DVD)

If the disc contains multiple angles, the ANGLE appears on the screen.

Press the ANGLE button,

then the ANGLE icon will appear with the current angle number and the number of angles available.

Notes

Press the ¦ button

repeatedly to select the desired angle. To remove the ANGLE icon, press the

CLEAR or RETURN button.

If the disc has only one angle, this feature

won’t work. Currently, very few discs have this feature.

Using the Bookmark Function

This feature lets you bookmark sections of a DVD so you can quickly find them at a later time.

Using the MARK button (DVD)

During play, press the MARK button on the remote control.

Notes

When you reach the scene

you want to mark, press the

ENTER button. Up to three

scenes may be marked at a time.

ENG-45

Depending on the disc, the Bookmark

function may not work.

Page 46

DVD O

Recalling a Marked Scene

PERATIONS

During play, press the MARK button on the remote control.

Press the

select a marked scene.

¦

buttons to

Press the (Play/Pause)

button to play the marked scene.

Clearing a Bookmark

During play, press the MARK button on the remote control.

Press the

select the bookmark number you want to delete.

¦

buttons to

Press the CLEAR button to

delete a bookmark number.

ENG-46

Page 47

DVD O

PERATIONS

Using the Zoom Function (DVD)

During the playback of a DVD

disc, press the MENU button on the remote control.

Press the  buttons to

select Function, then press the

 or ENTER button.

Press the  buttons to

select DVD Function, then press the  or ENTER button.

Press the  buttons to

select

Zoom, then press the

 or ENTER button.

Press the  or ¦ buttons to select the part of

the screen you want to zoom in on.

Press the

ENTER button.

▼

During DVD play, press ENTER to

zoom in 2X/4X/2X/Normal in order.

Notes

Depending on a disc, the Zoom function may

not work.

ENG-47

Page 48

DVD O

PERATIONS

Clips Menu for MP3/WMA/JPEG/MPEG4

Discs with MP3/WMA/JPEG/MPEG4 files contain individual songs and/or pictures that can be organized into

folders as shown below. They are similar to how you use your computer to put files into different folders.

Open the disc tray.

Place the disc on the tray.

Close the tray.

Parent Folder, Current Folder and Peer Folders

Folders and Files in Current Folder

The tray closes and this screen displays.

- : Name of currently playing file.

- : Current Playback Time.

- : Current Playback Mode : There are four modes. They can be selected in order by pressing the REPEAT button.

- Off: Normal Playback

- Track: Repeats the current track.

- Folder: Repeats the current folder.

- Random: Files in the disc will be played

in random order.

Folder Selection

Folders can only be selected in the Stop mode.

- To select the Parent Folder

Press the RETURN button to go to the parent

folder, or press the  buttons to select “..” and press the ENTER button to go to the parent folder.

- To select the Peer Folder

Press the ¦ buttons to highlight the left window.

Press the  buttons to select the desired folder, then the ENTER button.

- To select the Sub-Folder

Press the ¦ buttons to highlight the right

window. Press the  buttons to select the desired folder, then press the ENTER button.

- : MP3 file icon.

- : WMA file icon.

- : JPEG file icon.

- : AVI file icon.

- : Folder icon.

- : Current Folder icon.

Root

WMA

JPEG

MP3

SONG FILE 1

SONG FILE 2

SONG FILE 3

MPEG4 FILES

Parent Folder

MUSIC

1st

2nd

Current Folder

Sub-Folders

Peer Folders

ENG-48

Page 49

DVD O

PERATIONS

MP3/WMA Playback

Open the disc tray.

Place the disc on the tray.

Close the tray.

Press the  or ¦ buttons to select a song file.

Press the ENTER button to begin playback of the song file.

Repeat/Random playback

During play, press the

REPEAT button to change

the playback mode. There are four modes.

Off, Track, Folder and Random.

Off

00:00:23 1_mp3

Because You

Cactus

Sad Day

Wonderful

Off

00:00:23 1_mp3

Because You

Cactus

Sad Day

Wonderful

▼

When a disc or a folder contains both

MP3 and WMA files, only one type will be played, not both.

- Off: Normal Playback

- Track: Repeats the current song file.

- Folder: Repeats the song files which have the same extension in the current folder.

- Random: Song files which have the same extension will be played in random order.

To resume normal play, press the

CLEAR button.

ENG-49

Page 50

DVD O

PERATIONS

CD-R MP3/WMA file

When you record MP3 or WMA files on a CD-R, please refer to the following.

- Your MP3 or WMA files should be ISO 9660 or JOLIET format.

ISO 9660 format and Joliet MP3 or WMA files are

compatible with Microsoft's DOS and Windows, and with Apple's Mac. This format is the most widely used.

- When naming your MP3 or WMA files, do not

exceed 8 characters, and enter “.mp3, .wma” as the file extension.

General name format : Title.mp3. or Title.wma.

When composing your title, make sure that you use 8 characters or less, have no spaces in the name, and avoid the use of special characters including: (.,/,\,=,+).

- Use a decompression transfer rate of at least

128 Kbps when recording MP3 files.

The Sound quality with MP3 files basically

depends on the rate of compression/ decompression you choose. Getting CD audio sound requires an analog/digital sampling rate, that is conversion to MP3 format, of at least 128 Kbps and up to 160 Kbps. However, choosing higher rates, like 192 Kbps or more, only rarely give better sound quality. Conversely, files with decompression rates below 128 Kbps will not be played properly.

- Use a decompression transfer rate of at least

64Kbps when recording WMA files.

The Sound quality with WMA files basically

depends on the rate of compression/decompression you choose.

Getting CD audio sound requires an analog/digital sampling rate, that is conversion to WMA format, of at least 64Kbps and up to 192Kbps.

Conversely, files with decompression rates below 64Kbps or over 192Kbps will not be played properly.

- Do not try recording copyright protected MP3

files.

Certain "secured" files are encrypted and code

protected to prevent illegal copying. These files are of the following types: Windows MediaTM (registered trade mark of Microsoft Inc) and SDMITM (registered trade mark of The SDMI Foundation). You cannot copy such files.

- Important:

The above recommendations cannot be taken as

a guarantee that the DVD-VCR will play MP3 recordings, or as an assurance of sound quality. You should note that certain technologies and methods for MP3 file recording on CD-Rs prevent optimal playback of these files on your DVD-VCR (degraded sound quality and in some cases, inability of the player to read the files).

- This unit can play a maximum of 3000 files and 300 folders per disc.

ENG-50

Page 51

DVD O

PERATIONS

MPEG4 Playback

MPEG4 Play Function

AVI files are used to contain the audio and video data. Only AVI format files with the

“.avi” extensions can be played in the DVD Player.

Open the disc tray.

Place the disc on the tray. Close the tray.

Press the or buttons to select an avi file

(DivX/XviD), then press the

ENTER button.

¦

Repeat Playback

Press the REPEAT button

to change playback mode. There are 4 modes, such

Off, Track, Folder and

A-B (a distance between

two points appointed by user).

- Track : Repeats the track that is playing.

- Folder : Repeats the AVI files which have the same extension in the current folder.

- A-B : repeats a segment of the file that you select.

ENG-51

Page 52

DVD O

PERATIONS

MPEG4 Function Description

Function Description Reference page

Skip

( or )

Slow Motion

Play

Step Motion

Play

ZOOM

During play, press the or

button, it moves forward

or backwards 5 minutes. During play, press the SEARCH

( or ) button . Pressing the search button again al you to search at a faster speed in an AVI file. (2X, 4X, 8X)

Allows you to search at a slower speed in an AVI file. (1/8X, 1/4X, 1/2X)

Each time the STEP button is pressed, a new frame will appear.

Allows you to zoom in on the screen 2x/4x/2x Normal in order.

llows

P32

P47

- These functions may not work depending on

MPEG4 file.

CD-R AVI file

This unit can play the following video compression

formats within the AVI file format:

- DivX 3.11 contents

- DivX 4 contents (Based on MPEG4 Simple Profile)

- DivX 5 contents (MPEG4 simple profile plus additional features such as bi-directional frames. Qpel and GMC are also supported.)

- XviD MPEG4 compliant Contents.

This unit supports all resolutions up and including the maximum resolution below.

DivX3.11 & DivX4 & XviD DivX5

Bitrate may fluctuate: Device may skip decoding the high bitrate portions

720 x 480 @30fps 720 x 576 @25fps

: Maximum bitrate : 4Mbps and begin decoding again when Bitrate returns to normal.

Notes

- Some MPEG4 files created on a personal computer may not be play back.

That is why Codec Type, Version and resolutions higher than the specifications is not supported.

- This unit supports CD-R/RW written in MPEG4 in accordance with the “ISO9660 format”.

ENG-52

Page 53

DVD O

PERATIONS

Program Play & Random Play

You can listen to songs randomly or in the desired sequence.

Up to 20 tracks can be programmed. This function is available only with Audio CDs.

Program Play

With the unit in stop mode,

press the REPEAT button.

- The play mode menu will appear.

Press the ¦ or  buttons to

PROGRAM, then

select press the

- The program play screen will appear.

ENTER button.

Press the  or ¦ buttons to select the desired

track, then press the ENTER

button.

- The selected track will be added to the Program order.

- If you delete the track, press the

The track added last will be deleted from the Program order.

CLEAR button.

Notes

Random Play

• With the unit in stop mode, press the

REPEAT button.

- The play mode menu will appear.

• Press the Random, then press the

-The disc will be played in random order.

Notes

If the disc tray is opened during

programming, program play will be canceled.

¦ or 

buttons to select

ENTER button.

To finish programming and

start playback, press the button.

The disc will be played in programmed order.

ENG-53

•

To Cancel Programming

- Press the REPEAT button.

The program will not be saved and the program screen will disappear.

•

To Cancel Program Play

- During playback or in Stop mode, press

the

CLEAR button.

Page 54

DVD O

TIMER:

PERATIONS

Picture CD Playback

Select the desired folder

then press the ENTER

button.

Press the  buttons to

select a Picture file in the clips menu, then press the

ENTER button.

Press the INFO. button to

display the menu.

Press the ¦ buttons to select the menu you want to view, then press the ENTER

button.

Album Screen

- : Returns to the Album Screen.

- To see the next six pictures, press the (skip) button.

- To see the previous six pictures, press the (skip) button.

Rotation

: Each time the ENTER button is pressed,

the picture rotates 90 degrees clockwise.

Zoom

: Press the or ¦ buttons to select the

part of the screen you want to zoom in on. Press the ENTER button. Each time the

ENTER button is pressed, the picture is

enlarged up to 4X. (2X ➝ 4X ➝ 2X ➝ Normal)

Notes

- If no buttons on the remote control are

pressed for 10 seconds, the menu will disappear.

- Press the clips menu.

- When playing a Kodak Picture CD, the unit displays the Photo directly, not the clips menu.

Slide Show

- : The unit enters slide show mode.

- Before beginning the Slide Show, the picture interval must be set.

- : When this icon is selected and

pressed, the pictures change automatically with about a 6 second interval.

- : The pictures change automatically with

about a 12 second interval.

- : The pictures change automatically with

about a 18 second interval.

Notes

- Depending on a file size, the amount of time

between each picture may be different from the set interval time.

- If you don’t press any button, the slide show will

start automatically in about 10 seconds by default.

(Stop)

button to return to the

ENG-54

ENTER is

Page 55

DVD O

PERATIONS

CD-R JPEG Discs

- Only files with the “.jpg” and “.JPG” extensions can be played.

- If the disc is not finalized, it will take longer to start playing and not all of the recorded files may be played.

- Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.

- The name of the JPEG file may not be longer than 8 characters and should contain no blank spaces or special characters (. / = +).

- Only a consecutively written multi-session disc can be played. If there is a blank segment in the multisession disc, the disc can be played only up to the blank segment.

- A maximum of 3000 images can be stored on a single CD.

- Kodak Picture CDs are recommended.

- When playing a Kodak Picture CD, only the JPEG files in the pictures folder can be played.

- Kodak Picture CD: The JPEG files in the pictures folder can be played automatically.

- Konica Picture CD: If you want to see the Picture, select the JPEG files from clips menu.

- Fuji Picture CD: If you want to see the Picture, select the JPEG files in the clips menu.

- QSS Picture CD: The unit may not play a QSS Picture CD.

- If the number of files on one Disc is over 3000, only the first 3000 JPEG files can be played.

- If the number of folders on one Disc is over 300, only JPEG files in the first 300 folders can be played.

ENG-55

Page 56

DVD O

PERATIONS

Using the Setup Menu

The Setup menu lets you customize your DVD-VCR by allowing you to select various language preferences,

set up the parental level, even adjust the player to the type of television screen you have.

With the unit in Stop mode,

press the MENU button on the remote control.

Press the  buttons to

DVD, then press the

select

 or ENTER button.

ŒLanguage: Setup of the Language. ´Audio: Setup of the Audio Options. ˇDisplay: Setup of the Display Options. Used to select which type of screen you want to watch and several

display options.

¨Parental: Setup of the Parental Level. Allows users to set the level necessary to prevent children from

viewing unsuitable movies such as those with violence, adult subject matter, etc.

DivX(R) Registration: Please use the Registration code to register this player with the DivX(R)

Video On Demand format. To learn more go to www.divx.com/vod.

DivX(R) Registration



Press the  buttons to

access the different features. Press the

ENTER button to access the

sub features.

 or

To make the DVD setup screen

disappear after setting up, press the MENU button again.

Notes

Depending on the disc, some DVD Setup

menu selections may not work.

ENG-56

Page 57

DVD O

PERATIONS

Setting Up the Language Features

If you set the audio and subtitle language in advance, the settings will automatically be aplied. They will come

up automatically every time you watch a movie.

With the unit in Stop mode,

press the MENU button on the remote control.

Press the  buttons to

select DVD, then press the

 or ENTER button.

DivX(R) Registration



Press the  buttons to

select Language, then press the  or ENTER button.

Press the  buttons to

select the desired item, then press the  or ENTER

button.

Press the  buttons to

select the desired language, then press the  or ENTER

button.

DivX(R) Registration



▼

- Once the language is selected, the

screen returns to the Language Setup menu.

- To make the DVD Setup menu disappear, press the MENU button.

ENG-57

Page 58

DVD O

Subtitle

Subtitle Language

Automatic

Language Function

Disc Menu

To set the Disc Menu

Language to your preferred language, follow these steps. If your preferred language is available on a DVD, your Disc Menu Language will automatically be set to the language you selected.

Audio

To set the Audio Language to

your preferred language, follow these steps. If your preferred language is available on a DVD, your Audio Language will automatically be set to the language you selected.

PERATIONS

▼

- Select “Others” if the language you

want is not listed.

- If the selected language is not recorded on the disc, the original prerecorded language is selected.

▼

- Select “Original” if you want the

default soundtrack language to be the original language the disc is recorded in.

- Select “Others” if the language you want is not listed.

- If the selected language is not recorded on the disc, the original prerecorded language is selected.

Subtitle

To set the Subtitle Language

to your preferred language, follow these steps. If your preferred language is available on a DVD, your Subtitle Language will automatically be set to the language you selected.

▼

- Select “Automatic” if you want the

subtitle language to be the same as the language selected as the audio language.

- Select “Others” if the language you want is not listed. Some discs may not contain the language you select as your initial language; in that case the disc will use its original language setting.

ENG-58

Page 59

DVD O

PCM Down Sampling : On

PERATIONS

Setting Up the Audio Options

Audio Options allows you to set up sound for use with your external audio system.

With the DVD in Stop mode,

press the MENU button on the remote control.

Press the  buttons to

DVD, then press the

select

 or ENTER button.

DivX(R) Registration



Press the  buttons to

select Audio, then press the

 or ENTER button.

Press the  buttons to

select the desired item, then press the

button.

 or ENTER

DivX(R) Registration



▼

- To make the DVD Setup menu

disappear, press the MENU button.

ENG-59

Page 60

DVD O

PCM Down Sampling : On

Audio Options

Digital Output

- PCM: Converts to

PCM(2CH) audio.

- Bitstream: Outputs Dolby Digital via the digital output. Select Bitstream when connecting to a Dolby Digital Decoder.

PERATIONS

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. “DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.

DTS

Select On when connecting

to a DTS Decoder.

- Off: Doesn’t output a digital signal.

- On: Outputs DTS Bitstream via digital output.

Dynamic Compression

- On: When the movie-

soundtracks are played at low volume or from smaller speakers, the system can apply appropriate compression to make low-level content more intelligible and prevent dramatic passages from getting too loud.

- Off: To select the standard range.

PCM Down Sampling

- On: Select this when the

Amplifier connected to the player is not 96KHz compatible. In this case, the 96KHz signals will be down converted to 48KHZ.

- Off: Select this when the Amplifier connected to the player is 96KHz compatible. In this case, all signals will be output without any changes.

ENG-60

Notes

There is no analog audio output when you

set DTS to on.

▼

Dynamic compression restrains the dynamic range of the sound, i.e. the difference between the loud and quiet passages of a DVD audio track. This is useful when watching a DVD late at night.

Notes

Even when PCM Down sampling is Off,

some discs will only output down sampled audio through the digital outputs.

Page 61

DVD O

PERATIONS

Setting Up the Display Options

Display options enable you to set various video functions of the player.

With the unit in Stop mode,

press the MENU button on the remote control.

Press the  buttons to

DVD, then press the

select

 or ENTER button.

DivX(R) Registration



Press the  buttons to

select Display, then press the  or ENTER button.

Press the  buttons to

select the desired item, then press the  or ENTER

button.

DivX(R) Registration



▼

- To make the DVD Setup menu

disappear, press the MENU button.

ENG-61

Page 62

DVD O

PERATIONS

Display Options

TV Aspect

Depending on the type of

television you have, you may want to adjust the aspect ratio (screen setting).

- 4:3 Letter Box: Select when you want to see the total 16:9 ratio screen the DVD supplies, even though you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen.

- 4:3 Pan Scan: Select this for conventional size TVs when you want to see the central portion of the 16:9 screen. (Extreme left and right side of movie picture will be cut off.)

- 16:9 Wide: You can view the full 16:9 picture on your wide screen TV.

Black Level

The Black Level feature

adjusts black reference level in the video signal to one of two choices:

- On: This will enhance the Black Level for increased brightness/contrast when viewing DVDs.

- Off: This is the Standard NTSC reference Black Level for consistent brightness/contrast across all sources.

Alt Video Out

The “Alt Video Out” option

must be set in the on-screen menu if you have connected your DVD-VCR to a TV using the S-VIDEO OUT or COMPONENT VIDEO OUT jacks.

- S-Video: Select when you want to use S-Video output.

- Component: Select when you want to use

Component interlace(480i) Out or Progressive(480p) Out.

Notes

It cannot be adjusted when Alt Video Out is

set to Progressive.

▼

- See your TV owner’s manual to

determine what type of TV you have.

- Interlace: Interlaced Scan mode will work.

- Press the P-SCAN button on the front panel or PROGRESSIVE button on the remote control in Stop mode. For the proper picture, be sure to set the correct Video output (Interlace or Progressive) to match your TV.

ENG-62

Page 63

DVD O

0~9

Re-enter new Password

PERATIONS

Setting Up the Parental Control

The Parental Control function works in conjunction with DVDs that have been assigned a rating, which helps

you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc.

With the DVD in Stop mode,

press the MENU button on the remote control.

Press the  buttons to

select DVD, then press the

 or ENTER button.

DivX(R) Registration



Press the  buttons to

select Parental, then press the  or ENTER button.

Press the  or ENTER button to set up password if

you want to use a password. The Enter Password screen appears.

Enter your password.

The Re-enter Password screen appears to confirm the password. Enter your password again.

The player is locked ( ).

▼

- To make the DVD Setup menu

disappear, press the MENU button.

Notes

There is no default password.

ENG-63

Page 64

DVD O

0~9

Yes

PERATIONS

Setting Up the Rating Level

With the unit in stop mode,

press the MENU button on the remote control.

Press the  buttons to

select DVD, then press the

 or ENTER button.

Press the  buttons to

select

Parental, then press

 or ENTER button.

the

Enter your password.

DivX(R) Registration



Press the  buttons to

select Rating Level, then press the  or ENTER

button.

Press the  buttons to

select the Rating Level you want, then press the

ENTER button.

e.g) Setting up in Level 6.

 or

ENG-64

▼

- To make the DVD setup menu

disappear, press the MENU button.

- For example, if you select up to Level 6, discs that contain Level 7, 8 will not play.

Page 65

DVD O

0~9

Yes

0~9

Changing the Password

With the unit in stop mode,

press the MENU button on the remote control.

Press the  buttons to

select DVD, then press the

 or ENTER button.

Press the  buttons to

select

Parental, then press

 or ENTER button.

the

Enter your password.

PERATIONS

DivX(R) Registration



Press the  buttons to

select Change Password, then press the  or ENTER

button.

Enter your new password.

Re-enter the new password again.

ENG-65

▼

- To make the DVD setup menu

disappear, press the MENU button.

Notes

If you forgot your password, power on the

unit with no disc. Press the / buttons simultaneously on the front panel for 5 seconds. The “Reset OK” message will appear. Press the

POWER button.

(Search)

Page 66

DVD O

to learn more, Visit www.divx.com/vod

PERATIONS

DivX(R) Registration

DivX Registration menu has the Registration Code that enables your DivX Certified Player to play DivX(R)

Video On Demand file format.

With the unit in Stop mode,

press the remote control.

MENU button on the

Press the  buttons to

select

DVD, then press the

 or ENTER button.

Press the  buttons to

select

DivX(R) Registration,

then press the

button.

Please use the Registration code to register this player with the DivX(R) Video On Demand format. To learn more go to www.divx.com/vod.

 or ENTER

Press the MENU button to exit.

ENG-66

Page 67

Chapter 5

VCR O

In this chapter, you will learn how to play a video cassette tape, how to use the time counter and memory stop features, and how to record a program as you are watching TV.

PERATIONS

Inserting and Ejecting a Video Cassette

Tape

To Insert a Video Cassette Tape

Hold the video cassette tape

window-side up with the arrow pointing away from you.

Gently push the tape through

the compartment door until you feel the VCR pull it.

The VCR loads the tape automatically.

▼

- Don’t try to insert a tape upside down

or backwards.

- Use only video tapes labeled “VHS.” European PAL VHS video tapes and S-VHS pre-recorded tapes aren’t compatible with this unit. Choose brand name, high quality tapes for best results.

▼

- If the safety tab of your video tape

has been removed, the tape begins to play automatically. You don’t have to press PLAY. For more information on the safety tab, see page 78.

To Eject a Video Cassette Tape

Press the (Stop) button to

stop playing the tape.

Press the EJECT button on the

front panel to eject the tape.

ENG-67

▼

When you’re finished playing a pre-

recorded video tape, it’s best to rewind it to the beginning and remove it from the VCR to protect it from wear and tear.

▼

After ejecting a tape, you should remove

it completely from the compartment and turn off the VCR.

Page 68

VCR O

PERATIONS

Playing a Pre-Recorded Video Cassette

Tape

Playing the Tape

▼

- For more information on the safety

Insert the video cassette tape.

tab, see page 79.

If the tape doesn’t begin to play

automatically, press the (Play/Pause) button.

▼

- The VCR does not play sound while

Pausing Play

While a tape is playing, press

the (Play/Pause) button when you want to interupt play. The tape pauses temporarily.

Press the (Play/Pause) button to resume playing the tape.

Note

To view VCR playback, you must connect the Video Out (Yellow) or RF Out jack to your TV. The VCR does not

output video through the S-Video or Component jacks.

a video tape is paused.

- See “Using Automatic Tracking” on the next page.

- If you see white lines on the screen, see “Using Automatic Tracking” on page 70.

ENG-68

Page 69

VCR O

PERATIONS

Special VCR Playback Features

While a videotape is playing, you can enjoy a variety of special playback features, including Still, Frame

Advance, Skip, Repeat, and more. Press the Play/Pause button again to resume normal playback.

Frame Advance

In the pause mode, press

F.ADV to advance to the next

frame.

Fps/Rps Review

In Play mode, press /

(Forward) or / (Rewind) to review at two speeds:

- Picture Search: Press and release or ( buttons to advance the tape forward or backward at 5 times normal speed.

- Jet Search: Press and hold

down the / (SEARCH)

buttons, then release it to play

back at the normal speed.

SKIP)

SKIP

In Play mode, press the SKIP button to move ahead exactly

30 seconds. Press the SKIP

button repeatedly up to 4 times

to move ahead 2 minutes.

Repeat

- In Play mode, press the

REPEAT button to review the

last 5 seconds of tape (SP mode).

- In Play mode, press the

REPEAT button to review the

last 15 seconds of tape (SLP mode).

ENG-69

Page 70

VCR O

PERATIONS

Using Automatic Tracking

The Tracking adjustment removes the white lines that sometimes appear during playback because of slight

differences in recording decks. The TRK button will automatically align the recorded tracks with the playback heads to solve this problem. You may also set tracking manually.

Insert and play a video

cassette tape.

As soon as the tape begins to play, the VCR begins automatic tracking.

Tracking

If automatic tracking doesn’t

remove the streaks from the picture, press and hold the CH TRK or CH  TRK button until the streaks disappear.

ENG-70

Page 71

VCR O

PERATIONS

Selecting the Cassette Type

If you wish to use the tape counter to display the time remaining on a cassette, you must indicate the

type of cassette inserted.

Press the MENU button on the

remote control.

Press the  buttons to

select VCR, then press the

 or ENTER button.

Press the  buttons to

select Tape Length, then press the  or ENTER

button to select the correct

cassette length.

Press the MENU button to exit.

Note

This information is usually printed on the

tape box. The menu cycles through: T-120, T-160 or T-180. Once the type of cassette is set, the VCR can display the amount of time remaining on the tape when you press the INFO. button.

ENG-71

Page 72

VCR O

PERATIONS

Setting the Auto Play

If you want your videotapes to play automatically when you insert them, turn on Auto Play.

Note

Press the MENU button on the

remote control.

Only tapes that are missing the Record

Safety Tab will play automatically when inserted (See page 67).

Press the  buttons to

select

VCR, then press the

 or ENTER button.

▼

- On: The VCR will automatically begin

Press the  buttons to

select

Auto Play, then press

the

 or ENTER button to

select

On or Off.

playing a video tape when it is inserted, as long as the safety tab of the cassette has been removed.

- Off: Auto play is disabled.

Press the MENU button to exit.

ENG-72

Page 73

VCR O

PERATIONS

Setting the Auto Repeat

If you want your videotapes to play repeatedly, turn on Auto Repeat.

Press the MENU button on the

remote control.

Press the  buttons to

select

VCR, then press the

 or ENTER button.

▼

Press the  buttons to

Auto Repeat, then

select press the

button to select On or Off.

 or ENTER

- On: The VCR will play a tape

repeatedly [unless a tape control is activated (stop, fast forward or rewind)].

- Off: Auto Repeat is disabled.

Press the MENU button to exit.

ENG-73

Page 74

VCR O

PERATIONS

Using the Tape Counter

The tape counter:

- Indicates the elapsed time in the play and record modes (hours, minutes and seconds).

- Is reset when a cassette is inserted in the DVD-VCR.

- Allows you to easily find the beginning of a sequence.

- If the remaining time is to be calculated correctly, you must indicate the type of cassette being used.

Insert a cassette in your DVD-

VCR. To set the tape counter to zero at the beginning of a sequence:

- Press the INFO. button twice

to display the counter

- Press the CLEAR button

when you want to set the tape counter to zero.

When you are ready,

- Start playback or recording.

- Press the (Stop) button.

- To fast-forward or rewind to the sequence at which the counter was set to zero, press the

(Rewind) buttons on the

remote control.

- Some DVD-VCR information, such as the counter, can be displayed on the television screen by pressing the info button.

Press the INFO. button:

- Once to display the current function, recording speed and counter.

- Twice to display the counter only.

- Three times to display the time remaining on the cassette.

- Four times to clear the display.

Forward) or /

/ (

ENG-74

Page 75

VCR O

PERATIONS

Using the Assemble Edit Function

This function allows you to start a new recording at a specific position on the cassette while maintaining a very

smooth scene change from the previous recording.

Insert the cassette to be edited

in your DVD-VCR.

Press the (Play/Pause)

button to start playback.

When you reach the position

from which you wish to start the new recording, press the

(Play/Pause) button.

Press the F.ADV button as

often as necessary to advance frame by frame, until the exact recording position is located.

While the DVD-VCR is in

pause mode, press the REC

button. The pause mode is

displayed on the screen.

ENG-75

Page 76

VCR O

PERATIONS

Select the source from which

you wish to record by pressing:

- The CH  or  button for

television channel.

- The INPUT SEL. button for

the LINE1 or LINE2 input source.

Press the REC button to start

recording. When you have finished recording, press the

(Stop) button.

Selecting the Audio Output Mode

You can select the mode in which the sound is reproduced on the loudspeakers and AV outputs.

The following options are available.

Press the AUDIO button on the remote control until the required option is displayed.

Audio output Mode

- Left : Used to listen to the sound on the left Hi-Fi channel.

- Right: Used to listen to the sound on the right Hi-Fi channel.

- Mono: Used to listen to the sound on the normal mono channel.

- Hi-Fi : Used to listen to Hi-Fi stereo sound on the left and right channels. When playing back tapes recorded in Hi-Fi, the sound switches to Hi-Fi after five seconds of Mono.

ENG-76

Page 77

VCR O

PERATIONS

Searching for a Specific Sequence

Each time you record a cassette on this DVD-VCR, an “index” is automatically marked on the tape when

recording starts. The Search function allows you to fast-forward or rewind to a specific index and start playback from that point. Depending on the direction selected, the indexes are numbered as follows:

➔

etc.

This DVD-VCR uses a standard indexing system (VISS). As a result, it will recognize any indexes marked by other VCRs using the same system and vice versa.

Prev Seq.

21 1 2

Seq. being

played

Next Seq.

etc.

Press the MENU button on the

remote control.

Press the  buttons to

select Function, then press the  or ENTER button.

Press the  buttons to

select VCR Function, then press the  or ENTER

button.

The VCR Function can be displayed simply by pressing the SEARCH button.

Press the  buttons to

select the desired item, then press the  or ENTER

button.

ENG-77

Page 78

VCR O

PERATIONS

Variable Search System

Go To [0:00:00] Stop

Use this feature when you

want to search for the 0:00:00 counter position on a cassette.

Press the CLEAR button at the point on the tape where you want to set the counter to [0:00:00].

The VCR will rewind or fast forward, searching for the 0:00:00 counter position, and then automatically stop at that position.

End Search

Use this feature when you

want to search for a blank position to record a program on a cassette.

The VCR will fast forward, searching for a blank position, and then automatically stop at that position.

If the VCR reaches the end of the tape during end search, the tape will be ejected.

Scan and Play

Use scan and play when you

don’t know exactly where a program is located on a cassette tape.

- Forward Intro Scan

Select “Forward Intro Scan”,

then press the ENTER button.

- Reverse Intro Scan

Select “Reverse Intro Scan”, then press the ENTER button.

ENG-78

Page 79

VCR O

PERATIONS

Basic Recording

You can record a TV show in progress by inserting a blank tape and pressing the REC button.

You can even add time in 30-minute increments up to 4 hours by pressing the REC button repeatedly; see page 82.

Note

Be sure your videotape has a Record Safety Tab. If the tab is missing, you can cover the opening with a small

piece of tape. Warning: Do not cover this opening unless you are sure you want to record over the tape.

Before You Begin...

- Power on the DVD-VCR

- Power on the TV

Protecting a Recorded Cassette

Video cassettes have a safety tab to prevent accidental erasure. When this tab has been removed, you cannot

record on the tape.

If you wish to protect a cassette, break off the tab using a small screwdriver.

To re-record over a protected cassette (safety tab broken), cover the hole with adhesive tape.

Recording

Insert a blank VHS tape into

the VCR deck. Make sure the tape is long enough to record the entire program. Press the SPEED button to set the record speed. (See page 82)

Use the Number buttons or the CH  or  buttons to select

the desired channel, or press the select

Line 1 or 2 if recording from an external device

connected to the front or rear jacks, respectively.

INPUT SEL. button to

ENG-79

Page 80

VCR O

PERATIONS

Press the REC button on the

remote control or front panel.

For options while recording is in progress, see “Special Recording Features” on this page.

Pause/Resume Recording

Press the (Play/Pause)

button. Press the resume.

REC button again to

Stop Recording

Press the (Stop) button.

Note

Recording from the DVD to the VCR is not

possible.

Special Recording Features

While a recording is in progress, you can watch a different channel or a DVD, or add recording time in 30-

minute increments.

To Watch a different Channel while Recording

Make sure that you connect the DVD-VCR to the TV using an RF cable.

- When you watching through the Antenna input during recording, press the TV/VCR button on the remote control. Using your TV remote control, change the channel you want to watch.

- When you watching through Line input during recording, change the input of your TV from Line to Antenna. Using your TV remote control, change the channel you want to watch.

ENG-80

Page 81

VCR O

To Watch a DVD while Recording

Insert a DVD in the DVD tray and press the

(Play/Pause). The output will automatically change to the DVD.

To Add Recording Time

See One-Touch Recording (OTR) below.

PERATIONS

Using One-Touch Recording

One-Touch Recording (OTR) allows you to add recording time in 30-minute increments up to 4 hours at the

touch of a button.

Insert a blank VHS tape into

the VCR deck.

Use the Number buttons or the CH  or  buttons to select

the desired channel, or press the INPUT SEL. button to select Line 1 or 2 if recording from an external device connected to the front or rear jacks, respectively.

Press the REC button on the

remote control or front panel.

ENG-81

Page 82

VCR O

PERATIONS

While in Record mode, press

the REC button again to activate One-Touch Recording (OTR).

Record length 0:30 appears

on the On-screen display and the DVD-VCR will record for exactly 30 minutes.

Add Recording Time

Continue pressing REC button to add recording time

in 30 minute increments up to 4 hours. The DVD-VCR stops recording automatically when the time has elapsed. The DVD-VCR will automatically be turned off when the OTR has finished.

Record length 0:30 07

Selecting the Recording Speed

You can slow down the recording speed from SP to SLP in order to fit six hours of programming on a T-120

tape.

Press the SPEED button on the remote control to select the Record Speed.

- SP: Standard Play, for best quality.

- SLP: Super Long Play, for maximum recording time (3 times SP).

Note

The selected Record Speed will appear on

the front panel display and on-screen display.

Maximum Recording Time - SP vs. SLP

Tape Length SP (Standard Play) SLP (Super Long Play)

T-120 2 hrs 6 hrs

T-160 2hrs 40 mins 8 hrs

T-180 3 hrs 9 hrs

ENG-82

Page 83

VCR O

PERATIONS

Making a Timer Recording

Insert a blank videotape into the VCR deck. Be sure to leave the Record Safety Tab intact.

With the Timer Recording function, you can program up to 7 events at a time to record up to a month in advance.

To Begin Setting the Timer Recording,

- Power On your DVD-VCR.

- Power On your TV.

Press the MENU button on the

remote control.

Press the  buttons to

select PROG, then press the

 or ENTER button.

The Timer Program Screen can be displayed simply by pressing the TIMER button.

Select Channel Number

Press the  button, then

press the  buttons to set the channel.

Press the  button to move to the next setting.

Set Time/Date/Speed

Repeat Step 3 above to set

start time, end time, date and record speed. Date can be set for one time, daily or weekly recording.

Note

You can select an external device

connected to L1 (Line 1) or L2 (Line 2) by pressing the INPUT SEL button.

ENG-83

Page 84

VCR O

Selecting Auto Speed

If the length of the videotape is not long enough for a timer

recording in the SP mode, set the recording tape speed to “Auto”. Recording will start in the SP mode. If the length is not long enough, the tape speed will automatically change from SP mode to SLP mode.

Daily/Weekly Date Programming

Weekly [Sun~Sat]: Use this to record TV programs on the same

channel at the same time every week. Daily [Mon, Tue, Wed, Thu, Fri]: Use this to record TV programs on the same channel at the same time every day Monday through Friday.

PERATIONS

Save Timer Recording

Press the RETURN button to

finish setting the timer recording.

Stop the DVD-VCR or turn the power off. Then the DVD-VCR will automatically turn on and begin recording at the time you set.

To stop the timer recording, press the press the (Stop) button twice.

POWER button or

ENG-84

Page 85

Chapter 6

EFERENCE

Troubleshooting

Before contacting a Samsung authorized service center, perform the following simple checks.

If you are unable to solve the problem after reading this section, note:

- The model and serial number on the rear of your DVD-VCR

- The warranty information

- A clear description of the problem Then contact your nearest SAMSUNG service center.

Identifying DVD Problems

Problem

No operations can

be performed with the remote control.

Disc does not play.

5.1 channel sound

is not being reproduced.

The icon appears on screen.

Disc Menu doesn’t appear.

Play mode differs from the Setup Menu selection.

Action

• Check the batteries in the remote control. They may need to be replaced.

• Operate the remote control at a distance of no more than 20 feet.

• Remove batteries and hold down one or more buttons for several

minutes to drain the microprocessor inside the remote control to reset it. Reinstall batteries and try to operate the remote control again.

• Ensure that the disc is inserted with the label side facing up.

• Check the region number of the DVD.

• 5.1 channel sound is reproduced only when the following

conditions are met.:

1) The DVD-VCR is connected with the proper Amplifier

2) The disc is recorded with 5.1 channel sound.

• Check whether the disc being played has the “5.1 ch” mark on

the outside.

• Check if your audio system is connected and working properly.

• In a DVD Setup Menu, is the Audio Output set to Bitstream?

• The features or action cannot be completed at this time because:

1. The DVD’s software restricts it.

2. The DVD’s software doesn’t support the feature (e.g., angles).

3. The feature is not available at the moment.

4. You’ve requested a title or chapter number or search time that is out of range.

• Check if the disc has a Menu.

• Some of the functions selected in the Setup Menu may not work

properly if the disc is not encoded with the corresponding function.

Page

P20

The screen ratio cannot be changed.

No audio.

• The Screen Ratio is fixed on your DVDs.

• Make sure you have selected the correct Digital Output in the

Audio Options Menu.

ENG-85

P41-42

P59~60

Page 86

EFERENCE

Problem

The screen is blocked

Forgot password

If you experience other problems.

The picture is

noisy or distorted

Identifying VCR Problems

• Press the / button for more than 5 seconds with no disc in

the unit. All settings will revert to the factory settings.

• From a cold start with no disc in unit, press the / button

simultaneously on the front panel for 5 seconds. All settings including the password will revert to the factory settings. Don't use this unless absolutely necessary.

• Go to the contents and find the section of the instruction book

that contains the explanations regarding the current problem, and follow the procedure once again.

• If the problem still cannot be solved, please contact your nearest

authorized service center.

• Make sure that the disc is not dirty or scratched.

Clean the disc.

•

Problem

No power

You cannot insert a video cassette

The television program was not recorded

• Check that the power plug is connected to a wall outlet.

•

A video cassette can only be inserted with the window side up and the safety tab facing you.

• Check the DVD-VCR antenna/cable connections.

• Is the DVD-VCR tuner properly set?

• Check if the safety tab is intact on the cassette.

Action

Page

P63-65

Page

P67

Timer recording was unsuccessful

No playback picture or the picture

distorted

You cannot see normal broadcasts

Noise bars or streaks on playback

When the II button is pressed during playback, the still picture has severe “noise bars” streaks

Video Head Cleaning

• Re-check the recording start/stop time settings.

• If there was a power failure or interruption during timer

recording, the recording would have been cancelled.

• Check to see if you are using a prerecorded tape.

• Check the tuner or external setting. It should be on tuner.

• Check the TV or VCR antenna connections.

• Press the TRK buttons to minimize this effect.

• A still picture may have “noise bars”, depending on the

condition of the tape. Press the TRK buttons during slow motion to minimize this effect.

• If poor pictures appear on a variety of cassettes, the video

heads may need cleaning. This is not a common problem and unless it appears, the heads should not be cleaned. When cleaning the video heads, read all instructions provided with the head cleaning cassette. Incorrect head cleaning can permanently damage the video heads.

ENG-86

P83-84

P79

P70

Page 87

EFERENCE

Technical Specifications

AUDIO 2 Stereo audio inputs, RCA Connector, -8dbm, 47KΩ,

Inputs

Outputs

VCR FF/REW TIME T-120 tape: <2 minutes

DVD

SYSTEM

- Samsung Electronics Co., Ltd reserves the right to change the specifications with out notice.

- Weight and dimensions are approximate.

VIDEO 2 Composite video inputs, RCA Connector, 75Ω, 1Vp-p

RF Antenna or CATV Input, F-Connector, 75Ω

AUDIO 1 Stereo audio outputs, RCA Connector, -8dbm, 1.5KΩ

AUDIO (DVD only) 1 Digital audio output (1 coaxial)

VIDEO 1 Composite video output, RCA Connector, 75Ω, 1Vp-p

VIDEO (DVD only) 1 S-Video output, S-Connector, 75Ω, Y=1.0Vp-p,

VIDEO SYSTEM

AUDIO TRACK Normal: 1 track; Hi-Fi: 2 track

PLAY/RECORD TIME T-180 tape: SP 3 hours, SLP 9 hours

HEADS Video: DA 4 rotary

WOW & FLUTTER Less than 0.005% (Hi-Fi)

FREQ. RESPONSE 20-20,000 Hz (Hi-Fi)

DISC COMPATIBILITY CD, CD-R, CD-RW

FREQ. RESPONSE 96/48 kHz Sampling: 4 Hz-22kHz

S/N RATIO 110 dB

DYNAMIC RANGE 96 dB

THD 0.003 %

POWER REQUIREMENT 100~240V AC, 50/60 Hz, 25 watts

ENVIRONMENT 41-104˚F (5-40˚C); 10%-75% humidity

WEIGHT 13.8 lbs.

front and rear

1 pair Stereo audio outputs

C=0.286Vp-p

1 Component video output, 75Ω, Y=1.0Vp-p, Pb=0.7Vp-p,

Pr=0.7Vp-p

Channel 3 or 4

1/2-inch VHS system, 4 rotary head helical scanning;

FM azimuth luminance;chrominance: converted sub system

phase shift

Audio: 2 rotary heads (Hi-Fi); 1 stationary head (Linear)

Control: 1 stationary head

Erase: 1 full track, 1 audio track

DVD-Video, CD-Digital Audio (5” and 3.5”)

ENG-87

Page 88

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Region Country Customer Care Center Web Site

North America

CANADA 1-800-SAMSUNG (7267864) www.samsung.com/ca MEXICO 01-800-SAMSUNG (7267864) www.samsung.com/mx U.S.A 1-800-SAMSUNG (7267864) www.samsung.com

Latin America

ARGENTINE 0800-333-3733 www.samsung.com/ar BRAZIL

0800-124-421 4004-0000

www.samsung.com/br

CHILE 800-726-7864 (SAMSUNG) www.samsung.com/cl COSTA RICA 0-800-507-7267 www.samsung.com/latin ECUADOR 1-800-10-7267 www.samsung.com/latin EL SALVADOR 800-6225 www.samsung.com/latin GUATEMALA 1-800-299-0013 www.samsung.com/latin JAMAICA 1-800-234-7267 www.samsung.com/latin PANAMA 800-7267 www.samsung.com/latin PUERTO RICO 1-800-682-3180 www.samsung.com/latin

REP. DOMINICA 1-800-751-2676 www.samsung.com/latin TRINIDAD & TOBAGO 1-800-7267-864 www.samsung.com/latin

VENEZUELA 0-800-100-5303 www.samsung.com/latin COLOMBIA 01-8000112112 www.samsung.com.co

Europe

BELGIUM 02 201 2418 www.samsung.com/be

CZECH REPUBLIC

844 000 844 Distributor pro Českou republiku : Samsung Zrt., česka organizační složka Vyskočilova 4, 14000 Praha 4

www.samsung.com/cz

DENMARK 38 322 887 www.samsung.com/dk FINLAND 09 693 79 554 www.samsung.com/

FRANCE

3260 SAMSUNG or 08 25 08 65 65 (€ 0,15/Min)

www.samsung.com/fr

GERMANY 01805 - 121213 (€ 0,14/Min) www.samsung.de HUNGARY 06-80-SAMSUNG (7267864) www.samsung.com/hu

ITALIA 800-SAMSUNG (7267864) www.samsung.com/it LUXEMBURG 0032 (0)2 201 24 18 www.samsung.lu

NETHERLANDS 0900 20 200 88 (€ 0,10/Min) www.samsung.com/nl NORWAY 231 627 22 www.samsung.com/no POLAND 0 801 801 881 www.samsung.com/pl PORTUGAL 80 8 200 128 www.samsung.com/pt SLOVAKIA 0800-SAMSUNG (726786) www.samsung.com/sk SPAIN 902 10 11 30 www.samsung.com/es SWEDEN 08 585 367 87 www.samsung.com/se U.K 0870 SAMSUNG (7267864) www.samsung.com/uk Republic of Ireland 0818 717 100 www.samsung.com/uk Switzerland 0800-7267864 www.samsung.com/ch

CIS

RUSSIA 8-800-200-0400 www.samsung.ru KAZAHSTAN 8-800-080-1188 www.samsung.kz UZBEKISTAN 8-800-120-0400 www.samsung.uz UKRAINE 8-800-502-0000 www.samsung.com/ur LITHUANIA 8-800-77777 www.samsung.lt LATVIA 800-7267 www.samsung.com/lv/index.htm ESTONIA 800-7267 www.samsung.ee

Asia Paci c

AUSTRALIA 1300 362 603 www.samsung.com/au CHINA 800-810-5858, 010-6475 1880 www.samsung.com.cn HONG KONG 3698 - 4698 www.samsung.com/hk

INDIA

3030 8282 1800 110011

www.samsung.com/in

INDONESIA 0800-112-8888 www.samsung.com/id JAPAN 0120-327-527 www.samsung.com/jp MALAYSIA 1800-88-9999 www.samsung.com/my PHILIPPINES 1800-10-SAMSUNG (7267864) www.samsung.com/ph SINGAPORE 1800-SAMSUNG (7267864) www.samsung.com/sg

THAILAND

1800-29-3232 02-689-3232

www.samsung.com/th

TAIWAN 0800-329-999 www.samsung.com/tw VIETNAM 1 800 588 889 www.samsung.com/vn

Middle East & Africa

SOUTH AFRICA 0860 7267864 (SAMSUNG) www.samsung.com/za

U.A.E

800SAMSUNG (7267864) 8000-4726

www.samsung.com/mea

ENG-88

Page 89

Warranty

LIMITED WARRANTY TO ORIGINAL PURCHASER

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA, INC.

(SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by

SAMSUNG against manufacturing defects in materials and workmanship for the following limited warranty period:

One (1) Year Parts / Ninety days (90) Labor

This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in

the United States, and does not include transportation, installation, removal or reinstallation.

Warranty repairs must be performed by SAMSUNG’S authorized service center. To receive warranty service, the

original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’S

authorized service center. Transportation to and from the service center is the responsibility of the purchaser.

SAMSUNG will repair or replace this product, at our option and at no charge with new or reconditioned parts, if

found to be defective during the limited warranty period specified above. The product must be returned during the

warranty period with transportation charges prepaid to SAMSUNG’s designated service center. Prior to returning

any product for warranty service, the purchaser must contact SAMSUNG for problem determination and service

procedures. SAMSUNG does not warrant uninterrupted or error-free operation of the product.

All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG.

Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer.

This limited warranty covers manufacturing defects in materials and workmanship encountered in normal,

noncommercial use of this product and shall not apply to the following, including, but not limited to: damage which

occurs in shipment; applications and uses for which this product was not intended; failures or problems which are

caused by products or equipment not supplied by SAMSUNG; accidents, misuse, abuse, neglect, misapplication,

fire, water, lightning or other acts of nature; incorrect electrical line voltage, fluctuations or surges; damage caused

by improper or faulty installation; improper connection with any peripheral; product alteration or modification;

improper or unauthorized repair; cosmetic damage or exterior finish; product with altered serial numbers; failure to

follow operating instructions, customer adjustments, maintenance and environmental instructions that are covered

and prescribed in the instruction book; use of non-SAMSUNG or unauthorized parts, supplies, accessories or

equipment which damage this product or result in service problems; failures or problems due to incompatibility

with other equipment.

Page 90

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products,

please contact the SAMSUNG customer care center.

☎ 1-800-SAMSUNG (7267864) / www.samsung.com

Samsung Electronics America, Inc.

105 Challenger Road

Ridgefield Park, NJ 07660-0511

1-800-SAMSUNG (7267864)

www.samsung.com

AK68-01304F
