Samsung UH6400 Setup Manual

1

Unpack

Taking the TV Out of the Box

• Warning:

Do not touch the TV’s
screen when you take
it out of the box. Hold it
by its edges only. If you
touch the screen, you
can cause the TV panel
to crack.

• Recommendation 1:

Two people should
remove the TV from the
box as shown above.
When removing the
TV, hold it by its edges
only. Do not touch the
screen.

• Recommendation 2:

If only one person is
available to remove
the TV from the box,
remove it as shown in
the illustration above.
Hold the TV by its
edges. Do not touch
the screen.

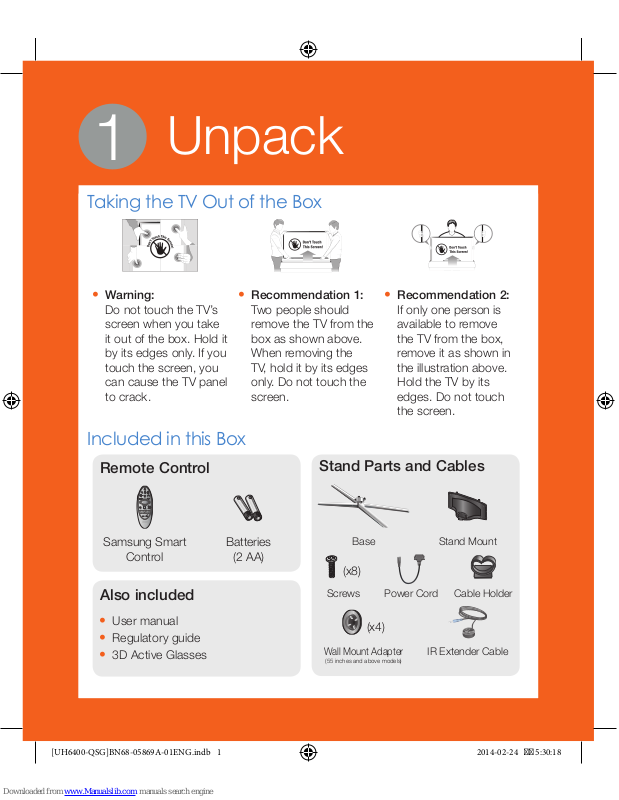

Included in this Box

Remote Control

RETURN
EXIT

GUIDE
CH.LIST

SMART HUB

KEYPAD

SOURCE

VOL

CH

VOICE

3D CC P.SIZEMTS

MENU

INFO

SEARCH

MIC

TV

Samsung Smart

Control

Batteries

(2 AA)

Stand Parts and Cables

Base Stand Mount

(x8)

Screws Power Cord Cable Holder

(x4)

Wall Mount Adapter

(55 inches and above models)

IR Extender Cable

Also included

• User manual

• Regulatory guide

• 3D Active Glasses

[UH6400-QSG]BN68-05869A-01ENG.indb 1 2014-02-24  5:30:18

1 Locate the Base, Stand Mount, and

Screws in the box and set them
aside.

✎

Remove the top portion of the
box to locate the stand parts.

2 Locate the TV on a soft surface,

screen side down. Use the
Styrofoam to protect the screen.

3 Fit the Base and Stand Mount

together, making sure the notch
on the Stand Mount aligns with the
Base.

4 Insert 4 screws, and then use a

screwdriver to secure the Base to
the Stand Mount.
40 - 55 inches models:

x4 (M4 X L12)

60 inches and above models:

x4 (M4 X L10)

2

Assemble

[UH6400-QSG]BN68-05869A-01ENG.indb 2 2014-02-24  5:30:20

1 2 3

5 Holding the stand parallel to the screen, slide the Mount into the notches on

the back of the TV.

6 Insert 4 screws, and then use a

screwdriver to secure the stand to
the TV.
40 - 55 inches models:

x4 (M4 X L12)

60 inches and above models:

x4 (M4 X L10)

7 Attach the cable holder to the back of the stand. When you are done

connecting devices to your TV, you can use the cable holder to arrange the
cables.

8 Set the TV upright on its stand. Confirm that the TV is level and stable. You are

now ready to connect external devices to the TV.

[UH6400-QSG]BN68-05869A-01ENG.indb 3 2014-02-24  5:30:22

3

Connect

After you have connected all
your external devices, plug the
TV’s power cord into the back
of the TV. DO NOT plug it into
a wall outlet until you have
reached Section 7, Initial Setup.

Connection panel on
the back of the TV

Internet

Connect here with an Ethernet cable or
wirelessly later during the Initial Setup.

Cable/Satellite/DVR

Connect your set-top box or
digital video recorder with an
HDMI cable.

TV signal

Connect your
coaxial cable to the
Antenna In port.

* Recommended Connections

[UH6400-QSG]BN68-05869A-01ENG.indb 4 2014-02-24  5:30:23
