Extreme narrow Bezel
SAMSUNG UH55F-E SMART SIGNAGE
VIDEO WALL DISPLAY
Extreme narrow bezel for delivering near-seamless,
immersive viewing experience
Highlights
• Extreme narrow bezel-to-bezel width of just 1.7 mm maximizes the eect
of a video wall even at close distance
• Deliver a clear image under ambient light with non-glare panels
• The industry’s rst UHD Video Wall without a need for any additional
devices, which allows you to maximize convenience while minimizing
expense through having your displays eciently daisy-chained together.
• Realize near-perfect picture quality and optimum uniformity across all
displays thanks to advanced factory tuning and calibration.
• Ensure your message runs continually with highly durable and reliable
displays designed for 24/7 operation
PROMOTE PRODUCTS AND SERVICES WITH
GREATER IMPACT BY MINIMIZING VISUAL
DISTRACTION OF VIDEO WALLS
Retailers are increasingly considering video walls to elevate the aesthetic design
of their stores. Preference for a high-quality display that complements their store
environment without overwhelming it is growing among the owners and managers.
The UH55F-E SMART Signage video wall display is an excellent choice for designing
a video wall. The UH55F-E display has ultra-narrow bezel width of just 1.15 mm
(0.045 in) at top and left and 0.55 mm (0.021 in) at bottom and right, resulting in
the extremely narrow bezel-to-bezel width of 1.7 mm (0.067 in). Samsung has
put extensive eort in designing and engineering the Extreme narrow bezel to
date. With the extremely narrow bezels of the UH55F-E video wall display, the
near-seamless picture spreads across multiple displays to captivate and impress
customers.
Deliver a clear image under ambient light with non-glare panels
Combined with a non-glare panel, the UH55F-E display is designed to help
businesses create memorable video walls even under ambient light.
By evenly spreading any direct light, non-glare panels provide optimum clarity
without having to worry about a distracting glare, which is crucial in a well-lit retail
shop environment. The UH55F-E display can eectively deliver your content with
vibrant, accurate colors to impress your audience.
Promote products and services using an extraordinary display
Retailers are increasingly considering video walls to elevate the aesthetic
design of their stores. Preference for a high-quality display that complement
their store environment without overwhelming it is growing among the owners
and managers. With the extreme-narrow bezels of the Samsung UH55F-E
SMART Signage video wall display, the store’s visual contents can be delivered
to customers in a near-seamless picture spread across multiple displays yet
minimizing the complexity of setting up a video wall. The stunning video wall
congured with the 55-inch UHF-E model displays is an eective means to impress
and captivate.
The industry’s rst UHD video wall solution with a focus on
maximized ROI and lowered upfront investment costs
Samsung has led the eld once again by being the rst in the industry able to
implement up to 5x5 wall congurations based on daisy chain through the use
of DisplayPort (DP) 1.2, as well as HDMI ports. As existing PC-based video walls
require high performance graphic cards, UHD splitters and are limited to 2x2
display arrangements, Samsung UH55F-E video wall display can eliminate those
needs and greatly reduce costs. Through supporting the latest version of the
premier digital video interface of DisplayPort, your content becomes elevated
with resolutions that range up to 4k. This ecient arrangement helps to increase
eciency while reducing costs by negating the need to buy extra equipment.
No Need of high
performaNce
graphic card
& Uhd Splitter
Realize the full UHD power of video walls through advanced
Samsung calibration technology along with superior panel quality
With ease of use in mind, Samsung UH55F-E video wall display oers nearperfect results by simply setting the mode upon packaging, thanks to optimized
calibration during manufacturing that achieves uniform brightness and color
across multiple displays. This allows for Samsung’s calibration technology and
outstanding panel quality to truly let UHD content resonate even better. Samsung
Calibration technology helps to yield 90% accuracy of local uniformity throughout
all displays. The eects of screen darkening and light leakage are held to a minimum,
while increased contrast ratio brings out the true visual impact of your content.
Take comfort knowing that reliability and durability are core
components
Consistently display content in various environments and conditions with rocksolid durability. Samsung video wall panels are heat and dust resistant, and built to
withstand weight pressure for a longer display lifespan. In addition, black mura-free
panels help to oset backlight non-uniformity, allowing you to maintain superior
quality content on your video wall over a long time. Samsung’s reputation as a leading
display brand with expansive global customer service coverage, an extensive product
line-up and a future digital signage roadmap supports the displays’ reliability and
successful long-term usage.
MINIMIZE COSTS WHILE MAXIMIZING EFFICIENCY
THROUGH AN ALL-IN-ONE SOLUTION
Samsung’s All-in-One Solution has the option to be able to come complete
with Signage Player Box and special wall mount, which all work in harmony
to streamline core functionality in order to maintain optimum usability from
installation to content creation and management.
• Signage Player Box is suited for displays operating without a System-on-
Chip (SoC), which allows for multi-source switching and a media player to
co-exist in a single box. Additionally, it facilitates simple and straightforward
installation and enables conguration of daisy chain connections between
displays. Backed by a powerful Quad Core CPU, the Signage Player Box eectively
performs the role of a media player while reducing the need for incurring extra
expenses in equipment to operate the diering facets of a video wall.

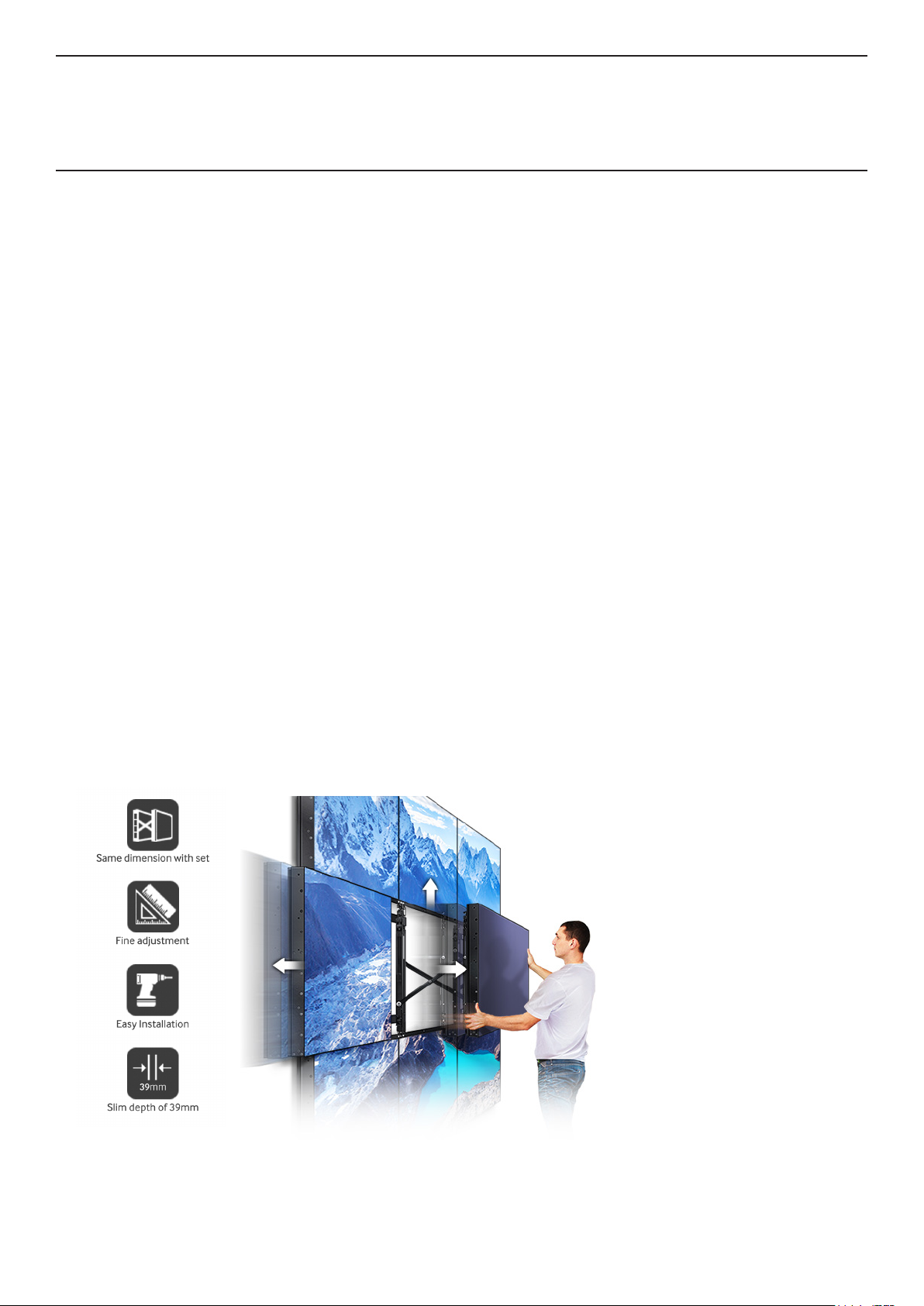

• Special Wall Mounts help to simplify installation by requiring a minimal
amount of installation steps, providing simplied attach-and-connect
congurations, and possessing no consumable replacement parts, which
help to bring down expenses. Ideal layouts can be easily achieved through the
precise matching between the wall mount size and video display size, making
the eort of tediously measuring dimensions unnecessary. Additionally, the
aesthetics of the video wall are enhanced from the ultra-slim wall mounts that
take up minimal space.
Model
SAMSUNG
UH55F-E SERIES
VIDEO WALL
DISPLAY
Diagonal Size
Type
Resolution
Pixel Pitch(mm)
Active Display Area(mm)
Panel
Display
Sound Speaker Type
Connectivity
Power
Operation
Brightness
Contrast Ratio
Viewing Angle(H/V)
Response Time(G-to-G)
Display Colors
Color Gamut
Operation Hour
Dynamic C/R
H-Scanning Frequency
V-Scanning Frequency
Maximum Pixel Frequency
RGB
INPUT
OUTPUT
EXTERNAL CONTROL
EXTERNAL SENSOR
Type
Power Supply
Power Consumption
Operating Temperature
Humidity
VIDEO
AUDIO
USB
RGB
VIDEO
AUDIO
Power Out
Max[W/h]
Typical[W/h]
BTU(Max)
Sleep Mode
O Mode
Uh55f-e
55"
D-LED DID
1920*1080
0.63mm(H) * 0.63mm(V)
1209.6 * 680.4mm
Max 700 cd/m2
4000:1
178/178
8ms
8 bit - 16.7M
72%
24/7
MEGA DCR
30kHz ~ 81kHz
48Hz ~ 75Hz
148.5MHz
N/A
Analog D-SUB, DVI-D, Display Port 1.2
HDMI1,HDMI2
Stereo mini Jack
Only F/W upgrade
DP1.2(Loop-out)
N/A
Stereo mini Jack
N/A
RS232C(in/out), RJ45
Detachable type(IR, Ambient)
Internal
AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
TBD
TBD
TBD
less than 0.5W
less than 0.5W
0℃~ 40℃
10~80%
Mechanical
Spec
Feature
Certication
Accessories
Media Player
Dimension
(mm)
Weight (kg)
VESA Mount
Protection Glass
Stand Type
Media Player Option Type
Bezel Width (mm)
Key
Special
Safety
EMC
Environment
Included
Optional
CPU
N/B
S/B
GPU
FDM/HDD/SSD
Memory
Ethernet
Connectivity
Set
Package
Set
Package
USB
Output
Others
Stand
Mount
Specialty
1211.5 x 682.3 x 96.3
1355 x 809 x 320
21.0kg
27.4kg
600 * 400 (mm)
N/A
N/A
SBB-C/DA/DI (Slide In)
1.15mm(U/L), 0.55mm(R/B)
Extreme Narrow Bezel
ACM Support(Advanced Color Management), Auto Source Switching & Recovery, Haze 25%,
Temperature Sensor, RS232C/RJ45 MDC,Plug and Play (DDC2B), Video Wall(15x15(OSD)),
Video Wall Daisy Chain(10x10), Pivot Display, Image Rotation, Button Lock,
DP 1.2 Digital Daisy Chain(Supporting UHD Resolution, HDCP support), Smart F/W update, Clock Battery(80hrs Clock Keeping)
UL (USA) : UL 60950-1
CSA (Canada) : CSA C22.2 No. 60950-1
TUV (Germany) : EN60950-1
NEMKO (Norway) : EN60950-1
KC (Korea) : K60950-1
CCC (China) : GB4943.1-2011
PSB (Singapore) : IEC60950-1
GOST (Russia) : IEC60950-1, EN55022
SIQ (Slovenia) : IEC60950-1, EN55022
PCBC (Poland) : IEC60590-1, EN55022
NOM (Mexico) : NOM-019-SCFI-1993
IRAM (Argentina) :IEC60950-1
SASO (Saudi Arabia) : IEC60950-1
FCC (USA) FCC Part 15, Subpart B class A
CE (Europe) EN55022, EN55024
VCCI (Japan) V-3 (CISPR22)
KCC (Korea) :KN22, KN24
BSMI (Taiwan) : CNS13438 (CISPR22)
C-Tick (Australia) : AS/NZS3548 (CISPR22)
CCC(China) :GB9254-2008, GB17625.1-2012
TBD
Quick Setup Guide, Warranty Card,
DP cable, stereo to DB9 cable, Power Cord,
Remote Controller, Batteries
N/A
WMN-55VD
N/A
SBB (Optional, SIM Type)
Signage player box (SBB-SS08EL1)
About Samsung
Samsung Electronics Co., Ltd. inspires the world and shapes the future with
transformative ideas and technologies. The company is redefining the worlds of
TVs, smartphones, wearable devices, tablets, cameras, digital appliances, printers,
medical equipment, network systems, and semiconductor and LED solutions. For
the latest news, please visit the Samsung Newsroom at news.samsung.com.
For more information
For more information about Samsung UH55F-E Series displays, visit
www.samsung.com/business or
www.samsung.com/displaysolutions
Scan this code with your Smart Phone to download our Mobile Brochure App.
Copyright © 2016 Samsung Electronics Co. Ltd. All rights reserved. Samsung is a registered trademark of Samsung
Electronics Co. Ltd. Specifications and designs are subject to change without notice. Non-metric weights and measurements
are approximate. All data were deemed correct at time of creation. Samsung is not liable for errors or omissions. All brand,
product, service names and logos are trademarks and/or registered trademarks of their respective owners and are hereby
recognized and acknowledged.
DisplayPort is a registered trademark of the Video Electronics Standards Association.
ENERGY STAR is a registered trademark of the U.S. government.
HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing,
LLC in the United States and other countries.
OpenGL ES is a registered trademark of Silicon Graphics, Inc. in the United States and/or other countries worldwide.
ARM and Cortex are trademarks or registered trademarks of ARM Ltd. or its subsidiaries.
Linux is a registered trademark of Linus Torvalds.
Samsung Electronics Co., Ltd.
416, Maetan 3-dong,
Yeongtong-gu
Suwon-si, Gyeonggi-do 443-772,
Korea
www.samsung.com
2016-06
