Samsung UE55D6000TK User Manual

E-MANUAL

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Country

EIRE 0818 717 100 www.samsung.com/ie

U.K 0330 SAMSUNG (7267864) www.samsung.com/uk

Customer Care Centre

Web Site

LED TV

user manual

© 2011 Samsung Electronics Co., Ltd. All rights reserved.

imagine the possibilities

Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at

www.samsung.com/register

Model _____________ Serial No. _____________

BN68-03469J-01

For more information on how to use the e-Manual (p. 14)

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product
appearance. Product design and specifications may be changed without notice.

Digital TV notice

1. Functionalities related to Digital TV (DVB) are only available in countries/areas where DVB-T (MPEG2 and MPEG4 AVC) digital terrestrial signals are
broadcasted or where you are able to access to a compatible DVB-C (MPEG2 and MPEG4 AAC) cable-TV service. Please check with your local
dealer the possibility to receive DVB-T or DVB-C signal.

2. DVB-T is the DVB European consortium standard for the broadcast transmission of digital terrestrial television and DVB-C is that for the broadcast
transmission of digital TV over cable. However, some differentiated features like EPG (Electric Programme Guide), VOD (Video On Demand) and so
on, are not included in this specification. So, they cannot be workable at this moment.

3. Although this TV set meets the latest DVB-T and DVB-C standards, as of [August, 2008], the compatibility with future DVB-T digital terrestrial and
DVB-C digital cable broadcasts cannot be guaranteed.

4. Depending on the countries/areas where this TV set is used some cable-TV providers may charge an additional fee for such a service and you may
be required to agree to terms and conditions of their business.

5. Some Digital TV functions might be unavailable in some countries or regions and DVB-C might not work correctly with some cable service providers.

6. For more information, please contact your local Samsung customer care centre.

The reception quality of TV may be affected due to differences in broadcasting method between the countries. Please check the TV

✎

performance in the local SAMSUNG Authorized Dealer, or the Samsung Call Centre whether it can be improved by reconfiguring TV setting or
not.

Still image warning

Avoid displaying still images (like jpeg picture files) or still image element (like TV programme logo, panorama or 4:3 image format, stock or news bar at
screen bottom etc.) on the screen. Constant displaying of still picture can cause ghosting of LED screen, which will affect image quality. To reduce risk of
this effect, please follow below recommendations:

• Avoid displaying the same TV channel for long periods.

• Always try do display any image on full screen, use TV set picture format menu for best possible match.

• Reduce brightness and contrast values to minimum required to achieve desired picture quality, exceeded values may speed up the burnout process.

• Frequently use all TV features designed to reduce image retention and screen burnout, refer to e-Manual for details.

Securing the Installation Space

Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.
Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product.

When using a stand or wall-mount, use parts provided by Samsung Electronics only.

✎

• If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.

The appearance may differ depending on the product.

✎

• Be careful when you contact the TV because some parts can be somewhat hot.

Installation with a stand. Installation with a wall-mount.

10 cm

10 cm10 cm

WARNINGS: Image retention, commonly known as screen burn-in, can occur on most types of television if the same image is displayed

✎

continuously. The most common causes of image retention are logos that remain stationary on the TV screen. These logos are common on many
programmes received via a Set-top Box. To reduce this risk, avoid displaying still images for long durations and lower the brightness or contrast
settings to decrease the intensity of the picture. Extended viewing of movies and Programmes in aspect ratios that are different from the aspect ratio
of the TV may cause image retention. Always endeavour to avoid black borders top or bottom by using the zoom function. This will help eliminate the
black borders and fit the picture to the entire area of the screen. Using a video game console may cause image retention and is not recommended.
When using a PC input, avoid displaying still images for long durations and reduce the brightness or contrast settings to decrease the intensity of the
picture.

IMPORTANT: Image retention issues are not covered by your Samsung® warranty.

✎

10 cm

10 cm

10 cm

10 cm

English - 2

Accessories

✎

Please make sure the following items are included with your TV. If any items are missing, contact your
dealer.

✎

The items’ colours and shapes may vary depending on the models.

✎

Cables not included in the package contents can be purchased separately.

✎

Check that there is no accessory hidden behind packing materials when you open the box.

Remote Control & Batteries (AAA x 2)

•

Owner’s Instructions

•

Holder Ring (4ea) Holder-Wire Stand CI Card Adapter

AV / Component Adapter Scart Adapter

An administration fee may be charged if either

– (a) an engineer is called out at your request and there is no defect in the product

(i.e. where you have failed to read this user manual)

– (b) you bring the unit to a repair centre and there is no defect in the product

(i.e. where you have failed to read this user manual).

• The amount of such administration charge will be advised to you before any work or home visit is carried out.

Assembling the Holder-Wire stand

Cleaning-Cloth

•

Power cord

•

English - 3

Viewing the Control Panel

✎

The product color and shape may vary depending on the model.

Control Panel

Remote control sensor Aim the remote control towards this spot on the TV.

Power Indicator Blinks and turns off when the power is on and lights up in standby mode.

SOURCE

MENU Displays an on-screen menu, the OSD (on screen display) of your TV’s

Y

z

P

E

(Power)

Toggles between all the available input sources. In the on-screen menu, use
this button as you would use the ENTERE button on the remote control.

features.
Adjusts the volume. In the OSD, use the

the ◄ and ► buttons on the remote control.
Changes the channels. In the OSD, use the

would use the ▼ and ▲ buttons on the remote control.
Turns the TV on or off.

Y

z

buttons as you would use

buttons as you

Standby mode

Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example).
A small amount of electric power is still consumed even when the power button is turned off. It is best to unplug
the power cord.

English - 4

Viewing the Remote Control

✎

This is a special remote control for the visually impaired persons and has Braille points on the Power,
Channel and Volume buttons.

Turns the TV on and off.

Selects the HDMI mode directly.

Have direct access to channels.

Alternately select Teletext ON, Double,

Mix or OFF.

Adjusts the volume.

Opens the OSD.

Link to various application services.

Quickly select frequently used functions.

Selects the on-screen menu items and
changes the values seen on the menu.

Returns to the previous menu.

POWER

HDMI

1

4

2 3

5 6

7 8 9

TTX/MIX

HUB MENU

SMART

l

0

MUTE

M

CH LIST

m

l

l

SOURCE

PRE-CH

<

P

GUIDE

l

<

Displays and selects the available video
sources.

Returns to the previous channel.

Cuts off the sound temporarily.

Changes channels.

Displays channel lists on the screen.

Displays the EPG (Electronic Programme
Guide).

Displays information on the TV screen.

u/d/l/r

: Move the cursor on-screen

menu item.

ENTERE: Selects the menu and

changes the corresponding item value.

These buttons are for the Channel List,

Use these buttons in a specific feature.

SMART HUB menu, etc.

For details, refer to e-Manual.

Installing batteries (Battery size: AAA)

Insert two AAA or equivalent type

•

batteries inside. Place the batteries
in the right directions.

Replace the battery cover.

•

TV

SOCIAL

E-MANUAL

l

l

l

l

English - 5

B C D

SEARCH

AD/SUBT.

l

Exits the on-screen menu.

SOCIAL TV: Displays the Social TV

screen.

l

l

l

l

SEARCH: Support to recommendation

search word and search function.

W: Sets the video, which provided with

3D signal.

E-MANUAL: Displays the e-Manual.
P.SIZE: Selects the Picture Size.
AD/SUBT.: Turns the audio description

on and off. This is not available in some
locations. / Displays digital subtitles.

Replace the battery cover.

•

Changing the Input Source

SOURCE

Source

Use to select TV or an external input
sources such as a DVD / Blu-ray player /
cable box / STB satellite receiver.

■ TV / Ext. / PC / AV / Component

/ HDMI1/DVI / HDMI2 / HDMI3 /
HDMI4 / USB / AllShare

✎

In the Source, connected inputs
will be highlighted.

✎

Ext. and PC always stay activated.

✎

If the connected external devices are not
highlighted, press the red button. The TV will
search for connected devices.

Edit Name

In the Source, press the TOOLS button, and then you
can set an external input sources name you want.

■ VCR / DVD / Cable STB / Satellite STB / PVR

STB / AV Receiver / Game / Camcorder / PC
/ DVI PC / DVI Devices / T V / IPTV / Blu-ray
/ HD DVD / DMA: Name the device connected

to the input jacks to make your input source
selection easier.

✎

When connecting a PC to the HDMI IN 1(DVI)
port with HDMI cable, you should set the TV
to PC mode under Edit Name.

✎

When connecting a PC to the HDMI IN 1(DVI)
port with HDMI to DVI cable, you should set
the TV to DVI PC mode under Edit Name.

✎

When connecting an AV devices to the HDMI

IN 1(DVI) port with HDMI to DVI cable, you

should set the TV to DVI Devices mode
under Edit Name.

Edit Favourites

In the Source, press the TOOLS button to select Edit
Favourites. You can set an external input source to

Favorites.

Information

You can see detailed information about the selected
external device.

Refresh

In the Source, If the external devices are not
displayed, press the TOOLS button to select Refresh.
Search for connected devices.

✎

For best cable connection to this product, be sure to use cables with a maximum thickness as below:

Maximum thickness - 0.55 inches (14mm)

•

Connecting to an Antenna

When the TV is initially powered on, basic settings proceed automatically.

✎

Preset: Connecting the mains and antenna.

VHF/UHF

Antenna

Cable

or

English - 6

Plug & Play (Initial Setup)

When the TV is initially powered on, a sequence of on-screen prompts will assist in configuring basic settings.
Press the POWERP button. Plug & Play is available only when the Input source is set to TV.

✎

Before turning on the TV, make sure the antenna cable is connected (p. 6).

✎

The option may differ depending on country.

Selecting the OSD

1

Language
Setting up the Network

2

Software upgrade When network connection settings are complete, Software Upgrade is available.

3

Selecting the usage

4

mode

Selecting a country

5

Setting the Clock

6

Mode

Selecting search

7

options for auto tuning

Enjoy your TV. If you want to watch a broadcast program, select Close. If you want to enjoy the

8

Press the ▲ or ▼ button, then press the ENTER
Select the desired OSD (On Screen Display) language.
Set up your network connection. Press the ENTER

not know your network set up information or want to set to it later, select Skip.
We suggest you skip network connection setup now and refer to “Network
menu” in the e-Manual for set up requirements and instructions, and the
Network Connection section of this manual (Page 13).

You can set up the network connection later using the Network menu.

Select Next to upgrade TV software. Your TV will automatically upgrade, if your
TV need a software upgrade. If you want to upgrade later, select the Skip. For
more information, refer to "Software Upgrade" (Preference → Support) in the
e-Manual.

✎

This may take some time, depending on network status.

Press the ▲ or ▼ button to select Home Use, and then press the ENTER
button twice.

Select the Home Use mode. Store Demo mode is for retail environments.
Press the ▲ or ▼ button, then press the ENTER
Select the appropriate country.

✎

After selecting the country in the Country menu, some models may
proceed with an additional option to setup the pin number.

✎

When you input the PIN number, “0-0-0-0” is not available.

✎

The option may differ depending on country.

Set the Clock Mode automatically or manually.

Press the ▲ or ▼ button, then press the ENTER
source to memorise. When setting the antenna source to Cable, a step appears
allowing you to assign numerical values (channel frequencies) to the channels.
For more information, refer to Channel - Memorising Channels - Auto Tuning.

✎

Press the ENTERE button at any time to interrupt the memorisation
process.

Smart Hub, select the Smart Hub. The Smart Hub will start. For more detailed
information, refer to “Smart Hub” in the e-Manual.

E

button.

E

button to start. If you do

E

button.

E

button. Select the channel

E

If You Want to Reset This Feature...

Select System - Plug & Play (Initial Setup). Enter your 4 digit PIN number. The default PIN number is “0-0-0-0.”
If you want to change the PIN number, use the Change PIN function.

You should do Plug & Play (MENU → System) again at home although you did in shop.

✎

If you forget the PIN code, press the remote control buttons in the following sequence in Standby mode,
which resets the PIN to “0-0-0-0”: MUTE → 8 → 2 → 4 → POWER (on).

English - 7

Connecting to an AV devices

Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite

¦¦

receiver, VCR

HDMI connection

HDMI OUT

HDMI to DVI connection

DVI OUT

AUDIO OUT

R-AUDIO-L

Using an HDMI or an HDMI to DVI cable (up to 1080p)

✎

HDMI IN 1(DVI), 2(ARC), 3, 4 / PC/DVI AUDIO IN

For better picture and audio quality, connect to a digital device using an HDMI cable.

x

An HDMI cable supports digital video and audio signals, and does not require an audio cable.

x

– To connect the TV to a digital device that does not support HDMI output, use an HDMI/DVI and

audio cables.

The picture may not display normally (if at all) or the audio may not work if an external device that

x

uses an older version of HDMI mode is connected to the TV. If such a problem occurs, ask the
manufacturer of the external device about the HDMI version and, if out of date, request an upgrade.

Be sure to use an HDMI cable with a thickness of 14 mm or less.

x

Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection

x

error may occur.
A basic high-speed HDMI cable or one with ethernet is recommended. This product does not support

x

the ethernet function via HDMI.
This product supports the 3D and ARC (Audio Return Channel) functions via an HDMI cable. Note

x

that the ARC function is supported by the HDMI IN 2(ARC) port only.
The ARC function allows digital audio to output via the HDMI IN 2(ARC) port. It can be enabled only

x

when the TV is connected with an audio receiver that supports the ARC function.

English - 8

Component connection

COMPONENT OUT

PRPBY

AUDIO OUT

R-AUDIO-L

AV connection

VIDEO OUT

AUDIO OUT

R-AUDIO-L

SCART connection

EXT

G

B

R

R

W

Y

RW

G

B

R

R

W

Y

R W

Using a Component (up to 1080p) or an Audio/Video (480i only) and a Scart Cable

✎

In Ext. mode, DTV Out supports MPEG SD Video and Audio only.

✎

When connecting to AV IN, the colour of the AV IN [VIDEO] jack (green) will not match the video cable
(yellow).

✎

To obtain the best picture quality, the Component connection is recommended over the A/V
connection.

English - 9

Connecting to a PC and Audio device

¦ Using an HDMI cable or an HDMI to DVI cable or a D-sub cable

✎

Connecting through the HDMI cable may not be supported depending on the PC.

PC connection

HDMI OUT

DVI OUT

AUDIO OUT

AUDIO OUT

PC OUT

Display Modes (D-Sub and an HDMI to DVI Input)

Optimal resolution is 1920 X 1080 @ 60 Hz.

Mode Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz) Pixel Clock Frequency (MHz) Sync Polarity (H / V)

IBM

MAC

VESA DMT

VESA DMT /

DTV CEA

640 x 350
720 x 400

640 x 480
832 x 624

1152 x 870

640 x 480
640 x 480
640 x 480
800 x 600
800 x 600

800 x 600
1024 x 768
1024 x 768
1024 x 768
1152 x 864

1280 x 1024
1280 x 1024

1280 x 800
1280 x 800
1280 x 960
1360 x 768
1440 x 900
1440 x 900

1680 x 1050

1920 x 1080p 67.500 60.000 148.500 +/+

31.469

31.469

35.000

49.726

68.681

31.469

37.861

37.500

37.879

48.077

46.875

48.363

56.476

60.023

67.500

63.981

79.976

49.702

62.795

60.000

47.712

55.935

70.635

65.290

70.086

70.087

66.667

74.551

75.062

59.940

72.809

75.000

60.317

72.188

75.000

60.004

70.069

75.029

75.000

60.020

75.025

59.810

74.934

60.000

60.015

59.887

74.984

59.954

25.175

28.322

30.240

57.284

100.000

25.175

31.500

31.500

40.000

50.000

49.500

65.000

75.000

78.750

108.000

108.000

135.000

83.500

106.500

108.000

85.500

106.500

136.750

146.250

+/-

-/+

-/-

-/-

-/-

-/-

-/-

-/­+/+
+/+
+/+

-/-

-/­+/+
+/+
+/+
+/+

-/+

-/+
+/+
+/+

-/+

-/+

-/+

✎

NOTE

For HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack.

x

The interlace mode is not supported.

x

The set might operate abnormally if a non-standard video format is selected.

x

Separate and Composite modes are supported. SOG(Sync On Green) is not supported.

x

English - 10

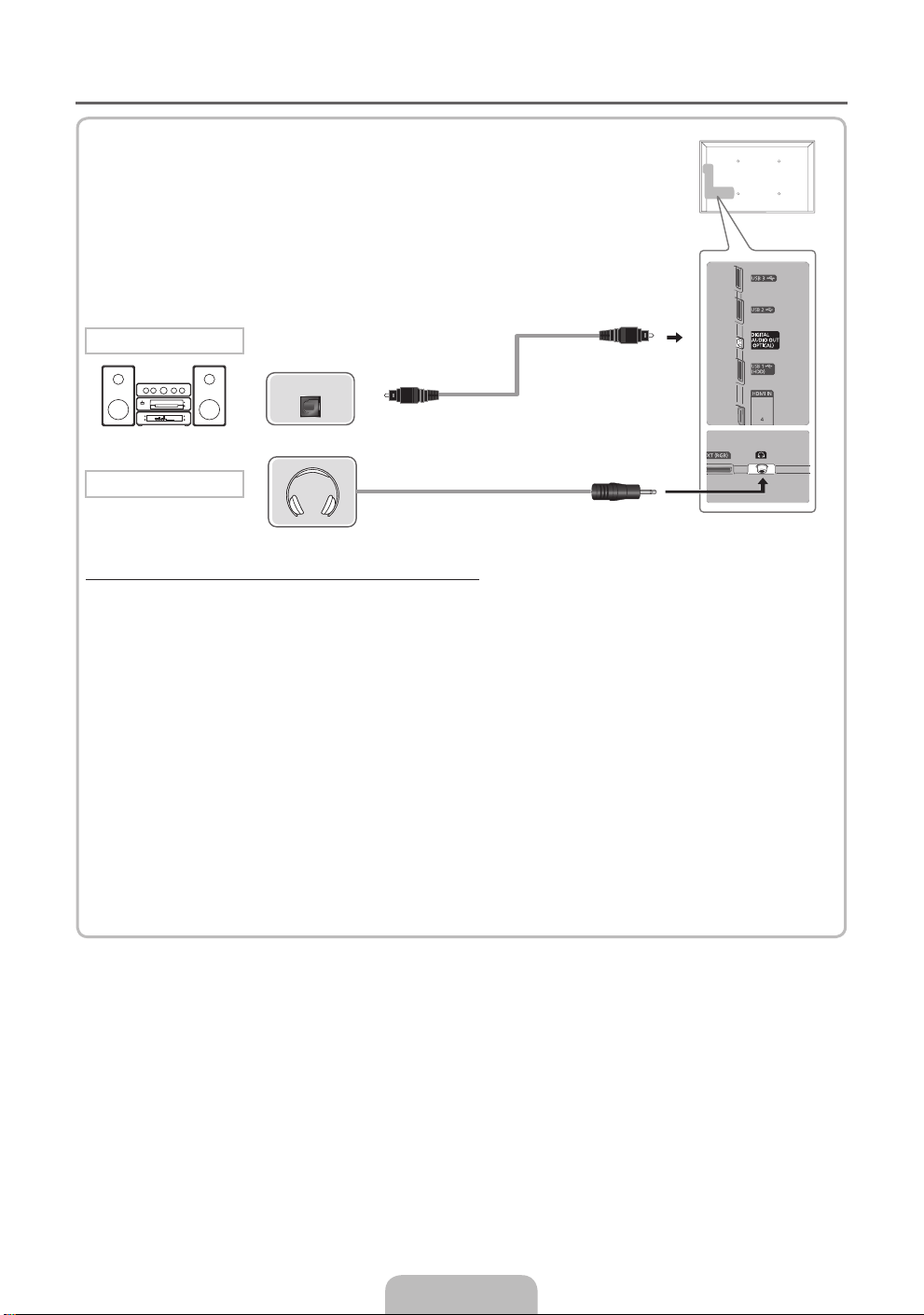

¦ Available devices: digital audio system, amplifier, DVD home theatre

Audio connection

OPTICAL

Headphones connection

Using an Optical (Digital) or a Headphone Connection

✎

DIGITAL AUDIO OUT (OPTICAL)

When a digital audio system is connected to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the

x

volume of both the TV and the system.

5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH.

x

When the receiver (home theatre) is set to on, you can hear sound output from the TV’s optical jack.

x

When the TV is receiving a DTV signal, the TV will send 5.1 CH sound to the home theatre receiver.
When the source is a digital component such as a DVD / Blu-ray player / cable box / STB (Set-Top­Box) satellite receiver and is connected to the TV via HDMI, only 2 CH audio will be heard from the
home theatre receiver. If you want to hear 5.1 CH audio, connect the digital audio out jack from your
DVD / Blu-ray player / cable box / STB satellite receiver directly to an amplifier or home theatre.

✎

Headphones H: You can connect your headphones to the headphones output on your set. While the
headphones are connected, the sound from the built-in speakers will be disabled.

Sound function may be restricted when connecting headphones to the TV.

x

Headphone volume and TV volume are adjusted separately.

x

English - 11

Connecting to a COMMON INTERFACE slot

Attaching the CI Card Adapter

Attach the adapter as shown below.
To connect the CI CARD Adapter, follow these steps.

✎

We recommend attaching the adapter before
installing the wall mount, or inserting the “CI or CI+
CARD.”

1. Insert the CI CARD Adapter into the two holes on the

product 1.

✎

Please find a two holes on the rear of the TV. A
two holes is beside the COMMON INTERFACE
port.

2. Connect the CI CARD Adapter into the COMMON INTERFACE port on the product 2.

3. Insert the “CI or CI+ CARD”.

We recommand that you insert the CI card before you mount the TV on a wall.
It may be difficult to insert after the mounting.

Insert the card after attaching the CI CARD Adapter, on TV.
It is difficult to attach the module if you insert the card before attaching.

Using the “CI or CI+ CARD”

To watch paid channels, the “CI or CI+ CARD” must be inserted.

If you don’t insert the “CI or CI+ CARD,” some channels will display

•

the message “Scrambled Signal”.
The pairing information containing a telephone number, the “CI or CI+

•

CARD” ID the Host ID and other information will be displayed in about
2~3 minutes. If an error message is displayed, please contact your
service provider.

When the configuration of channel information has finished, the

•

message “Updating Completed” is displayed, indicating the channel
list is updated.

✎

NOTE

You must obtain a “CI or CI+ CARD” from a local cable service provider.

x

When removing the “CI or CI+ CARD”, carefully pull it out with your hands since dropping the “CI or CI+

x

CARD” may cause damage to it.
Insert the “CI or CI+ CARD” in the direction marked on the card.

x

The location of the COMMON INTERFACE slot may be different depending on the model.

x

“CI or CI+ CARD” is not supported in some countries and regions; check with your authorized dealer.

x

If you have any problems, please contact a service provider.

x

Insert the “CI or CI+ CARD” that supports the current antenna settings. The screen will be distorted or

x

will not be seen.

TV Rear

English - 12

Network Connection

You can set up your TV so that it can access the Internet through your local area network (LAN) using a wired or
wireless connection.

Network Connection - Wireless

You can connect your TV to your LAN through a standard wireless router or modem. To connect wirelessly,
you must first attach a “Samsung Wireless LAN adapter” (WIS09ABGN, WIS09ABGN2, WIS10ABGN - sold
separately) to either the USB 1 (HDD), USB 2 or USB 3 on the back of your TV. See the illustration below.

The LAN Port on

the Wall

Wireless IP sharer

(router having DHCP server)

or

Samsung Wireless

LAN adapter

LAN Cable

Samsung’s Wireless LAN adapter is sold separately and is offered by select retailers, Ecommerce sites and
Samsungparts.com. Samsung’s Wireless LAN adapter supports the IEEE 802.11a/b/g and n communication
protocols. Samsung recommends using IEEE 802.11n. When you play the video over a IEEE 802.11b/g
connection, the video may not play smoothly.

Most wireless network systems incorporate a security system that requires devices that access the network
through an access point or wireless router (typically a wireless IP Sharer) to transmit an encrypted security code
called an access key.

If Pure High-throughput (Greenfield) 802.11n mode is selected and the Encryption type is set to WEP, TKIP or
TKIP AES (WPS2Mixed) for your wireless router, Samsung TVs will not support a connection in compliance with
new Wi-Fi certification specifications.

Network Connection - Wired

There are two main ways to connect your TV to your network using cable, depending on your network setup.
They are illustrated below:

The Modem Port on the Wall

External Modem

(ADSL / VDSL / Cable TV)

TV Rear Panel

Modem Cable

The LAN Port on the Wall

LAN Cable

✎

It is not supported when the network speed is under 10 Mbps.

English - 13

LAN Cable

TV Rear Panel

How to use the e-Manual

E-MANUAL

You can read the introduction and instructions about the TV features stored
in your TV.

MENUm → Support → e-Manual → ENTER

O

✎

If you want to return to e-Manual, press E-MANUAL button on remote.

✎

You can’t use the Try Now function, if the menu is not activated.

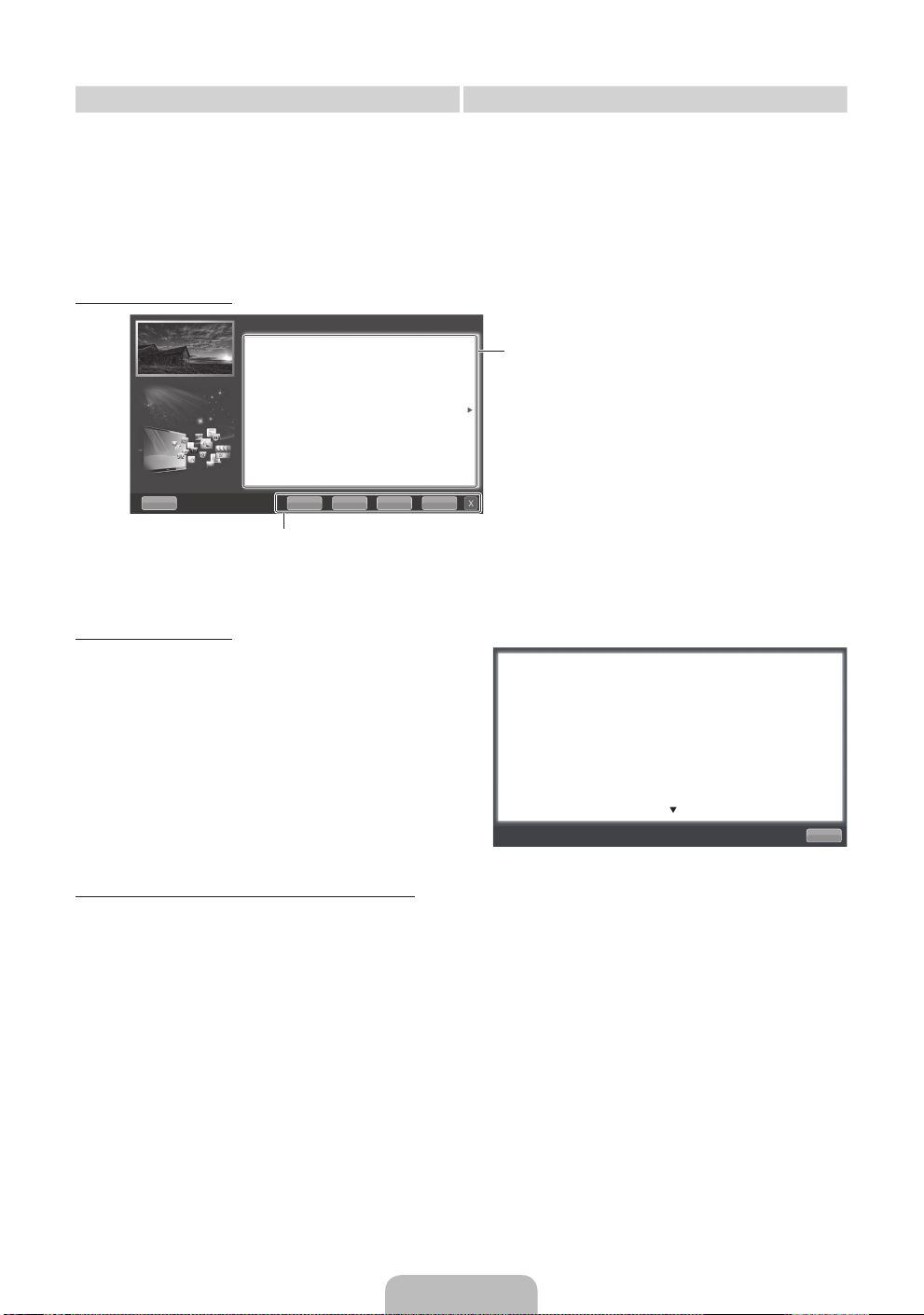

Screen Display

TV Screen: Displays the current input

Help: Displays the e-Manual Guide

or Product guide. Press ENTER

Using the Help

Display the e-Manual Guide & the Product Guide by pressing Help.

 Changing the Preset Picture Mode

You can read the introduction and instructions about
the TV features stored in your TV.

O MENU

source screen.

E

button.

m

→ Support → e-Manual → ENTER

Basic Features

Changing the Preset Picture Mode

Adjusting Picture Settings

Changing the Picture Size

Changing the Picture Options

Setting up the TV with Your PC

Basic Features

Changing the Preset Picture Mode

E

Adjusting Picture Settings

Changing the Picture Size

Changing the Picture Options

Setting up the TV with Your PC

IndexHelp

E

Change the category. Press
button to select category you want.

Displays the sub-menu list. Press

ENTER

menu you want.

IndexHelp

Index: Displays index screen.
X: Exit the e-Manual.

E

button to select sub-

l

or r

Return

<e-Manual Guide>

The e-Manual guide appears as above.

The product guide appears as above.

How to toggle between the e-Manual and the corresponding menu(s).

Basic Features > Changing the Preset Picture Mode (5/10)

 Changing the Preset Picture Mode

O MENUm → Picture → Picture Mode → ENTER

■

Picture Mode t

Select your preferred picture type.

N When an input source is set to PC, the Picture Mode is only available

theStandard and Entertain.

• Dynamic: Suitable for a bright room.

• Standard: Suitable for a normal environment.

• Natural: Suitable for reducing eye strain.

• Movie: Suitable for watching movies in a dark room.

• Entertain: Suitable for watching movies and games.

Help Try Now Home Zoom Index

✎

This function is not enabled in some menus.

E

Try Now

E-MANUAL

English - 14

Return

<Product Guide>


Picture Mode Standard

Backlight 14

Contrast 100

Brightness 45

Sharpness 50

Colour 50

Tint (G/R) G 50 R 50

Method 1 Method 2

1. During watching the e-Manual, move the cursor

to select Try Now, when you want to execute the
corresponding menu(s).

2. To return to the e-Manual screen, press the

E-MANUAL button.

Viewing the Contents

Basic Features > Changing the Preset Picture Mode (5/10)

 Changing the Preset Picture Mode

O MENUm → Picture → Picture Mode → ENTER

■

Picture Mode t

Select your preferred picture type.

N When an input source is set to PC, the Picture Mode is only available

the Standard and Entertain.

• Dynamic: Suitable for a bright room.

• Standard: Suitable for a normal environment.

• Natural: Suitable for reducing eye strain.

• Movie: Suitable for watching movies in a dark room.

• Entertain: Suitable for watching movies and games.

Help Try Now Home Zoom Index

Try Now: Displays the corresponding menu(s).
Home: Moves to the e-Manual home screen.
Zoom: Magnifies a screen.
Index: Displays index screen.

E

Viewing the Contents

E

1. Press the ENTER

button when selecting
Contents Area. The “Are you sure?” is displayed.
Select Yes and then press the ENTERE
button. The OSD window will be displayed.

2. To return to the e-Manual screen, press the

E-MANUAL button.

Contents Area: You can view the corresponding
contents, if you selected a sub-menu. To move
previous or next page, press the l or r button.

When you view the e-Manual instruction, select the
Zoom to magnify the screen. You can scroll through
the magnified screen by using the

✎

To return to the previous screen, press the

u

or d buttons.

RETURN button.

How to search a keyword by using index page

✎

This function may not supported depending on the language.

1. If you want to search a keyword, select Index.

2. Press the

3. Press the

l

or r button to select a character order you want, and then press the ENTERE button.

u

or d button to select a keyword you want to see, and then press the ENTERE button.

4. You can view the corresponding e-Manual instruction screen.

✎

To close the Index screen, press the Close button.

 Changing the Preset Picture Mode

O MENUm → Picture → Picture Mode → ENTER

■

Picture Mode t

Select your preferred picture type.

N When an input source is set to PC, the Picture Mode is only available the Standard

and Entertain.

• Dynamic: Suitable for a bright room.

• Standard: Suitable for a normal environment.

• Natural: Suitable for reducing eye strain.

• Movie: Suitable for watching movies in a dark room.

• Entertain: Suitable for watching movies and games.

E

Return

English - 15

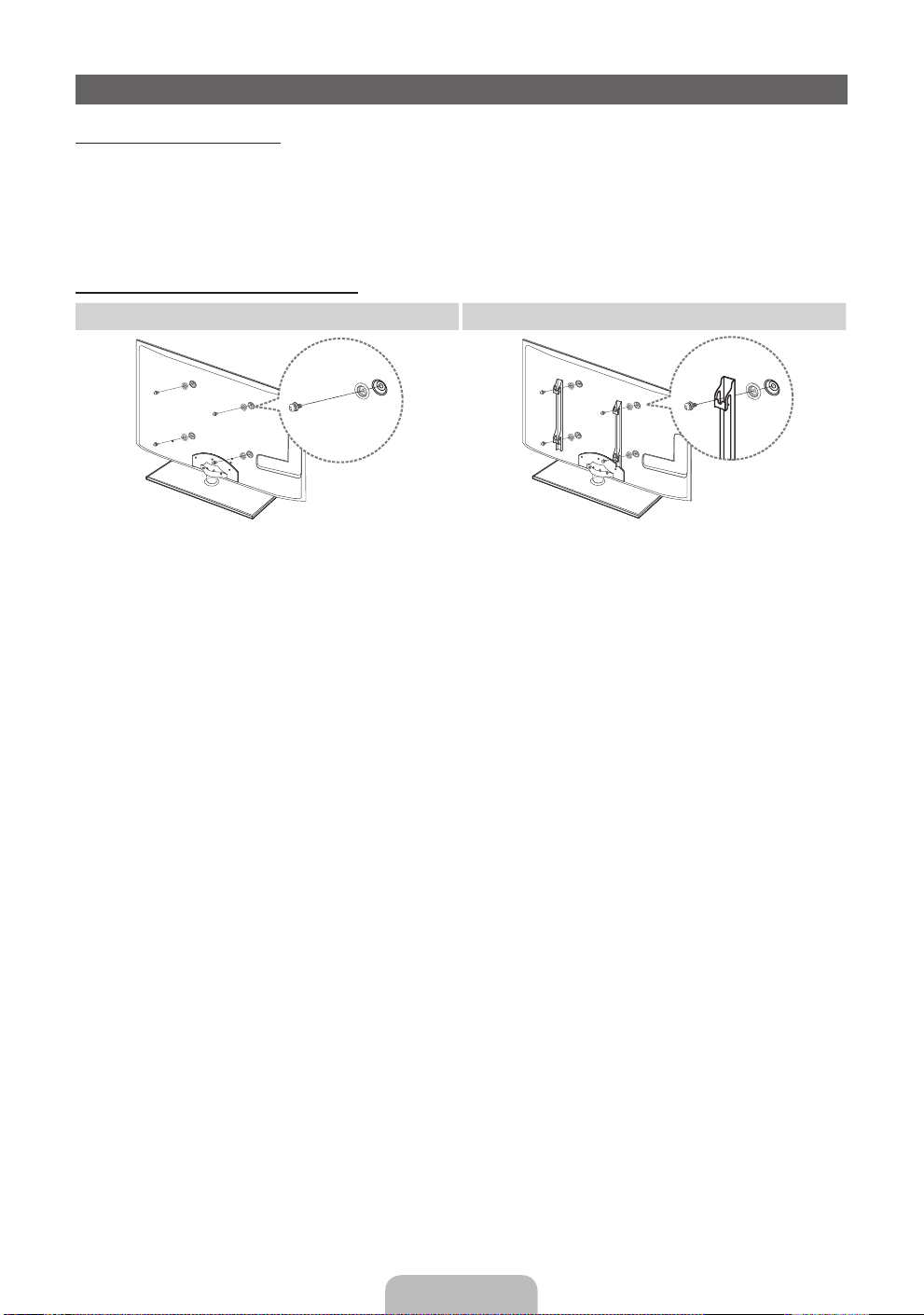

Installing the Wall Mount

Installing the Wall Mount Kit

The wall mount kit (sold separately) allows you to mount the TV on the wall.
For detailed information on installing the wall mount, see the instructions provided with the wall mount. Contact a

technician for assistance when installing the wall mount bracket.
Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect

to install the TV on your own.

Preparing before installing Wall-Mount

Case A. Installing the SAMSUNG Wall-Mount Case B. Installing another company’s Wall-Mount

1

To install a wall-mount, use the Holder-Ring 1.

1

English - 16

Wall Mount Kit Specifications (VESA)

✎

The wall mount kit is not supplied, but sold separately.

Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials,
please contact your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal
injury.

✎

NOTE

Standard dimensions for wall mount kits are shown in the table below.

x

When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly

x

are provided.
Do not use screws that do not comply with the VESA standard screw specifications.

x

Do not use screws that are longer than the standard dimension or do not comply with the VESA standard

x

screw specifications. Screws that are too long may cause damage to the inside of the TV set.
For wall mounts that do not comply with the VESA standard screw specifications, the length of the

x

screws may differ depending on the wall mount specifications.
Do not fasten the screws that are too strongly; this may damage the product or cause the product to fall,

x

leading to personal injury. Samsung is not liable for these kinds of accidents.
Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall

x

mount is used or the consumer fails to follow the product installation instructions.
Our 55” model do not comply with VESA Specifications. Therefore, you should use our dedicated wall

x

mount kit for this model.
Do not mount the TV at more than a 15 degree tilt.

x

Product Family inches VESA Spec. (A * B) Standard Screw Quantity

LED-TV

19~22 75 X 75

23~27 200 X 100

32~40 200 X 200

60~65 600 X 400

M4

4

M846~55 400 X 400

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury
due to electric shock.

English - 17

Troubleshooting

If you have any questions about the TV, first refer to this list. If none of these troubleshooting tips apply, please
visit “www.samsung.com”, then click on Support, or contact the call centre listed on the back-cover of this
manual.

Issues Solutions and Explanations

The TV won’t turn on. • Make sure the AC power cord is securely plugged in to the wall outlet and the TV.

There is no picture/video. • Check cable connections (remove and reconnect all cables connected to the TV and external

The remote control does not work. • Replace the remote control batteries with the poles (+/–) in the right direction.

The cable/set top box remote control
doesn’t turn the TV on or off, or adjust the
volume.

✎

This TFT LED panel uses a panel consisting of sub pixels which require sophisticated technology to
produce. However, there may be a few bright or dark pixels on the screen. These pixels will have no impact
on the performance of the product.

✎

You can keep your TV as optimum condition to upgrade the latest firmware on web site (samsung.com →
Support → Downloads) by USB.

• Make sure the wall outlet is working.

• Try pressing the POWER button on the TV to make sure the problem is not the remote. If the TV turns
on, refer to “Remote control does not work” below.

devices).

• Set your external device’s (Cable/Sat Box, DVD, Blu-ray etc) video outputs to match the connections
to the TV input. For example, if an external device’s output is HDMI, it should be connected to an
HDMI input on the TV.

• Make sure your connected devices are powered on.

• Be sure to select the TV’s correct source by pressing the SOURCE button on the remote control.

• Reboot the connected device by reconnecting the device’s power cable.

• Clean the sensor’s transmission window on the remote.

• Try pointing the remote directly at the TV from 5~6 feet away.

• Programme the Cable/Set remote control to operate the TV. Refer to the Cable/Set user manual for
the SAMSUNG TV code.

Licence

English - 18

List of Features

Excellent Digital Interface & Networking: With a built-in HD digital tuner, nonsubscription HD broadcasts can be
viewed without a cable box / STB (Set-Top-Box) satellite receiver.

3D

This exciting new feature enables you to view 3D content.

SMART HUB

The Gateway to all content integrated in one place

It’s all integrated to guide you to easier and diverse entertainment choices.

•

Control your entertainment life with easy and simple user friendly UI.

•

Access to diverse Apps that are adding up every day.

•

Customize your TV, by App grouping & sorting to your taste.

•

AllShare™

AllShare™ connects your TV and compatible Samsung mobile phones/devices through a network.

Anynet+(HDMI-CEC)

Allows you to control all connected Samsung devices that support anynet+ with your Samsung TV’s remote.

Storage and Maintenance

✎

If you attched some stickers on the TV screen, it remains some debris after removing the sticker. Please
clean it to watch TV.

Do not spray water or a cleaning agent directly onto
the product. Any liquid that goes into the product may
cause a failure, fire, or electric shock.

English - 19

Clean the product with a soft cloth dapped in a small
amount of water.

Securing the TV to the wall

Caution: Pulling, pushing, or climbing onto the TV may cause the TV to fall. In particular, ensure
that your children do not hang over or destabilize the TV; doing so may cause the TV to tip over,
resulting in serious injuries or death. Follow all safety precautions provided in the included Safety
Flyer. For added stability and safety, install the anti-fall device as follows.

To Avoid the TV from Falling

1. Put the screws into the clamps and firmly fasten them onto the wall.

Confirm that the screws have been firmly installed onto the wall.

✎

You may need additional material such as an anchor depending on
the type of wall.

✎

Since the necessary clamps, screws, and string are not supplied,
please purchase these additionally.

2. Remove the screws from the back centre of the TV, put the screws into
the clamps, and then fasten the screws onto the TV again.

✎

Screws may not be supplied with the product. In this case, please
purchase the screws of the following specifications.

✎

Screw Specifications

For a 19 ~ 27 inch: M4

x

For a 32 ~ 65 inch: M8

x

3. Connect the clamps fixed onto the TV and the clamps fixed onto the wall
with a strong cable and then tie the string tightly.

✎

NOTE

Install the TV near to the wall so that it does not fall backwards.

x

It is safe to connect the string so that the clamps fixed on the wall are equal to or lower than the

x

clamps fixed on the TV.
Untie the string before moving the TV.

x

4. Verify all connections are properly secured. Periodically check connections for any sign of fatigue for failure. If
you have any doubt about the security of your connections, contact a professional installer.

Wall

English - 20

Specifications

Display Resolution 1920 x 1080

Environmental Considerations
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity

TV System Analogue: B/G, D/K, L, I (Depending on your country selection)

Colour/Video System Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60

Sound System BG, DK, L, NICAM, MPEG1, DD, DD+, HEAAC.
HDMI IN Video: 1080 24p, 1080p, 1080i, 720p, 576p, 480p

Stand Swivel (Left / Right) -20˚ ~ 20˚
Model Name UE32D6000 UE37D6000 UE40D6000
Screen Size 32 inches 37 inches 40 inches
Sound

(Output) 10 W X 2
Dimensions (WxDxH)

Body
With stand

Weight
Without Stand
With Stand

Model Name UE46D6000 UE55D6000
Screen Size 46 inches 55 inches
Sound

(Output) 10 W X 2 15 W X 2
Dimensions (WxDxH)

Body
With stand

Weight
Without Stand
With Stand

768.0 X 29.9 X 475.3 mm

768.0 X 240.0 X 533.4 mm

Digital: MPEG-2 MP@ML, MPEG-4, H.264/AVC MP@L3, MP@L4.0, HP@L4.0

Audio: 2Ch Linear PCM 32/44.1/48kHz, 16/20/24bits.

7.3 kg

10.0 kg

1090.6 X 29.9 X 657.1 mm

1090.6 X 275.0 X 714.1 mm

13.5 kg

17.1 kg

10°C to 40°C (50°F to 104°F)

10% to 80%, non-condensing

-20°C to 45°C (-4°F to 113°F)
5% to 95%, non-condensing

Digital: DVB-T/DVB-C

890.0 X 29.9 X 544.3 mm

890.0 X 255.0 X 601.8 mm

9.4 kg

12.7 kg

955.2 X 29.9 X 580.7 mm

955.2 X 255.0 X 638.0 mm

10.9 kg

14.2 kg

1281.2 X 29.9 X 763.9 mm

1281.2 X 305.0 X 820.9 mm

18.0 kg

22.2 kg

✎

Design and specifications are subject to change without prior notice.

✎

For information about power supply, and more about power consumption, refer to the label attached to the
product.

✎

Hereby, Samsung, declares that this LED TV is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger,
headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible
harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste
and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the
retailer where they purchased this product, or their local government office, for details of where and how they can take these items
for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase
contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product
(Applicable in the European Union and other European countries with separate battery return systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other
household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery
contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of,
these substances can cause harm to human health or the environment. To protect natural resources and to promote material
reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

English - 21

ELECTRONICS

Declaration of Conformity

For the following

Product : LED TV
Model(s) : UE32D6000 UE37D6000 UE40D6000 UE46D6000 UE55D6000

Year of Affixing CE Marking : 2011

Manufactured at:

F1: Samsung Electronics Co., Ltd.
416, Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 Korea
F2: Samsung Electronics Slovakia s.r.o
Hviezdoslavova 807 924 27 Galanta, Slovak Republic
F3: Samsung Electronics Hungarian Co., Ltd.
H-5126 Jaszfenyszaru, Samsung ter 1

(Factories name and address)

We hereby declare under our sole responsibility that the electrical product above is in compliance with
the essential requirements of R&TTE Directive (1995/5/EC), the Low Voltage Directive (2006/95/EC) and
Electromagnetic Compatibility Directive (2004/108/EC) by application of

EN 60065: 2002+A1:2006+A11:2008
EN55022: 2006+A1:2007
EN61000-3-2:2006
EN 300 328-1 v1.7.1
EN 301 489-17 v1.3.2 :2008

EN61000-3-3:1995+A1:2001+A2:2005
EN55024:1998+A1:2001+A2:2003
EN55013:2001+A1:2003+A2 :2006
EN55020:2007
EN 301 489-1 v1.8.1 :2008

and the Eco-Design Directive (2009/125/EC) implemented by Regulation (EC) No 642/2009 for televisions.

The Technical documentation is kept at the below Manufacturer’s address.

Manufacturer

Samsung Electronics Co., Ltd.
416 Maetan-dong, Young-Tong gu,
Suwon, Korea 442-742

05 Jan 2011

(Place and date of issue)

Chang Seub Eum / Manager

(Name and signature of authorized person)

Representative in the EU :

Samsung Electronics Euro QA Lab.
Blackbushe Business Park
Saxony Way, Yateley, Hampshire
GU46 6GG, UK

06 Jan 2011

(Place and date of issue)

Joong Hoon Choi / Lab. Manager

(Name and signature of authorized person)

Note : It is not the address of Samsung Service Centre. For the address or the phone number of
Samsung Service Centre, see the warranty card or contact the retailer where you purchased your
product.

Warning! Important Safety Instructions

Please read the appropriate section that corresponds to the marking on your Samsung product before attempting to
install the product.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK). THERE ARE

NO USER SERVICEABLE PARTS INSIDE. REFER ALL

SERVICING TO QUALIFIED PERSONNEL.

y The slots and openings in the cabinet and in the back or bottom are provided for necessary ventilation.To ensure reliable

operation of this apparatus, and to protect it from overheating, these slots and openings must never be blocked or covered.

– Do not cover the slots and openings with a cloth or other materials.
– Do not block the slots and openings by placing this apparatus on a bed, sofa, rug or other similar surface.
– Do not place this apparatus in a confined space, such as a bookcase, or built-in cabinet, unless proper ventilation is provided.

– Give your product 10 cm (4 inch) clearance from the wall.
y Do not place this apparatus near or over a radiator or heat resistor, or where it is exposed to direct sunlight.
y Do not place heat generating items such as candles, ashtrays, incense, flammable gas or explosive materials near the product.
y Do not place a water containing vessel on this apparatus, as this can result in a risk of fire or electric shock.
y Do not expose this apparatus to rain or place it near water(near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet

basement, or near a swimming pool etc.). If this apparatus accidentally gets wet, unplug it and contact an authorized dealer
immediately. Make sure to pull out the power cord from the outlet before cleaning.

y This apparatus use batteries. In your community there might be regulations that require you to dispose of these batteries properly

under environmental considerations. Please contact your local authorities for disposal or recycling information.
y Do not overload wall outlets, extension cords or adaptors beyond their capacity, since this can result in fire or electric shock.
y Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against

them, paying particular attention to cords at plug end, adaptors and the point where they exit from the appliance.
y To protect this apparatus from a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from

the wall outlet and disconnect the antenna or cable system.

This will prevent damage to the set due to lightning and power line surges.
y Before connecting the AC power cord to the DC adaptor outlet, make sure the voltage designation of the DC adaptor

corresponds to the local electrical supply.
y Never insert anything metallic into the open parts of this apparatus. Doing so many create a danger of electric shock.
y To avoid electric shock, never touch the inside of this apparatus. Only a qualified technician should open this apparatus.
y Make sure to plug the power cord in until it is firmly inserted. When removing the power cord, make sure to hold the power plug

when pulling the plug from the outlet. Do not touch the power cord with wet hands.
y If this apparatus does not operate normally - in particular, if there are any unusual sounds or smells coming from it - unplug it

immediately and contact an authorized dealer or service centre.
y Be sure to pull the power plug out of the outlet if the TV is to remain unused or if you are to leave the house for an extended

period of time (especially when children, elderly or disabled people will be left alone in the house).

– Accumulated dust can cause an electric shock, an electric leakage or a fire by causing the power cord to generate sparks and

heat or the insulation to deteriorate.

y Be sure to contact an authorized service centre, when installing your set in a location with heavy dust, high or low

temperatures,high humidity, chemical substances and where it operates for 24 hours such as the airport, the train station etc.

Failure to do so may cause serious damage to your set.
y Use only a properly grounded plug and receptacle.

– An improper ground may cause electric shock or equipment damage. (Class l Equipment only.)

y To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall

be readily operable.
y Do not allow children to hang onto the product.
y Store the accessories (battery, etc.) in a location safely out of the reach of children.
y Do not install the product in an unstable location such as a shaky self, a slanted floor or a location exposed to vibration.
y Do not drop or impart any shock to the product. If the product is damaged, disconnect the power cord and contact a service centre.

This symbol indicates that high voltage is
present inside. It is dangerous to make any kind
of contact with any internal part of this product.

This symbol alerts you that important literature
concerning operation and maintenance has
been included with this product.

WARNING - TO PREVENT THE SPREAD OF FIRE,
KEEP CANDLES OR OTHER OPEN FLAMES
AWAY FROM THIS PRODUCT AT ALL TIMES.

Wiring the Mains Power Supply Plug (UK Only)

IMPORTANT NOTICE

The mains lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on
the pin face of the plug and, if it requires replacing, a fuse approved to BSI1362 of the same rating must be used.

Never use the plug with the fuse cover omitted if the cover is detachable. If a replacement fuse cover is required, it must be of
the same colour as the pin face of the plug. Replacement covers are available from your dealer.

If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you
should obtain a suitably approved extension lead or consult your dealer for assistance. However, if there is no alternative but to
cut off the plug, remove the fuse and then safely dispose of the plug.

Do NOT connect the plug to a mains socket as there is a risk of shock hazard from the bared flexible cord.

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code:
BLUE - NEUTRAL BROWN - LIVE
As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as follows :

The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK. The wire
coloured BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED.

WARNING:

DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL, WHICH IS MARKED WITH THE
LETTER E OR BY THE EARTH SYMBOL , OR COLOURED GREEN OR GREEN AND YELLOW.

Warranty Card

UNITED KINGDOM REPUBLIC OF IRELAND

(EIRE)

This Samsung product is warranted for a period of twelve (12) months from the original date of purchase, against defective
materials and workmanship. In the event that warranty service is required, you should return the product to the retailer from
whom it was purchased. However, Samsung Authorised Dealers and Authorised Service Centres in other EC Countries will
comply with the warranty on the terms issued to purchasers in the country concerned. In case of difficulty, details of our
Authorised Service Centres are available from:

Samsung Customer Support Centre, PO Box 479, Gateshead, NE9 9BJ United Kingdom

Telephone: 0330 SAMSUNG (7267864) Fax: [phone] (UK & Northern Ireland)

WARRANTY CONDITIONS

1. The warranty is only valid if, when warranty service is required, the warranty card is fully and properly completed and
is presented with the original invoice or sales slip or confirmation, and the serial number on the product has not been
defaced.

2. Samsung’s obligations are limited to the repair or, at its discretion, replacement of the product or the defective part.

3. Warranty repairs must be carried out by Authorised Samsung Dealers or Authorised Service Centres. No re-imbursement

will be made for repairs carried out by non Samsung Dealers and, any such repair work and damage to the products
caused by such repair work will not be covered by this warranty.

4. This product is not considered to be defective in materials nor workmanship by reason that it requires adaptation in
order to conform to national or local technical or safety standards in force in any country other than the one for which the
product was originally designed and manufactured.

Tel: [phone] Fax: [phone] (EIRE Only)

Web : www.samsung.com
