E-MANUAL
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/register
Model _____________ Serial No. _____________
Contents
Channel
• Using the INFO button (Now & Next guide) 3
• Using the Channel Menu 4
• Using the Channel 12
• Using Favourite Channels 21
• Memorising Channels 23
• Using the Channel (for Satellite TV) 32
• Using Favourite Channels (for Satellite TV) 37
• Memorising Channels (for Satellite TV) 39
• Other Features 51
Basic Features
• Changing the Preset Picture Mode 53
• Adjusting Picture Settings 54
• Changing the Picture Size 55
• Changing the Picture Options 62
• Setting up the TV with Your PC 71
• Changing the Preset Sound Mode 75
• Adjusting Sound Settings 76
• Selecting the Sound Mode 87
Preference

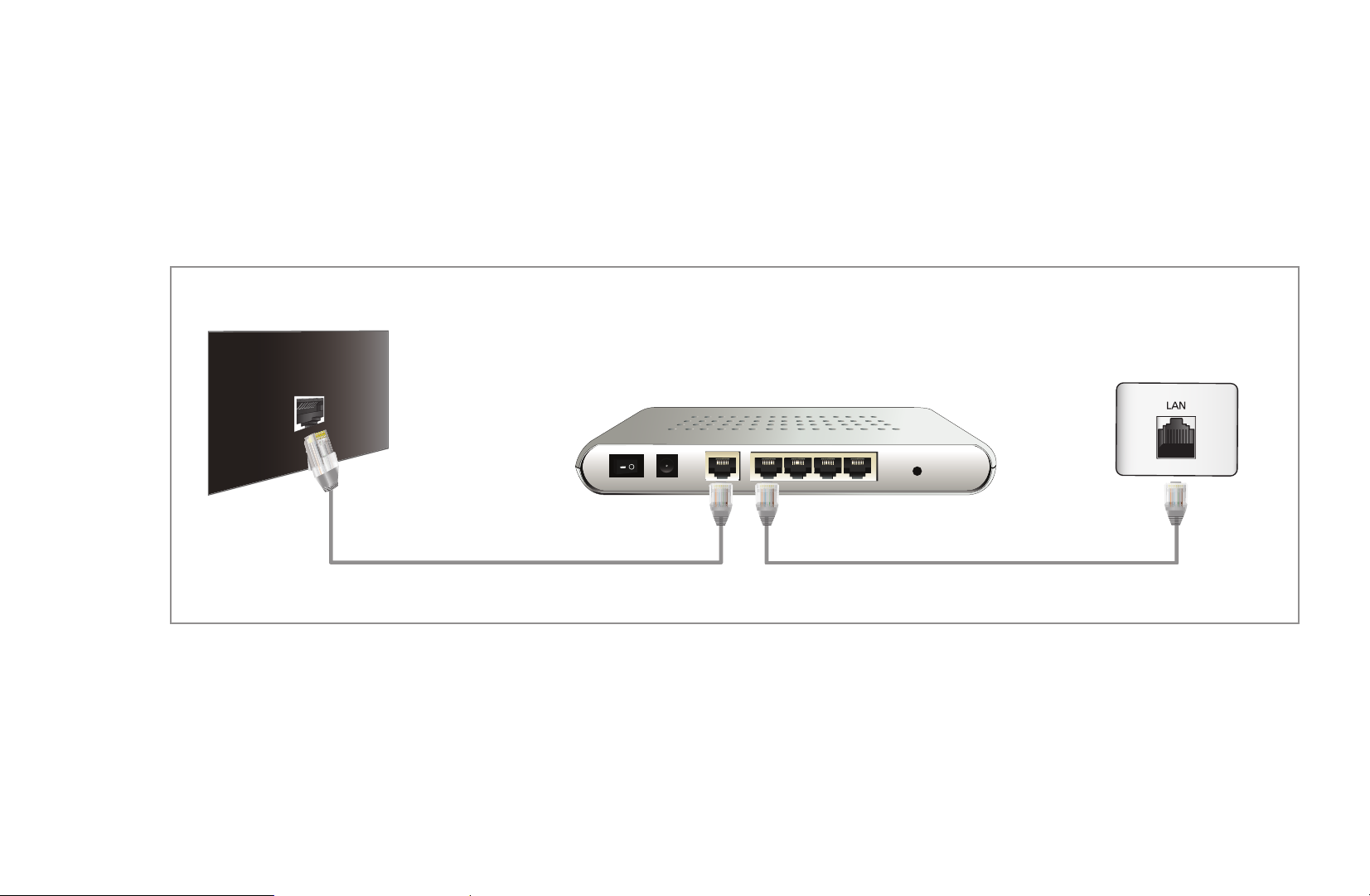

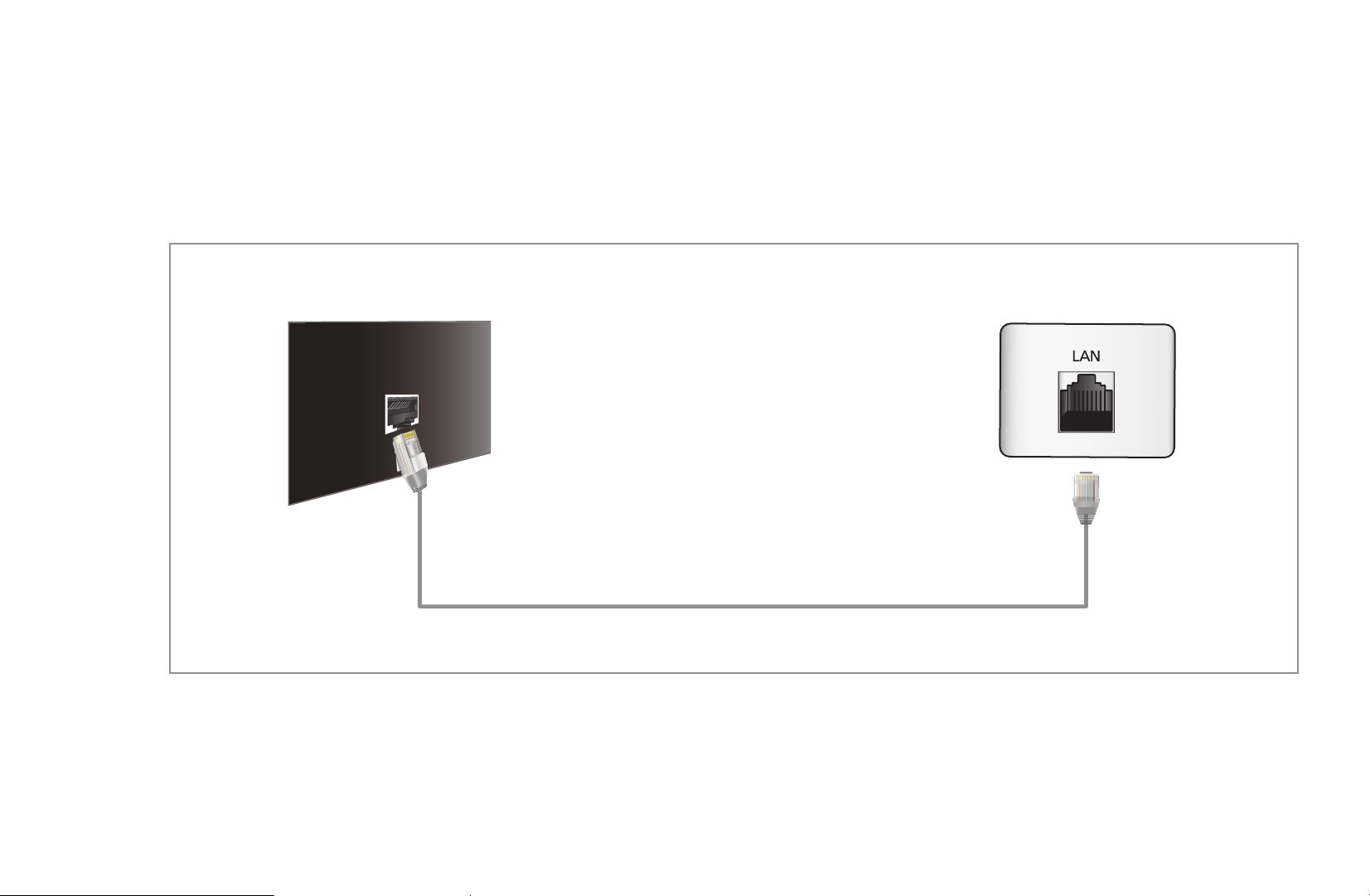

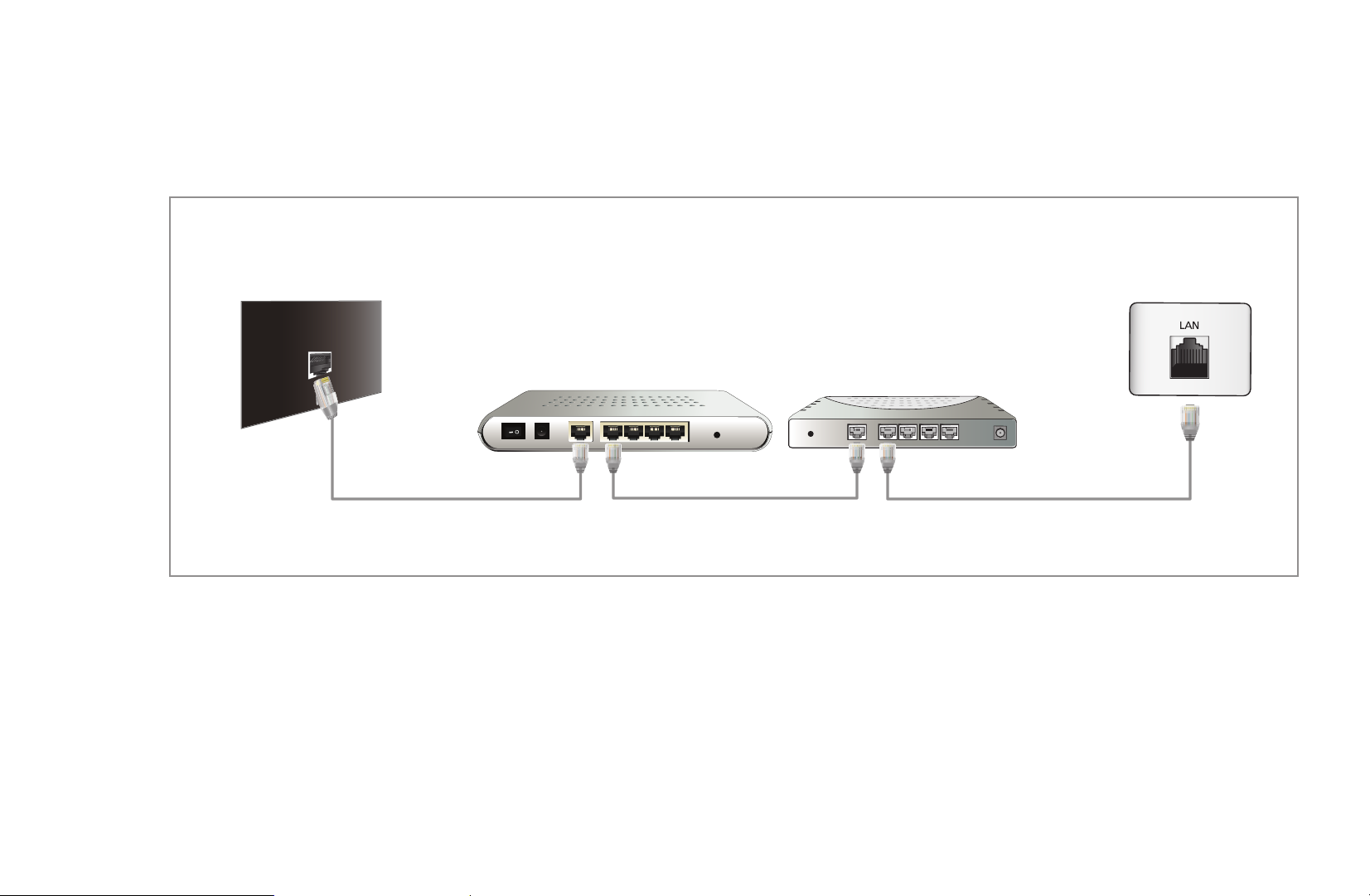

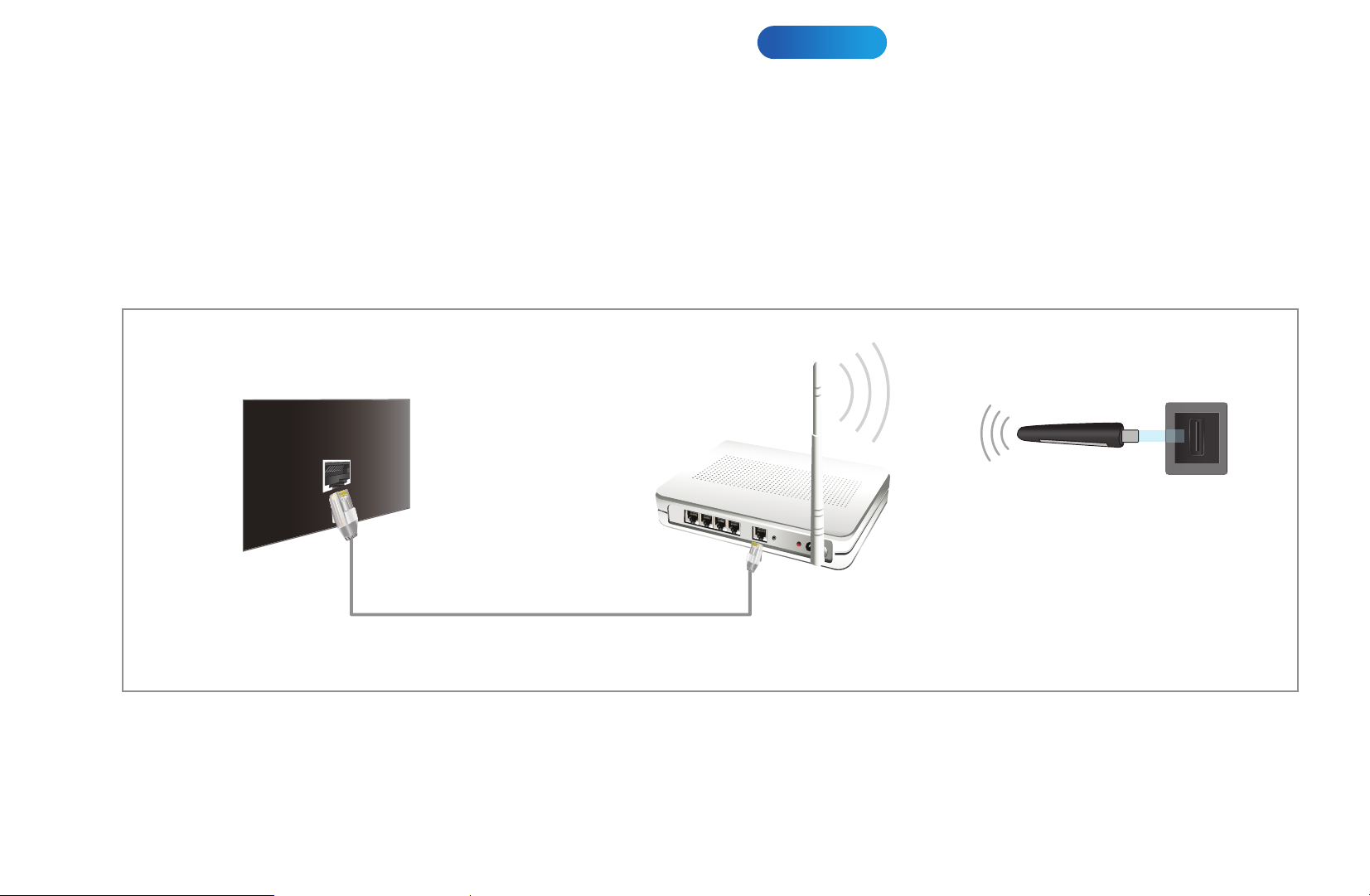

• Connecting to a Wired Network 88
• Connecting to a Wireless Network 98
• Connecting to a Wireless Network 105
• Setting the network 109
• Setting the Time 127
• Locking Programme 136
• Economical Solutions 139
• Other Features 145
• Picture In Picture (PIP) 153
• Support 156
Advanced Features
• Using the 3D function 163
• Getting Started with Smart Hub 175
• Setting up Smart Hub 187
• Using the Smart Hub service 190
• Troubleshooting for SMART HUB 195
• About AllShare™ 198
• Setting Up AllShare™ 199
• Anynet+ 203
• Setting Up Anynet+ 208
• Switching between Anynet+ Devices 210
• Listening through a Receiver 212
• Troubleshooting for Anynet+ 214
• Using the Media Contents 217
• Connecting a USB Device 218
• Connecting to the PC through network 219
• Recorded TV 228
• Videos 239
• Music 247
• Photos 253
• Media Contents - Additional Function 255
Other Information
• Troubleshooting 265
• Connecting to a
COMMON INTERFACE slot 277
• Teletext Feature
(depending on the country) 282
• Anti-theft Kensington Lock 287
• Licence 289
e-Manual Guide
• How to view the e-Manual 291
Channel
❑Using the INFO button (Now & Next guide)
The display identifies the current channel and the status of certain audio-video
settings.
The Now & Next guide shows daily TV programme information for each channel
according to the broadcasting time.
●
Scroll l, r to view information for a desired programme while watching the
current channel.
●
Scroll
u, d
currently selected channel, press the ENTER
to view information for other channels. If you want to move to the
E
▶
button.
abc1
DTV Air
15
Life On Venus Avenue
,
Unclassified
No Detaild Information
18:00 ~ 6:00
English
18:11 Thu 6 Jan
Information
a
❑Using the Channel Menu
Press the SMART HUB button to select the
Samsung Apps
menu you want to use. Each screen will be
Recommended
displayed.
Favourites
Channel Videos
Photos Music
Schedule Manager
■Guide
Source
Login b Sort by { Edit Mode } Settings
The EPG (Electronic Programme Guide)
information is provided by broadcasters.
● The displayed menu may differ depending on the
model.
a
Using programme schedules provided by
◀ ◀▶
broadcasters, you can specify programmes you want to watch in advance so
that the channel automatically changes to the selected programme channel at the
specified time. Programme entries may appear blank or out of date depending on
a channel status.
English
Using Channel View
Red (Sche. Mgr): Displays the
a
Schedule Manager.
Green (-24 Hours): Viewing the list
b
of programmes to be broadcasted
before 24 hours.
Yellow (+24 Hours): Viewing the
{
Guide
Channel View - All
Today
1 Discovery
2 DiscoveryH&L
3 five
4 price-drop.tv
5 QVC
6 R4DTT
Sche. Mgr b -24 Hours { +24 Hours } Ch. Mode ` Information k Page E Schedule
a
DTV Air 800 five
Home and Away
18:00 - 18:30
Drama
Dani is devastated when scott makes clear his views on marriage...
18:00 18:30 19:00 19:30
American Chopper
Programmes resume at 06:00
Home and...
No Information
QVC Selection
No Information
2:10 Tue 1 Jun
Tine Team
Fiv...No Information Dark Angel
list of programmes to be broadcasted
◀ ▶
after 24 hours.
Blue (Ch. Mode): Select the type of channels you want to display on the
}
Channel View window.
English
`
k
E
the selected programme. / When selecting the next programme, you can reserve
the selected programme.
Information: Displays details of the selected programme.
(Page): Move to next or previous page.
(Watch / Schedule): When selecting the current programme, you can watch
◀ ◀▶
English
■Schedule Manager
O
SMART HUB
You can view, modify or delete a channel you have reserved to watch.
Using the Timer Viewing
You can set a desired channel to be displayed automatically at the intended time.
Set the current time first to use this function.
Schedule Manager
→
ENTER
→
E
1. Press the ENTER
◀ ▶
appear.
2. Press the l or r button to select the Timer Viewing.
button to add manual booking. A pop up screen will
E
English
3. Press the l / r /
u
/
buttons to set the Antenna, Channel, Repeat or
d
Start Time.
●
Antenna: Select the desired antenna source.
●
Channel: Select the desired channel.
●
Repeat: Select Once, Manual, Sat~Sun, Mon~Fri or Everyday to set at
your convenience. If you select Manual, you can set the day you want.
N
The
●
◀ ◀▶
Date: You can set the desired date.
N
It is available when you select Once in Repeat.
mark indicates the date you've selected.
c
●
Start Time: You can set the start time you want.
English
N
On the Information screen, you can change or cancel a reserved information.
●
Cancel Schedules: Cancel a show you have reserved to watch.
●
Edit: Change a show you have reserved to watch.
●
Return: Return to the previous screen.
N
Only memorised channels can be reserved.
◀ ▶
English
■Channel List
2 B
3 C
4 D
5 E
6 F
7 G
8 H
9 I
10 J
11 K
12 L
1 A
You can view all the channel searched.
O
When you press the CH LIST button on the
remote control, Channel List screen will be
displayed at once.
Channel List
No Information
All
Air
Antenna { Programme View L Ch.Mode E Watch k Page
a
● The displayed image may differ depending on the
model.
◀ ◀▶
English
N
Using the operation buttons with the Channel List.
●
●
Red (Antenna): Switches to Air, Cable.
a
N
The option may differ depending on country.
Yellow (Programme View / Channel View): Displays the programme when
{
digital channel is selected. Returns to the channel view.
●
l r
Ch. Mode / Channel: Move to the type of channels you want to display on
the Channel List screen. / Change channels.
N
When you press the { (Programme View) button, you can move to other
◀ ▶
channels using
l r
(Channel) button.
N
The option may differ depending on country.
●
Watch / Information: Watches the channel you select. / Displays details of
E
the selected programme.
●
Page: Move to next or previous page.
k
English
❑Using the Channel
N
The option may differ depending on country.
■Channel
O
SMART HUB
Delete added channels or set favourites channels and use the programme guide
for digital broadcasts. Change the antenna or channel settings using the menus in
the top right corner of the screen.
Channel
→
ENTER
→
E
◀ ◀▶
English
●
N
The option may differ depending on country.
●
●
Antenna: Toggle among antenna sources.
Sort: Sorting by Channel Number or Channel Name.
Edit Mode: Delete channels assigned to Favourites. Refer to “Using the
Favourite Channels” for details on how to assign a channel to favourite. Setting
channels you watch frequently as Favourites.
1. Select the
press the ENTER
Edit Mode icon on the upper right of your screen, and then
button.
E
◀ ▶
English
2. Press the arrow buttons to select a channel as a Favourite, and then press
ENTER
N
You can select more than one channel.
N
Pressing ENTER
. A check appears to the left of the channel.
E
again deselects the channel.
E
3. Select Edit Favourites at the bottom of your screen, and then press
ENTER
button. The Edit Favourites pop-up appears.
E
◀ ◀▶
English
4. Highlight a group on the Favourites list, and then press ENTER
N
The Edit Favourites screen has five groups (Favourites 1, Favourites 2,
etc.). You can add a Favourite channel to any one of the groups. Select
a group using the up and down arrows on your remote.
E
.
5. Select OK, press ENTER
6. Press RETURNR to exit Edit Mode.
, and then press ENTER
E
E
again.
◀ ▶
English
●
Using Edit Mode to Delete a Channel from the Channel List.
1. Select the Edit Mode icon on the upper right of your screen, and then
press the ENTER
2. Press the l / r /
ENTER
N
You can select more than one channel.
N
Pressing ENTER
◀ ◀▶
3. Select Delete at the bottom of your screen, and then press ENTER
. A check appears to the left of the channel.
E
button.
E
u
/
E
buttons to select a channel, and then press
d
again deselects the channel.
E
.
A pop-up appears asking if you want to delete the item.
English
4. Select OK, press ENTER
The channel is deleted from the Channel List.
5. Press RETURNR to exit Edit Mode.
●
Select All: Select all the channels.
, and then press ENTER
E
E
again.
◀ ▶
English
Using the TOOLS button with the Channel
●
Upcoming programme (digital channels only): View details on the programme
being aired on a selected digital channel.
●
Edit Favourites: Set channels you watch frequently as favourites.
1. Select the Edit Favourites, then press the ENTER
2. Press the ENTER
button to select Favourites 1-5, then press the OK
E
button.
E
button.
N
One favourite channel can be added in several of favourite channels
◀ ◀▶
among Favourites 1-5.
●
Lock / Unlock: Lock a channel so that the channel cannot be selected and
viewed.
English
N
NOTE
●
This function is available only when the Channel Lock is set to On.
●
Edit Channel Name (analogue channels only): Assign your own channel name.
N
This function may not be supported depending on the region.
●
Edit Channel Number: Select the channel number to change.
N
This function may not be supported depending on the region.
●
Delete: Delete a channel to display the channels you want.
◀ ▶
English
Channel Status Display Icons
Icon Operations
a
c
F
\
An analogue channel.
A channel selected.
A channel set as a Favourites 1-5.
A locked channel.
◀ ◀▶
English
❑Using Favourite Channels
■Favourites
O
SMART HUB
Favourites
→
ENTER
→
E
Shows all favourite channels.
●
Edit Favourites
t
: You can set the selected channels to desired
favourites channels.
N
The “
” symbol wil be displayed and the channel will be set as a favourite.
F
◀ ▶
English
1. On the Channel screen, select a channel and press the TOOLS button.
N
If you want to add mulitple channels, use the Edit Mode menu in the top
right corner of the Channel screen.
2. Add or delete a channel in the favourite channels you want among 1, 2, 3, 4
and 5.
N
One or more groups can be selected.
N
The
mark appears to the left of the selected channels.
c
3. After you have changed the settings, the channel list for each group can be
◀ ◀▶
viewed in favourite channels.
English
❑Memorising Channels
O
MENU
m
Channel
→
→
ENTER
E
■Antenna
N
The option may differ depending on country.
Before your television can begin memorising the available channels, you must
specify the type of signal source that is connected to the TV
t
◀ ▶
English
■Country (Not available in some locations.)
N
The PIN input screen appears. Enter your 4 digit PIN number.
N
Select your country so that the TV can correctly auto-tune the broadcasting
channels.
●
Digital Channel: Change the country for digital channels.
●
Analogue Channel: Change the country for analogue channels.
◀ ◀▶
English
■Auto Tuning
●
Auto Tuning
Scans for a channel automatically and stores in the TV.
N
Automatically allocated programme numbers may not correspond to actual or
desired programme numbers. If a channel is locked using the Channel Lock
function, the PIN input window appears.
–
Antenna source: Select the antenna source to memorise. The option may
differ depending on country.
◀ ▶
–
Digital & Analogue / Digital / Analogue: Select the channel source to
memorise. When selecting Cable
Digital & Analogue or Digital: Provide
→
a value to scan for cable channels.
–
Search Mode (Full / Network / Quick): Scans for all channels with active
broadcast stations and stores them in the TV.
English
N
If you select Quick, you can set up the Network, Network ID,
Frequency, Modulation, and Symbol Rate manually by press the
button on the remote control.
–
Network (Auto / Manual): Selects the Network ID setting mode among
Auto or Manual.
–
Network ID: When Network is Manual, you can set up Network ID using
the numeric buttons.
–
Frequency: Displays the frequency for the channel. (differs in each country)
◀ ◀▶
–
Modulation: Displays available modulation values.
–
Symbol Rate: Displays available symbol rates.
English
–
Automatic Ordering
for Italy
: Channels found will be automatically ordered
following a criterion established by all the main national and local televisions.
–
Others Ordering
for Italy
: If you select this menu you will find others
channels ordering directly organized from private national televisions.
N
Automatic Ordering and Others Ordering are available when antenna source
is set to Air.
N
The option may differ depending on country.
◀ ▶
English
■Cable Search Option
(depending on the country)
Sets additional search options such as the frequency and symbol rate for a
cable network search.
–
Freq.Start / Freq.Stop: Set the start or stop frequency (differs in each
country)
–
Symbol Rate: Displays available symbol rates.
–
Modulation: Displays available modulation values.
◀ ◀▶
■Standby Auto Store (Off / On)
for Italy
: Enables or disables auto-tune while TV is
in standby mode.
■Wake-up Timer (1 hour later / 2 hours later / 00:00 / 02:00 / 12:00 /
14:00)
for Italy
: Selects the schedule timer to turn the TV on and scan channels
automatically.
English
■Manual Tuning
Scans for a channel manually and stores in the TV.
N
If a channel is locked using the Channel Lock function, the PIN input window
appears.
●
Digital Channel Tuning: Scans for a digital channel.
1. Press the
N
When selecting Antenna
N
◀ ▶
When selecting Antenna
u
/
/ l / r button to select New.
d
Air: Channel, Frequency, Bandwidth
→
Cable: Frequency, Modulation, Symbol
→
Rate
2. Press the
button to select Search. When scanning has finished, a
d
channel is updated in the channel list.
English
●
Analogue Channel Tuning: Scans for a analogue channel.
1. Press the
2. Set the Programme, Colour System, Sound System, Channel and
Search.
3. Press the
is updated in the channel list.
/
u
button to select Store. When scanning has finished, a channel
d
/ l / r button to select New.
d
◀ ◀▶
English
N
Channel mode
●
P (programme mode): When tuning is complete, the broadcasting stations
in your area have been assigned to position numbers from P0 to P99. You
can select a channel by entering the position number in this mode.
●
C (aerial channel mode) / S (cable channel mode): These two modes allow
you to select a channel by entering the assigned number for each aerial
broadcasting station or cable channel.
◀ ▶
English
❑Using the Channel (for Satellite TV)
N
The option may differ depending on country.
for LED 5700 and above, for PDP TV
■Channel
O
SMART HUB
Channel
→
ENTER
→
E
Delete added channels or set favourites channels and use the programme guide
for digital broadcasts. Select a channel in the All Channels, Analogue, TV, Radio
and Data / Other screen. Change the antenna or channel settings using the
◀ ◀▶
menus in the top right corner of the screen.
●
N
The option may differ depending on country.
●
●
Antenna: Toggle among the antenna sources.
Sort: Sorting by Channel Number or Channel Name.
Edit Mode: Edit the channels as you want. Refer to “Using the Favourite
Channels” for details on how to assign a channel to favourite.
●
Select All: Select all the channels.
English
Using the TOOLS button with the Channel
●
Edit Favourites: Set channels you watch frequently as favourites.
1. Select the Edit Favourites, then press the ENTER
2. Press the ENTER
button to select Favourites 1-5, then press the OK
E
button.
E
button.
N
One favourite channel can be added in several of favourite channels
among Favourites 1-5.
◀ ▶
English
●
Lock / Unlock: Lock a channel so that the channel cannot be selected and
viewed.
N
NOTE
●
This function is available only when the Channel Lock is set to On.
●
Edit Channel Name (analogue channels only): Assign your own channel name.
N
This function may not be supported depending on the region.
●
Edit Channel Number: Select the channel number to change.
◀ ◀▶
N
This function may not be supported depending on the region.
English
●
Upcoming programme (digital channels only): View details on the programme
being aired on a selected digital channel.
●
Search: You can search the desired channels according to the settings.
●
Reorder: (when the Antenna was set to Satellite): Rearrange the channel
manager in numerical order.
●
Delete: Delete a channel to display the channels you want.
◀ ▶
English
Channel Status Display Icons
Icon Operations
a
c
F
\
An analogue channel.
A channel selected.
A channel set as a Favourites 1-5.
A locked channel.
◀ ◀▶
English
❑ Using Favourite Channels (for Satellite TV)
for LED 5700 and above, for PDP TV
■Favourites
Shows all favourite channels.
●
Edit Favourites
t
: You can set the selected channels to desired
favourites channels.
N
The “
” symbol wil be displayed and the channel will be set as a favourite.
F
◀ ▶
English
1. On the Channel screen, select a channel and press the TOOLS button.
N
If you want to add mulitple channels, use the Edit Mode menu in the top
right corner of the Channel screen.
2. Add or delete a channel in the favourite channels you want among 1, 2, 3, 4
and 5.
N
One or more groups can be selected.
N
The
mark appears to the left of the selected files.
c
3. After you have changed the settings, the channel list for each group can be
◀ ◀▶
viewed in favourite channels.
English
❑ Memorising Channels (for Satellite TV)
for LED 5700 and above, for PDP TV
O
MENU
m
Channel
→
ENTER
→
E
■Antenna
N
The option may differ depending on country.
t
Before your television can begin memorising the available channels, you must
specify the type of signal source that is connected to the TV.
◀ ▶
English
■Country (Not available in some locations.)
N
The PIN input screen appears. Enter your 4 digit PIN number.
N
Select your country so that the TV can correctly auto-tune the broadcasting
channels.
●
Digital Channel: Change the country for digital channels.
●
Analogue Channel: Change the country for analogue channels.
◀ ◀▶
English
■Auto Tuning
●
Auto Tuning
Scans for a channel automatically and stores in the TV.
N
Automatically allocated programme numbers may not correspond to actual or
desired programme numbers. If a channel is locked using the Channel Lock
function, the PIN input window appears.
–
Antenna Source: Select the antenna source to memorise. The option may
differ depending on country.
◀ ▶
–
Channel Type: Select the Channel type to memorise.
–
Satellite: Selects the satellite to scan. The option may differ depending on
country.
–
Scan Mode: Selects the scanning mode of the selected satellite.
English
–
Automatic Ordering
for Italy
: Channels found will be automatically ordered
following a criterion established by all the main national and local televisions.
–
Others Ordering
for Italy
: If you select this menu you will find others
channels ordering directly organized from private national televisions.
N
Automatic Ordering and Others Ordering are available when antenna source
is set to Air.
N
The option may differ depending on country.
◀ ◀▶
English
■Cable Search Option
(depending on the country)
Sets additional search options such as the frequency and symbol rate for a
cable network search.
–
Freq.Start / Freq.Stop: Set the start or stop frequency (differs in each
country)
–
Symbol Rate: Displays available symbol rates.
–
◀ ▶
Modulation: Displays available modulation values.
■Standby Auto Store (Off / On)
for Italy
: Enables or disables auto-tune while TV is
in standby mode.
■Wake-up Timer (1 hour later / 2 hours later / 00:00 / 02:00 / 12:00 /
14:00)
for Italy
: Selects the schedule timer to turn the TV on and scan channels
automatically.
English
■Manual Tuning
Scans for a channel manually and stores in the TV.
N
If a channel is locked using the Channel Lock function, the PIN input window
appears.
●
Transponder: Selects the transponder using the up/down buttons.
●
Scan Mode: Selects either free or all channels to store.
●
Network Search (Disable / Enable): Network search using the up/down
buttons.
◀ ◀▶
●
Signal Quality: Display the current status of broadcasting signal.
N
Information on a satellite and its transponder is subject to change depending
on the broadcasting conditions.
N
When setting is completed, move to Search and press the ENTER
E
Channel scan is started.
English
button.
■Satellite System
The PIN input screen appears. Enter your 4 digit PIN number. Satellite System
is available when Antenna is set to Satellite. Before running Auto Tuning, set
Satellite System. Then channel scan is run normally.
●
Satellite Selection: You can choose the satellites for this TV.
●
LNB Power (Off / On): Enables or disables the power supply for the LNB.
◀ ▶
English
●
LNB Settings: Configures the outdoor equipment.
–
Satellite: Selects the satellite for receiving digital broadcasts.
–
Transponder: Selects a transponder from the list or adds a new
transponder.
–
DiSEqC Mode: Selects DiSEqC mode for the selected LNB.
–
Lower LNB Oscillators: Sets the LNB oscillators to a lower frequency.
–
Upper LNB Oscillators: Sets the LNB oscillators to a higher frequency.
–
◀ ◀▶
Tone 22 kHz (Off / On / Auto): Selects the Tone 22 kHz depending on the
LNB type. For a universal LNB it should be Auto.
–
Signal Quality
for LED TV
: Display the current status of broadcasting signal.
English
●
Positioner Settings: Configures the antenna positioner.
Positioner (On / Off): Enables or disables the positioned control.
Positioner Type (USALS / DiSEqC 1.2): Sets the positioned type between
DiSEqC 1.2 and USALS(Universal Satellite Automatic Location System).
–
My Longitude: Sets the longitude for my location.
–
My Latitude: Sets the latitude for my location.
–
Satellite Longitude Settings: Sets the longitude of user defined satellites.
◀ ▶
English
User Mode: Sets the position of satellite antenna according to each satellite.
If you store the current position of satellite antenna according to a certain
satellite, when the signal of that satellite is needed, the satellite antenna can be
moved to pre-populated position.
–
Satellite: Selects the satellite to set the position for.
–
Transponder: Selects a transponder from the list for signal reception.
–
Moving Mode: Selects the movement mode between discrete and
continuous movement.
◀ ◀▶
–
Step Size: Adjusts the step size degrees for the antenna rotation. Step Size
is available when Moving Mode is set to Step.
English
–
Go to Stored Position: Rotates the antenna to the stored satellite position.
–
Antenna Position: Adjusts and stores the antenna position for the selected
satellite.
–
Store Current Position: Stores current position as the selected positioner
limit.
–
Signal Quality: Display the current status of broadcasting signal.
◀ ▶
English
Installer Mode: Sets limits to the scope of movement of satellite antenna or
reset the position. Generally, installation guide uses this function.
–
Limit Position (East / West): Selects the direction of the positioner Limit.
–
Antenna Position: Adjusts and stores the antenna position for the selected
satellite.
–
Store Current Position: Stores the current position as the selected
positioner Limit.
–
Go to Zero: Moves the antenna to the reference position.
◀ ◀▶
–
Reset Positioner Limit: Allows the antenna to rotate over the full arc.
●
Reset All Setting (Yes /No): All satellite settings will be reset to the initial values.
English
❑Other Features
O
MENU
■Edit Channel Number
Use this to change channel number. When channel number is changed, channel
information is not updated automatically. Enables or disables Edit Channel
Number.
N
This function may not be supported depending on the region.
m
Channel
→
ENTER
→
E
◀ ▶
■Fine Tune
(analogue channels only)
If the reception is clear, you do not have to fine tune the channel, as this is done
automatically during the search and store operation. If the signal is weak or
distorted, fine tune the channel manually. Scroll to the left or right until the image is
clear.
English
N
Settings are applied to the channel you’re currently watching.
N
Fine tuned channels that have been saved are marked with an asterisk “*” on
the right-hand side of the channel number in the channel banner.
N
To reset the fine-tuning, select Reset.
■Transfer Channel List
The PIN input screen appears. Enter your 4 digit PIN number. Imports or exports
the channel map. You should connect a USB storage to use this function.
◀ ▶
●
Import from USB: Import channel list from USB.
●
Export to USB: Export channel list to USB. this function is available when USB
is connected.
English
Basic Features
❑Changing the Preset Picture Mode
O
MENU
m
→
Picture Mode
→
ENTER
→
E
■Picture Mode
t
Select your preferred picture type.
●
Dynamic: Suitable for a bright room.
●
Standard: Suitable for a normal environment.
●
Natural
for LED TV
/ Relax
for PDP TV
: Suitable for reducing eye strain.
◀ ▶
●
Movie: Suitable for watching movies in a dark room.
●
Entertain: Suitable for watching movies and games.
N
It is only available when connecting a PC.
English
❑Adjusting Picture Settings
O
MENU
m
→
ENTER
→
E
■Backlight
for LED TV
/ Cell Light
for PDP TV
/ Contrast / Brightness / Sharpness /
Colour / Tint (G/R)
Your television has several setting options for picture quality control.
N
In analogue TV, Ext., AV modes of the PAL system, the Tint (G/R) function is
not available.
◀ ◀▶
N
When connecting a PC, you can only make changes to Backlight
Cell Light
N
Settings can be adjusted and stored for each external device connected to the
for PDP TV
, Contrast and Brightness.
for LED TV
/
T V.
English
❑Changing the Picture Size
O
MENU
■Screen Adjustment
●
Picture Size: Your cable box/satellite receiver may have its own set of screen
sizes as well. However, we highly recommend you use 16:9 mode most of the
time.
–
Auto Wide: Automatically adjusts the picture size to the 16:9 aspect ratio.
m
→
Screen Adjustment
→
ENTER
→
E
◀ ▶
–
16:9: Adjusts the picture size to 16:9 for DVDs or wide broadcasting.
–
Wide Zoom: Magnifies the picture size more than 4:3.
N
Adjusts the Position by using
u, d
buttons.
English
–
Zoom: Magnifies the 16:9 wide pictures vertically to fit the screen size.
N
Adjusts the Position or Size by using
–
4:3: The default setting for a movie or normal broadcasting.
N
Do not watch in 4:3 format for a long time. Traces of borders displayed
u, d
button.
on the left, right and centre of the screen may cause image retention
(screen burn) which are not covered by the warranty.
–
Screen Fit: Displays the full image without any cut-off when HDMI (720p /
1080i / 1080p), DTV (1080i, 1080p) or Component (1080i / 1080p) signals
◀ ◀▶
are inputted.
English
–
Smart View 1: Reduces the 16:9 picture by 50%.
for LED TV
–
Smart View 2: Reduces the 16:9 picture by 25%.
N
Smart View 1 is enabled only in HDMI mode.
N
Smart View 2 is enabled only in HDMI or DTV mode.
N
The picture size can vary depending on the input resolution when
for LED TV
content is played using Videos under Smart Hub.
◀ ▶
English
N
NOTE
●
Depending on the input source, the picture size options may vary.
●
The available items may differ depending on the selected mode.
●
When connecting a PC, only 16:9 and 4:3 modes can be adjusted.
●
Settings can be adjusted and stored for each external device connected to an
input on the TV.
◀ ◀▶
English
●
After selecting Screen Fit in HDMI (1080i / 1080p) or Component (1080i /
1080p) mode, you may need to center the picture:
1. Press the
2. Press the ENTER
3. Press the
4. Press the ENTER
5. Select Close by pressing the
picture position, press Reset.
button to select Position.
d
button.
E
u, d, l
or r button to move the picture.
button.
E
and
d
buttons sequentially. To reset the
u
◀ ▶
English
●
HD (High Definition): 16:9 - 1080i / 1080p (1920x1080), 720p (1280x720)
●
Settings can be adjusted and stored for each external device you have
connected to an input on the TV.
Input Source Picture Size
ATV, EXT, DTV
(480i, 480p, 576i, 576p, 720p)
DTV (1080i, 1080p)
AV, Component (480i, 480p, 576i, 576p, 720p) 16:9, Wide Zoom, Zoom, 4:3
◀ ◀▶
Component (1080i, 1080p) 16:9, Wide Zoom, Zoom, 4:3, Screen Fit
HDMI (720p, 1080i, 1080p)
Auto Wide, 16:9, Wide Zoom, Zoom, 4:3
Auto Wide, 16:9, Wide Zoom, Zoom, 4:3,
Screen Fit, Smart View 2
16:9, Wide Zoom, Zoom, 4:3, Screen Fit,
Smart View 1
for LED TV
for LED TV
2
for LED TV
, Smart View
PC 16:9, 4:3
English
●
4:3 Screen Size (16:9 / Wide Zoom / Zoom / 4:3): Available only when picture
size is set to Auto Wide. You can determine the desired picture size at the 4:3
WSS (Wide Screen Service) size or the original size. Each European country
requires different picture size.
N
Not available in PC, Component or HDMI mode.
◀ ▶
English
❑Changing the Picture Options
■Advanced Settings
O
MENU
(Advanced Settings are available in Standard / Movie mode)
m
→
Advanced Settings
→
ENTER
→
E
You can adjust the detailed setting for the screen
including colour and contrast.
N
When connecting a PC, you can only make changes
◀ ◀▶
to Gamma and White Balance.
Advanced Settings
Black Tone Off
Dynamic Contrast Medium
Shadow Detail -2
Gamma 0
RGB Only Mode Off
Colour Space Native
White Balance
● The displayed menu may differ
depending on the model.
English
●
Black Tone (Off / Dark / Darker / Darkest): Select the black level to adjust the
screen depth.
●
Dynamic Contrast (Off / Low / Medium / High): Adjust the screen contrast.
●
Shadow Detail (-2~+2)
●
Gamma: Adjust the primary colour intensity.
●
Expert Pattern (Off / Pattern1 / Pattern2)
for LED TV
: Increase the brightness of dark images.
for PDP TV
: By running the Expert
Pattern function, the picture can be calibrated without a generator or filter. If
the OSD menu disappears or a menu other than the Picture menu is opened,
◀ ▶
the calibration is saved and the Expert Pattern window disappears.
N
While the Expert Pattern is running, sound is not outputted.
N
Only enabled on DTV, Component / HDMI models.
English
●
RGB Only Mode (Off / Red / Green / Blue): Displays the Red, Green and
Blue colour for making fine adjustments to the hue and saturation.
●
Colour Space (Auto / Native / Custom): Adjust the range of colours available
to create the image.
N
The Custom option is available only for PDP TV.
●
White Balance: Adjust the colour temperature for a more natural picture.
R-Offset / G-Offset / B-Offset: Adjust each colour’s (red, green, blue)
darkness.
◀ ◀▶
R-Gain / G-Gain / B-Gain: Adjust each colour’s (red, green, blue) brightness.
Reset: Resets the White Balance to its default settings.
English
●
10p White Balance (Off / On)
for PDP TV
: Controls the white balance in 10 point
interval by adjusting the red, green, and blue brightness.
N
Available when the picture mode is set to Movie and when the external
input is set to all input.
N
Some external devices may not support this function.
Interval: Select interval to adjust.
Red: Adjust the red level.
◀ ▶
Green: Adjust the green level.
Blue: Adjust the blue level.
Reset: Resets the 10p White Balance to its default settings.
English
●
Flesh Tone: Emphasize pink “Flesh Tone.”
●
Edge Enhancement (Off / On): Emphasize object boundaries.
●
Motion Lighting (Off / On): Reduce power consumption by brightness control.
N
Motion Lighting is available in Standard / Movie mode.
N
Not supported in 3D mode.
N
When changing a setting value of Contrast, Motion Lightning will be set to
Off.
◀ ◀▶
English
●
xvYCC (Off / On)
for PDP TV
: Setting the xvYCC mode on increases detail and
colour space when watching movies from an external device (e.g. DVD player)
connected to the HDMI or Component IN jacks.
N
Available when the picture mode is set to Movie and when the external
input is set to HDMI or Component.
N
Some external devices may not support this function.
●
LED Motion Plus (Off / On)
for LED TV
: Removes drag from fast scenes with a
lot of movement to provide a clear picture.
◀ ▶
English
■Picture Options
O
MENU
N
When connecting a PC, you can only make changes to the Colour Tone.
●
Colour Tone (Cool / Standard / Warm1 / Warm2)
N
Warm1 or Warm2 will be deactivated when the
m
→
Picture Options
→
ENTER
→
E
Picture Options
Colour Tone Standard
Digital Noise Filter Auto
picture mode is Dynamic.
N
Settings can be adjusted and stored for each
MPEG Noise Filter Auto
HDMI Black Level Normal
Film Mode Off
external device connected to an input on the TV.
◀ ◀▶
● The displayed image may differ
depending on the model.
English
●
Digital Noise Filter (Off / Low / Medium / High / Auto / Auto Visualisation):
When the broadcast signal is weak, some static and ghosting may appear.
Select one of the options until the best picture is displayed.
Auto Visualisation: When changing analogue channels, displays the intensity
of the current signal and defines the screen noise filter.
N
Only available for analogue channels.
◀ ▶
English
●
MPEG Noise Filter (Off / Low / Medium / High / Auto): Reduces MPEG noise
to provide improved picture quality.
●
HDMI Black Level (Low / Normal): Selects the black level on the screen to
adjust the screen depth.
N
Available only in HDMI mode (RGB signals).
●
Film Mode (Off / Auto1 / Auto2 / Cinema Smooth): Sets the TV to
automatically sense and process film signals from all sources and adjust the
picture for optimum quality.
◀ ◀▶
N
Available in AV, COMPONENT (480i / 1080i) and HDMI (1080i).
N
Cinema Smooth is available only for PDP TV.
■Reset Picture (Yes / No)
Resets your current picture mode to its default settings.
English
❑Setting up the TV with Your PC
Set the input source to PC.
■Auto Adjustment
O
MENU
Adjust frequency values/positions and fine tune the settings automatically.
N
Not available when connecting with an HDMI to DVI cable.
m
→
t
Auto Adjustment
→
ENTER
→
E
◀ ▶
English
■PC Screen Adjustment
O
MENU
m
→
Screen Adjustment
→
PC Screen Adjustment
→
→
ENTER
●
Coarse / Fine: Removes or reduces picture noise. If the noise is not removed
E
by Fine-tuning alone, then adjust the frequency as best as possible (Coarse)
and Fine-tune again. After the noise has been reduced, readjust the picture so
that it is aligned to the centre of screen.
●
Position: Adjust the PC screen position with direction button (
◀ ◀▶
●
Image Reset: Resets the image to default settings.
u
/
/ l / r).
d
English
Using Your TV as a Computer (PC) Display
Setting Up Your PC Software (Based on Windows XP)
Depending on the version of Windows and the video card, the actual screens on your
PC may differ in which case the same basic set-up information will almost always be
applied. (If not, contact your computer manufacturer or Samsung Dealer.)
1. Click on “Control Panel” on the Windows start menu.
2. Click on “Appearance and Themes” in the “Control Panel” window and a display
dialog-box will appear.
◀ ▶
3. Click on “Display” and a display dialog box will appear.
English
4. Navigate to the “Settings” tab on the display dialog-box.
●
The correct size setting (resolution) [Optimum: 1920 X 1080 pixels]
●
If a vertical-frequency option exists on your display settings dialog box, the
correct value is “60” or “60 Hz”. Otherwise, just click “OK” and exit the dialog
box.
◀ ◀▶
English
❑Changing the Preset Sound Mode
O
MENU
m
Sound
→
Sound Mode
→
→
ENTER
E
■Sound Mode
●
Standard: Selects the normal sound mode.
●
Music: Emphasizes music over voices.
●
Movie: Provides the best sound for movies.
●
Clear Voice: Emphasizes voices over other sounds.
t
◀ ▶
●
Amplify: Increase the intensity of high-frequency sound to allow a better
listening experience for the hearing impaired.
N
If Speaker Select is set to External Speaker, Sound Mode is disabled.
English
❑Adjusting Sound Settings
O
MENU

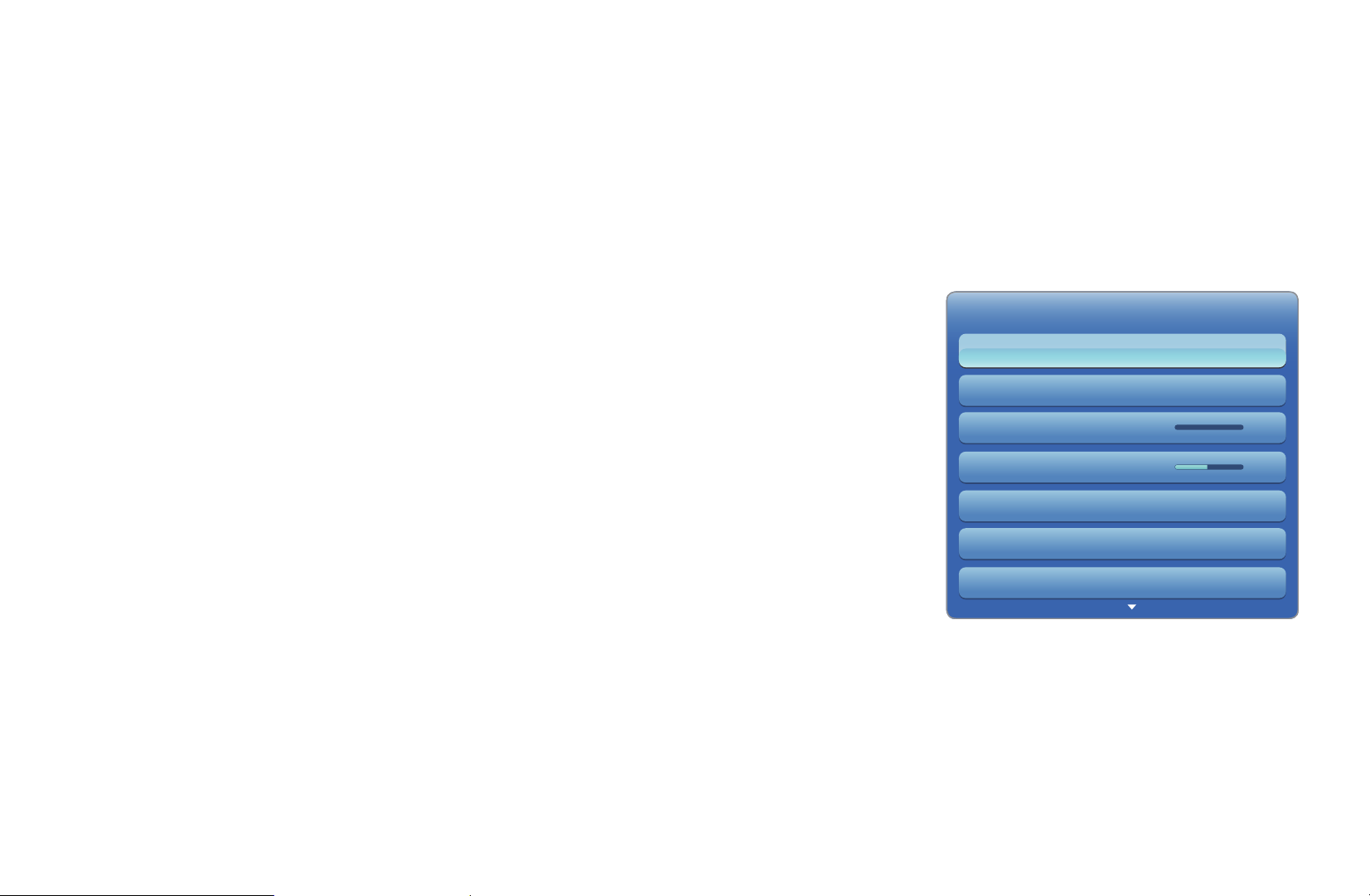

■Sound Effect
●
SRS TruSurround HD (Off / On)
(standard sound mode only)
This function provides a virtual 5.1 channel surround sound experience through
a pair of speakers using HRTF (Head Related Transfer Function) technology.
m
Sound
→
Sound Effect
→
→
t
ENTER
E
◀ ◀▶
English
●
SRS TruDialog (Off / On)
(standard sound mode only)
This function allows you to increase the intensity of a voice over background
music or sound effects so that dialog can be heard more clearly.
◀ ▶
English
●
Equalizer
Adjusts the sound mode (standard sound mode only).
–
Balance L/R: Adjusts the balance between the right and left speaker.
–
100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth Adjustment): Adjusts
the level of specific bandwidth frequencies.
–
Reset: Resets the equalizer to its default settings.
◀ ◀▶
English
■Broadcast Audio Options
●
Audio Language
(digital channels only)
Change the default value for audio languages.
N
The available language may differ depending on the broadcast.
◀ ▶
English
●
Audio Format
(digital channels only)
When sound is emitted from both the main speaker and the audio receiver,
a sound echo may occur due to the decoding speed difference between the
main speaker and the audio receiver. In this case, use the TV Speaker function.
N
Audio Format option may differ depending on the broadcast. 5.1ch Dolby
digital sound is only available when connecting an external speaker through
an optical cable.
◀ ◀▶
English
●
Audio Description
(not available in all locations) (digital channels only)
This function handles the Audio Stream for the AD (Audio Description) which is
sent along with the Main audio from the broadcaster.
N
Audio Description (Off / On): Turn the audio description function on or off.
N
Volume: Adjust the audio description volume.
◀ ▶
English
■Additional Settings
(digital channels only)
●
DTV Audio Level (MPEG / HE-AAC): This function allows you to reduce the
disparity of a voice signal (which is one of the signals received during a digital
TV broadcast) to a desired level.
N
According to the type of broadcast signal, MPEG / HE-AAC can be
adjusted between -10dB and 0dB.
N
To increase or decrease the volume, adjust between the range 0 and -10
◀ ◀▶
respectively.
English
●
SPDIF Output: SPDIF (Sony Philips Digital InterFace) is used to provide digital
sound, reducing interference going to speakers and various digital devices such
as a DVD player.
Audio Format: During the reception of a digital TV broadcast, you can select
the Digital Audio output (SPDIF) format from the options PCM or Dolby Digital.
Audio Delay: Correct audio-video sync problems, when watching TV or video,
and when listening to digital audio output using an external device such as an
AV receiver (0ms ~ 250ms).
◀ ▶
English
●
Dolby Digital Comp (Line / RF): This function minimizes signal disparity
between a dolby digital signal and a voice signal (i.e. MPEG Audio, HE-AAC,
ATV Sound).
N
Select Line to obtain dynamic sound, and RF to reduce the difference
between loud and soft sounds at night time.
Line: Set the output level for signals greater or less than -31dB (reference) to
either -20dB or -31dB.
RF: Set the output level for signals greater or less than -20dB (reference) to
◀ ◀▶
either -10dB or -20dB.
English
■Speaker Settings
●
Speaker Select (External Speaker / TV Speaker)
A sound echo may occur due to a difference in decoding speed between
the main speaker and the audio receiver. In this case, set the TV to External
Speaker.
N
When Speaker Select is set to External Speaker, the volume and MUTE
buttons will not operate and the sound settings will be limited.
N
When Speaker Select is set to External Speaker.
◀ ▶
●
TV Speaker: Off, External Speaker: On
N
When Speaker Select is set to TV Speaker.
●
TV Speaker: On, External Speaker: On
N
If there is no video signal, both speakers will be mute.
English
●
Auto Volume (Off / Normal / Night)
To equalize the volume level on each channel, set to Normal.
Night: This mode provides an improved sound experience compared to
Normal mode, making almost no noise. It is useful at night.
N
When you control the volume of the external devices (Set-topbox or DivX
Player) connected to the TV, set to off the Auto Volume mode. Because you
can’t feel the effect of the volume control by the Auto Volume mode.
◀ ◀▶
■Reset Sound (Yes / No)
Reset all sound settings to the factory defaults.
English
❑Selecting the Sound Mode
t
When you set to Dual f-g, the current sound mode is displayed on the screen.
Audio Type Dual 1 / 2 Dual 1 / 2
Mono MONO
Automatic change
A2 Stereo
Stereo STEREO ↔ MONO
Dual DUAL f ↔ DUAL
Mono MONO
Stereo MONO ↔ STEREO
NICAM Stereo
◀ ▶
Dual
MONO ↔ DUAL
DUAL
↑
g
g
Automatic change
f
←
DUAL
DUAL
f
f
If the stereo signal is weak and an automatic switching, occurs, then switch to the
mono.
N
Only activated in stereo sound signal.
N
Only available when the Source is set to TV.
English
Preference
❑Connecting to a Wired Network
You can attach your TV to your LAN using cable in three ways:
●
You can attach your TV to your LAN by connecting the LAN port on the back of
your TV to an external modem using a LAN cable. See the diagram below.
The Modem Port on the Wall
External Modem
(ADSL / VDSL / Cable TV)
TV Rear Panel
◀ ◀▶
LAN CableModem Cable
English
●
You can attach your TV to your LAN by connecting the LAN port on the back
of your TV to a IP Sharer which is connected to an external modem. Use LAN
cable for the connection. See the diagram below.
The Modem Port
on the Wall
External Modem
(ADSL / VDSL / Cable TV)
IP Sharer
(having DHCP server)
TV Rear Panel
◀ ▶
LAN Cable LAN CableModem Cable
English
●
Depending on how your network is configured, you may be able to attach your
TV to your LAN by connecting the LAN port on the back of your TV directly to
a network wall outlet using a LAN cable. See the diagram below. Note that the
wall outlet is attached to a modem or router elsewhere in your house.
The LAN Port on the Wall TV Rear Panel
◀ ◀▶
LAN Cable
English
●
If you have a Dynamic Network, you should use an ADSL modem or router
that supports Dynamic Host Configuration Protocol (DHCP). Modems and
routers that support DHCP automatically provide the IP address, subnet mask,
gateway, and DNS values your TV needs to access the Internet so you do not
have to enter them manually. Most home networks are Dynamic Networks.
Some networks require a Static IP address. If your network requires a Static
IP address, you must enter the IP address, subnet mask, gateway, and DNS
values manually on your TV’s Cable Setup Screen when you set up the network
◀ ▶
connection. To get the IP address, subnet mask, gateway, and DNS values,
contact your Internet Service Provider (ISP). If you have a Windows computer,
you can also get these values through your computer.
N
You can use ADSL modems that support DHCP if your network requires a
Static IP address. ADSL modems that support DHCP also let you use Static
IP addresses.
English
■Network Settings
O
MENU
m
Network
→
Network Settings
→
ENTER
→
E
Set the network connection to use various Internet services such as Smart Hub,
AllShare and perform software upgrade.

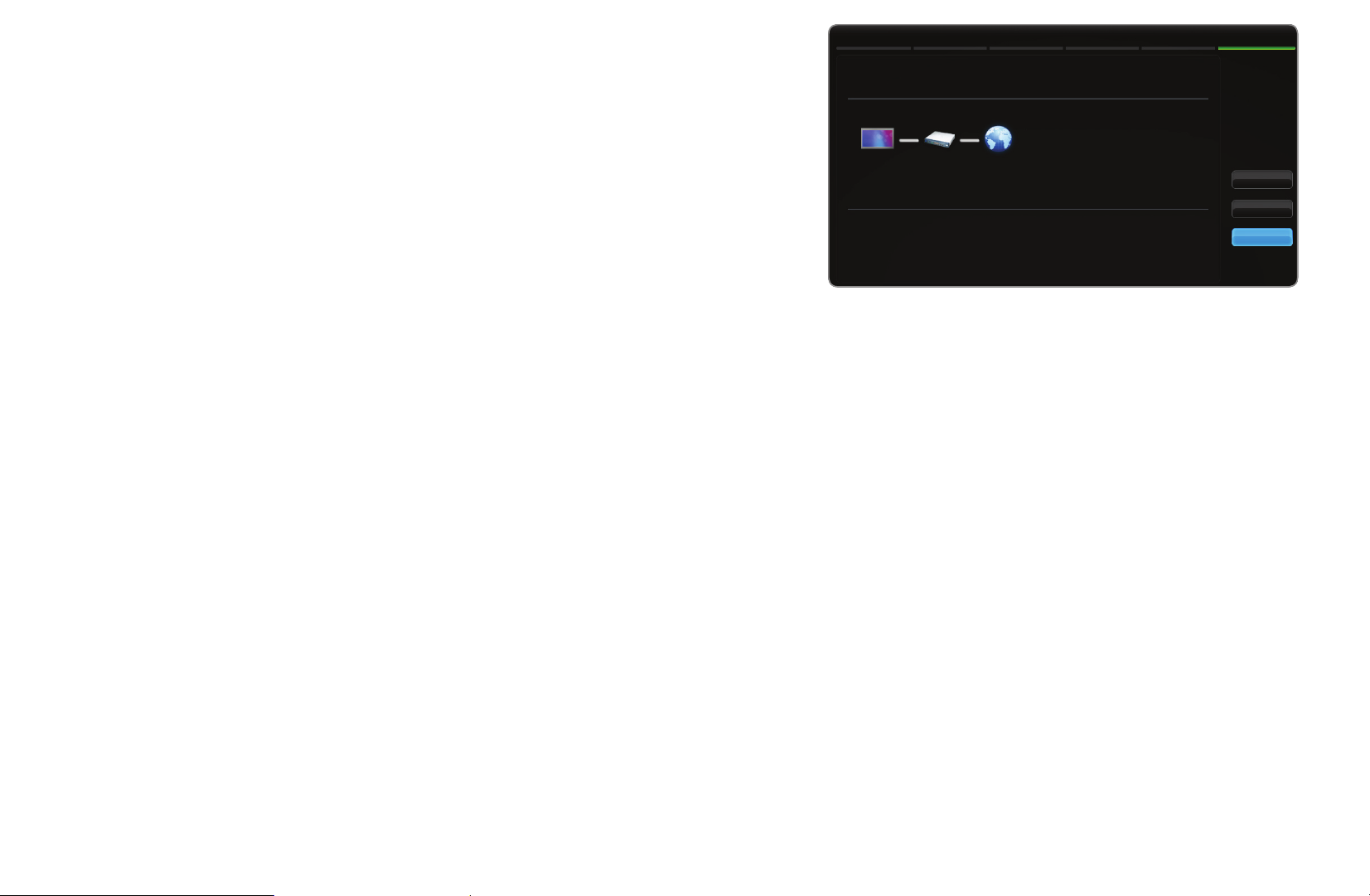

■Network Status
O
MENU
m
Network
→
Network Status
→
ENTER
→
E
You can check the current network and Internet status.
◀ ◀▶
■AllShare Settings
O
MENU
m
Network
→
AllShare Settings
→
ENTER
→
Selects whether to use media functions on the network.
English
E
■Network Setup (Auto)
Use the Automatic Network Setup when connecting your TV to a network that
supports DHCP. To set up your TV’s cable network connection automatically,
follow these steps:

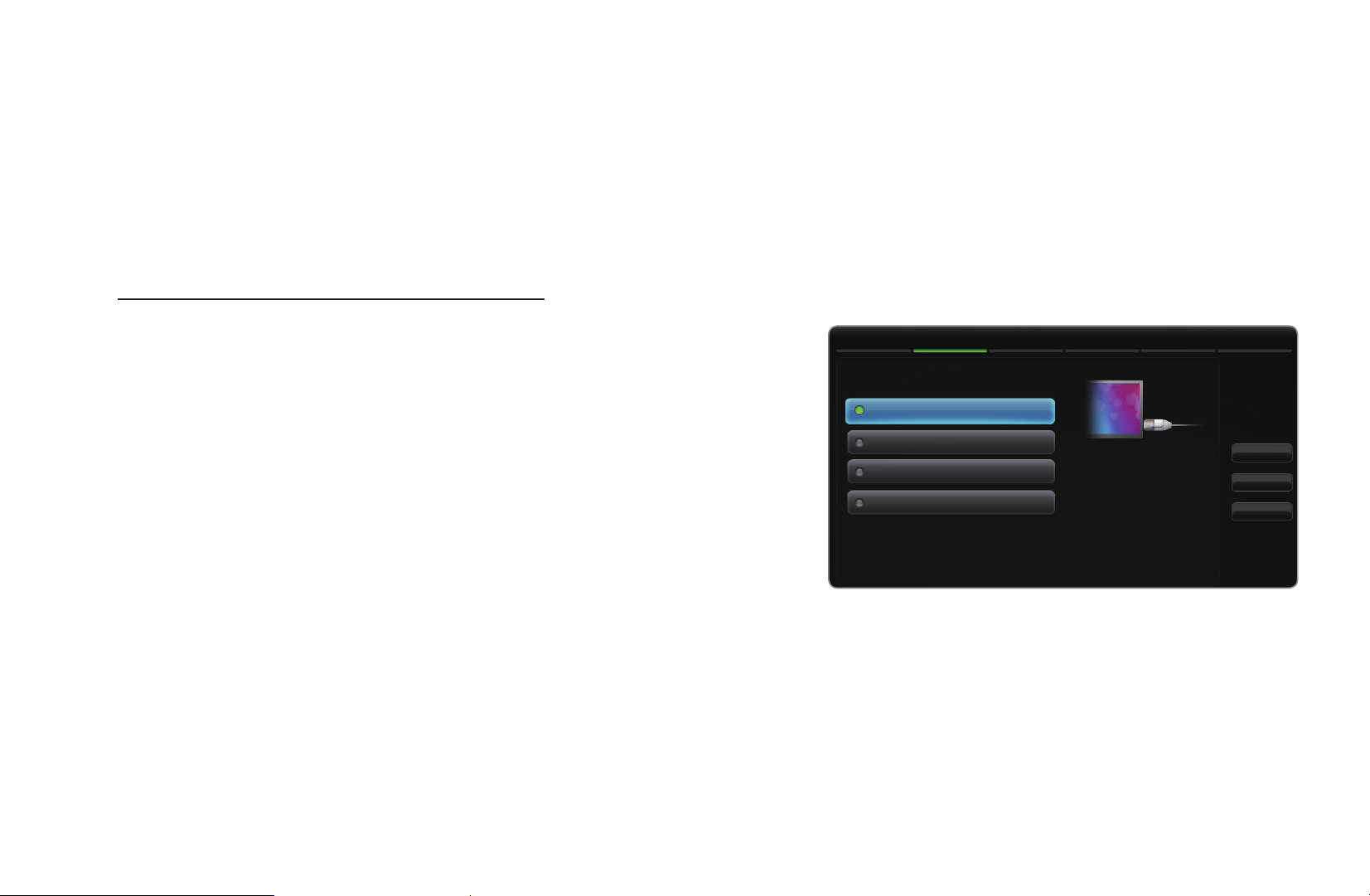

How to set up automatically
1. Go to Network Settings screen. To enter it,
Network Setting
Select a network connection type.
follow the directions of Network Settings.
Wired
◀ ▶
2. Select the Wired.
3. The network test screen appears, and
Wireless (general)
WPS(PBC)
One Foot Connection
Connect to the network using a
LAN cable. Please make sure that
the LAN cable is connected.
Previous
Next
Cancel
network setting is done.
English
N
If it fails to set automatically, check the
Network Setting
Wired network and Internet connection completed.
connection of LAN port.
MAC Address 00:12:fb:2b:56:4d
N
If you cannot find network connection
values or if you want to set connection
manually, set it to Manual. Refer to following
SEC_LinkShare
Internet is connected successfully.
If you have a problem with using Internet Service, contact your Internet service
provider.
IP Address 192.168.11.4
Subnet Mask 255.255.255.0
Gareway 192.168.11.1
DNS Server 192.168.11.1
Retry
IP Setting
OK
“How to set up manually”.
N
It is not supported when the network speed is under 10 Mbps.
◀ ◀▶
English
■Network Settings (Manual)
Use the Manual Network Setup when connecting your TV to a network that
requires a Static IP address.
Getting the Network Connection Values
To get the Network connection values on most Windows computers, follow these
steps:
1. Right click the Network icon on the bottom right of the screen.
◀ ▶
2. In the pop-up menu that appears, click Status.
3. On the dialog that appears, click the Support tab.
4. On the Support Tab, click the Details button. The Network connection values
are displayed.
English
How to set up manually
To set up your TV’s cable network connection manually, follow these steps:
1. Follow Steps 1 through 2 in the “How to set up automatically” procedure.
◀
2. Select the IP Setting on network test screen.
3. Set IP Mode to Manual.
4. Press the
button on your remote to go to the
d
IP Address.
IP Settings
IP Mode Manual
IP Address 0 . 0 . 0 . 0
Subnet Mask 0 . 0 . 0 . 0
Gateway 0 . 0 . 0 . 0
DNS Mode Manual
DNS Server 0 . 0 . 0 . 0
OK
▶
English
5. Enter the IP Address, Subnet Mask, Gateway, and DNS Server values. Use the
number buttons on your remote to enter numbers and the arrow buttons to move
from one entry field to another.
6. When done, select the OK.
7. The network test screen appears, and network setting is done.
◀ ▶
English
❑Connecting to a Wireless Network
for LED TV
To connect your TV to your network wireless, you need a wireless router or
modem and a Samsung Wireless LAN adapter (WIS09ABGN, WIS09ABGN2,
WIS10ABGN), which you connect to your TV’s back or side panel USB port. See
the illustration below.
The LAN Port on the Wall
(router having DHCP server)
Wireless IP sharer
TV Rear Panel
◀ ◀▶
Samsung
Wireless
LAN adapter
LAN Cable
English
Samsung’s Wireless LAN adapter is sold separately and is offered by selected retailers
and Ecommerce sites. Samsung’s Wireless LAN adapter supports the IEEE 802.11a/
b/g and n communication protocols. Samsung recommends using IEEE 802.11n.
When you play video over a network connection, the video may not be played
smoothly.
N
NOTE
●
You must use the “Samsung Wireless LAN adapter (WIS09ABGN,
WIS09ABGN2, WIS10ABGN) to use a wireless network.
◀ ▶
●
Samsung Wireless LAN adapter and The USB extension Cable are sold
separately and are offered by select retailers, Ecommerce sites and
Samsungparts.com.
English
●
To use a wireless network, your TV must be connected to a wireless IP sharer
(either a router or a modem). If the wireless IP sharer supports DHCP, your TV
can use a DHCP or static IP address to connect to the wireless network.
●
Select a channel for the wireless IP sharer that is not currently being used. If the
channel set for the wireless IP sharer is currently being used by another device
nearby, this will result in interference and communication failure.
●
If you apply a security system other than the systems listed below, it will not
work with the TV.
◀ ◀▶
English
Loading...
