Samsung UE60JU6470, UE75JU6400, UE65JU6400, UE65JU6470, UE48JU6410 User Manual

Thank you for purchasing this Samsung product.
To receive more complete service, please register

your product at

www.samsung.com/register

Model ___________ Serial No. ____________

user manual

Warning! Important Safety Instructions

(Please read the Safety Instructions before using your TV.)

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK). THERE ARE NO USER
SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO
QUALIFIED PERSONNEL.

This symbol indicates that high voltage is
present inside. It is dangerous to make any
kind of contact with any internal part of this
product.

This symbol indicates that this product has
included important literature concerning
operation and maintenance.

The slots and openings in the cabinet and in the back or bottom are provided for necessary ventilation. To ensure reliable operation of this
apparatus and to protect it from overheating, these slots and openings must never be blocked or covered.

- Do not place this apparatus in a confined space, such as a bookcase or built-in cabinet, unless proper ventilation is provided.

- Do not place this apparatus near or over a radiator or heat register, or where it is exposed to direct sunlight.

- Do not place vessels (vases etc.) containing water on this apparatus, as this can result in a fire or electric shock.

Do not expose this apparatus to rain or place it near water (near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a
swimming pool etc.). If this apparatus accidentally gets wet, unplug it and contact an authorised dealer immediately.

This apparatus uses batteries. In your community, there might be environmental regulations that require you to dispose of these batteries
properly. Please contact your local authorities for disposal or recycling information.

Do not overload wall outlets, extension cords or adaptors beyond their capacity, since this can result in fire or electric shock.
Power-supply cords should be placed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular

attention to cords at the plug end, at wall outlets, and at the point where they exit from the appliance.
To protect this apparatus from a lightning storm, or when left unattended and unused for long periods of time, unplug it from the wall outlet and

disconnect the antenna or cable system. This will prevent damage to the set due to lightning and power line surges.
Before connecting the AC power cord to the DC adaptor outlet, make sure that the voltage designation of the DC adaptor corresponds to the

local electrical supply.
Never insert anything metallic into the open parts of this apparatus. This may cause a danger of electric shock.
To avoid electric shock, never touch the inside of this apparatus. Only a qualified technician should open this apparatus.
Be sure to plug in the power cord until it is firmly seated. When unplugging the power cord from a wall outlet, always pull on the power cord's

plug. Never unplug it by pulling on the power cord. Do not touch the power cord with wet hands.
If this apparatus does not operate normally - in particular, if there are any unusual sounds or smells coming from it - unplug it immediately and

contact an authorised dealer or service centre.
Be sure to pull the power plug out of the outlet if the TV is to remain unused or if you are to leave the house for an extended period of time

(especially when children, elderly or disabled people will be left alone in the house).

- Accumulated dust can cause an electric shock, an electric leakage, or a fire by causing the power cord to generate sparks and heat or by
causing the insulation to deteriorate.

Be sure to contact an authorised service centre for information if you intend to install your TV in a location with heavy dust, high or low
temperatures, high humidity, chemical substances, or where it will operate 24 hours a day such as in an aerial port, a train station, etc. Failure to
do so may lead to serious damage to your TV.

Use only a properly grounded plug and wall outlet.

- An improper ground may cause electric shock or equipment damage. (Class l Equipment only.)

To turn off this apparatus completely, disconnect it from the wall outlet. Be sure to have the wall outlet and power plug readily accessible.
Do not allow children to hang onto the product.
Store the accessories (battery, etc.) in a location safely out of the reach of children.

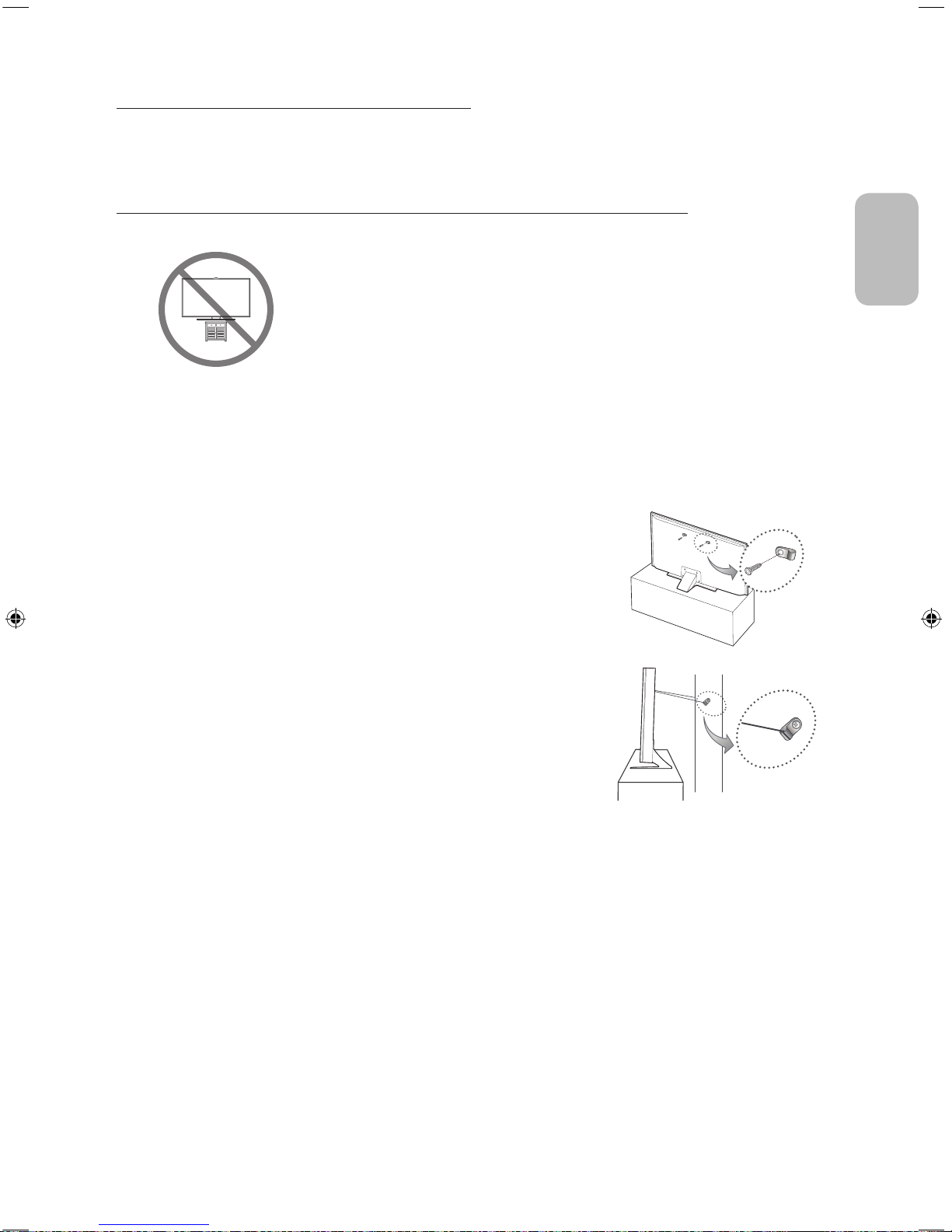

Do not install the product in an unstable location such as a shaky shelf or a slanted floor or in a location exposed to vibration.
Do not drop or strike the product. If the product is damaged, disconnect the power cord and contact a service centre.
To clean this apparatus, unplug the power cord from the wall outlet and wipe the product with a soft, dry cloth. Do not use any chemicals such

as wax, benzene, alcohol, thinners, insecticide, aerial fresheners, lubricants, or detergents. These chemicals can damage the appearance of the
TV or erase the printing on the product.

Do not expose this apparatus to dripping or splashing.
Do not dispose of batteries in a fire.
Do not short-circuit, disassemble, or overheat the batteries.
There is danger of an explosion if you replace the batteries used in the remote with the wrong type of battery. Replace only with the same or

equivalent type.
WARNING - TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER ITEMS WITH OPEN FLAMES AWAY FROM

THIS PRODUCT AT ALL TIMES.

* Figures and illustrations in this User Manual are provided for reference only and may differ from the actual product
appearance. Product design and specifications may change without notice.

CIS languages (Russian, Ukrainian, Kazakhs) are not available for this product, since this is manufactured for customers in EU region.

English - 2

What's in the Box?

Remote Control & Batteries (AAA x 2) Regulatory Guide
User Manual Power Cord
Warranty Card (Not available in some locations)

CI Card Adapter

- Make sure that the following items are included with your TV. If there are any items missing, contact your local dealer.

- The colours and shapes of the items differ with the model.

- Cables not supplied with this product can be purchased separately.

- Open the box and check for any accessory items hidden behind or inside the packing materials.

An administration fee may be charged in the following situations:

(a) An engineer is called out at your request, but there will be no defect with the product (i.e., where the user manual has
not been read).

(b) You bring the unit to a repair centre, but there will be no defect identified the product (i.e., where the user manual has
not been read).

You will be informed of the administration fee amount before a technician visits.

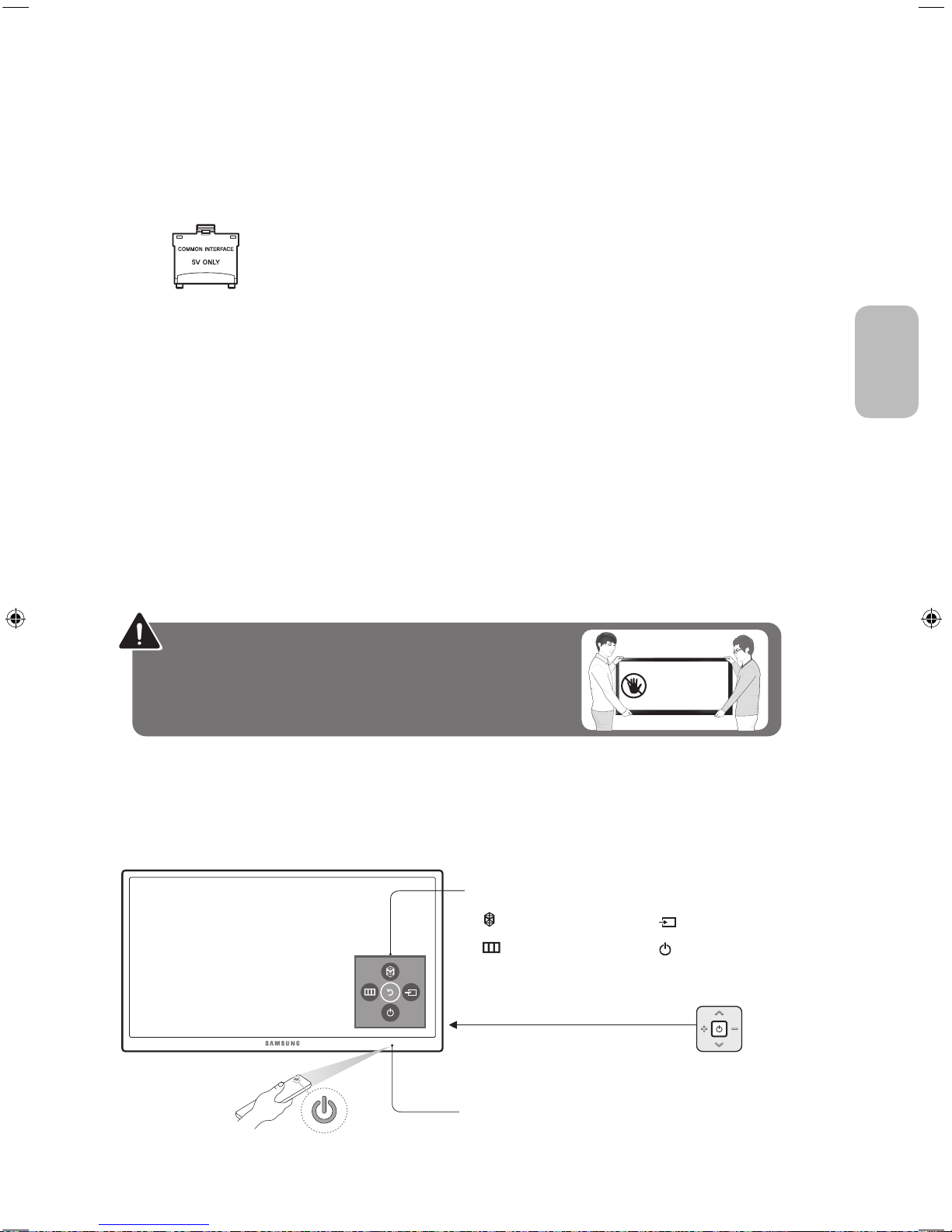

Warning: Screens can be damaged from direct pressure when handled
incorrectly. We recommend lifting the TV at the edges, as shown.

Do Not Touch
This Screen!

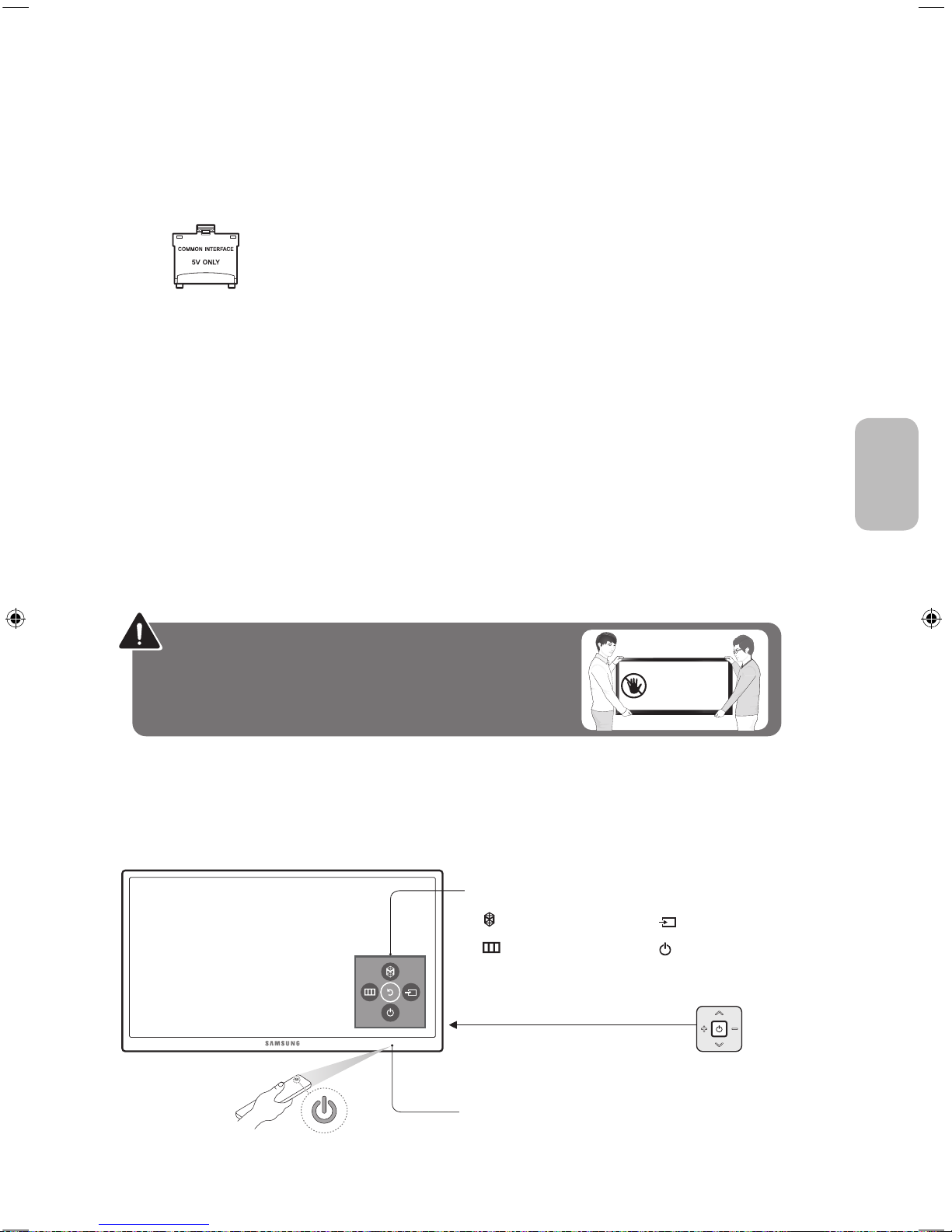

Using the TV Controller

You can use the TV Controller on the back of the TV instead of the remote control to control most of the functions of your TV.

Control Stick

The Control Stick is located on the

lower left corner of the back of the TV.

Control Menu

: Opens

Smart Hub

. : Selects a source.

: Opens the menu.

: Turns off the TV.

Remote control sensor

English

English - 3

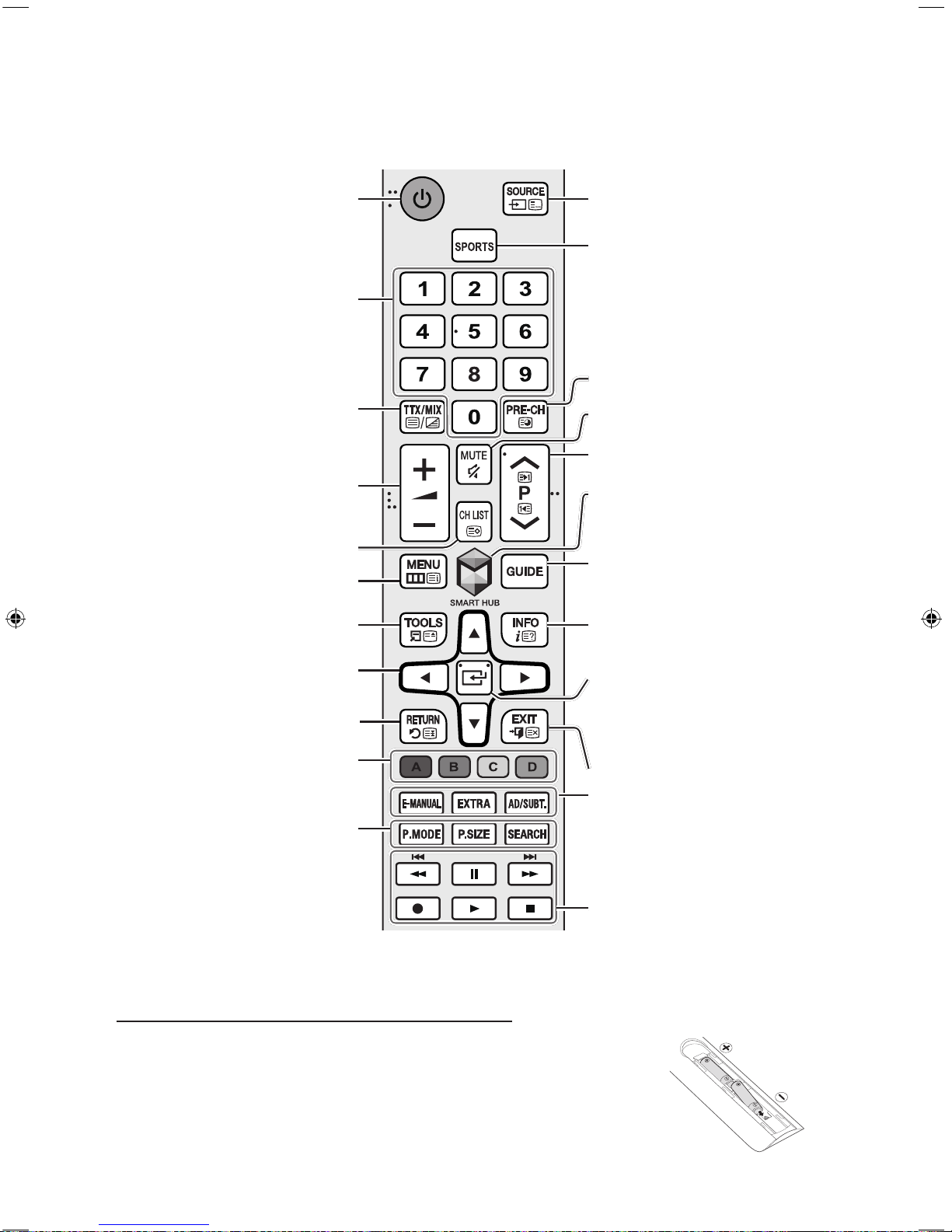

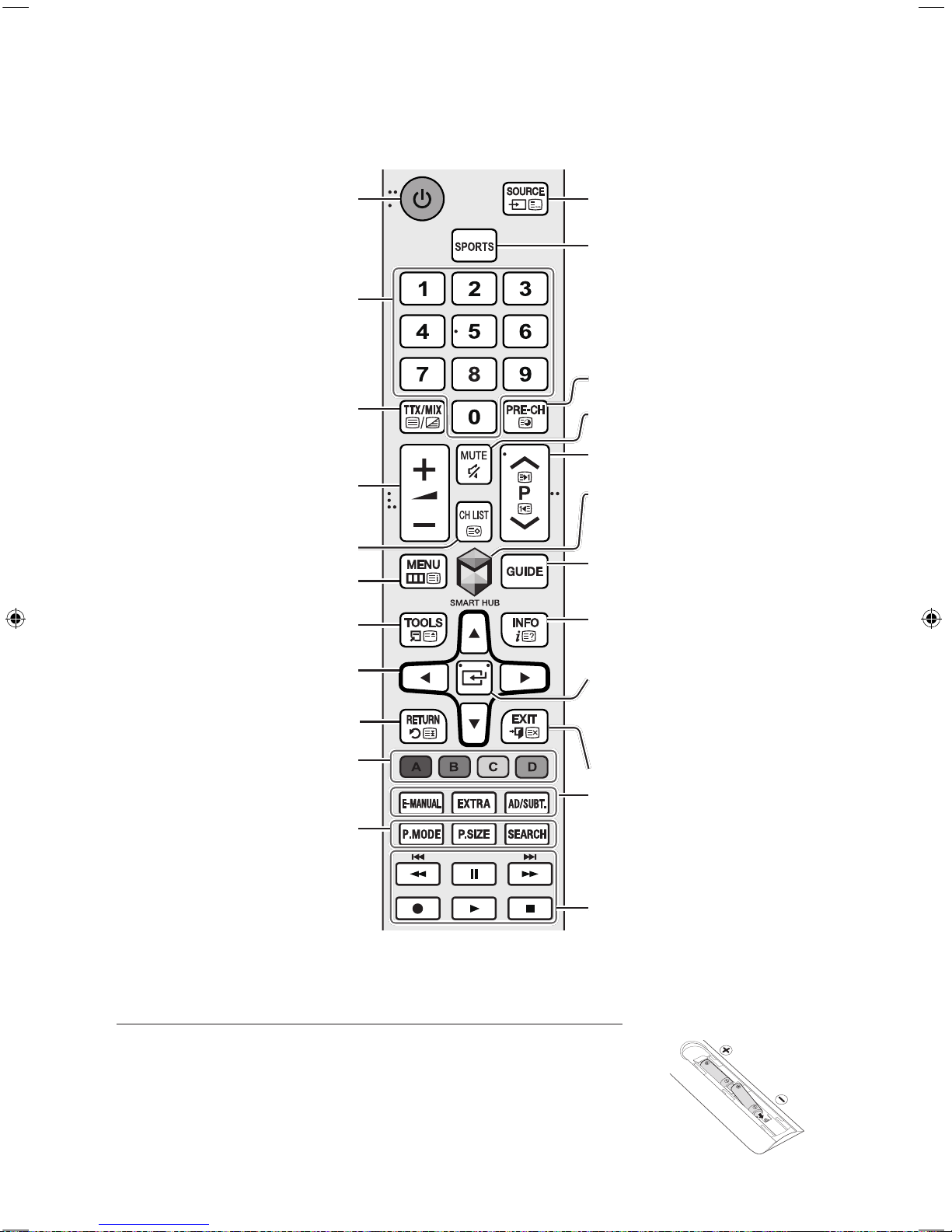

The Remote Control

- The button names above may be differ from the actual names.

Displays and selects available video
sources.

Turns the

Sports Mode

on or off.

Turns the sound on/off.

Launches

Smart Hub

applications. Refer

to the e-Manual chapter, Smart Features
>

Smart Hub

.

Changes the current channel.

Exits the menu.

Displays the Electronic Programme Guide
(EPG).

Displays information about the current
programme or content.

Turns the TV on/off.

Gives direct access to channels.

Adjusts the volume.

Launches the

Channel List

.

Alternately selects Teletext ON, Double,

Mix or OFF.

E-MANUAL

: Opens the e-Manual.

EXTRA: Displays related information
about the current programme.

AD/SUBT.

: Displays the

Accessibility

Shortcuts

.

Returns to the previous channel.

Displays the menu on the screen.

Quickly selects frequently used functions.

Returns to the previous menu or channel.

Use these buttons according to the

directions on the TV screen.

P.MODE

: Changes the picture mode.

P.SIZE

: Change the picture size.

SEARCH

: Launches the

Search

function.

Use these buttons with specific features.
Use these buttons according to the
directions on the TV screen.

Moves the focus, and changes the values

seen on the TV's menu.

E

(Enter): Selects or runs a focused

item.

- Press and hold to display the

Guide

.

Installing batteries into the remote control

Match the polarity of the batteries to the symbols on the battery compartment.

- Use the remote control within 7m the TV.

- Bright light may affect the performance of the remote control. Avoid using near bright
fluorescent lights or neon signs.

- The colour and shape of the remote may vary depending on the model.

English - 4

TV Camera Connection

- The TV camera is sold separately.

- Make sure to connect only the TV camera to the TV CAMERA port.

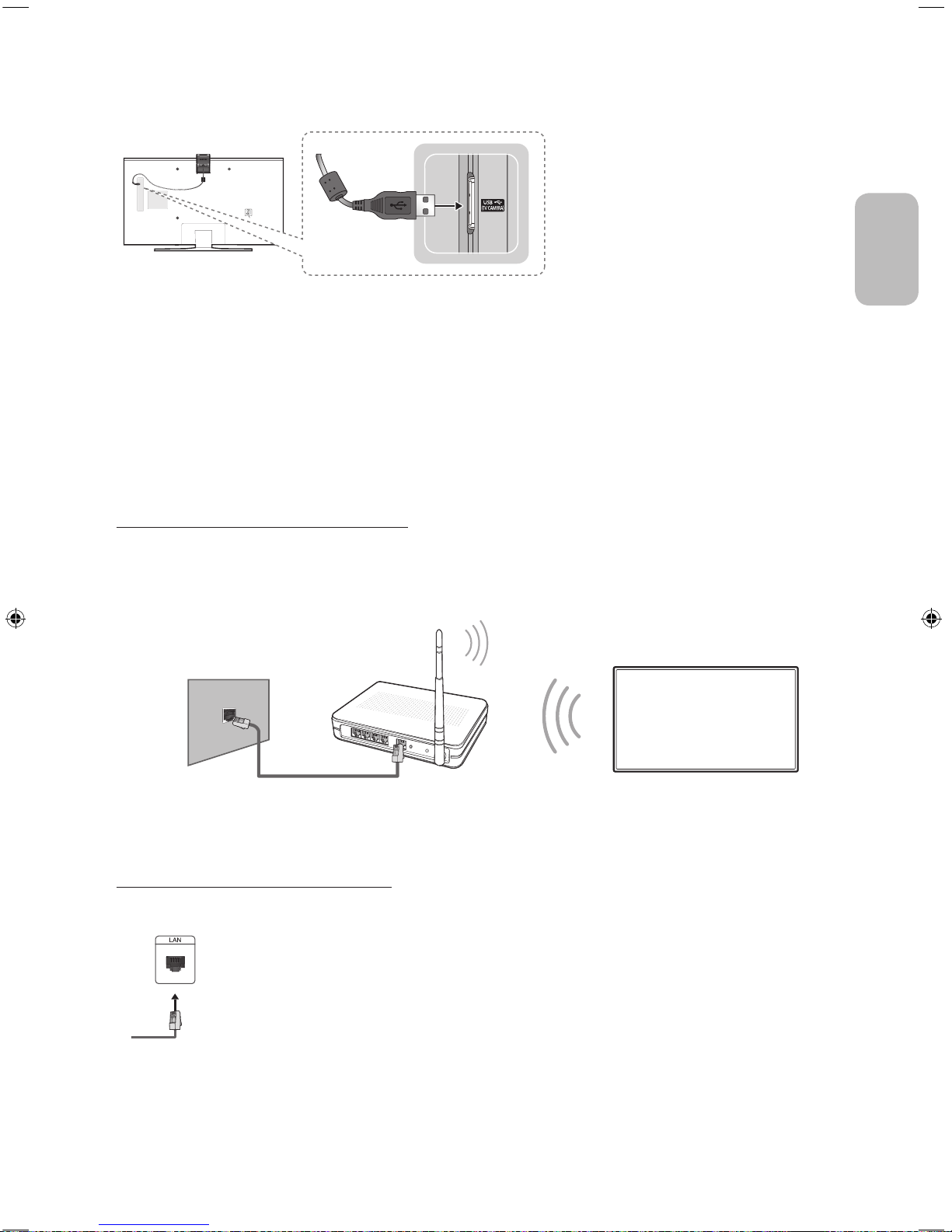

Connecting to a Network

Connecting the TV to a network gives you access to online services, such as Smart Hub, as well as software updates.

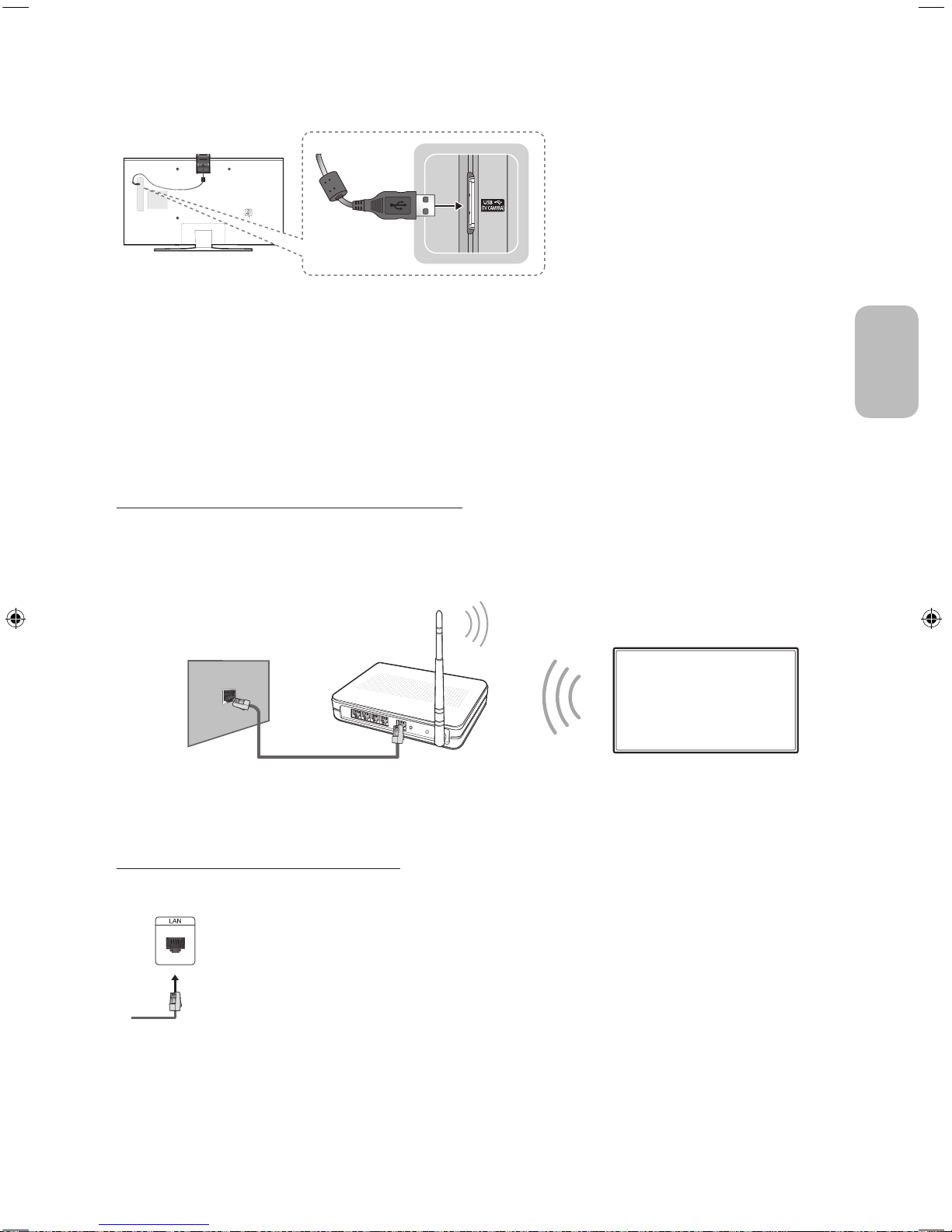

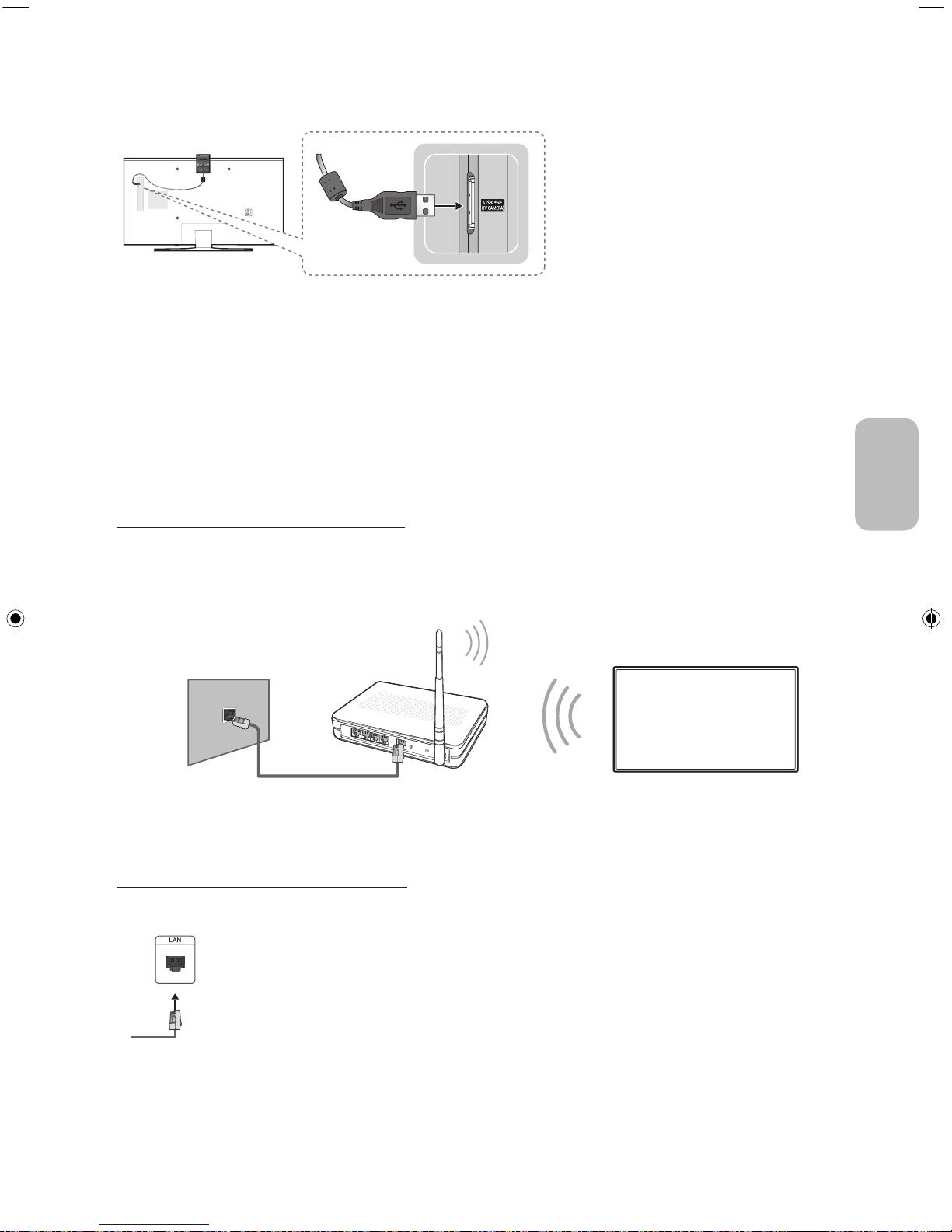

Network Connection - Wireless

Connect the TV to the Internet using a standard router or modem.

Wireless IP Router or Modem with

a DHCP Server

LAN Cable (Not Supplied)

The LAN Port on the Wall

Network Connection - Wired

TV Rear Panel

Connect your TV to your network using a LAN cable.

- The TV does not support the network speeds less than or equal to 10 Mbps.

- Use a Category 7 cable for the connection.

English

English - 5

The e-Manual

The embedded e-Manual contains information about the key features of your TV.

- You can download and view a printable version of the e-Manual on the Samsung website.
Displaying the e-Manual:

•

Press the

E-MANUAL

button on the remote control.

•

On the TV’s menu, select

Support

>

e-Manual

.

Using the buttons available on the main screen of the e-Manual

Search

Select an item from the search results to load the corresponding page.

Index

Select a keyword to navigate to the relevant page.

Recent pages

Select a topic from the list of recently viewed topics.

Accessing the associated menu screen from an e-Manual topic page

Try Now

Access the associated menu item and try out the feature directly.

Link

Access a topic referred to on an e-Manual topic page.

Accessing the associated e-Manual topic from a menu screen

Press the

E-MANUAL

button on the remote control to read the e-Manual topic about a current screen menu function.

- The e-Manual cannot be accessed from some menu screens.

Updating the e-Manual to the latest version

You can update the e-Manual in the same way you update apps.

Initial setup

The initial setup dialogue box appears when the TV is first activated. Follow the on-screen instructions to finish the initial setup
process. You can manually perform this process at a later time in the

System

>

Setup

menu.

English - 6

Troubleshooting and Maintenance

Troubleshooting

If the TV seems to have a problem, first review this list of possible problems and solutions. Alternatively, review the
Troubleshooting Section in the e-Manual. If none of these troubleshooting tips apply, please visit “www.samsung.com” and
click on Support, or contact the call centre listed on the back cover of this manual.

- This TFT LED panel is made up of sub pixels which require sophisticated technology to produce. There may be, however, a
few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

- To keep your TV in optimum condition, upgrade to the latest software. Use the

Update now

or

Auto update

functions on the

TV's menu (MENU >

Support

>

Software Update

>

Update now

or MENU >

Support

>

Software Update

>

Auto Update

).

Issues Solutions and explanations

The TV is not powered on. Make sure that the power cord is connected and that the remote has live batteries and

is functioning properly. If the power cord is properly connected and the remote control is
operating normally, there might arise a problem with the antenna cable connection, or the
cable/set-top box might not be turned on. Check the antenna connection or turn on the cable/
set-top box.

The TV won’t turn on. Make sure that the AC power cord is securely plugged in to the TV and the wall outlet.

Make sure that the wall outlet is working.
Try pressing the

P

button on the TV to make sure that the problem is not with the remote. If

the TV turns on, refer to “The remote control does not work” below.

There is no picture/video. Check the cable connections. Remove and reconnect all cables connected to the TV and

external devices.
Set the video outputs of your external devices (Cable/set-top box, DVD, Blu-ray etc) to match

the TV's input connections. For example, if an external device’s output is HDMI, connect it to
an HDMI input on the TV.

Make sure that your connected devices are powered on.
Be sure to select the correct input source.
Reboot the connected device by unplugging it and reconnecting the device's power cable.

The remote control does
not work.

Replace the remote control batteries. Make sure that the batteries are installed with their poles
(+/–) in the correct direction.

Clean the sensor’s transmission window on the remote.
Try pointing the remote directly at the TV from 1.5~1.8 m away.

The Cable or set-top box
remote control doesn’t
turn on/off the TV or
adjust the volume.

Programme the cable or set-top box remote control to operate the TV. Refer to the Cable or
set-top box user manual for the SAMSUNG TV code.

English

English - 7

Eco Sensor and screen brightness

Eco Sensor adjusts the brightness of the TV automatically. This feature measures the light in your room and optimises the
brightness of the TV automatically to reduce power consumption. If you want to turn this off, go to MENU >

System

>

Eco

Solution

>

Eco Sensor

.

- If the screen is too dark while you are watching TV in a dark environment, it may be due to the

Eco Sensor

.

- Do not block the sensor with any object. This can decrease picture brightness.

Still image warning

Avoid displaying still images (such as jpeg picture files), still image elements (such as TV channel logos, stock or news crawls at
the screen bottom etc.), or programmes in panorama or 4:3 image format on the screen. If you constantly display still pictures,
it can cause image burn-in on the LED screen and affect image quality. To reduce the risk of this adverse effect, please follow
the recommendations below:

•

Avoid displaying the still image for long periods.

•

Always try to display any image in full screen. Use the picture format menu of the TV set for the best possible match.

•

Reduce brightness and contrast to avoid the appearance of after-images.

•

Use all TV features designed to reduce image retention and screen burn. Refer to the e-Manual for details.

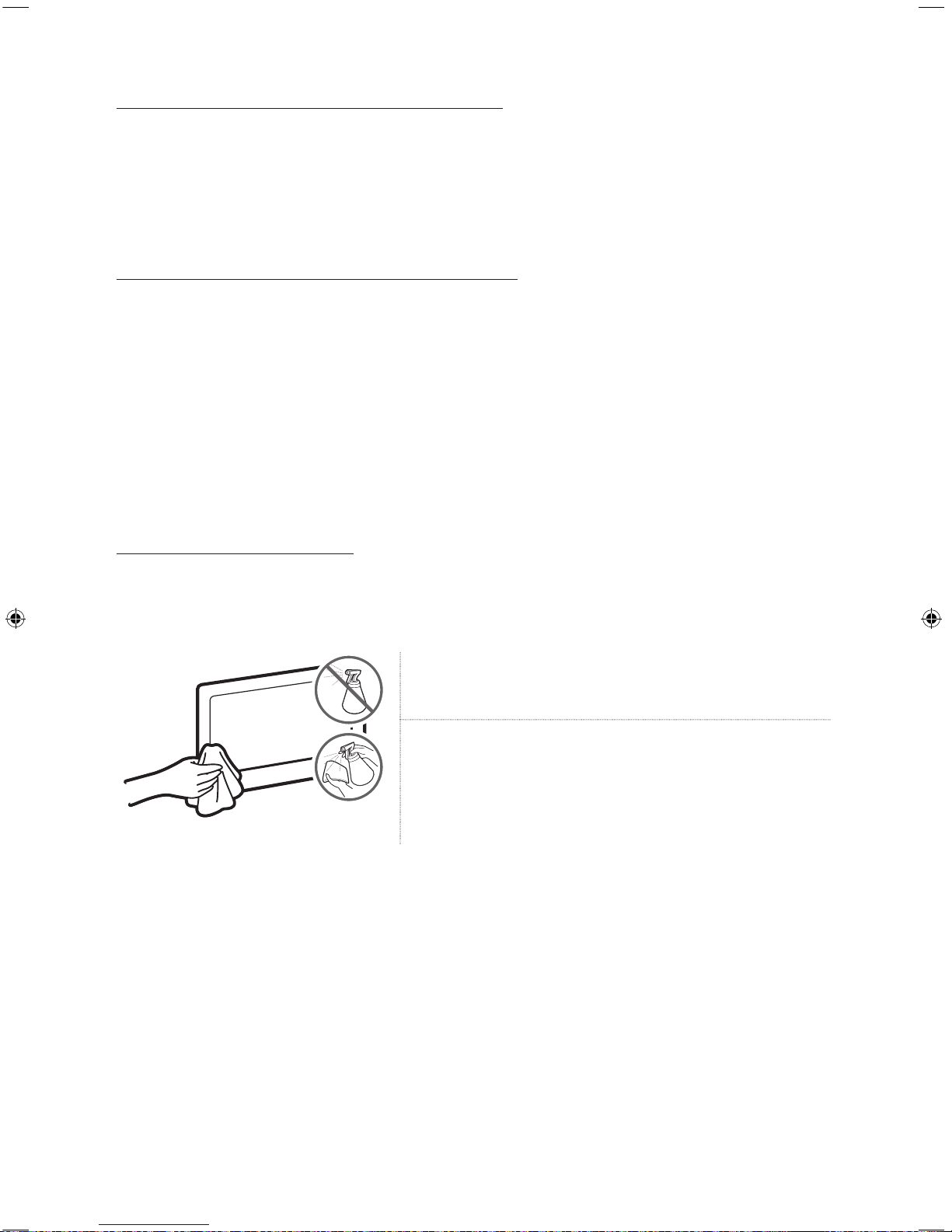

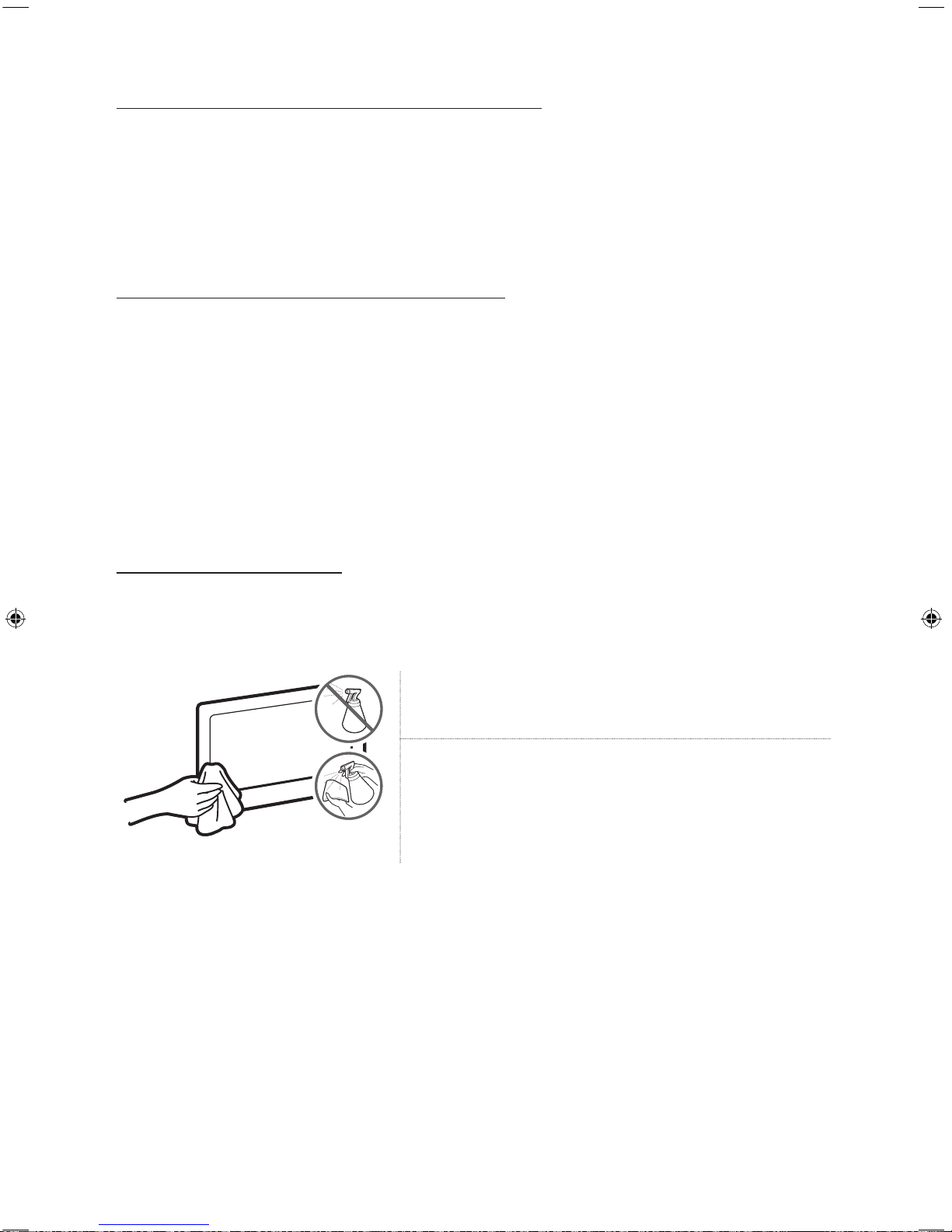

Caring for the TV

- If a sticker was attached to the TV screen, some debris can remain after you remove the sticker. Please clean the debris off
before watching TV.

- The exterior and screen of the TV can get scratched during cleaning. Be sure to wipe the exterior and screen carefully using
a soft cloth to prevent scratches.

Do not spray water or any liquid directly onto the TV. Any liquid that goes
into the product may cause a failure, fire, or electric shock.

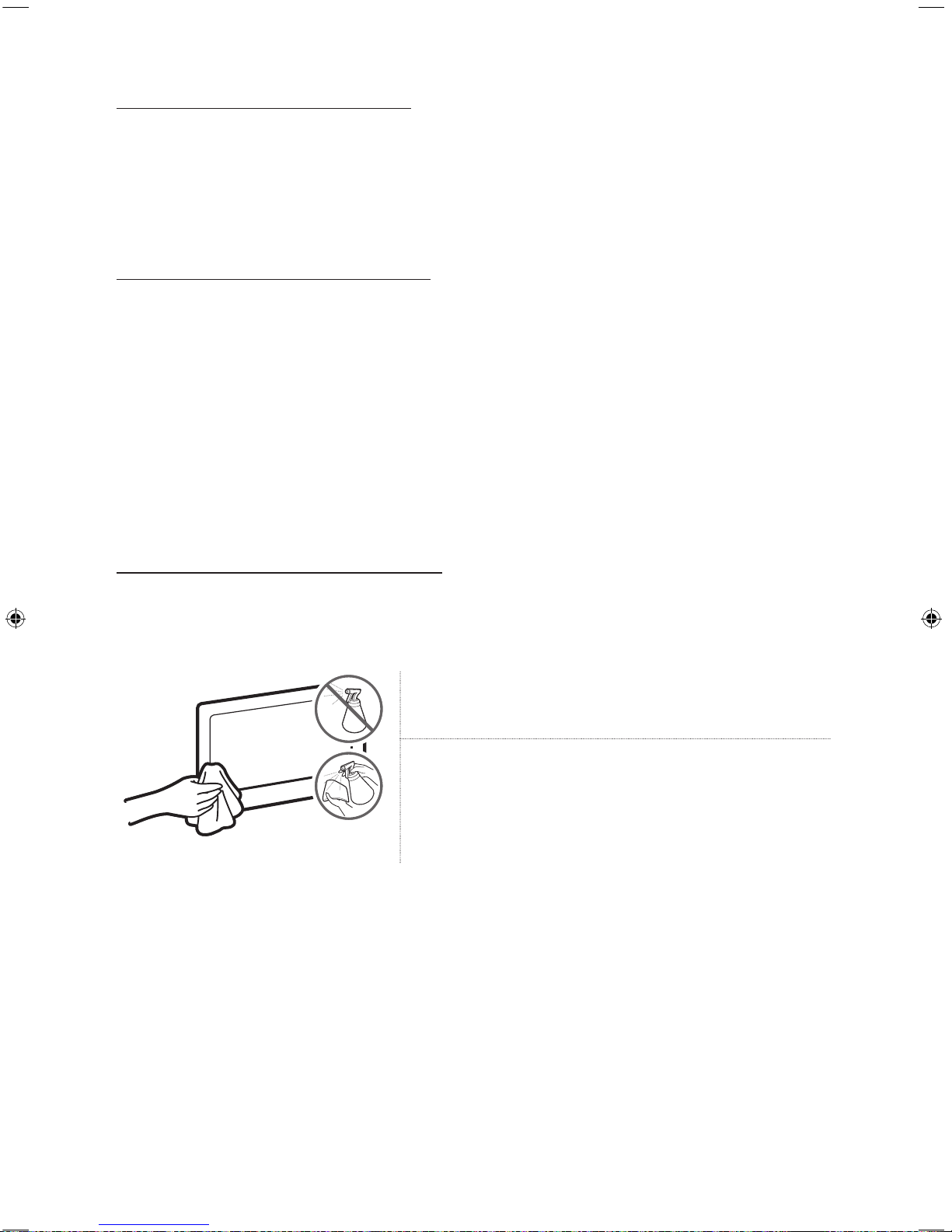

Turn off the TV, then gently wipe away smudges and fingerprints on the
screen with a micro-fiber cloth. Clean the body of the TV with a soft cloth
dampened with a small amount of water. Do not use flammable liquids
(benzene, thinners, etc.) or a cleaning agent. For stubborn smudges,
spray a small amount of screen cleaner on the cloth.

English - 8

TV Installation

Mounting the TV on a wall

If you mount this product on a wall, follow the instructions exactly as recommended by the manufacturer.
Unless it is correctly mounted, the product may slide or fall, thus causing serious injury to a child or adult
and serious damage to the product.

Installing the wall mount kit

You can mount the TV on the wall using a wall mount kit (sold separately).

TV

Wall mount
Bracket

C

For detailed information about installing the wall mount, see the instructions provided with the wall mount kit. We recommend
that you contact a technician for assistance when installing the wall mount bracket. We do not advise you to do it yourself.
Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you choose to install the
wall mount on your own.

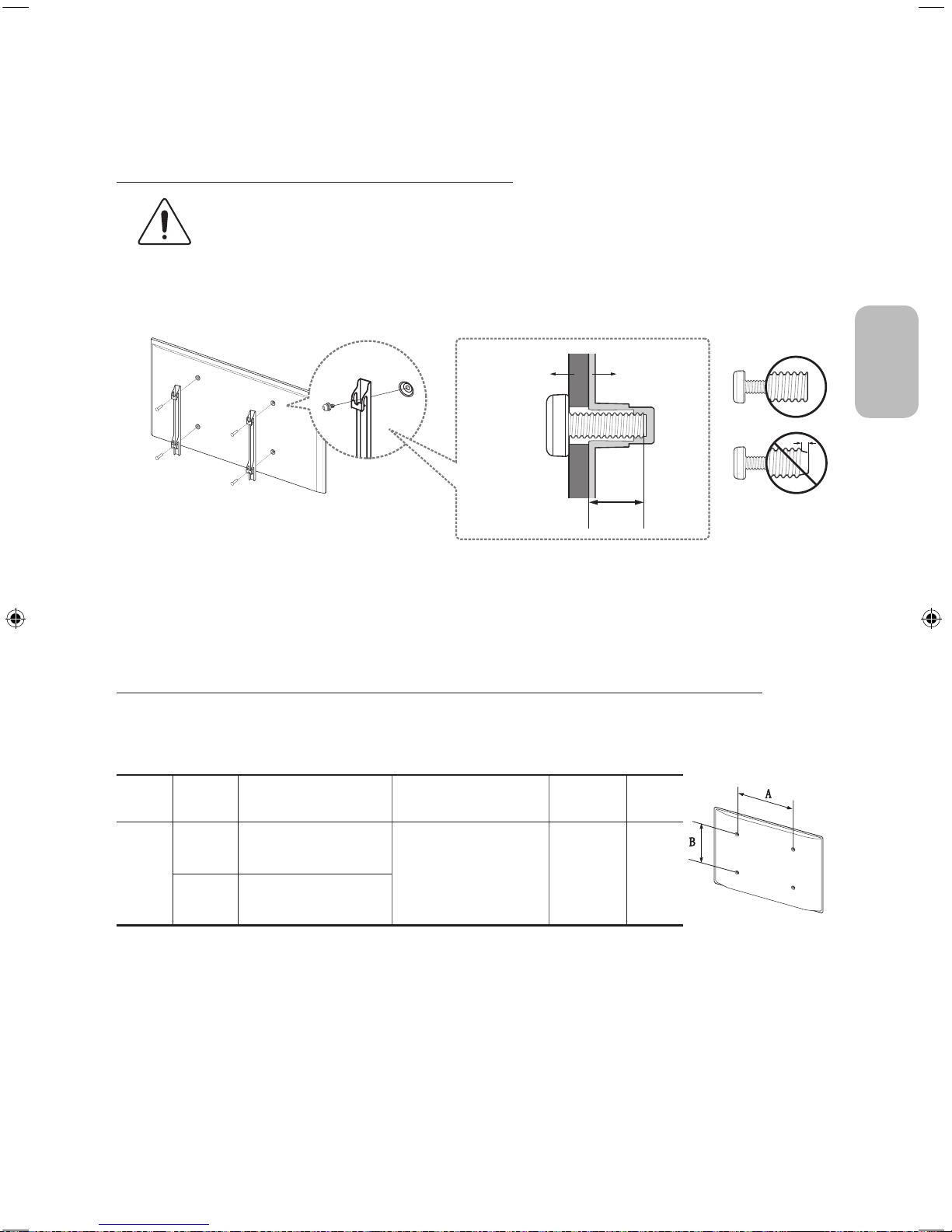

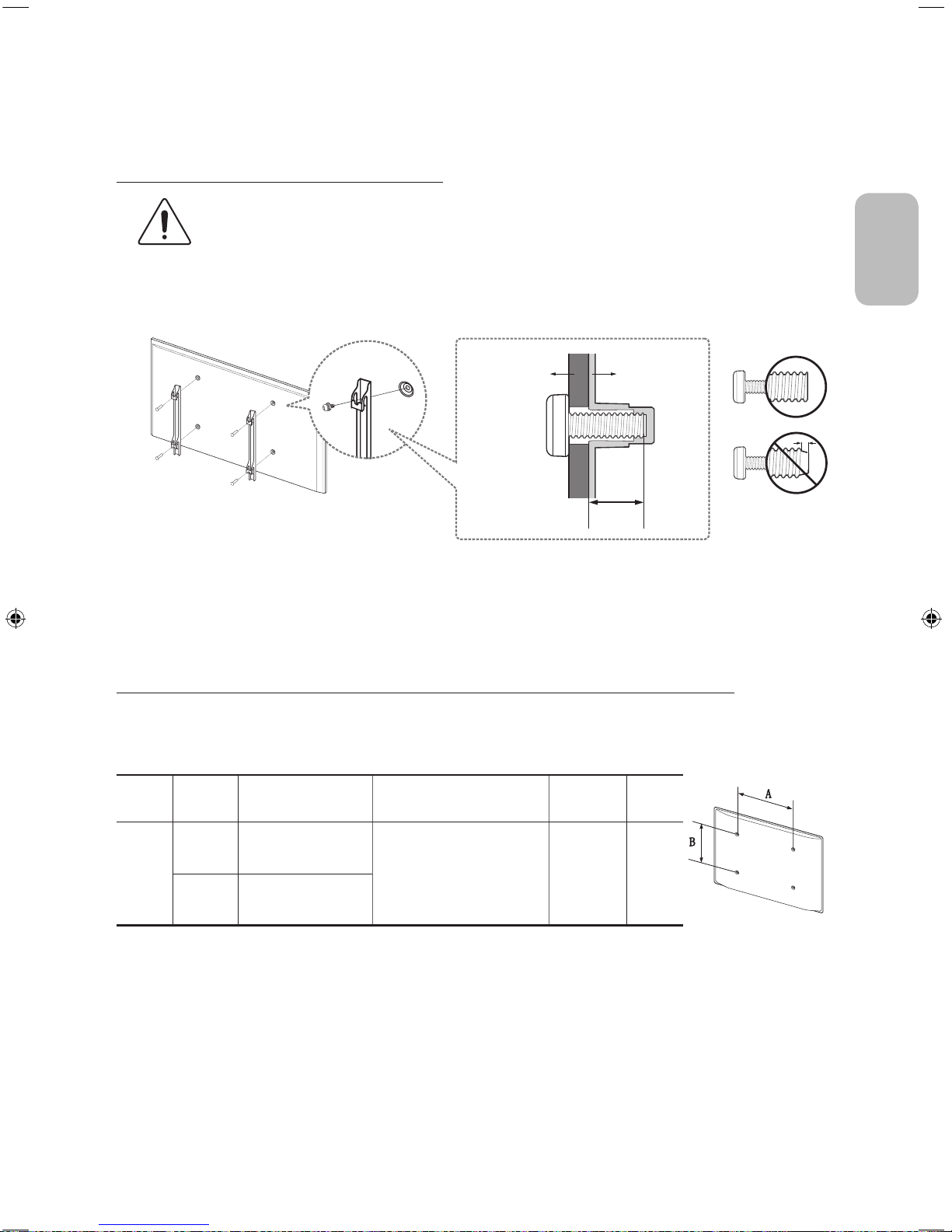

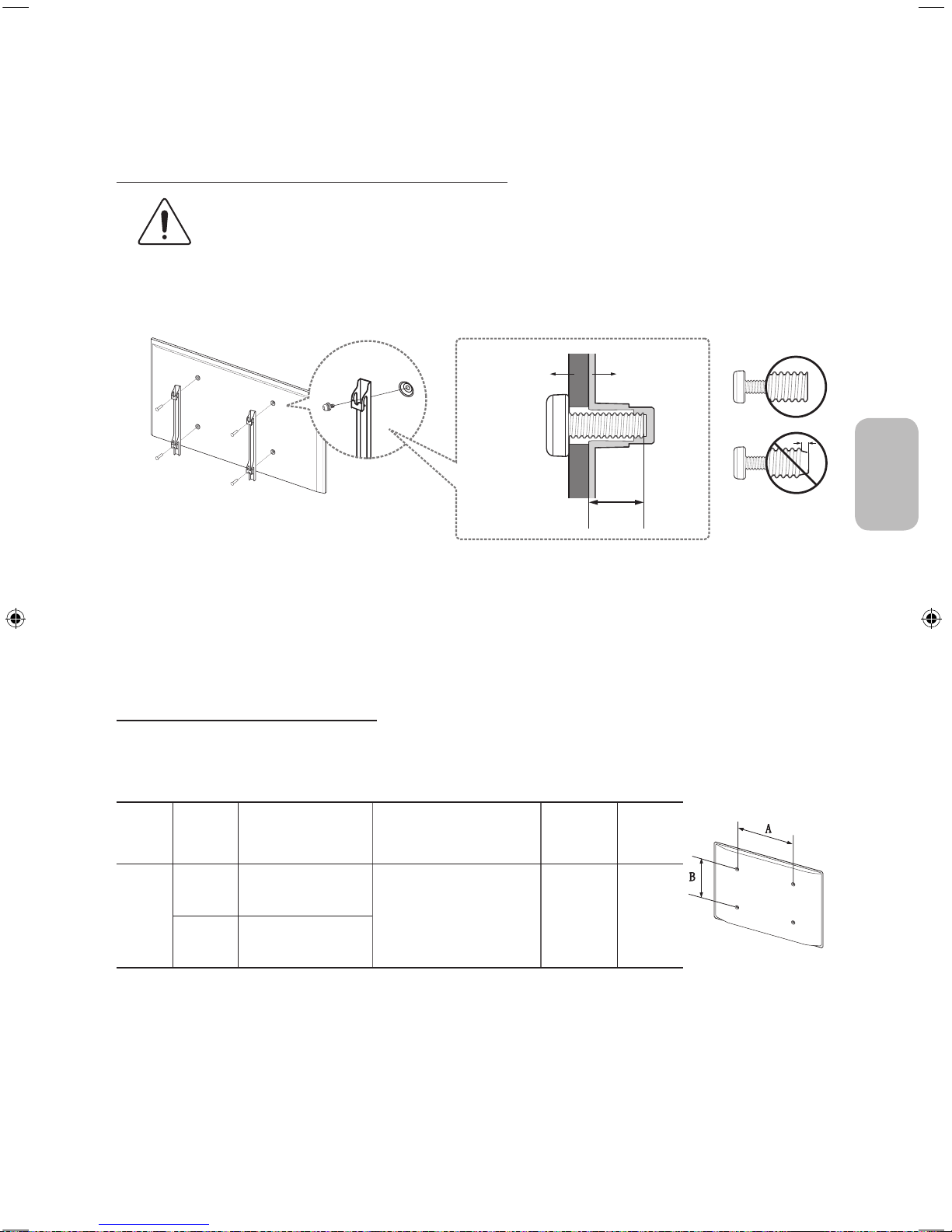

VESA wall mount kit notes and specifications

You can install your wall mount on a solid wall perpendicular to the floor. Before attaching the wall mount to surfaces other than
plaster board, contact your nearest dealer for additional information. If you install the TV on a ceiling or slanted wall, it may fall
and result in severe personal injury.

Product

Family

TV size in

inches

VESA screw hole specs

(A * B) in millimetres

C (mm)

Standard

Screw

Quantity

UHD-TV

40 200 X 200

13.8 ~ 21.4 M8 4

48 ~ 75 400 X 400

English

English - 9

Do not install your wall mount kit while your TV is turned on. This may result in personal injury from
electric shock.

Do not use screws that are longer than the standard length or do not comply with VESA standard screw
specifications. Screws that are too long may cause damage to the inside of the TV set.

•

For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws
may differ depending on the wall mount specifications.

•

Do not fasten the screws too firmly. This may damage the product or cause the product to fall, leading to
personal injury. Samsung is not liable for these kinds of accidents.

•

Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is
used or the consumer fails to follow the product installation instructions.

•

Do not mount the TV at more than a 15 degree tilt.

•

Always have two people mount the TV onto a wall.

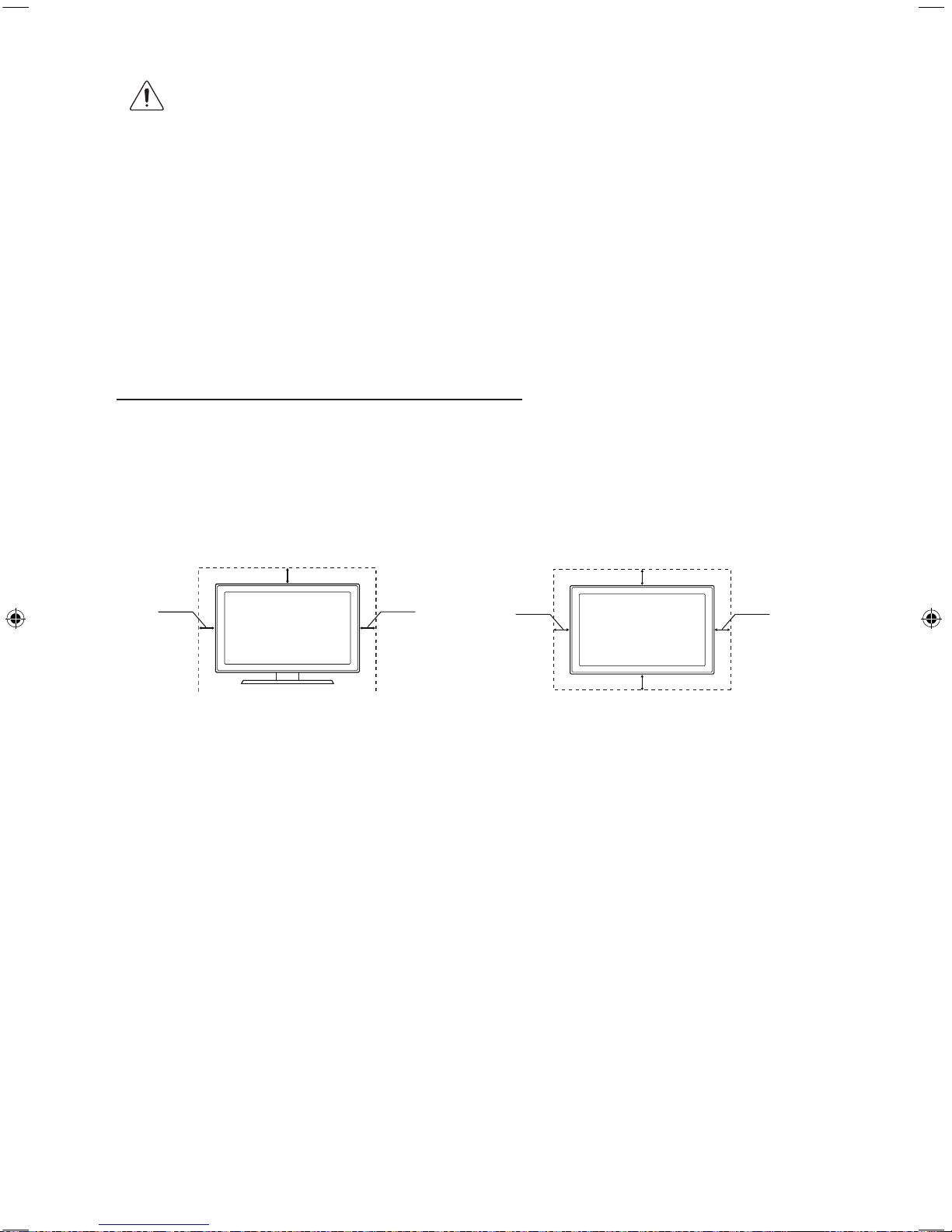

Providing proper ventilation for your TV

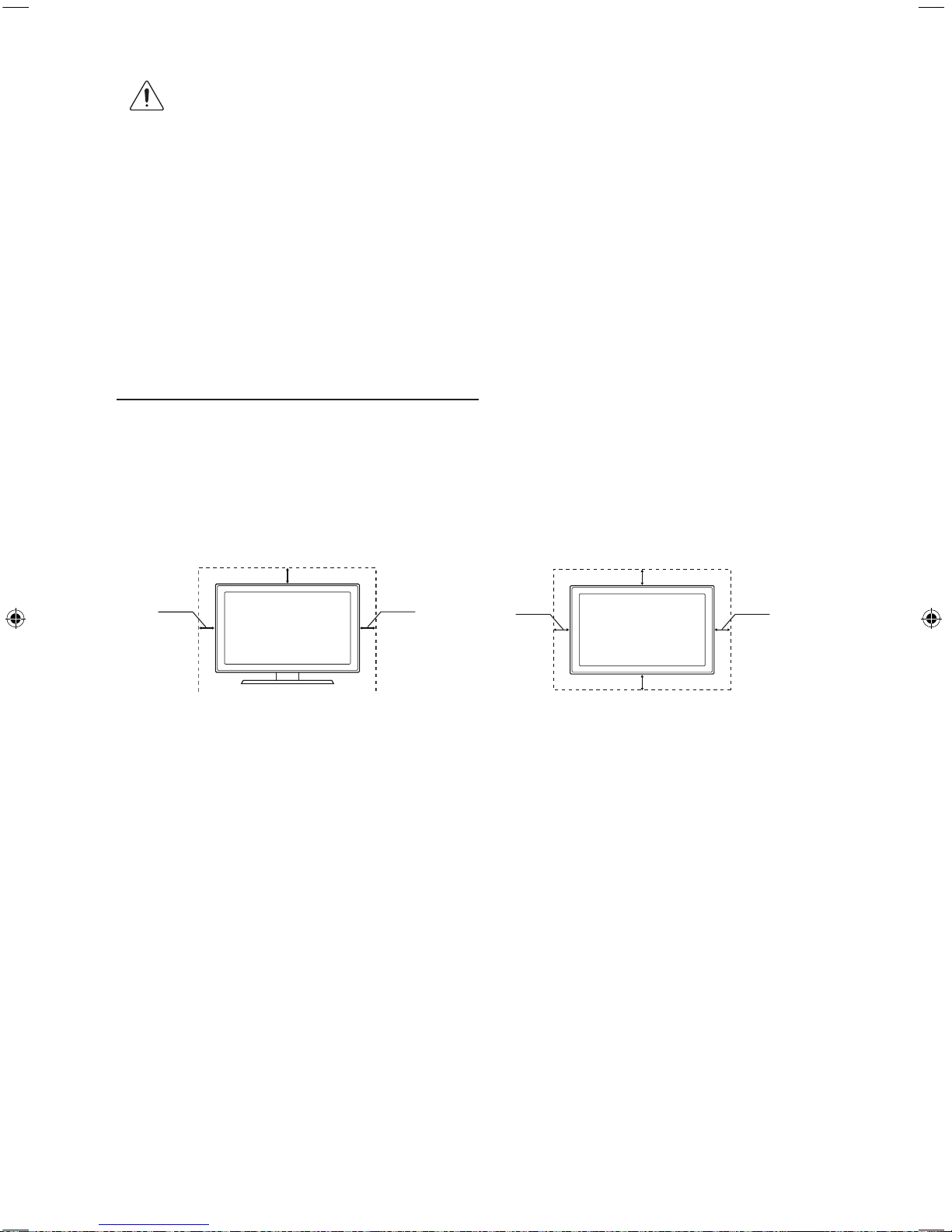

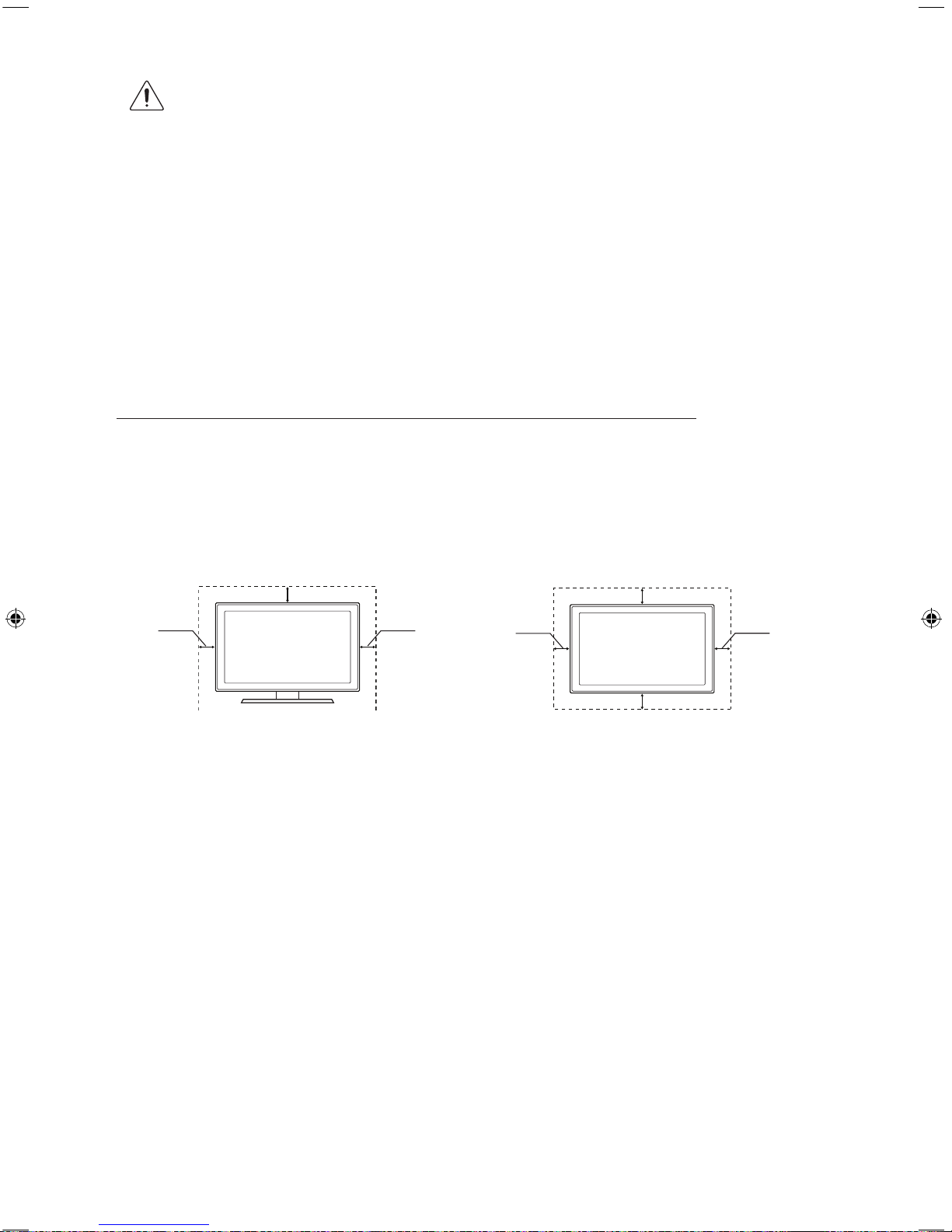

When you install your TV, maintain a distance of at least 10 cm between the TV and other objects (walls, cabinet sides, etc.) to
ensure proper ventilation. Failing to maintain proper ventilation may result in a fire or a problem with the product caused by an
increase in its internal temperature.

When you install your TV with a stand or a wall mount, we strongly recommend you use parts provided by Samsung
Electronics only. Using parts provided by another manufacturer may cause difficulties with the product or result in injury caused
by the product falling.

Installation with a stand Installation with a wall mount

10 cm

10 cm

10 cm

10 cm

10 cm

10 cm

10 cm

English - 10

Attaching the TV to the Stand

Make sure you have all the accessories shown, and that you assemble the stand following the provided assembly instructions.

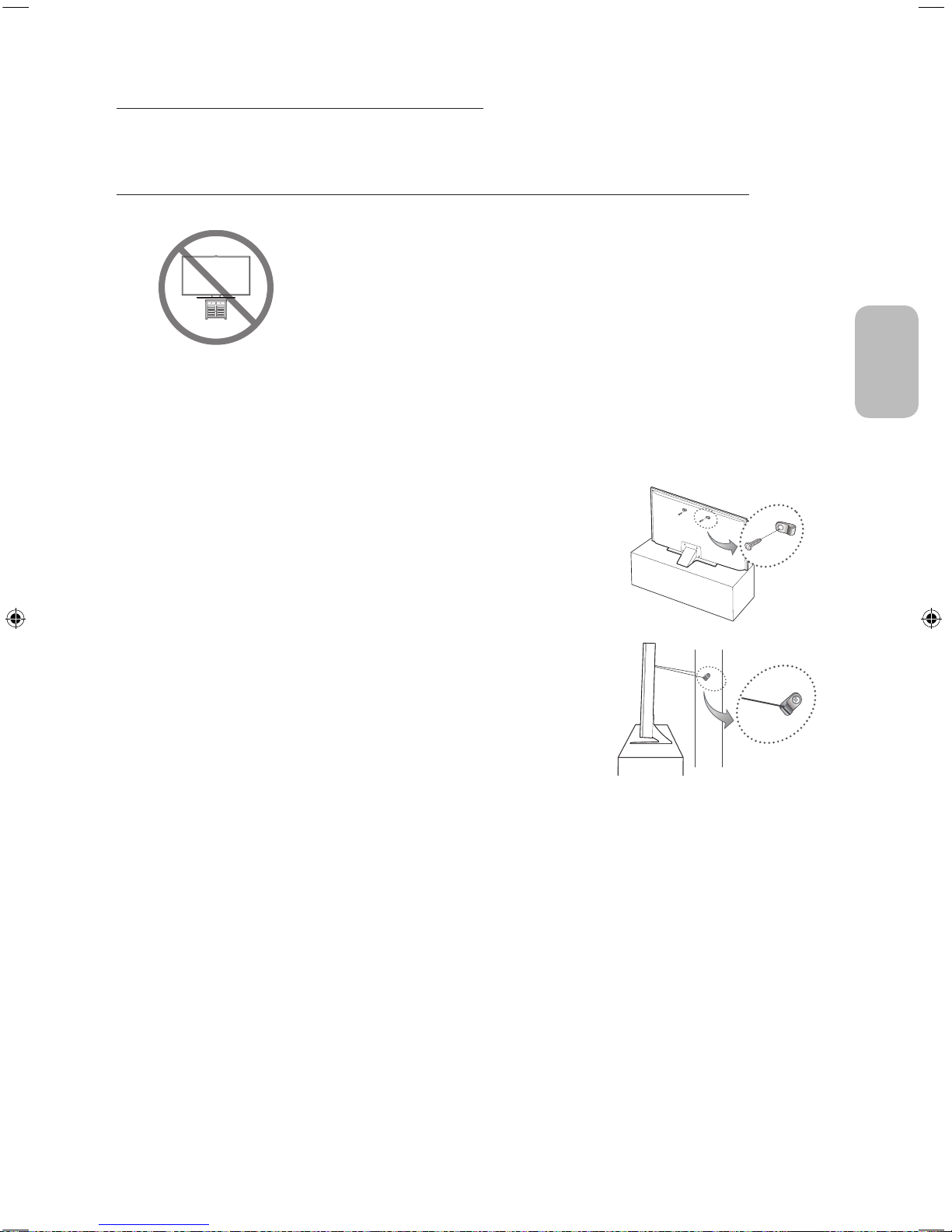

Safety Precaution: Securing the TV to the wall

Caution: Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular,

ensure your children do not hang on or destabilize the TV. This action may cause the
TV to tip over, causing serious injuries or death. Follow all safety precautions provided
in the Safety Flyer included with your TV. For added stability and safety, you can
purchase and install the anti-fall device as described below.

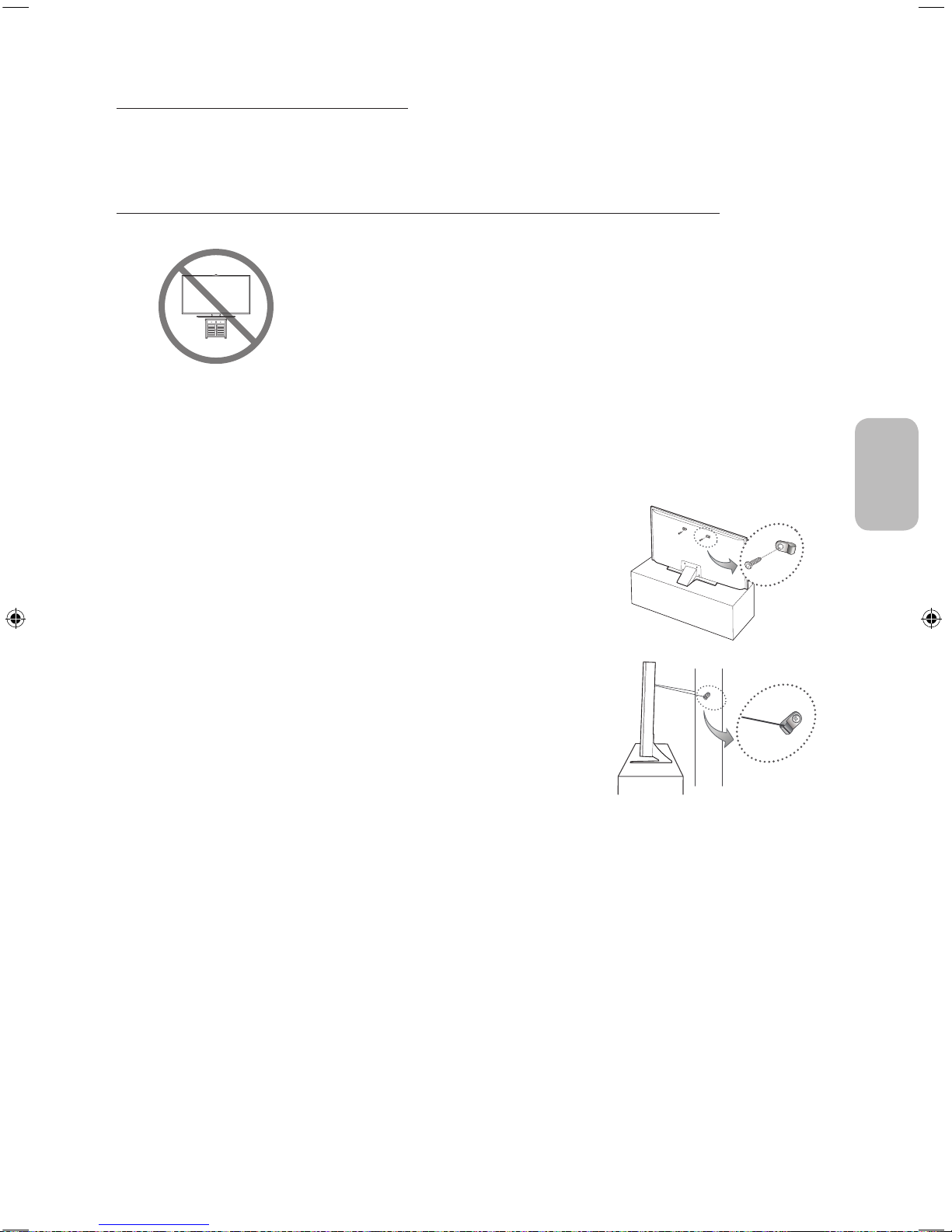

Preventing the TV from falling

These are general instructions. The clamps, screws, and string are not supplied by Samsung. They must be purchased
separately. We suggest consulting an installation service or professional TV installer for specific hardware and anti-fall hardware
installation.

1. Put the screws into the clamps and firmly fasten them onto the wall. Confirm that

the screws have been firmly installed onto the wall.

- You may need additional material such as an anchor depending on the type
of wall.

2. Remove the screws from the back centre of the TV, put the screws into the

clamps, and then fasten the screws onto the TV again.

- Screws may not be supplied with the product. In this case, please purchase
the screws of the following specifications.

3. Connect the clamps fixed onto the TV and the clamps fixed onto the wall with a

durable, heavy-duty string, and then tie the string tightly.

- Install the TV near to the wall so that it does not fall backwards.

- Connect the string so that the clamps fixed on the wall are at the same height
as or lower than the clamps fixed on the TV.

- Untie the string before moving the TV.

4. Make sure that all connections are properly secured. Periodically check the

connections for any sign of fatigue or failure. If you have any doubt about the
security of your connections, contact a professional installer.

- The displayed image may differ
depending on the model.

English

English - 11

Specifications and Other Information

Specifications

Display Resolution 3840 x 2160
Environmental Considerations
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity

10°C to 40°C (50°F to 104°F)

10% to 80%, non-condensing

-20°C to 45°C (-4°F to 113°F)
5% to 95%, non-condensing

Stand Swivel (Left / Right) 0˚
Model Name UE40JU6400 / UE40JU6470 /

UE40JU6480

UE48JU6400 / UE48JU6470 /

UE48JU6480
Screen Size (Diagonal) 40 inches (101 cm) 48 inches (121 cm)
Sound
(Output) 20 W(L:10 W, R:10 W)
Dimensions (W x H x D)
Body
With stand

917.7 x 535.7 x 62.6 mm

917.7 x 582.2 x 241.6 mm

1087.1 x 630.9 x 63.3 mm

1087.1 x 676.8 x 254.6 mm
Weight
Without Stand
With Stand

7.7 kg

9.4 kg

11.4 kg

13.6 kg

Model Name

UE50JU6400 / UE50JU6470

UE55JU6400 / UE55JU6470 /

UE55JU6480
Screen Size (Diagonal) 50 inches (125 cm) 55 inches (138 cm)
Sound
(Output) 20 W(L:10 W, R:10 W)
Dimensions (W x H x D)
Body
With stand

1128.9 x 654.4 x 63.2 mm

1128.9 x 688.6 x 254.6 mm

1242.6 x 718.4 x 63.2 mm

1242.6 x 763.4 x 267.5 mm
Weight
Without Stand
With Stand

12.2 kg

14.4 kg

15.0 kg

17.3 kg

English - 12

Model Name UE60JU6400 / UE60JU6470 UE65JU6400 / UE65JU6470
Screen Size (Diagonal) 60 inches (152 cm) 65 inches (163 cm)
Sound
(Output) 20 W(L:10 W, R:10 W)
Dimensions (W x H x D)
Body
With stand

1363.6 x 789.5 x 64.0 mm

1363.6 x 834.1 x 316.8 mm

1463.5 x 844.5 x 64.6 mm

1463.5 x 889.1 x 316.8 mm
Weight
Without Stand
With Stand

20.9 kg

24.7 kg

21.3 kg

25.1 kg
Model Name UE75JU6400 / UE75JU6470
Screen Size (Diagonal) 75 inches (189 cm)
Sound
(Output) 20 W(L:10 W, R:10 W)
Dimensions (W x H x D)
Body
With stand

1688.9 x 972.2 x 66.0 mm

1688.9 x 1034.4 x 355.3 mm
Weight
Without Stand
With Stand

36.5 kg

42.5 kg

English

English - 13

Display Resolution 3840 x 2160
Environmental Considerations
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity

10°C to 40°C (50°F to 104°F)

10% to 80%, non-condensing

-20°C to 45°C (-4°F to 113°F)
5% to 95%, non-condensing

Stand Swivel (Left / Right) 0˚
Model Name UE40JU6410 UE48JU6410
Screen Size (Diagonal) 40 inches (101 cm) 48 inches (121 cm)
Sound
(Output) 20W(L:10W, R:10W)
Dimensions (W x H x D)
Body
With stand

914.3 x 530.7 x 49.5 mm

914.3 x 584.6 x 237.0 mm

1083.7 x 625.9 x 50.1 mm

1083.7 x 683.7 x 257.0 mm
Weight
Without Stand
With Stand

8.2 kg

11.1 kg

11.1 kg

14.9 kg
Model Name UE55JU6410
Screen Size (Diagonal) 55 inches (138 cm)
Sound
(Output) 20W(L:10W, R:10W)
Dimensions (W x H x D)
Body
With stand

1239.2 x 713.4 x 50.1 mm

1239.2 x 770.7 x 257.0 mm
Weight
Without Stand
With Stand

16.1 kg

19.9 kg

- The design and specifications are subject to change without prior notice.

- For information about the power supply, and about power consumption, refer to the label attached to the product.

- Typical power consumption is measured according to IEC 62087 Ed.2

Decreasing power consumption

When you shut the TV off, it enters Standby mode. In Standby mode, it continues to draw a small amount of power. To
decrease power consumption, unplug the power cord when you don't intend to use the TV for a long time.

English - 14

Licences

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered
trademarks of HDMI Licensing LLC in the United States and other countries.

Recommendation - EU Only

Hereby, Samsung Electronics, declares that this TV is in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.

The official Declaration of Conformity may be found at http://www.samsung.com, go to Support > Search Product Support
and enter the model name.

This equipment may only be used indoors.
This equipment may be operated in all EU countries.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger,
headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent
possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other
types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for
details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and
its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of the batteries in this product
(Applicable in countries with separate collection systems)

This marking on battery, manual or packaging indicates that the batteries in this product should not be disposed of with other
household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery
contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed
of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle
them through your local, free battery return system.

English

English - 15

Avertissement! Consignes de sécurité importantes

(Veuillez lire les consignes de sécurité avant d'utiliser le téléviseur.)

ATTENTION

RISQUE D'ELECTROCUTION-NE PAS OUVRIR

ATTENTION: POUR REDUIRE LE RISQUE D'ELECTROCUTION,
NE RETIREZ PAS LE COUVERCLE (NI LE PANNEAU ARRIERE).
AUCUNE DES PIECES SITUEES A L'INTERIEUR DU PRODUIT
NE PEUT ETRE REPAREE PAR L'UTILISATEUR. POUR TOUT
DEPANNAGE, ADRESSEZ-VOUS A UN TECHNICIEN QUALIFIE.

Ce symbole indique la présence de haute
tension à l'intérieur de ce produit. Il est
dangereux de toucher les pièces situées à
l'intérieur de ce produit.

Ce symbole indique qu'une documentation
importante relative au fonctionnement et à
l'entretien est fournie avec le produit.

Les fentes et les ouvertures aménagées dans le boîtier ainsi qu'à l'arrière et en dessous de l'appareil assurent la ventilation de ce dernier. Afin
de garantir le bon fonctionnement de l'appareil et d'éviter les risques de surchauffe, ces fentes et ouvertures ne doivent être ni obstruées ni
couvertes.

- Ne placez pas l'appareil dans un environnement clos tel qu'une bibliothèque ou une armoire encastrée, sauf si une ventilation adéquate est

prévue.

- Ne placez pas l'appareil à proximité ou au-dessus d'un radiateur ou d'une bouche d'air chaud, ni dans un endroit exposé à la lumière directe

du soleil.

- Ne placez pas de récipients contenant de l'eau (vases, etc.) sur l'appareil afin d'éviter tout risque d'incendie ou de choc électrique.

N'exposez pas l'appareil à la pluie et ne le placez pas à proximité d'une source d'eau (baignoire, lavabo, évier, bac de lavage, sous-sol humide
ou piscine, par exemple). Si l'appareil vient à être mouillé par accident, débranchez-le et contactez immédiatement un revendeur agréé.

Cet appareil fonctionne sur piles. Dans un souci de préservation de l'environnement, la réglementation locale en vigueur peut prévoir des
mesures spécifiques de mise au rebut des piles usagées. Veuillez contacter les autorités compétentes afin d'obtenir des informations sur la mise
au rebut ou le recyclage des piles.

Evitez de surcharger les prises murales, les rallonges et les adaptateurs, car cela entraîne un risque d'incendie ou de choc électrique.
Les cordons d'alimentation doivent être déroulés de sorte qu'aucun objet placé sur ou contre eux ne les chevauche ni les pince. Accordez une

attention particulière aux cordons au niveau de l'extrémité des fiches, des prises murales et de la sortie de l'appareil.
En cas d'orage, d'absence ou de non utilisation de votre appareil pendant une longue période, débranchez-le de la prise murale, de même que

l'antenne ou le système de câbles. Ces précautions éviteront que l'appareil ne soit endommagé par la foudre ou par des surtensions.
Avant de raccorder le cordon d'alimentation CA à la prise de l'adaptateur CC, vérifiez que la tension indiquée sur ce dernier correspond bien à la

tension délivrée par le réseau électrique local.
N'insérez jamais d'objets métalliques dans les parties ouvertes de cet appareil Vous pourriez vous électrocuter.
Afin d'éviter tout risque d'électrocution, ne mettez jamais les doigts à l'intérieur de l'appareil. Seul un technicien qualifié est habilité à ouvrir cet appareil.
Veillez à brancher correctement et complètement le cordon d'alimentation. Lorsque vous débranchez le cordon d'alimentation d'une prise

murale, tirez toujours sur la fiche du cordon d'alimentation. Ne le débranchez jamais en tirant sur le cordon d'alimentation. Ne touchez pas le
cordon d'alimentation si vous avez les mains mouillées.

Si l'appareil ne fonctionne pas normalement, en particulier s'il émet des odeurs ou des sons anormaux, débranchez-le immédiatement et
contactez un revendeur ou un centre de dépannage agréé.

Si vous prévoyez de ne pas utiliser le téléviseur ou de vous absenter pendant une période prolongée, veillez à retirer la fiche d'alimentation de la
prise (en particulier si des enfants, des personnes âgées ou des personnes handicapées restent seuls au domicile).

- L'accumulation de poussière peut amener le cordon d'alimentation à produire des étincelles et de la chaleur ou l'isolation à se détériorer,

entraînant un risque de fuite électrique, d'électrocution et d'incendie.

Si vous prévoyez d'installer le téléviseur dans des endroits exposés à la poussière, à des températures faibles ou élevées, à une forte humidité,
à des substances chimiques ou s'il fonctionnera 24/24heures, comme dans un aéroport ou une gare ferroviaire, contactez un centre de service
agréé pour obtenir des informations. Le non-respect de ce qui précède peut gravement endommager le téléviseur.

N'utilisez que des fiches et des prises murales correctement reliées à la terre.

- Une mise à la terre incorrecte peut entraîner des chocs électriques ou endommager l'appareil (appareils de classeI uniquement).

Pour éteindre complètement cet appareil, débranchez-le de la prise murale. Assurez-vous que la prise murale et la fiche d'alimentation sont
facilement accessibles.

Ne laissez pas les enfants se suspendre à l'appareil.
Rangez les accessoires (pile, etc.) dans un endroit hors de portée des enfants.
N'installez pas l'appareil dans un endroit instable, comme sur une étagère bancale, sur une surface inclinée ou dans un endroit exposé à des

vibrations.
Veillez à ne pas faire tomber le produit ni à lui donner des coups. Si le produit est endommagé, débranchez le cordon d'alimentation et contactez

un centre de service.
Pour nettoyer l'appareil, retirez le cordon d'alimentation de la prise murale et nettoyez le produit à l'aide d'un chiffon doux et sec. N'utilisez

aucune substance chimique, telle que la cire, le benzène, l'alcool, des solvants, des insecticides, des désodorisants, des lubrifiants ou des
détergents. Ces substances chimiques peuvent altérer l'aspect du téléviseur ou effacer les imprimés se trouvant sur celui-ci.

N'exposez pas l'appareil aux gouttes ni aux éclaboussures.
Ne jetez pas les piles au feu.
Les piles ne doivent pas être court-circuitées, démontées ni subir de surchauffe.
Un risque d'explosion existe si vous remplacez les piles de la télécommande par des piles d'un autre type. Ne les remplacez que par des piles

du même type.
ATTENTION: POUR EVITER TOUT RISQUE D'INCENDIE, TENEZ TOUJOURS CE PRODUIT A DISTANCE DES BOUGIES OU

AUTRES FLAMMES OUVERTES.

* Les schémas et illustrations contenus dans ce manuel de l'utilisateur sont fournis uniquement à titre de référence. L'aspect réel
du produit peut être différent. La conception et les spécifications du produit sont susceptibles d'être modifiées sans préavis.
Les langues de la CEI (russe, ukrainien, kazakh) ne sont pas disponibles pour ce produit, car il est fabriqué pour des clients de l'UE.

Français - 2

Contenu de la boîte

Télécommande et piles (AAAx2) Guide réglementaire
Guide d'utilisation Cordon d'alimentation
Carte de garantie (non disponible dans tous les pays)

Adaptateur de carte CI

- Vérifiez que les éléments suivants sont inclus avec votre téléviseur. S'il manque des éléments, contactez votre revendeur

local.

- Les couleurs et les formes des éléments varient en fonction du modèle.

- Il est possible d'acheter séparément les câbles non fournis avec ce produit.

- Ouvrez la boîte et vérifiez qu'aucun accessoire n'est caché derrière ou dans l'emballage.

Des frais d'administration peuvent vous être facturés dans les situations suivantes:

(a) Un technicien intervient à votre demande alors que le produit ne comporte aucun défaut (c.-à-d. vous n'avez pas lu le
manuel d'utilisation).

(b) Vous amenez le produit dans un centre de réparation alors que le produit ne comporte aucun défaut (c.-à-d. vous
n'avez pas lu le manuel d'utilisation).

Le montant des frais d'administration vous sera communiqué avant la visite du technicien.

Avertissement: les écrans peuvent être endommagés par une pression
directe lorsqu'ils sont incorrectement manipulés. Il est recommandé de
soulever le téléviseur par les bords, comme indiqué.

Ne touchez pas
cet écran!

Utilisation du contrôleur du téléviseur

Vous pouvez utiliser le contrôleur du téléviseur qui se trouve à l'arrière de l'appareil plutôt que la télécommande pour contrôler
la majorité des fonctions de votre téléviseur.

Stick de commande

Le stick de commande est situé à

l'arrière du téléviseur, dans le coin

inférieur gauche.

Menu de commande

: permet d'ouvrir

Smart

Hub

.

: permet de sélectionner

une source.

: permet d'ouvrir le

menu.

: permet d'éteindre le

téléviseur.

Capteur de la télécommande

Français - 3

Français

La télécommande

- Les noms des boutons qui figurent au-dessus peuvent être différents.

Permet d'afficher et de sélectionner les
sources vidéo disponibles.

Permet d'activer ou de désactiver le

Mode Sport

.

Permet d'activer et de désactiver le son.

Permet de lancer les applications

Smart

Hub

. Consultez le chapitre du e-Manual

intitulé Fonctions Smart >

Smart Hub

.

Permet de changer de chaîne.

Permet de quitter le menu.

Permet d'afficher le Guide électronique
des programmes (EPG).

Permet d'afficher des informations sur le
programme ou contenu actuel.

Permet d'allumer et d'éteindre le

téléviseur.

Permet d'accéder directement aux

chaînes.

Permet de régler le volume.

Permet de lancer la

Liste des chaînes

.

Permet de sélectionner successivement

les options Teletext ON, Double, Mix et

OFF.

E-MANUAL

: permet d'ouvrir le manuel

électronique.
EXTRA: permet d'afficher des

informations sur le programme en cours.

AD/SUBT.

: permet d'afficher

Raccourcis

d'accessibilité

.

Permet de revenir à la chaîne précédente.

Permet d'afficher le menu à l'écran.

Permet de sélectionner rapidement les

fonctions fréquemment utilisées.

Permet de revenir à la chaîne ou au menu

précédent.

Utilisez ces boutons conformément

aux instructions affichées sur l'écran du

téléviseur.

P.MODE

: permet de modifier le mode

d'image.

P.SIZE

: permet de régler le format de

l'image.

SEARCH

: permet de démarrer la

fonction

Rech.

.

Utilisez ces boutons avec des
fonctionnalités spécifiques. Utilisez ces
boutons conformément aux instructions
affichées sur l'écran du téléviseur.

Permet de déplacer la sélection et de

modifier les valeurs affichées sur le menu

du téléviseur.

E

(Entrée): Permet de sélectionner ou

d'exécuter l'option sélectionnée.

- Appuyez longuement pour afficher la

Guide

.

Mise en place des piles dans la télécommande

Respectez les polarités indiquées par les symboles dans le logement des piles.

- Utilisez la télécommande à une distance maximale de 7mètres du téléviseur.

- Une lumière intense peut affecter le bon fonctionnement de la télécommande. Evitez de

l'utiliser à proximité d'une lampe fluorescente ou d'une enseigne au néon.

- La couleur et la forme de la télécommande peuvent varier en fonction du modèle.

Français - 4
