SAMSUNG UE40JU6000K, UE48JU6000K, UE55JU6000K, UN40JU6400F, UN40JU640DF Service manual & schematics
...Page 1
UHD TV
Chassis : UWJ52
Model : UE40JU6000K
UE48JU6000K
UE55JU6000K
SERVICE
UHD TV Contents
1. Precautions
2. Product specications
3. Disassembly and Reassembly
4. Troubleshooting
5. Wiring Diagram
Manual
UE**JU6000K
Page 2
Contents
1. Precautions ...................................................................................................................1-1
1-1. Safety Precautions ..............................................................................................................1-1
1-1-1. Warnings ...................................................................................................................1-1
1-1-2. Servicing the LED TV ...............................................................................................1-1
1-1-3. Fire and Shock Hazard .............................................................................................1-1
1-1-4. Product Safety Notices .............................................................................................1-2
1-2. Servicing Precautions ..........................................................................................................1-3
1-2-1. General Servicing Precautions ................................................................................. 1-3
1-3. Static Electricity Precautions ...............................................................................................1-4
1-4. Installation Precautions .......................................................................................................1-5
2. Product Specications.................................................................................................2-1
2-1. Product information .............................................................................................................2-1
2-2. Product specication ..........................................................................................................2-2
2-2-1. Feature & Specications ........................................................................................... 2-2
2-2-2. Detailed Specications ............................................................................................. 2-3
2-3. Accessories .......................................................................................................................2-15

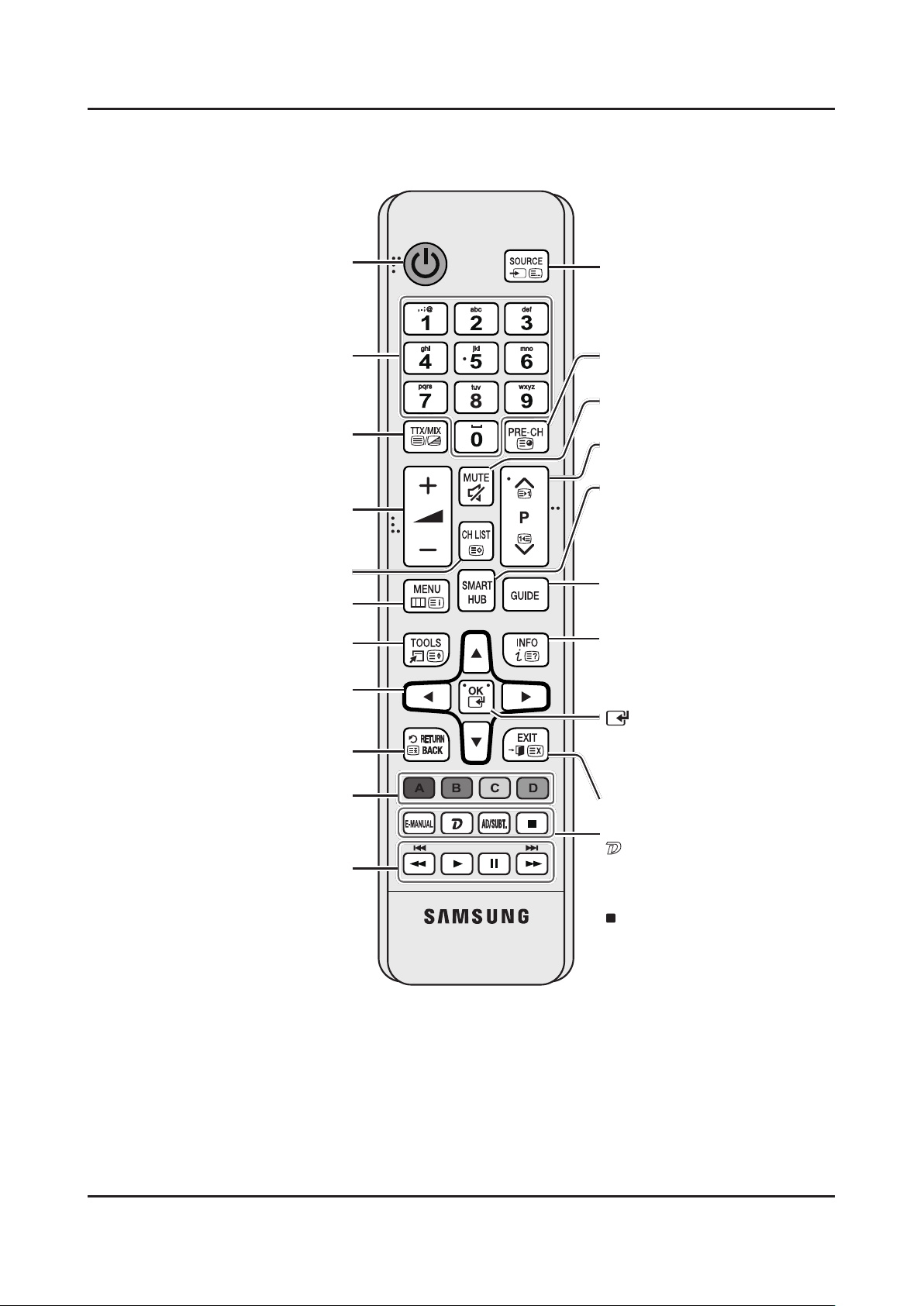

2-4. Viewing the Functions .......................................................................................................2-16
2-5. NEW Key Features ............................................................................................................2-17
2-5-1. 15" New UI ..............................................................................................................2-17

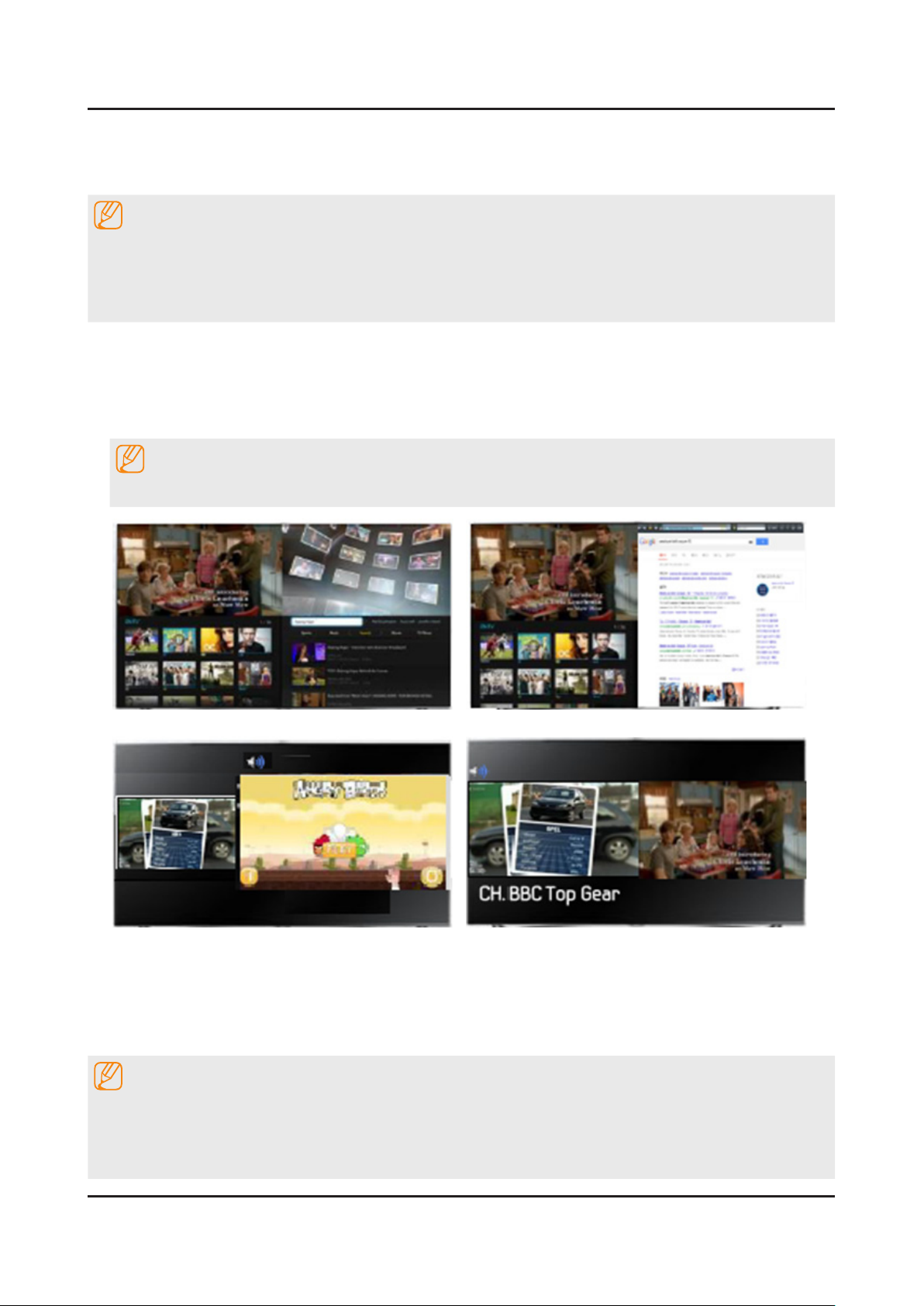

2-5-2. Multi Screen ............................................................................................................ 2-18

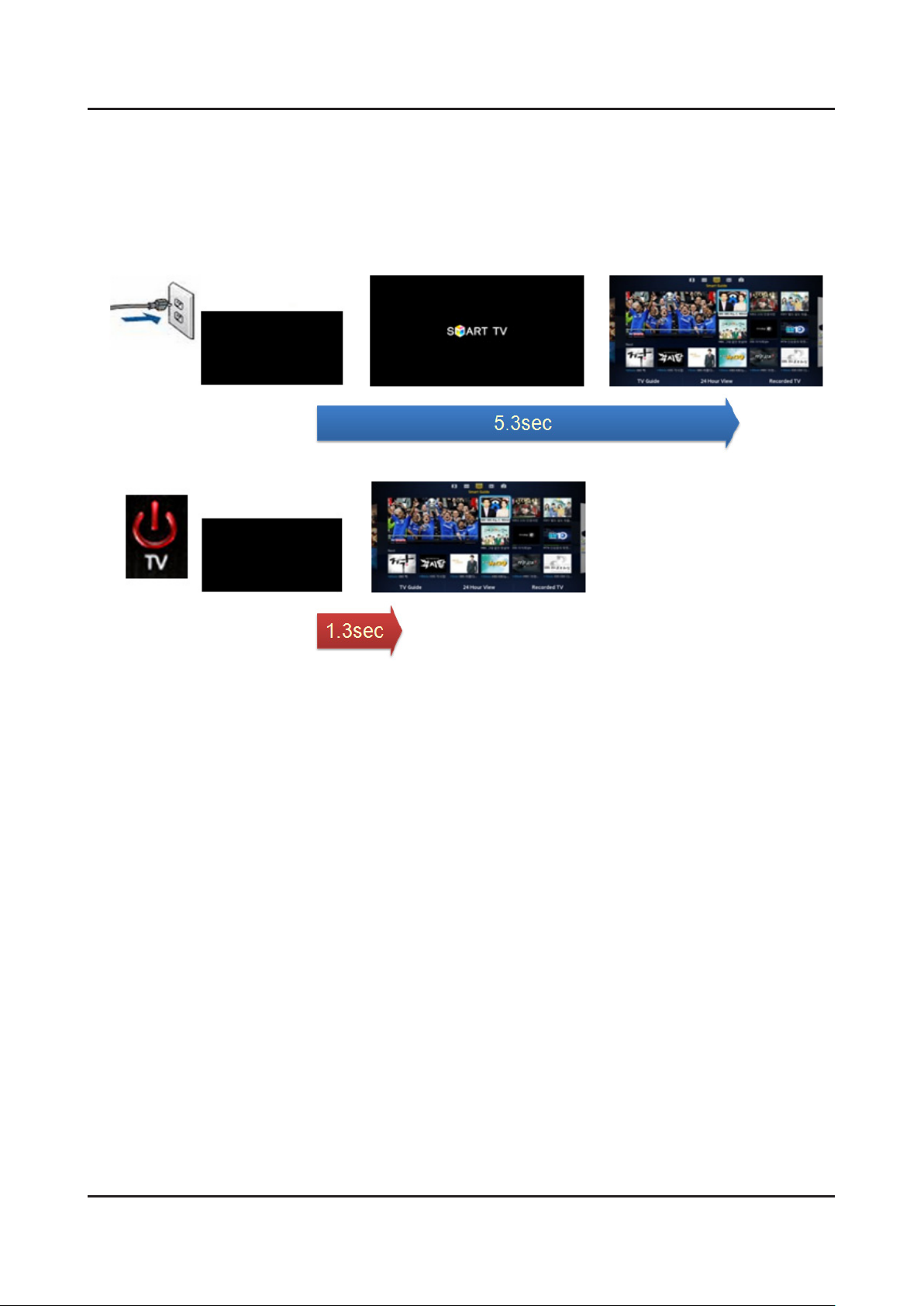

2-5-3. Instant On ...............................................................................................................2-19
2-6. HDMI 60P Mode ................................................................................................................2-20
2-7. Supported Formats ............................................................................................................2-21
3. Disassembly and Reassembly ....................................................................................3-1
3-1. Disassembly and Reassembly ............................................................................................3-1
3-1-1. TV Disassembly ........................................................................................................ 3-1
4. Troubleshooting ...........................................................................................................4-1
4-1. Troubleshooting ...................................................................................................................4-1
4-1-1. Previous Check ........................................................................................................4-1
4-2. How to Check Fault Symptom .............................................................................................4-2
4-2-1. Video .........................................................................................................................4-2
4-2-2. WIFI Module ............................................................................................................. 4-4
4-2-3. Apps / Photos, Videos & Music .................................................................................4-7
4-3. Factory Mode Adjustments ..................................................................................................4-8
4-3-1. Detail Factory Option ...............................................................................................4-8
4-3-2. Entering Factory Mode ............................................................................................. 4-9
4-3-3. Factory Data ...........................................................................................................4-10

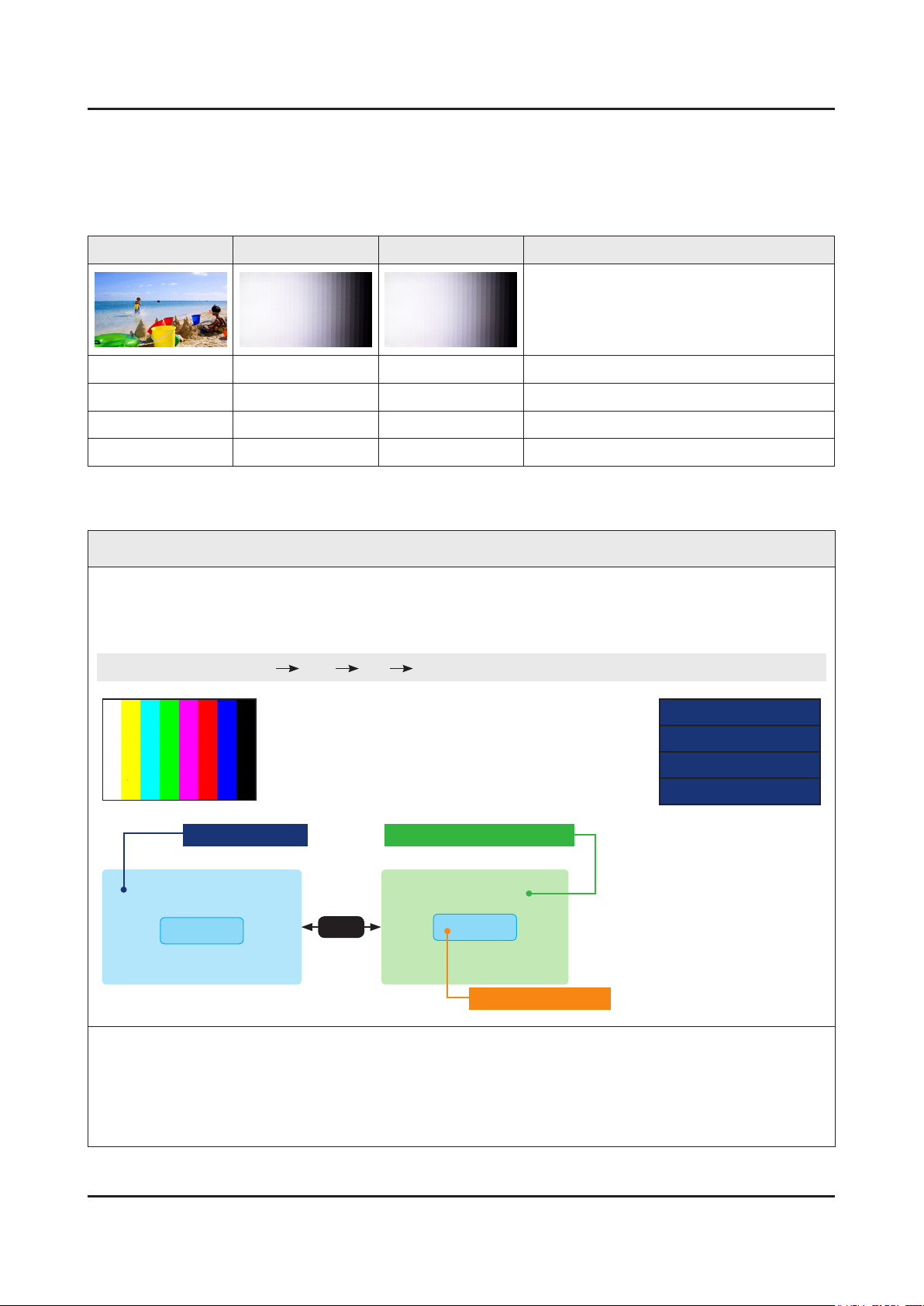

4-4. White Balance ...................................................................................................................4-18
4-4-1. Calibration ..............................................................................................................4-18
4-4-2. Service Adjustment ................................................................................................. 4-18
4-4-3. Adjustment .............................................................................................................. 4-20
4-5. RS-232C ............................................................................................................................4-21
4-6. AV Control Tabe ................................................................................................................. 4-22
4-7. Updating the TV’s Software ...............................................................................................4-28
Page 3
5. Wiring Diagram .............................................................................................................5-1

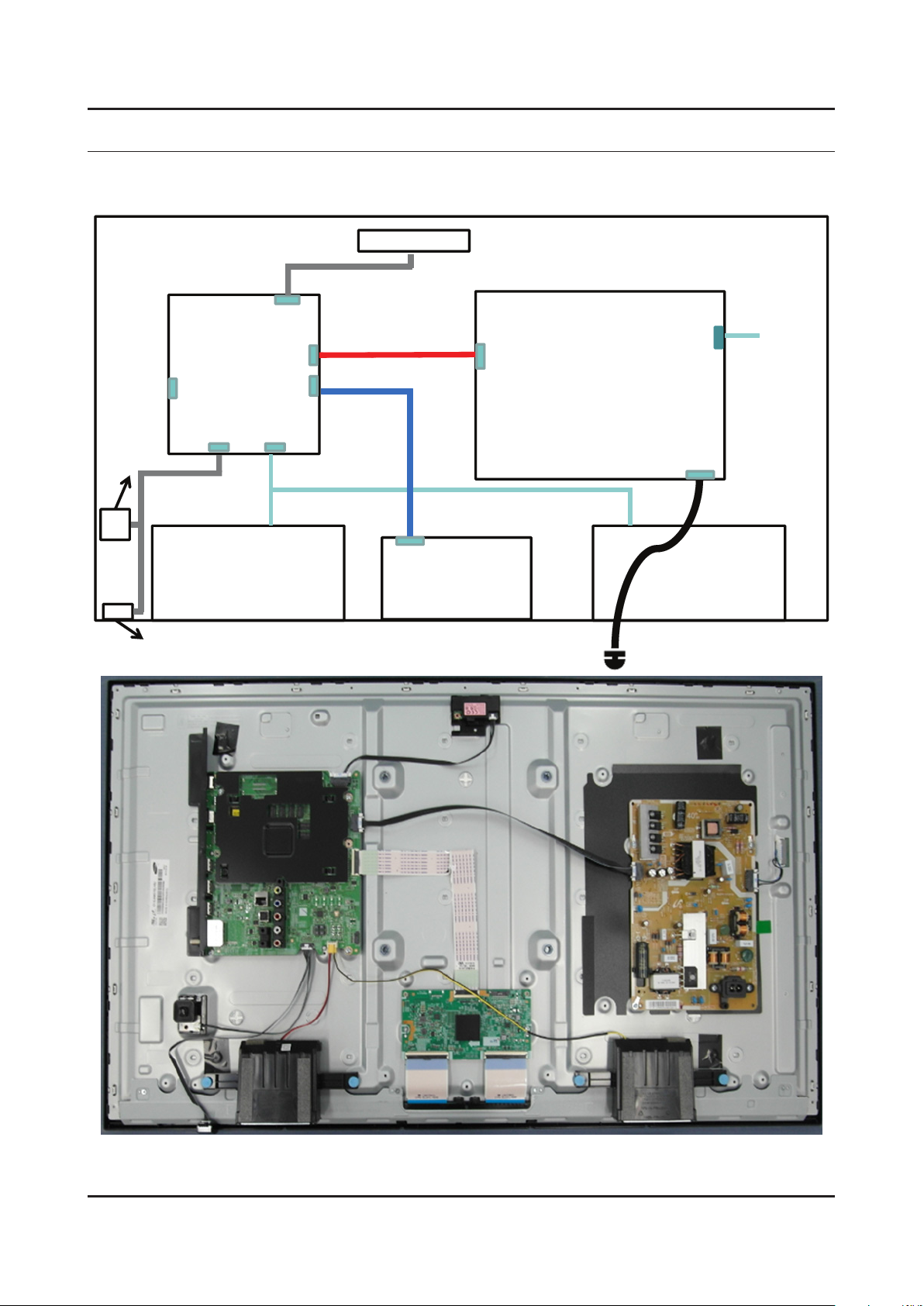

5-1. Wiring Diagram ....................................................................................................................5-1

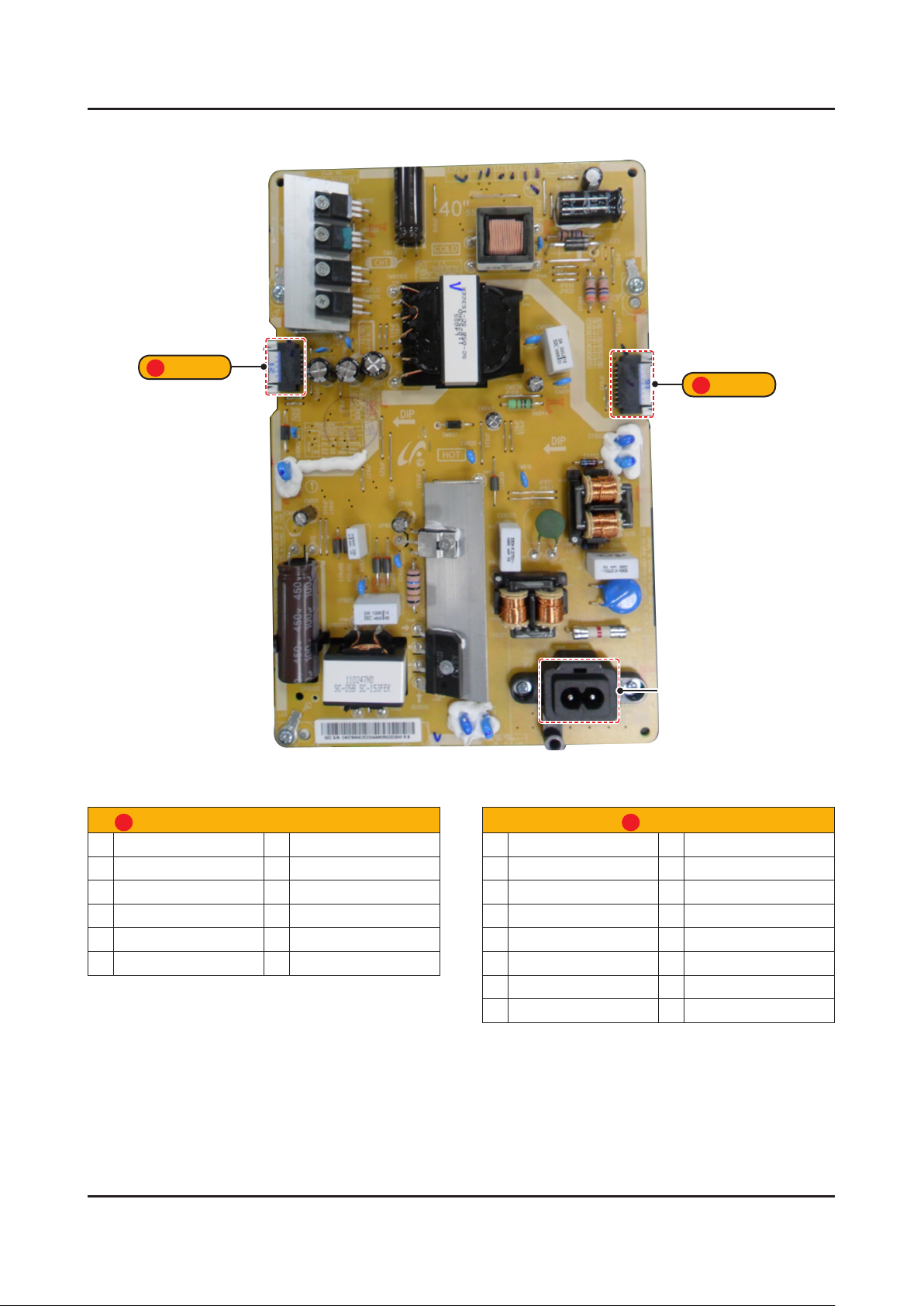

5-2. Connector ............................................................................................................................5-2
ANNEX. Exploded View & Part List [UE40JU6000KXZF TH01] ......................... ANNEX-1
1-1. Exploded View .......................................................................................................... ANNEX-1
1-1-1. Parts List ........................................................................................................ ANNEX-2
2-1. Electrical Parts List ................................................................................................... ANNEX-3
ANNEX. Exploded View & Part List [UE48JU6000KXZF TD01] ......................... ANNEX-1
1-1. Exploded View .......................................................................................................... ANNEX-1
1-1-1. Parts List ........................................................................................................ ANNEX-2
2-1. Electrical Parts List ................................................................................................... ANNEX-3
ANNEX. Exploded View & Part List [UE55JU6000KXZF ED01] ......................... ANNEX-1
1-1. Exploded View .......................................................................................................... ANNEX-1
1-1-1. Parts List ........................................................................................................ ANNEX-2
2-1. Electrical Parts List ................................................................................................... ANNEX-3
Page 4
1. Precautions
1. Precautions
1-1. Safety Precautions
Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as
electrical shock.
1-1-1. Warnings
For continued safety, do not attempt to modify the circuit board.
WARNING
1-1-2. Servicing the LED TV
When servicing the LED TV, Disconnect the AC line cord from the AC outlet.1.
It is essential that service technicians have an accurate voltage meter available at all times. Check the calibration of this 2.
meter periodically.
1-1-3. Fire and Shock Hazard
Before returning the monitor to the user, perform the following safety checks:
Inspect each lead dress to make certain that the leads are not pinched or that hardware is not lodged between the 1.
chassis and other metal parts in the monitor.
Inspect all protective devices such as nonmetallic control knobs, insulating materials, cabinet backs, adjustment and 2.
compartment covers or shields, isolation resistorcapacitor networks, mechanical insulators, etc.

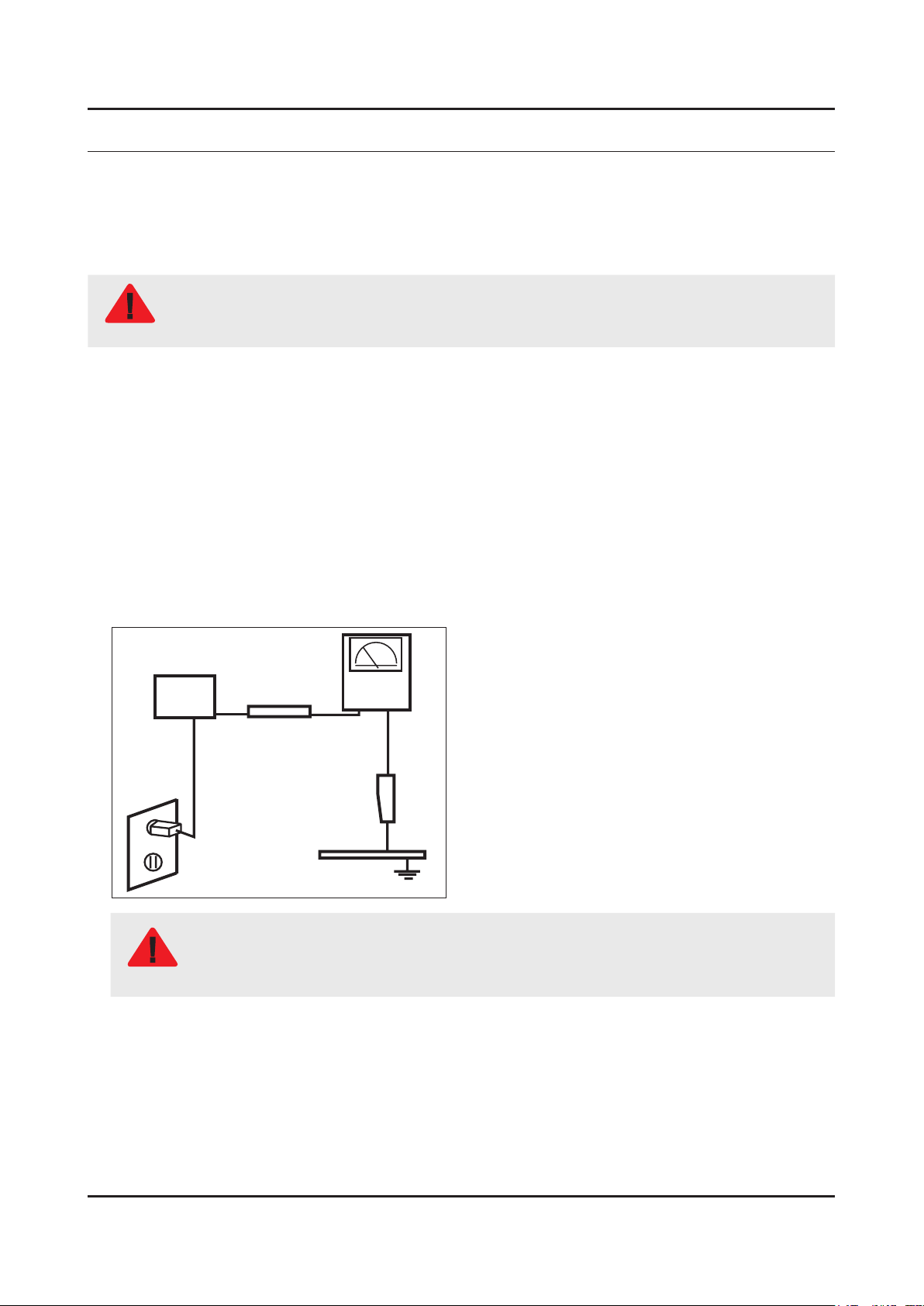

Leakage Current Hot Check:3.
Disconnect the AC power and DC power jack before servicing.
(READING SHOULD)
DEVICE
UNDER
TEST
ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)
NOT BE ABOVE 0.5mA
2-WIRE CORD
TEST ALL
EXPOSED METAL
SURFACES
LEAKAGE
CURRENT
TESTER
EARTH
GROUND
Do not use an isolation transformer during this test.
Use a leakage current tester or a metering system that complies with American National Standards
WARNING
Institute (ANSI C101.1, Leakage Current for Appliances), and Underwriters Laboratories (UL
Publication UL1410, 59.7).
With the unit completely reassembled, plug the AC line cord directly into a 120V AC outlet. With the unit’s AC switch rst 4.
in the ON position and then OFF, measure the current between a known earth ground (metal water pipe, conduit, etc.)
and all exposed metal parts, including: metal cabinets, screwheads and control shafts.
The current measured should not exceed 0.5 milliamp.
Reverse the power-plug prongs in the AC outlet and repeat the test.
1-1
Page 5
1-2
1. Precautions
1-1-4. Product Safety Notices
Some electrical and mechanical parts have special safetyrelated characteristics which are often not evident from visual
inspection. The protection they give may not be obtained by replacing them with components rated for higher voltage,
wattage, etc. Parts that have special safety characteristics are identied by on schematics and parts lists. A substitute
replacement that does not have the same safety characteristics as the recommended replacement part might create
shock, re and/or other hazards. Product safety is under review continuously and new instructions are issued whenever
appropriate.
Page 6
1-3
1. Precautions
1-2. Servicing Precautions
An electrolytic capacitor installed with the wrong polarity might explode.
WARNING
Before servicing units covered by this service manual, read and follow the Safety Precautions section of
CAUTION
NOTE
1-2-1. General Servicing Precautions
Always unplug the unit’s AC power cord from the AC power source and disconnect the DC Power Jack before 1.
attempting to: (a) remove or reinstall any component or assembly, (b) disconnect PCB plugs or connectors, (c) connect
a test component in parallel with an electrolytic capacitor.
Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes used. 2.
The internal wiring is sometimes clamped to prevent contact with thermally hot components. Reinstall all such elements
to their original position.
After servicing, always check that the screws, components and wiring have been correctly reinstalled. Make sure that 3.
the area around the serviced part has not been damaged.
Check the insulation between the blades of the AC plug and accessible conductive parts (examples: metal panels, input 4.
terminals and earphone jacks).
Insulation Checking Procedure: Disconnect the power cord from the AC source and turn the power switch ON. Connect 5.
an insulation resistance meter (500 V) to theblades of the AC plug. The insulation resistance between each blade of the
AC plug and accessible conductive parts (see above) should be greater than 1 megohm.
Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the positive lead; 6.
always remove the instrument’s ground lead last.
this manual.
If unforeseen circumstances create conict between the following servicing precautions and any of the
safety precautions, always follow the safety precautions.
Page 7
1-4
1. Precautions
1-3. Static Electricity Precautions
Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly
called Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some eld-effect
transistors. The following techniques will reduce the incidence of component damage caused by static electricity.
Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from your 1.
body by touching a known earth ground. Alternatively, wear a discharging wrist-strap device. To avoid a shock hazard,
be sure to remove the wrist strap before applying power to the monitor.
After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent 2.
accumulation of an electrostatic charge.
Do not use freon-propelled chemicals. These can generate electrical charges sufcient to damage ESDs.3.
Use only a grounded-tip soldering iron to solder or desolder ESDs.4.
Use only an anti-static solder removal device. Some solder removal devices not classied as “anti-static” can generate 5.
electrical charges sufcient to damage ESDs.
Do not remove a replacement ESD from its protective package until you are ready to install it. Most replacement ESDs 6.
are packaged with leads that are electrically shorted together by conductive foam, aluminum foil or other conductive
materials.
Immediately before removing the protective material from the leads of a replacement ESD, touch the protective material 7.
to the chassis or circuit assembly into which the device will be installed.
Be sure no power is applied to the chassis or circuit and observe all other safety precautions.
CAUTION
Minimize body motions when handling unpackaged replacement ESDs. Motions such as brushing clothes together, or 8.
lifting your foot from a carpeted oor can generate enough static electricity to damage an ESD.
Page 8
1-5
1. Precautions
1-4. Installation Precautions
For safety reasons, more than a people are required for carrying the product.1.
Keep the power cord away from any heat emitting devices, as a melted covering may cause re or electric shock.2.
Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal temperature 3.
may cause re.
Bend the external antenna cable when connecting it to the product. This is a measure to protect it from being exposed 4.
to moisture. Otherwise, it may cause a re or electric shock.
Make sure to turn the power off and unplug the power cord from the outlet before repositioning the product. Also check 5.
the antenna cable or the external connectors if they are fully unplugged. Damage to the cord may cause re or electric
shock.
Keep the antenna far away from any high-voltage cables and install it rmly. Contact with the highvoltage cable or the 6.
antenna falling over may cause re or electric shock.
When installing the product, leave enough space (0.4m) between the product and the wall for ventilation purposes. 7.
A rise in temperature within the product may cause re.
If an equipment is provided with a replaceable battery, and if replacement by an incorrect type could result in an 8.
explosion (for example, with some lithium batteries), the following applies:
Risk of explosion if battery is replaced by an incorrect type dispose of used batteries according to •
the instructions.
Do not dispose of batteries in a re.•
Do not short circuit, disassemble or overheat the batteries.•
CAUTION
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent •
type.
Do not be exposed to excessive heat such as sunshine, re or the like.•
Page 9
2. Product Specications

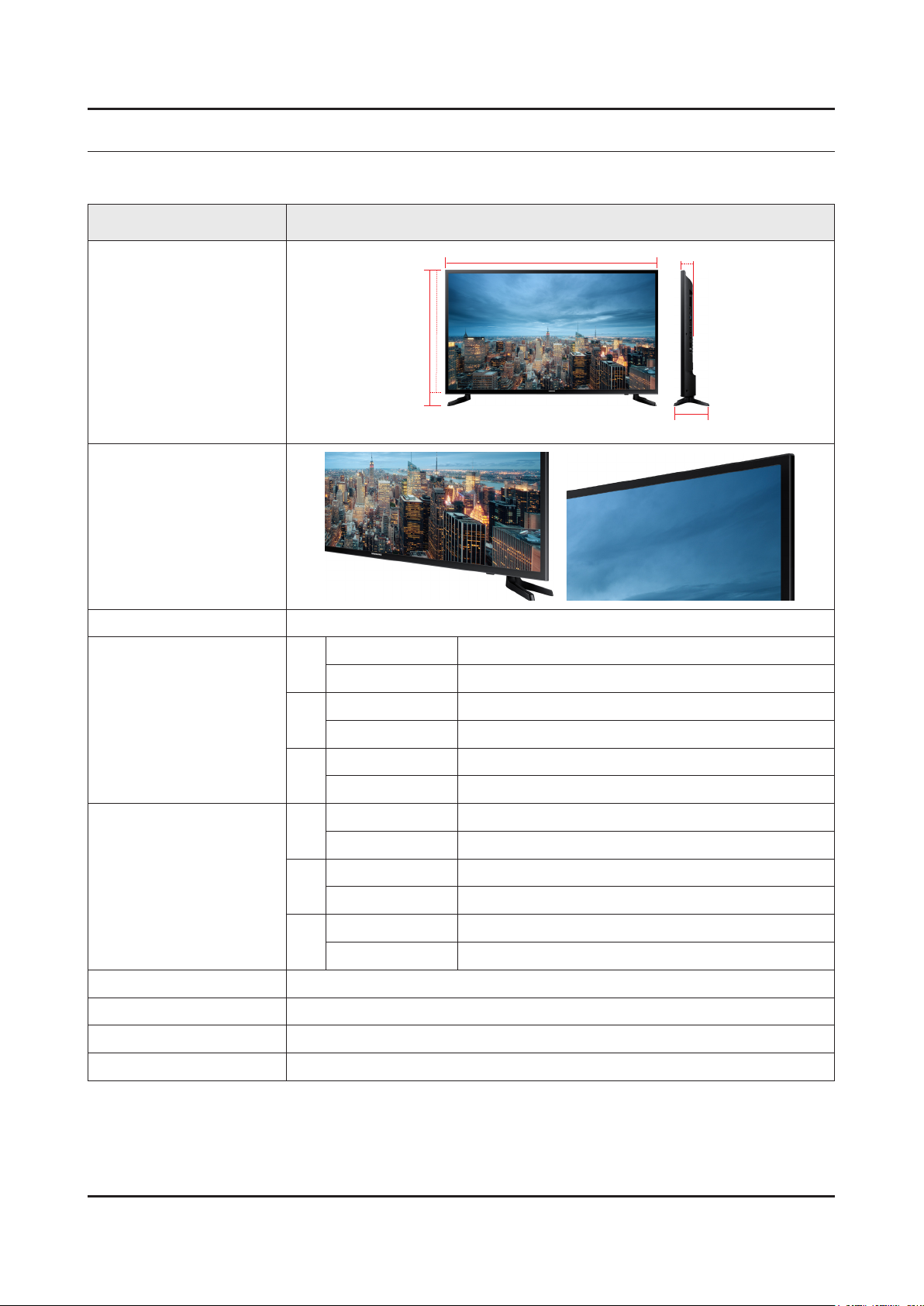

2-1. Product information
Model UE**JU6000K
2. Product specications
W
Front View
Detail View
Front Color Black
Dimensions
(W x H x D)
40"
48"
55"
With stand 931.2 X 596.1 X 201.4 mm
With stand 1087.1 X 700.5 X 277.8 mm
With stand 1242.6 X 787.5 X 277.8 mm
H
* W : Width H : High D : Depth
Body 917.7 X 535.7 X 62.6 mm
Body 1087.1 X 630.9 X 63.3 mm
Body 1242.6 X 718.5 X 63.2 mm
D
40"
Weight
Panel Type Ultra Clear
Internal Memory 4GB
DDR 2GB
Feature Media Play (Movie, Photo, Music)
48"
55"
Body 7.8 Kg
With stand 8.0 Kg
Body 11.0 Kg
With stand 11.3 Kg
Body 15.9 Kg
With stand 16.2 Kg
2-1
Page 10
2-2
2. Product specications
2-2. Product specication
2-2-1. Feature & Specications
Feature
UHD TV, RF, 3-HDMI, 1-COMPONENT, 1-A/B(COMMON USE FOR COMPONENTY), 1-USB2.0, 1-USB3.0, •
HEADPHONE
Specications
Model UE**JU6000K
Item Description
Screen Size (Diagonal) 40 inches 48 inches 55 inches
LCD Panel UHD 60 Hz
Scanning Frequency
Display Colors 16.7M color
Display Resolution 3840 X 2160
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock Rate 74.25MHz
AC Power Voltage & Frequency AC220-240V 50/60Hz
Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)
Sound (Output) 20 W (10 W X 2)
Note : Dolby Digital Plus/Pulse, USB2.0/3.0, Film mode, Energy Saving
Horizontal : 60 kHz ~ 73 kHz (Automatic)
Vertical : 47 Hz ~ 63 Hz (Automatic)
Operating Humidity : 10% ~ 80%, non-condensing
Storage Temperature : -4˚F ~ 113˚F (-20˚C ~ 45˚C)
Storage Humidity : 5% ~ 95%, non-condensing
Page 11
2-3
2. Product specications
2-2-2. Detailed Specications
NOTE
Design and specications are subject to change without prior notice.
Item UE40JU6000KXZF
General Information
Display
Video
Product UHD
Series 6
Country FRANCE
Inch 40"
Resolution 3,840 x 2,160
Ultra Clear Panel Ultra Clear
Picture Engine UHD Up-scaling
PQI (Picture Quality Index) 800
Dynamic Contrast Ratio Mega Contrast
Micro Dimming Micro Dimming Pro
Precision Black (Local Dimming) N/A
Nano Crystal Color N/A
Wide Color Enhancer (Plus) Yes
PurColor N/A
Auto Depth Enhancer N/A
Contrast Enhancer Yes
Auto Motion Plus N/A
Audio
Smart TV
Film Mode Yes
Natural Mode Support Yes
Peak Illuminator N/A
Dolby Digital Plus Yes
Virtual Surround DTS Studio Sound
DTS Codec DTS Premium Sound 5.1
3D Sound N/A
Sound Customizer N/A
Sound Output (RMS) 20W(L:10W, R:10W)
Speaker Type 2CH(Down Firing + Bass Reex)
Woofer N/A
HD Audio Yes
Wallmount Sound Mode Yes
Multiroom Link Yes
TV SoundConnect N/A
Samsung SMART TV Yes
Apps Yes
Page 12
2-4
2. Product specications
Item UE40JU6000KXZF
Smart TV
Smart Interaction
Convergence
Yes (GB,GG,IM,JE,IE,FR,DE,IT,ES,NL,B
Game
Multi-Link Screen N/A
ACR (Advertisement) N/A
Info Widget N/A
Vertical Enhancement N/A
Connected EPG N/A
Voice Interaction N/A
Voice Control N/A
Face recognition N/A
Motion control N/A
TV to Mobile - Mirroring Yes
Mobile to TV - Mirroring, DLNA Yes
RVU N/A
Samsung SMART View Yes
Wireless TV On - Samsung WOL N/A
Notication - BLE N/A
E,LU,SE,FI,AX,NO,DK,GL,FO,PL,CZ,SK
,HU,AT,CH,GR,RO,BG)
Tuner/Broadcasting
Connectivity
Brieng On TV N/A
WiDi N/A
WiFi Direct Yes
Digital Broadcasting DVB-T2/C
2 Tuner N/A
CI/CI+/2CI+ CI+ (1.3)
Analog Tuner Yes
MHP / MHEG / HbbTV / ACAP / GINGA / OHTV
HDMI 3
USB 2
Component In (Y/Pb/Pr) 1
Composite In (AV) 1 (Common Use for Component Y)
Ethernet (LAN) 1
Headphone 1
Audio Out (Mini Jack) N/A
Digital Audio Out (Optical) 1
RF In (Terrestrial / Cable input / Satellite input) 1/1(Common Use for Terrestrial)/0
HbbTV 1.5(FR) / HbbTV1.0(ES,PT,
DE,AT,SZ)
Ex-Link ( RS-232C ) N/A
IR Out N/A
CI Slot 1
Page 13
2-5
2. Product specications
Item UE40JU6000KXZF
Connectivity
Design
Additional Feature
Scart N/A
MHL Yes
HDMI 3D Auto Setting N/A
HDMI A / Return Ch. Support Yes
HDMI Quick Switch N/A
Wireless LAN Adapter Support N/A
Wireless LAN Built-in Yes
Anynet+ (HDMI-CEC) Yes
Design U6400 design (Deco Mold)
Bezel Type VNB
Slim Type Slim
Front Color Black
Light Effect (Deco) N/A
Stand Type Y-Feet
Swivel (Left/Right) N/A
Samsung 3D N/A
3D Converter N/A
Camera Built-in N/A
Instant On Yes
Processor Quad-Core
21:9 Immersive Picture Mode N/A
SCSA Support N/A
Accessibility
Digital Clean View Yes
One Connect (Jack) N/A
Auto Channel Search Yes
Auto Power Off Yes
BD Wise Plus Yes
Caption (Subtitle) Yes
Channel List USB-Clone Yes
Connect Share™ (HDD) Yes
ConnectShare™ (USB 2.0) Yes
Sports Mode Advanced
Embeded POP Yes
Voice guide(EU 17 countries)/ Enlarge/
High contrast
EPG Yes
Extended PVR Yes
Game Mode Yes
OSD Language 27 European Languages
Page 14
2-6
2. Product specications
Item UE40JU6000KXZF
Additional Feature
Eco Feature
Accessory
Picture-In-Picture Yes
BT HID Built-in N/A
USB HID Support Yes
Smart Evolution Support N/A
Teletext (TTXT) Yes
Time Shift Yes
Ultra Clean View Yes
Eco Mark N/A
Eco Label N/A
Eco Sensor Yes
Energy Efciency Class A
3D Active Glasses (Included) N/A
Remote Controller Model TM1240A
Batteries (for Remote Control) Yes
Samsung Smart Touch Control (Included) N/A
Ultra Slim Wall Mount Supported N/A
Mini Wall Mount Supported Yes
Vesa Wall Mount Supported Yes
Floor Stand Support Yes
TV Camera (Included) N/A
IR Extender Cable (Included) N/A
Wireless Keyboard (Included) N/A
Composite to Scart Gender (Included) N/A
User Manual Yes
E-Manual Yes
ANT-Cable N/A
Power Cable Yes
Slim Gender Cable N/A
Page 15
2-7
2. Product specications
Item UE48JU6000KXZF
General Information
Display
Video
Product UHD
Series 6
Country FRANCE
Inch 48"
Resolution 3,840 x 2,160
Ultra Clear Panel Ultra Clear
Picture Engine UHD Up-scaling
PQI (Picture Quality Index) 800
Dynamic Contrast Ratio Mega Contrast
Micro Dimming Micro Dimming Pro
Precision Black (Local Dimming) N/A
Nano Crystal Color N/A
Wide Color Enhancer (Plus) Yes
PurColor N/A
Auto Depth Enhancer N/A
Contrast Enhancer Yes
Auto Motion Plus N/A
Audio
Smart TV
Film Mode Yes
Natural Mode Support Yes
Peak Illuminator N/A
Dolby Digital Plus Yes
Virtual Surround DTS Studio Sound
DTS Codec DTS Premium Sound 5.1
3D Sound N/A
Sound Customizer N/A
Sound Output (RMS) 20W(L:10W, R:10W)
Speaker Type 2CH(Down Firing + Bass Reex)
Woofer N/A
HD Audio Yes
Wallmount Sound Mode Yes
Multiroom Link Yes
TV SoundConnect N/A
Samsung SMART TV Yes
Apps Yes
Yes (GB,GG,IM,JE,IE,FR,DE,IT,ES,NL,B
Game
Multi-Link Screen N/A
E,LU,SE,FI,AX,NO,DK,GL,FO,PL,CZ,SK
,HU,AT,CH,GR,RO,BG)
ACR (Advertisement) N/A
Page 16
2-8
2. Product specications
Item UE48JU6000KXZF
Smart TV
Smart Interaction
Convergence
Tuner/Broadcasting
Info Widget N/A
Vertical Enhancement N/A
Connected EPG N/A
Voice Interaction N/A
Voice Control N/A
Face recognition N/A
Motion control N/A
TV to Mobile - Mirroring Yes
Mobile to TV - Mirroring, DLNA Yes
RVU N/A
Samsung SMART View Yes
Wireless TV On - Samsung WOL N/A
Notication - BLE N/A
Brieng On TV N/A
WiDi N/A
WiFi Direct Yes
Digital Broadcasting DVB-T2/C
Connectivity
2 Tuner N/A
CI/CI+/2CI+ CI+ (1.3)
Analog Tuner Yes
MHP / MHEG / HbbTV / ACAP / GINGA / OHTV
HDMI 3
USB 2
Component In (Y/Pb/Pr) 1
Composite In (AV) 1 (Common Use for Component Y)
Ethernet (LAN) 1
Headphone 1
Audio Out (Mini Jack) N/A
Digital Audio Out (Optical) 1
RF In (Terrestrial / Cable input / Satellite input) 1/1(Common Use for Terrestrial)/0
Ex-Link ( RS-232C ) N/A
IR Out N/A
CI Slot 1
Scart N/A
HbbTV 1.5(FR) / HbbTV1.0(ES,PT,
DE,AT,SZ)
MHL Yes
HDMI 3D Auto Setting N/A
HDMI A / Return Ch. Support Yes
HDMI Quick Switch N/A
Page 17
2-9
2. Product specications
Item UE48JU6000KXZF
Connectivity
Design
Additional Feature
Wireless LAN Adapter Support N/A
Wireless LAN Built-in Yes
Anynet+ (HDMI-CEC) Yes
Design U6400 design (Deco Mold)
Bezel Type VNB
Slim Type Slim
Front Color Black
Light Effect (Deco) N/A
Stand Type Y-Feet
Swivel (Left/Right) N/A
Samsung 3D N/A
3D Converter N/A
Camera Built-in N/A
Instant On Yes
Processor Quad-Core
21:9 Immersive Picture Mode N/A
SCSA Support N/A
Accessibility
Digital Clean View Yes
Voice guide(EU 17 countries)/ Enlarge/
High contrast
One Connect (Jack) N/A
Auto Channel Search Yes
Auto Power Off Yes
BD Wise Plus Yes
Caption (Subtitle) Yes
Channel List USB-Clone Yes
Connect Share™ (HDD) Yes
ConnectShare™ (USB 2.0) Yes
Sports Mode Advanced
Embeded POP Yes
EPG Yes
Extended PVR Yes
Game Mode Yes
OSD Language 27 European Languages
Picture-In-Picture Yes
BT HID Built-in N/A
USB HID Support Yes
Smart Evolution Support N/A
Teletext (TTXT) Yes
Page 18
2-10
2. Product specications
Item UE48JU6000KXZF
Additional Feature
Eco Feature
Accessory
Time Shift Yes
Ultra Clean View Yes
Eco Mark N/A
Eco Label N/A
Eco Sensor Yes
Energy Efciency Class A+
3D Active Glasses (Included) N/A
Remote Controller Model TM1240A
Batteries (for Remote Control) Yes
Samsung Smart Touch Control (Included) N/A
Ultra Slim Wall Mount Supported N/A
Mini Wall Mount Supported Yes
Vesa Wall Mount Supported Yes
Floor Stand Support Yes
TV Camera (Included) N/A
IR Extender Cable (Included) N/A
Wireless Keyboard (Included) N/A
Composite to Scart Gender (Included) N/A
User Manual Yes
E-Manual Yes
ANT-Cable N/A
Power Cable Yes
Slim Gender Cable N/A
Page 19
2-11
2. Product specications
Item UE55JU6000KXZF
General Information
Display
Video
Product UHD
Series 6
Country FRANCE
Inch 55"
Resolution 3,840 x 2,160
Ultra Clear Panel Ultra Clear
Picture Engine UHD Up-scaling
PQI (Picture Quality Index) 800
Dynamic Contrast Ratio Mega Contrast
Micro Dimming Micro Dimming Pro
Precision Black (Local Dimming) N/A
Nano Crystal Color N/A
Wide Color Enhancer (Plus) Yes
PurColor N/A
Auto Depth Enhancer N/A
Contrast Enhancer Yes
Auto Motion Plus N/A
Audio
Smart TV
Film Mode Yes
Natural Mode Support Yes
Peak Illuminator N/A
Dolby Digital Plus Yes
Virtual Surround DTS Studio Sound
DTS Codec DTS Premium Sound 5.1
3D Sound N/A
Sound Customizer N/A
Sound Output (RMS) 20W(L:10W, R:10W)
Speaker Type 2CH(Down Firing + Bass Reex)
Woofer N/A
HD Audio Yes
Wallmount Sound Mode Yes
Multiroom Link Yes
TV SoundConnect N/A
Samsung SMART TV Yes
Apps Yes
Yes (GB,GG,IM,JE,IE,FR,DE,IT,ES,NL,B
Game
Multi-Link Screen N/A
E,LU,SE,FI,AX,NO,DK,GL,FO,PL,CZ,SK
,HU,AT,CH,GR,RO,BG)
ACR (Advertisement) N/A
Page 20
2-12
2. Product specications
Item UE55JU6000KXZF
Smart TV
Smart Interaction
Convergence
Tuner/Broadcasting
Info Widget N/A
Vertical Enhancement N/A
Connected EPG N/A
Voice Interaction N/A
Voice Control N/A
Face recognition N/A
Motion control N/A
TV to Mobile - Mirroring Yes
Mobile to TV - Mirroring, DLNA Yes
RVU N/A
Samsung SMART View Yes
Wireless TV On - Samsung WOL N/A
Notication - BLE N/A
Brieng On TV N/A
WiDi N/A
WiFi Direct Yes
Digital Broadcasting DVB-T2/C
Connectivity
2 Tuner N/A
CI/CI+/2CI+ CI+ (1.3)
Analog Tuner Yes
MHP / MHEG / HbbTV / ACAP / GINGA / OHTV
HDMI 3
USB 2
Component In (Y/Pb/Pr) 1
Composite In (AV) 1 (Common Use for Component Y)
Ethernet (LAN) 1
Headphone 1
Audio Out (Mini Jack) N/A
Digital Audio Out (Optical) 1
RF In (Terrestrial / Cable input / Satellite input) 1/1(Common Use for Terrestrial)/0
Ex-Link ( RS-232C ) N/A
IR Out N/A
CI Slot 1
Scart N/A
HbbTV 1.5(FR) / HbbTV1.0(ES,PT,
DE,AT,SZ)
MHL Yes
HDMI 3D Auto Setting N/A
HDMI A / Return Ch. Support Yes
HDMI Quick Switch N/A
Page 21
2-13
2. Product specications
Item UE55JU6000KXZF
Connectivity
Design
Additional Feature
Wireless LAN Adapter Support N/A
Wireless LAN Built-in Yes
Anynet+ (HDMI-CEC) Yes
Design U6400 design (Deco Mold)
Bezel Type VNB
Slim Type Slim
Front Color Black
Light Effect (Deco) N/A
Stand Type Y-Feet
Swivel (Left/Right) N/A
Samsung 3D N/A
3D Converter N/A
Camera Built-in N/A
Instant On Yes
Processor Quad-Core
21:9 Immersive Picture Mode N/A
SCSA Support N/A
Accessibility
Digital Clean View Yes
Voice guide(EU 17 countries)/ Enlarge/
High contrast
One Connect (Jack) N/A
Auto Channel Search Yes
Auto Power Off Yes
BD Wise Plus Yes
Caption (Subtitle) Yes
Channel List USB-Clone Yes
Connect Share™ (HDD) Yes
ConnectShare™ (USB 2.0) Yes
Sports Mode Advanced
Embeded POP Yes
EPG Yes
Extended PVR Yes
Game Mode Yes
OSD Language 27 European Languages
Picture-In-Picture Yes
BT HID Built-in N/A
USB HID Support Yes
Smart Evolution Support N/A
Teletext (TTXT) Yes
Page 22
2-14
2. Product specications
Item UE55JU6000KXZF
Additional Feature
Eco Feature
Accessory
Time Shift Yes
Ultra Clean View Yes
Eco Mark N/A
Eco Label N/A
Eco Sensor Yes
Energy Efciency Class A+
3D Active Glasses (Included) N/A
Remote Controller Model TM1240A
Batteries (for Remote Control) Yes
Samsung Smart Touch Control (Included) N/A
Ultra Slim Wall Mount Supported N/A
Mini Wall Mount Supported Yes
Vesa Wall Mount Supported Yes
Floor Stand Support Yes
TV Camera (Included) N/A
IR Extender Cable (Included) N/A
Wireless Keyboard (Included) N/A
Composite to Scart Gender (Included) N/A
User Manual Yes
E-Manual Yes
ANT-Cable N/A
Power Cable Yes
Slim Gender Cable N/A
Page 23
2-15
2. Product specications
2-3. Accessories
NOTE
The items’ colors and shapes may vary depending on the model.•
Cables not included in the package contents can be purchased separately.•
The part code for some accessories may differ depending on your region.•
Product Code. No Product Code. No
Remote Control• BN59-01199G Power Cord• 3903-000950
Batteries (AAA x 2)• 4301-000121 User Manual• BN68-07539C
Image Product Code. No
CI Card Adapter• 3709-001791
Page 24
2-16
2. Product specications
2-4. Viewing the Functions
The Remote Control
Turns the TV on/off.
Gives direct access to channels.
Alternately selects Teletext ON, Double,
Mix or OFF.
Adjusts the volume.
Launches the Channel List.
Displays the menu on the screen.
Quickly selects frequently used
functions.
Moves the focus, and changes the
values seen on the TV's menu.
Returns to the previous menu or
channel.
Use these buttons according to the
directions on the TV screen.
Use these buttons with specic
features. Use these buttons according
to the directions on the TV screen.
Displays and selects available
video sources.
Returns to the previous channel.
Turns the sound on/off.
Changes the current channel.
Launches Smart Hub
applications. Refer to the
e-Manual chapter, Smart
Features > Smart Hub.
Displays the Electronic
Programme Guide (EPG).
Displays information about the
current programme or content.
(Enter): Selects or runs a
focused item.
Press and hold to display the •
Guide.
Exits the menu.
E-MANUAL: Opens the e-Manual.
: Use this button when using
databroadcast service.
AD/SUBT.: Displays the
Accessibility Shortcuts.
: Stops playing content.
Page 25
2-17
2. Product specications

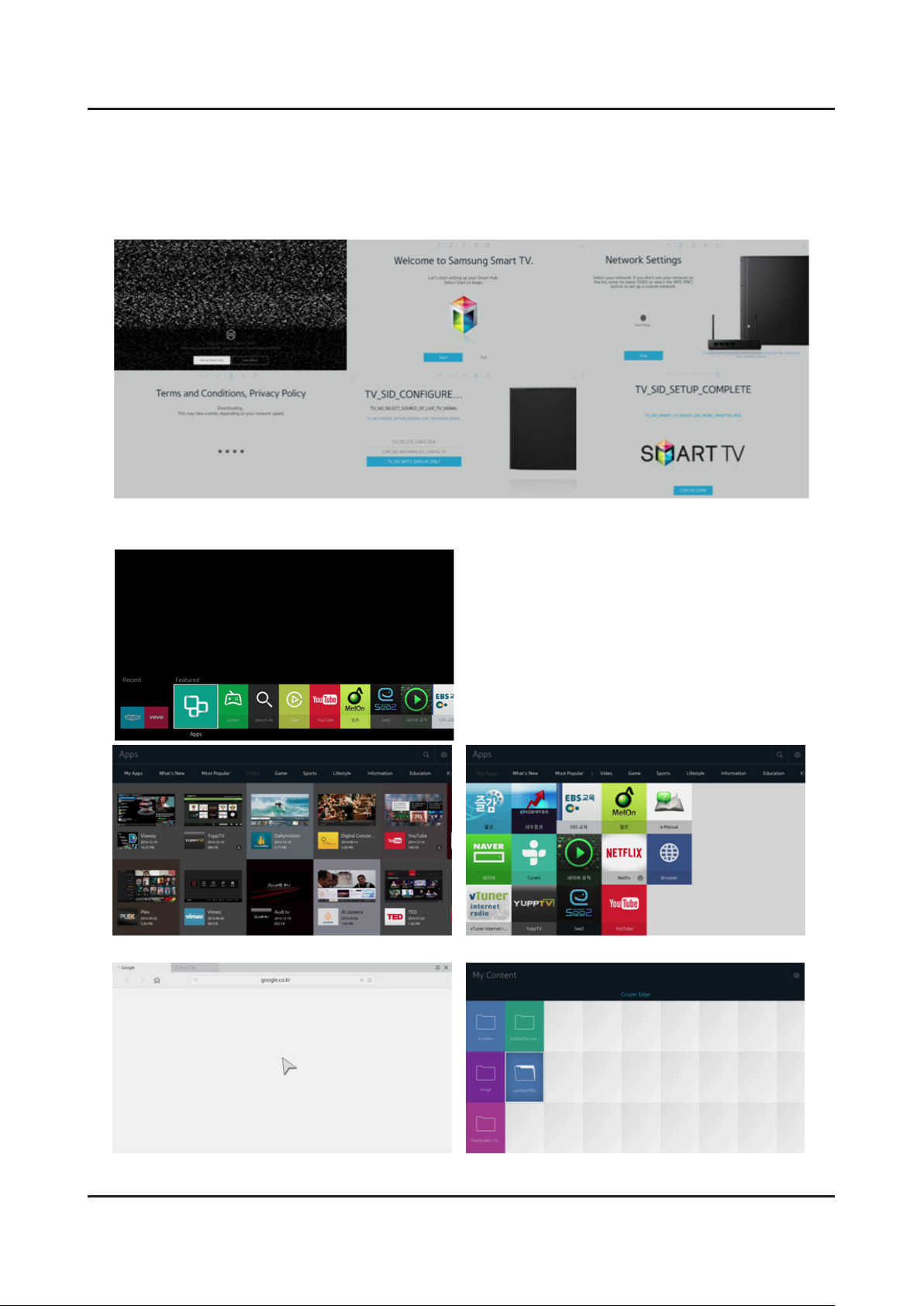

2-5. NEW Key Features
2-5-1. 15" New UI
SMART HUB START
After Smart HUB setup
<Videos contents> <My Apps>
<Web browser> <My contents>
Page 26
2-18
2. Product specications
2-5-2. Multi Screen
Using Multi-Link Screen
NOTE
UHD and FHD contents and channels cannot be viewed simultaneously.•
Launching Smart Hub while using Multi-Link Screen automatically terminates Multi-Link Screen.•
Certain TV features and apps may not be supported by Multi-Link Screen. If this is the case, exit from Multi-Link •
Screen and than use the feature.
Selecting a Feature
Press the Samsung Smart Control's M.SCREEN button while Multi-Link Screen is running. 1.
The Options menu appears.
Select a feature from the Options menu. This initializes the selected feature.2.
NOTE
Features supported by Multi-Link Screen very depending on the country.
<TV + Video clip> <TV + Web search>
<TV + App> <TV +TV (dual tuner only)>
Using Multiple Functions in a Single Screen(Multi-Link Screen)
Menu > Picture > Open Multi-Link Screen
This function may not be available depending on the country or region.
This allows you to search the Web, use apps, and much more simultaneously while watching TV.
NOTE
Before using Multi-Link Screen, make sure the TV is connected to the lnternet. Using Multi-Link Screen requires •
an lnternet connection.
Before using Smart Hub with Multi-Link Screen, go to the On TV Settings (• Smart Hub > On TV Settings > On TV
Setup) and nish conguring Smart Hub.
Page 27
2-19
2. Product specications
2-5-3. Instant On
Enabling the TV to Boot Faster
MENU > System > General > Samsung Instant On
Set Fast Boot on to have the TV boot up faster.

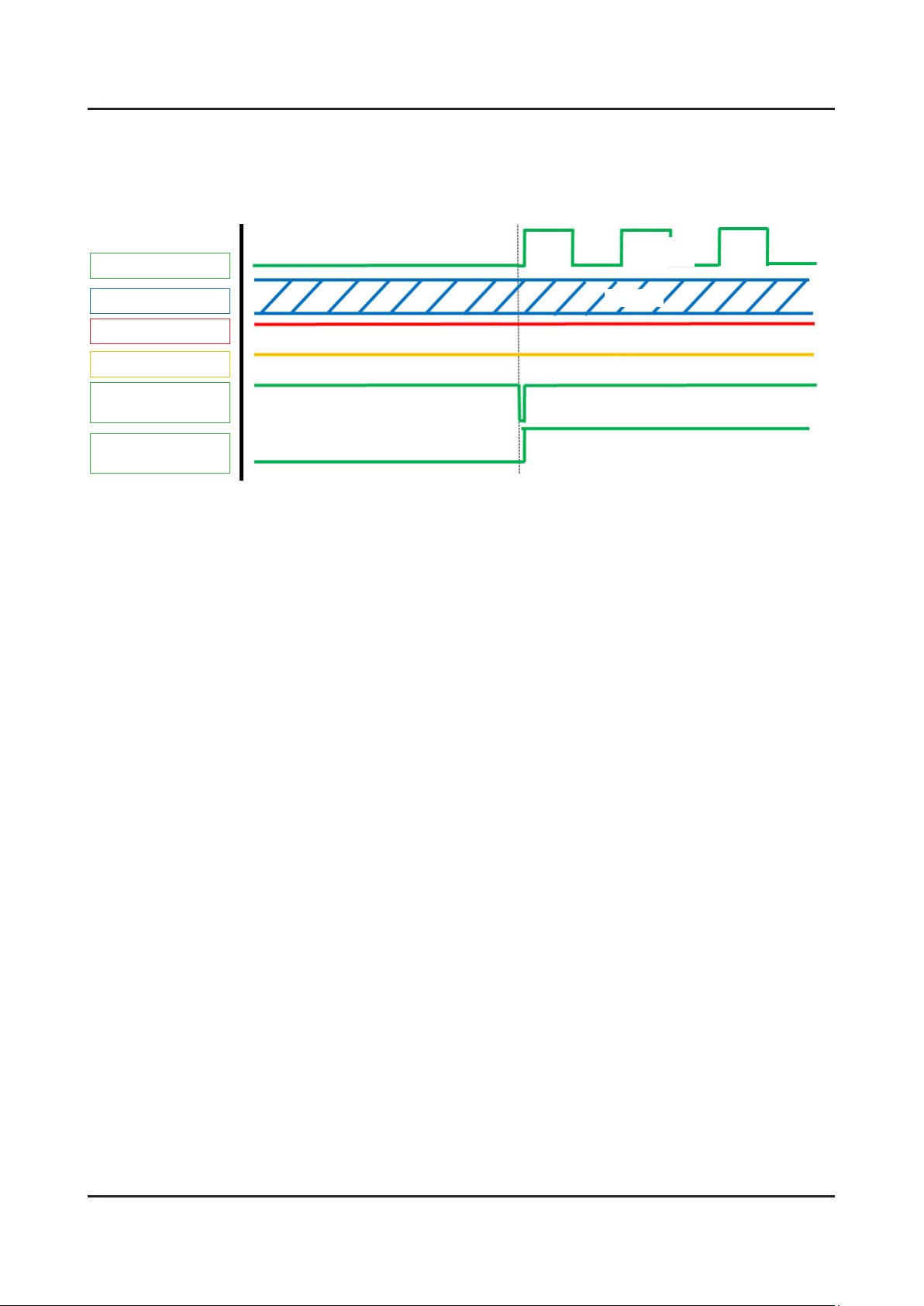

<Cold Boot>
Detachable power
<Instant On>
Remocon on
Page 28
2-20
2. Product specications
2-6. HDMI 60P Mode
HDMI UHD 60P MODE
If an external UHD player is connected to the TV, follow these steps to convert the TV's HDMI connector optimized to the
UHD signals.
NOTE
Each HDMI connector can be individually optimized for HDMI UHD 60P MODE.
Turn off the external UHD player that is connected to the TV.1.
Navigate to 2. Picture > Picture Options > HDMI UHD 60P MODE, and set the UHD-connected HDMI connector to On.
When done, turn on the external UHD player.3.
NOTE
After setting the HDMI connector to • On, It takes some time to complete the conversion.
HDMI UHD 60P MODE• is specic to a UHD source, and does not operate properly for any other source. If you
want to play a non-UHD source in HDMI UHD 60P MODE, set the converted HDMI connector to Off.
Page 29
2-21
2. Product specications
2-7. Supported Formats
Supported Image resolution
File Extension Type Resolution
*.png PNG 4096x4096
*.bmp BMP 4096x4096
*.mpo MPO 15360x8640
JPEG 15360x8640
Supported Music File Formats
File Extension Type Codec Comments
*.mp3 MPEG MPEG1 Audio Layer 3 -
*.m4a
*.mpa
*.aac
*.ac FLAC FLAC Supports up to two channels.
*.ogg OGG Vorbis Supports up to two channels.
*.wma WMA WMA
MPEG4 AAC -
WMA 10 Pro supports up to 5.1 channels.
WMA lossless audio is not supported.
Supports up to M2 prole.
*.wav wav wav -
*.mid
*.midi
*.ape ape ape -
Sound or video may not work if they have standard bit rates/frame rates above the TV’s compatibility.•
If the Index Table is wrong, the Seek (Jump) function does not work.•
When playing video over a network connection, the video may not play smoothly because of data•
Some USB/digital camera devices may not be compatible with the player.•
midi midi Type 0, type 1 and supported.
Page 30
2. Product specications
Supported Video Code
File
Formats
*.avi
*.mkv
*.asf
*.wmv
*.mp4
*.mov
*.3gp
*.vro
*.mpg
*.mpeg
*.ts
*.tp
*.trp
*.mov
*.v
*.vob
*.svi
*.m2ts
*.mts
*.divx
Container Video Codecs Resolution
H.264 BP/MP/HP
4096x2160
1920x1080
AVI
MKV
ASF
MP4
3GP
MOV
FLV
VRO
VOB
PS
TS
SVAF
Motion JPEG
HEVC(H.265)
DivX 3.11/4/5/6
MPEG4 SP/ASP
Microsoft MPEG-
4 v1 , v2 , v3
Window Media
Video v7(WMV1),
v8(WMV2)
Window Media
Video v9(VC1)
MPEG2
MPEG1
VP6
Frame rate
(fps)
UHD: MAX 30
FHD: MAX 30
HD : MAX 60
UHD: 60
FHD: 30
HD : 60
Bit rate
(Mbps)
60
30
Audio Codec
AC3
LPCM
ADPCM
(IMA, MS)
AAC
HE-AAC
WMA
Dolby Digital
Plus
MPEG(MP3)
DTS
(Core, LBR)
G.711(A-Law,
μ-Law
H.263 Sorrenson
MVC 60
*.webm WebM VP8 1920x1080 6~30 20 Vorbis
Other Restrictions
NOTE
Codecs may not function properly if there is a problem with the content data.•
Video content does not play or does not correctly if there is an error in the content or container.•
Sound or video may not work if they have standard bit rates/frame rates above the TV's compatibility.ratings•
If the Index Table is wrong, the Seek(Jump) function does not work.•
When playing video over a network connection, the video may not play smoothly because of datatransmission •
speeds.
Some USB/digital camera devices may not be compatible with the player.•
2-22
Page 31

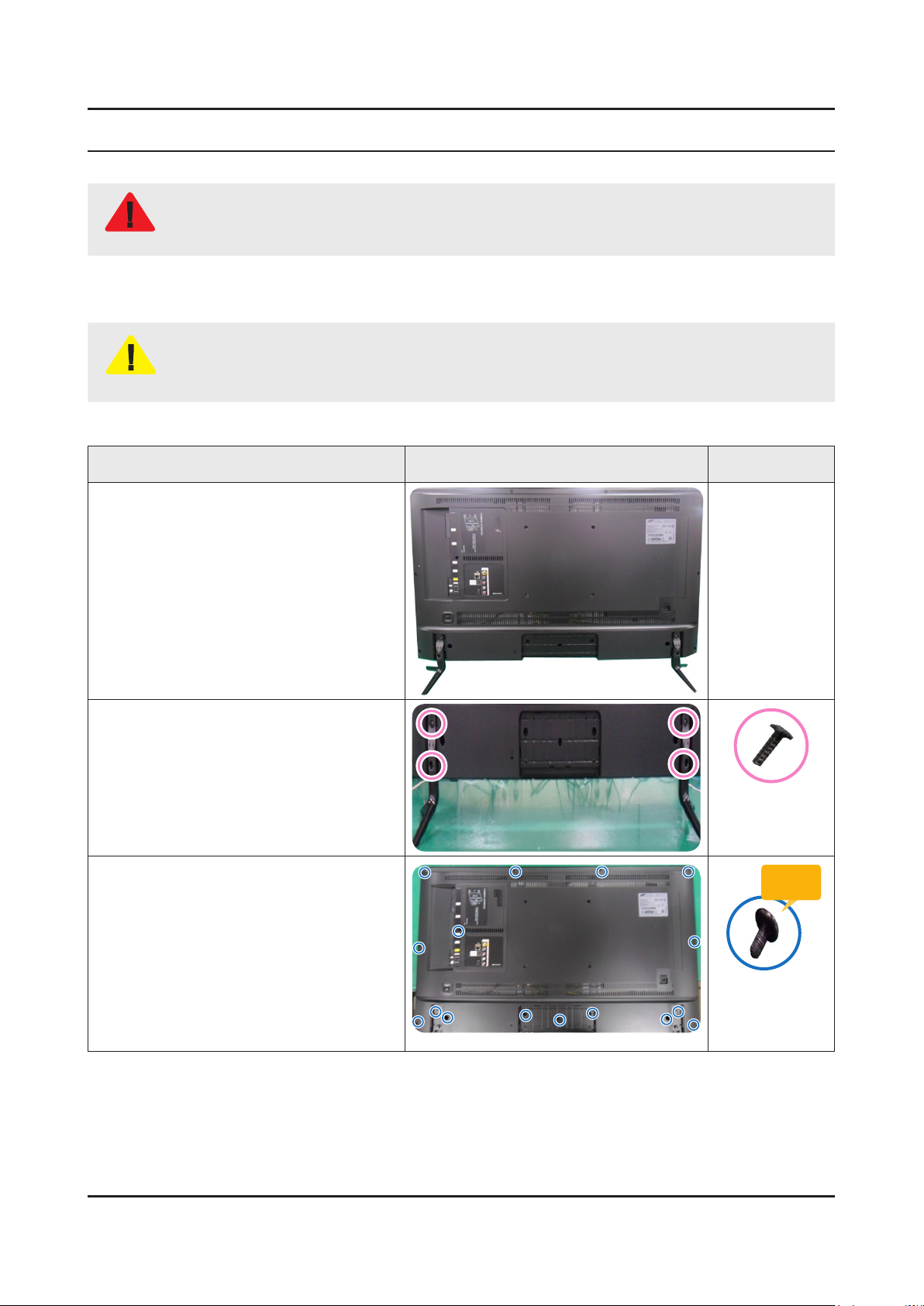

3. Disassembly and Reassemble
3. Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the LED TV.
This LED TV contains electrostatically sensitive devices. Use caution when handling these components.
WARNING
3-1. Disassembly and Reassembly
Disconnect the LED TV from the power source before disassembly.1.
Follow these directions carefully; never use metal instruments to pry apart the cabinet.2.
CAUTION
3-1-1. TV Disassembly
Place TV face down on cushioned table.
If there is no additional coment, it is same for all inches.3.
Description Picture Description Screws
1
Remove 4 screws from the ASSY
2
STAND P-BAS.
Remove the screws of ASSY COVER
3
P-REAR.
40" : 16 EA•
48" : 17 EA•
55" : 18 EA •
6003-001782
Torque :
7~ 8Kgf.cm.
6001-002755
3-1
Page 32
3-2
3. Disassembly and Reassemble
Description Picture Description Screws

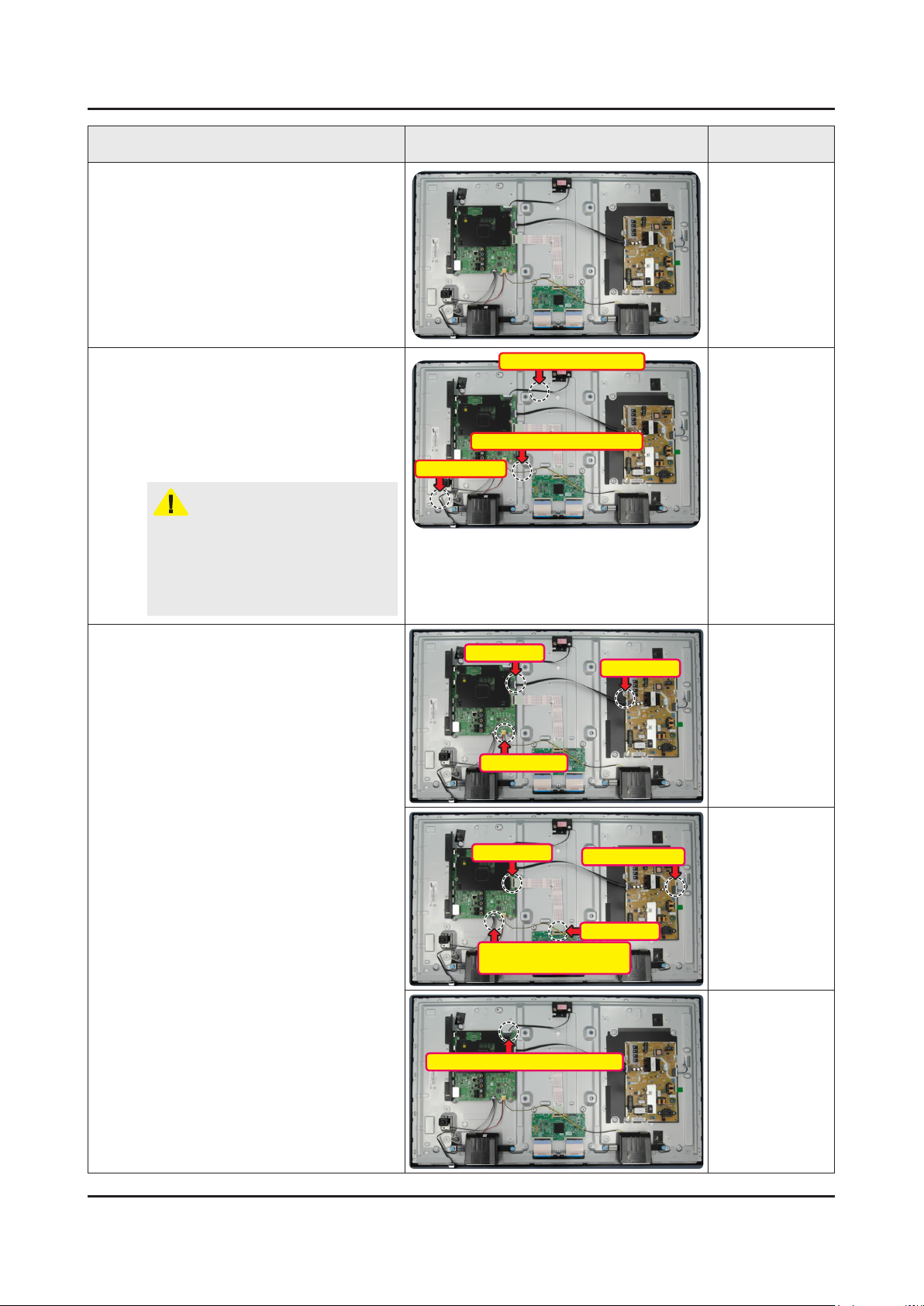

Remove the ASSY COVER P-REAR.
4
Remove the Electric tapes shown on the
5
image.
EMI Point• : After removing release
paper from the LVDS Cable bottom,
attach the LVDS Cable to the C/
Chassis and rub the attatched
surface.
CAUTION
When assembling the TV, the electric
tapes must be applied on the same
locations.
Please remember to take a picture of
wherethetapeswererstapplied.
Remove the Power Cables and Speaker
6
Cables.
Filament Tape: EMI Point
Filament Tape: Dressing Point
Cable Dressing
Power Cable
Power Cable
Speaker Cable
Remove the LVDS Cable, Panel Wire
Cable and ASSY BOARD P-FUNCTION
ASSY Cable.
Remove the NETWORK (WIFI COMBO)
Cable.
LVDS Cable
ASSY BOARD
P-FUNCTION ASSYCable
NETWORK (WIFI COMBO) Cable
Panel Wire Cable
LVDS Cable
Page 33
3-3
3. Disassembly and Reassemble
Description Picture Description Screws

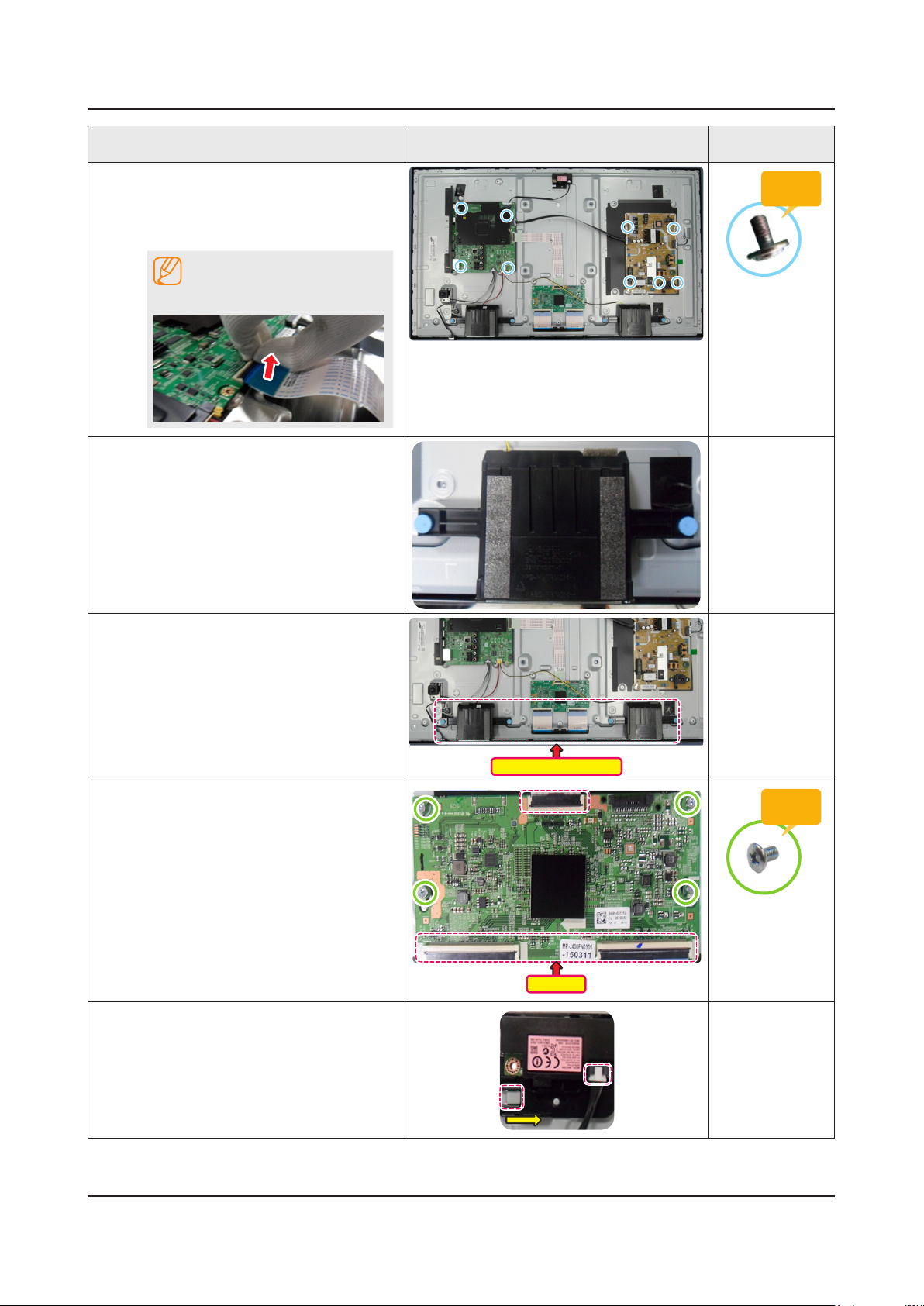

Remove the screws of ASSY PCB MAIN
7
and DC VSS-LED TV PD BD.
ASSY PCB MAIN : 4 EA•
DC VSS-LED TV PD BD : 5 EA •
NOTE
LVDS Cable
Remove the ASSY SPEAKER on both
8
side (L/R).
Torque :
7~ 8Kgf.cm.
6001-003016
9
10
11
Remove the ASSY SPEAKER (L/R).
Remove the cables and 4 screws from
the ASSY T CON.
Finally carefully remove the ASSY
T CON.
Remove the NETWORK (WIFI
COMBO).
Remove the NETWORK (WIFI •
COMBO) unit by moving it from left
to right.
ASSY SPEAKER (L/R)
Cables
Torque :
7~8Kgf.cm
6001-003075
Page 34
3. Disassembly and Reassemble
Description Picture Description Screws
12
13
14

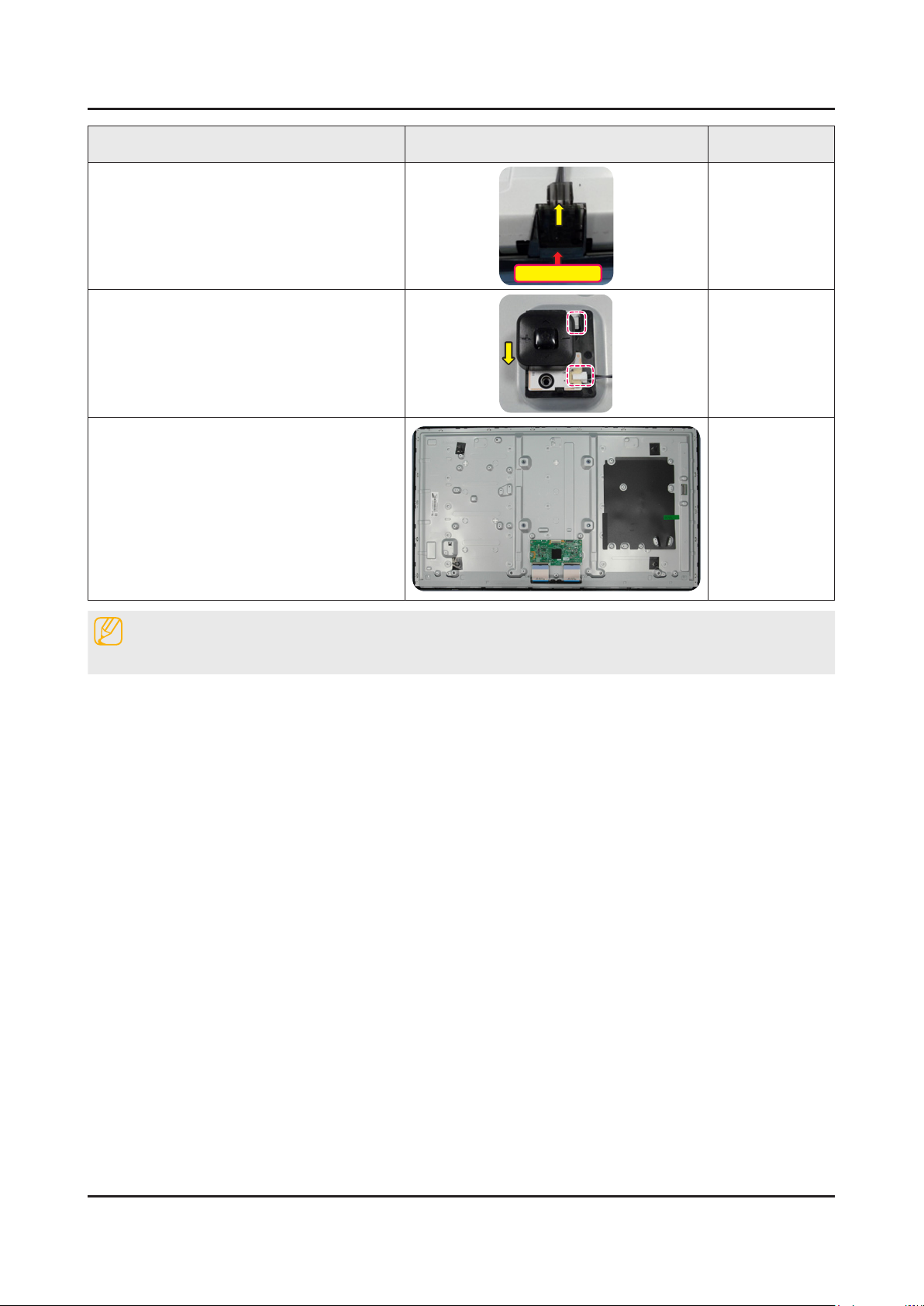

Remove the IR unit.
Remove the IR unit by moving it from •
up to down.
IR Assy
Remove the JOG unit.
Remove the JOG unit by moving it •
from bottom to top.
Completed disassembly.
Panel•
NOTE
Reassembly procedures are in the reverse order of disassembly procedures.
3-4
Page 35
4. Troubleshooting
4-1. Troubleshooting

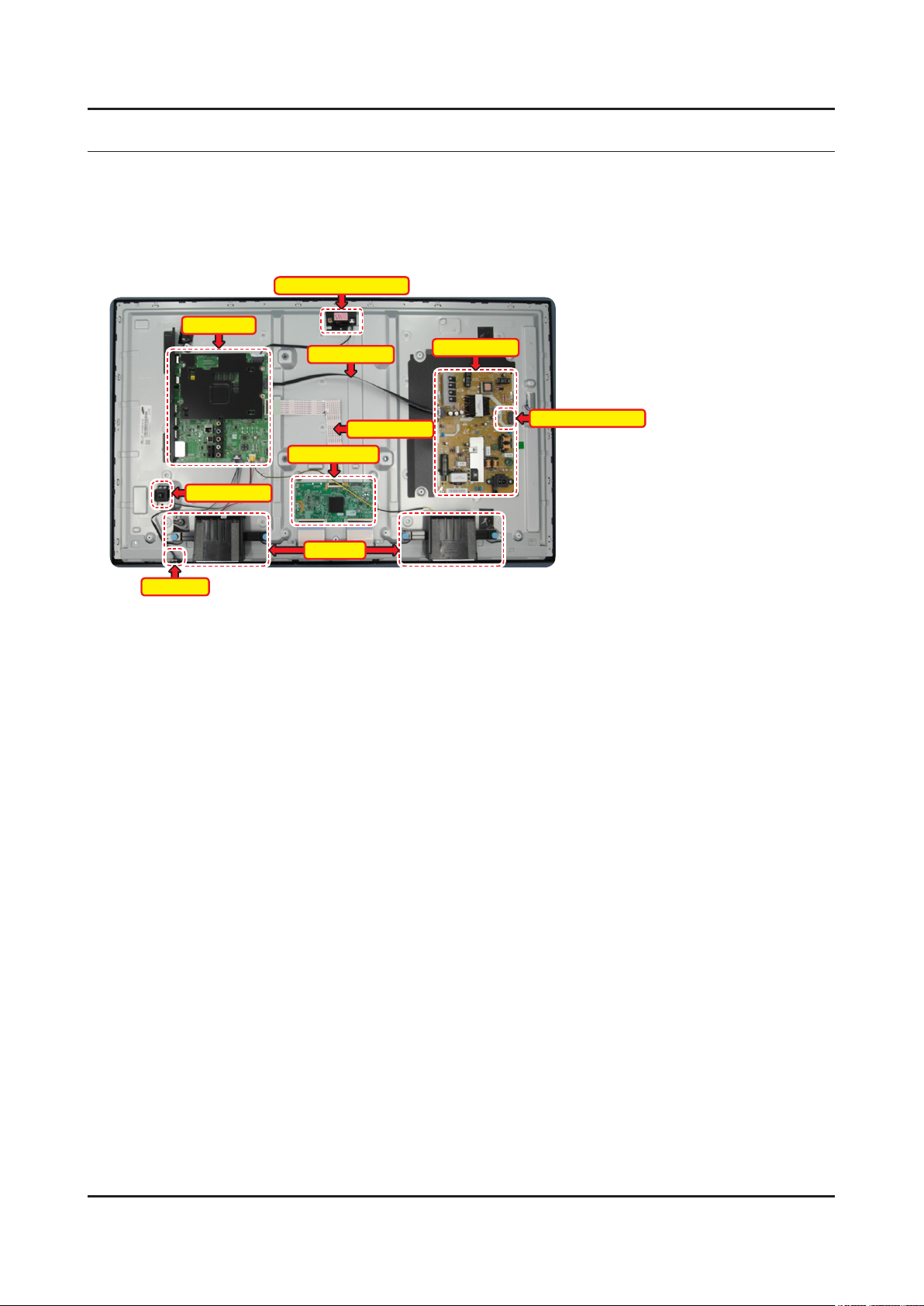

4-1-1. Previous Check
Check list for initial operation
WIFI Combo Module
Main Board
Power Cable
4. Troubleshooting
Power Board
Jog Function
IR Sensor
LVDS Cable
T-CON Board
Speaker
Panel Connectors
4-1
Page 36
4-2
4. Troubleshooting
4-2. How to Check Fault Symptom
4-2-1. Video
Customer Picture Test
Main Board Pre FRC Post FRC Problem
Pass Pass Pass Check Signal Source and other inputs
Fail Pass Pass Main Board or LVDS Cable
Fail Fail Pass T-Con or Board
Fail Fail Fail T-Con or Panel
MAIN / T-CON
Troubleshooting

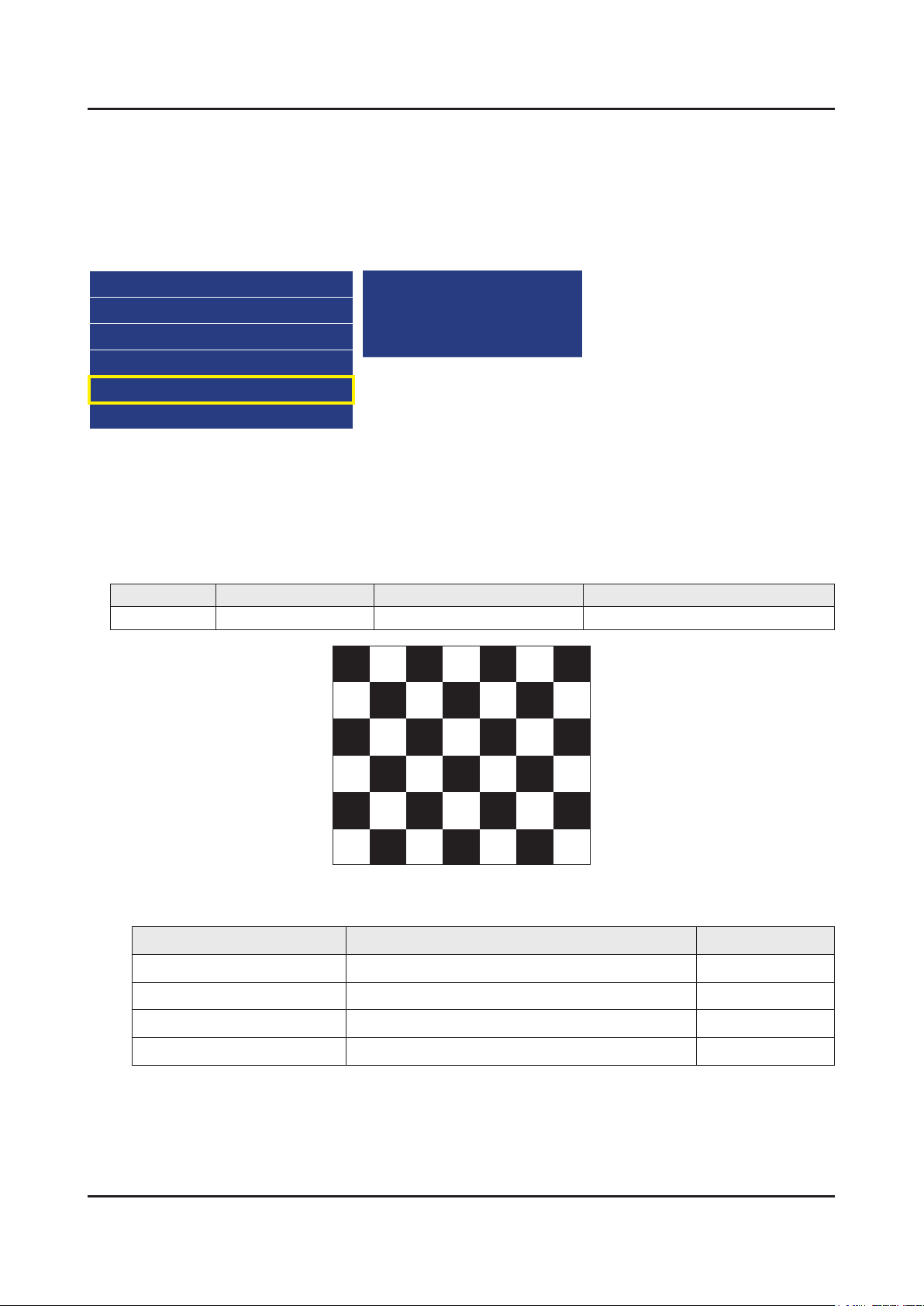

CHECK TEST PATTERNS
1 Verify "Pattern Sel".
2 Verify "US Post Pattern".
ENTER• : Factory mode SVC Info Test Pattern
1 Scaler Pattern
Main Board
HAWK-M
LVDS
4 SoC TCON Test Pattern
(Not available for UHD Models)
SOC TCON Test Pattern
SOC TCON Pattern Level
SOC TCON2 Test Pattern
SOC TCON2 Pattern Level
UFT BOARD
T-CON
2 US Post Pattern
Video Test
1 Power TV ON.
2 Verify initial Start Up Screens with Power On.
3 Press Mute 147 Mute to view Test Pattern from the MAIN Board.
4 Press Mute 369 Mute to view Test Pattern from T-CON Board.
Page 37
Troubleshooting
4-3
4. Troubleshooting

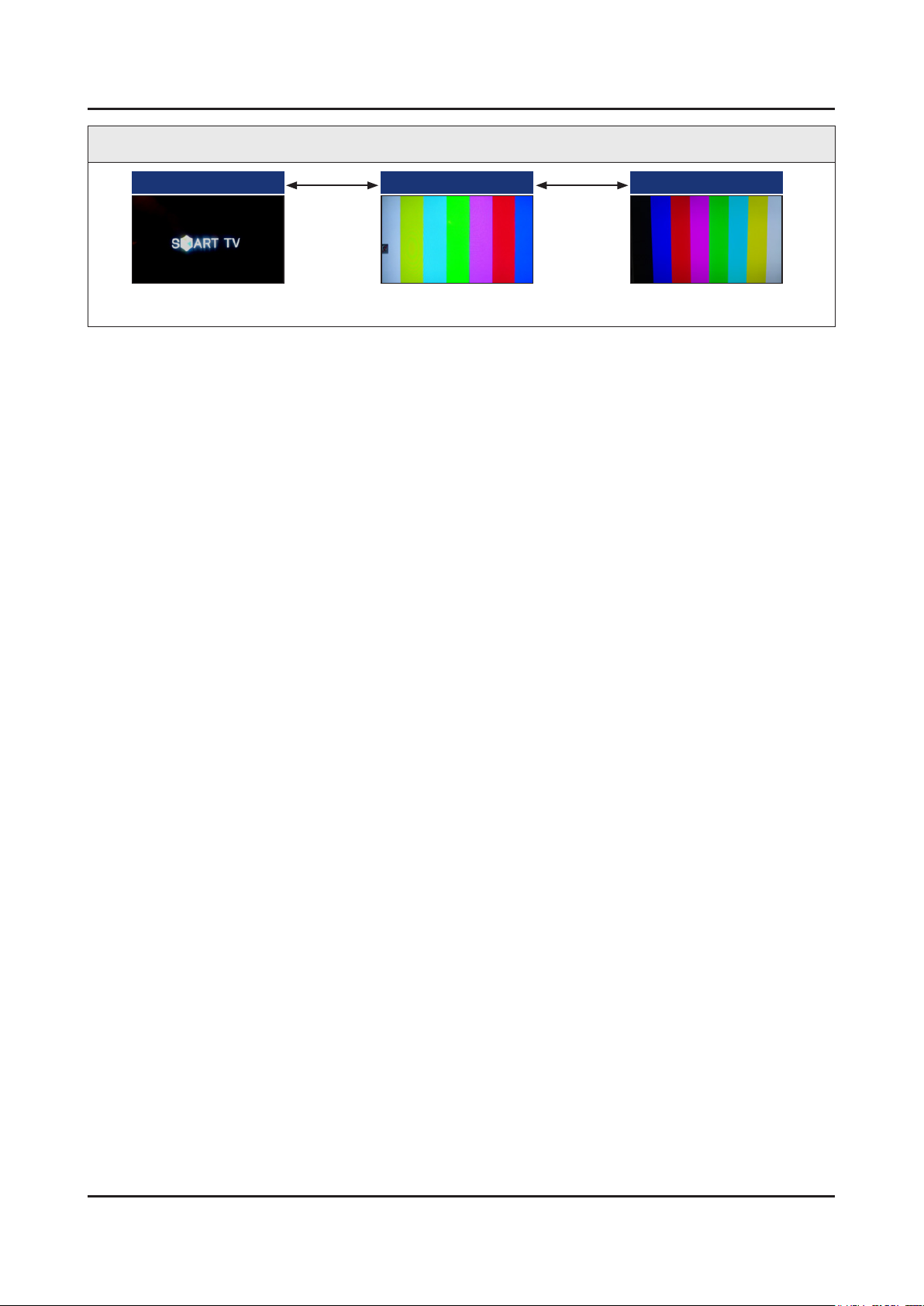

12 Start Up Screens 3 Mute 147 Mute 4 Mute 369 Mute
MAIN Board
T-CON Board
Page 38
4-4
4. Troubleshooting

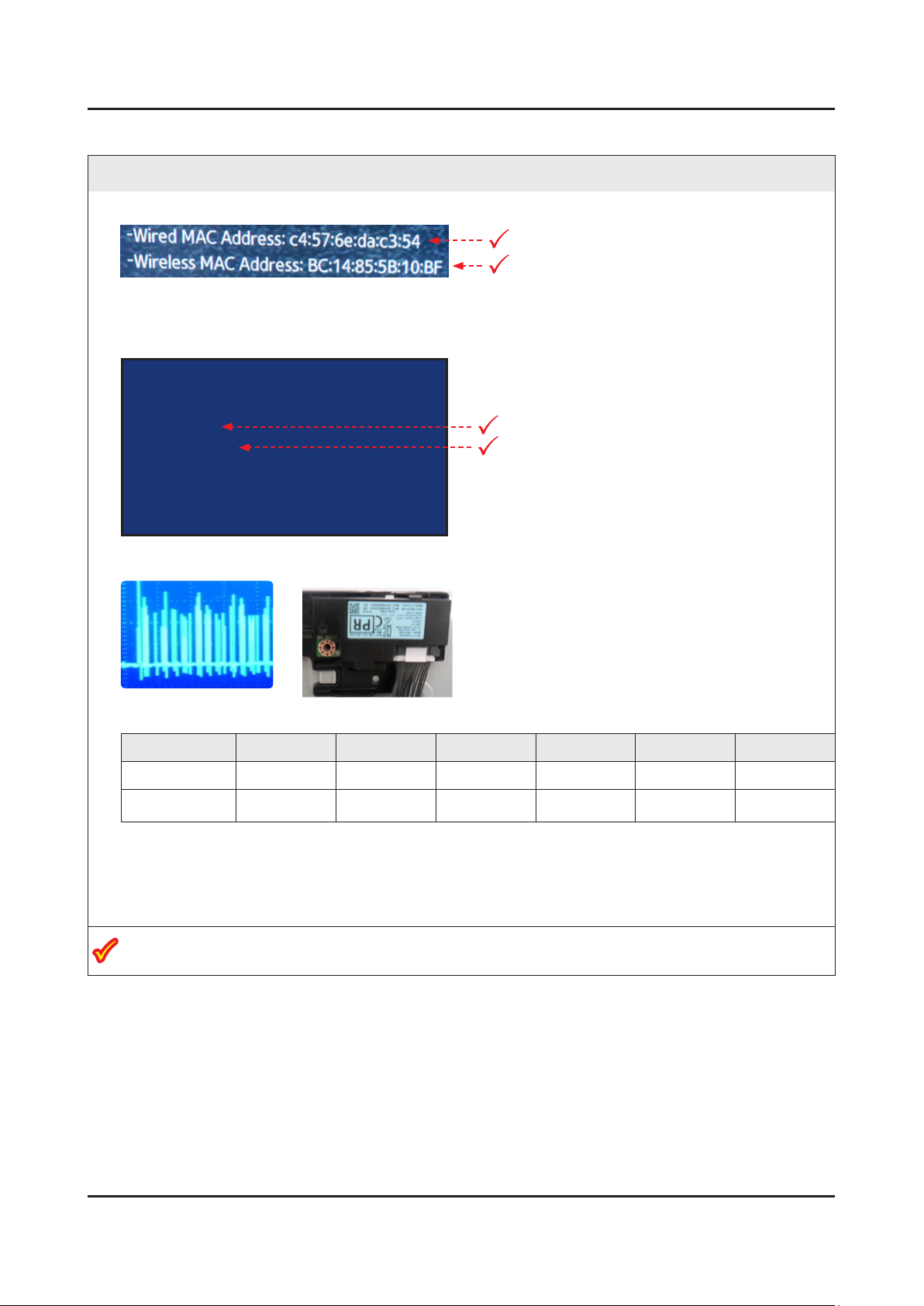

4-2-2. WIFI Module
Troubleshooting
1 Check Wired MAC Address and Wireless MAC Address at Contact Samsung.
Wired MAC Address
Wireless MAC Address
2 Check Wired MAC and Wireless MAC at Factory Mode screen. (Success/Failure)
Wired MAC errors : - Main Board is defective.
Wireless MAC errors : -
.
.
Model : UE**JU6000K
Wired MAC ----
Wireless MAC ----
WIFI Version : 0000
.
.
Wired (SUCCESS)
Wireless (SUCCESS)
3 Check the Wi-Fi Module Connector voltage.
Wi-Fi Signal
(500mv P-P)
Pins 1 2 3 4 5 6
Standby
Power ON
0 0 0 0 0.8 0
0
.04Vdc
Wi-Fi Sig.
.04Vdc
Wi-Fi Sig.
5.3Vdc 3.3Vdc 3.3Vdc
All Measurements in the Chart are DC Volts with Multi Meter.•
Voltage is normal, but Wi-Fi Sig. pins (DC Ref.) If you do not measure, Wi-Fi Module can possibly
defective.
Page 39

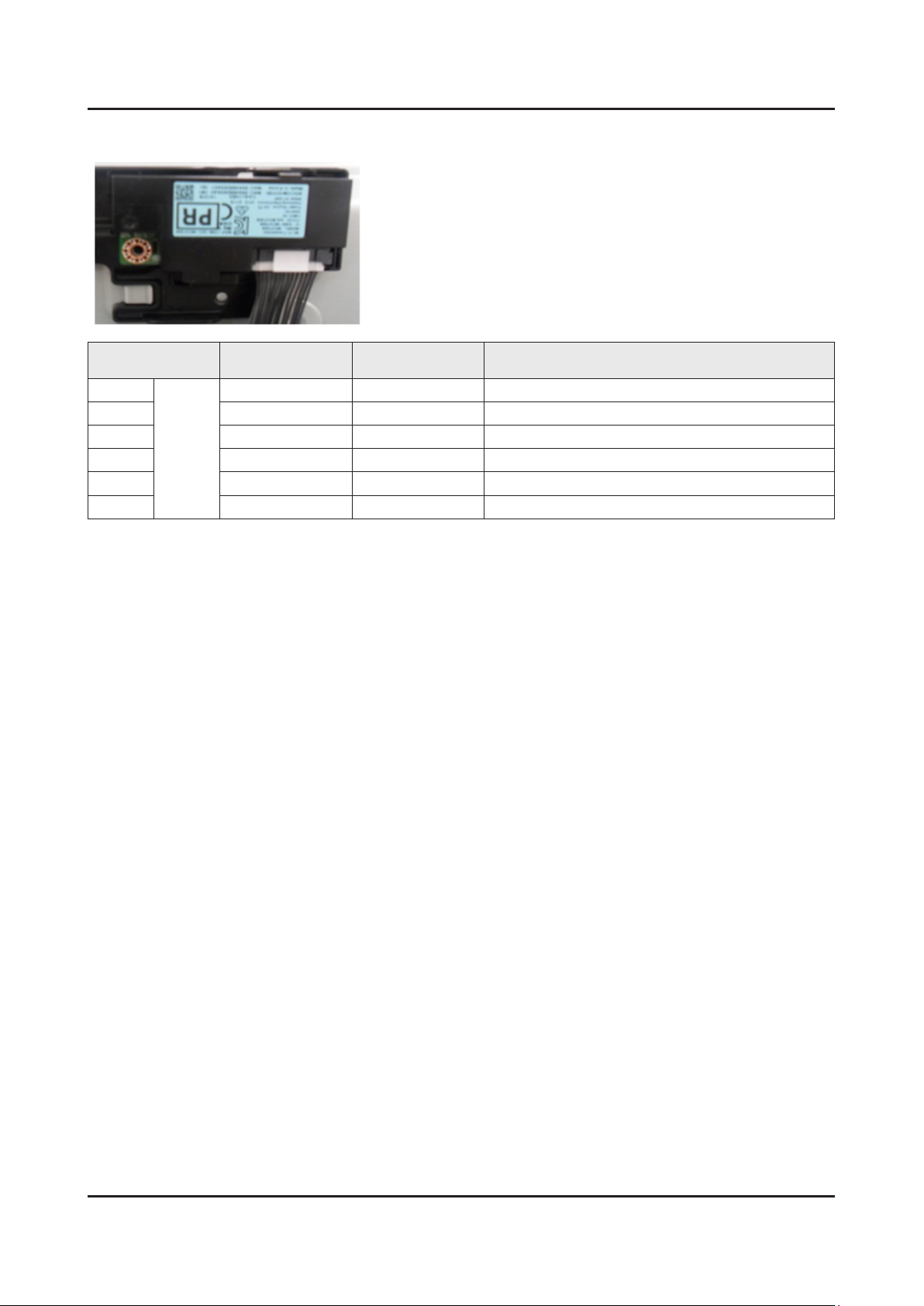

WIFI Combo Pin Map
4-5
4. Troubleshooting
Pin # Signal I/O Description
1
2 USB DP I/O WiFi USB interface
3 USB DM I/O WiFi USB interface
4 Vcc I 5V Power
5 Wake up I WiFi Wake up
6 Reset O WiFi Block Reset
Wi-Fi
GND GND Ground
Page 40
4-6
4. Troubleshooting
15’ WIFI Combo
Waveforms of combo Module Pins (3.3V except VCC 5V)•
3D sync in & out
Stand by On state
60HZ signal swing
(3D mode only)
Wi-Fi USB DP & DM
VCC (5V)
Wi-Fi wake up
Wi-Fi nReset
(WoW ON)
Wi-Fi nReset
(WoW OFF)
Don't care
High
High
Page 41
4-7
4. Troubleshooting
4-2-3. Apps / Photos, Videos & Music
Read Before Playing Photo, Video, or Music Files
Limitations on use of photo, video, and music les
The TV supports MSC (Mass Storage Class) USB devices only. MSC is a class designation for mass storage •
devices.TypesofMSCdevicesincludeexternalharddrives,ashcardreaders,anddigitalcameras.(USBhubsare
not supported.) These kinds of devices must be connected directly to the TV’s USB port. The TV may not be able to
recognizetheUSBdeviceorreadthelesonthedeviceifitisconnectedtotheTVviaaUSBextensioncable.Do
notdisconnecttheUSBdevicewhiletransferringles.PowertheTV"ON".
When connecting an external hard drive, use the USB (HDD) port. We recommend that you use an external hard •
drive with its own power adapter.
Certain digital cameras and audio devices may not be compatible with the TV.•
If there are multiple USB devices connected to the TV, the TV might not be able to recognize some or all the devices. •
USB devices that use high-power input should be connect to the USB [5V, 1A] port.
TheTVsupportstheFAT,exFAT,andNTFSlesystems.•
AftersortinglesintheFolderviewmode,theTVcandisplayupto1000lesperfolder.IftheUSBdevicecontains•
morethan8,000lesandfolders,however,somelesandfoldersmightnotbeaccessible.
The PTP (pier to pier) connection mode is available only for digital cameras. If you connect a smartphone or tablet to •
the TV using PTP mode, the TV will not recognize it.
Web Browser
Select Web Browser. The browsing screen may differ from the one on your computer.•
The web browser is not compatible with Java applications.•
Youcandownloadthesupportedtypesofles,suchasvideos,mp3les,andimages,butyoucannotdownloadles•
thatarenotsupportedbytheTV.Ifyouattempttodownloadanunsupportedle,youwillreceiveanerrormessage
instead.
The web browser may not be able to access certain websites.•
TheTVdoesnotsupportplaybackofashvideos.•
E-commerce for online purchases is not supported.•
With websites that have scrollable windows, scrolling a window can result in corrupted characters.•
ActiveX is not supported.•
Certain options are not accessible in Link Browsing mode. (Switch to Pointer Browsing to activate those options.)•
Only a limited number of fonts are supported. Certain symbols and characters may not be displayed properly.•
The response to remote commands and the resulting on-screen display may be delayed while a webpage is loading.•
Loading a webpage may be delayed or suspended completely with certain operating systems.•
The copy and paste operations are not supported.•
When composing an email or a simple message, certain functions such as the font size and color selection may not •
be available.
Thereisalimittothenumberofbookmarksandthesizeoftheloglethatcanbesaved.•
The number of windows that can be opened concurrently differs with the search conditions and the TV model.•
The web browsing speed will differ with the network environment.•
Embedded videos can play at the same time the PIP (picture-in-picture) function is operating.•
Thewebbrowsersupports.mp3audiolesonly.•
If the Clock (MENU > System > Time > Clock) has not been set, the browsing history will not be saved.•
Thebrowsinghistoryissavedfromlatesttooldest,withtheoldestentriesbeingoverwrittenrst.•
Dependingonthetypesofvideo/audiocodecssupported,itmightnotbepossibletoplaycertainvideoandaudioles•
while playing Flash content.
Video sources from PC-optimized streaming service providers may not play properly on our proprietary web browser.•
Using the on-screen QWERTY keyboard automatically disables PIP (except when you are entering a URL).•
Page 42
4-8
4. Troubleshooting
4-3. Factory Mode Adjustments
4-3-1. Detail Factory Option
NOTE
If you replace the main board with new one, please change the factory option as well.
The options you must change are "Type".
UE**JU6000KXZF
Inches 40" 48" 55"
Vendor SEC KOHS KOHS
PANEL
SMPS BOARD
MAIN BOARD
Byte Item
0 Factory Reset -
1 Type 40A6AU2VJ 48A6AU2VJ 55B6AU1VJ
2 Local set EU_FRANCE EU_FRANCE EU_FRANCE
3 SW Model UJU6000 UJU6000 UJU6000
4 BOM Model 6000 6000 6000
5 Tuner DVB-T2/C DVB-T2/C DVB-T2/C
6 Ch table NONE NONE NONE
Code BN95-02280A BN95-02281A BN95-02282A
Spec. CY-GJ040HGLV5V CY-GJ048HGLV4V CY-GJ055HGEV3V
Vendor HANSOE DYREL DYREL
Code BN96-35335A BN96-35336A BN96-35336A
Spec. L40S5_FHSV L55S5_FDYV L55S5_FDYV
Chassis Ass'y BN91-16628Z BN91-16628X BN91-16628W
PBA Ass'y BN94-09749P BN94-09749Q BN94-09749R
Page 43
4-3-2. Entering Factory Mode
4-9
4. Troubleshooting
To enter ‘Service Mode’ Press the remote -control keys in this sequence :
If you do not have Factory remote control•
Power OFF INFO MENU MUTE Power On
If you have Factory remote control•
INFO Factory
Some items are not available without a factory remote.•
Option
Control
Debug
SVC
ADC/WB
Advanced
T-HKM6AKUC-XXXX.XX
T-HKMAKUS-XXXX
rel-hawkall-atsc-rca-hawk-m-uhd_
XXXXXXXX.X
(Perf)
BT Version : Not Support
E-MANUAL : HMUATSCJ-X.XXX
CAMERA VERSION : ****
BLASTER VERSION : Not Support
E-POP Version : HAWKMUD-XXXX.X
EDID SUCCESS
HDCP SUCCESS
CALIB : AV/COMP/PC/HDMI/
OPTION : 40A6AU2VJ,EU_GER,6070,NONE
DTCP Not Support
TCON[SDC FU11A] EEPROM[3333]
Model : UE**JU6000K
Wired MAC ----
Wireless MAC ----
WIFI Version : 0000
Main SW Version
Sub Version (Main, Jak)
Bluetooth Version
E-Manual Version
FRC SW Version
TCON Version
Condition of Wired Mac
Condition of Wireless Mac
CO Nf/ W/ M/ D/ HX PO AO O SO N/ RO SC/
Six
Factory Data Ver : XXX / EERC Version : XXX
CPLD/LD : N/A
SmartControl : 0
Date of purchase : --/--/----
Page 44
4-10
4. Troubleshooting
4-3-3. Factory Data
Option
Factory Menu Name Data Range
Factory Reset
Type
Local Set
SW Model
BOM Model
TUNER
Ch Table
-
40A6AU2VJ
48A6AU2VJ
55B6AU1VJ
EU_FRANCE
UJU6000
6000
DVB-T2/C
NONE
MRT Option
Engineer Option
Control
Factory Menu Name Data Range
EDID
EDID ON/OFF Off
EDID WRITE ALL …
EDID WRITE HDMI …
EDID WRITE PC …
HDMI EDID Ver …
HDMI EDID Port …
Sub Option
RS-232 Jack Debug RS-232 mode setting
EXT Link Support ON
Serial Log On/Off OFF
Watchdog OFF
FRC Monitoring OFF
Checksum 0x0000
Fast Boot In Production OFF
Uart Enable ON
EEPROM RESET
ECO IC TYPE MC8121
Info Link Server Type development
Info Link Country None
TTX Group User OSD
Page 45
Factory Menu Name Data Range
4-11
4. Troubleshooting
Visual Test Disable
OPTION_SWU
RF Remocon Support OFF
CDD mode …
DPMS Support OFF
T-CON Device Status OK
RM
LMN 1ST THRESHOLD 80
LMN 2ND THRESHOLD 60
LMN 3RD THRESHOLD 40
EOS Click OFF
BP PMS Reset 1
FAnet Thread 2
User InstantOn Default Value ON
CI COLD Version 1
ACM_MC ON
HotkeyList 7K_SC
UNIQUE TRIPLET ON
FS_FAV OFF
Private Range USE ON
SCSA Support ON
OCM Reboot ON
SPI Protection
FKP Server Type Default
Hotel Option
Hospitality Mode OFF
Power On
Menu OSD
Operation
Music Mode
External Source
Eco Solution
Cloning
Shop Option
Exhibition Mode OFF
3D CUBE OFF
Peak Mode OFF
Page 46
4-12
4. Troubleshooting
Factory Menu Name Data Range
Metadata ON
Asia Option
Unbalance OFF
AF Level adjust 0
TX Power Level 0
Mono Last Memory OFF
H Shaking 0
SOUND
High Devi OFF
Carrier_Mute ON *If the broadcast signal is not good, TV will
Pilot Level High Thld 0x20h *If the noise comes from weakness-
Pilot Level Low THLD 0x10h
Carrier2 Amp High ThLD 9
Carrier2 Amp Low THLD 6
Amp Volume 0xc4h
Amp Scale 0x9ah * The High threshold value of stereo signal(If
Amp EQ Check Sum 0x010951E4 * The Low threshold value of stereo signal(If
Amp Local Check Sum 0x00000000
Subwoofer Support 0
Woofer Type 0
Woofer Volume 0xc6h
complement the characteristics of the signal
(most use when weak signal comes from the
growing area countries)
electromagneticeld,TVwillbesetMute
automatically (Only default on in North
America)
Pilot level is greather than High threshold
value, recognize Stereo signal)
Pilot level is less than Low threshold value,
recognize Mono signal)
Woofer Scale 0x56h
Woofer Check sum NONE
PEQ Inx 1
PEQ Test Ready
Amp Model NTP7415
Speaker EQ ON
Bottom CheckSum NONE
Wall Filter Type 0
SRS Tuning Parm 0
SPDIF PCM Gain -9
AudioDock BT Delay 90
Page 47
Factory Menu Name Data Range
4-13
4. Troubleshooting
3D_Glass BT delay 50
Mic Scale OFF
India Sound 0
Speaker Delay Normal 0
NTV CU Delay 0
Lipsync lnx 13
Lipsync CheckSum 0x644C
Lipsync USB Test Ready
Lipsync BT CheckSum 0x0000
TP VOLUME 0xc9h
TP Scale 0x64h
TP EQ CheckSum NONE
Debug
Factory Menu Name Data Range
Spread Spectrum
DDR Margin
BT_ON_OFF
RF Mute Time
ON
600ms
FRC
Tuner Margin
MPEG Margin
H.264 Margin
CAM Wait Time
TCON_TEMP READ
TEMP LAST
DCC VERSION
DCC CHK SEL
DCC CHECK LOCAL
DCC CHECK TOTAL
Voice Debug
3
20
15
0 Europeanspecications
0
6000
0xDA3C
0
0x0
0x0
OFF
Power Mnangement
Cert Option
RM_BIST_DTV
RM_BIST_ATV
RM_BIST_CABLE
SerDES Check
Waiting
0
0
0
Page 48
4-14
4. Troubleshooting
Factory Menu Name Data Range
EU_CIS
Stress Mode
Log Analyzer
Error Popup On/Off
Deadlock KILL
CES Mode ON/Off
CES Option
CES Convergence Option
TCON Demura Bypass
BT DUT
Reproduce Module
0
OFF
ON
OFF
OFF
NONE
OFF
OFF
OFF
OFF
ON
21_9
SVC
Factory Menu Name Data Range
Self Test(for HW)
Info
Upgrade
T-CON Usb Download NG * UpgradeT-CON eeprom
T-CON CheckSum 0x33 * virsion of T-CON eeprom
T-CON2 Usb Download Failure
T-CON2 CheckSum
PANEL EEPROM UPGRADE Failure
PANEL FLASH UPGRADE Failure
Logic Usb D/L …
SUBMICOM UPGRADE Ready * Upgrade Sub-Micom Program
SUBMICOM JP USB UPGRADE Ready
BT UPGRADE * Upgarde BT(There is upgrade program in
BT FREEPAIRING ON
Function Upgrade Failure
FRC3D FW UPGRADE
FRC3D LD UPGRADE
FRC2 3D FW UPGRADE
Main-Image)
Camera Upgade * Upgarde Camera module(There is upgrade
Mic Upgrade * Upgarde MIC in Camera module(There is
program in Main-Image)
upgrade program in Main-Image)
Page 49
Factory Menu Name Data Range
4-15
4. Troubleshooting
Jump UPGRADE Failure
IR Blaster Upgrade Failure
IR Blaster delay time 50
NTV Cu Update Failure
UD LDC PROFILE UPGRADE Failure
Pic Data USB Update P:066/M:002
Audio Data USB Update
Eco Data USB Update E:066/M:002
CI CPLD Upgrade Failure
TCON DEMURA FW UPGRADE NG
Reset
OPTION_HDMI
DVB CI
Test Pattern
Europeanspecications
* the Output of test pattern from each IC
Other setting
SVC Panel
ORIGINAL
Tizen
S/N
ADC/WB
Factory Menu Name Data Range
ADC
AV Calibaration NA
Comp Calibration NA
PC Calibration NA
HDMI Calibration NA
ADC Result
1st_Y_GH 255
1st_Y_GL 246
1st_Cb_BH …
1st_Cb_BL …
1st_Cr_RH …
1st_Cr_RL ..
2nd_R_L 129
2nd_G_L 129
2nd_B_L 129
2nd_R_H 109
Page 50
4-16
4. Troubleshooting
Factory Menu Name Data Range
2nd_G_H 109
2nd_B_H 109
White Balance
R-Offset 128
G-Offset 128
B-Offset 128
R-Gain 128
G-Gain 128
B-Gain 128
WB-W2_R_Offset 128
WB_W2_B_Offset 128
WB_W2_R_Gain 152
WB_W2_B_Gain 79
WB_N_R_Offset 128
WB_N_B_Offset 128
WB_N_R_Gain 138
WB_N_B_Gain 122
MGA
MGA On/Off OFF
R1_Gain 512
G1_Gain 512
B1_Gain 512
R2_Gain 512
G2_Gain 512
B2_Gain 512
R3_Gain 512
G3_Gain 512
B3_Gain 512
R4_Gain 512
G4_Gain 512
B4_Gain 512
R5_Gain 512
G5_Gain 512
B5_Gain 512
R6_Gain 512
G6_Gain 512
B6_Gain 512
Page 51
Factory Menu Name Data Range
4-17
4. Troubleshooting
R7_Gain 512
G7_Gain 512
B7_Gain 512
R8_Gain 512
G8_Gain 512
B8_Gain 512
R9_Gain 512
G9_Gain 512
B9_Gain 512
R10_Gain 512
G10_Gain 512
B10_Gain 512
SPI White Balance
SPI MGA
WB Data to SPI
Advanced
Page 52
4-18
4. Troubleshooting
4-4. White Balance
4-4-1. Calibration
Into the Factory Mode.1.
Select 2. ADC/WB menu.
Select 3. ADC menu.
Option
Control
Debug
SVC
ADC/WB
Advanced
AV Calibration
Comp Calibration
PC Calibration
HDMI Calibration
4-4-2. Service Adjustment
You must perform Calibration in the Lattice Pattern before adjusting the White Balance.
Color Calibration
AdjustSpecication•
Source Setting Mode Pattern Use Equipment
HDMI 1280 x 720@60 Hz Pattern #24 (Chess Pattern) CA210 & Master MSPG925 Generator
(Chess Pattern)
Use other equipment only after comparing the result with that of the Master equipment. -
Input mode Calibration Pattern
CVBS IN (Model_#1) Perform in NTSC B&W Pattern #24 Lattice
Component IN (Model_#6) Perform in 720p B&W Pattern #24 Lattice
PC Analog IN (Model_#21) Perform in VESA XGA (1024x768) B&W Pattern #24 Lattice
HDMI IN Perform in 720p B&W Pattern #24 Lattice
Page 53
Method of Color Calibration (AV)
4-19
4. Troubleshooting
Apply the NTSC Lattice (N0. 3) pattern signal to the AV IN 1 port.1.
Press the Source key to switch to “AV1” mode.2.
Enter Service mode.3.
Select the “ADC” menu.4.
Select the “AV Calibration” menu.5.
In“AVCalibrationOff”status,pressthe“►”keytoperformCalibration.6.
When Calibration is complete, it returns to the high-level menu.7.
You can see the change of the “AV Calibration” status from Failure to Success. 8.
Method of Color Calibration (Component)
Apply the 720p Lattice (N0. 6) pattern signal to the Component IN 1 port.1.
Press the Source key to switch to “Component1” mode.2.
Enter Service mode.3.
Select the “ADC” menu.4.
Select the “Comp Calibration” menu.5.
In“CompCalibrationOff”status,pressthe“►”keytoperformCalibration.6.
When Calibration is complete, it returns to the high-level menu.7.
You can see the change of the “Comp Calibration” status from Failure to Success.8.
Method of Color Calibration (PC)
Apply the VESA XGA Lattice (N0. 21) pattern signal to the PC IN port.1.
Press the Source key to switch to “PC” mode.2.
Enter Service mode.3.
Select the “ADC” menu.4.
Select the “PC Calibration” menu.5.
In“PCCalibrationOff”status,pressthe“►”keytoperformCalibration.6.
When Calibration is complete, it returns to the high-level menu.7.
You can see the change of the “PC Calibration” status from Failure to Success.8.
Method of Color Calibration (HDMI)
Apply the 720p Lattice (N0. 6) pattern signal to the HDMI1/DVI IN port.1.
Press the Source key to switch to “HDMI1” mode.2.
Enter Service mode.3.
Select the “ADC” menu.4.
Select the “HDMI Calibration” menu.5.
In“HDMICalibrationOff”status,pressthe“►”keytoperformCalibration.6.
When Calibration is complete, it returns to the high-level menu.7.
You can see the change of the “HDMI Calibration” status from Failure to Success.8.
Page 54
4-20
4. Troubleshooting
4-4-3. Adjustment
Into the Factory Mode.1.
Select 2. ADC/WB menu.
Select 3. White Balance menu.
Option
Control
Debug
SVC
ADC/WB
Advanced
White Balance
(Low Light)
Sub Brightness
R offset
G offset
B offset
(Hight Light)
Sub Contrast
R gain
G gain
B gain
Page 55

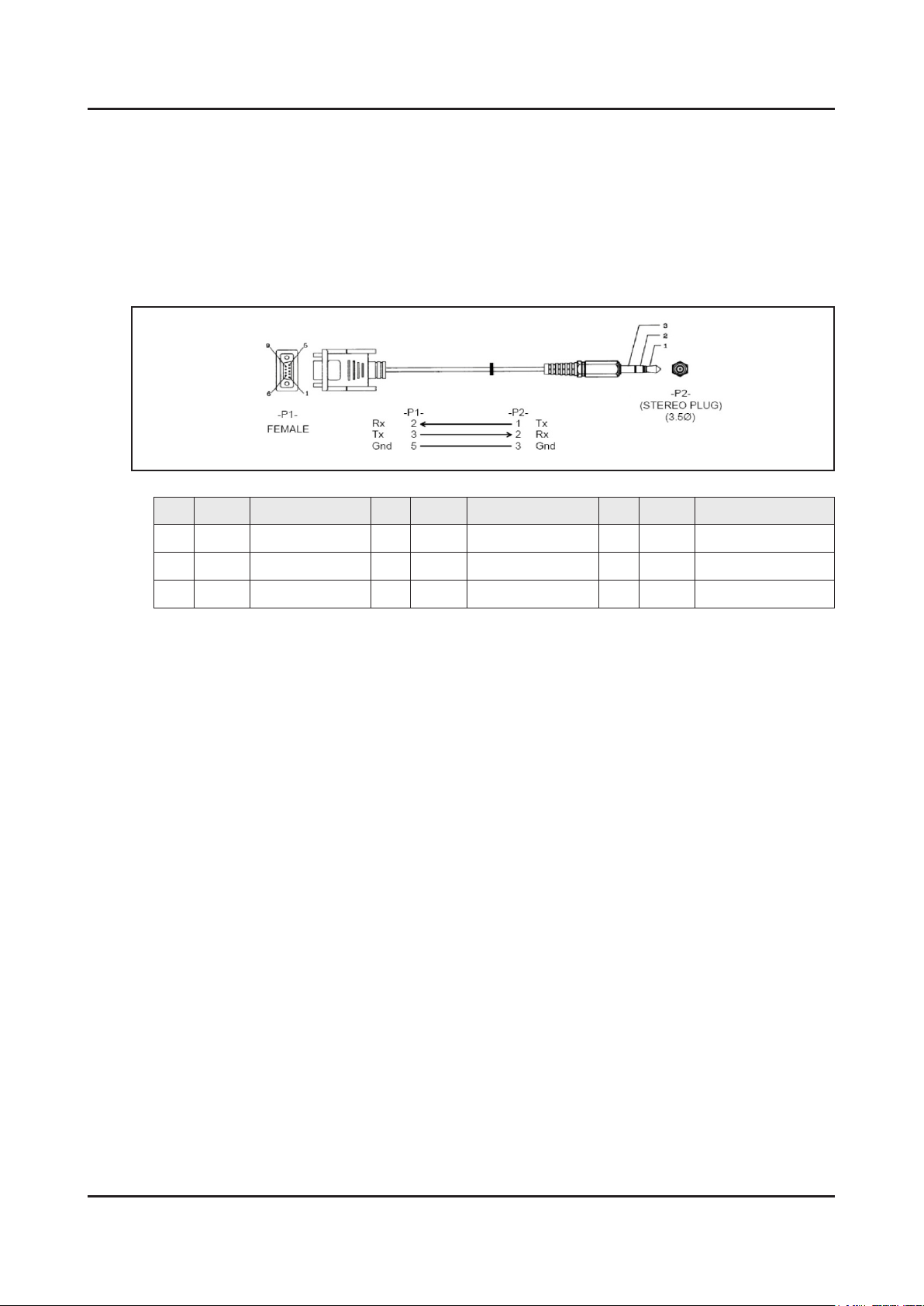

4-5. RS-232C
4-21
4. Troubleshooting
RS232C Control•
Port : COM#(Serial) -
Baud rate : 9600 -
Data Bit : 8 bit -
Parity : None -
Stop Bits : 1 -
Flow Control : None -
Description of RS232C•
Pin# Name Full Name Pin# Name Full Name Pin# Name Full Name
CD Carrier Detect
1
RxD Received Data
2
TxD Transmitted Data
3
DTR Data Terminal Ready
4
GND Signal Ground
5
DSR Data Set Ready
6
RTS Request To Send
7
CTS Clear To Send
8
RI Ring Indicator
9
Page 56
4-22
4. Troubleshooting
4-6. AV Control Tabe
Control Item Cmd1 Cmd2 Cmd3 Value
General
Input
Power Power 0x00 0x00 0x00 0x00
Off 0x01
On 0x02
Volume Direct 0x01 0x00 0x00 (0~100)
Up 0x01 0x00
Down 0x02 0x00
Mute 0x02 0x00 0x00 0x00
Ch. Direct 0x04 -
Continuous Up
0x03 0x00
Down 0x02 0x00
0x01 0x00
Control Item Cmd1 Cmd2 Cmd3 Value
Source List TV TV 0x0a 0x00 0x00 0x00
AV AV1 0x01 0x00
AV2 0x01
AV3 0x02
S-Video S-Video1 0x02 0x00
S-Video2 0x01
S-Video3 0x02
Component Component1 0x03 0x00
Component2 0x01
Component3 0x02
PC PC1 0x04 0x00
PC2 0x01
PC3 0x02
HDMI HDMI1 0x05 0x00
HDMI2 0x01
HDMI3 0x02
HDMI4 0x03
DVI DVI1 0x06 0x00
DVI2 0x01
DVI3 0x02
RVU RVU 0x07 0x00
Control Item Cmd1 Cmd2 Cmd3 Value
Mode Dynamic(Entertain) 0x0b 0x00 0x00 0x00
Standard 0x01
Movie 0x02
Page 57
Control Item Cmd1 Cmd2 Cmd3 Value
4-23
4. Troubleshooting
Mode Natural 0x03
CAL-NIGHT 0x04
CAL-DAY 0x05
BD Wise 0x06
BackLight
(CellLight)
Relax
0~20 0x01 0x00 (0~20)
0x07
Contrast 0~100 0x02 0x00 (0~100)
Brightness 0~100 0x03 0x00 (0~100)
Sharpness 0~100 0x04 0x00 (0~100)
Color 0~10 0x05 0x00 (0~100)
Tint G/R 0x06 0x00 (0~100)
Advanced
Settings
Black Tone
Off 0x07 0x00 0x00
Dark 0x01
Darker 0x02
Darkest 0x03
New function of 12"
(only PDP TV)
Dynamic Contrast Off 0x01 0x00
Low 0x01
Medium 0x02
HIgh 0x03
Shadow Detail
-2 ~ 2 0x02 (-2~2)
Gamma -3 ~ 3 0x03 (-3~3)
RGB Only Mode Off 0x05 0x00
Red 0x01
Green 0x02
Blue 0x03
Color Space Auto 0x06 0x00
Native 0x01
Custom 0x02
White Balance R-Offset(LCD) 0x07 (0~50)
White Balance G-Offset(LCD) 0x08 (0~50)
White Balance B-Offset(LCD) 0x09 (0~50)
White Balance R-Gain(LCD) 0x0a (0~50)
Not support
White Balance G-Gain(LCD) 0x0b (0~50)
White Balance B-Gain(LCD) 0x0c (0~50)
White Balance Reset(LCD) 0x0d 0x00
Flesh Tone -15 ~ 15 0x0e (-15~15)
Page 58
4-24
4. Troubleshooting
Control Item Cmd1 Cmd2 Cmd3 Value
Advanced
Settings
Edge Enhancement
Off 0x0f 0x00
On 0x01
xvYCC Off 0x10 0x00
On 0x01
Motion Lighting Off 0x11 0x00
On 0x01
Color Space Custom
Color
Red 0x12 0x00
Green 0x01
Blue 0x02
Yellow 0x03
Cyan 0x04
Magenta 0x05
Color Space Custom
Color Red Value
Color Space Custom
Color Green Value
Color Space Custom
Color Blue Value
0~100 0x13 0~100
0~100 0x14 0~100
0~100 0x15 0~100
Not support
Only for active Color
Space Custom
Only for active Color
Space Custom
Only for active Color
Space Custom
Only for active Color
Space Custom
Option
LED Motion Plus Off 0x0a 0x07 0x00
On(Normal) 0x01
Cinema 0x02
Ticker 0x03
Color Tone
Cool 0x0a 0x00 0x00
Standard 0x01
Warm1 0x02
Warm2 0x03
Digital Noise Filter
Off 0x02 0x00
Low 0x01
Medium 0x02
High 0x03
Auto 0x04
MPEG Noise Filter
Auto
Visualization
Off 0x03 0x00
0x05
Low 0x01
Change Normal→
Standard mode
Medium 0x02
High 0x03
Auto 0x04
Page 59
Control Item Cmd1 Cmd2 Cmd3 Value
4-25
4. Troubleshooting
Option
Screen
Adjustment
HDMI Black Level
Film Mode
Auto Motion Plus
Picture Size
Normal 0x04 0x00
Low 0x01
Off 0x05 0x00
Auto1 0x01
Auto2 0x02
Cinema
Smooth
0x03
Off 0x06 0x00
Clear 0x01
Standard 0x02
Smooth 0x03
Custom 0x04
Demo 0x05
16:9 0x0b 0x0a 0x01 0x00
Zoom1 0x01
Zoom2 0x02
Wide Fit 0x03
New function of 12"
(only PDP TV)
4:3 0x04
Screen Fit 0x05
Smart View I 0x06
Smart View II 0x07
Auto Wide 0x08
Wide Zoom 0x09
Zoom 0x0a
Reset
Reset Picture
0x0b 0x0b 0x00 0x00
3D 3D Mode Off 0x0b 0x0c 0x00 0x00
2D ⇢ 3D
0x01
Side By Side 0x02
Top Bottom 0x03
Line By Line 0x04
Vertical Line 0x05
Checker BD 0x06
Frame
Sequence
0x07
New function of 12"
(only DVB TV)
3D ⇢ 2D
Off 0x01 0x00
On 0x01
Page 60
4-26
4. Troubleshooting
Control Item Cmd1 Cmd2 Cmd3 Value
Sound
3D 3D View Point
Depth
3D Auto View
Off 0x05 0x00
Message
Notice
On 0x02
0x02 (-5~5)
0x03 (1~10)
0x01
Control Item Cmd1 Cmd2 Cmd3 Value
Sound Mode Standard
Music 0x01
Movie 0x02
Clear Voice 0x03
Amplify 0x04
Equalizer Balance 0x01 0x00 (0~20)
100hz 0x01 (0~20)
300hz 0x02 (0~20)
1khz 0x03 (0~20)
3khz 0x04 (0~20)
0x0c 0x00 0x00 0x00
SRS
TruSurround
HD (echo)
Virtual
Surrond
(echo)
SRS
TruDialog
(echo)
Dialog
Clarify (X9)
Preferred
Language
Multi-Track
Sound
10khz 0x05 (0~20)
Reset 0x06 0x00
Off
On
Off
On
English
Spanish 0x01
French 0x02
Korean 0x03
Japanese 0x04
Mono
0x02 0x00 0x00
0x01
0x03 0x00 0x00
0x01
0x04 0x00 0x00
0x05 0x00 0x00
Stereo 0x01
SAP 0x02
Auto Volume Off 0x06 0x00 0x00
ON 0x01
Page 61
Control Item Cmd1 Cmd2 Cmd3 Value
4-27
4. Troubleshooting
Sound
KEY
OSD
Auto Volume Night
Speaker
Select
Sound
Select
Sound
Reset
3D Audio Off 0x0a 0x00 0x00
Auto Stereo Manual 0x0b 0x00 0x00
TV Speaker
External Speaker 0x01
Main
Sub 0x01
Sound Reset
Low 0x01
Medium
High 0x03
Auto 0x01
0x07 0x00 0x00
0x08 0x00 0x00
0x09 0x00 0x00
0x02
0x02
Control Item Cmd1 Cmd2 Cmd3 Value
Key Generation
Show/Hide
Control
Show
0x0d 0x00 0x00
0x0e 0x00 0x00 0x00
refer to
table
Only for korea model
Get
Status
Hide 0x01
Power (On/Off) 0xf0 0x00 0x00 0x00
Volume(0~100) 0xf0 0x01 0x00 0x00
Mute (On/Off) 0xf0 0x02 0x00 0x00
Channel Number 0xf0 0x03 0x00 0x00
Source (TV/AV/…/HDMI/…) 0xf0 0x04 0x00 0x00
Picture Size 0xf0 0x05 0x00 0x00
3D (On/Off) 0xf0 0x06 0x00 0x00
Picture Mode 0xf0 0x07 0x00 0x00
Sound Mode 0xf0 0x08 0x00 0x00
Page 62
4. Troubleshooting
4-7. Updating the TV’s Software
MENU/123• MENU Support Software Update
You can view your TV’s software version and update it if necessary.
Updating the TV’s software to the latest version
MENU/123• MENU Support Software Update Update now
You can update your TV’s software by downloading the update from the Internet directly to your TV or copying the update
from a USB device that contains it to your TV.
This function requires an Internet connection.•
Save the update package in the USB device's top-level folder. Otherwise, the TV will not be able to locate the update •
package.
DO NOT turn off the TV’s power until the update is complete. The TV will turn off and on automatically
after completing the software update. All video and audio settings return to the default settings after a
CAUTION
Updating the TV automatically
software update.
MENU/123• MENU Support Software Update Auto Update
If the TV is connected to the Internet, you can have the TV's software update itself automatically while you are watching
the TV. When the background update is completed, it is applied the next time the TV is turned on.
This function may take a longer time if a different networking function is running concurrently.•
This function requires an Internet connection.•
If you agree to the Smart Hub terms and conditions, Auto Update is set to On automatically. If you do not want the •
TV's software to update itself automatically, set Auto Update to Off.
4-28
Page 63
5. Wiring Diagram
SMPS
CN801S
CNM803
TV Board
CN1101
T-Con
SPEAKER SPEAKER
IR receiver
CNL802
CN201
CN2001
CN1102
CN2201
BL LED
CN501
WIFI
CN501
Function
5-1. Wiring Diagram
5. Wiring Diagram
5-1
Page 64
5-2
5. Wiring Diagram

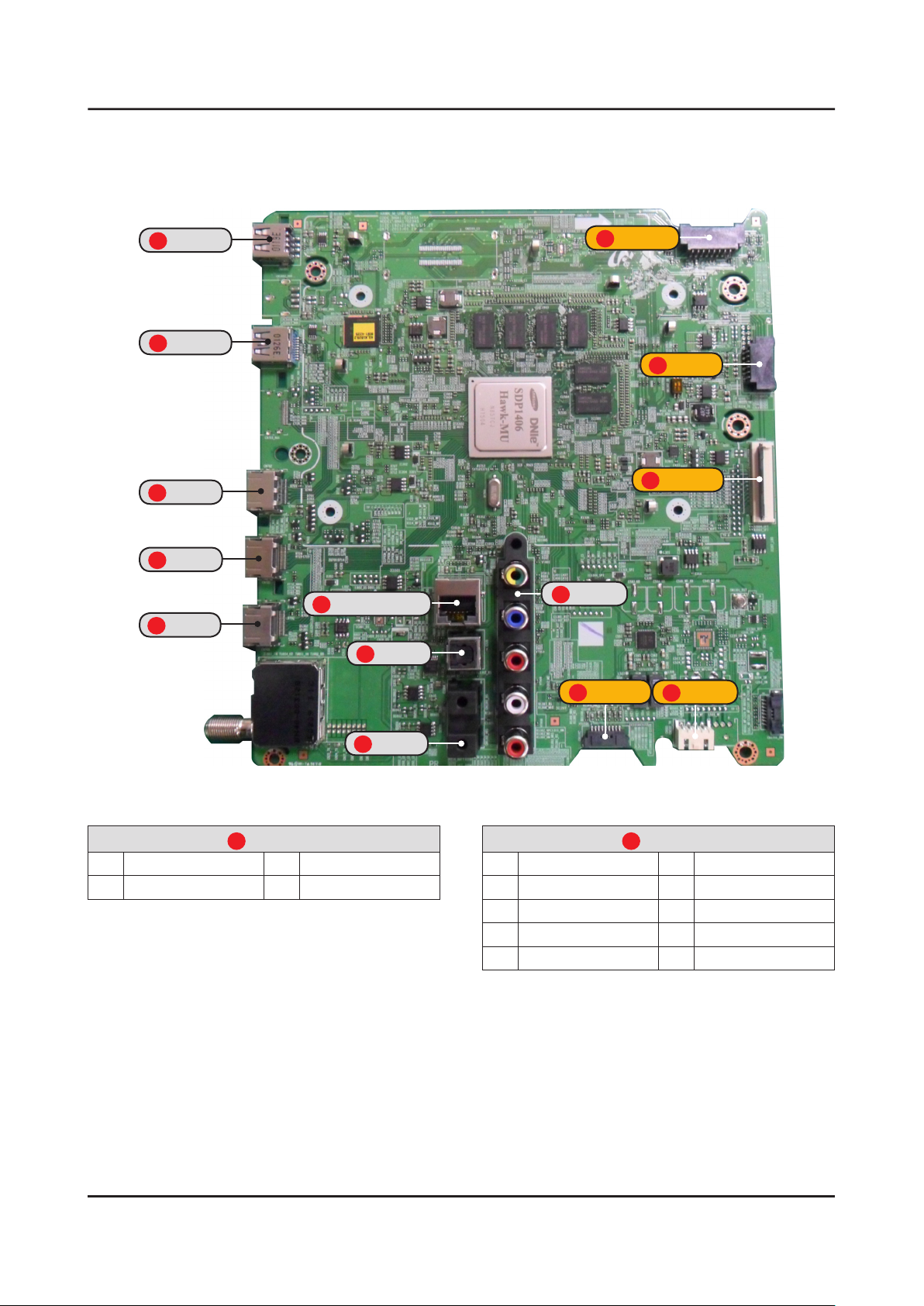

5-2. Connector
Main Board
CN1803
1
CN1801
2
CN702
3
CN1101
14
13
CN2001
12
CN201
CN701
4
CN1001_LAN
6
CN704
5
OP501
7
CN603
8
Main Board Pin Map
CN1803
1
1 A5V_USB3_PW 3 MOIP+_USB
2 MOIP-_USB 4 GND
CN601
9
CN1102
10
2
1 B5V_USB1_PW 6 USB1RX+_USB30
2 USB1-_USB 7 GND
3 USB1+_USB 8 USB1TX-_USB30
4 GND 9 USB1TX+_USB30
5 USB1RX-_USB30
CN501
11
CN1801
Page 65
5-3
5. Wiring Diagram
CN702 (ARC)
3
HDMI2_RX2+_
1
2 GND 12
3 HDMI2_RX2-_HDMI 13 CEC
4
5 GND 15
6 HDMI2_RX1-_HDMI 16
7
8 GND 18 HDMI2_5V_PW
9 HDMI2_RX0-_HDMI 19 HDMI2_HOT_PLUG
10
1
2 GND 12
3 HDMI3_RX2-_HDMI 13 CEC
4
5 GND 15
6 HDMI3_RX1-_HDMI 16
7
8 GND 18 HDMI3_5V_PW
9 HDMI3_RX0-_HDMI 19 HDMI3_HOT_PLUG
10
HDMI
HDMI2_RX1+_
HDMI
HDMI2_RX0+_
HDMI
HDMI2_RX_CLK+_
HDMI
CN701 (MHL)
4
HDMI3_RX2+_
HDMI
HDMI3_RX1+_
HDMI
HDMI3_RX0+_
HDMI
HDMI3_RX_CLK+_
HDMI
11 GND
HDMI2_RX_CLK-_
HDMI
14 ARV1_SINGLE
HDMI2_SCL_DDC_
I2C
HDMI2_SDA_DDC_
I2C
17 GND
11 GND
HDMI3_RX_CLK-_
HDMI
14 N.C
HDMI3_SCL_DDC_
I2C
HDMI3_SDA_DDC_
I2C
17 GND
CN704 (STB/DVI)
5
1 HDM4_RX2+_HDMI 11 GND
2 GND 12
3 HDMI4_RX2-_HDMI 13 CEC
HDMI4_RX1+_
4
5 GND 15
6 HDMI4_RX1-_HDMI 16
7
8 GND 18 HDMI4_5V_PW
9 HDMI4_RX0-_HDMI 19 HDMI4_HOT_PLUG
10
1 LAN_TXD+_LAN 5 B1.8V_PW
2 B1.8V_PW 6 LAN_RXD-_LAN
3 LAN_TXD-_LAN 7 N.C
4 LAN_RXD+_LAN 8 GND
1 SPDIF_OUT 3 DGND
2 B5V_PW
1 GND 5 TEST_SR
2 AV1_CVBS_IN 6 TEST_SL
3 COMP_AV2_SR_IN 7 COMP_AV2_SL_IN
4 IDENT_VIDEO
1 COMP_YN 9 TEST_PR
2
3 IDENT_VIDEO 11 COMP_AV1_SL_IN
4 COMP_PBN 12 TEST_SL
5 COMP_PB 13 COMP_PB
6 IDENT_COMP 14 COMP_AV1_SR_IN
7 COMP_PRN 15 TEST_SR
8 COMP_PR 16 BT_RESET
HDMI
HDMI4_RX0+_
HDMI
HDMI4_RX_CLK+_
HDMI
CN1001_LAN (LAN)
6
OP501 (OPTICAL)
7
CN603 (AV)
8
CN601 (COMP)
9
COMP_Y_
CVBS(AV1_CVBS_
IN)
HDMI4_RX_CLK-_
HDMI
14 N.C
HDMI4_SCL_DDC_
I2C
HDMI4_SDA_DDC_
I2C
17 GND
10 COMP_PR
Page 66
5-4
5. Wiring Diagram
CN1102
10
1 IR 6 KEY_INPUT1
2 GND 7 KEY_INPUT2
3 A3.3V_PW 8 LED_STB
SCL_AMP_ECO_
4
5
1
2
1 DGND 27 M_C_RX-_VBY1
2 SDA_FRC_I2C 28 VBY1_GND
3 AGING_ENABLE 29 M_B_RX+_VBY1
4 SCL_FRC_I2C 30 M_B_RX-_VBY1
5
6 SDA_TCON_I2C 32 M_A_RX+_VBY1
7 TCON_I2C_EN 33 M_A_RX-_VBY1
8 SCL_TCON_I2C 34 VBY1_GND
9 DGND 35 LOCKN_TX_VBY1
10 VBY1_GND 36 N.C
11 M_H_RX+_VBY1 37 VBY1_GND
12 M_H_RX-_VBY1 38 VBY1_GND
13 VBY1_GND 39 VBY1_GND
14 M_G_RX+_VBY1 40 VBY1_GND
15 M_G_RX-_VBY1 41 N.C
16 VBY1_GND 42 PANEL_13V_PW
17 M_F_RX+_VBY1 43 PANEL_13V_PW
18 M_F_RX-_VBY1 44 PANEL_13V_PW
19 VBY1_GND 45 PANEL_13V_PW
20 M_E_RX+_VBY1 46 PANEL_13V_PW
21 M_E_RX-_VBY1 47 PANEL_13V_PW
22 VBY1_GND 48 PANEL_13V_PW
23 M_D_RX+_VBY1 49 PANEL_13V_PW
24 M_D_RX-_VBY1 50 PANEL_13V_PW
25 VBY1_GND 51 PANEL_13V_PW
26 M_C_RX+_VBY1
I2C
SDA_AMP_ECO_
I2C
TOP_R+_-
13V_+13V_AO
TOP_R-_-
13V_+13V_AO
CN2001 (Vx1)
12
BT_SYNC/PWM_
UFT
9 GND
CN501
11
3
4
31 VBY1_GND
TOP_L+_-
13V_+13V_AO
TOP_L-_-
13V_+13V_AO
CN201
13
1 GND 9 A13V_PW
2 GND 10 OVD_ON_OFF
3 A13V_PW 11
4 GND 12 ANA_DIMMING
5 A13V_PW 13 A5V_PW
6 SW_POWER_OUT 14 BT_WAKE
7 A13V_PW 15 POWER_DET
8 B5V_PW 16 BT_RESET
CN1101 (WIFI)
14
1 WIFI_NRESET 4 WIFI-_USB
2 WIFI_WOL 5 WIFI+_USB
3 A5V_PW 6 GND
SMPS_FET_FAIL_
DETECT
Page 67
5-5
5. Wiring Diagram
SMPS Board
CNM803
1
CNL802
2
SMPS Board Pin Map
CNM803 (P-Dim Control from Main Board)
1
1 F.C 7 A13V
2 ANA_DIM 8 PS_ON
3 A13V 9 A13V
4 OD_ON 10 GND
5 A13V 11 GND
6 BLU_PWM 12 GND
AC Line Fuse &
Power Connector
CNL802
2
1 2+ 9 1+
2 N.C 10 N.C
3 N.C 11 N.C
4 2- 12 1-
5 N.C 13 N.C
6 N.C 14 N.C
7 N.C 15 IF2
8 N.C 16 IF1
Page 68
This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
© 2015 Samsung Electronics Co.,Ltd.
All rights reserved.
Printed in Korea
Loading...
