Samsung 6 series, UE32J6300, UE40J6300 User Manual
Thank you for purchasing this Samsung
product.
To receive more complete service,
please register your product at
www.samsung.com/register
Model ______ Serial No. __________
user manual
English - 2
Warning! Important Safety Instructions
(Please read the Safety Instructions before using your TV.)
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK). THERE ARE NO USER
SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO
QUALIFIED PERSONNEL.
This symbol indicates that high voltage is
present inside. It is dangerous to make any
kind of contact with any internal part of this
product.
This symbol indicates that this product has
included important literature concerning
operation and maintenance.
The slots and openings in the cabinet and in the back or bottom are provided for necessary ventilation. To ensure reliable
operation of this apparatus and to protect it from overheating, these slots and openings must never be blocked or covered.
- Do not place this apparatus in a confined space, such as a bookcase or built-in cabinet, unless proper ventilation is
provided.
- Do not place this apparatus near or over a radiator or heat register, or where it is exposed to direct sunlight.
- Do not place vessels (vases etc.) containing water on this apparatus, as this can result in a fire or electric shock.
Do not expose this apparatus to rain or place it near water (near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet
basement, or near a swimming pool etc.). If this apparatus accidentally gets wet, unplug it and contact an authorised dealer
immediately.
This apparatus uses batteries. In your community, there might be environmental regulations that require you to dispose of
these batteries properly. Please contact your local authorities for disposal or recycling information.
Do not overload wall outlets, extension cords or adaptors beyond their capacity, since this can result in fire or electric shock.
Power-supply cords should be placed so that they are not likely to be walked on or pinched by items placed upon or against
them. Pay particular attention to cords at the plug end, at wall outlets, and the point where they exit from the appliance.
To protect this apparatus from a lightning storm, or when it is left unattended and unused for long periods of time, unplug
it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the set due to lightning and
power line surges.
Before connecting the AC power cord to the DC adaptor outlet, make sure that the voltage designation of the DC adaptor
corresponds to the local electrical supply.
Never insert anything metallic into the open parts of this apparatus. This may cause a danger of electric shock.
To avoid electric shock, never touch the inside of this apparatus. Only a qualified technician should open this apparatus.
Be sure to plug in the power cord until it is firmly seated. When unplugging the power cord from a wall outlet, always pull on
the power cord's plug. Never unplug it by pulling on the power cord. Do not touch the power cord with wet hands.
If this apparatus does not operate normally - in particular, if there are any unusual sounds or smells coming from it - unplug it
immediately and contact an authorised dealer or service centre.
Be sure to pull the power plug out of the outlet if the TV is to remain unused or if you are to leave the house for an extended
period of time (especially when children, elderly or disabled people will be left alone in the house).
- Accumulated dust can cause an electric shock, an electric leakage, or a fire by causing the power cord to generate sparks
and heat or by causing the insulation to deteriorate.
Be sure to contact an authorised service centre for information if you intend to install your TV in a location with heavy dust,
high or low temperatures, high humidity, chemical substances, or where it will operate 24 hours a day such as in an airport, a
train station, etc. Failure to do so may lead to serious damage to your TV.
Use only a properly grounded plug and wall outlet.
- An improper ground may cause electric shock or equipment damage. (Class l Equipment only.)
To turn off this apparatus completely, disconnect it from the wall outlet. Be sure to have the wall outlet and power plug
readily accessible.
Do not allow children to hang onto the product.
Store the accessories (battery, etc.) in a location safely out of the reach of children.
Do not install the product in an unstable location such as a shaky shelf or a slanted floor or in a location exposed to vibration.
Do not drop or strike the product. If the product is damaged, disconnect the power cord and contact a service centre.
To clean this apparatus, unplug the power cord from the wall outlet and wipe the product with a soft, dry cloth. Do not
use any chemicals such as wax, benzene, alcohol, thinners, insecticide, aerial fresheners, lubricants, or detergents. These
chemicals can damage the appearance of the TV or erase the printing on the product.
Do not expose this apparatus to dripping or splashing.
Do not dispose of batteries in a fire.
Do not short-circuit, disassemble, or overheat the batteries.
There is danger of an explosion if you replace the batteries used in the remote with the wrong type of battery.
Replace only with the same or equivalent type.
WARNING - TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER ITEMS WITH OPEN FLAMES AWAY
FROM THIS PRODUCT AT ALL TIMES.
English - 3
Features of your new TV
SMART HUB
Your TV features Smart Hub, a multi-purpose entertainment and family centre. With Smart
Hub, you can surf the web, download applications. In addition, you can view or play photo,
video, and music files stored on external storage devices.
Refer to the
e-Manual
chapter,
Smart Features
>
Smart Hub
.
Games
: You can play and manage games downloaded or purchased with your Samsung
account.
APPS
: Install and enjoy free news, sports, weather, and gaming apps on the TV.
MY CONTENT: Play content saved on external storage devices supported by the TV.
e-Manual
Learn how to use and manage this e-Manual and a web browser built in the TV.
* The figures and illustrations in this User Manual are provided for reference only and may
differ from the actual product appearance. The product design and specifications may change
without notice. CIS languages (Russian, Ukrainian, Kazakhs) are not available for this product,
since this is manufactured for customers in the EU region.
English - 4
Contents
01 What's in the Box?
02 Assembling the TV
7 Attaching the TV to the Stand
7 Mounting the TV on a Wall (Optional)
9 Providing proper ventilation for your TV
10 Safety Precaution: Securing the TV to the wall
03 Connections
11 Connecting devices to your TV

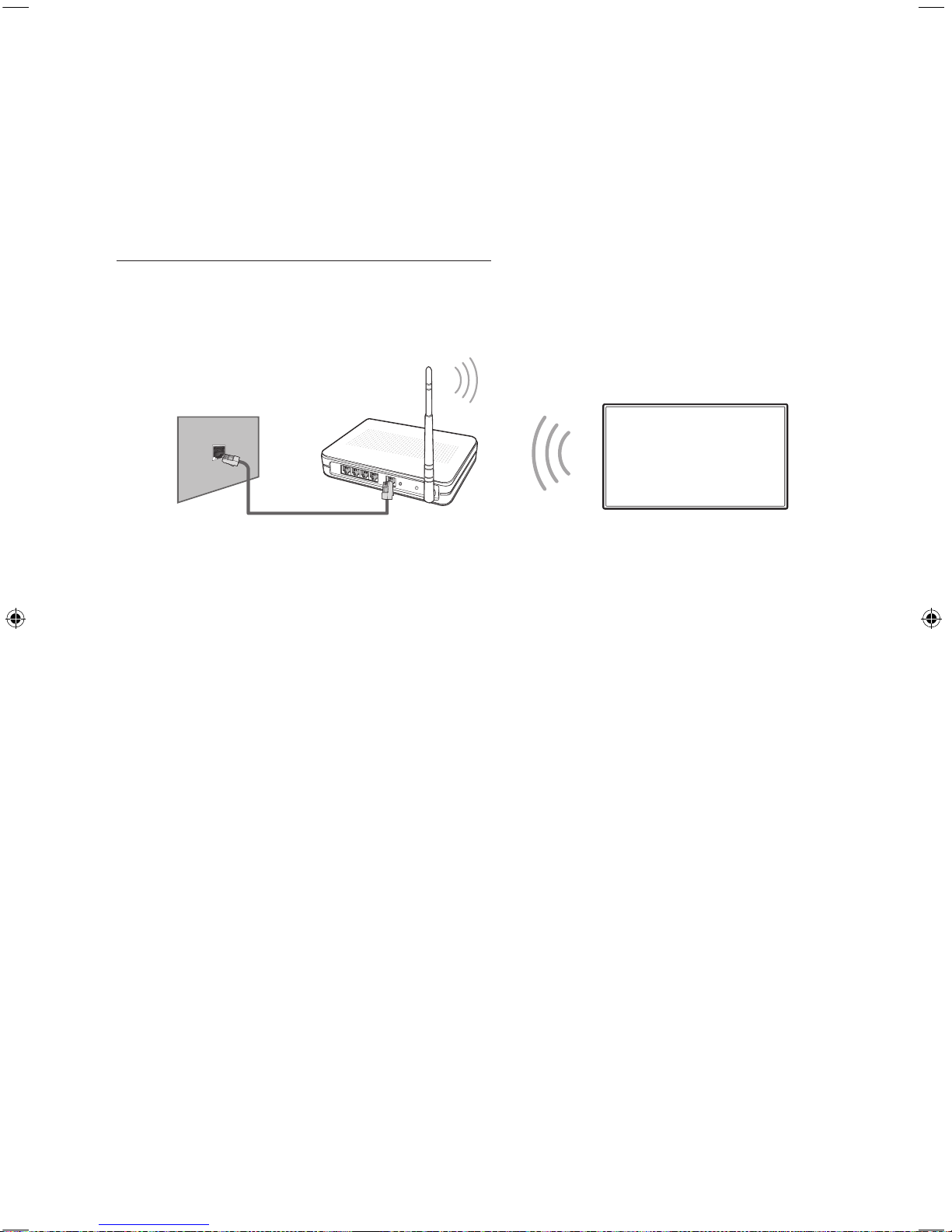

12 Connecting to a Network

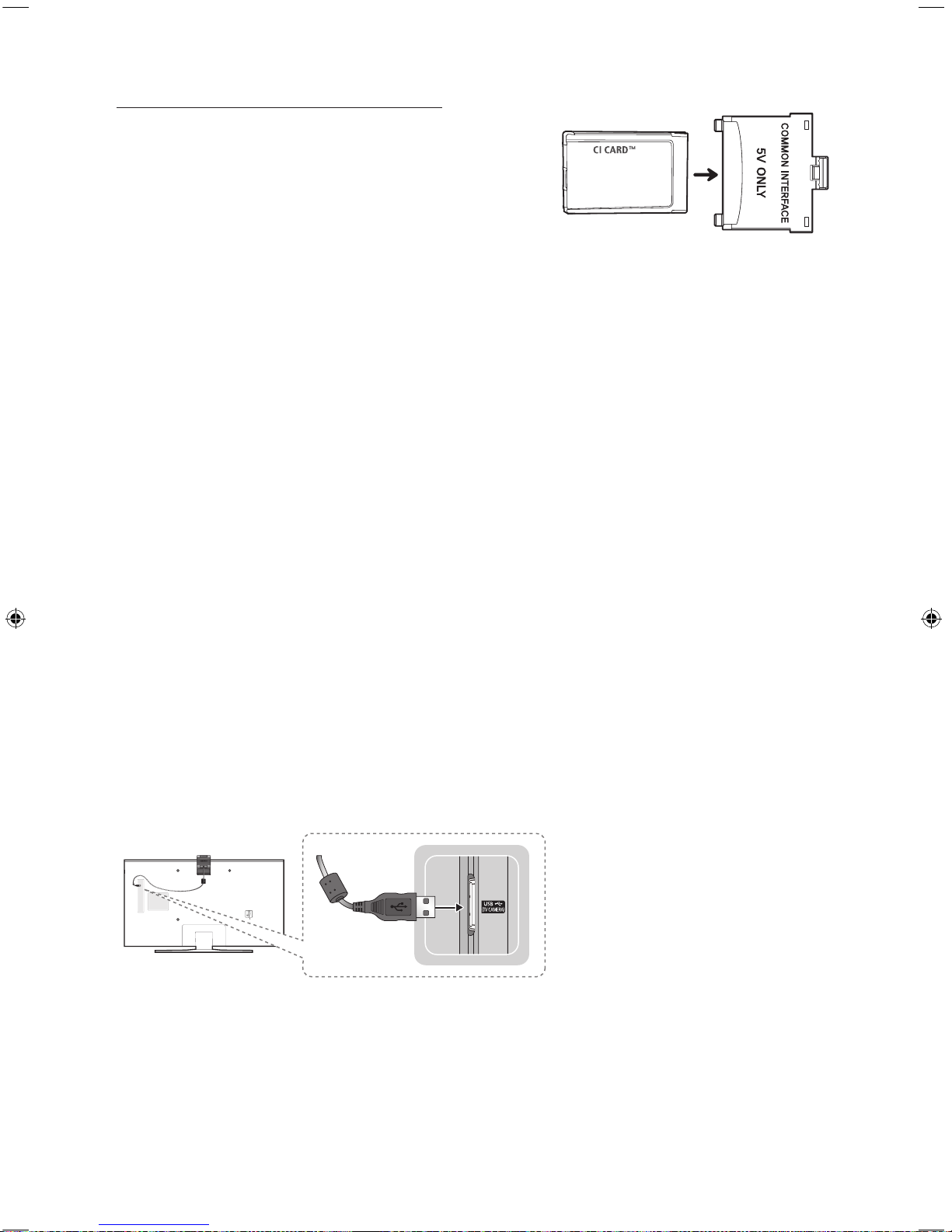

14 Connecting to a COMMON INTERFACE slot (Your TV viewing Card Slot)
15 TV Camera Connection
04 The TV Controller
16 Using the Control Stick

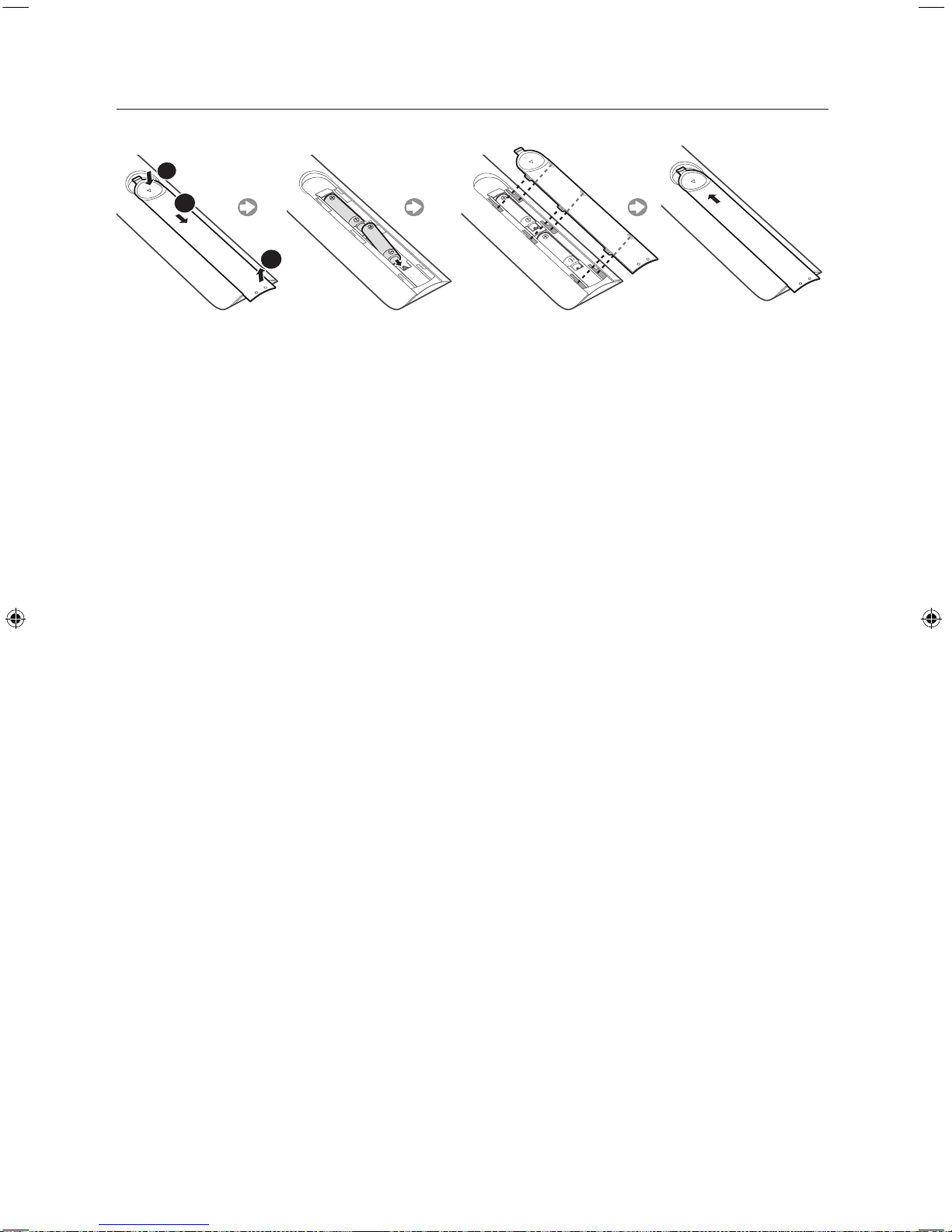

17 The Standard Remote Control
English - 5
05

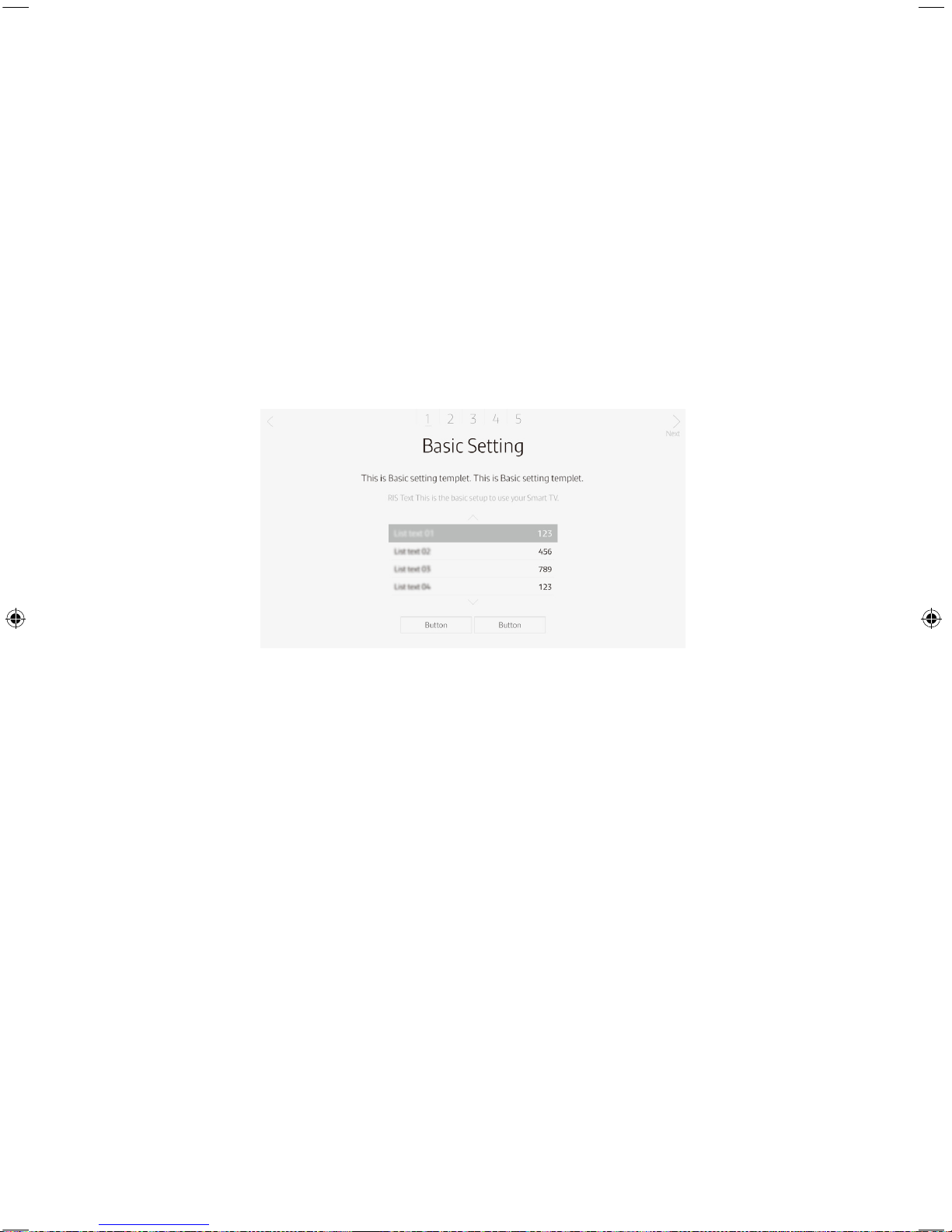

Performing the initial setup
19 Initial setup
19 Setting up a password
06 Selecting Connected Devices
07 The e-Manual
08 Troubleshooting and Maintenance

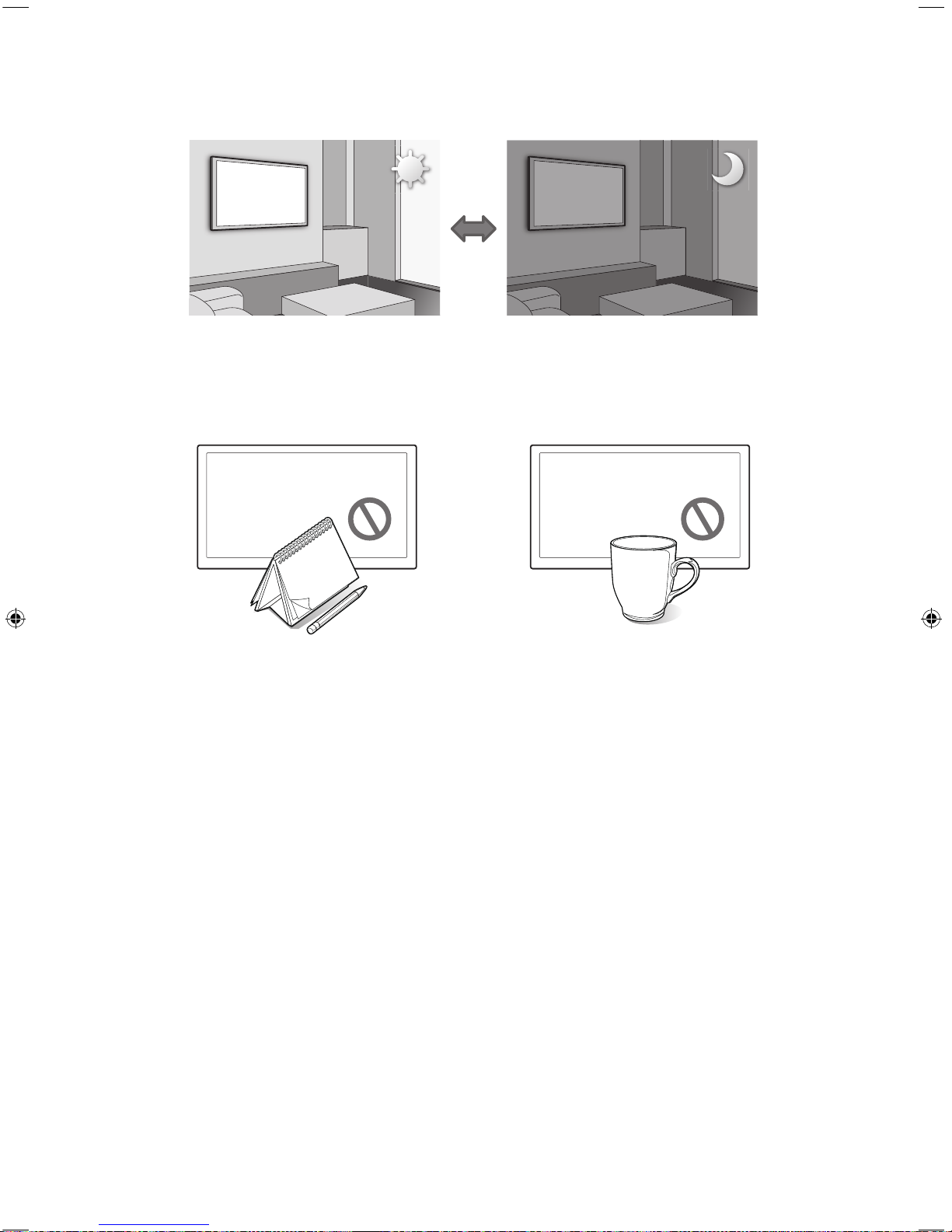

24 Eco sensor and screen brightness
25 Support through Remote Management

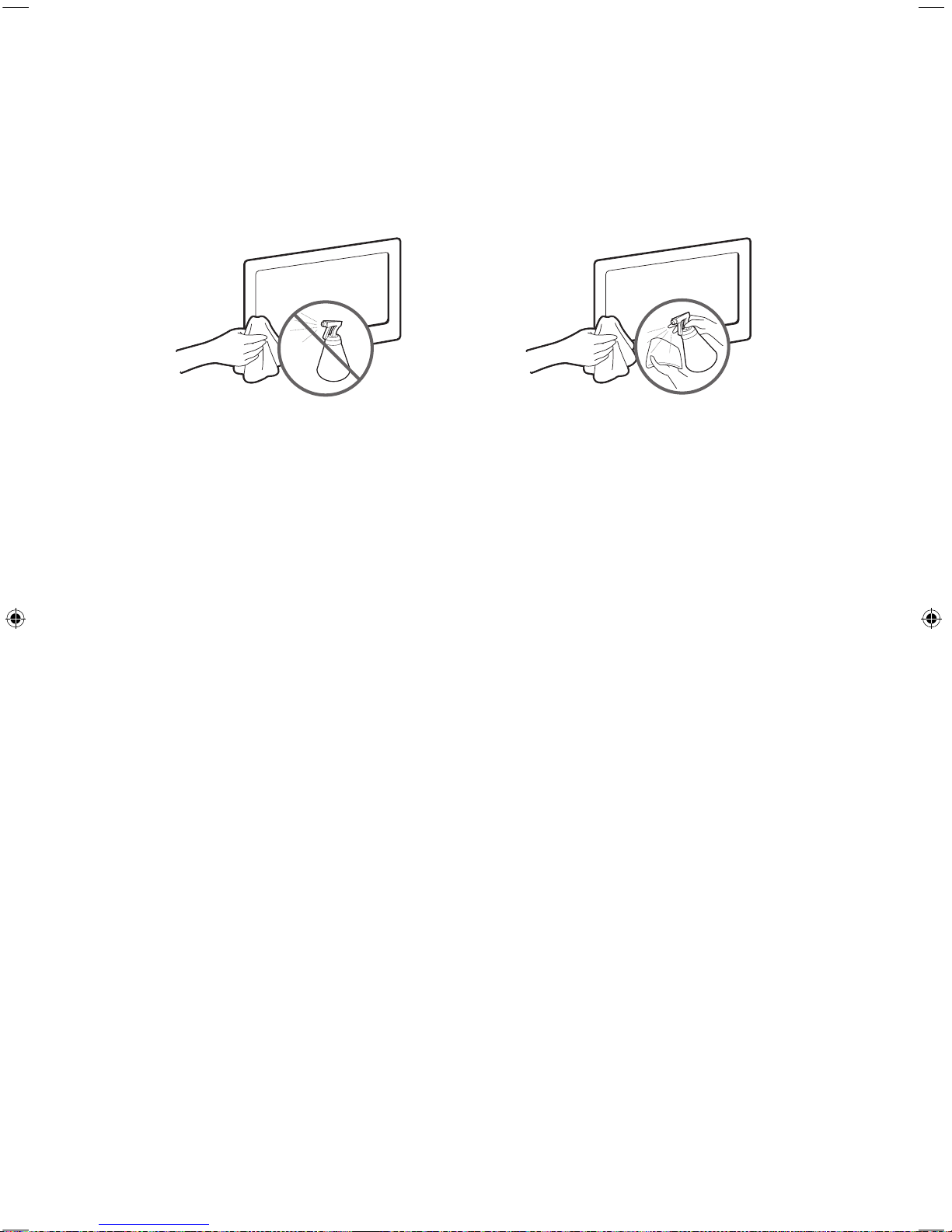

26 Caring for the TV
09 Specifications and other information
27 TV Specifications
30 Licences
32 Warranty Card
English - 6
01 What's in the Box?
Remote Control & Batteries (AAA x 2)
Regulatory Guide /
Warranty Card
User Manual
Power Cord CI Card Adapter
- Please make sure the following items are included with your TV. If any items are missing,
contact your dealer.
- The items’ colours and shapes may vary depending on the models.
- Cables not included can be purchased separately.
- Check for any accessories hidden behind or in the packing materials when opening the box.
An administration fee may be charged if either
(a) an engineer is called out at your request and there is no defect with the product (i.e.
where the user manual has not been read).
(b) you bring the unit to a repair centre and there is no defect with the product (i.e. where
the user manual has not been read).
You will be informed of the administration fee amount before a technician visits.
Warning: Screens can be damaged from
direct pressure when handled incorrectly. We
recommend lifting the TV at the edges, as shown.
Don't Touch
This Screen!
English - 7
02 Assembling the TV
Attaching the TV to the Stand
JU6400 / JU6440 / JU6445
40” ~ 55”
8EA : M4 X L14
60” ~ 75”
9EA : M4 X L14
JU6410
8EA : M4 X L12
Make sure you have all the accessories shown, and that you assemble the stand following the
provided assembly instructions.
Mounting the TV on a Wall (Optional)
If you mount this product on a wall, follow the instructions exactly as
recommended by the manufacturer. Unless it is correctly mounted, the product
may slide or fall, thus causing serious injury to a child or adult and serious
damage to the product.
Installing the wall mount kit
You can mount the TV on the wall using a wall mount kit (sold separately).
TV
Wall mount
Bracket
C
English - 8
VESA wall mount kit notes and specifications
You can install your wall mount on a solid wall perpendicular to the floor. Before attaching the
wall mount to surfaces other than plaster board, contact your nearest dealer for additional
information. If you install the TV on a ceiling or slanted wall, it may fall and result in severe
personal injury.
- Standard dimensions for wall mount kits are shown in the table below.
- When purchasing our wall mount kit, a detailed installation manual and all parts necessary
for assembly are provided.
- Do not use screws that do not comply with the VESA standard screw specifications.
- Do not use screws that are longer than the standard length or do not comply with VESA
standard screw specifications. Screws that are too long may cause damage to the inside of
the TV set.
- For wall mounts that do not comply with the VESA standard screw specifications, the
length of the screws may differ depending on the wall mount specifications.
- Do not fasten the screws too firmly. This may damage the product or cause the product to
fall, leading to personal injury. Samsung is not liable for these kinds of accidents.
- Samsung is not liable for product damage or personal injury when a non-VESA or non-
specified wall mount is used or the consumer fails to follow the product installation
instructions.
- Do not mount the TV at more than a 15 degree tilt.
When using a third-party wall mount, note that the assembling screw length(C) is shown below.
Product
Family
Inches
VESA Spec.
(A * B)
C (mm)
Standard
Screw
Quantity
UHD-TV
40 200 X 200
13.8 ~ 21.4
M8 4
48 ~ 75 400 X 400
Do not install your wall mount kit while your TV is turned on. This may result in
personal injury from electric shock.
English - 9
Providing proper ventilation for your TV
When you install your TV, maintain a distance of at least 10 cm between the TV and other objects
(walls, cabinet sides, etc.) to ensure proper ventilation. Failing to maintain proper ventilation may
result in a fire or a problem with the product caused by an increase in its internal temperature.
When you install your TV with a stand or a wall mount, we strongly recommend you use parts
provided by Samsung Electronics only. Using parts provided by another manufacturer may
cause difficulties with the product or result in injury caused by the product falling.
Installation with a stand. Installation with a wall-mount.
10 cm
10 cm
10 cm
10 cm
10 cm
10 cm
10 cm
Other Cautions
- The actual appearance of the TV may differ from the images in this manual, depending on
the model.
- Be careful when you touch the TV. Some parts can be somewhat hot.
English - 10
Safety Precaution: Securing the TV to the wall
Caution: Pulling, pushing, or climbing on the TV may cause the TV to fall. In
particular, ensure your children do not hang on or destabilize the TV. This action
may cause the TV to tip over, causing serious injuries or death. Follow all safety
precautions provided in the Safety Flyer included with your TV. For added stability and
safety, you can purchase and install the anti-fall device as described below.
Preventing the TV from falling
1. Put the screws into the clamps and firmly fasten them into
the wall. Confirm that the screws have been firmly installed
into the wall.
- You may need additional material such as anchors
depending on the type of wall.
- Since the necessary clamps, screws, and string are not
supplied, please purchase these additionally.
2. Remove the screws from the centre back of the TV, put the
screws into the clamps, and then fasten the screws into the
TV again.
- These screws may not be supplied with the TV. For a
40~75 inch model, purchase M8 screws.
3. Connect the clamps fixed into the TV and the clamps fixed
onto the wall with a strong cable and then tie the string
tightly.
- Install the TV close to the wall so that it does not fall
backwards.
- Connect the string so that the clamps fixed on the wall are at the same height as or
lower than the clamps fixed on the TV.
- Untie the string before moving the TV.
4. Make sure that all connections are properly secured. Periodically check connections for any
sign of damage. If you have any doubt about the security of your connections, contact a
professional installer.
- The displayed image may
differ depending on the
model.
English - 11
03 Connections
Connecting devices to your TV
You can connect various external devices using the connectors located at the back of the
product. Check the connectors and then refer to the Quick Guide for more instructions on
supported external devices.
For more information about Connections, see the e-Manual.
Make sure you have the correct cable before plugging it in. Illustrations of common plugs and
ports are shown below.
Cable Plugs Ports
HDMI
USB
Optical
Warning
Do not plug cables in upside down.
Be sure to check the orientation of
the plug before plugging it in.
Loading...
