Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as
electrical shock.
1-1-1. Warnings
For continued safety, do not attempt to modify the circuit board.
WARNING
1-1-2. Servicing the LED TV
When servicing the LED TV, Disconnect the AC line cord from the AC outlet.1.
It is essential that service technicians have an accurate voltage meter available at all times. Check the calibration of this 2.
meter periodically.
1-1-3. Fire and Shock Hazard
Before returning the monitor to the user, perform the following safety checks:
Inspect each lead dress to make certain that the leads are not pinched or that hardware is not lodged between the 1.
chassis and other metal parts in the monitor.
Inspect all protective devices such as nonmetallic control knobs, insulating materials, cabinet backs, adjustment and 2.
compartment covers or shields, isolation resistorcapacitor networks, mechanical insulators, etc.
Leakage Current Hot Check:3.
Disconnect the AC power and DC power jack before servicing.
(READING SHOULD)
DEVICE
UNDER
TEST
ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)
NOT BE ABOVE 0.5mA
2-WIRE CORD
TEST ALL
EXPOSED METAL
SURFACES
LEAKAGE
CURRENT
TESTER
EARTH
GROUND
Do not use an isolation transformer during this test.
Use a leakage current tester or a metering system that complies with American National Standards
WARNING
Institute (ANSI C101.1, Leakage Current for Appliances), and Underwriters Laboratories (UL
Publication UL1410, 59.7).
With the unit completely reassembled, plug the AC line cord directly into a 120V AC outlet. With the unit’s AC switch rst 4.
in the ON position and then OFF, measure the current between a known earth ground (metal water pipe, conduit, etc.)
and all exposed metal parts, including: metal cabinets, screwheads and control shafts.
The current measured should not exceed 0.5 milliamp.
Reverse the power-plug prongs in the AC outlet and repeat the test.
1-1
Page 5
1-2
1. Precautions
1-1-4. Product Safety Notices
Some electrical and mechanical parts have special safetyrelated characteristics which are often not evident from visual
inspection. The protection they give may not be obtained by replacing them with components rated for higher voltage,
wattage, etc. Parts that have special safety characteristics are identied by on schematics and parts lists. A substitute
replacement that does not have the same safety characteristics as the recommended replacement part might create
shock, re and/or other hazards. Product safety is under review continuously and new instructions are issued whenever
appropriate.
Page 6
1-3
1. Precautions
1-2. Servicing Precautions
An electrolytic capacitor installed with the wrong polarity might explode.
WARNING
Before servicing units covered by this service manual, read and follow the Safety Precautions section of
CAUTION
NOTE
1-2-1. General Servicing Precautions
Always unplug the unit’s AC power cord from the AC power source and disconnect the DC Power Jack before 1.
attempting to: (a) remove or reinstall any component or assembly, (b) disconnect PCB plugs or connectors, (c) connect
a test component in parallel with an electrolytic capacitor.
Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes used. 2.
The internal wiring is sometimes clamped to prevent contact with thermally hot components. Reinstall all such elements
to their original position.
After servicing, always check that the screws, components and wiring have been correctly reinstalled. Make sure that 3.
the area around the serviced part has not been damaged.
Check the insulation between the blades of the AC plug and accessible conductive parts (examples: metal panels, input 4.
terminals and earphone jacks).
Insulation Checking Procedure: Disconnect the power cord from the AC source and turn the power switch ON. Connect 5.
an insulation resistance meter (500 V) to theblades of the AC plug. The insulation resistance between each blade of the
AC plug and accessible conductive parts (see above) should be greater than 1 megohm.
Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the positive lead; 6.
always remove the instrument’s ground lead last.
this manual.
If unforeseen circumstances create conict between the following servicing precautions and any of the
safety precautions, always follow the safety precautions.
Page 7
1-4
1. Precautions
1-3. Static Electricity Precautions
Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly
called Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some eld-effect
transistors. The following techniques will reduce the incidence of component damage caused by static electricity.
Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from your 1.
body by touching a known earth ground. Alternatively, wear a discharging wrist-strap device. To avoid a shock hazard,
be sure to remove the wrist strap before applying power to the monitor.
After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent 2.
accumulation of an electrostatic charge.
Do not use freon-propelled chemicals. These can generate electrical charges sufcient to damage ESDs.3.
Use only a grounded-tip soldering iron to solder or desolder ESDs.4.
Use only an anti-static solder removal device. Some solder removal devices not classied as “anti-static” can generate 5.
electrical charges sufcient to damage ESDs.
Do not remove a replacement ESD from its protective package until you are ready to install it. Most replacement ESDs 6.
are packaged with leads that are electrically shorted together by conductive foam, aluminum foil or other conductive
materials.
Immediately before removing the protective material from the leads of a replacement ESD, touch the protective material 7.
to the chassis or circuit assembly into which the device will be installed.
Be sure no power is applied to the chassis or circuit and observe all other safety precautions.
CAUTION
Minimize body motions when handling unpackaged replacement ESDs. Motions such as brushing clothes together, or 8.
lifting your foot from a carpeted oor can generate enough static electricity to damage an ESD.
Page 8
1-5
1. Precautions
1-4. Installation Precautions
For safety reasons, more than a people are required for carrying the product.1.
Keep the power cord away from any heat emitting devices, as a melted covering may cause re or electric shock.2.
Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal temperature 3.
may cause re.
Bend the external antenna cable when connecting it to the product. This is a measure to protect it from being exposed 4.
to moisture. Otherwise, it may cause a re or electric shock.
Make sure to turn the power off and unplug the power cord from the outlet before repositioning the product. Also check 5.
the antenna cable or the external connectors if they are fully unplugged. Damage to the cord may cause re or electric
shock.
Keep the antenna far away from any high-voltage cables and install it rmly. Contact with the highvoltage cable or the 6.
antenna falling over may cause re or electric shock.
When installing the product, leave enough space (0.4m) between the product and the wall for ventilation purposes. 7.
A rise in temperature within the product may cause re.
Page 9
2. Product Specications
2-1. Product Information
2-1-1. Model Comparison
ModelUF5*** / UF4***
2. Product specications
W
Front View
D
Detail View
Front ColorBlack (Panel)
Dimensions
W x H x D
32F4
32F5
40F5
46F5
50F5
Set with
Stand
Set without
Stand
Set with
Stand
Set without
Stand
Set with
Stand
Set without
Stand
Set with
Stand
Set without
Stand
Set with
Stand
Set without
Stand
737.9 x 509.1 x 191.7 mm / 29.1 x 20.0 x 7.5 inches
737.9 x 435.8 x 49.5 mm / 29.1 x 17.2 x 1.9 inches
738.0 x 505.8 x 191.7 mm / 29.1 x 19.9 x 7.5 inches
738.0 x 445.4 x 49.0 mm / 29.1 x 17.5 x 1.9 inches
928.2 x 612.2 x 235.0 mm / 36.5 x 24.1 x 9.3 inches
928.2 x 552.3 x 49.4 mm / 36.5 x 21.7 x 1.9 inches
1059.6 x 686.1 x 235.0 mm / 41.7 x 27.0 x 9.3 inches
1059.6 x 626.2 x 49.4 mm / 41.7 x 24.7 x 1.9 inches
1135.4 x 727.9 x 235.0 mm / 44.7 x 28.7 x 9.3 inches
1135.4 x 668.0 x 49.8 mm / 44.7 x 26.3 x 2.0 inches
* W : Width H : High D : Depth
H
2-1
Page 10
2-2
2. Product specications
Set with
32F4
32F5
Weight
Panel TypeSlim Direct LED
Flash Memory16 Mbyte (SPI)
40F5
46F5
50F5
Stand
Set without
Stand
Set with
Stand
Set without
Stand
Set with
Stand
Set without
Stand
Set with
Stand
Set without
Stand
Set with
Stand
Set without
Stand
5.7 kg / 12.6 lbs
5.2 kg / 11.5 lbs
5.6 kg / 12.3 lbs
5.0 kg / 11.0 lbs
9.5 kg / 20.9 lbs
8.0 kg / 17.6 lbs
12.3 kg / 27.1 lbs
10.8 kg / 23.8 lbs
14.5 kg / 32.0 lbs
13.0 kg / 28.7 lbs
DDR128 Mbyte
FeatureMedia Play(Movie), Sports Mode, USB copy(UF4100/UF5100 only)
Page 11
2-3
2. Product specications
ModelUF4280
W
Front View
D
* W : Width H : High D : Depth
Detail View
Front ColorBlack (Panel)
Dimensions
W x H x D
Weight
32F
4280
32F
4280
Set with
Stand
Set without
Stand
Set with
Stand
Set without
Stand
739.2 x 513.2 x 219.0 mm / 29.1 x 20.2 x 8.6 inches
739.2 x 443.9 x 51.0 mm / 29.1 x 17.5 x 2.0 inches
5.5 kg / 12.1 lbs
4.9 kg / 10.8 lbs
Panel TypeAnti Glare
H
Internal MemoryNone
DDR128 Mbyte
FeatureMedia Play(Movie), Sports Mode
Page 12
2-4
2. Product specications
ModelUF4800
W
Front View
D
* W : Width H : High D : Depth
Detail View
Front ColorBlack (Panel)
Dimensions
W x H x D
Weight
32F
4800
32F
4800
Set with
Stand
Set without
Stand
Set with
Stand
Set without
Stand
737.8 x 506.0 x 182.9 mm / 29.0 x 19.9 x 7.2 inches
737.8 x 435.7 x 49.5 mm / 29.0 x 17.2 x 1.9 inches
6.7 kg / 14.8 lbs
6.3 kg / 13.9 lbs
Panel TypeAnti Glare
H
Internal MemoryNone
DDR128 Mbyte
FeatureMedia Play(Movie), Sports Mode
Page 13
2-5
2. Product specications
2-1-2. Feature & Specications
ModelUA32F5000AR/UA32F5100AR
Feature
Digital-TV, RF, 2-HDMI, 1-Component, 1-A/V, 1-USB2.0(UF4100: 2-USB2.0), Digital Sound Out(Optical)•

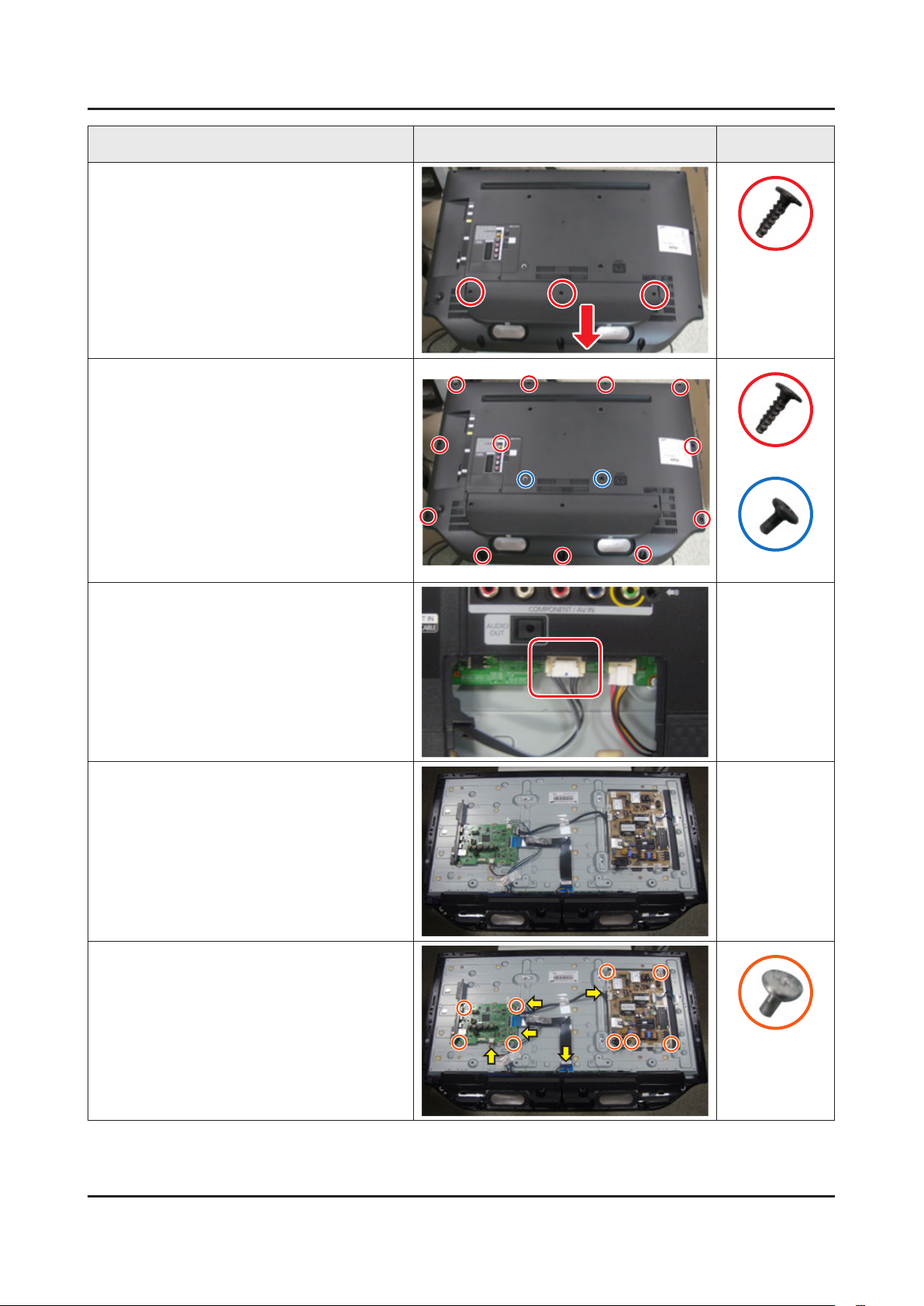

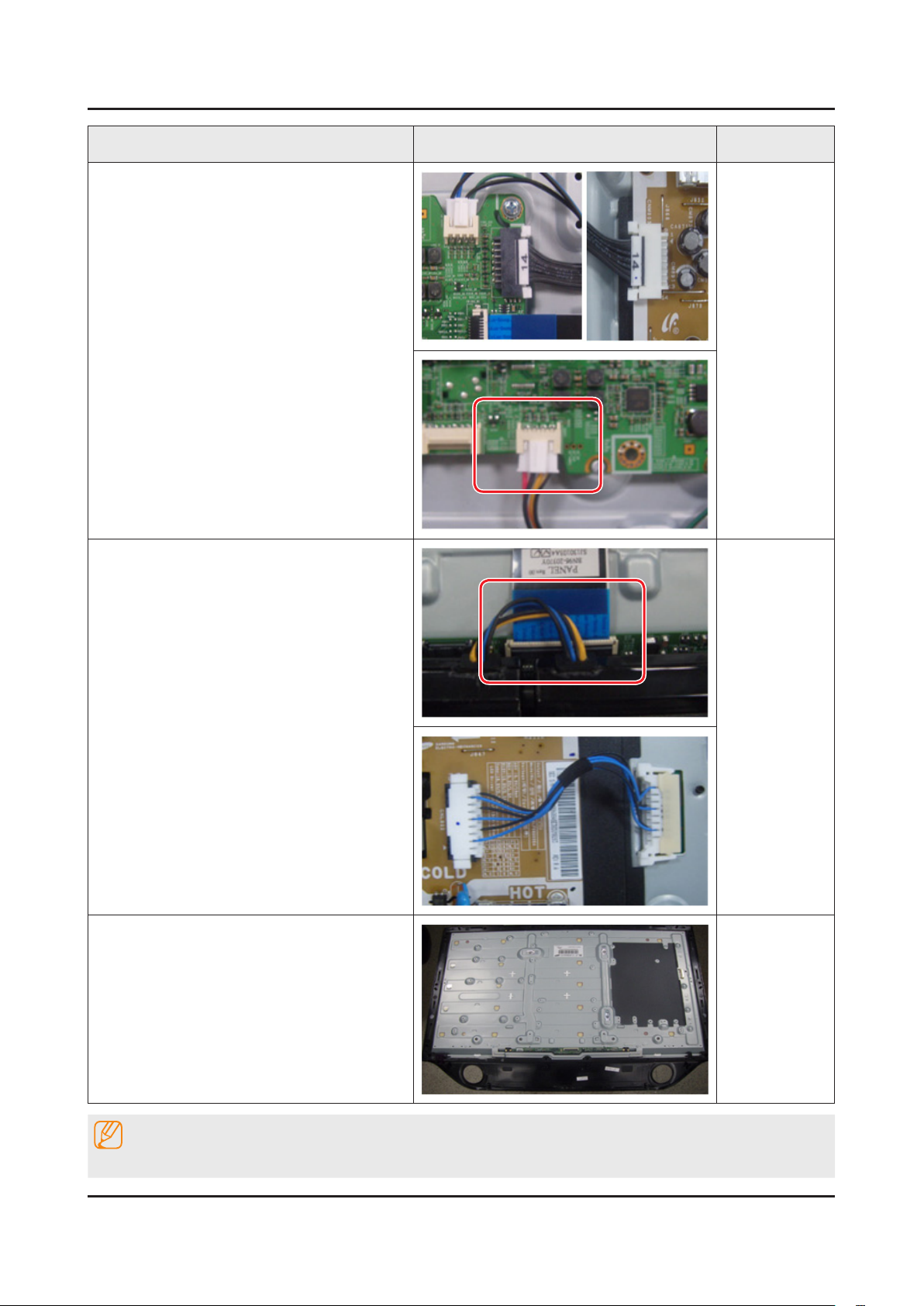

CHASSIS is rotated by 45 degrees outward
and pulls.
Page 37
3-13
3. Disassembly and Reassemble

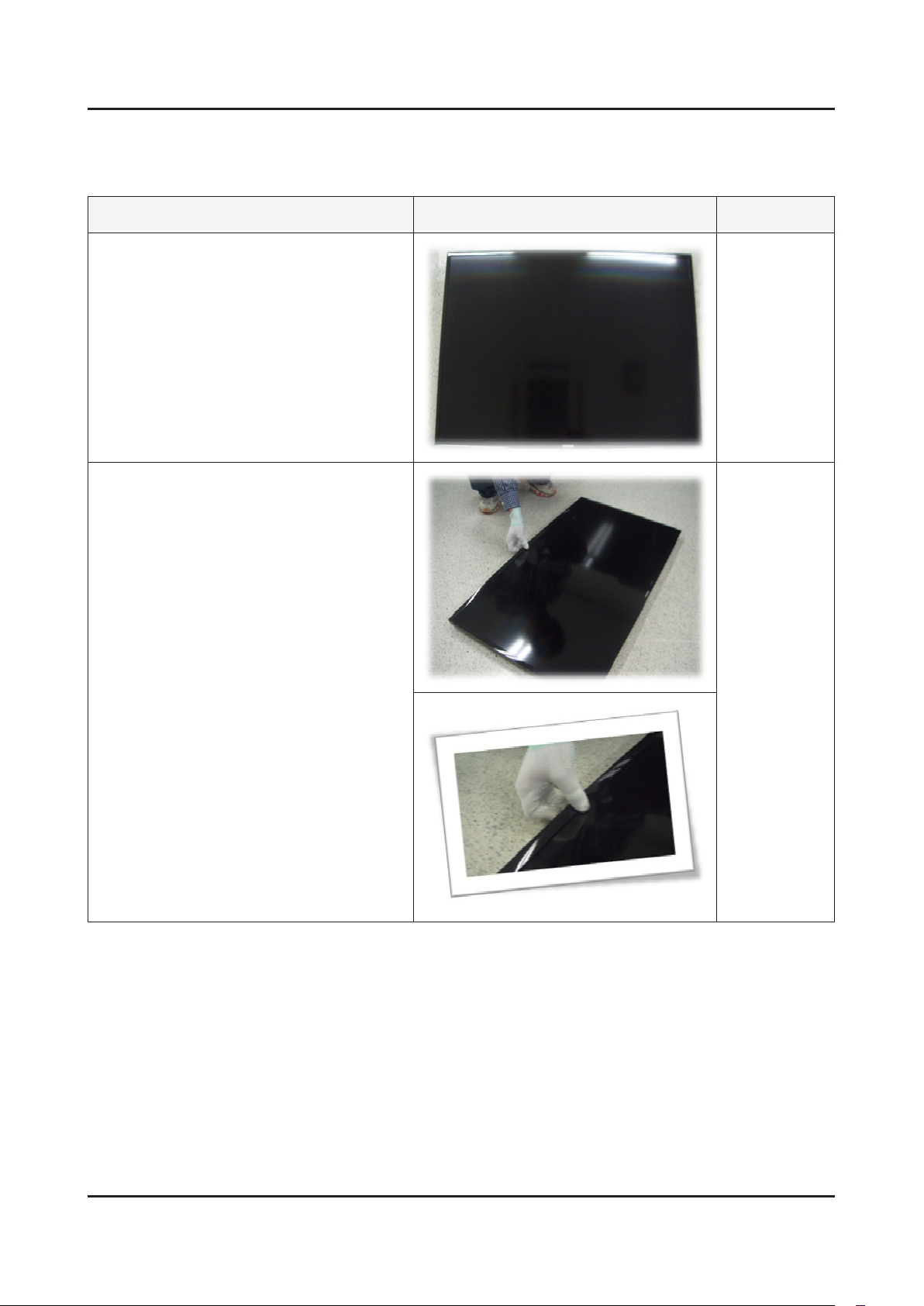

DescriptionPicture DescriptionRefer

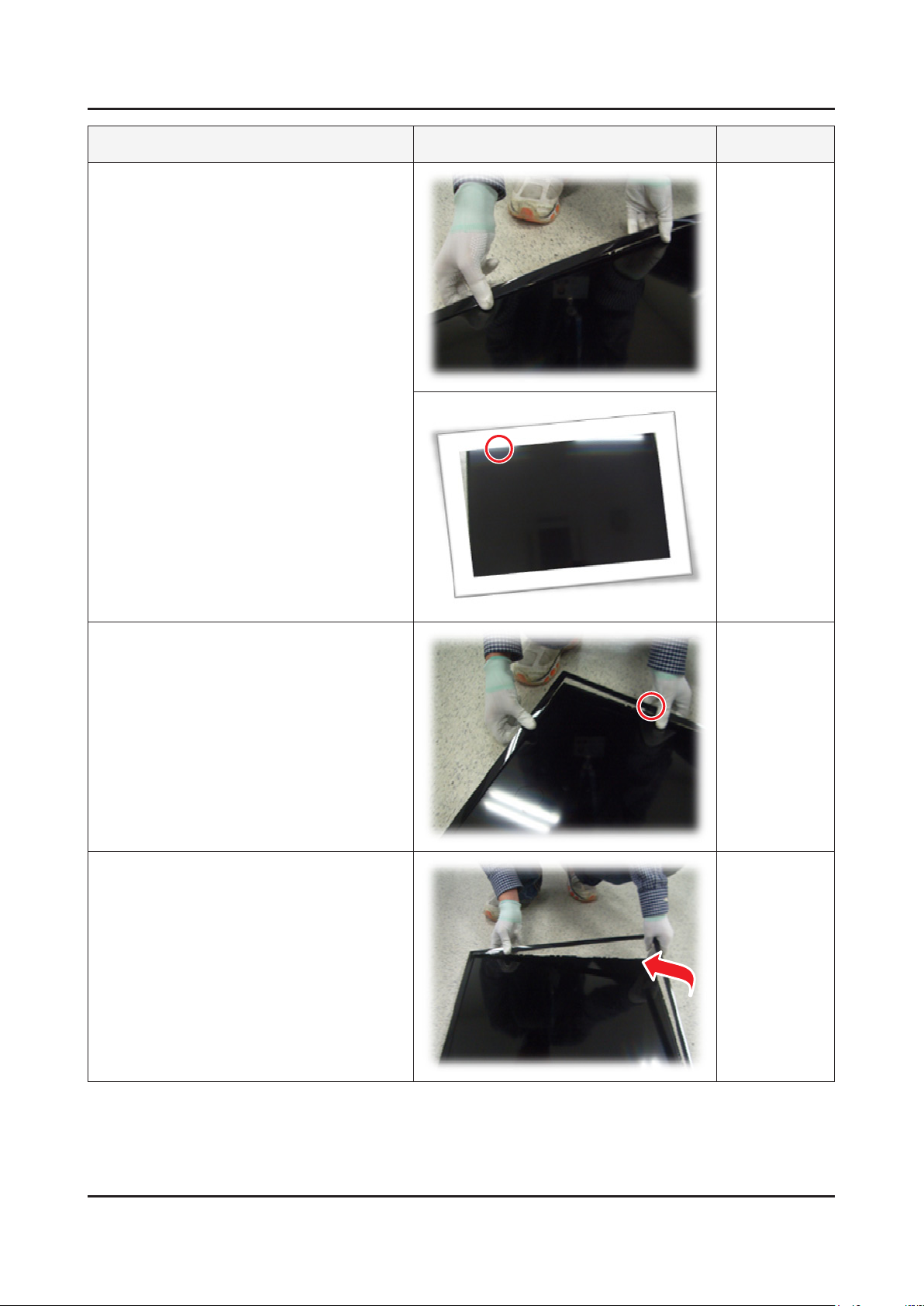

Pull in the same way from the center of the
3
top.
Pull the left part of the product as shown
4
while holding the raised portion on gure 3.
Pull the bottom part of the product as
5
gure 2 while holding the raised portion on
gure 4.
Page 38
3-14
3. Disassembly and Reassemble
DescriptionPicture DescriptionRefer

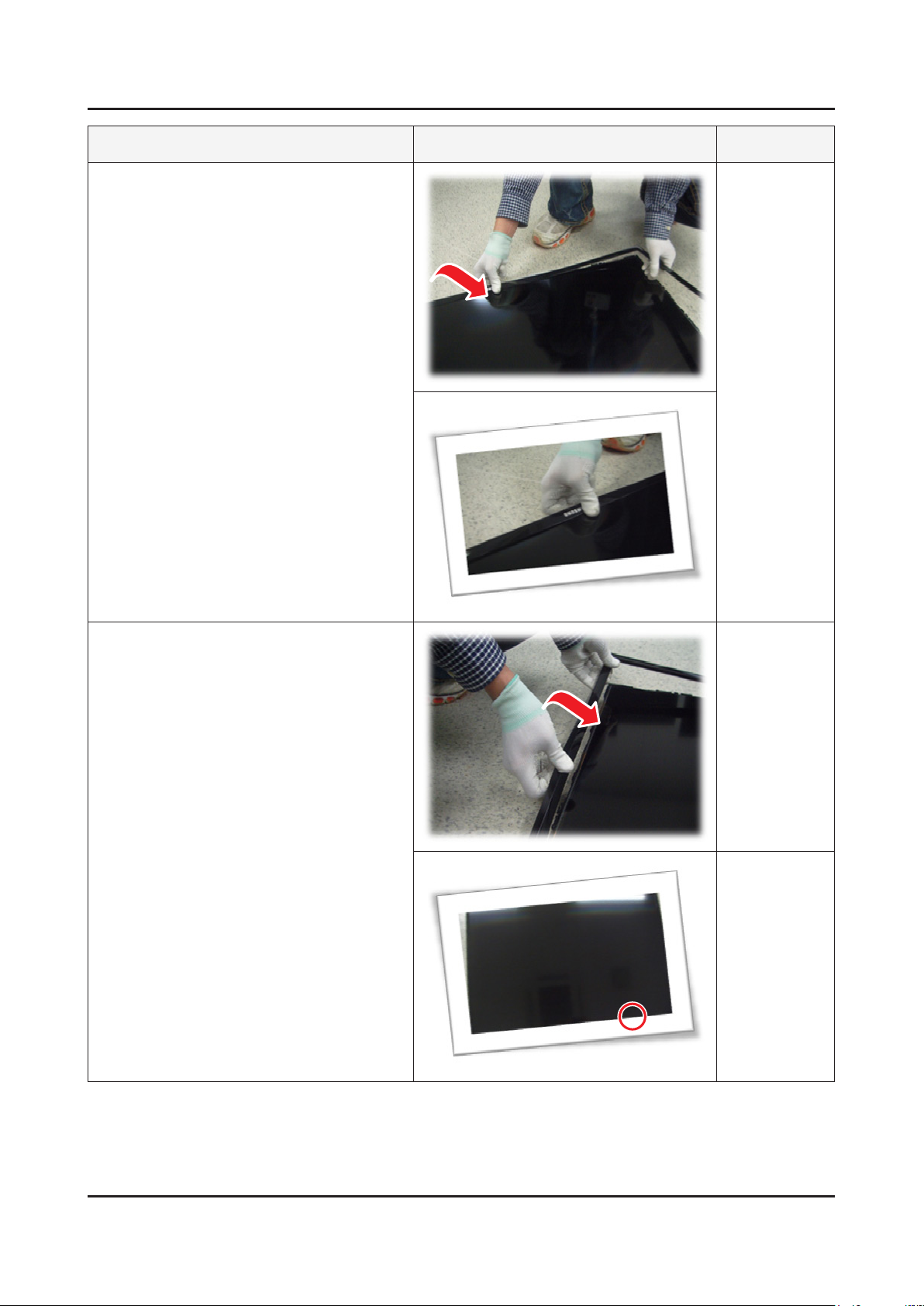

As shown in the picture, Lift the bottom of
6
the TOP-CHASSIS.
Pull the products at the bottom of the right
7
side of the chassis.
Page 39
3-15
3. Disassembly and Reassemble
DescriptionPicture DescriptionRefer

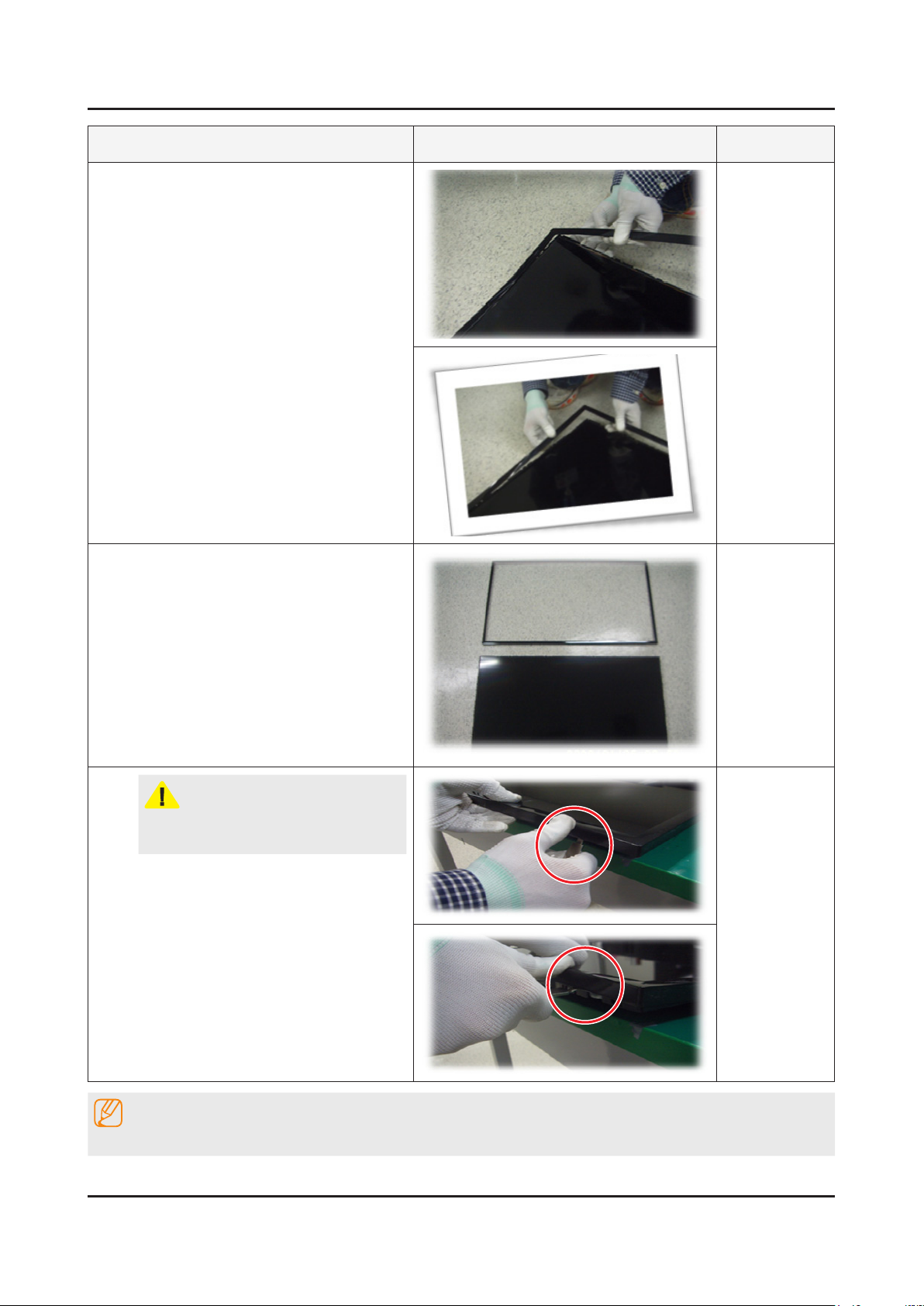

Lift the bottom of the chassis with one
8
hand and holding the bottom of the product
after you pull the right side of the product
chassis.
Disassembly is complete.
9
CAUTION
To use JIG : Does not lift the chassis by
hand, JIG using the lift.
NOTE
Reassembly procedures are in the reverse order of disassembly procedures.
Page 40
4. Troubleshooting
4-1. Troubleshooting
Previous Check
Check the various cable connections rst.1.
Check to see if there is a burnt or damaged cable. -
Check to see if there is a disconnected or loose cable connection. -
Check to see if the cables are connected according to the connection diagram. -

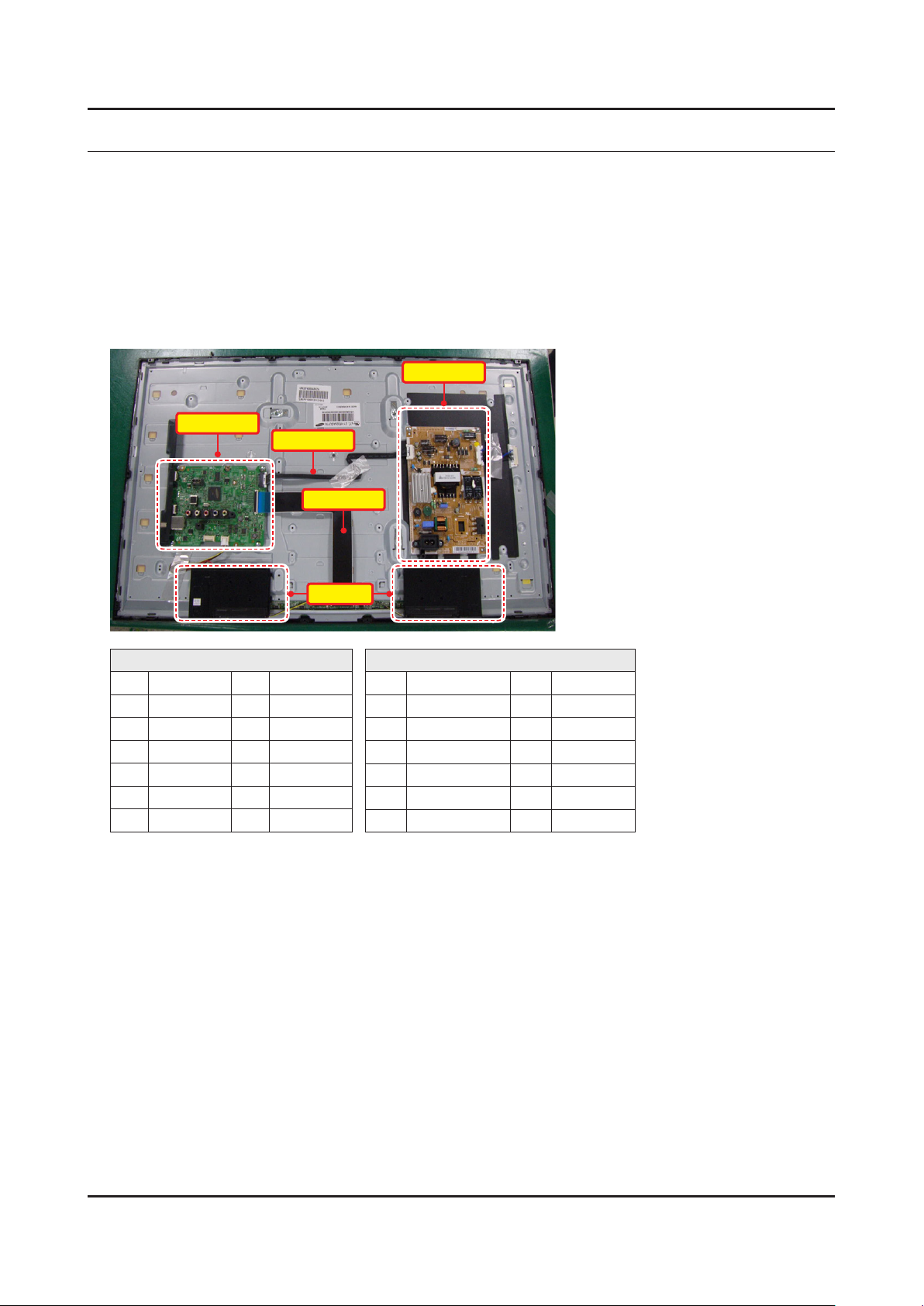

Check the power input to the Main Board.2.
Main Ass’y
Power Cable
4. Troubleshooting
Power Ass’y
LVDS Cable
Speaker

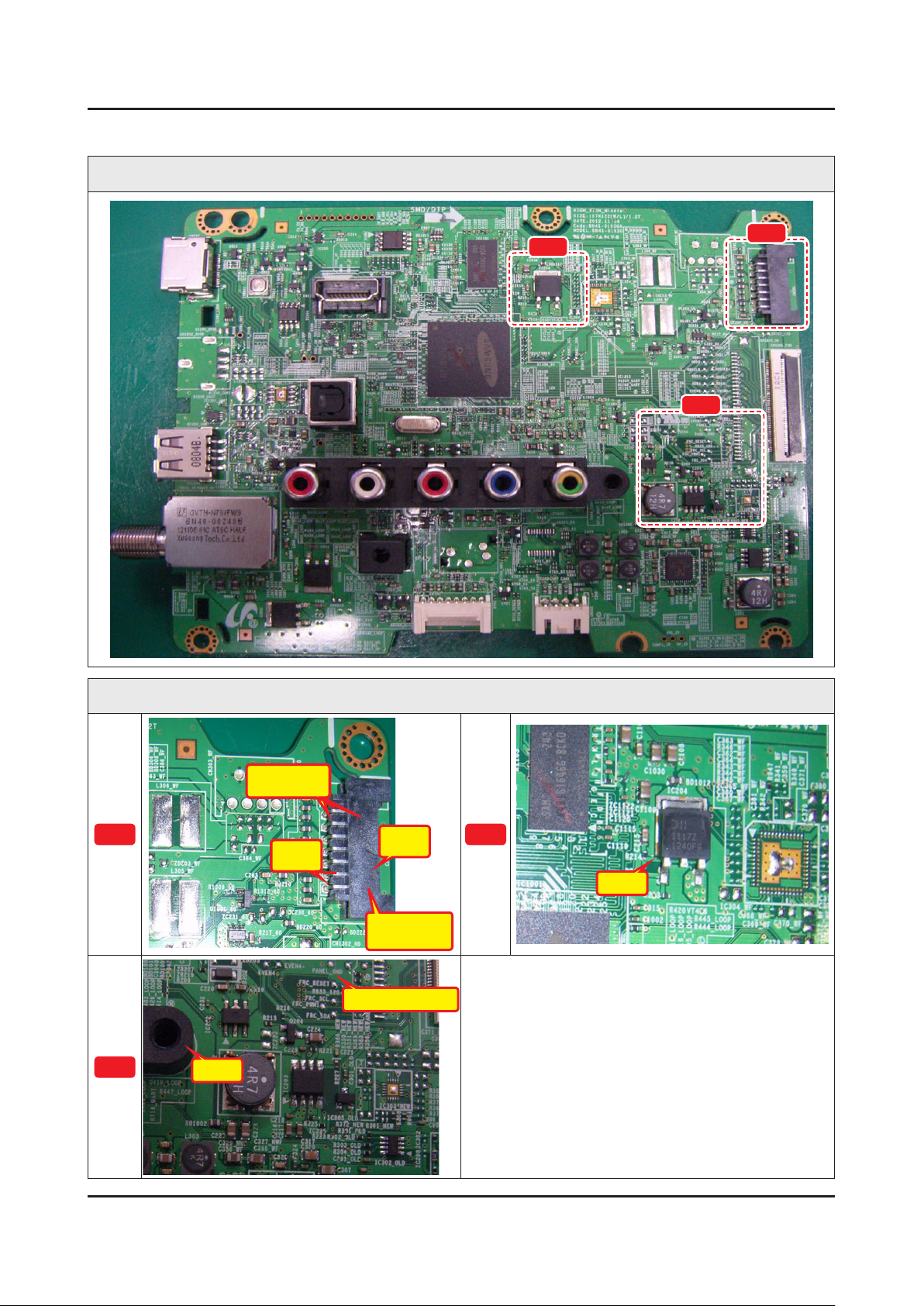

Main Board Assy (CN201)
13B13V14PWM_DIM
11B13V12B13V
9B13VS10SW_INV
7B13VS8GND
5GND6GND
3B5.3V4A5.3V
1B5.3V2SW_PW
* Change the 14Pin to PWM_DIM(2013 years) from B13V(2012 years)
Check the power in & output between IP & Main Board, Main Board & Panel, IP & Panel.3.
Power Board Assy (CNM803)
14PS ON/OFF13B5V
12A5V11B5V
10GND9GND
8GND7Vamp
6BLU_ON/OFF5Vamp
4ECO_ON/OFF3B13V
2PWM_DIM1B13V
4-1
Page 41
4-2
4. Troubleshooting
How to know it is from Main Board or T-Con when some problems happen
No Picture : Backlight is on, but there is no picture and LED indicator in front of TV is blinking.1.
Check the LVDS Cable connection. If still problems, change the T-Con Board and then Main Board step by step. -

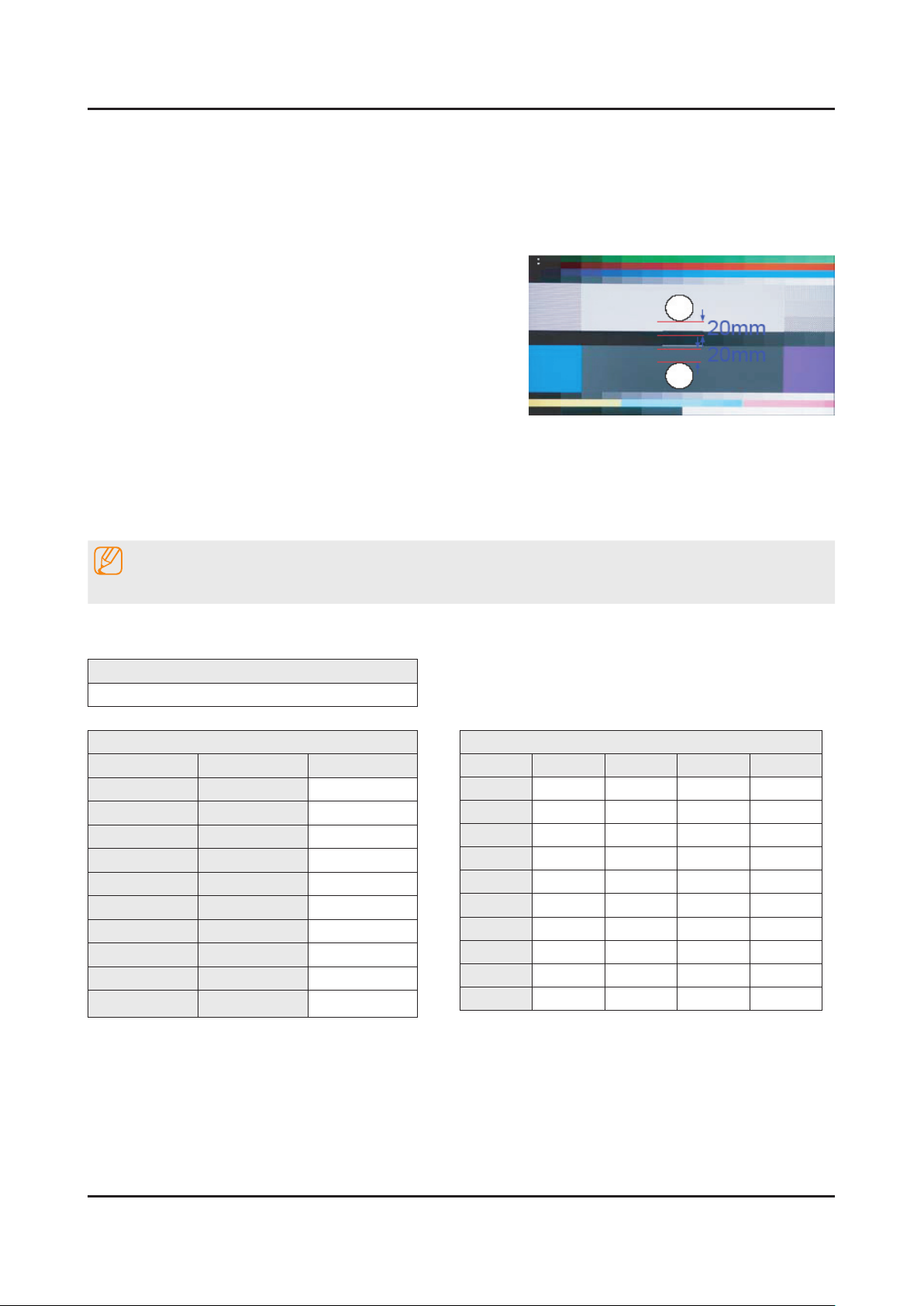

Picture distortion : Enter the service mode 2. ⇢ Choose ‘SVC’ ⇢ Check the ‘internal pattern.’
Enter ‘Service Mode.’ -
If you do not have Factory remote control•
Power OFF InfoMENUMutePower On
If you have Factory remote control•
INFOFactory
Choose ‘SVC.’3.

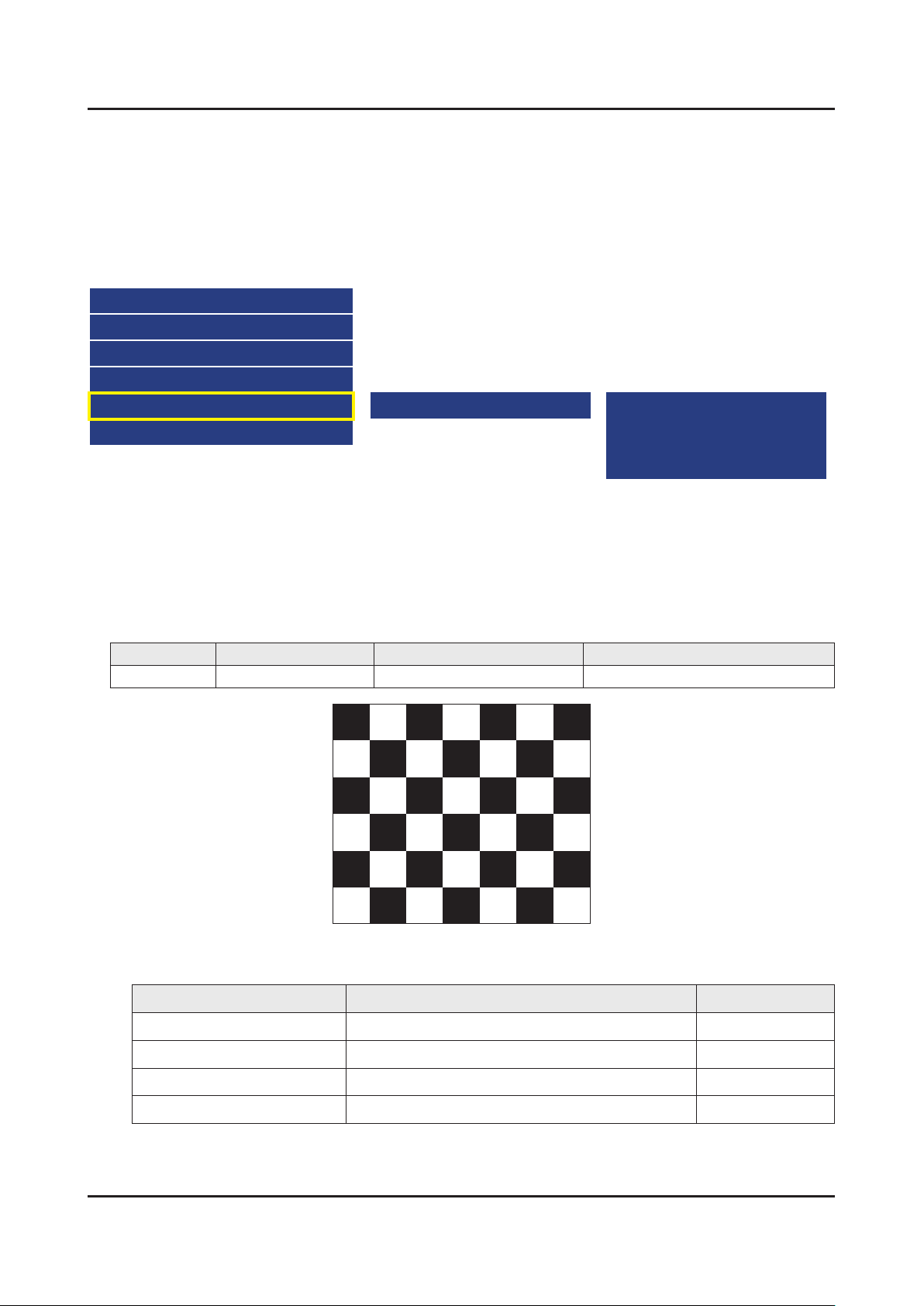

Choose ‘Test pattern.’4.
Select the each pattern and then check all pattern is ok or not.5.
Option
Control
Debug
SVC
ADC/WB
Advanced
Pattern Status isChange theTest Pattern is made by the MSTAR IC
OKMain BoardWe guess front of MSTAR IC has problem.
NGPanel and T-Con BoardWe guess back of MSATR IC has problem.
Test PatternMstar Test Pattern
Page 42
4-3
4. Troubleshooting

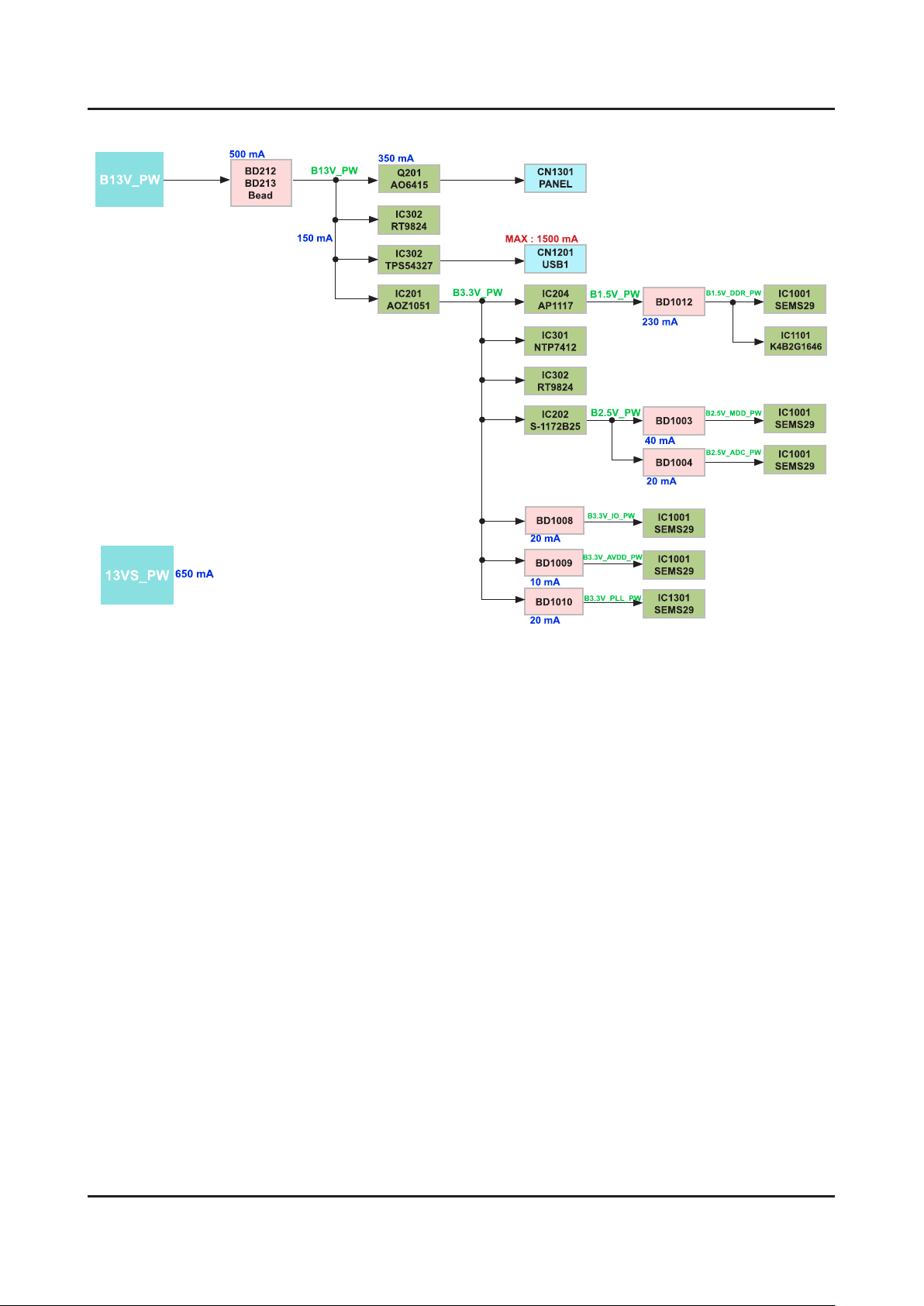

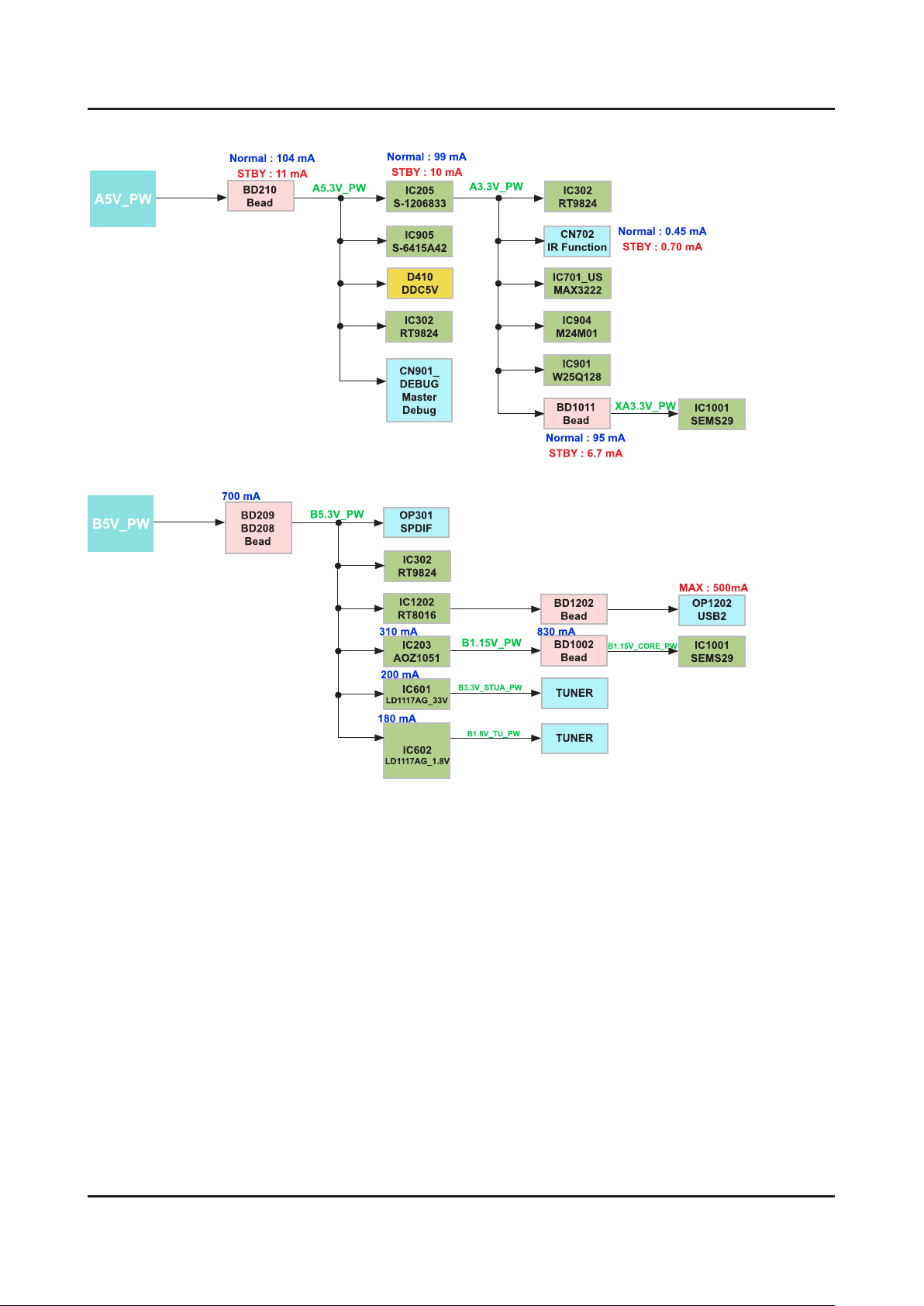

Power-Tree
Page 43
4-4
4. Troubleshooting
Power-Tree
Page 44
4-2. How to Check Fault Symptom
4-5
4. Troubleshooting

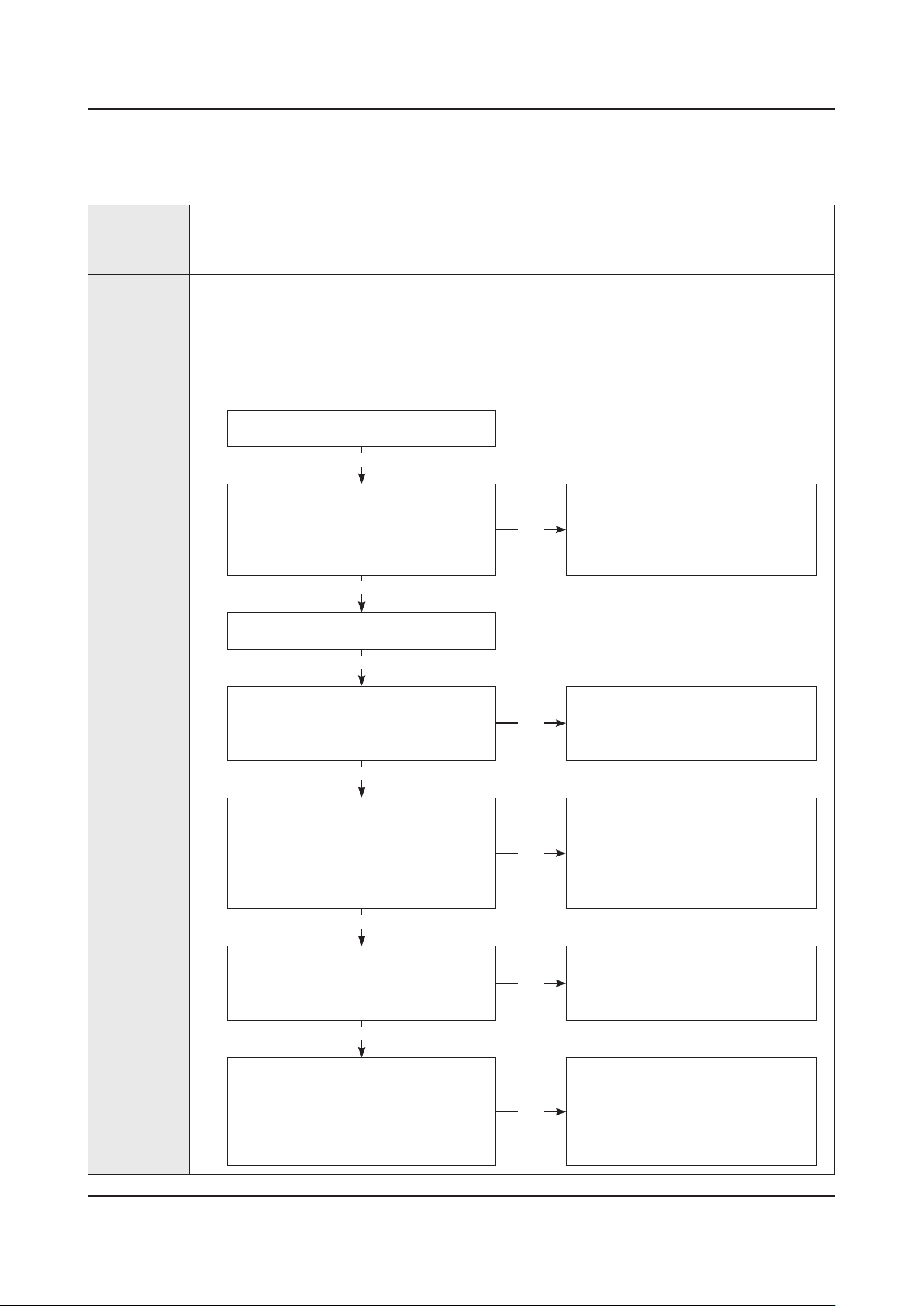

NO Power and No Video
The LEDs on The front panel do not work when connecting The power cord.•
Symptom
Major
checkpoints
The SMPS relay does not work when connecting The power cord.•
The units appears to be dead.•
The IP relay or the LEDs on the front panel does not work when connecting the power cord if the cables are
improperly connected or the Main Board or SMPS is not functioning. In this case, check the following:
Check the internal cable connection status inside the unit.•
Check the fuses of each part.•
Check the output voltage of SMPS.•
Replace the Main Board.•
Power cord on.
Yes
Diagnostics
Check ‘Stand-By A5.3V’ 5.3V appear at
BD210?
5.3V (CN201 #4)
Yes
Set On.
Yes
Check ‘SW_POWER’ more than 3.3V
appear at CN201(#2) ?
3.3V↑ (CN201 #2)
Yes
Check ‘Power input of Main Ass’y’ ?
DC B13V, B5.3V appear at
CN201 #11,12,13(B13V)
CN201 #1,3 (B5.3V)?
13V (CN201 #11,12,13)
5.3V (CN201 #1,3)
Yes
No
No
No
Cause : There did not supply the
power from SMPS.
Measure : Change 14p power cable
and SMPS.
Cause : Main IC(X13N) did not control
the SW_Power.
Measure : Change the Main Assy.
Cause : There did not supply the
power from SMPS.
Measure : Change 14p power cable
and SMPS.
Check ‘Power of main IC(B1.15V)’.
Check ‘Power of DDR IC(B1.5V)’ appear
at B1.15V(L202), B1.5V(R214).
Yes
Check ‘Power of LVDS (13V)’ appear at
TP-PANEL_VCC?
13V (TP-PANEL_VCC)
No
No
Cause : There is proble at
DCDC(IC203) / LDO(IC204).
Measure : Change the Main Assy.
Cause : There is proble at
FET(Q201_60) or Main
IC(X13N) did not control the
SW_PVCC.
Measure : Change the Main Assy.
Page 45
4-6
4. Troubleshooting
Yes
Change the LVDS cable ?
CautionMake sure to disconnect the power before working on the IP board.
No
Change the Panel.
Page 46
4-7
4. Troubleshooting
Location of Parts_4K / 5K
Main Board_Front
B
C
A
Detail
B13V
#11,12,13
A
C
B1.15V
B5.3V
#1,3
A5.3V
#4
SW_POWER
#2
TP-PANEL_VCC
B
B2.5V
Page 47
4-8
4. Troubleshooting
4-3. Factory Mode Adjustments
4-3-1. Detail Factory Option
NOTE
If you replace the main board with new one, please change the factory option as well.
The options you must change are "Type".
5000
Model Name UA32F5*00ARUA40F5*00ARUA46F5000ARUA50F5000AR
Vendor SDC
Panel
SMPS
MAIN ASSY
(depend on
country)
ByteItem
0Factory Reset----
1Type32A6AF0S
CodeBN95-00883A
Spec.LSF320HN02
Vendor POWERNETDONGYANGSEMHANSOL
Code BN44-00605BBN44-00609BBN44-00610ABN44-00612B
Spec.L32SF_DPNL42SF_DDYL46SF_DSML55S1_DHS
Chassis
Ass'y
PBA
Ass'y
code
BN91-10625ZBN91-10529HBN91-10529JBN91-10321H
BN94-06332ZBN94-06292HBN94-06292JBN94-06177H
SDC
Sharp
BN95-00887A
BN95-00909A
LSF400HM02
LK400D3HB7K
40A6AF0S
40H6AF0S
SDC
BN95-00891A
LSF460HN02
46A6AF0S
BN07-01269A
BN07-01278A
BN07-01278B
HF500BGM-C1
HF500BGA-B1
HF500BGA-B2
50R6AF0S
50R6AF0S
50R6AF0S
CMI
AUO
AUO
2ModelF5000F5000F5000F5000
3SVC Model5000500050005000
4Local SetLocal Set
5TunerSI_ADI
6Ch TableNoneNoneNoneNone
7Front Color U-S-C-5KU-S-C-5KU-S-C-5KU-S-C-5K
Page 48
4-9
4. Troubleshooting
4***
Model Name UA32F4*00ARUA32F4280ARUA32F4800AR
BOE
BN95-00939A
HF320AGE-V1
DONGYANG
BN44-00604B
L32S0_DDYL32SSN_DSM
BN91-10507D
SDC
BN95-01089A
LSF320AN01
SEM
BN44-00608A
BN91-10317D
Panel
SMPS
Vendor SDC
CodeBN95-00882A
Spec.LSF320AN01
Vendor DONGYANG
Code BN44-00604C
Spec.L32S0N_DDY
Chassis Ass'yBN91-10507V
MAIN ASSY
(depend on country)
PBA Ass'y
code
BN94-06272V
BN94-06296V
BN94-06173D
ByteItem
0Factory Reset---
1Type32A6AH0S
2ModelF4000
3SVC Model4000
32B6AH0S
F4280
4280
32A6AH0S
F4800
4800
4Local SetLocalSetChinaLocalSet
5TunerSI_ADISI_ADISI_AD
6Ch TableNone
NoneNone
7Front Color U-S-C-5K
NONE
N/A
Page 49
4-10
4. Troubleshooting
4-3-2. Entering Factory Mode
To enter ‘Service Mode’ Press the remote -control keys in this sequence :
If you do not have Factory remote control•
Power OFF INFOMENUMUTEPower On
If you have Factory remote control•
INFOFactory
If you don’t have Factory remote control, can’t control some menus•

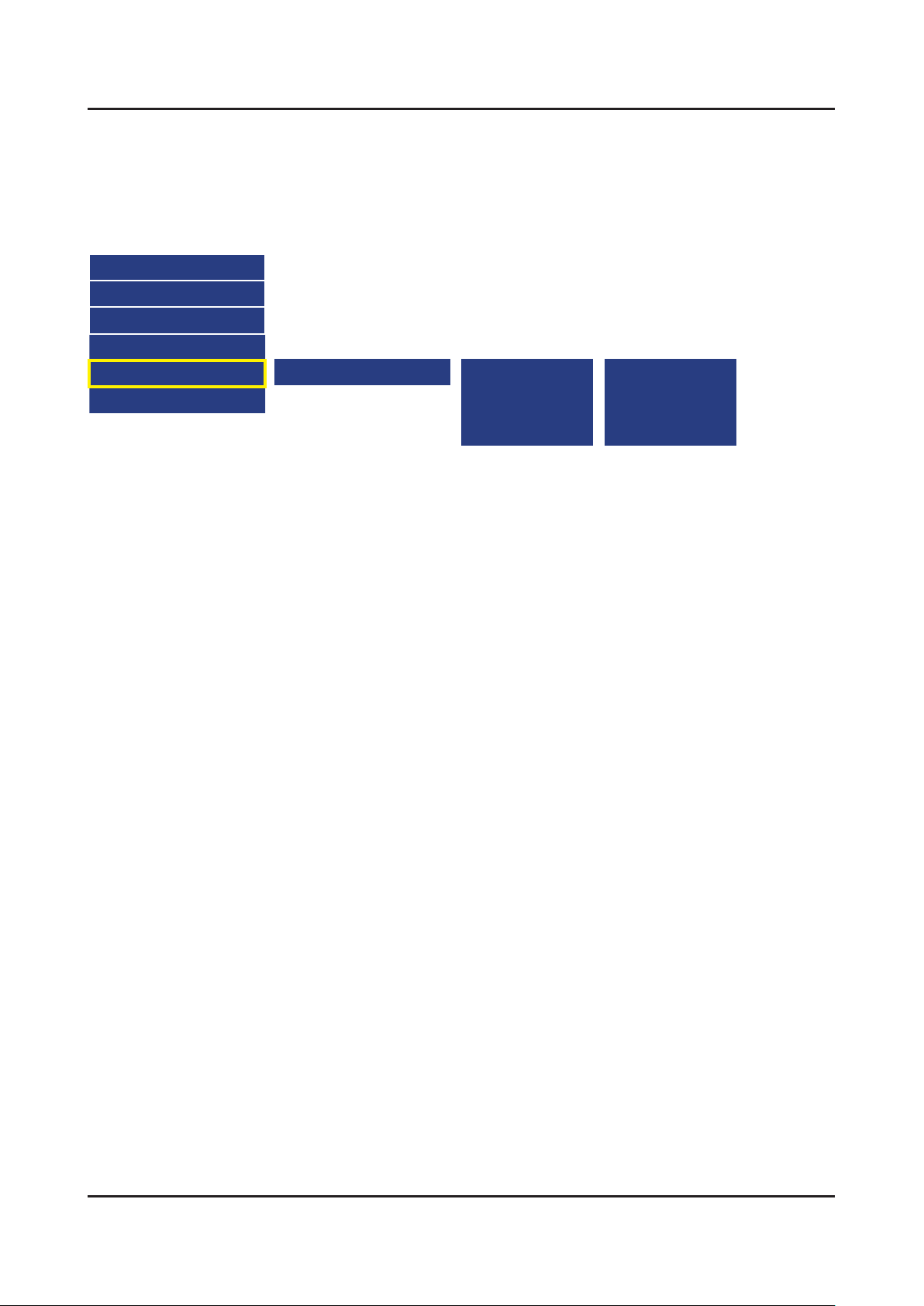

Initial SERVICE MODE DISPLAY State
Option
Control
Debug
SVC
ADC/WB
Advanced
T-M13FMASC-xxxx.x
DTP-LP3-0278
DTP-LP3-App-0278
HDCP : SUCCESS
CALIB:HDMI/COMP/PC/AV/
OPTION:32A6AF0S,EA_Thai,5100,NONE
USB Serial:OFF
Picture Data:**.**.**
BuildDate : **-**-****
Date Of Purchase : **/**/**
Page 50
4-3-3. Factory Data
4-11
4. Troubleshooting
Note
Version of the software is written in 0002.•
Black• : I should not be possible to adjust or change that does not require a change item
Blue : Adjustment Services for the corresponding
Red : Items that are secured
Option
Factory Menu
DataRangeRemarkKey
Name
Factory Reset--
Type32A6AH0S
32A6AF0S
40A6AF0S
46A6AF0S
50P6AF0S
32A6AH0S
ModelUF5100UF4000/UF4100/UF5000/UF5100/
SVC Model5100
Local SetEA_Thai
TunerSI_ADI
Ch Table NONE
Front ColorU-S-C-5KNONE/U-S-C-5K
32A6AHOS is only UA32F4000ARuse to change panel
UF4800
Control
do not change
Factory Menu NameDataRangeRemarkKey
EDID
EDID VERSIONHDMI 1.3/HDMI1.2
Sub Option
RS-232 JackUARTUART/FANET/LOGIC/DEBUG
USB SerialOffOn/Off
WatchdogOffOn/Off
Checksum0x0000
EEPROM RESET
ECOIC TYPECT802FN
readyOff
TTXLISTFlof
TTXGroupLangOSD
Page 51
4-12
4. Troubleshooting
Factory Menu NameDataRangeRemarkKey
OPTION_NUM
Anynet+Offon/off
HPIdentHighHigh/Low
PCIdentonon/off
OSDResolution1920*1080
IgnoreVCTVersiononon/off
ChangeOSDLanguage
VCRModeoffon/off
WallMount Calibration
Energy Staronon/off
PDP Option
Hotel Option
Hotel Modeoffon/off
Power On Channel3
Power On BandSTD
Power On SourceATV
Power On Volume10
Min Volume0
Max Volume100
Panel Button LockOff
Pic Menu LockOff
Video Mute Ch1
Video Mute Ch On/OffOff
Music Mode(AV)Off
Music Mode(PC)Off
Music Mode(Comp)Off
Music Mode BacklightOff
Menu DisplayOn
Power On OptLast Option
Ch Remap On/OffOff
Program Ch3
Original Ch/Src3
Auto PCOff
Energy SavingOff
Clone:TVtoUSB
Clone:USBtoTV
Page 52
4-13
4. Troubleshooting
Factory Menu NameDataRangeRemarkKey
Shop Option
Shop Modeoffon/off
Exhibition Modeoffon/off
Asia Option
Sound
Carrier MuteonOn/Off
High DevioffOn/Off
Speak Delay Normal25ms25~150ms
SPDIF PCM Gain-9dB
FM M Prescale48
FM Prescale68
AM Prescale50
Nicam Prescale72
BTSC Mono Prescale25
BTSC Stereo Prescale47
BTSC SAP Prescale43
Pilot Level High Thld0x20
Pilot Level Low Thld0x15
Carrier2 Amp High Thld0x04
Carrier2 Amp Low Thld0x03
Carrier2 NSR High Thld0x10
Carrier2 NSR Low Thld0x50
A2Ident High Thld0x24
A2Ident Low Thld0x09
Sig Error On0x23
Sig Error Off0x29
BTSC Stereo High Thld0x20
BTSC Stereo Low Thld0x26
Amp ModelNTP7412sNTP7411s/NTP7412s
Woofer TypeBoth
Main Amp Volume199
Center Amp Volume199
Woofer Amp Volume199
Main Amp Scale142
Center Ammp Scale165
Woofer Amp Scale138
Main Speaker EQonOn/Off
Page 53
4-14
4. Troubleshooting
Factory Menu NameDataRangeRemarkKey
Center Speaker EQon
Woofer Speakr EQon
Main Amp Checksum0x0143C040
Center Amp Checksum0X00000000
Woofer Amp Checksum0X00000000
Debug
Factory Menu NameDataRangeRemarkKey
Spread Spectrum
Spread Spectrum
Spread SpectrumOnOn/Off
Period40K40K/50K/60K
Amplitude1.50/0.5/1/1.5/2
DDR Spread1%Off/1%/2%
FRC LVDS Spreadon
FRC LVDS Period30k
FRC LVDS Amplitude1%
FRC DDR Spreadon
FRC DDR Period30k
FRC DDR Amplitude1%
RF Mute Time
RF Mute Time4
FRC
IIC Bus Stop
Tuner Status
SVC
Factory Menu NameDataRangeRemarkKey
Test patternMiddleLow/Middle/High/Strong
Mstar Test Patternoff
Mstar Test Patternoff
LOGIC Test Pattenoff
FRC Post Patternoff
use to solve HDMI
Noise
FRC Pre Patternoff
Panel Display Time
Panel Display Time2Hr
Delete S/N
Page 54
4-15
4. Troubleshooting
Factory Menu NameDataRangeRemarkKey
Delete S/N
Upgrade
T-CON Download
ER COUNT
Watch Dog Count0
LOG
Log View
OPTION_HDMI
DVI Sound
DVI Sound0
HDMI Hotplug
HDMI Hotplugonon/off
HDMI Hotplug CLK Ctrl
HDMI Hotplug CLK Ctrlonon/off
HDMI Hot Plug Delay
HDMI Hot Plug Delay12
HDMI EQ1MiddleLow/Middle/High/Strong
HDMI EQ2MiddleLow/Middle/High/Strong
HDMI EQ3MiddleLow/Middle/High/Strong
HDMI EQ4MiddleLow/Middle/High/Strong
HDMI SyncDEDE/HV
Expert
ADC/WB
Factory Menu NameDataRangeRemarkKey
ADC
AV CalibrationSuccessSuccess / Failure
Comp Calibration
PC Calibration
HDMI Calibration
ADC Target
1st_AV_Low160~255
1st_AV_High2200~255
1st_AV_Delta10~255
1st_COMP_Low160~255
1st_COMP_High2350~255
1st_COMP_Delta10~255
Page 55
4-16
4. Troubleshooting
Factory Menu NameDataRangeRemarkKey
1st_PC_Low20~255
1st_PC_High2510~255
1st_PC_Delta10~255
2nd_Low10~255
2nd_High2350~255
2nd_Delta10~255
ADC Result
1st_AV_Gain126
1st_AV_Offset153
1st_Comp_Gain143
1st_Comp_Gain_Cb142
1st_Comp_Gain_cr142
1st_Comp_Offset128
1st_Comp_Offset_Cb128
1st_Comp_Offset_Cr128
1st_PC_R_Gain166
1st_PC_G_Gain166
1st_PC_B_Gatin166
1st_PC_R_Offset128
1st_PC_G_Offset128
1st_PC_B_Offset128
2nd_R_Offset1320~255
2nd_G_Offset1320~255
2nd_B_Offset1320~255
2nd_R_Gain700~255
2nd_G_Gain700~255
2nd_B_Gain1440~255
WB
Sub Brightness1280~255
R_Offset1280~255
G_Offset1280~255
B_Offset1280~255
Sub Contrast1280~255
R_Gain1280~255
G_Gain1280~255
B_Gain1280~255
W2_R_Offset1280~255
Page 56
4-17
4. Troubleshooting
Factory Menu NameDataRangeRemarkKey
W2_B_Offset1280~255
W2_R_Gain1600~255
W2_B_Gain660~255
N_R_Offset1280~255
N_B_Offset1280~255
N_R_Gain1470~255
N_B_Gain1080~255
MGA
MGA On/Offoffon/off
Advanced
Factory Menu NameDataRangeRemarkKey
Sub setting
PWM(Video)
Dynamic Dimming
LED Peak OnOff
Delete alt.ver
OTA
Power Key Protects
1080p 48hz
HDCP Download
Media Play(USB)
WB Movie
W/B MOVIEoff
ModeMovie
Color ToneCool
MultiAccoff
Sub Brightness128
Sub Contrast135
info+ factory
M Sub Brightness126
M Sub Contrast118
W2_RGAIN32
W2_BGAIN-62
W2_ROFFS0
W2_BOFFS0
N_RGAIN19
N_BGAIN-20
Page 57
4-18
4. Troubleshooting
Factory Menu NameDataRangeRemarkKey
N_ROFFS0
N_BOFFS0
M_N_RGAIN0
M_N_BGAIN0
M_N_ROFFS0
M_N_BOFFS
M_W2_RGAIN0
M_W2_BGAIN0
M_W2_ROFFS0
M_W2_BOFFS0
Movie Contr100
Movie Brigh45
Movie Color
Movie Sharp55
Movie Tint0
Movie BkLight20
Movie GammaOFF
M Sub Gamma0
HDMI Black LevelNormal
Gamma0.93
EPA Standard
Std Contr100
Std Bright45
Std Sharp50
Std Color50
Std Tint50
Std Backlight12
COLOR MAPPING
A_Red_R44
A_Red_G0
A_Red_B0
A_Green_R0
A_Green_G58
A_Green_B0
A_Blue_R0
A_Blue_G0
A_Blue_B50
Page 58
4-19
4. Troubleshooting
Factory Menu NameDataRangeRemarkKey
A_Yellow_R55
A_Yellow_G50
A_Yellow_B0
A_Cyan_R0
A_Cyan_G47
A_Cyan_B40
A_Magenta_R52
A_Magenta_G0
A_Magenta_B62
N_Red_R50
N_Red_G0
N_Red_B0
N_Green_R0
N_Green_G50
N_Green_B5
N_Blue_R0
N_Blue_G0
N_Blue_B50
N_Yellow_R55
N_Yellow_G45
N_Yellow_B0
N_Cyan_R0
N_Cyan_G50
N_Cyan_B50
N_Magenta_R50
N_Magenta_G0
N_Magenta_B50
S_Red_R50
S_Red_G0
S_Red_B0
S_Green_R0
S_Green_G50
S_Green_B5
S_Blue_R0
S_Blue_G0
S_Blue_B50
S_Yellow_R55
Page 59
4-20
4. Troubleshooting
Factory Menu NameDataRangeRemarkKey
S_Yellow_G45
S_Yellow_B0
S_Cyan_R0
S_Cyan_G50
S_Cyan_B50
S_Magenta_R50
S_Magenta_G0
S_Magenta_B50
WCE
WRHue64
WRSat17
WYHue74
WYSat16
WGHue57
WGSat16
WCHue62
WCSat17
WBHue64
WBSat17
WMHue64
WMSat17
S_WRHue64
S_WRSat16
S_WYHue69
S_WYSat16
S_WGHue61
S_WGSat16
S_WCHue63
S_WCSat16
S_WBHue64
S_WBSat16
S_WMHue64
S_WMSat16
VDEC
AGC_Manual_Gain78
Saturation145
SecamFilterSel0
Page 60
4-21
4. Troubleshooting
Factory Menu NameDataRangeRemarkKey
RGB_Delay6
COM PHASE128
SHARPNESS
Post_H126
Post_H228
Post_H320
Post_H416
Post_V126
Post_V226
D_Tot_Gain44
S_Tot_Gain44
ENHANCE
BLE_Gain15
D_Sub_Color75
D_Skin_Hue102
D_Skin_Sat17
S_Sub_Color65
S_Skin_Hue102
S_Skin_Sat17
M_Sub_Color59
M_Skin_Hue64
M_Skin_Sat16
D Sub Tint50
S Sub Tint50
M Sub Tint50
CE_H_Left_Gain30
CE_H_Right_Gain30
CE_H_Normal_Gain-10
CE_M_Left_Gain20
CE_M_Right_Gain20
CE_L_Left_Gain10
CE_L_Right_Gain10
CE_Off_Left_Gain0
CE_Off_Right_Gain0
LNA_Plus
SyncTip_Noise214
dB03
Page 61
4-22
4. Troubleshooting
Factory Menu NameDataRangeRemarkKey
dB14
dB25
dB37
dB49
dB512
dB616
dB728
LNA+_Ylter10
NR
Dyn_Off_NR_EN1
MOV_Off_NR_EN0
PreFilter0
FCC
FCC2_Cb_Target_F0
FCC2_Cr_Target_F0
FCC2_Gain4
FCC3_Cb_Target_F0
FCC3_Cr_Target_F0
FCC3_Gain3
FCC4_Cb_Target_F0
FCC4_Cr_Target_F0
FCC4_Gain4
FCC5_Cb_Target_F0
FCC5_Cr_Target_F0
FCC5_Gain4
FCC6_Cb_Target_F0
FCC6_Cr_Target_F0
FCC6_Gain4
Clear White6
PC_Contrast
PC_Contrast_Cool128
PC_Contrast_Normal128
PC_Contrast_Warm1128
PC_Contrast_Warm2128
YC_Delay
RF PAL BG12
RF PAL DK12
Page 62
4-23
4. Troubleshooting
Factory Menu NameDataRangeRemarkKey
RF PAL I12
RF PAL M8
RF PAL N10
RF SECAM BG6
RF SECAM DK6
RF SECAML6
RF NTSC 35813
RF NTSC 4436
AV PAL9
AV PAL M9
AV PAL N8
AV SECAM4
AV NT3589
AV NT4436
AV PAL608
PQ Others
7.5 IRE NTSCOFFON/OFF
7.5 IRE OFFSET600~60
Page 63
4-24
4. Troubleshooting
4-4. White Balance
4-4-1. Calibration
Into the Factory Mode.1.
Select 2. SVC Menu.
Select 3. ADC/WB menu.
Select 4. ADC menu.
Option
Control
Debug
SVC
ADC/WB
Advanced
4-4-2. Service Adjustment
ADC
AV Calibration
Comp Calibration
PC Calibration
HDMI Calibration
You must perform Calibration in the Lattice Pattern before adjusting the White Balance.
