Samsung TB-14C52S, TB-20C5DF2S, TB-20C52S, TB-21B5DF2S, TB20C5DT2S-XEC Expoioded View and Parts List
7. Exploded View & Parts List
7-1 TB14C52S/XEC
Exploded View & Parts List
Samsung Electronics 7-1
No Code No Description Specification Q’ty Remark
1 AA90-00050B ASSY-CABINET,FRONT BK-708P ELN HB,14C5 1
AA64-31339E CABINET-FRONT -,14A5,C5,BK-708P,HIPS,HB,BLK,-,- 1
1-1 AA64-70009B BADGE-BRAND AL,SS R2000 22,SILVER,L40,-,-, 1
1-2 AA64-00040A WINDOW-REMOCON -,TVN-504V,-,PC,-,VIOLET,- 1
1-3 AA64-00038A KNOB-MASTER -,TVCR 14,20,M/S BK-708P,ABS,HB,BLK 1
1-4 AA61-60003Q SPRING-CS -,SUS304,0.5,OD8,H10,N5,-,-,- 1
1-5 AA64-00037B KNOB-POWER -,14C5,20C5,BK-708P TACT,ABS,HB,BLK 1
1-6 AA61-60003E SPRING-CS -,SUS304,0.5,OD8,H9,N5,-,-,- 1
1-7 3001-001015 SPEAKER 2.5W,16ohm,88dB,150Hz 1
1-8 AA95-40012B ASSY-PCB,A/V DP,TF502,C15A,PAL,230V,14-21’ 1
1-9 6003-000333 SCREW-TAPTITE RH,+,2S,M3,L10,ZPC(YEL),SWRCH1 2
1-10 AA64-00039A INDICATOR-LED -,-,-,ABS,-,CLEAR,- 1
1-11 6003-000333 SCREW-TAPTITE RH,+,2S,M3,L10,ZPC(YEL),SWRCH1 1
1-12 AA64-00035B KNOB-CONTROL,TV -,14C5,20C5,BK-708P,ABS,HB,BLK 1
1-13 AA64-00036B KNOB-FAMILY -,14C5,20C5,BK-708P SEA,ABS,HB,BLK 1
1-14 6002-000512 SCREW-TAPPING RH,+,2,M4,L12,ZPC(BLK),SWRCH18 1
1-15 6002-000512 SCREW-TAPPING RH,+,2,M4,L12,ZPC(BLK),SWRCH18 1
1-16 AA95-00092A ASSY-PCB,CONTROL DP,C15A,14/20,ALL 1
1-17 6003-000333 SCREW-TAPTITE RH,+,2S,M3,L10,ZPC(YEL),SWRCH1 4
1-18 AA61-50044A GUIDE-LED -,ABS,V0,BLK,-,AIWA,- 3
2 CRT-COLOR LOCAL (SESA)
2-1 AA65-30016A CLAMP-D,COIL NYLON-66,V0,NTR,DADH-360 14,- 2
2-2 AA60-10050R SCREW-ASSY WC,HH,+,M5,L31.5,SWRCH18A,ZPC( 4
2-3 AA95-20010X ASSY-PCB,CRT -,C15A,14,EU,230V 1
3 AA64-31340D CABINET-BACK -,14A5,C5,-,HIPS,V2,BLK,-,- 1
3-1 6002-000514 SCREW-TAPPING RH,+,2,M4,L15,ZPC(BLK),SWRCH18 6
3-2 AA42-10001V ANT-ROD -,3S,620mm,BRN,UL/CSA 1
4 POWER-CORD LOCAL (SESA)
A AA94-00427A ASSY-PCB,MAIN(OPT) TB14C52S/XEC,C15A,SPAIN,SESA 1
A-1 AA61-20163A HOLDER-CHASSIS -,T3350,ABS,V0,GRY,- 1
B AA90-40008K ASSY-FRAME TS-DECK,14C5 SESA ONLY 1
AA61-00004A FRAME-DECK -,TVN-502V,-,V2,-,BLK,-,-,-,- 1
B-1 AA63-00012A COVER-FRAME,TOP -,TVCR,PAL,SECC,-,-,-,- 1
B-2 AA91-40112A ASSY-DECK -,2HD,X-9 PAL SESA 1
B-3 AA95-00091Q ASSY-PCB,M/DECK -,-,C15A,2HD,PAL/SEC/MESEC,-,NTPB,KEY 1
B-4 AA63-40313A SHIELD-BOTTOM -,SPTE,T0.5,-,TVN334V 1
B-5 AA64-00024M DOOR-HOUSING -,TVCR 14,20,BK708P PAL TTX(X) EL,ABS,HB 1
B-6 AA61-00050A SPRING-DOOR -,SUS304,-,-,-,-,0.5,OD6,H9.7,N8,TVCR T 1
Exploded View & Parts List
7-2 Samsung Electronics
No Code No Description Specification Q’ty Remark
1 AA90-00052B ASSY-CABINET,FRONT BK708P ELN HB BLK,20C5,SESA 1
AA64-00025C CABINET-FRONT -,20A5,C5,BK-708P,HIPS,HB,BLK,-,- 1
1-1 AA64-70010B BADGE-BRAND AL,SS R2000 25,SILVER,L50,-,-, 1
1-2 AA64-00040A WINDOW-REMOCON -,TVN-504V,-,PC,-,VIOLET,- 1
1-3 AA64-00038A KNOB-MASTER -,TVCR 14,20,M/S BK-708P,ABS,HB,BLK 1
1-4 AA61-60003Q SPRING-CS -,SUS304,0.5,OD8,H10,N5,-,-,- 1
1-5 AA64-00037B KNOB-POWER -,14C5,20C5,BK-708P TACT,ABS,HB,BLK 1
1-6 AA61-60003E SPRING-CS -,SUS304,0.5,OD8,H9,N5,-,-,- 1
1-7 3001-001037 SPEAKER 5W,8ohm,89dB,180Hz 1
1-8 6002-000514 SCREW-TAPPING RH,+,2,M4,L15,ZPC(BLK),SWRCH18 4
1-9 AA95-40012B ASSY-PCB,A/V DP,TF502,C15A,PAL,230V,14-21’ 1
1-10 6003-000333 SCREW-TAPTITE RH,+,2S,M3,L10,ZPC(YEL),SWRCH1 2
1-11 AA64-00036B KNOB-FAMILY -,14C5,20C5,BK-708P SEA,ABS,HB,BLK 1
1-12 6002-000514 SCREW-TAPPING RH,+,2,M4,L15,ZPC(BLK),SWRCH18 1
1-13 AA64-00035B KNOB-CONTROL,TV -,14C5,20C5,BK-708P,ABS,HB,BLK 1
1-14 6002-000514 SCREW-TAPPING RH,+,2,M4,L15,ZPC(BLK),SWRCH18 1
1-15 AA95-00092A ASSY-PCB,CONTROL DP,C15A,14/20,ALL 1
1-16 AA61-50044A GUIDE-LED -,ABS,V0,BLK,-,AIWA,- 3
1-17 6003-000333 SCREW-TAPTITE RH,+,2S,M3,L10,ZPC(YEL),SWRCH1 4
1-18 6003-000333 SCREW-TAPTITE RH,+,2S,M3,L10,ZPC(YEL),SWRCH1 1
1-19 AA64-00039A INDICATOR-LED -,-,-,ABS,-,CLEAR,- 1
2 CRT-COLOR LOCAL (SESA)
2-1 AA65-30107A CLAMP-D,COIL NYLON 66,V2,NTR,-,20~22 INCH,- 4
2-2 AA60-10050R SCREW-ASSY WC,HH,+,M5,L31.5,SWRCH18A,ZPC( 4
2-3 AA95-20011A ASSY-PCB,CRT -,C15A,20,21,EC,- 1
3 AA64-00016C CABINET-BACK -,20A5,C5,-,HIPS,V2,BLK,-,- 1
3-1 6002-000514 SCREW-TAPPING RH,+,2,M4,L15,ZPC(BLK),SWRCH18 6
3-2 ANT-ROD LOCAL (SESA)
4 POWER-CORD LOCAL (SESA)
A AA94-00360A ASSY-PCB,MAIN(OPT) TF20C52S/XEF,C15A,FRANCE,SEF 1
A-1 AA61-20021A HOLDER-CHASSIS -,T5050,ABS,V0,GRY,- 1
B AA90-40008D ASSY-FRAME TS-DECK,PAL SESA 20,21 1
AA61-00004A FRAME-DECK -,TVN-502V,-,V2,-,BLK,-,-,-,- 1
B-1 AA63-00012A COVER-FRAME,TOP -,TVCR,PAL,SECC,-,-,-,- 1
B-2 AA91-40112A ASSY-DECK -,2HD,X-9 PAL SESA 1
B-3 AA95-00091V ASSY-PCB,M/DECK -,-,C15A,2HD,PAL,-,NTPB,KEY 1
B-4 AA63-40313A SHIELD-BOTTOM -,SPTE,T0.5,-,TVN334V 1
B-5 AA64-00024W DOOR-HOUSING -,14,20,BK708P EL TTX,2TUN,ABS,HB,BL 1
B-6 AA61-00050A SPRING-DOOR -,SUS304,-,-,-,-,0.5,OD6,H9.7,N8,TVCR T 1
7-2 TB20C52S/XET
Exploded View & Parts List
Samsung Electronics 7-3
No Code No Description Specification Q’ty Remark
1 AA91-00022A ASSY-CABINET,FRONT DP,21B5 ELN,(SPK) GR801P+DG703P,HB 1
AA64-31343B CABINET-FRONT -,21B5 GUJU,GR801P+DG703P,HIPS,HB, 1
1-1 AA64-70010B BADGE-BRAND AL,SS R2000 25,SILVER,L50,-,-, 1
1-2 AA64-40522B WINDOW-REMOCON -,21B5,-,PC,VIOLET,-,- 1
1-3 AA64-10799B KNOB-MASTER -,21B5,DG703P,ABS,HB,G3676 1
1-4 AA61-60003Q SPRING-CS -,SUS304,0.5,OD8,H10,N5,-,-,- 1
1-5 AA95-40012B ASSY-PCB,A/V DP,TF502,C15A,PAL,230V,14-21’ 1
1-6 6003-000333 SCREW-TAPTITE RH,+,2S,M3,L10,ZPC(YEL),SWRCH1 2
1-7 AA64-40523B INDICATOR-LED -,21B5,-,PC,CLEAR,-,- 1
1-8 AA95-00093A ASSY-PCB,MASTER DP,-,C15A,PAL,-,ALL 1
1-9 6001-000677 SCREW-MACHINE RH,+,M3,L6,ZPC(YEL),SM20C,- 2
1-10 AA64-10800B KNOB-FAMILY -,21B5,DG703P,ABS,HB,G3676 1
1-11 6002-000514 SCREW-TAPPING RH,+,2,M4,L15,ZPC(BLK),SWRCH18 3
1-12 3001-001087 SPEAKER 5W,16OHM,90°æ2DB,250+-50HZ 2
1-13 6002-000514 SCREW-TAPPING RH,+,2,M4,L15,ZPC(BLK),SWRCH18 4
2 CRT-COLOR LOCAL (SESA)
2-1 AA65-30107A CLAMP-D,COIL NYLON 66,V2,NTR,-,20~22 INCH,- 4
2-2 AA60-10050R SCREW-ASSY WC,HH,+,M5,L31.5,SWRCH18A,ZPC( 4
2-3 AA95-20011A ASSY-PCB,CRT -,C15A,20,21,EC,- 1
3 AA64-31344E CABINET-BACK -,21B5,-,HIPS,V2,BLK,-,- 1
3-1 6002-000514 SCREW-TAPPING RH,+,2,M4,L15,ZPC(BLK),SWRCH18 6
3-2 ANT-ROD LOCAL (SESA)
4 POWER-CORD LOCAL (SESA)
A AA94-00511A ASSY-PCB,MAIN(OPT) TB21B5DF2S/XEC,C15A,SPAIN,SECA 1
A-1 AA61-20021A HOLDER-CHASSIS -,T5050,ABS,V0,GRY,- 1
B AA90-40008D ASSY-FRAME TS-DECK,PAL SESA 20,21 1
AA61-00004A FRAME-DECK -,TVN-502V,-,V2,-,BLK,-,-,-,- 1
B-1 AA63-00012A COVER-FRAME,TOP -,TVCR,PAL,SECC,-,-,-,- 1
B-2 AA91-40112A ASSY-DECK -,2HD,X-9 PAL SESA 1
B-3 AA95-00091K ASSY-PCB,M/DECK -,-,C15A,2HD,PAL,-,NTPB 1
B-4 AA63-40313A SHIELD-BOTTOM -,SPTE,T0.5,-,TVN334V 1
B-5 AA64-00024H DOOR-HOUSING -,21B5,DG703P S/VIEW 2TUN,ABS,HB 1
B-6 AA61-00050A SPRING-DOOR -,SUS304,-,-,-,-,0.5,OD6,H9.7,N8,TVCR T 1

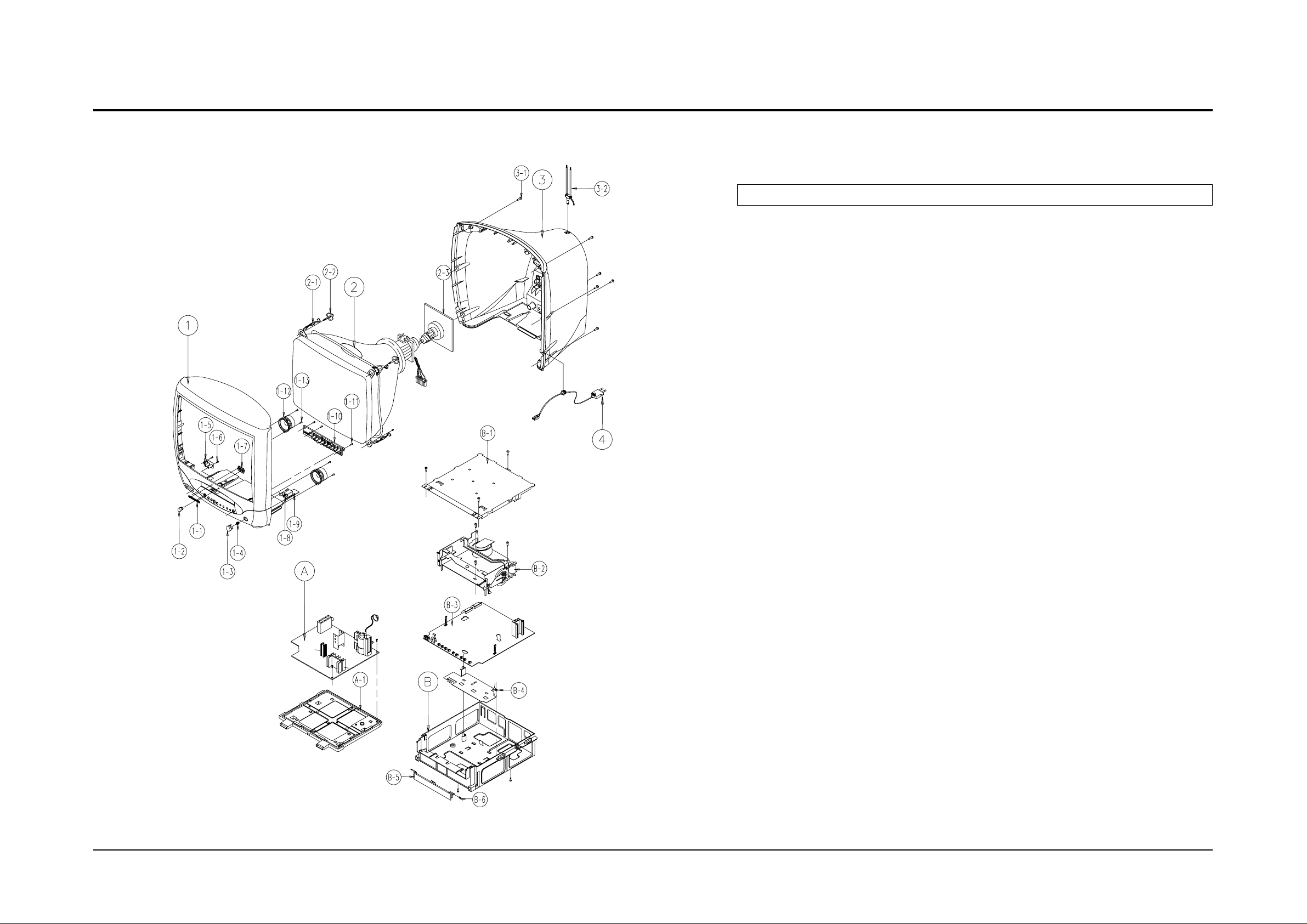

7-3 TB21B5DF2S/XEC
Exploded View & Parts List
7-4 Samsung Electronics

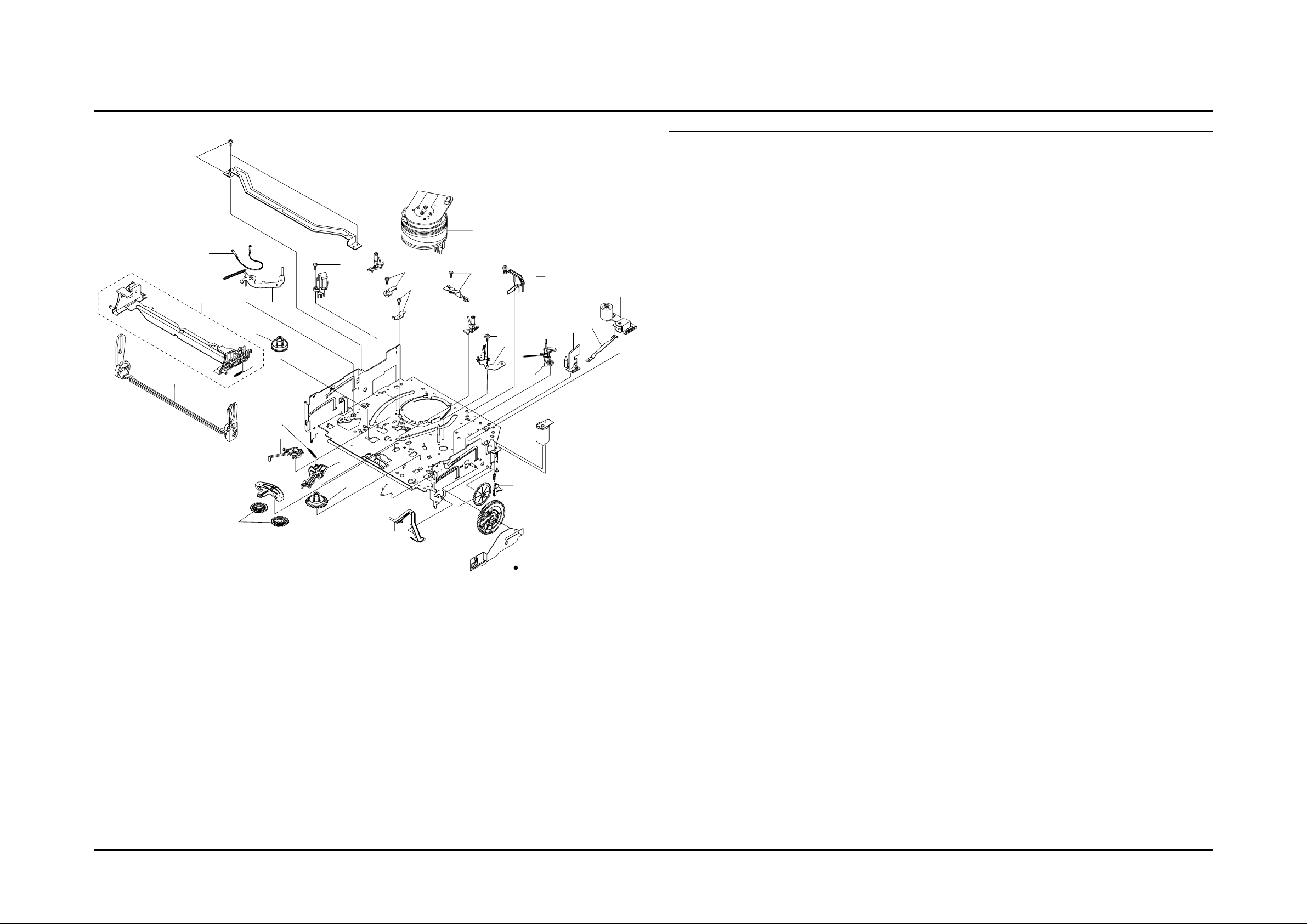

7-4 Mechanical Parts (Top Side)
Loc. No Part No Description and Specification Remark
G001
K250
K248
K110
K502
K350
K330
K182
K140
K490
K530
K240
G532
G420
G450
K546
G510
B410
B440
B444
B446
B448
B452
G527
G520
G480
G680
S.N.A.
S.N.A.
S.N.A.
S.N.A.
S.N.A.
G530
K340
B473
K188
G555
G546
S.N.A. : Service Not Available
S.N.A.
B410 AC31-12016A MOTOR-LOADING ASSY-,-,X-9
B440 AC60-10515A SCREW-MACHINE-,PH,+,-,M3,L3,ZPC,-,YEL
B444 AC66-20571A GEAR-WORM-,POM SW-01,0.5,2,-,4.5,X-9
B446 AC61-21005A HOLDER-WORM-,POM M90-44,-,-,-,X-9
B448 AC66-20573A GEAR-WORM WHEEL-,POM SW-01,0.6,11,-,6.6
B452 AC66-20575A GEAR-FL CAM-,POM SW-01,M0.6,Z88,-,PCD58
B473 AC61-60559A SPRING-PINCH DRIVE-,TS,SUS304,PI0.5,OD4
G001 AC96-10481K ASSY-CYLINDERCX-9, NTSC 6HD (6HD NON-DIAMOND HEAD)
AC96-10481H ASSY-CYLINDERCX-9, NTSC 4HD (4HD NON-DIAMOND HEAD)
AC96-10481F ASSY-CYLINDERCX-9, NTSC 2HD (2HD NON-DIAMOND HEAD)
AC96-10482N ASSY-CYLINDERCX-9, NTSC 6HD/DLC (6HD DIAMOND HEAD)
AC96-10482G ASSY-CYLINDERCX-9, NTSC 4HD/DLC (4HD DIAMOND HEAD)
AC96-10482C ASSY-CYLINDERCX-9, NTSC 2HD/DLC (2HD DIAMOND HEAD)
G420 AC66-80142A SLIDER-SUPPLY ASSY-,X-9(TS),-,-,-,X-9
G450 AC66-80141A SLIDER-TAKE UP ASSY-,X-9(TS),-,-,-,X-9
G480 AC33-10217H HEAD-ACE ASSY-,-,-,-,X-9
G510 AC60-10518A SCREW-TAP TITE-,PH,+,SW+ZW,M2.6,L5.6,ZP
G520 AC66-30539A LEVER-#9 GUIDE ASSY-,X-9(TS),-,-,-,X-9
G527 AC61-60553A SPRING-#9 GUIDE-,ES,SUS304-WPB,OD3.1,0.
G530 AC33-10217G HEAD-FEVAA00000275,-,-,-,X-9
G532 AC60-10519A SCREW-TAP TITE-,PH,+,-,M2.6,L8,ZPC
G546 AC66-30535A LEVER-FL DOOR-,POM M90-44,-,-,BLK,X-9
G555 AC59-90403A UNIT-PINCH ASSYX-9,G680 AC66-30557A LEVER-H/CLEANER ASSY-,POM+URETHANE,-,- (OPTIONAL)
K110 AC66-10267A REEL-DISK S-,POM M90-44,-,-,X-9
K140 AC66-10268A REEL-DISK T-,POM M90-44,-,-,X-9
K182 AC66-30524A LEVER-IDLER-,POM9044,-,-,-,K188 AC66-20577A GEAR-IDLER-,PEBAX 7033,-,-,-,-,X-9
K240 AC66-30538A LEVER-TENSION ASSY-,X-9(TS),-,-,-,X-9
K248 AC61-60554A SPRING-TENSION LEVER-,ES,SUS304-WPB,OD3
K250 AC63-12029A BAND-BRAKE ASSY-,X-9(TS),-,-,-,X-9
K330 AC66-30550A LEVER-S.BRAKE ASSY-,POM+SUS,-,-,-,X-9
K340 AC66-30549A LEVER-T.BRAKE ASSY-,POM+SUS,-,-,-,X-9
K350 AC61-60564A SPRING-BRAKE-,TENSION,SWP-A,0.25,3,-,XK490 Refer to table below HOLDER-CASS ASSY-,SECC+POM+SUS,-,-,-,XK502 AC61-60561A SPRING-FL.LEVER-LR-,ES,SUS304 WPB,PI2.7
K530 AC66-30546A LEVER-FL.ARM ASS’Y-,SECC+POM+SUS,-,-,-,
K546 AC61-50658A GUIDE-CASS. DOOR-,POM M90-44,-,-,NTR,-,
Exploded View & Parts List
Samsung Electronics 7-5

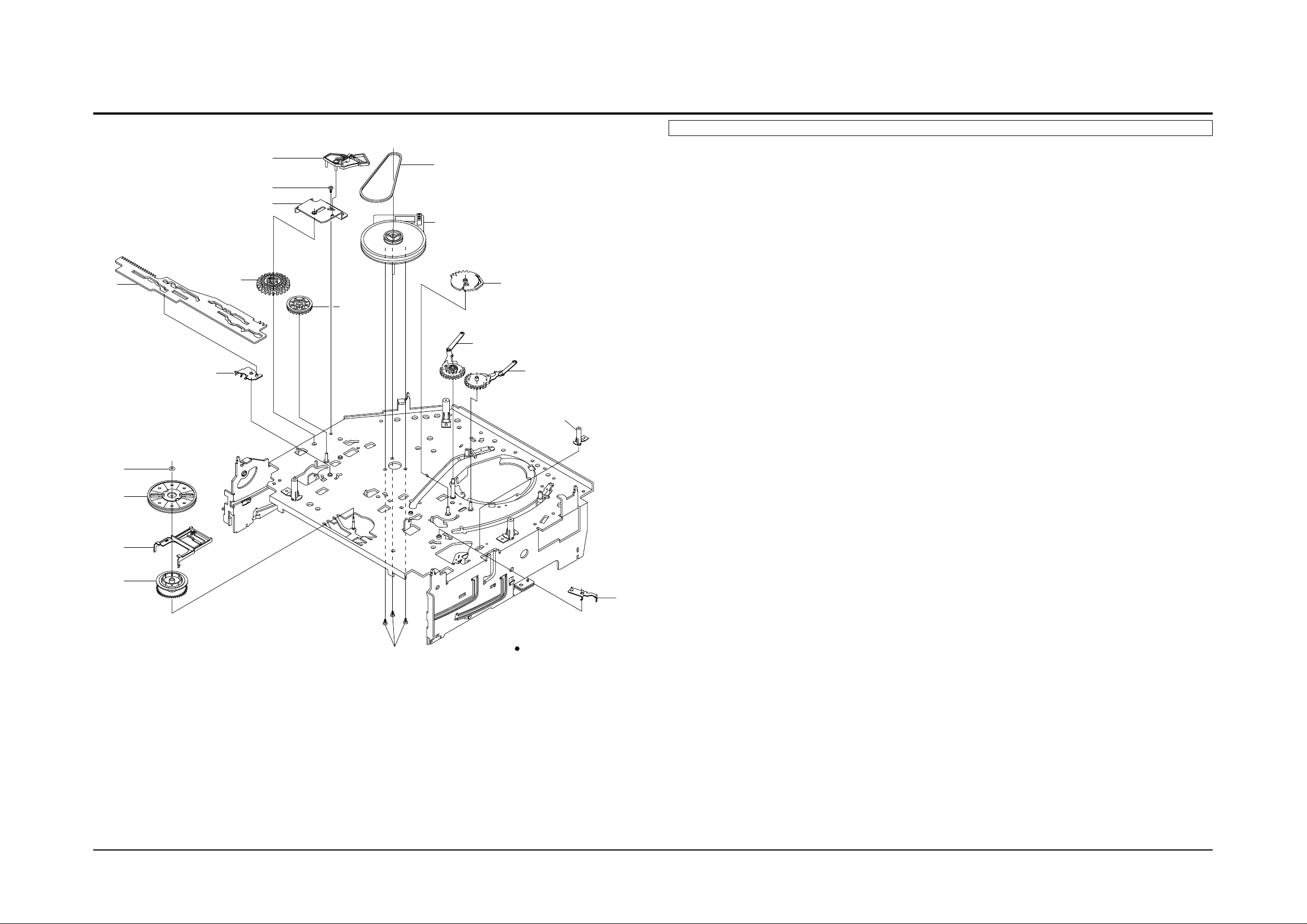

7-5 Mechanical Parts (Bottom Side)
Loc. No Part No Description and Specificatio n Remark
B238 AC61-50660A SLEEVE-TENSION-,POM M90-44,-,-,ID3,-,-,
B456 AC66-20576A GEAR-JOINT 1-,POM SW-01,M1.0,Z22,-,PCD2
B458 AC66-20574A GEAR-JOINT 2-,POM SW-01,M1.0,Z14,-,PCD1
B462 AC60-10517A SCREW-TAP TITE-,PH,+,-,M2.6,L5,ZPC,-,YE
B484 AC66-20580A GEAR-LOADING DRIVE-,POM SW-01,M1.0,Z32,
B488 AC66-30543A LEVER-S LOAD ASSY-,-,-,-,-,X-9
B500 AC66-30542A LEVER-T LOAD ASSY-,-,-,-,-,X-9
B560 AC31-12017A MOTOR-CAPSTANDMVCMC07C,-,X-9
B570 AC60-10514A SCREW-CAPSTAN-,PH,+,M2.6,L6,G542 AC66-60051A BELT-PULLEY-,5CM-70,2 * 2,-,71.3,-,X-9
K200 AC61-21012A HOLDER-CLUTCH ASSY-,-,-,-,-,X-9
K221 AC66-20581A GEAR-CENTER ASSY-,POM,M=O.5,-,HIGHT T.,
K222 AC60-30306A WASHER-SLIT-,-,ID2.1,OD5.0,T0.5,-,POLYS
K225 AC66-30547A LEVER-UP DOWN ASSY-,POM+SUS,-,-,-,X-9
(OPTIONAL)
B462
S.N.A.
S.N.A.
B456
B458
G542
B560
B500
B484
K222
K200
K225
K221
S.N.A.
B570
B488
B238
S.N.A.
S.N.A. : Service Not Available
