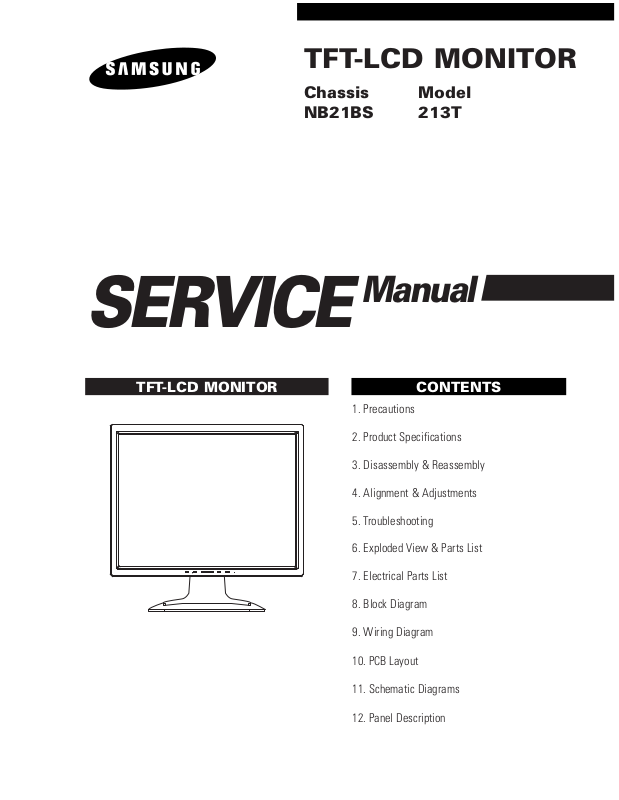

Samsung _syncmaster_213t_chassis_nb21bs Datasheet

TFT-LCD MONITOR

Chassis Model
NB21BS 213T

Manual

SERVICE

TFT-LCD MONITOR CONTENTS

1. Precautions

2. Product Specifications

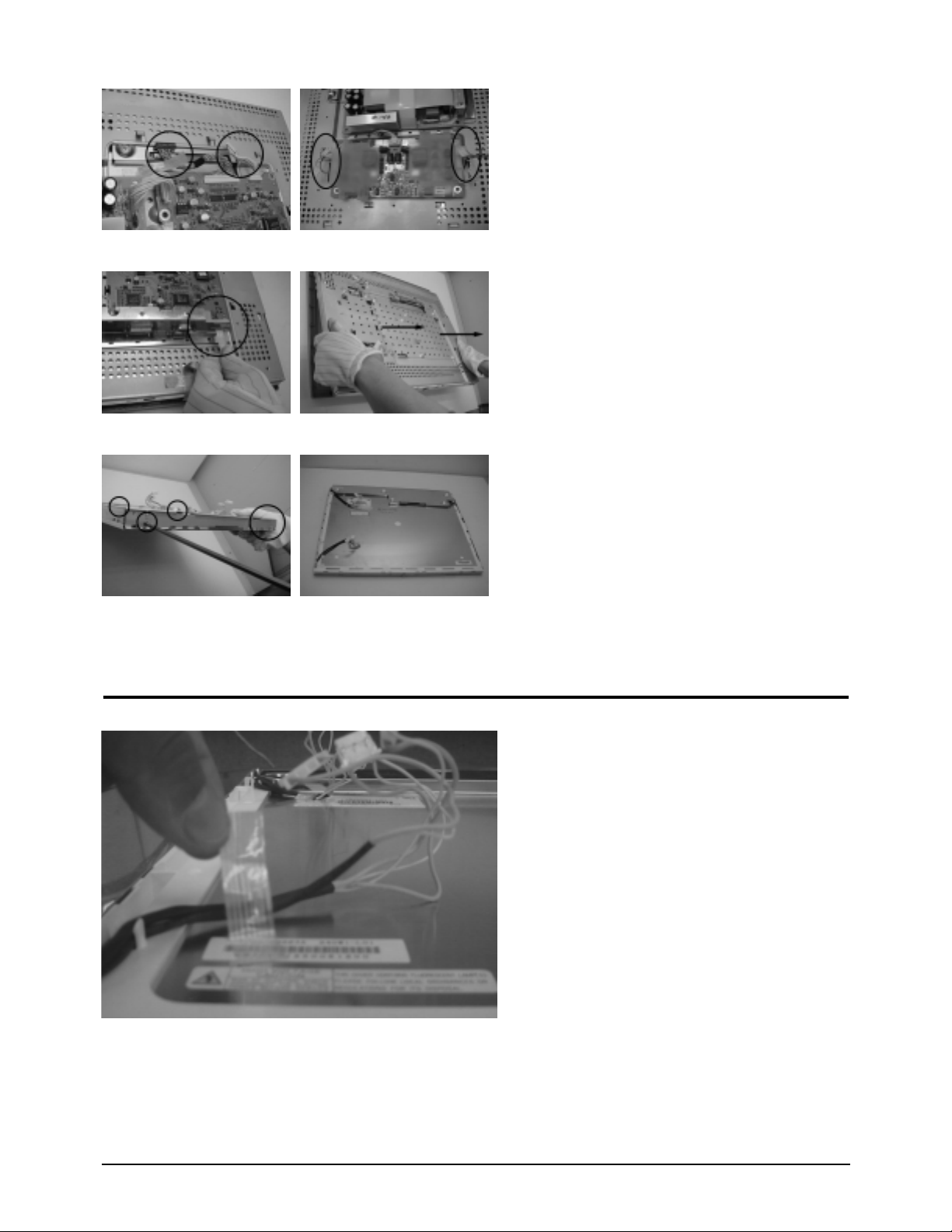

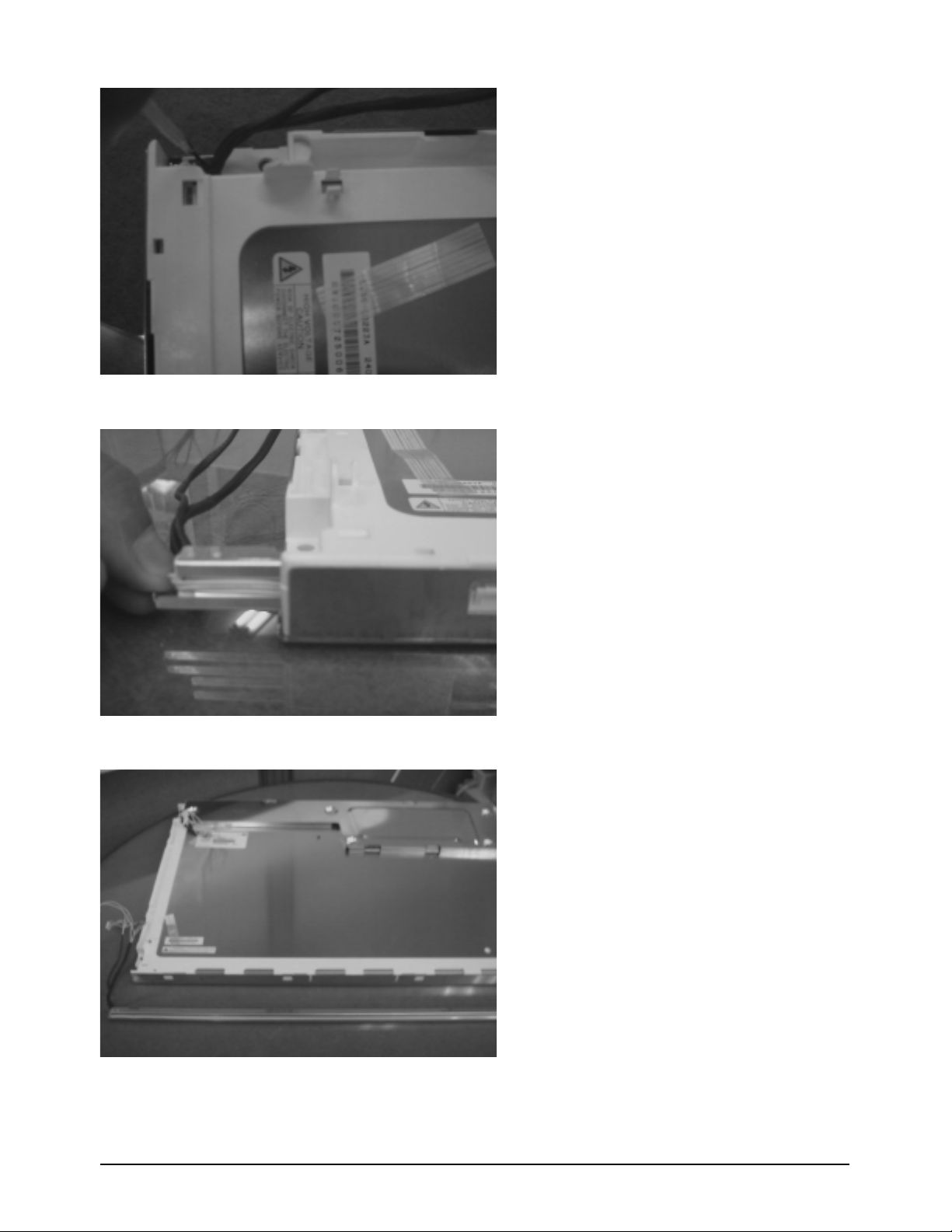

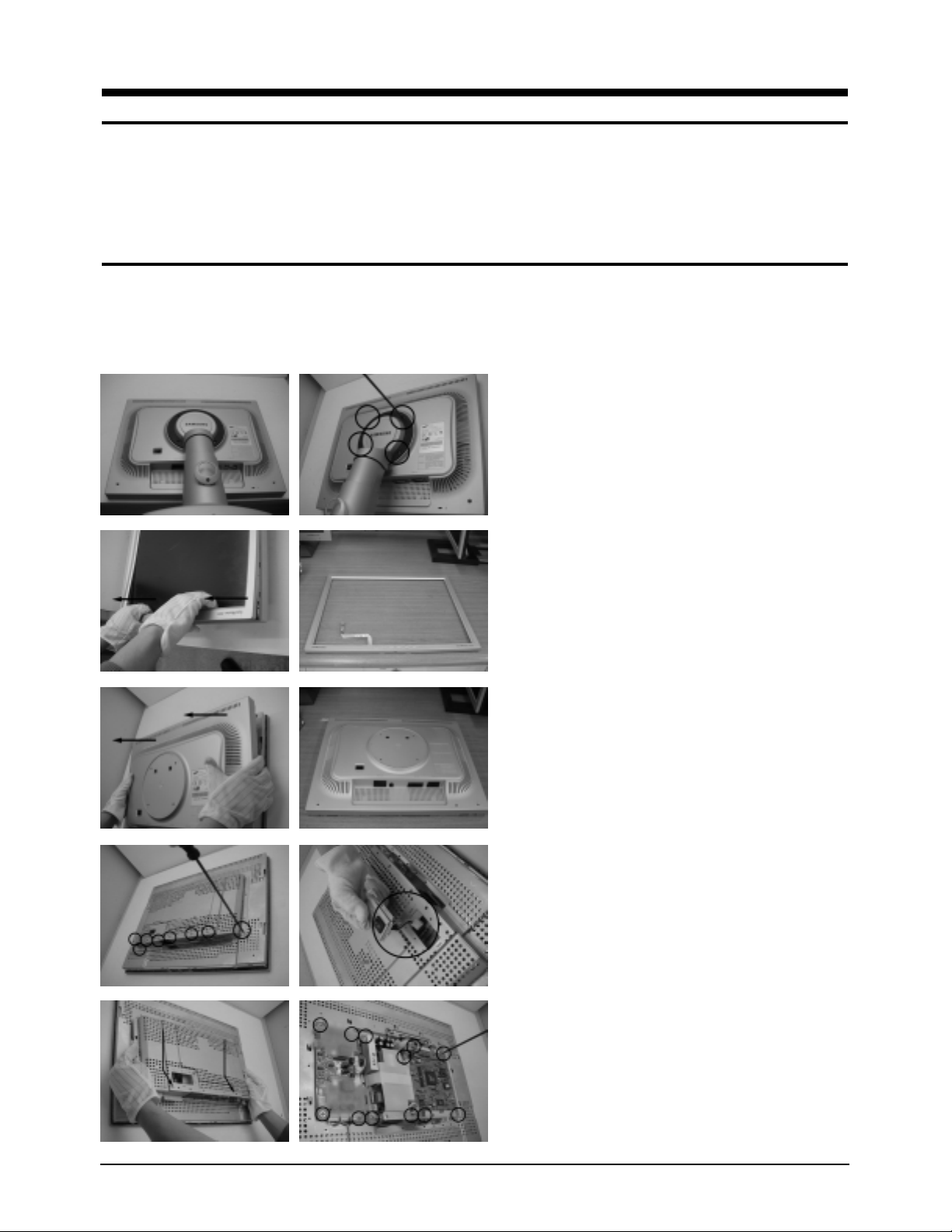

3. Disassembly & Reassembly

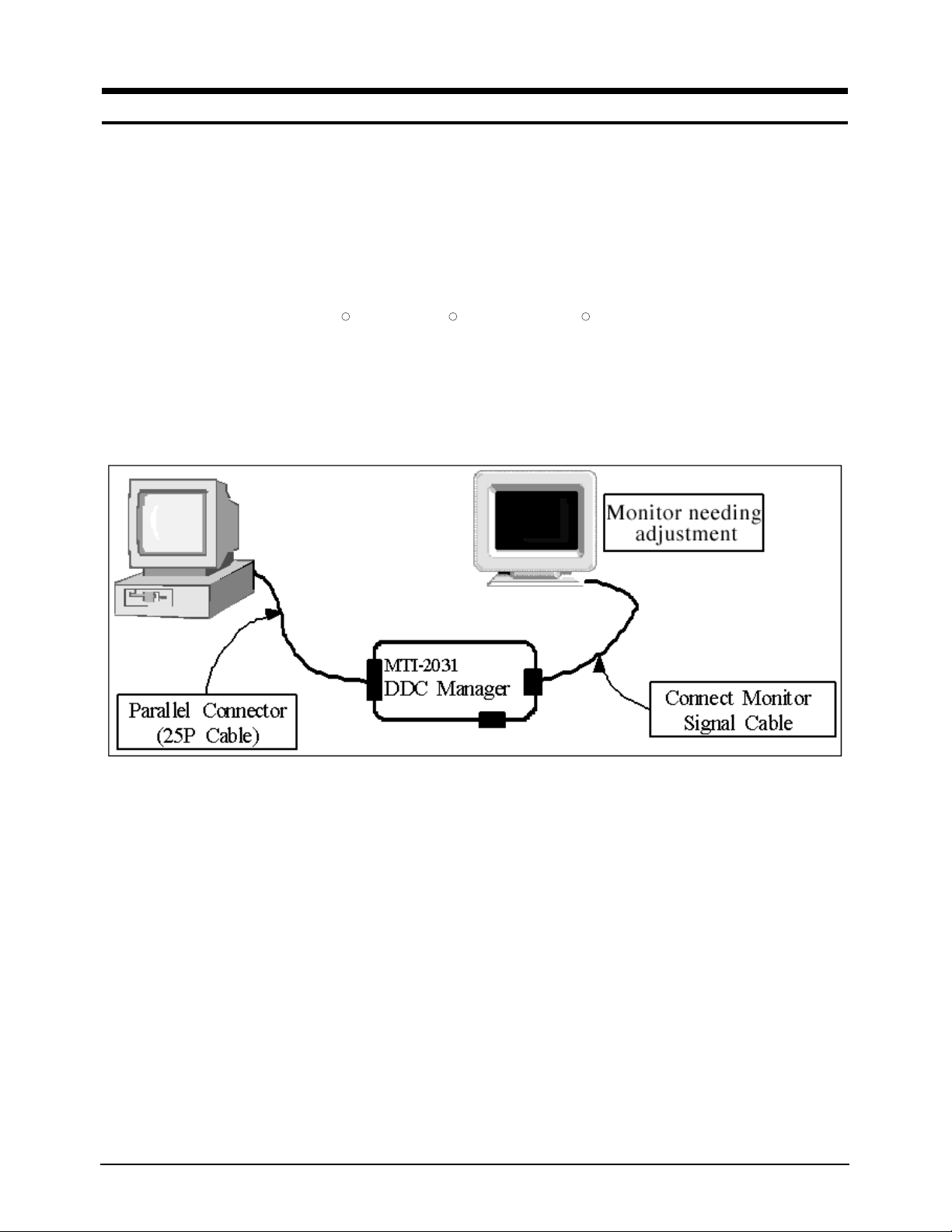

4. Alignment & Adjustments

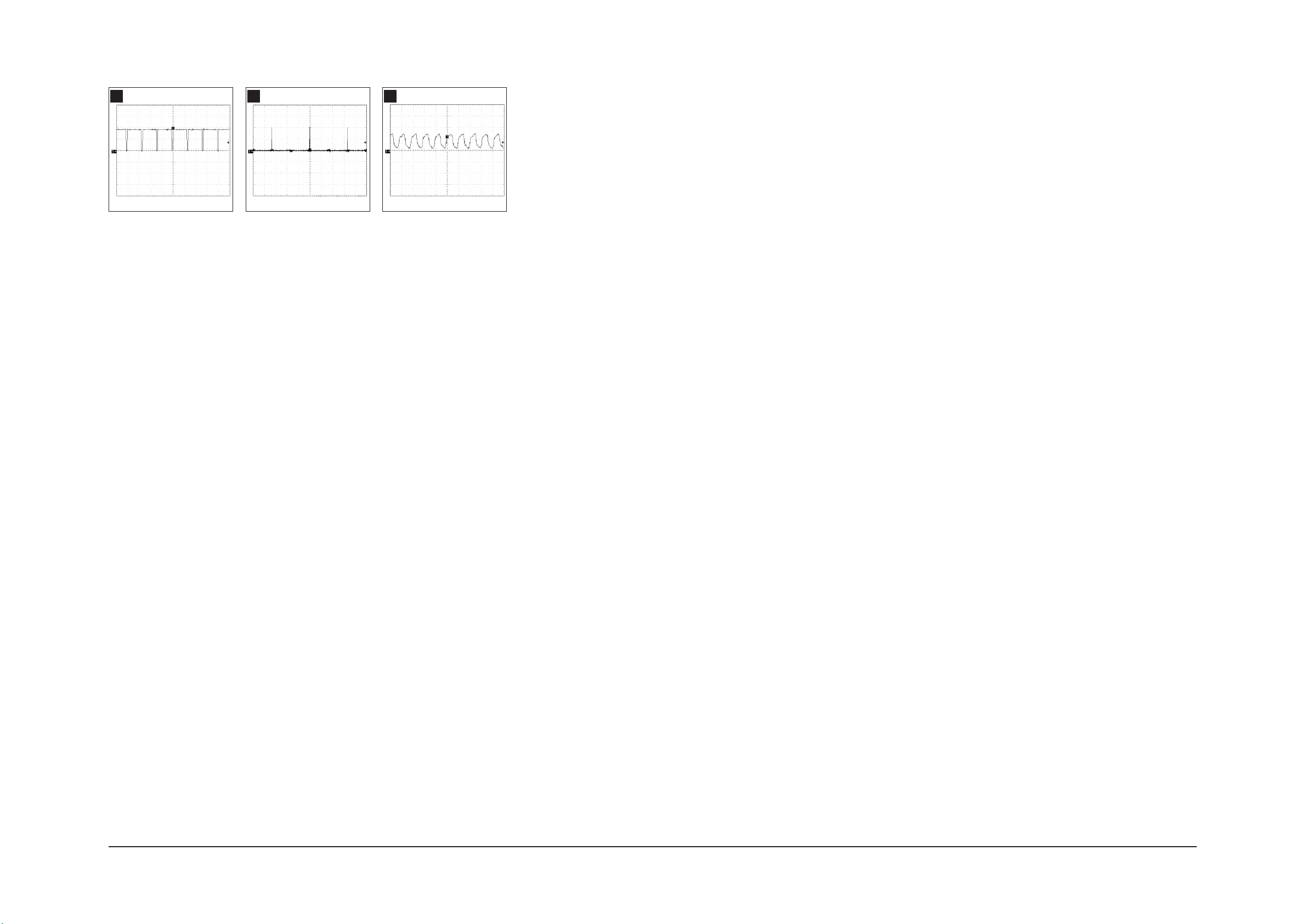

5. Troubleshooting

6. Exploded View & Parts List

7. Electrical Parts List

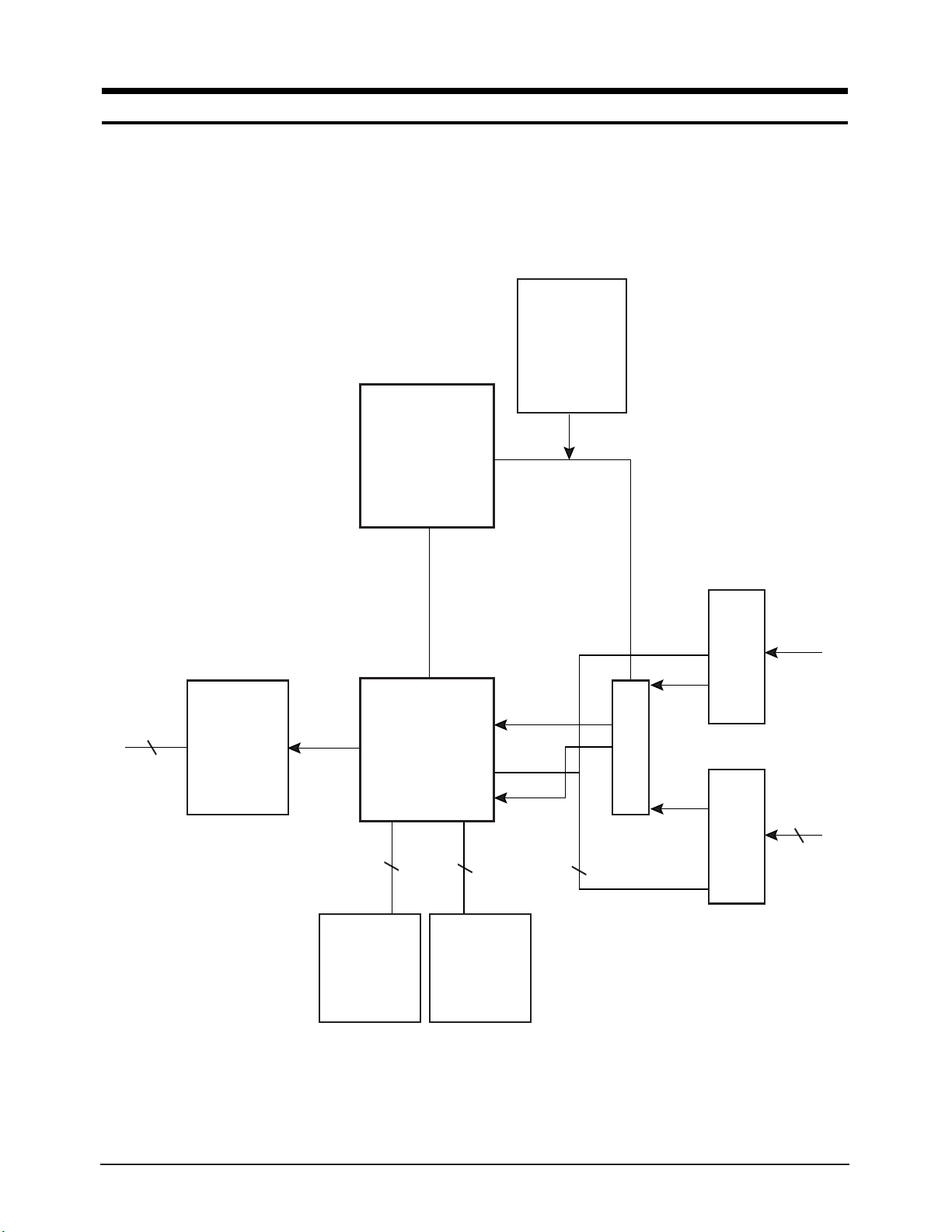

8. Block Diagram

9. Wiring Diagram

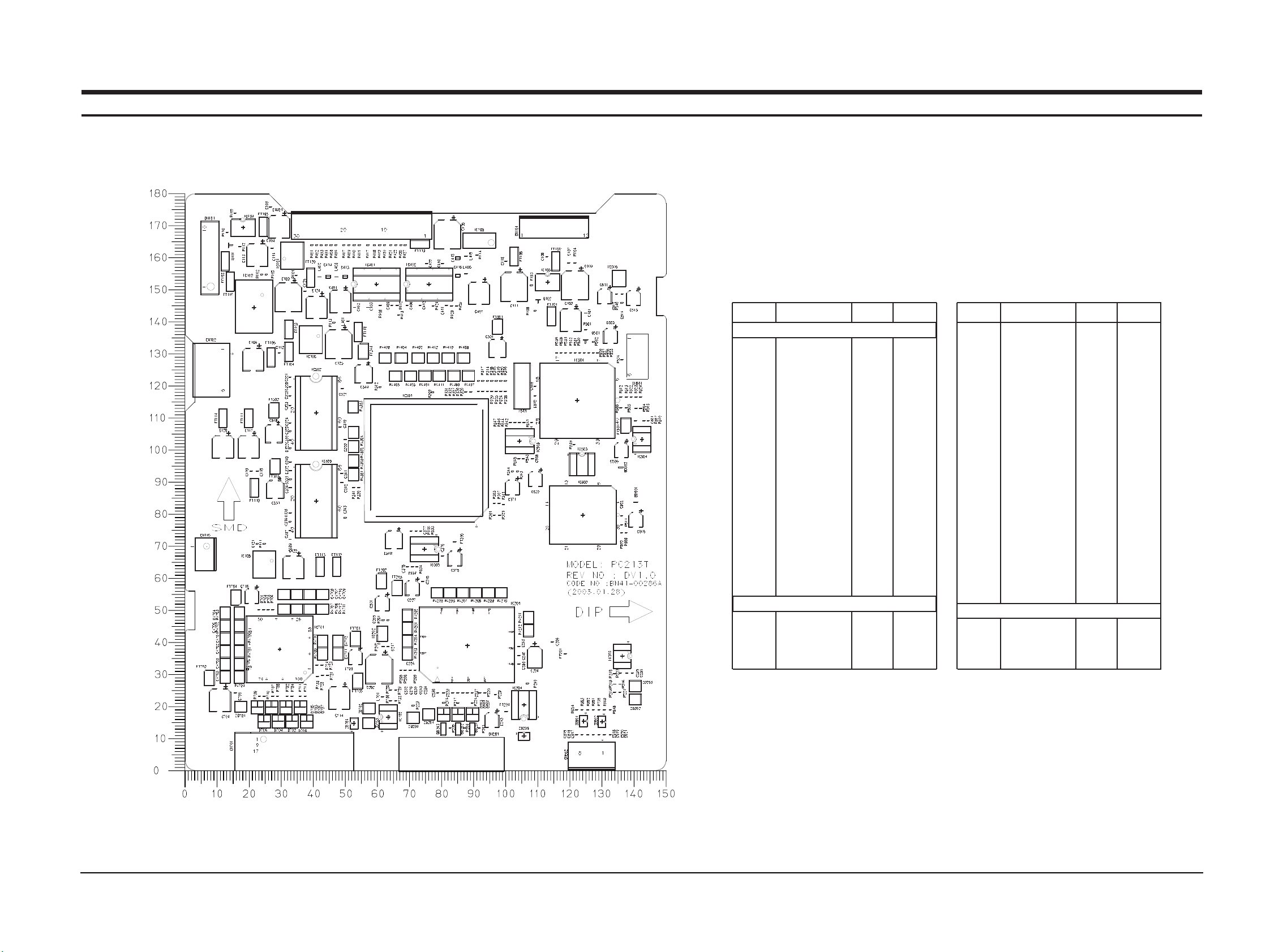

10. PCB Layout

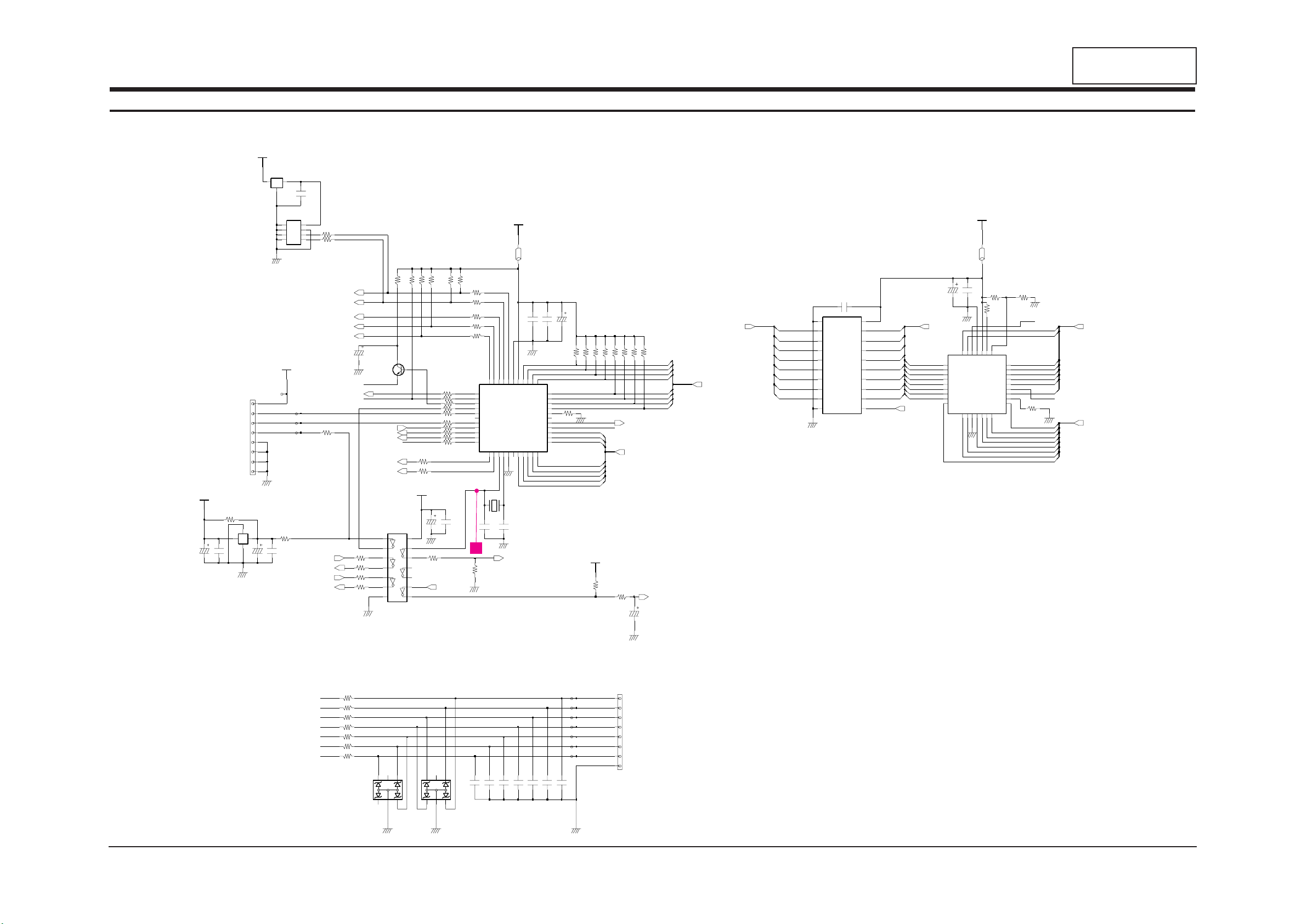

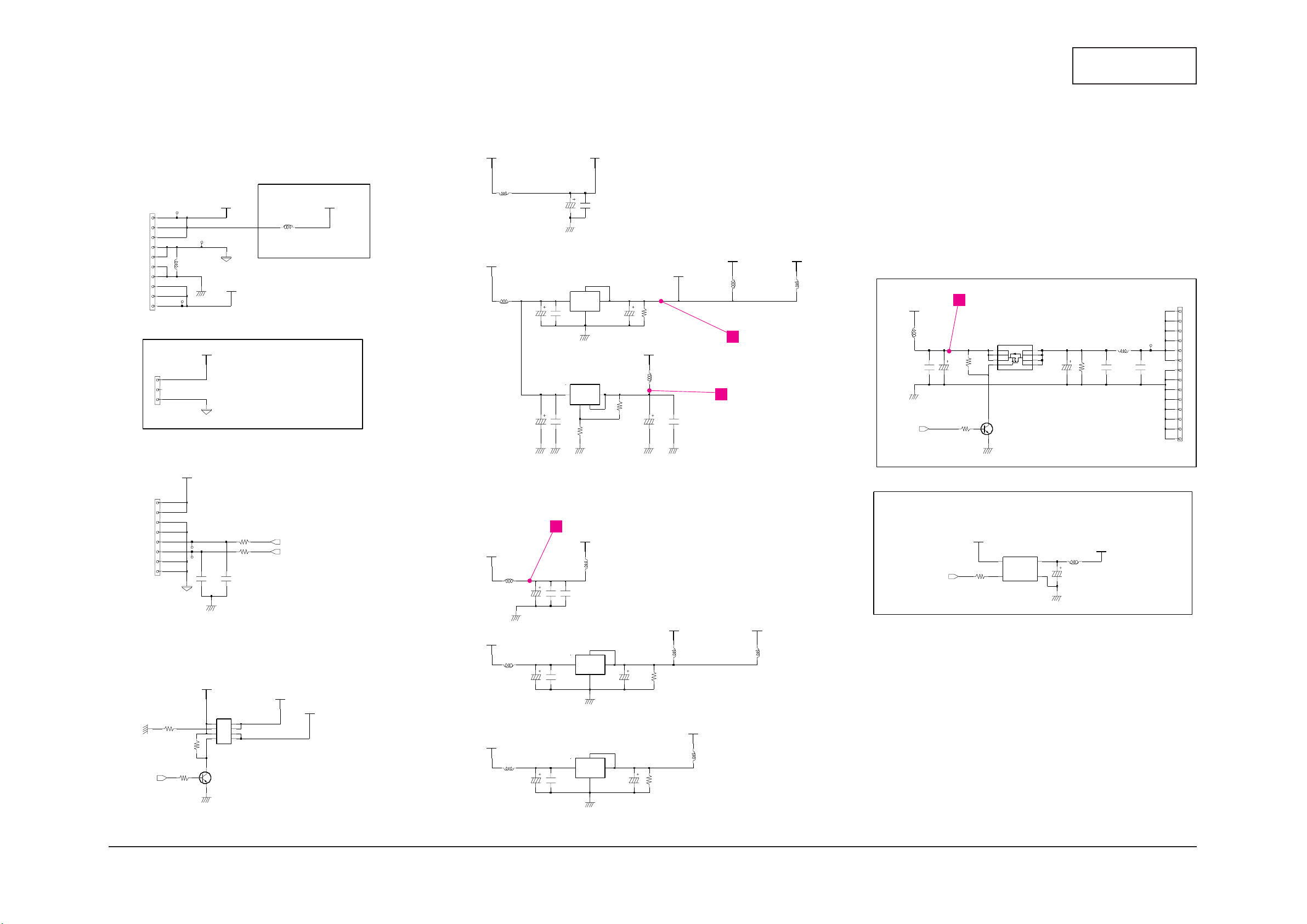

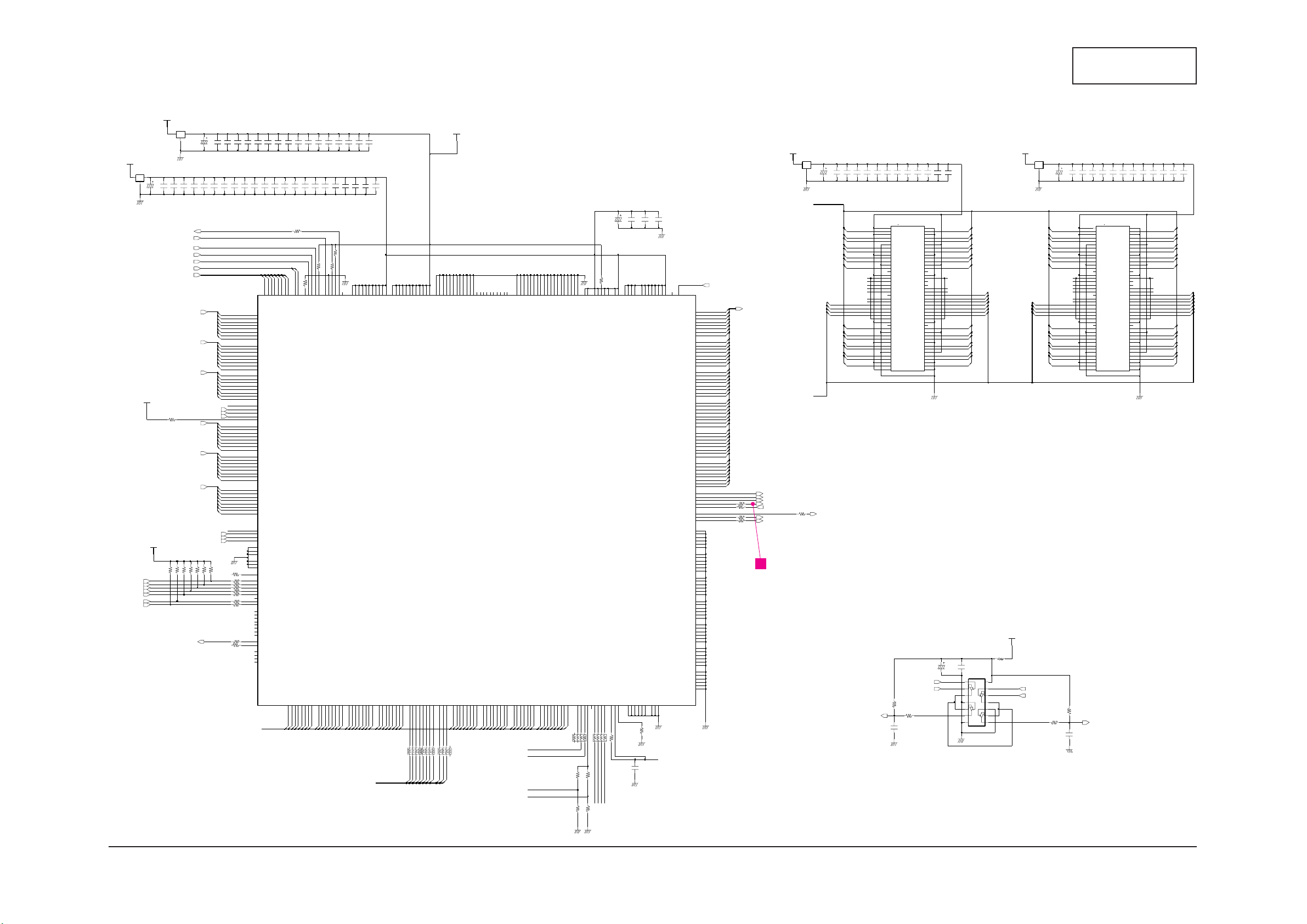

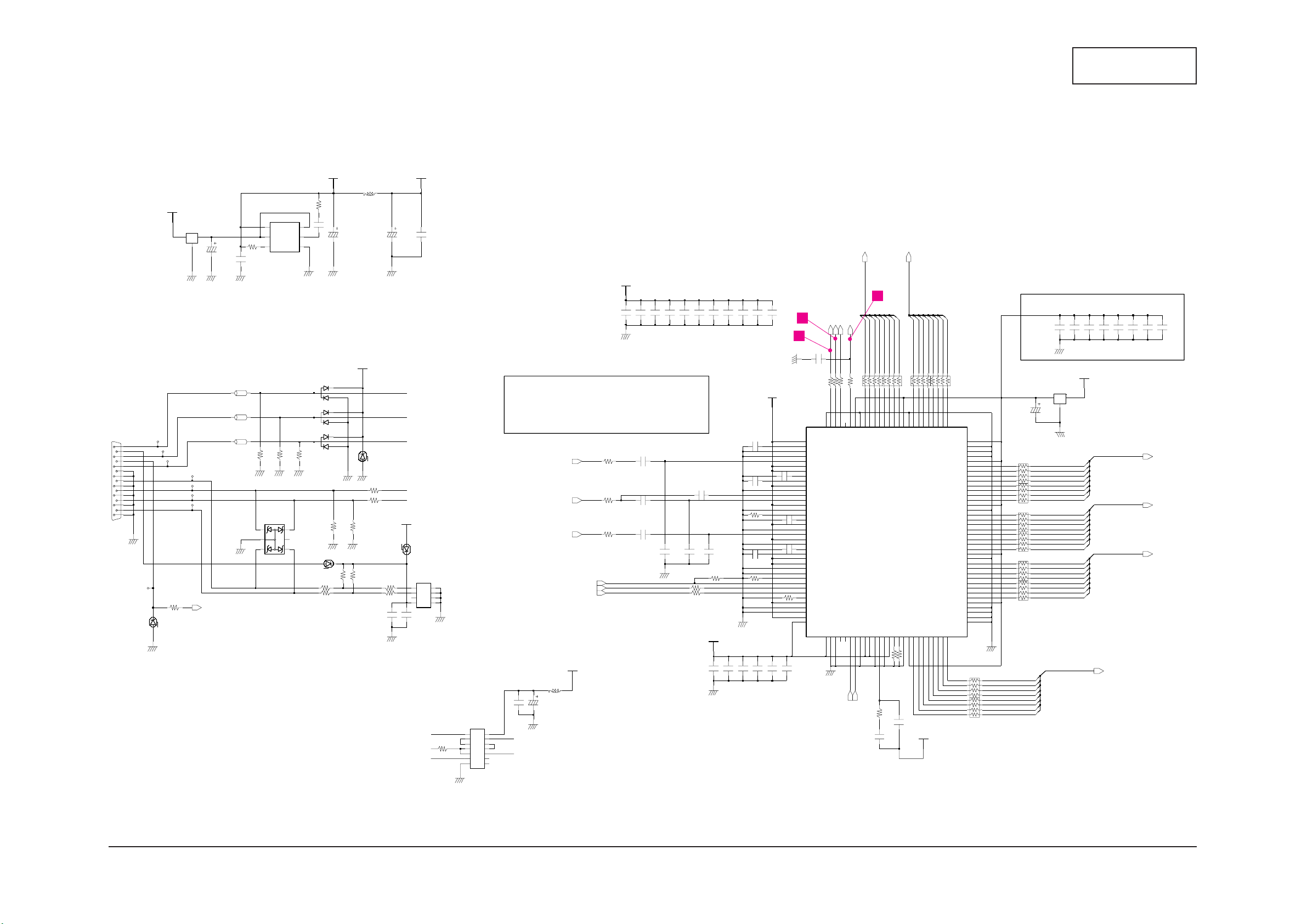

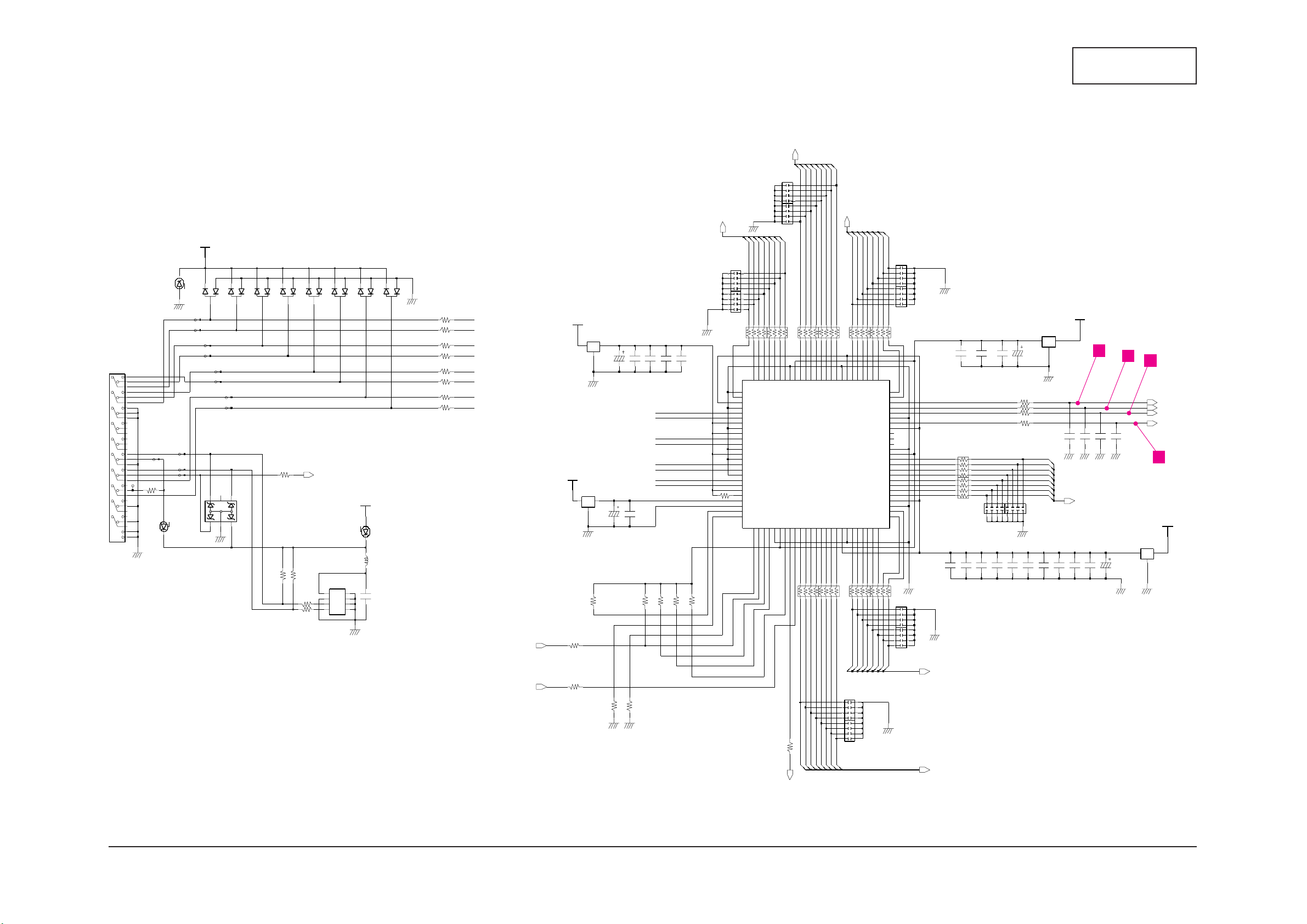

11. Schematic Diagrams

12. Panel Description

Samsung Electronics Co.,Ltd.

416, Maetan-3Dong, Paldal-Gu, Suwon City, Kyungki-Do, Korea, 442-742.
Printed in Korea
P/N : BN82-00096A-00
http : //www.samsungmonitor.com (SyncMaster Worldwide)
http : //www.samsung-monitor.com (SyncMaster USA)
URL : http://ecms. samsungelectronics. com/

1-1-1 Warnings

1. For continued safety, do not attempt to modify the
circuit board.

2. Disconnect the AC power and DC Power Jack
before servicing.

1-1-2 Servicing the LCD Monitor

1. When servicing the LCD Monitor Disconnect the
AC line cord from the AC outlet.

2. It is essential that service technicians have an
accurate voltage meter available at all times. Check
the calibration of this meter periodically.

1-1-3 Fire and Shock Hazard

Before returning the monitor to the user, perform the
following safety checks:

1. Inspect each lead dress to make certain that the
leads are not pinched or that hardware is not
lodged between the chassis and other metal parts in
the monitor.

2. Inspect all protective devices such as nonmetallic
control knobs, insulating materials, cabinet backs,
adjustment and compartment covers or shields,
isolation resistor-capacitor networks, mechanical
insulators, etc.

3. Leakage Current Hot Check (Figure 1-1): WARNING:

Do not use an isolation transformer during this test.

Use a leakage current tester or a metering system
that complies with American National Standards
Institute (ANSI C101.1, Leakage Current for

Appliances), and Underwriters Laboratories (UL
Publication UL1410, 59.7).

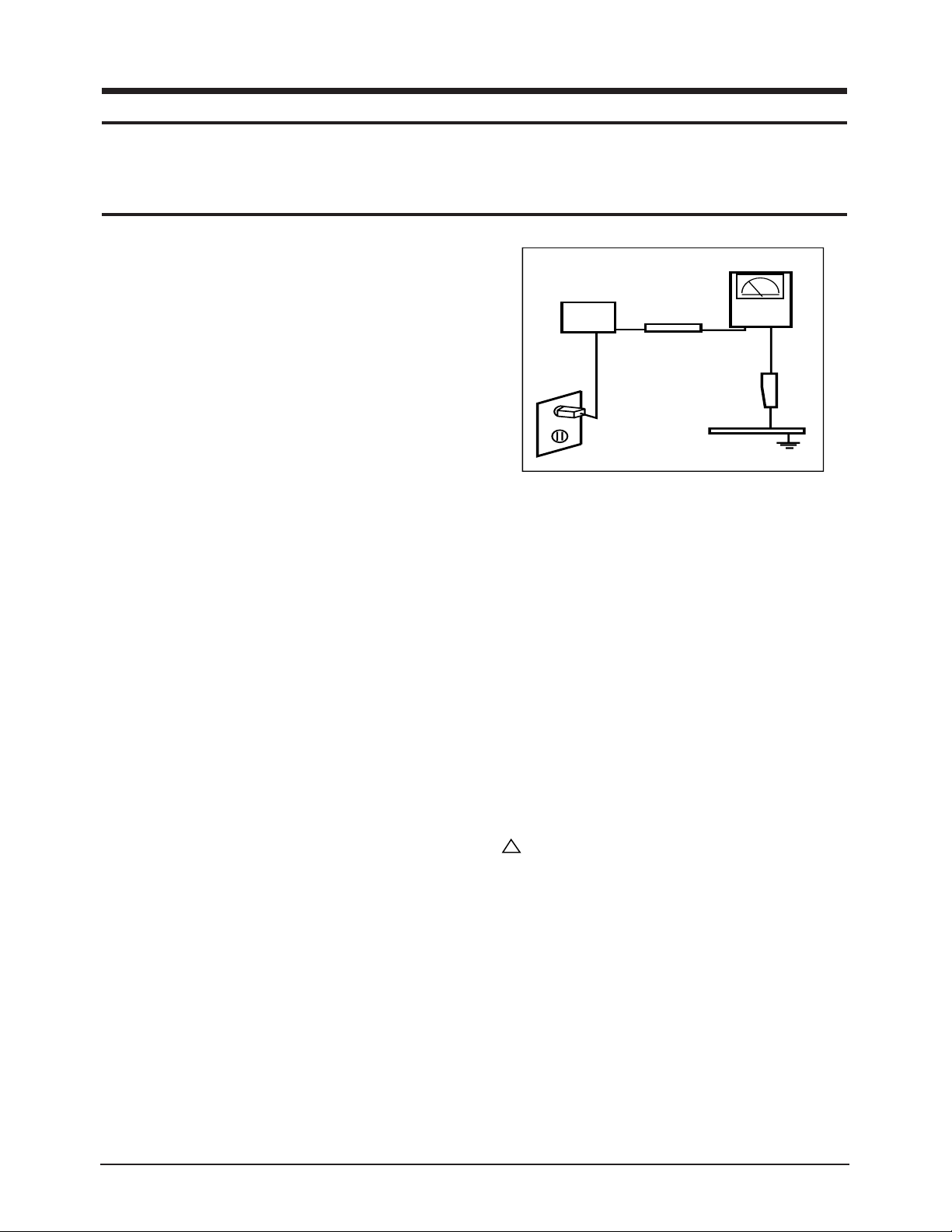

Figure 1-1. Leakage Current Test Circuit

4. With the unit completely reassembled, plug the AC
line cord directly into a 120V AC outlet. With the
unit’s AC switch first in the ON position and then
OFF, measure the current between a known earth
ground (metal water pipe, conduit, etc.) and all
exposed metal parts, including: metal cabinets,
screwheads and control shafts. The current
measured should not exceed 0.5 milliamp. Reverse
the power-plug prongs in the AC outlet and repeat

the test.

1-1-4 Product Safety Notices

Some electrical and mechanical parts have special
safety-related characteristics which are often not
evident from visual inspection. The protection they give
may not be obtained by replacing them with
components rated for higher voltage, wattage, etc. Parts
that have special safety characteristics are identified by

on schematics and parts lists. A substitute
replacement that does not have the same safety
characteristics as the recommended replacement part
might create shock, fire and/or other hazards. Product
safety is under review continuously and new
instructions are issued whenever appropriate.

213T 1-1

1 Precautions

Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as
electrical shock.

1-1 Safety Precautions

DEVICE
UNDER
TEST

TEST ALL

EXPOSED METAL

SURFACES

(READING SHOULD

NOT BE ABOVE 0.5mA)

LEAKAGE
CURRENT

TESTER

2-WIRE CORD

ALSO TEST WITH

PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)

EARTH

GROUND

!

1-2-1 General Servicing Precautions

1. Always unplug the unit’s AC power cord from the
AC power source and disconnect the DC Power
Jack before attempting to:
(a) remove or reinstall any component or assembly,
(b) disconnect PCB plugs or connectors, (c) connect
a test component in parallel with an electrolytic
capacitor.

2. Some components are raised above the printed
circuit board for safety. An insulation tube or tape
is sometimes used. The internal wiring is
sometimes clamped to prevent contact with
thermally hot components. Reinstall all such
elements to their original position.

3. After servicing, always check that the screws,
components and wiring have been correctly
reinstalled. Make sure that the area around the
serviced part has not been damaged.

1. Immediately before handling any semiconductor
components or assemblies, drain the electrostatic
charge from your body by touching a known earth
ground. Alternatively, wear a discharging wrist­strap device. To avoid a shock hazard, be sure to
remove the wrist strap before applying power to
the monitor.

2. After removing an ESD-equipped assembly, place it
on a conductive surface such as aluminum foil to
prevent accumulation of an electrostatic charge.

3. Do not use freon-propelled chemicals. These can
generate electrical charges sufficient to damage
ESDs.

4. Use only a grounded-tip soldering iron to solder or
desolder ESDs.

5. Use only an anti-static solder removal device. Some
solder removal devices not classified as “anti-static”
can generate electrical charges sufficient to damage
ESDs.

4. Check the insulation between the blades of the AC
plug and accessible conductive parts (examples:
metal panels, input terminals and earphone jacks).

5. Insulation Checking Procedure: Disconnect the
power cord from the AC source and turn the power
switch ON. Connect an insulation resistance meter
(500 V) to the blades of the AC plug.

The insulation resistance between each blade of the
AC plug and accessible conductive parts (see
above) should be greater than 1 megohm.

6. Always connect a test instrument’s ground lead to
the instrument chassis ground before connecting
the positive lead; always remove the instrument’s
ground lead last.

6. Do not remove a replacement ESD from its
protective package until you are ready to install it.
Most replacement ESDs are packaged with leads
that are electrically shorted together by conductive
foam, aluminum foil or other conductive materials.

7. Immediately before removing the protective
material from the leads of a replacement ESD,
touch the protective material to the chassis or
circuit assembly into which the device will be
installed.

Caution: Be sure no power is applied to the

chassis or circuit and observe all
other safety precautions.

8. Minimize body motions when handling
unpackaged replacement ESDs. Motions such as
brushing clothes together, or lifting your foot from
a carpeted floor can generate enough static
electricity to damage an ESD.

1 Precautions

1-2 213T

1-3 Electrostatically Sensitive Devices (ESD) Precautions

Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly
called Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some field-effect
transistors. The following techniques will reduce the incidence of component damage caused by static electricity.

1-2 Servicing Precautions

WARNING: An electrolytic capacitor installed with the wrong polarity might explode.

Caution: Before servicing units covered by this service manual, read and follow the Safety Precautions

section of this manual.

Note: If unforeseen circumstances create conflict between the following servicing precautions and any of the

safety precautions, always follow the safety precautions.

2 Product Specifications

2-1 Specifications

LCD Panel TFT-LCD panel, RGB vertical stripe, normally black transmissive,

21.03-Inch (24.06-Inch) viewable, 0.27 mm pixel pitch

Scanning Frequency Horizontal : 30 kHz ~ 81 kHz (Anolog) 30 kHz ~ 75 kHz (Digital)

Vertical : 56 Hz ~ 75 Hz (~SXGA), 60 Hz (UXGA) 56 Hz ~ 75 Hz (~SXGA), 60 Hz (UXGA)

Display Colors 16.7 Million colors

Maximum Resolution Horizontal : 1600 Pixels

Vertical : 1200 Pixels

Input Video Signal Analog, 0.7 Vp-p ± 5% positive at 75 Ω,

internally terminated

Input Sync Signal Type : Seperate H/V sync, Composite H/V, Sync-on-Green

Level : TTL level

Maximum Pixel Clock rate 162 MHz

Active Display
Horizontal/Vertical 432 ± 3 mm / 324 ± 3 mm

AC power voltage & frequency AC 100 ~ 240 Volts, 60~50 Hz ± 3 Hz

Power Consumption 75 W (max)

Dimensions (W x D x H)
Set 18.6 x 18.0 x 8.7 Inches (473.4 x 458.1 x 220.3 mm)
Pakeage 18.0 x 23.0 x 11.3 Inches (456.0 x 583.0 x 288.0 mm)

Weight
(Net/Gross) 8.5 kg (18.8 lbs) / 12.0 kg (26.5 lbs)

Environmental Considerations Operating Temperature : 50°F ~ 104°F (10°C ~ 40°C)

Operating Humidity : 10 % ~ 80 %
Storage Temperature : 13°F to 113°F (-25°C ~ 45°C)

Storage Humidity : 5 % ~ 95 %

• 213T complies with SWEDAC (MPRII) recommendations for reduced electromagnetic fields.

• Designs and specifications are subject to change without prior notice.

213T 2-1

Item

Description

Pin Signal Assignment Pin Signal Assignment Pin Signal Assignment

1 RX2- 9 RX1- 17 RX0-

2 RX2+ 10 RX1+ 18 RX0+

3 GND 11 GND 19 GND

4NC 12NC 20NC

5NC 13NC 21NC

6 DDC_SCL 14 DDC Power Input (+5V) 22 GND

7 DDC_SDA 15 CHK_DVI_D 23 RXC+

8NC 16

HPD

24 RXC-

2 Product Specifications

2-2 213T

2-2 Pin Assignments

Sync
Type

Pin No.

15-Pin Signal Cable Connector

Separate Composite Sync-on-green

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15

Red
Green
Blue
GND
GND (DDC Return)
GND-Red
GND-Green
GND-Blue
5V DDC Pull up
GND-Sync/Self Test
GND
DDC Data
Horizontal sync.
Vertical sync.
DDC Clock

Red
Green
Blue
GND
GND (DDC Return)
GND-Red
GND-Green
GND-Blue
5V DDC Pull up
GND-Sync/Self Test
GND
DDC Data
H/V-Sync.
Not Used
DDC Clock

Red
Green + H/V Sync.
Blue
GND
GND (DDC Return)
GND-Red
GND-Green
GND-Blue
5V DDC Pull up
GND-Sync/Self Test
GND
DDC Data
Not Used
Not Used
DDC Clock

2-3 DVI Signal Pin Assignments

2 Product Specifications

213T 2-3

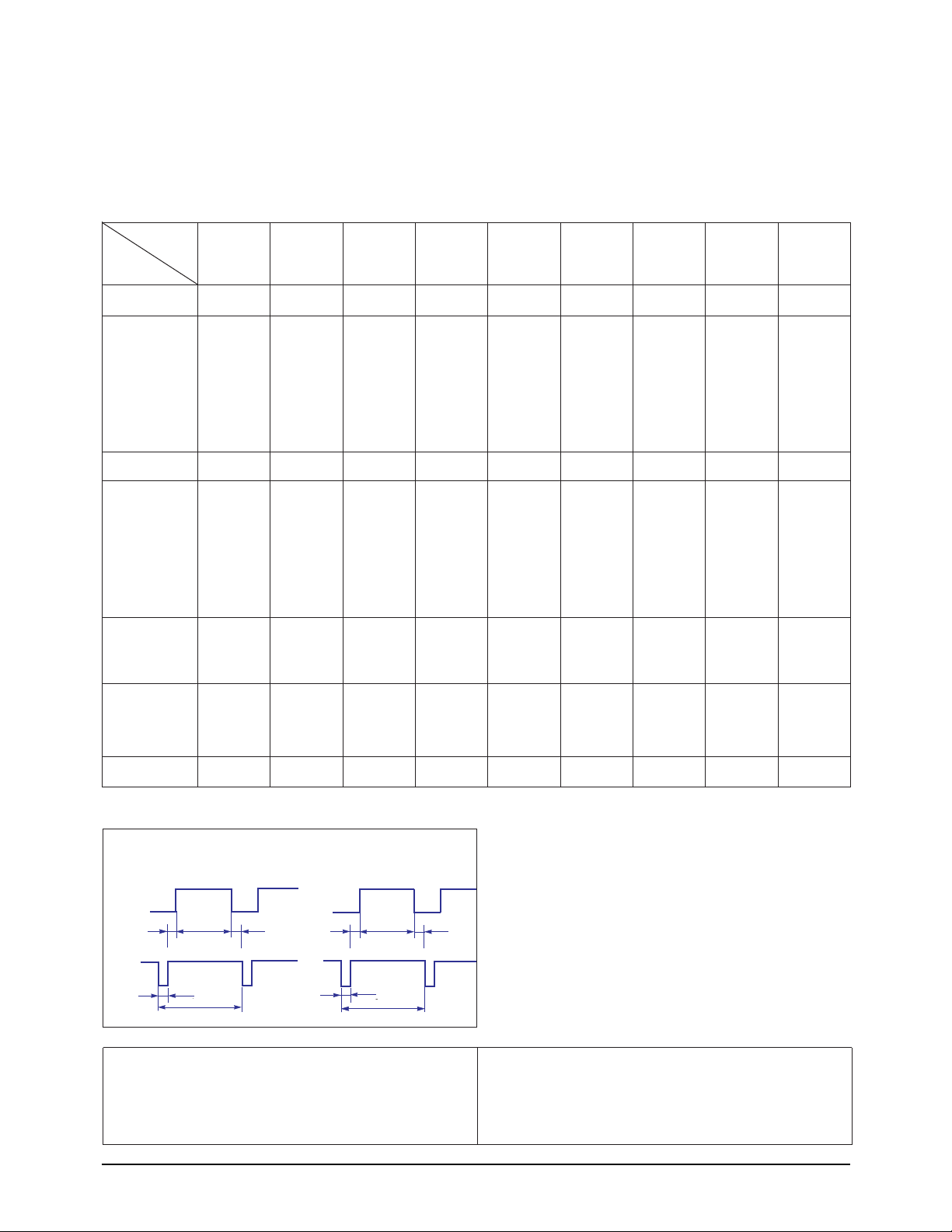

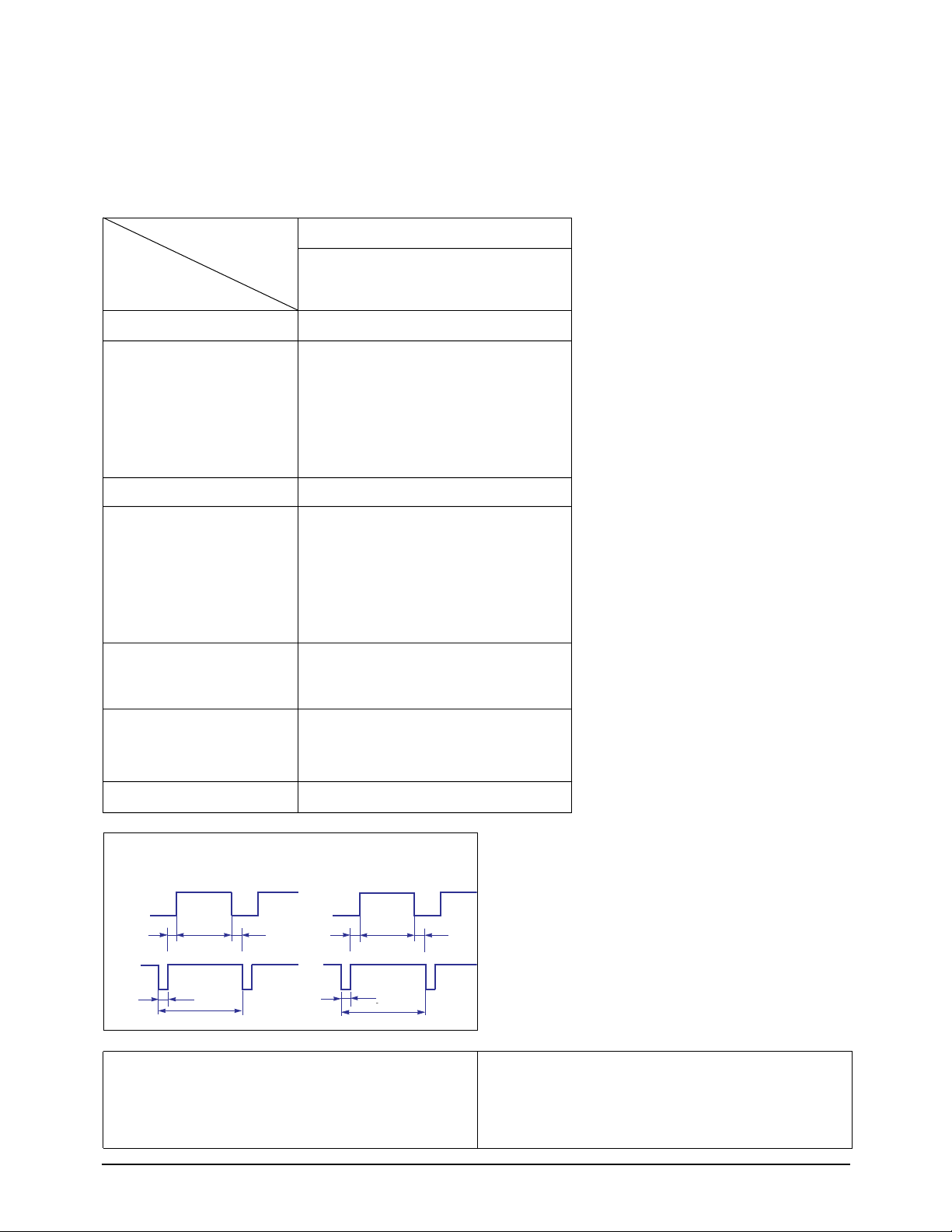

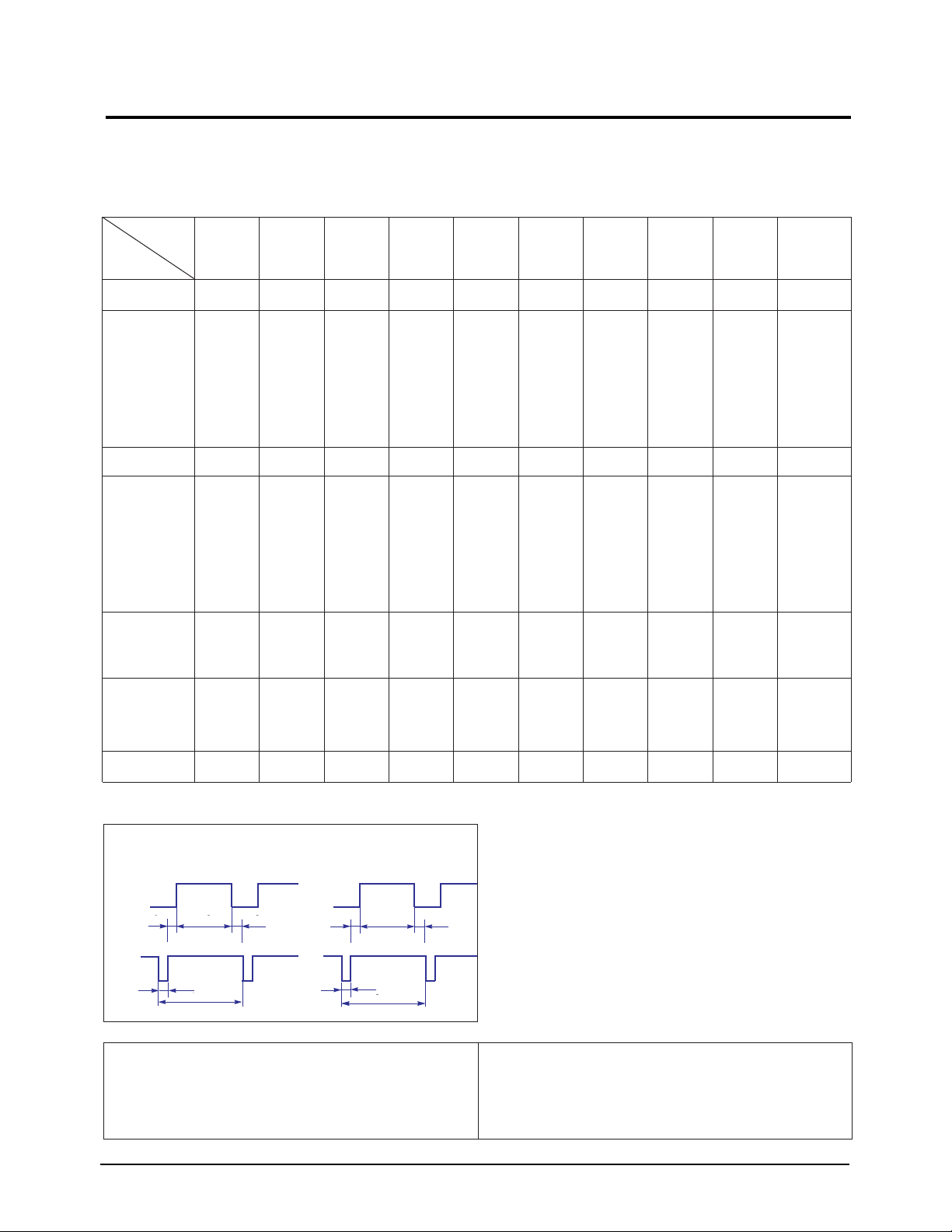

2-3 Timing Chart

This section of the service manual describes the timing that the computer industry recognizes as standard
for computer-generated video signals.

48.1

1040

120

64

800

56

72.2

666

6

23

600

37

50.000

Positive

Positive

Separate

37.9

1056

128

88

800

40

60.3

628

4

23

600

1

40.000

Positive

Positive

Separate

35.2

1024

72

128

800

24

56.3

625

2

22

600

1

36.000

–/+

–/+

Separate

SVGA/

56 Hz

800 x 600

SVGA/

60 Hz

800 x 600

SVGA/

72 Hz

800 x 600

MAC/
66 Hz

640 x 480

35.0

864

64

96

640

64

66.7

525

3

39

480

3

30.240

Negative

Negative

Separate

31.5

800

96

40

640

8

70.1

449

2

54

350

31

25.175

Positive

Negative

Separate

fH (kHz)

A µsec

B µsec

C µsec

D µsec

E µsec

fV (Hz)

O msec

P msec

Q msec

R msec

S msec

Clock
Freq.
(MHz)

Polarity
H.Sync

V.Sync

Remark

VGA3/

60 Hz

640 x 480

VGA/
72 Hz

640 x 480

VGA/
75 Hz

640 x 480

MAC/
60 Hz

640 x 480

VGA1/

70 Hz

640 x 350

VGA2/

70 Hz

720 x 400

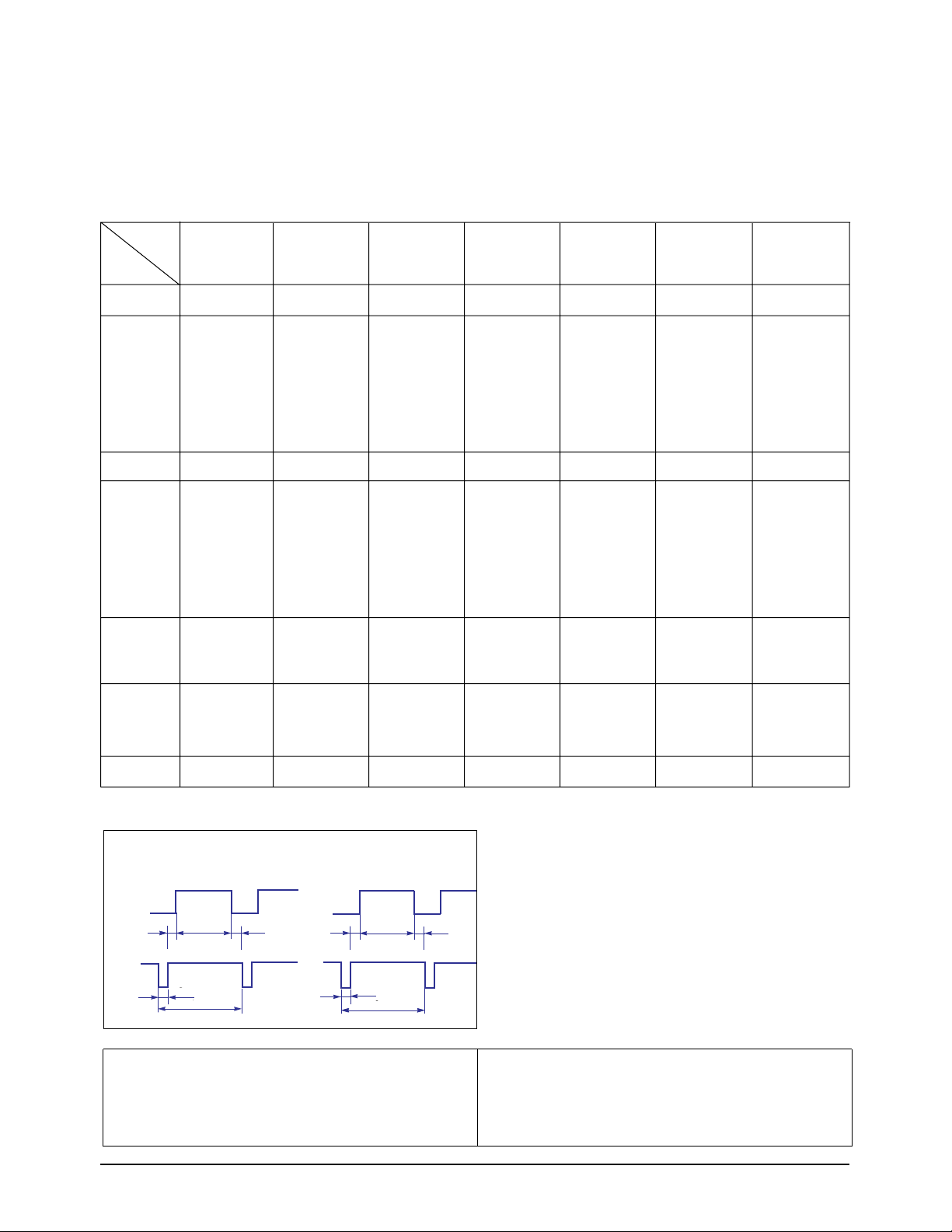

Table 2-1 Timing Chart

31.5

900

108

45

720

9

70.1

449

2

27

400

6

28.322

Negative

Positive

Separate

31.5

800

96

40

640

8

60.0

525

2

25

480

2

25.175

Negative

Negative

Separate

37.9

832

40

120

640

16

72.8

520

3

20

480

1

31.500

Negative

Negative

Separate

37.5

840

64

120

640

16

75.0

500

3

16

480

1

31.500

Negative

Negative

Separate

31.5

800

96

48

640

16

60.0

525

2

33

480

10

25.175

Negative

Negative

Separate

Mode

Timing

QRS

P

O

Video

Sync

Sync

Horizontal

Vertical

CDE

P

O

B

A

Video

Sync

Sync

Separate Sync

C D

A

O

E

B

P

Video

Sync

Sync

Video

Q R S

A : Line time total B : Horizontal sync width O : Frame time total P : Vertical sync width

C : Back porch D : Active time Q : Back porch R : Active time

E : Front porch S : Front porch

2 Product Specifications

2-4 213T

68.7

1456

128

144

1152

32

75.1

915

3

39

870

3

100.000

Negative

Negative

Separate

67.5

1600

128

256

1152

64

75.0

900

3

32

864

1

108.000

Positive

Positive

Separate

60.2

1328

96

176

1024

32

74.9

804

3

30

768

3

80.000

Negative

Negative

Separate

MAC/
74 Hz

1024 x 768

VESA/

75 Hz

1152 x 864

MAC/
75 Hz

1152 x 870

MAC/
60 Hz

1024 x 768

48.8

1312

96

128

1024

64

60.0

813

6

33

768

6

64.000

Negative

Negative

Separate

46.9

1056

80

160

800

16

75.0

625

3

21

600

1

49.500

Positive

Positive

Separate

fH (kHz)

A µsec

B µsec

C µsec

D µsec

E µsec

fV (Hz)

O msec

P msec

Q msec

R msec

S msec

Clock
Freq.
(MHz)

Polarity
H.Sync

V.Sync

Remark

MAC/

74 Hz

832 x 624

XGA/
60 Hz

1024 x 768

XGA/
70 Hz

1024 x 768

XGA/
75 Hz

1024 x 768

SVGA/

75 Hz

800 x 600

Table 2-1 Timing Chart (continued)

49.7

1152

64

224

832

32

74.6

667

3

39

624

1

57.284

Negative

Negative

Separate

48.4

1344

136

160

1024

24

60.0

806

6

29

768

3

65.000

Negative

Negative

Separate

56.5

1328

136

144

1024

24

70.1

806

6

29

768

3

75.000

Negative

Negative

Separate

60.0

1312

96

176

1024

16

75.0

800

3

28

768

1

78.750

Positive

Positive

Separate

Mode

Timing

QRS

P

O

Video

Sync

Sync

Horizontal

Vertical

CDE

P

O

B

A

Video

Sync

Sync

Separate Sync

C D

A

O

E

B

P

Video

Sync

Sync

Video

Q R S

A : Line time total B : Horizontal sync width O : Frame time total P : Vertical sync width

C : Back porch D : Active time Q : Back porch R : Active time

E : Front porch S : Front porch

2 Product Specifications

213T 2-5

QRS

P

O

Video

Sync

Sync

Horizontal

Vertical

CDE

P

O

B

A

Video

Sync

Sync

Separate Sync

C D

A

O

E

B

P

Video

Sync

Sync

Video

Q R S

A : Line time total B : Horizontal sync width O : Frame time total P : Vertical sync width

C : Back porch D : Active time Q : Back porch R : Active time

E : Front porch S : Front porch

fH (kHz)

A µsec

B µsec

C µsec

D µsec

E µsec

fV (Hz)

O msec

P msec

Q msec

R msec

S msec

Clock
Frequency
(MHz)

Polarity
H.Sync

V.Sync

Remark

SUN/76 Hz

1280 x 1024

SXGA/60 Hz

1280 x 1024

SUN/76 Hz

1152 x 900

71.7

1472

96

208

1152

16

76.0

943

8

33

900

2

105.561

Negative

Negative

Separate

SUN/66 Hz

1152 x 900

61.8

1528

128

208

1152

40

66.0

937

4

31

900

2

94.500

–/+

–/+

Separate

64.0

1688

112

248

1280

48

60.0

1066

3

38

1024

1

108.000

Positive

Positive

Separate

74.4

1680

160

208

1280

32

70.0

1063

3

36

1024

0

125.000

Negative

Negative

Separate

80.0

1688

144

248

1280

16

75.0

1066

3

38

1024

1

135.000

Positive

Positive

Separate

81.1

1664

64

288

1280

32

76.1

1066

8

32

1024

2

135.000

Negative

Negative

Separate

SXGA/75 Hz

1280 x 1024

78.1

1728

192

192

1280

64

72.0

1085

3

55

1024

3

135.000

Negative

Negative

Separate

HP/72 Hz

1280 x 1024

NCD/70 Hz

1280 x 1024

Table 2-1 Timing Chart (continued)

Mode

Timing

2 Product Specifications

2-6 213T

75

2160

192

304

1600

64

60

1250

3

46

1200

1

162.000

–/+

–/+

Separate

fH (kHz)

A µsec

B µsec

C µsec

D µsec

E µsec

fV (Hz)

O msec

P msec

Q msec

R msec

S msec

Clock
Frequency
(MHz)

Polarity
H.Sync

V.Sync

Remark

Analog

QRS

P

O

Video

Sync

Sync

Horizontal

Vertical

CDE

P

O

B

A

Video

Sync

Sync

Separate Sync

C D

A

O

E

B

P

Video

Sync

Sync

Video

Q R S

A : Line time total B : Horizontal sync width O : Frame time total P : Vertical sync width

C : Back porch D : Active time Q : Back porch R : Active time

E : Front porch S : Front porch

UXGA/60Hz

1600 x 1200

Table 2-1 Timing Chart (continued)

Mode

Timing

213T 3-1

3 Disassembly and Reassembly

This section of the service manual describes the disassembly and reassembly procedures for the
213T monitor.

WARNING: This monitor contains electrostatically sensitive devices. Use caution when handling

these components.

3-1 Disassembly

Cautions : 1. Disconnect the monitor from the power source before disassembly.

2. Follow these directions carefully; never use metal instruments to pry apart the cabinet.

3. R/Cover opening jig : BH81-00001A

1. Place monitor face down on cushioned table
and remove 4 screws from the rear cover.

2. Remove cover front from the rear cover.

3. Remove the rear cover.

4. Remove 8 screws from the shield-cover.
Disconnect power cable.

5. Remove shield-cover from the shield and
remove 12 screws from the PCB.

3 Disassembly and Reassembly

3-2 213T

6. Disconnect LVDS cable from the panel and
disconnect invertor cable from the shield.

7. Disconnect function cable from the shield and
lift up the panel.

8. Remove 4 screws from the panel.
(right and left)

3-2 Replacement Order of Lamp Assemblies

1. Remove the lamp wire holding tape from
the metal chassis on the bottom side.

1-1. Taking out the lamp wire from

the lamp wire holder.

3 Disassembly and Reassembly

213T 3-3

2. Unscrewing the screw.
Unscrewing force : 0.8 ~ 1Kg - f.cm

3. Pulling out the lamp assembly with stable
power and direction slowly.
Be careful, do not twist the lamp reflector
when pulling the lamp.

* Replacement of lamp unit should be done at the power off state and rcommended clean bench

condition.

4. Dis-assembled the lamp ass’y from LCD
completely.

3 Disassembly and Reassembly

3-4 213T

3-3 Reassembly

Reassembly procedures are in the reverse order of disassembly procedures.

213T 4-1

R R R

4-2-1 Adjustment Procedures

Use the following procedures whenever you replace the AD board, panel, or one or both of the lamps.

4-2-1 (a) When Replacing the AD Board

1. Remove the old AD board and replace it with a new board.

2. Perform the procedures described in section Figure 1.

4-2-1 (b) Color Auto Adjustment

1. After displaying 16-gray pattern, go to the “osd language selection” of XGA mode and press the “menu
key” once and press the “exit key” for 5 seconds.

2. During normal execution of auto algorithm the screen image may change. If auto algorithm does not
execute properly, repeat the process.

3. After normal execution of auto algorithm, confirm optimal settings by observing the contrast of several
different patterns on the display.

Figure 1.

4 Alignments and Adjustments

This section of the service manual explains how to use the DDC JIG to adjust the black, red, green, and blue
levels of the FPD when you replace the AD board, and how to update the microprocessor when you
change the panel or lamp(s).

4-1 Required Equipment

The following equipment is necessary for adjusting the monitor:

• Oscilloscope with probe tool

• Computer with Windows 95 , Windows 98 , or Windows NT .

• DDC Control JIG

4-2 Using the DDC Control JIG

After replacing the LCD Panel, Lamp(s), and / or AD Board, use the DDC Control JIG to complete your
service. Attach the DDC Control JIG to the flat panel display (FPD) as shown in the diagrams, below.

Memo

4 Alignments and Adjustments

4-2 213T

213T 5-1

5 Troubleshooting

5-1 No Power

Does proper 14 V appear at

Pin 1, 2 and 3 of CN101?

Check SMPS.

Yes

No

Does proper 5 V appear at
Pin 5, 6, 7 and 8 of IC104?

Check SMPS, Q101 and IC104.

Check the power supply from the LCD

panel. (around CN104)

Yes

No

Does proper 2.5 V

appear at Pin 2 of IC102?

Check IC102

.

Yes

No

Does proper 5 V

appear at Pin 5 of IC103?

Check Q108 and IC103

.

Yes

No

Does proper 3.3 V appear at

Pin 2 of IC101, IC105 and IC106?

Check IC101, IC105 and IC106.

Yes

No

5 Troubleshooting

5-2 213T

5-2 No Video (PC Analog Signal)

Power indicator is green

Does the signal appear at Pin 5,

13 and 20 of IC201?

Check BD201~BD203,

R214, R217 and R224.

Yes

No

Does the clock pulse appear at

Pin 1, 2, 3 of IC201?

Check IC201 and related circuit of IC301.

Yes

No

Does the sync signal

appear at R206 and R208?

Check Pin 44, 45 of IC204 and IC201.

Yes

No

Replace LCD panel and

related circuit of IC301.

5-3 No Video (PC Digital Signal)

Does the video signal

appear at R702, R704, R707,

R708, R709 and R710?

Check PC and related circuit.

Yes

No

Does the clock pulse

appear at R706?

Check IC701 and related circuit.

Yes

No

Replace IC301

and replace main board.

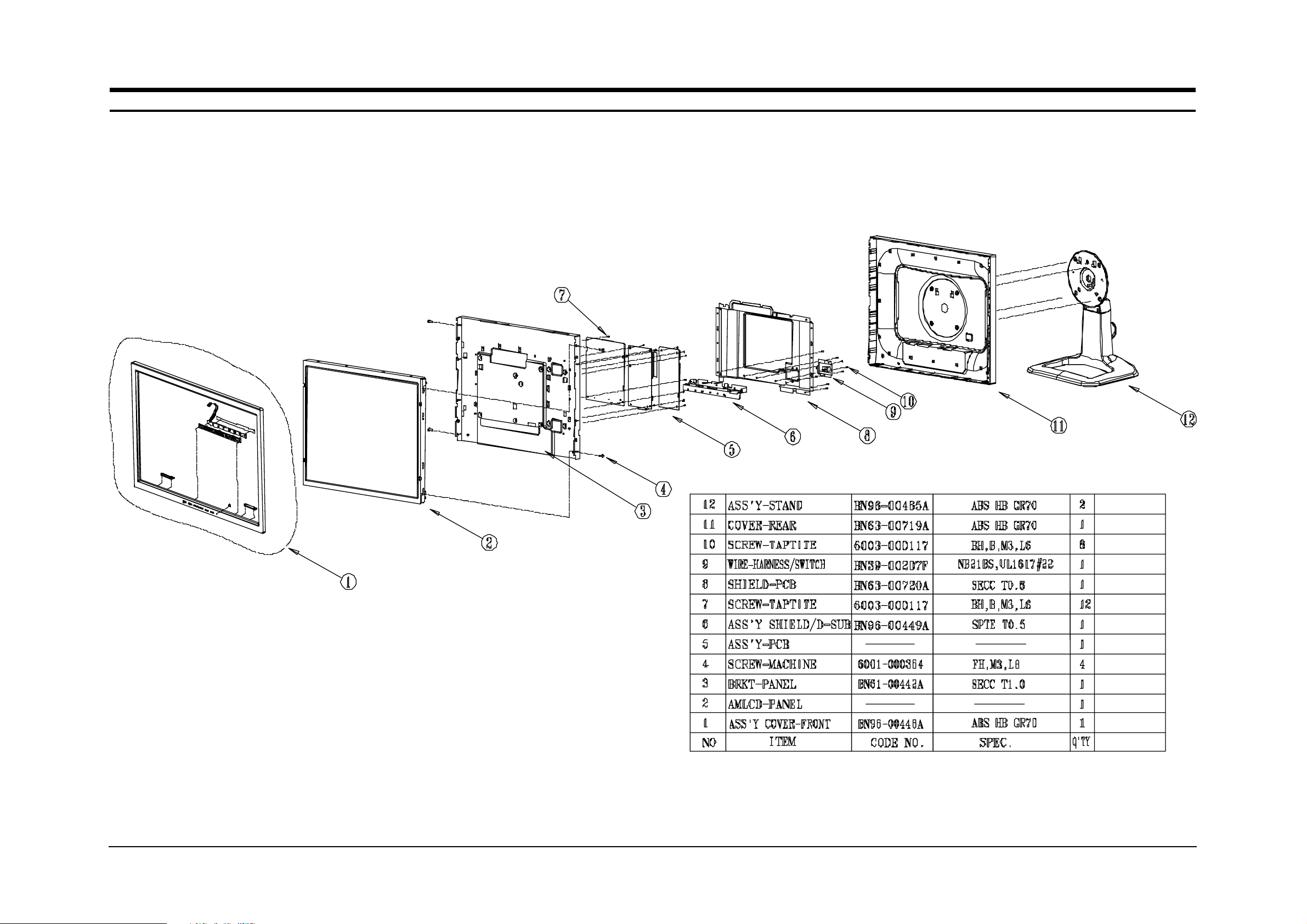

6 Exploded View and Parts List

❈ You can search for updated part codes through CMS web site.

URL : http://ecms. samsungelectronics. com/

213T 6-1

SA

SA

SA

SA

SA

SA

SA

SA
SA

SNA

SNA

SNA

REMARK

6 Exploded View & Parts List

6-2 213T

Memo

7 Electrical Parts List

❈ You can search for updated part codes through CMS web site.

URL : http://ecms. samsungelectronics. com/

7-1 Main PCB Parts

Loc. No. Code No. Description Specification Remarks

- BN94-00454A ASSY PCB MAIN-E5 NB21BS SNA
CIS02 0202-001044 SOLDER-WIRE. S63S-W3.0,S63S,D3,63Sn/37Pb,- SNA
CIS03 6011-001445 BOLT-SOCKET 4-40 UNC,L7,NI PLT,BRASS,HEX SOCKET SNA
CIS04 0202-001222 SOLDER-WIRE FLUX RS-107,RS60-1.2AA,D1.2,SN60/PB40,- SNA
CIS05 0204-001677 FLUX DF-201TVS,MIX,0.820,FLUX 13%,G SNA
CIS06 0204-001095 THINNER #4520,-,-,- SNA
CIS08 BN39-00378A LEAD CONNECTOR
CN101 3711-004182 CONNECTOR-HEADER BOX,10P,1R,-,STRAIGHT,SN SNA
CN110 3711-000024 CONNECTOR-HEADER BOX,3P,1R,2.5mm,STRAIGHT,SN
CN201 3701-001219 CONNECTOR-DSUB 15P,3R,FEMALE,ANGLE,AUF
CN701 3701-001173 CONNECTOR-DSUB 24P,3R,FEMALE,ANGLE,AUF

CIS01 BN97-00210M ASSY MICOM NB21BS SNA
IC502 1102-001097 IC-EPROM
CIS BN82-00089V A/S MICOM NB21BS SNA

- BN97-00214A ASSY SMD-E5 NB21BS SNA
BD201 3301-001407 CORE-FERRITE BEAD AB,30ohm,1.6x0.8x0.8mm,300mA,TP,FERRITE,0.4ohm
BD202 3301-001407 CORE-FERRITE BEAD AB,30ohm,1.6x0.8x0.8mm,300mA,TP,FERRITE,0.4ohm
BD203 3301-001407 CORE-FERRITE BEAD AB,30ohm,1.6x0.8x0.8mm,300mA,TP,FERRITE,0.4ohm
BD501 3301-001163 CORE-FERRITE BEAD AB,80ohm,2x1.25x1mm,300mA,TP,FERRITE,0.08ohm
BD502 3301-001163 CORE-FERRITE BEAD AB,80ohm,2x1.25x1mm,300mA,TP,FERRITE,0.08ohm
C101 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C102 2402-001086 C-AL,SMD 100UF,20%,16V,WT,TP,6.6X6.6X5.3
C103 2409-001029 C-ORGANIC 120uF,20%,6.3V,WT,TP,10.3x10.3x10.3mm,9
C104 2402-001086 C-AL,SMD 100UF,20%,16V,WT,TP,6.6X6.6X5.3
C105 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C106 2402-001086 C-AL,SMD 100UF,20%,16V,WT,TP,6.6X6.6X5.3
C107 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608
C108 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608
C109 2402-001044 C-AL,SMD 100UF,20%,25V,GP,TP,8.3X8.3X6.3MM
C110 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C111 2402-001044 C-AL,SMD 100UF,20%,25V,GP,TP,8.3X8.3X6.3MM
C112 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C113 2402-001086 C-AL,SMD 100UF,20%,16V,WT,TP,6.6X6.6X5.3
C114 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C115 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C116 2203-005065 C-CERAMIC,CHIP 1000nF,+80-20%,10V,Y5V,TP,1608
C117 2402-001086 C-AL,SMD 100UF,20%,16V,WT,TP,6.6X6.6X5.3
C118 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C119 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C120 2402-001086 C-AL,SMD 100UF,20%,16V,WT,TP,6.6X6.6X5.3
C121 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C122 2402-001086 C-AL,SMD 100UF,20%,16V,WT,TP,6.6X6.6X5.3
C123 2409-001029 C-ORGANIC 120uF,20%,6.3V,WT,TP,10.3x10.3x10.3mm,9
C124 2402-001086 C-AL,SMD 100UF,20%,16V,WT,TP,6.6X6.6X5.3
C125 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C126 2402-001044 C-AL,SMD 100UF,20%,25V,GP,TP,8.3X8.3X6.3MM
C130 2203-005437 C-CERAMIC,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216
C131 2203-005065 C-CERAMIC,CHIP 1000nF,+80-20%,10V,Y5V,TP,1608
C132 2203-005437 C-CERAMIC,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216
C201 2402-000108 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.4
C202 2409-001029 C-ORGANIC 120uF,20%,6.3V,WT,TP,10.3x10.3x10.3mm,9
C203 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,

NB21BS,UL1007#26,UL/CSA,6P,150mm,#26,SMH200-06,SMH200-06,BK,SJ03-01-046

27C010,128KX8BIT,PLCC,32P,-,90NS,5V,10%,PLASTIC,0TO+70C,0.1MA,CMOS,TR

SNA

213T 7-1

7 Electrical Parts List

Loc. No. Code No. Description Specification Remarks

C204 2409-001035 C-ORGANIC 10uF,20%,10V,LZ,TP,5.4x4.3x4.3mm,1
C205 2203-000440 C-CERAMIC,CHIP 1nF,10%,50V,X7R,TP,1608,­C206 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C207 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C208 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C209 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C210 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C211 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C212 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C213 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C214 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C215 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C216 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C217 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C218 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C219 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C220 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C221 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C222 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C223 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C224 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C225 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C226 2203-000384 C-CERAMIC,CHIP 0.015NF,5%,50V,C0G,TP,1608
C227 2402-000108 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.4
C228 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C229 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C230 2203-000975 C-CERAMIC,CHIP 47nF,10%,25V,X7R,TP,1608,­C231 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C232 2203-000440 C-CERAMIC,CHIP 1nF,10%,50V,X7R,TP,1608,­C233 2203-000975 C-CERAMIC,CHIP 47nF,10%,25V,X7R,TP,1608,­C234 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C235 2203-001652 C-CERAMIC,CHIP 470nF,+80-20%,16V,Y5V,TP,1608
C236 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C237 2203-000975 C-CERAMIC,CHIP 47nF,10%,25V,X7R,TP,1608,­C241 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C242 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C243 2402-000108 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.4
C244 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C245 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C246 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C247 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C248 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C250 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C251 2203-000726 C-CERAMIC,CHIP 3.9nF,10%,50V,X7R,TP,1608,­C252 2203-000843 C-CERAMIC,CHIP 39nF,10%,25V,X7R,TP,1608,­C270 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C301 2402-000135 C-AL,SMD 22uF,20%,16V,GP,TP,5.3x5.3x5.4
C302 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C303 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C304 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C305 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C306 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C307 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C308 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C309 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C310 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C311 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C312 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C313 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C314 2203-000440 C-CERAMIC,CHIP 1nF,10%,50V,X7R,TP,1608,-

7-2 213T

7 Electrical Parts List

Loc. No. Code No. Description Specification Remarks

C315 2203-000440 C-CERAMIC,CHIP 1nF,10%,50V,X7R,TP,1608,­C316 2203-000440 C-CERAMIC,CHIP 1nF,10%,50V,X7R,TP,1608,­C317 2203-000440 C-CERAMIC,CHIP 1nF,10%,50V,X7R,TP,1608,­C318 2402-000135 C-AL,SMD 22uF,20%,16V,GP,TP,5.3x5.3x5.4
C319 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C320 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C321 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C322 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C323 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C324 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C325 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C326 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C327 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C328 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C329 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C330 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C331 2402-000135 C-AL,SMD 22uF,20%,16V,GP,TP,5.3x5.3x5.4
C332 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C333 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C334 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C335 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C336 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C337 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C338 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C339 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C340 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C341 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C342 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C343 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C344 2402-000135 C-AL,SMD 22uF,20%,16V,GP,TP,5.3x5.3x5.4
C345 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C346 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C347 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C348 2402-000135 C-AL,SMD 22uF,20%,16V,GP,TP,5.3x5.3x5.4
C349 2203-000440 C-CERAMIC,CHIP 1nF,10%,50V,X7R,TP,1608,­C350 2203-000440 C-CERAMIC,CHIP 1nF,10%,50V,X7R,TP,1608,­C351 2203-000440 C-CERAMIC,CHIP 1nF,10%,50V,X7R,TP,1608,­C352 2203-000440 C-CERAMIC,CHIP 1nF,10%,50V,X7R,TP,1608,­C353 2203-000440 C-CERAMIC,CHIP 1nF,10%,50V,X7R,TP,1608,­C354 2203-000440 C-CERAMIC,CHIP 1nF,10%,50V,X7R,TP,1608,­C355 2203-000440 C-CERAMIC,CHIP 1nF,10%,50V,X7R,TP,1608,­C356 2203-000440 C-CERAMIC,CHIP 1nF,10%,50V,X7R,TP,1608,­C357 2203-000440 C-CERAMIC,CHIP 1nF,10%,50V,X7R,TP,1608,­C358 2203-000440 C-CERAMIC,CHIP 1nF,10%,50V,X7R,TP,1608,­C359 2203-000440 C-CERAMIC,CHIP 1nF,10%,50V,X7R,TP,1608,­C360 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C361 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C362 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C363 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C364 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C365 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C366 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C367 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C368 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C369 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C370 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C371 2402-000108 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.4
C375 2402-000108 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.4
C376 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C377 2203-000903 C-CERAMIC,CHIP 0.0047NF,0.25PF,50V,C0G,TP,1608

213T 7-3

7 Electrical Parts List

Loc. No. Code No. Description Specification Remarks

C378 2203-000903 C-CERAMIC,CHIP 0.0047NF,0.25PF,50V,C0G,TP,1608
C379 2203-000280 C-CERAMIC,CHIP 0.01NF,0.5PF,50V,C0G,TP,1608
C401 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm
C402 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C403 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C404 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C405 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C406 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C407 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm
C408 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C409 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C410 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C411 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C412 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C413 2203-005437 C-CERAMIC,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216
C414 2203-005437 C-CERAMIC,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216
C415 2203-005437 C-CERAMIC,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216
C416 2203-005437 C-CERAMIC,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216
C501 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C502 2203-005065 C-CERAMIC,CHIP 1000nF,+80-20%,10V,Y5V,TP,1608
C503 2402-000108 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.4
C504 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C505 2203-005065 C-CERAMIC,CHIP 1000nF,+80-20%,10V,Y5V,TP,1608
C506 2402-000108 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.4
C507 2203-005065 C-CERAMIC,CHIP 1000nF,+80-20%,10V,Y5V,TP,1608
C508 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C509 2203-000815 C-CERAMIC,CHIP 0.033NF,5%,50V,C0G,TP,1608
C510 2203-000815 C-CERAMIC,CHIP 0.033NF,5%,50V,C0G,TP,1608
C511 2402-000108 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.4
C512 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C513 2402-000108 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.4
C514 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608
C515 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608
C516 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608
C517 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608
C518 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608
C519 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608
C520 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608
C521 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608
C522 2402-000108 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.4
C523 2402-000108 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.4
C701 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C702 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C703 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C704 2402-001086 C-AL,SMD 100UF,20%,16V,WT,TP,6.6X6.6X5.3
C705 2402-000108 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.4
C706 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C707 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C708 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C709 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C710 2203-000903 C-CERAMIC,CHIP 0.0047NF,0.25PF,50V,C0G,TP,1608
C711 2203-000903 C-CERAMIC,CHIP 0.0047NF,0.25PF,50V,C0G,TP,1608
C712 2203-000903 C-CERAMIC,CHIP 0.0047NF,0.25PF,50V,C0G,TP,1608
C713 2203-000903 C-CERAMIC,CHIP 0.0047NF,0.25PF,50V,C0G,TP,1608
C714 2409-001051 C-ORGANIC 82UF,20%,6.3V,WT,TP,6.3*5.9MM,2.1
C715 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C716 2402-000108 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.4
C717 2203-000440 C-CERAMIC,CHIP 1nF,10%,50V,X7R,TP,1608,­C718 2203-000440 C-CERAMIC,CHIP 1nF,10%,50V,X7R,TP,1608,­C719 2203-000440 C-CERAMIC,CHIP 1nF,10%,50V,X7R,TP,1608,-

7-4 213T

7 Electrical Parts List

Loc. No. Code No. Description Specification Remarks

C720 2203-000440 C-CERAMIC,CHIP 1nF,10%,50V,X7R,TP,1608,­C721 2203-000440 C-CERAMIC,CHIP 1nF,10%,50V,X7R,TP,1608,­C722 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C723 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C724 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C725 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C726 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C727 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
CA701 2503-001018 C-NETWORK 15PFX4,10%,50V,­CA702 2503-001018 C-NETWORK 15PFX4,10%,50V,­CA703 2503-001018 C-NETWORK 15PFX4,10%,50V,­CA704 2503-001018 C-NETWORK 15PFX4,10%,50V,­CA705 2503-001018 C-NETWORK 15PFX4,10%,50V,­CA706 2503-001018 C-NETWORK 15PFX4,10%,50V,­CA707 2503-001018 C-NETWORK 15PFX4,10%,50V,­CA708 2503-001018 C-NETWORK 15PFX4,10%,50V,­CA709 2503-001018 C-NETWORK 15PFX4,10%,50V,­CA710 2503-001018 C-NETWORK 15PFX4,10%,50V,­CA711 2503-001018 C-NETWORK 15PFX4,10%,50V,­CA712 2503-001018 C-NETWORK 15PFX4,10%,50V,­CIS07 0202-001162 SOLDER-CREAM RMA-20-21L,S63,-,SN63/PB36.6/AG0.4,FLUX9.5% SNA
CN102 3711-005293 CONNECTOR-HEADER BOX,6P,1R,2MM,SMD-A,SN,WHT
CN104 3711-000556 CONNECTOR-HEADER BOX,12P,1R,1.25mm,SMD-A,SN SNA
CN401 3711-004070 CONNECTOR-HEADER BOX,30P,1R,1.25mm,SMD-A,SN
CN501 3711-002049 CONNECTOR-HEADER BOX,6P,1R,1.25mm,SMD-A,SN SNA
CN502 3708-000461 CONNECTOR-FPC/FFC/PIC 8P,1mm,SMD,AUF SNA
D201 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,200MA,SOT-23,TP
D202 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,200MA,SOT-23,TP
D203 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,200MA,SOT-23,TP
D701 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,200MA,SOT-23,TP
D702 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,200MA,SOT-23,TP
D703 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,200MA,SOT-23,TP
D704 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,200MA,SOT-23,TP
D705 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,200MA,SOT-23,TP
D706 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,200MA,SOT-23,TP
D707 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,200MA,SOT-23,TP
D708 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,200MA,SOT-23,TP
FT101 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA
FT102 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA
FT103 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA
FT104 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA
FT105 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA
FT106 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA
FT107 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA
FT108 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA
FT109 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA
FT110 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA
FT111 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA
FT112 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA
FT113 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA
FT114 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA
FT118 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA
FT119 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA
FT120 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA
FT201 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm
FT202 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1
FT203 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1
FT204 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm
FT301 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1
FT302 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1

213T 7-5

7 Electrical Parts List

Loc. No. Code No. Description Specification Remarks

FT303 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1
FT304 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1
FT306 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm
FT501 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1
FT701 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1
FT702 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1
FT703 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1
FT704 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1
IC101 1203-000490 IC-POSI.FIXED REG.
IC102 1203-001465 IC-POSI.ADJUST REG. 317,TO-263,3P,-,PLASTIC,1.2/37
IC103 0505-000275 FET-SILICON SI4435DY,P,-30V,+-8.0A,0.014ohm,2.5W,SO-8
IC104 0505-001170 FET-SILICON SI9933ADY-T1,P,-20V,3.4A,0.06ohm,2W,SO-8
IC105 1203-000490 IC-POSI.FIXED REG.
IC106 1203-000490 IC-POSI.FIXED REG.
IC201 1002-001355 IC-A/D CONVERTER
IC202 1203-002067 IC-POSI.FIXED REG.
IC203 1103-000129 IC-EEPROM 24C02,256x8BIT,SOP,8P,150MIL,1
IC204 0801-002267 IC-CMOS LOGIC
IC301 1205-002316 IC-LCD CONTROLLER JAG160,PBGA,388P,,PLASTIC,3.45V,2.5W,0to+70C,TR, SNA
IC302 1105-001336 IC-DRAM
IC303 1105-001336 IC-DRAM
IC305 0801-002171 IC-CMOS LOGIC 74LCX125,BUS BUFFER,SOP,14P,15
IC401 1205-001740 IC-TRANSMITTER
IC402 1205-001740 IC-TRANSMITTER
IC501 0903-001215 IC-MICROCONTROLLER
IC502_SOCK 3704-000249 SOCKET-IC 32P,PLCC,SN,1.27mm
IC503 0802-001108 IC-BICMOS LOGIC
IC504 1103-001023 IC-EEPROM
IC505 0803-000117 IC-TTL 74F14,INVERTER,SOP,14P,150MIL,
IC506 1203-001109 IC-VOL. DETECTOR 7045,SOT-89,3P,-,PLASTIC,4.3/4
IC701 1205-002183 IC-RECEIVER
IC702 1103-000129 IC-EEPROM 24C02,256x8BIT,SOP,8P,150MIL,1
L401 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm
L402 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm
L403 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm
L404 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm
L405 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm
L406 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm
L701 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm
MP1.0 BN41-00286A PCB MAIN NB21BS,FR4,4L,1.0,1.6T,150*180,NB21BS SNA
Q101 0501-002080 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270
Q102 0501-002080 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270
Q501 0501-002080 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270
R101 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R102 2007-000077 R-CHIP 470ohm,5%,1/16W,DA,TP,1608
R103 2007-000097 R-CHIP 47Kohm,5%,1/16W,DA,TP,1608
R104 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R105 2007-000077 R-CHIP 470ohm,5%,1/16W,DA,TP,1608
R106 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608
R107 2007-000078 R-CHIP 1Kohm,5%,1/16W,DA,TP,1608
R108 2007-000078 R-CHIP 1Kohm,5%,1/16W,DA,TP,1608
R109 2007-000078 R-CHIP 1Kohm,5%,1/16W,DA,TP,1608
R110 2007-000097 R-CHIP 47Kohm,5%,1/16W,DA,TP,1608
R111 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R112 2007-000078 R-CHIP 1Kohm,5%,1/16W,DA,TP,1608
R113 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R114 2007-000078 R-CHIP 1Kohm,5%,1/16W,DA,TP,1608
R130 2007-000078 R-CHIP 1Kohm,5%,1/16W,DA,TP,1608
R131 2007-000078 R-CHIP 1Kohm,5%,1/16W,DA,TP,1608

EZ1117,SOT-223,3P,-,PLASTIC,3.235/3.365V,-,0TO+125C,800MA,1.224/1.264V,TP

EZ1117,SOT-223,3P,-,PLASTIC,3.235/3.365V,-,0TO+125C,800MA,1.224/1.264V,TP
EZ1117,SOT-223,3P,-,PLASTIC,3.235/3.365V,-,0TO+125C,800MA,1.224/1.264V,TP
AD9888KS-170,8BIT,MQFP,128P,,,TR,-,PLASTIC,3.30V,0to+70C,,
3330,SOT-23,6P,65MIL,PLASTIC,3.284/3.316V,-,-40to+125C,200mA,-,TP

74LCX14,-,SOIC,14P,150MIL,-,TP,-,-,-,3.6V,-40TO+85C,-,5.5V,-,-,24MA

4S643232,512Kx32x4Bit,TSOP,86P,400MIL,60nS ,3.3V,10%,PLASTIC,0to+70C,2mA,CMOS,TP
4S643232,512Kx32x4Bit,TSOP,86P,400MIL,60nS ,3.3V,10%,PLASTIC,0to+70C,2mA,CMOS,TP

DS90C385,TSSOP,56P,240MIL,PLASTIC,4V,1.63W,-10 TO +70C,ST,FPD LINK-85MHZ(LVDS)
DS90C385,TSSOP,56P,240MIL,PLASTIC,4V,1.63W,-10 TO +70C,ST,FPD LINK-85MHZ(LVDS)
80C32X2,8Bit,PLCC,44P,-,40MHz,TR,CMOS,PLASTIC,5V,1W,0to+70C,256BYTE,-,8Bit,300nS

74ABT573,LATCH,TSSOP,20P,173MIL,8,TR,PLASTIC,3-STATE,-,0.55V,-65TO+150C,-,0.8V,5
524C80D81,1028x8Bit,SOP,8P,150MIL,10mS,5V,10%,PLASTIC,0to+70C,110uA,CMOS,TP

SII161BCT100,TQFP,100P,14X14MM,PLASTIC,3.6V,-,0TO+70C,TR,PANELLINK

SNA

7-6 213T

7 Electrical Parts List

Loc. No. Code No. Description Specification Remarks

R201 2007-000102 R-CHIP 100Kohm,5%,1/16W,DA,TP,1608
R202 2007-000133 R-CHIP 330Kohm,5%,1/16W,DA,TP,1608
R203 2007-001167 R-CHIP 75ohm,5%,1/16W,DA,TP,1608
R204 2007-001167 R-CHIP 75ohm,5%,1/16W,DA,TP,1608
R205 2007-001167 R-CHIP 75ohm,5%,1/16W,DA,TP,1608
R206 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608
R207 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608
R208 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608
R209 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R210 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R211 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R212 2007-000124 R-CHIP 2.2Kohm,5%,1/16W,DA,TP,1608
R213 2007-000124 R-CHIP 2.2Kohm,5%,1/16W,DA,TP,1608
R214 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608
R215 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R216 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R217 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608
R218 2007-000075 R-CHIP 220ohm,5%,1/16W,DA,TP,1608
R219 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R220 2007-000075 R-CHIP 220ohm,5%,1/16W,DA,TP,1608
R221 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R222 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R223 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R224 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608
R225 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R226 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R227 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R228 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R229 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R231 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R232 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R233 2007-000082 R-CHIP 3.3Kohm,5%,1/16W,DA,TP,1608
R290 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R301 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608
R302 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R303 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R304 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R305 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608
R306 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R307 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R308 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608
R309 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R310 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608
R311 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608
R312 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608
R314 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R315 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R316 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R317 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R318 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R319 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R320 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R323 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R324 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608
R325 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608
R326 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608
R327 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608
R328 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608
R329 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608

213T 7-7

7 Electrical Parts List

Loc. No. Code No. Description Specification Remarks

R330 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608
R331 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608
R332 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R333 2007-000082 R-CHIP 3.3Kohm,5%,1/16W,DA,TP,1608
R334 2007-000082 R-CHIP 3.3Kohm,5%,1/16W,DA,TP,1608
R335 2007-007733 R-CHIP 51OHM,1%,1/16W,DA,TP,1608
R336 2007-007733 R-CHIP 51OHM,1%,1/16W,DA,TP,1608
R337 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R338 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608
R339 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608
R340 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608
R341 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608
R342 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608
R343 2007-000078 R-CHIP 1Kohm,5%,1/16W,DA,TP,1608
R344 2007-000078 R-CHIP 1Kohm,5%,1/16W,DA,TP,1608
R401 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R402 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R403 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R404 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R405 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R406 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R407 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R408 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R409 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R410 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R411 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R412 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R413 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R414 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R415 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R416 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R417 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R418 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R419 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R420 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R421 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R422 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R424 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R426 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R427 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R428 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R429 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R430 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R431 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R432 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R501 2007-000078 R-CHIP 1Kohm,5%,1/16W,DA,TP,1608
R502 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R503 2007-000080 R-CHIP 2Kohm,5%,1/16W,DA,TP,1608
R504 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R505 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R506 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R507 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R508 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R509 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R510 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R511 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R512 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R513 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R514 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608

7-8 213T

7 Electrical Parts List

Loc. No. Code No. Description Specification Remarks

R515 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R516 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R517 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R518 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R519 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R520 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R521 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R522 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R523 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R524 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R525 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R526 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R527 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R528 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R529 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R530 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R531 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R532 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R533 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R534 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R535 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R536 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R537 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R538 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R539 2007-000078 R-CHIP 1Kohm,5%,1/16W,DA,TP,1608
R540 2007-000075 R-CHIP 220ohm,5%,1/16W,DA,TP,1608
R541 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R542 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R543 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608
R544 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R545 2007-000078 R-CHIP 1Kohm,5%,1/16W,DA,TP,1608
R546 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R547 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R548 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R549 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R551 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R552 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R553 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R554 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R701 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608
R702 2007-000309 R-CHIP 10ohm,5%,1/16W,DA,TP,1608
R703 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608
R704 2007-000309 R-CHIP 10ohm,5%,1/16W,DA,TP,1608
R705 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608
R706 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608
R707 2007-000309 R-CHIP 10ohm,5%,1/16W,DA,TP,1608
R708 2007-000309 R-CHIP 10ohm,5%,1/16W,DA,TP,1608
R709 2007-000309 R-CHIP 10ohm,5%,1/16W,DA,TP,1608
R710 2007-000309 R-CHIP 10ohm,5%,1/16W,DA,TP,1608
R711 2007-000309 R-CHIP 10ohm,5%,1/16W,DA,TP,1608
R712 2007-000821 R-CHIP 390ohm,1%,1/16W,DA,TP,1608
R713 2007-000309 R-CHIP 10ohm,5%,1/16W,DA,TP,1608
R716 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R717 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R718 2007-000078 R-CHIP 1Kohm,5%,1/16W,DA,TP,1608
R719 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R720 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R721 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R722 2007-001002 R-CHIP 510ohm,5%,1/16W,DA,TP,1608

213T 7-9

7 Electrical Parts List

Loc. No. Code No. Description Specification Remarks

R723 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R724 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R726 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R727 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R728 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R729 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R730 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R732 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R733 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R735 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
RA201 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP
RA202 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP
RA203 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP
RA204 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP
RA205 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP
RA206 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP
RA207 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP
RA208 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP
RA209 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP
RA210 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP
RA211 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP
RA212 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP
RA301 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP
RA302 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP
RA303 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP
RA304 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP
RA305 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP
RA401 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP
RA402 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP
RA403 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP
RA404 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP
RA405 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP
RA406 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP
RA407 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP
RA408 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP
RA409 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP
RA410 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP
RA411 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP
RA412 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP
RA701 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP
RA702 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP
RA703 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP
RA704 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP
RA705 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP
RA706 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP
RA707 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP
RA708 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP
RA709 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP
RA710 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP
RA711 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP
RA712 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP
X501 2801-003667 CRYSTAL-SMD 14.3182MHZ,50PPM,28-AAN,16,50OHM,TP
ZD201 0403-000579 DIODE-ZENER BZX84C5V1,5.1V,5%,200mW,SOT-23
ZD202 0403-000579 DIODE-ZENER BZX84C5V1,5.1V,5%,200mW,SOT-23
ZD203 0403-000579 DIODE-ZENER BZX84C5V1,5.1V,5%,200mW,SOT-23
ZD204 0403-000579 DIODE-ZENER BZX84C5V1,5.1V,5%,200mW,SOT-23
ZD205 0403-001435 DIODE-ZENER QZX363C5V6,5.32-5.88,200MW,SOT-363,TP
ZD501 0403-001435 DIODE-ZENER QZX363C5V6,5.32-5.88,200MW,SOT-363,TP
ZD502 0403-001435 DIODE-ZENER QZX363C5V6,5.32-5.88,200MW,SOT-363,TP

7-10 213T

7 Electrical Parts List

Loc. No. Code No. Description Specification Remarks

ZD701 0403-000579 DIODE-ZENER BZX84C5V1,5.1V,5%,200mW,SOT-23
ZD702 0403-000579 DIODE-ZENER BZX84C5V1,5.1V,5%,200mW,SOT-23
ZD703 0403-000579 DIODE-ZENER BZX84C5V1,5.1V,5%,200mW,SOT-23
ZD704 0403-001435 DIODE-ZENER QZX363C5V6,5.32-5.88,200MW,SOT-363,TP

- BN94-00443P ASSY PCB POWER-E5 CK40PS SNA
C1 2301-001244 C-FILM,MPEF 150nF,20%,275Vac,TP,18x8.5x15,
C2 2301-001244 C-FILM,MPEF 150nF,20%,275Vac,TP,18x8.5x15,
C5 2401-003612 C-AL 150uF,20%,450V,-,BK,22x45mm,10
CIS01 0202-000008 SOLDER-WIRE S63S-W3.0,S63S,D3,63Sn/37Pb,- SNA
CIS02 0204-001527 FLUX DF-201TVS,MIX,0.820,FLUX 13%, 14KG SNA
CIS03 0202-000187 SOLDER-WIRE FLUX -,RS60S,D1.2,63Sn/37Pb SNA
CIS04 0204-000442 SOLVENT 1M-1000,C3H70H,96,- SNA
CIS07 BN81-00113A INSULATOR-SHEET PET SR53 FILM,SK800TAPE,230*163 SNA
CIS08 0203-001303 TAPE-ACETATE #1554,T0.25MM,W19MM,L30M,WHT SNA
CN1 3721-001050 PLUG-AC POWER 3P,-,-,SN
CN2 BN39-00382A LEAD CONNECTOR-DC_OUTPUT
D1 0402-001227 DIODE-BRIDGE D3SBA60,600V,2.3A,SIP-4,BK
FH1 3601-001302 FUSE-AXIAL LEAD 250V,3.15A,SLOW-BLOW,CERAMIC,5X20MM
IC1 1203-002958 IC-PWM CONTROLLER
IC2 0604-001018 PHOTO-COUPLER DAR-TR,63-125%,200mW,DIP-4,ST
L1 BN29-00002A FILTER LINE NOISE
L2 BN29-00002A FILTER LINE NOISE
R10 2005-001058 R-WIRE WOUND 0.39ohm,1%,1W,AA,TP,4.3x12mm
R21 2003-000525 R-METAL OXIDE(S) 180ohm,5%,2W,AA,TP,4x12mm
T1 BN26-00008A TRANS SWITCHING
TH1 1404-001020 THERMISTOR-NTC 8ohm,15%,-,17mW/C,BK

UL1007#24,UL/CSA,10P,60mm,#24,YBNH250-10,SMH250-10,BK

NCP1200P60,DIP,8,10.16x6.6mm,PLASTIC,550mW,-25to+125,110mA,ST

LCDMO,LS404110M,0.2ohm,9.0mH,2.0A,250Vac,BK,300ߤ(500Vdc),-25°…~+120°…
LCDMO,LS404110M,0.2ohm,9.0mH,2.0A,250Vac,BK,300ߤ(500Vdc),-25°…~+120°…

ER-3541H,LCDTM,90~264Vac,PL3,PM2A,+14V,ER-3541H,50/60Hz,510uH,14.0uH,H-TYPE

SNA

SNA

SNA
SNA

SNA

- BN97-00207P ASSY AUTO-POWER,E5 CK40PS SNA
BD1 3301-000011 CORE-FERRITE BEAD AA,3.5x1.0x5.7mm,1500,2375G
BD2 3301-000011 CORE-FERRITE BEAD AA,3.5x1.0x5.7mm,1500,2375G
BD3 3301-000011 CORE-FERRITE BEAD AA,3.5x1.0x5.7mm,1500,2375G
C10 2301-000016 C-FILM,PEF 22nF,5%,100V,TP,7.2x4.5x9.0mm,
C11 2301-000013 C-FILM,PEF 4.7nF,5%,100V,TP,10.5x12.5x6.5
C12 2201-000288 C-CERAMIC,DISC 1NF,10%,2KV,Y5P,TP,9X5MM,10
C13 2401-000142 C-AL 1000uF,20%,16V,WT,TP,10x20,5
C14 2401-000142 C-AL 1000uF,20%,16V,WT,TP,10x20,5
C15 2401-000142 C-AL 1000uF,20%,16V,WT,TP,10x20,5
C16 2401-003139 C-AL 1000uF,20%,25V,WT,TP,10*20,5mm
C17 2401-003139 C-AL 1000uF,20%,25V,WT,TP,10*20,5mm
C18 2401-003139 C-AL 1000uF,20%,25V,WT,TP,10*20,5mm
C19 2202-002244 C-CERAMIC,MLC-RADIAL 1000,+80-20%,16,Y5V,TP,5.1x6.4x3.1mm SNA
C20 2301-000019 C-FILM,PEF 47nF,10%,100V,TP,8.9x5.1x13.5m
C21 2202-000654 C-CERAMIC,MLC-RADIAL 100nF,10%,50V,X7R,TP,5.1x6.6x3.2mm,5
C22 2202-000654 C-CERAMIC,MLC-RADIAL 100nF,10%,50V,X7R,TP,5.1x6.6x3.2mm,5
C23 2201-000023 C-CERAMIC,DISC 2.2NF,20%,250V,Y5U,TP,11X7MM,5
C3 2201-002026 C-CERAMIC,DISC 1NF,20%,400V,Y5P,TP,11X6MM,7.5
C4 2201-002026 C-CERAMIC,DISC 1NF,20%,400V,Y5P,TP,11X6MM,7.5
C6 2301-001661 C-FILM,PEF 2.2,5%,400,TP,6X9.5X3.5mm,5 SNA
C7 2401-000970 C-AL 22uF,20%,50V,WT,TP,5x11,5
C8 2202-000654 C-CERAMIC,MLC-RADIAL 100nF,10%,50V,X7R,TP,5.1x6.6x3.2mm,5
C9 2201-000146 C-CERAMIC,DISC 0.1NF,5%,50V,SL,TP,5X3.5MM,5
CN3 3711-000217 CONNECTOR-HEADER 1WALL,2P,1R,7.92MM,STRAIGHT,SN,NTR
D10 0403-001329 DIODE-ZENER MTZJ24B,22.61-23.77V,500mW,DO-34,TP
D11 0403-001211 DIODE-ZENER MTZJ12B,11.44-12.03V,500MW,DO-34,TP
D12 0403-000711 DIODE-ZENER MTZJ2.0B,2.0V,2.02-2.5V,500mW,
D2 0402-000012 DIODE-RECTIFIER UF4007,1KV,1A,DO-41,TP
D3 0402-000546 DIODE-RECTIFIER TVR10G,400V,1.0A,DO-41,TP
D4 0403-000538 DIODE-ZENER MTZ16C,16V,15.69-16.51V,500mW,

213T 7-11

7 Electrical Parts List

Loc. No. Code No. Description Specification Remarks

D5 0401-000005 DIODE-SWITCHING 1N4148,100V,200mA,DO-35,TP
D6 0403-001328 DIODE-ZENER MTZJ22A,20.15-21.20V,500mW,DO-34,TP
D9 0403-001327 DIODE-ZENER MTZJ18A,16.22-17.06V,500mW,DO-34,TP
EY1 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H SNA
EY10 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H SNA
EY2 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H SNA
EY3 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H SNA
EY4 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H SNA
EY5 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H SNA
EY6 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H SNA
EY7 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H SNA
EY8 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H SNA
EY9 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H SNA
FH2 3601-001226 FUSE-RADIAL LEAD 250V,3.15A,TIME-LAG,PLASTIC,8.5x8mm
IC3 1203-000002 IC-POSI.ADJUST REG. 431,TO-92,3P,-,PLASTIC,2.44/2.
JP1 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0.
JP2 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0.
JP3 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0.
JP4 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0.
JP5 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0.
JP6 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0.
MP1.0 BN41-00296A PCB SUB-POWER 70W SMPS,FR1,1,R1.0,1.6mm,90X175mm,BN21BS,2 SNA
Q2 0501-000586 TR-SMALL SIGNAL KSC945,NPN,250mW,TO-92,TP,120-240
R1 2001-001129 R-CARBON(S) 330KOHM,5%,1/2W,AA,TP,2.4X6.4MM
R11 2001-000221 R-CARBON 1.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R12 2001-000429 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R13 2001-000449 R-CARBON 2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R14 2004-004090 R-METAL 6.49Kohm,1%,1/4W,AA,TP,2.5x6.5
R15 2004-000001 R-METAL 6.2Kohm,1%,1/4W,AA,TP,2.4x6.4m
R16 2001-000411 R-CARBON 18KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R17 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R18 2001-000411 R-CARBON 18KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R19 2001-000628 R-CARBON 300OHM,5%,1/8W,AA,TP,1.8X3.2MM
R2 2001-001129 R-CARBON(S) 330KOHM,5%,1/2W,AA,TP,2.4X6.4MM
R20 2001-000628 R-CARBON 300OHM,5%,1/8W,AA,TP,1.8X3.2MM
R3 2002-001010 R-COMPOSITION 1.8Mohm,5%,1/2W,AA,TP,3.7x9mm
R4 2002-001010 R-COMPOSITION 1.8Mohm,5%,1/2W,AA,TP,3.7x9mm
R5 2003-000855 R-METAL OXIDE(S) 47Kohm,5%,3W,AA,TP,6x16mm
R6 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R7 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R8 2001-000221 R-CARBON 1.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R9 2001-000356 R-CARBON 150KOHM,5%,1/8W,AA,TP,1.8X3.2MM
SCR1 1401-000103 THYRISTOR-SCR 800mA,400V,400V,10A,TO-92 SNA
TH2 1404-001238 THERMISTOR-NTC 100KOHM,0.05A,4000K,2MW/C,-,2.0,TP

CIS06 BP96-00288A ASSY HEAT SINK P
CIS 0402-000240 DIODE-RECTIFIER MBR2045,45V,20A,TO-220,ST
CIS 0404-001125 DIODE-SCHOTTKY MBR16100CT,100V,8000MA,TO-220AB,ST
CIS 6003-000335 SCREW-TAPTITE RH,+,2S,M3,L8,ZPC(YEL),SWRCH18 SNA
CIS BN61-00628A SUPPORT NB21BS,NYLON66,T2.25,@5.25,NTR,DAWG - 5N SNA
CIS BN73-00047B SILICON/RUBBER NB21BS,TC1370,17*19*T0.4,@3.65 SNA
CIS BP62-00032A HEAT SINK-ES NB21BS,A6063S,T2.0,15,70 SNA

CIS05 BP96-00289A ASSY HEAT SINK P BP62-00022A,SCREW,STP6NK60Z,OIL SILICON SNA
CIS 0205-001027 OIL-SILICON G746,-,- SNA
CIS 0505-001768 FET-SILICON STP6NK60ZFP(031Y,N,600V,6A,1.2ohm,32,TO-220 SNA
CIS 6003-000335 SCREW-TAPTITE RH,+,2S,M3,L8,ZPC(YEL),SWRCH18 SNA
CIS BP62-00022A HEAT SINK-ES AQ21Q,A6063S,T2.0,9,50

BP62-00032A,SCREW,MBR2045CT,MBR16100CT,RUBBER

SNA

7-12 213T

7 Electrical Parts List

7-2 Others

Loc. No. Code No. Description Specification Remarks

- BN90-00502A ASSY COVER FRONT NB21BS SNA

C/F BN96-00448A ASSY COVER P-FRONT NB21BS,ABS HB GR70,SVM-1148 SNA
CIS BN63-00376A COVER-SPACER E171,ABS ,DELL SNA
CIS BN63-00718A COVER-FRONT NB21BS,ABS HB GR70,SILVER SPRAY SNA
CIS BN64-00159A KNOB-FUNCTION NB21BS,ABS+PC GR70,SILVER SPRAY SNA
CIS BN67-00090A LENS LED NB21BS,ACRYL,,,,, SNA
CIS BN68-00434B LABEL-TCO03 LCD,TCO’03,PE CLAER,T0.05,20*17,6DO SILK SNA

CIS BN96-00504A ASSY BOARD P-FUNCTION NB21BS,FUNCTION SNA

- BN90-00503A ASSY COVER REAR NB21BS SNA
C/R BN63-00719A COVER-REAR NB21BS,ABS HB,,,,,,SILVER SPRAY, SNA

- BN90-00504A ASSY STAND NB21BS SNA

STD BN96-00465A ASSY STAND P NB21BS,ABS HB GR70, SILVER SNA

- BN91-00403F ASSY LCD-E5 NB21BS SNA
LCD BN07-00124A LCD-PANEL

LTM213U4-L01,Rubens,1600*1200,462*361*26,16.7M,40,0.27*0.27,0~55,5,PVA,

SNA

- BN91-00629A ASSY CHASSIS-E5 NB21BS

CIS BN96-00449A ASSY MISC P-SHIELD/D SUB NB21BS,SPTE T0.5 SNA

- BN91-00630A ASSY SHIELD NB21BS SNA
CIS 0203-001159 TAPE-FILAMENT #8915,T0.15,W12,L55000,CLR SNA
CIS 0203-001311 TAPE-CONDUCTOR DK-K102-90-50,T0.13,W50,L90,GRAY SNA
CIS 6001-001547 SCREW-MACHINE BH,+,M4,L10(5),ZPC(BLK),SWRCH18A,FP
CIS BN39-00002A CBF-HARNESS -,60,BLU/WHT,-,26,­CIS BN39-00073A CBF SIGNAL DET,2000MM,24P/24P,BLACK,-,DVI-D(M) TO DVI-D(M)
CIS BN39-00115A CBF SIGNAL
CIS BN39-00207F WIRE HARNESS-SWITCH
CIS BN39-00379A LEAD CONNECTOR
CIS BN44-00088A INVERTER
CIS BN63-00720A SHIELD-PCB NB21BS,SECC,T0.8,,,, SNA
CIS BN63-00863A SHEET-PANEL NB21BS,PC SHEET,T0.5 SNA
HOLD/SW+SH/PCB
M/PCB+PAN/BRKT
PAN/BRKT+PAN
SH/PCB+PAN/BRKT
SH/PCB+SH/D_SUB

CIS BN96-00598A ASSY MISC P-BRKT/PANEL NB21BS,SECC T1.0 SNA

- BN92-00732A ASSY BOX NB21BS SNA
CIS BH68-00530C LABEL BOX
CIS BN69-00563A BOX

6003-000117 SCREW-TAPTITE BH,+,B,M3,L6,ZPC(YEL),SWRCH18A SNA
6003-000117 SCREW-TAPTITE BH,+,B,M3,L6,ZPC(YEL),SWRCH18A SNA
6001-000364 SCREW-MACHINE FH,+,M3,L8,ZPC(YEL),SM20C,- SNA
6003-000117 SCREW-TAPTITE BH,+,B,M3,L6,ZPC(YEL),SWRCH18A SNA
6003-000117 SCREW-TAPTITE BH,+,B,M3,L6,ZPC(YEL),SWRCH18A SNA

NL5MO,15P/15P,2990,1830MM,UL2990,BLACK,D-SUB/MALE,-,-,­NB21BS,UL1617#22,UL/CSA,3(2)P,40MM,#22,JRA-1102H(S/W),YH396-03V,BK,1617#22,SJ03­NB21BS,UL1571#30,UL/CSA,31P/30P,70mm,#30,GT121-31S-CD,12507HS-30,BK
PC213T,K02I058.00,250Hz,14V,2.5mA,6.0mA,535Hz,174.3*80*11.5,6 Lamp,50KHz,1200Vrm

LABEL-BARCODE,CE+PIVOT+TCO03,MOJO 100G,90*95,WHT
S/M213T,NB21BS,W/W,CB-SW4,YEL,A-1,L571*W444*H264

SNA
SNA
SNA

SNA
SNA

- BN92-00733A ASSY ACCESSORY NB21BS SNA

UNIT/ACCESSORY
CIS 0203-000214 TAPE-OPP MASKING OPP/W50/CLR,T0.05,W50,L400000, SNA
CIS 6801-001073 CARD-REGISTRATION RUS,XEV,RUS,MOJO100,-,W220,L318,2,- SNA
CIS 6902-000110 BAG PE LDPE,T0.05,L356,W240,TRP,28,2,PE MARK SNA
CIS BH39-10339H CBF POWER CORD DET,H05VV-F,250V/10,16A,BLK,25
CIS BH68-00374A CARD WARRANTY-01 ASC List,Samsung,ART100G,Russian,EDC,295,210 SNA
CIS BH68-00376H MANUAL-00

BN96-00516S ASSY ACCESSORY NB21BSAS/EDC,EDC,NETHERLANDS

WIN XP INSTALL GUIDE,SYNCMASTER,ENGLISH,W/W,MOJO100G,-,148,210,-,-,-,-

SNA

213T 7-13

7 Electrical Parts List

Loc. No. Code No. Description Specification Remarks

CIS BH68-00489A MANUAL-02 RUSSIAN W/CARD,SER,RUSSIAN,RUSSIA,MOJO100G SNA
CIS BH68-70438A CARD-BLOC WARRANTY-08 TFT LCD,BASIC,EU,MOJO,100G,W21 SNA
CIS BH68-70448A CARD-01
CIS BN59-00048A S/W DRIVER-6.05 SYNCMASTER,PIVOT,SAMSUNG SNA
CIS BN59-00361A S/W DRIVER-USERMANUAL 213T,W/W,SyncMaster,13Langs SNA

- BN92-00734A ASSY P/MATERIAL NB21BS SNA
P/M 0203-001157 TAPE-OPP MASKING OPP/W75/CLR,T0.05,W75,L100000, SNA
P/M 6902-000524 BAG PE
CIS BH69-00256C PAD-PACKING-EDGE MV940,B400,W200,L2030,-,-,YEL,-,- SNA
P/M BH69-00260A BAG AIR DP17L,PE,0.2,1800,1000,NATURAL,- SNA
CIS BH69-00457B PACKING-PAD GH15,FOAM,T3.0,930,1000 SNA
P/M BH69-30002C BAG-PE LDPE,T0.05,W2400,NO_PRINT SNA
P/M BH69-30360A BAG-AIR HDPE,T0.2,W1000*L1800,N,-,ALL SNA
CIS BH69-40379A PACKING-WRAP LDPE,W500*T0.02,-,- SNA
P/M BH69-40379A PACKING-WRAP LDPE,W500*T0.02,-,- SNA
P/M BH69-40380A PACKING-PAD DW-2,500X2200X200,-,CGK5527 SNA
CIS BN68-00129A LABEL SHIPPING -,LABEL SHIPPING,ART-PAPER,100G,-,WHT,BLACK,-,-,- SNA
CIS BN69-00131R PALLET NB21BS,WOODEN,1180,920,120 SNA
P/M BN69-00497A CUSHION-TOP/BTM NB21BS,EPS,,,,,,, SNA

TFT LCD,SRC,RUSSIA,S/W,120,W210*L120,INSTALL CARD

HDPE/NITRON(DOUBLE),T0.015/T0.05(DOUBLE),W1200,L1200,TRP,28 LANGUAGE,2

SNA

SNA

- BN92-00735A ASSY LABEL NB21BS SNA
LABEL BN68-00421A LABEL RATING NB21BS,SS,PE,T0.05,60*78,BLK,POLYESTER,EDC,213T SNA

7-14 213T

8 Block Diagram

213T 8-1

64

64

IC302

K4S643232C

RESET & CONTROL

ADCCLK

ANALOG

RGB

DVICLK

LVDS

DS90C385MTD

21" LCD

74LCX125

PC ANALOG

ANALOG OR

DIGITAL

ENABLE

AD9888

TMDS

SIL161B

JAG160 MICOM

3X16

RGB

PC

CLKA

PC

CLKB

3

IC303

K4S643232C

PC DVI

Memo

8 Block Diagrams

8-2 213T

213T 9-1

RX2-

RX2+

GNDNCNC

SCL

SDA

NC

RX1-

RX1+

GND

NC5VCHK_DVI5VRX0-

RX0+

GND

NC

NC

GND

RXC+

RXC-

NC

NCNCNC

NC

TXOUT3+

TXOUT3-

GND

GND

TXOUT2+

TXOUT2-

TXOUT1+

TXOUT1-

TXOUT0+

TXOUT0-

GND

GND

TXOUT3+

TXOUT3-

TXCLKOUT+

TXCLKOUT-

14V
14V
14V
AGND

AGND

GND
GND

5V
5V

5V

14V

14V

GND

GND

BRT_CTL

BL_EN
GND

GND

PWR_LED

POWER KEY

MENU

PLUS

MINUS

EXIT

AUTO

GND

14V

NC

AGND

GND

GND

TXOUT2+

TXOUT2-

TXOUT1+

TXOUT1-

TXOUT0+

TXOUT0-

GND

GND

5V5V5V5V5V

5V

GND

GND

GND

GND

GND

GND

GND

GND

RED

GREEN

BLUE

GND

GND

GND

GND

GND

5V

GND

GND

SDA

HSYNC

VSYNC

SCA

CN701

CN501

5V
RXD

TXD

RESET

GND

GND
GND
GND

CN101

CN401 CN104

CN102

CN110

CN502CN201

9 Wiring Diagram

9 Wiring Diagrams

9-2 213T

Memo

213T 10-1

10 PCB Layout

10-1 Main PCB Layout Top

X

Y

D203 DIODE-SWITCHING 80.5 17.6
D701 DIODE-SWITCHING 31.31 19.84
D702 DIODE-SWITCHING 33.21 15.4
D703 DIODE-SWITCHING 26.8 19.85
D704 DIODE-SWITCHING 28.92 15.39
D705 DIODE-SWITCHING 22.4 19.85
D706 DIODE-SWITCHING 24.5 15.35
D707 DIODE-SWITCHING 35.79 19.88

D708 DIODE-SWITCHING 37.79 15.38
ZD201 DIODE-ZENER 75.9 17.6
ZD202 DIODE-ZENER 140.3 22.2
ZD203 DIODE-ZENER 140.3 26.4
ZD204 DIODE-ZENER 71.1 16.5
ZD205 DIODE-ZENER 105.6 10.8
ZD501 DIODE-ZENER 124.25 15.5
ZD502 DIODE-ZENER 130 15.25
ZD701 DIODE-ZENER 17.3 19.9
ZD702 DIODE-ZENER 57.2 19.4
ZD703 DIODE-ZENER 57.2 14.8
ZD704 DIODE-ZENER 52.6 14.7

IC101 IC-SWITCH VOL. REG. 33.3 160.7

IC102 IC-POSI.ADJUST REG. 21.4 144.5

IC103 FET-SILICON 113 152.5

IC104 FET-SILICON 18 169.5

IC

Loc. No. Description X Y

IC105 IC-SWITCH VOL. REG. 24.6 64.4
IC106 IC-SWITCH VOL. REG. 39.1 134.5
IC201 IC-A/D CONVERTER 88 39
IC202 IC-POSI.FIXED REG. 61.4 42.7
IC203 IC-EEPROM 136.25 35.7
IC204 IC-CMOS LOGIC 105.6 20.5
IC301 IC-LCD CONTROLLER 75.248 96.838
IC302 IC-DRAM 40.789 111.646
IC303 IC-DRAM 40.789 84.146
IC305 IC-CMOS LOGIC 74.55 69.05
IC401 IC-TRANSMITTER 59.596 151.79
IC402 IC-TRANSMITTER 75.996 151.79
IC501 IC-MICROCONTROLLER 122.25 115.5
IC502 IC-EPROM 124 79.75
IC503 IC-BICMOS LOGIC 123.75 95.5
IC504 IC-EEPROM 142.4 103.4
IC505 IC-TTL 104.2 102.8
IC506 IC-VOL. DETECTOR 135.25 153.5
IC701 IC-RECEIVER 29.415 37.9
IC702 IC-EEPROM 63.3 16.7
IC703 IC-POSI.FIXED REG. 95.5 164.7

(HITACHI PANEL OPTION)

Q101 TR-SMALL SIGNAL 13.5 164
Q102 TR-SMALL SIGNAL 110 147
Q501 TR-SMALL SIGNAL 124.8 134.4

TRANSISTOR

Loc. No. Description X Y

DIODE

10 PCB Layout

10-2 213T

Memo

CONFIDENTIAL

213T 11-1

4.7K

R505

R510 100

4.7K

R514 R516

4.7K

+5V_CPU

R536 100

100R532

HB-1M2012-800JT

BD501

B

C517
10nF

50V

R549

R502

4.7K

10K

100

50V

10nF

C518

+5V_CPU

R511

R508

100nF

4.7K

4.7K

C504

C502
1uF

R521

CN501
slcon8p

1

2

3

4

5

6

7

8

B

C520

10nF

50V

10

RST

44

VCC

VPP

35

VSS

22

VSS1

1

XTAL121XTAL2

20

BD502

HB-1M2012-800JT

30

P2_6

31

P2_7

11

P3_0

13

P3_1

P3_2

14

P3_3

15

P3_4

16

P3_5

17

P3_618P3_7

19

32

PSEN_

5

P1_4

6

P1_5

7

8

P1_6

9

P1_7

24

P2_025P2_126P2_227P2_3

P2_4

28

29

P2_5

42

P0_141P0_240P0_3

P0_4

39

P0_5

38

P0_6

37

P0_7

36

2

P1_0

P1_13P1_24P1_3

TS80C32X2-MCB

IC501

33

ALE

12

NIC1

23

NIC2

NIC3

34

43

P0_0

NC

R519

4.7K

ZD501

QZX363C5V6

2

A

6

C1

4

C2

3C31

C4

5

R512

100

2

3

C

100 R551

FT501

SGM32F1E104-2A

1

A

B

1

1uF

C507

1

TP_RSTMCU

1

TP_+5VCPU

TP_RXD

1

TP_TXD

C523
10uF

16.000

2K

R503

R533 100

100R535

33pF

4.7K

R515

C509

C503
10uF

100R529

100R526

+5V_CPU

10nF

C512 C514

C508
100nF

100nF

0R542

NC

5

R544

0

QZX363C5V6
ZD502

A

2

C1

6

C2

4

C33C4

1

220R540

100

C522
10uF

R553

27

A8

28

A13

29

A14

30

NC/A17

31

*WE

32

VCC

19

DQ520DQ6

21

DQ7

22

*CE

23

A10

24

*OE

25

A11

26

A9

A1

12

A0

13

DQ0

14

DQ115DQ2

16

VSS

17

DQ318DQ4

A15

4

A12

5

A7

6

A6

7

A5

8

A4

9

A3

10

A2

11

AT27C010-90JC

IC502

1

VPP

2

A16

3

100R522

C501
100nF

R547

R506

4.7K

0

0

R541

R517

R531 100

4.7K

50V

10nF

C521

R530

R518

4.7K

33pF

C510

100

R539

100

+5V_CPU

1K

100

R537

R538

15

P

16

Q

17

R

18

19

S

20

T

7

8

H

9

I

10

J

11

K

12

L

13

M

14

N

O

1

A

2

B

3

C

4

D

5

E

6

F

G

4.7K

R520

74ABT573CMTC

IC503

4

5

6

7

8

M24C08-WMN1T

IC504

1

2

3

Q501

2SC2412K-Q

B

C

E

C511
10uF

R501

1K

100 R552

6

7

8

0R546

CN502

slcon8p

1

2

3

4

5

100

R527

10uF

C513

50V

10nF

C516C515

10nF

50V

OUT

100

R513

KIA7045RTF

IC506

GND_1

GND_2

IN

R554100

4.7K

R509

R545
1K
1/16W

1K

R344

1

100R524

TP_K5

1

TP_K6

TP_K4

1

10uF

C506

1

R548100

TP_K2

1

TP_K3

TP_LED

1

TP_K1

1

R525 100

R735100

50V

10nF

C519

X501

HC-49/S-SMD(14.31818MHZ)

Q0 Q1

100R507

R504

4.7K

R543 22

O_5

2

O_O

14

VCC

C505
1uF

3

I1

I2

5

9

I3

11

I4

13

I5

1

IO

4

O_1

O_2

6

8

O_3

10

O_4

12

IC505
MC74F14D

7

GND

+5V_CPU

+5V_CPU

R534 0

R523 100

R528100

R343
1K

+5V_CPU

JBRT_CTL

16.000

10uF

C371

PLUS

POWER_KEY

MINUS

PWR_LED_G

PWR_LED_G

TMDS_OE

TMDSPD

DPM_H_SYNC

ADC_EN

ADC_EN

TMDS_OE

*TMDS_OE

*ADC_EN

PSEN*

BRT_CTL

MCAD(0)

MCA16

SCDT

MAINPW

MCWRn

MCRDn

MCA16

POWER_KEY

EXIT

AUTO

MENU

RXD

RESET_JAG

CLK_J160

MC_SCLK

MC_DATA

MCAD(4)

MCAD(5)

MCAD(6)

MCAD(7)

MCAD(3)
MCAD(2)
MCAD(1)

MCA(5)

MCA(5)

MCA(6)

MCA(6)

MCA(7)

MCA(7)

MCALE

MCAD(0:7)

MCAD(3)

MCAD(2)

MCAD(1)

MCAD(0)

MCAD(4)

MCAD(5)

MCAD(6)

MCAD(7)

MCA(8:15)

MCA(15)

MCA(14)

MCA(13)

MCA(8)

MCA(9)

MCA(10)

MCA(11)

MCA(12)

MCALE

PSEN*

TXD

MCAD(0:7)

MCAD(7)

MCAD(6)

MCAD(5)

MCAD(4)

MCAD(3)

MCAD(2)

MCAD(1)

MCAD(0)

MCAD(0:7)

MCA(8:15)

MCA(15)

MCA(12)

MCA(14)
MCA(13)
MCA(8)
MCA(9)
MCA(11)

MCA(10)

MCA(0:7)

MCA(0) MCA(0)

MCA(1)

MCA(1)

MCA(2)

MCA(2)

MCA(3)

MCA(3)

MCA(4)

MCA(4)

1

11 Schematic Diagrams

11-1 MICOM Parts Schematic Diagram

11 Schematic Diagrams

11-2 213T

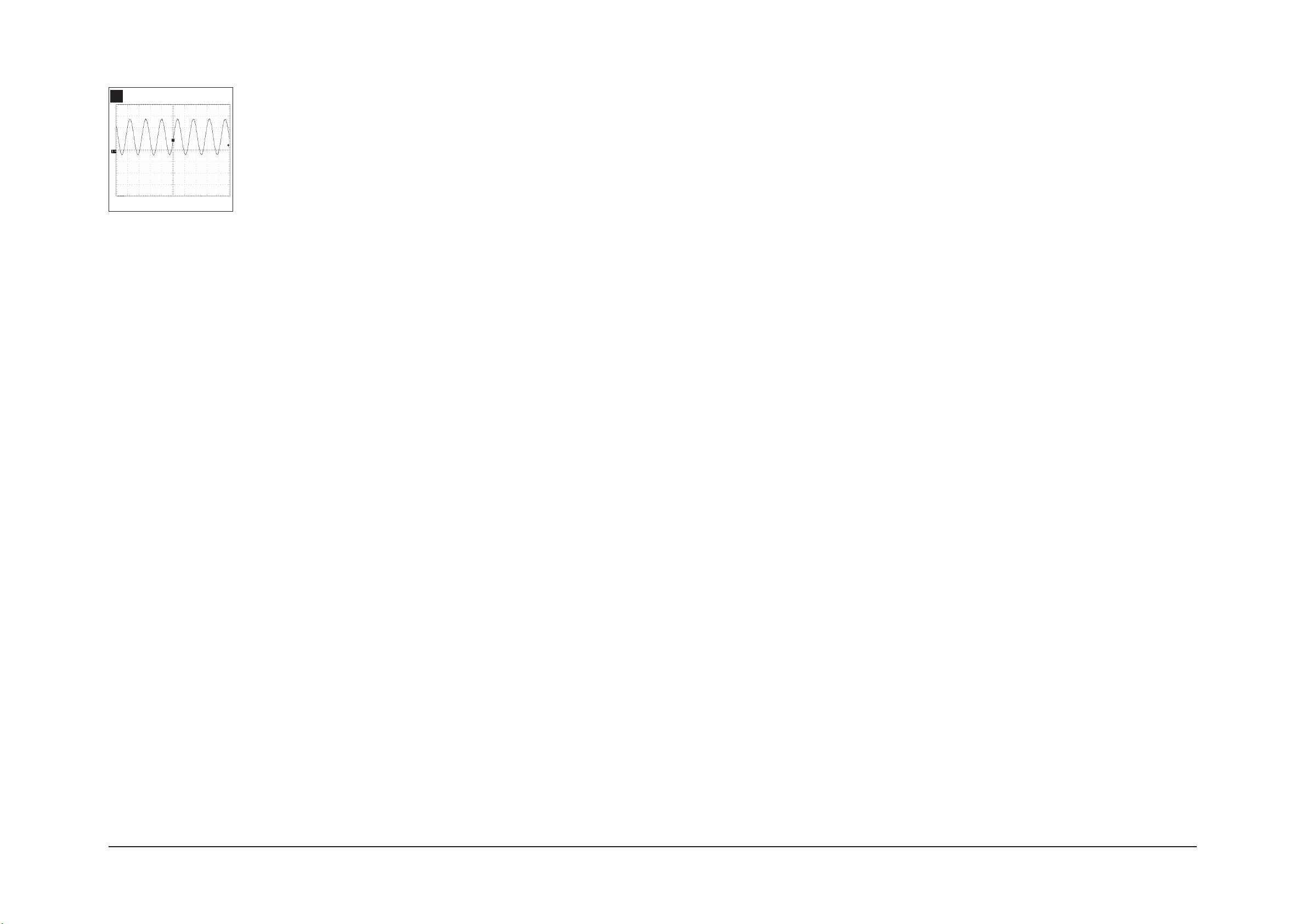

1

IC501, C509

CH1 RMS = 5.40V

11 Schematic Diagrams

213T 11-3

CONFIDENTIAL

!!!!!!...NOTICE...!!!!!!

ADC BLUE / RED EXCHANGE...!!!!!

CLOSE TO PIN

B

ACB1608H-030-T

BD203

B

SGM32F1E104-2A

FT202

1

A

B

2

3

C

ACB1608H-030-T

BD202

ACB1608H-030-T

BD201

B

BZX84C5V1LT1

ZD203

1

2

3

R211 100

+3.3V_ADC_D

50V

100nF

C214
100nF
50V

C213

R208

3

4

567

8

22

1/16W

RA201

1

2

+3.3V_ADC_P

100nF

C250

C206
100nF

6

7

8

C204

10.00000

1

2

3

4

5

1

2

3

4

5

6

7

8

RA206

1/16W

5

6

7

8

RA209

1/16W

1/16W

1

2

3

4

FT204

1.5uH

RA210

1/16W

100K

R201

C248

50V

100nF

1

2

3

4

5

6

7

8

+3.3V_ADC

1/16W

RA212

TP_AHS

1

470nF

C235

TP_ASDA

1

C244

50V

100nF

123

4

567

84

567

8

RA203

1/16W

RA204

1/16W

123

1/16W

1

2

3

4

5

6

7

8

RA205

100nF
50V

C245

10K

R215

+3.3V_ADC_P

100nF

C231

50V

C217

1.5uHFT201

ZD205

A

2

C1

6

C2

4

C3

3

C4

1

NC

5

100nF

12

3

QZX363C5V6

+5V_ADC

D201
MMBD4148SE

100nF
C241

100

47nF

C270

MMBD4148SE

D202

12

3

R219

22R206

100nF
50V

C215

100

+3.3V_ADC

C239

4.7pF

R221

92

DGA5

93

DGA4

94

DGA3

95

DGA2

96

DGA1

97

DGA0

98

VDD5

99

GND23

DGB2

86

DGB1

87

DGB0

88

GND22

89

VDD4

RMIDSCV

9

90

DGA7

91

DGA6

78

GND21

79

VDD3

8

RAIN1

80

DGB7

81

DGB6

82

DGB5

83

DGB4

84

DGB3

85

70

DBA7

DBA6

71

72

DBA5

73

DBA4

74

DBA3

75

DBA2

76

DBA1

DBA0

77

DBB164DBB0

65

GND17

66

GND18

67

GND19

68

GND20

69

VDD2

VD3

7

56

VDD157DBB758DBB659DBB5

VD2

6

60

DBB461DBB362DBB2

63

49

GND14

RAIN0

5

50

FILT51GND15

PVD3

52

53

COAST54CKEXT55GND16

41

GND1242VSYNC143HSYNC144VSYNC045HSYNC046GND1347PVD148PVD2

34

35

GND9

36

GND10
VD11

37

PVD

38

39

PVD0

4

GND2

40

GND11

27

GND7

28

GND8
CKINV

29

3

GND1

CLAMP

30

SDA

31

SCL

32

A0

33

VD10

2

BAIN0

20

VD7

21

22

GND6
BAIN1

23

BMIDSCV

24

VD8

25

VD9

26

128

GND28

GAIN0

13

VD5

14

15

GND4
SOGIN1

16

GAIN1

17

18

VD6

19

GND5

REF_BYPASS

120

DRA0

121

GND27

122

VDD8

123

DATACK

124

DATACKB

125

HSOUT

126

SOGOUT

127

VSOUT

DRA7

114

DRA6

115

DRA5

DRA4

116

117

DRA3

118

DRA2

119

DRA1

SOGIN0

12

106

DRB4

107

DRB3

108

DRB2

109

DRB1

GND3

11

110

DRB0

111

GND26

112

VDD7

113

1

VD1

VD4

10

100

GND24

101

GND25

102

VDD6

DRB7

103

104

DRB6

105

DRB5

IC201

AD9888KS-170

C229
47nF

100nF

C220
100nF

C218
100nF

C219

100nF
50V

R202
330K
1/16W

C211

50V

100nF

R204
75

C212

100R210

1

R214 22

TP_G

1

TP_B

R213

+3.3V_ADC_P

R216

10K

1/16W

2.2K

C203

50V

100nF

C227
10uF

C226
15pF

R209

0

100R228

8

H

9

I

10

J

11

K

12

L

13

M

14N1

IN

IN

IN

IN

IN

IN

IN

A

2

B

3

C

4

D

5

E

6

F

7

G

R233

+5V_IN1

IC204
74LCX14MX

39nF

3.3K

C252

C232
1nF

22R217

C238

4.7pF

10K

R229

100nF

C225

100nF
50V

C207

47nF

C237

C233
47nF

100nF

C236

4

5

6

7

8

100nF

C242

IC203
AT24C02N-10SC

1

2

3

R203
75

100nF

220R220

123

50V

C209

4

567

8

ZD202

BZX84C5V1LT1

1/16W

RA202

123

RA207

1

2

3

4

5

6

7

8

4

5

6

7

8

1/16W

1/16W

RA208

1

2

3

C208

50V

100nF

R205
75

MMBD4148SE

D203

12

3

1

2

3

ZD201

+3.3V_ADC

ZD204

BZX84C5V1LT1

R207 22

C224
100nF100nF

C223

100nF

C222
100nF

R290

C221

0

+3.3V_ADC

C205
1nF
50V

4.7pF

C240

47nF

C230

C228
100nF

100R227

R225

A

1

B

2

C

3

D

4

E

5

F

6

10K 10K

IC202
ADP3330ART-3.3

C202

R226

OS-CON

120uF

6.3V

R231
0

C210

50V

100nF

C246

50V

100nF

6

7

8

9

10

11

12

13

14

15

1

d_sub15p

CN201

1

2

3

4

5

TPASCL

1

TP_ACHK

TP_AVS

1

16.000

10uF

C201

100nF
50V

C247

R212

2.2K
1/16W

C234
47nF

100

10K

R232

R223

1AB2

3

C

C243
10uF

+3.3V_ADC_D

FT203
SGM32F1E104-2A

TP_R

1

C216

50V

100nF

10K

R222

8

R224 22

RA211

1

2

3

4

5

6

7

C251

1/16W

R218

3.9nF

ADC_VSYNC

RED_IN

GREEN

GREEN_IN

BLUE

BLUE_IN

RAW_HSYNC

220

PBG(5)

PBG(4)

PBG(3)

PBG(2)

PBG(1)

PBG(0)

PBB(7)

PBB(6)

PBB(5)

PBB(4)

PBB(3)

PBB(2)

PBB(1)

PBB(0)

ADC_HSYNC

ADCCLK

PAG(5)

PAG(4)

PAG(3)

PAG(2)

PAG(1)

PAG(0)

PAB(0:7)

PAB(0:7)

PAB(7)

PAB(6)

PAB(5)

PAB(4)

PAB(3)

PAB(2)

PAB(1)

PAB(0)

PBR(0:7)

PBR(0:7)

PBG(0:7)

PBG(0:7)

PBB(0:7)

PBB(0:7)

PBR(7)

PBR(6)

PBR(5)

PBR(4)

PBR(3)

PBR(2)

PBR(1)

PBR(0)

PBG(7)

PBG(6)

PC_VS1

PC_HS1

BLUE_IN

GREEN_IN

RED_IN

CLAMP

MC_DATA
MC_SCLK

PAR(0:7)

PAR(0:7)

PAR(7)

PAR(6)

PAR(5)

PAR(4)

PAR(3)

PAR(2)

PAR(1)

PAR(0)

PAG(0:7)

PAG(0:7)

PAG(7)

PAG(6)

RED

CHK_DSUB

VSYNC_IN

DDC_SCL

DDC_SDA

HSYNC_IN

PC_HS1

PC_HS

PC_VS

PC_VS1

DPM_H_SYNC

PC_VS

PC_HS

2

3

4

11-2 Analog Parts Schematic Diagram

11 Schematic Diagrams

11-4 213T

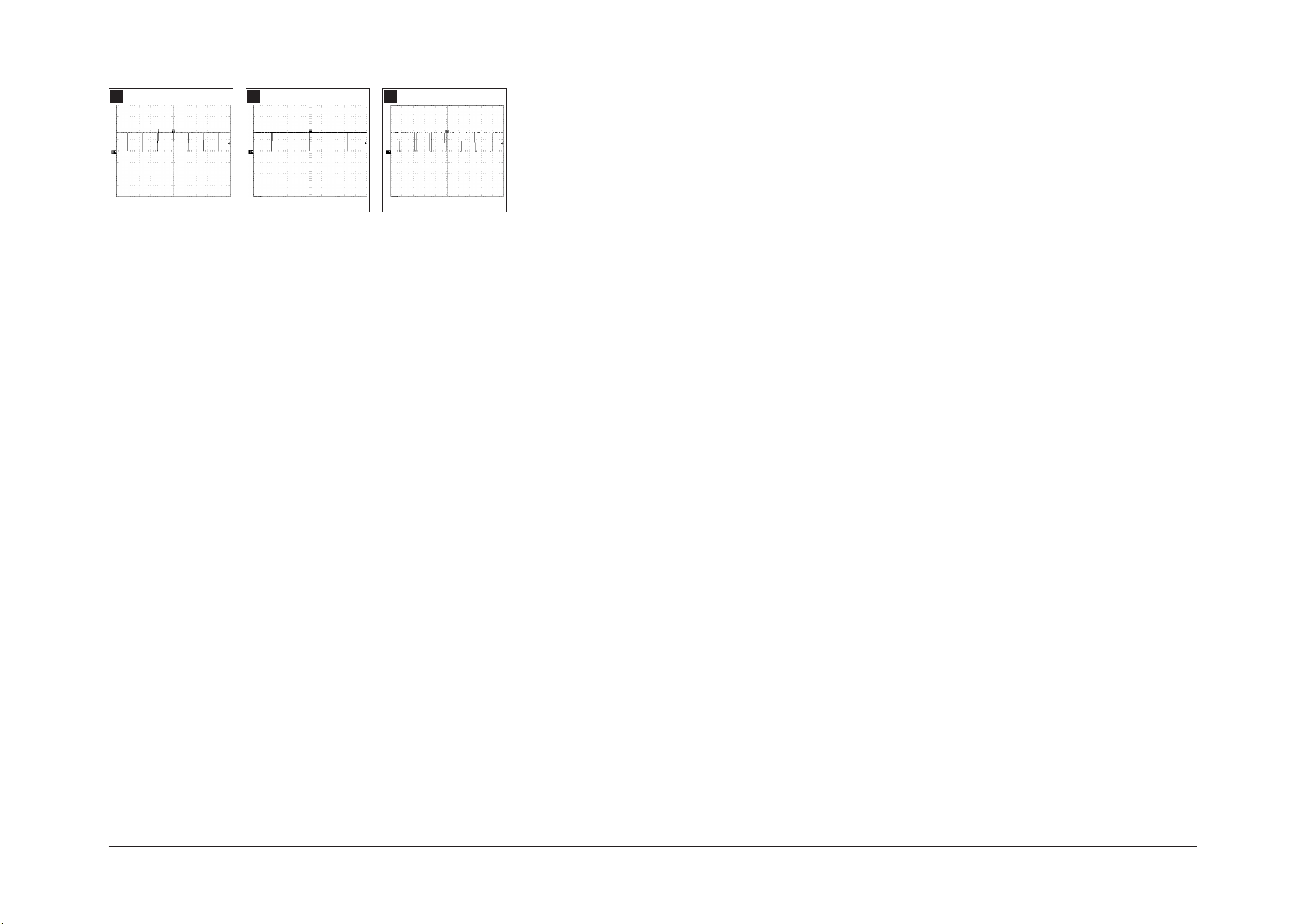

2

IC201, R207

CH1 RMS = 3.80V

3

IC201, R206

CH1 RMS = 4.12V

4

IC201, R209

CH1 RMS = 2.92V

11-3 Digital Parts Schematic Diagram

(EDID OF DIGITAL )

47ohm

47ohm

47ohm47ohm

47ohm

1st Pixel

47ohm

47ohm

2nd Pixel

47ohm

47ohm

47ohm

47ohm

6

VCC0

VCC1

IN

38

VCC2

IN

67

47

IN

VSYNC

IN

RX0+
RX0-

IN

91

RX1+

IN

8586

IN

RX1-

80

IN

RX2+
RX2-

IN

81

RXC+

IN

93

IN

RXC-

94

SCDT

IN

8

3

IN

ST

7

IN

STAG_OUT

QO21

QO22

IN

75

QO23

IN

77

52

IN

QO3

QO4

IN

53

54

IN

QO5

QO6

IN

55

QO7

56

IN

QO8

IN

59

60

IN

QO9

RESERVED

IN

99 90

QO12

IN

63

64

IN

QO13

QO14

IN

65

66

IN

QO15

QO16

IN

69

70

IN

QO17

QO18

IN

71

72

IN

QO19

QO2

IN

51

QO20

IN

73

74

IN

IN

QE3

QE4

IN

14

15

IN

QE5

QE6

IN

16

17

IN

QE7

IN

20

QE8

21

IN

QE9

QO0

49 50

QO1

QO10

IN

61

62

IN

QO11

26 27

IN

QE15

QE16

IN

30 31

IN

QE17

QE18

IN

32

QE19

33

IN

QE2

IN

12

QE20

IN

34 35

IN

QE21

QE22

IN

36 37

IN

QE23

13

PDO

9

98

IN

PGND

PIXS

IN

4

PVCC

IN

97

QE0

IN

10

11

IN

QE1

QE10

IN

22

23

IN

QE11

QE12

IN

24

25

IN

QE13

QE14

IN

19

28

OGND1

OGND2

IN

45

58

IN

OGND3

76

IN

OGND4

18

OVCC0

OVCC1

29 43

IN

OVCC2

57

IN

OVCC3

IN

78

OVCC4

PD

IN

2

CTL2

CTL3

IN

42

DE

IN

46

96

IN

EXT_RES

GND0

5

39

IN

GND1

68

IN

GND2

48

HSYNC

IN

HS_DJTR

1

100

IN

OCK_INV

ODCK

IN

44

OGND0

79

AGND0

AGND1

IN

83

AGND2

IN

87

AGND3

IN

8992

IN

AGND4

AVCC0

8284

IN

AVCC1

88

IN

AVCC2

AVCC3

IN

95

CTL1

IN

40 41

IN

+5V_IN1

IC701

SII161BCT100

1

2

3

4

5

6

7

8

+3.3V_TMDS

CA710

10R713

4.7pF

C710

C722
100nF

4

5

6

7

8

8

CA709

1

2

3 1

2

3

4

5

6

7

2

34567

8

CA706

1

1/16W

RA712

1

TP_2

1

TP_C+

RA710

1

2

34567

8

1/16W

C724

R718
1K

0

100nF

4.7K

R720

R733

22

23

24

27

30

31

32

13

14

15

16

26

29

17

18

19

20

21

5

6

7

8

25

28

9

10

11

12

7

8

CN701
tpcon32p_1

1

2

3

4

RA701

1

2

345

6

1nF

C718

1/16W

C719

1nF

50V

C727

100nF

10R708

2

3

C

10R709

7

8

FT704

SGM32F1E104-2A

1

A

B

CA703

1

2

3

4

5

6

D705

12

3

1

2

3

4

5

6

7

8

7

8

1/16W

RA707

CA708

123

4

5

6

12

3

D701

12

3

D702

1.5uH

L701

AT24C02N-10SC

IC702

1

2

3

4

5

6

7

8

2

3

4

5

6

7

8

CA712

1

12

3

4.7pF

C712

D703

SGM32F1E104-2A

A

1

B

2

C

3

C717

1nF

TP_DHP

1

FT702

1

TP_D+5

1

1

TP_1

1

TP_2+

TP_0

1

TP_1+

CA704

1

2

3

4

5

6

7

8

C2

4

C3

3

C4

1

NC

5

QZX363C5V6

ZD704

A

2

C1

6

1/16W

4.7K

C707

100nF

567

8

R729

RA705

123

4

RA709

1

2

34567

8

1/16W

4

5

6

7

8

1/16W

1/16W

RA708

1

2

3

1nF

C720

TP_C

1

TP_DSCL

1

100

R730

1

2

3

4

5

6

7

8

CA711

4

567

8

C714

82uF

6.3V

CA707

123

C705
10uF
16V

0

R717

FT701

A

1

B

2

3

C

+3.3V_TMDS

12

3

SGM32F1E104-2A

D704

10

R723

4.7K

ZD701

R711

1/16W47R705

R703 47 1/16W

R732

100

2

3

R724

4.7K

D708

1

C708

100nF

C704

16.000

100uF

+3.3V_TMDS

C721

1nF

1/16W47R701

6

7

8

C713

4.7pF

RA711

1

2

345

1

TP_DCHK

1

1/16W

TP_DSDA

4

567

8

R710 10

1/16W

RA704

1

2

3

C711

4.7pF

100nF

C709

10R702

16V

10uF

C716

100nF

C726

10

C703
100nF

4

5

6

7

8

R704

CA701

1

2

3

100nF

C702

C715

100nF

C723

4

5

6

7

8

100nF

CA702

1

2

3

2

3

4

5

6

7

8

+3.3V_TMDS

CA705

1

R707 10

R727

0

12

3

100nF

C706

ZD702

D706

4.7K

FT703

SGM32F1E104-2A

1A2

B

C

3

R721

47 1/16W

R726

R706

0

0

1

+3.3V_TMDS

R719

4

567

8

TP_0+

1/16W

RA703

1

2

3

RA702

1

2

34567

8

1/16W

1/16W

4.7K

R716

C725
100nF

R712
390ohm

R728

4.7K

1/16W

2345678

1/16W

RA706

1

ZD703

D707

12

3

100nF

R722

510

C701

TMDSPD

TMDS_OE

SCDT

DVICLK

TMDS_HS
TMDS_VS
TMDS_DE

PBB(0)

PBB(1)

PBB(2)

PBB(3)

PBB(4)

PBB(5)

PBB(6)

PBB(7)

PAR(3)

PAR(2)

PAR(1)

PAR(0)

PAR(7)

PAR(6)

PAR(5)

PAR(4)

RX1-

RX1+

RXC-

RXC+

PBR(0:7)

PBR(4)

PBR(5)

PBR(6)

PBR(7)

PBR(3)

PBR(2)

PBR(1)

PBR(0)

PBG(4)

PBG(5)

PBG(6)

PBG(7)

PBG(3)

PBG(2)

PBG(1)

PBG(0)

CHK_DVI

RX0-

RX0+

RX2-

RX2+

PAB(0)

PAB(1)

PAG(2)

PAG(3)

PAG(4)

PAG(5)

PAG(6)

PAG(7)

PAB(2)

PAB(3)

PAB(4)

PAB(5)

PAB(6)

PAB(7)

PAG(0)

PAG(1)

RX0+

RX0-

RX1+
RX1-

RX2+

RX2-

RXC+

RXC-

PAB(0:7)

PAG(0:7)

PAR(0:7)

PBB(0:7)

PBG(0:7)

5

6

7

8

11 Schematic Diagrams

213T 11-5

CONFIDENTIAL

11 Schematic Diagrams

11-6 213T

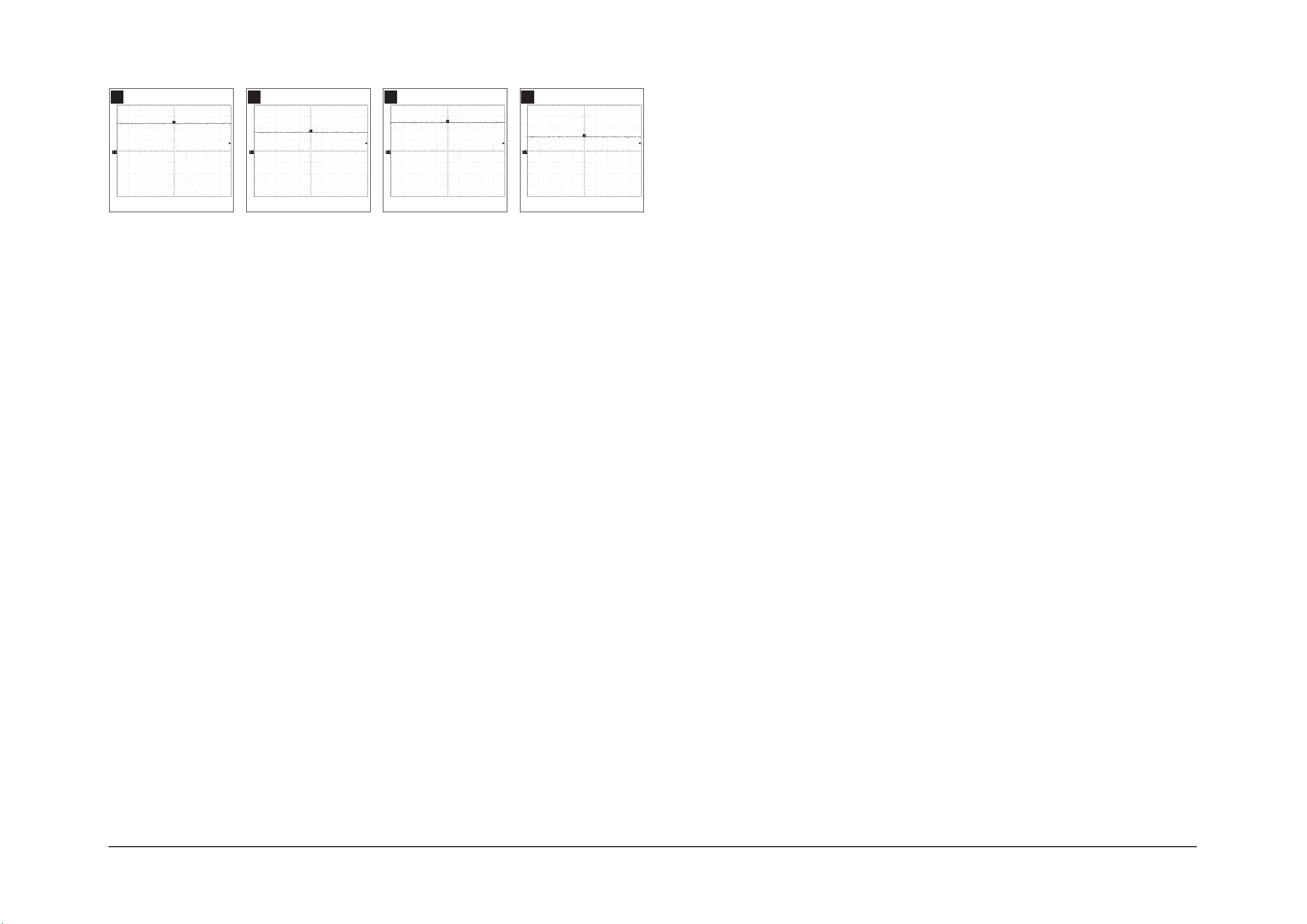

5

IC701, R701

CH1 RMS = 3.32V

6

IC701, R703

CH1 RMS = 3.32V

7

IC701, R705

CH1 RMS = 3.32V

8

IC701, R706

CH1 RMS = 3.32V

11 Schematic Diagrams

213T 11-7

CONFIDENTIAL

11-4 Scaler 1 for signal Parts Schematic Diagram

R311

C375
10uF

16.000

JBRT_CTL

51

C378

22
1/16W

4.7pF

4.7pF

R336

R334

C377

R335

3.3K

51

3.3K

R333

10K

R320

R319

10K10K

R318

10K

+3.3V_JAG1

PCLKB

R317R316

+3.3V_JAG1

PCLKA

10K

FT306

1.5uH

C376

DVICLK

100nF

VCC

8

O3

11

O2

O1

6

IN

3

IN

O0

7

IN

GND

9

B3

*ADC_EN

IC305

*TMDS_OEADCCLK

A3

13

A2

4

IN

A1

1

IN

A0

R328

74LCX125MX

14

22

22

12

B2

5

IN

B1

2

IN

B0

10

R327

R326 22

R325 22

22R324

CHK_DVI

10K

R315

22

R314
10K

CHK_DSUB

R329
R330

R312

22

R310

BL_EN

22

PNLPW

R331 22

LVDS_PD

22

MINUS

PLUS

AUTO

EXIT

0

+3.3V_JAG

MENU

R332

R323

*SSP_DSPCLK

R309

0

0

+3.3V_JAG1

10K

22

R341

R307

22

R342

TSCSn

22

TSBA1n

22

R340

R339

MO

C379

0.01nF
50V

1nF

C314 C316C315

1nF

C359

1nF

1nF

C317

1nF

C358C357

1nF

C356
1nF1nF 1nF

C355C354

1nF1nF

C353C352

1nF1nF1nF

C351

R301 22

C350
1nF

CLAMP

C349

22uF
16V

C331

16V

22uF

C318

C344
22uF
16V

100nF

C345
100nF

C347
100nF

R305

22

C346

4.7K
1/16W

R308

22

+3.3V_JAG

C348
22uF
16V

R306

FT304

+2.5V_JAG

SGM32F1E104-2A

C

3

2

B

A

1

C370

100nF 100nF

C369
100nF

C368

100nF

C367
100nF100nF100nF

C366C365

100nF

C364C362

100nF

C363

100nF

C361

100nF

C360

SGM32F1E104-2A

FT301

16V

22uF

C301

21

A

C302 C303

100nF

3

C

B

C304

100nF

C305

100nF

C306

100nF100nF

C307

100nF

C308

100nF

C309

100nF

C311

100nF

C310

100nF100nF

C312

TSBA0n

C313

100nF

R337

1/16W

4.7K

TSRASn

TSWEn

TSCKEn

TSCASn

RA301

1/16W

876

5

TSDQM

22

1/16W

RA302

22

43218765432

1

876

R338

22

321

RA30422RA305

1/16W

1/16W

876

5454321

22

RA303

1/16W

22

876

54321

JSHFCLK

R302
10K
1/16W

10K

1/16W

10K

R304

1/16W

CLK_J160

R303

JAG160

J1WRn

J1RDn

MCALE

PCLKB

VSYNCA

DDE

HSYNCA

PCLKA

ADC_VSYNC

RAW_HSYNC

ADC_HSYNC

JHSYNC
JDE

JVSYNC

TSCLK

RESETn

VSS57

Y4

VSS56

N4

VSS55

D4

VSS54

AC5

N1

IC301

AF23

VSS47

AC26

VSS46

R26

VSS45

L26

F26

VSS44

XOUT

A7

A6

XIN

VSS9

M13

M12

VSS8

VSS7

M11

VSS6

L16

AC17

VSS37

AC22

VSS36

T16

VSS35

T15

VSS34

T14

VSS53

C1

VSS52

W23

VSS51

N23

VSS50

VSS5

L15

G23

VSS49

VSS48

VSS28

R14

VSS27

R13

VSS26

R12

R11

VSS25

VSS24

VSS43

A23

VSS42

AF8

VSS41

AF13

VSS40

AF19

VSS4

L14

VSS39

AC11

VSS38

P11

VSS18

N16

VSS17

N15

VSS16

N14

VSS15

N13

VSS14

VSS33

T13

VSS32

T12

VSS31

T11

R16

VSS30

VSS3

L13

VSS29

R15

VDD3_3_9

AF26

VDD3_3_8

Y26

VDD3_3_7

VDD3_3_6

U26

VDD3_3_5

N26

P16

VSS23

P15

VSS22

P14

VSS21

P13

P12

VSS20

VSS2

L12

VSS19

AF21

VDD3_3_0R4VDD2_5_9H4VDD2_5_8

D21

VDD2_5_7

AB23

N12

VSS13

N11

VSS12

M16

VSS11

M15

VSS10

M14

VSS1

L11

A5

AC14

VDD2_5_0

AC20

TEST

D1

E1

SYSRSY

SDWE

R25

SDRAS

VDD3_3_4

J26

VDD3_3_3

A26

VDD3_3_2

AF10

VDD3_3_11

AA1

K1

VDD3_3_10

VDD3_3_1

AF16

SDD61

B25

SDD60

AD24

SDD6

B24

SDD59

B23

SDD58

VDD2_5_6

VDD2_5_5

T23

VDD2_5_4

K23

VDD2_5_3

D23

AC8

VDD2_5_2

AB4

VDD2_5_10

VDD2_5_1

SDD51

D24

SDD50

E26

AC24

SDD5

E25

SDD49

SDD48

P24

AC25

SDD9

AF24

SDD8

AE24

SDD7

A25

SDD63

A24

SDD62

B26

SDD42

G24

SDD41

H26

SDD40

AE23

SDD4

SDD39

H25

H24

C26

SDD57

C25

SDD56

SDD55

C24

C23

SDD54

SDD53

D26

SDD52

D25

K25

K24

SDD31

L25

SDD30

AD23

SDD3

L24

SDD29

E24

E23

SDD47

F25

SDD46

F24

SDD45

SDD44

F23

G26

SDD43

G25

Y23

SDD22

AA26

SDD21

AA25

SDD20

SDD2

AC23

AA24

SDD19

SDD38

H23

SDD37

J25

SDD36

J24

SDD35

J23

SDD34

K26

SDD33

SDD32

AF25

SDD12

AE25

SDD11

AD25

SDD10

SDD1

AE22

AD22

L23

SDD28

W26

SDD27

W25

SDD26

W24

SDD25

SDD24

Y25

Y24

SDD23

R24

T26

SDCAS

F4

SDATA

N24

SDA9

SDA8

P26

P25

AA23

SDD18

AB26

SDD17

AB25

SDD16

SDD15

AB24

AE26

SDD14

AD26

SDD13

SDA2

N25

SDA10

V24

SDA1

V23

SDA0

SCLK

F3

A17

RSVD9

SDD0

SDCSO

M26

SDCKON

P23

SDCKO

R23

T25

SDCKFB

SDCKE

RSVD59

D14

RSVD58

D15

RSVD57

D16

RSVD56

D17

RSVD55

RSVD54

SDA7

U25

SDA6

U24

SDA5

U23

SDA4

V26

SDA3

V25

D8

RSVD49D9RSVD48

RSVD47

D10

RSVD46

C21

D7

RSVD45

A16

RSVD8

RSVD7

A13

RSVD61

D11

D12

RSVD60

RSVD6

A12

D13

A22

RSVD39B7RSVD38B8RSVD37B9RSVD36

RSVD35

B10

D18

RSVD53C8RSVD52

C9

C10

RSVD51

RSVD50

C11

A19

RSVD5

A15

RSVD29

B16

B17

RSVD28

B18

RSVD27

B19

RSVD26

B20

RSVD44

D19

RSVD43

D20

RSVD42

B22

RSVD41

C22

D22

RSVD40

A18

RSVD4

RSVD22

C20

C12

RSVD21

C13

RSVD20

RSVD2

A14

RSVD19

C18

RSVD18

RSVD34

B11

RSVD33

B12

RSVD32

B13

B14

RSVD31

RSVD30

B15

RSVD3

AD21

PENBKL

AF22

C19

C16

RSVD17

C17

RSVD16

RSVD15

C14

RSVD14

C15

A9

RSVD13

RSVD12A8RSVD11

RSVD25

B21

RSVD24C7RSVD23

PD44

PD43

A21

RSVD10

A20

A11

RSVD1

A10

RSVD0

E2

PWM1

PVSYNC

AC21

PSHFCLK

AC13

PNLCLK

AF12

PHSYNC

AE21

PENVDD

PD34

AE8

PDE

AF20

PD9

AC16

PD8

AF15

PD7

AE15

PD6

AD15

PD5

AC15

AE12

PD47

PD46

AD12

PD45

AC12

AF11

AC6

PD24

AF5

AE11

PD42

AD11

PD41

AE10

AD10

PD40

PD4

AF14

AC10

PD39

AF9

PD38

PD37

AE9

PD36

AD9

PD35

AC9

PD15

PD14

PD33

AD8

PD32

AF7

PD31

AE7

PD30

AD7

PD3

AE14

PD29

AC7

PD28

AF6

PD27

AE6

PD26

AD6

PD25

PCO9

AD2

AD1

AE20

PD23

AD20

PD22

AE19

PD21

AD19

PD20

PD2

AD14

AC19

PD19

AF18

PD18

AE18

PD17

AD18

PD16

AC18

PCO3

AF3

PCO2

PCO15

AC4

PCO14

AC3

AF17

PD13

AE17

PD12

AD17

AE16

PD11

PD10

AD16

PD1

AE13

PD0

AD13

AB1

PCVSYNC

AC1

PCO11

AD4

PCO10

AD3

AF2

PCO1

PCO0

AF1

PCHSYNC

AB3

PCO8

AE4

PCO7

AE3

PCO6

AE2

PCO5

AE1

PCO4

AF4

AB2

PCCLK

AA4

PBVSYNC

P3

PBRHS

D6

PBO9

V1

PBO8

W4

W3

PBO7

W2

PBO6

PBO5

W1

Y3

PBO4

PCO13

AC2

PCO12

PBO3

R3

PBO23

R2

PBO22

R1

PBO21

T4

PBO20

Y1

PBO2

T3

PBO19

T2

PBO18

T1

PBO17

U4

PBO16

PBO15

PCHREF

PBO14

U2

PBO13

U1

PBO12

V4

PBO11

V3

PBO10

V2

AA3

PBO1

AA2

PBO0

PBHSYNC

C6

PBCLK

P4

G3

PAVSYNC

Y2

L2

PAO9

L1

PAO8

PAO7

M4

PAO6

M3

PAO5

M2

PAO4

M1

PAO3

N3

PAO23

G2

G1

PAO22

PAO21

U3

PAO20

H2

PAO2

N2

PAO19

H1

PAO18

J4

PAO17

J3

PAO16

J2

J1

PAO15

K4

PAO14

K3

PAO13

K2

PAO12

L4

F1

PARHS

L3

PAO10

PAO1

P2

PAO0

P1

F2

PAHSYNC

G4

PACLK

MEMCLK

T24

MCWR

E4

MCRD

E3

MCCS

C4

MCALE

D3H3A2

MCAD8C3MCAD7B3MCAD6A3MCAD5B4MCAD4A4MCAD3D5MCAD2C5MCAD1B5MCAD0

B6

INTR

PAO11

D2

C2

HSOUT

AE5

GPIO3

AD5

GPIO2

GPIO1

B1

B2

GPIO04

DQS

M25

DQM

M23

A1

CMPOUT

M24

BANK

MCAD9

100nF

C337

100nF 100nF

C336

100nF

C334 C335C333

100nF

2A1

C343

100nF

C332

+3.3V_MEM

FT303
SGM32F1E104-2A

3

C

B

100nF 100nF

C341 C342

100nF100nF 100nF

C339 C340

100nF

C338C324C323
100nF100nF100nF

C322C321

100nF

TSWEn

C320
100nF100nF

17

WE_

84

VSSQ8

TSA(5)

TSA(4)

TSA(3)

TSCASn

TSBA1n

TSBA0n

TSA(9)

TSA(8)

TSA(7)

TSA(6)

TSDQM

TSCSn

TSCLK
TSCKEn

TSRASn

TSDQM

C319

VSSQ2

VSSQ1

6

86

VSS4

VSS3

72

58

VSS2

44

IC303
K4S643232E-TC60

35

VDDQ3

VDDQ2

9

VDDQ1

3

VDD4

43

29

VDD3

78

VSSQ7

VSSQ6

52

46

VSSQ5

VSSQ4

38

32

VSSQ3

12

19

N_C7

73

N_C6

70

N_C5

69

N_C4

5730

VSS1

81

VDDQ8

VDDQ7

75

VDDQ6

55

49

VDDQ5

VDDQ4

41

21

14

N_C1

16

DQMO

DQM3

59

DQM2

28

DQM1

71

DQ9

76

DQ8

7413

DQ7

15

VDD2

VDD1

1

RAS_

10

DQ5

DQ4

8

DQ31

56

DQ30

54

DQ3

7

DQ29

53

DQ28

51

50

DQ27

DQ26

48

47

N_C3

N_C2

DQ24DQ23

42

DQ22

40

DQ21

39

DQ20

37

DQ2

5

36

DQ19

34

DQ18

33

DQ17

31

DQ16

11

DQ6

83

DQ14

82

DQ13

80

DQ12

79

DQ11

DQ10

77

4

DQ1

DQ0

2

CS_

20

68

CLK

67

CKE

DQ25

45

BA1

23

BA0

22

66

A9

65

A8

64

A7

63

A6

62

A5

61

A4

A3

60

A2

85

DQ15

A

1

27

A10

24

A1

26

A0

25

+3.3V_MEM

FT302

18

CAS_

SGM32F1E104-2A

C

3

2

B

C330
100nF100nF

C329C326

100nF

C328
100nF100nF

C327

TSDQM

TSCSn

TSCLK
TSCKEn

TSRASn

TSDQM

TSWEn

100nF

C325

58

VSS1

44

IC302
K4S643232E-TC60

WE_

17

VSSQ8

84

TSCASn

TSBA1n

TSBA0n

29

VDD2

VSSQ7

78

52

VSSQ6

VSSQ5

46

38

VSSQ4

VSSQ3

32

VSSQ2

12

6

VSSQ1

VSS4

86

72

VSS3

VSS2

N_C4N_C3

30

81

VDDQ8

75

VDDQ7

55

VDDQ6

VDDQ5

49

41

VDDQ4

VDDQ3

35

9

VDDQ2

3

VDDQ1

43

VDD4

VDD3

28

71

DQM1

76

DQ9

74

DQ8DQ7

13

15

1

VDD1

19

RAS_

73

N_C7

70

N_C6

69

N_C5

57

7

DQ3

53

DQ29

51

DQ28

DQ27

50

48

DQ26

DQ25

47

21

N_C2

N_C1

14

DQMO

16

59

DQM3DQM2

DQ20

5

DQ2

DQ19

36

DQ18

34

DQ17

33

DQ16

31

DQ15

DQ6

11

DQ5

10

8

DQ4

56

DQ31

54

DQ30

77

DQ10

4

DQ1

2

DQ0

20

CS_

CLK

68

CKE

67

45

DQ24

42

DQ23

40

DQ22

39

DQ21

37

A7

64

A6

63

A5

62

A4

61

60

A3

27

A2

85

DQ14

83

DQ13

82

DQ12

80

DQ11

79

26

A1

25

A0

CAS_

18

23

BA1

22

BA0

A9

66

A8

65

SD(31)

MCA(9)

SD(27)

SD(28)

SD(29)

SD(24)

SD(25)

SD(26)

A10

24

TSA(7)

TSA(6)

TSA(5)

TSA(10)

TSA(9)

TSA(8)

MCA(8)

MCA(0:15)

TSA(2)

TSA(1)

SD(30)

SD(34)

SD(35)

SD(36)

SD(37)

SD(32)

SD(33)

TSA(1)

TSA(0)

TSA(0:10)

TSA(4)

TSA(3)

TSA(2)

SD(48)

SD(49)

SD(44)

SD(45)

SD(46)

SD(41)

SD(42)

SD(43)

SD(38)

SD(39)

SD(40)

SD(57)

SD(58)

SD(59)

SD(54)

SD(55)

SD(56)

SD(50)

SD(51)

SD(52)

SD(53)

SD(47)

SD(29)

SD(28)

SD(27)

SD(26)

SD(63)

SD(31)

SD(30)

SD(60)

SD(61)

SD(62)

SD(15)

SD(14)

SD(19)

SD(18)

SD(17)

SD(22)

SD(21)

SD(20)

SD(25)

SD(24)

SD(23)

SD(6)

SD(5)

SD(4)

SD(9)

SD(8)

SD(7)

SD(13)

SD(12)

SD(11)

SD(10)

SD(16)

RGB(21)

RGB(20)

RGB(19)

RGB(23)

RGB(22)

SD(0)

SD(0:63)

SD(3)

SD(2)

SD(1)

RGB(7)

RGB(6)

RGB(11)

RGB(10)

RGB(9)

RGB(15)

RGB(14)

RGB(13)

RGB(12)

RGB(18)

RGB(17)

RGB(16)

RGB(46)

RGB(45)

RGB(44)

RGB(2)

RGB(1)

RGB(0)

RGB(5)

RGB(4)

RGB(3)

RGB(8)

RGB(37)

RGB(36)

RGB(35)

RGB(40)

RGB(39)

RGB(38)

RGB(43)

RGB(42)

RGB(41)

RGB(47)

RGB(24)

RGB(0:47)

RGB(27)

RGB(26)

RGB(25)

RGB(31)

RGB(30)

RGB(29)

RGB(28)

RGB(34)

RGB(33)

RGB(32)

SD(59)

SD(63)

MCAD(2)

MCAD(1)

MCAD(0)

MCAD(0:7)

MCAD(5)

MCAD(4)

MCAD(3)

MCAD(7)

MCAD(6)

SD(51)

SD(50)

SD(55)

SD(54)

SD(53) SD(58)

SD(57)

SD(56)

SD(62)

SD(61)

SD(60)

SD(42)

SD(41)

SD(40)

SD(46)

SD(45)

SD(44)

SD(43)

SD(49)

SD(48)

SD(47)

SD(52)

SD(21)

SD(33)

SD(32)

TSA(0)

SD(36)

SD(35)

SD(34)

SD(39)

SD(38)

SD(37)

SD(13)

SD(12)

SD(17)

SD(16)

SD(15)

SD(20)

SD(19)

SD(18)

TSA(10)

SD(23)

SD(22)

PAB(0)

PAB(0:7)

PAB(3)

PAB(2)

PAB(1)

PAB(6)

PAB(5)

PAB(4)

PAG(0)

PAG(0:7)

PAB(7)

PAG(3)

PAG(2)

PAG(1)

PAG(6)

PAG(5)

PAG(4)

PAR(0:7)

PAG(7)

PAR(2)

PAR(1)

PAR(0)

PAR(6)

PAR(5)

PAR(4)

PAR(3)

PAR(7)

PBB(2)

PBB(1)

PBB(0)

PBB(0:7)

PBB(5)

PBB(4)

PBB(3)

PBB(7)

PBB(6)

PBG(2)

PBG(1)

PBG(0)

PBG(0:7)

PBG(5)

PBG(4)

PBG(3)

PBG(7)

PBG(6)

PBR(2)

PBR(1)

PBR(0)

PBR(0:7)

PBR(5)

PBR(4)

PBR(3)

PBR(7)

PBR(6)

TSA(0)

TSA(10)

TSA(0:10)

TSA(3)TSA(2)

TSA(1)

TSA(6)

TSA(5)

TSA(4)

TSA(9)

TSA(8)

TSA(7)

SD(1)

SD(0)

SD(0:63)

SD(4)

SD(3)

SD(2)

SD(8)SD(7)

SD(6)

SD(5)

SD(11)

SD(10)

SD(9)

SD(14)

9

11 Schematic Diagrams

11-8 213T

9

IC301, R308

CH1 RMS = 2.14V

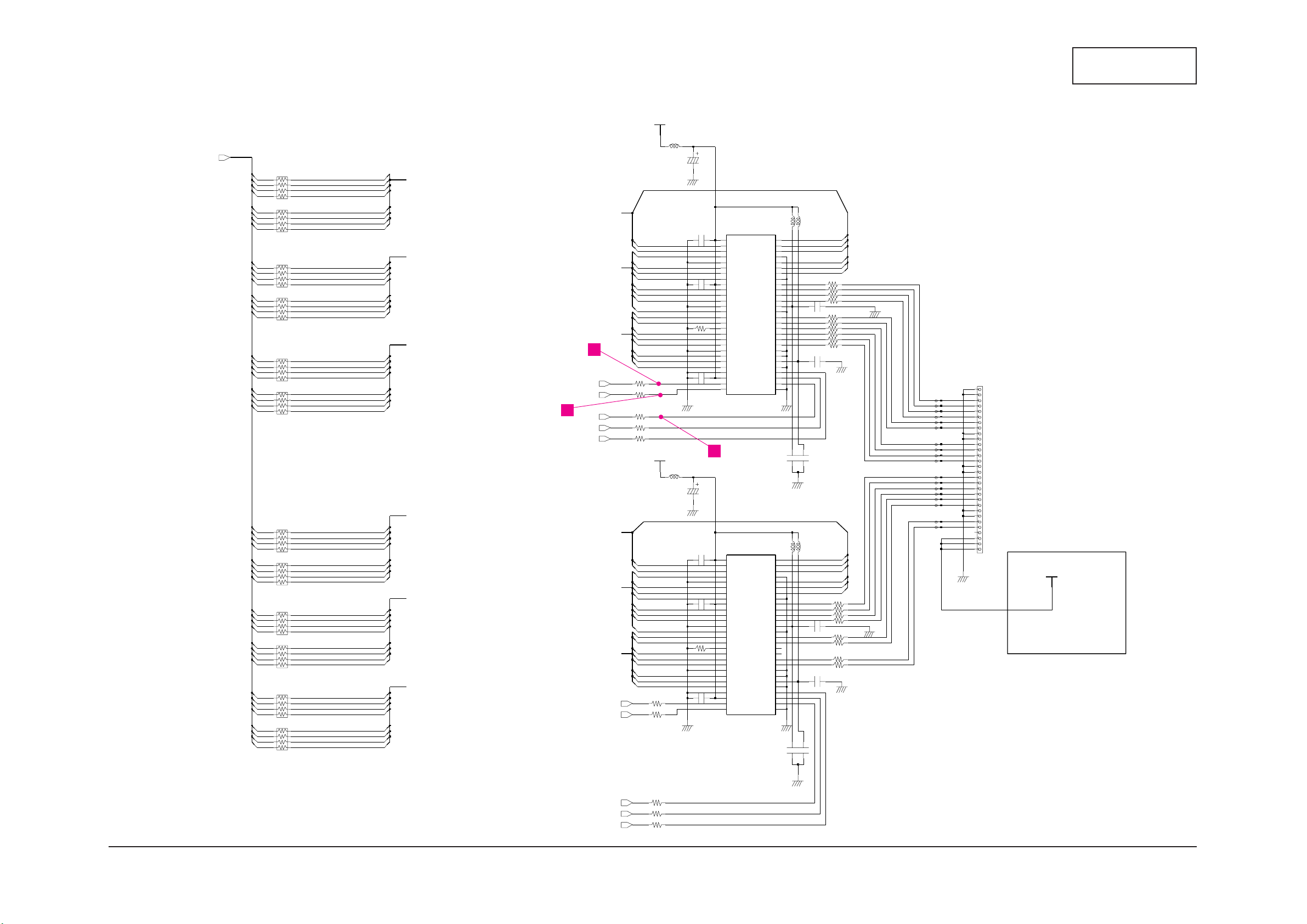

11-5 LVDS Parts Schematic Diagram

Option for Hitachi Panel

MO

10V

10000nF

C413

L401

1.5uH

R429

100

1

2

3

4

5

6

7

8

C415

RA405

47

1/16W

0

MO

10V

10000nF

5

6

7

8

R421

RA403

1/16W

47

1

2

3

4

1/16W

1

2

3

4

5

6

7

8

RA407

47

100R416

R419 0

R418

R405

0

R410

0

R40700

R422

C416
10000nF
10V
MO

5

6

7

8

0

1

2

3

4

22

23

24

25

26

47

1/16W

RA404

12

13

14

15

16

17

18

19

20

21

2

3

4

5

6

7

8

9

10

11

slcon30p

CN401

27

28

29

30

1

100R432

100nFC412

0

1

2

3

4

5

6

7

8

R402

VCC1

9

26

VCC2

RA406

1/16W

47

6

TXIN9

7

47

TXOUT0+

TXOUT0-

48

TXOUT1+

45

46

TXOUT1-

TXOUT2+

41

42

TXOUT2-

TXOUT3+

37

38

TXOUT3-

1

VCC

TXIN22

25

TXIN23

27

TXIN24
TXIN25

28

TXIN26

30

50

TXIN27

TXIN3

55

56

TXIN4

2

TXIN5

3

TXIN6

4

TXIN7

TXIN8

12

TXIN13

TXIN14

14

TXIN15

15

TXIN16

16

TXIN17

18

TXIN18

19

TXIN19

20

TXIN2

54

22

TXIN20

23

TXIN2124PLLVCC

32

PWRDWN

R_FB

17

31

TXCLKIN

TXCLKOUT+

39

40

TXCLKOUT-

51

TXIN0

TXIN1

52

TXIN10

8

TXIN11

10

11

TXIN12

GND1

GND2

13

GND3

21

GND4

29

GND5

53

LVDSGND

49

LVDSGND1

43

36

LVDSGND2

44

LVDSVCC

PLLGND

35

33

PLLGND1

34

DS90C385MTD

IC402

5

7

8

R406 0

1/16W

RA412

1

2

3

4

5

6

1.5uH

L404

1

2

3

4

5

6

7

8

RA410

1/16W

47

C414
10000nF
10V
MO

100R414

0R420

1

2

3

4

5

6

7

8

L405

1.5uH

RA408

1/16W

47

R408

0

100nFC405

R409 0

C406
100nF

100uF

C407

1

2

3

4

5

6

7

8

47

RA402

1/16W

C404

100nF

R424

0

1

2

3

4

5

6

7

8

RA411

1/16W

47

47

0R403

R404 0

0R427

C401
100uF

100R430

C408
100nF

C409 100nF

100nF

100R412

0

C411

C402
100nF

R411

TXOUT2+

TXOUT2-

42

37

TXOUT3+

TXOUT3-

38

VCC

1

9

VCC1

VCC2

26

TXIN3

TXIN4

56

TXIN5

2

TXIN6

3

TXIN7

4

6

TXIN8

7

TXIN9

TXOUT0+

47

48

TXOUT0-

45

TXOUT1+

TXOUT1-

46

41

20

TXIN19

54

TXIN2

TXIN20

22

TXIN21

23

TXIN22

24

TXIN23

25

TXIN24

27

28

TXIN25

30

TXIN26

TXIN27

50

55

51

52

TXIN1

8

TXIN10

10

TXIN11
TXIN12

11

TXIN13

12

14

TXIN14

15

TXIN15

16

TXIN16

18

TXIN17

19

TXIN18

LVDSGND1

LVDSGND2

36

LVDSVCC

44

35

PLLGND

PLLGND1

33

PLLVCC

34

PWRDWN

32

17

R_FB

TXCLKIN

31

39

TXCLKOUT+

TXCLKOUT-

40

TXIN0

IC401
DS90C385MTD

GND1

5

13

GND2

21

GND3

29

GND4

53

GND5

49

LVDSGND

43

R413 100

+3.3V_LVDS

100nF

C403

100R428

1.5uH

L406

+3.3V_LVDS

R415 100

100nFC410

0

1.5uH

L402

5

6

7

8

R417

47

1/16W

1

2

3

4

7

8

+12V_HPNL

RA409

47

1/16W

1

2

3

4

5

6

1

TP418

1

RA401

TP416

1

TP417

TP414

1

TP415

1

TP412

1

TP413

11

TP411

1

TP409

1

TP410

TP407

1

TP408

1

TP405

1

TP406

11

TP404

11

TP402

1

TP403

TP401

R426 0

100

0R401

R431

DBG(5)

DBG(4)

DBG(3)

DBG(2)

DBG(1)

DBG(0)

DBR(7)

DBR(6)

DBR(5)

DBR(4)

DBR(3)

DBR(2)

DBR(1)

DBR(0)

L403

1.5uH

DAB(6)

DAB(5)

DAB(4)

DAB(3)

DAB(2)

DAB(1)

DAG(7)

DAG(6)

DAG(5)

DAG(4)

DAG(3)

DAG(2)

DAG(1)

DAG(0)

DAR(7)

DAR(6)

DAR(5)

DAR(4)

DAR(3)

DAR(2)

DAR(1)

DAR(0)

DBB(7)

DBB(6)

DBB(5)

DBB(4)

DBB(3)

DBB(2)

DBB(1)

DBB(0)

DBG(7)

DBG(6)

LVDS_PD

PSHFCLK

PDE

PVSYNC

PHSYNC

LVDS_PD

PSHFCLK

PDE

PVSYNC

PHSYNC

DAB(0)

DAB(7)

DAR(2)

DAB(3)
DAB(4)
DAB(5)

DAR(6)

DAR(3)

DAR(4)
DAR(7)
DAR(5)
DAG(0)

DAG(1)
DAG(2)

DBR(5)
DBG(0)

DBG(1)
DBG(2)

DAR(0:7)

DAG(0:7)

DAB(0:7)

DAR(0)

DAR(1)

DAG(6)

DAG(7)
DAG(3)
DAG(4)

DAG(5)
DAB(0)
DAB(6)

DAB(7)
DAB(1)
DAB(2)

DAB(0:7)

DBR(0:7)

DBG(0:7)

DBB(0:7)

DBR(0)

DBR(1)

DBG(6)

DBG(7)
DBG(3)
DBG(4)

DBG(5)
DBB(0)
DBB(6)

DBB(7)
DBB(1)
DBB(2)

DBR(2)

DBB(3)
DBB(4)
DBB(5)

DBR(6)

DBR(3)

DBR(4)
DBR(7)

P(21)

P(22)

P(23)

P(24)

P(25)

P(26)

P(27)

P(28)

P(29)

P(30)

P(31)

P(32)

P(33)

P(34)

P(35)

P(36)

P(37)

P(38)

P(39)

P(40)

P(41)

P(42)

P(43)

P(44)

P(45)

P(46)

P(47)

DBR(0:7)

DBB(0:7)

DAG(0:7)

DBG(0:7)

DAR(0:7)

P(0:47)

P(0)

P(1)

P(2)

P(3)

P(4)

P(5)

P(6)

P(7)

P(8)

P(9)

P(10)

P(11)

P(12)

P(13)

P(14)

P(15)

P(16)

P(17)

P(18)

P(19)

P(20)

10

11

12

11 Schematic Diagrams

213T 11-9

CONFIDENTIAL

11 Schematic Diagrams

11-10 213T

10

IC401, R412

CH1 RMS = 3.32V

11

IC401, R413

CH1 RMS = 3.32V

12

IC401, R414

CH1 RMS = 3.32V

11 Schematic Diagrams

213T 11-11

CONFIDENTIAL

11-6 Power Part Schematic Diagram

Option for MM-Stand

Option for Hitachi Panel

AUDIO OUT POWER

Option for Hitachi Panel

AMLCD LCD Panel Power

INVERTER

POWER JACK I

TP_BL_EN

1

R112
1K

A

2

B

R104

4.7K

100uF

C120

FT110

BLM41P600S

1

1A2

B

470
1/16W

R105

C101

+5V_CPU

+3.3V_MEM

+5V_IN1

FT101
BLM41PG600SN1L

C125

50V

+3.3V_ADC_D

100nF
16V

100uF

16.000

100nF

100nF
50V

C104

1

2

B

FT119

BLM41P600S

1A2

B

C105

50V

BLM41P600S

FT118

A

100uF

16.000
C112
100nF

R111

4.7K

C106

6.3V

C123

OS-CON

120uF

BLM41P600S

FT104

A

1

B

2

100uF

C122

100nF

C110

100uF

16.000

+5V_IN2

+5V_ADC

C118
100nF
16V

C117

BLM41P600S

FT111

A1B

2

9

10

+3.3V_TMDS

R102

1/16W

470

CN101
slcon10p

1

2

3

4

5

6

7

8

KA378R12-TU

IC703

GND

3

VDIS

4

VIN1VO

2

1

TP_AGND

1

1

+14V_IN

TP_+14V

CN110
slcon3p

1

2

3

+14V_IN

TP_+5V

B

C

E

+5V_IN2

6

7

8

9

10

11

12

13

14

Q102
2SC2412K-Q

CN104

slcon14p_1

1

2

3

4

5

R110
47K

TP_BRT

1

TP_PNLPWR

1

2

50V

100nF

C114

A

1

2

B

FT105

BLM41P600S

1

A

B

A

1B2

FT113

BLM41P600S

10nF

C107

50V

BLM41P600S

FT109

100nF

+3.3V_JAG

4.7K

C121

BLM41P600S

FT103

1

A

2

B

R113

1/16W

1

B

2

FT102
BLM41PG600SN1L

1

A

2

B

BLM41P600S

FT108

A

BLM41P600S

FT112

A

1

2

B

C111
100uF

C124

16.000

100uF

1

A

2

B

+5V_IN2

+12V_HPNL

+14V_HIN

D2

6

7

D3
D4

8

G1

4

S1

1

2

S2
S3

3

FT106

BLM41P600S

100uF

C109

SI4435DY

IC103

5

D1

TAB

VIN3VOUT

2

+3.3V_LVDS

RC1117ST-3.3

IC105

GND

1

4

4.7K
1/16W

R101

120uF

OS-CON

C103

6.3V

VOUT_2

4

+14V_IN

+5V_IN1

1K

R108

1B2

IC102
LM317SX

ADJ

3

VIN1VOUT_1

2

FT114

A1B

2

+5V_IN2

BLM41P600S

FT120

A

GND

1

4

TAB

VIN3VOUT

2

BLM41P600S

GND

1

4

TAB

VIN3VOUT

2

RC1117ST-3.3

IC106

+5V_IN1

RC1117ST-3.3

IC101

R109
0
1/16W

25V

100uF

C126

+2.5V_JAG

50V

C108
10nF

R114

A1B

2

+14V_HIN

1/16W

1K

16V

100nF

BLM41P600S

FT107

100uF

16.000

C102

C119

16.000

100uF

C113

+3.3V

8

D1

D1_1

7

6

D2

D2_1

5

2

G1

4

G2

S1

1

S2

3

2SC2412K-Q

Q101

B

C

E

FDS9933A

IC104

47K

R103

R107

0

+5V_PWR

MO

C116
100nF
16V

C115
100nF
16V

1

2

3

4

5

6

7

8

22

slcon8p

CN102

BL_EN

PNLPW

+5V_PWR

+5V_PWR

R106

BRT_CTL

PNLPW

MAINPW

13

14

16

15

11 Schematic Diagrams

11-12 213T

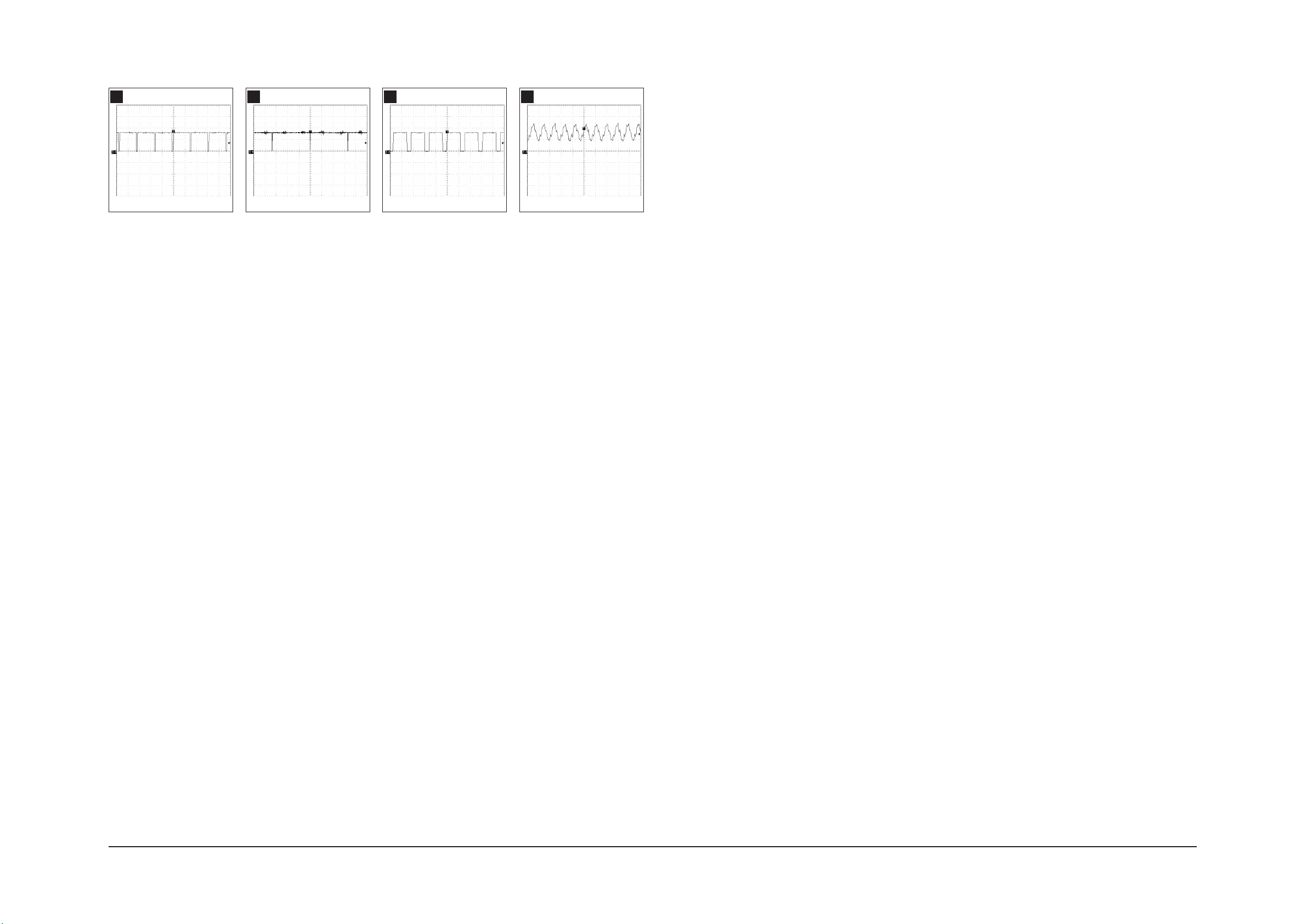

13

IC403, C111

CH1 RMS = 5.00V

14

IC101, R101

CH1 RMS = 3.40V

15

C117

CH1 RMS = 5.00V

16

IC102, C106

CH1 RMS = 2.60V
