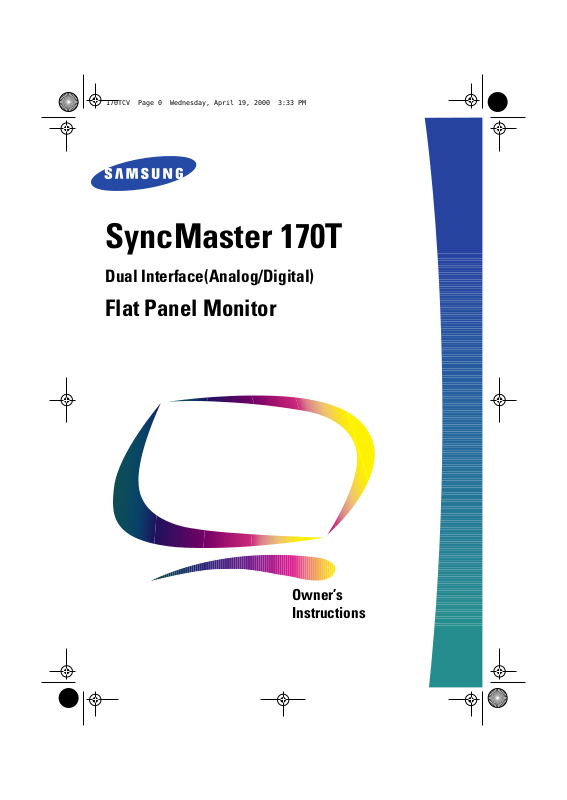

Samsung SyncMaster 170T Owner Manual

SyncMaster 170T

Dual Interface(Analog/Digital)

Flat Panel Monitor

Owner’s
Instructions

Information in this document is subject to change without notice.
© 2000 Samsung Electronics Co., Ltd. All rights reserved.

Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co.,
Ltd. is strictly forbidden.

Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or
consequential damages in connection with the furnishing, performance, or use of this material.

The

Samsung logo
Microsoft, Windows
DPMS

and

and

SyncMaster

and

Windows NT

DDC

are registered trademarks of Video Electronics Standard Association; the

are registered trademarks of Samsung Electronics Co., Ltd.;

are registered trademarks of Microsoft Corporation;

VESA,

NERGY STAR

E

name and logo are registered trademarks of the U.S. Environmental Protection Agency (EPA). As an
E

NERGY STAR

TAR

S

Partner, Samsung Electronics Co., Ltd. has determined that this product meets the E

guidelines for energy efficiency. All other product names mentioned herein may be the trademarks

NERGY

or registered trademarks of their respective owners.

Table of Contents

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Unpacking Your LCD Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Setting up your LCD Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Setting up an Ergonomic Workstation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Monitor location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Workstation height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Viewing angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Kensington Security Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Connecting Your LCD Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Plug and Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Auto Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Self-Test Feature Check (STFC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Adjusting Your LCD Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

User Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Automatic Save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Direct-Access Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Auto Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

OSD Lock/Unlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

On-Screen Menu System (OSD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Accessing the Menu System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

PowerSaver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Display Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Changing the Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Removing the Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Attaching an Arm-Type Stand or Wall Mount Hanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Maintenance of Your LCD Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See back of Manual

FrançaisDeutschEspañolPortuguese EnglishItaliano

English 1

Safety Instructions

Before connecting the AC power cord to the DC adapter outlet, make sure the voltage

1

designation of the DC adapter corresponds to the local electrical supply.
Never insert anything metallic into the openings in the cabinet of the liquid cristal display

2

(LCD) monitor; doing so may create the danger of electric shock.
To avoid electric shock, never touch the inside of the LCD Monitor. Only a qualified

3

technician should open the case of the LCD Monitor.
Never use your LCD Monitor if the power cord has been damaged. Do not allow anything

4

to rest on the power cord, and keep the cord away from areas where people can trip over
it.

Be sure to hold the plug, not the cord, when disconnecting the LCD Monitor from an

5

electric socket.
Openings in the LCD Monitor cabinet are provided for ventilation. To prevent overheating,

6

these openings should not be blocked or covered. Also, avoid using the LCD Monitor on a
bed, sofa, rug, or other soft surface. Doing so may block the ventilation openings in the
bottom of the cabinet. If you put the LCD Monitor in a bookcase or some other enclosed
space, be sure to provide adequate ventilation.

Put your LCD Monitor in a location with low humidity and a minimum of dust

7

Do not expose the LCD Monitor to rain or use it near water (in kitchens, near swimming

8

pools, etc.). If the LCD Monitor accidentally gets wet, unplug it and contact an authorized
dealer immediately. You can clean the LCD Monitor with a damp cloth when necessary, but
be sure to unplug the LCD Monitor first.

Place the LCD Monitor on a solid surface and treat it carefully. The screen is made of thin

9

glass with a plastic front surface and can be damaged if dropped, hit or scratched. Do not
clean the front panel with keton-type materials (e.g., acetone), ethyl alcohol, toluene, ethyl
acid, methyl, or chloride – these may damage the panel.

Locate your LCD Monitor near an easily accessible AC outlet.

10

If your LCD Monitor does not operate normally – in particular, if there are any unusual

11

sounds or smells coming from it – unplug it immediately and contact an authorized dealer
or service center.

High temperature can cause problems. Don’t use your LCD Monitor in direct sunlight, and

12

keep it away from heaters, stoves, fireplaces, and other sources of heat.
Unplug the LCD Monitor when it is going to be left unused for an extended period of time.

13

Unplug your LCD Monitor from the AC outlet before any service.

14

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER

(OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

English 2

Unpacking Your LCD Monitor

Please make sure the following items are included with your monitor. If any items are
missing, contact your dealer.

Colorific

& Driver

Warranty Card

(not available everywhere)

Manual

EXIT MENUAUTO EXIT

MENUAUTO
A
B

Monitor and Base

DC-Adapter

Power Cord

FrançaisEspañolDeutschItaliano EnglishPortuguese

15-pin D-Sub Signal Cable

DVI-D Signal Cable

(Optional)

English 3

Setting up your LCD Monitor

Setting up an Ergonomic Workstation

Consider the advice given below before you install your monitor.

Monitor location

Choose a position that exposes you monitor to the least reflection from lights or windows,
usually at a right angle to any window.

Workstation height

Place your LCD Monitor so that the top of the screen is slightly below your eye level when
you are comfortably seated.

Viewing angle

Tilt the screen backward or forward to a comfortable viewing position.

AUTO

MENU

Figure 1. Tilt the screen

Kensington Security Slot

This monitor offers you the opportunity to secure your monitor using a Kensington-type
security device. Kensington lock not included. Refer to your locking device documentation for
installation instructions.

Figure 2. Kensington-type security slot location

English 4

Setting up your LCD Monitor

Connecting Your LCD Monitor

This monitor offers a method for connection to both a PC and a workstation. One or both
types of signal cables can be connected to the monitor simultaneously. Determine which
connection method(s) you need and refer to the instructions below.

2

4

3

Figure 3. Cable connections (Analog)

Turn off your system and unplug its power cord.

1

FrançaisEspañolDeutschItaliano EnglishPortuguese

Attach the blue signal cable connector to the video port on the back of your computer.

2

Connect the power cord for your monitor to the power port on the power adapter.

3

Plug the power cords of your computer and your monitor into a nearby outlet.

4

Turn on your computer and monitor. If your monitor displays an image, installation is

5

complete.

Perform the auto adjustment procedure as described in “Auto Adjustment” on page 7.

6

English 5

Setting up your LCD Monitor

(b)

(a)

Figure 4. Cable connections (Digital)

Turn off your computer and unplug its power cord.

1

Connect the signal cable to the DVI-D connector (1) on the back of your monitor.

2

Connect the other end of the cable to the video port on the back of your workstation.

Connect the power cord for your monitor to the power port on the power adapter.

3

Secure the power adapter cord and the signal cable(s) under the metal prong.

4

Insert the tab on each side of the hinge cover (b) then attach the stand of the monitor.

5

Plug the power cords of your computer and your monitor into a nearby outlet.

6

Turn on your computer and monitor. If your monitor displays an image, installation is

7

complete.

Perform the auto adjustment procedure as described in “Auto Adjustment” on page 7.

8

(1)

English 6

Setting up your LCD Monitor

Getting Help

If your monitor does not display an image, check your cable connections and refer to
“Troubleshooting” on page 17. If you experience difficulties with the quality of the displayed
image, run auto adjustment again and refer to “Adjusting Your LCD Monitor” on page 10 or
“Troubleshooting” on page 17.

Plug and Play

Our adoption of the new VESA® Plug and Play solution eliminates complicated and time
consuming setup. It allows you to install your monitor in a Plug and Play compatible system
without the usual hassles and confusion. Your PC system can easily identify and configure
itself for use with your display. This monitor automatically tells the PC system its Extended
Display Identification (EDID) data using Display Data Channel (DDC) protocols so the PC
system can automatically configure itself to use the LCD Monitor.

Auto Adjustment

Even though your computer system can recognize your new LCD Monitor system, the auto
adjustment function will optimize the display settings for use with your computer. Auto
Adjustment can be accessed through the
On-Screen Menu, see “Image Lock:” on page 13 or use the direct access instructions below:

FrançaisEspañolDeutschItaliano EnglishPortuguese

Turn on your computer and monitor.

1

Push the

2

The screen will dim and you may notice small changes to the screen image.

3

AUTO

button to open the Auto Adjustment OSD.

English 7

Setting up your LCD Monitor

Self-Test Feature Check (STFC)

Your monitor provides a self test feature that allows you to check whether your monitor is
functioning properly. If your monitor and computer are properly connected but the monitor
screen remains dark and the power indicator is blinking, run the monitor self-test by
performing the following steps:

Turn off both your computer and the monitor.

1

Unplug the video cable from the back of the computer.

2

Turn on the monitor.

3

If the monitor is functioning properly, you will see a white box with a red border and black
text inside as shown in the following illustration:

No Connection

Check Signal Cable

Figure 5. Monitor self test screen

The three boxes inside the border are red, green and blue. Failure of any of the boxes to
appear indicates a problem with your monitor. This box also appears during normal operation
if the video cable becomes disconnected or damaged.

Turn off your monitor and reconnect the video cable; then turn on both your computer

4

and the monitor.

If your monitor screen remains blank after using the previous procedure, check your video
controller and computer system; your monitor is functioning properly.

English 8

Adjusting Your LCD Monitor

User Controls

Your LCD Monitor allows you to easily adjust the characteristics of the image being
displayed. All of these adjustments are made using the control buttons on the front of the
monitor. While you use these buttons to adjust the controls, an on-screen menu shows you
their numeric values as the change.

1

Figure 6. User controls

No. Name Description

AUTO

EXIT

/ +

–

1

2

3

■

■

■

■

■

■

Brightness

4

MENU

Power button

5

and indicator

■

■

■

■

■

light

3

EXIT MENUAUTO EXIT

2

5

A
B

4

MENUAUTO

Activates the Auto Adjustment function

Exits from the OSD while the OSD is displayed
Slects the Video signal (A or B) while the OSD is off

Moves the selector between menus and sub-menus on
the OSD
Decreases or increases values of the selected function
Directly adjusts the brightness level if pressed while the
OSD is off (See the section on "Direct-Access Features" on
page 10.)

Opens the OSD and sub-menus
Selects the highlighted function

Turns the monitor on and off
Glows green during normal operation
Glows amber, blinks amber, or blinks green / amber while
the monitor is in a power saving mode. (See "Power­saving modes" on page 16.)

FrançaisEspañolDeutschItaliano EnglishPortuguese

English 9

Adjusting Your LCD Monitor

Automatic Save

Whenever you open the on-screen menu and allow an adjustment window to remain active
for about 3 seconds without pressing another button, the monitor automatically saves any
adjustments you have made. These changes are saved into a user area in the monitor. User
areas are reserved according to the signal frequency from your computer. The monitor can
save adjustments for up to 5 user modes. It has ten factory preset or preload modes, one for
each signal frequency as listed in “Display Modes” on page 21

If you have made no adjustments, the on-screen menu disappears and the monitor does not
save anything. To exit without saving the changes you have made, press the
before the 2 seconds elapse.

Direct-Access Features

The features described in this section can be accessed quickly, at the touch of one button.
Once you finish making adjustments to a feature, push the
or allow the OSM to time-out and disappear automatically.

Brightness

EXIT

button to turn off the menu

EXIT

button

Brightness

English 10

99

Follow these instructions to adjust the brightness of
the monitor’s display.

With the menu off, push the “–” or “+”

1

button. The brightness display appears.

Push the “+” button to increase the

2

brightness; push the “–” button to decrease
the brightness.

Adjusting Your LCD Monitor

Auto Adjustment

Follow these instructions to enable or disable the

Auto Adjustment

25

automatic screen adjustments for your monitor.

With the menu off, push the

1

The automatic adjustment display appears.
Follow the directions previously given on

2

page 7.

EXIT

button.

OSD Lock/Unlock

Use this function to secure the current settings, while allowing you to adjust the Brightness
and Contrast, so that they cannot be inadvertently changed. You can unlock the OSD controls
at any time by using the same procedure.

Push and hold the

1

locked, a “LOCKED” message displays.

MENU

button for 5 seconds to Lock or Unlock the controls. When

FrançaisEspañolDeutschItaliano EnglishPortuguese

English 11

Adjusting Your LCD Monitor

On-Screen Menu System (OSD)

Function icons

Function name

Setting slidebar

Numeric value

indicator

Figure 7. On-Screen Menu (OSD)

Brightness

Accessing the Menu System

With the menu off, push the

1

main function menu.
Push the “–“ and “+“ buttons to move between the function icons. As you move from

2

one icon to another, the function name changes to reflect the function or group of
functions represented by that icon. See the Menu adjustments table to view a
complete list of all the functions available for the monitor.

Push the

3

“+” buttons, according to the indicators on the menu, to make your changes.
Push the

4

push the

MENU

button once to activate the highlighted function then use the “–” and

EXIT

button once to return to the main menu to select another function or

EXIT

button 1 or 2 times to exit from the OSD.

MENU

button to open the menu system and display the

99

English 12

Adjusting Your LCD Monitor

Table 1. Menu Adjustments

Icon

Settings and

Sub-menus

Image Lock:

■

Fine
Coarse

■

Position:

Horizontal

■

Vertical

■

Color Control:

R(ed)

■

G(reen)

■

B(lue)

■

Description

Image Lock controls adjust for and limit the amount of
noise in the video signal which causes horizontal lines
or areas on the screen where the image appears to be
unstable and jitters or shimmers.

The Fine and Coarse adjustments allow you to more
closely adjust your monitor to your preference.
Use the “–, +” buttons to adjust away interference.
If satisfactory results are not obtained using the Fine
adjustment, use the Coarse adjustment and then use
Fine again.
This function may change the width of the display
image. Use the Horizontal function on the Position
menu to center the display image on the screen.

Position moves the viewing area around on the
monitor screen.

Color Controls adjust the color hue and saturation. The
color hue is most noticeable in areas of white.

FrançaisEspañolDeutschItaliano EnglishPortuguese

English 13

Adjusting Your LCD Monitor

Table 1. Menu Adjustments (

Icon

Settings and

Sub-menus

Reset:

■

Geometry
Color

■

Language:

■

English

■

Deutsch
Español

■

■

Français

■

Italiano

■

Svenska

Menu Display
Time:

5 Seconds

■

10 Seconds

■

■

20 Seconds
200 Seconds

■

Continued

)

Description

Reset controls return the settings to the factory preset
values for the selected group of functions. Geometry
changes the Position settings, Image Lock settings
and changes the Image Size to Expand 2.
Color changes the RGB settings back to their original
factory settings.

Language sets the OSD to display in one of six
languages (English, French, German, Spanish, Italian,
or Svenska).
The language chosen affects only the language of the
OSD. It has no effect on any software running on the
computer.

The OSD stays active for as long as it is in use. Menu
Display Time sets the length of time the OSD will
remain active after the last time you pushed a button.

English 14

Menu Position:

■

Horizontal
Vertical

■

Each time the OSD opens it displays in the same
location on the screen. Menu Position controls that
location.

Adjusting Your LCD Monitor

Table 1. Menu Adjustments (

Icon

Settings and

Sub-menus

Image Size:

■

Normal
Expanded 1

■

Expanded 2

■

Image Effect:

■

Scaling
Filtering

■

Continued

)

Description

If your computer or video board supplies a signal rate
and addressability lower than 1280 x 1024, this LCD
Monitor provides a scaling processor that can expand
the addressability up to 1280 x 1024.
Select the Normal setting to use the normal size
viewing area for the current signal. Expanded 1
expands the viewing area to the full width of the
monitor screen. Expanded 2 extends the viewing area
both horizontally and vertically to the full size of the
monitor screen.

Image Effect optimizes the display for the type of
software you are using.
Scaling smooths an image which may help the eye to
see more detail.
Filtering sharpens text by adding a fine, contrasting
line around each character so that it is easier to
recognize.

FrançaisEspañolDeutschItaliano EnglishPortuguese

English 15

Appendix

PowerSaver

This monitor has a built-in power management system called PowerSaver. This system saves
energy by switching your monitor into a low-power mode when it has not been used for a
certain amount of time. The available modes are “On”, “Standby”, “Sleep”, and “Deep
Sleep”.

PowerSaver operates with a VESA DPMS compliant video card installed in your computer.
You use a software utility installed on your computer to set up this feature. See Table 2
below for details.

Table 2. Power-saving modes

Power-Saving Function mode (EPA/NUTEK)

Standby Mode

Inactive
Active
Blanked

Less than 5W Less than 5W Less than 5W

Sleep Mode

Position A1

Active
Inactive
Blanked

Blinking
(0.5 sec. interval)

Deep Sleep Mode

Position A2

Inactive
Inactive
Blanked

Amber
Blinking
(1 sec. interval)

State

Horizontal Sync
Vertical Sync
Video

Power
Indicator

Power
Consumption

Normal

Operation

Active
Active
Active

Green Amber Green/Amber

42W (Max.)
40W (Nom.)

NOTE: This monitor automatically returns to normal operation when horizontal and vertical
sync return. This occurs when you move the computer’s mouse or press a key on the
keyboard.

This monitor is EPA E

NERGY STAR

®

compliant and NUTEK compliant when used with a

computer equipped with VESA DPMS functionality.

For energy conservation, turn your monitor OFF when it is not needed, or when leaving it
unattended for long periods.

English 16

Appendix

Troubleshooting

Before calling for service, check the information in this section to see if you can remedy any
problems yourself

Table 3. Troubleshooting problems

Symptom Corrective Actions

Check to see that both the LCD Monitor and the

No Picture

“No Connection,
Check Signal Cable” appears

“Video mode not supported”

Picture is scrambled

Picture is not clear

Picture is fuzzy

■

computer are plugged in and turned on.
Check the signal cable connection between the

■

computer and the LCD Monitor
Use the LCD Monitor self test described on page 8.

■

Check the maximum resolution and the frequency on

■

the video port of your computer.
Compare these values with the data in the preset

■

timing modes, page 21.
Check the signal cable connection between the

■

computer and LCD Monitor.
Perform Auto Adjustment (see page 7).

■

■

Adjust Fine and Coarse adjustments as needed (see
page 13).

■

Perform LCD Monitor reset.

■

Eliminate accessories (i.e., video extension cables).

FrançaisEspañolDeutschItaliano EnglishPortuguese

Picture bounces or has wavy
oscillations

Picture appears to be ghosting

The image is too light or too dark
Color is not uniform
The colors are distorted with dark or

shadowed areas

■

Check the signal cable connection between the
computer and LCD Monitor

Check the signal cable connection between the

■

computer and LCD Monitor.
Adjust the Brightness and Contrast settings.

■

Adjust the color settings using the OSD COLOR menu.

■

■

Adjust the color settings using the OSD COLOR menu.

English 17

Appendix

Table 3. Troubleshooting problems (

Symptom Corrective Actions

White does not look white
Screen image is not centered or

sized properly

The power indicator blinks amber

Continued

)

■

Adjust the color settings using the OSD COLOR menu.

■

Adjust the Horizontal and Vertical position settings
using the OSD.

Check the image size selection (see page 15).

■

■

Run Auto Adjustment (see page 7).

■

The LCD Monitor is saving your changes to the OSD.

once

The LCD Monitor is using its power management

The power indicator is blinking
green/amber or is blinking amber
only

Cannot adjust LCD Monitor with the

■

system. Check the power management utility on your
computer.

■

Please contact Samsung customer service.

buttons on the front panel

You can download the driver from the internet at

You need the monitor driver
software

■

http://www.samsungelectronics.com/support/
downloads/monitor/index.html

English 18

Specifications

Table 4. Specifications

Appendix

Analog Input Digital Input

LCD Monitor Panel 43 cm (17") LCD Monitor

*

Synchronization

Display Colors 16.7 Million Colors

Maximum Resolution Horizontal: 1280 Dots @ 81 kHz

Active Display Horizontal: 338 ± 3 mm (13.3" ± 0.12”)

Input Signal, Terminated Analog video 0.7 Vpp positive at 75

Maximum Pixel Clock 135 MHz 108 MHz

Power Adapter AC 90-264 Volt, 60 Hz/50 Hz ± 3 Hz

Power Consumption 42 W (Maximum), 40 W (Nominal)

Dimensions/Weight
(W x D x H)

0.264 mm Pixel pitch
Viewing Angle: 80/80/80/80 (U/D/L/R) (Degrees)

Horizontal: 30 kHz to 81 kHz
Vertical: 56 Hz to 85 Hz (~XGA)
60 Hz to 76 Hz (SXGA)

Vertical: 1024 Lines @ 76 Hz

Vertical: 270 ± 3 mm (10.6" ± 0.12”)
(Active display size is dependent upon signal timing and image size
selection.)

Separate sync, composite, and sync-on­green

Unit: 440 x 220 x 458.5 mm; 8 kg (17.3 x 8.7 x 18.1 in; 17.6 lb)
Carton: 570 x 580 x 315 mm; 10.4 kg (22.4 x 22.8 x 12.4 in; 23 lb)
(All measurements approximate)

Horizontal: 30 kHz to 63.3 kHz
Vertical: 60 Hz to (SXGA)
56 Hz to 85 Hz (~XGA)

1280 Donts @ 63.3 kHz
1024 Lines @ 60 Hz

TMDS

Ω

FrançaisEspañolDeutschItaliano EnglishPortuguese

VESA Mounting
Interface

Environmental
Considerations

NOTE:

Design and specifications are subject to change without prior notice.

100 mm x 100 mm
(For use with Specialty (Arm) Mounting hardware.)

Operating Temperature: 50°F to 104°F (10°C to 40°C)
Humidity: 10% to 80%
Storage Temperature: -68°F to 113°F (-20°C to 45°C)
Humidity: 5% to 95%

* Referring to Standard signal modes, see page 21.

English 19

Pin Assignments

Table 5. 15-Pin D-SUB connector

Appendix

Pin No.

1
2
3
4
5
6
7
8

Table 6. DVI-D Connector

Pin Signal Assignent Pin Signal Assignen

1 T.M.D.S. Data2- 13 No Connect

2 T.M.D.S. Data2+ 14 +5V Power

3 T.M.D.S. Data2 Shield 15 Ground(for +5V)

4 No Connect 16 Hot Plug Detect

5 No Connect 17 T.M.D.S. Data0-

6 DDC Clock 18 T.M.D.S. Data0+

15-Pin Side of the

Signal Cable

Red

Green

Blue
GND

GND (DDC Return)

GND-R
GND-G
GND-B

Pin No.

9
10
11
12
13
14
15

15-Pin Side of the

Signal Cable

GND-Sync/Self test

DDC Data

DDC Clock

NC

GND

H-Sync
V-Sync

7 DDC Data 19 T.M.D.S. Data0 Shield

8 No Connect 20 No Connect

9 T.M.D.S. Data1- 21 No Connect

10 T.M.D.S. Data1+ 22 T.M.D.S. Clock Shield

11 T.M.D.S. Data1 Shield 23 T.M.D.S. Clock+

12 No Connect 24 T.M.D.S. Clock-

English 20

Appendix

Display Modes

For the display modes listed below, the screen image has been optimized during
manufacture.

Table 7. Preset timing modes

Display Mode

Horizontal
Frequency

(kHz)

Vertical

Frequency (Hz)

Pixel Clock

(MHz)

Sync Polarity

720 x 400 31.469 70.087 28.322 –/+
640 x 480 31.469 59.940 25.175 –/–
640 x 480 37.500 75.000 31.500 –/–
640 x 480 43.269 85.008 36.000 –/–
800 x 600 46.875 75.000 49.500 +/+
800 x 600 53.674 85.061 56.250 +/+

A

1024 x 768 48.363 60.004 65.000 –/–
1024 x 768 60.023 75.029 78.750 +/+
1024 x 768 68.677 84.997 94.500 +/+
1280 x 1024 79.976 75.025 135.000 +/+

A

A

1280 x 1024 63.300 60.000 108.000 –/–

✱

Display modes marked will be blocked during “Digital Input.”

A

(H/V)

FrançaisEspañolDeutschItaliano EnglishPortuguese

English 21

Appendix

Changing the Stand

Removing the Stand

(a)

Turn off your monitor and unplug its power cord.

1

Lay the LCD Monitor face-down on a flat surface with a cushion beneath it to protect the

2

screen.

Remove the 4 screws (a) and then remove the Stand from the LCD Monitor.

3

English 22

Appendix

Attaching an Arm-Type Stand or Wall Mount Hanger

NOTE: This monitor accepts a 100mm x 100mm VESA-compliant mounting interface pad

Rear cover

.

Mounting

Interface Pad

Align the Mounting Interface Pad with the holes in the Rear Cover and secure it with

1

the four screws that came with the Arm-type Stand or Wall Mount Hanger.

Maintenance of Your LCD Monitor

WARNING:

for gaining access to the cable connectors as described on page 6). Users cannot service the
monitor. User maintenance is restricted to cleaning as explained below:

Unplug the monitor from the power outlet before cleaning.

To avoid risk of electric shock, do not disassemble the monitor cabinet (except

To clean your LCD Monitor screen, lightly dampen a soft, clean cloth with water or

■

mild detergent. If possible, use a special screen cleaning tissue or solution suitable
for the antistatic coating.

■

To clean the monitor cabinet, use a cloth lightly dampened with a mild detergent.

■

Never use flammable cleaning material to clean your LCD Monitor or any other
electrical apparatus.

FrançaisEspañolDeutschItaliano EnglishPortuguese

English 23

Regulatory Information

FCC Information

User Instructions

The Federal Communications Commission Radio
Frequency Interference Statement includes the
following warning:

Note:

This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to
radio or television receptions, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:

Reorient or relocate the receiving antenna.

■

■

Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit dif-

■

ferent from that to which the receiver is connected.

■

Consult the dealer or an experienced radio/TV tech­nician for help.

User Information

Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s
authority to operate the equipment.
If necessary, consult your dealer or an experienced
radio/television technician for additional suggestions.
You may find the booklet called How to Identify and
Resolve Radio/TV Interference Problems helpful. This
booklet was prepared by the Federal Communications
Commission. It is available from the U.S. Government
Printing Office, Washington, DC 20402, Stock Number
004-000-00345-4.

Warning

User must use shielded signal interface cables to
maintain FCC compliance for the product.

Declaration of conformity for products
Marked with FCC Logo

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.

The party responsible for product compliance:
SAMSUNG ELECTRONICS CO., LTD
America QA Lab of Samsung
85 West Tasman Drive
San Jose, CA 95134 USA
Tel) 408-544-5124
Fax) 408-544-5191
Provided with this monitor is a detachable power
supply cord with IEC320 style terminations. It may be
suitable for connection to any UL Listed personal
computer with similar configuration. Before making the
connection, make sure the voltage rating of the
computer convenience outlet is the same as the
monitor and that the ampere rating of the computer
convenience outlet is equal to or exceeds the monitor
voltage rating.
For 120 Volt applications, use only UL Listed detachable
power cord with NEMA configuration 5-15P type
(parallel blades) plug cap. For 240 Volt applications use
only UL Listed Detachable power supply cord with
NEMA configuration 6-15P type (tandem blades) plug
cap.

IC Compliance Notice

This Class B digital apparatus meets all requirements
of the Canadian Interference-Causing Equipment
Regulations of ICES-003.

Cet appareil Numérique de classe B respecte toutes les
exigences du Règlemont ICES-003 sur les équipements
produisant des interférences au Canada.

MPR II Compliance

This monitor complies with SWEDAC(MPR II)
recommendations for reduced electric and magnetic
fields.

European Notice

Products with the CE Marking comply with both the
EMC Directive (89/336/EEC), (92/31/EEC), (93/68/EEC)
and the Low Voltage Directive (73/23/EEC) issued by
the Commission of the European Community.
Compliance with these directives implies conformity to
the following European Norms:

■

EN55022 (CISPR 22) – Radio Frequency Interference

■

EN50082-1 : 1992 – Electromagnetic Immunity

■

EN60555-2 (IEC555-2) – Power Line Harmonics

■

EN60555-3 (IEC555-3) – Voltage Fluctuations

■

EN60950 (IEC950) – Product Safety.

U.S.A. :

Samsung Electronics America (SEA)
One Samsung Place
Ledgewood, NJ 07852
Tel. : 1-800-SAMSUNG (1-800-726-7864)

CANADA :

Samsung Electronics Canada Inc.
7037 Financial Drive
Mississauga, Ontario L5N 6R3
Tel. : 1-800-SAMSUNG (1-800-726-7864)
Fax. : [phone]

GERMANY :

Samsung Electronics GmbH Samsung-Haus
Am Kronberger Hang 6/65824 Schwalbach/Ts.
Tel. : [phone]
Fax. : [phone]

AUSTRALIA :

Samsung Electronics Australia Pty Ltd.
Unit G, 10-16 South Street,
Rydalmere, N.S.W. 2116
P.O. BOX 368
Tel. : [phone]

ITALIA :

Samsung Electronics Italia SpA
Via C. Donat Cattin,
5-20063 Cernusco sul Naviglio (Mi)
Tel. : [phone]

PANAMA :

Servicios Samsung (Zona Libre), S.A.
50 and 61 Streets Sta, Cecilia
Bdl. Don Camilo, Panama City
Tel. : [phone] or 269-5571
Fax : [phone]

MEXICO

Samsung Electronics Mexico S.A. de C.V.
Saturno 44 Col. Nva. Industrial Vallejo
Del. Gustavo A. Madero C.P. 07700
Mexico D.F. Tel. [phone]
RFC: SEM950215S98

ESPAÑA :

Samsung Electrónics Comercial Ibérica, S.A.
Ciencies, 55-65 (Polígono Pedrosa) 08908
Hospitalet de Llobregat (Barcelona)
Tel. : [phone]
Fax. : [phone]

UK :

Samsung Electronics (UK) Ltd.
Samsung House, 225 Hook Rise South
Surbiton, Surrey KT6 7LD
Tel. : [phone]
Fax. : [phone]
<European Service Center & National Service>
Stafford Park 12 Telford, Shropshire, TF3 3BJ
Tel. : [phone]
Fax. : [phone]

THAILAND :

Samsung Service Center
729-729/1 JSP Tower Rachadapisek RD.,
Bangpongpang, Yannawa, Bangkok 10120
Tel : [phone]
Fax : [phone]

SOUTH AFRICA :

Samsung Electronics South Africa
Somerset Office Park 5 Libertas Road
Bryanston, South Africa
Tel : [phone]
Fax : [phone]

BRASIL :

Samsung Eletrônica da Amazonia Ltda.
R. Prof. Manoelito de Ornellas, 303-2º Andar
Chácara Sto. Antônio • cep : 04719-040
São Paulo • SP
Tel. : [phone]
Fax : [phone]

SWEDEN:

Samsung Electronics Svenska, AB
Box 713, S-194 27 Upplands Vasby
Tel.: [phone]
Fax : [phone]

IMPORTADO POR:SAMSUNG ELECTRONICS MEXICO S.A. DE C.V.

SATURNO 44 COL. NVA. INDUSTRIAL VALLEJO
DEL. GUSTAVO A. MADERO C.P. 07700
MEXICO D.F. TEL. [phone]
RFC: SEM950215S98

EXPORTADO POR: SAMSUNG ELECTRONICS CO.,LTD.

JOONG-ANG DAILY NEWS BLDG.
7 SOON-WHA-DONG CHUNG-KU,
C.P.O BOX 2775, 1144 SEOUL, KOREA

“As an E

determined that this product meets the

NERGYSTAR

E

®

NERGYSTAR

Partner, SAMSUNG has

®

guidelines for energy efficiency.”

P/N: BN68-00147B-00

Printed on recyclable paper
