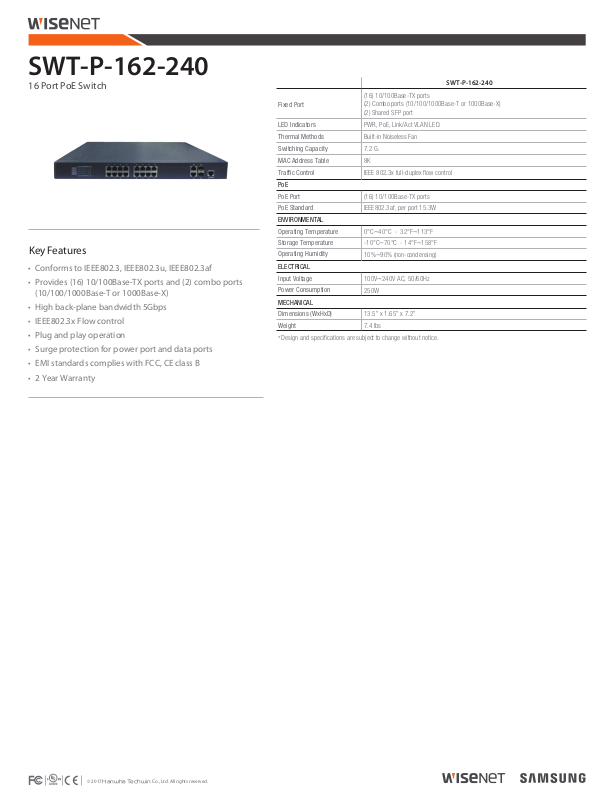

SWT-P-162-240
16 Port PoE Switch
Key Features
• Conforms to IEEE802.3, IEEE802.3u, IEEE802.3af
• Provides (16) 10/100Base-TX ports and (2) combo ports
(10/100/1000Base-T or 1000Base-X)
• High back-plane bandwidth 5Gbps
• IEEE802.3x Flow control
• Plug and play operation
• Surge protection for power port and data ports
• EMI standards complies with FCC, CE class B
• 2 Year Warranty
(16) 10/100Base-TX ports
Fixed Port
LED Indicators
Thermal Methods Built-in Noiseless Fan
Switching Capacity 7.2 G.
MAC Address Table 8K
Traffic Control IEEE 802.3x full-duplex flow control
PoE
PoE Port
PoE Standard
ENVIRONMENTAL
Operating Temperature
Storage Temperature
Operating Humidity
ELECTRICAL
Input Voltage
Power Consumption
MECHANICAL
Dimensions (WxHxD)
Weight
Design and specifications are subject to change without notice.
*
(2) Combo ports (10/100/1000Base-T or 1000Base-X)
(2) Shared SFP port
PWR, PoE, Link/Act VLAN LED.
(16) 10/100Base-TX ports
IEEE802.3af, per port 15.3W
0°C~40°C - 32°F~113°F
-10°C~70°C - 14°F~158°F
10%~90% (non-condensing)
100V~240V AC, 50/60Hz
250W
13.5” x 1.65” x 7.2”
7.4 lbs
SWT-P-162-240
Hanwha Techwin
© 2017 Co., Ltd. All rights reserved.
