FEATURES 1
PRECAUTIONS 1
DESCRIPTION AND CLEANING OF PART 2
CLEANING THE MACHINE 2
CONTROL PANEL 2
WASHING PROCEDURE 3
To Wash 3
To Spin Dry 3
To Rinsing 3
Overflow rinse 3
Additional rinse 4
INSTALLATION 4
Location 4
Connecting the drain hose 4
Mounting the legs 4
LAUNDRY GUIDE 5
MAINTENANCE 5
TROUBLE SHOOTING 5
WASHING MACHINE
Owner’s Instructions
SW-T65A1(P) / SW-T65B1(P) / SW -T65C1(P)
Before operating the washing machine, please read this manual
thoroughly, and retain it for future reference.
• Remove the cap-hose
from the drain hose.
• In the case of pump drained
washer, remove
the cap-hose from
the drain hole.
• Don't use excessively hot water.
(50˚C or more)
Plastic parts may be deformed or damaged.
Also, clothing may be deformed or decolored.
• Before washing,check all pockets.
If nails or pins remain in pockets,they may
damage the washer or clothes.
• Close the water tap a little if the
water pressure is too high.
• Never splash water on the control panel.
• Be sure to cover with the inner
cover on laundry before spinning.
This prevents laundry from
being tossed out and damaged.
• To avoid water splashes, close the
wash tub lid.
• Be sure laythe drain hose down.
(in case no drain pump)
• Be sure that the washer is grounded.
To avoid electrical shock,use a
metal pipe for the ground
connection. But, don't ground the
washer with gas pipes or telephone
lines to avoid to dangers of explosion
or lightning strike.
• Do not put your hands into the
spin dryer basket when it is
spinning.
Your fingers can be caught by
spinning laundry and damaged.
• Never allow children to operate
or play with the washer.
Children playing with the
washer may accidentally
fall into the washing tub.
• Disconnect the power cord from the
power supply when not in use.
• Ventilation opening must not be obstructed
by carpeting when the washing machine is
installed on a carpeted floor.
• If the supply cord of this appliance is
damaged, it must only be replaced by a repair
shopappointed by the manufacturer, because
special purpose tools are required.
• Warning to avoid overfilling and damages this
appliance must be filled with the operator
present using a moderate water supply
pressure only.
•
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
•
To avoid overfilling and damages this appliance
must be filled with the operator present using a
moderate water supply pressure only.
1.
WASH TIMMER
This is used to set the
wash time, 1-15 minutes.
2.CYCLE SELECTOR
This is used to set the
Washing/Rinsing
or Draining.
3.
SPIN DRY TIMER
This is used to set the
spin time, 1-5 minutes.
4.WATER
SELECTOR(FOR SW-50B1)
During washing, WATER SELECTOR
KNOB should be selected.
During spin rinsing, WATER
SELECTOR KNOB should
be selected.
5
.WASH
SELECTOR
This is used to select wash action.
You can wash laundry effectively
by various methods.
CONTROL PANEL
Wash/Rinse
Drain Rinse
CYCLE SELECTOR
Wash
Drain
CYCLE SELECTOR
0
3
1
4
2
5
SPIN DRY TIMER
Soft
Normal
WASH SELECTOR
0
9
3
12
6
15
WASH TIMER
WATER SELECTOR
Wash
Spin
BEFORE USING THE WASHING MACHINE
CAUTIONS
PRECAUTIONS WHEN OPERA TING
1
HOW TO CLEAN THE FILTER
(In case drain pump)
1. Place a rag under the washer filter
not to wet the floor.
2. Rotate the filter counterclockwise
and pull out the filter.
3. Remove dirts and
rotate the filter
clockwise until it
locks in position.
When you open this
lid while the spin basket is
spinning,the spinning will
be stopped by the brake
system.
POWER CORD
EARTH WIRE
WATER DRAIN HOSE
(without pump)
SPIN DRYER BASKET
PULSATOR
The plug’s shape
may not be similar to that
shown in this drawing.
SPIN DRYER LID
(with pump)
WASH TUB LID
Be sure to keep
the lid closed
during washing
and spinning.
WASH TUB
DRAIN FILTER
DRAIN HOSE
OVERFLOW
FILTER
LINT FILTER
INNER LID
DESCRIPTION AND /CLEANING OF PARTS
.
This is used for
gathering the
dregs made during
washing.
CLEANING THE FILTER
• Pull the overflow filter out and take up
the filter by removing 3 screws as
shown in figure. Wash the filter and
washing tub.
CLEANING THE FILTER
• Push the strainer(filter) out and take
up the filter as shown in figure.
Wash the filter and washing tub.
DRAIN FILTER
In case of incomplete drain,
disassemble the drain filter with
screw driver(+), and remove
lints from the filter as shown
in the filter as shown in
the figure.
CLEANING THE WASH TUB
First, fill water in the wash tub to ‘L’ level(
, then drain water from the wash tub simultaneously with
operating wash cycle for 1~2 minutes. •Close the wash tub lid.
2
OVERFLOW FILTER
• Pull the upper side of the
overflow filter with your
fingers into the holes
in the direction of
arrow as shown
in the figure.
CLEANING THE LINT FILTER
• If the dregs are piled up in the
lint filter after finishing the wash,
push down and
pull it out as
shown in the
figure.
• Wash the filter
net in water.
OVERFLOW FILTER
Pull the upper side of the
overflow filter with
two fingers inserted into
hole ‘A’ in the
direction of arrow
as shown in the figure.
A
TO WASH
1. Before starting to wash, proceed as follows,
Connect the water supply
hose and open the water tap.
• Lay the drain hose down toward
a sinkhole. (In case no drain pump)
• Place the drain hose in sink or bath.
(In case no drain pump)
• Connect the power cord to the power
supply outlet.
2. Set the WASH SELECTOR
KNOB to the desired mode.
3. Set the WTER SELECTOR
KNOB to the desired mode.
(FOR SW-T65B1, SWT65C1)
4. Set the CYCLE SELECTOR KNOB to
“WASH.RINSE”.(in case drain pump WASH)
5. Fill water in the wash tub
and add the detergent.
6. Load laundry in the
wash tub and fill water
to proper water level.
7. Set the WASH TIMER
1-15 minutes.
8. After washing, set the CYCLE
SELECTOR
KNOB to 'DRAIN' for drain.
TO SPIN DRY
1. Transfer the clothes into the
spin basket and arrange the
clothes evenly.
2. Be sure to replace the safety
cover and close the
inner lid.
3. Close the spin
dryer lid.
4. Set the SPIN DRY
TIMER 1-5minutes.
TO RINSING
1. Set the cycle selector KNOB to
‘WASH.RINSE’.
(In the case of
drain pump
‘WASH’)
2. Supply the proper amount of water
so as not to delete one space overflow
the top of the washing tub.
3. Set the WASH TIMER to
2~3 minutes.
4. Drain the water. Set the delete
one space cycle selector
KNOB to ‘DRAIN’.
5. Repeat this cycle until drain
water is clean. (2~3 cycles)
OVER FLOW RINSE
1. Keep supplying
water(adjust water
pressure to ensure
that the amount of
water supplied does not exceed the amount
of water drained.)
2. Set the WASH TIMER
6~8 minutes.
3. As soon as the
WASH TIMER
shuts off, turn off
the water tap.
4. Set the CYCLE
SELECTOR KNOB
to ‘DRAIN’.
W ASHING PROCEDURE
Soft
Normal
WASH SELECTOR
WATER SELECTOR
Wash
Spin
Wash/Rinse
Drain Rinse
CYCLE SELECTOR
Wash
Drain
CYCLE SELECTOR
Wash/Rinse
Drain Rinse
CYCLE SELECTOR
Wash
Drain
CYCLE SELECTOR
Wash/Rinse
Drain Rinse
CYCLE SELECTOR
Wash
Drain
CYCLE SELECTOR
0
3
1
4
2
5
SPIN DRY TIMER
0
9
3
12
6
15
WASH TIMER
0
9
3
12
6
15
WASH TIMER
0
9
3
12
6
15
WASH TIMER
0
9
3
12
6
15
WASH TIMER
inner lid
safty cover
3

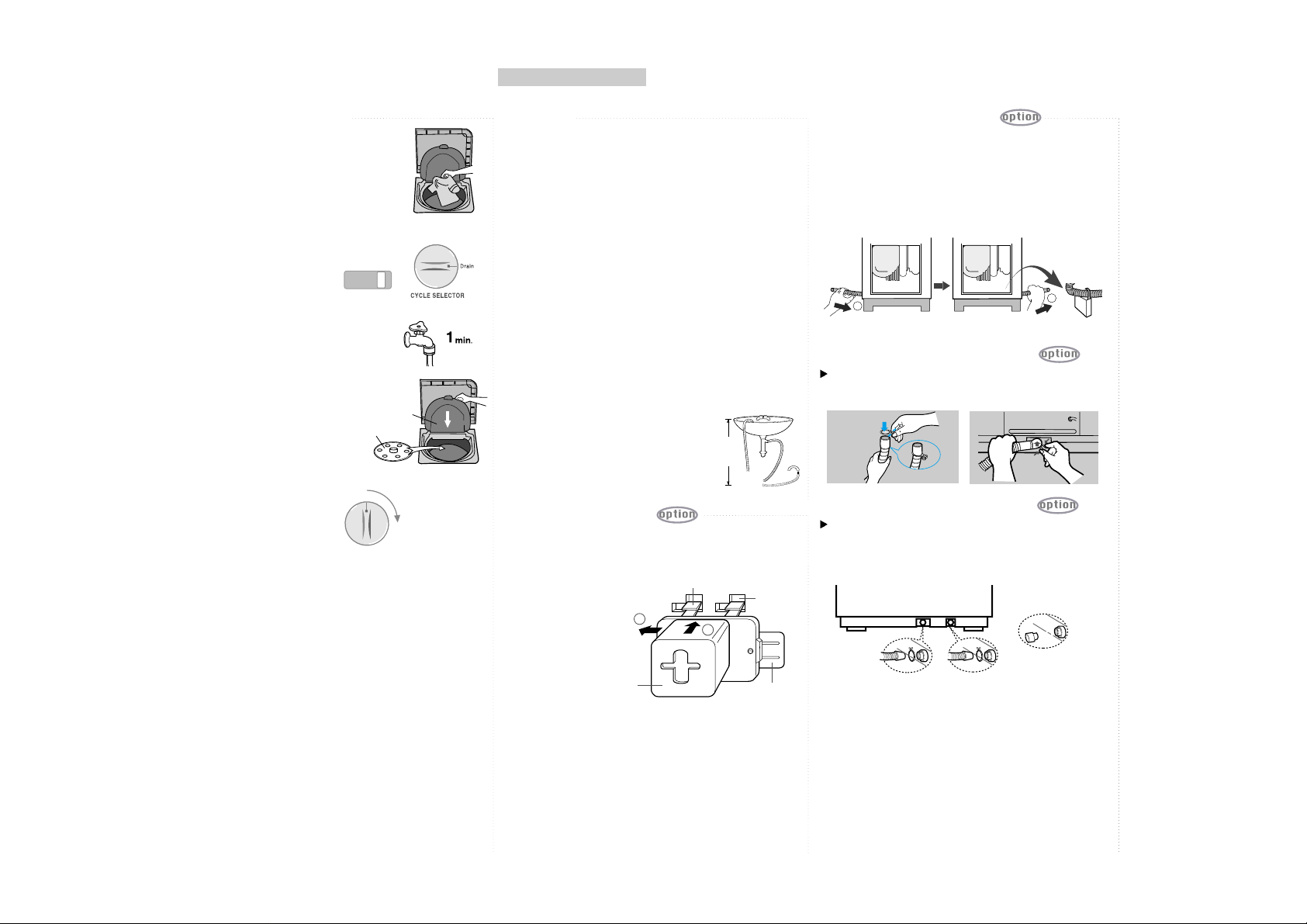

1 After rinsing you can select this
course for more effective rinse
(Don't just select this course
for rinse.) Load the laundry
evenly into the spin basket.
2 Set the WATER SELECTOR
KNOB to SPIN and
CYCLE SELECTOR
KNOB to ‘DRAIN’.
3 Supply water for about 1 minute.
Adjust the water flow to prevent
overflow from the wash tub.
4 After completing the water supply,
cover the laundry with
safety cover and close
the inner lid.
5 Close the spin dryer lid.
6 Set the SPIN DRY
TIMER 2~3 minutes.
Leave some space of
at least 15cm between the washing machine
and the wall.
Place the washing machine on a sturdy flat
surface.
If the washer is placed on an uneven or weak
surface, noise or vibration may be occured.
(Allowable is 2˚)
Never install the washing machine near water.
Do not place the washing machine in steamy rooms
or where the washing machine is directly exposed
to rain. Moisture may damage electrical insulation
and cause an electrical shock to occur.
Avoid direct sunlight or heating devices.
As plastic and electrical components are affected
by direct heat, never place the washing machine
near heaters, boilers, etc., or under direct sunlight.
Install the drain hose
about 70~80cm above
the ground for pump model.
MOUNTING THE LEGS
Lay down the washer with its back facing
downward. Insert four legs into the leg mounting
sections of the base corners of the main body.
Insert the claw of the
leg with the square
hole of the leg
mounting section,
and push the leg in
the arrow direction
as shown in the
figure until it clicks.
Before attempting to change the position of the
drain hose, disconnect the plug from the outlet.
1. Route the drain hose inside the machine.
2.Take out the drain hose from the opposite hole
and insert the drain hose into the hose holder.
CONNECTING THE DRAIN HOSE
After attaching the connector ring(a), insert
the drain hose(b) in the draining direction.
CONNECTING THE DRAIN HOSE
1. Before connecting the drain hose, remove
the cover (a) from the drain hole.
2. After pressing the joint ring (b), insert the
drain hose(c) to drain direction.
WATER SELECTOR
Wash
Spin
70~80cm
Claw
Square
hole
Bottom face of
main body
Leg
1
2
inner lid
safety
cover
0
3
1
4
2
5
SPIN DRY TIMER
INSTALLATION
ADDITIONAL RINSE
LOCATION
CHANGING THE POSITION OF THE DRAIN HOSE
4
a
b
(In case of pump
drained washer)
(C)
(b)
(C)
(b)
(a)
2
1
Hose holder
TYPE OF CLOTHING
Extremely soiled
heavy fabric
Linen, cotton, etc.
Ordinary clothes
(underwear,etc)
Slightly soiled
synthetic fiber
100% wool, mixed wool knitting,
thin synthetic fiber with
tags indicating hand washing
TO LOAD THE LAUNDRY INTO
THE SPIN BASKET.
Press the laundry evenly and put the safety
cover into the spin basket as shown in the
figure.
TO RETRIEVE THE CLOTHING THAT HAS
FALLEN BETWEEN THE BASKET AND TUB.
For safety reason, pull the power supply plug out of the
socket.
1. Unscrew the spin dryer hatch.
2. The spin dryer hatch is
fixed to the brim by the
concave and convex
parts at two places.
Expand the concave and
convex parts,and pull up
the spin dryer hatch to
remove it.
3. Retrieve the clothing.
4. Close the spin dryer hatch. Push the hatch
firmly until the catch at the front is securely
attached.
WASHING TIME
The amount of detergent
is average. Follow the
instruction printed on the
package for amount of
detergent. Choose the
amount of detergent
according to the fabric type.
The washing
machine does
not work.
Clothes do
not move freely.
Incomplete
spinning
Incomplete
draining
The spin dryer
basket will not
run.
Check that the power cord is properly
connected to a power outlet.
Is there a power failure?
Is the machine overloaded?
Is the laundry arranged
evenly?
Is the filter clogged with lint?
• See “Cleaning of parts”.
Is the spin dryer lid closed
completely?
Are laundry items (socks, etc.) falling
out of the spin dryer basket and
clinging to the axle?
• See “To retrieve...”on page 5.
WASHING
SELECTION
NORMAL
SOFT
WASHING TIME
10 to15 minutes
8 to10 minutes
7 minutes
2 to 5 minutes
2 to 5 minutes
TYPE OF FABRIC
Thin (synthetic fiber)
wool
cotton
thick (cotton)
SPIN DRY TIME
DETERGENT
TIME
1 min.
1~2 min.
3~5 min.
5 min.
AMOUNT OF
DETERGENT
30g
40g
50g
WATER
LEVEL
Low (30l )
Medium (40l )
High (50l )
TROUBLE CHECK POINT
DETERGENT
In case the water level is at “High”,
amount of water is 42l.
Follow the directions printed on the package
for amount of detergent. Choose the amount of
detergent depending on the fabric type and
water level.
AFTER OPERATION
1. Remove the power cord from the outlet.
2. Take out the laundry.
3. Close the water tap and disconnect the water
supply hose.
4. Clean the washing machine.
- Periodical cleaning will extend the life of your
washing machine.
- Do not spray the unit water or use tinner, benzene,
alcohol etc, for cleaning it.
LAUNDRY GUIDE MAINTENANCE TROUBLE SHOOTING
-H-
CLEANING THE WASHING MACHINE
Wipe off stains on the cabinet and operation pane
with a soft cloth. Neither use benzene, thinner,
cleanser, or wax, nor scrub the washing machine
with a brush. Painted surfaces or plastic parts will
be damaged.
5
SPECIFICATIONS
DC68 - 00099A-01
DIMENSIONS
WATER PRESSURE
WEIGHT
EXTRACTION EFFICIENCY
STANDARD QUANTITY OF WATER
RATING TIME
SW-T65A1P 776 434 844 mm
SW-T65B1P 776 444 953 mm
SWT65C1P 776 434 941 mm
0.05~0.78 MPa(0.5~8.0 Kg
SW-T65A1(P) 24Kg(26Kg)
SW-T65B1(P) 26Kg(28Kg)
SWT65C1(P) 26Kg(28Kg)
50 %
50 l
Washing 1 Hour / Spinning 15 minutes
Loading...
