Page 1

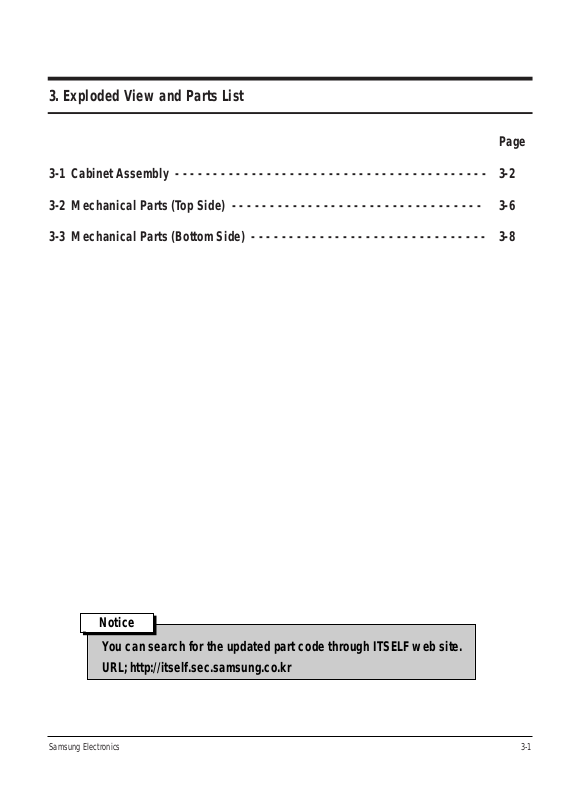

Samsung Electronics 3-1

3. Exploded View and Parts List

3-1 Cabinet Assembly - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

3-2 Mechanical Parts (Top Side) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

3-3 Mechanical Parts (Bottom Side) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Page

3-2

3-6

3-8

You can search for the updated part code through ITSELF web site. URL; http://itself.sec.samsung.co.kr

Notice

Page 2

Exploded View and Parts List

3-2 Samsung Electronics

3-1 Cabinet Assembly

S.N.A : Service Not Available

BRACKET-FRAME

(S.N.A)

BOTTOM-COVER (S.N.A.)

FULL DECK (S.N.A)

SVR-673/670/473/273/170 SVR-2701(B)/171(B)

SVR-679

VCR STANDBY/ON TV STANDBY/ON

SLOW

SHUTTLE

V-LOCK

CLR/RST F.ADV INDEX

TV VCR INPUT

REPEAT

VOL PROG/TRK

AUDIO

REC MENU

SPEED DUB TV/VCR TIMER

DISP./

SELECT

-/--

C015

P020

P001

P025

W007

W006

W001

C003

C012

C001

A001

Page 3

Exploded View and Parts List

Samsung Electronics 3-3

Loc. No Parts No. Description ; Specification Remark

A001 AC59-00048C REMOCON-ASSY;PAL_M3,-,-,-,38KEY,-,-,-,-, C001

Refer to table below

ASSY-PANEL FRONT;

C003

Refer to table below

DOOR-CASSETTE; C012 AC61-62032A SPRING ETC-MASK;SV-C130,SUS,4.4,-,-,-,-, C015 AC64-01306A CABINET-TOP;SVR-673,TECTURE,T0.5,W360,L2 P001

Refer to table below

ASSY PCB-MAIN; P020

Refer to table below

CONNECTOR-BOARD; P025 AC39-10019A CBF POWER CORD;KKP-419C,H03VVH2-F,VDE/KE W001 6003-000275 SCREW-TAPTITE;BH,+,B,M3,L10,BLK ,SWCH101 W006 AC60-12126A SCREW-BH;-,-,FE,FZY,BH,-,-,4*12,-,W007 AC60-10063A SCREW-TAPTITE;-,-,L12,ZPC3,+,-,M3,-,SWRC

MODELS C001 C003 P001 P020 T001

SVR-679 AC97-02282E AC64-01294E AC92-01468F AC61-00350A AC97-02257A SVR-673 AC97-02337E AC64-01350E AC92-01468F AC61-00350A AC97-02257A SVR-670 AC97-02285D AC64-01308D AC92-01468G AC61-00350A AC97-02257A SVR-473 AC97-02337F AC64-01350F AC92-01468H AC61-00354A AC97-02255A SVR-273 AC97-02337G AC64-01350G AC92-01468L AC61-00354A AC97-02252A

SVR-2701 AC97-02486C AC64-01349D AC92-01468N AC61-00354A AC97-02252A

SVR-2701B AC97-02486D AC64-01349C AC92-01468N AC61-00354A AC97-02252A

SVR-170 AC97-02285E AC64-01308E AC92-01468M AC61-00369A AC97-02251A SVR-171 AC97-02486A AC64-01349A AC92-01468P AC61-00369A AC97-02251A

SVR-171B AC97-02486B AC64-01349B AC92-01468P AC61-00369A AC97-02251A

Page 4

Exploded View and Parts List

3-4 Samsung Electronics

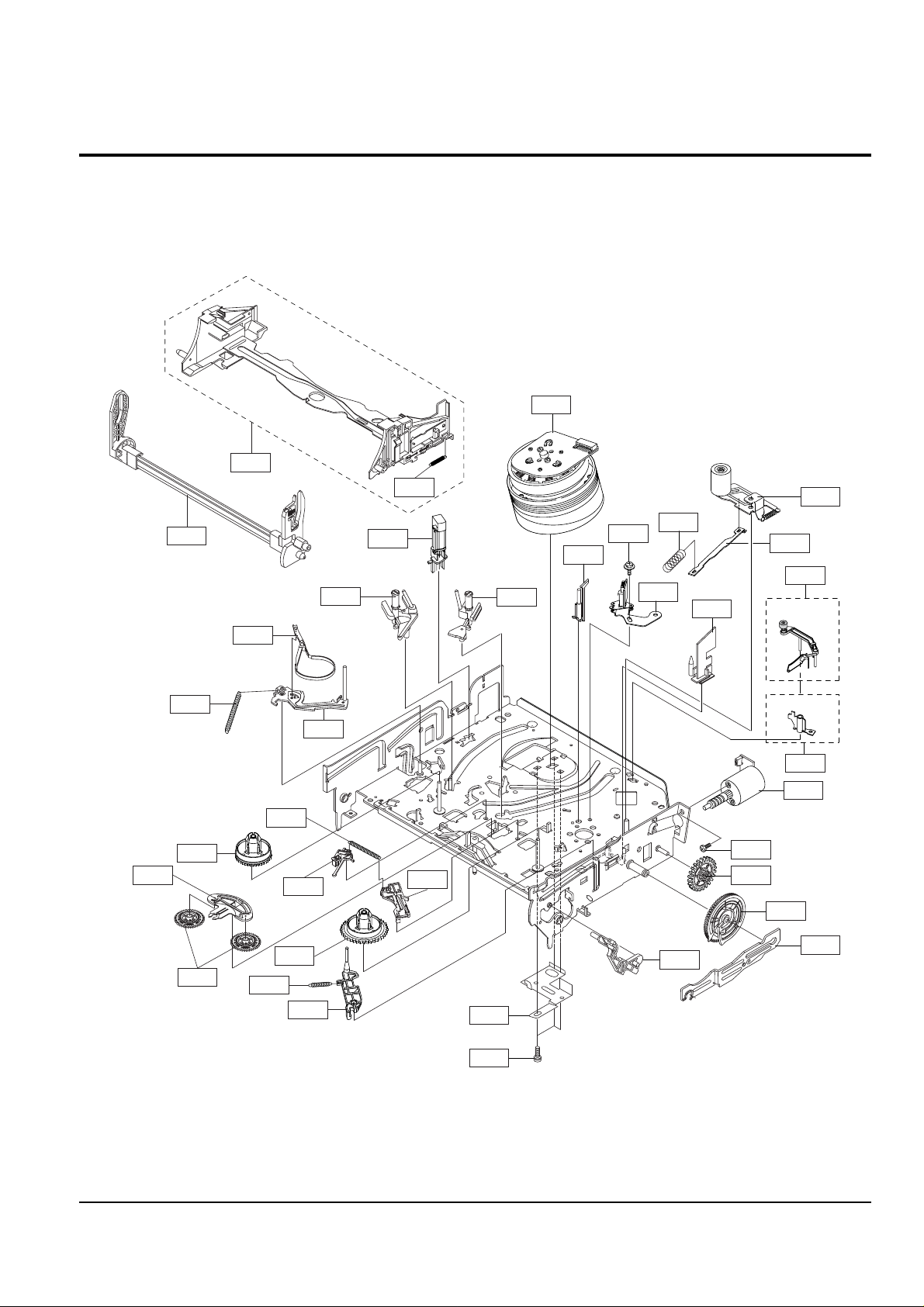

3-2 Mechanical Parts (Top Side)

(OPTIONAL)

T001

T016

T031

T013

T009

T008

T030

T032

T023

T015

T007

T017

T033

T006

T010

W016

T003

T018

W017

T004

T005

T029

T012

T020

T026

T027

T028

T024

T025

T019

T022

T021

T011

T002

T014

W015

Page 5

Exploded View and Parts List

Samsung Electronics 3-5

Loc. No Parts No. Description ; Specification Remark

T001

Refer to table ; Page 3-3

ASSY-CLLINER;6PD,CX11-SEM,FOR SLIM DECK T002 AC70-00002A PLATE-GND DECK;X-11,SPTE,T0.3,-,-,-,T003 AC31-00018A MOTOR-LOADING ASSY;-,SCORPIO2(TS-10A),-, T004 AC66-00008A GEAR-WORM WHEEL;TS-10,POM,0.8,40,-,NAT,3 T005 AC66-00011A GEAR-FL CAM;TS-10,POM,0.8,59,-,BLK,48.48 T006 AC61-00105A SPRING ETC-PINCH DRIVE;TS-10,SUS304-WPB, T007 AC61-30180A PLATE-JOINT;X-9,SECC20/20,T0.8,-,-,-,T008 AC66-80142A SLIDER-SUPPLY ASSY;X-9,SUS,-,-,-,SIL,T009 AC66-80141A SLIDER-TAKE UP ASSY;X-9,SUS,-,-,-,SIL,T010 AC97-01655A ASSY-HEAD ACE;-,SCORPIO2(TS-10A),HVMXA11 T011 AC66-00074A LEVER-GUIDE(#9);TS-9,PPS,-,-,-,-,BLK,KHA T012 AC61-60553A SPRING ETC-GUIDE 9;X-9,SUS304-WPB,0.25,T013 AC33-00015A HEAD-FE;HVFHP0043A,PBT3300,2PIN,BLACK, T014 AC66-00083A LEVER-FL DOOR;X-11,POM(K300),-,-,-,-,BLU T015 AC97-02293A ASSY-UNIT PINCH;SECC+SUS304,TS-10,FOR XT016 AC97-02215A ASSY-POST #8 GUIDE;SUS303+POM(M90-44)EQ, T017 AC66-00046A LEVER-HEAD CLEANER ASS’Y;TS-10,POM+URETH (OPTIONAL) T018 AC61-50686A SLEEVE-HEAD CLEANER;-,POM,-,-,-,-,-,-,TS (OPTIONAL) T019 AC66-10267A REEL-DISK S;X-9,POM,-,-,-,-,-,T020 AC66-10268A REEL-DISK T;X-9,POM,-,-,-,-,-,T021 AC66-30524A LEVER-IDLER;-,POM,-,-,-,-,BLK,T022 AC66-00039A GEAR-IDLE;TS-10,PET K3372,0.5,-,-,NTR,28 T023 AC66-00035A LEVER-TENSION ASS’Y;TS-10,SECC E20/20+SU T024 AC61-00107A SPRING ETC-TENSION LEVER;TS-10,SUS304-WP T025 AC69-00104A BAND-BRAKE ASS’Y;TS-10,-,-,-,-,-,T026 AC66-30550A LEVER-S.BRAKE ASSY;-,POM+SUS,-,-,-,X-9 T027 AC66-30549A LEVER-T.BRAKE ASSY;-,POM+SUS,-,-,-,X-9 T028 AC61-00106A SPRING ETC-BRAKE;TS-10,SUS304-WPB,-,-,-, T029 AC66-00020A SLIDER-FL DRIVE;TS-10,SECC ,T1.0,-,-,SIL T030 AC61-00120A HOLDER-FL CASS. ASS’Y;TS-10,-,-,-,-,-,T031 AC61-60561A SPRING ETC-FL.LEVER-LR;X-9,SUS304 WPB,OD T032 AC97-02194A ASSY-LEVER FL ARM;SECC+POM+SUS,X-11,For T033 AC61-50658A GUIDE-CASS. DOOR;X-9,POM,-,-,-,NTR W015 6006-001092 SCREW-ASS’Y MACH;WS,PH,+,M3.0,L6.0,ZPC(Y W016 6006-001154 SCREW-ASSY TAPT;WSP,PH,+,M2.6,L5.6,ZPC(Y W017 AC60-10515A SCREW-MACHINE;-,-,M3,L3,PH,+,-,-,ZPC,-

Page 6

Exploded View and Parts List

3-6 Samsung Electronics

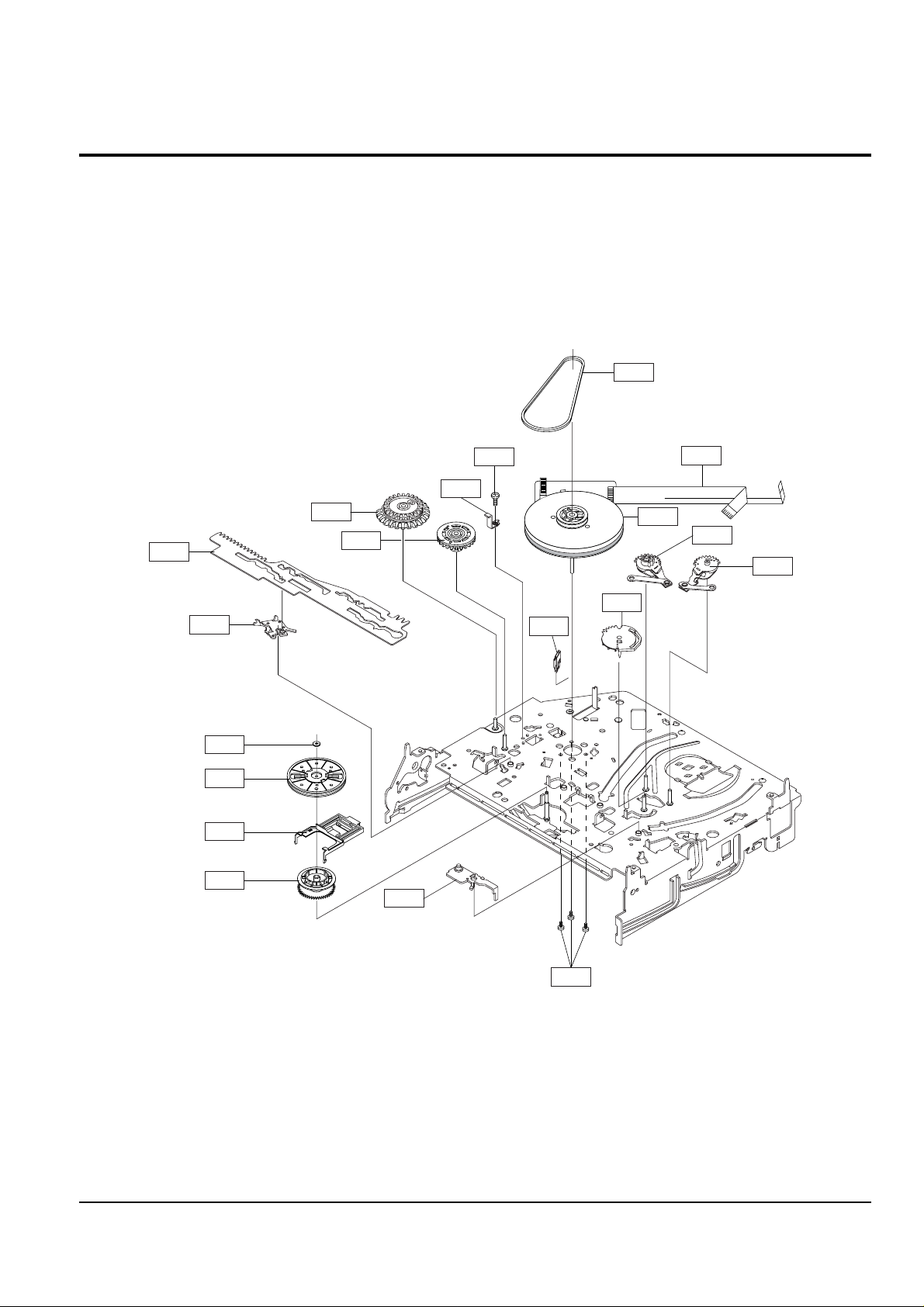

3-3 Mechanical Parts (Bottom Side)

T046

T045

T041

T039

T042

T043

T044

W018

T035

T037

T038

T049 T047

T050

T048

T040

W019

T034

T036

Page 7

Exploded View and Parts List

Samsung Electronics 3-7

Loc. No Parts No. Description ; Specification Remark

T034 AC66-00076A GEAR-JOINT 1;X-11,POM(K300),-,-,-,BLUE,T035 AC66-00077A GEAR-JOINT 2;X-11,POM(K300),-,-,-,BLUE,T036 AC61-00338A BRACKET-GEAR;X-11,SECC,T0.8,W20,L20,NTR, T037 AC66-00075A SLIDER-CAM;X-11,SECC ,T1.2,-,-,SIL,T038 AC66-00017A LEVER-PINCH DRIVE;TS-10,SECC E20/20,1.0 T039 AC70-00003A HOOK-CAPSTAN;-,-,L10,W10,H10,POM(M90-44) T040 AC66-00016A LEVER-TENSION DRIVE;TS-10,SECC E20/20,1 T041 AC66-00078A GEAR-LOADING DRIVE;X-11,POM(K300),-,-,-, T042 AC97-02195A ASSY-LEVER LOADING S;SECC+POM+SUS,X-11,F T043 AC97-02196A ASSY-LEVER LOADING T;SECC+POM+SUS,X-11,F T044 AC81-00002A MOTOR-CAPSTAN;THRUST END PLAY-0.2,MR-FG T045 3809-001270 CABLE-FLAT;30V,80C,140MM,10P,1.25MM,UL28 T046 AC66-60051A BELT-PULLEY;-,5CM-70,2 * 2,-,71.3,-,X-9 T047 AC61-21012A HOLDER-CLUTCH ASSY;X-9,ABS,-,-,-,BLK,T048 AC66-20581A GEAR-CENTER ASSY;X-9,POM,M=O.5,-,-,GRY,T049 AC60-30306A FASTENER-WASHER SLIT;-,-,ID2.1,OD5.0,T0. T050 AC66-00006A LEVER-UP DOWN;TS-10,POM,-,-,-,-,NAT,W018 6003-001450 SCREW-TAPTITE;PH,+,S,M2.6,L5,ZPC(YEL) W019 6003-000108 SCREW-TAPTITE;BH,+,B,M2.6,L6,ZPC(YEL),SW

Page 8

Exploded View and Parts List

3-8 Samsung Electronics

MEMO
