Super High Resolution UTP Dome Camera SUD-3080F User Guide
Before installing and operating this product,
please read this manual thoroughly.
ENGLISH
Before operating the camera, confirm the camera model and correct input power
voltage. To help you understand this manual thoroughly, we'll introduce our model
description.
SUD-3080F SERIES
• NTSC MODELS • PAL MODELS
SUD-3080FN SUD-3080FP
MODEL DESCRIPTION
• SUD-3080FX
_
SIGNAL SYSTEM
• SIGNAL SYSTEM
N Ą NTSC MODEL
P Ą PAL MODEL
The lightning flash with an arrowhead symbol, within an equilateral triangle
is intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product's enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
INFORMATION -
for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his
own expense.
WARNING -
WARNING -
Do NOT use power sources other than that specified.
Do NOT expose this appliance to rain or moisture.
This equipment has been tested and found to comply with limits
Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the
equipment.
To prevent electric shock and risk of fire hazards:
This installation should be made by a qualified service person and
should conform to all local codes.
Contents
Contents
Features
•
Features
ДДДДДДДДДДДДДДДДДДДДДДДДДД
Precautions
•
Components and Accessories
•
•
Overview
•
Installation
■
ДДДДДДДДДДДДДДДДДДДДДДДДД
ДДДДДДДДДДДДДДДДД
ДДДДДДДДДДДДДДДДДДДДДДДДД
ДДДДДДДДДДДДДДДДДДДДДДДДД
Installation
ДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДД
■ Adjust the panning, tilting and rotate mechanism while checking the position on the monitorÄ
■
Adjusting varifocal lens zoom and focus
•
Connection
■
ДДДДДДДДДДДДДДДДДДДДДДДДД

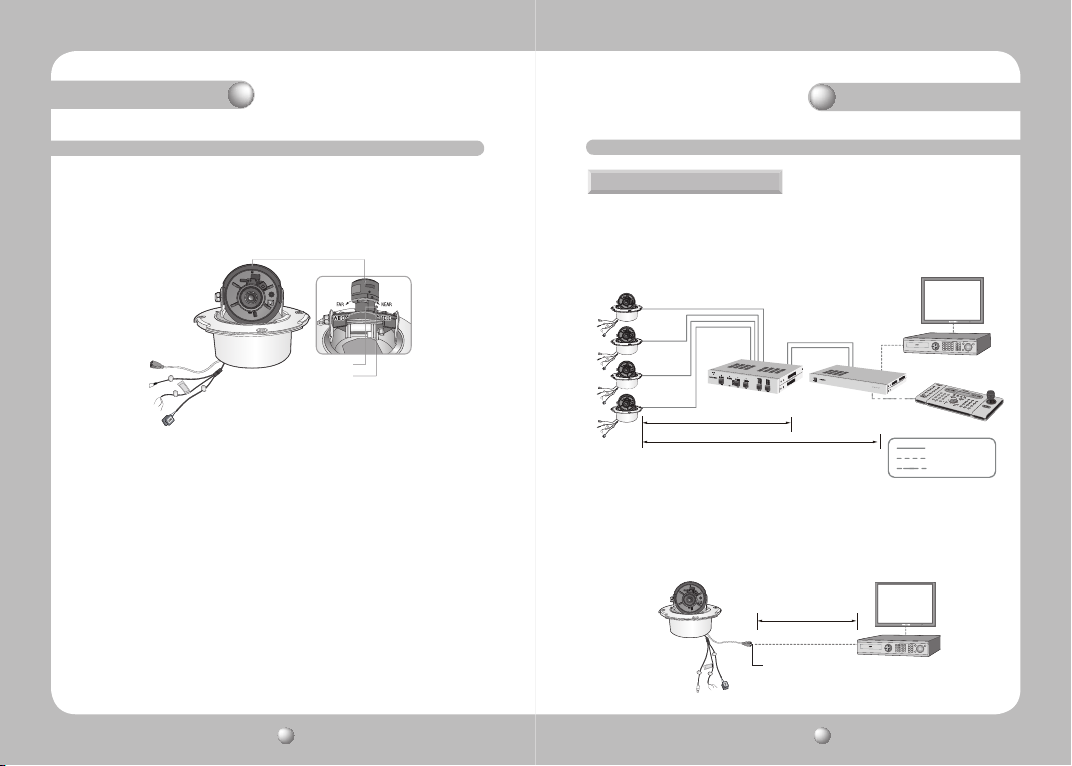

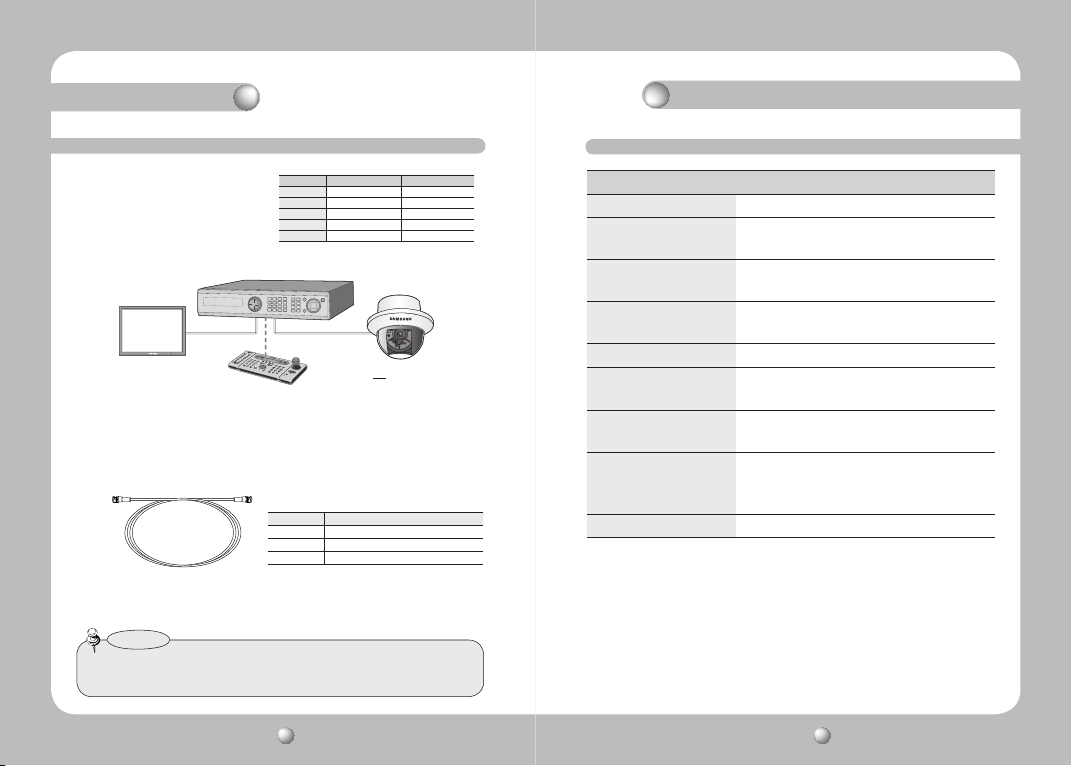

System Diagram
ДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДД
■ RJ-45 Connector Schematic Diagram
■ Using Coaxial Communications
By adopting a double-speed 410,000 pixel Sony CCD,
the camera produces clear picture quality with a
horizontal resolution of 600 TV lines for color, and 700
TV lines for B/W.
Excellent Sensitivity
The built-in high sensitivity COLOR CCD produces a
clear image.
- Color : 0.3 Lux (50IRE, @F1.2),
0.0006LUX (SENS-UP, x512)
- B/W : 0.01 Lux (50IRE, @F1.2),
0.00002 LUX (SENS-UP, x512)
Intelligence
Without assistance from an external sensor, this
camera independently detects and traces objects
while examining stillness and movement to activate
the alarm.
SSNR3 (Samsung Super Noise
Reduction) Function
The high-performance SV-V DSP chip effectively
removes low-light gain noise and afterimage to
provide clear images even in dark environments.
Day&Night (ICR)
This camera has a function that automatically selects the
mode that is appropriate for daytime or night-time
conditions.
The COLOR mode operates in daytime conditions to
provide optimum colors, and B/W mode operates in nighttime conditions to enhance the definition of the image.
SSDR
(Samsung Super Dynamic Range)
For images with high contrast between bright and
dark areas from difficult lighting conditions such as
backlighting, this camera selectively illuminates
darker areas while retaining the same light level for
brighter areas to even out the overall brightness.
PROFILE
You can set a mode according to the camera
installation conditions.
- BASIC, DAY/NIGHT, BACKLIGHT, ITS, INDOOR, USER
PIP
Displays a full-size image along with the thumbnail.
WDR
By adopting a proprietary SV-V DSP chip, the camera
delivers clear, high quality pictures even in backlight, by
increasing exposure in dark areas while decreasing it in
bright areas; a corrected image with clear details results.
VPS(Virtual Progressive Scan)
Adopting Samsung’s unique development, the VPS
(Virtual Progressive Scan) enhances the sharpness of
moving subject’s outline. The VPS enables elective
output in progressive mode using the existing
interlaced input and effectively enhances the
sharpness of captured pictures from video and still
images. The function effectively removes blurred
outline problems resulting in excellent road
monitoring and improved license plate recognition.
UTP TX
One UTP cable transmits power for the camera, video
signals and RS-485 data; installation is easy and clean.
(TIA/EIA-568B)
COLOR DOME CAMERASUD-3080F
4
COLOR DOME CAMERASUD-3080F
5
Features
Contents
DIS (Digital Image Stabilizer)
The DIS function compensates for any camera
movement, to produce more stable pictures.
Miscellaneous Functions
HLC(High Light Compensation), SENS-UP, REVERSE ,
D-ZOOM, SHARPNESS and PRIVACY functions are
provided.
Communication
RS-485 and Coaxial communication methods are
supported.
Samsung Techwin cares for the environment at all product manufacturing
stages to preserve the environment, and is taking a number of steps to provide
customers with more environment-friendly products. The Eco mark represents
Samsung Techwin's will to create environment-friendly products, and
indicates that the product satisfies the EU RoHS Directive.
Warnings & Cautions
This information is provided to ensure your safety and to prevent any losses, financial or
otherwise. Please read it carefully and use the product accordingly.
* For product inquiries, please contact the retail shop where you bought the camera. The use of equipment such as
an aerial ladder while providing after-sales service shall be at your expense.
* Separate the power plug during a thunder storm.
* This product is support equipment for surveillance system. Therefore, we can't compensate for material loss and/or
personal injuries by robbery, fire, natural disaster or other such events.
Warning/Attention/Special Mark Messages
COLOR DOME CAMERASUD-3080F
6
Ignoring this information may
result in material loss and/or
serious personal injuries including
death.
Indicates "Never Allowed."
COLOR DOME CAMERASUD-3080F
Ignoring this information may
result in material loss and/or a
slight injuries.
Indicates "No Disassembling."
7
Precautions
Do not install under extreme
temperature conditions.
Use only under temperature conditions between
-10°C and +50°C. Provide good ventilation
when using in high temperature conditions.
Do not install under unstable
lighting conditions.
Severe lighting changes or flickering may
hinder normal camera operation.
Do not drop the camera or subject it
to physical shock.
May cause a product malfunction.
Do not install in high humidity
environment.
May lower image quality.
Avoid touching the camera lens.
The lens is the most important component
of the camera. Be careful not to smear it
with fingerprints.
Never keep the camera face to
strong light directly.
May damage the CCD.
Do not expose the camera to
radioactivity.
If exposed to radioactivity, the CCD will fail.
When connecting cables, be sure to
read the instructions carefully and
follow each step as instructed.
Do not expose the camera to rain or
other types of liquids.
May cause a product malfunction.Wipe dry any
liquids. Liquids may contain minerals that are
corrosive to electronic components.
Failure to do so may result in critical
system damage.
Notes
• Exposure to a spotlight or an object emitting strong light may cause smear or
blooming.
• Ensure that the power source complies with normal specifications before
supplying it to the camera.
COLOR DOME CAMERASUD-3080F
8
COLOR DOME CAMERASUD-3080F
9
Components and Accessories
Overview
❶
➋
Super High Resolution UTP Dome Camera SUD-3080F User Guide
Before installing and operating this product,
please read this manual thoroughly.
ENGLISH
➏
❶
Super High Resolution UTP Dome Camera SUD-3080F
➋
Instruction Manual
➎
Template
➌ M4 Tapping Screw 4EA
➏
Installation Video Output Cable
Overview
⓭
➐
➑
❿
⓫
⓬
➒
⓮
R
E
D
W
(
M
H
I
B
D
T
L
_
E
A
O
(
C
E
U
X
K
T
T
(
_
G
D
N
N
D
)
)
➌
➍
➍
➋➌➊
➎
➎
M4 Machine Screw 4EA
➏
➍
❶
Pan Bracket : Control panning angle of camera.
➋
Rotate Body : Control rotating angle of camera.
➌
x3.9 Vari-focal Lens Module 2.8 ~ 11mm (F1.2)
➍
Flush Housing
➎
Video Output Terminal to Monitor
➏
Function Setup switch : Display the menu on the screen and move the cursor to four
➐
UTP Cable : For supplying AC 24V / AC28V power to the camera and transmitting video
➑
Video Output Jack : Video signals are output through this port. Connect this port to the
➒
Power Input Terminal : If the UTP cable cannot be connected for power supply
❿
MD Output Terminal : Motion detection signals are output through this terminal.
⓫
D & N Input Terminal : You can switch to Day & Night Mode by connecting an external
⓬
Ground Terminal
directions to confirm status or changing a selected item.
signals.
Video IN port of a monitor.
(distance over 300m(1000ft), for example), this cable is used
instead for connecting DC 12V / AC 24V power to the camera.
signal to this terminal.
⓭
Dome Cover
⓮
Shield Case
Notes
•
Be sure to connect the Day & Night input terminal to GND when using an external input.
COLOR DOME CAMERASUD-3080F
10
COLOR DOME CAMERASUD-3080F
11
Installation
Installation
Notes
• The installation should be done by qualified service personnel or sytem installers.
• If the ceiling material is not strong enough to hold the installation screws, the camera
may fall off. Reinforce the ceiling as needed.
1) Separate the dome cover by rotating anti-clockwise.
2) Separate the shield case by pulling from the camera body.
* To install the dome cover on the camera
body, turn the latches in locking direction as
shown in the figure 1.
BLACK (GND)
WHITE (EXT_DN)
[Figure 1]
RED (MD_OUT
Locking direction
Latch
Unlocking direction
(Anti-clockwise)
)
)
D
N
N
D
G
_
(
T
T
K
X
U
E
C
(
O
A
E
_
L
T
D
B
I
H
M
(
W
D
E
R
Main Body
(Camera)
Shield Case
Locking direction
(Clockwise)
Dome cover
Recessed installation of attachments
1) Place the template on the ceiling. Drill a hole of 95mm in the template. Drop the camera
cables down from the ceiling through the hole. Drill another but a small hole for a screw that
will be used to secure the camera.
COLOR DOME CAMERASUD-3080F
12
COLOR DOME CAMERASUD-3080F
13
Installation
2) Connect the camera cables, fit the camera body to the hole, and then secure the camera
body in the ceiling using the M4 tapping screws.
Ceiling
M4 tapping
screw(provided)
3) After installation and adjustment of the camera are complete, place the shield case on the
camera body. Secure the dome cover by turning it clockwise.
M4 tapping
screw(provided)
Ceiling
COLOR DOME CAMERASUD-3080F
14
Adjust the panning, tilting and rotate mechanism while checking the position on the monitor
145°195°
170°
Pan Bracket
170°
RE
W
D
H
(M
B
IT
L
AC
D
E
(E
_O
K
XT_
(G
UT
ND)
DN
)
1) You can adjust the camera to any direction by using Pan, Tilt, Rotate mechanism.
• Pan Bracket moves by 170° in each direction or 340° on the whole.
• Tilt Base covers total 73˚ angle(0˚ ~ 73˚).
• The angle range of the Rotate Body is the same as that of the Pan Bracket. But one
direction range is 195° and another is 145°
2) Methods of adjustment
• Mounting on a wall
➊
After mounting the camera on a wall, adjusting the panning angle so that the camera can face the direction to
monitor when tilted.
➋
Adjust the tilting angle by rotating the tilt base.
➌
Loosen the rotate base hold screw and adjust rotate base for the best view.
➍
Tighten the rotate base hold screw.
• Mounting on a ceiling
➊
After mounting the camera on a ceiling, adjusting the panning angle to the correct viewing position by rotating
the pan base.
➋
Adjust the tilting angle by rotating the tilt base.
➌
Loosen the rotate base hold screw and adjust rotate base for the best view.
➍
Tighten the rotate base hold screw.
COLOR DOME CAMERASUD-3080F
15
73°
Rotate Body
Tilt Body
Installation
Connection
Adjusting varifocal lens zoom and focus
1) Unlock the zoom(focus) handle by turning anti-clockwise.
2) Adjust the zoom(focus) by moving the handle to WIDE(FAR) or TELE(NEAR).
3) After adjustment, tighten the zoom (or the focus) handle, taking care that the adjusted
position does not change.
The maximum power transmission distance for the camera is 300m(1000ft), and the
distance between the camera and the 4ch Receiver cannot exceed 900m(3000ft).
RE
W
D
HIT
BL
(M
A
D
E
CK
_OUT
(EXT
(
G
_D
N
D
N)
)
R
ED
W
HITE
B
(
M
LA
D
C
_OU
(EX
K
(
T_
G
T
N
D
D)
N)
R
ED
W
H
B
(
M
ITE
LA
D
CK
_OU
(EX
(
T_D
G
T
N
D
N)
)
R
ED
W
H
BL
(M
ITE
AC
D_OU
(EX
K
(GN
T
T
_D
D)
N
)
SUD-3080F
SPU-400
300m(1000ft) or Less
900m(3000ft) or Less
2. UTP Receiver Link Setup(Additional Power input is needed)
SUD-3080F
Ą 1Ch Passive Receiver Ą DVR Ą Monitor
T
U
O
_
D
)
N
M
(
D
_
D
T
E
X
R
E
(
E
)
T
I
D
H
N
W
G
(
K
C
A
L
B
RS-485
VIDEO
SPU-400R
225m(750ft) or Less
1Ch Passive Receiver
C
H
1
C
H
2
C
H
3
C
H
4
SCC-3100A
UTP CABLE
BNC CABLE
RS-485
COLOR DOME CAMERASUD-3080F
16
COLOR DOME CAMERASUD-3080F
17
Connection
Notes
• Using the product with third-party UTP peripherals may result in degradation of product function
and performance.
• Attenuation and distortion in signal may occur if the maximum transmission distance is exceeded.
Please note that depending on the installation environment/condition, the signal may become
attenuated and distorted and cause the camera to function incorrectly even when the transmission
distance is within the maximum.
• If using RS-485 communication, please use the SAMSUNG-T, SAMSUNG-E, PELCO-D, PELCO-P,
BOSCH, HONEYWELL, VICON and PANASONIC Protocol.
• If you are using the 1Ch Passive Receiver system setup, please connect the adapter (AC 24V or
DC 12V) directly to the camera.
UTP CABLE
The camera uses UTP cable for transmitting video signals, power and transferring RS-485 control
data.(TIA/EIA-568B)
No.Line ColorCamera to Power Supply Power Supply to Receiver
1White+OrangeVIDEO (+)
2OrangeVIDEO (-)VIDEO (-) / RS-485 (-)
3White+GreenRS485 (+)
4BluePOWER (-)VIDEO (-) / RS-485 (-)
5White+BluePOWER (+)
6GreenRS485 (-)VIDEO (-) / RS-485 (-)
7White+BrownPOWER (+)
8 BrownPOWER (-)VIDEO (-) / RS-485 (-)
➊
➑
CH1
CH2
CH3
CH4
VIDEO (+) / RS-485 (+)
VIDEO (+) / RS-485 (+)
VIDEO (+) / RS-485 (+)
VIDEO (+) / RS-485 (+)
➑
➊
RJ-45 Connector Schematic Diagram
Copper Connector
UTP Coating
No.Line ColorCamera to Power Supply Power Supply to Receiver
1White+OrangeVIDEO (+)
2OrangeVIDEO (-)VIDEO (-) / RS-485 (-)
3White+GreenRS485 (+)
4BluePOWER (-)VIDEO (-) / RS-485 (-)
5White+BluePOWER (+)
6GreenRS485 (-)VIDEO (-) / RS-485 (-)
7White+BrownPOWER (+)
8 BrownPOWER (-)VIDEO (-) / RS-485 (-)
The SUD-3080F uses UTP cable to receive its power (AC24V/ AC28V) from the Power Supply.
Therefore, a separate adapter is not required. Please refer to the RJ-45 Connector
Schematic Diagram.
CH1
CH2
CH3
CH4
VIDEO (+) / RS-485 (+)
VIDEO (+) / RS-485 (+)
VIDEO (+) / RS-485 (+)
VIDEO (+) / RS-485 (+)
COLOR DOME CAMERASUD-3080F
18
COLOR DOME CAMERASUD-3080F
19
Connection
Operating Your Camera
Using Coaxial Communications
• Coaxial Communications System
• OSD Control method
k}k
CAMERADVRCONTROLLER
SETMENU/ENTEROSD KEY
UPUP KEYJOYSTICK UP
DOWNDOWN KEYJOYSTICK DOWN
LEFTLEFT KEYJOYSTICK LEFT
RIGHTRIGHT KEYJOYSTICK RIGHT
DVR
: BNC
•
---- : RS-485
•
• Video Cable
The camera's video output port is connected to the monitor with a BNC coaxial cable,
shown below : If the distance between the camera and the monitor exceeds the
recommended maximum, please use an auxiliary video amp.
• It is recommended that pure copper coax cable is used and not copper coated
steel, as this will cause issues with the communication over the coaxial cable.
Menu Configuration
LENS
EXPOSURE
WHITE BAL
BACKLIGHT
SSNR3
DAY/NIGHT
PROFILE
SPECIAL
EXIT
MAIN SETUP
úDC
úBRIGHTNESSúSHUTTER
úSENS-UP úRETURN
úATW
úMANUAL
ú
OFF
ú
SSDR
úON
ú
AUTO
ú
B/W
ú
BASIC
ú
ITS
ú
IMAGE ADJ
ú
INTELLIGENCE
ú
COMM ADJ
ú
SAVE
úOUTDOORúINDOOR
úAWC⳨SET
ú
ú
ú
ú
ú
ú
ú
ú
ú
ú
USER BLC
WDR
OFF
EXTERN
DAY/NIGHT
INDOOR
CAM TITLE
PRIVACY
LANGUAGE
NOT SAVE
úAGC
ú
HLC
ú
COLOR
ú
BACKLIGHT
ú
USER
ú
SYNC
ú
DIS
ú
RETURN
ú
RESET
COLOR DOME CAMERASUD-3080F
20
COLOR DOME CAMERASUD-3080F
21
Operating Your Camera
Menu Setup
Use the Function Setup switch within the camera.
Function Setup switch
1. Press the Function Setup switch.
• Main SETUP menu is displayed on the monitor screen.
Select the function using
the Function Setup switch.
1.LENS DC
2.EXPOSURE
3.WHITE BAL ATW
4.BACKLIGHT OFF
5.SSNR3 ON
MAIN SETUP
6.DAY/NIGHT AUTO
7.PROFILE
8.SPECIAL
BASIC
9.EXIT SAVE
2. Select a desired function using the Function Setup switch.
• Place the cursor over a desired item.
3. Set up a selected item by using the Function Setup switch.
4. To finish the setting, select ‘EXIT’ and press the Function Setup switch .
Change the status using
the Function Setup switch.
Notes
• An item with the
with the icon and press the Function Setup switch.
•
An item with the --- icon is unavailable due to function settings.
icon also has sub menus. To select a sub menu, select an item
LENS
Using this function, you can control the screen brightness.
1. When the SETUP menu screen is displayed, selectÌLENSÍby using the Function Setup
switch so that the arrow indicatesÌLENSÍ.
2.
The Lens mode has sub menu site as listed below.
- BRIGHTNESS : Adjusts the video brightness.
- FOCUS ADJ :
To activate the Focus Settings mode, adjust the lens focus, and then deactivate the settings mode.
You can adjust the shutter value of ESC shutter mode.
To adjust the lens focus correctly, you must activate the Focus Settings mode.
MAIN SETUP
1.LENS DC
2.EXPOSURE
Notes
•
Set the shutter mode to --- if color rolling occurs.
EXPOSURE
MAIN SETUP
1.LENS DC
2.EXPOSURE
1. When the SETUP menu screen is displayed, select ‘EXPOSURE’ by using the Function
Setup switch so that the arrow indicates ‘EXPOSURE’.
2. Select a desired mode using the Function Setup switch.
COLOR DOME CAMERASUD-3080F
22
COLOR DOME CAMERASUD-3080F
23
Operating Your Camera
EXPOSURE SETUP
1.BRIGHTNESS 25
2.SHUTTER ---
3.AGC HIGH
4.SENS-UP OFF
5.RETURN
BRIGHTNESS : Adjusts the video brightness.
SHUTTER : You can select the shutter.
- --- : Shutter speed is fixed at 1/60 sec (1/50 sec).
- ESC : Select this to control the shutter speed automatically. If ESC is selected,
- MANUAL : You can control shutter speed manually.
- A.FLK : Select this when you experience picture flicker, this happen when there
the shutter speed is automatically controlled depending on the ambient
illumination of the subject.
(NTSC MODEL - 1/60sec~1/120,000sec, PAL MODEL - 1/50sec~1/120,000sec)
is a clash with the installed lighting frequency.
Notes
• Set the shutter mode to --- if color rolling occurs.
• When the SHUTTER is set to ESC after selecting the Internal Synchronization Type, the
picture may become unstable if the camera faces a bright fluorescent light. Therefore,
take care when choosing the installation position.
• When the SHUTTER is set to MANUAL or A.FLK mode, SENS-UP will be disabled.
AGC(AUTO GAIN CONTROL) : The higher the gain level, the brighter the screen - but
the greater the noise.
- OFF : Deactivates the AGC function.
- LOW : Allows automatic gain control from 5.3dB to 32dB.
- HIGH : Allows automatic gain control from 5.3dB to 37dB.
SENS-UP : When it is night or dark, the camera automatically detects the light level
and maintains a clear picture if this mode is activated.
- OFF : Deactivates the SENS-UP function.
- AUTO : Activates the SENS-UP function.
Notes
• If you set the Function Setup switch to ‘AUTO’ mode, You can adjust the brightness by
increasing or decreasing the shutter speed. (x2 ~ x512)
• Note that the higher the zoom level, the brighter the screen, but the more likely it is that
an after-image will appear.
• Although Noise, Spots and Whitish symptoms may occur in SENS-UP operation when
the zoom level is increased, this is normal.
RETURN : Select this to save the changes in the EXPOSURE menu and return to the
SETUP menu.
WHITE BAL (White Balance)
Use the White Balance function to adjust the screen color.
1. When the SETUP menu screen is displayed, select ‘WHITE BAL’ by using the Function
Setup switch so that the arrow indicates ‘WHITE BAL’ .
2. Select a desired mode using the Function Setup switch.
MAIN SETUP
1.LENS DC
2.EXPOSURE
3.WHITE BAL ATW
ö Select one of the following 5 modes, as appropriate for your purpose.
ATW : Select this when the color temperature is between 1,700˚K and
OUTDOOR : Select this when the color temperature is between 1,700˚K and
INDOOR :
MANUAL :
11,000˚K.
11,000˚K. (sodium light inclusion)
Select this when the color temperature is between 4,500˚K and 8,500˚K.
Select this to fine-tune White Balance manually. Set White Balance first by
using the ATW or AWC mode. After that switch to MANUAL mode, finetune the White Balance and the Function Setup switch.
COLOR DOME CAMERASUD-3080F
24
COLOR DOME CAMERASUD-3080F
25
Operating Your Camera
AWC ĄSET :
• White Balance may not work properly under the following conditions. In this case select
the OUTDOOR mode.
❶ When the color temperature of the environment surrounding the subject is out of
➋
➌
BACKLIGHT
The SUD-3080F is designed so that it delivers a distinctive subject and background at the
same time, even when the subject is in backlight, by adopting a function of the proprietary
SV-V DSP chip.
1. When the SETUP menu screen is displayed, select ‘BACKLIGHT’ by using the Function
Setup switch so that the arrow indicates ‘BACKLIGHT’.
2.
Select a desired mode using the Function Setup switch depending on the camera purpose.
OFF : Not being used
BLC :
- LEVEL : Adjusts the brightness level of a monitoring area.
- TOP/BOTTOM/LEFT/RIGHT : Adjust the area to be enhanced.
To find the optimal luminance level for the current environment, point the
camera towards a sheet of white paper and press the Function Setup switch.
If the environment changes, readjust it.
Notes
the control range (e.g. clear sky or sunset).
When the ambient illumination of the subject is dim.
If the camera is directed towards a fluorescent light or is installed in a place where
illumination changes dramatically, the White Balance operation may become unstable.
MAIN SETUP
1.LENS DC
2.EXPOSURE
3.WHITE BAL ATW
4.BACKLIGHT OFF
Enables a user to select a desired area on a picture and view that area more clearly.
HLC (High Light Compensation) :
If the scene contains extremely bright light areas such as; from car headlight, the
light can mask out much of the on-screen detail.
- LEVEL : Adjusts the brightness level of a monitoring area.
- LIMIT : Enable to change the operating condition.
- MASK COLOR/TONE : Change the color / brightness of the masking area.
(Black, Red, Blue, Cyan, Magenta)
- TOP/BOTTOM/LEFT/RIGHT : Adjust the area to be enhanced.
SSDR (Samsung Super Dynamic Range) : SSDR illuminates darker areas of an image
while retaining the same light level for brighter areas to even out the overall
brightness of images with high contrast between bright and dark areas.
Use the Function Setup switch to change the SSDR level in the sub menu according to
the contrast between bright and dark areas.
SSDR ON
WDR : When there are both bright and dark areas at the same time, this mode
SSDR OFF
makes both areas distinctive.
< WDR >
< OFF >
Select ’WDR‘ to adjust the WDR LIMIT and LEVEL.
- LIMIT : Adjust the WDR Sensitivity by selecting LOW, MIDDLE or HIGH.
COLOR DOME CAMERASUD-3080F
26
COLOR DOME CAMERASUD-3080F
27
Operating Your Camera
- LEVEL : Adjust the WDR Brightness by controlling the bar from 1 to 100.
- MODE : Indoor and outdoor backlight conditions are appropriately selected.
- ANTI ROLLING : Rolling caused around a fluorescent lamp is improved.
3. Select a desired mode using the Function Setup switch.
BLC : Adjust the area to be enhanced
then adjust the level.
SSDR : Enable the user to change the
level.
HLC : Enable the user to change the level,
limit, mask color/tone and area.
WDR : Enable the user to change the
limit and level.
Notes
• Because there can be a difference in the effectiveness of HLC according to the amount of
light area in the screen, optimize the installation angle for the best HLC performance.
• When dark, the HLC is only activated when a bright light exceeding a specific size. (In NIGHT
ONLY mode).
The HLC is not activated in day light or when bright light is not present at night. (In NIGHT ONLY mode).
•
• When using the WDR function, the shutter is only available with the fixed(---) mode.
• Since the performance of the WDR function may be affected by the area of the bright part of
the screen, optimize the installation angle for the best WDR performance.
• If you increase LIMIT, the screen display may be distorted.
•
If you use the VPS (Virtual Progressive Scan) function, the CCD reads differently so you can not
use WDR simultaneously. If you set VPS to ON, WDR will be automatically set to FIXED Mode.
SSNR3
This function reduces the background noise in a low luminance environment.
1. When the SETUP menu screen is displayed, select ‘SSNR3’ by using the Function Setup
switch
so that the arrow indicates ‘SSNR3’.
MAIN SETUP
1.LENS DC
2.EXPOSURE
3.WHITE BAL ATW
4.BACKLIGHT OFF
5.SSNR3 ON
2. Select a desired mode using the Function Setup
ON : Activates SSNR3 so that noise is reduced.
OFF : Deactivates SSNR3. Noise is not reduced.
3.
Set the
SSNR3
noise
mode to ‘ON’ and press the Function Setup switch. Then you can adjust the
reduction level.
switch
.
Notes
• You cannot set the SSNR3 to ‘ON’ or ‘OFF’ when the AGC mode of the 'EXPOSURE' menu
is ‘OFF’.
•
When adjusting the noise reduction level in the SSNR3 mode, remember that the higher
the level set, the more the noise level will be reduced, as will the brightness of the image.
DAY/NIGHT
You can display pictures in color or in black and white.
1. When the SETUP menu screen is displayed, select ‘DAY/NIGHT’ by using the Function
Setup switch so that the arrow indicates ‘DAY/NIGHT’.
COLOR DOME CAMERASUD-3080F
28
COLOR DOME CAMERASUD-3080F
29
Operating Your Camera
MAIN SETUP
1.LENS DC
2.EXPOSURE
3.WHITE BAL ATW
4.BACKLIGHT OFF
5.SSNR3 ON
6.DAY/NIGHT AUTO

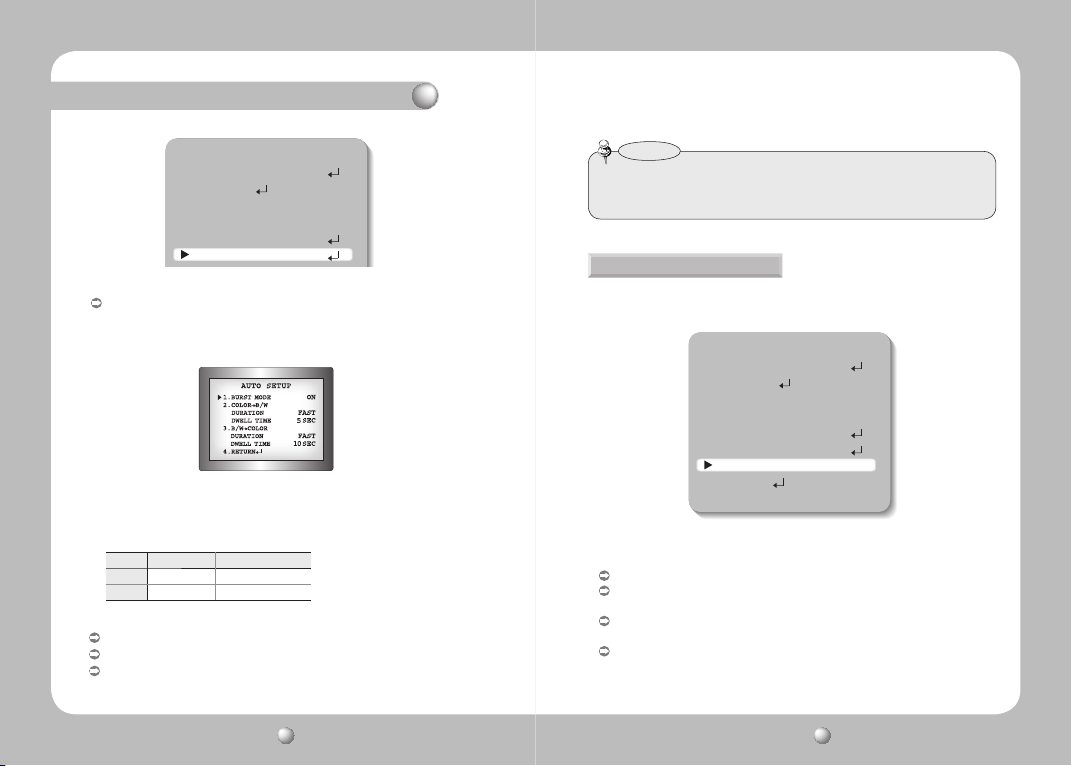

2. Select a desired mode using the Function Setup
AUTO :
The mode is switched to ’Color‘ in a normal environment, but switches to ’B/W‘
mode when ambient illumination is low. To set up the switching time for AUTO
mode, press the Function Setup
on B/W mode.
- BURST MODE : You can turn on or off the burst signal on B/W mode.
- DURATION : You can select the day/night switching point.
- DWELL TIME : You can select day/night switching delay time from.
* The day/night switching point of the camera can be adjusted.
EXTERN : This mode allows you to apply a desired filter to external signals.
COLOR : The picture is always displayed in color.
B/W : The picture is always displayed in black and white.
Ą3s, 5s, 7s, 10s, 15s, 20s, 30s, 40, 60s
Color ➞ B/WB/W ➞ Color
2.5 lux5 lux
Early
1 lux7 lux
Late
You can turn on or off the burst signal on B/W mode.
switch
according to the picture display you want.
switch
. You can turn on or off the burst signal
Notes
• When AGC in the EXPOSURE menu is 'OFF', '---' mode operates as selecting 'COLOR' mode
and 'AUTO' mode cannot be selected.
• Be sure to connect the Day & Night input terminal to GND when using an external input.
PROFILE
1. When the SETUP menu screen is displayed, select ‘PROFILE’ by using the Function
Setup switch so that the arrow indicates ‘PROFILE’.
MAIN SETUP
1.LENS DC
2.EXPOSURE
3.WHITE BAL ATW
4.BACKLIGHT OFF
5.SSNR3 ON
6.DAY/NIGHT AUTO
7.PROFILE
8.SPECIAL
BASIC
9.EXIT SAVE
2. Select a desired mode using the Function Setup switch according to the picture display
you want.
BASIC : The most common environment is set to meet.
DAY/NIGHT : It will be set automatically so it optimizes to the day or night conditions,
respectively.
BACKLIGHT : It will be set automatically so you can distinguish the object from the
background in a severe backlighting scene.
ITS : It will be set automatically so you can easily check the traffic conditions.
COLOR DOME CAMERASUD-3080F
30
COLOR DOME CAMERASUD-3080F
31
Operating Your Camera
INDOOR : It will be set automatically to help you take a picture in a regular indoor
❶ Select Custom for Simple Setup mode.
❷ Configure the menu options to your custom settings.
❸ The settings are automatically saved as Custom mode.
➍ Profile user mode don't initialize when menu resets.
3. In the PROFILE menu, you can configure the following camera settings at once.
SHUTTER-------- GAINHIGHHIGHHIGHHIGHHIGH WHITE BALATWATWATWOUTDOORINDOOR BACKLIGHTOFFOFFUSER BLCOFFOFF SSNR3ONONONONON DAY/NIGHTAUTOAUTOAUTOAUTOAUTO-
1. When the SETUP menu screen is displayed, select ‘SPECIAL’ by using the Function Setup
lighting condition.
USER : Automatically configures the camera to your custom settings.
BASIC DAY/NIGHT
BACKLIGHT
ITSINDOORUSER
MANUAL(1/250)
SPECIAL
switch so that the arrow indicates ‘SPECIAL’.
MAIN SETUP
1.LENS DC
2.EXPOSURE
3.WHITE BAL ATW
4.BACKLIGHT OFF
5.SSNR3 ON
6.DAY/NIGHT AUTO
7.PROFILE
8.SPECIAL
BASIC
9.EXIT SAVE
A.FLK-
2. Select a desired mode using the Function Setup switch.
SPECIAL
1. IMAGE ADJ
2. CAM TITLE OFF
3. SYNC INT
4. INTELLIGENCE OFF
5. PRIVACY OFF
6. DIS OFF
6. COMM ADJ
7. LANGUAGE ENGLISH
8. RETURN
IMAGE ADJ :
1) When the SPECIAL menu screen is displayed, select ‘IMAGE ADJ’ by using the
Function Setup switch so that the arrow indicates ’IMAGE ADJ‘.
2) Select a desired mode using the Function Setup switch.
IMAGE SETUP
1.MONITOR LCD
2.VPS OFF
3.REVERSE OFF
4.PIP OFF
D-ZOOM
5.
7.
8.
ú Monitor : Please change the settings value of video appropriate to your monitor.
ⰒLCD : Please select this menu item when using an LCD monitor.
You can change the gamma, PED level and color gain in the sub menus.
6.
FONT COLOR BLUE
SHARPNESS
RETURN
OFF
ON
COLOR DOME CAMERASUD-3080F
32
COLOR DOME CAMERASUD-3080F
33
Operating Your Camera
ⰒCRT :
ⰒUSER :
Ⱂ
Please select this menu item when using a CRT
monitor. You can change the PED level, color
gain in the sub menus.
Please use this menu item when using a
monitor other than standard ones. You can
change the gamma, PED level and color gain
in the sub menus.
ú
VPS(Virtual Progressive Scan) : This is an advanced technology that reproduces a sharp
progressive image. This is appropriate to high quality recording and file transfer via the
Internet.
Ⱂ
OFF : Selects 2:1 Interlaced Scan as the Imaging Method.
Ⱂ
ON : Selects Progressive Scan as the Imaging Method.
ú
REVERSE : You can reverse the picture.
Ⱂ
OFF : You don’t reverse the picture.
Ⱂ
H-REV : You can flip the picture horizontally on the screen.
Ⱂ
V-REV : You can flip the picture vertically on the screen.
HV-REV : You can flip the picture horizontally and vertically on the screen.
ú
PIP(Picture in Picture) : Displays a full-size image along
with the thumbnail to provide more detailed
information. The position of the thumbnail is
adjustable.
ú
D-ZOOM : You can use a digital zoom of x1 ~ x16.
ú
FONT COLOR : You can change the OSD font color.
(White, Yellow, Green, Red, Blue)
ú
SHARPNESS :
ú
RETURN : Select this to save the settings for the
As you increase this value, the picture
outline becomes stronger and clearer.
Adjust this value appropriately depending
on the sharpness of the picture.
IMAGE ADJ menu and to return to the
SPECIAL menu.
Notes
• When the V-REV or H-REV mode is enabled, the text on the screen does not flip.
• If you increase the SHARPNESS level too high, the picture may become distorted or
noise may appear.
CAM TITLE : If you enter a title, the title will appear on the monitor.
1) If the SPECIAL menu screen is displayed, use the Function Setup switch so that the
arrow indicates ‘CAM TITLE’.
2) Set it to ‘ON’ by using the Function Setup
switch.
Press the Function Setup switch.
3)
4) Use the Function Setup switch to move to
a desired letter and select the letter by
pressing the Function Setup switch.
Repeat this to enter multiple letters. You
can enter up to 15 letters.
5) Enter a title, move the cursor to ‘POS’ and press
the Function Setup switch. The entered title
appears on the screen. Select the position to
display the title on the screen by using the
Function Setup switch and press the Function
Setup switch. When the position is determined,
select ‘END’ and press the Function Setup
switch to return to the SPECIAL menu.
• When the CAM TITLE menu is ‘OFF’, no title will be displayed on the monitor screen
even if you enter one.
• English and Numbers are available in this mode.
• If you move the cursor to CLR and press the Function Setup switch, all the letters are
deleted. To edit a letter, change the cursor to the bottom left arrow and press the
Function Setup switch. Move the cursor over the letter to be edited, move the cursor to
the letter to be inserted and then press the Function Setup switch.
COLOR DOME CAMERASUD-3080F
34
COLOR DOME CAMERASUD-3080F
35
Operating Your Camera
SYNC : In areas where the supply is at 60Hz(NTSC),
50Hz(PAL) frequency, you can synchronize the
output phase of multiple cameras using the power
synchronization function (Line-Lock) without using
a synchronization signal generator.
Ⱂ
INT : Internal Synchronization Type
ⰒL/L : Power Synchronization Type, Line-lock
❶
Press the Function Setup switch.
❷ You can select a desired phase from 0 to 359 when select 'phase'.
Notes
•
When using AC power at 60Hz(NTSC), 50Hz(PAL) frequency, you can use the L/L type
synchronization.
• When the power is DC 12V, the SYNC menu is fixed to the ‘INT’ mode.
INTELLIGENCE : Commands the camera to motion-detect and trace an object.
INTELLIGENCE
1. MOTION OFF
2. DETECT BOX ON
3. ALARM OUT OFF
4. DETECT AREA
5. MASK AREA
6. SENSITIVITY 3
7. DET. SIZE 3
8. RETURN
úMOTION : Select motion types to detect.
Ⱂ
OFF : Not being used.
Ⱂ
DETECTION : Since the camera detects motion without any additional external
Ⱂ
sensor, you can monitor activity more efficient.
TRACKING : Commands the camera to detect and
trace a moving object.
Ķ
FENCE : You can select up to 4 FENCE.
Ķ
MODE : Determines whether to use the fence
selected in the FENCE.
Ķ
TYPE : Two types, line and area, of fences are
available.
Ķ
COUNT : Displays the number of times that an
object enters or leaves a fenced area.
Ķ
FILL : Fill or remove color from the FENCE.
ĶPOSITION : Defines the position and detection direction of a line or fenced area.

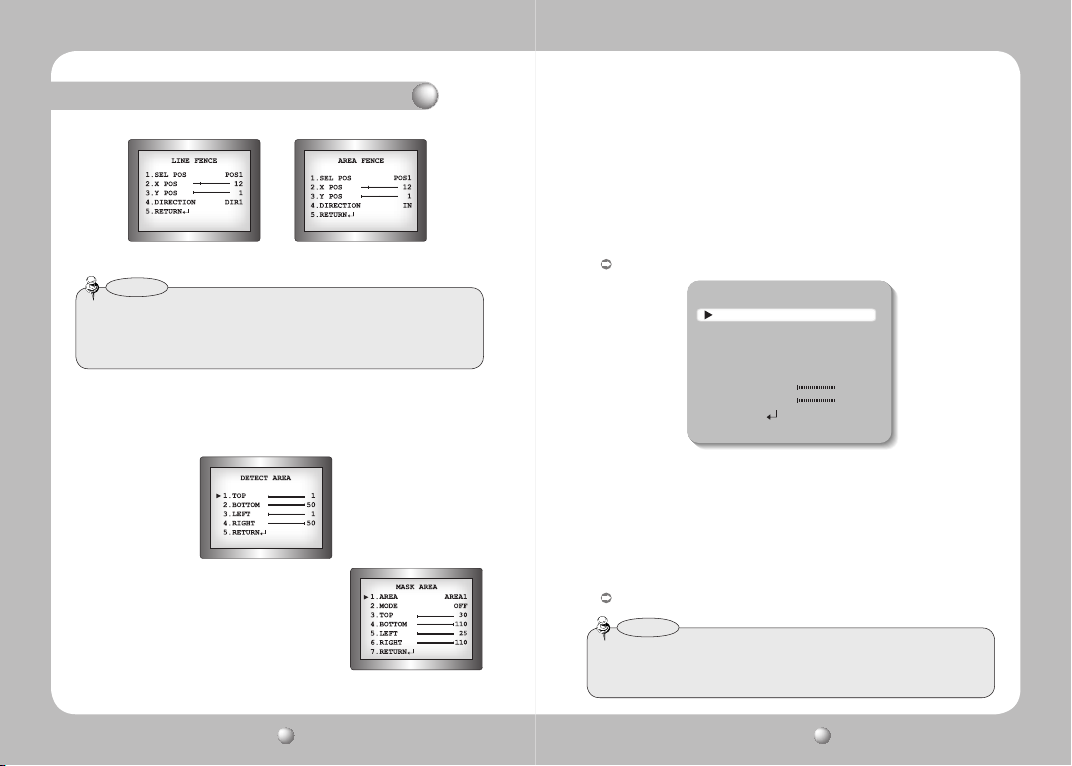

1) LINE FENCE
-
SEL POS : Selects a position from POS1,POS2.
- X POS / Y POS : Adjust the size and position of the selected line fence.
- DIRECTION
Ⱂ
ⰒDIR2 :
DIR1 : Detects objects moving left to right on the fence line.
Detects objects moving right to left on the fence line.
ⰒDIR1/2 : Detects all objects moving crosswise on the fence line.
-RETURN : Select this to save the POSITION menu settings and return to the
TRACKING menu.
2) AREA FENCE
- SEL POS :
Selects a position from POS1 ~ POS4.
- X POS / Y POS : Adjust the size and position of the selected area fence.
- DIRECTION
Ⱂ
IN : Detects objects entering the fenced area.
Ⱂ
OUT : Detects objects exiting the fenced area
ⰒIN/OUT : Detects all objects entering and exiting the fenced area.
- RETURN : Select this to save the POSITION menu settings and return to the
Ķ
RETURN : Select this to save the TRACKING menu settings and return to the
TRACKING menu.
INTELLIGENCE menu.
COLOR DOME CAMERASUD-3080F
36
COLOR DOME CAMERASUD-3080F
37
Operating Your Camera
Ⱂ
FIXED/MOVED : Detects an object that emerges or disappears from the screen, or
Notes
•A detection (FIXED/MOVED) error may occur if :
· multiple motions occur continuously in random directions
· a fixed object moves in one position continuously
· a second object screens the first moving object
ú DETECT BOX : Outlines an object on the screen in a box when its movement
ú
ALARM OUT : Releases a signal from the MD Output Terminal of the camera
ú DETECT AREA : Defines the Motion Detection area.
ú MASK AREA : Specify a detection exception area to
Ķ
AREA : You can select up to 4 areas.
Ķ
MODE : Determines whether to use the area
Ķ
TOP / BOTTOM / LEFT / RIGHT : Adjust the size and position of the selected area.
stays onscreen without movement
.
matches a custom Motion Type.
when an object’s movement matches a custom Motion Type.
mask.
Select a mask area number and specify
the size and position.
selected in the AREA.
Ķ
RETURN : Select this to save the MASK AREA menu settings and return to the
ú SENSITIVITY : Set the sensitivity of the motion detection. When adjusting the
ú DETECT SIZE :
ú RETURN : Select this to save the INTELLIGENCE menu settings and return to the
PRIVACY : Mask an area you want to hide on the screen.
INTELLIGENCE menu.
sensitivity, note that the lower the level means the higher sensitivity.
Selects an object size to detect on the screen. When adjusting the detection
size, note that the higher the level means the bigger detection size.
SPECIAL menu.
PRIVACY AREA SETUP
1.AREA AREA1
2.MODE OFF
3.MASK COLOR GREEN
TRANSPARENCY
4.
5.SEL POS
6.XPOS 10
7.YPOS 10
8.RETURN
1) When the SPECIAL menu screen is displayed, press the Function Setup
the arrow indicates ‘PRIVACY’.
2) Set up the mode using the Function Setup
ú AREA : You can select up to 12 PRIVACY areas.
ú
MODE : Determines whether to use the area selected in the AREA.
ú
MASK COLOR : Determine area color. You can select Green, Red, Blue, Black, White, Gray.
ú
TRANSPARENCY : Adds or removes transparency from the masking area.
ú
SEL POS/ XPOS/ YPOS : Adjust the size and position of the selected area.
ú
RETURN : Select this to save the PRIVACY menu settings and return to the SPECIAL menu.
DIS (Digital Image Stabilizer) : This function mitigates any picture movement due to external
Notes
• As the DIS function uses the digital zoom, the camera's resolution will decrease.
• DIS doesn’t operate when background illumination is too low.
• DIS doesn’t operate when object pattern is monotonic as like sky or white wall.
OFF
switch
factors such as wind.
L_TOP
.
switch
so that
COLOR DOME CAMERASUD-3080F
38
COLOR DOME CAMERASUD-3080F
39
Operating Your Camera
COMM ADJ (Communication Adjustment) :
This function sets up the camera communication status when controlling the camera
through an external control device.
1) When the SPECIAL menu screen is displayed, press the Function Setup switch so that
the arrow indicates ‘COMM ADJ’.
2) Set up the mode using the Function Setup switch.
COMM SETUP
1.CAM ID 1
2.BAUD RATE 9600
3.UART MODE 8-N-1
4.RET PKT ENABLE
5.DISP ID OFF
6.PROTOCOL SAMSUNG-T
7.RETURN
ú
CAM ID : Determines the camera's identification number (between 0 and 255).
ú BAUD RATE : You can select 2400/4800/9600/19200/38400/57600 bps.
ú UART MODE : You can select NONE, EVEN or ODD for the parity bits.
ú RET PKT : Determines whether to send a command back to the controller device when a
ú DISP ID : Display camera title on top left corner of the screen.
ú PROTOCOL : Select the communication PROTOCOL.
ú
* Initial value of communication adjustment
communication control command is sent to the camera.
PELCO-P, BOSCH, HONEYWELL, VICON and PANASONIC)
RETURN :
Select this to save the PRIVACY menu settings and return to the SPECIAL menu.
Camera ID BAUD RATE UART MODE PET PKT
Item
Initial value
196008-NONE-1ENABLE
(SAMSUNG-T, SAMSUNG-E , PELCO-D,
LANGUAGE : You can select the menu language according to your requirements.
RETURN : Select this to save the SPECIAL menu settings and return to the MAIN
SETUP menu.
EXIT
Select a desired EXIT mode using the Function Setup switch depending on the camera purpose.
SAVE : Save the current settings and exit the MAIN SETUP menu.
NOT SAVE : Do not save the current settings and exit the MAIN SETUP menu.
RESET : Resets the camera settings to the factory defaults. Communication,
Language and Monitor settings are not initialized.
COLOR DOME CAMERASUD-3080F
40
COLOR DOME CAMERASUD-3080F
41
Troubleshooting
Specifications
If you have trouble operating your camera, refer to the following table.
If the guidelines do not enable you to solve the problem, contact an authorized technician.
ú
Nothing appears on the screen.
Ķ
Check that the power cord and line connection between the camera and monitor are properly connected.
Ķ Check that you have properly connected UTP cable or BNC cable to the camera.
Ķ Check the pin arrangement for the UTP cable. (TIA/EIA-568B)
ú
The image on the screen is dim.
Ķ Is lens stained with dirt? Clean your lens with soft, clean cloth.
Ķ
Set the monitor or DVR to the proper condition.
Ķ
If the camera is exposed to very strong light, change the camera position.
The image on the screen is dark.
ú
Ķ Adjust the contrast feature of the monitor or DVR.
Ķ If you have an intermediate device, set the 75Ω / Hi-z properly.
ú
The camera is not working properly, and the surface of the camera is hot.
Ķ Check that you have properly connected the camera to an appropriate power source.
ú
The DAY/NIGHT menu does not work.
Ķ Check that AGC of EXPOSURE SETUP menu is ‘OFF’.
ú
The SENS-UP function does not work.
Ķ Check that AGC of EXPOSURE SETUP menu is ‘OFF’.
Ķ Check that SHUTTER of EXPOSURE SETUP menu is ‘A.FLK’ or ‘MANUAL’.
ú
The INTELLIGENCE function does not work.
Ķ Check that INTELLIGENCE of menu is ‘OFF’.
ú
Color is not correct.
Ķ Check the setting of WHITE BAL SETUP menu .
ú
The screen flickers continually.
Ķ Ensure the camera is not pointing towards the sun.
ú
When coaxial communication is not available:
Ķ Make sure that the camera and monitor are installed within the recommended distance.
Ķ
Use the video amplifier equivalent to coaxitron if the recommended installation distance is exceeded.
ú
Picture is distorted.
Ķ Check the length of the UTP cable (900m(3000ft) or less).
ú
The camera does not work, and the video feed from the camera is not being received.
Ķ Check the Power Supply to see whether the connection status and pin arrangement for the camera's
UTP cable and the Camera Input UTP cable are normal.
ú
The camera is out of focus.
Ķ Check that you have properly adjusted the zoom / focus adjustment lever of lens.
ELECTRICAL
Input VoltageAC 28V±10% / AC 24V±10% / DC 12V±10%
Power ConsumptionMax 4.0W
VIDEO
Imaging Device
Total Pixels /
Effective Pixels
Scanning System2:1 Interlace / Progressive
SynchronizationInternal / Line-Lock
Frequency
Horizontal Resolution COLOR : 600TVL / B/W : 700 TVL
