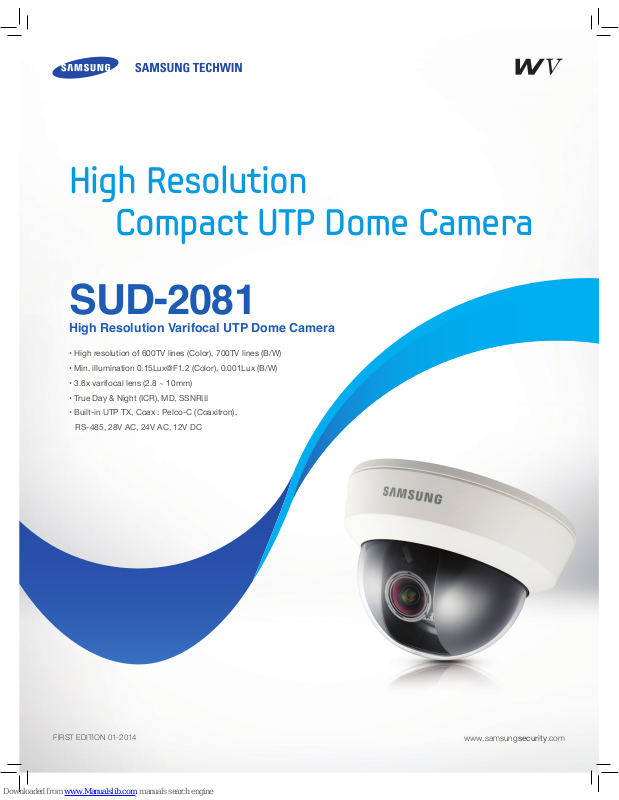

Samsung SUD-2081N, SUD-2081P, SUD-2081 Specifications
www.samsungsecurity.com
FIRST EDITION 01-2014
• High resolution of 600TV lines (Color), 700TV lines (B/W)
• Min. illumination 0.15Lux@F1.2 (Color), 0.001Lux (B/W)
• 3.6x varifocal lens (2.8 ~ 10mm)
• True Day & Night (ICR), MD, SSNR
III
• Built-in UTP TX, Coax : Pelco-C (Coaxitron),
RS-485, 28V AC, 24V AC, 12V DC
High Resolution
Compact UTP Dome Camera
SUD-2081
High Resolution Varifocal UTP Dome Camera
The Eco mark represents
Samsung Techwin’s will to create
environment-friendly products,and indicates
that the product satisfies the EU RoHS Directive.
Design and specifications are subject to change without notice.
I.H-1401
DISTRIBUTED BY
SAMSUNG TECHWIN CO., LTD.
6, Pangyo-ro 319beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, SEOUL 463-400 Rep. of KOREA
Tel : +82-70-7147-8741~8749, 8752~8760 Fax : +82-31-8018-3745 www.samsungsecurity.com www.samsungcctv.com
COPYRIGHT BY SAMSUNG TECHWIN. ALL RIGHT RESERVED
SAMSUNG TECHWIN EUROPE LTD.
2nd Floor, No. 5 The Heights, Brooklands, Weybridge,
Surrey, KT13 0NY, UK
Tel : +44-1932-82-6700 Fax : +44-1932-82-6701
SHANGHAI SAMSUNG TECHWIN CO., LTD.
32F, Blk B, International Business Center,
No. 391 Guiping Rd., Shanghai, China, 200233
Tel : +86-21-5427-1155 Fax : +86-21-5423-5122
SAMSUNG TECHWIN AMERICA Inc.
100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660
Toll Free : +1-877-213-1222 Direct : +1-201-325-6920
Fax : +1-201-373-0124
Design and specifications are subject to change without notice.
High Resolution Varifocal UTP Dome Camera
SUD-2081
Dimensions
UTP Kit
Unit : mm (inch)
SUD-2081N SUD-2081P
VIDEO
Imaging Device
1/3" Super HAD CCD II
Total Pixels
811(H) x 508(V) 795(H) x 596(V)
Effective Pixels
768(H) x 494(V) 752(H) x 582(V)
Scanning System
2 : 1 Interlace
Synchronization
Internal / Line lock
Frequency
H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Horizontal Resolution
Color : 600TV lines, B/W : 700TV lines
Min. Illumination
Color : 0.15Lux@F1.2 (50IRE), 0.0003Lux (Sens-up, 512x)
B/W : 0.001Lux@F1.2 (50IRE), 0.000002Lux (Sens-up, 512x)
S / N Ratio
52dB (AGC off, Weight on)
Video Output
CVBS : 1.0 Vp-p / 75Ω composite
UTP Output
Built-in UTP TX [Maximum transmission length 900m (3000ft)] : Balanced differential signal 100Ω
LENS
Focal Length (Zoom Ratio)
2.8 ~ 10mm (3.6x)
Max. Aperture Ratio
1 : 1.2(Wide) ~ 2.8(Tele)
Angular Field of View
H : 94.4˚(Wide) ~ 28˚(Tele) / V : 69.2˚(Wide) ~ 21˚(Tele)
Min. Object Distance
0.2m (0.66ft)
Lens Type
DC auto iris
Mount Type
Board type
PAN / TILT / ROTATE
Pan Range
0° ~ 352°
Tilt Range
0° ~ 73°
Rotate Range
0° ~ 348°
OPERATIONAL
On Screen Display
English, Japanese, Spanish, French,
Portuguese, Korean
English, French, German, Spanish, Italian,
Chinese, Russian, Polish, Czech, Romanian,
Serbian, Swedish, Danish, Turkish, Portuguese
Camera Title
Off / On (Displayed 15 characters)
Day & Night
Auto (ICR) / Color / B/W
Backlight Compensation
Off / BLC / HLC
Contrast Enhancement
SSDR (Off / On)
Digital Noise Reduction
SSNRIII (Off / On)
Digital Image Stabilization
Off / On
Motion Detection
Off / On (8 programmable zones)
Privacy Masking
Off / On (12 programmable zones)
Sens-up (Frame Integration)
2x ~ 512x
Gain Control
Off / Low / High
White Balance
ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
Electronic Shutter Speed
1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
Digital Zoom
Off / On (1x ~ 16x)
Reverse
H-Rev / V-Rev
Communication
Coaxial control (SPC-300 compatible), RS-485
Protocol
Coax : Pelco-C (Coaxitron)
RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon
ENVIRONMENTAL
Operating Temperature / Humidity
-10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
ELECTRICAL
Input Voltage / Current
28V AC ±10%, 24V AC, 12V DC±10%
Power Consumption
Max. 3.5W
MECHANICAL
Color / Material
Ivory / Plastic (Dome cover : Clear)
Dimensions (WxH)
Ø134.0 x 92.0mm (Ø5.28" x 3.62")
Weight
TBD
92.0 (3.62")
Ø97.1 (3.82")
Ø134.0 (5.28")
Ø97.1 (3.82")
Ø134.0 (5.28")
92.0 (3.62")
4CH UTP Receiver
1CH UTP Transceiver
4CH UTP Power Supply Hub
SPU-400R
SPU-100TR
SPU-400
