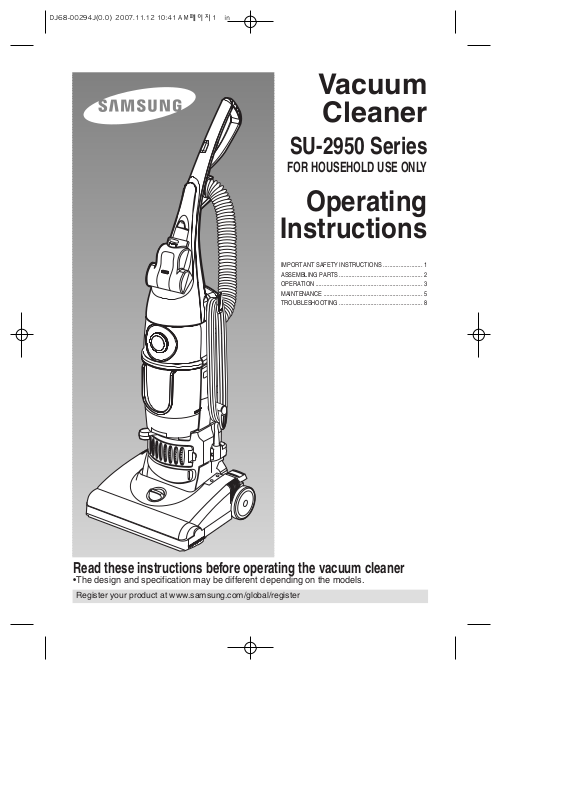

Samsung SU-2950 User Manual

Vacuum

Cleaner

SU-2950 Series

FOR HOUSEHOLD USE ONLY

Operating

Instructions

IMPORTANT SAFETY INSTRUCTIONS ......................... 1

ASSEMBLING PARTS ..................................................... 2

OPERATION .................................................................... 3

MAINTENANCE ............................................................... 5

TROUBLESHOOTING ..................................................... 8

Read these instructions before operating the vacuum cleaner

•The design and specification may be different depending on the models.

IMPORTANT SAFETY INSTRUCTIONS

Thank you for purchasing a Samsung vacuum cleaner. When using an electrical appliance, basic precautions should always be followed, including the following:

PLEASE READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER.

WARNING:

• Do not leave vacuum cleaner unattended when it is plugged in.

• Unplug from outlet when not in use and before servicing.

• Do not use outdoors or on wet surfaces.

• The appliance is not intended for use by young children or infirm persons without supervision.

• Young children should be supervised to ensure that they do not play with the appliance.

• Use only as described in this manual. Use only manufacturer’s recommended attachments.

• Do not use with damaged cord or plug.

• If vacuum cleaner is not working as it should, or has been dropped, damaged, left outdoors or dropped in water, take it to a service center.

• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull the cord around sharp edges or corners. Keep cord away from heated surface.

• Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.

• Do not handle vacuum cleaner or plug with wet hands.

• Do not put any object into openings. Do not use with any opening blocked; keep openings free of dust, lint, hair and anything that may reduce air flow.

• Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts.

• Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.

• Do not use without dirt cup or filters in place. Empty cup and clean filter frequently when picking up very fine materials such as powder.

• Turn off all controls before unplugging vacuum cleaner.

• Use extra care when cleaning on stairs.

• Do not use to pick up flammable or combustible materials such as gasoline or fine wood standings or use in areas where they may be present.

• Store your vacuum cleaner indoors in a cool, dry area.

• Avoid picking up hard, sharp objects with the cleaner, they may damage the cleaner.

• Always turn off this appliance before connecting or disconnecting the hose, removing the bottom plate for maintenance.

• Use only on dry, indoor surfaces, never change the plug in any way.

• Do not modify the polarized plug to fit a non-polarized outlet or extension cord.

• Do not touch the brush roller when it is rotating.

• Keep suction away from your face when using nozzles and pipe.

• Do not pull the power cord around sharp corners and do not allow it to become trapped.

• Unplug before connecting turbine nozzle.(only using turbine-brush model)

To reduce the risk of fire, electric shock, or injury:

SAVE THESE INSTRUCTIONS FOR FUTURE USE.

Assembling Parts

Identifications of parts

The assembled cleaner will look

1-1

like the illustration to the left.

1. Handle

2. Power switch

3. Quick release cord hook

4. Post-Motor Filter

5. Crevice tool

6. Handle release

7. Carrying handle

8. Hose

9. Extension wand

10. Combination tool

11. Cyclone-Lever

12. Dirt Cup

13. Filter Cup

14. Upper Tank

15. Cap Cyclone

16. Hose Wand Base

17. Height Adjustment Dial

Front

Back

18. Hose Clip

19. Mini Turbo Brush

WARNING!

OPERATE THE VACUUM CLEANER ONLY AT THE VOLTAGE SPECIFIED ON THE NAMEPLATE.

Step 1. Attaching the Handle

1-2 1-3

Stand the vacuum upright and slide the base of the handle firmly into the grooves at the top of the vacuum body.

Insert the screw provided into the existing hole. Tighten the screw securely with a screwdriver. Before securing the handle, please check that the handle is fitted to the vacuum body and make sure there’s no gap.

Step 2. Attaching the Hose and Tools

1-4 1-5

1-6 1-7

Line up the tabs on the base of the Twist Snap Hose with the corresponding notches on the hose collar as shown.

Slide the extension wand and the crevice tool together into the storage clip.

Slide the end of the hose wand with tabs into the Hose Wand Base.

Attach the Mini Turbo Brush by putting the rib at the bottom of Mini Turbo Brush on two hooks of Handle. Snap Mini Turbo Brush into place as shown.

Operation

2-1

ON-OFF Switch

1.To turn cleaner on, press the Power switch.

2.To the cleaner off, press the Power switch again.

2-4

Carrying handle

The cleaner can also be moved by using the carrying handle.

2-2 2-3

Handle positions

The handle of your cleaner has three positions; upright for storage and when using cleaning tools; operating for general operation on carpet and floors; low for reaching under low furniture. Step on handle release pedal to lower handle.

2-5

󳢬󳢬

option

Cleaning Tool attachments

Attachment tools can be used to clean furniture or drapes, on stairs or in corners.

When using the attachments, ensure the vacuum cleaner is placed firmly on the floor with the handle in the upright position. Do not place the vacuum on top of furniture or steps as the brushroller may cause damage.

Transporting cleaner

To move your cleaner from room to room, put the handle in upright position, tilt the cleaner back on its rear wheels and push forward.

A. Combination tool:

Two types of cleaning tools are included in one attachment: rotate for desired tool.

·Use brush side to dust furniture, blinds, books, lamps, shelves.

·Use upholstery side for curtains, draperies, cushions, fabrics.

B. Crevice tool:

Use in corners, on stairs, baseboards, and behind furniture.

C. Extension Wand:

Use with desired attachments and narrow wand for a longer reach.

D. Mini Turbo Brush :

Use rotating brush action for small areas such as stairs and upholstery. Note: Press gently when using Mini Turbo Brush to gain maximum cleaning. Too much pressure could cause the brush to stop rotating.

󳢬󳢬

option

E. Wooden Floor Brush (Select Models):

Use for bare floors. Swivel head turns to get into tight spaces and fits under cabinets. Note: The Wooden Floor Brush does not store on board.

+ 8 hidden pages
