Page 1

PROJECTION TV RECEIVER

Chassis : P54A(REV. 3) Model : ST54J9PX/XAP ST62J9PX/XAP

PROJECTION TV RECEIVER CONTENTS

Precautions

Reference Information

Specifications

Alignment and Adjustments

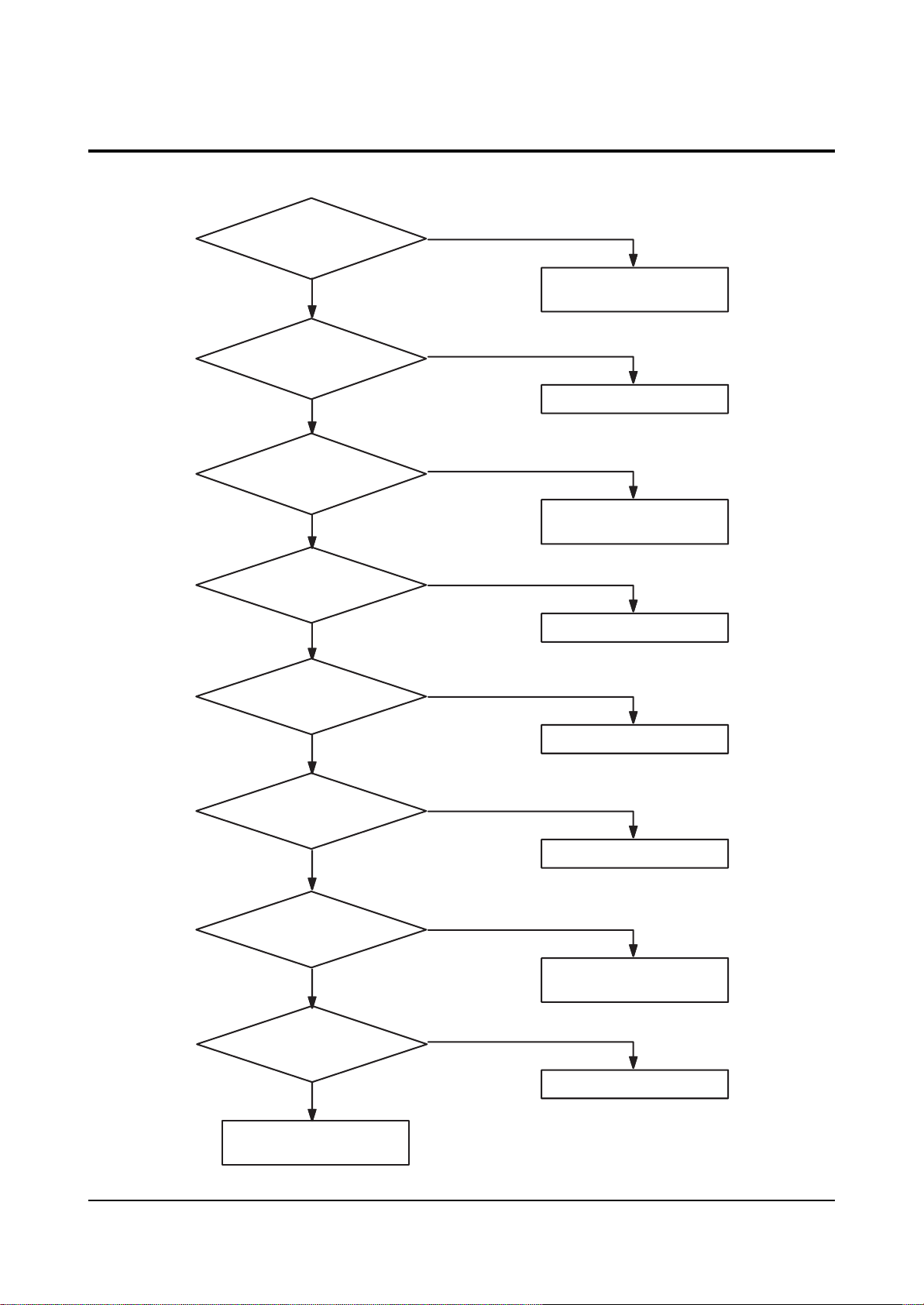

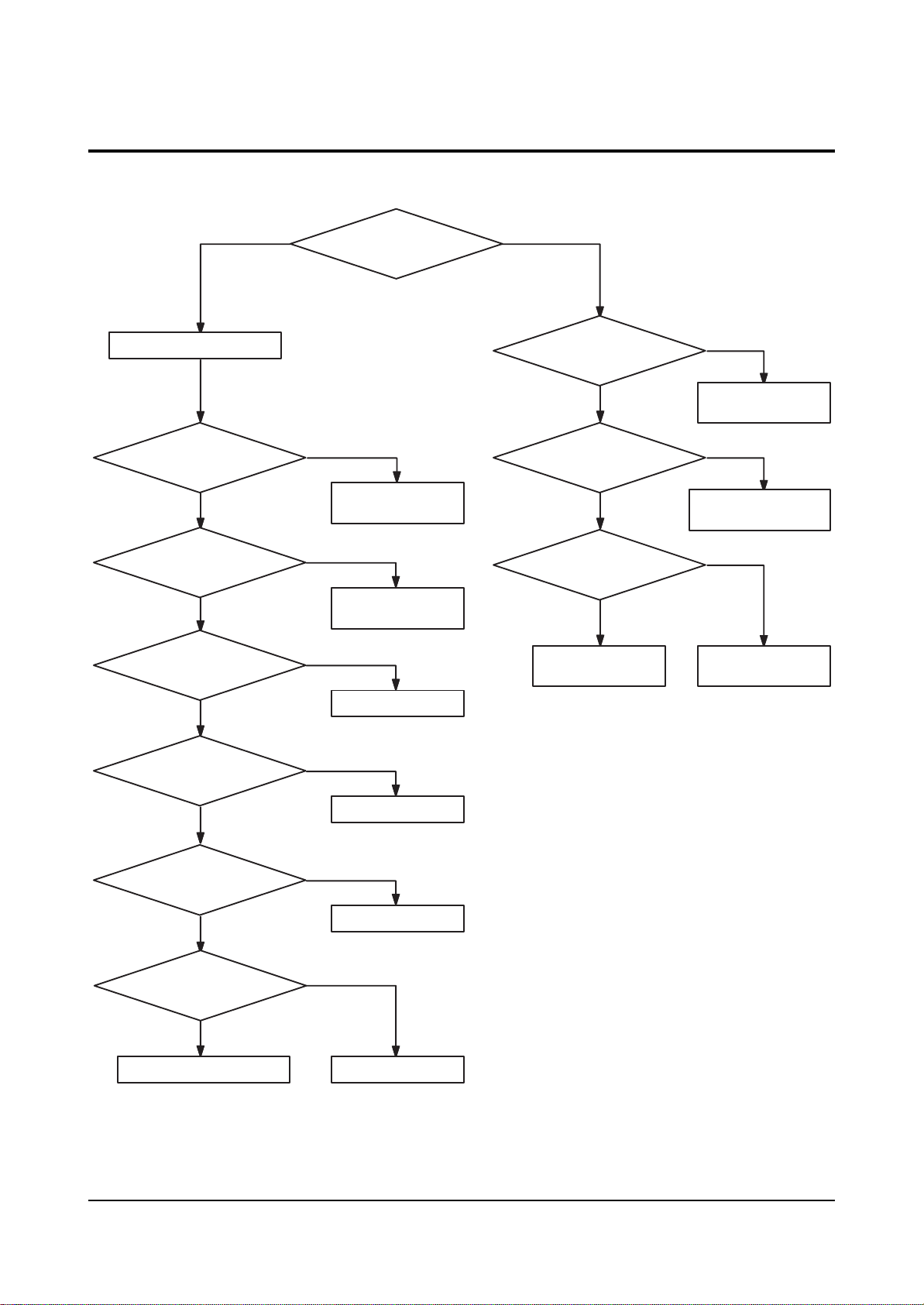

Troubleshooting

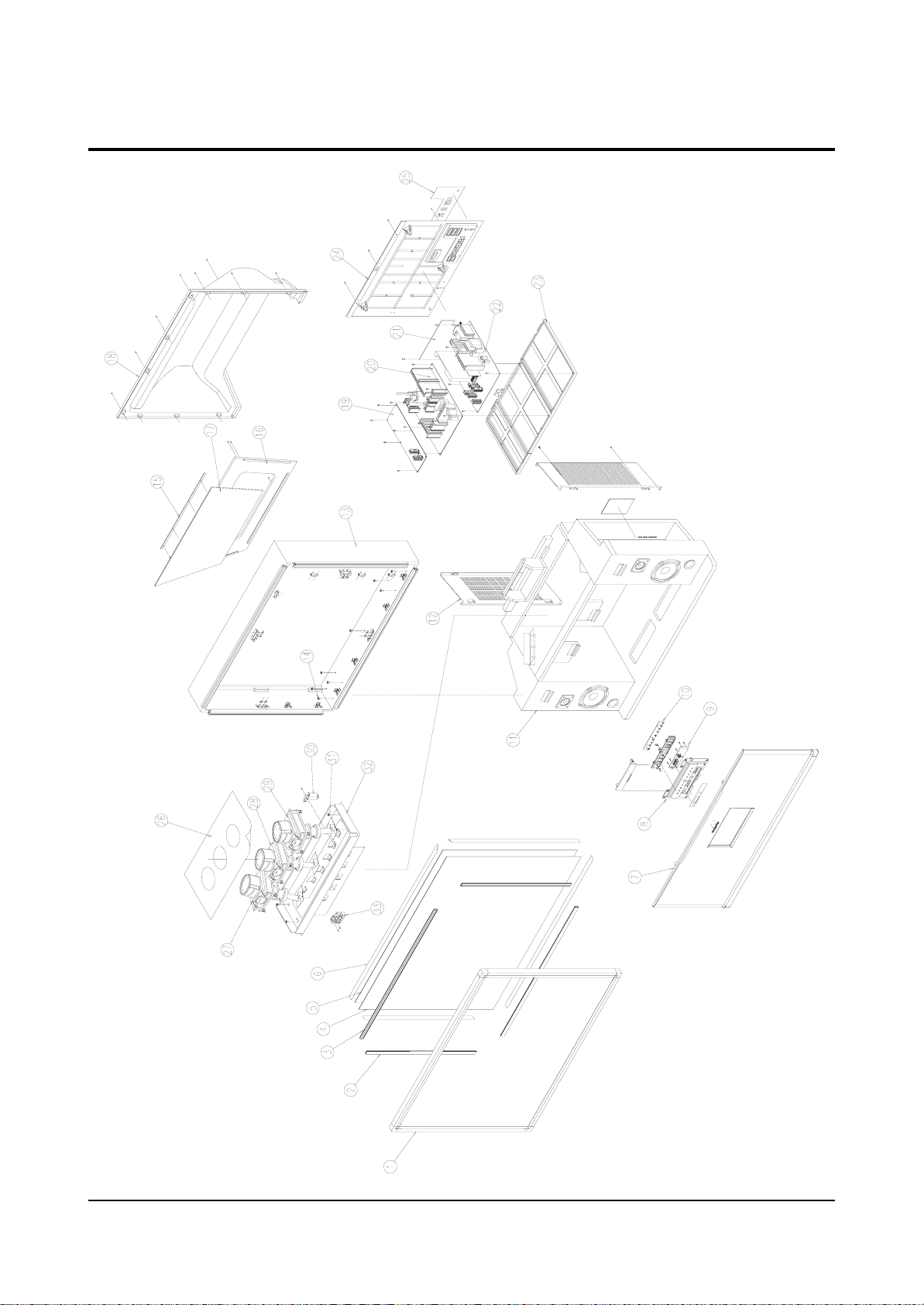

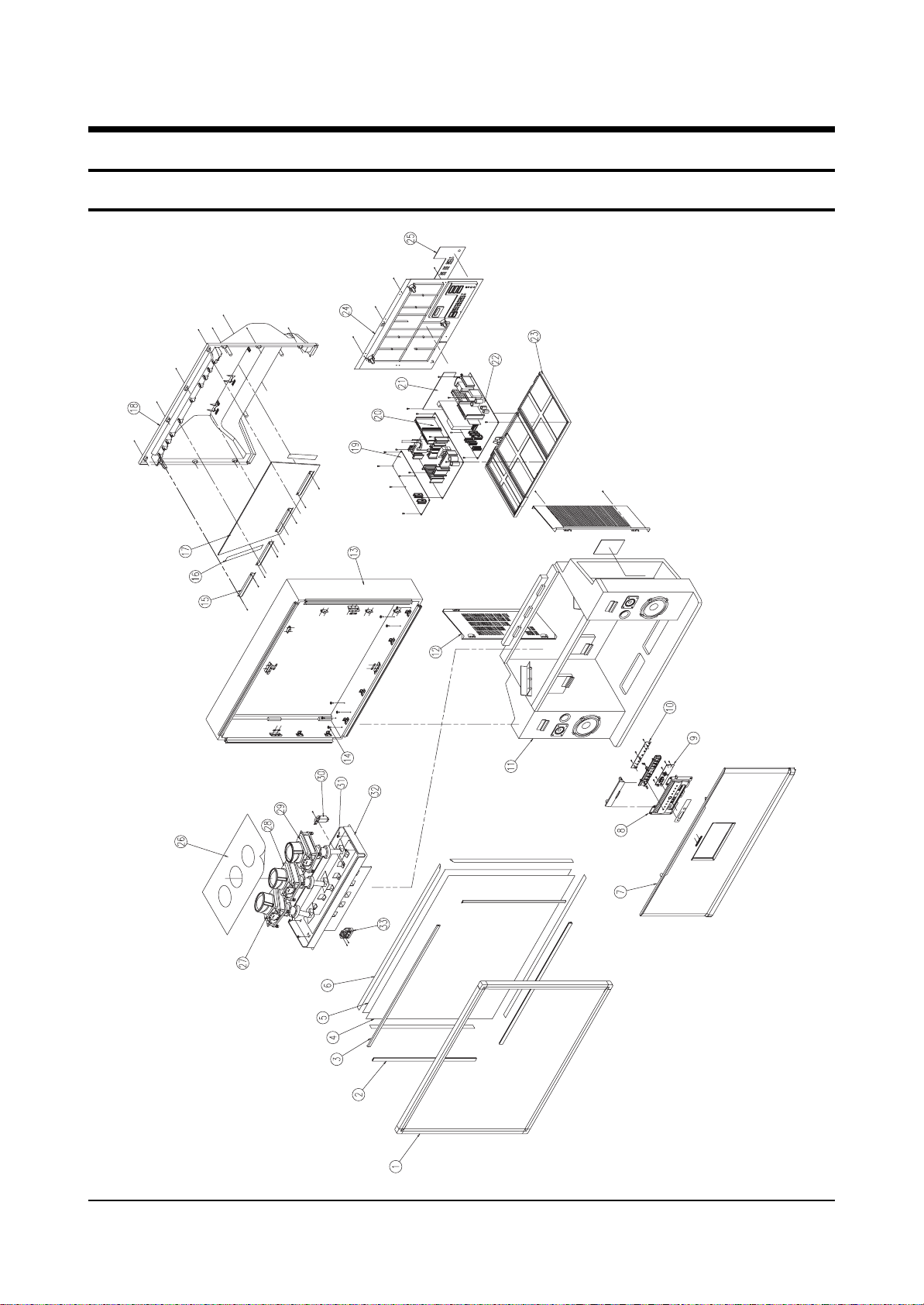

Exploded View and Parts List

Electric Parts List

Block Diagrams

Wiring Diagram

Schematic Diagrams

10.

Page 2

ELECTRONICS

Printed in Korea

AA82-00086A

Page 3

1. Precautions

1-1 Safety Precautions

1. Be sure that all of the built-in protective devices are replaced. Restore any missing protective shields.

2. When reinstalling the chassis and its assemblies, be sure to restore all protective devices, including: nonmetallic control knobs and compartment covers.

3. Make sure that there are no cabinet openings through which people—particularly children—might insert fingers and contact dangerous voltages. Such openings include the spacing between the picture tube and the cabinet mask, excessively wide cabinet

ventilation slots, and improperly fitted back

covers.

If the measured resistance is less than 1.0 megohm or greater than 5.2 megohms, an abnormality exists that must be corrected before the unit is returned to the customer.

4. Leakage Current Hot Check (Figure 1-1): Warning: Do not use an isolation transformer during this test. Use a leakagecurrent tester or a metering system that complies with American National Standards Institute (ANIS C101.1, Leakage Current for Appliances), and Underwriters Laboratories (UL Publication UL1410, 59.7).

5. With the unit completely reassembled, plug the AC line cord directly into the power outlet. With the unit’s AC switch first in the ON position and then OFF, measure the current between a known earth ground (metal water pipe, conduit, etc.) and all exposed metal parts, including: antennas, handle brackets, metal cabinets, screwheads and control shafts. The current measured should not exceed 0.5 milliamp. Reverse the powerplug prongs in the AC outlet and repeat the test.

Fig. 1-1 AC Leakage Test

6. Antenna Cold Check: With the unit’s AC plug disconnected from the AC source, connect an electrical jumper across the two AC prongs. Connect one lead of the ohmmeter to an AC prong. Connect the other lead to the coaxial connector.

7. X-ray Limits: The picture tube is especially designed to prohibit X-ray emissions. To ensure continued X-ray protection, replace the picture tube only with one that is the same type as the original. Carefully reinstall the picture tube shields and mounting hardware; these also provide X-ray protection.

8. High Voltage Limits: High voltage must be measured each time servicing is done on the B+, horizontal deflection or high voltage circuits. Correct operation of the X-ray protection circuits must be reconfirmed whenever they are serviced.

(X-ray protection circuits also may be called

“horizontal disable” or “hold-down”.)

Heed the high voltage limits. These include the X–ray Protection Specifications Label, and the Product Safety and X-ray Warning Note on the service data schematic.

Precautions

Samsung Electronics 1-1

LEAKAGE CURRENT

TESTER

DEVICE UNDER

TEST

TEST ALL

EXPOSED METAL

SURFACES

2-WIRE CORD

ALSO TEST WITH

PLUG REVERSED

(USING AC ADAPTER

PLUG AS REQUIRED)

EARTH

GROUND

(READING SHOULD

NOT BE ABOVE

0 5mA)

Follow these safety, servicing and ESD precautions to prevent damage and protect against potential hazards such as electrical shock and X-rays.

Page 4

1-1 Safety Precautions (Continued)

9. High voltage is maintained within specified limits by close-tolerance, safety-related components and adjustments. If the high voltage exceeds the specified limits, check each of the special components.

10. Design Alteration Warning: Never alter or add to the mechanical or electrical design of this unit. Example: Do not add auxiliary audio or video connectors. Such alterations might create a safety hazard. Also, any design changes or additions will void the manufacturer’s warranty.

11. Hot Chassis Warning: Some TV receiver chassis are electrically connected directly to one conductor of the AC power cord. If an isolation transformer is not used, these units may be safely serviced only if the AC power plug is inserted so that the chassis is connected to the ground side of the AC source.

To confirm that the AC power plug is inserted correctly, do the following: Using an AC voltmeter, measure the voltage between the chassis and a known earth ground. If the reading is greater than 1.0V, remove the AC power plug, reverse its polarity and reinsert. Re-measure the voltage between the chassis and ground.

12. Some TV chassis are designed to operate with 85 volts AC between chassis and ground, regardless of the AC plug polarity. These units can be safely serviced only if an isolation transformer inserted between the receiver and the power source.

13. Some TV chassis have a secondary ground system in addition to the main chassis ground. This secondary ground system is not isolated from the AC power line. The two ground systems are electrically separated by insulating material that must not be defeated or altered.

14. Components, parts and wiring that appear to have overheated or that are otherwise damaged should be replaced with parts that meet the original specifications. Always determine the cause of damage or overheating, and correct any potential hazards.

15. Observe the original lead dress, especially near the following areas: Antenna wiring, sharp edges, and especially the AC and high voltage power supplies. Always inspect for pinched, out-of-place, or frayed wiring. Do not change the spacing between components and the printed circuit board. Check the AC power cord for damage. Make sure that leads and components do not touch thermally hot parts.

16. Picture Tube Implosion Warning: The picture tube in this receiver employs “integral implosion” protection. To ensure continued implosion protection, make sure that the replacement picture tube is the same as the original.

17. Do not remove, install or handle the picture tube without first putting on shatterproof goggles equipped with side shields. Never handle the picture tube by its neck. Some “in-line” picture tubes are equipped with a permanently attached deflection yoke; do not try to remove such “permanently attached” yokes from the picture tube.

18. Product Safety Notice: Some electrical and mechanical parts have special safety-related characteristics which might not be obvious from visual inspection. These safety features and the protection they give might be lost if the replacement component differs from the original—even if the replacement is rated for higher voltage, wattage, etc.

Components that are critical for safety are indicated in the circuit diagram by shading, ( ) or ( ).

Use replacement components that have the same ratings, especially for flame resistance and dielectric strength specifications. A replacement part that does not have the same safety characteristics as the original might create shock, fire or other hazards.

Precautions

1-2 Samsung Electronics

Page 5

1-2 Servicing Precautions

1. Servicing precautions are printed on the cabinet. Follow them.

2. Always unplug the unit’s AC power cord from the AC power source before attempting to: (a) Remove or reinstall any component or assembly, (b) Disconnect an electrical plug or connector, (c) Connect a test component in parallel with an electrolytic capacitor.

3. Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes used. The internal wiring is sometimes clamped to prevent contact with thermally hot components. Reinstall all such elements to their original position.

4. After servicing, always check that the screws, components and wiring have been correctly reinstalled. Make sure that the portion around the serviced part has not been damaged.

5. Check the insulation between the blades of the AC plug and accessible conductive parts (examples: metal panels, input terminals and earphone jacks).

6. Insulation Checking Procedure: Disconnect the power cord from the AC source and turn the power switch ON. Connect an insulation resistance meter (500V) to the blades of the AC plug.

The insulation resistance between each blade of the AC plug and accessible conductive parts (see above) should be greater than 1 megohm.

7. Never defeat any of the B+ voltage interlocks. Do not apply AC power to the unit (or any of its assemblies) unless all solid-state heat sinks are correctly installed.

8. Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the positive lead; always remove the instrument’s ground lead last.

9. When some parts inside the optical engine (except lamp) are damaged, replace the whole optical engine.

Precautions

Samsung Electronics 1-3

Warning 1 : First read the “Safety Precautions” section of this manual. If some unforeseen circumstance creates a

conflict between the servicing and safety precautions, always follow the safety precautions.

Warning 2 : An electrolytic capacitor installed with the wrong polarity might explode.

“CAUTION : Double-pole/neutral fusing”

Page 6

1-3 Precautions for Electrostatically Sensitive Devices (ESDs)

1. Some semiconductor (“solid state”) devices are easily damaged by static electricity. Such components are called Electrostatically Sensitive Devices (ESDs); examples include integrated circuits and some field-effect transistors. The following techniques will reduce the occurrence of component damage caused by static electricity.

2. Immediately before handling any semicon ductor components or assemblies, drain the electrostatic charge from your body by touching a known earth ground. Alternatively, wear a discharging wrist-strap device. (Be sure to remove it prior to applying power— this is an electric shock precaution.)

3. After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent accumulation of electrostatic charge.

4. Do not use freon-propelled chemicals. These can generate electrical charges that damage ESDs.

5. Use only a grounded-tip soldering iron when soldering or unsoldering ESDs.

6. Use only an anti-static solder removal device. Many solder removal devices are not rated as “anti-static”; these can accumulate sufficient electrical charge to damage ESDs.

7. Do not remove a replacement ESD from its protective package until you are ready to install it. Most replacement ESDs are packaged with leads that are electrically shorted together by conductive foam, aluminum foil or other conductive materials.

8. Immediately before removing the protective material from the leads of a replacement ESD, touch the protective material to the chassis or circuit assembly into which the device will be installed.

9. Minimize body motions when handling unpackaged replacement ESDs. Motions such as brushing clothes together, or lifting a foot from a carpeted floor can generate enough static electricity to damage an ESD.

Precautions

1-4 Samsung Electronics

CAUTION

These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

Page 7

Reference Information

Samsung Electronics 2-1

2. Reference Information

2-1 Tables of Abbreviations and Acronyms

A Ah Å dB dBm

°C °F °K F G GHz g H Hz h ips kWh kg kHz kΩ km km/h kV kVA kW I MHz

Ampere Ampere-hour Angstrom Decibel Decibel Referenced to One Milliwatt Degree Celsius Degree Fahrenheit degree Kelvin Farad Gauss Gigahertz Gram Henry Hertz Hour Inches Per Second Kilowatt-hour Kilogram Kilohertz Kilohm Kilometer Kilometer Per Hour Kilovolt Kilovolt-ampere Kilowatt Liter Megahertz

MV MW MΩ m µA µF µH µm µs µW mA mg mH mI mm ms mV nF

Ω

pF Ib rpm rps s V VA W Wh

Megavolt Megawatt Megohm Meter Microampere Microfarad Microhenry Micrometer Microsecond Microwatt Milliampere Milligram Millihenry Milliliter Millimeter Millisecond Millivolt Nanofarad Ohm Picofarad Pound Revolutions Per Minute Revolutions Per Second Second (Time) Volt Volt-ampere Watt Watt-hour

Table 2-1 Abbreviations

Page 8

Reference Information

2-2 Samsung Electronics

Table 2-2 Table of Acronyms

ABL AC ACC AF AFC AFT AGC AM ANSI APC APC A/V AVC BAL BPF B-Y CATV CB CCD CCTV Ch CRT CW DC DVM EIA ESD ESD FBP FBT FF FM FS GND G-Y H HF HI-FI IC IC IF

Automatic Brightness Limiter Alternating Current Automatic Chroma Control Audio Frequency Automatic Frequency Control Automatic Fine Tuning Automatic Gain Control Amplitude Modulation American National Standards Institute Automatic Phase Control Automatic Picture Control Audio-Video Automatic Volume Control Balance Bandpass Filter Blue-Y Community Antenna Television (Cable TV) Citizens Band Charge Coupled Device Closed Circuit Television Channel Cathode Ray Tube Continuous Wave Direct Current Digital Volt Meter Electronics Industries Association Electrostatic Discharge Electrostatically Sensitive Device Feedback Pulse Flyback Transformer Flip-Flop Frequency Modulation Fail Safe Ground Green-Y High High-Frequency High Fidelity Inductance-Capacitance Integrated Circuit Intermediate Frequency

I/O L L LED LF MOSFET MTS NAB NEC NTSC OSD PCB PLL PWM QIF R RC RF R-Y SAP SAW SIF SMPS S/N SW TP TTL TV UHF UL UV VCD VCO VCXO VHF VIF VR VTR VTVM TR

Input/output Left Low Light Emitting Diode Low Frequency Metal-Oxide-Semiconductor-Field-Effect-Tr Multi-channel Television Sound National Association of Broadcasters National Electric Code National Television Systems Committee On Screen Display Printed Circuit Board Phase-Locked Loop Pulse Width Modulation Quadrature Intermediate Frequency Right Resistor & Capacitor Radio Frequency Red-Y Second Audio Program Surface Acoustic Wave(Filter) Sound Intermediate Frequency Switching Mode Power Supply Signal/Noise Switch Test Point Transistor Transistor Logic Television Ultra High Frequency Underwriters Laboratories Ultraviolet Variable-Capacitance Diode Voltage Controlled Oscillator Voltage Controlled Crystal Oscillator Very High Frequency Video Intermediate Frequency Variable Resistor Video Tape Recorder Vacuum Tube Voltmeter Transistor

Page 9

IC655 TDA7265

ICS801 TNY253P

IC301 LA7845

IC471 TL494CN

ICZ103,104 STK392-040

IC431 MC4558C

IC703 PCF8574P

ICP706 PCF8574P(Option)

IC701,702 TDA6920X

IC705 TC4052BP

ICD02 MC14528B

ICD01,03 EL4583C

IC901 Z9037116PSC

IC902 24C16

ICC01 Z86129

ICC02,03 NJM2248D

IC06 SDA9361

IC07 CXA2101AQ

IC01 VPC3230D-B2

IC02 SDP9400

IC03 SDS9280

PIC01 VPC3230D-B2

PIC02 MS81V04160

*ICP701 SDA9488X

*IC04 CIP3250A

IC01 UPD64082GF

IC02 416C1204

*6-1

Block NameNo. IC Location IC Name

Table 2 - 3 IC Line - Up

Reference Information

Samsung Electronics 2-3

2-2 IC Line Up

2-2-1 Progressive

MAIN

SUB

A/V-Terminal

Micom

Caption

Double Window(D/W)

PIP

3D-Comb

Page 10

*8-1

Reference Information

2-4 Samsung Electronics

Block NameNo. IC Location IC Name

Table 2 - 3 IC Line - Up (Continued)

Convergence

(SDC11)

Convergence

(SDC12)

Sound

CRT

POWER

REPLAY-MODULE (OPTION)

IC01 SDC11 IC06 TSC87251 20-OTP IC04 7042 IC05 24C16 IC08 EL2250CS IC09 74HC4052

IC10,11,12 TL072

IC13 TL324

IC14,15,16 7S04

IC17 TLC2932IPWLE

IC04,05,06 NC7S04P5X

IC08 74HC4052 IC13 NC7SB3157P6X IC05 24C16 IC12 KA324D

IC09,10,11 TL072C

IC07 EL2250CS IC03 KIA7042AF IC02 KA78M33D IC17 TLC2932IPWLE

ICD601 MSP3452G-A1

*ICD601 MSP3450G-B6

ICD602,603 TL062

IC501,531,561 TDA6111Q

IC801S STRF6656

IC802 SVD001(OPTION) IC804 SE11ON

DU801 EPC1PC8

DU803,804,805,806 K4S561632C-TL75

DU808 MIC39150 DU800 EP1K30FC256-3

Page 11

Reference Information

Samsung Electronics 2-5

2-3 MICOM IIC BUS LINE -UP

Page 12

Reference Information

2-6 Samsung Electronics

MENO

Page 13

Specifications

Samsung Electronics 3-1

3. Specifications

Broadcasting System

Scanning System

Tuning Range

Antenna Impedance

Intermediate Frequency

Sound Output

Rated Voltage

W/B Coordinates

High Voltage

FUSE

Power Consumption

NTSC

Progressive Scanning

VHF : CH2 ~ CH13

UHF : CH14 ~ CH69

Cable : CH1, CH14 ~ 125

75 ohm Unbalanced

Video : 45.75 MHz

Sound : 42.25 MHz

Chrominance Subcarrier : 42.17 MHz

STD : 10W

FULL MAX : 15W

120V / 60 Hz

Hx : 290 Hy : 278 Y : 8.0

Lx : 290 Ly : 278 Y : 0.2

29KV

250V/6.3A

CODE NO : 3601-000300

230W

Page 14

Specifications

3-2 Samsung Electronics

MENO

Page 15

Alignment and Adjustments

Samsung Electronics 4-1

4. Alignment and Adjustments

4-1 When entering the service mode:

1. Turn on the TV, and then select “STANDARD”on the picture adjustment mode.

2. Turn off the TV (STAND-BY).

3. Enter the service mode by pressing the remote control keys in the following sequence : MUTE 1→8→2→Power On

Note : If necessary, re-do steps 1~3.

Initial display when the service mode is switched.

SERVICE MODE NORMAL

GEOMETRICS PICTURE SOUND PIP OPTION READ RESET

1. When a RF signal is received

SERVICE MODE 1080i/480P

GEOMETRICS PICTURE SOUND PIP OPTION READ RESET

2. When a DTV signal is received

MAIN MENU MENU DISPLAY

CH UP/DOWN Select item by moving cursor

VOL UP/DOWN Decrease or increase the adjustment values

3. Service Mode Control Keys

< PRECAUTIONS >

1. When EEPROM IC (IC902) is replaced, first connect the power cord and wait for about 4~5 seconds.

2. After replacing EEPROM IC (IC902), enter the Service mode. Next, enter the standard data or the previous EEPROM IC data before replacement. And then check and adjust any items related to Geometric, Picture, Option.

Page 16

Alignment and Adjustments

4-2 Samsung Electronics

Item

Performance

of adjustment

EEP-ROM COPY DATA

VSC

PPH

PAM

UPC

LOC

HEH

VAN

VBO

HSP

OFS

VSO

VAO

VLO

V-Shift

V-Size

V-Line

V-S-CORR

V-EHT

H-Size

PIN-PHS

PIN-AMP

UP-CORR

LO-CORR

H-EHT

H-Shift

V-Angle

V-Bow

H-Sync-PH

Offset

VS-Offset

VA-Offset

VL-Offset

0~255

0~127

0~255

0~1

0~125

54”

GEOMETRIC

4-2 Factory Data

4-2-1 NORMAL

FUNCTION RANGE

INITIAL

DATA

Variable

Fix

Variable

110

120

128

138

100

120

128

138

Set after changing the option for 1080i-mode factory-scan (OFS 0->1) *Only DTV 1080i Mode

62”

100

120

128

138

47”/55”/65”

100

120

128

138

Page 17

Alignment and Adjustments

Samsung Electronics 4-3


Item

Performance

of adjustment

EEP-ROM COPY DATA

RDR

GDR

BDR

RCT

GCT

BCT

SBT

CON

COL

HUE

RYR

RYB

GYR

GYB

GAM

SHP

SFO

POV

LT I

VML

VMD

DCT

DPI

HPF

VPF

VPG

VPI

R-Drive

G-Drive

B-Drive

R-Cut Off

G-Cut Off

B-Cut Off

Sub-BRT

Sub-CONT

Sub-Color

Sub-Tint

R-Y AXIS

Gamma

Sub-Sharp

SHP-FO

PRE-OVER

LUMINANCE

VM-LBL

VM-PHASE

DC-TRAN

D-PIC

HPF/BCOF

VPF/HCOF

VAPGAIN

VAPINV

0~63

0~15

0~3

0~15

0~7

0~31

54”

FUNCTION RANGE

INITIAL

DATA

Variable

(Fix)

Variable

10/10/10

2/2/3

3/1/0

2/2/2

0/0/0

2/3/2

2/2/2

62”

10/10/10

2/2/3

3/1/0

2/2/2

0/0/0

2/3/2

2/2/2

47”/55”/65”

10/10/10

2/2/3

3/1/0

2/2/2

0/0/0

2/3/2

2/2/2

Page 18

Alignment and Adjustments

4-4 Samsung Electronics


Item

Performance

of adjustment

EEP-ROM COPY DATA

RCO

GCO

BCO

BPO

BWD

0~100

0~255

54”

FUNCTION RANGE

INITIAL

DATA

100

160

100

160

62” 47”/55”/65”

100

160

100

160

Page 19

Alignment and Adjustments

Samsung Electronics 4-5

4-2-2 D/TV 1080i

GEOMETRIC

Item

Performance

of adjustment

EEP-ROM COPY DATA

VSC

PPH

PAM

UPC

LOC

HEH

VAN

VBO

HSP

OFS

VSO

VAO

VLO

V-Shift

V-Size

V-Line

V-S-CORR

V-EHT

H-Size

PIN-PHS

PIN-AMP

UP-CORR

LO-CORR

H-EHT

H-Shift

V-Angle

V-Bow

H-Sync-PH

Off set

VS-Offset

VA-Offset

VL-Offse

0~255

0~127

0~255

0~1

0~255

0~25

54”

FUNCTION RANGE

INITIAL

DATA

Variable

210

128

138

130

120

128

138

62”

130

120

128

138

47”/55”/65”

130

120

128

138

Set after changing the option for 1080i-mode factory-scan (OFS 0->1) *Only DTV 1080i Mode

Page 20

Alignment and Adjustments

4-6 Samsung Electronics

GEOMETRIC

4-2-3 D/TV 480P

Item

Performance

for adjustment

EEP-ROM COPY DATA

VSC

PPH

PAM

UPC

LOC

HEH

VAN

VBO

HSP

OFS

VSO

VAO

VLO

V-Shift

V-Size

V-Line

V-S-CORR

V-EHT

H-Size

PIN-PHS

PIN-AMP

UP-CORR

LO-CORR

H-EHT

H-Shift

V-Angle

V-Bow

H-Sync-PH

Off set

VS-Offset

VA-Offset

VL-Offse

0~255

0~127

0~255

0~1

0~255

54”

FUNCTION RANGE

INITIAL

DATA

115

120

128

138

Variable

Fix

110

100

128

138

62”

110

100

128

138

47”/55”/65”

Set after changing the option for 1080i-mode factory-scan (OFS 0->1) *Only DTV 1080i Mode

110

100

128

138

Page 21

Alignment and Adjustments

Samsung Electronics 4-7

PIP

OPTION

Item

Performance

for adjustment

EEP-ROM COPY DATA

Byte 0

545R

FUNCTION

INITIAL

DATA

Option 00

Variable

6215R

5415R

68 68

Item

Performance

for adjustment

EEP-ROM COPY DATA

CONTRAST

HUE POS-HOR-L POS-HOR-R POS-VER-U

POS-HOR-D

54”

FUNCTION

INITIAL

DATA

CONTRAST

HUE POS-HOR-L POS-HOR-R POS-VER-U POS-HOR-D

8 0 5

Variable Variable Variable Variable Variable Variable

62”

47”/55”/65”

8 0

2 60 21 22

8 0

2 60 21 22

8 0

2 60 21 22

Byte 1

Option 00

Variable

01 01

552W

652W

5515W

E9 89

01 00

6515W

4715W

Item

Performance

for adjustment

EEP-ROM COPY DATA

Byte 0

FUNCTION

INITIAL

DATA

Option 00

Variable

Byte 1

Option 00

Variable

5525W

473W/553W

653W

Page 22

Alignment and Adjustments

4-8 Samsung Electronics

SZM-422A OPTION TABLE

Note 1

Option adjustments should be done in service mode.

Page 23

Alignment and Adjustments

Samsung Electronics 4-9

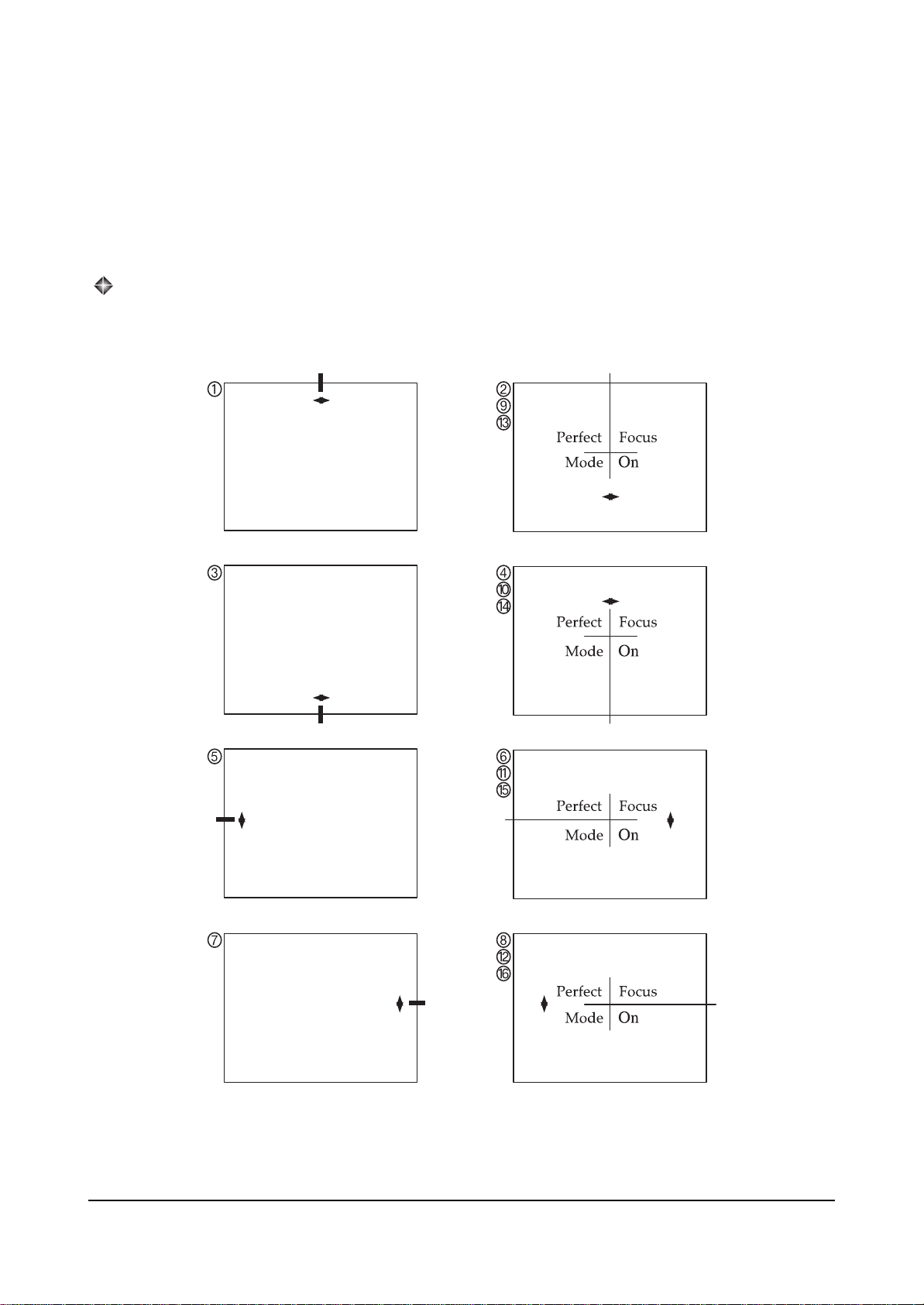

4-3 Screen Change (When adjusting I2C Bus Geometric items)

1 V SHIFT

2 V LINEARITY

3 H SIZE

6 V SIZE

7 V - S - CORRECTION

PIN PHASE

PIN AMP

5 V ANGLE

9 H SHIFT

10 V BOW

Page 24

Alignment and Adjustments

4-10 Samsung Electronics

4-4 Other Adjustments

4-4-1 Screen Adjustment

1. Warm up the TV for at least 30 minutes.

2. Turn to the Video Mode (No Signal) using a remote-control.

3. Connect an oscilloscope to RK,GK,BK.

4. Adjust the VR (VR501, VR531, VR561) screen so that RK, GK, BK pulse is 20Vp-p each. (Turn the R,G,B VR screen fully counterclockwise in the area of each flyback line.)

4-4-2 White Balance Adjustment

1. Select the “STANDARD” video mode.

2. Input 100% white pattern.

3. In the stand-by mode, press the remote-control keys in the following sequence: Mute → 1 → 8 → 2 → Power ON

4. Warm up the TV for at least 30 minutes.

5. Input a 10-step signal.

6. R-cut off, B-cut off, and G-cut off by pressing the Volume +/- keys.

7. Adjust the low light with viewing the dark side of the screen.

8. Select R-drive, G-drive, and B-drive by pressing the Volume +/- keys.

9. Adjust the high light with viewing the light side of the screen.

10. If necessary, redo adjustments 6~9.

11. Press the Menu key to exit.

4-4-3 Sub-Brightness Adjustment

1. Input a sub-brightness adjustment signal. (TOSHIBA PATTERN)

2. In the stand-by mode, press the remote-control keys in the following sequence : Mute - 1 - 8 - 2 - Power ON

3. Select SBT by pressing the Volume +/- keys.

4. Adjust so that the 63 step on the right side of the screen is not seen (Use the Volume +/keys).

5. Press the Menu key to exit.

4-4-4 High Voltage (29KV) Check

PRECAUTION

1. Input a lion head pattern.

2. Select “STANDARD” video mode.

3. Warm up the TV for at least 10 minutes.

4. Use a 1000:1 probe.

ADJUSTMENT

1. Connect the (+) terminal of the 1000:1 probe to the high voltage distributor and the (-) terminal to GND (located on the deflection board).

2. Adjust RR471S (located on the deflection board) so that the digital meter indicates DC 29KV ± 0.1KV.

4-4-5 F.S. (Fail Safe) Adjustment

Note : The finished product has a well-mounted

VR (RR402S). If necessary, do the F.S. adjustments in the following sequence.

1. Use a digital multimeter.

2. Connect the digital multimeter to the JIG pin (DZ482S) terminals

3. Adjust VR (RR402S) so that the voltage becomes 2.25V.

4. After the adjustments are complete, be sure to mount VR (RR402S) correctly.

Page 25

Alignment and Adjustments

Samsung Electronics 4-11

4-4-6 F.S. (Fail Safe) Circuit Check

Note : The F.S. Circuit check must be performed

after servicing.

1. Turn on the TV.

2. Select the “STANDARD” video mode.

3. Short F/S Test point (located on the SUB PCB). Then, both sound and picture disappear. (Note: Even if the shorted terminals are removed, both sound and picture do not appear. This proves the F.S. circuit is working. )

4. To restore both sound and picture, turn off the TV and reset it after about 30 seconds.

4-4-7 Static Focus Adjustment

PRECAUTION

1. Select the “STANDARD” video mode.

2. Input a crosshatch pattern.

3. Cover the lenses that are not being adjusted.

4. Connect a convergence jig and read data.

5. Adjust the lens for best focus. (See Fig, 4-1, next page)

STATIC FOCUS (CONTINUED)

Vary the focus pack VR (Red, Blue) on the front cabinet. Adjust the TV for best possible focus around the center of the crosshatch pattern, without losing overall screen balance. Figure Crosshatch Pattern Examine these points together.

4-4-8 Lens Focus Adjustment

PRECAUTIONS

1. Do this adjustment after the static focus adjustment and the tilt adjustment.

2. Select the “STANDARD” video mode. (Contrast:100, Brightness:50)

3. Input a crosshatch pattern.

ADJUSTMENT

1. Loosen the lens screws.

2. Cover the two lenses that are not being adjusted.

3. Adjust the lens, observing the color aberration vertically and horizontally within 3 blocks of the center of the crosshatch pattern.

4. When the lens is turned clockwise, the color aberration will change as follows:

Lens Color Aberration Change R Orange - Crimson G Blue - Red B Purple - Green

5. Green lens adjustment: Set the lens at the point where Blue just changes to Red. If the color aberration is irregular throughout the picture screen, adjust the lens to show Red color aberration (approximately 1~3 mm area) within a 3-block grid around the horizontal center-line. If the color aberration is irregular, adjust the lens as shown in the diagram below. (Accurate alignment of Green is important for overall color quality.)

6. Red lens adjustment Set the Red lens at the point where Orange becomes Crimson.

7. Blue lens adjustment Set the Blue lens at the point where Purple becomes Green.

RED ABERRATION

BLUE ABERRATION

L1, L2 < P

Fig. 4-1 Crosshatch Pattern.

Fig. 4-2 Color Aberration

Examine these points together

Page 26

Alignment and Adjustments

4-12 Samsung Electronics

4-4-9 Horizontal Dynamic Focus Adjustment

PRECAUTION

1. Input a crosshatch pattern.

2. Select the “STANDARD” video mode.

3. Warm up the set for at least 10 minutes.

ADJUSTMENT

1. Cover the Red and Blue lenses.

2. Use a digital multimeter.

3. Connect the '+' terminal of digital multimeter to D-Focus and the '-' terminal to GND.

4. Adjust L434 located on the sub PCB so that the digital multimeter indicates AC690V 20Vp-p.

5. Balance the left and right sides of the dynamic focus lines.

Page 27

Alignment and Adjustments

Samsung Electronics 4-13

4-5 Hige Voltage Part

4-5-1 PWM REG Circuit

For the existing high voltage REG circuit (input voltage variation type), a dynamic REG response is not provided. So it is difficult for both beam linearity and uniformity in screen size to be maintained on the screen with rapidly changing beams.

A PWM (Pulse Width Modulation) type of high voltage, however, provides the maintenance of beam linearity and uniformity in screen size via a quick response to beam change by performing sync lock every 1H line, and detecting beam fluctuation at 1H line, and then controlling the IC current of high voltage output circuit.

1. High Voltage Fluctuation Detect (DC Detect)

FBT pin 11 detects DC high voltage fluctuation. The detected DC high voltage value is input to PWM IC471 pin1 through R473, VR471, R471, and then it is input to a differential AMP circuit that differentiates the gap after comparing with the reference voltage input to pin2.

2. High Voltage Fluctuation Detect (AC Detect)

To check AC high voltage fluctuation, the output from FBT is detected by using a capacitor inside the high voltage distributor. The detection of AC high voltage fluctuation, a detection of dynamic beam current change is required in order to keep beam linearity and uniformity in size. Regarding the capacitor, a capacity of less than 3000P should be applied to a PWM type. (The existing type needs a capacity of about 6000P.) AC detect circuit eliminates unnecessary high frequency by using C476, D472. Also, AC gain is limited to + / - 0.7V (D472). This AC gain is combined with the detection value of DC high voltage fluctuation by using C478.

3. PWM IC OSC Sync Lock

A PWM type IC needs sync lock for PWM pulse and horizontal scan line. The standard time constant of OSC circuit is determined by C487, R475 (PWM IC pins 5 and 6). And the standard OSC frequency is about 27 kHz . The horizontal frequency of scan line is

31.5kHz(NT), 3375kHz(DTV), 15.75kHz(Interface), so sync lock for this horizontal frequency should be performed using sync lock circuit. The sync lock circuit consists of Q481(Tr KSC815-Y), D479, D478, and C492. The input AFC signal is connected to PWM IC pin 5 through D479 so that it can be negative Trig.

4. Dead Time (HV Protect)

Dead Time (PWM IN pin4) consists of C481, delays high voltage for a certain time to soft start in power on, a x-ray protection circuit. The voltage of Dead Time is detected by FBT pin7 and through DC Feedback. The normal voltage of Dead Time is +27V. When high voltage increases, however, detected voltage is in proportion to high voltage. Then, the detected voltage is applied to ICR01S(TL431). If the voltage is over 2.5V (normal:about 2.25V), TL431 turns ON, the base port of QR401S becomes low, and then an emitter current flows. At this time, a high voltage protection point is set. When QR401S turns ON, high voltage is applied to PWM IC pin4 and then muted.

OSC : 27KHz

AFC Waveform : 31.5KHz(NT)

Locked OSC Waveform : 31.5KHz

Page 28

Alignment and Adjustments

4-14 Samsung Electronics

5. Output Circuit

The voltages, which are detected form an error detection circuit of PWM IC (Differential AMP) and Dead Time, each is applied to PWM conparator . Due to these detection coltages, Q1, Q2 (Output TR) parallel operate. Q482 (External TR), however, functions as a buffer; natches inpedance between the output port of PWM IC and the final output TR(IRFS640). The PWM pulse (applied to the final output FET (IRFS640 GATE) varies the IC current of high voltage TR(Q473) by adjusting the load impedance of starage Trans (T431). Due to this variation of current, the gain for Q473 emitter pulse changes T444(FBT)makes this emitter pulse became high voltage. Such change keeps both dynamic and static changes fixed. The output waveform of high valtage TR emitter is as shown in the figure below.

6. Paraneters according to beam

To maintain the set high voltage value (31kV), parmaters such as +Ve (DC), Vcp High Voltage change (See the table below).

7. Response Waveform

To reduce unstable high voltage fluctuation, the existing high voltage type REG circuit controls dynamic fluctuation by using C-block capacitor. But, it can't detect actual dynamic fluctuation. Also, its velocity of response to static fluctuation is late because +B power supply changes per

about 1V. A PWM modulation type REG detects static, dynamic high voltage fluctuation for only Ton Time (when the current of the output TR collector flows) each 1H, and modulates the width of PWM pulse. So, this PWM type has better improvement in the characteristic of high voltage REG as compared to the existing type.

8. Application Effects

1) Improvement of horizontal size fluctuation

2) Linearity improved

3) Embodiment of X-ray protection circuit

The figures below show characteristics when a PWM high voltage REG circuit is applied.

Beam

(High voltage )

Factor of high

voltage change

Beam

(High voltage )

Width of FET

Gate Pulse

+ Ve (DC)

Vcp

High

Voltage

Parameters

High Voltage Drive Base Current

PWM Input Waveform of FET GATE

GND

PWM Variation tange

Ton Toff

Beam

High Voltage

High Voltage OFF High Voltage REG ON

BLACK

WHITE

When a Toshiba Pattern is recrived, the screen is displayed as shown in figute side

Existing type

PWM type

Page 29

Alignment and Adjustments

Samsung Electronics 4-15

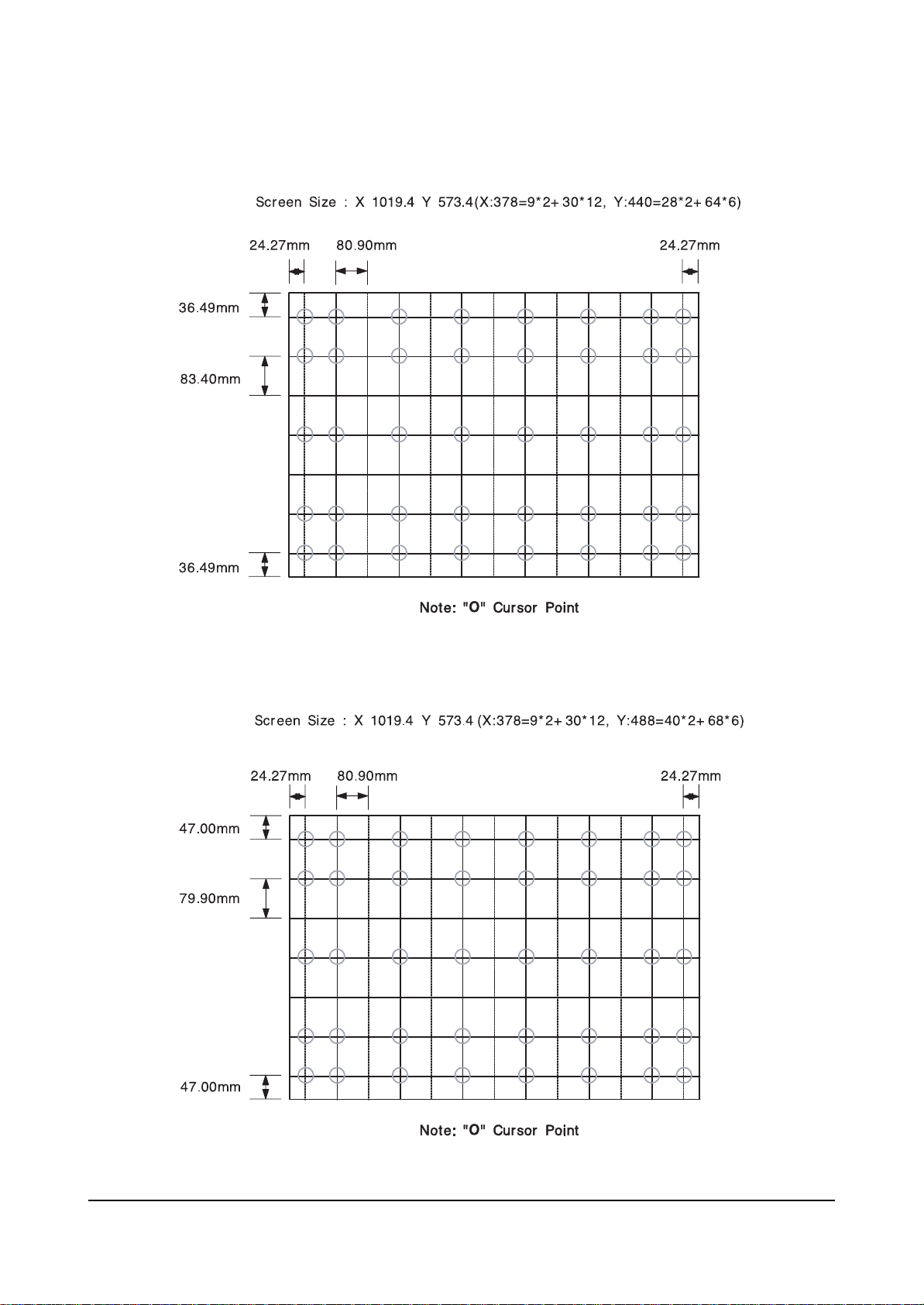

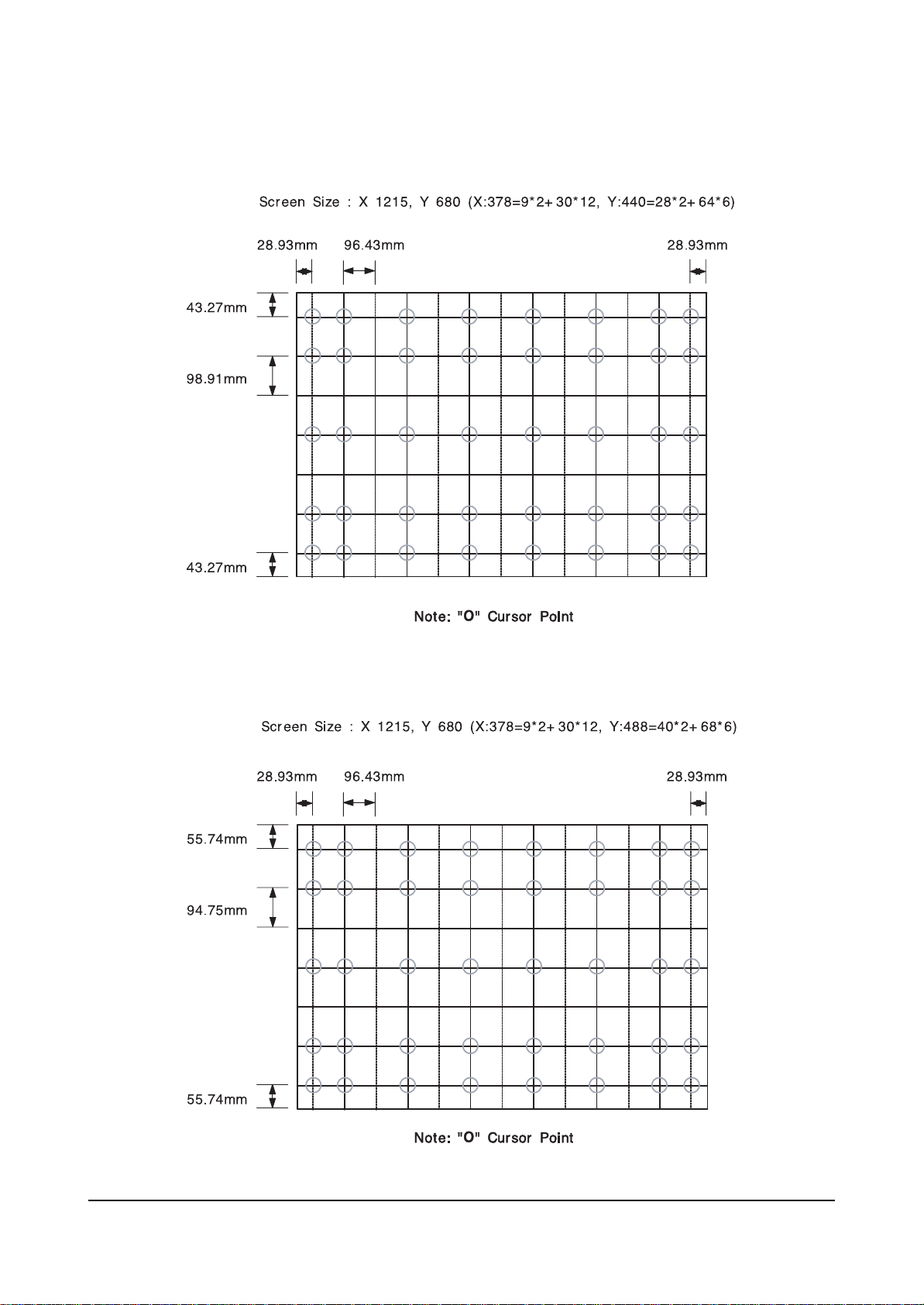

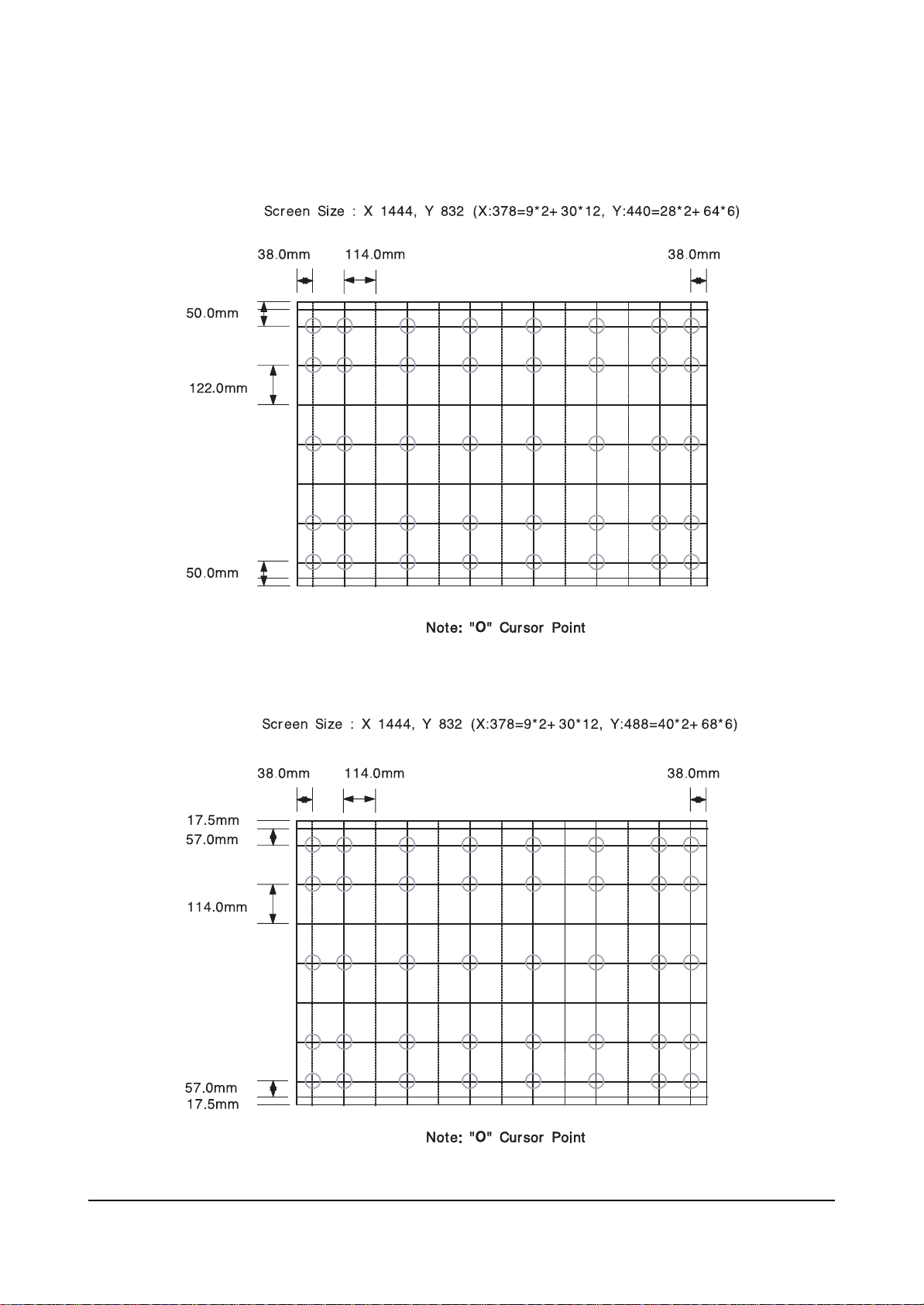

4-6 Screen-Jig

4-6-1 PCL545R/PCL5415R(NORMAL MODE)

4-6-2 PCL545R/PCL5415R(DTV MODE)

Page 30

Alignment and Adjustments

4-16 Samsung Electronics

4-6-3 PCL6215R(NORMAL MODE)

4-6-4 PCL6215R(DTV MODE)

Page 31

Alignment and Adjustments

Samsung Electronics 4-17

4-6-5 473W/4715W (NORMAL MODE)

4-6-6 473W/4715W (DTV MODE)

Page 32

Alignment and Adjustments

4-18 Samsung Electronics

4-6-7 552W/5515W/5525W/553W(NOMAL MODE)

4-6-8 552W/5515W/5525W/553W(DTV MODE)

Page 33

Alignment and Adjustments

Samsung Electronics 4-19

4-6-9 652W/653W/6515R(NORMAL MODE)

4-6-10 652W/653W/6515R(DTV MODE)

Page 34

Alignment and Adjustments

4-20 Samsung Electronics

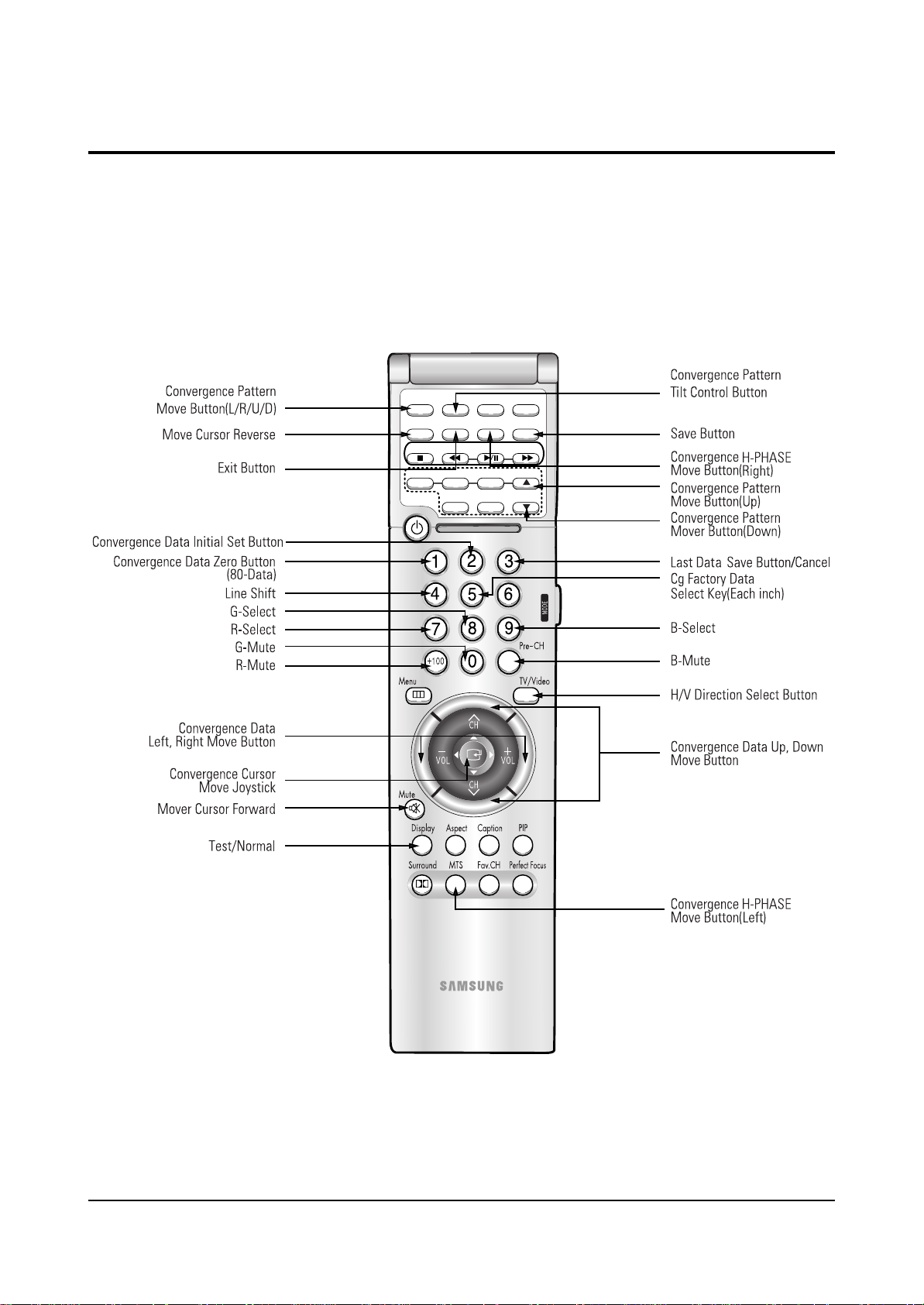

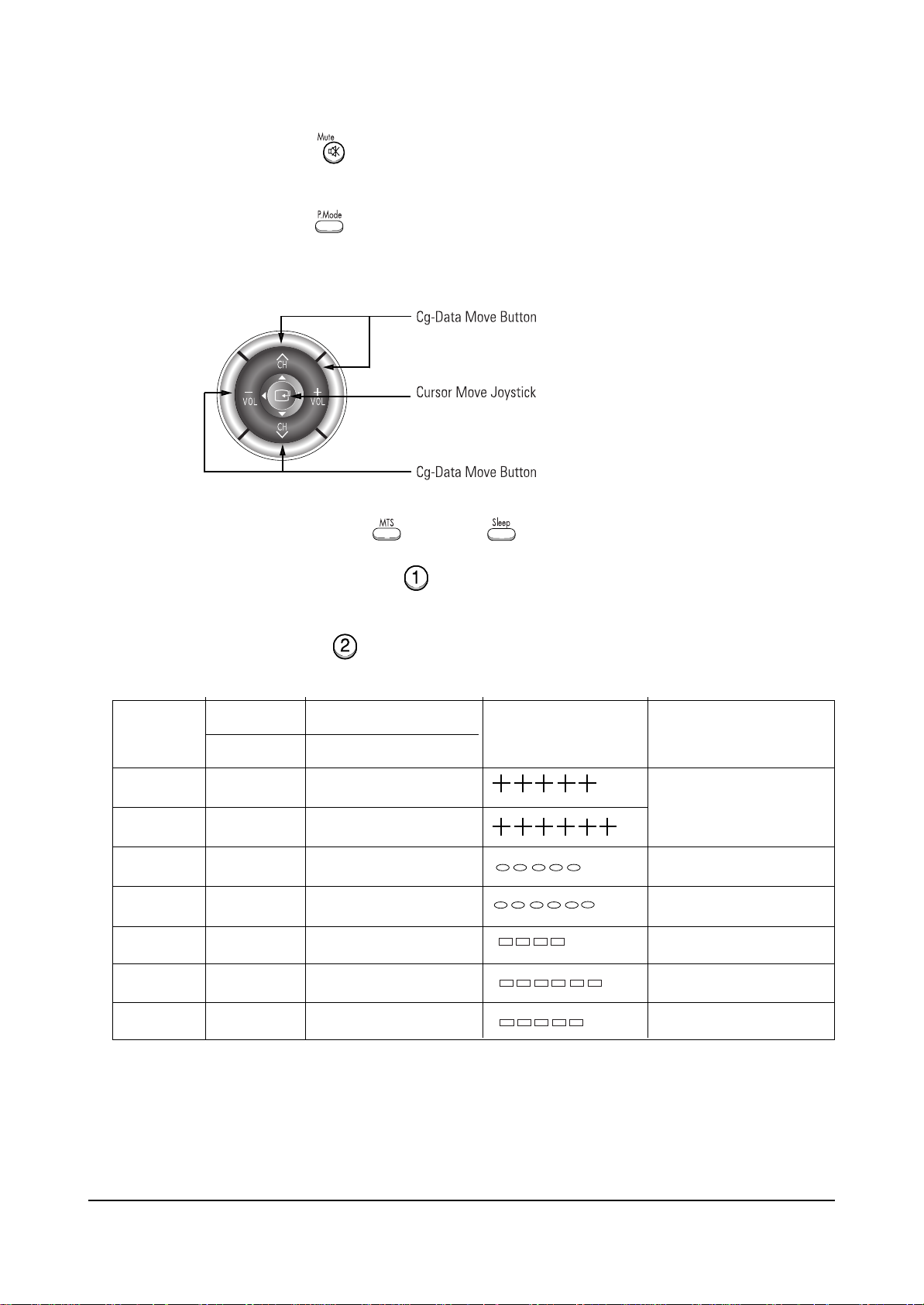

4-7 Remote Control for Servicing (Convergence Mode)

R.surf ANT A/B V.chip Set

P.Mode S.Mode Sleep Add/Erase

Stop REW Play/Pause FF

Source Scan Locate

Swap Size CH

Page 35

Alignment and Adjustments

Samsung Electronics 4-21

4-7-1 KEY Function

1. R-SELECT Press to select RED color.

2. G-SELECT Press to select GREEN color.

3. B-SELECT Press to select BLUE color.

4. R-MUTE Press to mute RED color.

5. G-MUTE Press to mute GREEN color.

6. B-MUTE Press to mute BLUE color.

7. CANCEL KEY Press to revert to the previous data during the Convergence Adjustment.

8. TEST/NORMAL

Press to check TV mode in the Convergence Mode.

9. LINE SHIFT Press to move a line up/down or left/right.

10. FACTORY DATASELECT BUTTON Press to call the factory default values.

11. H/V DIRECTION SELECT BUTTON Press to switch the cursor direction horizontally or vertically.

12. SAVE BUTTON After the Convergence Adjustments are completed, press to save data.

13 EXIT BUTTON

After the Convergence adjustments are completed, press to exit to TV mode.

S.Mode

Page 36

Alignment and Adjustments

4-22 Samsung Electronics

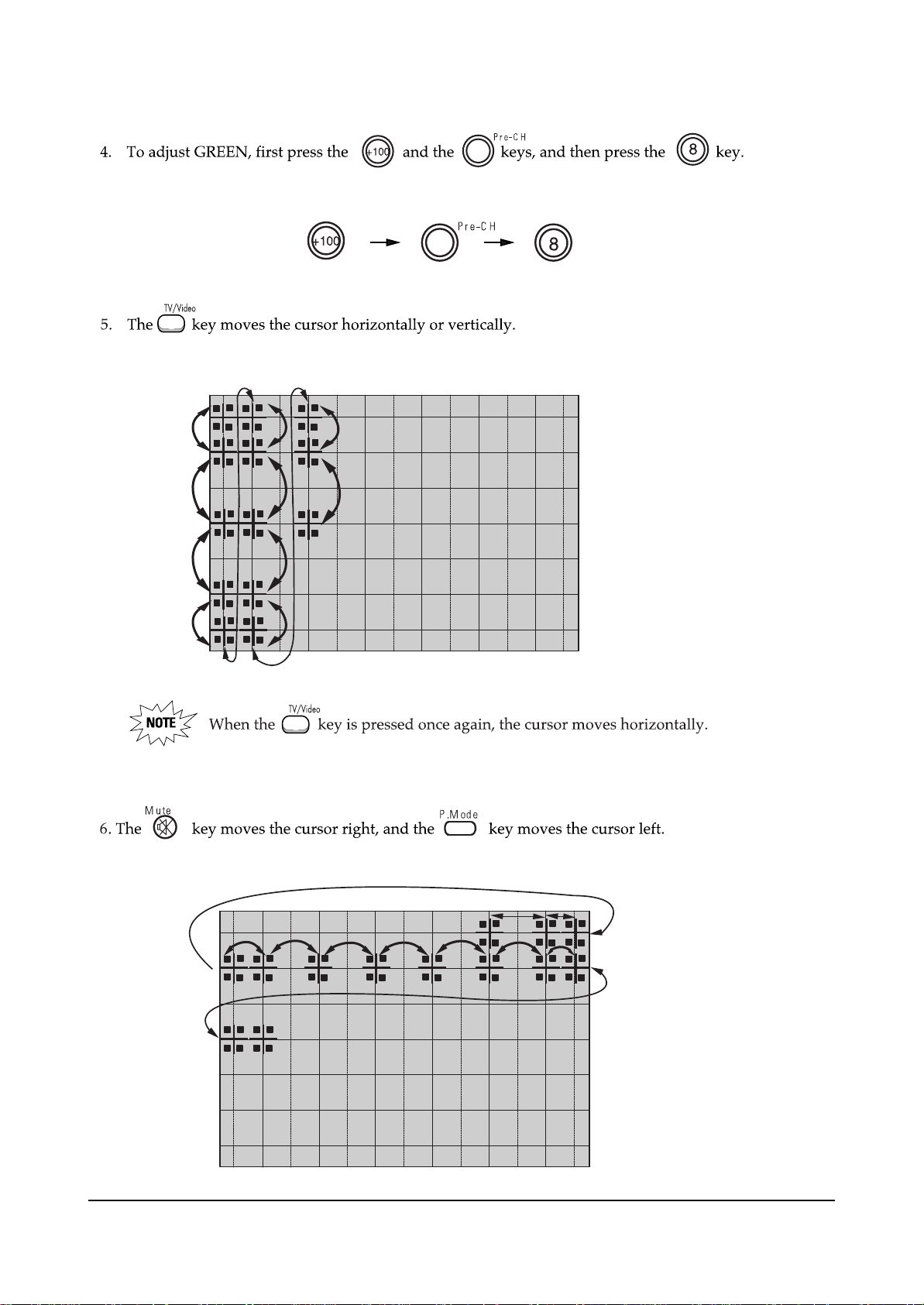

14. MOVE CURSOR FORWARD Press to move the cursor right or down.

15. MOVE CURSOR REVERSE Press to move the cursor left or up.

16. CONVERGENCE PICTURE MOVE BUTTON

17. CONVERGENCE MOVE BUTTON Press to move the convergence left ( ) or right ( ) .

18. CONVERGENCE DATAZERO BUTTON Press to zero the convergence correction data.

19. INITIAL DATASET BUTTON

Inch (Type)

54” (54J9)

62” (62J9)

55” (552W)

65” (652W)

47” (472W)

(473W)

65”(653W)

55”(553W)

Model Name

Representative

Model

PCL545R/

PCL5415R

PCL6215R

HCL552W/

5515W

HCL652W/

6515W

HCL472W/

4715W

HCM653W

HCM5525W/

553W

Basic Data

Number after entring

the Cg-Mode

5-545 (Press in regular order)

5-625 (Press in regular order)

5-552 (Press in regular order)

5-652 (Press in regular order)

5-473 (Press in regular order)

5-653 (Press in regular order)

5-553 (Press in regular order)

Screen Display

Discription

White Cross on the background

(white cross)

White Oval on the background

(white border)

White Oval on the background

(white border)

White Square on the backgrand

(white border )

White Square on the backgrand

(white border )

White Square on the backgrand

(white border )

Changes when applying Almighty-Cg, Module (How to extract the basic Cg Data)

Page 37

R.surf

Alignment and Adjustments

Samsung Electronics 4-23

20. Move Convergence Pattern P54A Service Manual After pressing the R.surf button, use the Channel Up/Down and Volume +/- buttons to move the Convergence Pattern up/down/left/right.

21. Convergence Pattern Tilt Control Button After pressing the ANT A/B button, use the Channel Up/Down and Volume +/- buttons to create a tilt to the Convergence Pattern.

Note : Use the following two buttons only when they are indispensable.

ANT A/B

Page 38

Alignment and Adjustments

4-24 Samsung Electronics

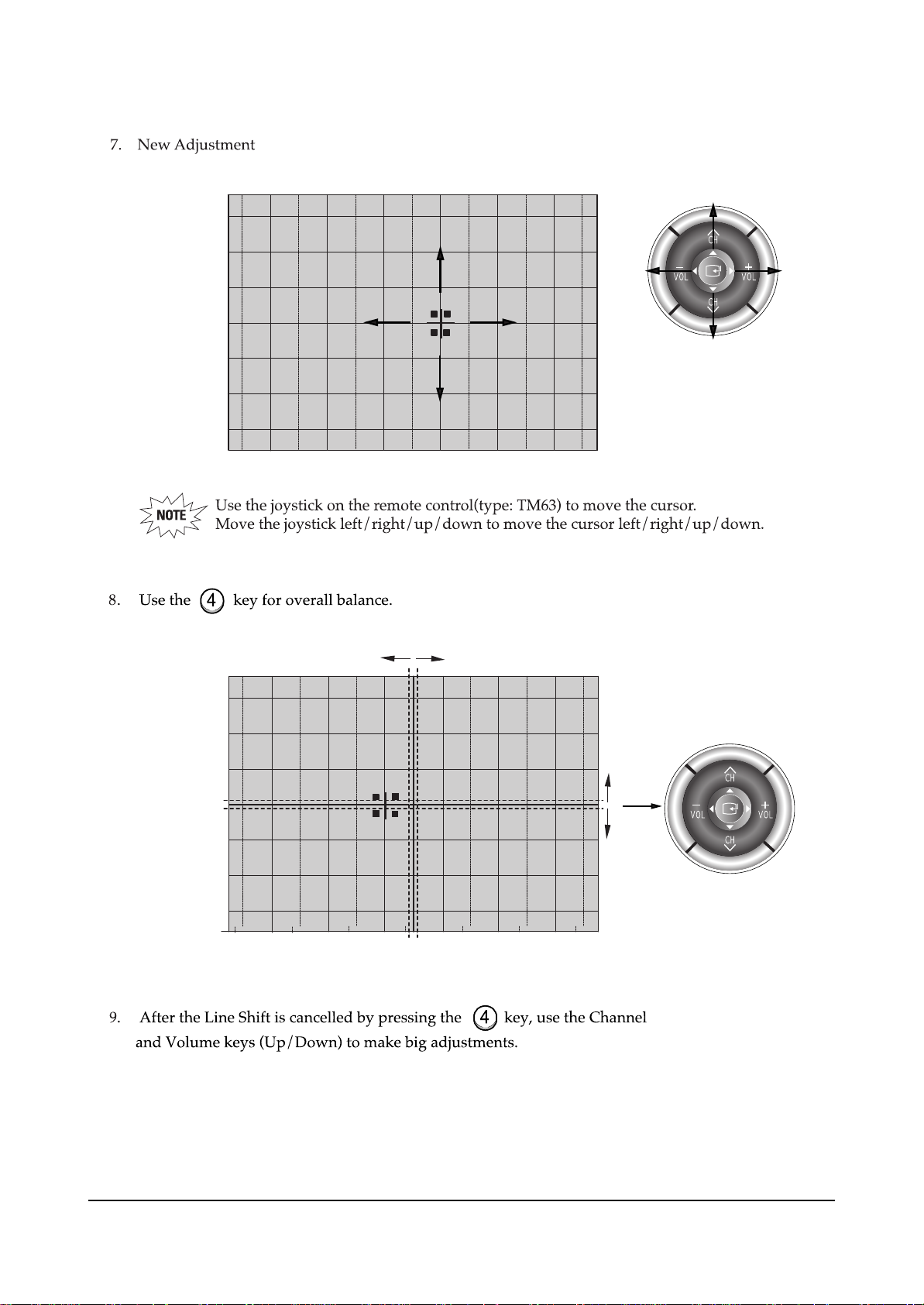

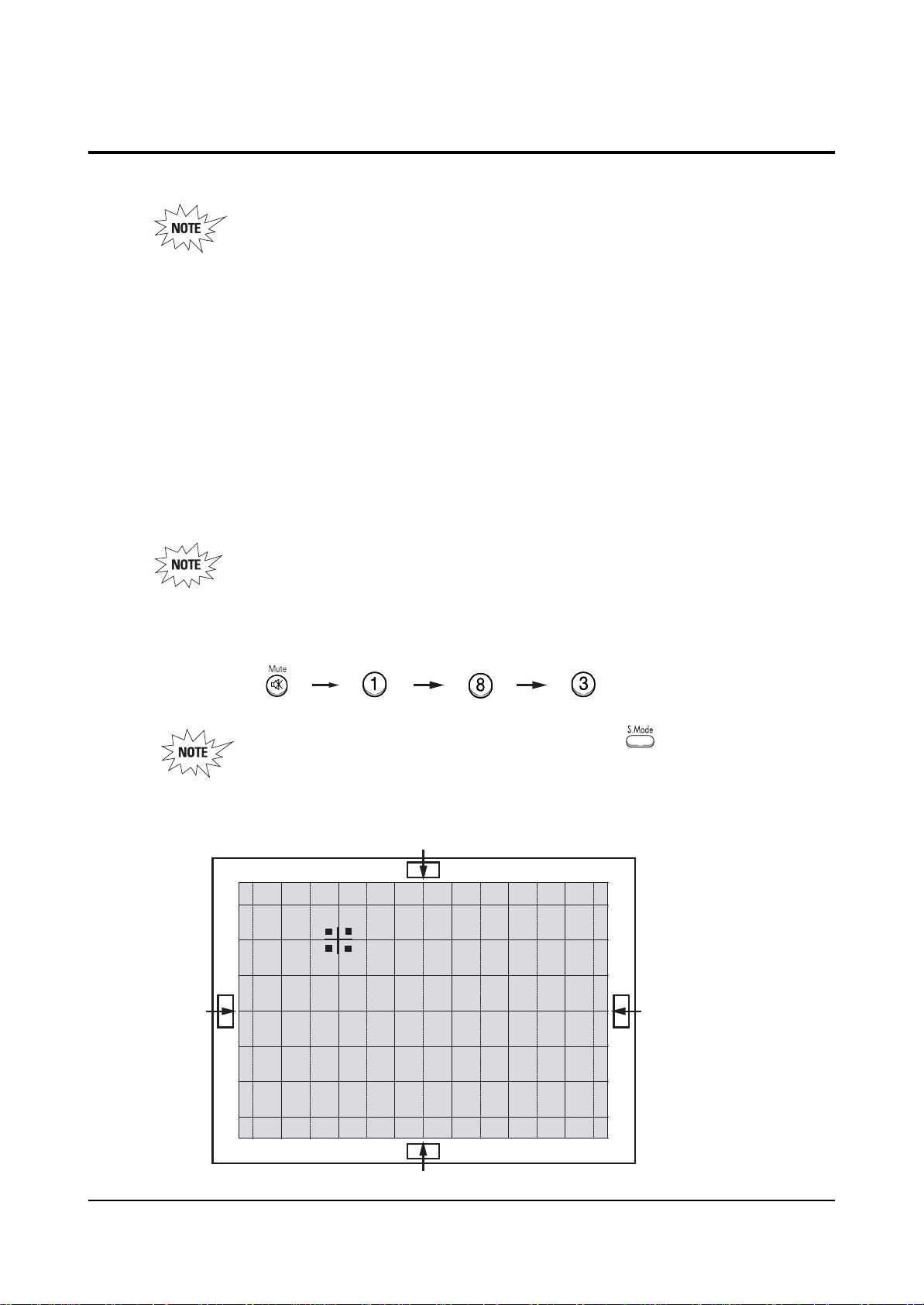

4-8 Convergence Adjustment

Special Notes

/ A sensor is attached on the center of each side of the Convergence Mode pattern

(see figure below). The sensors are required for normal Perfect Focus function.

/ Use a screen jig to do the convergence adjustments correctly (Especially, perform

correct convergence adjustments on the center of each side where a sensor is located.)

/ Do the convergence adjustments correctly. Otherwise, any Perfect Focus error can

happen.

1. Warm up the TV for a least 30 minutes.

2. Input an NTSC Signal.(Use an antenna or AV source.)

Make sure that deflection yoke are properly adjusted so that the center of Green, Red, Blue pattern is aligned on the center of screen jig.

3. Enter the Convergence Mode by Pressing the remote control keys in the following sequence:

If OSD displayed as shown in figure below, press the key to exit. Then, redo step 3 to enter the Convergence Mode. After entering the Convergence Mode, Stand by for about five seconds before doing the adjustments.

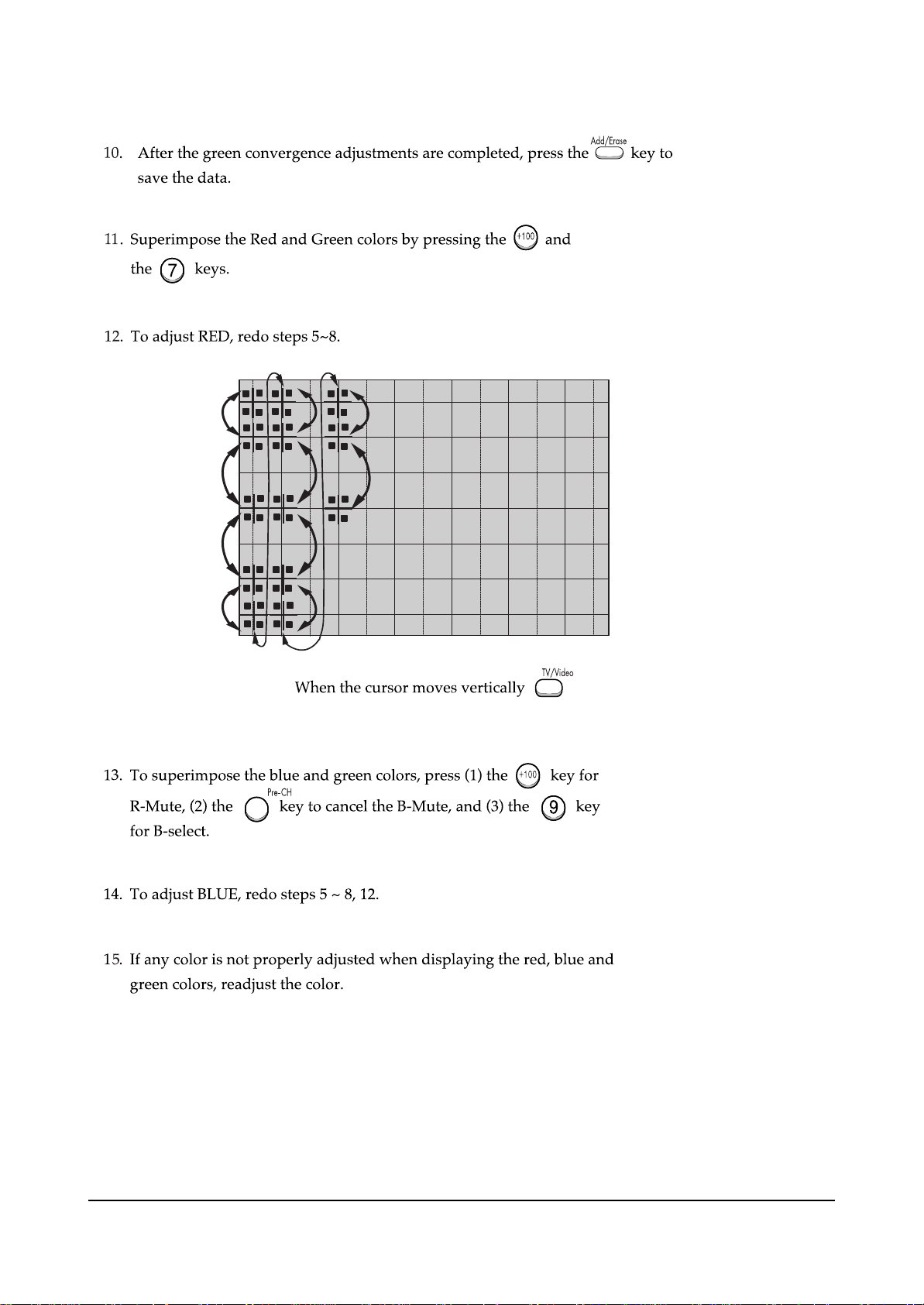

4-8-1 Convergence Adjustment)

Page 39

Alignment and Adjustments

Samsung Electronics 4-25

Page 40

Alignment and Adjustments

4-26 Samsung Electronics

Page 41

Alignment and Adjustments

Samsung Electronics 4-27

Page 42

Alignment and Adjustments

4-28 Samsung Electronics

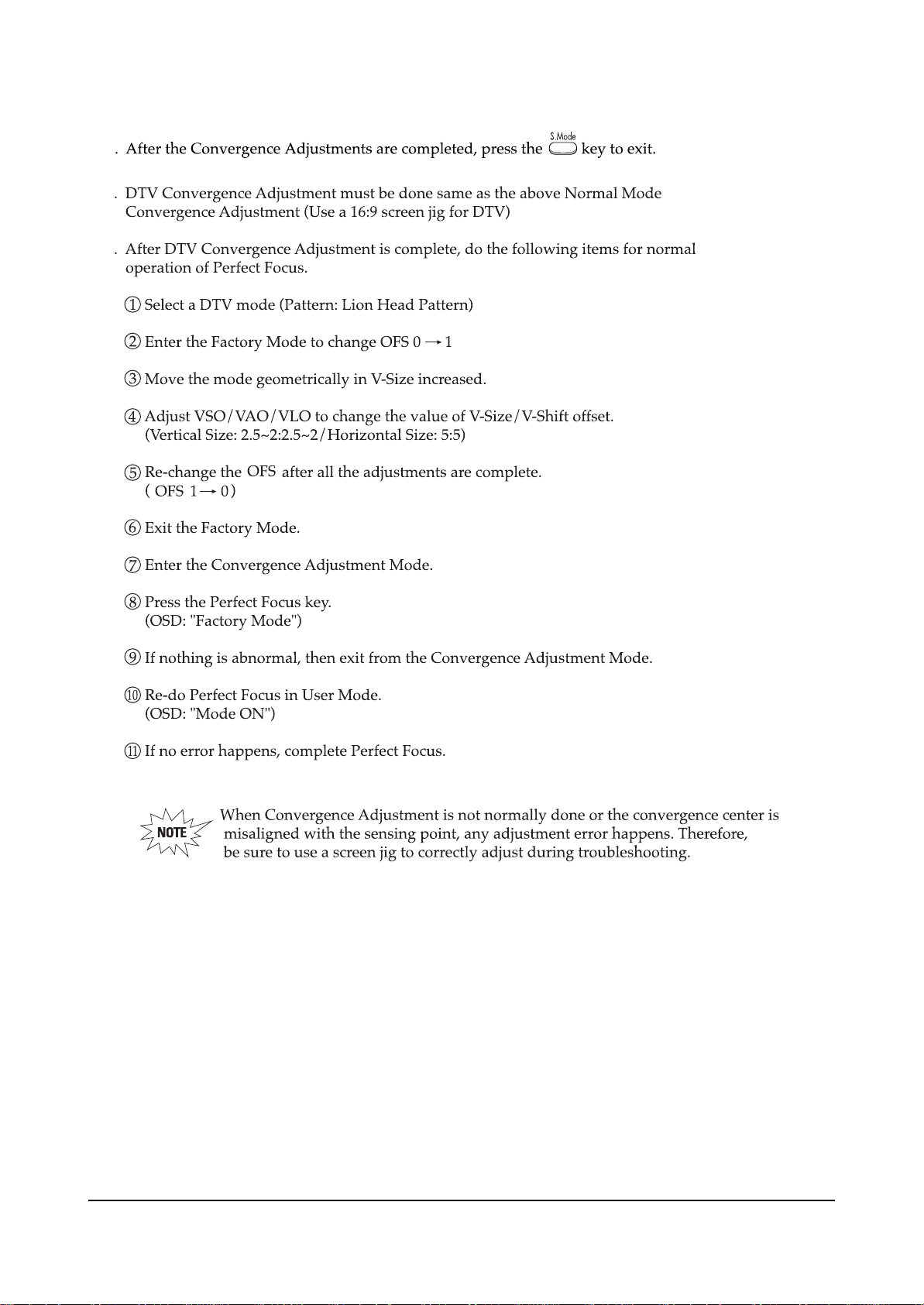

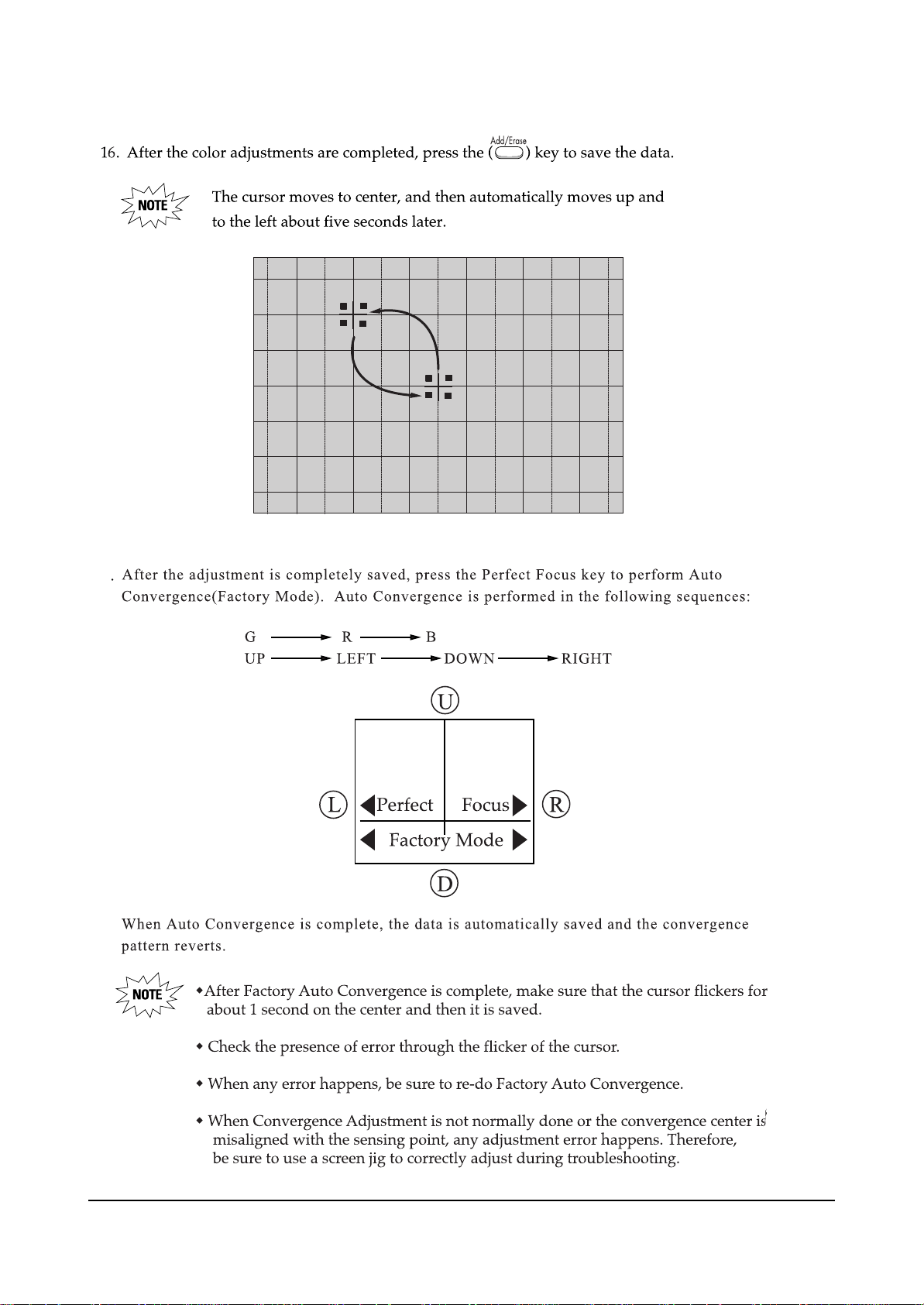

4-8-2 Perfect Focus (Factory Mode)

Page 43

Alignment and Adjustments

Samsung Electronics 4-29

Page 44

Alignment and Adjustments

4-30 Samsung Electronics

1. Press the Perfect Focus button on the remote control or select Convergence from the menu.

2. Press the Menu button to exit (Available in only User mode).

Note : After adjustments 1~16 for each of R,G,B are complete, if the cursor flickers for a while at the

center of screen while the figure of adjustment 8 is displayed, it means normal operation of Perfect Focus has been complete.

4-8-3 Perfect Focus (User Mode)

Page 45

Alignment and Adjustments

Samsung Electronics 4-31

4-8-4 In / Out Voltage For Each Pin

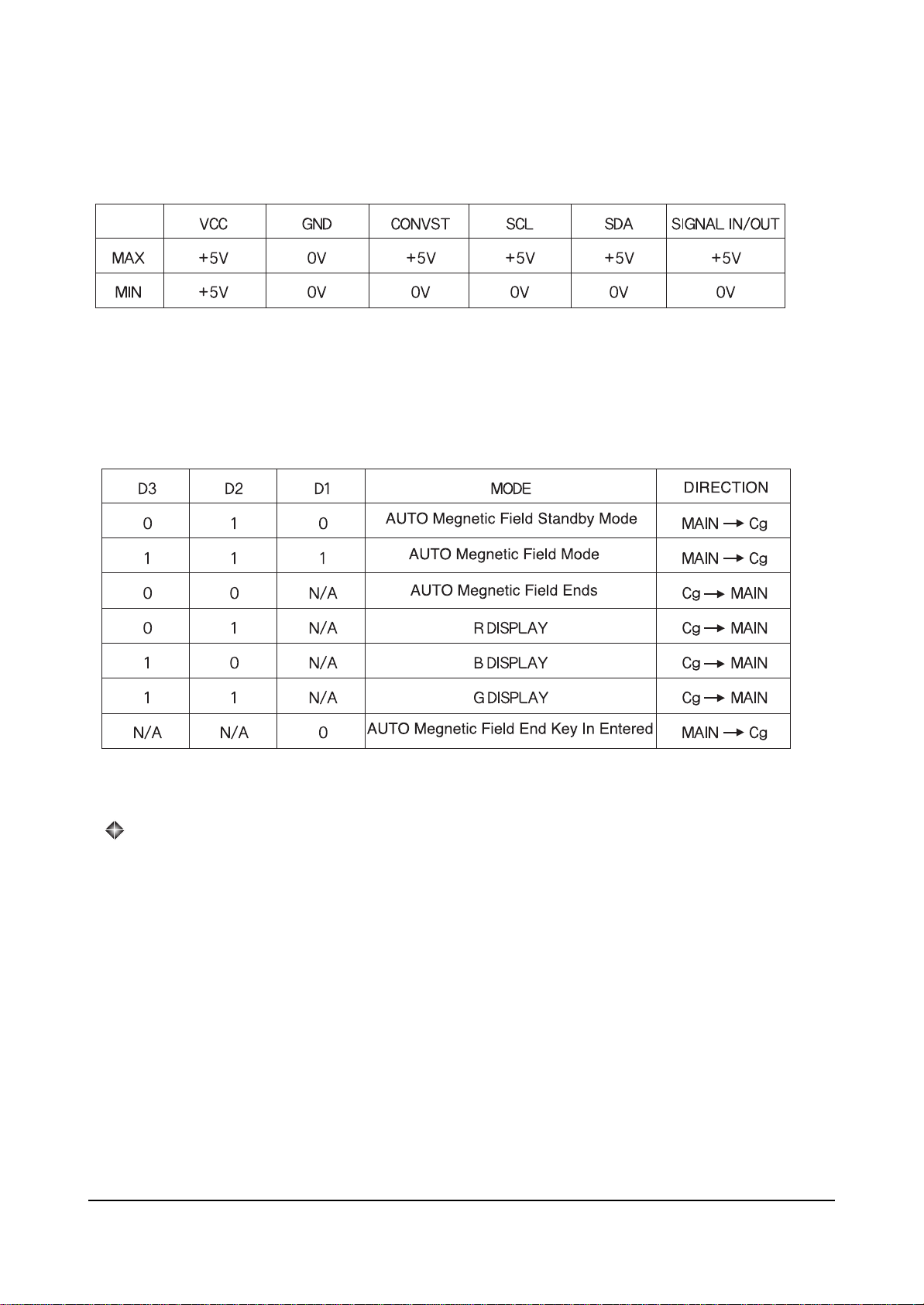

4-8-5 Communication With Main Micom

NOTE : Main Micom operates within 50ms after a command is transmitted from Cg Micom.

Page 46

Alignment and Adjustments

4-32 Samsung Electronics

4-9-1 Pin Layout(Progressive)

4-9 MICOM and Pins Voltage

POWER

IR-IN

V-MUTE

2RF-S

S-CONT0 S-CONT1

DVD-IDENT

DTV-IDENT

PROTECT

1H-SYNC

IND1 IND2

CVBS

LOOP FILTER

ANALOG GND

SUB-AFT

KEY1

MAI N - A F T

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

Z 9 0 3 7 1 1 6 P S C

POWER2/1080i

BUS-STOP

50 49

HOLD

RXD

V-TXD TIMER-LED

46 45

S/W-MUTE D1

44 43

AMP-MUTE

MODE SEL S-RESET

41 40

XTAL GND

VCC GND

38 37

XTAL2 XTAL1

36 35

/R E S E T

KEY2 KEY3

ANALOG GND

ANALOG VCC

HALF TONE

OSD B

OSD G

OSD R

19 20 21 22 23 24 25 26

34 33 32 31 30 29 28 27

N.C N.C D3

SCL-1 SDA-1

VSYNC HSYNC

BLANK

Page 47

Alignment and Adjustments

Samsung Electronics 4-33

4-9-2 MICOM Pins(Progressive)

1 POWER POWER ON/OFF RELAY CONTROL L --> H

2 IR IN REMOCON INPUT 5V

3 V-MUTE VIDEO SIGNAL MUTE 3V

4 2RF-S 2RF-SWITCHING 5V

5 S-CONT0 SOUND MODE SELECT 5V

6 S-CONT1 SOUND MODE SELECT 5V

7 DVD-IDENT DVD-IDENT 5V

8 DTV-IDENT DTV-IDENT -

9 PROTECT PROTECT PORT -

10 1H-SYNC NORMAL H,V-SYNC 3.5V

11 IND1 CLOCK BUS LINE 4.5V

12 IND2 DATA BUS LINE 4.5V

13 CVBS CVBS 1.7V

14 LOOP FILTER LOOP FILTER 1.9V

15 ANALOG GND GND GND

16 SUB-AFT SUB AUTO FINE TURNING CONTROL 2.64V

17 KEY 1 KEY SCAN 1 4.84V

18 MAIN-AFT MAIN TUNER AFT 1.9V

19 KEY 2 KEY SCAN 2 -

20 KEY 3 KEY SCAN 3 -

21 ANALOG GND GND -

22 ANALOG VCC VCC 5V

23 HALF TONE SIGNAL FOR OSC-FREQUENCY OSD CONTROL -

24 OSD B ON SCREEN DISPLAY BLUE OUTPUT -

25 OSD G ON SCREEN DISPLAY GREEN OUTPUT -

26 OSD R ON SCREEN DISPLAY RED OUTPUT -

PIN NO. ITEM FUNCTION OUT VOLT

Page 48

Alignment and Adjustments

4-34 Samsung Electronics

27 BLANK BLAKING SIGNAL OUTPUT -

28 HSYNC HORIZONTAL SYNC INPUT -

29 VSYNC VERTICAL SYNC INPUT -

30 SDA-1 DATA BUS LINE 4.5V

31 SCL-1 CLOCK BUS LINE 4.12V

32 D3 CONVERGENCE D3 -

33 N.C N.C -

34 N.C N.C -

35 /RESET RESET 4.74V

36 XTAL1 XTAL 1 1.72V

37 XTAL2 XTAL 2 2.2V

38 GND GND -

39 VCC VCC 5V

40 XTAL GND GND -

41 S-RESET SOUND RESET -

42 MODE SELECT DVD MODE SELECT(480i/480p) 5V

43 AMP-MUTE MAIN AMP MUTE -

44 D1 CONVERGENCE D1 -

45 S/W-MUTE SWITCH MUTE (NOT USED) -

46 TIMER-LED TIMER LED 4.7V

47 V-TXD - 4.6V

48 RXD - 4.6V

49 HOLD HOLD 4.65V

50 BUS-STOP I

C BUS STOP 5V

51 POWER2/1080i 1080i RELAY CONTROL 4.65V

52 D2 CONVERGENCE D2 -

PIN NO. ITEM FUNCTION OUT VOLT

Page 49

Alignment and Adjustments

Samsung Electronics 4-35

4-9-3 Proscan Module (Progressive)

1 SCP -

2 EW EAST WEST OUT 2.2V

3 V-BLK V-BLANKING -

4 ABL ABL INPUT 2.15V

5 AD- VERTICAL DRIVE(-VOLTAGE) 2.95V

6 AD+ VERTICAL DRIVE(+VOLTAGE) 2.90V

7 H-BLK H-BLANKING INPUT -

8 HD H-DRIVE OUT 1.6V

9 GND GND GND

10 PIP-RF -

11 PIP-C -

12 PIP-V/Y -

13 GND GND GND

14 CVBS-Y -

15 CHR CHROMA -

16 GND GND GND

17 Pr/R Pr/R INPUT 2.0V

18 Y/G Y/G INPUT 2.0V

19 Pb/B Pb/B INPUT 2.0V

20 FB FAST BLANKING INPUT 0.25V

21 GND GND -

22 HC 5V INPUT -

23 VS1 VS1 INPUT -

24 GND GND -

25 SDA SERIAL DATA LINE 4.7V

26 SCL SERIAL CLOCK LINE 4.8V

27 5V 5V 5V

28 27M OPTION -

29 GND GND GND

30 5V- 5V- 5V-

PIN NO. ITEM FUNCTION OUT VOLT

Page 50

Alignment and Adjustments

4-36 Samsung Electronics

31 H-OUT HORIZENTAL-OUT N.C

32 V-OUT VERTICAL-OUT N.C

33 GND GND GND

34 R-OUT R-OUT -

35 G-OUT G-OUT -

36 B-OUT B-OUT -

37 GND GND GND

38 IK IK OUT 3.65V

39 GND SPOT OUT -

40 GND GND GND

41 VM-Y VM-Y OUT 5.42V

42 YD N.C -

43 GND GND GND

44 CG-SYND CG-SYNC INPUT -

45 CG-B CG-B INPUT -

46 CG-G CG-G INPUT -

47 CG-R CG-R INPUT -

48 GND GND GND

49 PC-R N.C -

50 PC-G N.C -

51 PC-B N.C -

52 PC-H GND GND

53 PC-V OSD-R INPUT -

54 GND OSD-G INPUT -

55 OSD-R OSD-B INPUT -

56 OSD-G BLANK(MICOM OUT) -

57 OSD-B HALF TONE INPUT -

58 YS/YM VIDEO MUTE (V-CHIP ON) 4.72V

59 YS/YM GND GND

60 GND 9V 9V

PIN NO. ITEM FUNCTION OUT VOLT

Page 51

Alignment and Adjustments

Samsung Electronics 4-37

61 9V D-Pr INPUT -

62 HD-Pr D-Y INPUT -

63 HD-Y D-Pb INPUT -

64 HD-Pb N.C -

PIN NO. ITEM FUNCTION OUT VOLT

Page 52

Alignment and Adjustments

4-38 Samsung Electronics

4-9-4 3D/COMB Module

1 VIDEO MAIN VIDEO INPUT 2.74V

2 GND GND GND

3 9V 9V INPUT 9V

4 GND GND GND

5 SCL SERIAL CLOCK LINE 4.1V

6 SDA SERIAL DATA LINE 4.1V

7 V-3D COPY GUARD REJECT SIGNAL 3.8V

8 5V 5V INPUT 5V

9 Y-OUT MAIN Y OUT -

10 GND GND GND

11 C-OUT MAIN C OUT -

12 GND GND GND

PIN NO. ITEM FUNCTION OUT VOLT

Page 53

Alignment and Adjustments

Samsung Electronics 4-39

4-9-5 Sound Module

1 GND GND GND

2 GND GND GND

3 GND GND GND

4 S-RESET SOUND RESET -

5 MAIN-L MAIN LEFT OUT -

6 GND GND GND

7 GND GND GND

85V 5V 5V

9 MAIN-R MAIN RIGHT OUT -

10 GND GND GND

11 GND GND GND

12 GND GND GND

13 8V 8V 8V

14 SCL-1 SERIAL CLOCK LINE -

15 GND GND GND

16 SDA-1 SERIAL DATA LINE -

17 CENTER CENTER OUT -

18 GND GND GND

19 GND GNAD GND

20 12V 12V 12V

21 SURROUND SURROUND OUT -

22 GND GND GND

23 GND GND GND

24 S-F1 S-F1(ANT1) -

25 GND GND GND

26 GND GND GND

27 AV4-L-IN AV4 LEFT INPUT -

28 A-MONO-IN A-MONO INPUT -

29 GND GND GND

30 GND GND GND

PIN NO. ITEM FUNCTION OUT VOLT

Page 54

Alignment and Adjustments

4-40 Samsung Electronics

31 AV4-R-IN AV4 RIGHT INPUT -

32 S-F2 S-F2(ANT2) -

33 GND GND GND

34 GND GND GND

35 GND GND GND

36 GND GND GND

37 EXT-L-IN EXTERNAL LEFT INPUT -

38 H-PHONE-L HEADPHONE LEFT OUT -

39 GND GND GND

40 GND GND GND

41 EXT-R-IN EXTERNAL RIGHT INPUT -

42 H-PHONE-R HEADPHONE RIGHT OUT -

43 GND GND GND

44 GND GND GND

45 GND GND GND

46 GND GND GND

47 AV2-L-IN AV2 LEFT INPUT -

48 MONITOR-L MONITOR OUT -

49 GND GND GND

50 GND GND GND

51 AV2-R-IN AV2 RIGHT INPUT -

52 MONITOR-R MONITOR OUT -

53 GND GND GND

54 GND GND GND

55 GND GND GND

56 GND GND GND

57 AV1-L-IN AV1 LEFT INPUT -

58 AV1-L-OUT AV1 LEFT OUTPUT -

59 GND GND GND

60 GND GND GND

PIN NO. ITEM FUNCTION OUT VOLT

Page 55

Alignment and Adjustments

Samsung Electronics 4-41

61 AV1-R-IN AV1 RIGHT INPUT -

62 AV1-R-OUT AV1 RIGHT OUT -

63 GND GND GND

64 GND GND GND

PIN NO. ITEM FUNCTION OUT VOLT

Page 56

Alignment and Adjustments

4-42 Samsung Electronics

4-9-6 Caption Module

1 C-OUT MAIN C-OUT -

2 C-IN MAIN C-IN -

3 OSD-F/B OSD-F/B IN -

4 OSD-B OSD-B IN -

5 OSD-G OSD-G IN -

6 OSD-R OSD-R IN -

7 H-SYNC H-SYNC -

8 GND GND GND

9 CVBS CVBS -

10 5V-D 5V-D -5V

11 GND GND GND

12 SCL SCL -

13 SDA SDA -

14 GND GND GND

15 V-SYNC V-SYNC -

16 V-OUT SUB-BLK/MAIN-Y -

17 12V 12V 12V

18 GND GND GND

19 OSD-F/B OSD-F/B OUT -

20 OSD-B OSD-B OUT -

21 OSD-G OSD-G OUT -

22 OSD-R OSD-R OUT -

PIN NO. ITEM FUNCTION OUT VOLT

Page 57

Alignment and Adjustments

Samsung Electronics 4-43

4-8-7 CONV-Module

16V 6V 6V

2 GND GND GND

3 FOCUS N.C -

4 GND GND GND

5 D2 SDA -

6 D1 SCL -

7 GND GND GND

8 C-SYNC C-SYNC OUT 4.41V

9 R WHEN TEST PATTERN R OUT -

10 TEST-Y/G WHEN TEST PATTERN G OUT -

11 B WHEN TEST PATTERN B OUT -

12 D3 D3/NT-PAL SEL 0.2V

13 CTRL CTRL -

14 IR INPUT REMOCON 3V

15 COMP COMP VIDEO OUTPUT -

16 GND GND GND

17 GND GND GND

18 GND GND GND

19 BV BLUE VERTICAL OUT -

20 BH BLUE HORIZONTAL OUT -

21 GV GREEN VERTICAL OUT -

22 GH GREEN HORIZONTAL OUT -

23 RV RED VERTICAL OUT -

24 RH RED HORIZONTAL OUT -

25 GND GND GND

26 H-BLK H-BLANKING OUT 0.52V

27 V-BLK V-BLANKING OUT -

28 GND GND GND

29 N.C N.C -

30 -5.4V -5.4V -5.4V

PIN NO. ITEM FUNCTION OUT VOLT

Page 58

Alignment and Adjustments

4-44 Samsung Electronics

31 5.4V 5.4V 5.4V

32 GND GND GND

PIN NO. ITEM FUNCTION OUT VOLT

Page 59

Alignment and Adjustments

Samsung Electronics 4-45

Page 60

Troubleshooting

Samsung Electronics 5-1

5. Troubleshooting

5-1 Convergence Misaligned

Normal

Check the

output voltage and waveform

of CN801, 803, CNZ02 on

the Convergence Board

Abnormal

Check CNZ01 out pin

(BZ, BH, RV, RH, GV, GH)

Normal

Check the associated

circuitry

Abnormal

Check Convergence

Moudle

1. Check FD802S, FD855S, FD805S, FD806S On the Power Board

2. Check the output from H-BLK, V-BLK the Main Board

Page 61

5-2 No Sound

Troubleshooting

5-2 Samsung Electronics

Check if CN601

is inserted

normal

Check IC665

output pins 2, 4

Abnormal

Check IC665

input pin 5

normal

Check IC665

Mute pin 5

normal

Abnormal

Insert CN601

(Connector)

normal

Check Speaker

Abnormal

Check FD854S on

the Power Board

Abnormal

Check the Mute circuit

Check IC665

output pins 7, 11

Abnormal

Check IC601

input pins 35, 38

Abnormal

Check CNS01

input pins 5, 9

Abnormal

Check IC703

input pins

Abnormal

normal

Check the Control

normal

Check the Control

normal

Check the Sound Module

circuit

normal

Check IC703

Check CNS01 output pins 28

Page 62

Troubleshooting

Samsung Electronics 5-3

5-3 No Raster (Sound OK)

Normal

Check High Voltage

Normal

Check CN501

pins 1, 3, 5

Normal

Check CN501

(Connector)

Normal

Check CN01

inpur pins 30, 31

Check Heater

Normal

Check

IC501, 531, 561

Abnormal

Check CN501

(Connector)

Normal

Check CRT PCB

pin 1

Normal

Check Q473

HV-REG

Abnormal

Check

Q473, IC471

Abnormal

Check

HV-OUT BLOCK

Abnormal

Check

Q473, R437A

Normal

Check Q472 input

pin "G"(HV-DRIVER)

Normal

Check

HV-OUT BLOCK

Abnormal

Check CNT02

input pins 19, 21

Abnormal

Check IC02

input pin 24

Abnormal

Check IC701

input pin 8

Abnormal

Check CN01 Check IC701

Check CN01

Normal

Check CNT02

Normal

Check IC02

Normal

Page 63

MEMO

5-4 Samsung Electronics

Page 64

Exploded View& Part List

Samsung Electronics 6-1

6. Exploded View & Parts List

6-1 54J9

Page 65

Exploded View& Part List

6-2 Samsung Electronics

6-2 ST54J9PX/XAP

No Code No Description;Specification Q’ty Remark S.N.A

1 AA64-01915E CABINET-MASK,ETC;DP,54J9,SV012P,64-02283 1 A/MASK 2 AA60-00069C SPACER-SCREEN;43,54.62J8,ABS,-,-,-,BLK,- 2 CS2 3 AA60-00069B SPACER-SCREEN;43,54,62J8,ABS,-,-,-,BLK,- 2 SS1 4 AA67-00023A SUN-SCREEN;-,53,H/C,A/S,PMMA,T=93%,T2.0 1 SSCREE 5 AA67-00199A SCREEN-TINT;54,1123*852,P=0.52,DNP 1 SLENTI 6 AA67-00116B SCREEN-FRESNEL;53,-,T2,1125*854,-,-,- 1 SFRES 7 0203-001329 TAPE 4M 8 AA91-00660G ASSY-FRONT,BOT;DP,91-00653E,54J9 1 A/FB 9 AA91-00652K ASSY-CONTROL;,PS HB BLK,SV012P+LG807P,SE 1 10 AA95-01783K ASSY SUB-PCB,A/V FRONT;PCL545R,P54A,AA95 1 11 AA64-01402B CABINET-WOOD,BOT;54J9,UKAL-13 WOOD 1 CW/BOT 12 AA64-01850A CABINET-BACK,SIDE;DP,62J8,-,-,-,-,HB,-,A 2 CBS+CM 13 AA64-01399B CABINET-WOOD,TOP;54J9,UKAL-13,WOOD 1 CW/TOP 14 6006-001094 SCREW-ASS’Y WOOD;WW,HH,+,M7,L32,ZPC(YEL) 8 AWTAWB 15 AA91-00489B ASSY-BRKT,MIRROR;-,-,SECC-1 T1.0,54J8 4 A/BM 16 AA61-20330A HOLDER-MIRROR,BOT;43J8,54J8,PS,HB,BLK 2 17 AA67-00080A MIRROR-BACK;54J8,GLASS,940*686*673(132)* 1 MB 18 AA64-01379B CABINET-BACK,TOP;54J8,HIPS,-,-,-,HB,BLK, 1 CBT+CM 19 AA94-07576C ASSY PCB POWER;SP54J9PX/XAX,P54A220V 1 20 AA94-07658A ASSY PCB MISC-SUB;SP54J9PX/XAX,P54A,220V 1 21 AA95-01849X ASSY SUB-PCB TERMINAL;DP,PCL5415R3S,P54A 1 A/TERM 22 AA94-07625Q ASSY PCB MAIN;PCL5415R3C/XAA,P54A,U.S.A 1 23 AA61-00504B HOLDER-CHASSIS;43,54,62J8,ABS,-,-,-,GRAY 1 24 AA64-01849E CABINET-BACK,BOT;DP,62J8,HB,AA64-01384A 1 CBB+CM 25 AA64-01395L INLAY-TERMINAL;J9,PS SHEET,T0.5,BLK,P54A 1 CBB 26 AA60-00072B SPACER-COVER,DUST;43,54,62J9,SPONGE V0(9 1 SCDUST 27 AA91-01839A ASSY CPT-R;ST54J9PX/XAP 1 ASSY,C 28 AA91-01840A ASSY CPT-G;ST54J9PX/XAP 1 ASSY,C 29 AA91-01841A ASSY CPT-B;ST54J9PX/XAP 1 ASSY,C 30 AA26-00101A TRANS FBT;FWZ50A001E,-,-,-,-,-,-,-,-,-,- 1 D/B 31 6006-001094 SCREW-ASS’Y WOOD;WW,HH,+,M7,L32,ZPC(YEL) 4 CWBBCM 32 AA61-00475B BRACKET-CRT,MAIN;SECC,T1.6,-,-,-,- 1 BCRTM 33 AA59-00218A MODULE;SVP-5200,F301-P03,BK 1 MF+CM

Page 66

Exploded View& Part List

Samsung Electronics 6-3

6-3 62J9

Page 67

Exploded View& Part List

6-4 Samsung Electronics

6-4 ST62J9PX/XAP

No Code No Description;Specification Q’ty Remark S.N.A

1 AA64-01924C CABINET-MASK,ETC;DP,62J9,SV012P,64-01650 C/MASK 1 2 AA60-00069F SPACER-SCREEN;43,53,61J8,ABS,-,-,-,BLK,- SS1 2 3 AA60-00069G SPACER-SCREEN;43,53,61J8,ABS,-,-,-,BLK,- SS2 2 4 AA67-00022A SUN-SCREEN;-,61,H/C,A/S,PMMA,T=82%,T2.0 SSCREE 1 5 AA67-00201A SCREEN-TINT;62,1281*971,T=0.73,P=0.52 SLENTI 1 6 AA67-00117B SCREEN-FRESNEL;62,-,T2,1283*973,-,-,-,- SFRESN 1 7 0203-001329 TAPE 4M 8 AA91-00674C ASSY-FRONT,BOT;DP,91-00672C SEM,62J9 A/FB 1 9 AA91-00652K ASSY-CONTROL;,PS HB BLK,SV012P+LG807P,SE 1 10 AA95-01783K ASSY SUB-PCB,A/V FRONT;PCL545R,P54A,AA95 1 11 AA64-01921A CABINET-WOOD,BOT;62J9,WOOD SDE8326R CW/BOT 1 12 AA64-01850A CABINET-BACK,SIDE;DP,62J8,-,-,-,-,HB,-,A CBS+CM 2 13 AA91-00700A ASSY-WOOD,TOP;PCL6215RX/XAA A/WT 1 14 6006-001094 SCREW-ASS’Y WOOD;WW,HH,+,M7,L32,ZPC(YEL) AWTAWB 8 15 ASSY-BRKT,MIRROR 16 AA61-00370C HOLDER-MIRROR;DP,PCJ612R,-,-,-,AA61-0035 H/M1 1 17 AA67-00081A MIRROR-BACK;62J8,GLASS,1187*725*830,-,-, MB 1 18 AA64-01922C CABINET-BACK,TOP;DP,62J9,AA64-01870B 75. CBT+CM 1 19 AA94-07576C ASSY PCB POWER;SP54J9PX/XAX,P54A220V 1 20 AA94-07658A ASSY PCB MISC-SUB;SP54J9PX/XAX,P54A,220V 1 21 AA95-00716B ASSY-PCB,TERMINAL;DP,PCL5415R3S,P51A A/TERM 1 22 AA94-07625Q ASSY PCB MAIN;PCL5415R3C/XAA,P54A,U.S.A 1 23 AA61-00504B HOLDER-CHASSIS;43,54,62J8,ABS,-,-,-,GRAY 1 24 AA64-01849E CABINET-BACK,BOT;DP,62J8,HB,AA64-01384A CBB+CM 1 25 AA64-01395L INLAY-TERMINAL;J9,PS SHEET,T0.5,BLK,P54A CBB 1 26 AA60-00072B SPACER-COVER,DUST;43,54,62J9,SPONGE V0(9 SCDUST 1 27 AA91-01896A ASSY CPT-R;ST62J9PX/XAX ASSY,C 1 28 AA91-01897A ASSY CPT-G;ST62J9PX/XAX ASSY,C 1 29 AA91-01898A ASSY CPT-B;ST62J9PX/XAX ASSY,C 1 30 AA26-00101A TRANS FBT;FWZ50A001E,-,-,-,-,-,-,-,-,-,- D/B 1 31 6006-001094 SCREW-ASS’Y WOOD;WW,HH,+,M7,L32,ZPC(YEL) CWBBCM 4 32 AA61-00475B BRACKET-CRT,MAIN;SECC,T1.6,-,-,-,- BCRTM 1 33 AA59-00218A MODULE;SVP-5200,F301-P03,BK MF+CM 1

Page 68

ASSY CHASSIS

1 * AA91-01073A ASSY CHASSIS

2 SIL-FC 0201-001059 ADHESIVE-SILICON;B#9590,CARTRIGE 2 SIL-SP 0201-001059 ADHESIVE-SILICON;B#9590,CARTRIGE 2 SILCRT 0201-001059 ADHESIVE-SILICON;B#9590,CARTRIGE 2 SILCRT 0201-001059 ADHESIVE-SILICON;B#9590,CARTRIGE 2 CBBAPT 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR 2 CBB+TE 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR 2 CBB+CH AA60-10011A SCREW-TAPTITE;HH,+,PC,M4,L12,ZPC(BLK),SW 2 BAND-T AA63-10002A BAND-TIE;-,NYLON66V2,-,-,L100,NTR,-,2 BAND AA63-10002B BAND-TIE;-,NYLON66V2,-,-,L140,NTR,-,2 CCORD AA65-30008A CLAMP-CORD;-,PE,HB,BLK,-,2 CWREE AA65-30018A CLAMP-WIRE;-,NYLON6.6,-,-,DATL 2 PCB/CP AA65-30104B CLAMP WIRE; NYLON 66, V2,BLK, W2 Z5 2 CWIR AA65-30105A CLAMP-WIRE;NYLON 66N,VO,NTR,15MM 2 CLAMP AA65-30105B CLAMP-WIRE;NYLON 66,V2,NTR,25MM,ALL MODE 2 A/CHAS AA91-03561A ASSY CHASSIS;ST54J9P3S/XAX 2 TEMP AA93-00192A ASSY PCB CHASSISPACK;,P54A,ST54J9PX/XAP 3 AA94-07658A ASSY PCB MISC-SUB;SP54J9PX/XAX,P54A,220V 4 C432 2306-000267 C-FILM,MPPF;8.2nF,5%,1.6KV,TP,28.5x18.5x 4 C438 2306-000267 C-FILM,MPPF;8.2nF,5%,1.6KV,TP,28.5x18.5x 4 C491 2306-000322 C-FILM,MPPF;12nF,5%,1.6KV,TP,29x20.5x13, 4 C876 2401-000787 C-AL;220uF,20%,160V,GP,TP,16x31.5mm 4 CN202 AA39-00116A LEAD CONNECTOR-ASSY;,12P,YBNH250-12,3515 4 CN801 AA39-00180A LEAD CONNECTOR-ASSY;,14P,YBNH250-14,3515 4 CN802 3711-003974 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG 4 CN803 3711-003974 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG 4 CNW801 AA39-20061G LEAD CONNECTOR-ASSY;,3P,YFH800-03,S,100M 4 CNZ02 AA39-00115A LEAD CONNECTOR-ASSY;,10P,YBNH250-10,3515 4 CR430S 2301-001343 C-FILM,MPPF;3.9nF,5%,2kV,TP,29x9.5x16mm, 4 CR431S 2301-001343 C-FILM,MPPF;3.9nF,5%,2kV,TP,29x9.5x16mm, 4 CR436S 2306-000235 C-FILM,MPPF;560nF,5%,400V,TP,26*22.5*14, 4 CR471S 2301-001091 C-FILM,MPPF;470nF,5%,400V,TP,26x21.5x14. 4 CR473S 2306-000322 C-FILM,MPPF;12nF,5%,1.6KV,TP,29x20.5x13, 4 CR474S 2306-000326 C-FILM,MPPF;4.7nF,5%,1.6KV,TP,28.5x16x9m 4 CS803 2401-003370 C-AL;47uF,20%,450V,GP,BK,16X35.5,7. 4 CY811S 2201-000446 C-CERAMIC,DISC;3.3nF,20%,400V,Y5U,TP,15x 4 CY812S 2201-000446 C-CERAMIC,DISC;3.3nF,20%,400V,Y5U,TP,15x 4 D464 0402-000562 DIODE-RECTIFIER;UF5406,600V,3A,DO-201AD, 4 D811S 0402-000102 DIODE-BRIDGE;D2SB60,600V,1.5A,4 IC301 AA96-50406A ASSY H/S;-,-,AA62-30180K,LA7845,- S.N.A 5 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A 5 1204-000517 IC-VERTICAL DEF.;LA7845,SIP,7P,-,PLASTIC 5 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A 5 AA62-30180K HEAT SINK-ES;-,A6063 EXTR,-,WHT,50/13,-, S.N.A 4 IC421 1203-000165 IC-POSI.ADJUST REG.;78R12,TO-220,4P,-,PL 4 IC430 1203-000162 IC-POSI.ADJUST REG.;317,TO-220,3P,-,PLAS 4 IC431 1201-000191 IC-OP AMP;4558,DIP,8P,300MIL,DUAL,20V/mV 4 IC471 1203-000610 IC-PWM CONTROLLER;494,DIP,16P,300MIL,PLA 4 ICS801 AA13-00024A IC HYBRID;-,TNY253P,-,8PIN,-,4 ICS807 AA96-00111P ASSY H/S;-,MAIN,AA62-30013L,KA278RA05,FA S.N.A 5 1203-001978 IC-VOLTAGE REGULATOR;KA278RA05,TO-220F,4 5 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A 5 AA62-30013L HEAT SINK-ES;-,-,-,-,44/22,-,WHT,-,-,-,- S.N.A 4 ICZ103 AA96-00034A ASSY H/S;-,CONVERGENCE,AA62-30173D,STK39 S.N.A 4 ICZ104 AA96-00034A ASSY H/S;-,CONVERGENCE,AA62-30173D,STK39 S.N.A 5 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A 5 1201-001225 IC-VIDEO AMP;392,SIP,22P,-,TRIPLE,-,PLAS 5 6003-001021 SCREW-TAPTITE;RH,+,B,M3,L15,ZPC(YEL),SWR S.N.A 5 AA62-30173D HEAT SINK-ES;-,-,T1.0,WHITE,SCREW-HOLE(2 S.N.A 4 L432 AA27-00095A COIL HORIZ. WIDTH;-,600uH,YL9N 15x27.5 C 4 L434 AA27-00221A COIL HORIZ. WIDTH;600UH,600UH,SB5S OS6X2 4 L435 AA27-10001C COIL CHOKE;-,100uH,K,-,5.0A,ST,700UH-K(R 4 L854 AA27-10001C COIL CHOKE;-,100uH,K,-,5.0A,ST,700UH-K(R 4 L860 AA27-10001C COIL CHOKE;-,100uH,K,-,5.0A,ST,700UH-K(R 4 L862 AA27-10001C COIL CHOKE;-,100uH,K,-,5.0A,ST,700UH-K(R

4 L872 AA27-10001C COIL CHOKE;-,100uH,K,-,5.0A,ST,700UH-K(R 4 L874 AA27-10002L COIL CHOKE;-,24uH,K,-,2A,-,24UH-K,10x10m 4 LC431S AA27-30003M COIL LINEARITY;-,5uH,OWA14x15,USRC0.1x60 4 PC811S 0604-001032 PHOTO-COUPLER;TR,170-260%,300mW,DIP-4,ST 4 Q353 0502-000442 TR-POWER;2SC4636RB,NPN,2W,TO-220,ST,104 Q431 AA96-00033E ASSY H/S;-,H-OUT,AA62-30173C,2SC5446, FM S.N.A 5 AA62-30173C HEAT SINK-ES;-,-,T1.0,WHITE,SCREW-HOLE(2 S.N.A 5 AA60-30001A WASHER-PLATE;M3,ID3.5,15X8.5,T1.0,SBHG S.N.A 5 AA02-00007A SUB ETC-MICA;DPM-04,MICA,22x29x0.15mm S.N.A 5 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A 5 0502-001175 TR-POWER;2SC5446,NPN,200000mW,TO-3PL,BK, 5 0402-001296 DIODE-RECTIFIER;FMP-3FU,1.5KV,5A,TO-3PF, 5 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A 4 Q433 AA96-50407A ASSY H/S;-,-,AA62-30154G,KSD73Y,- S.N.A 5 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A 5 0502-000298 TR-POWER;KSD73,NPN,30000mW,TO-220,TP,120 5 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A 5 AA62-30154G HEAT SINK-ES;-,A6063 EXTR,-,WHT,50/16,-, S.N.A 4 Q441 AA96-50383F ASSY H/S;-,-,AA62-30180D,2SD921,- S.N.A 5 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A 5 0502-001104 TR-POWER;2SD921,NPN,80W,TO-3P,BK,7005 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A 5 AA62-30180D HEAT SINK-ES;-,A6063 EXTR.,2,WHT,50mm,-, S.N.A 4 Q473 AA96-00037A ASSY H/S;-,-,AA62-30181N,2SC4125, IRFS64 S.N.A 5 AA62-30181N HEAT SINK-ES;-,-,T1.0,WHITE,SCREW-HOLE(2 S.N.A 5 AA60-30001A WASHER-PLATE;M3,ID3.5,15X8.5,T1.0,SBHG S.N.A 5 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A 5 0505-001202 FET-SILICON;IRFS640A,N,200V,9.8A,0.18ohm 5 0502-001100 TR-POWER;2SC4125,NPN,70W,TO-3PML,BK,85 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A 4 RL811S 3501-001053 RELAY-POWER;5Vdc,530mW,10A,1FormA,15mS,5 4 RL812S 3501-001040 RELAY-POWER;12VDC,500mW,10A,1FormA,15mS, 4 T431 AA26-50001U TRANS-HORIZ.DRIVE;-,-,-,28mH,-,-,105uH,4 T432 AA26-00053A TRANS;-,-,-,1.2mH,-,-,-,-,-,-,31.5KHZ,-, 4 T433 AA26-00011A TRANS-DUMMY;-,-,-,-,-,-,-,-,-,-,-,-,EE28 4 T444S AA26-00100A TRANS FBT;FFA97513L,CT29A7DR,0.3mH,-,-,4 T461 AA26-50001V TRANS-HORIZ.DRIVE;-,-,-,6.0mH,-,-,113uH, 4 T481 AA26-00091A TRANS-HV-STORAGE;4mH,-,14P,830uH,180V,10 4 TS811S AA26-00055B TRANS SWITCHING;,HLK436W,AC80V,AC80~280V 4 AA97-07248A ASSY AUTO;SP54J9P3S/XAX,P54A,220V 5 C301 2305-000427 C-FILM,MPEF;47nF,5%,100V,TP,7.5x12.5x3.5 5 C302 2201-000292 C-CERAMIC,DISC;1nF,10%,50V,Y5P,TP,5x3.5, 5 C303 2305-000427 C-FILM,MPEF;47nF,5%,100V,TP,7.5x12.5x3.5 5 C304 2201-000292 C-CERAMIC,DISC;1nF,10%,50V,Y5P,TP,5x3.5, 5 C305 2201-002022 C-CERAMIC,DISC;0.005nF,0.25pF,500V,NP0,T 5 C307 2401-000365 C-AL;100uF,20%,50V,WT,TP,10x12.5mm, 5 C308 2401-000365 C-AL;100uF,20%,50V,WT,TP,10x12.5mm, 5 C309 2305-000285 C-FILM,MPEF;220NF,5%,100V,TP,10.5X5.5X15 5 C311 2305-000149 C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5 5 C351 2401-000471 C-AL;10uF,20%,50V,BP,TP,5x11,5mm 5 C352 2401-001989 C-AL;4.7uF,20%,50V,BP,TP,5x11,5 5 C353 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5 5 C354 2401-002300 C-AL;47uF,20%,50V,GP,TP,6.3x11,5 5 C355 2201-000991 C-CERAMIC,DISC;0.56nF,10%,2kV,Y5P,TP,7.5 5 C405 2201-000558 C-CERAMIC,DISC;0.47nF,10%,50V,Y5P,TP,5x3 5 C406 2201-000370 C-CERAMIC,DISC;0.22nF,10%,50V,Y5P,TP,4x3 5 C412 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm 5 C413 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5 5 C417 2401-001397 C-AL;470uF,20%,25V,GP,TP,10x16,5 5 C418 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5 5 C419 2201-000180 C-CERAMIC,DISC;10nF,10%,50V,Y5V,TP,7x3,5 5 C426 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5 5 C427 2401-002300 C-AL;47uF,20%,50V,GP,TP,6.3x11,5 5 C428 2306-000122 C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m 5 C429 2305-000704 C-FILM,MPEF;100nF,5%,250V,TP,16.5x10.3x5 5 C437 2401-003114 C-AL;4.7uF,20%,250V,WT,TP,10x16,5 5 C445 2401-001622 C-AL;6.8uF,20%,50V,BP,TP,16x25mm,7. 5 C449 2201-000406 C-CERAMIC,DISC;0.27nF,10%,2kV,Y5P,TP,6.3 5 C450 2401-000262 C-AL;100uF,20%,160V,HR,TP,16x25,7.5

Samsung Electronics 7-1

Electrical Parts List

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

7. Electrical Parts List

7-1 ST54J9PX/XAP

Page 69

5 C451 2401-001160 C-AL;33uF,20%,160V,GP,-,16x35mm,7.5 5 C452 2201-000132 C-CERAMIC,DISC;0.1nF,10%,500V,Y5P,TP,6.5 5 C453 2401-002288 C-AL;470uF,20%,25V,WT,TP,10x20,5 5 C454 2401-001428 C-AL;470uF,20%,50V,GP,TP,10x20,5 5 C455 2201-000132 C-CERAMIC,DISC;0.1nF,10%,500V,Y5P,TP,6.5 5 C456 2401-001527 C-AL;47uF,20%,250V,HR,TP,13x25mm,5m 5 C457 2201-000132 C-CERAMIC,DISC;0.1nF,10%,500V,Y5P,TP,6.5 5 C458 2401-002288 C-AL;470uF,20%,25V,WT,TP,10x20,5 5 C459 2201-000132 C-CERAMIC,DISC;0.1nF,10%,500V,Y5P,TP,6.5 5 C460 2303-000331 C-FILM,PPF;4.7nF,5%,630V,TP,19.5x12x7,7. 5 C467 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5 5 C468 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 5 C469 2201-000180 C-CERAMIC,DISC;10nF,10%,50V,Y5V,TP,7x3,5 5 C472 2401-000262 C-AL;100uF,20%,160V,HR,TP,16x25,7.5 5 C476 2401-001989 C-AL;4.7uF,20%,50V,BP,TP,5x11,5 5 C477 2301-000213 C-FILM,PEF;220nF,5%,250V,TP,21.5x11,7.5 5 C478 2301-000020 C-FILM,PEF;27nF,5%,100V,TP,7.3x4x12.5mm, 5 C479 2301-000200 C-FILM,PEF;2.2nF,5%,200V,TP,11.0x6.0x9.0 5 C480 2306-000122 C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m 5 C481 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm 5 C483 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11,5 5 C484 2201-000132 C-CERAMIC,DISC;0.1nF,10%,500V,Y5P,TP,6.5 5 C487 2305-000178 C-FILM,MPEF;10nF,5%,100V,TP,-,5mm 5 C488 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 5 C489 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5 5 C490 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 5 C492 2401-001026 C-AL;3.3UF,20%,50V,GP,TP,5X11,5 5 C857 2401-000133 C-AL;1000uF,20%,16V,GP,TP,10x20,5 5 C866 2401-000192 C-AL;1000uF,20%,50V,GP,TP,16x25,7.5 5 C869 2401-000192 C-AL;1000uF,20%,50V,GP,TP,16x25,7.5 5 C873 2401-001998 C-AL;1000uF,20%,25V,GP,TP,10x20,5mm 5 CN401 3711-002645 CONNECTOR-HEADER;BOX,6P,1R,2.5mm,STRAIGH 5 CN403 3711-002642 CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH 5 CR401S 2401-001026 C-AL;3.3UF,20%,50V,GP,TP,5X11,5 5 CR402S 2201-000146 C-CERAMIC,DISC;0.1nF,5%,50V,SL,TP,5x3.5, 5 CR403S 2201-000146 C-CERAMIC,DISC;0.1nF,5%,50V,SL,TP,5x3.5, 5 CS804 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 5 CS805 2401-001101 C-AL;330uF,20%,16V,GP,TP,8x11.5,5 5 CS807 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 5 CS808 2401-002463 C-AL;470uF,20%,16V,GP,TP,8x11.5,5 5 CS809 2201-000556 C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5. 5 CS812 2201-002076 C-CERAMIC,DISC;0.068nF,5%,1kV,SL,TP,8x4m 5 CS813 2201-000332 C-CERAMIC,DISC;2.2nF,20%,250V,Y5U,TP,9x4 5 CS814 2201-000332 C-CERAMIC,DISC;2.2nF,20%,250V,Y5U,TP,9x4 5 CZ101 2401-001428 C-AL;470uF,20%,50V,GP,TP,10x20,5 5 CZ102 2401-001428 C-AL;470uF,20%,50V,GP,TP,10x20,5 5 CZ108 2201-000499 C-CERAMIC,DISC;0.39nF,5%,50V,SL,TP,8.5x3 5 CZ109 2201-000499 C-CERAMIC,DISC;0.39nF,5%,50V,SL,TP,8.5x3 5 CZ110 2201-000499 C-CERAMIC,DISC;0.39nF,5%,50V,SL,TP,8.5x3 5 CZ111 2201-000976 C-CERAMIC,DISC;0.022nF,5%,50V,NP0,TP,5x3 5 CZ112 2201-000863 C-CERAMIC,DISC;0.68nF,10%,50V,Y5P,TP,5x3 5 CZ113 2201-000976 C-CERAMIC,DISC;0.022nF,5%,50V,NP0,TP,5x3 5 CZ114 2201-000863 C-CERAMIC,DISC;0.68nF,10%,50V,Y5P,TP,5x3 5 CZ115 2201-000976 C-CERAMIC,DISC;0.022nF,5%,50V,NP0,TP,5x3 5 CZ116 2201-000863 C-CERAMIC,DISC;0.68nF,10%,50V,Y5P,TP,5x3 5 CZ117 2201-000327 C-CERAMIC,DISC;2.2nF,10%,50V,Y5V,TP,6.5x 5 CZ118 2201-000327 C-CERAMIC,DISC;2.2nF,10%,50V,Y5V,TP,6.5x 5 CZ126 2201-000499 C-CERAMIC,DISC;0.39nF,5%,50V,SL,TP,8.5x3 5 CZ127 2201-000499 C-CERAMIC,DISC;0.39nF,5%,50V,SL,TP,8.5x3 5 CZ128 2201-000499 C-CERAMIC,DISC;0.39nF,5%,50V,SL,TP,8.5x3 5 CZ132 2201-000976 C-CERAMIC,DISC;0.022nF,5%,50V,NP0,TP,5x3 5 CZ133 2201-000863 C-CERAMIC,DISC;0.68nF,10%,50V,Y5P,TP,5x3 5 CZ134 2201-000976 C-CERAMIC,DISC;0.022nF,5%,50V,NP0,TP,5x3 5 CZ135 2201-000863 C-CERAMIC,DISC;0.68nF,10%,50V,Y5P,TP,5x3 5 CZ136 2201-000976 C-CERAMIC,DISC;0.022nF,5%,50V,NP0,TP,5x3 5 CZ137 2201-000863 C-CERAMIC,DISC;0.68nF,10%,50V,Y5P,TP,5x3 5 CZ138 2201-000327 C-CERAMIC,DISC;2.2nF,10%,50V,Y5V,TP,6.5x 5 CZ139 2201-000327 C-CERAMIC,DISC;2.2nF,10%,50V,Y5V,TP,6.5x 5 CZ140 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5 5 CZ141 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5 5 CZ151 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 5 CZ152 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 5 CZ153 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 5 CZ154 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 5 CZ155 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 5 CZ156 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 5 D302 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

5 D353 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 5 D384 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP 5 D385 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 5 D433 0402-000537 DIODE-RECTIFIER;RH1A,600V,0.6A,DO-204AC 5 D434 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T 5 D435 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP 5 D436 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 5 D440 0402-000534 DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T 5 D441 0402-000534 DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T 5 D442 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 5 D443 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 5 D444 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T 5 D445 0402-000534 DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T 5 D451 0402-000534 DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T 5 D453 0402-001286 DIODE-RECTIFIER;RP1H,2000V,.1A,-,TP 5 D472 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T 5 D474 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T 5 D477 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 5 D478 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 5 D479 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 5 D480 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP 5 D484 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP 5 D501 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP 5 DR401S 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 5 DR402S 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 5 DR404S 0403-001325 DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D 5 DS805 0404-001056 DIODE-SCHOTTKY;RK16,60V,1.5A,DO-204AC,TP 5 DS807 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T 5 DS809 0404-001056 DIODE-SCHOTTKY;RK16,60V,1.5A,DO-204AC,TP 5 DZ301 0403-001327 DIODE-ZENER;MTZJ18A,16.22-17.06V,500mW,D 5 DZ304 0403-001327 DIODE-ZENER;MTZJ18A,16.22-17.06V,500mW,D 5 DZ305 0403-001329 DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,D 5 DZ306 0403-001330 DIODE-ZENER;MTZJ30A,26.99-28.39V,500mW,D 5 DZ307 0403-001329 DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,D 5 DZ386 0403-001316 DIODE-ZENER;MTZJ3.0A,2.85-3.07V,500mW,DO 5 DZ395 0403-001319 DIODE-ZENER;MTZJ4.7C,4.68-4.93V,500mW,DO 5 DZ400 0403-001325 DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D 5 DZ413 0403-001319 DIODE-ZENER;MTZJ4.7C,4.68-4.93V,500mW,DO 5 DZ473 0403-000720 DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500 5 DZ474 0403-000734 DIODE-ZENER;TZP15B,15V,14.7-16.5V,1W,DO5 DZ481 0403-001327 DIODE-ZENER;MTZJ18A,16.22-17.06V,500mW,D 5 DZ482S 0403-000720 DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500 5 DZ483 0403-000720 DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500 5 DZ801 0406-001106 DIODE-TVS;P6KE300A,285/-/315V,600W,DO-20 5 DZ802 0406-001106 DIODE-TVS;P6KE300A,285/-/315V,600W,DO-20 5 DZ803 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500 5 DZ804 0403-000716 DIODE-ZENER;MTZJ4.7B,4.7V,4.55-4.8V,500m 5 DZ805 0403-001322 DIODE-ZENER;MTZJ8.2B,7.78-8.19V,500mW,DO 5 EL01 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 5 EY101 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY102 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY103 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY104 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY105 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY107 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY108 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY109 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY110 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY111 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY112 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY113 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY114 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY115 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY116 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY117 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY118 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY120 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY121 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY122 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY123 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY124 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY125 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY126 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY127 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY128 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY129 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY130 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A

Electrical Parts List

7-2 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

Page 70

5 EY131 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY132 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY133 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY134 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY136 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY137 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY138 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY139 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY140 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY141 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY142 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY143 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY144 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY145 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY146 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY147 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY148 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY149 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY150 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY151 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY152 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY153 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY154 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY155 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY156 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY157 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY158 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY159 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY160 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY161 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY162 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY163 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY164 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY165 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY166 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY167 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY168 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY171 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY172 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY173 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY174 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY175 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY176 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY177 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY178 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY179 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY180 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY181 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY182 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY183 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY184 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY185 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY186 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY187 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY188 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY189 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY190 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY191 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY192 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY193 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY194 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY195 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY196 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY197 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY198 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY199 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY200 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY201 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY202 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY203 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY204 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY205 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY206 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY207 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY208 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY209 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY210 AA60 40011A EYELET;ID2.0,OD2.8,BST S.N.A

5 EY211 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY212 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY213 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY214 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY215 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY216 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY217 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY218 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY219 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY220 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY221 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY222 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY223 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY224 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY225 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY226 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY227 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY228 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY229 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY230 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY231 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY232 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY233 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EYS01 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EYS02 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EYS03 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EYS04 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EYS05 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EYS06 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EYS07 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EYS08 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EYS09 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 FD101S 3601-001065 FUSE-AXIAL LEAD;125V,3.5A,FAST-ACTING,CE 5 FD102S 3601-001065 FUSE-AXIAL LEAD;125V,3.5A,FAST-ACTING,CE 5 GT01 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT02 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT03 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT04 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT05 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT06 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT07 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT08 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT09 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT10 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT11 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT12 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT17 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT18 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT19 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT21 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT22 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT23 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT24 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT25 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT26 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT27 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT28 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT29 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT30 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT31 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT32 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT33 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT34 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT35 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT37 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT403 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT404 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT405 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT812A AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT813A AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT814A AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 ICR01S 1203-001217 IC-POSI.ADJUST REG.;431,TO-92,3P,4.58MIL 5 L341 2701-000116 INDUCTOR-AXIAL;10uH,10%,4.2x9.8mm 5 L480 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,5 L481 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500, 5 L482 3301-000374 CORE-FERRITE BEAD;AA,3.5x1.0x9.0mm,-,5 L483 2901-000299 FILTER-EMI ON BOARD;-,6A,UL/CSA,-,9x7.5,

Electrical Parts List

Samsung Electronics 7-3

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

Page 71

5 L492 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500, 5 L493 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500, 5 L494 3301-000374 CORE-FERRITE BEAD;AA,3.5x1.0x9.0mm,-,5 L495 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500, 5 L499 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,5 LS801 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,5 LS802 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,5 LZ107 2701-000142 INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm 5 LZ108 2701-000142 INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm 5 LZ109 2701-000142 INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm 5 LZ110 2701-000142 INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm 5 LZ111 2701-000142 INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm 5 LZ112 2701-000142 INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm 5 PCB AA41-00340C PCB-SUB;PCL545R,CEM-1,1L,C,1.6T,330X245, S.N.A 5 Q301 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 5 Q350 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 5 Q351 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 5 Q352 0501-000366 TR-SMALL SIGNAL;KSC2330-Y,NPN,1W,TO-92L, 5 Q381 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 5 Q382 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 5 Q401 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 5 Q402 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 5 Q421 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 5 Q422 0505-000156 FET-SILICON;IRF620,N,200V,5A,0.8ohm,50W, 5 Q432 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T 5 Q435 0501-000369 TR-SMALL SIGNAL;KSC2331-Y,NPN,1000mW,TO5 Q436 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 5 Q451 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 5 Q461 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 5 Q471 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 5 Q472 0505-000156 FET-SILICON;IRF620,N,200V,5A,0.8ohm,50W, 5 Q474 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 5 Q481 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 5 Q482 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T 5 QR401S 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T 5 QS801 0501-000369 TR-SMALL SIGNAL;KSC2331-Y,NPN,1000mW,TO5 R301 2004-001897 R-METAL(S);43.2Kohm,1%,1/2W,AA,TP,2.5x6. 5 R302 2004-001897 R-METAL(S);43.2Kohm,1%,1/2W,AA,TP,2.5x6. 5 R303 2004-001984 R-METAL(S);26.7Kohm,1%,1/2W,AA,TP,2.4x6. 5 R305 2004-001984 R-METAL(S);26.7Kohm,1%,1/2W,AA,TP,2.4x6. 5 R306 2003-002147 R-METAL OXIDE;3.3OHM,2%,2W,AF,TP,3.9X10M 5 R307 2003-002147 R-METAL OXIDE;3.3OHM,2%,2W,AF,TP,3.9X10M 5 R308 2001-000016 R-CARBON(S);1OHM,5%,1/2W,AA,TP,2.4X6.4MM 5 R310 2003-001024 R-METAL OXIDE(S);150ohm,5%,2W,AF,TP,3.9x 5 R312 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R313 2001-000761 R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R314 2001-000761 R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R332 2001-001107 R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4 5 R333 2001-001107 R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4 5 R334 2001-001107 R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4 5 R350 2001-000878 R-CARBON;6.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R351 2001-000009 R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R352 2001-000837 R-CARBON;51KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R353 2001-000660 R-CARBON;33KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R354 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R355 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R356 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R357 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R358 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R359 2001-000109 R-CARBON(S);470OHM,5%,1/2W,AA,TP,2.4X6.4 5 R360 2001-000723 R-CARBON;4.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R361 2004-001395 R-METAL(S);330Kohm,2%,1/2W,AA,TP,2.4x6.4 5 R362 2004-001395 R-METAL(S);330Kohm,2%,1/2W,AA,TP,2.4x6.4 5 R363 2004-001395 R-METAL(S);330Kohm,2%,1/2W,AA,TP,2.4x6.4 5 R364 2004-001395 R-METAL(S);330Kohm,2%,1/2W,AA,TP,2.4x6.4 5 R365 2004-001395 R-METAL(S);330Kohm,2%,1/2W,AA,TP,2.4x6.4 5 R366 2002-001006 R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7 5 R384 2001-001150 R-CARBON(S);470KOHM,5%,1/2W,AA,TP,2.4X6. 5 R385 2001-000577 R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R386 2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R387 2001-000009 R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R388 2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R389 2001-000577 R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R397 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R405 2009-001109 R-TEMPERATURE;240ohm,5%,1/4W,AA,TP,2.3x6 5 R406 2004-001983 R-METAL(S);2.49Kohm,1%,1/2W,AA,TP,2.4x6. 5 R407 2004-001897 R-METAL(S);43.2Kohm,1%,1/2W,AA,TP,2.5x6.

5 R408 2004-001402 R-METAL(S);6.8Kohm,1%,1/2W,AA,TP,2.4x6.4 5 R409 2001-001178 R-CARBON(S);680OHM,5%,1/2W,AA,TP,2.4X6.4 5 R410 2001-000052 R-CARBON(S);3.3KOHM,5%,1/2W,AA,TP,2.4X6. 5 R411 2008-001113 R-FUSIBLE(S);0.22ohm,10%,2W,AG,TP,3.9x12 5 R412 2001-000362 R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R413 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M 5 R414 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R415 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R416 2001-000006 R-CARBON;2.4KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R417 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R418 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R419 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R420 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R421 2003-002159 R-METAL OXIDE;150OHM,5%,1W,AG,TP,4.3X12M 5 R422 2001-000028 R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4 5 R423 2001-000613 R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R424 2008-001022 R-FUSIBLE(S);10ohm,5%,1W,AF,TP,2.5x6.5mm 5 R425 2003-000417 R-METAL OXIDE(S);1.2Kohm,5%,3W,AA,TP,6x1 5 R426 2003-002153 R-METAL OXIDE;4.7OHM,5%,2W,AG,TP,6X16MM 5 R427 2003-002279 R-METAL OXIDE(S);1.2OHM,5%,2W,AG,TP,5.6X 5 R427A 2003-002279 R-METAL OXIDE(S);1.2OHM,5%,2W,AG,TP,5.6X 5 R428 2002-001017 R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9 5 R428A 2002-001017 R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9 5 R429 2003-000586 R-METAL OXIDE(S);22Kohm,5%,2W,AF,TP,4x12 5 R430 2003-000586 R-METAL OXIDE(S);22Kohm,5%,2W,AF,TP,4x12 5 R432 2001-001144 R-CARBON(S);4.7KOHM,5%,1/2W,AA,TP,2.4X6. 5 R433 2001-001155 R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6. 5 R434 2001-001093 R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6. 5 R435 2001-001107 R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4 5 R436 2001-001182 R-CARBON(S);7.5KOHM,5%,1/2W,AA,TP,2.4X6. 5 R437 2008-001087 R-FUSIBLE(S);1.8ohm,5%,2W,AG,TP,3.9x12mm 5 R438 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6. 5 R439 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6. 5 R440 2008-000282 R-FUSIBLE;0.47ohm,5%,1W,AA,TP,3.9x12mm 5 R441 2008-000253 R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m 5 R442 2008-000253 R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m 5 R442A 2008-000253 R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m 5 R443 2003-002156 R-METAL OXIDE;560OHM,5%,2W,AG,TP,6X16MM 5 R443A 2003-002156 R-METAL OXIDE;560OHM,5%,2W,AG,TP,6X16MM 5 R444 2003-000995 R-METAL OXIDE(S);3.3Kohm,5%,2W,AF,TP,3.9 5 R445 2008-000253 R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m 5 R446 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R447 2008-000253 R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m 5 R448 2001-000258 R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R449 2008-000253 R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m 5 R454 2001-000761 R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R455 2001-000761 R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R456 2001-000761 R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R458 2001-000577 R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R459 2001-001192 R-CARBON(S);820OHM,5%,1/2W,AA,TP,2.4X6.4 5 R460 2003-002044 R-METAL OXIDE(S);100ohm,5%,1W,AF,TP,2.5x 5 R461 2001-000613 R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R462 2008-001145 R-FUSIBLE;4.7OHM,5%,1/2W,AF,TP,2.5X6.5MM 5 R463 2003-001024 R-METAL OXIDE(S);150ohm,5%,2W,AF,TP,3.9x 5 R464 2003-002158 R-METAL OXIDE;0.68OHM,5%,1W,AG,TP,4.3X12 5 R465 2008-000253 R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m 5 R466 2004-001386 R-METAL(S);16.9Kohm,1%,1/2W,AA,TP,2.4x6. 5 R467 2004-001986 R-METAL(S);35.7Kohm,1%,1/2W,AA,TP,2.4x6. 5 R468 2001-001122 R-CARBON(S);3.9KOHM,5%,1/2W,AA,TP,2.4X6. 5 R469 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M 5 R470 2001-000028 R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4 5 R471 2004-002011 R-METAL(S);110Kohm,1%,1/2W,AA,TP,2.4x6.4 5 R472 2008-000252 R-FUSIBLE(S);0.47ohm,10%,1/2W,AF,TP,2.5x 5 R473 2004-001395 R-METAL(S);330Kohm,2%,1/2W,AA,TP,2.4x6.4 5 R474 2001-000009 R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R475 2001-000812 R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R482 2001-001031 R-CARBON;91KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R483 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R484 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R485 2008-001137 R-FUSIBLE(S);3.3ohm,5%,1W,AF,TP,3.9x10mm 5 R486 2008-001018 R-FUSIBLE(S);0.47ohm,10%,2W,AF,TP,3.9x10 5 R487 2001-000924 R-CARBON;680OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R488 2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R489 2001-000800 R-CARBON;5.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R490 2001-000800 R-CARBON;5.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R491 2001-000745 R-CARBON;4.7OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R492 2001-000508 R-CARBON;220KOHM,5%,1/8W,AA,TP,1.8X3.2MM

Electrical Parts List

7-4 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

Page 72

5 R494 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R495 2001-000262 R-CARBON;1.8MOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R501 2004-001376 R-METAL(S);11Kohm,1%,1/2W,AA,TP,2.4x6.4m 5 R502 2004-001369 R-METAL(S);1.2Kohm,1%,1/2W,AA,TP,2.4x6.4 5 R856 2001-001155 R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6. 5 R857 2001-001155 R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6. 5 RFS802 2008-000294 R-FUSIBLE(S);33ohm,5%,2W,AF,TP,3.9x10mm 5 RFZ19 2008-000261 R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm 5 RFZ20 2008-000261 R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm 5 RFZ21 2008-000261 R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm 5 RFZ22 2008-000261 R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm 5 RFZ50 2008-000261 R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm 5 RFZ51 2008-000261 R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm 5 RFZ52 2008-000261 R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm 5 RFZ53 2008-000261 R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm 5 RR401S 2004-001892 R-METAL(S);162Kohm,1%,1/2W,AA,TP,2.5x6.5 5 RR402S 2103-001086 VR-SEMI;100KOHM,25%,0.3W,TOP 5 RR403S 2004-004001 R-METAL(S);180Kohm,1%,1/2W,AA,TP,2.5x6.5 5 RR404S 2004-004046 R-METAL(S);430Kohm,1%,1/2W,AA,TP,2.5x6.5 5 RR405S 2004-004046 R-METAL(S);430Kohm,1%,1/2W,AA,TP,2.5x6.5 5 RR406S 2004-001892 R-METAL(S);162Kohm,1%,1/2W,AA,TP,2.5x6.5 5 RR407S 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RR408S 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RR409S 2001-000005 R-CARBON;390ohm,5%,1/8W,AA,TP,1.8x3.2mm 5 RR410S 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RR471S 2103-001024 VR-SEMI;50Kohm,25%,0.3W,TOP 5 RS801 2001-001093 R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6. 5 RS803 2001-001159 R-CARBON(S);510OHM,5%,1/2W,AA,TP,2.4X6.4 5 RS804 2001-001182 R-CARBON(S);7.5KOHM,5%,1/2W,AA,TP,2.4X6. 5 RS805 2001-001107 R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4 5 RS806 2001-001159 R-CARBON(S);510OHM,5%,1/2W,AA,TP,2.4X6.4 5 RS807 2001-001192 R-CARBON(S);820OHM,5%,1/2W,AA,TP,2.4X6.4 5 RS808 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4 5 RS809 2001-001099 R-CARBON(S);2.7KOHM,5%,1/2W,AA,TP,2.4X6. 5 RZ104 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4 5 RZ105 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4 5 RZ106 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4 5 RZ107 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4 5 RZ108 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4 5 RZ109 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4 5 RZ110 2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RZ111 2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RZ112 2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RZ113 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RZ114 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RZ115 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RZ116 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RZ117 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RZ118 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RZ123 2003-002148 R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M 5 RZ124 2003-002148 R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M 5 RZ125 2003-002148 R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M 5 RZ126 2003-002148 R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M 5 RZ127 2003-002148 R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M 5 RZ128 2003-002148 R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M 5 RZ129 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x 5 RZ129A 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x 5 RZ130 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x 5 RZ130A 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x 5 RZ131 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x 5 RZ131A 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x 5 RZ132 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x 5 RZ132A 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x 5 RZ133 2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RZ134 2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RZ135 2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RZ136 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RZ137 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RZ138 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RZ139 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RZ140 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RZ141 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RZ142 2003-002148 R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M 5 RZ143 2003-002148 R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M 5 RZ144 2003-002148 R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M 5 RZ145 2003-002148 R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M 5 RZ146 2003-002148 R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M

5 RZ147 2003-002148 R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M 5 RZ148 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x 5 RZ148A 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x 5 RZ149 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x 5 RZ149A 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x 5 VP811S 1405-000152 VARISTOR;560V,2500A,14x8.5mm,TP 4 3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G 4 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb S.N.A 3 AA98-01177A ASSY K/D-P/MATERIAL;PJTV,J52A S.N.A 4 CHASIS AA69-01403A WRAP VINYL-PACKING;SKD CHASSIS,LDPE,T0.0 S.N.A 4 CHASIS AA63-10007C BAND-PP;W18,CLEA,1G S.N.A 3 AA98-00289J ASSY K/D-CHASSIS PART;54J9P54A SEA S.N.A 4 PM+HC 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A 4 PP+HC 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A 4 PS+HC 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A 4 AA61-00504B HOLDER-CHASSIS;43,54,62J8,ABS,-,-,-,GRAY S.N.A 3 AA94-07625Q ASSY PCB MAIN;PCL5415R3C/XAA,P54A,U.S.A S.N.A 4 C664 2401-001068 C-AL;3300uF,20%,50V,GP,BK,22x40,10 4 C665 2401-000737 C-AL;2200uF,20%,50V,GP,TP,18x35.5,7 4 CG-BOT AA63-00397B SHIELD CASE-BOT;PRJT,P54A,SPTE,T0.5,-,-, S.N.A 4 CG-TOP AA63-00396B SHIELD CASE-TOP;PRJT,P54A,SPTE,T0.5,-,-, S.N.A 4 CN01 3703-001150 CONNECTOR-DIN;32P,2R,FEMALE,STRAIGHT,AUF 4 CN02 3703-001150 CONNECTOR-DIN;32P,2R,FEMALE,STRAIGHT,AUF 4 CNM01 3703-001187 CONNECTOR-DIN;64P,2R,FEMALE,STRAIGHT,AU 4 CNT01 3710-001208 CONNECTOR-SOCKET;32P,2R,2.54mm,STRAIGHT, 4 CNT02 3710-001208 CONNECTOR-SOCKET;32P,2R,2.54mm,STRAIGHT, 4 CNZ01 3703-001150 CONNECTOR-DIN;32P,2R,FEMALE,STRAIGHT,AUF 4 DW-BOT AA63-00395B SHIELD CASE-BOT;PRJT,P54A,SPTE,T0.5,-,-, S.N.A 4 DW-TOP AA63-00394B SHIELD CASE-TOP;PRJT P54A,SPTE,T0.5,-,-, S.N.A 4 IC102 AA96-00110C ASSY H/S;-,-,AA62-30013K,SI-3090C,- S.N.A 5 1203-000577 IC-VOLTAGE REGULATOR;3090,ZIP,5P,-,PLAST 5 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A 5 AA62-30013K HEAT SINK-ES;-,-,-,-,44/18,-,WHT,A6063 E S.N.A 4 IC104 AA96-00110A ASSY H/S;-,-,AA62-30013K,SI-3050C,- S.N.A 5 1203-000203 IC-POSI.ADJUST REG.;3050,TO-220,5P,-,PLA 5 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A 5 AA62-30013K HEAT SINK-ES;-,-,-,-,44/18,-,WHT,A6063 E S.N.A 4 IC106 AA96-00110A ASSY H/S;-,-,AA62-30013K,SI-3050C,- S.N.A 4 IC655 AA96-00038A ASSY H/S;-,SOUND AMP,AA62-30173E,TDA7265 S.N.A 5 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A 5 1201-001026 IC-POWER AMP;7265,ZIP,11P,19.6MIL,DUAL,1 5 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A 5 AA62-30173E HEAT SINK-ES;-,-,T1.0,WHITE,SCREW-HOLE(1 S.N.A 4 ICZ101 AA96-50321B ASSY H/S;-,-,AA62-30013G,SI3050C,- S.N.A 5 1203-000203 IC-POSI.ADJUST REG.;3050,TO-220,5P,-,PLA 5 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A 5 AA62-30013G HEAT SINK-ES;-,AL,-,WHT,55(18),-,-,- S.N.A 4 ICZ102 1203-000119 IC-NEGA.FIXED REG.;7905,TO-220,3P,-,PLAS 4 L601 AA29-00004A FILTER LINE NOISE;-,20UH,3A,AC80-260V,TQ 4 L602 AA27-10001C COIL CHOKE;-,100uH,K,-,5.0A,ST,700UH-K(R 4 MI-BOT AA63-00397B SHIELD CASE-BOT;PRJT,P54A,SPTE,T0.5,-,-, S.N.A 4 MI-TOP AA63-00396B SHIELD CASE-TOP;PRJT,P54A,SPTE,T0.5,-,-, S.N.A 4 SO-BOT AA63-00397B SHIELD CASE-BOT;PRJT,P54A,SPTE,T0.5,-,-, S.N.A 4 TU103S AA59-00164A MODULE-RF,SPLITTER;-,UMX-NT-005,-,2IN/3O 4 AA39-20010F LEAD CONNECTOR-ASSY;,1P,YFH800-01,S,700, 4 3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G 4 AA97-03131A ASSY ROBOT-MAIN;PCL5415R3C/XAA,P54A,U.S. S.N.A 5 CN201 3711-003974 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG 5 CN501 3711-003051 CONNECTOR-HEADER;BOX,8P,1R,2.5MM,STRAIGH 5 CN801 3711-003975 CONNECTOR-HEADER;BOX,14P,1R,2.5mm,STRAIG 5 CN901 3711-003973 CONNECTOR-HEADER;BOX,11P,1R,2.5mm,STRAIG 5 CNZ02 3711-003052 CONNECTOR-HEADER;BOX,10P,1R,2.5MM,STRAIG 5 IC103 AA96-50147B ASSY H/S;-,TR,AA62-30012B,KA7808,- S.N.A 6 1203-000293 IC-POSI.FIXED REG.;7808,TO-220,3P,-,PLAS 6 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A 6 AA62-30012B HEAT SINK-ES;-,A6063 EXTR,-,-,45(16) T02 S.N.A 5 IC107 AA96-00111L ASSY H/S;-,-,AA62-30013L,KA78R12,- S.N.A 6 1203-000165 IC-POSI.ADJUST REG.;78R12,TO-220,4P,-,PL 6 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A 6 AA62-30013L HEAT SINK-ES;-,-,-,-,44/22,-,WHT,-,-,-,- S.N.A 5 TU101S AA40-00032A TUNER-F/S;TCPN3081PC09A(S),NTSC,TR,181CH 5 TU102S AA40-00032A TUNER-F/S;TCPN3081PC09A(S),NTSC,TR,181CH 5 AA97-04484A ASSY AUTO-MAIN;PCL5415R3C/XAA,P54A,U.S.A 6 C100 2401-001397 C-AL;470uF,20%,25V,GP,TP,10x16,5 6 C101 2401-001397 C-AL;470uF,20%,25V,GP,TP,10x16,5 6 C102 2401-000611 C-AL;1uF,20%,50V,WT,TP,5x11,5 6 C103 2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5

Electrical Parts List

Samsung Electronics 7-5

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

Page 73

6 C104 2401-000603 C-AL;1uF,20%,50V,GP,TP,5x11,5 6 C105 2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5 6 C106 2401-002463 C-AL;470uF,20%,16V,GP,TP,8x11.5,5 6 C107 2401-002463 C-AL;470uF,20%,16V,GP,TP,8x11.5,5 6 C110 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm 6 C111 2201-000180 C-CERAMIC,DISC;10nF,10%,50V,Y5V,TP,7x3,5 6 C117 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 C118 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m 6 C119 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm 6 C120 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm 6 C121 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm 6 C122 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm 6 C123 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m 6 C124 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m 6 C125 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m 6 C126 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm 6 C127 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m 6 C128 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 C129 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5 6 C130 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5 6 C131 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm 6 C132 2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5 6 C133 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m 6 C134 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m 6 C135 2401-003034 C-AL;220uF,20%,16V,WT,TP,8x11.5,5 6 C136 2401-002463 C-AL;470uF,20%,16V,GP,TP,8x11.5,5 6 C137 2401-001397 C-AL;470uF,20%,25V,GP,TP,10x16,5 6 C138 2401-000832 C-AL;220uF,20%,25V,GP,TP,8x11.5,5 6 C140 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m 6 C142 2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5 6 C144 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP 6 C145 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP 6 C147 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP 6 C149 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP 6 C150 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP 6 C151 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP 6 C152 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP 6 C153 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 C154 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 C155 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 C157 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP 6 C191 2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5 6 C666 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m 6 C667 2401-000603 C-AL;1uF,20%,50V,GP,TP,5x11,5 6 C668 2401-000603 C-AL;1uF,20%,50V,GP,TP,5x11,5 6 C676 2401-001192 C-AL;33uF,20%,50V,GP,TP,6.3x11,5 6 C686 2301-000192 C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm 6 C687 2301-000192 C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm 6 C688 2401-000192 C-AL;1000uF,20%,50V,GP,TP,16x25,7.5 6 C689 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m 6 C690 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m 6 C691 2401-000192 C-AL;1000uF,20%,50V,GP,TP,16x25,7.5 6 C701 2401-000027 C-AL;4.7uF,20%,50V,GP,TP,5x11,5 6 C801 2401-002300 C-AL;47uF,20%,50V,GP,TP,6.3x11,5 6 C901 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm 6 C902 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 C903 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 CN101 3711-002642 CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH 6 CN601 3711-002643 CONNECTOR-HEADER;BOX,4P,1R,2.5mm,STRAIGH 6 CN902 3711-002642 CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH 6 CNY01 3711-002645 CONNECTOR-HEADER;BOX,6P,1R,2.5mm,STRAIGH 6 CZ101 2401-000832 C-AL;220uF,20%,25V,GP,TP,8x11.5,5 6 CZ102 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5 6 CZ103 2401-000689 C-AL;2200uF,20%,16V,GP,TP,13x25,5 6 CZ105 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 CZ106 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 CZ107 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 CZ109 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP 6 CZ110 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP 6 D603 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 6 D604 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 6 D605 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 6 D606 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 6 D664 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T 6 D665 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 6 D701 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 6 D702 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

6 D703 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 6 DZ665 0403-001039 DIODE-ZENER;MA2560,56V,52-60V,1W,DO-41,T 6 DZ701 0403-001140 DIODE-ZENER;RD10ESAB-T4,10V,9.19-10.30V, 6 DZ801 0403-000700 DIODE-ZENER;TZP33A,33V,31-35V,1W,DO-41,T 6 EL01 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL02 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL03 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL05 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL06 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL07 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL08 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL09 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL10 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL11 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL12 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL13 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL14 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL15 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL16 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL17 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL18 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL19 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL20 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL21 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL22 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL23 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL24 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL25 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL26 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL27 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL28 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL29 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL30 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL31 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL32 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EY01 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 6 EY02 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 6 EY03 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 6 EY04 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 6 EY05 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 6 EY06 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 6 EY07 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 6 EY08 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 6 EY09 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 6 EY10 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 6 EY11 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 6 EY12 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 6 EY13 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 6 EY14 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 6 GTM02 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 6 GTM04 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 6 L100 2701-000159 INDUCTOR-AXIAL;22uH,10%,4.2x9.8mm 6 L101 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm 6 L102 2701-000159 INDUCTOR-AXIAL;22uH,10%,4.2x9.8mm 6 L103 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm 6 L104 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm 6 L105 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm 6 L107 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm 6 L108 2701-001007 INDUCTOR-AXIAL;24uH,10%,4.5x14mm 6 L110 2701-000116 INDUCTOR-AXIAL;10uH,10%,4.2x9.8mm 6 L111 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500, 6 L112 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500, 6 L113 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,6 L603 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500, 6 L604 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500, 6 L605 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500, 6 L901 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm 6 LDZ101 0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500 6 LDZ102 0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500 6 LZ101 2701-000142 INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm 6 LZ102 2701-000142 INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm 6 LZ103 2701-001030 INDUCTOR-AXIAL;43uH,10%,5x14mm 6 LZ104 2701-001030 INDUCTOR-AXIAL;43uH,10%,5x14mm 6 PCB AA41-00332D PCB-MAIN;PCL545R,FR-1,1L,D,1.6T,330X245, S.N.A 6 Q601 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 6 Q666 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 6 Q668 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

Electrical Parts List

7-6 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

Page 74

6 Q701 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 6 Q702 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 6 R102 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM 6 R103 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM 6 R104 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4 6 R105 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM 6 R106 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM 6 R107 2001-000739 R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 R110 2001-000739 R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 R111 2001-000037 R-CARBON(S);330OHM,5%,1/2W,AA,TP,2.4X6.4 6 R112 2001-000739 R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 R113 2001-000739 R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 R115 2001-000869 R-CARBON;56OHM,5%,1/8W,AA,TP,1.8X3.2MM 6 R117 2001-000938 R-CARBON;68OHM,5%,1/8W,AA,TP,1.8X3.2MM 6 R602 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 R603 2001-001097 R-CARBON(S);2.4KOHM,5%,1/2W,AA,TP,2.4X6. 6 R604 2001-001168 R-CARBON(S);6.8KOHM,5%,1/2W,AA,TP,2.4X6. 6 R605 2001-001106 R-CARBON(S);220KOHM,5%,1/2W,AA,TP,2.4X6. 6 R661 2004-001970 R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5 6 R662 2004-001970 R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5 6 R663 2001-000660 R-CARBON;33KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 R664 2004-001970 R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5 6 R665 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4 6 R666 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4 6 R669 2001-001121 R-CARBON(S);3.6KOHM,5%,1/2W,AA,TP,2.4X6. 6 R670 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6. 6 R671 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4 6 R672 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4 6 R673 2001-001086 R-CARBON(S);18KOHM,5%,1/2W,AA,TP,2.4X6.4 6 R673A 2001-001144 R-CARBON(S);4.7KOHM,5%,1/2W,AA,TP,2.4X6. 6 R681 2004-001970 R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5 6 R682 2004-002019 R-METAL(S);33Kohm,1%,1/2W,AA,TP,2.5x6.5m 6 R683 2004-002019 R-METAL(S);33Kohm,1%,1/2W,AA,TP,2.5x6.5m 6 R685 2004-001390 R-METAL(S);1Kohm,2%,1/2W,AA,TP,2.4x6.4mm 6 R686 2004-001390 R-METAL(S);1Kohm,2%,1/2W,AA,TP,2.4x6.4mm 6 R687 2001-001146 R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4 6 R689 2001-001146 R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4 6 R690 2001-001144 R-CARBON(S);4.7KOHM,5%,1/2W,AA,TP,2.4X6. 6 R691 2001-001144 R-CARBON(S);4.7KOHM,5%,1/2W,AA,TP,2.4X6. 6 R701 2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 R702 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 R703 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 R704 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 R888 2003-001098 R-METAL OXIDE(S);22Kohm,5%,3W,AA,TP,6x16 6 RF101 2008-001116 R-FUSIBLE(S);0.68ohm,10%,2W,AG,TP,3.9x12 6 RF104 2008-000266 R-FUSIBLE(S);1ohm,5%,2W,AF,TP,3.9x10mm 6 RF121 2008-000253 R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m 6 RZ01 2001-000037 R-CARBON(S);330OHM,5%,1/2W,AA,TP,2.4X6.4 6 RZ02 2001-000739 R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RZ101 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RZ102 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 4 AA95-02023A ASSY SUB-PCB,MICOM;PCL545R,P54A , 5 CN901 3703-001175 CONNECTOR-DIN;64P,2R,MALE,ANGLE,AU 5 IC901 AA09-00101A IC MICOM;Z9037116PSC-OTP,Z9037116PSC-OTP 5 IC902 1103-001213 IC-EEPROM;M24C16-WBN6,2048x8Bit,SDIP,8P, 5 L903 2701-001032 INDUCTOR-AXIAL;100uH,10%,5x14mm 5 X901 2801-003224 CRYSTAL-UNIT;32.768KHz,20ppm,28-AAY,12.5 5 AA97-05187A ASSY AUTO-SUB;PCL545R,P54A S.N.A 6 C901 2201-000292 C-CERAMIC,DISC;1nF,10%,50V,Y5P,TP,5x3.5, 6 C904 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 C905 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 C906 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 C907 2301-000111 C-FILM,PEF;1.8nF,5%,50V,TP,6.5x3.0x5.5mm 6 C908 2201-000292 C-CERAMIC,DISC;1nF,10%,50V,Y5P,TP,5x3.5, 6 C909 2201-000292 C-CERAMIC,DISC;1nF,10%,50V,Y5P,TP,5x3.5, 6 C910 2201-000292 C-CERAMIC,DISC;1nF,10%,50V,Y5P,TP,5x3.5, 6 C911 2306-000122 C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m 6 C912 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 C913 2201-000193 C-CERAMIC,DISC;0.01nF,0.25pF,50V,NP0,TP, 6 C914 2201-000578 C-CERAMIC,DISC;0.047nF,5%,50V,UJ,TP,5x3. 6 C915 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 C916 2401-002183 C-AL;220uF,20%,16V,GP,TP,8x9,5mm 6 C917 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 C918 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 C919 2401-000486 C-AL;10uF,20%,50V,GP,TP,6.3x7mm,5 6 C920 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 C925 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,

6 C926 2401-000486 C-AL;10uF,20%,50V,GP,TP,6.3x7mm,5 6 C927 2201-000578 C-CERAMIC,DISC;0.047nF,5%,50V,UJ,TP,5x3. 6 C928 2201-000578 C-CERAMIC,DISC;0.047nF,5%,50V,UJ,TP,5x3. 6 F901 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,6 IC903 1203-001274 IC-VOL. DETECTOR;7545,TO-92,3P,-,PLASTIC 6 IC904 1203-000515 IC-VOL. DETECTOR;7042,TO-92,3P,177MIL,PL 6 L902 2702-001094 INDUCTOR-RADIAL;10uH,10%,6x4mm 6 L910 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,6 L911 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,6 L912 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,6 L913 2702-001094 INDUCTOR-RADIAL;10uH,10%,6x4mm 6 Q901 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 6 Q902 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 6 Q903 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 6 Q909 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T 6 Q910 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 6 Q911 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 6 AA97-06149A ASSY SMD-SUB;PCL545R,P54A S.N.A 7 C902 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 C903 2203-000595 C-CERAMIC,CHIP;0.22nF,5%,50V,NP0,TP,2012 7 C921 2203-000595 C-CERAMIC,CHIP;0.22nF,5%,50V,NP0,TP,2012 7 D901 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8 7 D902 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8 7 D903 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8 7 D904 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8 7 D905 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8 7 DZ903 0403-001016 DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m 7 DZ904 0403-001016 DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m 7 DZ905 0403-001016 DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m 7 DZ911 0403-000620 DIODE-ZENER;RLZ5.6B,5.6,500mW,LL-34,TP 7 DZ912 0403-000620 DIODE-ZENER;RLZ5.6B,5.6,500mW,LL-34,TP 7 DZ913 0403-000620 DIODE-ZENER;RLZ5.6B,5.6,500mW,LL-34,TP 7 DZ916 0403-001016 DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m 7 DZ917 0403-001016 DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m 7 DZ918 0403-001016 DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m 7 PCB AA41-00338B PCB-MICOM;PCL545R,FR-4,2L,B,1.6T,180X245 S.N.A 7 R901 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 7 R902 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608 7 R903 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 R904 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608 7 R905 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 7 R907 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 R908 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 R911 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608 7 R912 2007-000076 R-CHIP;330ohm,5%,1/16W,DA,TP,1608 7 R913 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608 7 R914 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 R915 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 R916 2007-000081 R-CHIP;2.7Kohm,5%,1/16W,DA,TP,1608 7 R917 2007-000081 R-CHIP;2.7Kohm,5%,1/16W,DA,TP,1608 7 R918 2007-000869 R-CHIP;4.7Kohm,1%,1/16W,DA,TP,1608 7 R919 2007-000458 R-CHIP;18Kohm,5%,1/16W,DA,TP,1608 7 R920 2007-000077 R-CHIP;470ohm,5%,1/16W,DA,TP,1608 7 R921 2007-000087 R-CHIP;6.8Kohm,5%,1/16W,DA,TP,1608 7 R922 2007-000087 R-CHIP;6.8Kohm,5%,1/16W,DA,TP,1608 7 R923 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 R924 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 R925 2007-000123 R-CHIP;1.5Kohm,5%,1/16W,DA,TP,1608 7 R926 2007-000123 R-CHIP;1.5Kohm,5%,1/16W,DA,TP,1608 7 R927 2007-000123 R-CHIP;1.5Kohm,5%,1/16W,DA,TP,1608 7 R928 2007-000081 R-CHIP;2.7Kohm,5%,1/16W,DA,TP,1608 7 R929 2007-000123 R-CHIP;1.5Kohm,5%,1/16W,DA,TP,1608 7 R930 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 7 R931 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 7 R932 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 7 R934 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 R935 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 R936 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 R937 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 R945 2007-001093 R-CHIP;620ohm,5%,1/16W,DA,TP,1608 7 R946 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608 7 R947 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608 7 R948 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 R949 2007-000082 R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1608 7 R950 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 R951 2007-000082 R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1608 7 R958 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608

Electrical Parts List

Samsung Electronics 7-7

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

Page 75

7 R959 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 R960 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 R961 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 7 R962 2007-000098 R-CHIP;56Kohm,5%,1/16W,DA,TP,1608 7 R963 2007-000082 R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1608 7 R964 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 7 R965 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 7 R967 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 R968 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 R969 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 7 R971 2007-000086 R-CHIP;5.6Kohm,5%,1/16W,DA,TP,1608 7 R972 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608 7 R973 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 7 R974 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 R976 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 R977 2007-000305 R-CHIP;10Mohm,5%,1/16W,DA,TP,1608 7 R978 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608 7 R981 2007-000122 R-CHIP;1.2Kohm,5%,1/16W,DA,TP,1608 7 R982 2007-000122 R-CHIP;1.2Kohm,5%,1/16W,DA,TP,1608 7 R983 2007-000122 R-CHIP;1.2Kohm,5%,1/16W,DA,TP,1608 5 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb S.N.A 5 0202-001167 SOLDER-CREAM;RX3603-2330HO,S45A,PASTE,SN S.N.A 4 AA95-02024A ASSY SUB-PCB,CG MDL;SVP-54T6SR,P54A , 5 CN01 3703-001124 CONNECTOR-DIN;32P,2R,MALE,ANGLE,AUF 5 CN04 3711-003601 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,ANGLE, 5 L01 2701-001030 INDUCTOR-AXIAL;43uH,10%,5x14mm 5 AA97-07268A ASSY SMD;SVP-54T6SR,P54A, , , S.N.A 6 C01 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4 6 C02 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C03 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4 6 C04 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C05 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C07 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4 6 C08 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C10 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C11 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C12 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C13 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C14 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C15 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,6 C17 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4 6 C18 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C19 2402-001049 C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4 6 C20 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C21 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C22 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C23 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C24 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C25 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C26 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C27 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C28 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C29 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C30 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C31 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C32 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C33 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C34 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C35 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C36 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C40 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C41 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C42 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4 6 C43 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C44 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C45 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4 6 C46 2203-000357 C-CERAMIC,CHIP;0.15nF,5%,50V,NP0,TP,1608 6 C47 2203-001071 C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,160 6 C48 2203-000041 C-CERAMIC,CHIP;0.01nF,0.25pF,50V,NP0,TP, 6 C49 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C50 2203-000357 C-CERAMIC,CHIP;0.15nF,5%,50V,NP0,TP,1608 6 C51 2203-001071 C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,160 6 C52 2203-000041 C-CERAMIC,CHIP;0.01nF,0.25pF,50V,NP0,TP, 6 C53 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C54 2203-000357 C-CERAMIC,CHIP;0.15nF,5%,50V,NP0,TP,1608 6 C55 2203-001071 C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,160 6 C56 2203-000041 C-CERAMIC,CHIP;0.01nF,0.25pF,50V,NP0,TP,

6 C57 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C58 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C59 2203-000357 C-CERAMIC,CHIP;0.15nF,5%,50V,NP0,TP,1608 6 C60 2203-001071 C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,160 6 C61 2203-000041 C-CERAMIC,CHIP;0.01nF,0.25pF,50V,NP0,TP, 6 C62 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C63 2203-000357 C-CERAMIC,CHIP;0.15nF,5%,50V,NP0,TP,1608 6 C64 2203-001071 C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,160 6 C65 2203-000041 C-CERAMIC,CHIP;0.01nF,0.25pF,50V,NP0,TP, 6 C66 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C67 2203-000357 C-CERAMIC,CHIP;0.15nF,5%,50V,NP0,TP,1608 6 C68 2203-001071 C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,160 6 C69 2203-000041 C-CERAMIC,CHIP;0.01nF,0.25pF,50V,NP0,TP, 6 C70 2203-001083 C-CERAMIC,CHIP;0.005nF,0.1pF,50V,NP0,TP, 6 C71 2203-001083 C-CERAMIC,CHIP;0.005nF,0.1pF,50V,NP0,TP, 6 C72 2203-001083 C-CERAMIC,CHIP;0.005nF,0.1pF,50V,NP0,TP, 6 C73 2203-001083 C-CERAMIC,CHIP;0.005nF,0.1pF,50V,NP0,TP, 6 C74 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4 6 C75 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C76 2203-001034 C-CERAMIC,CHIP;5.6nF,10%,50V,X7R,TP,1608 6 C77 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 6 C78 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C79 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C80 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C81 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C82 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C83 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C84 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C86 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C87 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C88 2203-001245 C-CERAMIC,CHIP;0.082nF,5%,50V,NP0,TP,201 6 C89 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C90 2203-000575 C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012 6 C91 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608, 6 C92 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 6 C93 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4 6 D01 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP 6 D02 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP 6 D03 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP 6 D04 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP 6 D05 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP 6 DZ01 0403-001016 DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m 6 DZ02 0403-001016 DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m 6 DZ03 0403-001016 DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m 6 DZ04 0403-001016 DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m 6 EF01 2901-000229 FILTER-EMI SMD;50V,0.3A,-,22000pF,4.5x3. 6 EF02 2901-000229 FILTER-EMI SMD;50V,0.3A,-,22000pF,4.5x3. 6 EF03 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 6 EF04 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 6 EF05 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 6 EF06 2901-000226 FILTER-EMI SMD;25V,0.3A,-,100pF,3.2x1.25 6 EF07 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 6 EF08 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 6 EF09 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 6 EF10 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 6 EF13 2901-000226 FILTER-EMI SMD;25V,0.3A,-,100pF,3.2x1.25 6 EF14 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 6 IC01 AA13-00104A IC ASIC;SDC11,SVP-54T6SR,208P,-0.3VTO3.8 6 IC02 1203-002302 IC-POSI.FIXED REG.;78RM33D,D-PAK,3P,-,PL 6 IC04 1203-001824 IC-VOL. DETECTOR;7042,SOT-89,3P,-,PLASTI 6 IC05 1103-001195 IC-EEPROM;24C64,8Kx8Bit,SOP,8P,150MIL,10 6 IC06 AA09-00032A IC MICOM;,TSC87251G2D-OTP,4.5 TO 5.5V,-, 6 IC08 1201-001520 IC-VIDEO AMP;EL2250CS,SOIC,8P,150MIL,DUA 6 IC09 1001-000164 IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16 6 IC10 1201-001504 IC-OP AMP;072,SOP,8P,150MIL,DUAL,-,PLAST 6 IC11 1201-001504 IC-OP AMP;072,SOP,8P,150MIL,DUAL,-,PLAST 6 IC12 1201-001504 IC-OP AMP;072,SOP,8P,150MIL,DUAL,-,PLAST 6 IC13 1201-001135 IC-OP AMP;324,SOP,ST,14P,150MIL,QUAD,100 6 IC14 0801-002345 IC-CMOS LOGIC;7S04,INVERTER,SOT-353,5P,4 6 IC15 0801-002345 IC-CMOS LOGIC;7S04,INVERTER,SOT-353,5P,4 6 IC16 0801-002345 IC-CMOS LOGIC;7S04,INVERTER,SOT-353,5P,4 6 IC17 1209-001163 IC-PLL;TLC2932IPWLE,SOP,14P,-,PLASTIC 6 OSC01 2804-001479 OSCILLATOR-CLOCK;24MHZ,100PPM,50PF,TP,5V 6 PCB AA41-00529A PCB-CONVERGENCE MODULE;SVP-54T6SR,FR-4,4 S.N.A 6 Q01 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23 6 Q02 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23 6 R01 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608

Electrical Parts List

7-8 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

Page 76

6 R02 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R03 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 6 R04 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R10 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R100 2007-000072 R-CHIP;47ohm,5%,1/16W,DA,TP,1608 6 R101 2007-000072 R-CHIP;47ohm,5%,1/16W,DA,TP,1608 6 R102 2007-000072 R-CHIP;47ohm,5%,1/16W,DA,TP,1608 6 R103 2007-000072 R-CHIP;47ohm,5%,1/16W,DA,TP,1608 6 R109 2007-000072 R-CHIP;47ohm,5%,1/16W,DA,TP,1608 6 R11 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R110 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R111 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608 6 R117 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608 6 R118 2007-000123 R-CHIP;1.5Kohm,5%,1/16W,DA,TP,1608 6 R119 2007-000355 R-CHIP;12KOHM,5%,1/10W,DA,TP,2012 6 R12 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R120 2007-000856 R-CHIP;4.3KOHM,1%,1/10W,DA,TP,2012 6 R121 2007-000109 R-CHIP;1Mohm,5%,1/16W,DA,TP,1608 6 R122 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R123 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R124 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R125 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R126 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R127 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R13 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R134 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608 6 R14 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 6 R15 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 6 R16 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 6 R17 2007-000122 R-CHIP;1.2Kohm,5%,1/16W,DA,TP,1608 6 R18 2007-000381 R-CHIP;13Kohm,5%,1/16W,DA,TP,1608 6 R19 2007-001056 R-CHIP;6.2Kohm,5%,1/16W,DA,TP,1608 6 R20 2007-000080 R-CHIP;2Kohm,5%,1/16W,DA,TP,1608 6 R21 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R22 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 6 R23 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R28 2007-001163 R-CHIP;75OHM,1%,1/10W,DA,TP,2012 6 R29 2007-001163 R-CHIP;75OHM,1%,1/10W,DA,TP,2012 6 R30 2007-000122 R-CHIP;1.2Kohm,5%,1/16W,DA,TP,1608 6 R32 2007-000122 R-CHIP;1.2Kohm,5%,1/16W,DA,TP,1608 6 R33 2007-000028 R-CHIP;39OHM,5%,1/10W,DA,TP,2012 6 R34 2007-000028 R-CHIP;39OHM,5%,1/10W,DA,TP,2012 6 R37 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R38 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R39 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R40 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R41 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R42 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R43 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R44 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R45 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 6 R46 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R47 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R48 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R49 2007-000080 R-CHIP;2Kohm,5%,1/16W,DA,TP,1608 6 R50 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 6 R51 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R52 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R53 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R54 2007-000080 R-CHIP;2Kohm,5%,1/16W,DA,TP,1608 6 R55 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 6 R56 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R57 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R58 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R59 2007-000080 R-CHIP;2Kohm,5%,1/16W,DA,TP,1608 6 R60 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 6 R61 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R62 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R63 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R64 2007-000080 R-CHIP;2Kohm,5%,1/16W,DA,TP,1608 6 R65 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 6 R66 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R67 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R68 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R69 2007-000080 R-CHIP;2Kohm,5%,1/16W,DA,TP,1608 6 R70 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 6 R71 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608

6 R72 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R73 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R74 2007-000080 R-CHIP;2Kohm,5%,1/16W,DA,TP,1608 6 R75 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 6 R77 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608 6 R78 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608 6 R79 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608 6 R80 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608 6 R81 2007-000757 R-CHIP;330KOHM,5%,1/10W,DA,TP,2012 6 R82 2007-000757 R-CHIP;330KOHM,5%,1/10W,DA,TP,2012 6 R83 2007-000757 R-CHIP;330KOHM,5%,1/10W,DA,TP,2012 6 R84 2007-000757 R-CHIP;330KOHM,5%,1/10W,DA,TP,2012 6 R85 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 6 R86 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 6 R87 2007-000704 R-CHIP;3.6Kohm,5%,1/16W,DA,TP,1608 6 R88 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R89 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608 6 R90 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608 6 R91 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608 6 R92 2007-000125 R-CHIP;3.9Kohm,5%,1/16W,DA,TP,1608 6 R93 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R94 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R95 2007-000072 R-CHIP;47ohm,5%,1/16W,DA,TP,1608 6 RN01 2011-000585 R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP 6 RN02 2011-000585 R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP 6 RN03 2011-000585 R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP 6 RN04 2011-000585 R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP 6 RN05 2011-000585 R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP 6 RN08 2011-000585 R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP 4 BP95-00052A ASSY SUB-SOUND;PCL5415R,P54A,AA95-01103B 5 CN601 3711-005105 CONNECTOR-HEADER;NOWALL,64P,2R,2.54MM,AN 5 XD601 2801-000186 CRYSTAL-UNIT;18.432MHz,25ppm,28-AAM,8pF, 5 AA97-07221A ASSY AUTO-SOUND;PCL5415R,P54A,AA95-01103 S.N.A 6 CD601 2401-000444 C-AL;10uF,20%,25V,GP,TP,5x5mm,5mm 6 CD603 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 6 CD604 2401-000486 C-AL;10uF,20%,50V,GP,TP,6.3x7mm,5 6 CD605 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 6 CD607 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 6 CD608 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 6 CD609 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 6 CD610 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 6 CD611 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 6 CD612 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 6 CD614 2401-000486 C-AL;10uF,20%,50V,GP,TP,6.3x7mm,5 6 CD616 2401-000486 C-AL;10uF,20%,50V,GP,TP,6.3x7mm,5 6 CD621 2401-000922 C-AL;22uF,20%,16V,GP,TP,5x5,5 6 CD622 2401-000922 C-AL;22uF,20%,16V,GP,TP,5x5,5 6 CD623 2401-000922 C-AL;22uF,20%,16V,GP,TP,5x5,5 6 CD624 2401-000922 C-AL;22uF,20%,16V,GP,TP,5x5,5 6 CD625 2401-000922 C-AL;22uF,20%,16V,GP,TP,5x5,5 6 CD626 2401-000426 C-AL;10uF,20%,16V,GP,TP,3.5x5,5 6 CD627 2401-000922 C-AL;22uF,20%,16V,GP,TP,5x5,5 6 CD628 2401-000922 C-AL;22uF,20%,16V,GP,TP,5x5,5 6 CD630 2401-000426 C-AL;10uF,20%,16V,GP,TP,3.5x5,5 6 CD632 2401-000444 C-AL;10uF,20%,25V,GP,TP,5x5mm,5mm 6 CD639 2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5 6 CD641 2401-002009 C-AL;100uF,20%,16V,GP,TP,6.3x7,5 6 CD650 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 6 CD652 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 6 CD653 2401-000922 C-AL;22uF,20%,16V,GP,TP,5x5,5 6 CD654 2401-000922 C-AL;22uF,20%,16V,GP,TP,5x5,5 6 CD660 2401-000922 C-AL;22uF,20%,16V,GP,TP,5x5,5 6 LD601 2701-001032 INDUCTOR-AXIAL;100uH,10%,5x14mm 6 LD602 2701-001032 INDUCTOR-AXIAL;100uH,10%,5x14mm 6 LD603 2701-001032 INDUCTOR-AXIAL;100uH,10%,5x14mm 6 AA97-06959A ASSY SMD-SOUND;PCL5415R,P54A,AA95-01103B S.N.A 7 CD602 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CD606 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CD613 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CD617 2203-001211 C-CERAMIC,CHIP;8.2nF,10%,50V,X7R,TP,1608 7 CD618 2203-001211 C-CERAMIC,CHIP;8.2nF,10%,50V,X7R,TP,1608 7 CD619 2203-001211 C-CERAMIC,CHIP;8.2nF,10%,50V,X7R,TP,1608 7 CD620 2203-001211 C-CERAMIC,CHIP;8.2nF,10%,50V,X7R,TP,1608 7 CD629 2203-005590 C-CERAMIC,CHIP;330NF,10%,16V,X7R,TP,2012 7 CD631 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CD633 2203-000332 C-CERAMIC,CHIP;0.012nF,5%,50V,NP0,TP,160 7 CD634 2203-000332 C-CERAMIC,CHIP;0.012nF,5%,50V,NP0,TP,160

Electrical Parts List

Samsung Electronics 7-9

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

Page 77

7 CD635 2203-001071 C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,160 7 CD636 2203-001071 C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,160 7 CD637 2203-001071 C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,160 7 CD638 2203-000236 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,1608 7 CD640 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CD642 2203-000140 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,1608 7 CD643 2203-000140 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,1608 7 CD648 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,7 CD649 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,7 CD662 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CD670 2203-000236 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,1608 7 ICD601 1204-001631 IC-SOUND PROCESSOR;MSP3450G,QFP,80P,-,PL 7 ICD602 1201-000541 IC-OP AMP;062,SOP,8P,153MIL,DUAL,6V/mV,P 7 PCB AA41-00335A PCB-SOUND;PCL545R,FR-4,2L,A,1.6T,180X245 S.N.A 7 RD601 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 RD602 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 RD603 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 RD604 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 RD605 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 RD606 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 RD607 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 RD608 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 RD609 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 RD610 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 RD611 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 RD613 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 7 RD614 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 RD615 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 RD616 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 RD617 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 RD618 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 7 RD619 2007-001179 R-CHIP;8.2Kohm,5%,1/16W,DA,TP,1608 7 RD620 2007-000134 R-CHIP;33Kohm,5%,1/16W,DA,TP,1608 7 RD621 2007-001010 R-CHIP;51Kohm,5%,1/16W,DA,TP,1608 7 RD622 2007-000329 R-CHIP;11Kohm,5%,1/16W,DA,TP,1608 7 RD623 2007-000329 R-CHIP;11Kohm,5%,1/16W,DA,TP,1608 7 RD624 2007-001010 R-CHIP;51Kohm,5%,1/16W,DA,TP,1608 7 RD625 2007-001179 R-CHIP;8.2Kohm,5%,1/16W,DA,TP,1608 7 RD626 2007-000134 R-CHIP;33Kohm,5%,1/16W,DA,TP,1608 7 RD627 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 7 RD628 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 RD629 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 RD638 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 5 0202-001167 SOLDER-CREAM;RX3603-2330HO,S45A,PASTE,SN S.N.A 5 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb S.N.A 4 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb S.N.A 4 AA65-30104B CLAMPER CORE-WIRE;ALL MODEL,NYLON 66,V2, S.N.A 4 AA65-30105B CLAMPER CORE-WIRE;ALL MODEL,NYLON 66,V2, S.N.A 4 AA95-01793A ASSY SUB-PCB,CAPTION;PCL545R,P54A,AA95-0 5 BK01 AA61-10068A BRACKET-PCB;M2160,SPTE,T0.3,-,-,-,- S.N.A 5 CNC01 3711-002709 CONNECTOR-HEADER;NOWALL,12P,1R,2.5mm,ANG 5 CNC02 3711-002708 CONNECTOR-HEADER;NOWALL,10P,1R,2.5mm,ANG 5 ICC01 1204-001718 IC-DECODER;Z86129,DIP,18P,300MIL,PLASTIC 5 ICC02 1001-001083 IC-VIDEO SWITCH;NJM2248D,-,DIP,8P,300MIL 5 ICC03 1001-001083 IC-VIDEO SWITCH;NJM2248D,-,DIP,8P,300MIL 5 AA97-05186A ASSY AUTO-SUB;PCL545R,P54A S.N.A 6 CC01 2401-000603 C-AL;1uF,20%,50V,GP,TP,5x11,5 6 CC02 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 6 CC03 2201-000600 C-CERAMIC,DISC;0.56nF,10%,50V,Y5P,TP,5x3 6 CC04 2401-000223 C-AL;100nF,20%,50V,LL,TP,5x11mm,5mm 6 CC05 2301-000310 C-FILM,PEF;68nF,5%,50V,TP,8.0X8.5X4.0X5, 6 CC06 2301-000301 C-FILM,PEF;6.8nF,5%,50V,TP,6.5X5.5X3.0X5 6 CC07 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5 6 CC08 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 6 CC09 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 6 CC10 2305-000149 C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5 6 CC11 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm 6 CC12 2305-000149 C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5 6 CC13 2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5 6 CC14 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 CC15 2201-000600 C-CERAMIC,DISC;0.56nF,10%,50V,Y5P,TP,5x3 6 CC16 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 CC19 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 DC01 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 6 DC02 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 6 DC03 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 6 LC01 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm

6 PCB AA41-00337A PCB-CAPTION;PCL545R,FR-1,1L,A,1.6T,245X2 S.N.A 6 QC01 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 6 QC02 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 6 RC01 2004-000433 R-METAL;1Kohm,1%,1/8W,AA,TP,1.8x3.2mm 6 RC02 2004-000433 R-METAL;1Kohm,1%,1/8W,AA,TP,1.8x3.2mm 6 RC03 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC04 2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC05 2001-000890 R-CARBON;6.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC06 2001-000006 R-CARBON;2.4KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC07 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC08 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC09 2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC10 2004-000433 R-METAL;1Kohm,1%,1/8W,AA,TP,1.8x3.2mm 6 RC11 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC12 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC13 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC14 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC15 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC16 2004-000218 R-METAL;10Kohm,1%,1/8W,AA,TP,1.8x3.2mm 6 RC17 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC18 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC19 2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC20 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC21 2001-000362 R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC22 2001-000613 R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC23 2001-000006 R-CARBON;2.4KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC24 2001-000007 R-CARBON;3KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC25 2001-000003 R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm 6 RC30 2001-000708 R-CARBON;39OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb S.N.A 4 AA95-01835C ASSY SUB-PCB,PROSCAN;PCL6215R,P54A,AA955 CN01 3703-001124 CONNECTOR-DIN;32P,2R,MALE,ANGLE,AUF 5 CN02 3703-001124 CONNECTOR-DIN;32P,2R,MALE,ANGLE,AUF 5 CX01 2801-004019 CRYSTAL-UNIT;20.25MHz,30ppm,28-AAM,13pF, 5 DX01 2801-003811 CRYSTAL-UNIT;24.576MHZ,20PPM,28-AAM,30PF 5 XP701 2801-004019 CRYSTAL-UNIT;20.25MHz,30ppm,28-AAM,13pF, 5 AA97-05432A ASSY AUTO-SUB;PCL6215R,P54A 6 CC17 2401-002183 C-AL;220uF,20%,16V,GP,TP,8x9,5mm 6 CC19 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 CC28 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 CC32 2401-002183 C-AL;220uF,20%,16V,GP,TP,8x9,5mm 6 CC42 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 CC44 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 CC45 2401-000486 C-AL;10uF,20%,50V,GP,TP,6.3x7mm,5 6 CP707 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 CP709 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 CP725 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5 6 CP727 2401-002183 C-AL;220uF,20%,16V,GP,TP,8x9,5mm 6 CP730 2401-000665 C-AL;2.2uF,20%,50V,GP,TP,3.5x5,5 6 CP731 2401-000665 C-AL;2.2uF,20%,50V,GP,TP,3.5x5,5 6 CP741 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 CP742 2401-002183 C-AL;220uF,20%,16V,GP,TP,8x9,5mm 6 CP743 2401-002183 C-AL;220uF,20%,16V,GP,TP,8x9,5mm 6 CP744 2401-002183 C-AL;220uF,20%,16V,GP,TP,8x9,5mm 6 DC16 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 DC17 2401-002009 C-AL;100uF,20%,16V,GP,TP,6.3x7,5 6 DC19 2401-002009 C-AL;100uF,20%,16V,GP,TP,6.3x7,5 6 DC27 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5 6 DC39 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5 6 IC12 1203-001140 IC-VOL. DETECTOR;7039,TO-92P,3P,-,PLASTI 6 PC41 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 PC43 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 SC01 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 SC03 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 SC22 2401-003102 C-AL;100uF,20%,10V,GP,TP,5x11,5 6 SC30 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5 6 SC31 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5 6 SC36 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5 6 SC51 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 SC53 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 YC21 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 YC26 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 YC31 2401-000486 C-AL;10uF,20%,50V,GP,TP,6.3x7mm,5 6 YC38 2401-000486 C-AL;10uF,20%,50V,GP,TP,6.3x7mm,5 6 YC57 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 YC62 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5 6 AA97-06230A ASSY SMD-SUB;PCL6215R,P54A

Electrical Parts List

7-10 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

Page 78

7 CC01 2203-001603 C-CERAMIC,CHIP;220nF,10%,16V,X7R,TP,2012 7 CC02 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CC03 2203-001603 C-CERAMIC,CHIP;220nF,10%,16V,X7R,TP,2012 7 CC04 2203-001603 C-CERAMIC,CHIP;220nF,10%,16V,X7R,TP,2012 7 CC05 2203-000140 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,1608 7 CC06 2203-000838 C-CERAMIC,CHIP;0.39nF,5%,50V,NP0,TP,1608 7 CC07 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CC08 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608, 7 CC09 2203-000140 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,1608 7 CC10 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CC11 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CC12 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CC13 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CC14 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CC15 2203-001646 C-CERAMIC,CHIP;3pF,0.5pF,50V,NPO,TP,2012 7 CC16 2203-001646 C-CERAMIC,CHIP;3pF,0.5pF,50V,NPO,TP,2012 7 CC18 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608, 7 CC20 2203-001603 C-CERAMIC,CHIP;220nF,10%,16V,X7R,TP,2012 7 CC21 2203-000140 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,1608 7 CC22 2203-000838 C-CERAMIC,CHIP;0.39nF,5%,50V,NP0,TP,1608 7 CC23 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,7 CC24 2203-005590 C-CERAMIC,CHIP;330NF,10%,16V,X7R,TP,2012 7 CC25 2203-005590 C-CERAMIC,CHIP;330NF,10%,16V,X7R,TP,2012 7 CC26 2203-005590 C-CERAMIC,CHIP;330NF,10%,16V,X7R,TP,2012 7 CC27 2203-005590 C-CERAMIC,CHIP;330NF,10%,16V,X7R,TP,2012 7 CC29 2203-001603 C-CERAMIC,CHIP;220nF,10%,16V,X7R,TP,2012 7 CC30 2203-000140 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,1608 7 CC31 2203-000838 C-CERAMIC,CHIP;0.39nF,5%,50V,NP0,TP,1608 7 CC33 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608, 7 CC35 2203-005590 C-CERAMIC,CHIP;330NF,10%,16V,X7R,TP,2012 7 CC36 2203-005590 C-CERAMIC,CHIP;330NF,10%,16V,X7R,TP,2012 7 CC37 2203-000681 C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,160 7 CC38 2203-000681 C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,160 7 CC40 2203-000681 C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,160 7 CC41 2203-000998 C-CERAMIC,CHIP;0.047nF,5%,50V,NP0,TP,160 7 CC43 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CC47 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CC48 2203-005384 C-CERAMIC,CHIP;4700nF,+80-20%,10V,Y5V,TP 7 CC49 2203-005384 C-CERAMIC,CHIP;4700nF,+80-20%,10V,Y5V,TP 7 CC50 2203-005384 C-CERAMIC,CHIP;4700nF,+80-20%,10V,Y5V,TP 7 CC51 2203-000783 C-CERAMIC,CHIP;0.33nF,5%,50V,NP0,TP,1608 7 CD01 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8 7 CD02 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8 7 CF01 2901-001120 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T 7 CF02 2901-001120 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T 7 CL03 3301-001186 CORE-FERRITE BEAD;AB,600ohm,3.2x1.6x1.3m 7 CL05 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 CL06 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 CL07 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 CP701 2203-000274 C-CERAMIC,CHIP;0.01nF,0.25pF,50V,NP0,TP, 7 CP702 2203-000274 C-CERAMIC,CHIP;0.01nF,0.25pF,50V,NP0,TP, 7 CP703 2203-001223 C-CERAMIC,CHIP;0.82nF,10%,50V,X7R,TP,201 7 CP704 2203-000405 C-CERAMIC,CHIP;0.18nF,5%,50V,NP0,TP,1608 7 CP708 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CP710 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CP724 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CP726 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CP728 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 7 CP729 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 7 CP732 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CP733 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CP734 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CP745 2203-000938 C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,2012 7 CP746 2203-000938 C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,2012 7 CP747 2203-000683 C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,201 7 CP748 2203-001603 C-CERAMIC,CHIP;220nF,10%,16V,X7R,TP,2012 7 CP749 2203-001603 C-CERAMIC,CHIP;220nF,10%,16V,X7R,TP,2012 7 CP750 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CP751 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CP752 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CP753 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CP754 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CP756 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CP757 2203-000938 C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,2012 7 CQ01 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT7 CQ02 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT7 CQ03 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

7 CQ04 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT7 CQ05 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT7 CR01 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 7 CR02 2007-000028 R-CHIP;39OHM,5%,1/10W,DA,TP,2012 7 CR03 2007-001166 R-CHIP;75OHM,5%,1/10W,DA,TP,2012 7 CR04 2007-000028 R-CHIP;39OHM,5%,1/10W,DA,TP,2012 7 CR05 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 7 CR06 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 7 CR08 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 7 CR09 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 CR10 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 CR15 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 7 CR16 2703-000274 INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm 7 CR20 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 CR22 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 CR25 2007-001166 R-CHIP;75OHM,5%,1/10W,DA,TP,2012 7 CR27 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 CR28 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 CR29 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608 7 CR30 2007-000119 R-CHIP;560ohm,5%,1/16W,DA,TP,1608 7 CR31 2007-000643 R-CHIP;270ohm,5%,1/16W,DA,TP,1608 7 CR32 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012 7 CR33 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012 7 CR35 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608 7 CR37 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 CR38 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 CR39 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 CR45 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 CR46 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 CR47 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608 7 CR48 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608 7 CR49 2007-000077 R-CHIP;470ohm,5%,1/16W,DA,TP,1608 7 CR50 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608 7 CR51 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608 7 CR52 2007-000077 R-CHIP;470ohm,5%,1/16W,DA,TP,1608 7 CR53 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608 7 CR54 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608 7 CR55 2007-000077 R-CHIP;470ohm,5%,1/16W,DA,TP,1608 7 CR56 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 7 DC18 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 DC20 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 DC21 2203-001083 C-CERAMIC,CHIP;0.005nF,0.1pF,50V,NP0,TP, 7 DC22 2203-001083 C-CERAMIC,CHIP;0.005nF,0.1pF,50V,NP0,TP, 7 DC23 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 DC24 2203-001656 C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,1608 7 DC25 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,7 DC26 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,7 DC28 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 DC29 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,7 DC30 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,7 DC31 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,7 DC32 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 DC33 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 DC34 2203-000998 C-CERAMIC,CHIP;0.047nF,5%,50V,NP0,TP,160 7 DC35 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 DC36 2203-000236 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,1608 7 DC37 2203-000140 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,1608 7 DC38 2203-000236 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,1608 7 DD01 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8 7 DD02 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8 7 DD03 0403-001127 DIODE-ZENER;02DZ5.1,5.1,200mW,SOD-323,TP 7 DD06 0403-001127 DIODE-ZENER;02DZ5.1,5.1,200mW,SOD-323,TP 7 DD07 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8 7 DL05 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 DL06 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 DL07 2703-000274 INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm 7 DQ01 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23 7 DR16 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 DR17 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 DR18 2007-000101 R-CHIP;82Kohm,5%,1/16W,DA,TP,1608 7 DR19 2007-000072 R-CHIP;47ohm,5%,1/16W,DA,TP,1608 7 DR20 2007-000081 R-CHIP;2.7Kohm,5%,1/16W,DA,TP,1608 7 DR22 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 7 DR23 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608 7 DR24 2007-000100 R-CHIP;68Kohm,5%,1/16W,DA,TP,1608 7 DR25 2007-000129 R-CHIP;27Kohm,5%,1/16W,DA,TP,1608 7 DR26 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608

Electrical Parts List

Samsung Electronics 7-11

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

Page 79

7 DR27 2007-000127 R-CHIP;9.1Kohm,5%,1/16W,DA,TP,1608 7 DR29 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 DR30 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 DR31 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 DR32 2007-000118 R-CHIP;390ohm,5%,1/16W,DA,TP,1608 7 DR33 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 DR34 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 DR35 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 7 DR36 2007-000077 R-CHIP;470ohm,5%,1/16W,DA,TP,1608 7 DR37 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 7 DR38 2007-000079 R-CHIP;1.8Kohm,5%,1/16W,DA,TP,1608 7 DR40 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 DR41 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 DR44 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 7 DR46 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608 7 IC01 1204-001598 IC-VIDEO PROCESS;VPC3230D-B2,QFP,80P,-,P 7 IC02 1204-001623 IC-VERTICAL PROCESSO;SDA9400,QFP,64P,-,P 7 IC03 1002-001045 IC-D/A CONVERTER;9280,8BIT,PLCC,68P,-,-, 7 IC04 1205-001172 IC-INTERFACE;CIP3250A-B1,PLCC,68P,-,PLAS 7 IC06 1204-001372 IC-HOR./VER.PROCESSO;SDA9361,QFP,44P,-,P 7 IC07 1204-001550 IC-VIDEO PROCESS;CXA2101AQ,QFP,80P,-,PLA 7 IC11 1203-001419 IC-VOLTAGE REGULATOR;4931,TO-252,3P,6.6x 7 IC13 1203-001419 IC-VOLTAGE REGULATOR;4931,TO-252,3P,6.6x 7 ICP701 1204-001668 IC-PICTURE PROCESS;SDA9488X,SOP,28P,300M 7 LP701 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 LP702 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 LP703 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 PC42 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 PCB AA41-00398A PCB-PROSCAN;PCL6215R,FR-4,4L,A,1.6T,245X S.N.A 7 PIC04 1203-001419 IC-VOLTAGE REGULATOR;4931,TO-252,3P,6.6x 7 PL01 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 PL02 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 PL03 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 PL04 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 PL05 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 PR11 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 7 PR12 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 7 PR19 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 7 PR714 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 PR715 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 PR716 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 PR717 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 PR718 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 PR719 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 QP701 0501-000727 TR-SMALL SIGNAL;BC848C,NPN,310mW,SOT-23, 7 RP701 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 RP702 2007-000077 R-CHIP;470ohm,5%,1/16W,DA,TP,1608 7 RP703 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 RP704 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 RP705 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 RP706 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 RP740 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608 7 RP741 2007-000075 R-CHIP;220ohm,5%,1/16W,DA,TP,1608 7 RP742 2007-000075 R-CHIP;220ohm,5%,1/16W,DA,TP,1608 7 RP743 2007-000075 R-CHIP;220ohm,5%,1/16W,DA,TP,1608 7 RP744 2007-000075 R-CHIP;220ohm,5%,1/16W,DA,TP,1608 7 RP745 2007-000075 R-CHIP;220ohm,5%,1/16W,DA,TP,1608 7 RP746 2007-000075 R-CHIP;220ohm,5%,1/16W,DA,TP,1608 7 SC02 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC04 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC05 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC06 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC07 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC08 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC09 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC11 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC12 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC13 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC14 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC21 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC23 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC24 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC25 2203-000140 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,1608 7 SC26 2203-000236 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,1608 7 SC27 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC28 2203-000552 C-CERAMIC,CHIP;0.02nF,5%,50V,NP0,TP,1608 7 SC29 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

7 SC32 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC33 2203-000552 C-CERAMIC,CHIP;0.02nF,5%,50V,NP0,TP,1608 7 SC34 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC35 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC37 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC38 2203-000552 C-CERAMIC,CHIP;0.02nF,5%,50V,NP0,TP,1608 7 SC52 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC54 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SF01 2901-001120 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T 7 SL01 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 SL02 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 SL03 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 SL04 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 SL05 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 SL06 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 SL08 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 SL09 3301-001186 CORE-FERRITE BEAD;AB,600ohm,3.2x1.6x1.3m 7 SR01 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 SR02 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 SR03 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 SR04 2011-000585 R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP 7 SR05 2011-000585 R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP 7 SR06 2011-000585 R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP 7 SR07 2011-000585 R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP 7 SR08 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 SR09 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 SR11 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 SR12 2007-001056 R-CHIP;6.2Kohm,5%,1/16W,DA,TP,1608 7 SR13 2007-000402 R-CHIP;150ohm,5%,1/16W,DA,TP,1608 7 SR14 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 7 SR15 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 7 SR16 2007-000402 R-CHIP;150ohm,5%,1/16W,DA,TP,1608 7 SR17 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 7 SR18 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 7 SR19 2007-000381 R-CHIP;13Kohm,5%,1/16W,DA,TP,1608 7 SR21 2007-000402 R-CHIP;150ohm,5%,1/16W,DA,TP,1608 7 SR22 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 7 SR23 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 7 SR24 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608 7 SR25 2007-000401 R-CHIP;150OHM,5%,1/10W,DA,TP,2012 7 YC01 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC02 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC03 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC04 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC05 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC06 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC07 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC08 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC09 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC10 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC11 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC12 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC13 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC14 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC15 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC16 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC17 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC18 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC19 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC20 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC22 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 YC23 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 7 YC24 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 YC25 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 YC27 2203-001603 C-CERAMIC,CHIP;220nF,10%,16V,X7R,TP,2012 7 YC28 2203-001603 C-CERAMIC,CHIP;220nF,10%,16V,X7R,TP,2012 7 YC29 2203-001603 C-CERAMIC,CHIP;220nF,10%,16V,X7R,TP,2012 7 YC30 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC32 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 7 YC33 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 7 YC34 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 7 YC35 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 7 YC36 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 7 YC37 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 7 YC39 2203-000998 C-CERAMIC,CHIP;0.047nF,5%,50V,NP0,TP,160 7 YC40 2203-000998 C-CERAMIC,CHIP;0.047nF,5%,50V,NP0,TP,160 7 YC45 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012

Electrical Parts List

7-12 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

Page 80

7 YC46 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 7 YC47 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 7 YC48 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 7 YC49 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 YC50 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC51 2203-000491 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,1608 7 YC52 2203-001083 C-CERAMIC,CHIP;0.005nF,0.1pF,50V,NP0,TP, 7 YC53 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 YC54 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 YC55 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 YC56 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 YC58 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 YC59 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 YC60 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 YC63 2203-000236 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,1608 7 YC66 2203-000815 C-CERAMIC,CHIP;0.033nF,5%,50V,NP0,TP,160 7 YD01 0403-000620 DIODE-ZENER;RLZ5.6B,5.6,500mW,LL-34,TP 7 YD02 0403-000620 DIODE-ZENER;RLZ5.6B,5.6,500mW,LL-34,TP 7 YD03 0403-001117 DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP 7 YD04 0403-001117 DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP 7 YD05 0403-001117 DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP 7 YF01 2901-001120 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T 7 YF02 2901-001120 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T 7 YF03 2901-001120 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T 7 YF04 2901-001120 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T 7 YF05 2901-001120 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T 7 YL01 3301-001186 CORE-FERRITE BEAD;AB,600ohm,3.2x1.6x1.3m 7 YL02 2703-000271 INDUCTOR-SMD;4.7uH,10%,2x1.25x1.25mm 7 YQ01 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23 7 YQ02 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23 7 YQ03 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23 7 YQ06 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT7 YQ08 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23 7 YQ11 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT7 YQ12 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT7 YR05 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR06 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR07 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR08 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR09 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR10 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR100 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR101 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR102 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR103 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 7 YR104 2007-000402 R-CHIP;150ohm,5%,1/16W,DA,TP,1608 7 YR105 2007-000075 R-CHIP;220ohm,5%,1/16W,DA,TP,1608 7 YR11 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR12 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR14 2007-000077 R-CHIP;470ohm,5%,1/16W,DA,TP,1608 7 YR15 2007-000939 R-CHIP;47Kohm,1%,1/16W,DA,TP,1608 7 YR18 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR23 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 YR24 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 YR25 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR26 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR27 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR28 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR29 2007-000210 R-CHIP;1.1KOHM,5%,1/10W,DA,TP,2012 7 YR30 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR31 2007-000210 R-CHIP;1.1KOHM,5%,1/10W,DA,TP,2012 7 YR32 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR33 2007-000210 R-CHIP;1.1KOHM,5%,1/10W,DA,TP,2012 7 YR40 2007-000691 R-CHIP;3.3Mohm,5%,1/16W,DA,TP,1608 7 YR41 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR43 2007-000799 R-CHIP;360ohm,5%,1/16W,DA,TP,1608 7 YR44 2007-000799 R-CHIP;360ohm,5%,1/16W,DA,TP,1608 7 YR45 2007-000799 R-CHIP;360ohm,5%,1/16W,DA,TP,1608 7 YR46 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR47 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR48 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR50 2007-000080 R-CHIP;2Kohm,5%,1/16W,DA,TP,1608 7 YR51 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR53 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR56 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR59 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608 7 YR60 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608

7 YR61 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608 7 YR62 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 YR63 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR64 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR65 2007-000583 R-CHIP;22Kohm,1%,1/16W,DA,TP,1608 7 YR77 2007-000210 R-CHIP;1.1KOHM,5%,1/10W,DA,TP,2012 7 YR78 2007-000210 R-CHIP;1.1KOHM,5%,1/10W,DA,TP,2012 7 YR79 2007-000210 R-CHIP;1.1KOHM,5%,1/10W,DA,TP,2012 7 YR83 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR85 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR86 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR88 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 YR89 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 YR90 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR91 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR92 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR98 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 7 YR99 2007-000075 R-CHIP;220ohm,5%,1/16W,DA,TP,1608 3 AA94-07576C ASSY PCB POWER;SP54J9PX/XAX,P54A220V 4 C812 2401-000701 C-AL;2200uF,20%,250V,GP,-,35x70mm,1 4 C813 2401-000701 C-AL;2200uF,20%,250V,GP,-,35x70mm,1 4 C831 2306-000323 C-FILM,MPPF;2.2nF,5%,1.6KV,TP,28.5x15.5x 4 C842 2401-003370 C-AL;47uF,20%,450V,GP,BK,16X35.5,7. 4 C862 2401-003076 C-AL;3300uF,20%,50V,WP,BK,18x35.5mm 4 C865 2401-000737 C-AL;2200uF,20%,50V,GP,TP,18x35.5,7 4 C868 2401-000737 C-AL;2200uF,20%,50V,GP,TP,18x35.5,7 4 C875 2401-002251 C-AL;470uF,20%,200V,GP,BK,25x40mm,1 4 CN802 AA39-00116A LEAD CONNECTOR-ASSY;,12P,YBNH250-12,3515 4 CN803 AA39-00116A LEAD CONNECTOR-ASSY;,12P,YBNH250-12,3515 4 CX801S 2306-000112 C-FILM,MPPF;100nF,20%,250V,BK,-,15mm 4 CX802S 2306-000112 C-FILM,MPPF;100nF,20%,250V,BK,-,15mm 4 CY801S 2201-000987 C-CERAMIC,DISC;2.2nF,20%,400V,Y5U,TP,12. 4 CY802S 2201-000987 C-CERAMIC,DISC;2.2nF,20%,400V,Y5U,TP,12. 4 D801S AA96-50310A ASSY H/S;-,POWER,AA62-30150C,RBV606,- S.N.A 5 AA62-30150C HEAT SINK-ES;-,A6063 EXTR,-,WHT,40(24.5) S.N.A 5 AA60-30003A WASHER;T1.5,SBHG-1 S.N.A 5 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A 5 0402-000549 DIODE-BRIDGE;RBV606,600V,6A,-,BK 5 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A 4 D810 0402-000250 DIODE-RECTIFIER;RG4C,1000V,1A,4 D854 AA96-50153C ASSY H/S;-,-,AA62-30013D,FLM-G12S,- S.N.A 5 0402-000233 DIODE-RECTIFIER;FML-G12S,200V,5A,-,5 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A 5 AA62-30013D HEAT SINK-ES;-,A6063 EXTR,-,-,55(21) T02 S.N.A 4 D855 AA96-50153C ASSY H/S;-,-,AA62-30013D,FLM-G12S,- S.N.A 4 D856 AA96-50153C ASSY H/S;-,-,AA62-30013D,FLM-G12S,- S.N.A 4 D857 AA96-50153C ASSY H/S;-,-,AA62-30013D,FLM-G12S,- S.N.A 4 D858 AA96-50153C ASSY H/S;-,-,AA62-30013D,FLM-G12S,- S.N.A 4 D859 AA96-50153A ASSY H/S;-,TR,AA62-30013D,FMG-G26S,- S.N.A 5 0402-000231 DIODE-RECTIFIER;FMG-G26S,600V,4A,TO-220F 5 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A 5 AA62-30013D HEAT SINK-ES;-,A6063 EXTR,-,-,55(21) T02 S.N.A 4 DZ833 0406-001007 DIODE-TVS;P6KE180A,171/180/189V,600W,CAS 4 DZ841 0403-000691 DIODE-ZENER;R2K,170V,170-200V,-,-,TP 4 FD802S 3601-000300 FUSE-CARTRIDGE;250V,6.3A,SLOW-BLOW,GLASS 4 FD804S 3601-000300 FUSE-CARTRIDGE;250V,6.3A,SLOW-BLOW,GLASS 4 FD855S 3601-000300 FUSE-CARTRIDGE;250V,6.3A,SLOW-BLOW,GLASS 4 FP801S 3601-000300 FUSE-CARTRIDGE;250V,6.3A,SLOW-BLOW,GLASS 4 IC801S AA96-00035A ASSY H/S;-,POWER,AA62-30181P,STR-F6656,- S.N.A 5 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A 5 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A 5 AA13-00018A IC HYBRID;-,STR-F6656,LF1351,5PIN,-,5 AA62-30181P HEAT SINK-ES;-,-,T1.0,WHITE,SCREW-HOLE(2 S.N.A 4 IC802 AA13-00033A IC HYBRID;-,SVD001,-,7PIN,-,4 IC804 1203-001400 IC-POWER PRESCALER;SE110N,T0-220(SIP),3P 4 LX801S AA29-30002L FILTER LINE NOISE;-,10mHMIN,5A,AC90~260V 4 LX802S AA29-30002M FILTER LINE NOISE;-,1mHMIN,5A,AC90~260V, 4 LX803S AA29-30002M FILTER LINE NOISE;-,1mHMIN,5A,AC90~260V, 4 NT801S 1404-001195 THERMISTOR-NTC;5.1ohm,15%,2900,27mW/C,BK 4 PC801S 0604-001032 PHOTO-COUPLER;TR,170-260%,300mW,DIP-4,ST 4 R817 2009-001096 R-METAL PLATE;0.07ohm,5%,5W,CL,BK,5x14x1 4 R841 2008-001093 R-FUSIBLE(S);22OHM,5%,1/2W,AC,BK,2.5X6.5 4 RL801S 3501-001040 RELAY-POWER;12VDC,500mW,10A,1FormA,15mS, 4 T801S AA26-00099A TRANS SWITCHING;EER5345,PCL544R,AC220V,1 4 AA97-05245A ASSY AUTO-SUB;SP54J9PX/XAX,P54A,220V S.N.A 5 C809 2201-000551 C-CERAMIC,DISC;0.47nF,10%,1kV,Y5P,TP,6.3 5 C814 2201-002041 C-CERAMIC,DISC;0.82nF,10%,2kV,Y5P,TP,9x5

Electrical Parts List

Samsung Electronics 7-13

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

Page 81

5 C815 2201-000406 C-CERAMIC,DISC;0.27nF,10%,2kV,Y5P,TP,6.3 5 C816 2201-000332 C-CERAMIC,DISC;2.2nF,20%,250V,Y5U,TP,9x4 5 C817 2201-000332 C-CERAMIC,DISC;2.2nF,20%,250V,Y5U,TP,9x4 5 C818 2301-001216 C-FILM,PPF;47nF,5%,630V,TP,20x14.5x22,7. 5 C819 2201-000332 C-CERAMIC,DISC;2.2nF,20%,250V,Y5U,TP,9x4 5 C833 2201-000292 C-CERAMIC,DISC;1nF,10%,50V,Y5P,TP,5x3.5, 5 C834 2401-003028 C-AL;100uF,20%,25V,WT,TP,6.3x11,5 5 C835 2401-003028 C-AL;100uF,20%,25V,WT,TP,6.3x11,5 5 C851 2201-000551 C-CERAMIC,DISC;0.47nF,10%,1kV,Y5P,TP,6.3 5 C852 2401-000133 C-AL;1000uF,20%,16V,GP,TP,10x20,5 5 C853 2401-000603 C-AL;1uF,20%,50V,GP,TP,5x11,5 5 C854 2201-000551 C-CERAMIC,DISC;0.47nF,10%,1kV,Y5P,TP,6.3 5 C855 2401-000703 C-AL;2200uF,20%,25V,GP,-,12.5x25mm, 5 C861 2201-000551 C-CERAMIC,DISC;0.47nF,10%,1kV,Y5P,TP,6.3 5 C864 2201-000551 C-CERAMIC,DISC;0.47nF,10%,1kV,Y5P,TP,6.3 5 C871 2201-000551 C-CERAMIC,DISC;0.47nF,10%,1kV,Y5P,TP,6.3 5 C872 2401-000703 C-AL;2200uF,20%,25V,GP,-,12.5x25mm, 5 C874 2201-000551 C-CERAMIC,DISC;0.47nF,10%,1kV,Y5P,TP,6.3 5 C877 2305-000427 C-FILM,MPEF;47nF,5%,100V,TP,7.5x12.5x3.5 5 D805 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T 5 D834 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T 5 D839 0402-000243 DIODE-RECTIFIER;RC2-V1,2000V,0.2A,DO-201 5 D842 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T 5 D843 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T 5 D851 0402-000493 DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L 5 D853 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP 5 DZ837 0403-001039 DIODE-ZENER;MA2560,56V,52-60V,1W,DO-41,T 5 DZ840 0403-000734 DIODE-ZENER;TZP15B,15V,14.7-16.5V,1W,DO5 DZ858 0403-001325 DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D 5 EL01 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 5 EL02 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 5 EL03 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 5 EL04 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 5 EL05 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 5 EL06 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 5 EL09 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 5 EL10 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 5 EL15 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 5 EL18 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 5 EL22 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 5 EL25 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 5 EY01 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY05 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY06 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY100 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY101 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY104 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY107 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY108 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY109 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY110 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY111 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY112 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY113 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY114 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY115 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY116 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY138 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY139 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY140 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY141 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY142 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY143 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY158 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY159 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY163 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY164 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY165 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY166 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY167 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY168 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY170 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY171 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY172 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY173 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY174 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY175 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A

5 EY176 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY177 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY178 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY179 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY180 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY181 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY182 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY183 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY184 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY185 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY186 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY187 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY188 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY189 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY190 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY191 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY192 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY193 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY71 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY72 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY79 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY80 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY81 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY82 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY83 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY84 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY85 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY86 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY87 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY88 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY89 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY90 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY91 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY92 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY93 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY94 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY95 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY99 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 F801A 3602-000114 FUSE-HOLDER;-,-,30mohm 5 F801B 3602-000114 FUSE-HOLDER;-,-,30mohm 5 F802A 3602-000114 FUSE-HOLDER;-,-,30mohm 5 F802B 3602-000114 FUSE-HOLDER;-,-,30mohm 5 F804A 3602-000114 FUSE-HOLDER;-,-,30mohm 5 F804B 3602-000114 FUSE-HOLDER;-,-,30mohm 5 F855A 3602-000114 FUSE-HOLDER;-,-,30mohm 5 F855B 3602-000114 FUSE-HOLDER;-,-,30mohm 5 FD805S 3601-001086 FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS 5 FD806S 3601-001065 FUSE-AXIAL LEAD;125V,3.5A,FAST-ACTING,CE 5 FD854S 3601-001086 FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS 5 FD871S 3601-001086 FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS 5 GT801 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT802 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT810 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT811 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT812 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT813 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT814 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 L806 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,5 L807 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,5 L808 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500, 5 L810 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,5 L811 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,5 L812 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,5 L813 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,5 L814 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500, 5 L815 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,5 L816 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,5 L831 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500, 5 L832 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500, 5 L851 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,5 L857 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,5 L859 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,5 PCB AA41-00342A PCB-POWER;PCL545R,CEM-1,1L,A,1.6T,330X24 S.N.A 5 Q801 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 5 R808 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6. 5 R808A 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6. 5 R809 2001-000002 R-CARBON(S);200KOHM,5%,1/2W,AA,TP,6.4X2.

Electrical Parts List

7-14 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

Page 82

5 R812 2003-002172 R-METAL OXIDE(S);12Kohm,5%,2W,AG,TP,3.8x 5 R814 2003-002173 R-METAL OXIDE(S);7.5Kohm,5%,2W,AG,TP,3.9 5 R815 2003-000512 R-METAL OXIDE(S);15Kohm,5%,3W,AA,TP,6x16 5 R815A 2003-000512 R-METAL OXIDE(S);15Kohm,5%,3W,AA,TP,6x16 5 R832 2001-001178 R-CARBON(S);680OHM,5%,1/2W,AA,TP,2.4X6.4 5 R833 2003-001024 R-METAL OXIDE(S);150ohm,5%,2W,AF,TP,3.9x 5 R834 2001-001097 R-CARBON(S);2.4KOHM,5%,1/2W,AA,TP,2.4X6. 5 R835 2001-001188 R-CARBON(S);8.2KOHM,5%,1/2W,AA,TP,2.4X6. 5 R837 2001-001097 R-CARBON(S);2.4KOHM,5%,1/2W,AA,TP,2.4X6. 5 R838 2001-001097 R-CARBON(S);2.4KOHM,5%,1/2W,AA,TP,2.4X6. 5 R842 2003-001040 R-METAL OXIDE(S);47Kohm,5%,2W,AF,TP,3.9x 5 R842A 2003-001040 R-METAL OXIDE(S);47Kohm,5%,2W,AF,TP,3.9x 5 R844 2003-002020 R-METAL OXIDE(S);56Kohm,5%,2W,AF,TP,3.9x 5 R845 2003-002020 R-METAL OXIDE(S);56Kohm,5%,2W,AF,TP,3.9x 5 R846 2003-002020 R-METAL OXIDE(S);56Kohm,5%,2W,AF,TP,3.9x 5 R847 2003-002020 R-METAL OXIDE(S);56Kohm,5%,2W,AF,TP,3.9x 5 R848 2001-001110 R-CARBON(S);240KOHM,5%,1/2W,AA,TP,2.4X6. 5 R850 2008-001079 R-FUSIBLE;4.7OHM,5%,2W,AF,TP,3.9X10MM 5 R855 2001-001196 R-CARBON(S);9.1KOHM,5%,1/2W,AA,TP,2.4X6. 5 R871 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M 5 R872 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4 5 R873 2004-004366 R-METAL(S);1.3Kohm,1%,1/2W,AA,TP,2.5x6.5 5 R874 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R875 2004-004366 R-METAL(S);1.3Kohm,1%,1/2W,AA,TP,2.5x6.5 5 RP801S 2002-001010 R-COMPOSITION;1.8Mohm,5%,1/2W,AA,TP,3.7x 5 RX801S 2002-001011 R-COMPOSITION;3.3Mohm,5%,1/2W,AA,TP,3.7x 5 RY801S 2002-001013 R-COMPOSITION;4.7Mohm,5%,1/2W,AA,TP,3.7x 5 VP801S 1405-000152 VARISTOR;560V,2500A,14x8.5mm,TP 5 VX801S 1405-000187 VARISTOR;750V,1250A,12.5x7mm,TP 4 AA39-20009B LEAD CONNECTOR-ASSY;,1P,YFH800-01,300,16 4 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb S.N.A 2 A/TERM AA95-01849X ASSY SUB-PCB TERMINAL;DP,PCL5415R3S,P54A 3 CNT01 3711-003630 CONNECTOR-HEADER;BOX,32P,2R,2.54mm,ANGLE 3 CNT02 3711-003630 CONNECTOR-HEADER;BOX,32P,2R,2.54mm,ANGLE 3 CNY01 3711-003601 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,ANGLE, 3 IC703 0904-001121 IC-I/O SUPPORT CHIP;8574,8BIT,DIP,16P,30 3 IC705 0801-000213 IC-CMOS LOGIC;4052,MULTIPLEXER,DIP,16P,3 3 ICD01 1204-001510 IC-SEPARATOR;EL4583CN,DIP,16P,-,PLASTIC, 3 ICD02 0801-000284 IC-CMOS LOGIC;4528,MULTIVIBRATOR,DIP,16P 3 ICD03 1204-001510 IC-SEPARATOR;EL4583CN,DIP,16P,-,PLASTIC, 3 JKV02 3722-001039 JACK-PIN;9P,3.4mm,SN,BLK,#16-22 3 JKV03 3722-001382 JACK-PIN;5P(9P),3.4MM,NI,R/W/G/BLUE,3 JKV04 3722-001382 JACK-PIN;5P(9P),3.4MM,NI,R/W/G/BLUE,3 JKV08 3722-000544 JACK-VHS;4P,11.5mm,AG,BLK,N 3 RD18 2001-000954 R-CARBON;750KOHM,5%,1/8W,AA,TP,1.8X3.2MM 3 AA97-05199A ASSY AUTO-SUB;DP,PCL5415R3S,P51A 4 C701 2401-002009 C-AL;100uF,20%,16V,GP,TP,6.3x7,5 4 C716 2401-002009 C-AL;100uF,20%,16V,GP,TP,6.3x7,5 4 C730 2401-002299 C-AL;4.7uF,20%,50V,GP,TP,5x7,5 4 C731 2401-002299 C-AL;4.7uF,20%,50V,GP,TP,5x7,5 4 C738 2401-002009 C-AL;100uF,20%,16V,GP,TP,6.3x7,5 4 C740 2401-002009 C-AL;100uF,20%,16V,GP,TP,6.3x7,5 4 C760 2401-000665 C-AL;2.2uF,20%,50V,GP,TP,3.5x5,5 4 C761 2401-000665 C-AL;2.2uF,20%,50V,GP,TP,3.5x5,5 4 C762 2401-000665 C-AL;2.2uF,20%,50V,GP,TP,3.5x5,5 4 C763 2401-000665 C-AL;2.2uF,20%,50V,GP,TP,3.5x5,5 4 C764 2401-000665 C-AL;2.2uF,20%,50V,GP,TP,3.5x5,5 4 C765 2401-000665 C-AL;2.2uF,20%,50V,GP,TP,3.5x5,5 4 C766 2401-000665 C-AL;2.2uF,20%,50V,GP,TP,3.5x5,5 4 C767 2401-000665 C-AL;2.2uF,20%,50V,GP,TP,3.5x5,5 4 C780 2401-002009 C-AL;100uF,20%,16V,GP,TP,6.3x7,5 4 CD01 2401-002183 C-AL;220uF,20%,16V,GP,TP,8x9,5mm 4 CD03 2401-003728 C-AL;10UF,°æ20%,16V,BP,TP,5X7MM,5 4 CD06 2401-003728 C-AL;10UF,°æ20%,16V,BP,TP,5X7MM,5 4 CD11 2401-003728 C-AL;10UF,°æ20%,16V,BP,TP,5X7MM,5 4 CD12 2401-003728 C-AL;10UF,°æ20%,16V,BP,TP,5X7MM,5 4 CD16 2401-003728 C-AL;10UF,°æ20%,16V,BP,TP,5X7MM,5 4 CD17 2401-003728 C-AL;10UF,°æ20%,16V,BP,TP,5X7MM,5 4 L701 2702-001094 INDUCTOR-RADIAL;10uH,10%,6x4mm 4 L702 2702-001094 INDUCTOR-RADIAL;10uH,10%,6x4mm 4 L711 2702-001094 INDUCTOR-RADIAL;10uH,10%,6x4mm 4 L720 2702-001094 INDUCTOR-RADIAL;10uH,10%,6x4mm 4 L721 2702-001094 INDUCTOR-RADIAL;10uH,10%,6x4mm 4 L722 2702-001094 INDUCTOR-RADIAL;10uH,10%,6x4mm 4 L723 2702-001094 INDUCTOR-RADIAL;10uH,10%,6x4mm 4 L724 2702-001094 INDUCTOR-RADIAL;10uH,10%,6x4mm 4 L725 2702-001094 INDUCTOR-RADIAL;10uH,10%,6x4mm

4 L726 2702-001094 INDUCTOR-RADIAL;10uH,10%,6x4mm 4 LD01 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,4 LD02 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,4 LD04 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,4 RN701 2011-000160 R-NETWORK;10Kohm,5%,1/8W,A,SIP,9P,TP 4 AA97-06159A ASSY SMD-SUB;DP,PCL5415R3S,P51A 5 C702 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 5 C704 2203-000815 C-CERAMIC,CHIP;0.033nF,5%,50V,NP0,TP,160 5 C705 2203-000815 C-CERAMIC,CHIP;0.033nF,5%,50V,NP0,TP,160 5 C706 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608, 5 C707 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608, 5 C708 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608, 5 C709 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608, 5 C710 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608, 5 C711 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608, 5 C712 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 5 C713 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608, 5 C714 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608, 5 C715 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608, 5 C717 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 5 C718 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608, 5 C719 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608, 5 C720 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608, 5 C721 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608, 5 C722 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608, 5 C723 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 5 C724 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608, 5 C727 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608, 5 C732 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,5 C733 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,5 C734 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,5 C735 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,5 C736 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,5 C737 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,5 C739 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 5 C741 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 5 C768 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608, 5 C769 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608, 5 CD02 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 5 CD04 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 5 CD05 2203-000681 C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,160 5 CD07 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 5 CD08 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 5 CD09 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,5 CD10 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 5 CD13 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 5 CD14 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 5 CD15 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 5 CD18 2203-000681 C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,160 5 IC701 1001-001030 IC-VIDEO SWITCH;TDA6920X,-,SOP,28P,300MI 5 IC702 1001-001030 IC-VIDEO SWITCH;TDA6920X,-,SOP,28P,300MI 5 PCB AA41-00343A PCB-TERMINAL;PCL545R,FR-4,2L,A,1.6T,180X S.N.A 5 Q701 0501-000727 TR-SMALL SIGNAL;BC848C,NPN,310mW,SOT-23, 5 Q702 0501-000727 TR-SMALL SIGNAL;BC848C,NPN,310mW,SOT-23, 5 Q703 0501-000727 TR-SMALL SIGNAL;BC848C,NPN,310mW,SOT-23, 5 Q704 0501-000727 TR-SMALL SIGNAL;BC848C,NPN,310mW,SOT-23, 5 Q705 0501-000727 TR-SMALL SIGNAL;BC848C,NPN,310mW,SOT-23, 5 Q706 0501-000727 TR-SMALL SIGNAL;BC848C,NPN,310mW,SOT-23, 5 Q707 0501-000727 TR-SMALL SIGNAL;BC848C,NPN,310mW,SOT-23, 5 Q711 0501-000727 TR-SMALL SIGNAL;BC848C,NPN,310mW,SOT-23, 5 Q712 0501-000727 TR-SMALL SIGNAL;BC848C,NPN,310mW,SOT-23, 5 Q714 0501-000727 TR-SMALL SIGNAL;BC848C,NPN,310mW,SOT-23, 5 QD01 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT5 QD02 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT5 QD03 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT5 QD04 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT5 R701 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 5 R702 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 5 R703 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 5 R704 2007-001157 R-CHIP;750ohm,5%,1/16W,DA,TP,1608 5 R705 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 5 R706 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 5 R707 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 5 R708 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 5 R709 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 5 R710 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 5 R712 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608

Electrical Parts List

Samsung Electronics 7-15

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

Page 83

5 R713 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 5 R714 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 5 R715 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 5 R716 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 5 R717 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 5 R718 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 5 R719 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 5 R720 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 5 R721 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 5 R722 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 5 R723 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 5 R724 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 5 R725 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 5 R726 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 5 R727 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 5 R728 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 5 R729 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 5 R734 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608 5 R735 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608 5 R740 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 5 R741 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 5 R742 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 5 R743 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 5 R744 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 5 R745 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 5 R748 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 5 R749 2007-000100 R-CHIP;68Kohm,5%,1/16W,DA,TP,1608 5 R750 2007-000100 R-CHIP;68Kohm,5%,1/16W,DA,TP,1608 5 R751 2007-000100 R-CHIP;68Kohm,5%,1/16W,DA,TP,1608 5 R752 2007-000100 R-CHIP;68Kohm,5%,1/16W,DA,TP,1608 5 R753 2007-000329 R-CHIP;11Kohm,5%,1/16W,DA,TP,1608 5 R754 2007-000329 R-CHIP;11Kohm,5%,1/16W,DA,TP,1608 5 R755 2007-000100 R-CHIP;68Kohm,5%,1/16W,DA,TP,1608 5 R756 2007-000100 R-CHIP;68Kohm,5%,1/16W,DA,TP,1608 5 R757 2007-000100 R-CHIP;68Kohm,5%,1/16W,DA,TP,1608 5 R758 2007-000100 R-CHIP;68Kohm,5%,1/16W,DA,TP,1608 5 R759 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 5 R760 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 5 R761 2007-000122 R-CHIP;1.2Kohm,5%,1/16W,DA,TP,1608 5 R762 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 5 R763 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 5 R764 2007-000122 R-CHIP;1.2Kohm,5%,1/16W,DA,TP,1608 5 R765 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 5 R766 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 5 R767 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 5 R768 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 5 R769 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 5 R774 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 5 R775 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608 5 R776 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 5 R777 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 5 R779 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 5 R780 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 5 R788 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 5 R791 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 5 R792 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 5 R793 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 5 R794 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 5 R795 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608 5 R796 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608 5 R797 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608 5 R820 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608 5 R821 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608 5 R829 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 5 R830 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 5 RD01 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 5 RD02 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 5 RD03 2007-000094 R-CHIP;22Kohm,5%,1/16W,DA,TP,1608 5 RD04 2007-000096 R-CHIP;30Kohm,5%,1/16W,DA,TP,1608 5 RD05 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 5 RD06 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608 5 RD07 2007-000106 R-CHIP;220Kohm,5%,1/16W,DA,TP,1608 5 RD08 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608 5 RD09 2007-000087 R-CHIP;6.8Kohm,5%,1/16W,DA,TP,1608 5 RD11 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608 5 RD12 2007-000913 R-CHIP;43Kohm,5%,1/16W,DA,TP,1608 5 RD13 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608

5 RD14 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608 5 RD15 2007-000094 R-CHIP;22Kohm,5%,1/16W,DA,TP,1608 5 RD16 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608 5 RD17 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608 5 RD19 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 5 RD20 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 5 RD21 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 5 RP784 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608 5 RY701 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 5 RY702 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 5 RY703 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 2 A/V-M AA94-08568A ASSY PCB MISC-V/M;DP,PCL5415R3S/XAA,P54A 3 CNZ101 AA39-20055D LEAD CONNECTOR-ASSY;,6P,YBNH025-06,67096 3 QZ101 AA96-50162F ASSY H/S;-,POWER,AA62-30013E,2SA1011,30M S.N.A 4 0502-000131 TR-POWER;2SA1011-D,PNP,1.2W,TO-220,-,60 4 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A 4 AA62-30013E HEAT SINK-ES;-,A6063 EXTR,-,-,30(21) T02 S.N.A 3 QZ102 AA96-50162G ASSY H/S;-,AMP,AA62-30013E,2SC2344,30MM S.N.A 4 0502-000153 TR-POWER;2SC2344-D,NPN,1.2W,TO-220,-,60 4 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A 4 AA62-30013E HEAT SINK-ES;-,A6063 EXTR,-,-,30(21) T02 S.N.A 3 RZ120 2008-001097 R-FUSIBLE(S);33OHM,5%,1/2W,AC,BK,2.5X6.5 3 AA63-10002A BAND-TIE;NYLON66 V2,L100,NTR S.N.A 3 AA97-05556A ASSY AUTO-SUB;SVP-43T6HX,P56A S.N.A 4 CNZ102 3711-002642 CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH 4 CNZ103 3711-002642 CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH 4 CNZ104 3711-002642 CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH 4 CZ101 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 4 CZ102 2401-001157 C-AL;33uF,20%,160V,GP,TP,12.5x20,5 4 CZ103 2201-000516 C-CERAMIC,DISC;4.7nF,+100-0%,500V,Y5U,TP 4 CZ104 2201-000193 C-CERAMIC,DISC;0.01nF,0.25pF,50V,NP0,TP, 4 CZ105 2201-000516 C-CERAMIC,DISC;4.7nF,+100-0%,500V,Y5U,TP 4 CZ106 2201-000193 C-CERAMIC,DISC;0.01nF,0.25pF,50V,NP0,TP, 4 CZ107 2401-001513 C-AL;47uF,20%,16V,WT,TP,5x11,5 4 CZ108 2401-001220 C-AL;4.7uF,20%,160V,GP,TP,8x11.5,5 4 CZ109 2401-001220 C-AL;4.7uF,20%,160V,GP,TP,8x11.5,5 4 CZ110 2201-000604 C-CERAMIC,DISC;0.056nF,+100-0%,500V,SL,T 4 CZ111 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5 4 CZ112 2401-000832 C-AL;220uF,20%,25V,GP,TP,8x11.5,5 4 DZ101 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T 4 DZ102 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 4 DZ103 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T 4 DZ104 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T 4 DZ105 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 4 DZ106 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 4 LZ101 2701-000002 INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm 4 PCB AA41-00344A PCB-VM;PCL545R,FR-1,1L,A,1.6T,245X245,P5 S.N.A 4 QZ103 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T 4 QZ104 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 4 QZ105 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 4 QZ106 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 4 RFZ101 2008-001086 R-FUSIBLE(S);3.3ohm,5%,2W,AG,TP,3.9x12mm 4 RZ101 2001-000241 R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM 4 RZ102 2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 4 RZ103 2003-000713 R-METAL OXIDE(S);47ohm,5%,2W,AF,TP,4x12m 4 RZ104 2001-001100 R-CARBON(S);2.7OHM,5%,1/2W,AA,TP,2.4X6.4 4 RZ105 2001-001139 R-CARBON(S);39KOHM,5%,1/2W,AA,TP,2.4X6.4 4 RZ106 2001-001139 R-CARBON(S);39KOHM,5%,1/2W,AA,TP,2.4X6.4 4 RZ107 2001-000331 R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM 4 RZ108 2001-000241 R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM 4 RZ109 2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 4 RZ110 2001-001100 R-CARBON(S);2.7OHM,5%,1/2W,AA,TP,2.4X6.4 4 RZ111 2003-000713 R-METAL OXIDE(S);47ohm,5%,2W,AF,TP,4x12m 4 RZ112 2003-002157 R-METAL OXIDE;220OHM,5%,2W,AG,TP,6X16MM 4 RZ113 2003-002157 R-METAL OXIDE;220OHM,5%,2W,AG,TP,6X16MM 4 RZ114 2003-000532 R-METAL OXIDE(S);18ohm,5%,2W,AF,TP,4x12m 4 RZ115 2001-000832 R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM 4 RZ116 2001-000331 R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM 4 RZ117 2001-000258 R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM 4 RZ118 2001-000258 R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM 4 RZ119 2001-000554 R-CARBON;270OHM,5%,1/8W,AA,TP,1.8X3.2MM 4 RZ121 2001-000666 R-CARBON;33OHM,5%,1/8W,AA,TP,1.8X3.2MM 4 RZ122 2001-000019 R-CARBON(S);10OHM,5%,1/2W,AA,TP,2.4X6.4M 4 RZ123 2003-002157 R-METAL OXIDE;220OHM,5%,2W,AG,TP,6X16MM 3 3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G 3 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A 3 AA33-00013A MAGNET CONVERGENCE;JH92LT-29E,29.1MM,0.2

Electrical Parts List

7-16 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

Page 84

2 A/CRT AA95-01759F ASSY SUB-PCB CRT;DP,PCL545R,P54A,USA,AA9 3 CN501 3711-003051 CONNECTOR-HEADER;BOX,8P,1R,2.5MM,STRAIGH 3 CN502 3711-003052 CONNECTOR-HEADER;BOX,10P,1R,2.5MM,STRAIG 3 CN502B 3711-003052 CONNECTOR-HEADER;BOX,10P,1R,2.5MM,STRAIG 3 CN503 3711-003052 CONNECTOR-HEADER;BOX,10P,1R,2.5MM,STRAIG 3 CN503B 3711-003052 CONNECTOR-HEADER;BOX,10P,1R,2.5MM,STRAIG 3 CNW401 AA39-20027A LEAD CONNECTOR-ASSY;,6P,67096-006,S,300, 3 CNW501 AA39-00127A LEAD CONNECTOR-ASSY;,8P,35155-0800,S,400 3 CNW502 AA39-00112A LEAD CONNECTOR-ASSY;,10P,35155-1000,S,30 3 CNW503 AA39-00112A LEAD CONNECTOR-ASSY;,10P,35155-1000,S,30 3 FOCUS- AA39-20115D LEAD CONNECTOR-ASSY;P54A/SVP-55W3HD,UL32 3 FOCUS- AA39-20115D LEAD CONNECTOR-ASSY;P54A/SVP-55W3HD,UL32 3 FOCUS- AA39-20115A LEAD CONNECTOR-ASSY;,1P,BUSHING,500,3239 3 GBW-GN AA39-00047E LEAD CONNECTOR-ASSY;,1P,JUMPER,BLK,300MM 3 GBW-SC AA39-00049A LEAD CONNECTOR-ASSY;,1P,JUMPER,RED,300MM 3 GNDWIR AA39-00198B LEAD CONNECTOR-ASSY;P54A/SVP-42W5HD,UL16 3 GRW-GN AA39-00047E LEAD CONNECTOR-ASSY;,1P,JUMPER,BLK,300MM 3 GRW-SC AA39-00049A LEAD CONNECTOR-ASSY;,1P,JUMPER,RED,300MM 3 IC501 AA96-50151B ASSY H/S;-,AMP,AA61-10060A,TDA6111Q,- S.N.A 4 1201-001131 IC-VIDEO AMP;6111,SIP,9P,-,SINGLE,-,PLAS 4 6001-000057 SCREW-MACHINE;RH,+,M3,L6,ZPC(BLK),SWRCH1 S.N.A 4 6021-000222 NUT-HEXAGON;2C,M3,ZPC(YEL),SM20C,- S.N.A 4 AA61-10060A BRACKET-TR;W3220,CUS-1 1/2H,T0.5,-,-,-,- S.N.A 3 IC531 AA96-50151B ASSY H/S;-,AMP,AA61-10060A,TDA6111Q,- S.N.A 3 IC561 AA96-50151B ASSY H/S;-,AMP,AA61-10060A,TDA6111Q,- S.N.A 3 SG502 AA27-00084A COIL;S-23,-,-,-,-,-,-,S-23,5000Mohm MIN, 3 SG532 AA27-00084A COIL;S-23,-,-,-,-,-,-,S-23,5000Mohm MIN, 3 SG562 AA27-00084A COIL;S-23,-,-,-,-,-,-,S-23,5000Mohm MIN, 3 V501 3704-001019 SOCKET-CRT;10P,29.1PI,35.5PI,AU30U,3 V531 3704-001019 SOCKET-CRT;10P,29.1PI,35.5PI,AU30U,3 V561 3704-001019 SOCKET-CRT;10P,29.1PI,35.5PI,AU30U,3 VR501 2101-000321 VR-ROTARY;1Mohm,-,0.6W,SIDE 3 VR531 2101-000321 VR-ROTARY;1Mohm,-,0.6W,SIDE 3 VR561 2101-000321 VR-ROTARY;1Mohm,-,0.6W,SIDE 3 AA63-10002A BAND-TIE;NYLON66 V2,L100,NTR S.N.A 3 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb S.N.A 3 3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G 3 AA97-05331A ASSY AUTO-SUB;DP,PCL545R,P54A,U.S.A,54 S.N.A 4 C502 2401-000027 C-AL;4.7uF,20%,50V,GP,TP,5x11,5 4 C503 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 4 C504 2401-001537 C-AL;47uF,20%,25V,GP,TP,6.3x7mm,5mm 4 C505 2305-000149 C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5 4 C506 2401-000430 C-AL;10uF,20%,250V,GP,TP,10x16mm,5m 4 C507 2305-000154 C-FILM,MPEF;100nF,5%,400V,TP,21.5x6.5x11 4 C510 2401-000430 C-AL;10uF,20%,250V,GP,TP,10x16mm,5m 4 C511 2201-000723 C-CERAMIC,DISC;4.7nF,20%,3KV,Y5U,TP,16x5 4 C512 2401-000133 C-AL;1000uF,20%,16V,GP,TP,10x20,5 4 C513 2201-000983 C-CERAMIC,DISC;1nF,10%,2kV,Y5P,TP,9x5,7. 4 C514 2201-000599 C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5. 4 C532 2401-000027 C-AL;4.7uF,20%,50V,GP,TP,5x11,5 4 C533 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 4 C534 2401-001537 C-AL;47uF,20%,25V,GP,TP,6.3x7mm,5mm 4 C535 2305-000149 C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5 4 C536 2401-000430 C-AL;10uF,20%,250V,GP,TP,10x16mm,5m 4 C537 2305-000154 C-FILM,MPEF;100nF,5%,400V,TP,21.5x6.5x11 4 C540 2401-000430 C-AL;10uF,20%,250V,GP,TP,10x16mm,5m 4 C541 2201-000723 C-CERAMIC,DISC;4.7nF,20%,3KV,Y5U,TP,16x5 4 C542 2201-000983 C-CERAMIC,DISC;1nF,10%,2kV,Y5P,TP,9x5,7. 4 C543 2201-000599 C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5. 4 C562 2401-000027 C-AL;4.7uF,20%,50V,GP,TP,5x11,5 4 C563 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 4 C564 2401-001537 C-AL;47uF,20%,25V,GP,TP,6.3x7mm,5mm 4 C565 2305-000149 C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5 4 C566 2401-000430 C-AL;10uF,20%,250V,GP,TP,10x16mm,5m 4 C567 2305-000154 C-FILM,MPEF;100nF,5%,400V,TP,21.5x6.5x11 4 C570 2401-000430 C-AL;10uF,20%,250V,GP,TP,10x16mm,5m 4 C571 2201-000723 C-CERAMIC,DISC;4.7nF,20%,3KV,Y5U,TP,16x5 4 C572 2201-000983 C-CERAMIC,DISC;1nF,10%,2kV,Y5P,TP,9x5,7. 4 C573 2201-000599 C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5. 4 CN401 3711-002645 CONNECTOR-HEADER;BOX,6P,1R,2.5mm,STRAIGH 4 D501 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T 4 D502 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T 4 D503 0402-000493 DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L 4 D504 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 4 D509 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 4 D510 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 4 D531 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

4 D532 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T 4 D533 0402-000493 DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L 4 D561 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T 4 D562 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T 4 D563 0402-000493 DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L 4 DZ501 0403-000334 DIODE-ZENER;UZ2.7BSA,2.7V,2.54-2.75V,500 4 DZ502 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500 4 DZ503 0403-000708 DIODE-ZENER;MTZJ13B,13V,12.55-13.21V,500 4 DZ531 0403-000334 DIODE-ZENER;UZ2.7BSA,2.7V,2.54-2.75V,500 4 DZ532 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500 4 DZ533 0403-000708 DIODE-ZENER;MTZJ13B,13V,12.55-13.21V,500 4 DZ561 0403-000334 DIODE-ZENER;UZ2.7BSA,2.7V,2.54-2.75V,500 4 DZ562 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500 4 DZ563 0403-000708 DIODE-ZENER;MTZJ13B,13V,12.55-13.21V,500 4 EL503 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 4 EL504 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 4 EL505 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 4 EL533 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 4 EL534 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 4 EL535 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 4 EL563 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 4 EL564 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 4 EL565 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 4 GT501 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 4 GT502 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 4 GT503 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 4 GT504 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 4 GT531 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 4 GT532 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 4 GT533 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 4 GT534 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 4 GT561 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 4 GT562 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 4 GT563 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 4 GT564 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 4 GT565 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 4 GT566 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 4 L501 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm 4 L531 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm 4 L561 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm 4 PCB AA41-00406B PCB-CRT;PCL545R,FR-1,1L,B,1.6T,245X245,P S.N.A 4 Q501 0502-000006 TR-POWER;KSC1507,NPN,15W,TO-220,TP,1204 Q502 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 4 Q504 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T 4 Q531 0502-000006 TR-POWER;KSC1507,NPN,15W,TO-220,TP,1204 Q533 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T 4 Q561 0502-000006 TR-POWER;KSC1507,NPN,15W,TO-220,TP,1204 Q563 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T 4 R500 2001-000613 R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM 4 R502 2001-000995 R-CARBON;820OHM,5%,1/8W,AA,TP,1.8X3.2MM 4 R503 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 4 R504 2001-000006 R-CARBON;2.4KOHM,5%,1/8W,AA,TP,1.8X3.2MM 4 R505 2001-000362 R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM 4 R506 2001-001049 R-CARBON(S);1.3KOHM,5%,1/2W,AA,TP,2.4X6. 4 R507 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M 4 R508 2003-000738 R-METAL OXIDE(S);56Kohm,5%,2W,AA,TP,4x12 4 R509 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 4 R510 2001-001000 R-CARBON;82KOHM,5%,1/8W,AA,TP,1.8X3.2MM 4 R511 2001-000313 R-CARBON;11KOHM,5%,1/8W,AA,TP,1.8X3.2MM 4 R513 2008-001129 R-FUSIBLE(S);1.5ohm,5%,1/2W,AF,TP,2.5x6. 4 R514 2001-001122 R-CARBON(S);3.9KOHM,5%,1/2W,AA,TP,2.4X6. 4 R515 2002-001017 R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9 4 R516 2001-000009 R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM 4 R517 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6. 4 R518 2002-001021 R-COMPOSITION;560KOHM,10%,1/2W,AA,TP,3.7 4 R519 2002-001021 R-COMPOSITION;560KOHM,10%,1/2W,AA,TP,3.7 4 R520 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4 4 R521 2001-001052 R-CARBON(S);1.5MOHM,5%,1/2W,AA,TP,2.4X6. 4 R522 2002-001006 R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7 4 R523 2002-001006 R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7 4 R524 2001-000028 R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4 4 R526 2001-000539 R-CARBON;24KOHM,5%,1/8W,AA,TP,1.8X3.2MM 4 R527 2001-000577 R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 4 R528 2001-001015 R-CARBON;9.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 4 R529 2002-001021 R-COMPOSITION;560KOHM,10%,1/2W,AA,TP,3.7 4 R532 2001-000995 R-CARBON;820OHM,5%,1/8W,AA,TP,1.8X3.2MM 4 R533 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

Electrical Parts List

Samsung Electronics 7-17

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

Page 85

4 R536 2001-001049 R-CARBON(S);1.3KOHM,5%,1/2W,AA,TP,2.4X6. 4 R537 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M 4 R538 2003-000738 R-METAL OXIDE(S);56Kohm,5%,2W,AA,TP,4x12 4 R540 2001-000837 R-CARBON;51KOHM,5%,1/8W,AA,TP,1.8X3.2MM 4 R541 2001-000009 R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM 4 R543 2008-001129 R-FUSIBLE(S);1.5ohm,5%,1/2W,AF,TP,2.5x6. 4 R544 2001-001122 R-CARBON(S);3.9KOHM,5%,1/2W,AA,TP,2.4X6. 4 R545 2002-001017 R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9 4 R546 2001-000009 R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM 4 R547 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6. 4 R548 2002-001021 R-COMPOSITION;560KOHM,10%,1/2W,AA,TP,3.7 4 R549 2002-001021 R-COMPOSITION;560KOHM,10%,1/2W,AA,TP,3.7 4 R550 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4 4 R551 2001-001052 R-CARBON(S);1.5MOHM,5%,1/2W,AA,TP,2.4X6. 4 R552 2002-001006 R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7 4 R553 2002-001006 R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7 4 R554 2001-000028 R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4 4 R555 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 4 R556 2001-000007 R-CARBON;3KOHM,5%,1/8W,AA,TP,1.8X3.2MM 4 R557 2001-000362 R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM 4 R559 2002-001015 R-COMPOSITION;47Kohm,5%,1/2W,AA,TP,3.7x9 4 R562 2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 4 R563 2001-000995 R-CARBON;820OHM,5%,1/8W,AA,TP,1.8X3.2MM 4 R564 2001-000660 R-CARBON;33KOHM,5%,1/8W,AA,TP,1.8X3.2MM 4 R566 2001-001049 R-CARBON(S);1.3KOHM,5%,1/2W,AA,TP,2.4X6. 4 R567 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M 4 R568 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 4 R569 2001-000472 R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 4 R570 2001-000362 R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM 4 R571 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM 4 R572 2003-000738 R-METAL OXIDE(S);56Kohm,5%,2W,AA,TP,4x12 4 R573 2008-001129 R-FUSIBLE(S);1.5ohm,5%,1/2W,AF,TP,2.5x6. 4 R574 2001-001122 R-CARBON(S);3.9KOHM,5%,1/2W,AA,TP,2.4X6. 4 R575 2002-001017 R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9 4 R576 2001-000009 R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM 4 R577 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6. 4 R578 2002-001021 R-COMPOSITION;560KOHM,10%,1/2W,AA,TP,3.7 4 R579 2002-001021 R-COMPOSITION;560KOHM,10%,1/2W,AA,TP,3.7 4 R580 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4 4 R581 2001-001052 R-CARBON(S);1.5MOHM,5%,1/2W,AA,TP,2.4X6. 4 R582 2002-001006 R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7 4 R583 2002-001006 R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7 4 R584 2001-000028 R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4 4 R589 2002-001015 R-COMPOSITION;47Kohm,5%,1/2W,AA,TP,3.7x9 4 SG351 4715-001036 SURGE ABSORBER;500V,20%,-,-,TP 4 SG501 4715-001036 SURGE ABSORBER;500V,20%,-,-,TP 4 SG503 4715-001036 SURGE ABSORBER;500V,20%,-,-,TP 4 SG533 4715-001036 SURGE ABSORBER;500V,20%,-,-,TP 4 SG561 4715-001036 SURGE ABSORBER;500V,20%,-,-,TP 4 SG563 4715-001036 SURGE ABSORBER;500V,20%,-,-,TP 2 A/CTRL BP95-00014A ASSY SUB-SUB-CONTROL;ST54J9DS,P54A,SUB-C 3 PCB+A/ 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A 3 AA95-01783K ASSY SUB-PCB,A/V FRONT;PCL545R,P54A,AA95 S.N.A 4 CNY01A 3711-003974 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG 4 CNY702 3711-000447 CONNECTOR-HEADER;3WALL,3P,1R,2.5mm,ANGLE 4 CNYW01 AA39-00231B LEAD CONNECTOR-ASSY;P54A/SVP-55W3HD,UL10 4 JK101 3722-000544 JACK-VHS;4P,11.5mm,AG,BLK,N 4 JK102 3722-001164 JACK-PIN;3P,3.4mm,SN,WH:YE:RE,#16-22 4 SW101 3404-000208 SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST 4 AA63-10002A BAND-TIE;NYLON66 V2,L100,NTR S.N.A 4 AA97-07153A ASSY AUTO-A/V FRONT;PCL545R,P54A,AA95-00 S.N.A 5 PCB AA41-00453B PCB-AV FRONT;SP47W3HR,FR-1,1L,B,1.6T,330 S.N.A 5 RK101 2001-000613 R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM 4 3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G 4 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb S.N.A 3 AA95-01797Q ASSY SUB-PCB,CONTROL;PCL534R,P54A,AA95-0 4 CNW01 AA39-00223A LEAD CONNECTOR-ASSY;,11P,67096-011,35155 4 CNY01 3711-003353 CONNECTOR-HEADER;BOX,11P,1R,2.5mm,ANGLE, 4 CNY02 3711-000447 CONNECTOR-HEADER;3WALL,3P,1R,2.5mm,ANGLE 4 CNYW02 AA39-20016A LEAD CONNECTOR-ASSY;,3P,67096-003,S,200, 4 LEDY01 0601-001381 LED;ROUND,RED/GRN,5.0MM,650/563NM 4 RMY01 AA32-00012A MODULE REMOCON;ORC-50HF2,38KHZ,940NM,MES 4 SWY01 3404-001006 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST 4 SWY02 3404-001006 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST 4 SWY03 3404-001006 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST 4 SWY04 3404-001006 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST 4 SWY05 3404-001006 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST

4 SWY06 3404-001006 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST 4 SWY07 3404-001006 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST 4 SWY08 3404-001006 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST 4 AA97-07048A ASSY AUTO-CONTROL;PCL534R,P54A,AA95-0096 S.N.A 5 CY01 2401-002009 C-AL;100uF,20%,16V,GP,TP,6.3x7,5 5 DZY02 0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500 5 DZY03 0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500 5 PCB AA41-00425A PCB-CONTROL;SVP54J8SR,FR-1,1L,A,1.6T,245 S.N.A 5 QY01 0504-000123 TR-DIGITAL;KSR1010,NPN,300mW,10K,TO-92,T 5 RY02 2001-000924 R-CARBON;680OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RY03 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RY04 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RY05 2001-000924 R-CARBON;680OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RY06 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RY07 2001-000020 R-CARBON(S);22OHM,5%,1/2W,AA,TP,2.4X6.4M 5 RY08 2001-001108 R-CARBON(S);22KOHM,5%,1/2W,AA,TP,2.4X6.4 5 RY09 2001-000109 R-CARBON(S);470OHM,5%,1/2W,AA,TP,2.4X6.4 4 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb S.N.A 4 3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G 3 AA91-00652K ASSY-CONTROL;,PS HB BLK,SV012P+LG807P,SE 4 KC+PC 6002-000522 SCREW-TAPPING;TH,+,2,M4,L15,ZPC(BLK),SWR S.N.A 4 KNOPOW AA61-60003J SPRING ETC-CS;-,SUS304,-,-,OD6,N7,OD6,-, S.N.A 4 AA64-01750C KNOB POWER;54J9,62J9,ABS HB,GRAY,SVM-301 4 AA64-01752B INDICATOR LED;54J9,62J9,ACRYL,-,-,-,-,CL 4 AA64-01755B WINDOW REMOCON;54J9,62J9,PC,SEMI VIOLET S.N.A 4 AA64-01749E KNOB-CONTROL,HOLDER;47W1,ABS HB,G3676,SV 4 AA64-01747C DOOR-AV;54J9,62J9,HIPS HB,BLK,LG807P 4 AA64-01746C PANEL-CONTROL;54J9,62J9,HIPS HB,BLK,SV01 4 AA64-01396E INLAY-AV;43,54,62J8,PS SHEET,T0.3,BLK,P5 S.N.A 2 A/SENS AA95-01841C ASSY SUB-PCB,SENSOR;DP,PCL545R,P54A,AA95 3 CN01 3711-002642 CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH 3 D01 0603-001067 PHOTO DIODE;-,10V,560nm,BK 3 AA97-05353A ASSY AUTO-SUB;DP,PCL545R,P54A S.N.A 4 PCB AA41-00433B PCB-SENSOR;PCL545R,CEM-1,1L,A,1.6T,245X2 S.N.A 4 Q01 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 4 R01 2001-000739 R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM 4 R02 2001-000739 R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM 4 R03 2001-000454 R-CARBON;2.2MOHM,5%,1/8W,AA,TP,1.8X3.2MM 2 A/PWR AA96-20109E ASSY-POWER,CORD;-,CP2/NO(4.0),H/C50mm,KK 3 AA39-10006X POWER-CORD;-,KKP419C,KLCE-2F,2.286MT 3 AA61-20284A HOLDER P CORD;PP,VO,BLK,KE-002 2 CY 3301-001201 CORE-FERRITE;AE,230.5x10.25x36mm,1500,28 2 DY 3301-001201 CORE-FERRITE;AE,230.5x10.25x36mm,1500,28 2 D/B AA26-00101A TRANS FBT;FWZ50A001E,-,-,-,-,-,-,-,-,-,-

ASSY COVER/REAR

1 * AA90-01661A ASSY COVER/REAR;ST54J9PX/GSU

2 SS+ST 0203-001329 TAPE-OPP MASKING;ANT-300P,T0.07,W15.0,L5 2 APCAFT 6002-000522 SCREW-TAPPING;TH,+,2,M4,L15,ZP 2 CWBCBB 6005-001003 SCREW-WOOD;HH,+,M4,L20,ZPC(BLK),SWRCH18A 2 CWBCBS 6005-001003 SCREW-WOOD;HH,+,M4,L20,ZPC(BLK),SWRCH18A 2 CWBCFB 6005-001003 SCREW-WOOD;HH,+,M4,L20,ZPC(BLK),SWRCH18A 2 CWBHC 6005-001003 SCREW-WOOD;HH,+,M4,L20,ZPC(BLK),SWRCH18A 2 SS1 AA60-00069B SPACER-SCREEN;43,54,62J8,ABS,-,-,-,BLK,2 CS2 AA60-00069C SPACER-SCREEN;43,54.62J8,ABS,-,-,-,BLK,2 CBB AA64-01395L INLAY-TERMINAL;J9,PS SHEET,T0.5,BLK,P54A 2 CBB+CM AA64-01849E CABINET-BACK,BOT;DP,62J8,HB,AA64-01384A 2 CBS+CM AA64-01850A CABINET-BACK,SIDE;DP,62J8,-,-,-,-,HB,-,A 2 A/FB AA91-00660G ASSY-FRONT,BOT;DP,91-00653E,54J9

ASSY COVER MISC

1 * AA90-02143A ASSY COVER MISC;ST54J9PX/XAP

2 S/MASK AA63-00544A SPACER-FELT,-,-,15X150,T2.0,BKL 2 S-LCA AA63-60131A SPACER-FELT;FELT,T0.5,BLK,80x70,SVP403J, 2 A/MASK AA64-01915E CABINET-MASK,ETC;DP,54J9,SV012P,64-02283 2 SSCREE AA67-00023A SUN-SCREEN;-,53,H/C,A/S,PMMA,T=93%,T2.0 2 SLENTI AA67-00199A SCREEN-TINT;54,1123*852,P=0.52,DNP 2 SFRES AA67-00116B SCREEN-FRESNEL;53,-,T2,1125*854,-,-,-

Electrical Parts List

7-18 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

Page 86

ASSY COVER/FRONT

1 * AA90-01384A ASSY COVER/FRONT;ST54J9PX/GSU

2 SIL 0201-001030 ADHESIVE-SIL;SE9178,GRY,NON-FLOW,UL94V0 2 BM+CBT 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR 2 HOLM/C 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR 2 CW+CBT 6005-001003 SCREW-WOOD;HH,+,M4,L20,ZPC(BLK),SWRCH18A 2 CWBBCM6006-001094 SCREW-ASS’Y WOOD;WW,HH,+,M7,L32,ZPC(YEL) 2 LEAD AA39-20577A LEAD CONNECTOR-ASSY;-,YFH806-06,-,6(3)P, 2 MF+CM AA59-00218A MODULE;SVP-5200,F301-P03,BK 2 SCDUST AA60-00072B SPACER-COVER,DUST;43,54,62J9,SPONGE V0(9 2 AC+BCM AA60-10011A SCREW-TAPTITE;HH,+,PC,M4,L12,ZPC(BLK),SW 2 FP+BCM AA60-10011A SCREW-TAPTITE;HH,+,PC,M4,L12,ZPC(BLK),SW 2 HV+BCM AA60-10011A SCREW-TAPTITE;HH,+,PC,M4,L12,ZPC(BLK),SW 2 FELT/I AA63-60001Q SPACER-FELT;-,FELT,T0.35,-,150 2 SCDCRT AA63-00573A FELT;ALL PJTV,0.5,35MM,80MM,BLK,SPA 2 CBT+CM AA64-01379B CABINET-BACK,TOP;54J8,HIPS,-,-,-,HB,BLK, 2 CBT+CW AA64-02089A INLAY-BACK,PS,SHEET,T0.3,BLK,40X40 2 MB AA67-00080A MIRROR-BACK;54J8,GLASS,940*686*673(132)* 2 L/QMS AA68-02391A LABEL-QMS;ART-PAPER(90)G,110x24mm 2 A/W BP96-00055A ASSY-COVER P;WOOD;ST54J9,P54A 3 AWTAWB 6006-001094 SCREW-ASS’Y WOOD;WW,HH,+,M7,L32,ZPC(YEL) 3 A/WT AA91-00474C ASSY-WOOD,TOP;,WOOD UKAL-13,54J9(PCL545R 4 CWTHCWAA60-10051A SCREW-WOOD;PH,+,M4,L16,ZPC(BLK),SWRCH18A 4 HC-W AA61-00507B HOLDER-CABINET,WOOD;43,54,62J8,ABS,BLK,H 4 H-SEN AA61-00644D HOLDER-SENSOR;T6,ABS,HB,BLK 4 HSTB AA61-00674B HOLDER-SCREEN;54 TOP/BOTTOM,ABS,BLK,HB,1 4 HSLR AA61-00674C HOLDER-SCREEN;54 SIDE-L/R,ABS,BLK,HB,834 4 CW+MID AA61-00722A HOLDER-PIN,DABO;PRJT,NYLON,OD6.5XL25,-,4 CW AA61-00723A HOLDER-PIN,DABO;PRJT,WOODEN NAIL,OD6XL20 4 CW/TOP AA64-01399B CABINET-WOOD,TOP;54J9,UKAL-13,WOOD 4 CW+CM AA65-00017A CLAMP CORE-WIRE;ALL MODEL,NYLON6.6,BLK 3 A/WB AA91-00475C ASSY-WOOD,BOT;,UKAL-13 WOOD,54J9(PCL545R 4 SDL AA60-00078A SPACER-DUAL,LOCK;54J8,#250,40X25 4 CASCWB AA60-10051A SCREW-WOOD;PH,+,M4,L16,ZPC(BLK),SWRCH18A 4 HCMCWBAA60-10051A SCREW-WOOD;PH,+,M4,L16,ZPC(BLK),SWRCH18A 4 HW+CWBAA60-10051B SCREW-WOOD;RH,+,M3.5,L12,ZPC(YEL),SWRCH1 4 HR AA61-00094C HOLDER-RAIL;-,PCJ533R,ABS,HB,BLK,480 4 HW AA61-00097A HOLDER-WIRE;-,-,NYLON 6/6,-,NTR,4 CAST AA61-00458A CASTER;-,-,TP4015-05 NYL,OH47,-,-,SR4 4 HJERS AA61-00508D HOLDER-JERSEY;W3,ABS V0,GRAY,G4309 4 BG AA61-00533B BRACKET-GRILLE;43,54,62J8,SECC-1 ,T0.5,4 HCRT AA61-00616B HOLDER-CRT,MAIN;54J7,DP,-,-,-,-,AA61-005 4 CD AA63-00384A COVER-DUCT;DP 54J8,-,-,HB,-,AA63-00348B, 4 CW/BOT AA64-01402B CABINET-WOOD,BOT;54J9,UKAL-13 WOOD 4 HJERS2 BP61-00075A HOLDER-JERSEY,ASSY;W3,ABS V0,GRAY,63-000 3 SPK2 3001-001107 SPEAKER;20W,8OHM,95+-2DB,1300HZ 3 SPK1 3001-001134 SPEAKER;30W,8ohm,93dB,60Hz 3 L/SPK AA39-00042A LEAD CONNECTOR-ASSY;REC,2.2uF,200mm,1007 3 SPKCWB AA60-10051A SCREW-WOOD;PH,+,M4,L16,ZPC(BLK),SWRCH18A 3 SPK AA98-00049A ASSY-LEAD,CON;-,LEAD-CON,CORE,AA39-20505 3 LC-SEN AA39-00287A LEAD CONNECTOR ASSY;PCL54RX,UL2547#26,UL 2 A/BM AA91-00489B ASSY-BRKT,MIRROR;-,-,SECC-1 T1.0,54J8 2 SF 0203-001160 TAPE FILAMENT SCOTCH#8915,T0.16,W24,L0.1 2 BCRTM AA61-00475B BRACKET-CRT,MAIN;SECC,T1.6,-,-,-,2 AA61-20330A HOLDER-MIRROR,BOT;43J8,54J8,PS,HB,BLK

ASSY CPT

1 * AA91-01290A ASSY CPT;ST54J9PX/XAP

2 ASSY,C AA91-01839A ASSY CPT-R;ST54J9PX/XAP 3 SILGRY 0201-001030 ADHESIVE-SIL;SE9178,GRY,NON-FLOW,UL94V0 3 TAPE/A 0203-001303 TAPE-ACETATE;#1554,T0.25,W19,L30000,WHT 3 GLYCOL 0204-001148 ETHYLENE GLYCOL;MS-S02,CH20HCH20H,80,20 3 CRTR AA03-00200A CRT MONO;P16LSG03RJA,-,7inch,-,-,-,FLAT 3 L/FLY AA26-30006F TRANS-FLYBACK;-,FWZ-50A001C,55’,30KV 3 DY AA27-00236A DEFLECTION-YOKE;-,DAV4351M,S/T,PJTCRT(2H 3 CY AA33-00012A MAGNET CONVERGENCE;JH92LT-29D,29.1MM,0.2 3 L/CONN AA39-00018A LEAD CONNECTOR-ASSY;-,YFH800-01,YRH187RH 3 C-CY AA60-00074A SPACER-DY;PJT,SILICON RUBBER,-,-,-,GRAY, 3 SCRT AA60-00125B SPACER-CRT;PROJ,SILICONE,D/GRAY

3 SPACER AA60-00126B SPACER-CAP;PROJ,EPDM,BLK 3 C-CLEN AA60-00127B SPACER-LENS;PROJ,SILICONE,D/GRAY 3 BC+AL AA60-10011A SCREW-TAPTITE;HH,+,PC,M4,L12,ZPC(BLK),SW 3 BRK-LE AA61-00056B BRACKET-LENS;-,PROJECTION,SECC,T1.6,-,-, 3 H/CRT AA61-00809B HOLDER-CRT;PROJ,PC/ABS GF 20%,BLK 3 H/CAP AA61-00810B HOLDER-CAP;PROJ,PC,CLR 3 C-COUP AA61-00845A CASE-COUPLER,R;DP,PROJ,AA61-00806B 3 SPACER AA63-00076A SPACER-LENS;FELT ,T1.0,BROWN,7CRT,PROJE 3 LENDS- AA67-00147A LENS-ASSY;,DELTA 78,CLEAR A/B 3 LENDS- AA67-10008A LENS;-,DELTA,RED,PJT,-,77,79,3 A/BCRT AA91-00722A ASSY-BRKT,CRT;,SECC T1.6,PROJ 3 IN/CRT AA64-02089A INLAY-BACK,PS,SHEET,T0.3,BLK,40X40 2 ASSY,C AA91-01840A ASSY CPT-G;ST54J9PX/XAP 3 SILGRY 0201-001030 ADHESIVE-SIL;SE9178,GRY,NON-FLOW,UL94V0 3 TAPE/A 0203-001303 TAPE-ACETATE;#1554,T0.25,W19,L30000,WHT 3 GLYCOL 0204-001148 ETHYLENE GLYCOL;MS-S02,CH20HCH20H,80,20 3 CRTG AA03-00201A CRT MONO;P16LSG03HKA,-,7inch,-,-,-,FLAT 3 L/FLY AA26-30006F TRANS-FLYBACK;-,FWZ-50A001C,55’,30KV 3 DY AA27-00236A DEFLECTION-YOKE;-,DAV4351M,S/T,PJTCRT(2H 3 L/CONN AA39-00018A LEAD CONNECTOR-ASSY;-,YFH800-01,YRH187RH 3 C-CY AA60-00074A SPACER-DY;PJT,SILICON RUBBER,-,-,-,GRAY, 3 SCRT AA60-00125B SPACER-CRT;PROJ,SILICONE,D/GRAY 3 SPACER AA60-00126B SPACER-CAP;PROJ,EPDM,BLK 3 C-CLEN AA60-00127B SPACER-LENS;PROJ,SILICONE,D/GRAY 3 BC+AL AA60-10011A SCREW-TAPTITE;HH,+,PC,M4,L12,ZPC(BLK),SW 3 BRK-LE AA61-00056B BRACKET-LENS;-,PROJECTION,SECC,T1.6,-,-, 3 H/CRT AA61-00809B HOLDER-CRT;PROJ,PC/ABS GF 20%,BLK 3 H/CAP AA61-00810B HOLDER-CAP;PROJ,PC,CLR 3 C-COUP AA61-00846A CASE-COUPLER,G;DP,PROJ,AA61-00807B 3 SPACER AA63-00076A SPACER-LENS;FELT ,T1.0,BROWN,7CRT,PROJE 3 LENDS- AA67-00147A LENS-ASSY;,DELTA 78,CLEAR A/B 3 LENDS- AA67-10071A LENS;DELTA7779,-,GREEN,CELEMENT, 3 A/BCRT AA91-00722A ASSY-BRKT,CRT;,SECC T1.6,PROJ 2 ASSY,C AA91-01841A ASSY CPT-B;ST54J9PX/XAP 3 SILGRY 0201-001030 ADHESIVE-SIL;SE9178,GRY,NON-FLOW,UL94V0 3 TAPE/A 0203-001303 TAPE-ACETATE;#1554,T0.25,W19,L30000,WHT 3 GLYCOL 0204-001148 ETHYLENE GLYCOL;MS-S02,CH20HCH20H,80,20 3 CRTB AA03-00202A CRT MONO;P16LSG03BMB,-,7inch,-,-,-,FLAT 3 L/FLY AA26-30006F TRANS-FLYBACK;-,FWZ-50A001C,55’,30KV 3 DY AA27-00236A DEFLECTION-YOKE;-,DAV4351M,S/T,PJTCRT(2H 3 CY AA33-00014A MAGNET CONVERGENCE;JH92LTU-36D,29.1MM,0. 3 L/CONN AA39-00018A LEAD CONNECTOR-ASSY;-,YFH800-01,YRH187RH 3 C-CY AA60-00074A SPACER-DY;PJT,SILICON RUBBER,-,-,-,GRAY, 3 SCRT AA60-00125B SPACER-CRT;PROJ,SILICONE,D/GRAY 3 SPACER AA60-00126B SPACER-CAP;PROJ,EPDM,BLK 3 C-CLEN AA60-00127B SPACER-LENS;PROJ,SILICONE,D/GRAY 3 BC+AL AA60-10011A SCREW-TAPTITE;HH,+,PC,M4,L12,ZPC(BLK),SW 3 BRK-LE AA61-00056B BRACKET-LENS;-,PROJECTION,SECC,T1.6,-,-, 3 H/CRT AA61-00809B HOLDER-CRT;PROJ,PC/ABS GF 20%,BLK 3 H/CAP AA61-00810B HOLDER-CAP;PROJ,PC,CLR 3 C-COUP AA61-00847A CASE-COUPLER,B;DP,PROJ,AA61-00808B 3 SPACER AA63-00076A SPACER-LENS;FELT ,T1.0,BROWN,7CRT,PROJE 3 LENDS- AA67-00147A LENS-ASSY;,DELTA 78,CLEAR A/B 3 LENDS- AA67-10007A LENS;-,DELTA,CLEAR,PJT,-,77,79,3 A/BCRT AA91-00722A ASSY-BRKT,CRT;,SECC T1.6,PROJ

ASSY BOX

1 * AA92-02067A ASSY BOX;ST54J9PX/XAP

2 HB AA61-00049B HOLDER-BOX;DP,-,PP,V0,NTR,AA61-20285A 2 L/BOX AA68-01542A LABEL;(UNIBOX),PAPER WHT ALLMD 2 PCKIN AA69-00670A PACKING CASE-IN;SVP-54J8,J7,H-3 AB,C3,-, 2 PCKOUT AA69-01046B PACKING CASE-OUT;PCL545R(54J9),H-3 AB,C3

ASSY LABEL

1 * AA92-02340A ASSY LABEL;ST54J9PX/GSU

2 IS+CBB AA64-02074B INLAY-SPEAKER;J7,J8,J9,PS SHEET,T0.5,-,2 CBT AA64-60449B INLAY-COVER;SP-434JMF,-,PS,T0.5,BLK,149. 2 L/RAT AA68-01547A LABEL RATING;TETRONEPAPER90(S)B,LATIN 2 L/DHHS AA68-01065S LABEL-D.H.H.S;,A/P 90(G),63,73,P16QDU,P1

Electrical Parts List

Samsung Electronics 7-19

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

Page 87

ASSY P/MATERIAL

1 * AA92-02617A ASSY P/MATERIAL;ST54J9PX/GSU

2 TPO 0203-001096 TAPE-CELLULOSE;#301,T0.06,W75,L400,WHT 2 STAPLE AA60-40006A PIN-STAPLE;-,-,-,H18,33X17.8X2 2 B-POUT AA63-10007C BAND PP;W18,CLEAR,1G 2 SHEET AA63-70002A SHEET;-,PEFOAM,T1.0,-,-,-,50G,2 C/SET AA69-00664B CUSHION SET;SVP-54J8,J7,EPS C=0.02,-,-,2 BAG/S AA69-01210A BAG;SHEET,32-36,W65,L63,FOAM,OEM.

ASSY ACCESSORY

1 * AA92-01789A ASSY ACCESSORY;ST54J9PX/XAP

2 ACCERY 0203-000368 TAPE-OPPMASKING;#370,-,W50,L50,CLR 2 PLUG 3721-000136 PLUG-CONVERSION;15A300VPI4.0CP 2 BATT 4301-000121 BATTERY-MN;1.5V,-,AAA,10.5X44. 2 PATCH AA39-00006A CABLE-RCA;-,RCA,3000MM,0.12/10,RED/WHT/Y 2 RMT AA59-00176A REMOCON;-,TM63,SHARK,51,L/GRAY,DO,-,-, 2 H/LEG AA61-20126A HOLDER-LEG;-,-,ABS,HB,BLK,2 C/WARR AA68-00987A CARD WARRANTY;-,-,W/P100,-,-,-,-,-,A4,1P 2 I/B2 AA68-02411A MANUAL-USERS;P54A,ENG,W/P100(G)ST54J9P/6 2 I/B1 AA68-02412A MANUAL-USERS;P54A,SPA,W/P100(G)ST54J9P/6 2 BAG-PE AA69-01196A BAG PE;CR20805X,LDPE, 93/4X151/2,(ACC 2 BAG-PE AA69-30009C BAG-SHEET;LDPE,T0.08,W150,L120,-,-,-

Electrical Parts List

7-20 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

Page 88

ASSY CHASSIS

1 * AA91-01078A ASSY CHASSIS-KS2A;SPACE

2 SI-FCP 0201-001059 ADHESIVE-SILICON;B#9590,CARTRIGE 2 SIL-SP 0201-001059 ADHESIVE-SILICON;B#9590,CARTRIGE 2 SILCRT 0201-001059 ADHESIVE-SILICON;B#9590,CARTRIGE 2 SILCRT 0201-001059 ADHESIVE-SILICON;B#9590,CARTRIGE 2 CBBAPT 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR 2 SS1 AA60-00069F SPACER-SCREEN;43,53,61J8,ABS,-,-,-,BLK,2 SS2 AA60-00069G SPACER-SCREEN;43,53,61J8,ABS,-,-,-,BLK,2 BAND-T AA63-10002A BAND-TIE;-,NYLON66V2,-,-,L100,NTR,-,2 BAND AA63-10002B BAND-TIE;-,NYLON66V2,-,-,L140,NTR,-,2 CWRE1 AA65-30018A CLAMP-WIRE;-,NYLON6.6,-,-,DATL 2 PCB/CP AA65-30104B CLAMP WIRE; NYLON 66, V2,BLK, W2 Z5 2 CWIR AA65-30105A CLAMP-WIRE;NYLON 66N,VO,NTR,15MM 2 A/CHAS AA91-03560A ASSY CHASSIS;ST62J9P3S/XAX 2 TEMP AA93-00196A ASSY PCB CHASSISPACK;,P54A,ST62J9PX/XAP 3 AA94-07658A ASSY PCB MISC-SUB;SP54J9PX/XAX,P54A,220V 4 C432 2306-000267 C-FILM,MPPF;8.2nF,5%,1.6KV,TP,28.5x18.5x 4 C438 2306-000267 C-FILM,MPPF;8.2nF,5%,1.6KV,TP,28.5x18.5x 4 C491 2306-000322 C-FILM,MPPF;12nF,5%,1.6KV,TP,29x20.5x13, 4 C876 2401-000787 C-AL;220uF,20%,160V,GP,TP,16x31.5mm 4 CN202 AA39-00116A LEAD CONNECTOR-ASSY;,12P,YBNH250-12,3515 4 CN801 AA39-00180A LEAD CONNECTOR-ASSY;,14P,YBNH250-14,3515 4 CN802 3711-003974 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG 4 CN803 3711-003974 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG 4 CNW801 AA39-20061G LEAD CONNECTOR-ASSY;,3P,YFH800-03,S,100M 4 CNZ02 AA39-00115A LEAD CONNECTOR-ASSY;,10P,YBNH250-10,3515 4 CR430S 2301-001343 C-FILM,MPPF;3.9nF,5%,2kV,TP,29x9.5x16mm, 4 CR431S 2301-001343 C-FILM,MPPF;3.9nF,5%,2kV,TP,29x9.5x16mm, 4 CR436S 2306-000235 C-FILM,MPPF;560nF,5%,400V,TP,26*22.5*14, 4 CR471S 2301-001091 C-FILM,MPPF;470nF,5%,400V,TP,26x21.5x14. 4 CR473S 2306-000322 C-FILM,MPPF;12nF,5%,1.6KV,TP,29x20.5x13, 4 CR474S 2306-000326 C-FILM,MPPF;4.7nF,5%,1.6KV,TP,28.5x16x9m 4 CS803 2401-003370 C-AL;47uF,20%,450V,GP,BK,16X35.5,7. 4 CY811S 2201-000446 C-CERAMIC,DISC;3.3nF,20%,400V,Y5U,TP,15x 4 CY812S 2201-000446 C-CERAMIC,DISC;3.3nF,20%,400V,Y5U,TP,15x 4 D464 0402-000562 DIODE-RECTIFIER;UF5406,600V,3A,DO-201AD, 4 D811S 0402-000102 DIODE-BRIDGE;D2SB60,600V,1.5A,4 IC301 AA96-50406A ASSY H/S;-,-,AA62-30180K,LA7845,- S.N.A 5 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A 5 1204-000517 IC-VERTICAL DEF.;LA7845,SIP,7P,-,PLASTIC 5 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A 5 AA62-30180K HEAT SINK-ES;-,A6063 EXTR,-,WHT,50/13,-, S.N.A 4 IC421 1203-000165 IC-POSI.ADJUST REG.;78R12,TO-220,4P,-,PL 4 IC430 1203-000162 IC-POSI.ADJUST REG.;317,TO-220,3P,-,PLAS 4 IC431 1201-000191 IC-OP AMP;4558,DIP,8P,300MIL,DUAL,20V/mV 4 IC471 1203-000610 IC-PWM CONTROLLER;494,DIP,16P,300MIL,PLA 4 ICS801 AA13-00024A IC HYBRID;-,TNY253P,-,8PIN,-,4 ICS807 AA96-00111P ASSY H/S;-,MAIN,AA62-30013L,KA278RA05,FA S.N.A 5 1203-001978 IC-VOLTAGE REGULATOR;KA278RA05,TO-220F,4 5 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A 5 AA62-30013L HEAT SINK-ES;-,-,-,-,44/22,-,WHT,-,-,-,- S.N.A 4 ICZ103 AA96-00034A ASSY H/S;-,CONVERGENCE,AA62-30173D,STK39 S.N.A 4 ICZ104 AA96-00034A ASSY H/S;-,CONVERGENCE,AA62-30173D,STK39 S.N.A 5 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A 5 1201-001225 IC-VIDEO AMP;392,SIP,22P,-,TRIPLE,-,PLAS 5 6003-001021 SCREW-TAPTITE;RH,+,B,M3,L15,ZPC(YEL),SWR S.N.A 5 AA62-30173D HEAT SINK-ES;-,-,T1.0,WHITE,SCREW-HOLE(2 S.N.A 4 L432 AA27-00095A COIL HORIZ. WIDTH;-,600uH,YL9N 15x27.5 C 4 L434 AA27-00221A COIL HORIZ. WIDTH;600UH,600UH,SB5S OS6X2 4 L435 AA27-10001C COIL CHOKE;-,100uH,K,-,5.0A,ST,700UH-K(R 4 L854 AA27-10001C COIL CHOKE;-,100uH,K,-,5.0A,ST,700UH-K(R 4 L860 AA27-10001C COIL CHOKE;-,100uH,K,-,5.0A,ST,700UH-K(R 4 L862 AA27-10001C COIL CHOKE;-,100uH,K,-,5.0A,ST,700UH-K(R 4 L872 AA27-10001C COIL CHOKE;-,100uH,K,-,5.0A,ST,700UH-K(R 4 L874 AA27-10002L COIL CHOKE;-,24uH,K,-,2A,-,24UH-K,10x10m 4 LC431S AA27-30003M COIL LINEARITY;-,5uH,OWA14x15,USRC0.1x60 4 PC811S 0604-001032 PHOTO-COUPLER;TR,170-260%,300mW,DIP-4,ST 4 Q353 0502-000442 TR-POWER;2SC4636RB,NPN,2W,TO-220,ST,104 Q431 AA96-00033E ASSY H/S;-,H-OUT,AA62-30173C,2SC5446, FM S.N.A

5 AA62-30173C HEAT SINK-ES;-,-,T1.0,WHITE,SCREW-HOLE(2 S.N.A 5 AA60-30001A WASHER-PLATE;M3,ID3.5,15X8.5,T1.0,SBHG S.N.A 5 AA02-00007A SUB ETC-MICA;DPM-04,MICA,22x29x0.15mm S.N.A 5 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A 5 0502-001175 TR-POWER;2SC5446,NPN,200000mW,TO-3PL,BK, 5 0402-001296 DIODE-RECTIFIER;FMP-3FU,1.5KV,5A,TO-3PF, 5 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A 4 Q433 AA96-50407A ASSY H/S;-,-,AA62-30154G,KSD73Y,- S.N.A 5 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A 5 0502-000298 TR-POWER;KSD73,NPN,30000mW,TO-220,TP,120 5 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A 5 AA62-30154G HEAT SINK-ES;-,A6063 EXTR,-,WHT,50/16,-, S.N.A 4 Q441 AA96-50383F ASSY H/S;-,-,AA62-30180D,2SD921,- S.N.A 5 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A 5 0502-001104 TR-POWER;2SD921,NPN,80W,TO-3P,BK,7005 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A 5 AA62-30180D HEAT SINK-ES;-,A6063 EXTR.,2,WHT,50mm,-, S.N.A 4 Q473 AA96-00037A ASSY H/S;-,-,AA62-30181N,2SC4125, IRFS64 S.N.A 5 AA62-30181N HEAT SINK-ES;-,-,T1.0,WHITE,SCREW-HOLE(2 S.N.A 5 AA60-30001A WASHER-PLATE;M3,ID3.5,15X8.5,T1.0,SBHG S.N.A 5 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A 5 0505-001202 FET-SILICON;IRFS640A,N,200V,9.8A,0.18ohm 5 0502-001100 TR-POWER;2SC4125,NPN,70W,TO-3PML,BK,85 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A 4 RL811S 3501-001053 RELAY-POWER;5Vdc,530mW,10A,1FormA,15mS,5 4 RL812S 3501-001040 RELAY-POWER;12VDC,500mW,10A,1FormA,15mS, 4 T431 AA26-50001U TRANS-HORIZ.DRIVE;-,-,-,28mH,-,-,105uH,4 T432 AA26-00053A TRANS;-,-,-,1.2mH,-,-,-,-,-,-,31.5KHZ,-, 4 T433 AA26-00011A TRANS-DUMMY;-,-,-,-,-,-,-,-,-,-,-,-,EE28 4 T444S AA26-00100A TRANS FBT;FFA97513L,CT29A7DR,0.3mH,-,-,4 T461 AA26-50001V TRANS-HORIZ.DRIVE;-,-,-,6.0mH,-,-,113uH, 4 T481 AA26-00091A TRANS-HV-STORAGE;4mH,-,14P,830uH,180V,10 4 TS811S AA26-00055B TRANS SWITCHING;,HLK436W,AC80V,AC80~280V 4 AA97-07248A ASSY AUTO;SP54J9P3S/XAX,P54A,220V 5 C301 2305-000427 C-FILM,MPEF;47nF,5%,100V,TP,7.5x12.5x3.5 5 C302 2201-000292 C-CERAMIC,DISC;1nF,10%,50V,Y5P,TP,5x3.5, 5 C303 2305-000427 C-FILM,MPEF;47nF,5%,100V,TP,7.5x12.5x3.5 5 C304 2201-000292 C-CERAMIC,DISC;1nF,10%,50V,Y5P,TP,5x3.5, 5 C305 2201-002022 C-CERAMIC,DISC;0.005nF,0.25pF,500V,NP0,T 5 C307 2401-000365 C-AL;100uF,20%,50V,WT,TP,10x12.5mm, 5 C308 2401-000365 C-AL;100uF,20%,50V,WT,TP,10x12.5mm, 5 C309 2305-000285 C-FILM,MPEF;220NF,5%,100V,TP,10.5X5.5X15 5 C311 2305-000149 C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5 5 C351 2401-000471 C-AL;10uF,20%,50V,BP,TP,5x11,5mm 5 C352 2401-001989 C-AL;4.7uF,20%,50V,BP,TP,5x11,5 5 C353 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5 5 C354 2401-002300 C-AL;47uF,20%,50V,GP,TP,6.3x11,5 5 C355 2201-000991 C-CERAMIC,DISC;0.56nF,10%,2kV,Y5P,TP,7.5 5 C405 2201-000558 C-CERAMIC,DISC;0.47nF,10%,50V,Y5P,TP,5x3 5 C406 2201-000370 C-CERAMIC,DISC;0.22nF,10%,50V,Y5P,TP,4x3 5 C412 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm 5 C413 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5 5 C417 2401-001397 C-AL;470uF,20%,25V,GP,TP,10x16,5 5 C418 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5 5 C419 2201-000180 C-CERAMIC,DISC;10nF,10%,50V,Y5V,TP,7x3,5 5 C426 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5 5 C427 2401-002300 C-AL;47uF,20%,50V,GP,TP,6.3x11,5 5 C428 2306-000122 C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m 5 C429 2305-000704 C-FILM,MPEF;100nF,5%,250V,TP,16.5x10.3x5 5 C437 2401-003114 C-AL;4.7uF,20%,250V,WT,TP,10x16,5 5 C445 2401-001622 C-AL;6.8uF,20%,50V,BP,TP,16x25mm,7. 5 C449 2201-000406 C-CERAMIC,DISC;0.27nF,10%,2kV,Y5P,TP,6.3 5 C450 2401-000262 C-AL;100uF,20%,160V,HR,TP,16x25,7.5 5 C451 2401-001160 C-AL;33uF,20%,160V,GP,-,16x35mm,7.5 5 C452 2201-000132 C-CERAMIC,DISC;0.1nF,10%,500V,Y5P,TP,6.5 5 C453 2401-002288 C-AL;470uF,20%,25V,WT,TP,10x20,5 5 C454 2401-001428 C-AL;470uF,20%,50V,GP,TP,10x20,5 5 C455 2201-000132 C-CERAMIC,DISC;0.1nF,10%,500V,Y5P,TP,6.5 5 C456 2401-001527 C-AL;47uF,20%,250V,HR,TP,13x25mm,5m 5 C457 2201-000132 C-CERAMIC,DISC;0.1nF,10%,500V,Y5P,TP,6.5 5 C458 2401-002288 C-AL;470uF,20%,25V,WT,TP,10x20,5 5 C459 2201-000132 C-CERAMIC,DISC;0.1nF,10%,500V,Y5P,TP,6.5 5 C460 2303-000331 C-FILM,PPF;4.7nF,5%,630V,TP,19.5x12x7,7.

Electrical Parts List

Samsung Electronics 7-21

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

7-2 ST62J9PX/XAP

Page 89

5 C467 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5 5 C468 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 5 C469 2201-000180 C-CERAMIC,DISC;10nF,10%,50V,Y5V,TP,7x3,5 5 C472 2401-000262 C-AL;100uF,20%,160V,HR,TP,16x25,7.5 5 C476 2401-001989 C-AL;4.7uF,20%,50V,BP,TP,5x11,5 5 C477 2301-000213 C-FILM,PEF;220nF,5%,250V,TP,21.5x11,7.5 5 C478 2301-000020 C-FILM,PEF;27nF,5%,100V,TP,7.3x4x12.5mm, 5 C479 2301-000200 C-FILM,PEF;2.2nF,5%,200V,TP,11.0x6.0x9.0 5 C480 2306-000122 C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m 5 C481 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm 5 C483 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11,5 5 C484 2201-000132 C-CERAMIC,DISC;0.1nF,10%,500V,Y5P,TP,6.5 5 C487 2305-000178 C-FILM,MPEF;10nF,5%,100V,TP,-,5mm 5 C488 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 5 C489 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5 5 C490 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 5 C492 2401-001026 C-AL;3.3UF,20%,50V,GP,TP,5X11,5 5 C857 2401-000133 C-AL;1000uF,20%,16V,GP,TP,10x20,5 5 C866 2401-000192 C-AL;1000uF,20%,50V,GP,TP,16x25,7.5 5 C869 2401-000192 C-AL;1000uF,20%,50V,GP,TP,16x25,7.5 5 C873 2401-001998 C-AL;1000uF,20%,25V,GP,TP,10x20,5mm 5 CN401 3711-002645 CONNECTOR-HEADER;BOX,6P,1R,2.5mm,STRAIGH 5 CN403 3711-002642 CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH 5 CR401S 2401-001026 C-AL;3.3UF,20%,50V,GP,TP,5X11,5 5 CR402S 2201-000146 C-CERAMIC,DISC;0.1nF,5%,50V,SL,TP,5x3.5, 5 CR403S 2201-000146 C-CERAMIC,DISC;0.1nF,5%,50V,SL,TP,5x3.5, 5 CS804 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 5 CS805 2401-001101 C-AL;330uF,20%,16V,GP,TP,8x11.5,5 5 CS807 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 5 CS808 2401-002463 C-AL;470uF,20%,16V,GP,TP,8x11.5,5 5 CS809 2201-000556 C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5. 5 CS812 2201-002076 C-CERAMIC,DISC;0.068nF,5%,1kV,SL,TP,8x4m 5 CS813 2201-000332 C-CERAMIC,DISC;2.2nF,20%,250V,Y5U,TP,9x4 5 CS814 2201-000332 C-CERAMIC,DISC;2.2nF,20%,250V,Y5U,TP,9x4 5 CZ101 2401-001428 C-AL;470uF,20%,50V,GP,TP,10x20,5 5 CZ102 2401-001428 C-AL;470uF,20%,50V,GP,TP,10x20,5 5 CZ108 2201-000499 C-CERAMIC,DISC;0.39nF,5%,50V,SL,TP,8.5x3 5 CZ109 2201-000499 C-CERAMIC,DISC;0.39nF,5%,50V,SL,TP,8.5x3 5 CZ110 2201-000499 C-CERAMIC,DISC;0.39nF,5%,50V,SL,TP,8.5x3 5 CZ111 2201-000976 C-CERAMIC,DISC;0.022nF,5%,50V,NP0,TP,5x3 5 CZ112 2201-000863 C-CERAMIC,DISC;0.68nF,10%,50V,Y5P,TP,5x3 5 CZ113 2201-000976 C-CERAMIC,DISC;0.022nF,5%,50V,NP0,TP,5x3 5 CZ114 2201-000863 C-CERAMIC,DISC;0.68nF,10%,50V,Y5P,TP,5x3 5 CZ115 2201-000976 C-CERAMIC,DISC;0.022nF,5%,50V,NP0,TP,5x3 5 CZ116 2201-000863 C-CERAMIC,DISC;0.68nF,10%,50V,Y5P,TP,5x3 5 CZ117 2201-000327 C-CERAMIC,DISC;2.2nF,10%,50V,Y5V,TP,6.5x 5 CZ118 2201-000327 C-CERAMIC,DISC;2.2nF,10%,50V,Y5V,TP,6.5x 5 CZ126 2201-000499 C-CERAMIC,DISC;0.39nF,5%,50V,SL,TP,8.5x3 5 CZ127 2201-000499 C-CERAMIC,DISC;0.39nF,5%,50V,SL,TP,8.5x3 5 CZ128 2201-000499 C-CERAMIC,DISC;0.39nF,5%,50V,SL,TP,8.5x3 5 CZ132 2201-000976 C-CERAMIC,DISC;0.022nF,5%,50V,NP0,TP,5x3 5 CZ133 2201-000863 C-CERAMIC,DISC;0.68nF,10%,50V,Y5P,TP,5x3 5 CZ134 2201-000976 C-CERAMIC,DISC;0.022nF,5%,50V,NP0,TP,5x3 5 CZ135 2201-000863 C-CERAMIC,DISC;0.68nF,10%,50V,Y5P,TP,5x3 5 CZ136 2201-000976 C-CERAMIC,DISC;0.022nF,5%,50V,NP0,TP,5x3 5 CZ137 2201-000863 C-CERAMIC,DISC;0.68nF,10%,50V,Y5P,TP,5x3 5 CZ138 2201-000327 C-CERAMIC,DISC;2.2nF,10%,50V,Y5V,TP,6.5x 5 CZ139 2201-000327 C-CERAMIC,DISC;2.2nF,10%,50V,Y5V,TP,6.5x 5 CZ140 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5 5 CZ141 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5 5 CZ151 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 5 CZ152 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 5 CZ153 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 5 CZ154 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 5 CZ155 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 5 CZ156 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 5 D302 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T 5 D353 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 5 D384 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP 5 D385 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 5 D433 0402-000537 DIODE-RECTIFIER;RH1A,600V,0.6A,DO-204AC 5 D434 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T 5 D435 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP 5 D436 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 5 D440 0402-000534 DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T 5 D441 0402-000534 DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T 5 D442 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

5 D443 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 5 D444 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T 5 D445 0402-000534 DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T 5 D451 0402-000534 DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T 5 D453 0402-001286 DIODE-RECTIFIER;RP1H,2000V,.1A,-,TP 5 D472 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T 5 D474 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T 5 D477 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 5 D478 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 5 D479 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 5 D480 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP 5 D484 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP 5 D501 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP 5 DR401S 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 5 DR402S 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 5 DR404S 0403-001325 DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D 5 DS805 0404-001056 DIODE-SCHOTTKY;RK16,60V,1.5A,DO-204AC,TP 5 DS807 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T 5 DS809 0404-001056 DIODE-SCHOTTKY;RK16,60V,1.5A,DO-204AC,TP 5 DZ301 0403-001327 DIODE-ZENER;MTZJ18A,16.22-17.06V,500mW,D 5 DZ304 0403-001327 DIODE-ZENER;MTZJ18A,16.22-17.06V,500mW,D 5 DZ305 0403-001329 DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,D 5 DZ306 0403-001330 DIODE-ZENER;MTZJ30A,26.99-28.39V,500mW,D 5 DZ307 0403-001329 DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,D 5 DZ386 0403-001316 DIODE-ZENER;MTZJ3.0A,2.85-3.07V,500mW,DO 5 DZ395 0403-001319 DIODE-ZENER;MTZJ4.7C,4.68-4.93V,500mW,DO 5 DZ400 0403-001325 DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D 5 DZ413 0403-001319 DIODE-ZENER;MTZJ4.7C,4.68-4.93V,500mW,DO 5 DZ473 0403-000720 DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500 5 DZ474 0403-000734 DIODE-ZENER;TZP15B,15V,14.7-16.5V,1W,DO5 DZ481 0403-001327 DIODE-ZENER;MTZJ18A,16.22-17.06V,500mW,D 5 DZ482S 0403-000720 DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500 5 DZ483 0403-000720 DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500 5 DZ801 0406-001106 DIODE-TVS;P6KE300A,285/-/315V,600W,DO-20 5 DZ802 0406-001106 DIODE-TVS;P6KE300A,285/-/315V,600W,DO-20 5 DZ803 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500 5 DZ804 0403-000716 DIODE-ZENER;MTZJ4.7B,4.7V,4.55-4.8V,500m 5 DZ805 0403-001322 DIODE-ZENER;MTZJ8.2B,7.78-8.19V,500mW,DO 5 EL01 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 5 EY101 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY102 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY103 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY104 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY105 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY107 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY108 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY109 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY110 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY111 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY112 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY113 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY114 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY115 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY116 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY117 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY118 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY120 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY121 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY122 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY123 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY124 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY125 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY126 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY127 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY128 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY129 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY130 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY131 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY132 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY133 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY134 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY136 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY137 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY138 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY139 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY140 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY141 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A

Electrical Parts List

7-22 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

Page 90

5 EY142 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY143 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY144 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY145 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY146 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY147 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY148 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY149 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY150 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY151 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY152 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY153 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY154 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY155 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY156 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY157 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY158 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY159 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY160 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY161 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY162 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY163 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY164 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY165 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY166 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY167 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY168 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY171 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY172 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY173 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY174 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY175 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY176 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY177 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY178 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY179 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY180 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY181 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY182 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY183 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY184 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY185 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY186 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY187 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY188 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY189 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY190 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY191 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY192 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY193 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY194 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY195 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY196 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY197 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY198 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY199 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY200 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY201 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY202 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY203 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY204 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY205 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY206 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY207 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY208 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY209 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY210 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY211 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY212 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY213 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY214 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY215 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY216 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY217 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY218 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY219 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY220 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A

5 EY221 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY222 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY223 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY224 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY225 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY226 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY227 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY228 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY229 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY230 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY231 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY232 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EY233 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EYS01 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EYS02 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EYS03 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EYS04 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EYS05 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EYS06 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EYS07 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EYS08 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 EYS09 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 5 FD101S 3601-001065 FUSE-AXIAL LEAD;125V,3.5A,FAST-ACTING,CE 5 FD102S 3601-001065 FUSE-AXIAL LEAD;125V,3.5A,FAST-ACTING,CE 5 GT01 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT02 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT03 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT04 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT05 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT06 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT07 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT08 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT09 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT10 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT11 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT12 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT17 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT18 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT19 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT21 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT22 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT23 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT24 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT25 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT26 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT27 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT28 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT29 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT30 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT31 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT32 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT33 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT34 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT35 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT37 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT403 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT404 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT405 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT812A AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT813A AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 GT814A AA60-40014A PIN-GT,ASSY;AUTO S.N.A 5 ICR01S 1203-001217 IC-POSI.ADJUST REG.;431,TO-92,3P,4.58MIL 5 L341 2701-000116 INDUCTOR-AXIAL;10uH,10%,4.2x9.8mm 5 L480 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,5 L481 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500, 5 L482 3301-000374 CORE-FERRITE BEAD;AA,3.5x1.0x9.0mm,-,5 L483 2901-000299 FILTER-EMI ON BOARD;-,6A,UL/CSA,-,9x7.5, 5 L492 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500, 5 L493 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500, 5 L494 3301-000374 CORE-FERRITE BEAD;AA,3.5x1.0x9.0mm,-,5 L495 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500, 5 L499 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,5 LS801 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,5 LS802 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,5 LZ107 2701-000142 INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm 5 LZ108 2701-000142 INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm 5 LZ109 2701-000142 INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm

Electrical Parts List

Samsung Electronics 7-23

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

Page 91

5 LZ110 2701-000142 INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm 5 LZ111 2701-000142 INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm 5 LZ112 2701-000142 INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm 5 PCB AA41-00340C PCB-SUB;PCL545R,CEM-1,1L,C,1.6T,330X245, S.N.A 5 Q301 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 5 Q350 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 5 Q351 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 5 Q352 0501-000366 TR-SMALL SIGNAL;KSC2330-Y,NPN,1W,TO-92L, 5 Q381 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 5 Q382 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 5 Q401 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 5 Q402 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 5 Q421 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 5 Q422 0505-000156 FET-SILICON;IRF620,N,200V,5A,0.8ohm,50W, 5 Q432 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T 5 Q435 0501-000369 TR-SMALL SIGNAL;KSC2331-Y,NPN,1000mW,TO5 Q436 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 5 Q451 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 5 Q461 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 5 Q471 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 5 Q472 0505-000156 FET-SILICON;IRF620,N,200V,5A,0.8ohm,50W, 5 Q474 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 5 Q481 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 5 Q482 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T 5 QR401S 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T 5 QS801 0501-000369 TR-SMALL SIGNAL;KSC2331-Y,NPN,1000mW,TO5 R301 2004-001897 R-METAL(S);43.2Kohm,1%,1/2W,AA,TP,2.5x6. 5 R302 2004-001897 R-METAL(S);43.2Kohm,1%,1/2W,AA,TP,2.5x6. 5 R303 2004-001984 R-METAL(S);26.7Kohm,1%,1/2W,AA,TP,2.4x6. 5 R305 2004-001984 R-METAL(S);26.7Kohm,1%,1/2W,AA,TP,2.4x6. 5 R306 2003-002147 R-METAL OXIDE;3.3OHM,2%,2W,AF,TP,3.9X10M 5 R307 2003-002147 R-METAL OXIDE;3.3OHM,2%,2W,AF,TP,3.9X10M 5 R308 2001-000016 R-CARBON(S);1OHM,5%,1/2W,AA,TP,2.4X6.4MM 5 R310 2003-001024 R-METAL OXIDE(S);150ohm,5%,2W,AF,TP,3.9x 5 R312 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R313 2001-000761 R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R314 2001-000761 R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R332 2001-001107 R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4 5 R333 2001-001107 R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4 5 R334 2001-001107 R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4 5 R350 2001-000878 R-CARBON;6.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R351 2001-000009 R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R352 2001-000837 R-CARBON;51KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R353 2001-000660 R-CARBON;33KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R354 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R355 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R356 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R357 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R358 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R359 2001-000109 R-CARBON(S);470OHM,5%,1/2W,AA,TP,2.4X6.4 5 R360 2001-000723 R-CARBON;4.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R361 2004-001395 R-METAL(S);330Kohm,2%,1/2W,AA,TP,2.4x6.4 5 R362 2004-001395 R-METAL(S);330Kohm,2%,1/2W,AA,TP,2.4x6.4 5 R363 2004-001395 R-METAL(S);330Kohm,2%,1/2W,AA,TP,2.4x6.4 5 R364 2004-001395 R-METAL(S);330Kohm,2%,1/2W,AA,TP,2.4x6.4 5 R365 2004-001395 R-METAL(S);330Kohm,2%,1/2W,AA,TP,2.4x6.4 5 R366 2002-001006 R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7 5 R384 2001-001150 R-CARBON(S);470KOHM,5%,1/2W,AA,TP,2.4X6. 5 R385 2001-000577 R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R386 2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R387 2001-000009 R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R388 2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R389 2001-000577 R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R397 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R405 2009-001109 R-TEMPERATURE;240ohm,5%,1/4W,AA,TP,2.3x6 5 R406 2004-001983 R-METAL(S);2.49Kohm,1%,1/2W,AA,TP,2.4x6. 5 R407 2004-001897 R-METAL(S);43.2Kohm,1%,1/2W,AA,TP,2.5x6. 5 R408 2004-001402 R-METAL(S);6.8Kohm,1%,1/2W,AA,TP,2.4x6.4 5 R409 2001-001178 R-CARBON(S);680OHM,5%,1/2W,AA,TP,2.4X6.4 5 R410 2001-000052 R-CARBON(S);3.3KOHM,5%,1/2W,AA,TP,2.4X6. 5 R411 2008-001113 R-FUSIBLE(S);0.22ohm,10%,2W,AG,TP,3.9x12 5 R412 2001-000362 R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R413 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M 5 R414 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R415 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R416 2001-000006 R-CARBON;2.4KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R417 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM

5 R418 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R419 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R420 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R421 2003-002159 R-METAL OXIDE;150OHM,5%,1W,AG,TP,4.3X12M 5 R422 2001-000028 R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4 5 R423 2001-000613 R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R424 2008-001022 R-FUSIBLE(S);10ohm,5%,1W,AF,TP,2.5x6.5mm 5 R425 2003-000417 R-METAL OXIDE(S);1.2Kohm,5%,3W,AA,TP,6x1 5 R426 2003-002153 R-METAL OXIDE;4.7OHM,5%,2W,AG,TP,6X16MM 5 R427 2003-002279 R-METAL OXIDE(S);1.2OHM,5%,2W,AG,TP,5.6X 5 R427A 2003-002279 R-METAL OXIDE(S);1.2OHM,5%,2W,AG,TP,5.6X 5 R428 2002-001017 R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9 5 R428A 2002-001017 R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9 5 R429 2003-000586 R-METAL OXIDE(S);22Kohm,5%,2W,AF,TP,4x12 5 R430 2003-000586 R-METAL OXIDE(S);22Kohm,5%,2W,AF,TP,4x12 5 R432 2001-001144 R-CARBON(S);4.7KOHM,5%,1/2W,AA,TP,2.4X6. 5 R433 2001-001155 R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6. 5 R434 2001-001093 R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6. 5 R435 2001-001107 R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4 5 R436 2001-001182 R-CARBON(S);7.5KOHM,5%,1/2W,AA,TP,2.4X6. 5 R437 2008-001087 R-FUSIBLE(S);1.8ohm,5%,2W,AG,TP,3.9x12mm 5 R438 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6. 5 R439 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6. 5 R440 2008-000282 R-FUSIBLE;0.47ohm,5%,1W,AA,TP,3.9x12mm 5 R441 2008-000253 R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m 5 R442 2008-000253 R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m 5 R442A 2008-000253 R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m 5 R443 2003-002156 R-METAL OXIDE;560OHM,5%,2W,AG,TP,6X16MM 5 R443A 2003-002156 R-METAL OXIDE;560OHM,5%,2W,AG,TP,6X16MM 5 R444 2003-000995 R-METAL OXIDE(S);3.3Kohm,5%,2W,AF,TP,3.9 5 R445 2008-000253 R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m 5 R446 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R447 2008-000253 R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m 5 R448 2001-000258 R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R449 2008-000253 R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m 5 R454 2001-000761 R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R455 2001-000761 R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R456 2001-000761 R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R458 2001-000577 R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R459 2001-001192 R-CARBON(S);820OHM,5%,1/2W,AA,TP,2.4X6.4 5 R460 2003-002044 R-METAL OXIDE(S);100ohm,5%,1W,AF,TP,2.5x 5 R461 2001-000613 R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R462 2008-001145 R-FUSIBLE;4.7OHM,5%,1/2W,AF,TP,2.5X6.5MM 5 R463 2003-001024 R-METAL OXIDE(S);150ohm,5%,2W,AF,TP,3.9x 5 R464 2003-002158 R-METAL OXIDE;0.68OHM,5%,1W,AG,TP,4.3X12 5 R465 2008-000253 R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m 5 R466 2004-001386 R-METAL(S);16.9Kohm,1%,1/2W,AA,TP,2.4x6. 5 R467 2004-001986 R-METAL(S);35.7Kohm,1%,1/2W,AA,TP,2.4x6. 5 R468 2001-001122 R-CARBON(S);3.9KOHM,5%,1/2W,AA,TP,2.4X6. 5 R469 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M 5 R470 2001-000028 R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4 5 R471 2004-002011 R-METAL(S);110Kohm,1%,1/2W,AA,TP,2.4x6.4 5 R472 2008-000252 R-FUSIBLE(S);0.47ohm,10%,1/2W,AF,TP,2.5x 5 R473 2004-001395 R-METAL(S);330Kohm,2%,1/2W,AA,TP,2.4x6.4 5 R474 2001-000009 R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R475 2001-000812 R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R482 2001-001031 R-CARBON;91KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R483 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R484 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R485 2008-001137 R-FUSIBLE(S);3.3ohm,5%,1W,AF,TP,3.9x10mm 5 R486 2008-001018 R-FUSIBLE(S);0.47ohm,10%,2W,AF,TP,3.9x10 5 R487 2001-000924 R-CARBON;680OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R488 2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R489 2001-000800 R-CARBON;5.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R490 2001-000800 R-CARBON;5.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R491 2001-000745 R-CARBON;4.7OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R492 2001-000508 R-CARBON;220KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R494 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R495 2001-000262 R-CARBON;1.8MOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 R501 2004-001376 R-METAL(S);11Kohm,1%,1/2W,AA,TP,2.4x6.4m 5 R502 2004-001369 R-METAL(S);1.2Kohm,1%,1/2W,AA,TP,2.4x6.4 5 R856 2001-001155 R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6. 5 R857 2001-001155 R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6. 5 RFS802 2008-000294 R-FUSIBLE(S);33ohm,5%,2W,AF,TP,3.9x10mm 5 RFZ19 2008-000261 R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm 5 RFZ20 2008-000261 R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm 5 RFZ21 2008-000261 R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm

Electrical Parts List

7-24 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

Page 92

5 RFZ22 2008-000261 R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm 5 RFZ50 2008-000261 R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm 5 RFZ51 2008-000261 R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm 5 RFZ52 2008-000261 R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm 5 RFZ53 2008-000261 R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm 5 RR401S 2004-001892 R-METAL(S);162Kohm,1%,1/2W,AA,TP,2.5x6.5 5 RR402S 2103-001086 VR-SEMI;100KOHM,25%,0.3W,TOP 5 RR403S 2004-004001 R-METAL(S);180Kohm,1%,1/2W,AA,TP,2.5x6.5 5 RR404S 2004-004046 R-METAL(S);430Kohm,1%,1/2W,AA,TP,2.5x6.5 5 RR405S 2004-004046 R-METAL(S);430Kohm,1%,1/2W,AA,TP,2.5x6.5 5 RR406S 2004-001892 R-METAL(S);162Kohm,1%,1/2W,AA,TP,2.5x6.5 5 RR407S 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RR408S 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RR409S 2001-000005 R-CARBON;390ohm,5%,1/8W,AA,TP,1.8x3.2mm 5 RR410S 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RR471S 2103-001024 VR-SEMI;50Kohm,25%,0.3W,TOP 5 RS801 2001-001093 R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6. 5 RS803 2001-001159 R-CARBON(S);510OHM,5%,1/2W,AA,TP,2.4X6.4 5 RS804 2001-001182 R-CARBON(S);7.5KOHM,5%,1/2W,AA,TP,2.4X6. 5 RS805 2001-001107 R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4 5 RS806 2001-001159 R-CARBON(S);510OHM,5%,1/2W,AA,TP,2.4X6.4 5 RS807 2001-001192 R-CARBON(S);820OHM,5%,1/2W,AA,TP,2.4X6.4 5 RS808 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4 5 RS809 2001-001099 R-CARBON(S);2.7KOHM,5%,1/2W,AA,TP,2.4X6. 5 RZ104 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4 5 RZ105 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4 5 RZ106 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4 5 RZ107 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4 5 RZ108 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4 5 RZ109 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4 5 RZ110 2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RZ111 2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RZ112 2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RZ113 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RZ114 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RZ115 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RZ116 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RZ117 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RZ118 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RZ123 2003-002148 R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M 5 RZ124 2003-002148 R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M 5 RZ125 2003-002148 R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M 5 RZ126 2003-002148 R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M 5 RZ127 2003-002148 R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M 5 RZ128 2003-002148 R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M 5 RZ129 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x 5 RZ129A 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x 5 RZ130 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x 5 RZ130A 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x 5 RZ131 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x 5 RZ131A 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x 5 RZ132 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x 5 RZ132A 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x 5 RZ133 2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RZ134 2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RZ135 2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RZ136 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RZ137 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RZ138 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RZ139 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RZ140 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RZ141 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 RZ142 2003-002148 R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M 5 RZ143 2003-002148 R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M 5 RZ144 2003-002148 R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M 5 RZ145 2003-002148 R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M 5 RZ146 2003-002148 R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M 5 RZ147 2003-002148 R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M 5 RZ148 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x 5 RZ148A 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x 5 RZ149 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x 5 RZ149A 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x 5 VP811S 1405-000152 VARISTOR;560V,2500A,14x8.5mm,TP 4 3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G 4 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb S.N.A 3 AA98-01177A ASSY K/D-P/MATERIAL;PJTV,J52A S.N.A 4 CHASIS AA69-01403A WRAP VINYL-PACKING;SKD CHASSIS,LDPE,T0.0 S.N.A

4 CHASIS AA63-10007C BAND-PP;W18,CLEA,1G S.N.A 3 AA98-00289J ASSY K/D-CHASSIS PART;54J9P54A SEA S.N.A 4 PM+HC 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A 4 PP+HC 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A 4 PS+HC 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A 4 AA61-00504B HOLDER-CHASSIS;43,54,62J8,ABS,-,-,-,GRAY S.N.A 3 AA94-07625Q ASSY PCB MAIN;PCL5415R3C/XAA,P54A,U.S.A S.N.A 4 C664 2401-001068 C-AL;3300uF,20%,50V,GP,BK,22x40,10 4 C665 2401-000737 C-AL;2200uF,20%,50V,GP,TP,18x35.5,7 4 CG-BOT AA63-00397B SHIELD CASE-BOT;PRJT,P54A,SPTE,T0.5,-,-, S.N.A 4 CG-TOP AA63-00396B SHIELD CASE-TOP;PRJT,P54A,SPTE,T0.5,-,-, S.N.A 4 CN01 3703-001150 CONNECTOR-DIN;32P,2R,FEMALE,STRAIGHT,AUF 4 CN02 3703-001150 CONNECTOR-DIN;32P,2R,FEMALE,STRAIGHT,AUF 4 CNM01 3703-001187 CONNECTOR-DIN;64P,2R,FEMALE,STRAIGHT,AU 4 CNT01 3710-001208 CONNECTOR-SOCKET;32P,2R,2.54mm,STRAIGHT, 4 CNT02 3710-001208 CONNECTOR-SOCKET;32P,2R,2.54mm,STRAIGHT, 4 CNZ01 3703-001150 CONNECTOR-DIN;32P,2R,FEMALE,STRAIGHT,AUF 4 DW-BOT AA63-00395B SHIELD CASE-BOT;PRJT,P54A,SPTE,T0.5,-,-, S.N.A 4 DW-TOP AA63-00394B SHIELD CASE-TOP;PRJT P54A,SPTE,T0.5,-,-, S.N.A 4 IC102 AA96-00110C ASSY H/S;-,-,AA62-30013K,SI-3090C,- S.N.A 5 1203-000577 IC-VOLTAGE REGULATOR;3090,ZIP,5P,-,PLAST 5 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A 5 AA62-30013K HEAT SINK-ES;-,-,-,-,44/18,-,WHT,A6063 E S.N.A 4 IC104 AA96-00110A ASSY H/S;-,-,AA62-30013K,SI-3050C,- S.N.A 5 1203-000203 IC-POSI.ADJUST REG.;3050,TO-220,5P,-,PLA 5 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A 5 AA62-30013K HEAT SINK-ES;-,-,-,-,44/18,-,WHT,A6063 E S.N.A 4 IC106 AA96-00110A ASSY H/S;-,-,AA62-30013K,SI-3050C,- S.N.A 4 IC655 AA96-00038A ASSY H/S;-,SOUND AMP,AA62-30173E,TDA7265 S.N.A 5 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A 5 1201-001026 IC-POWER AMP;7265,ZIP,11P,19.6MIL,DUAL,1 5 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A 5 AA62-30173E HEAT SINK-ES;-,-,T1.0,WHITE,SCREW-HOLE(1 S.N.A 4 ICZ101 AA96-50321B ASSY H/S;-,-,AA62-30013G,SI3050C,- S.N.A 5 1203-000203 IC-POSI.ADJUST REG.;3050,TO-220,5P,-,PLA 5 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A 5 AA62-30013G HEAT SINK-ES;-,AL,-,WHT,55(18),-,-,- S.N.A 4 ICZ102 1203-000119 IC-NEGA.FIXED REG.;7905,TO-220,3P,-,PLAS 4 L601 AA29-00004A FILTER LINE NOISE;-,20UH,3A,AC80-260V,TQ 4 L602 AA27-10001C COIL CHOKE;-,100uH,K,-,5.0A,ST,700UH-K(R 4 MI-BOT AA63-00397B SHIELD CASE-BOT;PRJT,P54A,SPTE,T0.5,-,-, S.N.A 4 MI-TOP AA63-00396B SHIELD CASE-TOP;PRJT,P54A,SPTE,T0.5,-,-, S.N.A 4 SO-BOT AA63-00397B SHIELD CASE-BOT;PRJT,P54A,SPTE,T0.5,-,-, S.N.A 4 TU103S AA59-00164A MODULE-RF,SPLITTER;-,UMX-NT-005,-,2IN/3O 4 AA39-20010F LEAD CONNECTOR-ASSY;,1P,YFH800-01,S,700, 4 3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G 4 AA97-03131A ASSY ROBOT-MAIN;PCL5415R3C/XAA,P54A,U.S. S.N.A 5 CN201 3711-003974 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG 5 CN501 3711-003051 CONNECTOR-HEADER;BOX,8P,1R,2.5MM,STRAIGH 5 CN801 3711-003975 CONNECTOR-HEADER;BOX,14P,1R,2.5mm,STRAIG 5 CN901 3711-003973 CONNECTOR-HEADER;BOX,11P,1R,2.5mm,STRAIG 5 CNZ02 3711-003052 CONNECTOR-HEADER;BOX,10P,1R,2.5MM,STRAIG 5 IC103 AA96-50147B ASSY H/S;-,TR,AA62-30012B,KA7808,- S.N.A 6 1203-000293 IC-POSI.FIXED REG.;7808,TO-220,3P,-,PLAS 6 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A 6 AA62-30012B HEAT SINK-ES;-,A6063 EXTR,-,-,45(16) T02 S.N.A 5 IC107 AA96-00111L ASSY H/S;-,-,AA62-30013L,KA78R12,- S.N.A 6 1203-000165 IC-POSI.ADJUST REG.;78R12,TO-220,4P,-,PL 6 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A 6 AA62-30013L HEAT SINK-ES;-,-,-,-,44/22,-,WHT,-,-,-,- S.N.A 5 TU101S AA40-00032A TUNER-F/S;TCPN3081PC09A(S),NTSC,TR,181CH 5 TU102S AA40-00032A TUNER-F/S;TCPN3081PC09A(S),NTSC,TR,181CH 5 AA97-04484A ASSY AUTO-MAIN;PCL5415R3C/XAA,P54A,U.S.A 6 C100 2401-001397 C-AL;470uF,20%,25V,GP,TP,10x16,5 6 C101 2401-001397 C-AL;470uF,20%,25V,GP,TP,10x16,5 6 C102 2401-000611 C-AL;1uF,20%,50V,WT,TP,5x11,5 6 C103 2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5 6 C104 2401-000603 C-AL;1uF,20%,50V,GP,TP,5x11,5 6 C105 2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5 6 C106 2401-002463 C-AL;470uF,20%,16V,GP,TP,8x11.5,5 6 C107 2401-002463 C-AL;470uF,20%,16V,GP,TP,8x11.5,5 6 C110 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm 6 C111 2201-000180 C-CERAMIC,DISC;10nF,10%,50V,Y5V,TP,7x3,5 6 C117 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 C118 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m 6 C119 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm 6 C120 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

Electrical Parts List

Samsung Electronics 7-25

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

Page 93

6 C121 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm 6 C122 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm 6 C123 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m 6 C124 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m 6 C125 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m 6 C126 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm 6 C127 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m 6 C128 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 C129 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5 6 C130 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5 6 C131 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm 6 C132 2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5 6 C133 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m 6 C134 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m 6 C135 2401-003034 C-AL;220uF,20%,16V,WT,TP,8x11.5,5 6 C136 2401-002463 C-AL;470uF,20%,16V,GP,TP,8x11.5,5 6 C137 2401-001397 C-AL;470uF,20%,25V,GP,TP,10x16,5 6 C138 2401-000832 C-AL;220uF,20%,25V,GP,TP,8x11.5,5 6 C140 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m 6 C142 2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5 6 C144 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP 6 C145 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP 6 C147 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP 6 C149 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP 6 C150 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP 6 C151 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP 6 C152 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP 6 C153 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 C154 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 C155 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 C157 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP 6 C191 2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5 6 C666 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m 6 C667 2401-000603 C-AL;1uF,20%,50V,GP,TP,5x11,5 6 C668 2401-000603 C-AL;1uF,20%,50V,GP,TP,5x11,5 6 C676 2401-001192 C-AL;33uF,20%,50V,GP,TP,6.3x11,5 6 C686 2301-000192 C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm 6 C687 2301-000192 C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm 6 C688 2401-000192 C-AL;1000uF,20%,50V,GP,TP,16x25,7.5 6 C689 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m 6 C690 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m 6 C691 2401-000192 C-AL;1000uF,20%,50V,GP,TP,16x25,7.5 6 C701 2401-000027 C-AL;4.7uF,20%,50V,GP,TP,5x11,5 6 C801 2401-002300 C-AL;47uF,20%,50V,GP,TP,6.3x11,5 6 C901 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm 6 C902 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 C903 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 CN101 3711-002642 CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH 6 CN601 3711-002643 CONNECTOR-HEADER;BOX,4P,1R,2.5mm,STRAIGH 6 CN902 3711-002642 CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH 6 CNY01 3711-002645 CONNECTOR-HEADER;BOX,6P,1R,2.5mm,STRAIGH 6 CZ101 2401-000832 C-AL;220uF,20%,25V,GP,TP,8x11.5,5 6 CZ102 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5 6 CZ103 2401-000689 C-AL;2200uF,20%,16V,GP,TP,13x25,5 6 CZ105 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 CZ106 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 CZ107 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 CZ109 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP 6 CZ110 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP 6 D603 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 6 D604 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 6 D605 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 6 D606 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 6 D664 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T 6 D665 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 6 D701 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 6 D702 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 6 D703 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 6 DZ665 0403-001039 DIODE-ZENER;MA2560,56V,52-60V,1W,DO-41,T 6 DZ701 0403-001140 DIODE-ZENER;RD10ESAB-T4,10V,9.19-10.30V, 6 DZ801 0403-000700 DIODE-ZENER;TZP33A,33V,31-35V,1W,DO-41,T 6 EL01 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL02 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL03 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL05 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL06 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL07 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A

6 EL08 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL09 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL10 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL11 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL12 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL13 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL14 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL15 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL16 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL17 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL18 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL19 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL20 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL21 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL22 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL23 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL24 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL25 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL26 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL27 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL28 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL29 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL30 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL31 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EL32 AA60-40011B EYELET;ID2.2,OD3.2,BSP S.N.A 6 EY01 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 6 EY02 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 6 EY03 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 6 EY04 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 6 EY05 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 6 EY06 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 6 EY07 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 6 EY08 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 6 EY09 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 6 EY10 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 6 EY11 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 6 EY12 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 6 EY13 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 6 EY14 AA60-40011A EYELET;ID2.0,OD2.8,BST S.N.A 6 GTM02 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 6 GTM04 AA60-40014A PIN-GT,ASSY;AUTO S.N.A 6 L100 2701-000159 INDUCTOR-AXIAL;22uH,10%,4.2x9.8mm 6 L101 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm 6 L102 2701-000159 INDUCTOR-AXIAL;22uH,10%,4.2x9.8mm 6 L103 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm 6 L104 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm 6 L105 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm 6 L107 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm 6 L108 2701-001007 INDUCTOR-AXIAL;24uH,10%,4.5x14mm 6 L110 2701-000116 INDUCTOR-AXIAL;10uH,10%,4.2x9.8mm 6 L111 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500, 6 L112 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500, 6 L113 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,6 L603 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500, 6 L604 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500, 6 L605 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500, 6 L901 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm 6 LDZ101 0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500 6 LDZ102 0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500 6 LZ101 2701-000142 INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm 6 LZ102 2701-000142 INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm 6 LZ103 2701-001030 INDUCTOR-AXIAL;43uH,10%,5x14mm 6 LZ104 2701-001030 INDUCTOR-AXIAL;43uH,10%,5x14mm 6 PCB AA41-00332D PCB-MAIN;PCL545R,FR-1,1L,D,1.6T,330X245, S.N.A 6 Q601 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 6 Q666 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 6 Q668 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 6 Q701 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 6 Q702 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 6 R102 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM 6 R103 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM 6 R104 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4 6 R105 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM 6 R106 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM 6 R107 2001-000739 R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 R110 2001-000739 R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 R111 2001-000037 R-CARBON(S);330OHM,5%,1/2W,AA,TP,2.4X6.4

Electrical Parts List

7-26 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

Page 94

6 R112 2001-000739 R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 R113 2001-000739 R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 R115 2001-000869 R-CARBON;56OHM,5%,1/8W,AA,TP,1.8X3.2MM 6 R117 2001-000938 R-CARBON;68OHM,5%,1/8W,AA,TP,1.8X3.2MM 6 R602 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 R603 2001-001097 R-CARBON(S);2.4KOHM,5%,1/2W,AA,TP,2.4X6. 6 R604 2001-001168 R-CARBON(S);6.8KOHM,5%,1/2W,AA,TP,2.4X6. 6 R605 2001-001106 R-CARBON(S);220KOHM,5%,1/2W,AA,TP,2.4X6. 6 R661 2004-001970 R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5 6 R662 2004-001970 R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5 6 R663 2001-000660 R-CARBON;33KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 R664 2004-001970 R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5 6 R665 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4 6 R666 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4 6 R669 2001-001121 R-CARBON(S);3.6KOHM,5%,1/2W,AA,TP,2.4X6. 6 R670 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6. 6 R671 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4 6 R672 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4 6 R673 2001-001086 R-CARBON(S);18KOHM,5%,1/2W,AA,TP,2.4X6.4 6 R673A 2001-001144 R-CARBON(S);4.7KOHM,5%,1/2W,AA,TP,2.4X6. 6 R681 2004-001970 R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5 6 R682 2004-002019 R-METAL(S);33Kohm,1%,1/2W,AA,TP,2.5x6.5m 6 R683 2004-002019 R-METAL(S);33Kohm,1%,1/2W,AA,TP,2.5x6.5m 6 R685 2004-001390 R-METAL(S);1Kohm,2%,1/2W,AA,TP,2.4x6.4mm 6 R686 2004-001390 R-METAL(S);1Kohm,2%,1/2W,AA,TP,2.4x6.4mm 6 R687 2001-001146 R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4 6 R689 2001-001146 R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4 6 R690 2001-001144 R-CARBON(S);4.7KOHM,5%,1/2W,AA,TP,2.4X6. 6 R691 2001-001144 R-CARBON(S);4.7KOHM,5%,1/2W,AA,TP,2.4X6. 6 R701 2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 R702 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 R703 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 R704 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 R888 2003-001098 R-METAL OXIDE(S);22Kohm,5%,3W,AA,TP,6x16 6 RF101 2008-001116 R-FUSIBLE(S);0.68ohm,10%,2W,AG,TP,3.9x12 6 RF104 2008-000266 R-FUSIBLE(S);1ohm,5%,2W,AF,TP,3.9x10mm 6 RF121 2008-000253 R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m 6 RZ01 2001-000037 R-CARBON(S);330OHM,5%,1/2W,AA,TP,2.4X6.4 6 RZ02 2001-000739 R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RZ101 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RZ102 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 4 AA95-02023A ASSY SUB-PCB,MICOM;PCL545R,P54A , 5 CN901 3703-001175 CONNECTOR-DIN;64P,2R,MALE,ANGLE,AU 5 IC901 AA09-00101A IC MICOM;Z9037116PSC-OTP,Z9037116PSC-OTP 5 IC902 1103-001213 IC-EEPROM;M24C16-WBN6,2048x8Bit,SDIP,8P, 5 L903 2701-001032 INDUCTOR-AXIAL;100uH,10%,5x14mm 5 X901 2801-003224 CRYSTAL-UNIT;32.768KHz,20ppm,28-AAY,12.5 5 AA97-05187A ASSY AUTO-SUB;PCL545R,P54A S.N.A 6 C901 2201-000292 C-CERAMIC,DISC;1nF,10%,50V,Y5P,TP,5x3.5, 6 C904 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 C905 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 C906 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 C907 2301-000111 C-FILM,PEF;1.8nF,5%,50V,TP,6.5x3.0x5.5mm 6 C908 2201-000292 C-CERAMIC,DISC;1nF,10%,50V,Y5P,TP,5x3.5, 6 C909 2201-000292 C-CERAMIC,DISC;1nF,10%,50V,Y5P,TP,5x3.5, 6 C910 2201-000292 C-CERAMIC,DISC;1nF,10%,50V,Y5P,TP,5x3.5, 6 C911 2306-000122 C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m 6 C912 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 C913 2201-000193 C-CERAMIC,DISC;0.01nF,0.25pF,50V,NP0,TP, 6 C914 2201-000578 C-CERAMIC,DISC;0.047nF,5%,50V,UJ,TP,5x3. 6 C915 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 C916 2401-002183 C-AL;220uF,20%,16V,GP,TP,8x9,5mm 6 C917 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 C918 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 C919 2401-000486 C-AL;10uF,20%,50V,GP,TP,6.3x7mm,5 6 C920 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 C925 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 C926 2401-000486 C-AL;10uF,20%,50V,GP,TP,6.3x7mm,5 6 C927 2201-000578 C-CERAMIC,DISC;0.047nF,5%,50V,UJ,TP,5x3. 6 C928 2201-000578 C-CERAMIC,DISC;0.047nF,5%,50V,UJ,TP,5x3. 6 F901 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,6 IC903 1203-001274 IC-VOL. DETECTOR;7545,TO-92,3P,-,PLASTIC 6 IC904 1203-000515 IC-VOL. DETECTOR;7042,TO-92,3P,177MIL,PL 6 L902 2702-001094 INDUCTOR-RADIAL;10uH,10%,6x4mm 6 L910 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,6 L911 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,6 L912 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

6 L913 2702-001094 INDUCTOR-RADIAL;10uH,10%,6x4mm 6 Q901 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 6 Q902 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 6 Q903 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 6 Q909 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T 6 Q910 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 6 Q911 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 6 AA97-06149A ASSY SMD-SUB;PCL545R,P54A S.N.A 7 C902 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 C903 2203-000595 C-CERAMIC,CHIP;0.22nF,5%,50V,NP0,TP,2012 7 C921 2203-000595 C-CERAMIC,CHIP;0.22nF,5%,50V,NP0,TP,2012 7 D901 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8 7 D902 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8 7 D903 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8 7 D904 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8 7 D905 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8 7 DZ903 0403-001016 DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m 7 DZ904 0403-001016 DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m 7 DZ905 0403-001016 DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m 7 DZ911 0403-000620 DIODE-ZENER;RLZ5.6B,5.6,500mW,LL-34,TP 7 DZ912 0403-000620 DIODE-ZENER;RLZ5.6B,5.6,500mW,LL-34,TP 7 DZ913 0403-000620 DIODE-ZENER;RLZ5.6B,5.6,500mW,LL-34,TP 7 DZ916 0403-001016 DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m 7 DZ917 0403-001016 DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m 7 DZ918 0403-001016 DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m 7 PCB AA41-00338B PCB-MICOM;PCL545R,FR-4,2L,B,1.6T,180X245 S.N.A 7 R901 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 7 R902 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608 7 R903 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 R904 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608 7 R905 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 7 R907 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 R908 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 R911 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608 7 R912 2007-000076 R-CHIP;330ohm,5%,1/16W,DA,TP,1608 7 R913 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608 7 R914 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 R915 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 R916 2007-000081 R-CHIP;2.7Kohm,5%,1/16W,DA,TP,1608 7 R917 2007-000081 R-CHIP;2.7Kohm,5%,1/16W,DA,TP,1608 7 R918 2007-000869 R-CHIP;4.7Kohm,1%,1/16W,DA,TP,1608 7 R919 2007-000458 R-CHIP;18Kohm,5%,1/16W,DA,TP,1608 7 R920 2007-000077 R-CHIP;470ohm,5%,1/16W,DA,TP,1608 7 R921 2007-000087 R-CHIP;6.8Kohm,5%,1/16W,DA,TP,1608 7 R922 2007-000087 R-CHIP;6.8Kohm,5%,1/16W,DA,TP,1608 7 R923 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 R924 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 R925 2007-000123 R-CHIP;1.5Kohm,5%,1/16W,DA,TP,1608 7 R926 2007-000123 R-CHIP;1.5Kohm,5%,1/16W,DA,TP,1608 7 R927 2007-000123 R-CHIP;1.5Kohm,5%,1/16W,DA,TP,1608 7 R928 2007-000081 R-CHIP;2.7Kohm,5%,1/16W,DA,TP,1608 7 R929 2007-000123 R-CHIP;1.5Kohm,5%,1/16W,DA,TP,1608 7 R930 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 7 R931 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 7 R932 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 7 R934 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 R935 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 R936 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 R937 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 R945 2007-001093 R-CHIP;620ohm,5%,1/16W,DA,TP,1608 7 R946 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608 7 R947 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608 7 R948 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 R949 2007-000082 R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1608 7 R950 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 R951 2007-000082 R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1608 7 R958 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 R959 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 R960 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 R961 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 7 R962 2007-000098 R-CHIP;56Kohm,5%,1/16W,DA,TP,1608 7 R963 2007-000082 R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1608 7 R964 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 7 R965 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 7 R967 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 R968 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 R969 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608

Electrical Parts List

Samsung Electronics 7-27

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

Page 95

7 R971 2007-000086 R-CHIP;5.6Kohm,5%,1/16W,DA,TP,1608 7 R972 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608 7 R973 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 7 R974 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 R976 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 R977 2007-000305 R-CHIP;10Mohm,5%,1/16W,DA,TP,1608 7 R978 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608 7 R981 2007-000122 R-CHIP;1.2Kohm,5%,1/16W,DA,TP,1608 7 R982 2007-000122 R-CHIP;1.2Kohm,5%,1/16W,DA,TP,1608 7 R983 2007-000122 R-CHIP;1.2Kohm,5%,1/16W,DA,TP,1608 5 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb S.N.A 5 0202-001167 SOLDER-CREAM;RX3603-2330HO,S45A,PASTE,SN S.N.A 4 AA95-02024A ASSY SUB-PCB,CG MDL;SVP-54T6SR,P54A , 5 CN01 3703-001124 CONNECTOR-DIN;32P,2R,MALE,ANGLE,AUF 5 CN04 3711-003601 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,ANGLE, 5 L01 2701-001030 INDUCTOR-AXIAL;43uH,10%,5x14mm 5 AA97-07268A ASSY SMD;SVP-54T6SR,P54A, , , S.N.A 6 C01 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4 6 C02 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C03 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4 6 C04 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C05 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C07 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4 6 C08 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C10 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C11 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C12 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C13 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C14 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C15 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,6 C17 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4 6 C18 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C19 2402-001049 C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4 6 C20 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C21 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C22 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C23 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C24 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C25 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C26 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C27 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C28 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C29 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C30 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C31 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C32 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C33 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C34 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C35 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C36 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C40 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C41 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C42 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4 6 C43 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C44 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C45 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4 6 C46 2203-000357 C-CERAMIC,CHIP;0.15nF,5%,50V,NP0,TP,1608 6 C47 2203-001071 C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,160 6 C48 2203-000041 C-CERAMIC,CHIP;0.01nF,0.25pF,50V,NP0,TP, 6 C49 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C50 2203-000357 C-CERAMIC,CHIP;0.15nF,5%,50V,NP0,TP,1608 6 C51 2203-001071 C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,160 6 C52 2203-000041 C-CERAMIC,CHIP;0.01nF,0.25pF,50V,NP0,TP, 6 C53 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C54 2203-000357 C-CERAMIC,CHIP;0.15nF,5%,50V,NP0,TP,1608 6 C55 2203-001071 C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,160 6 C56 2203-000041 C-CERAMIC,CHIP;0.01nF,0.25pF,50V,NP0,TP, 6 C57 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C58 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C59 2203-000357 C-CERAMIC,CHIP;0.15nF,5%,50V,NP0,TP,1608 6 C60 2203-001071 C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,160 6 C61 2203-000041 C-CERAMIC,CHIP;0.01nF,0.25pF,50V,NP0,TP, 6 C62 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C63 2203-000357 C-CERAMIC,CHIP;0.15nF,5%,50V,NP0,TP,1608 6 C64 2203-001071 C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,160 6 C65 2203-000041 C-CERAMIC,CHIP;0.01nF,0.25pF,50V,NP0,TP, 6 C66 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

6 C67 2203-000357 C-CERAMIC,CHIP;0.15nF,5%,50V,NP0,TP,1608 6 C68 2203-001071 C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,160 6 C69 2203-000041 C-CERAMIC,CHIP;0.01nF,0.25pF,50V,NP0,TP, 6 C70 2203-001083 C-CERAMIC,CHIP;0.005nF,0.1pF,50V,NP0,TP, 6 C71 2203-001083 C-CERAMIC,CHIP;0.005nF,0.1pF,50V,NP0,TP, 6 C72 2203-001083 C-CERAMIC,CHIP;0.005nF,0.1pF,50V,NP0,TP, 6 C73 2203-001083 C-CERAMIC,CHIP;0.005nF,0.1pF,50V,NP0,TP, 6 C74 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4 6 C75 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C76 2203-001034 C-CERAMIC,CHIP;5.6nF,10%,50V,X7R,TP,1608 6 C77 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 6 C78 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C79 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C80 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C81 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C82 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C83 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C84 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C86 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C87 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C88 2203-001245 C-CERAMIC,CHIP;0.082nF,5%,50V,NP0,TP,201 6 C89 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 6 C90 2203-000575 C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012 6 C91 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608, 6 C92 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 6 C93 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4 6 D01 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP 6 D02 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP 6 D03 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP 6 D04 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP 6 D05 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP 6 DZ01 0403-001016 DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m 6 DZ02 0403-001016 DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m 6 DZ03 0403-001016 DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m 6 DZ04 0403-001016 DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m 6 EF01 2901-000229 FILTER-EMI SMD;50V,0.3A,-,22000pF,4.5x3. 6 EF02 2901-000229 FILTER-EMI SMD;50V,0.3A,-,22000pF,4.5x3. 6 EF03 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 6 EF04 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 6 EF05 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 6 EF06 2901-000226 FILTER-EMI SMD;25V,0.3A,-,100pF,3.2x1.25 6 EF07 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 6 EF08 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 6 EF09 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 6 EF10 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 6 EF13 2901-000226 FILTER-EMI SMD;25V,0.3A,-,100pF,3.2x1.25 6 EF14 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 6 IC01 AA13-00104A IC ASIC;SDC11,SVP-54T6SR,208P,-0.3VTO3.8 6 IC02 1203-002302 IC-POSI.FIXED REG.;78RM33D,D-PAK,3P,-,PL 6 IC04 1203-001824 IC-VOL. DETECTOR;7042,SOT-89,3P,-,PLASTI 6 IC05 1103-001195 IC-EEPROM;24C64,8Kx8Bit,SOP,8P,150MIL,10 6 IC06 AA09-00032A IC MICOM;,TSC87251G2D-OTP,4.5 TO 5.5V,-, 6 IC08 1201-001520 IC-VIDEO AMP;EL2250CS,SOIC,8P,150MIL,DUA 6 IC09 1001-000164 IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16 6 IC10 1201-001504 IC-OP AMP;072,SOP,8P,150MIL,DUAL,-,PLAST 6 IC11 1201-001504 IC-OP AMP;072,SOP,8P,150MIL,DUAL,-,PLAST 6 IC12 1201-001504 IC-OP AMP;072,SOP,8P,150MIL,DUAL,-,PLAST 6 IC13 1201-001135 IC-OP AMP;324,SOP,ST,14P,150MIL,QUAD,100 6 IC14 0801-002345 IC-CMOS LOGIC;7S04,INVERTER,SOT-353,5P,4 6 IC15 0801-002345 IC-CMOS LOGIC;7S04,INVERTER,SOT-353,5P,4 6 IC16 0801-002345 IC-CMOS LOGIC;7S04,INVERTER,SOT-353,5P,4 6 IC17 1209-001163 IC-PLL;TLC2932IPWLE,SOP,14P,-,PLASTIC 6 OSC01 2804-001479 OSCILLATOR-CLOCK;24MHZ,100PPM,50PF,TP,5V 6 PCB AA41-00529A PCB-CONVERGENCE MODULE;SVP-54T6SR,FR-4,4 S.N.A 6 Q01 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23 6 Q02 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23 6 R01 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 6 R02 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R03 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 6 R04 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R10 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R100 2007-000072 R-CHIP;47ohm,5%,1/16W,DA,TP,1608 6 R101 2007-000072 R-CHIP;47ohm,5%,1/16W,DA,TP,1608 6 R102 2007-000072 R-CHIP;47ohm,5%,1/16W,DA,TP,1608 6 R103 2007-000072 R-CHIP;47ohm,5%,1/16W,DA,TP,1608 6 R109 2007-000072 R-CHIP;47ohm,5%,1/16W,DA,TP,1608 6 R11 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608

Electrical Parts List

7-28 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

Page 96

6 R110 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R111 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608 6 R117 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608 6 R118 2007-000123 R-CHIP;1.5Kohm,5%,1/16W,DA,TP,1608 6 R119 2007-000355 R-CHIP;12KOHM,5%,1/10W,DA,TP,2012 6 R12 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R120 2007-000856 R-CHIP;4.3KOHM,1%,1/10W,DA,TP,2012 6 R121 2007-000109 R-CHIP;1Mohm,5%,1/16W,DA,TP,1608 6 R122 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R123 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R124 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R125 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R126 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R127 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R13 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R134 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608 6 R14 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 6 R15 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 6 R16 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 6 R17 2007-000122 R-CHIP;1.2Kohm,5%,1/16W,DA,TP,1608 6 R18 2007-000381 R-CHIP;13Kohm,5%,1/16W,DA,TP,1608 6 R19 2007-001056 R-CHIP;6.2Kohm,5%,1/16W,DA,TP,1608 6 R20 2007-000080 R-CHIP;2Kohm,5%,1/16W,DA,TP,1608 6 R21 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R22 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 6 R23 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R28 2007-001163 R-CHIP;75OHM,1%,1/10W,DA,TP,2012 6 R29 2007-001163 R-CHIP;75OHM,1%,1/10W,DA,TP,2012 6 R30 2007-000122 R-CHIP;1.2Kohm,5%,1/16W,DA,TP,1608 6 R32 2007-000122 R-CHIP;1.2Kohm,5%,1/16W,DA,TP,1608 6 R33 2007-000028 R-CHIP;39OHM,5%,1/10W,DA,TP,2012 6 R34 2007-000028 R-CHIP;39OHM,5%,1/10W,DA,TP,2012 6 R37 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R38 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R39 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R40 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R41 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R42 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R43 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R44 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R45 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 6 R46 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R47 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R48 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R49 2007-000080 R-CHIP;2Kohm,5%,1/16W,DA,TP,1608 6 R50 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 6 R51 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R52 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R53 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R54 2007-000080 R-CHIP;2Kohm,5%,1/16W,DA,TP,1608 6 R55 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 6 R56 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R57 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R58 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R59 2007-000080 R-CHIP;2Kohm,5%,1/16W,DA,TP,1608 6 R60 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 6 R61 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R62 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R63 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R64 2007-000080 R-CHIP;2Kohm,5%,1/16W,DA,TP,1608 6 R65 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 6 R66 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R67 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R68 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R69 2007-000080 R-CHIP;2Kohm,5%,1/16W,DA,TP,1608 6 R70 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 6 R71 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R72 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R73 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R74 2007-000080 R-CHIP;2Kohm,5%,1/16W,DA,TP,1608 6 R75 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 6 R77 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608 6 R78 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608 6 R79 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608 6 R80 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608 6 R81 2007-000757 R-CHIP;330KOHM,5%,1/10W,DA,TP,2012 6 R82 2007-000757 R-CHIP;330KOHM,5%,1/10W,DA,TP,2012

6 R83 2007-000757 R-CHIP;330KOHM,5%,1/10W,DA,TP,2012 6 R84 2007-000757 R-CHIP;330KOHM,5%,1/10W,DA,TP,2012 6 R85 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 6 R86 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 6 R87 2007-000704 R-CHIP;3.6Kohm,5%,1/16W,DA,TP,1608 6 R88 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 6 R89 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608 6 R90 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608 6 R91 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608 6 R92 2007-000125 R-CHIP;3.9Kohm,5%,1/16W,DA,TP,1608 6 R93 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R94 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 6 R95 2007-000072 R-CHIP;47ohm,5%,1/16W,DA,TP,1608 6 RN01 2011-000585 R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP 6 RN02 2011-000585 R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP 6 RN03 2011-000585 R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP 6 RN04 2011-000585 R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP 6 RN05 2011-000585 R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP 6 RN08 2011-000585 R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP 4 BP95-00052A ASSY SUB-SOUND;PCL5415R,P54A,AA95-01103B 5 CN601 3711-005105 CONNECTOR-HEADER;NOWALL,64P,2R,2.54MM,AN 5 XD601 2801-000186 CRYSTAL-UNIT;18.432MHz,25ppm,28-AAM,8pF, 5 AA97-07221A ASSY AUTO-SOUND;PCL5415R,P54A,AA95-01103 S.N.A 6 CD601 2401-000444 C-AL;10uF,20%,25V,GP,TP,5x5mm,5mm 6 CD603 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 6 CD604 2401-000486 C-AL;10uF,20%,50V,GP,TP,6.3x7mm,5 6 CD605 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 6 CD607 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 6 CD608 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 6 CD609 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 6 CD610 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 6 CD611 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 6 CD612 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 6 CD614 2401-000486 C-AL;10uF,20%,50V,GP,TP,6.3x7mm,5 6 CD616 2401-000486 C-AL;10uF,20%,50V,GP,TP,6.3x7mm,5 6 CD621 2401-000922 C-AL;22uF,20%,16V,GP,TP,5x5,5 6 CD622 2401-000922 C-AL;22uF,20%,16V,GP,TP,5x5,5 6 CD623 2401-000922 C-AL;22uF,20%,16V,GP,TP,5x5,5 6 CD624 2401-000922 C-AL;22uF,20%,16V,GP,TP,5x5,5 6 CD625 2401-000922 C-AL;22uF,20%,16V,GP,TP,5x5,5 6 CD626 2401-000426 C-AL;10uF,20%,16V,GP,TP,3.5x5,5 6 CD627 2401-000922 C-AL;22uF,20%,16V,GP,TP,5x5,5 6 CD628 2401-000922 C-AL;22uF,20%,16V,GP,TP,5x5,5 6 CD630 2401-000426 C-AL;10uF,20%,16V,GP,TP,3.5x5,5 6 CD632 2401-000444 C-AL;10uF,20%,25V,GP,TP,5x5mm,5mm 6 CD639 2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5 6 CD641 2401-002009 C-AL;100uF,20%,16V,GP,TP,6.3x7,5 6 CD650 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 6 CD652 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 6 CD653 2401-000922 C-AL;22uF,20%,16V,GP,TP,5x5,5 6 CD654 2401-000922 C-AL;22uF,20%,16V,GP,TP,5x5,5 6 CD660 2401-000922 C-AL;22uF,20%,16V,GP,TP,5x5,5 6 LD601 2701-001032 INDUCTOR-AXIAL;100uH,10%,5x14mm 6 LD602 2701-001032 INDUCTOR-AXIAL;100uH,10%,5x14mm 6 LD603 2701-001032 INDUCTOR-AXIAL;100uH,10%,5x14mm 6 AA97-06959A ASSY SMD-SOUND;PCL5415R,P54A,AA95-01103BS.N.A 7 CD602 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CD606 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CD613 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CD617 2203-001211 C-CERAMIC,CHIP;8.2nF,10%,50V,X7R,TP,1608 7 CD618 2203-001211 C-CERAMIC,CHIP;8.2nF,10%,50V,X7R,TP,1608 7 CD619 2203-001211 C-CERAMIC,CHIP;8.2nF,10%,50V,X7R,TP,1608 7 CD620 2203-001211 C-CERAMIC,CHIP;8.2nF,10%,50V,X7R,TP,1608 7 CD629 2203-005590 C-CERAMIC,CHIP;330NF,10%,16V,X7R,TP,2012 7 CD631 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CD633 2203-000332 C-CERAMIC,CHIP;0.012nF,5%,50V,NP0,TP,160 7 CD634 2203-000332 C-CERAMIC,CHIP;0.012nF,5%,50V,NP0,TP,160 7 CD635 2203-001071 C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,160 7 CD636 2203-001071 C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,160 7 CD637 2203-001071 C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,160 7 CD638 2203-000236 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,1608 7 CD640 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CD642 2203-000140 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,1608 7 CD643 2203-000140 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,1608 7 CD648 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,7 CD649 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,7 CD662 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

Electrical Parts List

Samsung Electronics 7-29

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

Page 97

7 CD670 2203-000236 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,1608 7 ICD601 1204-001631 IC-SOUND PROCESSOR;MSP3450G,QFP,80P,-,PL 7 ICD602 1201-000541 IC-OP AMP;062,SOP,8P,153MIL,DUAL,6V/mV,P 7 PCB AA41-00335A PCB-SOUND;PCL545R,FR-4,2L,A,1.6T,180X245 S.N.A 7 RD601 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 RD602 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 RD603 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 RD604 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 RD605 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 RD606 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 RD607 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 RD608 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 RD609 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 RD610 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 RD611 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 RD613 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 7 RD614 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 RD615 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 RD616 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 RD617 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 RD618 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 7 RD619 2007-001179 R-CHIP;8.2Kohm,5%,1/16W,DA,TP,1608 7 RD620 2007-000134 R-CHIP;33Kohm,5%,1/16W,DA,TP,1608 7 RD621 2007-001010 R-CHIP;51Kohm,5%,1/16W,DA,TP,1608 7 RD622 2007-000329 R-CHIP;11Kohm,5%,1/16W,DA,TP,1608 7 RD623 2007-000329 R-CHIP;11Kohm,5%,1/16W,DA,TP,1608 7 RD624 2007-001010 R-CHIP;51Kohm,5%,1/16W,DA,TP,1608 7 RD625 2007-001179 R-CHIP;8.2Kohm,5%,1/16W,DA,TP,1608 7 RD626 2007-000134 R-CHIP;33Kohm,5%,1/16W,DA,TP,1608 7 RD627 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 7 RD628 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 RD629 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 RD638 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 5 0202-001167 SOLDER-CREAM;RX3603-2330HO,S45A,PASTE,SN S.N.A 5 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb S.N.A 4 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb S.N.A 4 AA65-30104B CLAMPER CORE-WIRE;ALL MODEL,NYLON 66,V2, S.N.A 4 AA65-30105B CLAMPER CORE-WIRE;ALL MODEL,NYLON 66,V2, S.N.A 4 AA95-01793A ASSY SUB-PCB,CAPTION;PCL545R,P54A,AA95-0 5 BK01 AA61-10068A BRACKET-PCB;M2160,SPTE,T0.3,-,-,-,- S.N.A 5 CNC01 3711-002709 CONNECTOR-HEADER;NOWALL,12P,1R,2.5mm,ANG 5 CNC02 3711-002708 CONNECTOR-HEADER;NOWALL,10P,1R,2.5mm,ANG 5 ICC01 1204-001718 IC-DECODER;Z86129,DIP,18P,300MIL,PLASTIC 5 ICC02 1001-001083 IC-VIDEO SWITCH;NJM2248D,-,DIP,8P,300MIL 5 ICC03 1001-001083 IC-VIDEO SWITCH;NJM2248D,-,DIP,8P,300MIL 5 AA97-05186A ASSY AUTO-SUB;PCL545R,P54A S.N.A 6 CC01 2401-000603 C-AL;1uF,20%,50V,GP,TP,5x11,5 6 CC02 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 6 CC03 2201-000600 C-CERAMIC,DISC;0.56nF,10%,50V,Y5P,TP,5x3 6 CC04 2401-000223 C-AL;100nF,20%,50V,LL,TP,5x11mm,5mm 6 CC05 2301-000310 C-FILM,PEF;68nF,5%,50V,TP,8.0X8.5X4.0X5, 6 CC06 2301-000301 C-FILM,PEF;6.8nF,5%,50V,TP,6.5X5.5X3.0X5 6 CC07 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5 6 CC08 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 6 CC09 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 6 CC10 2305-000149 C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5 6 CC11 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm 6 CC12 2305-000149 C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5 6 CC13 2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5 6 CC14 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 CC15 2201-000600 C-CERAMIC,DISC;0.56nF,10%,50V,Y5P,TP,5x3 6 CC16 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 CC19 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, 6 DC01 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 6 DC02 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 6 DC03 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, 6 LC01 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm 6 PCB AA41-00337A PCB-CAPTION;PCL545R,FR-1,1L,A,1.6T,245X2 S.N.A 6 QC01 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 6 QC02 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T 6 RC01 2004-000433 R-METAL;1Kohm,1%,1/8W,AA,TP,1.8x3.2mm 6 RC02 2004-000433 R-METAL;1Kohm,1%,1/8W,AA,TP,1.8x3.2mm 6 RC03 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC04 2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC05 2001-000890 R-CARBON;6.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC06 2001-000006 R-CARBON;2.4KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC07 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

6 RC08 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC09 2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC10 2004-000433 R-METAL;1Kohm,1%,1/8W,AA,TP,1.8x3.2mm 6 RC11 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC12 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC13 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC14 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC15 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC16 2004-000218 R-METAL;10Kohm,1%,1/8W,AA,TP,1.8x3.2mm 6 RC17 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC18 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC19 2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC20 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC21 2001-000362 R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC22 2001-000613 R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC23 2001-000006 R-CARBON;2.4KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC24 2001-000007 R-CARBON;3KOHM,5%,1/8W,AA,TP,1.8X3.2MM 6 RC25 2001-000003 R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm 6 RC30 2001-000708 R-CARBON;39OHM,5%,1/8W,AA,TP,1.8X3.2MM 5 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb S.N.A 4 AA95-01835C ASSY SUB-PCB,PROSCAN;PCL6215R,P54A,AA955 CN01 3703-001124 CONNECTOR-DIN;32P,2R,MALE,ANGLE,AUF 5 CN02 3703-001124 CONNECTOR-DIN;32P,2R,MALE,ANGLE,AUF 5 CX01 2801-004019 CRYSTAL-UNIT;20.25MHz,30ppm,28-AAM,13pF, 5 DX01 2801-003811 CRYSTAL-UNIT;24.576MHZ,20PPM,28-AAM,30PF 5 XP701 2801-004019 CRYSTAL-UNIT;20.25MHz,30ppm,28-AAM,13pF, 5 AA97-05432A ASSY AUTO-SUB;PCL6215R,P54A 6 CC17 2401-002183 C-AL;220uF,20%,16V,GP,TP,8x9,5mm 6 CC19 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 CC28 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 CC32 2401-002183 C-AL;220uF,20%,16V,GP,TP,8x9,5mm 6 CC42 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 CC44 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 CC45 2401-000486 C-AL;10uF,20%,50V,GP,TP,6.3x7mm,5 6 CP707 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 CP709 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 CP725 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5 6 CP727 2401-002183 C-AL;220uF,20%,16V,GP,TP,8x9,5mm 6 CP730 2401-000665 C-AL;2.2uF,20%,50V,GP,TP,3.5x5,5 6 CP731 2401-000665 C-AL;2.2uF,20%,50V,GP,TP,3.5x5,5 6 CP741 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 CP742 2401-002183 C-AL;220uF,20%,16V,GP,TP,8x9,5mm 6 CP743 2401-002183 C-AL;220uF,20%,16V,GP,TP,8x9,5mm 6 CP744 2401-002183 C-AL;220uF,20%,16V,GP,TP,8x9,5mm 6 DC16 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 DC17 2401-002009 C-AL;100uF,20%,16V,GP,TP,6.3x7,5 6 DC19 2401-002009 C-AL;100uF,20%,16V,GP,TP,6.3x7,5 6 DC27 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5 6 DC39 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5 6 IC12 1203-001140 IC-VOL. DETECTOR;7039,TO-92P,3P,-,PLASTI 6 PC41 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 PC43 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 SC01 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 SC03 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 SC22 2401-003102 C-AL;100uF,20%,10V,GP,TP,5x11,5 6 SC30 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5 6 SC31 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5 6 SC36 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5 6 SC51 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 SC53 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 YC21 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 YC26 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 YC31 2401-000486 C-AL;10uF,20%,50V,GP,TP,6.3x7mm,5 6 YC38 2401-000486 C-AL;10uF,20%,50V,GP,TP,6.3x7mm,5 6 YC57 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5 6 YC62 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5 6 AA97-06230A ASSY SMD-SUB;PCL6215R,P54A 7 CC01 2203-001603 C-CERAMIC,CHIP;220nF,10%,16V,X7R,TP,2012 7 CC02 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CC03 2203-001603 C-CERAMIC,CHIP;220nF,10%,16V,X7R,TP,2012 7 CC04 2203-001603 C-CERAMIC,CHIP;220nF,10%,16V,X7R,TP,2012 7 CC05 2203-000140 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,1608 7 CC06 2203-000838 C-CERAMIC,CHIP;0.39nF,5%,50V,NP0,TP,1608 7 CC07 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CC08 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608, 7 CC09 2203-000140 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,1608 7 CC10 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

Electrical Parts List

7-30 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

Page 98

7 CC11 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CC12 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CC13 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CC14 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CC15 2203-001646 C-CERAMIC,CHIP;3pF,0.5pF,50V,NPO,TP,2012 7 CC16 2203-001646 C-CERAMIC,CHIP;3pF,0.5pF,50V,NPO,TP,2012 7 CC18 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608, 7 CC20 2203-001603 C-CERAMIC,CHIP;220nF,10%,16V,X7R,TP,2012 7 CC21 2203-000140 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,1608 7 CC22 2203-000838 C-CERAMIC,CHIP;0.39nF,5%,50V,NP0,TP,1608 7 CC23 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,7 CC24 2203-005590 C-CERAMIC,CHIP;330NF,10%,16V,X7R,TP,2012 7 CC25 2203-005590 C-CERAMIC,CHIP;330NF,10%,16V,X7R,TP,2012 7 CC26 2203-005590 C-CERAMIC,CHIP;330NF,10%,16V,X7R,TP,2012 7 CC27 2203-005590 C-CERAMIC,CHIP;330NF,10%,16V,X7R,TP,2012 7 CC29 2203-001603 C-CERAMIC,CHIP;220nF,10%,16V,X7R,TP,2012 7 CC30 2203-000140 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,1608 7 CC31 2203-000838 C-CERAMIC,CHIP;0.39nF,5%,50V,NP0,TP,1608 7 CC33 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608, 7 CC35 2203-005590 C-CERAMIC,CHIP;330NF,10%,16V,X7R,TP,2012 7 CC36 2203-005590 C-CERAMIC,CHIP;330NF,10%,16V,X7R,TP,2012 7 CC37 2203-000681 C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,160 7 CC38 2203-000681 C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,160 7 CC40 2203-000681 C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,160 7 CC41 2203-000998 C-CERAMIC,CHIP;0.047nF,5%,50V,NP0,TP,160 7 CC43 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CC47 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CC48 2203-005384 C-CERAMIC,CHIP;4700nF,+80-20%,10V,Y5V,TP 7 CC49 2203-005384 C-CERAMIC,CHIP;4700nF,+80-20%,10V,Y5V,TP 7 CC50 2203-005384 C-CERAMIC,CHIP;4700nF,+80-20%,10V,Y5V,TP 7 CC51 2203-000783 C-CERAMIC,CHIP;0.33nF,5%,50V,NP0,TP,1608 7 CD01 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8 7 CD02 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8 7 CF01 2901-001120 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T 7 CF02 2901-001120 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T 7 CL03 3301-001186 CORE-FERRITE BEAD;AB,600ohm,3.2x1.6x1.3m 7 CL05 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 CL06 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 CL07 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 CP701 2203-000274 C-CERAMIC,CHIP;0.01nF,0.25pF,50V,NP0,TP, 7 CP702 2203-000274 C-CERAMIC,CHIP;0.01nF,0.25pF,50V,NP0,TP, 7 CP703 2203-001223 C-CERAMIC,CHIP;0.82nF,10%,50V,X7R,TP,201 7 CP704 2203-000405 C-CERAMIC,CHIP;0.18nF,5%,50V,NP0,TP,1608 7 CP708 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CP710 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CP724 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CP726 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CP728 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 7 CP729 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 7 CP732 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CP733 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CP734 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CP745 2203-000938 C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,2012 7 CP746 2203-000938 C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,2012 7 CP747 2203-000683 C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,201 7 CP748 2203-001603 C-CERAMIC,CHIP;220nF,10%,16V,X7R,TP,2012 7 CP749 2203-001603 C-CERAMIC,CHIP;220nF,10%,16V,X7R,TP,2012 7 CP750 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CP751 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CP752 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CP753 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CP754 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CP756 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 CP757 2203-000938 C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,2012 7 CQ01 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT7 CQ02 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT7 CQ03 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT7 CQ04 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT7 CQ05 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT7 CR01 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 7 CR02 2007-000028 R-CHIP;39OHM,5%,1/10W,DA,TP,2012 7 CR03 2007-001166 R-CHIP;75OHM,5%,1/10W,DA,TP,2012 7 CR04 2007-000028 R-CHIP;39OHM,5%,1/10W,DA,TP,2012 7 CR05 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 7 CR06 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 7 CR08 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 7 CR09 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608

7 CR10 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 CR15 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 7 CR16 2703-000274 INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm 7 CR20 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 CR22 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 CR25 2007-001166 R-CHIP;75OHM,5%,1/10W,DA,TP,2012 7 CR27 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 CR28 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 CR29 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608 7 CR30 2007-000119 R-CHIP;560ohm,5%,1/16W,DA,TP,1608 7 CR31 2007-000643 R-CHIP;270ohm,5%,1/16W,DA,TP,1608 7 CR32 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012 7 CR33 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012 7 CR35 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608 7 CR37 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 CR38 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 CR39 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 CR45 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 CR46 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 CR47 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608 7 CR48 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608 7 CR49 2007-000077 R-CHIP;470ohm,5%,1/16W,DA,TP,1608 7 CR50 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608 7 CR51 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608 7 CR52 2007-000077 R-CHIP;470ohm,5%,1/16W,DA,TP,1608 7 CR53 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608 7 CR54 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608 7 CR55 2007-000077 R-CHIP;470ohm,5%,1/16W,DA,TP,1608 7 CR56 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 7 DC18 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 DC20 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 DC21 2203-001083 C-CERAMIC,CHIP;0.005nF,0.1pF,50V,NP0,TP, 7 DC22 2203-001083 C-CERAMIC,CHIP;0.005nF,0.1pF,50V,NP0,TP, 7 DC23 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 DC24 2203-001656 C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,1608 7 DC25 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,7 DC26 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,7 DC28 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 DC29 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,7 DC30 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,7 DC31 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,7 DC32 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 DC33 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 DC34 2203-000998 C-CERAMIC,CHIP;0.047nF,5%,50V,NP0,TP,160 7 DC35 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 DC36 2203-000236 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,1608 7 DC37 2203-000140 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,1608 7 DC38 2203-000236 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,1608 7 DD01 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8 7 DD02 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8 7 DD03 0403-001127 DIODE-ZENER;02DZ5.1,5.1,200mW,SOD-323,TP 7 DD06 0403-001127 DIODE-ZENER;02DZ5.1,5.1,200mW,SOD-323,TP 7 DD07 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8 7 DL05 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 DL06 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 DL07 2703-000274 INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm 7 DQ01 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23 7 DR16 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 DR17 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 DR18 2007-000101 R-CHIP;82Kohm,5%,1/16W,DA,TP,1608 7 DR19 2007-000072 R-CHIP;47ohm,5%,1/16W,DA,TP,1608 7 DR20 2007-000081 R-CHIP;2.7Kohm,5%,1/16W,DA,TP,1608 7 DR22 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 7 DR23 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608 7 DR24 2007-000100 R-CHIP;68Kohm,5%,1/16W,DA,TP,1608 7 DR25 2007-000129 R-CHIP;27Kohm,5%,1/16W,DA,TP,1608 7 DR26 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608 7 DR27 2007-000127 R-CHIP;9.1Kohm,5%,1/16W,DA,TP,1608 7 DR29 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 DR30 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 DR31 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 DR32 2007-000118 R-CHIP;390ohm,5%,1/16W,DA,TP,1608 7 DR33 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 DR34 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 DR35 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 7 DR36 2007-000077 R-CHIP;470ohm,5%,1/16W,DA,TP,1608 7 DR37 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608

Electrical Parts List

Samsung Electronics 7-31

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

Page 99

7 DR38 2007-000079 R-CHIP;1.8Kohm,5%,1/16W,DA,TP,1608 7 DR40 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 DR41 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 DR44 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 7 DR46 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608 7 IC01 1204-001598 IC-VIDEO PROCESS;VPC3230D-B2,QFP,80P,-,P 7 IC02 1204-001623 IC-VERTICAL PROCESSO;SDA9400,QFP,64P,-,P 7 IC03 1002-001045 IC-D/A CONVERTER;9280,8BIT,PLCC,68P,-,-, 7 IC04 1205-001172 IC-INTERFACE;CIP3250A-B1,PLCC,68P,-,PLAS 7 IC06 1204-001372 IC-HOR./VER.PROCESSO;SDA9361,QFP,44P,-,P 7 IC07 1204-001550 IC-VIDEO PROCESS;CXA2101AQ,QFP,80P,-,PLA 7 IC11 1203-001419 IC-VOLTAGE REGULATOR;4931,TO-252,3P,6.6x 7 IC13 1203-001419 IC-VOLTAGE REGULATOR;4931,TO-252,3P,6.6x 7 ICP701 1204-001668 IC-PICTURE PROCESS;SDA9488X,SOP,28P,300M 7 LP701 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 LP702 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 LP703 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 PC42 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 PCB AA41-00398A PCB-PROSCAN;PCL6215R,FR-4,4L,A,1.6T,245X S.N.A 7 PIC04 1203-001419 IC-VOLTAGE REGULATOR;4931,TO-252,3P,6.6x 7 PL01 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 PL02 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 PL03 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 PL04 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 PL05 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 PR11 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 7 PR12 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 7 PR19 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 7 PR714 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 PR715 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 PR716 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 PR717 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 PR718 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 PR719 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 QP701 0501-000727 TR-SMALL SIGNAL;BC848C,NPN,310mW,SOT-23, 7 RP701 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 RP702 2007-000077 R-CHIP;470ohm,5%,1/16W,DA,TP,1608 7 RP703 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 RP704 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 RP705 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 RP706 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 RP740 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608 7 RP741 2007-000075 R-CHIP;220ohm,5%,1/16W,DA,TP,1608 7 RP742 2007-000075 R-CHIP;220ohm,5%,1/16W,DA,TP,1608 7 RP743 2007-000075 R-CHIP;220ohm,5%,1/16W,DA,TP,1608 7 RP744 2007-000075 R-CHIP;220ohm,5%,1/16W,DA,TP,1608 7 RP745 2007-000075 R-CHIP;220ohm,5%,1/16W,DA,TP,1608 7 RP746 2007-000075 R-CHIP;220ohm,5%,1/16W,DA,TP,1608 7 SC02 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC04 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC05 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC06 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC07 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC08 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC09 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC11 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC12 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC13 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC14 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC21 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC23 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC24 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC25 2203-000140 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,1608 7 SC26 2203-000236 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,1608 7 SC27 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC28 2203-000552 C-CERAMIC,CHIP;0.02nF,5%,50V,NP0,TP,1608 7 SC29 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC32 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC33 2203-000552 C-CERAMIC,CHIP;0.02nF,5%,50V,NP0,TP,1608 7 SC34 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC35 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC37 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC38 2203-000552 C-CERAMIC,CHIP;0.02nF,5%,50V,NP0,TP,1608 7 SC52 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SC54 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 SF01 2901-001120 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T 7 SL01 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,

7 SL02 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 SL03 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 SL04 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 SL05 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 SL06 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 SL08 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, 7 SL09 3301-001186 CORE-FERRITE BEAD;AB,600ohm,3.2x1.6x1.3m 7 SR01 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 SR02 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 SR03 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 SR04 2011-000585 R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP 7 SR05 2011-000585 R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP 7 SR06 2011-000585 R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP 7 SR07 2011-000585 R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP 7 SR08 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 SR09 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 SR11 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 SR12 2007-001056 R-CHIP;6.2Kohm,5%,1/16W,DA,TP,1608 7 SR13 2007-000402 R-CHIP;150ohm,5%,1/16W,DA,TP,1608 7 SR14 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 7 SR15 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 7 SR16 2007-000402 R-CHIP;150ohm,5%,1/16W,DA,TP,1608 7 SR17 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 7 SR18 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 7 SR19 2007-000381 R-CHIP;13Kohm,5%,1/16W,DA,TP,1608 7 SR21 2007-000402 R-CHIP;150ohm,5%,1/16W,DA,TP,1608 7 SR22 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 7 SR23 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 7 SR24 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608 7 SR25 2007-000401 R-CHIP;150OHM,5%,1/10W,DA,TP,2012 7 YC01 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC02 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC03 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC04 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC05 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC06 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC07 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC08 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC09 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC10 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC11 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC12 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC13 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC14 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC15 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC16 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC17 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC18 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC19 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC20 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC22 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 YC23 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 7 YC24 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 YC25 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 YC27 2203-001603 C-CERAMIC,CHIP;220nF,10%,16V,X7R,TP,2012 7 YC28 2203-001603 C-CERAMIC,CHIP;220nF,10%,16V,X7R,TP,2012 7 YC29 2203-001603 C-CERAMIC,CHIP;220nF,10%,16V,X7R,TP,2012 7 YC30 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC32 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 7 YC33 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 7 YC34 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 7 YC35 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 7 YC36 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 7 YC37 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 7 YC39 2203-000998 C-CERAMIC,CHIP;0.047nF,5%,50V,NP0,TP,160 7 YC40 2203-000998 C-CERAMIC,CHIP;0.047nF,5%,50V,NP0,TP,160 7 YC45 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC46 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 7 YC47 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 7 YC48 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 7 YC49 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 YC50 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012 7 YC51 2203-000491 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,1608 7 YC52 2203-001083 C-CERAMIC,CHIP;0.005nF,0.1pF,50V,NP0,TP, 7 YC53 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 YC54 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 YC55 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

Electrical Parts List

7-32 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

Page 100

7 YC56 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 YC58 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 YC59 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 YC60 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, 7 YC63 2203-000236 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,1608 7 YC66 2203-000815 C-CERAMIC,CHIP;0.033nF,5%,50V,NP0,TP,160 7 YD01 0403-000620 DIODE-ZENER;RLZ5.6B,5.6,500mW,LL-34,TP 7 YD02 0403-000620 DIODE-ZENER;RLZ5.6B,5.6,500mW,LL-34,TP 7 YD03 0403-001117 DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP 7 YD04 0403-001117 DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP 7 YD05 0403-001117 DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP 7 YF01 2901-001120 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T 7 YF02 2901-001120 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T 7 YF03 2901-001120 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T 7 YF04 2901-001120 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T 7 YF05 2901-001120 FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T 7 YL01 3301-001186 CORE-FERRITE BEAD;AB,600ohm,3.2x1.6x1.3m 7 YL02 2703-000271 INDUCTOR-SMD;4.7uH,10%,2x1.25x1.25mm 7 YQ01 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23 7 YQ02 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23 7 YQ03 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23 7 YQ06 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT7 YQ08 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23 7 YQ11 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT7 YQ12 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT7 YR05 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR06 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR07 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR08 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR09 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR10 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR100 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR101 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR102 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR103 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608 7 YR104 2007-000402 R-CHIP;150ohm,5%,1/16W,DA,TP,1608 7 YR105 2007-000075 R-CHIP;220ohm,5%,1/16W,DA,TP,1608 7 YR11 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR12 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR14 2007-000077 R-CHIP;470ohm,5%,1/16W,DA,TP,1608 7 YR15 2007-000939 R-CHIP;47Kohm,1%,1/16W,DA,TP,1608 7 YR18 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR23 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 YR24 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 YR25 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR26 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR27 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR28 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR29 2007-000210 R-CHIP;1.1KOHM,5%,1/10W,DA,TP,2012 7 YR30 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR31 2007-000210 R-CHIP;1.1KOHM,5%,1/10W,DA,TP,2012 7 YR32 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR33 2007-000210 R-CHIP;1.1KOHM,5%,1/10W,DA,TP,2012 7 YR40 2007-000691 R-CHIP;3.3Mohm,5%,1/16W,DA,TP,1608 7 YR41 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR43 2007-000799 R-CHIP;360ohm,5%,1/16W,DA,TP,1608 7 YR44 2007-000799 R-CHIP;360ohm,5%,1/16W,DA,TP,1608 7 YR45 2007-000799 R-CHIP;360ohm,5%,1/16W,DA,TP,1608 7 YR46 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR47 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR48 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR50 2007-000080 R-CHIP;2Kohm,5%,1/16W,DA,TP,1608 7 YR51 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR53 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR56 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR59 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608 7 YR60 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR61 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608 7 YR62 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 YR63 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR64 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR65 2007-000583 R-CHIP;22Kohm,1%,1/16W,DA,TP,1608 7 YR77 2007-000210 R-CHIP;1.1KOHM,5%,1/10W,DA,TP,2012 7 YR78 2007-000210 R-CHIP;1.1KOHM,5%,1/10W,DA,TP,2012 7 YR79 2007-000210 R-CHIP;1.1KOHM,5%,1/10W,DA,TP,2012 7 YR83 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR85 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608

7 YR86 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR88 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 YR89 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 7 YR90 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR91 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR92 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 7 YR98 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 7 YR99 2007-000075 R-CHIP;220ohm,5%,1/16W,DA,TP,1608 3 AA94-07576C ASSY PCB POWER;SP54J9PX/XAX,P54A220V 4 C812 2401-000701 C-AL;2200uF,20%,250V,GP,-,35x70mm,1 4 C813 2401-000701 C-AL;2200uF,20%,250V,GP,-,35x70mm,1 4 C831 2306-000323 C-FILM,MPPF;2.2nF,5%,1.6KV,TP,28.5x15.5x 4 C842 2401-003370 C-AL;47uF,20%,450V,GP,BK,16X35.5,7. 4 C862 2401-003076 C-AL;3300uF,20%,50V,WP,BK,18x35.5mm 4 C865 2401-000737 C-AL;2200uF,20%,50V,GP,TP,18x35.5,7 4 C868 2401-000737 C-AL;2200uF,20%,50V,GP,TP,18x35.5,7 4 C875 2401-002251 C-AL;470uF,20%,200V,GP,BK,25x40mm,1 4 CN802 AA39-00116A LEAD CONNECTOR-ASSY;,12P,YBNH250-12,3515 4 CN803 AA39-00116A LEAD CONNECTOR-ASSY;,12P,YBNH250-12,3515 4 CX801S 2306-000112 C-FILM,MPPF;100nF,20%,250V,BK,-,15mm 4 CX802S 2306-000112 C-FILM,MPPF;100nF,20%,250V,BK,-,15mm 4 CY801S 2201-000987 C-CERAMIC,DISC;2.2nF,20%,400V,Y5U,TP,12. 4 CY802S 2201-000987 C-CERAMIC,DISC;2.2nF,20%,400V,Y5U,TP,12. 4 D801S AA96-50310A ASSY H/S;-,POWER,AA62-30150C,RBV606,- S.N.A 5 AA62-30150C HEAT SINK-ES;-,A6063 EXTR,-,WHT,40(24.5) S.N.A 5 AA60-30003A WASHER;T1.5,SBHG-1 S.N.A 5 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A 5 0402-000549 DIODE-BRIDGE;RBV606,600V,6A,-,BK 5 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A 4 D810 0402-000250 DIODE-RECTIFIER;RG4C,1000V,1A,4 D854 AA96-50153C ASSY H/S;-,-,AA62-30013D,FLM-G12S,- S.N.A 5 0402-000233 DIODE-RECTIFIER;FML-G12S,200V,5A,-,5 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A 5 AA62-30013D HEAT SINK-ES;-,A6063 EXTR,-,-,55(21) T02 S.N.A 4 D855 AA96-50153C ASSY H/S;-,-,AA62-30013D,FLM-G12S,- S.N.A 4 D856 AA96-50153C ASSY H/S;-,-,AA62-30013D,FLM-G12S,- S.N.A 4 D857 AA96-50153C ASSY H/S;-,-,AA62-30013D,FLM-G12S,- S.N.A 4 D858 AA96-50153C ASSY H/S;-,-,AA62-30013D,FLM-G12S,- S.N.A 4 D859 AA96-50153A ASSY H/S;-,TR,AA62-30013D,FMG-G26S,- S.N.A 5 0402-000231 DIODE-RECTIFIER;FMG-G26S,600V,4A,TO-220F 5 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A 5 AA62-30013D HEAT SINK-ES;-,A6063 EXTR,-,-,55(21) T02 S.N.A 4 DZ833 0406-001007 DIODE-TVS;P6KE180A,171/180/189V,600W,CAS 4 DZ841 0403-000691 DIODE-ZENER;R2K,170V,170-200V,-,-,TP 4 FD802S 3601-000300 FUSE-CARTRIDGE;250V,6.3A,SLOW-BLOW,GLASS 4 FD804S 3601-000300 FUSE-CARTRIDGE;250V,6.3A,SLOW-BLOW,GLASS 4 FD855S 3601-000300 FUSE-CARTRIDGE;250V,6.3A,SLOW-BLOW,GLASS 4 FP801S 3601-000300 FUSE-CARTRIDGE;250V,6.3A,SLOW-BLOW,GLASS 4 IC801S AA96-00035A ASSY H/S;-,POWER,AA62-30181P,STR-F6656,- S.N.A 5 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A 5 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A 5 AA13-00018A IC HYBRID;-,STR-F6656,LF1351,5PIN,-,5 AA62-30181P HEAT SINK-ES;-,-,T1.0,WHITE,SCREW-HOLE(2 S.N.A 4 IC802 AA13-00033A IC HYBRID;-,SVD001,-,7PIN,-,4 IC804 1203-001400 IC-POWER PRESCALER;SE110N,T0-220(SIP),3P 4 LX801S AA29-30002L FILTER LINE NOISE;-,10mHMIN,5A,AC90~260V 4 LX802S AA29-30002M FILTER LINE NOISE;-,1mHMIN,5A,AC90~260V, 4 LX803S AA29-30002M FILTER LINE NOISE;-,1mHMIN,5A,AC90~260V, 4 NT801S 1404-001195 THERMISTOR-NTC;5.1ohm,15%,2900,27mW/C,BK 4 PC801S 0604-001032 PHOTO-COUPLER;TR,170-260%,300mW,DIP-4,ST 4 R817 2009-001096 R-METAL PLATE;0.07ohm,5%,5W,CL,BK,5x14x1 4 R841 2008-001093 R-FUSIBLE(S);22OHM,5%,1/2W,AC,BK,2.5X6.5 4 RL801S 3501-001040 RELAY-POWER;12VDC,500mW,10A,1FormA,15mS, 4 T801S AA26-00099A TRANS SWITCHING;EER5345,PCL544R,AC220V,1 4 AA97-05245A ASSY AUTO-SUB;SP54J9PX/XAX,P54A,220V S.N.A 5 C809 2201-000551 C-CERAMIC,DISC;0.47nF,10%,1kV,Y5P,TP,6.3 5 C814 2201-002041 C-CERAMIC,DISC;0.82nF,10%,2kV,Y5P,TP,9x5 5 C815 2201-000406 C-CERAMIC,DISC;0.27nF,10%,2kV,Y5P,TP,6.3 5 C816 2201-000332 C-CERAMIC,DISC;2.2nF,20%,250V,Y5U,TP,9x4 5 C817 2201-000332 C-CERAMIC,DISC;2.2nF,20%,250V,Y5U,TP,9x4 5 C818 2301-001216 C-FILM,PPF;47nF,5%,630V,TP,20x14.5x22,7. 5 C819 2201-000332 C-CERAMIC,DISC;2.2nF,20%,250V,Y5U,TP,9x4 5 C833 2201-000292 C-CERAMIC,DISC;1nF,10%,50V,Y5P,TP,5x3.5, 5 C834 2401-003028 C-AL;100uF,20%,25V,WT,TP,6.3x11,5 5 C835 2401-003028 C-AL;100uF,20%,25V,WT,TP,6.3x11,5 5 C851 2201-000551 C-CERAMIC,DISC;0.47nF,10%,1kV,Y5P,TP,6.3 5 C852 2401-000133 C-AL;1000uF,20%,16V,GP,TP,10x20,5

Electrical Parts List

Samsung Electronics 7-33

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark
