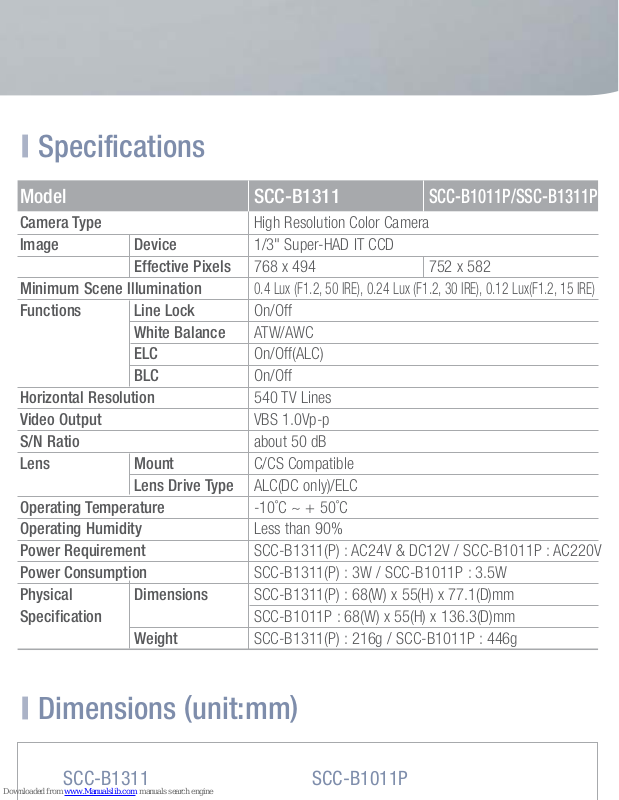

Specifications
Model SCC-B1311
Camera Type High Resolution Color Camera
Image Device 1/3" Super-HAD IT CCD
Effective Pixels 768 x 494 752 x 582
Minimum Scene Illumination
Functions Line Lock On/Off
White Balance ATW/AWC
ELC On/Off(ALC)
BLC On/Off
Horizontal Resolution 540 TV Lines
Video Output VBS 1.0Vp-p
S/N Ratio about 50 dB
Lens Mount C/CS Compatible
Lens Drive Type ALC(DC only)/ELC
0.4 Lux (F1.2, 50 IRE), 0.24 Lux (F1.2, 30 IRE), 0.12 Lux(F1.2, 15 IRE)
SCC-B1011P/SSC-B1311P
Operating Temperature -10˚C ~ + 50˚C
Operating Humidity Less than 90%
Power Requirement SCC-B1311(P) : AC24V & DC12V / SCC-B1011P : AC220V
Power Consumption SCC-B1311(P) : 3W / SCC-B1011P : 3.5W
Physical Dimensions SCC-B1311(P) : 68(W) x 55(H) x 77.1(D)mm
Specification SCC-B1011P : 68(W) x 55(H) x 136.3(D)mm
Weight SCC-B1311(P) : 216g / SCC-B1011P : 446g
|
Dimensions (unit:mm
)
SCC-B1311 SCC-B1011P
