Samsung SSC17WEB User Manual

Download

B/W DUAL QUAD NETWORK

OBSERVATION SYSTEM

SSC17WEB

User Guide

Eng-2

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these Instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs convenience receptacles and the point where they exit from the apparatus.

11. Only use attachment/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way such as power-supply

cord or plug is damaged liquid has been spilled or objects have fallen into the apparatus the apparatus has been exposed to rain or moisture does not operate normally or has been dropped.

Graphic Symbol Explanation

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated ‘dangerous voltage’ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Warning - To Prevent Fire or Shock Hazard, Do Not

Expose This Monitor To Rain or Moisture.

Eng-3

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

Eng-4

IMPORTANT SAFEGUARDS

Caution

Power source is indicated on the rear of the set. It contains high-voltage parts. If you remove the cover, it may cause fire or electric shock. Do not remove the cover by yourself. (Control switches are at the front of the monitor.)

1. Read Instructions : All the safety and operating instructions should be

read before the appliance is operated.

2. Retain Instructions : The safety and operating instructions should be

retained for future reference.

3. Heed Warnings : All warnings on the monitor and in the operating

instructions should be adhered to.

4. Follow Instructions : All operating and user instructions should be

followed.

5. Cleaning : Unplug this monitor from the wall outlet before cleaning.

Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. Exception. A monitor that is meant for uninterrupted service and that for some specific reason such as the possibility of the loss of an authorization code for a CATV converter is not intended to be unplugged by the user for cleaning or any other purpose may exclude the reference to unplugging the monitor in the cleaning description otherwise required in Item 5.

6. Attachments : Do not use attachments not recommended by Samsung

as they may cause hazards.

7. Water and Moisture : Do not use this monitor near water for example

near a bathtub wash bowl kitchen sink or laundry tub in a wet basement or near a swimming pool and the like wet basement or near a swimming pool and the like.

Eng-5

8. Accessories : Do not place this monitor on an unstable cart, stand,

tripod, bracket or table. The monitor may fall causing serious injury to a child or adult and serious damage to the appliance. Use only with a cart, stand, tripod. bracket or table recommended by Samsung or sold with the monitor. Any mounting of the monitor should follow Samsung’s instructions and should use a mounting accessory recommended by Samsung.

9. Ventilation : Slots and openings in the cabinet are provided for

ventilation and to ensure reliable operation of the monitor and to protect it from overheating and these openings should never be blocked by placing the monitor on a bed, sofa, rug, or other similar surface. This monitor should never be placed near or over a radiator or heat register. This monitor should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or Samsung’s instructions have been adhered to.

10. Power Sources : This monitor should be operated only from the type of

power source indicated on the making label. If you are not sure of the type of power supply to your installation site consult your Samsung dealer or local power company.

11. Grounding or Polarization : For monitors equipped with a 3-wire

grounding-type plug having a third(grounding) pin. This plug will only fit into a grounding type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

12. Power : Cord Protection-Power supply cords should be routed so that

they are not likely to be walked on or pinched by items placed upon or against them paying particular attention to cords at plugs convenience receptacles and the point where they exit from the monitor.

Eng-6

13. Lightning : For added protection for this monitor during a lightning

storm or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system. This will prevent damage to the monitor due to lightning and power-line surges.

14. Overloading : Do not overload wall outlets and extension cords as this

can result in a risk of fire of electric shock.

15. Object and liquid Entry : Never push objects of any kind into this

monitor through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the monitor.

16. Servicing : Do not attempt to service this monitor yourself as opening or

removing cover may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

17. Damage Requiring Service : Unplug this monitor from the wall outlet

and refer servicing to qualified service personnel under the following conditions.

a. When the power-supply cord or plug is damaged. b. If liquid has been spilled or objects have fallen into the monitor. c. If the monitor has been exposed to rain or water. d. If the monitor does not operate normally by following the operating

instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and require extensive work by a qualified

technician to restore the monitor to its normal operation. e. If the monitor has been dropped or the cabinet has been damaged. f. When the monitor exhibits a distinct change in performance-this

indicates a need for service.

Eng-7

18. Replacement Parts : When replacement parts are required be sure the

service technician has used replacement parts specified by Samsung or have the same characteristics as the original parts. Unauthorized substitutions may result in fire electric shock or other hazards.

19. Safety Check : Upon completion of any service or repairs to this

monitor ask the service technician to preform safety checks to determine that the monitor is in proper operating condition.

FCC & ICES Information

Warning

This equipment has been tested and found to comply the limits for a class A digital device pursuant to part 15 of the FCC Rules and ICES-003 of Industry Canada. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generate uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

User-Installer Caution

Your authority to operate this FCC verified equipment could be voided if you make changes or modifications not expressly approved by the party responsible for compliance to part 15 of the FCC Rules.

Information to user

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates uses and can radiate radio frequency energy and if not installed and used in accordance with the instruction manual may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. If necessary consult your dealer or an experienced radio/television technician for additional suggestions. You may find the booklet called How to Identify and Resolve Radio/TV Interference Problems helpful. This booklet was prepared by the Federal Communications Commission. It is available from the U.S. Government Printing Office Washington, DC 20402, Stock Number 004-000-00345-4.

Eng-8

Eng-9

The party responsible for product compliance: SAMSUNG ELECTRONICS CO., LTD. America QA Lab of Samsung 3351 Michelson Drive, Suite #290, Irvine, CA92612 USA

IC Compliance Notice

This Class (A) digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe (A) respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numéique de la classe A est conforme à la norme NMB-003 du Canada.

Warning This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Eng-10

Contents

IMPORTANT SAFETY INSTRUCTIONS...........................Eng-2

IMPORTANT SAFEGUARDS..............................................Eng-4

FCC & ICES Information.......................................................Eng-7

Chapter 1: System Components and Installation

1-1)

Environmental requirements for installation and safety

1-2) System Components......................................................Eng-13

1-3) CAMERA composition and installation method .........Eng-14

1-4) CAMERA Composition and Connecting Method

to MONITOR................................................................Eng-18

1-5) External terminal connecting method for CAMERA and

MONITOR ....................................................................Eng-19

1-6) Whole System connection and configuration................Eng-20

...Eng-12

Chapter 2: MONITOR FRONT PANEL KEY Function and

Using Method

2-1) AUDIO .........................................................................Eng-21

2-2) H-HOLD .......................................................................Eng-21

2-3) V-HOLD .......................................................................Eng-21

2-4) BRIGHT ........................................................................Eng-22

2-5) CONTRAST..................................................................Eng-22

2-6) TALK/A.RESET/SP.SEL- KEY ..................................Eng-22

2-7) QUAD/PAGE- KEY ....................................................Eng-22

2-8) VCR/ZOOM/MENU- KEY...........................................Eng-22

2-9) PIP/SEQ- KEY .............................................................Eng-23

2-10) FREEZE- KEY ...........................................................Eng-23

2-11) - KEY ........................................................Eng-23

2-12) POWER SAVE- KEY .................................................Eng-24

2-13) REAR POWER S/W....................................................Eng-24

Eng-11

Chapter 3: Setting each item function at SETUP MENU

3-1) DATE/TIME MENU Function setting..........................Eng-26

3-2) DWELL TIME MENU function setting .......................Eng-26

3-3) DISPLAY MENU function setting ..............................Eng-27

3-4) TITLE MENU Function setting....................................Eng-28

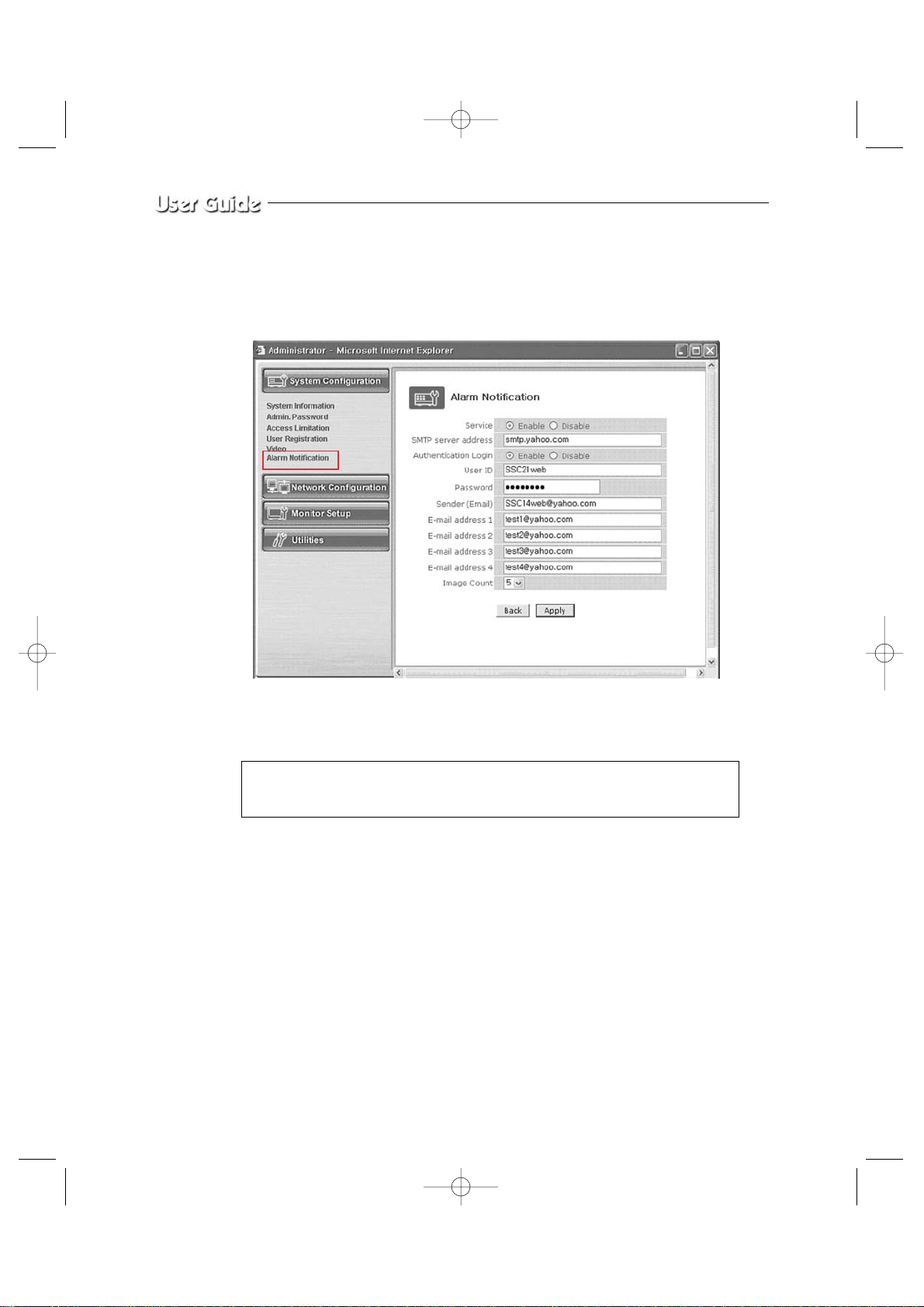

3-5) ALARM MENU Function setting.................................Eng-29

3-6) NETWORK SETUP function and setting method........Eng-30

3-7) SSC17WEB basic setting..............................................Eng-38

3-7-1) "LIVE" MENU.........................................................Eng-40

3-7-2) System Configuration Menu...................................Eng-55

3-7-3) Network Configuration Menu.................................Eng-63

3-7-4) Monitor Set up.........................................................Eng-72

3-7-5) Utilities....................................................................Eng-73

3-8) VIEW EVENT LOG MENU function and

setting method ...............................................................Eng-85

Chapter 4: DISPLAY MODE setting method

4-1) SINGLE SCREEN DISPLAY ......................................Eng-86

4-2) QUAD MODE DISPLAY.............................................Eng-87

4-3) AUTO SEQUENTIAL DISPLAY MODE...................Eng-88

4-4) PIP MODE DISPLAY ..................................................Eng-89

4-5) ZOOM MODE DISPLAY ............................................Eng-90

Chapter 5: Each product feature

SSC-12C (Standard Camera) ...............................................Eng-91

SSC17WEB (Observation Monitor)......................................Eng-92

SSC17WEB (NETWORK)...................................................Eng-93

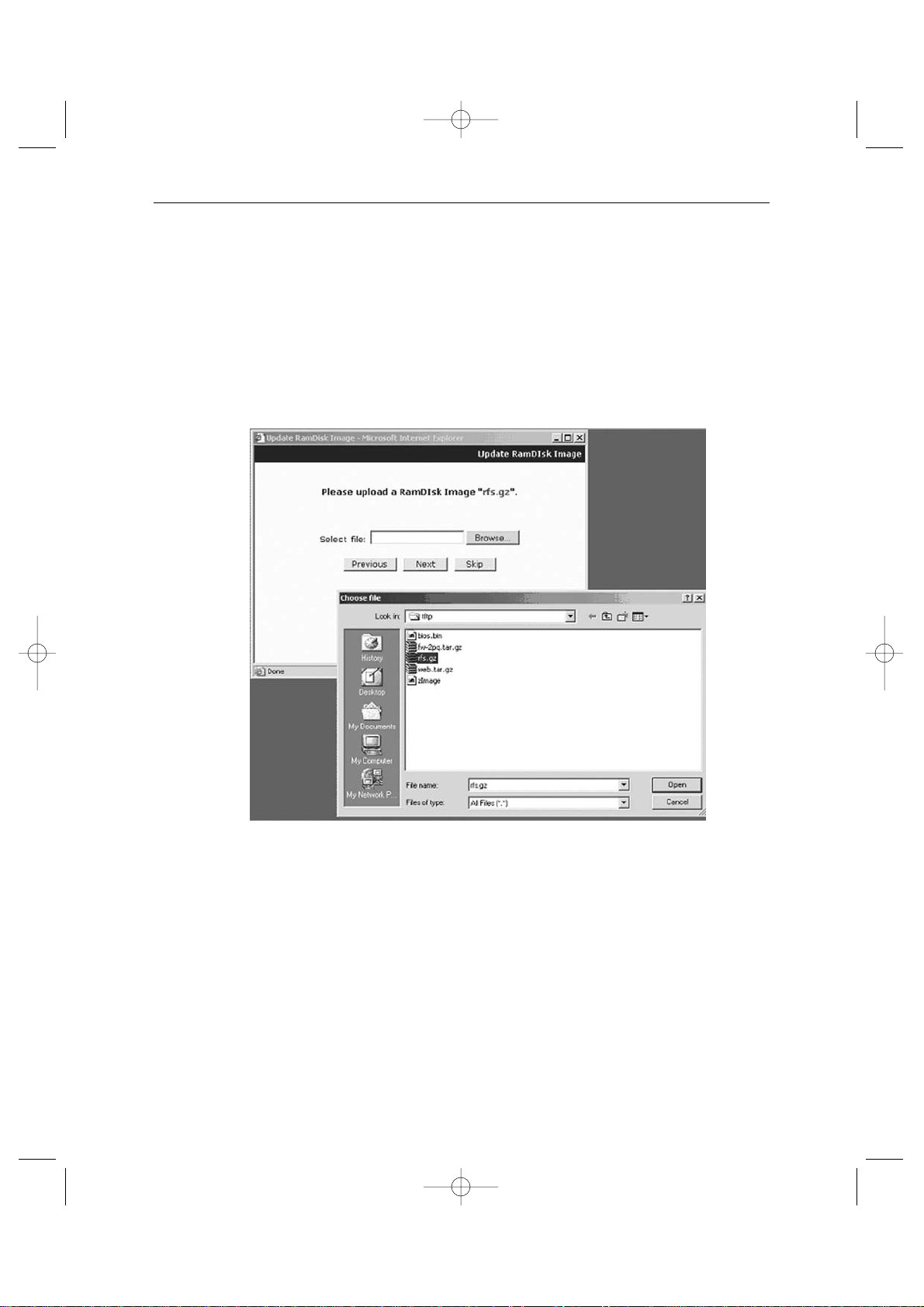

Appendix A) Software up data .............................................Eng-95

Appendix B) IP Router Setup Guide ....................................Eng-96

1. Total System Configuration...........................................Eng-97

2. Local System Configuration..........................................Eng-98

3. Step-by-step Examples...................................................Eng-99

Eng-12

Chapter 1: System Components and Installation

1-1) Environmental requirements for installation and safety

This section describes the environmental requirements for safe installation and use. Install the product on a flat table or in a rack. It should be used only when level and should not be used when stood vertically or obliquely. The location in which the main system is installed and the configuration of the wiring room are very important for proper operation of the system. When the products are installed too closely together or the location is poorly ventilated, the system may not operate properly and maintenance of the system may be difficult. Sufficiently circulate the air within the system operating room and tightly fasten the cover of the main system to prevent malfunction and reduce system downs due to environmental causes. There are high voltage parts inside. Do not arbitrarily open the cover.

Install the product in a place that meets the following environmental conditions. Be sure to maintain the system under the temperatures and humidity conditions given below:

• Operating temperature: 0°C ~ 40°C

• Storage temperature: -20°C ~ 60°C

• Operating humidity: 20% ~ 85% RH

• Storage humidity: 20% ~ 95 RH

• Input voltage: AC 120V

• Power usage: less than 110 Watts

• Frequency: 60Hz

Caution

When operating the product, the fluctuation of input voltage must be within 10% of the rated voltage and the external power outlet must be grounded, otherwise, it may cause electric shock or malfunction of the product. Do not connect heat-generating appliances such as a hair dryer, iron or refrigerator to the same power outlet in which the product is plugged, otherwise it may cause a fire or malfunction of the product. The use of an Automatic Voltage Regulator (AVR) is highly recommended to ensure that stable power is supplied. Be sure to coil CORE-FERRITE on the connector to reduce electro-magnetic interference (EMI).

Eng-13

1-2) System Components

The system consists of the following:

MONITOR

CAMERA BRACKET

ITEM MONITOR STANDARD CAMERA CAMERA BRACKET CAMERA CABLE INSTALLATION MANUAL POWER CORD VCR CABLE SENSOR CONNECTOR

INSTALLATION MANUAL

POWER CODE &

MODEL SSC17WEB SSC-12C SBR-110 MCB-60

DESCRIPTION 17" CRT MONITOR NORMAL TYPE CAMERA STAND TYPE BRACKET 6PIN SHIELD CABLE

STANDARD

CAMERA

VCR CABLE

CAMERA CABLE

NOTE

Q’ty 1 4

Tapping Screw 3

60ft(1ft=0.3048m)

4 1 1 1 4

SENSOR

CONNECTOR

• Check whether all the following devices and accessories are included with the main system.

1-3) CAMERA composition and installation method

1) Standard Camera composition (SSC-12C)

PIN NUMBER

! @ # $ % ^

a. Lens

It has a focal length of 3.8mm and makes it possible for you to observe a relatively wide area.

b. Microphone

Capable of picking up all sound in the vicinity of the camera location and transmitting to the monitor.

c. Camera fitting groove

Enables the camera to be fixed onto the bracket. You may install it either above or below the camera if necessary.

SPEC SPEAKER(HOT) VIDEO_OUT GND SPEAKER(COLD) AUDIO_OUT/ALARM_OUT 12V DC

d. 6-pin modular jack

Used to connect the camera to the monitor.

e. SENSOR jack

Used to connect the sensor to the camera.

Eng-14

f. Speaker

It outputs the sound signal which was transferred from the monitor.

2) INSTALLING STANDARD CAMERA (SSC-12C)

SSC-12C s camera can be attached to the wall, ceiling or shelf using the camera mount bracket (SBR-110). Choose an installation site that can sufficiently support the weight of the equipments to be installed. Attach the camera mount bracket to the wall or ceiling using the supplied three screws (M4 X L15). Adjust the camera to target the video location and tighten the bracket handle on the camera mount

bracket.

4x15 sized screws

wall or ceiling

Eng-15

3) CAMERA MOUNT BRACKET(SBR-110) & STANDARD CAMERA(SSC-12C)

(1)

Overview

CAMERA MOUNT BRACKET (SBR-110) is used to attach the camera to a wall, ceiling or shelf.

(2)

Installation

Explains the installation of CAMERA MOUNT BRACKET as wall as the installation of the camera onto the CAMERA MOUNT BRACKET.

•

Choose an installation site that can sufficiently support the weight of the equipments to be installed.

•

Attach the camera mount bracket to the wall using the supplied screws (M4 X L15).

•

Adjust the camera to target the video location and tighten the bracket handle on the camera mount bracket. Install the camera on to the male screw of the Camera Mount Bracket by rotating the camera in clockwise.

Eng-16

Eng-17

•

Loosen the handle by turning it in a counter clockwise direction and then adjust the camera position . Tighten the handle, turning it clockwise, and lock the camera in position.

•

Connect the camera cable to the camera.

(3) Specifications Use : Indoor Installation : Wall or Ceiling Dimensions : 57 (W) X 47.2(H) X 100.5(L) Weight : 150g Operating Temperature : -10

°C

~ 50

°C

(4) Accessories SCREW (M4 X L15) : 3 pcs

Handle

Eng-18

1-4) CAMERA Composition and Connecting Method to

MONITOR

After positioning monitor and installing four cameras to a desired location, please connect CAMERA to MONITOR through CAMERA CABLE (MCB-60) as shown in the below figure. Please check whether or not it is properly connected.

Connection status checking method :

• Turn on the monitor after connecting cameras, and check if camera image is displayed. The initial screen mode of monitor is quad mode.

•

In case monitor and camera is not connected, OSD ‘L’(LOSS) will be displayed on screen.

1-5) External terminal connecting method for CAMERA and

MONITOR

1) External terminal connecting method for CAMERA

•

An additional PIR sensor or external sensor can also be connected.

•

The additional PIR sensor can be connected as shown in the above graphic.

•

Sensor’s trigger signal is NO (Normal Open).

•

Sensor is not supplied. (Sold separately)

2) VIDEO OUT BNC (1~4) terminals connecting method of monitor rear

VIDEO OUT BNC1 ~ BNC4 terminals in the rear of the monitor are VIDEO terminals for outputting video images from OBSERVATION CAMERA to THROUGH OUT. BNC VIDEO output terminal can be used to connect to VCR (TIME LAPSE) or SLAVE MONITOR.

3) VCR or ALARM terminal connecting method

TIME LAPSE VCR OR NORMAL VCR

VIDEO IN

AUDIO IN AUDIO OUT

VIDEO OUT VIDEO IN

AUDIO OUT AUDIO IN

VIDEO OUT

NOT USED

a) Connect the 6-pin plug to the VCR terminal on the rear panel. b) Connect the VIDEO OUT plug to the VIDEO IN terminal of the VCR. c) Connect the VIDEO IN plug to the VIDEO OUT terminal of the VCR. d) Connect the AUDIO OUT plug to the AUDIO IN terminal of the VCR. e) Connect the AUDIO IN plug to the AUDIO OUT terminal of the VCR.

Eng-19

Eng-20

f) Not Used g) Connect the A/O (HOT) terminal on the rear panel to the Alarm IN terminal of the VCR. h) Connect the A/O (COLD) terminal on the rear panel to the Ground terminal of the VCR. i) Connect the A/R terminal on the rear panel to the Alarm Reset terminal of the VCR. j) Connect the G (ground) terminal on the rear panel to the Ground terminal of the VCR.

1-6) Whole System connection and configuration

VCR (TIME LAPSE) REAR

VCR

SLAVE

MONITOR

Eng-21

Chapter 2: MONITOR FRONT PANEL KEY 

Function and Using Method

 Front Panel

2-1) AUDIO:

Adjust volume control for proper sound level.

2-2) H-HOLD:

Adjusts the horizontal stability of the screen. If the screen collapses in the horizontal direction, adjust this button.

2-3) V-HOLD:

Adjusts the vertical stability of the screen. If the screen collapses in the vertical direction, adjust this button.

2-4) BRIGHT: 2-5) CONTRAST:

Adjusts the brightness of the screen.

Adjusts the contrast of the screen.

2-6) TALK / A.RESET / SP.SEL - KEY

TALK KEY allows users to transmit voice signal to intended camera by inputting voice with built-in MIC in the front of the monitor. For this function, select a target camera with the KEY on the FRONT PANEL, and press TALK/R.RESET/SP SEL KEY. At this time, if a voice signal is generated through the MIC with the TALK/R.RESET/SP SEL KEY pressed, the signal will be transmitted to the camera.

A.RESET KEY - Alarm function can be cancelled while the alarm is working. SP.SEL KEY - allows users to select a camera to exchange voice signals with the monitor at

QUAD DISPLAY MODE. At QUAD DISPLAY MODE, select target camera display by pressing KEY left or right, and press TALK/R.RESET/SP.SEL KEY. Then "S" OSD will be displayed on the selected screen. If you want to exchange voice signals with another camera, turn again the KEY again to select the camera display, and press TALK/R.RESET/SP.SEL KEY. Then, "S" OSD will be displayed and users can exchange voice signals with the monitor.

Eng-22

2-7) VCR/MENU/ZOOM - KEY

Allows users to switch LIVE MODE to VCR MODE or VCR MODE to LIVE MODE. If VCR MODE is cancelled, the QUAD picture of LIVE MODE will be automatically displayed. In case any event happens at VCR MODE such as LOSS or ALARM, the MODE will be automatically switched to LIVE MODE, and the pre-set operation for the event will be carried out. If there is no external input at VCR MODE, the OSD "NO SIGNAL" will be displayed.

LIVE MODE: Image and voice signal from CAMERA is displayed. VCR MODE: External image and voice signal from VCR terminal from the rear of the monitor is displayed. ZOOM MODE : Users can move to a target area by pressing KEY left and right at this time. If KEY is pressed at the target area, the area will be displayed with 2 times larger.

VCR / ZOOM / MENU - KEY allows users to enter SETUP MENU, and set the following items on the SETUP MENU.

DATE/TIME MENU : Setting of Date/Time format and time to be displayed DWELL MENU : Setting of DWELL TIME at SEQUENTIAL SWITCHING MODE DISPLAY MENU : Setting DISPLAY MODE TITLE MENU : Setting camera name ALARM MENU : Setting ALARM and BUZZER VIEW EVENT LOG MENU :

Allows users to see EVENT (ALARM, LOSS) list per time, camera

Please refer to the following Chapter 3 for setting method and function of SETUP MENU per item.

2-8) QUAD / PAGE - KEY

Allows users to display QUAD A or QUAD B at QUAD DISPLAY MODE.

QUAD A: QUAD DISPLAY MODE from Camera 1 to Camera 4 QUAD B: QUAD DISPLAY MODE from Camera 5 to Camera 8

Eng-23Eng-23

2-9) SEQ / PIP - KEY

SEQUENCE MODE

It makes a picture switch sequentially. This means that display the picture will be displayed during the DWELL TIME pre-set at the DWELL MENU of SETUP MENU, and switch the picture automatically as a pre-set sequence. Please refer to Chapter 3. DWELL TIME MENU function and setting method for details of DWELL TIME setting.

PIP MODE

Can be used to see the main screen while Single screen is displayed. The main screen can be changed and transfered to another channel while PIP is working. Please refer to "CHAPTER 4. DISPLAY MODE SETTING" for PIP function and details.

2-10) FREEZE - KEY

This key allows users to see a target camera picture at PAUSE MODE. If users select the camera with the KEY, and press the FREEZE BUTTON, the OSD "F" will be displayed on pause picture from the camera. Other FRONT KEY input is ignored at FREEZE MODE, and other FRONT KEY inputs will be available only after the FREEZE MODE is cancelled.

2-11) - KEY

key, it allows users to

1. enter SET UP MENU movement and SETTING MODE and set data, and

2. display single camera picture. Please refer to the below picture. using method at MENU setting

Used to change data value after moving to setting mode by using key left or right. KEY using method at MENU setting Used to enter target setting mode by pressing key. SINGLE DISPLAY MODE Entering and Function At QUAD DISPLAY or SEQUENTIAL SWITCHING MODE, pressing the key allows users to enter the SINGLE DISPLAY MODE to see the image of one selected camera at full screen. Users can move to another camera image by the key.

Eng-23

Eng-24

2-12) POWER SAVE - KEY

Allows users to set POWER SAVE MODE of monitor. PICTURE screen is off when the POWER SAVE KEY is pressed, and the ON/OFF status of the monitor can be judged through LED ON/OFF status. Users can exit from POWER SAVE MODE by pressing POWER SAVE BUTTON again under picture "OFF" status. POWER SAVE MODE is automatically cancelled and picture is "ON" when an event such as an alarm or loss at POWER SAVE MODE occurs.

2-13) REAR POWER S/W

It turns ON/OFF the power of the monitor and camera at the same time. In case the monitor power is ON, LED of monitor front is lit.

Eng-25

Chapter 3: Setting each item function at SETUP

Pressing the MENU BUTTON of the FRONT PANEL allows users to enter SETUP MENU and see the following menu OSD box. Setting method of each SETUP MENU function and operation is as follows.

06/01/03 13:14:00

SETUP MENU

1. DATE/TIME

2. DWELL TIME

3. DISPLAY

4. TITLE

5. ALARM

6. NETWORK SETUP

7. VIEW EVENT LOG

Eng-26

06/01/03 13:14:00

DATE TYPE MM/DD/YY DATE 06 / 01 / 03 TIME [HH:MM:SS] 13 : 14 : 00

DATE/TIME SETTING

06/01/03 13:14:00

CAM1 03 SEC CAM2 03 SEC CAM3 03 SEC CAM4 03 SEC CAM5 03 SEC CAM6 03 SEC CAM7 03 SEC CAM8 03 SEC QUAD-A 03 SEC QUAD-B 03 SEC

DWELL TIME SETTING

3-1) DATE/TIME MENU Function setting

Function: Sets the display date format and current time. Setting method: Move to #1. DATE/TIME MENU by pressing KEY at setup menu,

then press the KEY to display the OSD as shown in the below figure. (The figure shows the initial setting status.)

Setting method of date display format

Move to the format item by pressing KEY, and enter the mode for setting date format by pressing the KEY. At this time, select a target date format by pressing KEY. ("YY/MM/DD", "MM/DD/YY", "DD/MM/YY" are available for selectable data format.)

Date and current time setting method

Repeat the above instruction for moving to each item (MONTH, DAY, YEAR, HOUR, MINUTE, SECOND) and entering the mode. Current date and time to display can be set. (It can be referred when ALARM or LOSS occurs.)

3-2) DWELL TIME MENU function setting

Function: Displays each picture for pre-set time and automatically switches it to the next picture

at SEQUENTIAL DISPLAY MODE. Setting method: Move to #2. DWELL TIME menu by using KEY at SETUP MENU and press the KEY to display the following OSD as shown in the below figure. (The figure shows the initial setting status.)

Eng-27

If the time is set for each camera channel by pressing KEY, each camera picture will be displayed for the set time and switched to the next picture automatically.

3-3) DISPLAY MENU function setting

Function: Allows users to select the color and ON/OFF of borderline at QUAD DISPLAY. Setting method: Move to #3. DISPLAY SETTING MENU by pressing  KEY at

SETUP MENU, then press the KEY to display the OSD as shown in the figure below. (The figure shows the initial setting status.)

06/01/03 13:14:00

DISPLAY SE TTING

BORDER ON BORDER COLOR GRAY PIP POSITION B-RIGHT

NETWORK STATUS ON/OFF

Move to each item by pressing KEY, and change the set value.

1) BORDER item determines whether or not boarder line is displayed at QUAD DISPLAY MODE.

(ON: Displays the boarder line, OFF: Does not display the boarder line)

2) BORDER COLOR item sets boarder line color among three colors: Black, White, Gray.

3) PIP POSITION item sets the location of sub picture at PIP DISPLAY. (T-LEFT: Upper part of left

side, T-RIGHT: Upper part of right side, B-LEFT: Lower part of left side, B-RIGHT: Lower part of right side)

4) NETWORK STATUS determines the display of [S], [D], [P] displayed at the left of top on the

screen according to status of NETWORK. Refer to 3-6) NETWORK SETTING function and setting method for the respective detailed status.

(ON: Displays the NETWORK STATUS, OFF: Does not display the NETWORK STATUS)

Eng-28

3-4) TITLE MENU Function setting

Function: Set the title of each camera at your discretion. Setting method: Move to #4. TITLE MENU by pressing KEY at SETUP MENU,

and press the KEY to display the OSD as shown in the figure below. (The figure shows the initial setting status.)

06/01/03 13:14:00

TITLE SETTING

CAMERA1 CAM1 CAMERA2 CAM2 CAMERA3 CAM3 CAMERA4 CAM4 CAMERA5 CAM5 CAMERA6 CAM6 CAMERA7 CAM7 CAMERA8 BCAM8

0 1 2 3 4 5 6 7 8 9 : = . ( ) A B C D E F G H I J K L M N O P Q R S T U V W X Y Z [ / ] _ ~  +

Move to a target camera channel by pressing KEY then press the ENTER KEY to display a cursor at the space of the first character of camera title. Move the cursor to a target character in OSD box of lower part by pressing  KEY, then press the KEY to set the character. The cursor automatically moves to the next space for a new character after one character is set. Set the title of camera by repeating the same method. (Only eight characters are available for a camera title.)

Eng-29

3-5) ALARM MENU Function setting

Function: Allows users to set the ALARM MODE for each camera. Setting method: Move to #5. ALARM MENU by pressing KEY at SETUP MENU

and press the KEY to display the OSD as shown in the figure below. (The figure shows the initial setting status.)

06/01/03 13:14:00

ALARM SETTI NG

CAM1 ON CAM2 ON CAM3 ON CAM4 ON CAM5 ON CAM6 ON CAM7 ON CAM8 ON HOLD TIME 05SEC ALARM ON TIME 00:00 ALARM OFF TIME 00:00 BUZZER ON

(1) CAM1 to CAM8 item sets whether the alarm sensor connected to the camera is used or not.

(ON: Alarm function setting, OFF: Alarm function canceling)

(2) HOLD TIME item sets time to freeze alarm operation when alarm occurring.

(HOLD TIME to be set: 05SEC ~ 1MIN ~ 30MIN)

(3) ALARM ON/OFF TIME item sets beginning time (ON) and end time (OFF) that monitor

recognizes alarm operation as alarm event.

* Note :Even if CAMERA ALARM is set to ON, alarm operation is not carried at time band except

pre-set ALARM ON/OFF TIME.

(4) BUZZER item sets whether or not buzzer device set in monitor is used at an ALARM or LOSS

occurring. (ON: Buzzer operation, OFF: NA)

3-6) NETWORK SETTING function and setting method

Function: Allows users to select the STATIC (fixed) IP, DHCP, PPPoE of Setting. Setting method: Move to #6, NETWORK SETUP MENU by pressing KEY at SETUP MENU,

then press the KEY to display the OSD as shown in the figure below. (The figure shows the initial setting status)

06/01/03 13:14:00

NETWORK SETTING

1. NETWORK ACCESS STATIC.../DHCP.../PPPoE...

2. HTTP PORT 00080

NETWORK STATUS

IP ADDR 192.168.1.200 GATEWAY 192.168.1.65 SUBNETMASK 255.255.255. 0 DNS 1 168.126.63. 001 DNS 2 168.126.63. 002 MAC ADDR 00:30:6f:ff:00:00

MOVE TO EACH item by pressing KEY, and change the set value.

Static IP User

- Constituted by Static IP on the TCP/IP network

1) Move to "STATIC..." by using

to set STATIC... (STATIC : Select in case the network configuration of SSC17WEB is fixed IP (Public or Private IP)

06/01/03 13:14:00

STATIC ACCESS

IP ADDR 192.168.1.200 GATEWAY 192.168.1.65 SUBNETMASK 255.255.255. 0 DNS 1 168.126.63. 001 DNS 2 168.126.63. 002

2) Move to IP ADDR / GATEWAY / SUBNETMASK by pressing KEY.

3) Press KEY and type in IP ADDR / GATEWAY / SUBNETMASK respectively.

4) DNS 1 and DNS 2 will be automatically set to DNS as shown below.

Use  KEY to change it.

 

at NETWORK ACCESS, then press  KEY

Eng-30

5) After setting, move to the main screen by using the VCR / ZOOM / MENU KEY.

6) Set values will be stored shown below. It takes 2 or 3 seconds.

06/01/03 13:14:00

NETWORK SETTING

[S] 06/01/01 13:14:00

CAM1

On completion of setting to Static IP(Fixed IP)setup, the screen, [S] is displayed. If the network connection is cancelled or cut, [S] starts blinking.

Open your Internet Explorer web browser.

7) Using a Static (fixed) IP, You may also connect remotely by typing in the IP address of

the SSC17WEB, Such as

http://192.168.1.200

* Note : HTTP Port

Set the port to be used when connection to SSC17WEB in internet Explorer and receive Necessary files for the image transmission. The port setting is used for various network configuration or a particular port etc.

CAUTION

A port number is reserved for TCP port and HTTP port setting. Default values should not be changed. However, if the IP Router is used in a network environment, input proper values with reference to the IP Router manual.

If the SSC17WEB is using a Router, you may also connect remotely by typing In the WAN IP Address of the Router and the HTTP port assigned to the SSC17WEB. (here you must type in the port address even if it is the default “80”), such as

http://192.168.1.200

:80

Eng-31

Eng-32

DHCP User

- Constituted by Dynamic IP on the cable/xDSL modem network

You can use the SSC17WEB products through the network using Dynamic IP on cable/xDSL modem. In this case, it should be connected with DDNS to support the Dynamic IP.

In case a user (EX : cable modem user) does not need ID and password of the communications that he subscribes for when he logs on to he internet, he may provide the configuration using DHCP. In case of a configuration using DHCP, as the connection to SSC17WEB is made using domain names (EX : http://sff0000.websamsung.net) that are automatically registered in our DDNS server, IP address, Subnet Mask and Gateway that are in the network tab of Admin Mode are not necessarily to be inputted. The proper domain names of SSC17WEB are automatically registered to DDNS server installed in our company in case of modem connection.

Beside, IP type of Admin Mode is made of "DHCP" in case of factory shipment, you may apply directly without a setting of Admin Mode, as IPtype of Admin Mode for the factory shipment is of "DHCP".

1) Connect as the figure below and turn on the power of each equipment in the following order.

Eng-33

2) Move to "DHCP..." by pressing

 

at NETWORK ACCESS, then press KEY

SWITCH to set to DHCP.

06/01/03 13:14:00

DHCP ACCESS

DNS 1 168.126.63.001 DNS 2 168.126.63.002

3) DNS 1 and DNS 2 will be automatically set to DNS as shown below. Use KEY to change it.



4) After setting, move to the main screen by using the MENU BOTTOM.

5) Set values will be stored as shown below. It takes 2 or 4 seconds.

06/01/03 13:14:00

NETWORK SETTING

[D] 13:14:00

CAM1

On completion of setting to DHCP setup, the screen, [D] is displayed. If the network connection is cancelled or cut, [D] starts blinking.

6) You can view the video source of the SSC17WEB from a remote location PC.

7) Make sure the remote PC meets the minimum specification requirements described in chapters 1 and 2, and make sure that the PC is internet capable and set up to be able to browse the internet.

Eng-34

8) Open your Internet Explorer web browser, type in the following in the URL window and

At this time, you should add “s” in front of “mac address”.

press Enter.

http://sff0000.websamsung.net Where ff0000 is the MAC address of your SSC17WEB in this example. If your SSC17WEB’s MAC address is ff0001, then type in ff0001 instead of ff0000

* Note :

MAC Address.

Locate the MAC Address of the SSC17WEB (each SSC17WEB has its own unique MAC address) It can be checked in ‘6.NETWORK SETUP” of SETUP MENU’. It is the last 6 digits as shown below.

06/01/03 13:14:00

NETWORK ACCESS OFF NETWORK STATUS

IP ADDR 192.168.1.200 GATEWAY 192.168.1.65 SUBNETMASK 255.255.255.0 DNS 1 168.126.63.001 DNS 2 168.126.63.002

MAC ADDR 00:30:6f:ff:00:00

CURRENT MODE STATIC

CAUTION

If you change the HTTP port number 80 to 82 then must type like below in address bar. http://sff0000.websamsung.net:82

Eng-35

ADSL User (PPPoE)

- Constituted by IP on PPPoE (ADSL)

SSC17WEB products can be used on the network using IP through PPPoE (ADSL).

In case of a user (EX : ADSLuser) who needs ID and password of the communications that he subscribes for in case of internet connection, the configurations using PPPoE would be available. In case of a configuration using PPPoE, SSC17WEB connection is made through the domain names (EX : http://sff0000.websamsung.net) that are automatically registered in our DDNS server, you do not need to enter IP address, Subnet Mask and Gateway in the network tab of Admin Mode. The proper domain manes of SSC17WEB are automatically registered to DDNS server installed in our company in case of ADSLmodem connection.

1) Connect as the figure below and turn on the power of each equipment in the following order.

2) MOVE TO EACH item by using  KEY, and change the set value.

3) Move to 'PPPoE...' by using at NETWORK ACCESS. Press KEY to set to PPPoE.

06/01/03 13:14:00

PPPoE

...

ACCESS

DNS 1 168.126.63.001 DNS 2 168.126.63.002 USER ID

********

USER PWD

********

4) When the PPPoE (ADSL) type in the User Name and Password (and Confirm Password)

given to you by the ADSL Service Provider.

CAUTION

In case of using ADSL (ISP-internet service provider, you must type correct User Name and Password by ISP to connect to SSC17WEB. If you type incorrect User Name or Password, you can not see the image transferred from SSC17WEB.

IP and PASSWORD can be inputted to 40 characters in the maximum.

5) USER ID and PWS can be 40 digits maximum. Only the Arabic numerals,@ and small

characters can be used. Please that capital letters are not supported when you get USER ID AND PWS from ADSL Service Provider.

6) DNS 1 and DNS 2 will be automatically set to DNS as shown below.

œœ, √√

7) Use

8) After setting, move to the main screen by using the MENU BOTTOM.

9) Set values will be stored as shown below. It takes 2 or 3 seconds.

KEY to change it.

06/01/03 13:14:00

NETWORK SETTING

[P] 13:14:00

CAM1

On completion of setting to PPPoE(ADSL)setup, the screen, [P] is displayed. If the network connection is cancelled or cut, [P] starts blinking.

Eng-36

Eng-37

At this time, you should add “s” in front of “mac address”.

10) You can view the video source of the SSC17WEB from a remote location PC.

11) Make sure the remote PC meets the minimum specification requirements described in chapters 1 and 2, and make sure that the PC is internet capable and set up to able to browse the internet.

12) Open your Internet Explorer web browser, type in the following in the URL window and press KEY. http://sff0000.websamsung.net (Indicate all by URL picture) Where ff0000 is the MAC address of your SSC17WEB in this example. If your SSC17WEB'   s MAC address is ff0001, then type in ff0001 instead of ff0000.

* Note : MAC Address.

Locate the MAC Address of the SSC17WEB (each SSC17WEB has its own unique MAC address) It can be checked in "6.NETWORK SETUP of SETUP MENU". It is the last 6 digits as shown below.

06/01/03 13:14:00

NETWORK ACCESS NETWORK STATUS

IP ADDR 192.168.1.200 GATEWAY 192.168.1.65 SUBNETMASK 255.255.255.0 DNS 1 168.126.63.001 DNS 2 168.126.63.002

MAC ADDR 00:30:6f:ff00:00

CAUTION

If you change the HTTP port number 80 to 82 then must type like below in address bar. http://sff0000.websamsung.net:82

CAUTION

In cases where DNS server address of PC is not set and the connection using domain name is not available, Please consult with the network administrator and be sure to set DNS server address.

CAUTION

The connection to SSC17WEB is unavailable for about 2~5 minutes after ADSL Modem’s power ON. Since the connection would not be available, as IP is not received from ADSL communications, please reboot by turning off the power of ADSL Modem and SSC17WEB for more than 5 seconds and then try to connect again.

3-7) SSC17WEB basic setting

1) Open your Internet Explorer web browser, type in the following in the URL window and

press ENTER. -Refer 3-6) Network Installation

2) When you choose the Admin menu, it asks you the Admin ID and password.

3) Type in root / root. On delivery, they are “root” (administrator’s ID) / “root” (administra-

tor’s Password). The password can be changed on Admin Menu.

4) If this is the first time you run this procedure on this PC, then you will see the following

“Active X controls and plug-ins to run” screen.

5) Click “YES”. This will automatically download the necessary Active X Controls to oper-

ate the Remote Viewer. It takes about 20 seconds at the first connection.

Eng-38

Eng-39

6) When you enter properly, a window appears as shown below.

3-7-1) “LIVE” MENU

- CAMERA SELECT

Initial display mode of monitor if QUAD A.

- Remote Viewer Function Buttons

KEY Type Function

Choose a camera by channel Ch 1 ~ Ch 8 CHANNEL NEXT SINGLE MODE (1ch Default selected) 320 X 240 Size 720 X 480 QUAD MODE (QUAD Default selected) SEQUENCE MODE

Eng-40

SAVE

CAPTURE

REC

Eng-41

PLAY

STOP

LIVE MODE change

ADMIN MODE change

- SINGLE SCREEN DISPLAY

In case users want to see the camera image at full mode, Select a target camera by turning camera select key. After that it’ selected camera image will be displayed at full screen.

* AT SINGLE DISPLAY

- QUAD MODE DISPLAY

User can switch SINGLE DISPLAY and SEQUENTIAL DISPLAY MODE or QUAD DISPLAY MODE or QUAD A (QUAD B) TO QUAD B (QUAD A) Press the Sequence KEY

• AT QUAD MODE DISPLAY

QUAD A: QUAD DISPLAY MODE From Camera1 to Camera4 QUAD B : QUAD DISPLAY MODE From Camera5 to Camera8

Original Size Large Size

- Auto SEQUENCY DISPLAY MODE

Pressing on the SEQUENCE KEY on the front allow to automatically switch to SINGLE MODE Full screen or QUAD MODE. If the DWELL TIME SETTING of SETUP MENU is set to 3 seconds and the SEQUENCY KEY is pressed at this time, the operation will be carried out as follows. (NO signal channel will be skipped while single screen is auto-switching)

* SINGLE MODE SEQUENCE DISPLAY

-> Press SEQUENCE KEY When SINGLE MODE (camera select key) is displayed at full screen.

* QUAD MODE SEQUENCE DISPLAY

-> Press SEQUENCE KEY When QUAD A (QUAD B) MODE is displayed.

- SAVE MODE

Pressing on the SAVE KEY on the front, you can change the name of the DIRECTORY

- CAPTURE MODE

Pressing on the CAPTURE KEY on the front, you can store each picture in the form of M-JPEG.

- Motion Picture Recording and Playback

Eng-42

Eng-43

1. Recording

When you make a recording from the Viewer, the file is automatically saved onto a directory preset by the Viewer by default. This directory is usually “C:\Program Files\Samsung \SSC17WEB\00-30-6F-FF-00” 00-30-6F-FF-00 is the MAC ADDRESS of the product.

(user can change this in the SAVE KEY .Record Folder setting), where “Server Name” is the name of your SSC17WEB you have given during setup of the SSC17WEB. If you have connected to and recorded from more than one SSC17WEB on the same PC, there will be more than one “Server Name” directory. You can always locate the file by choosing the Server Name directory. Within the Server Name directory, files are automatically saved with filenames in time stamped format.

2. PLAY

When you select on a play key and press the Open button or double click the file, that file will play back on the Remote Viewer as a motion clip. When the file has finished playing or when you press the Stop button, the Remote Viewer will go back to Live screen. You can select several files simultaneously at once (up to 10) and the files will be played back in the order of the file name (by date and time).

Eng-44

Eng-45

3. PLAYER

- Player installation/execution/deletion

- Installation Player will be installed together when it is connected to SSC17WEB.

- Execution (Follow the instruction to execute it separately.) Click Start Program —> SSC WEB Control —> Player. (Fig. 3-!)

1 2

FIG.3

- Deletion Click Start —> Program —> SSC WEB Control —> Uninstall. (Fig. 3-@)

Eng-46

- Program screen configuration

- How to play

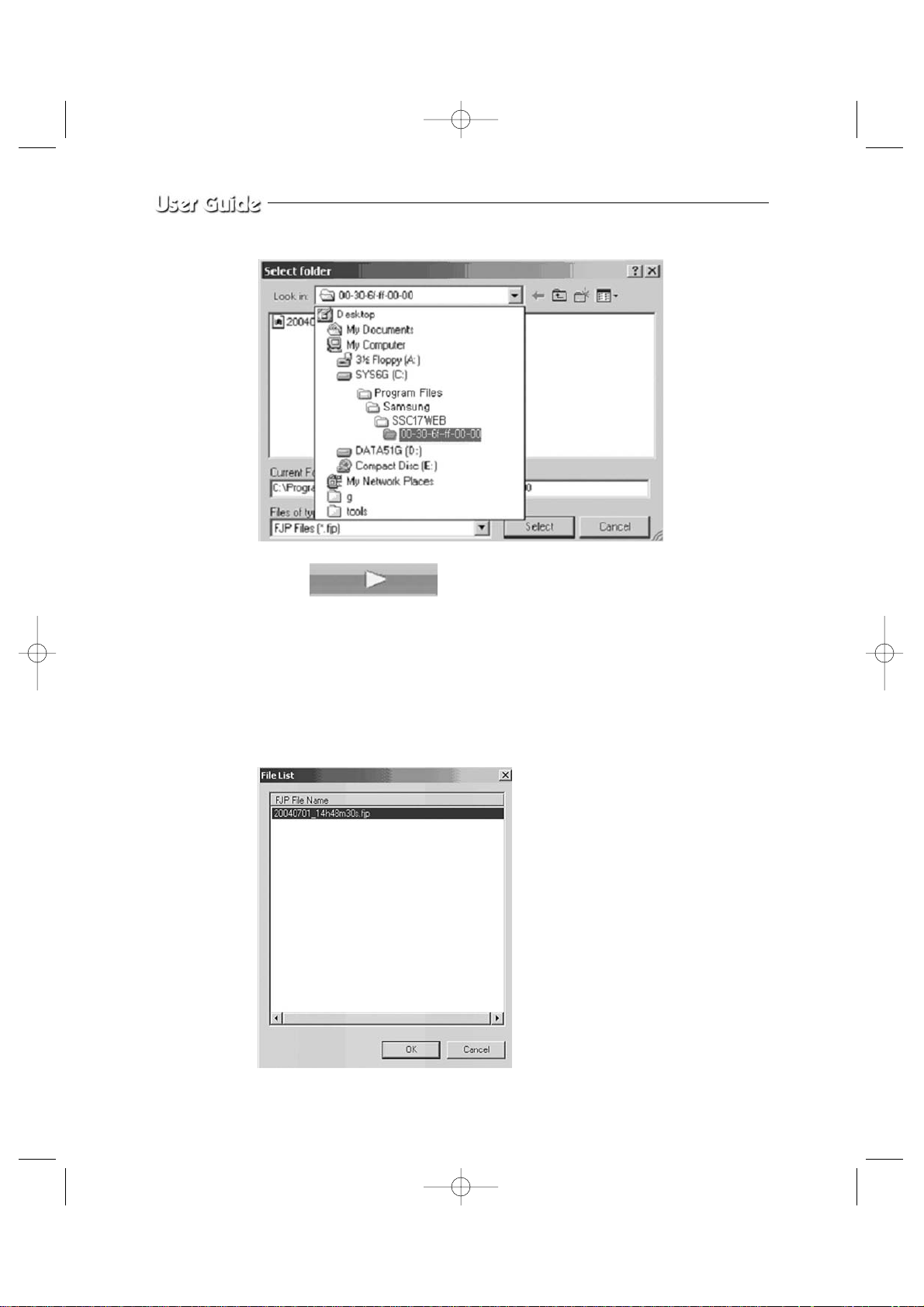

1. Play - back File - Open... Selecting this, you can choose one between fjp and jpg on a window as shown below.

Eng-47

Having chosen and opened a file, you will see a picture as shown below.

Reverse playback Enlarge

Playback Reduce

Pause Original size

Stop Partial storing(AVI support)

To the back frame Save the present frame as a

JPEG image

To the front frame Print

Speed control Display the playback speed,

magnification, and information on the storage.

Status

bar

Additional function (Tool)

- Partial recording

- Snap shot

- Print

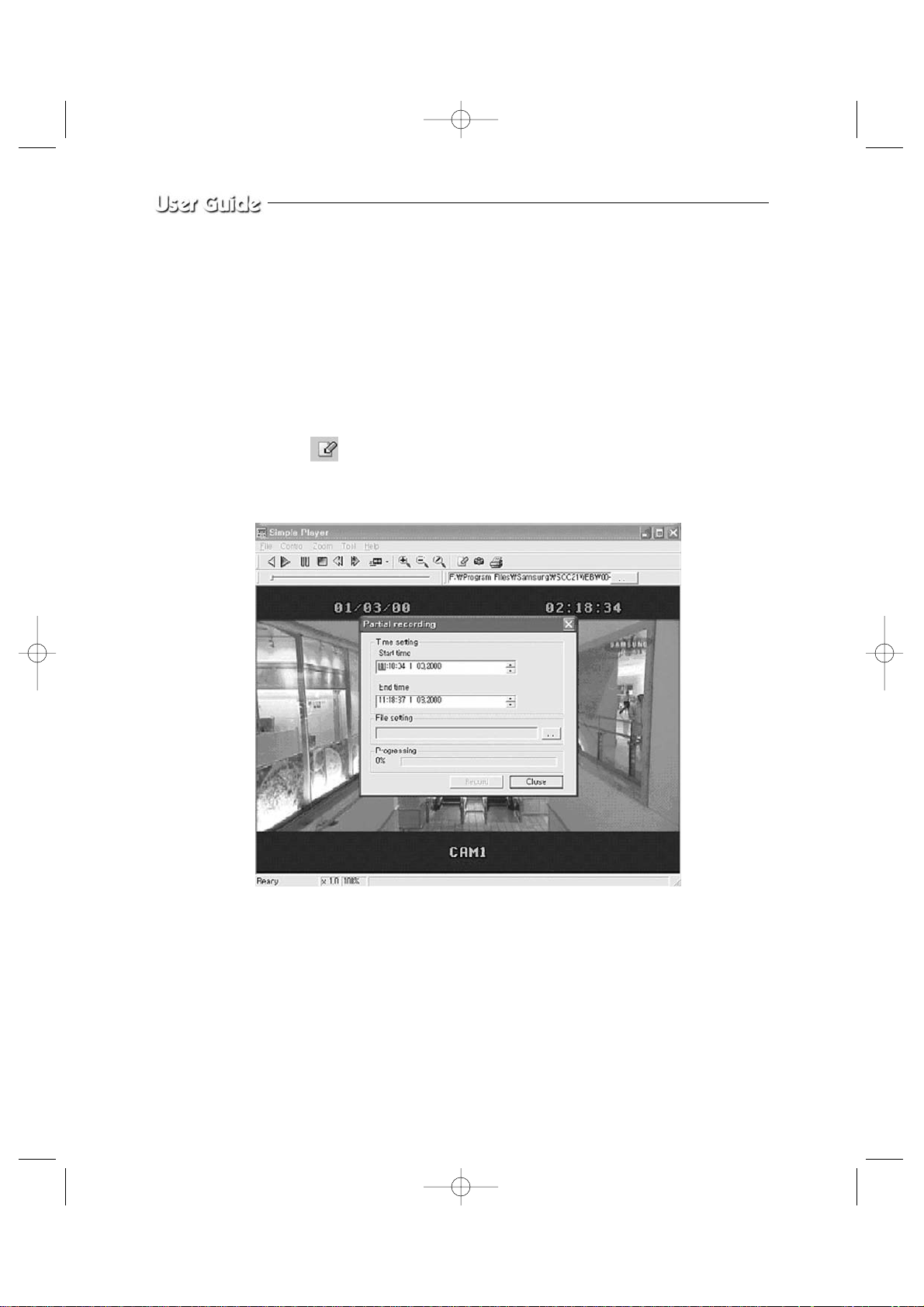

- Partial Recording Partial recording is to separate a section from the file selected and played and save it as a form of AVI. Select in the toolbar and a window will appear as shown below. Start time and End time of the file will be displayed and the user can decide the section. You need to type in the correct time to execute the partial recording function.

Go to File setting and type in the file name you want to make. Awindow will appear as shown below.

Eng-48

Eng-49

And press ‘Save’.

Then press ‘Record’ button and the picture below shows that it was completed.

* Note :

“AVI file frame speed setting” Frame control function of Dialogue box is to con-

trol the number of frames of AVI files. Although the original file has been recorded at a speed of 10 frames per second, 30 frames or 3-second frames of the original file will be stored and become a “second in an AVI file if you set the number of AVI file frames to 30 frames. In this case, the AVI file will be played more rapidly than the speed of the original when it is played on a media player. Please regulate the “AVI file frame speed setting” properly depending on the speed of the original.

- Snap shot

It is a function to save the present image as a form of a jpeg file. Select in the toolbar. The result will be as follows.

Type in the file name and press ‘Save’to store it as a jpeg file.

- Print

It is a function to print the present image. Select in the toolbar. The result will be as follows.

Eng-50

Eng-51

Type in the phrase you added in ‘Description’. Then press the ‘OK’ button.

Select Print and press ‘OK’.

Admin Menu

Eng-52

It is an administrator’s menu to set the general items on SSC17WEB Server. To use this menu, you need the administrator’s ID and Password. On delivery, they are “root” (administrator’s ID) / “root” (administrator’s Password). The password can be changed on Admin Menu.

Admin Menu Entering

1) Click the Admin menu and a login window will appear.

2) When you connect to the SSC17WEB Server through Web browser, the initial screen will be as follows.

Eng-53

3) Type in the administrator and password in the user’s name and password columns and press Enter key to execute the Admin Menu as shown below.

4) Screen configuration

! : General menus of Admin Menu. The menus related to SSC17WEB Server are

divided into System, Network, Monitor Setup, and Utilities in the main. Each of them has several sub menus.

@ : When you click one of the main menus (System Configuration, Network

Configuration, Monitor Setup, Utilities), its sub menus and simplified explanation on them will appear.

• Admin Menu Structure

Eng-54

Category Main Menu

System Configuration System Information

Admin. Password Access Limitation User Registration Video Alarm Notification

Network Configuration Network Configuration

PPPoE (ADSL) Network Ports View Network Status Network Status Notification DDNS Configuration

Monitor Setup Date & Time

View Event Log Display Dwell Time Title Alarm

Utilities Save Configuration

Reboot System Update

Eng-55

3-7-2) System Configuration Menu.

1. System Information

In this menu, you can check the information on the system including the name of the SSC17WEB Server, its model name and the version of the model and change the name of the SSC17WEB Server.

- Menu Configuration

Server Name Type in the name of the SSC17WEB Server.

* Server’s name should be composed of 19 or less numerals or English alphabets. It cannot start with a numeral and should start with an English alphabet. White characters including a space, tab, and a special letter cannot be used.

Model SSC17WEB Server product model name SSC17WEB

* This part is only for reading, cannot be changed.

Version SSC17WEB Server product’s version

* This part is only for reading, cannot be changed.

After completing setting, click Apply button. If you click the back button, initial values are typed in all fields.

2. Admin Password

Eng-56

In this menu, the password of the administrator (root) can be changed.

- Menu Configuration

Administrator’s ID Administrator’s ID is always “root”. Old Password The initial password is “root”.

New Password Type the password you want to change into.

* The password should be composed of 4-8 digit numerals or alphabets.

Confirm Password Type again the password you want to change into.

After completing setting, click Apply button. If you click the back button, initial values are typed in all fields.. After clicking the apply button, the new password will be applied. Then the connection of SSC17WEB Server, which was connected by using the existing password, to the Web Page will be cut off because the new password is now applied. The user needs to log in again by using the new password.

Eng-57

3. Access Configuration

This menu is to set the targets the SSC17WEB Server can have an access to.

- Menu Configuration

Access Limitation This is to limit the maximum frame speed when the

Configuration users, who are registered in the system, join and see the

images. The users, who join in the system after this setting, will be connected at the limited speed. The access speed can be limited on the Local Network depending on the forwarding state of the network. (30/15/10/5/2/1 ips)

After completing setting, click Apply button. If you click the back button, initial values are typed in all fields.

4. User Registration

This is a user control menu to register, change, or delete the users who can use the SSC17WEB Server.

Eng-58

Eng-59

- Menu Configuration

User ID Decide the ID of the person you want to register. Password Decide the password of the person you want to register.

Confirm Type again the password of the person you want to register. Password Full Name Type in the name of the person you want to register. Add This is a menu to register a user. It is to fix the user’s ID, Password,

name, and the authority of the user how far he/she can use the system.

- Type in the user’s ID in the User ID column.

- Type in a password in the Password and Confirm columns. The user’s ID and the password should be composed of 31 or less numerals or letters.

- Type in the name of the user in Full Name column.

Edit On this menu, you can change the existing password, name, and

access right of the user. The user’s ID cannot be changed. The configuration of the menu is same as Add, however you should select the user’s ID on this menu.

- Choose Edit menu.

- Click “Select User ID” in User ID and click the user’s ID you want to edit.

- Modify the password, name, and access right of the user and click Apply button to apply the modified items.

Delete This menu is to delete the registered user.

- Choose Delete menu.

- Choose the user’s ID you want to delete in the box.

- Click Delete button to delete the ID.

- Click Save button to complete registration.

After completing setting, click Apply button. If you click the back button, initial values are typed in all fields.

Eng-60

5. Video Configuration

This is to set the data to be added in the video data and set an environment for each channel.

- Menu Configuration

After completing setting, click Apply button. If you click the default button, initial values are typed in all fields.

Image Size This is to choose the size of the image of video data.

You can choose between 2 kinds of size (Small / large).

Image Quality This is to choose the quality of the image.

You can choose between 3 levels (High, Normal, Low).

Eng-61

6. Alarm Notification

This notifies the registered users of an alarm arising situation through e-mails.

At this time, maximum 5 M-JPEG pictures, which were stored, can be sent together.

- Menu Configuration

address services. ISP’s confirmation required. Authentication Choose if you want to log in the SMTP of the ISP providing

with services.

Password Password for the SMTP server of the ISP that provides

E-mail address 1 ~4 E-mail addresses you want to send the alarm notification to. Image count M-JPEG images to send.

Up to 5 pictures can be sent at 0.5-second intervals. * Some SMTP servers may not support M-JPEG forwarding.

Set this function after checking the SMTP server.

Service Choose if you want to send the ALARM notifying E-MAIL. SMTP server SMTP server of the ISP that provides SSC17WEB with

SSC17WEB with services.

Sender (E-mail) Register the E-mail of ADMINISTRATION of SSC17WEB

After completing setting, click Apply button.

If you click the back button, initial values are typed in all fields. On this menu, you can fix the general environment related to the network of the SSC17WEB Server and check the present status of it.

EX) When user who has an e-mail address (SSC17WEB@yahoo.com) and password(123456) in YAHOO sets “Alarm Notification” in order to send a mail to test1@yahoo.com...

After completing setting, click Apply button. If you click the back button, initial values are typed in all fields.

The image transfer is not supported in all SMTP servers. Check the J-PEG image transfer in your mail account.

In the event of Alarm, please use PLAYER to catch normal JPEG images. Otherwise, the image size will be reduced to a half JPEG size. Refer to Eng-46 “How to play” for the detailed usage of PLAYER.

Eng-62

Eng-63

3-7-3) Network Configuration Menu.

1. Network Configuration

On this menu, you can fix the general environment related to the network of the SSC17WEB Server and check the present status of it.

- Menu Configuration

Network Configuration Set “Static IP” or “DHCP”. PPPoE(ADSL) Set PPPoE (ADSL).

Network Ports Set “Network Port”. View Network Status Modification of HTTP and other application network

port numbers. Network Status Notify View of network status. DDNS Configuration DDNS Configure

1) Fix the IP address of the SSC17WEB Server, NetMask, GateWay, DNS1, DNS2, etc.

2) NetMask : This is a column of letters of only 0 or 1 to leave the address of the host computer alone among the IP Addresses. (Example : “255.255.255.0” is used for a C-Class serve net capable of maximum 255 host computers. In this line, “.0” clarify the address of a certain host computer.)

3) GateWay : This is a network point that plays a role as an entrance to other networks.

4) DNS (Domain Name Service) : Aservice to convert a Domain Name (ex.

www.yahoo.com) into an IPaddress (ex. 216.109.127.28). The SSC17WEB Server uses this service to join the FTP server or other webs by the Domain Name.

1-1. Network Configuration : Static IP / DHCP Client

1) If the of the SSC17WEB Server is Static : Choose “Static IP”.

2) Type in the IP Address you want to assign to the SSC17WEB Server, NetMask, GateWay,

DNS1, and DNS2 addresses.

1-2. Network Configuration : Static IP / DHCP Client

1) If the IP of the SSC17WEB Server is DHCP : Choose “DHCP Client”.

2) Type in the addresses of DNS 1 and DNS 2.

Eng-64

Eng-65

3) Click Apply button to apply the settings.

06/01/03 13:14:00

NETWORK ACCESS NETWORK STATUS

IP ADDR 192.168.1.200 GATEWAY 192.168.1.65 SUBNETMASK 255.255.255.0 DNS 1 168.126.63.001 DNS 2 168.126.63.002

MAC ADDR 00:30:6f:ff00:00

If you click Reset button, the latest setting will be applied again. Click Back button if you don’t want to apply the setting.

4) Open your Internet Explorer web browser, type in the following in the URL window and

press ENTER. http://sff0000.websamsung.net

Where ff0000 is the MAC address of your SSC17WEB in this example. If your SSC17WEB’s MAC address is ff0001, then type in ff0001 instead of f0000.

At this time, you should add “s” in front of “mac address”.

* Note : MAC Address.

Locate the MAC Address of the SSC17WEB (each SSC17WEB has its own unique MAC address). It can be checked in “7.NETWORK SETUP” of SETUP MENU. MENU / SETUP MENU / 7.NETWORK SETUP It is the last 6 digits as shown below.

2. PPPoE (ADSL) for Eth0

1) Service : Decide if you want to try PPPoE Connection or not.

2) User ID : User’s ID that is registered in th ISP.

3) User Password : User’s password that is registered in the ISP.

4) Confirm Password : Confirm the password.

5) DNS (Domain Name Service) : Service to convert a Domain Name (ex. www.yahoo.com)

into an IP address (ex. 216.109.127.28). The SSC17WEB Server uses this service to join the FTP server or other webs by the Domain Name. ADSL service supports only PPPoE (Point to Point over the Ethernet).

DNS is a default value, so it does not need to change except a special case.

* Note : When connecting ADSL, ID & PASSWORD shall be limited within 40 characters.

Eng-66

Eng-67

3. Network Ports Configuration

It sets the HTTP Port number to use when the SSC17WEB Server communicates with a Client PC.

The present SSC17WEB Server uses HTTP Port (80).

- HTTP Port

1) This is the port the Client PC uses to connect to the web page of the SSC17WEB Server.

Depending on the environment of the network, its value can be varied.

2) The fault values is 80 and it can be assigned up to 65535 maximum.

* If you change the value of the HTTP Port, you should type in the new one with the address

of the SSC17WEB Server in the address window of the web browser. (Ex. If the IP address of the SSC17WEB Server is 192.168.1.100 and the HTTP Port : 8080, http://192.168.1.100:8080

3) Click Apply button to apply the present setting.

CAUTION

Set the port be used when connecting to SSC17WEB in internet Explorer. The port setting is used for various network configuration when avoiding the network where firewall constitutes or a particular port Etc.

4. View Network Status

This is a menu to see the general status of the network setting of the SSC17WEB Server.

- Menu Configuration

Common Status It is to check the status of the Gateway, DNS 1, and DNS 2. LAN Status It is to check the status of the STATIC IP Address, Netmask, and

MAC Address.

PPPoE Status If the PPPoE service is in the connection status, “Link is up”.

At this time, the service IP and NETMASK can be also checked. If the PPPoE service is not in the connection status, “Link is down”. The existing setting will be recalled if you press Reload button.

5. Network Status Notification

When there is a change in the setting status of the SSC17WEB Server, it sends e-mails to the people who want it. Set Mail Notification to “Enable” to send the network setting status of the SSC17WEB Server to the specified e-mail addresses in the cases as follows. There are some conditions required for this setting.

Eng-68

Eng-69

1) DHCP Client has been set in “Network Configuration” menu and an IP has been assigned from the actual DHCP Server to make communication possible.

2) PPP Client has been set in “PPPoE” menu and communication has become possible through the connection with ISP or PPP Server.

- Menu Configuration

Network Status Notify Configuration click “Network Status Notify” in the Network Configuration group.

Mail Notification E-mail forwarding or not.

Enable : Forward E-mails. Disable : Doesn’t forward E-mails.

SMTP Server Type in the address of the server that provides e-mail relay

function.

Authentication Login Shows if the ISP has an authentication for the use of SMTP.

User ID ID for Authentication Login Password Password for Authentication Login Sender(Email Address) Type in the addresses of the sender. Recipient1’s Type in the addresses of the recipients. Email Address (3 addresses maximum.)

Choose to use the Mail Notification function or not. Choose “Enable” if you want to notify the network status of the SSC17WEB Server to the people who want through e-mails. Type the address of the SMTPServer.

* SMTP Server plays a part as a relay that receives the mail of the user and

delivers it to the receiver.

Set “Authentication Login” to Enable and type in the ID and password assigned from the SMTP server. Type the e-mail address of the person who receives the E-mail. Maximum 3 people can receive the mail. Type the message you want to add in “User Defined Message”. After completing setting, click Apply button. If you click the reset button, it will return to the latest setting.

EX) When user who has an e-mail address (SSC17WEB@yahoo.com) and

password(123456) in YAHOO sets “Alarm Notification” in order to send a mail to test1@yahoo.com...

Eng-70

Eng-71

6. DDNS CONFIGURATION

- Menu Configuration

Server Select Enable or Disable DDNS Server Websamsung.net

Note The domain name of this system is sff0000.websamsung.net

CAUTION

In case of a configuration using DHCP, as the connection to SSC17WEB is made using domain names (EX : http://sff0000.websamsung.net) that are automatically registered in our DDNS server, IP address, Subnet Mask and Gateway that are in the network tab of Admin Mode are not necessarily to be inputted. The proper domain names of SSC17WEB are automatically registered to DDNS server installed in our company in case of DHCP cable modem connection.

3-7-4) Monitor Set up

- Menu Configuration

Please refer to the CHAPTER3 of the user’s manual.

Date & Time Set the display data format and current time. View Event Log Display the time and data of camera event and type of event

Dwell Time Displays each picture for pre-set time and automatically Switches

it to the next picture at SEQUENTIAL DISPLAY MODE.

Display Allows users to select the color and ON/OFF of borderline at

QUAD DISPLAY

Title Set the title of each camera at your discretion Alarm Allows users to set the ALARM MODE for each camera

Eng-72

Eng-73

3-7-5) Utilities

Save Configuration Save Configuration is required to save all of new config-

uration in the system. Otherwise, no new configuration will be saved effective.

Reboot System reboot is highly and strongly recommended to

applied all new configurations properly to the

This menu is for the flash memory’s update, rebooting, restoring to the basics, and system upgrade.

- Menu Configuration

SSC17WEB system

System Update System Update

1. Save Configuration

This menu is to save all of the present setting in the Flash Memory. If you changed any of the setting for the SSC17WEB, it is recommended that you save it in the Flash Memory in this menu.

Eng-74

Eng-75

2. Reboot

This menu is for the rebooting of the system. It is better to reboot the system if you change the setting and update the flash.

1. Click “Reboot” in the utilities group.

2. Click “Reboot!!!”.

4. System Update

This menu is to update the inner programs and data of the SSC17WEB Server. They are recorded in the Flash Memory and composed of 4 parts called Kernel Image, Ram disk Image, System Image, and Web Image respectively. Each image file should be stored in the user’s PC for update. Depending on the range you want to update, press the start button properly.

Normal (System and Web) Update Update only the System Web. All (Kernel, RAM disk, System, Web) Update Update all 4 images of Kernel, RAM

Disk, System, and Web.

4-1. Normal (System and Web) Update

When you click the start button located in the right side of “Normal (System and Web) Update”, a window will appear to ask if you want to update. Click “Cancel” to stop updating. Click “OK” to proceed updating. Other processes are same as the process of “All Update”. (Excluding the update of Kernel and RAM disk) After completing the update, click the reboot button to reboot the system.

Eng-76

Eng-77

4-2. All (kernel, RAM disk, System, Web) Update

When you click the start button located in the right side of “All (Kernel, RAM disk, System, Web) Update”, a window will appear to ask if you want to update.

Click “Cancel” to stop updating.

1. “OK” to proceed updating.

2. Apop-up window will appear. Choose “Zimage” in the browse.

Eng-78

3. Click “Next” button to move to the next stage. Click “Skip” button to move to the next stage without Kernel Image’s update. Click “Next” button and a window will appear to check the name and size of the file.

Eng-79

Click “Previous button to go back to the previous stage. Click the next button to execute update of the program and move to the next stage. Click the cancel button to stop the update process.

4. In the next stage, a pop-up window will appear for the file searching for the RAM Disk Update. Choose “rfs.gz” in the browse.

Eng-80

5. Click “Next” button to move to the next stage.

Click “Skip” button to move to the next stage without Kernel Image’s update. Click “Next” button and a window will appear to check the name and size of the file.

Click “Previous” button to go back to the previous stage. Click the next button to execute update of the program and move to the next stage. Click the cancel button to stop the update process.

Eng-81

6. In the next stage, a pop-up window will appear for the file searching process for the System Image Update. Choose “Fw_2pq.tar.gz” in the browse.

7. Click “Next” button to move to the next stage.

Eng-82

Click “Skip” button to move to the next stage without kernel Image’s update. Click “Next” button and a window will appear to check the name and size of the file. Click “Previous” button to go back to the previous stage. Click the next button to execute update of the program and move to the next stage.

Click the cancel button to stop the update process.

8. In the next stage, a pop-up window will appear for the file searching process for the System Image Update. Choose “web.tar.gz” in the browse.

Eng-83

9. Click “Next” button to move to the next stage.

Click “Skip button to move to the next stage without Kernel Image’s update. Click “Next” button and a window will appear to check the name and size of the file. Click “Previous” button to go back to the previous stage. Click the next button to execute update of the program and move to the next stage. Click the cancel button to stop the update process.

10. Awindow will appear for rebooting after completing all the update processes.

Click the reboot button and press the confirmation button to reboot the system.

11. Close your web browser and wait for about a minute before you log in again

Files relate to the update of SSC17WEB

Kernel Image zimage RAM Disk Image rfs.gz

System Image Fw_2pq.tar.gz Web page Image web.tar.gz

The window shown as above may not appear if there is a pop-up breaker installed in the user’s PC. If you update system on a web page, you should stop the pop-up breaker to proceed.

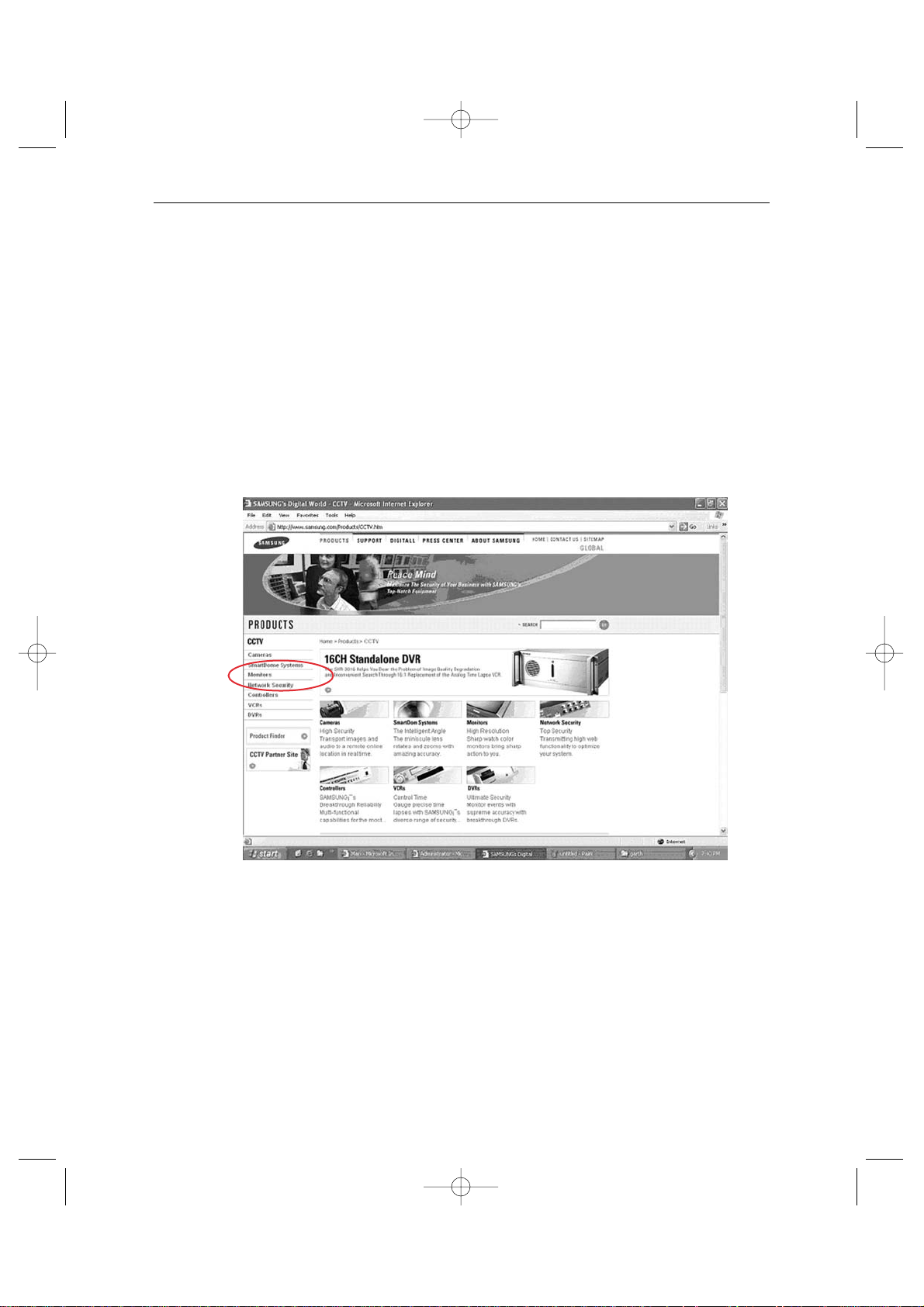

* Note : Download a picture at http://www.securitysamsung.com

Refer to Appendix A (page 96).

Eng-84

Eng-85

3-8) VIEW EVENT LOG MENU function and setting method  

> Function: Displays the time and date of camera event and type of event. > Setting method: Move to #7. VIEW EVENT LOG MENU by using KEY

at SETUP MENU, then press the KEY to display the OSD as shown in the figure below. (The figure shows the initial setting status.)

06/01/03 13:14:00

NO CH MM/DD/YY HH:MM:SS EVT

Sequence of event happening

Camera No. that event happened.

01 07 02/10/03 10:00:30 A 02 01 02/11/03 11:22:00 L 03 01 06/01/03 12:33:01 04 02 06/01/03 13: 01:03 05 01 --/--/-- --:--:-- 06 01 --/--/-- --:--:-- 07 01 --/--/-- --:--:-- 08 01 --/--/-- --:--:-- -

Date of event happening

An event which occurred most recently is recorded with first priority, then users can move to the next page by using KEY. A Total of 64 events can be listed.

* Note : - IF you press the FREEZE key and the SEQUENCE key at the same time, all event

lists will be erased.





Type of event happening L : LOSS A : ALARM

Time of event happening

Chapter 4: DISPLAY MODE setting method

4-1) SINGLE SCREEN DISPLAY

Initial display mode of monitor is QUAD A. In case users want to see the camera image at full mode, select a target camera by turning press the KEY and selected camera image will be displayed at full screen. If users turn the they can see another camera image at full screen. For example, when users want to see CH1 at FULL MODE after SINGLE -displaying CH2 at QUAD A, please follow the instructions below.

œœ, √√

KEY left / right at SINGLE DISPLAY MODE at this time,

œœ, √√

KEY left and right. After that,

06/01/03 13:14:00

CH1 CH2

CH3 CH4

QUAD A

INITIAL DISPLAY STATUS

CH1

FULL SCREEN DISPLAY of CH1

➯

Display CH1

by pressing

KEY

06/01/03 13:14:00

CH1 CH2

QUAD A

by pressingSelect CH2 KEY

Press KEY after selecting

CH2

06/01/03 13:14:0006/01/03 13:14:00

FULL SCREEN DISPLAY of CH2

➯

CH2

Eng-86

Eng-87

4-2) QUAD MODE DISPLAY

Users can switch SINGLE DISPLA YMODE and SEQUENTIAL DISPLAYMODE to QUAD DISPLAY MODE, or QUAD A (QUAD B) to QUAD B (QUAD A), or PIPMODE to QUAD MODE, press the QUAD/PAGE KEY.

* At QUAD MODE display from SINGLE MODE or SEQUENCE MODE,

CH3

CH3 DISPLAY QUAD MODE DISPLAY

of QUAD A

06/01/03 13:14:00

QUAD A

➯

QUAD A QUAD B

➯

CH 3 CH 1

PIP MODE DISPLAY

QUAD A

➯

Press

QUAD/Page

KEY

QUAD MODE DISPLAY

of QUAD A

QUAD MODE DISPLAY of

QUAD B

QUAD MODE DISPLAY of

QUAD A

Press

QUAD/Page

KEY

Press

QUAD/Page

KEY

* At QUAD B(QUAD A) display from QUAD A(QUAD B),

* At QUAD B(QUAD A) display from PIP MODE,

06/01/03 13:14:00

CH1 CH2

CH3 CH4

CH5 CH6

CH7 CH8

06/01/03 13:14:00

CH5 CH6

CH7 CH8

CH1 CH2

CH3 CH4

Eng-88

4-3) AUTO SEQUENTIAL DISPLAY MODE

Pressing on the SEQUENCE KEY on the front allows screen to automatically switch to SINGLE MODE full screen or QUAD MODE. (‘no-signal’ channels will be skipped while single screen is auto-switching.) If the DWELL TIME SETTING of SETUP MENU is set to 3 seconds and the SEQUENCE KEY is pressed at this time, the operation will be carried out as follows.

CH 2 CH 3

➯

CH 1 CH 4

➯

Press SEQUENCE KEY

when CH2 is displayed

at full screen

Automatic sequential switching to CH3

Automatic sequential switching to CH4Automatic sequential switching to CH1

In 3 seconds

06/01/03 13:14:00

* QUAD MODE SEQUENCE DISPLAY

* SINGLE MODE SEQUENCE DISPLAY

QUAD A QUAD B

➯➯

06/01/03 13:14:00

CH5 CH6

CH7 CH8

CH1 CH2

CH3 CH4

QUAD A

06/01/03 13:14:00

CH1 CH2

CH3 CH4

Eng-89

4-4) PIP MODE DISPLAY

CH1 CH3

➯

CH3 CH1

CH1 CH3

➯

CH2 CH3

CH1

➯

CH2 CH3

Can be used to see PIP screen in Single screen mode. If you press the

œœ, √√

KEY to the left and right, the main screen can be transferred to another channel.

Sub-screen location can be selected on DISPLAY MENU in SETUP MENU.

06/01/03 13:14:00 06/01/03 13:14:00

Under PIP DISPLAY

06/01/03 13:14:00 06/01/03 13:14:00

œœ, √√

KEY on PIP screen ,the main screen will change. If you press the

Press

KEY

Main and Sub screen is switched

Under PIP DISPLAY

06/01/03 13:14:00 06/01/03 13:14:00

Press

KEY

Main screen is switched

Under single screen display

Press PIP KEY

for 2sec

Main and Sub screen is displayed as set at the DISPLAY MENU of SETUP MENU

Eng-90

CH2

➯

CH2

4-5) ZOOM MODE DISPLAY

When users want to see zoomed image of a specific area of the display, press the ZOOM KEY in the front to display zoom selection area. Select zoom target area by turning

KEY left and right, and press the KEY, then, the selected area will be displayed at full single mode with zoomed area doubled. At zoom function operation at SINGLE DISPLAY MODE (CH2), the operation will be carried out as shown in figure below. (Zoom selection areas at SINGLE DISPLAY MODE are nine.)

06/01/03 13:14:00 06/01/03 13:14:00

Press ZOOM

KEY

CH2 SINGLE DISPLAY

ZOOM area is activated.

06/01/03 13:14:00 06/01/03 13:14:00

Press

KEY

The selected area will be doubled

and at FULL DISPLAY.

Press

move to desired location

KEY and



Eng-91

Chapter 5: Each product feature

SSC-12C : Standard Camera

Model Name Broadcasting System Imaging Device Effective Pixels S Synchronization Resolution Signal Output S/N Ratio Minimum Scene Illumination Gamma Correction Lens Auto Exposure Audio I/O Connectors Operating Temperature Power Source Power Consumption Dimensions Weight

SSC-1 2 C

EIA STANDARD

1/3" B/W IT CCD 510(H) x 492(V) Internal H :380 TV Lines, V: 350 TV Lines VBS 1.0Vp-p(75ohms composite)

48 dB

2lux(F2.0, 50 IRE)

0.45 Focal Length (f) : 3.8mm, Aperture Ratio (F) : 2.0 Electronic Shutter lris

-40dB Condenser Microphone Inclusion Modular jack

-10 ~ +50 oC DC 12V (From Monitor) Approx. 2W 57(W) x 47.2(H) x 105.0(L) 150g

Eng-92

OBSERVATION MONITOR (SSC17WEB)

Video Input

Video Output

Audio Input

Audio Output

Alarm/Motion Features: Connected to Alarm Box/Camera

Sequence Event List Display mode

Horizontal Resolution Operation Temperature CRT Dimension (W x D x H (mm)) Weight Power consumption Video system High Voltage (KV) Operation Humidity Range AC Input Ranges Audio Output[watt]

CAMERA 8 Input: 1.0Vp-p(CVBS), 75. (vertical) VCR 1 Input (to Video Out of VCR) : 1.0Vp-p, 75. (vertical) BNC 4 Output: 1.0 Vp-p, 75. (vertical), S-Jack Type, CVBS VCR 1 Output: 1.0 Vp-p, 75. (vertical), S-Jack Type, CVBS CAMERA 8 Input: VCR 1 Input (to Audio Out of VCR) : S-Jack Type CAMERA 8 Input: VCR 1 Output: S-Jack Type A/O (HOT, COLD) : Relay Active A/R (Alarm Reset) : Open Collector “L” Level,

Pulse Width =150ms or above

Alarm Hold Time : Select 5 sec, 15 sec, 30 sec, 1 min, 3 min,

5 min, 10 min, 20 min, 30 min..

Select between 01 sec to 30 sec.

(max) 64 case Single mode, Quad Amode, Quad B mode, PIP, Sequence Freeze, Zoom(X2) 700 TV Lines or more (Live Mode Full Screen) 0 °C ~ 40 °C 17” CRT (MONITOR)420 x 400 x 390, (PACKING)525 x 485 x 650 (MONITOR) 15.0Kg, (PACKING) 24Kg 48W EIA VIDEO SYSTEM 28 ±2.0 0~90% AC 120V, 60Hz

0.5W

Eng-93

SSC17WEB NETWORK

Hardware

Network Protocols

Image Compression & Quality

Video Format Video Resolution Performance Management

LAN Interface Security Function PC Specification



32bit Embedded Processor



Flash Memory : 8Mbytes



SDRAM : 32Mbytes



HTTP, TCP/IP, FTP, Telnet, ARP, PPP, DHCP, PPPoE



Compression Algorithm : Real-time M-JPEG



Rate : 30 fps for each channel



Quality : 3 levels



NTSC



NTSC, 352x240, 704x240



Max 30 Frame Per Second (NTSC)



Configuration by serial port or web browser



Remote Flash memory update



10/100 BaseT Fast Ethernet



Password protected server access



CPU_Pentium IV 1GHz higher



RAM_256MB or higher



Video Memory_32MB or higher



Resolution_1024x768 or higher



OS_Windows 98/ME/2000/XP Service Pack



installation recommended



Web Browser_Internet Explorer 5.5 or later

The system performance may decrease if the computer has lower specification than the recommendations, is not installed with the latest service pack, or has an illegally installed operation system(OS).

A unique MAC address is registered to this device. If the administrator setting and monitoring may not be available due to conflicting unregistered MAC addresses, please contact a local service center or head office.

SSC17WEB enables users to see up to four viewers on one computer. The system may malfunction if over five viewers with low performance computers are connected to the device.

After reboot, if you reconnect Network Cable or Internet explorer, then the transmission of the Motion Images could be delayed with showing “Waiting” message or disconnected under the environment of WINDOWS 98 and Windows ME.

Eng-94

Eng-95

Appendix A) Software up data

The initial screen of Samsung Electronics’ web site is as follows.

1. http://www.securitysamsung.com http://www.samsung.com/Products/CCTV.htm

2. Network Security in Homepage

3. Download the following items from SSC17WEB.

! Owner’s manual - SSC17WEB Owner’s manual @ UP-GRADE S/W - kernel, RAM disk, System, Web

Appendix B) IP Router Setup Guide

List of Routers compatible with SSC17WEB. Refer to Router User’s Manual for the detailed router setup.

1. Total System Configuration

2. Local System Configuration

3. Step-by-Step Examples : Linksys (Model : WRT54G) Netgear (Model : WGR614v4) D-Link (Model : DI-624+) SMC (Model : 7004VBR)

CAUTION

Other routers may be incompatible with SSC17WEB.

Eng-96

Eng-97

Total System Configuration

Local System Configuration

Connect LAN cable of Cable/ADSL modem or Direct Fixed/Static IP LAN Line to WAN port of IP Router.

2. Connect LAN ports of IP Router(1~4 or 1~8) to Ethernet port SSC17WEB to be set up and to Ethernet port of Local PC to use during setup.

3. Connect Video cable of Camera to SSC17WEB.

4. Turn on the SSC17WEB power.

Notice

If you have a Static (Fixed) IP line or Dynamic IP line (Cable Modem or ADSL Modem) with one IP address (whether its dynamic or fixed), but have more than one internet device to use (such as a PC and a SSC17WEB or several SSC17WEB); you must use an IP Router (different from a simple Network Hub); you must set up the Router to work with the SSC17WEB; and you must use a network capable PC within the local Router network to do the setup. If you are using an existing Router which is already set up, you may not need to redo the basic setup of the Router again, but it is highly recommended that you at least read all the instructions below and go through the steps. Whether you are using an existing Router or a new Router, you must go through the Port Forwarding portion of the setup.

Eng-98

Eng-99

Step-by-Step Setup Example of IP Router

Linksys model WRT54G

1. Click the “Application and Gaming” tab.

2. Click “Port Range Forward”.

3. Port forwarding Row #1 :

! Application : Set this to “HTTP” @ Start and End : Set both to “From 10000 to 65535” # Protocol : Select “TCP” $ IP Address : SETUP MENU -> 7. NETWORK SETUP -> Check IP from network

status to apply it identically to Private IP after DHCP setup. (Eng-32 Setup)

It is not in use by any other device connected to the IP Router including the Local PC.

% Enable : Leave this “checked”

4. Click “Save Settings”

5. Close browser window.

Eng-100

Step-by-Step Setup Example of IP Router

Netgear model WGR614v4

SSC17WEB 10000 10000 192.168.0.101

1. Click the “Router Status”

2. Click the WAN and LAN Port information. Write down the WAN Port IP Subnet Mask number and the LAN Port IP Address number. You will need it later when setting up the SSC17WEB.

3. Click “Advanced” and “Port Forwarding”

4. Port forwarding (HTTP)

! Click “Add Custom Service” @ Service Name : Set this to “HTTP” # Start Port and End Port : Set both to “From 10000 to 65535” $ Server IP Address : SETUP MENU -> 7. NETWORK SETUP -> Check IP from

network status to apply it identically to Private IP after DHCP setup. (Eng-32 Setup)

It is not in use by any other device connected to the IP Router including the Local PC.

% Make sure “Enable” is checked. ^ Click “Add”

5. Close browser window.
