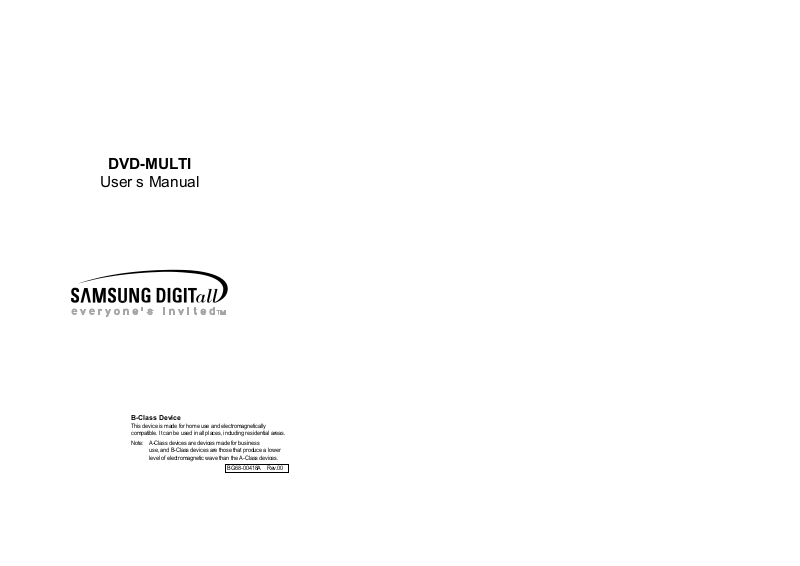

DVD-MULTI
User s Manual
B-Class Device
This device is made for home use and electromagnetically
compatible. It can be used in all places, including residential areas.
Note: A-Class devices are devices made for business
use, and B-Class devices are those that produce a lower
level of electromagnetic wave than the A-Class devices.
BG68-00418A Rev.00
Page 2
Installing DVD-MULTI Drive And Connecting Cables
Installing Drive 5
Connecting Cables 6
Features
Exterior 3
System Requirements 3
Features 4
User s Manual
Safety Precautions
Safety Labels 1
Electromagnetic Wave Standards 1
During Installation/Operating/Others 2
Installing Device Driver And Confirming The Installation
Windows98/Me/XP 10
Windows2000 10
Confirming the Installation of Supporting Utilities 11
Confirming the Installation of Device Driver 11

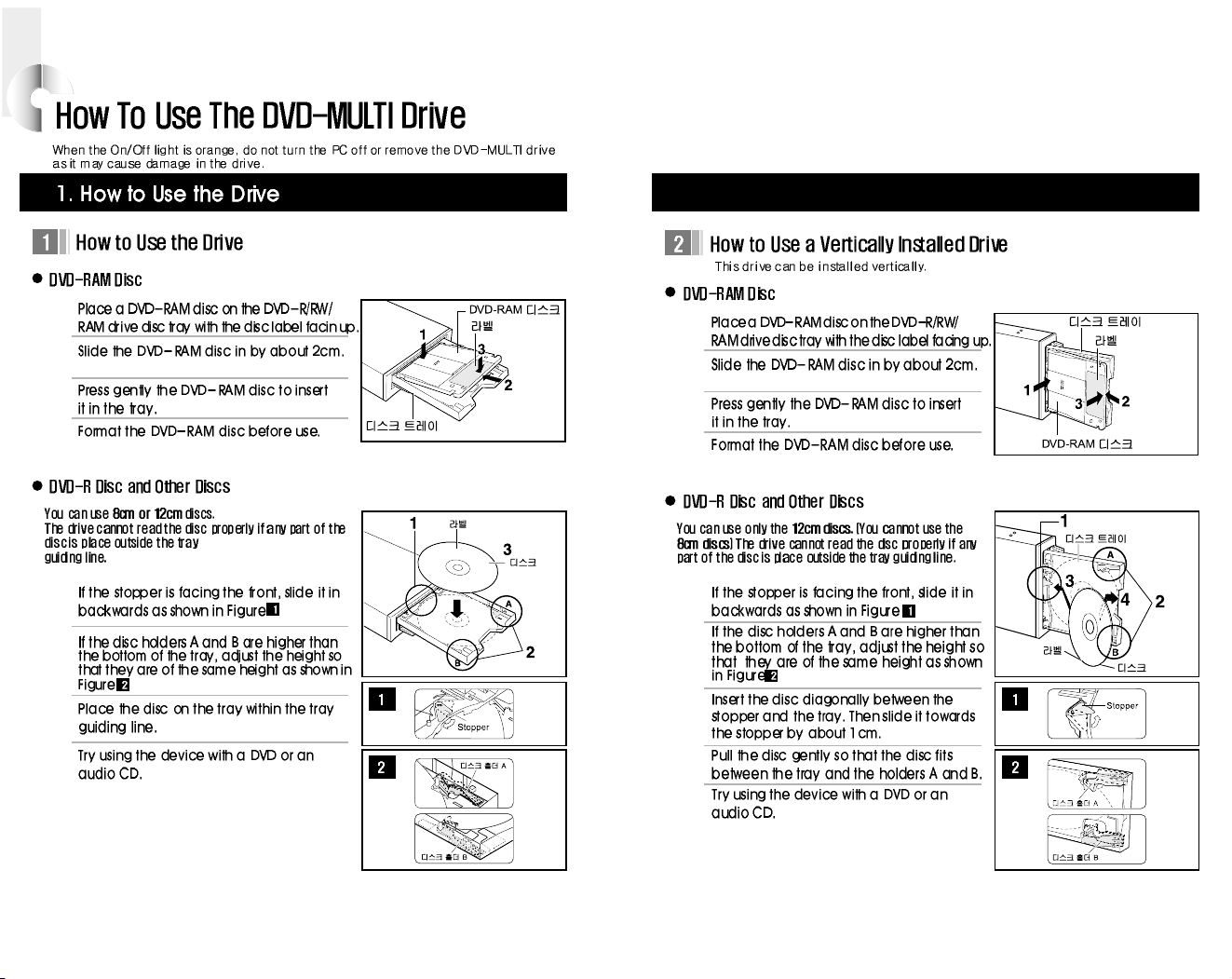

How To Use The DVD-MULTI Drive
How to Use the Drive 13
DVD-RAM Disk Format 15
Format Type 16
Properties of DVD-RAM by Disc Type 17
Utilities 18
Adding/Deleting Utilities
Adding/Deleting Utilities 22
Troubleshooting
Troubleshooting 24

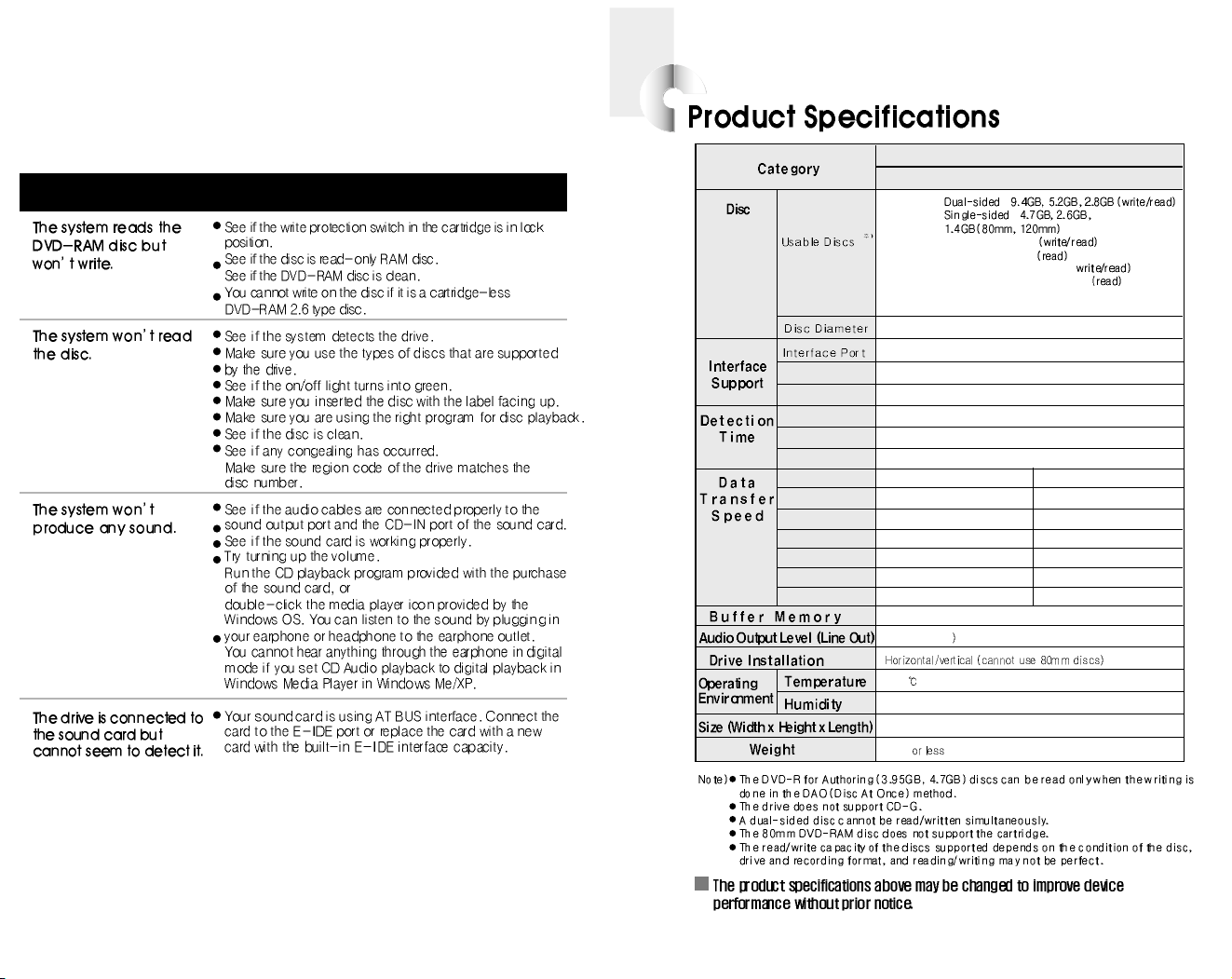

Product Specifications
Product Specifications 26

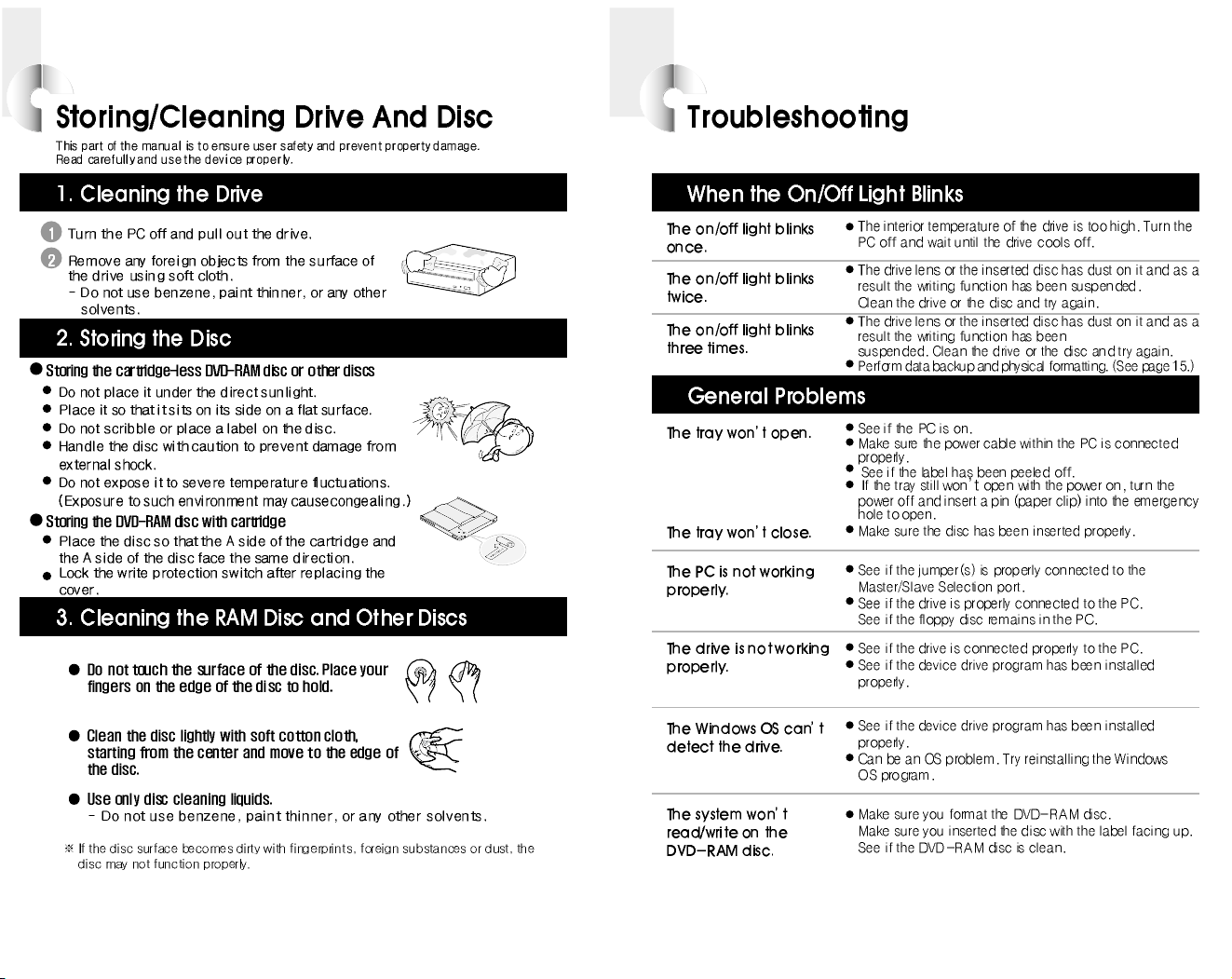

Storing/Cleaning Drive And Disc
Cleaning the Drive 22
Storing the Disc 23
Cleaning the RAM Disc and Other Discs 23
User s Manual
SR-T03
Table of Contents
Page 3
1
Safety Precautions
1. Electro m agnetic Wave Standards
2. S afety Precautions
Class ı Laser Product
This Samsung DVD-MULTI drive is guaranteed to be in compliance with Subchapter J, Chapter I,
DHHS Regulation 21 CFR in terms of the effect of production date. This product is classified as Class | Laser, safe to
use and generates no harmful electromagnetic wave.
Laser Requirements
Class | Laser Product
Wave length: 655-666nm, 775-815nm
Laser Power Level: No harmful laser radiation due to the safety protection feature.
Always make sure that the disc does not have a crack before use. If the disc has a crack (especially around the
center hole), it is recommended to make a copy immediately and use the copy instead. When a cracked disc is used
continuously, the size of the crack is likely to grow and this will eventually result in irreparable damage to the disc.
Important to read and understand at all times.
This symbol indicates explanations about extremely dangerous matters.
If users ignore this symbol and handle the device the wrong way, serious injury or death could result.
Do not open the top cover of the DVD-MULTI drive.
Do not touch the interior components. You may be exposed to invisible electromagnetic wave.
Do not look inside the inside of the DVD-MULTI drive.
Do not attempt to execute procedures that are not specified in the manual.
It may cause harmful
laser radiation.
Important to read and understand at all times
Do not disassemble
Warning
This symbol indicates explanations about dangerous matters.
If users ignore this symbol and handle the device the wrong way, damage to home or property could result.
Caution
Do not drop the drive, and
protect it fromsevere shocks.
It can damage the drive or
cause it to malfunction.
Do not place the drive in
direct sunlight.
Avoid low-or high-temperature
environments.
Avoid high-humidity
environments.
Handle with caution to prevent
damage from external shock.
It can damage the drive or
cause it to malfunction.
Do not drop the drive, and protect
it fromsevere shocks.
It can damage the drive or
cause it to malfunction.
Installation
While Operating
Other
Do not move the drive while in
operation and do not attempt to open
the disc tray by force. Make sure to
close all working programs before
attempting to open the tray and
always use the open/close button.
Do not use cracked, distorted
or damaged discs.
In particular, a disc with a crack on the
inner tracks may break while in use.
Never allow food particles or
foreign substances to enter the
drive casing.
To protect against the risk of
fire, do ot spill such liquids
as alcohol and benzene on
the drive.
Do not disassemble, attempt to repair or
modify the device without express
approval as directed in the manual.
To reduce the risk of damage,
electric shock, and fire,.
2
Do not insert a pin into the emergency
opening while in operation.
Page 4
4
DVD-RAM: Read/Write DVD-R: Read/Write (no overwrite allowed)
DVD-RW: Read/Write Supports Read (playback) for various types of discs
DVD-RAM 2.6BG
Format
CD-ROM(support XA)
CD-R/RW(support MultiRead)
CD-DA
CD-EXTRA
Photo CD(supports Multisession)
VIDEO CD
CD-I/FMV
DVD-RAM : 9.4GB(both sides),4.7GB(one side)
DVD-RAM : 5.2GB(both sides),2.6GB(one side)
DVD-RAM : 2.8GB(both sides),1.4GB(one side)
DVD-VIDEO
DVD-ROM
DVD-R : 4.7GB (FOR GENERAL Ver 2.0)
DVD-R : 4.7GB (FOR AUTHORING : Disc-at Once mode)
DVD-R : 3.95GB (FOR AUTHORING : Disc-at Once mode)
DVD-RW 4.7GB For General Ver 1.0
DVD-RW 4.7GB For General Ver 1.1
DVD-RW 3.95GB, 4.7GB For Authoring
Disc Type Write
Read
(Playback)
DVDForm : Formatting software program.
Formats the DVD-RAM discs in the UDF or FAT format.
3
Eject pin, screw, device driver, I/F cable, and audio cable
Blank discs : DVD-RAM, DVD-RW, and DVD-R
Software Programs: DVD-RAM device driver, B s recorder, B s clip, B s DVD, WIN DVD, and
DVD MovieAlbum
Software program for recording for Samsung DVD-MULTI
OS: Microsoft Windows 95/98/2000/Me/XP/NT 4.0 (SP 3.0 or higher)
CPU: 500MHz or greater IBM-compatible PC
RAM: 128Mbytes or greater
HDD: Access time 19 msec, transfer speed 6 Gbps or faster
You need to have an IBM-compatible PC with the following specifications.
Page 5
65
DVD-R/RW/
RAM drive
Page 6
87

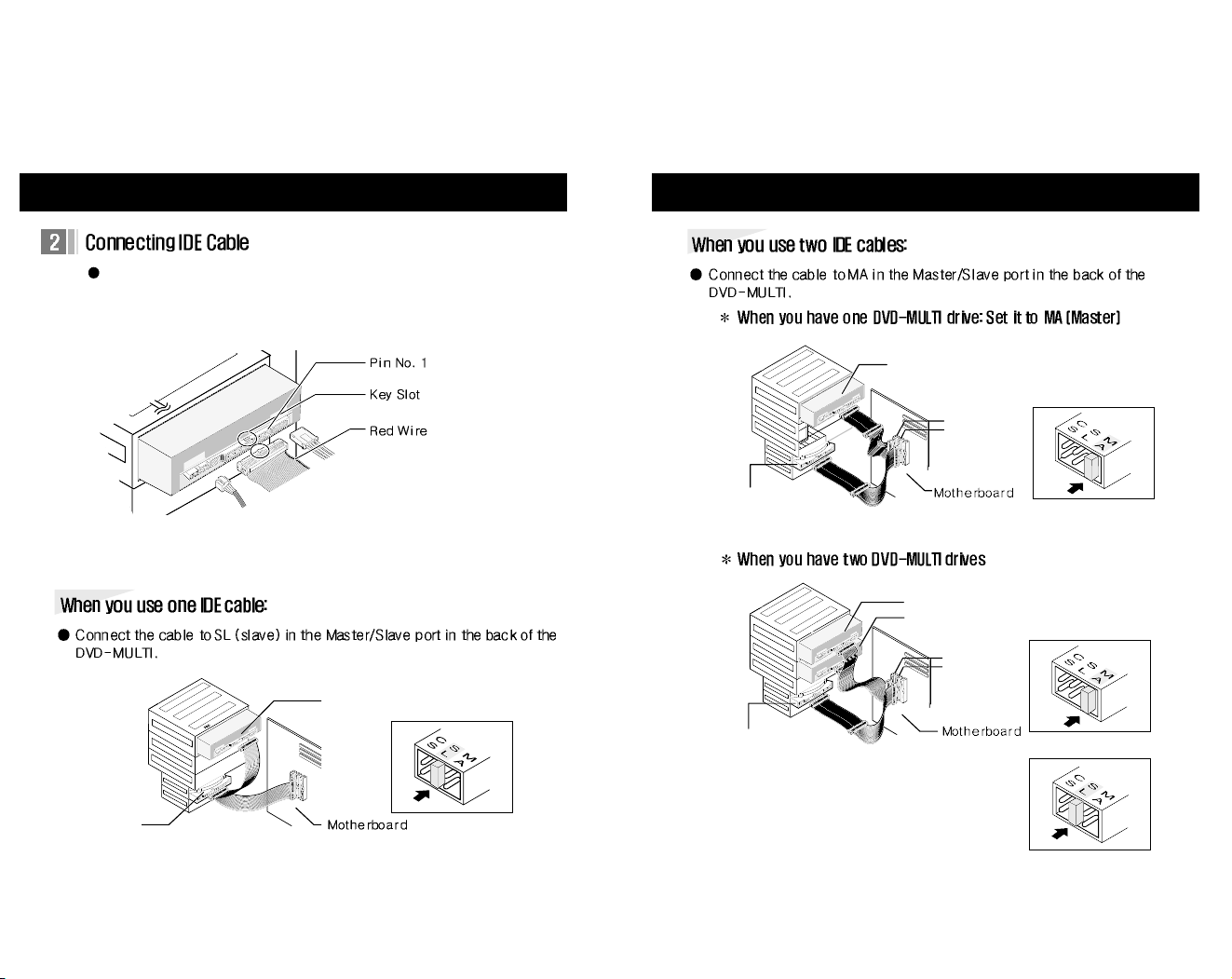

Connect the IDE cable (with 40 pins) connected to the hard disc
to the interface port.
(Place the cable so that where the red wire is goes to pin No. 1)
Master Drive
Slave Drive (Select the SL jumper)
PRI 1
SEC 1
Master drive :(Select the MA jumper)
Master drive
Slave drive :(Select the SL jumper)
(Select the MA jumper)
(Select the SL jumper)
Master drive
Master drive :(Select the MA jumper)
PRI 1
SEC 1
Page 7
109

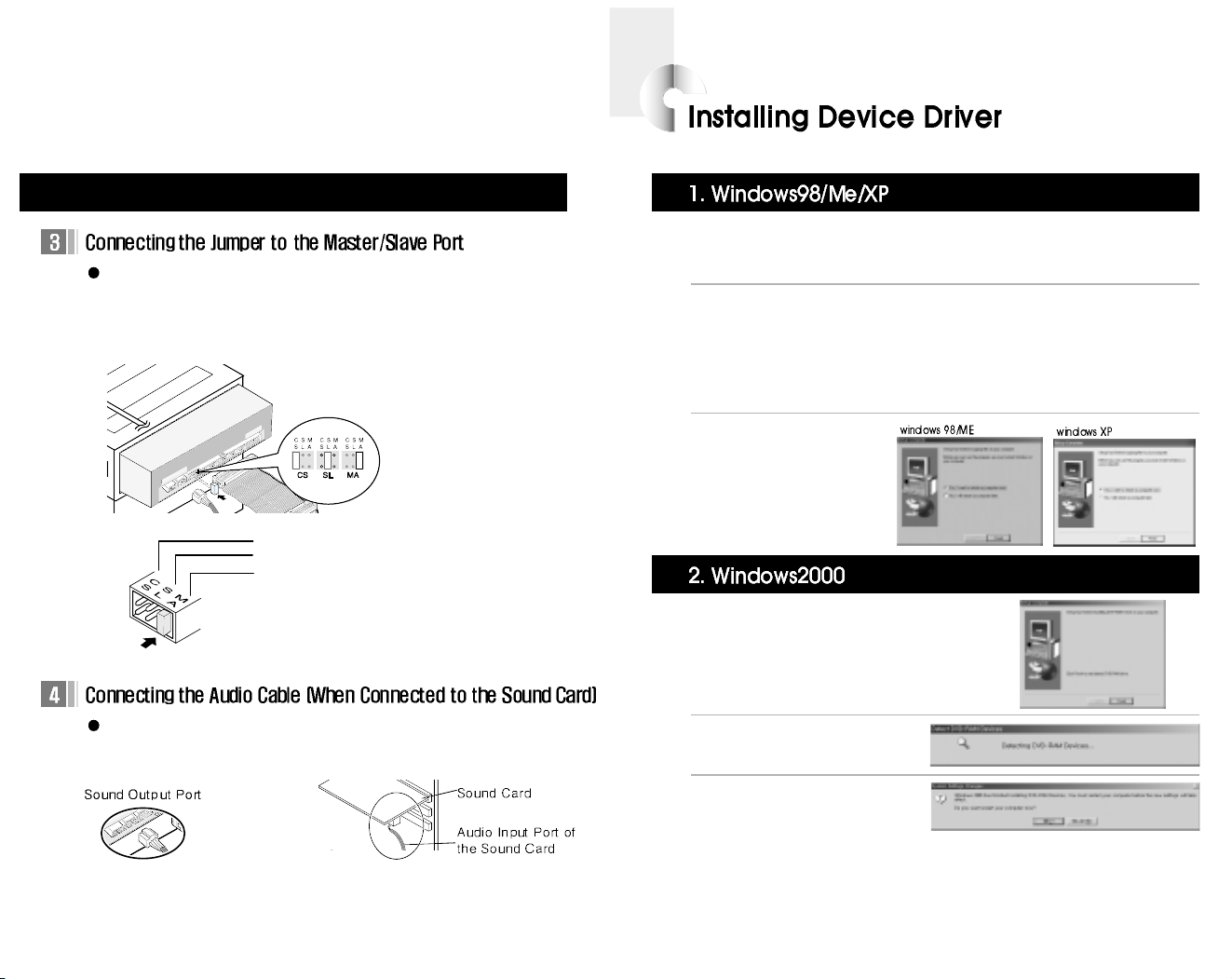

Connect the jumper to the slot in the back of the DVD-MULTI drive.
When you connect the jumper to MA (Master), the drive runs as the master,
and when you connect it to SL (Slave), the drive runs as the slave.
When you connect it to CS (CSEL), you can control the device using the host
interface signal CSEL.(Connection to MA is recommended.)
Connect the Sound Output Port in the back of the DVD-MULTI drive to the audio
input port of the sound card using the audio cable (with four pins) to hear the sound
from the drive.
CS: Cable Select(CSEL)
SL : Slave
MA: Master
Insert the CD provided with the DVD-MULTI drive to install the device program.
The program runs automatically. If the automatic start fails, find the setup.exe file in the CD-ROM drive
folder using Windows Explorer and double-click it.
1
Steps 1 & 2 are the same as in Windows 98/Me.
Click [Finish] after completing Steps 1 & 2.
1
Click [Driver and Formatter Setup]
Once the installation process begins,
follow the instructions.
2
Check [Yes, I want to restart my
computer now] and click [Finish].
Use the DVD-MULTI drive after
rebooting the system.
See page 12 to confirm that the
program is installed properly.
Use the DVD-MULTI drive after rebooting the system.
See page 12 to confirm that the program is installed properly.
3
When you click [Finish], the system
automatically detects the DVD-RAM device.
2
Click [Yes] if a dialogue box message
shown in the left appears after installing the
DVD-RAM drive.
3
Page 8
1211

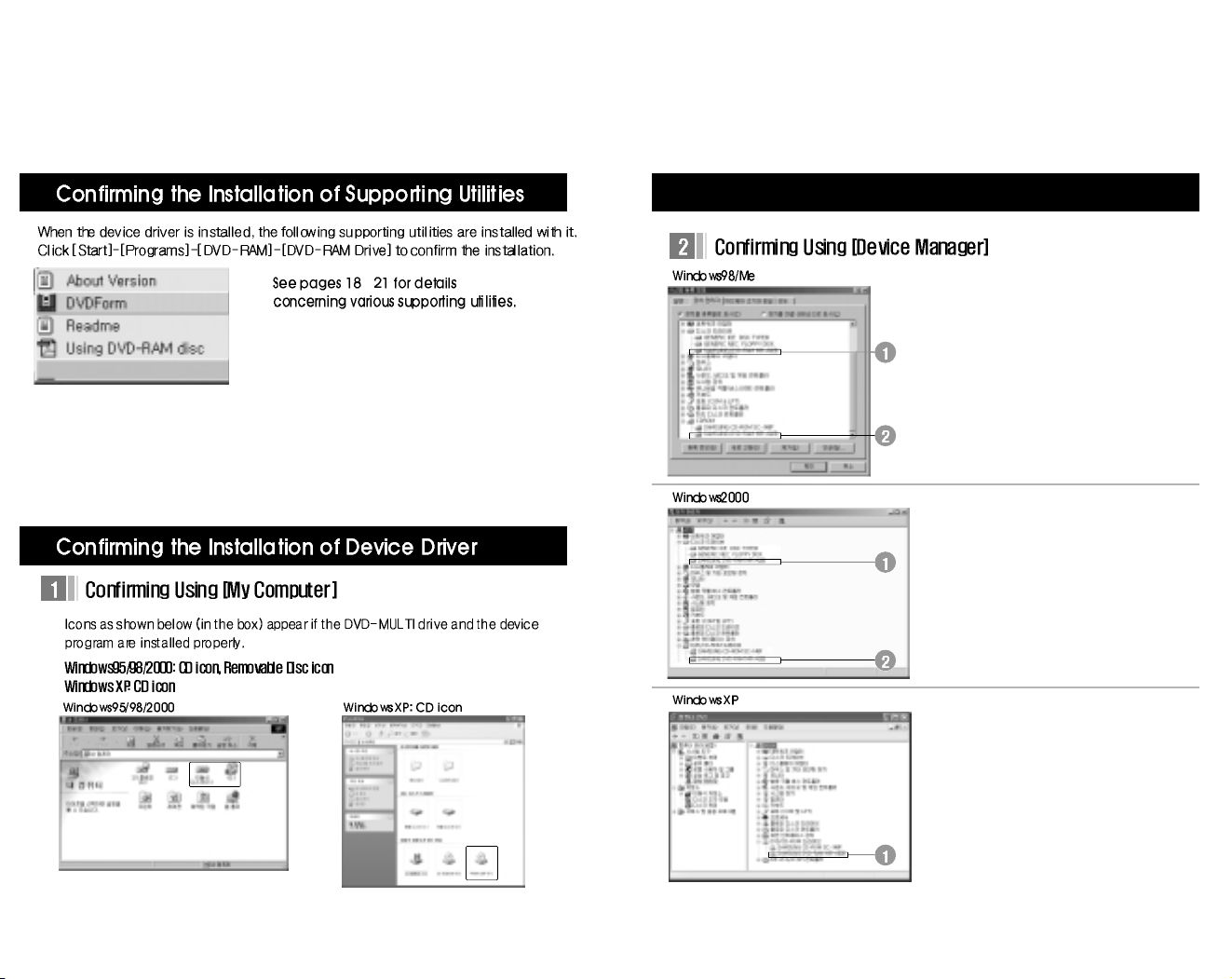

1. Click [Start] - [Settings] — [Control Panel] -[System]
2. Click on the [Device Manager] tab in the System
Properties window.
3. Click Disc Drive and CD-ROM in the Device
Manager window.
1 & 2 in the picture in the left appear if the driver
is installed properly.
1. Click [Start] - [Settings] — [Control Panel]
- [System]
2. Click on the [Hardware] tab in the System
Properties window and then click on the
[Device Manager] tab.
3. Click Disc Drive and DVD/CD-ROM in the
Device Manager window.
1 & 2 in the picture in the left appear if
the driver is installed properly.
1. Go to [Start] - [Settings] - [Control Panel] [Performance and Maintenance]
2.
Click [Administrative Tools] icon in the Performance
and Maintenance window.
3. Click [Computer Management] icon in the
Administrative Tools window.
4. Click [Device Manger] icon in the Administrative
Tools window and then click DVD/CD-ROM drive.
Page 9
1413
1
2
3
4
1
2
3
4
B
1
2
3
4
5
1
2
3
4
Page 10
1615
Universal
Disk Format
(UDF 1.5)
4.7GB/9.4GB
2.6GB/5.2GB
8cm DVD-RAM
Windows 95/98/ME
Windows NT/2000
Windows XP
Windows 95/98/ME
Windows NT/2000
Windows XP
Windows 95/98/ME
Windows NT/2000
Universal
Disk Format
(UDF 2.0)

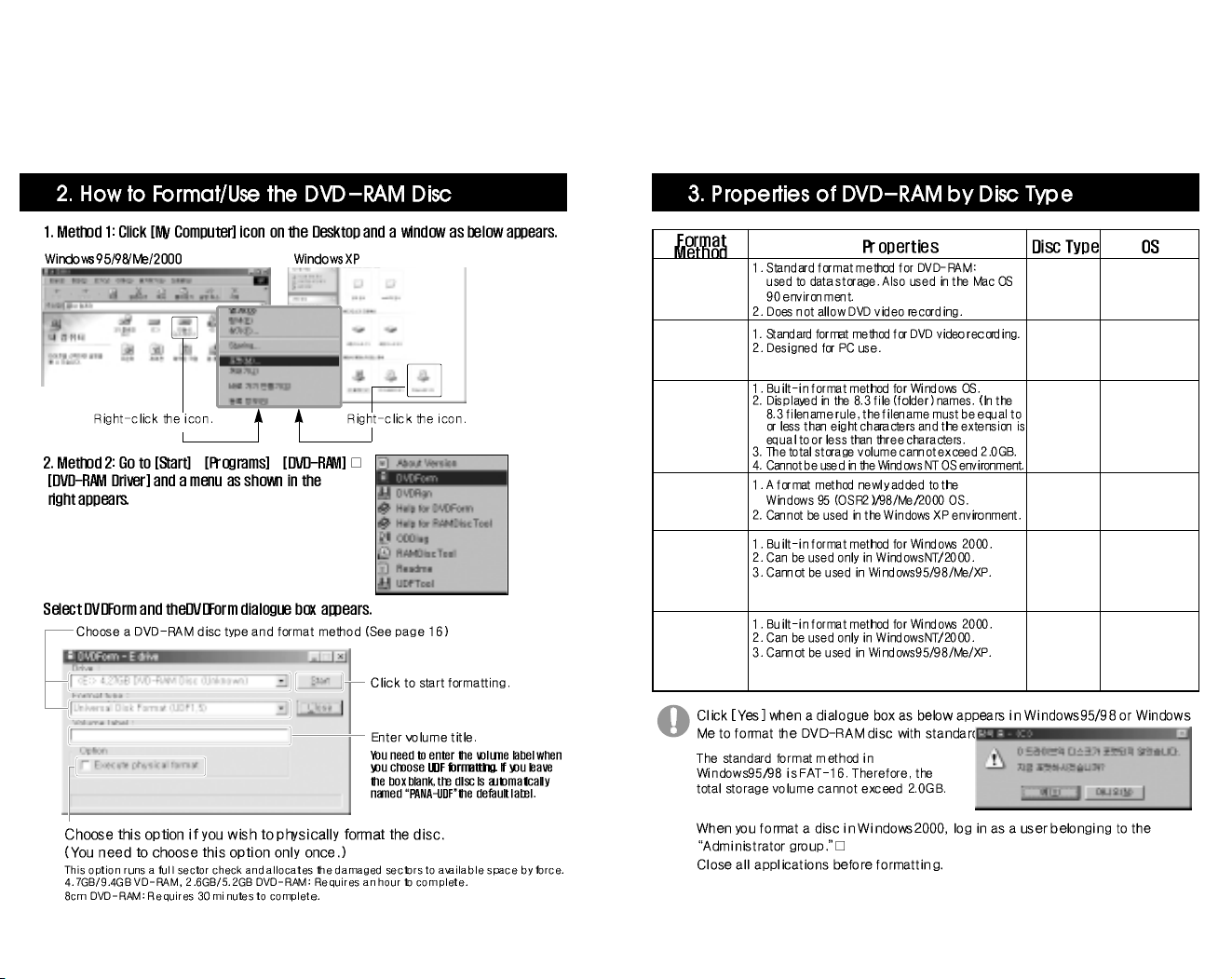

What is UDF formatting?
UDF, or Universal Disk Format is a new file system that supports a new generation of dominant disc formats such as CD-RW, DVD-ROM
and DVD-Video. UDF is superior to the existing methods in large-volume file support and frequently used for large-volume storage device
such as the DVD.
4.7GB/9.4GB
8cm DVD-RAM
FDISK FAT-16
2.0 GB
4.7GB/9.4GB
2.6GB/5.2GB
8cm DVD-RAM
Windows 95/98/ME
Windows 2000
Windows XP
FAT-32
4.7GB/9.4GB
2.6GB/5.2GB
8cm DVD-RAM
Windows NT/2000
FDISK FAT-16
2.32 GB
2.6GB/5.2GB
Windows NT/2000
FDISK FAT-16
4.0 GB
4.7GB/9.4GB

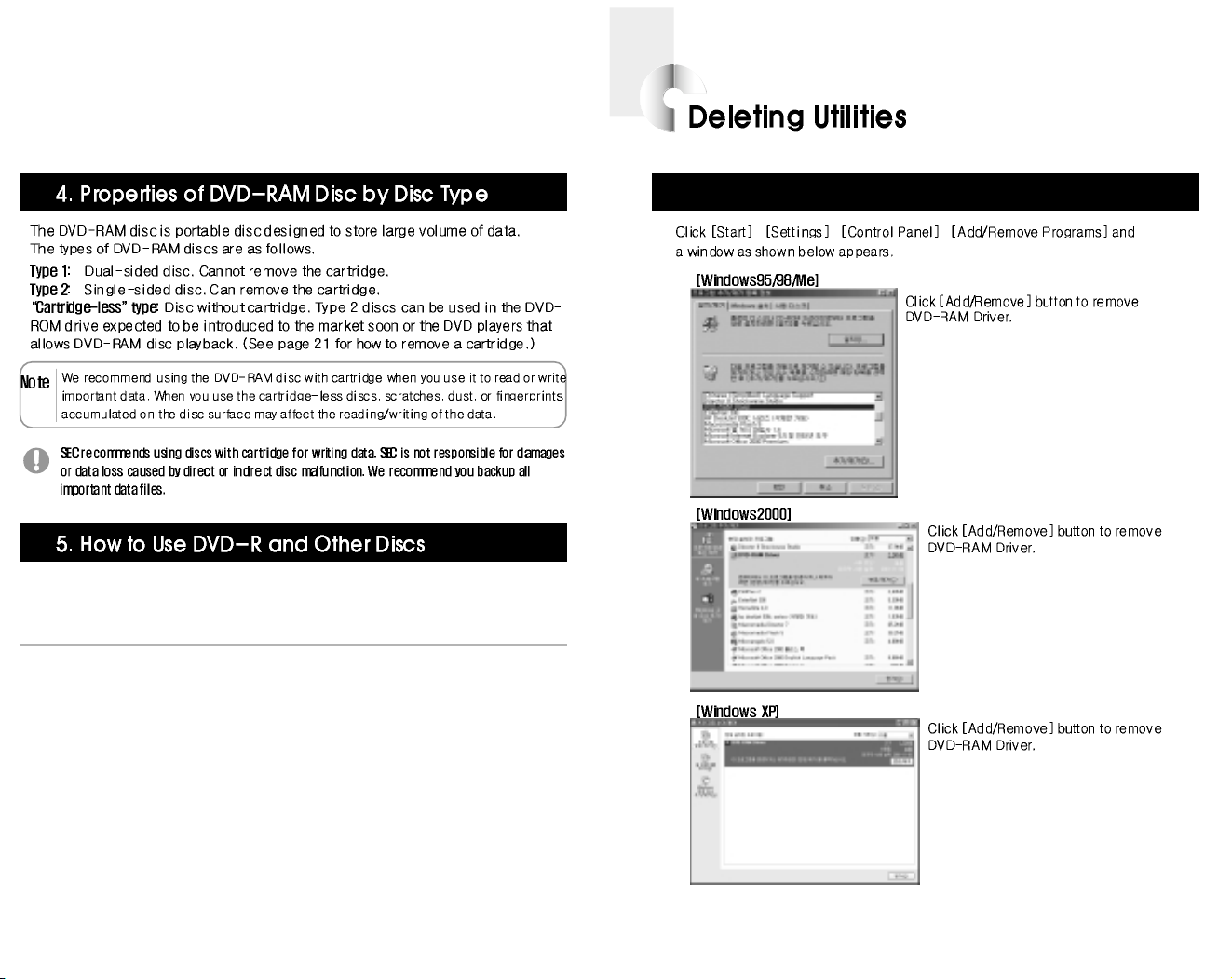

Page 11
1817
You can use the DVD-MULTI drive to playback music CDs, CD-ROM, CD-R/RW, or DVD-ROM discs,
like a CD-ROM drive or a DVD-ROM drive. If your computer recognizes the [CD-ROM] icon
designated to the DVD-MULTI drive as the E drive, insert a CD-ROM or a DVD-ROM disc and access
the E drive.
(The actual drive letter of the DVD-MULTI may vary depending on the user s system environment.)
To Playback a DVD Video Disc;
You need a DVD decoder board or the DVD decoder software program. (Provided with Win DVD)
Use Win DVD to change the region code of the DVD-MULTI drive.
With the DVD-MULTI drive, you can write data on a DVD-RW disc using the B s Recorder
and overwrite data using the B s Clip. You can also write data on a DVD-R disc using the B s
Recorder.
Page 12
19 20
Page 13
2221
DVD-MULTI
SR-T03B
120mm or 80mm
ATA/ATAPI-5
DVD-RAM(4.7GB)/RW
130ms
DVD-R/ROM
115ms
CD-ROM/R/RW
120ms
DVD-RAM (4.7GB)
Max 2,700Kbps ZCLV 2X(Standard double speed)
1,350Kbps ZCLV 1X
Max 16,200Kbps CAV 12X
Max 8,100Kbps CAV 6X
Max 8,100Kbps CAV 6X
Max 4,800Kbps CAV 32X
Max 3,600Kbps CAV 24X
DVD-RAM (2.6GB)
DVD-ROM
DVD-ROM (DUAL)
DVD-R/-RW
CD-ROM/R (Mode1)
CD-RW (Mode1)
2MB
0.7Vrms(47K‰
5~45
10~80% (no congealing)
149 X 41.5 X 200mm (excluding the protrusions)
1,2kg
PIO mode
PIO Mode 4: 16.6Mbps
DMA mode
Ultra DMA Mode 4: 66.6Mbps
DVD-RAM :
DVD-RW : FOR General / Ver 1.1
FOR General / Ver 1.0
DVD-R : FOR Authoring / Ver 2.0 / 4.7GB
DVD-ROM / DVD-VIDEO / DVD-R FOR Authoring
CD-DA CD-ROM(supports XA) / Photo CD(Multi session) / Video CD
CD-I/FMV / CD-EXTRA / CD-R / CD-RW
Page 14

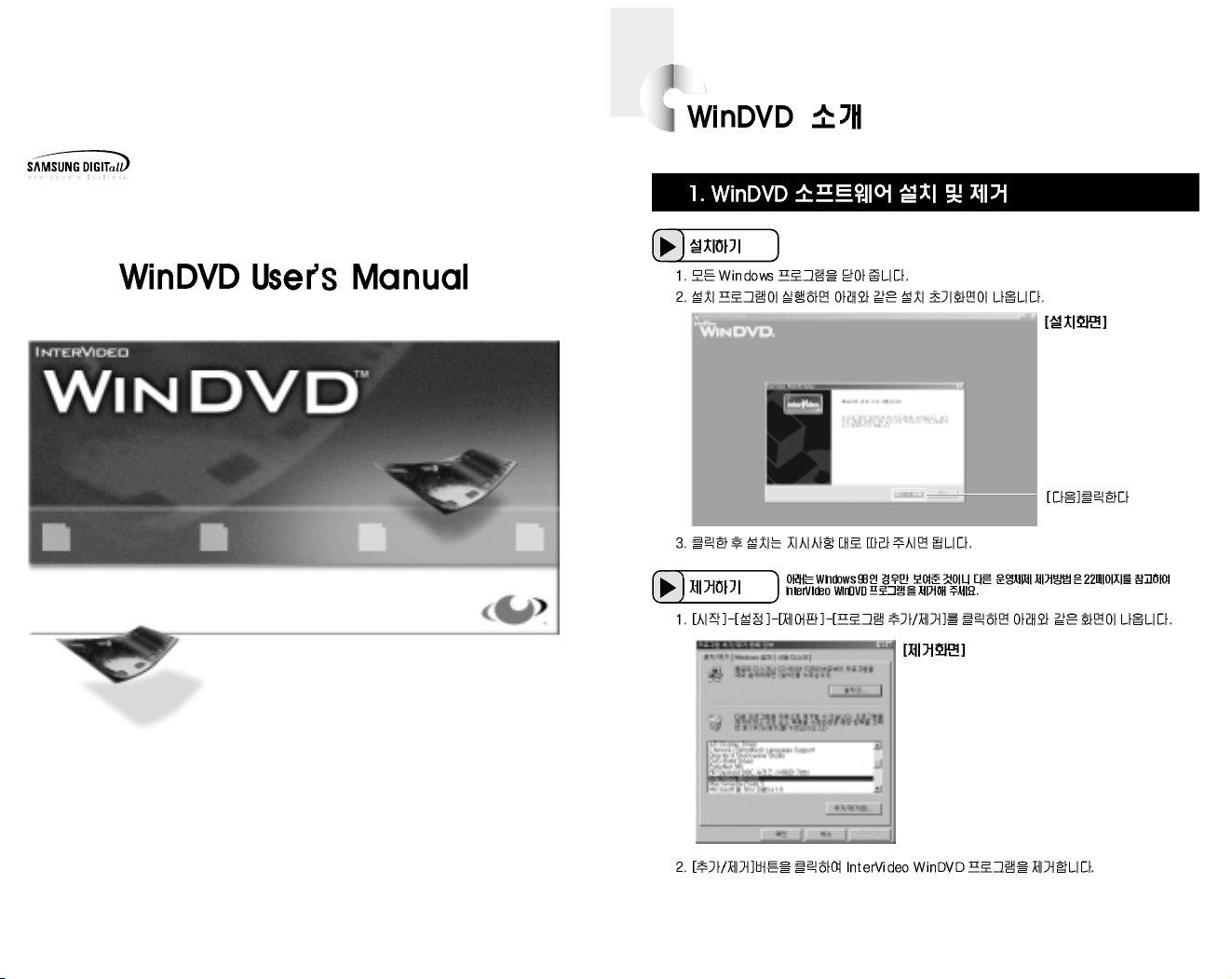

24
This is designed for supporting persons with the copyright for WinDVD or
the express approval of the copyright holder to copy.
If the person does not have the copyright or did not obtain the express
approval of the copyright holder to copy, he or she is in violation of the
Copyright Act and therefore must indemnify the copyright holder for
damages. Consult your legal advisor if you are unclear about matters
concerning the user s rights.
.
Page 15

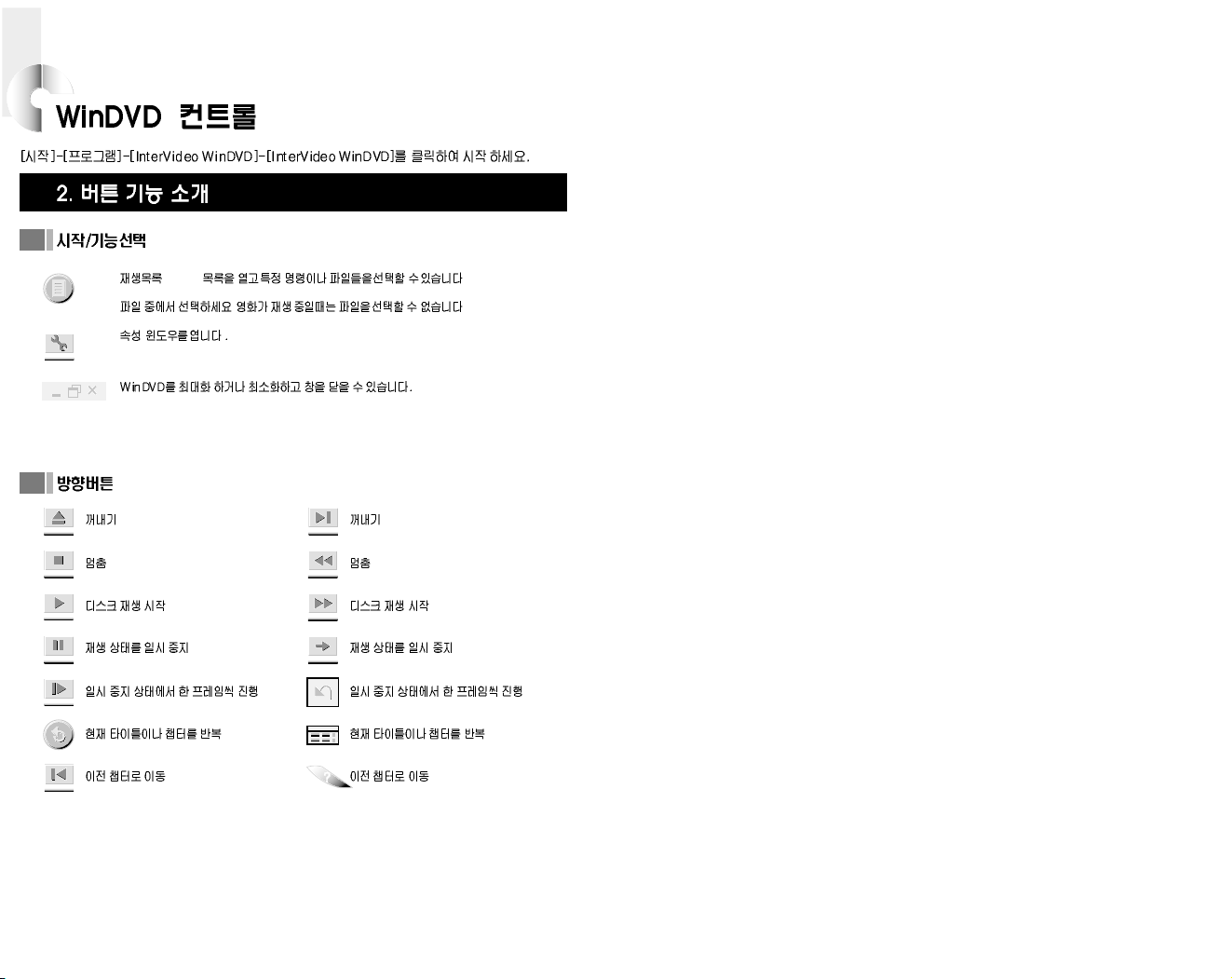

25
(Playlist) .
*.ac3, *.asf, *.asx, *.avi, *.dat, *.m2a, *.m2p, *.m2v, *.mp2, *.mp3, *.mpg, *.vid, *.vob, *.mpeg, *.m3u
. .
Loading...
