Refrigerator
user manual
RSH7
*
Free Standing Appliance
English
imagine the possibilities
Thank you for purchasing a Samsung product.
To receive a more complete service,
please register your product at
www.samsung.com/register
safety information
SAFETY INFORMATION
• Before operating the
appliance, please read this
manual thoroughly and
retain it at a safe place near
the appliance for your future
reference.
• Use this appliance only for
its intended purpose as
described in this instruction
manual. This appliance is not
intended for use by persons
(including children) with
reduced physical, sensory
or mental capabilities, or
lack of experience and
knowledge, unless they have
been given supervision or
instruction concerning use
of the appliance by a person
responsible for their safety.
• Warnings and Important
Safety Instructions in this
manual do not cover all
possible conditions and
situations that may occur. It
is your responsibility to use
common sense, caution,
and care when installing,
maintaining, and operating
your appliance.
2_ safety information
• Because these following
operating instructions
cover various models, the
characteristics of your
refrigerator may differ slightly
from those described in this
manual and not all warning
signs may be applicable.
If you have any questions
or concerns, contact your
nearest service center or find
help and information online
at www.samsung.com.
Important safety symbols
and precautions :
Hazards or unsafe
practices that may
WARNING
CAUTION
result in severe
personal injury or
death.
Hazards or unsafe
practices that may
result in minor
personal injury or
property damage.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions
carefully.
Unplug the power
plug from the wall
socket.
Make sure the
machine is grounded
to prevent electric
shock.
Call the contact
center for help.
Note.
These warning signs are here
to prevent injury to you and
others.
Please follow them carefully.
After reading this section, keep
it in a safe place for future
reference.
CE Notice
This product has been
determined to be in
compliance with the Low
Voltage Directive (2006/95/
EC), the Electromagnetic
Compatibility Directive
(2004/108/EC), RoHS Directive
(2011/65/EU), Commission
Delegated Regulation (EU)
No 1060/2010 and the EcoDesign Directive(2009/125/EC)
implemented by Regulation
(EC) No 643/2009 of the
European Union. (For products
sold in European Countries
only)
SEVERE WARNING
WARNING
SIGNS FOR
TRANSPORTATION
AND SITE
• When transporting and
installing the appliance,
care should be taken to
ensure that no parts of
the refrigerating circuit
are damaged.
- Refrigerant leaking from the
pipe work could ignite or
cause an eye injury. If a leak
is detected, avoid any naked
flames or potential sources
of ignition and air the room
in which the appliance is
standing for several minutes.
• In order to avoid the creation
of a flammable gas-air
mixture if a leak in the
refrigerating circuit occurs,
the size of the room in which
the appliance may be sited
depends on the amount of
refrigerant used.
safety information _3
• Never start up an appliance
showing any signs of
damage. If in doubt, consult
your dealer. The room where
the refrigerator will be sited
must be 1m³ in size for every
8g of R600a refrigerant
inside the appliance. The
amount of refrigerant in your
particular appliance is shown
on the identification plate
inside the appliance.
multiple power board.
The refrigerator should
always be plugged into its
own individual electrical
which has a voltage rating
that matched the rating
plate.
- This provides the best
performance and also
prevents overloading house
wiring circuits, which could
cause a fire hazard from
overheated wires.
• If the wall socket is loose, do
not insert the power plug.
WARNING
SIGNS FOR
INSTALLATION
• Do not install the
refrigerator in a damp
place or place where it
may come in contact
with water.
- Deteriorated insulation of
electrical parts may cause
an electric shock or fire.
• Do not place this refrigerator
in direct sunlight or expose
to the heat from stoves,
room heaters or other
appliance.
• Do not plug several
appliances into the same
4_ safety information
SEVERE WARNING
- There is a risk of electric
shock of fire.
• Do not use a cord that
shows cracks or abrasion
damage along its length or
at either end.
• Do not bend the power cord
excessively or place heavy
articles on it.
• Do not use aerosols near the
refrigerator.
- Aerosols used near the
refrigerator may cause an
explosion or fire.
• This refrigerator must
be properly installed
and located in
accordance with the
manual before it is
used.
• Connect the power plug in
proper position with the cord
hanging down.
potential lightening rods as
ground.
- Improper use of the ground
plug can result in electric
shock.
- If you connect the power
plug upside down, wire can
get cut off and cause fire or
electric shock.
• Make sure that the power
plug is not squashed or
damaged by the back of the
refrigerator.
• When moving the
refrigerator, be careful not
to roll over or damage the
power cord.
- This constitutes a fire
hazard.
• The appliance must be
positioned so that the plug is
accessible after installation.
• The refrigerator must
be grounded.
- You must ground the
refrigerator to prevent any
power leakages or electric
shocks caused by current
leakage from the refrigerator.
• If the power cord is
damaged, have it
replaced immediately
by the manufacturer or
its service agent.
• The fuse on the refrigerator
must be changed by a
qualified technician or
service company.
- Failing to do so may result
in electric shock or personal
injury.
CAUTION SIGNS FOR
CAUTION
• Allow the appliance to stand
INSTALLATION
• Keep ventilation
opening in the
appliance enclosure or
mounting structure
clear of obstruction.
for 2 hours after installation.
• Never use gas pipes,
telephone lines or other
safety information _5
WARNING
• Do not store articles on the
- When you open or close the
• Do not put items filled with
- If spilled, there is a risk of fire
• Do not let children hang on
- Failure to do so may cause
• Do not leave the doors of
- There is a risk of children
• Never put fingers or other
- Failure to do so may cause
6_ safety information
SIGNS FOR USING
• Do not insert the power
plug with wet hands.
top of the appliance.
door, the articles may fall
and cause personal injury
and/or material damage.
water on the refrigerator.
or electric shock.
the door.
serious personal injury.
the refrigerator open while
the refrigerator is unattended
and do not let children enter
inside of the refrigerator.
entrapment and serious
personal injury because of
low temperature.
objects into the dispenser
hole.
personal injury or material
damage.
SEVERE WARNING
• Do not store volatile or
flammable substances such
as benzene, thinner, alcohol,
ether or LP gas in the
refrigerator.
- The storage of any of
such products may cause
explosions.
• Do not store low
temperature-sensitive
pharmaceuticals
products, scientific
materials or other low
temperature-sensitive
products in the
refrigerator.
- Products that require
strict temperature controls
must not be stored in the
refrigerator.
• Do not place or use
electrical appliance inside
the refrigerator, unless they
are of a type recommended
by the manufacturer.
• Do not use a hair dryer
to dry the inside of the
refrigerator. Do not place
a lighted candle in the
refrigerator for removing bad
odors.
- This may result in electric
shock or fire.
• Do not touch the inside walls
of the freezer or products
stored in the freezer with wet
hands.
- This may cause frostbite.
• Do not use mechanical
devices or any other means
to accelerate the defrosting
process, other than those
recommended by the
manufacturer.
• Do not damage the
refrigerant circuit.
• This product is
intended only for the
storage of food in a
domestic environment.
• Bottles should be stored
tightly together so that they
do not fall out.
• If a gas leak is detected,
avoid any naked flames or
potential sources of ignition
and air the room in which
the appliance is standing for
several minutes.
• Use only the LED Lamps
provided by manufacturer or
service agents.
• Children should be
supervised to ensure that
they do not play with and/or
climb into the appliance.
• Do not disassemble or
repair the refrigerator
by yourself.
- You run risk of causing a
fire, malfunction and/or
personal injury. In case of
malfunction, please contact
your service agents.
• If the appliance
generates a strange
noise, a burning or
smell or smoke, unplug
the power plug
immediately and
contact your nearest
service center.
- Failing to do so may result
in electric or fire hazards.
Keep ventilation opening in
the appliance enclosure or
mounting structure clear of
obstruction.
• If you experience difficulty
when changing the light,
contact service agents.
• If the products equipped
with LED Lamp, do not
disassemble Lamp Cover
and LED Lamp by yourself.
- Please contact your service
agents.
• If any dust or water is in
refrigerator, pull out power
safety information _7
plug and contact your
Samsung Electronics service
center.
- There is a risk of fire.
CAUTION SIGNS FOR
CAUTION
- Do not place foods too
- Wrap the food up properly
• Do not place carbonated
- When the contents freeze,
• Do not change the
- Changes or modifications
8_ safety information
USING
• To get best
performance of
product,
closely in front of the vents
at the rear of the appliance
as it can obstruct free air
circulation in the refrigerator
compartment.
or place it in airtight
containers before put it into
the refrigerator.
or fizzy drinks in the freezer
compartment. Do not put
bottles or glass containers in
the freezer.
the glass may break and
cause personal injury and
property damage.
functionality of or modify the
refrigerator.
may result in personal
injury and/or property
damage. Any changes or
modifications performed
by a 3rd party on this
completed appliance is
neither covered under
Samsung warranty service,
nor is Samsung responsible
for safety issues and
damages that result from
3rd party modifications.
• Do not block air holes.
- If the air holes are blocked,
especially with a plastic bag,
the refrigerator can be over
cooled. If this cooling period
lasts too long, the water filter
may break and cause water
leakage.
- Do not put any newly
introduced food for freezing
near to already food.
• Please observe maximum
storage times and expiry
dates of frozen goods.
• Fill water tank, ice tray,
water cubes only with
potable water.
• Use only the ice maker
provided with the
refrigerator.
• The water supply to this
refrigerator must only be
installed/connected by a
suitably qualified person and
connect to a potable water
supply only.
cleaning the plug, remove
any foreign material or dust
from the power plug pins.
• In order to operate the
ice maker properly,
water pressure of 138 ~
862kPa(1.4~8.8kgf/cm3) is
required.
CAUTION SIGNS
CAUTION
FOR CLEANING AND
MAINTENANCE
• Do not directly spray
water inside or outside
the refrigerator.
- There is a risk of fire or
electric shock.
• Do not spray inflammable
gas near the refrigerator.
- Otherwise there is a risk of
fire or electric shock.
• Never put fingers or other
objects into the dispenser
hole and ice chute.
- It may cause personal injury
or material damage.
• Unplug the refrigerator
before cleaning and
performing
maintenance.
SEVERE WARNING
WARNING
SIGNS FOR
DISPOSAL
- There is a risk of explosion
or fire.
• Do not spray cleaning
products directly on the
display.
- Printed letters on the display
may come off.
• Remove any foreign matter
or dust from the power
plug pins. But do not use
a wet or damp cloth when
• Ensure that none of the
pipes on the back of
the appliance are
damaged prior to
disposal.
• R600a or R134a is used
as a refrigerant. Check the
compressor label on the rear
of the appliance or the rating
label inside the refrigerator
to see which refrigerant is
used for your refrigerator.
safety information _9
When this product contains
flammable gas (Refrigerant
R600a), contact your local
authority in regard to safe
disposal of this product.
Cyclopentane is used as a
insulation blowing gas. The
gases in insulation material
require special disposal
procedure. Please contact
your local authorities in
regard to the environmentally
safe disposal of this product.
Ensure that none of the
pipes on the back of the
appliances are damaged
prior to disposal. The pipes
shall be broke in the open
space.
• If the appliance contains isobutane refrigerant (R600a),
a natural gas with high
environmental compatibility
that is, however, also
combustible. When
transporting and installing
the appliance, care should
be taken to ensure that no
parts of the refrigerating
circuit are damaged.
• When disposing of
this product or other
refrigerators, remove the
door/door seals, door latch
10_ safety information
so that small children or
animals cannot become
trapped inside. Leave the
shelves in place so that
children may not easily climb
inside. Children should be
supervised to ensure that
they do not play with the old
appliance.
• Please dispose of the
packaging material
for this product in an
environmentally friendly
manner.
ADDITIONAL TIPS
FOR PROPER
USAGE
• In the event of a power
failure, call the local office
of your Electricity Company
and ask how long it is going
to last.
- Most power failures that are
corrected within an hour
or two will not affect your
refrigerator temperatures.
However, you should
minimize the number of door
openings while the power is
off.
- Should the power failure last
more than 2 hours, remove
all ice in the Ice Bucket.
- Should the power failure last
more than 24 hours, remove
all frozen food.
• If keys are provided with the
refrigerator, the keys should
be kept out of the reach of
children and not in vicinity of
the appliance.
• The appliance might
not operate consistently
(possibility of temperature
becoming too warm in
refrigerator) when sited
for an extended period of
time below the cold end of
the range of temperature
for which the refrigerating
appliance is designed.
• Do not store food which
spoils easily at low
temperature, such as
bananas, melons.
• Your appliance is frost free,
which means there is no
need to manually defrost
your appliance, as this will
be carried out automatically.
• Temperature rising during
the defrost can comply with
ISO requirement. But if you
want to prevent an undue
rise in the temperature of the
frozen food while defrosting
the appliance, please wrap
the frozen food in several
layers of newspaper.
• Any increase in temperature
of frozen food during
defrosting can shorten its
storage life.
Saving Energy Tips
- Install the appliance in
a cool, dry room with
adequate ventilation.
Ensure that it is not exposed
to direct sunlight and never
put it near a direct source of
heat (radiator, for example).
- Never block any vents or
grilles on the appliance.
- Allow warm food to cool
down before placing it in the
appliance.
- Put frozen food in the
refrigerator to thaw.
You can then use the low
temperatures of the frozen
products to cool food in the
refrigerator.
- Do not keep the door of
the appliance open for too
safety information _11
long when putting food in or
taking food out.
The shorter time for which
the door is open, the less ice
will form in the freezer.
- Clean the rear of the
refrigerator regularly.
Dust increases energy
consumption.
- Do not set temperature
colder than necessary.
- Ensure sufficient air exhaust
at the refrigerator base
and at the back wall of the
refrigerator.
Do not cover air vent
openings.
- Allow clearance to the right,
left, back and top when
installing.
This will help reduce power
consumption and keep your
energy bills lower.
12_ safety information
contents
SETTING UP YOUR SIDE-BY-SIDE REFRIGERATOR ···································14
OPERATING THE SAMSUNG SIDE-BY-SIDE REFRIGERATOR ···················· 23
TROUBLESHOOTING ·····················································································29
safety information _13
setting up your side-by-side
refrigerator
GETTING READY TO INSTALL
THE REFRIGERATOR
Congratulations on the purchase of your Samsung
Side-By-Side Refrigerator. We hope you will enjoy the
many state-of-the-art features and efficiencies that
this new appliance has to offer.
Selecting the best location for the
refrigerator
• Select a location with easy access to the water
supply.
• Select a location without direct exposure to
sunlight.
• Select a location with level (or nearly level) flooring.
• Select a location with enough space for the
refrigerator doors to open easily.
• Overall space required in use. Refer to drawing and
dimension as below.
• Please ensure that appliance can be moved freely
in the event of maintenance & service.
25mm
Spacer
Spacer
Spacer(gray block)
installation
For better performance,
please certainly fix the spacer
on the rear of unit when installing the refrigerator. It
is improving refrigerator performance.
Assembly Method
1. Take out packed spacer from the lowest guard of
the fridge.
2. Check assembly location at the rear of Refrigerator
like picture
3. Locate spacer assembly location and put spacer
on the rear plate of Refrigerator.
When moving your refrigerator
To prevent floor damage be sure the front levelling
legs are in the up position (above the floor). Refer to
‘Levelling the refrigerator’ in the manual (at page 18).
To protect the finish of the flooring, place the
protection sheet such as packing carton under the
refrigerator.
50mm
at least 50mm at least 50mm
732mm
1027mm
160º
160º
1724mm
14_ setting up
777mm
1155mm
CAUTION
Leg
When installing, servicing or cleaning
behind the refrigerator, be sure to pull the
unit straight out and push back in straight
after finishing.
Screw Driver
01 SETTING UP
REMOVING THE REFRIGERATOR
DOORS
If your entrance won’t allow the refrigerator to pass
easily through it, you can remove the doors.
1. With the Freezer door closed, remove the upper
hinge cover 1 using a screwdriver, and then
disconnect the wires by gently pulling them apart
2
.
1. Removing the Front Leg Cover
First, open both the freezer and refrigerator doors,
and then take off the front leg cover by removing the
three screws counter-clockwise.
Separating the Water Supply Line from
the Refrigerator
1. Remove the water line by pressing the coupler 1
and pulling the water line 2 away.
Be careful
that the
water tube match
same colour.
1
2
1
2. Remove hinge screws 3 by turning counterclockwise, and take off the upper hinge 4. Be
careful that the door does not fall on you as you
are removing it.
4
3. Next, remove the door from the lower hinge 5 by
carefully lifting the door straight up 6.
6
5
Be careful not to pinch the water tubing and
wire harness on the door.
4. Remove the lower hinge 7 from the bracket 8
by gently lifting the lower hinge upwards.
2
3
2. Removing the freezer door
A few things to mention first.
• Make sure that you lift the door straight up so the
hinges are not bent or broken.
• Be careful not to pinch the water tubing and wire
harness on the door.
• Place doors on a protected surface to prevent
scratching or damage.
7
8
setting up _15
Removing the Fridge Door
1. With the door closed, remove the upper hinge
cover 1 using a screwdriver.
1
2. Remove hinge screws 2 and the ground screw
3
by turning counter-clockwise, and take off the
upper hinge 4. Be careful that the door does not
fall on you as you are removing it
REATTACHING THE
REFRIGERATOR DOORS
Once you have safely placed your refrigerator where
you plan for it to stay, it is time to put the doors back
on.
Reattaching the Freezer Door
1. Replace the freezer door by inserting the water
line 1 back into the lower corner of the door and
then into the hole on the lower hinge 2.
Gently pull the water line back down so that it runs
straight, with no kinks or bends.
1
2
3
4
3. Remove the door from the lower hinge 5 by
lifting the door straight up 6.
4. Remove the lower hinge 7 from the bracket 8
by gently lifting the lower hinge upwards.
2
2. Insert the upper hinge shaft 3 into the hole on
the corner of the freezer door 4.
Make sure the hinge is level between the upper
hinge hole 5 and the hole of the cabinet 6
and reattach the hinge screws 7 by turning in a
clockwise direction.
Reconnect the wires.
7
5
6
3
4
3. Place the front part of the upper hinge cover 8
on the front of the upper hinge 9 and reattach
with the screw.
9
16_ setting up
8
01 SETTING UP
Reattaching the Fridge Door
1. Insert the lower hinge 1 back into the lower
hinge bracket 2.
Reattaching the Water Supply Line
1. Insert the water line 2 into the coupler
1
1
.
2
2. Fit the hole in the corner of the fridge door 3
over the lower hinge 4.
3
4
3. Insert the upper hinge shaft 5 into the hole
on the hinge 6. Make sure the hinge is level
between the upper hinge hole 7 and the hole on
the top of the cabinet 8. Then, reattach hinge
screws 9 and the ground screw 10 by turning it
in a clock wise direction.
10
9
7
6
8
5
4. Place the front part of the upper hinge cover 11
on the front of the upper hinge 12 and reattach it
with the screw.
1
2
2. The Water Line must be fully Inserted to the center
of transparent coupler to prevent water leakage
from the dispenser.
3. Insert the 2 clips in the install pack and check that
each clip holds the line firmly.
Center of transparent
coupler
clip A (1/4”)
(6.35mm)
Do not cut the water line.
Gently separate it from the coupler.
Reattaching the Front Leg Cover
Before attaching the cover, check water
connector for leakage.
Replace the front leg cover by turning the three
screws clockwise, as shown in the figure.
12
11
setting up _17
LEVELLING THE REFRIGERATOR
Now that the doors are back on the refrigerator, you
will want to make sure the refrigerator is level so you
can then make final adjustments. If the refrigerator
is not level, it will not be possible to get the doors
perfectly even.
The front of the refrigerator is also adjustable.
When the Freezer door is lower than
the fridge
Insert a flat-blade screwdriver into a notch on the
Leg, turn it clockwise or counter clockwise to level
the freezer.
Leg
Screw Driver
When the Freezer door is higher than
the fridge
Insert a flat-blade screwdriver into a notch on the
Leg, turn it clockwise or counter clockwise to level
the fridge.
MAKING MINOR ADJUSTMENTS
TO THE DOORS
Remember, a level refrigerator is necessary for getting
the doors perfectly even. If you need help, review the
previous section on levelling the refrigerator.
When the door of the freezer
is higher than the fridge
Adjustment
part
In the process for adjusting both the doors is the
same. Open the doors and adjust them, one at a
time, as follows:
1. Unscrew the
nut 1 from the
lower hinge until
it reaches the
upper end of the
bolt 2.
When you release the nut 1, make sure that
you use the Allen wrench provided 3 to loosen
the bolt 2 in a counter-clockwise direction.
You should then be able to unscrew the nut 1
with your fingers.
3
1
Wrench
Bolt
2
Nut
Leg
Refer to the next section for the best way to
make very minor adjustments to the doors.
18_ setting up
Screw Driver
2. Adjust the
height difference
between the
doors by turning
the bolt 2
clockwise
or counter clockwise .
When you turn clockwise , the door will
move up.
3. After adjusting
the doors, turn
the nut 1
clockwise
until it reaches
the lower end
of the bolt, then
tighten the bolt again with the wrench 3 to fix
the nut in place 1.
If you do not secure the nut firmly, the bolt may
release.
3
2
3
1
Wrench
Bolt
Wrench
Bolt
2
Nut
01 SETTING UP
CHECKING THE WATER
DISPENSER LINE
A water dispenser is just one of the helpful features
on your new Samsung refrigerator. To help promote
better health, the Samsung water filter removes
unwanted particles from your water. However, it
does not sterilize or destroy microorganisms. You
will need to purchase a water purifying system to do
that. In order for the icemaker to operate properly,
water pressure of 138 ~862 kPa is required. Under
normal conditions, a 170 cc paper cup can be filled
in 10 seconds. If the refrigerator is installed in an area
with low water pressure (below 138 kPa), you can
install a booster pump to compensate for the low
pressure. Make sure the water storage tank inside
the refrigerator is properly filled. To do this, press the
water dispenser lever until the water runs from the
water outlet.
Water Line installation Kits are included. You can
find it in one of the freezer drawers.

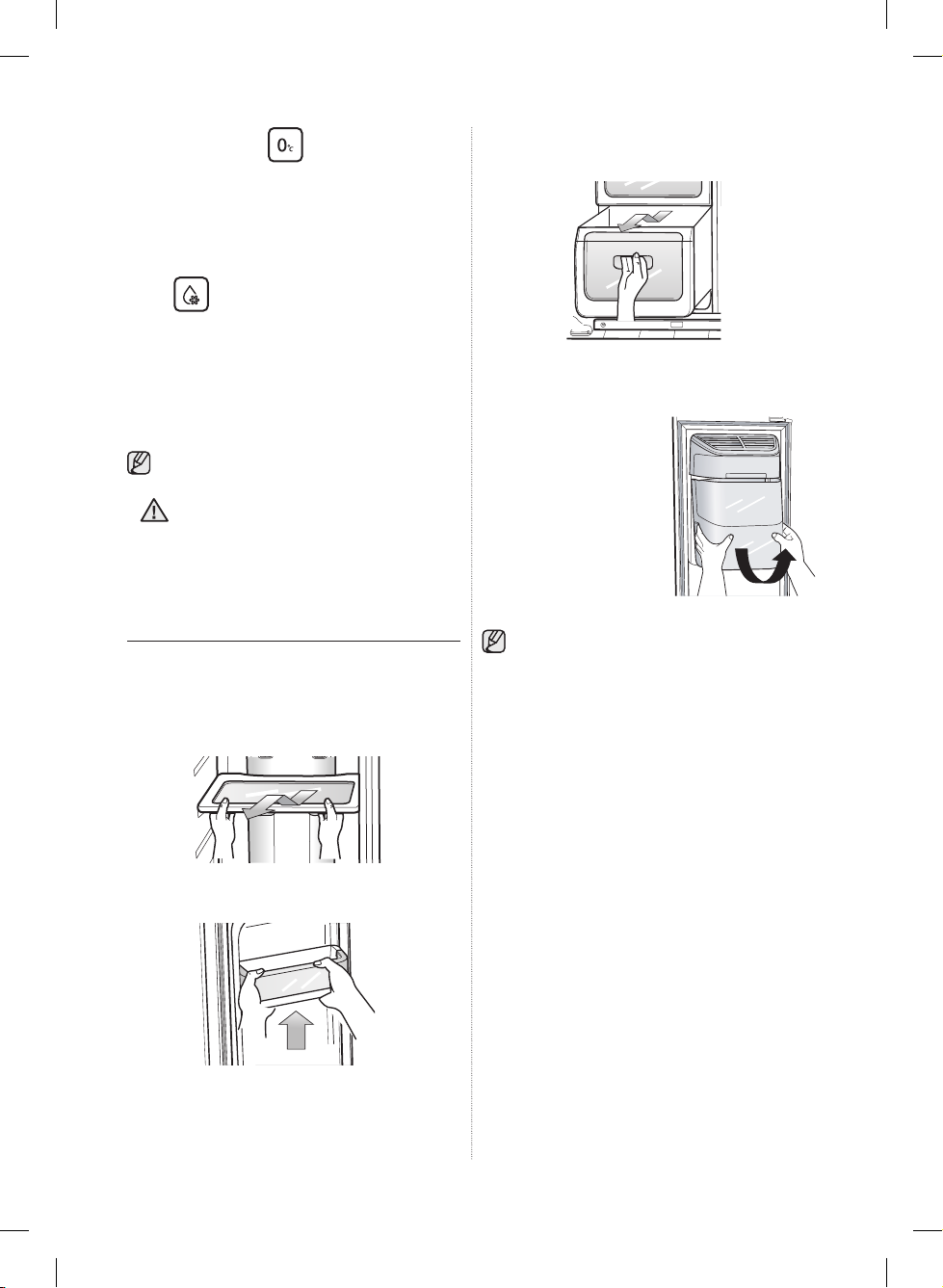

USING THE ICE MAKER
To Remove the Ice Bucket
-
Hold the handle as shown in figure1.
-
Slightly pull up the bottom part.
-
Take out the ice bucket slowly.
- When ICE OFF blinks on the display panel,
CAUTION
reinsert the bucket and/or make sure it’s
installed properly.
- When the door is open, the Ice and water
dispenser do not work.
- If you close the door hard, it may cause
water spilling over the ice maker.
- To prevent dropping the ice bucket, use
both hands when removing it.
- To prevent injury, be sure to clean up any
ice or water that may have dropped on
the floor.
-
Do not let children hang on the ice dispenser
or on the bucket.
They may get hurt.
- Be sure not to put your hand or any object
into the ice chute.
It may cause personal injury or damage
mechanical parts.
INSTALLING THE WATER
DISPENSER LINE
For Interior model
Parts for water line Installation
To Refit The Ice Bucket
- Assemble it in the reverse
order of disassembly.
- Push the bucket in firmly until
you hear a clicking sound.
- When the bucket does not fit
into its place, turn the gear
handle on its back by 90
degrees and reinstall it again
as shown in figure 2.
Normal Operation
- Any sounds you hear when
the ice maker dumps ice into
the bucket are part of normal
operation.
- Not dispensing ice for long
periods may cause ice
clumps in the ice bucket.
Remove the remaining ice
and empty the bucket.
- When ice does not come
out, Check for any ice stuck
in the chute and remove it.
-
The first batch of ice cubes may
be small due to air in the pipe
after connection, any air will be
purged during normal use.
Figure1
Figure2
Ice Chute
2
4
Clip
Pipe connector
5
Water Filter
1
Water line fixer and screws
3
Water line

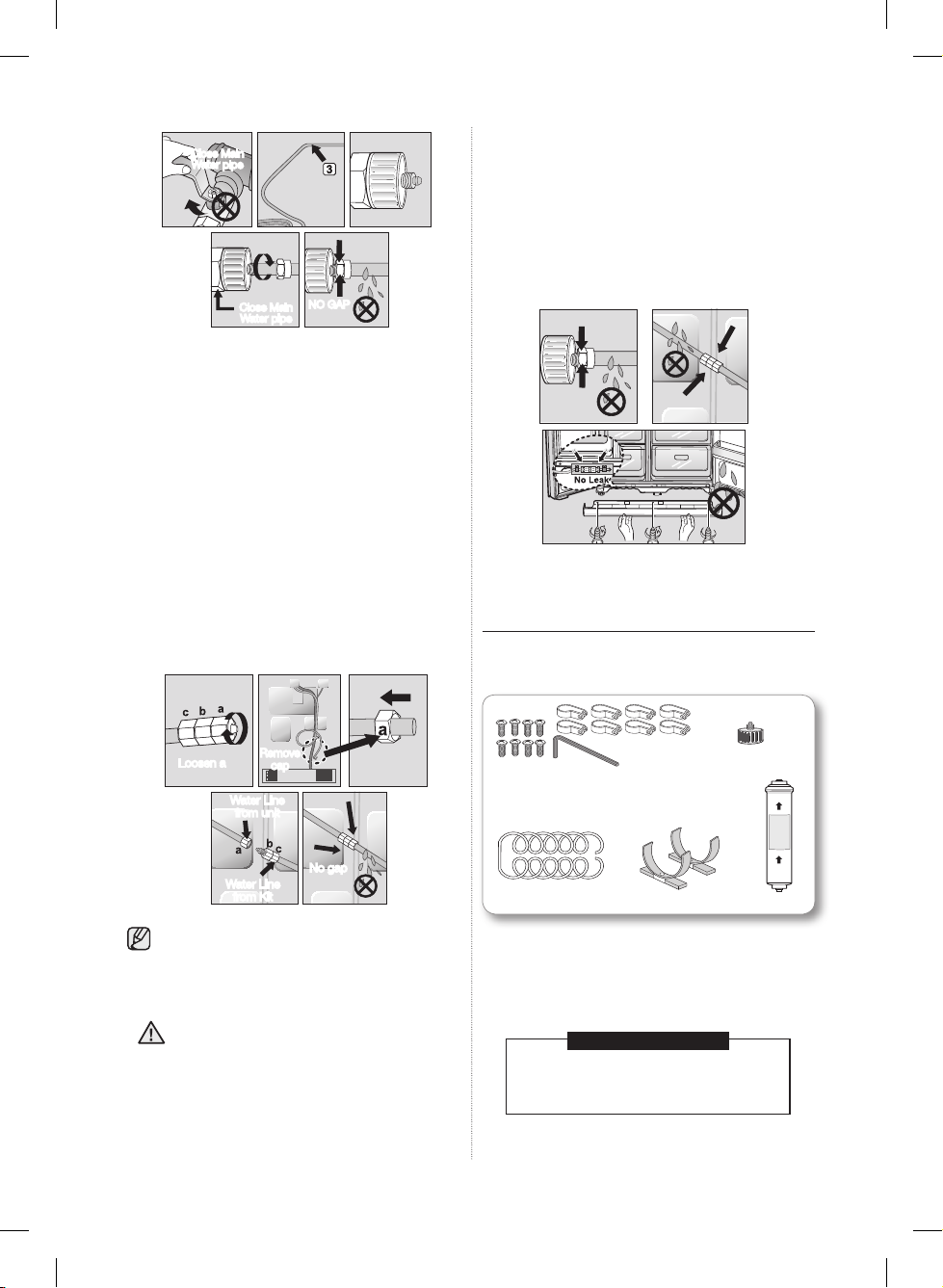

Connecting to the water supply line
1. first, shut off the main water supply line.
2. locate the nearest cold, drinking water line.
3. follow the Water line Installation Instructions in the
installation kit.
CAUTION
The water line must be connected
to the cold water pipe. If it is connected
to the hot water pipe, it may cause the
purifier to malfunction.
setting up _19
Close Main
Water pipe
Close Main
Water pipe
NO GAP
4. After connecting the water supply to the water
filter, turn your main water supply back on and
dispense about 1l to clear and prime the water
filter.
Connecting the water line to the
refrigerator
1. Remove the dust cap from the water line on the
rear of the unit and fit a compression nut from the
install kit.
2. Remove the water pipe from the install kit and fit a
compression nut to one end.
3. Join the two pipes together using the compression
joint from the install kit ensuring that the joint is
water tight.
4. Join the other end of the install pipe to the main
water supply and turn on the water to check for
leaks.
• Samsung Warranty does not cover WATER LINE
INSTALLATION.
• The cost of connection to a water supply is at the
customer expense, unless included in the delivery
charge (refer to the delivery agreement with the
seller)
• Please contact Plumber or Authorised Installer for
the installation if needed.
• If Water leakage occurs due to improper
installation, Please contact installer.
INSTALLING THE WATER
DISPENSER LINE
For Exterior model
Parts for water line Installation
Loosen a
Remove
Water Line
from unit
Water Line
from Kit
cap
No gap
Only connect the water line to a drinkable water
source.
If you have to repair or disassemble the water
line, cut off 6.5mm of the plastic tubing to
make sure you get a snug, leak-free connection.
Before being used, the leakage in
CAUTION
these places should be examined
20_ setting up
Water line fixer and screws
Water line
Purifier lock-clip
Pipe connector
Purifier
Connecting to the water supply line
Connect the water pipe with coupler and tap.
1. Close the main water tap.
2. Connect coupler “A” to the tap.
CAUTION
The water line must be connected to the cold
water pipe. If it is connected to the hot water
pipe, it may cause the purifier to malfunction.
01 SETTING UP
WARRANTY INFORMATION
This water line installation is not covered by the
refrigerator or ice maker manufacturer’s warranty.
Follow these instructions carefully to minimise the risk of
expensive water damage.
4. After inserting tube, put together the clip strongly.
The Clip fix the tube.
Note:
If the coupler does not fit on the current tap, go
the nearest authorised service dealer and purchase the
right couplers fittings.
select the location where the purifier is to
install. (Model with the purifier)
- If you wish to reassemble the water inlet and outlet
sides of the purifier during purifier installation, see
the reference illustration.
- Cut the water line attached to the purifier to the
appropriate place after measuring the distance
between the purifier and the cold water tap.
COUPLER “A”
TAP
90 degree
CAUTION
Insert Locking Clip After
tube seated
Locking Clip
SIDE OF
PURIFIER
PURIFIER WATER
WATER INLET
SIDE OF PURIFIER
LINE OUTLET
COUPLER
5. Turn on the water and check for leaks. If leaks
occur, repeat step 1,2,3,4. If leaks persist,
discontinue use and call your supporting dealer.
6. Flush filter for 5 minutes before use.
Remove any residual matter inside the
purifier. (Model with the purifier)
- Open the main water tap to check whether water
is running through the water tube on the water inlet
side of the purifier.
- If water does not come out through the line, check
whether the tap is open.
- Leave the tap open until clean water is running
out and any residual matter that built up during
manufacturing has been removed.
OUTLET SIDE
OF PURIFIER
WATER
PURIFIER
WATER LINE
Attach the purifier lock-clip.
- Hold the purifier lock-clip in the appropriate position
(under the sink for example) and fix it tightly into
place where to screw.
Replacement Instructions
1. Shut off water supply.
2. Note the Flow direction on the filter.
3. Insert water supply tube into the inlet side of the
filter until the tube stop.
FLOW DIRECTION
WATER SUPPLY
INLET SIDE
Note : You must also ensure
that the cut is square
and not at any sort
of angle as this could
cause a leak
PERMEAT
PURIFIER LOCK-CLIP
Secure the purifier in position.
- Fix the purifier in position, as shown in the figure on
the right.
WATER TUBE
PURIFIER LOCK-CLIP
PURIFIER
setting up _21
Connect the water line to the
refrigerator.
- Remove the compressor cover of the refrigerator.
- Connect the water line to the valve, as shown in
the figure.
- When connected, check if there is any leakage.
If any, repeat the connection.
- Reattach the compressor cover of the refrigerator.
WATER LINE
CONNECTION NUT
INSTRUCTIONS
COMPRESSOR COVER OF
REFRIGERATOR
Secure the water line.
- Using clip ”A”, fix the water
line to the wall (the back of
refrigerator).
- When the water line is
secure, make sure whether
the water line is not
excessively bent, pinched or
squashed.
CLIP A
WATER LINE
Removing any residual matter inside
the water supply line after installing
filter.
1. Turn ON the main water supply & turn OFF the
valve to the water supply line.
2. Run water through the dispenser until the water
runs clear (approx. 1L). This will clean the water
supply system and remove air from the lines.
3. Additional flushing may be required in some
households.
4. Open the refrigerator door and make sure there
are no water leaks coming from the water filter.
A newly installed water filter cartridge may cause
water to briefly spurt from the water dispenser.
This is due to air getting into the line. It should
pose no problem to operation.
22_ setting up
02 OPERATING
operating the SAMSUNG
side-by-side refrigerator
OPERATING THE REFRIGERATOR
USING THE CONTROL PANEL /
DIGITAL DISPLAY
COOLSELECT MODEL
1
2
3
4
DISPENSER MODEL
Speeds up the time needed
to freeze products in the
POWER
FREEZE
1
BUTTON
FREEZER
2
BUTTON
ICE TYPE
3
BUTTON
FILTER
4
CHANGE
BUTTON
freezer. This can be helpful
if you need to quickly freeze
items that spoil easily or if the
temperature in the freezer
has warmed dramatically (For
example, if the door was left
open).
Press the Freezer button to
set the freezer to your desired
temperature, You can set the
temperature between -14°C
(8°F) and -25ºC (-14°F).
Use this button to choose
Cubed, Crushed or to turn the
Ice feature off.
When you change the filter,
press this button for 3
seconds to reset the filter
schedule.
If you are going on vacation
or business trip or you do not
need to use the refrigerator,
press the Vacation button.
When you select vacation
VACATION
5
5
6
7
BUTTON
CHILD
LOCK
6
FUNCTION
FRIDGE
7
BUTTON
When you use Power Freeze the energy
consumption of the refrigerator will increase.
Remember to turn it off when you don’t
need it and return the freezer to your original
temperature setting.
If you need to freeze large amount of food stuff,
activate Power Freeze function at least 24 hours
before.
button for fridge compartment
off, display LED of Vacation will
be on.
It is strongly requested to
remove foods in the freshfood compartment and do
not leave the door open
when you select Vacation
function.
By pressing the Vacation
button and the Fridge button
simultaneously for 3 seconds,
all buttons will be locked. The
Water dispenser lever and
the Ice lever will not work
either. To cancel this function,
Press these two buttons for 3
seconds again.
Press the Fridge button to
set the fridge to your desired
temperature.
You can set temperature
between 1°C and 7°C (34°F
and 45°F).
operating _23
CONTROLLING THE
TEMPERATURE
CONTROLLING THE FREEZER
TEMPERATURE
The freezer temperature can be set between -14°C
(8°F) and -25ºC (-14°F) to suit your particular needs.
Press the Freezer button repeatedly until the desired
temperature is shown in the temperature display.
Keep in mind that foods like ice cream may melt at
-16ºC (4°F).
The temperature display will move sequentially from
-14°C (8°F) and -25ºC (-14°F). When the display
reaches -14ºC (8°F), it will begin again at -25ºC
(-14°F).
Five seconds after the new temperature is set the
display will again show the actual current freezer
temperature. However, this number will change as
the Freezer adjusts to the new temperature.
The door guards in the freezer of this model are
the two star sections, so the temperature in
two star sections are slightly higher than other
freezer compartment.
USING THE ICE AND COLD
WATER DISPENSER
Press the Ice Type button to select the type of ice
you want
No Ice
Select this if you want to
turn off the icemaker
Ice is made in cubes. When you select
“Crushed”, the icemaker grinds the ice cubes
into crushed ice.
CONTROLLING THE FRIDGE
TEMPERATURE
The refrigerator temperature can be set between 7ºC
(46°F) and 1ºC (34°F) to suit your particular
needs. Press the Fridge button repeatedly until the
desired temperature is shown in the temperature
display. The temperature control process for the
Fridge works just like the Freezer process. Press the
Fridge button to set your desired temperature. After
a few seconds, the Fridge will begin tracking towards
the newly set temperature. This will be reflected in the
digital display.
The temperature of the freezer or the refrigerator
may rise from opening the doors too frequently,
or if a large amount of warm or hot food is
placed in either side. This may cause the digital
display to blink. Once the freezer and refrigerator
return to their normal set temperatures the
blinking will stop. If the blinking continues,
you may need to “reset” the refrigerator. Try
unplugging the appliance, wait about 10 minutes
and then plug back in.
24_ operating
Dispensing ice
Place your glass underneath the ice outlet and push
gently against the ice dispenser lever with your glass.
Make sure the glass is in line with the dispenser to
prevent the ice from bouncing out.
Using the Water Dispenser
Place a glass underneath the water outlet and
push gently against the water dispenser lever with
your glass. Make sure the glass is in line with the
dispenser to prevent the water from splashing out.
02 OPERATING
• Do not put your fingers, hands or any
WARNING
WARNING
CAUTION
other unsuitable objects in the chute or
ice-maker bucket.
- It may result in personal injury or material
damage.
• Never put finger or any other objects in
the dispenser opening.
- It may cause injury.
• Use only the ice maker provided with the
refrigerator.
• The water supply to this refrigerator must
only be installed/connected by a suitably
qualified person and connect to a potable
water supply only.
• In order to operate the ice maker properly,
water pressure of 138 ~ 862 kPa is
required.
• If you have a long vacation or business
trip and won’t use water or ice
dispensers, close the water valve.
- Otherwise, water leakage may occur.
• Wipe excess moisture from the inside and
leave the doors open.
- Otherwise, odor and mold may develop.
USING THE COOLSELECT
ZONE™ DRAWER (OPTIONAL)
Quick Cool
• You can use the Quick Cool feature with the
CoolSelect ZoneTM.
• “Quick Cool” allows 1~3 canned beverages to cool
within 60 min.
• To cancel this function, press the “Quick Cool”
button again. CoolSelect ZoneTM returns to the
previous temperature.
• When “Quick Cool” ends, it returns to the “Cool”
temperature setting.
Thaw
• Drips loss and quality deterioration of meats
reduces the freshness of foods.
•
After “Thaw” is selected, warm and cold air is
alternately supplied into the CoolSelect ZoneTM
Drawer.
• Depending on the weight of meat, thawing time
can be selected for 4 hrs, 6 hrs, 10 hrs, and 12 hrs
sequentially.
• When “Thaw” ends, CoolSelect ZoneTM display
returns to “Zero Zone” condition.
• When “Thaw “ ends, there are no juice in the meats
and they are half-freezed condition so it is easy to
cut them for cooking.
• To cancel this option, press any button except
“Thaw”.
• The approximate thawing time of meat and fish are
shown below. (Based on 1inch thickness)
To get more space,you can remove top freezer
drawer since it does not affect thermal and
mechanical characteristics. A declared storage
volume of frozen food storage compartment is
calculated with these drawers removed.
For more space, you can
store food with Guard
FRE-UPP instead of the ice
bucket.
If you remove the ice bucket,
ICE OFF will blink on the
display panel.
GUARD FRE-UPP
(Optional)
THAW TIME WEIGHT
4hours 363g (0.8Ib)
6hours 590g (1.3Ib)
10hours 771g (1.7Ib)
12hours 1000g (2.2Ib)
Depending on the size and thickness of meat
and fish, the thawing time may vary.
The above weight represents the total weight of
food in the CoolSelect ZoneTM Drawer.
Ex) The total thawing time for 400g frozen beef
and 600g frozen chicken will be 10 hours.
With the “Thaw” option, food which is not
needed to thaw in the CoolSelect ZoneTM
Drawer should be removed.
operating _25
Zero Zone (0ºC)
WARNING
• When “Zero Zone” is chosen, the temperature
of the CoolSelect ZoneTM Drawer is kept at 0 ºC
regardless of the set refrigerator temperature.
• “Zero Zone” temperature helps keep meat or fish
fresh longer.
Cool
• When “Cool” is chosen, the temperature will be the
same as the set temperature of the refrigerator. The
digital panel shows the same temperature as that of
the display panel.
• The CoolSelect Zone
refrigerator space.
Depending on the beverages, the cool-down
time may vary.
For “Quick Cool” option, food stored in
the CoolSelect ZoneTM Drawer should be
removed.
TM
Drawer allows extra
REMOVING THE FREEZER
ACCESSORIES
Cleaning and rearranging the interior of the freezer is
simple.
1. Remove the Glass shelf by pulling the shelf out as
far as it will go. Then, gently lift it up and remove it.
3. Remove the Plastic drawer by pulling it out and
slightly lifting it up.
4. ice bucket (freezer)
Remove the Icemaker Bucket by lifting up and
pulling it out slowly.
• Grip the handle as
shown in the figure
• Lift the low part slightly
• Take the ice bucket out
slowly.
Do not use excessive force when removing the
cover.
Otherwise, the cover may break and cause
injury.
2. Remove the door bin by holding the door bin with
both hands and then gently lift it up.
26_ operating
02 OPERATING
REMOVING THE FRIDGE
ACCESSORIES
1. Remove the spill Proof Glass Shelf by pulling the
shelf out as far as it will go. Then, gently lift it up
and gently remove it.
2. Remove the Vegetable & Fruit Drawer by
pressing on the indentations found on the inside
left and right sides of the Veggie Box/Dry Box
cover and remove by
pulling forward.
Holding the drawer
with one hand, lift it up
a little bit while pulling
it forward and take it
out of the refrigerator.
3. Remove the Gallon Door Bin by holding the bin
with both hands and gently lifting it up.
Before removing any
no food is in the way.
When possible, remove the food altogether to
reduce the risk of accidents.
To get the best energy efficiency of this product,
please leave all selves, drawers and baskets on
their original position like as illustration in page
(25).
accessories, make sure that
CLEANING THE REFRIGERATOR
Do not use benzene, thinner, or Clorox,
WARNING
Chloride for cleaning.
They may damage the surface of the
appliance and may cause a fire.
Do not spray the refrigerator with water
while it is plugged in, as it may cause an
CAUTION
electric shock.
Do not clean the refrigerator with benzene,
thinner or car detergent for risk of fire.
REPLACING THE INTERIOR
LIGHT
For LED lamp, please contact service engineer
to replace it.
4. The Z Shelf is attached to the cabinet wall.
Remove the wine shelf by sliding it up and gently
lifting the shelf out of the tabs.
Ensure that the Z Shelf is fitted as shown in
the diagram and not upside down.
CAUTION
operating _27
CHANGING THE WATER FILTER
To reduce risk of water damage to your
WARNING
The “Filter Indicator” light lets you know when it is
time to change your water filter cartridge.
When the filter indicator light changes to red, it is time
to change the filter.
To give you some time to get a new filter, the light will
come on up just before the capacity of the current
filter runs out.
Changing the filter on time provides you with the
freshest, cleanest water from your fridge.
property DO NOT use generic brands of
water filers in your SAMSUNG Refrigerator.
USE ONLY SAMSUNG BRAND WATER
FILTERS. SAMSUNG will not be legally
responsible for any damage, including, but
not limited to property damage caused by
water leakage from use of a generic water
filter.
SAMSUNG Refrigerators are designed to
work ONLY WITH SAMSUNG Water Filter.
1. Remove the water filter from the box and
put a month indicator sticker on the filter as
shown.
2. Place a sticker on the filter that dates six
months in the future. For example, if you
are replacing the water filter in March, put
the “SEP” (September) sticker on the filter
to remind you to replace in September.
Normally filter life is about every 6 months.
3. Next, remove the fixed cap by turning it
counter clockwise.
4. Remove the new filter’s protective cap and
remove the old filter.
5. Position and insert the new filter into the filter
housing.
Slowly turn the water filter clockwise 90º to
align with the indication mark on the cover,
locking the filter in position. Make sure
that the indicator is lined up with the “lock”
position. Do not over tighten.
6. Once you have completed this process, hold the
Ice Type button for 3 seconds to reset the filter
schedule.
7. Lastly, Dispense 1L of water through water
dispenser and throw away. Make sure that water
flows clearly again before drinking.
A newly installed water filter cartridge may
cause water to briefly spurt from the water
dispenser. This is due to air getting into the line.
It should pose no problem to operation.
Ordering replacement filters
To order more water filter cartridges, contact your
authorised Samsung dealer.
1
2
Sticker
(month
indicator)
28_ operating
Cover filter
4
3
Align the
indication
mark with
5
lock position
03 TROUBLESHOOTING
troubleshooting
PROBLEM SOLUTION
The refrigerator
does not work at all
or it does not chill
sufficiently.
The food in the fridge is
frozen.
You hear unusual
noises or sounds.
The front corners of
the appliance are hot
and condensation is
occurring.
Ice is not dispensing.
You can hear water
bubbling in the
refrigerator.
There is a bad smell in
the refrigerator.
Frost forms on the
walls of the freezer.
Water dispenser is not
functioning.
• Check that the power plug is properly connected.
• Is the temperature control on the display panel set to the correct
temperature? Try setting it to a lower temperature.
• Is the refrigerator in direct sunlight or located too near a heat source?
• Is the back of the refrigerator too close to the wall and therefore keeping air
from circulating?
• Is the temperature control on the display panel set to the correct
temperature? Try setting it to a warmer temperature.
• Is the temperature in the room very low?
• Did you store the food with a high water content in the coldest part of the
fridge? Try moving those items into the body of the fridge instead of keeping
them in the CoolSelect Zone™ drawer.
• Check that the refrigerator is level and stable.
• Is the back of the refrigerator too close to the wall and therefore keeping air
from circulating?
• Was anything dropped behind or under the refrigerator?
• A “ticking” sound is heard from inside the refrigerator. This is normal and
occurs because various accessories are contracting or expanding in relation
to the temperature of the refrigerator interior.
• Some heat is normal as anti-condensators are installed in the front corners
of the refrigerator to prevent condensation.
• Is the refrigerator door ajar? Condensation can occur when you leave the
door open for a long time.
• Did you wait for 12 hours after installation of the water supply line before
making ice?
• Is the water line connected and the shut-off valve open?
• Did you manually stop the ice making function? Make sure Ice Type is set to
Cubed or Crushed.
• Is there any ice blocked within the ice maker bucket?
• Is the freezer temperature too warm? Try setting the freezer temperature
lower.
• This is normal. The bubbling comes from the refrigerant coolant liquid
circulating through the refrigerator.
• Has a food item spoiled?
• Make sure that strong smelling food (for example, fish) is wrapped so that it
is airtight.
• Clean out your freezer periodically and throw away any spoiled or suspect
food.
• Is the air vent blocked? Remove any obstructions so air can circulate freely.
• Allow sufficient space between the foods stored for efficient air circulation.
• Is the freezer door closed properly?
• Is the water line connected and the shut-off valve open?
• Has the water supply line tubing been crushed or kinked?
Make sure the tubing is free and clear of any obstruction.
• Is the water tank frozen because the refrigerator temperature is too low?
Try selecting a warmer setting on the main display panel.
troubleshooting _29

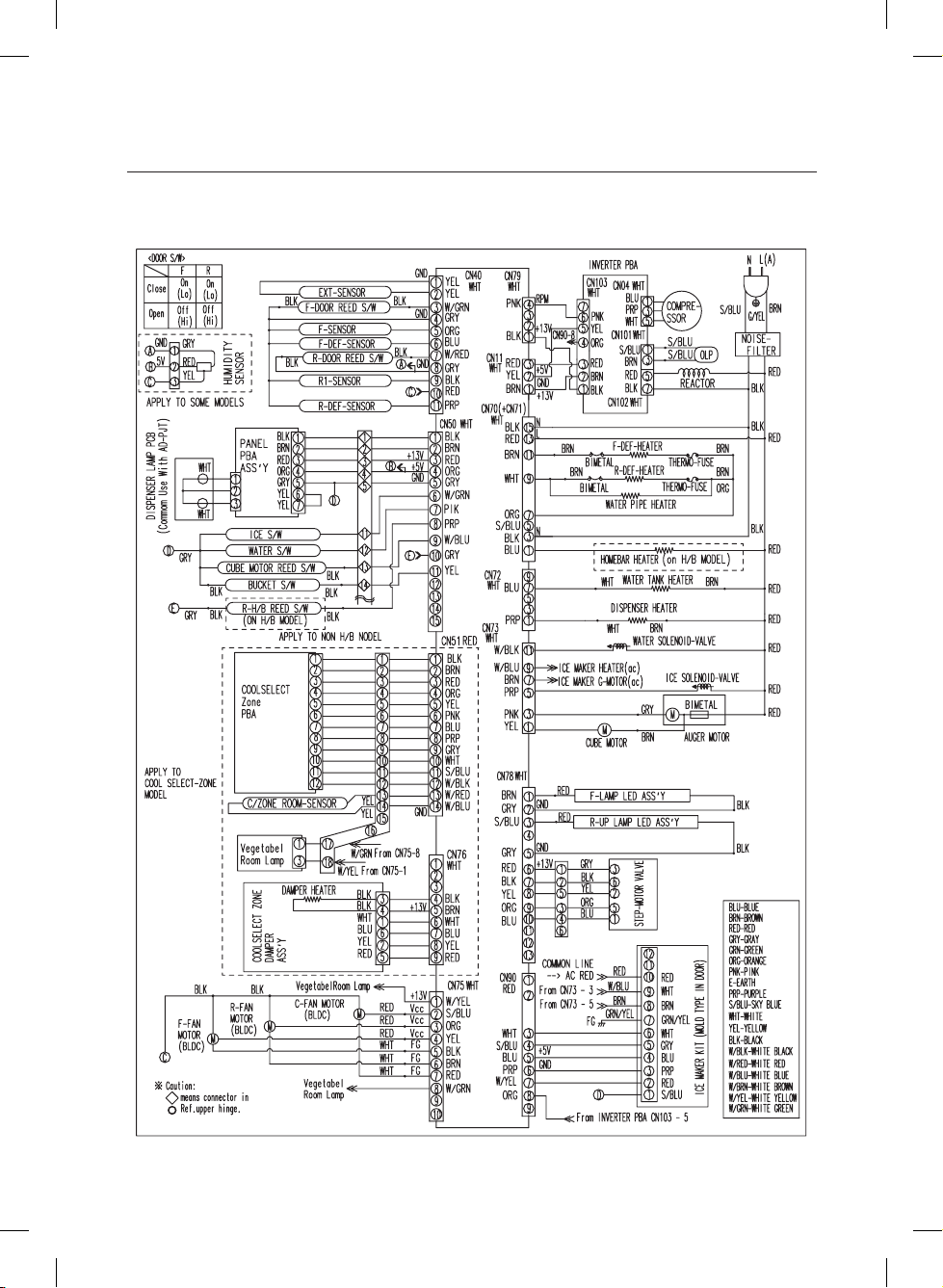

circuit diagram
30_ troubleshooting
memo
Ambient Room Temperature Limits
This refrigerator is designed to operate in ambient temperatures specified by its
temperature class marked on the rating plate.
Class Symbol Ambient Temperature range (°C)
Extended Temperate SN +10 to +32
Temperate N +16 to +32
Subtropical ST +16 to +38
Tropical T +16 to +43
Internal temperatures may be affected by such factors as the location of the refrigerator,
ambient temperature and the frequency with which you open the door. Adjust the
temperature as required to compensate for these factors.
Correct Disposal of This Product
English
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories
(e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their
working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal,
please separate these items from other types of waste and recycle them responsibly to promote the sustainable
reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government
office, for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This
product and its electronic accessories should not be mixed with other commercial wastes for disposal.
(Waste Electrical & Electronic Equipment)
