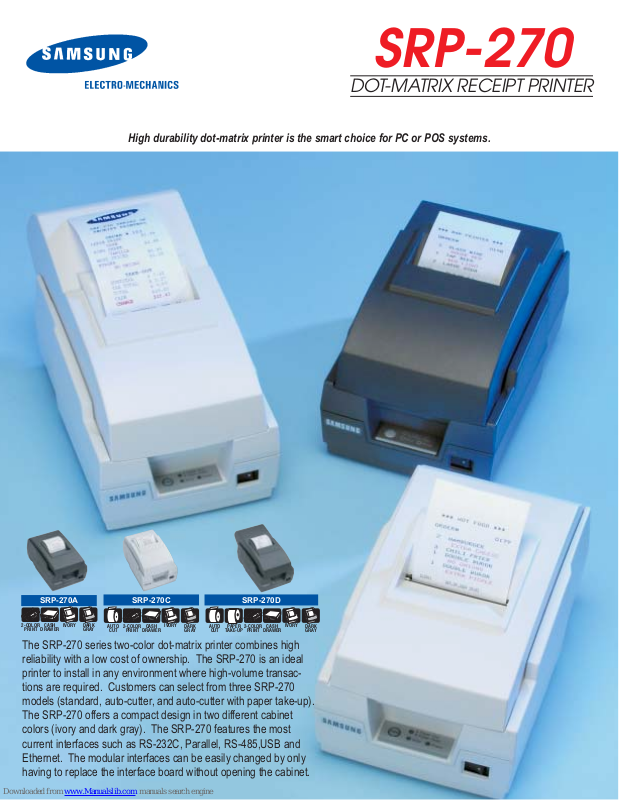

Samsung SRP-270D, SRP-270 Specifications

High durability dot-matrix printer is the smart choice for PC or POS systems.

The SRP-270 series two-color dot-matrix printer combines high
reliability with a low cost of ownership. The SRP-270 is an ideal
printer to install in any environment where high-volume transac­tions are required. Customers can select from three SRP-270
models (standard, auto-cutter, and auto-cutter with paper take-up).
The SRP-270 offers a compact design in two different cabinet
colors (ivory and dark gray). The SRP-270 features the most
current interfaces such as RS-232C, Parallel, RS-485,USB and
Ethernet. The modular interfaces can be easily changed by only
having to replace the interface board without opening the cabinet.

SRP-270

DOT-MATRIX RECEIPT PRINTER

SRP-270A

SRP-270C SRP-270D

IVORY

DARK
GRAY

CASH

DRAWER

2-COLOR

PRINT

IVORY

AUTO

CUT

2-COLOR

PRINT

CASH

DRAWER

DARK
GRAY

AUTO

CUT

PAPER

TAKE -UP

2-COLOR

PRINT

CASH

DRAWER

IVORY

DARK
GRAY

Samsung SRP-270 Series
Dot-Matrix Receipt Printer

Features

■ Very Fast Dot-Matrix Printing Speed of 4.6 Lines per Second

■ High Quality Easy to Read Print

■ High Reliability at 18,000,000 Lines MCBF

■ Compatible with Competitor’s Emulations Including Epson, Star, Citizen

■ Compact Design

■ Easy to Use:

• Plug & Play

• Auto Paper Loading for Paper Replacement

■ Paper-End Sensor

Specifications

Print Method: 9-Pin Serial Dot Matrix
Lines/Second: 4.6 lps (40 Columns) 8.4 lps (16 Columns)
Print Direction: Bi-Directional
Characters/Line: Font A: 40 / 42 Font B: 33 / 35
Character Size: Font A: 1.2mmW x 3.1mmH Font B: 1.6mmW x 3.1mmH
MCBF: 18,000,000 Lines
Character Set: Alphanumeric: 95 International: 32
Extended Graphic: 128 x 8 Page
Emulation: Epson, Citizen, Star
Driver: Windows 95, 98, 2000, XP, NT, OPOS, USB
Interface: Serial, Parallel, RS-485, USB, Ethernet
Data Buffer: 4 kb
Drawer Port: 1 Drawer (Maximum 2 Drawer)
Power Supply: AC 120 ~ 230 V +_ 10% Adapter Included
Power Consumption: 0.21A / 25W
Operating Temperature: 40º ~ 114ºF (4º ~ 42ºC)
Operating Humidity: 10% ~ 90%
Dimensions: 270A = 65/16"W x 911/16"L x 51/8" H (161 x 247 x 131mm)

270C = 65/16"W x 911/16"L x 57/8" H (161 x 247 x 150mm)
270D = 65/16"W x 119/16"L x 61/4" H (161 x 294 x 159mm)

Weight: 5.3 lbs. (2.4 kg)

All product features are subject to change without notice.

Printed in U.S.A. Lit-5

Semi-Automatic Paper Loading

Standard Power Switch Cover

Optional Power Connection

Security Tie Strap

Easy to Change Interface Modules
