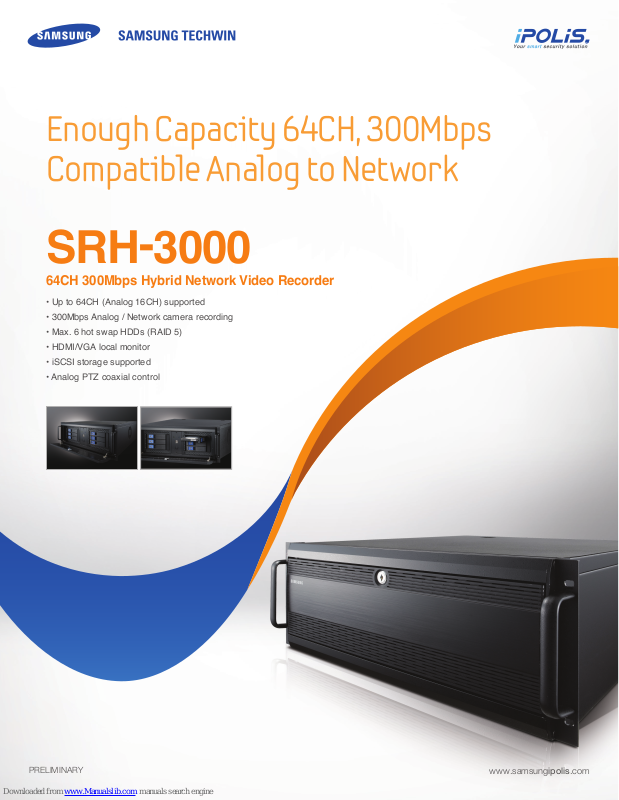

Samsung SRH-3000 Specifications

Enough Capacity 64CH, 300Mbps
Compatible Analog to Network

SRH-3000

64CH 300Mbps Hybrid Network Video Recorder

• Up to 64CH (Analog 16CH) supported

• 300Mbps Analog / Network camera recording

• Max. 6 hot swap HDDs (RAID 5)

• HDMI/VGA local monitor

• iSCSI storage supported

• Analog PTZ coaxial control

PRELIMINARY

www.samsungipolis.com

64CH 300Mbps Hybrid Network Video Recorder

SRH-3000

Dimensions

437.2 (17.21")

437.2 (17.21")

The Eco mark represents
Samsung Techwin’s will to create
environment-friendly products,and indicates
that the product satisfies the EU RoHS Directive.

Unit : mm (inch)

551.59 (21.72")

552.59 (21.76")

551.59 (21.72")

552.59 (21.76")

177.0 (6.97")

177.0 (6.97")

DISPLAY

Video

Live

PERFORMANCE

Operating System

Recording

Search &
Playback

Storage

Back up

Sensor Input / Output

Alarm

NETWORK

Ethernet

Total Inputs
IP Input Resolution
Fisheye Dewraping
IP Input Protocols
Analog Input Resolution
Local Display
Multi Screen Display

Embedded Embedded
Compression
Recording Bit Rate
Resolution
Mode
Event Trigger
Event Action
Playback Bandwidth
Search Mode
Simultaneous Playback
Resolution
Playback Function
Built-In HDD
Max. Internal HDDs
External
RAID
File Back up (Via Web)
Function

Input
Compression
Audio Communication

Protocol Support

DDNS
Transmission Speed
Max. Remote Users
IP
Security

Web Viewer

Viewer Software

FUNCTIONS

Camera Setup

PTZ

Smart phone

System Control Application Control

INDICATOR / INTERFACE

Front Indicator

Connections

SYSTEM

Log Log List

GENERAL

Electrical

Environmental

Mechanical

Approvals

Function
Language
OS
Web Browser
Type
CMS Support

Register
Setup Items

Control

Preset
Support Model
Control

HDMI / VGA
Analog Video Input
Audio
Serial
Ethernet
Alarm
USB
Power Cord

Input Voltage / Current
Power Consumption
Operating Temperature
Operating Humidity
Dimensions (WxHxD)
Weight (1x Hard Disks)
Safety
EMC

SRH-3000

Up to 64CH (IP + Analog) : IP camera inputs : 1 ~ 64CH, Analog camera inputs : 16CH
CIF ~ 5M
~ 5M
ONVIF, Samsung
NTSC : Max. D1 (720 x 480), PAL : 720 x 576
HDMI / VGA
[Local monitor] 1 / 4 / 9 / 16 / Auto sequence (4 page view), [Web] 1 / 4 / 9 / 16

H.264, MPEG-4, MJPEG
250Mbps (2M 40camera real-time recording)
CIF ~ 5M
Normal, Scheduled, Event (Pre / Post)
NVR alarm input(16), Video loss, IP camera event (Sensor, MD, Video analytics)
E-mail, PTZ preset, Alarm out, Buzzer, Monitor out
80Mbps (16CH simultaneously)
Date & Time (Calendar) / Event log list, POS
16CH (20fps/CH@2MP)
CIF ~ 5M
Fast forward / backward, Move one step up / down
2TB 1ea
6ea (Hot swap)
NAS (iSCSI)
RAID-5
GUI, Exe (GUI), Network : JPG, AVI
Single channel play, Date-time/title display
16 / 4 (NO/NC selectable)
Analog audio : Max. 8 (4 audio (RCA), 4 cable), IP audio : Max. 64CH (Network only)
G.711, G.726
2-way (From CMS to NW camera)

RJ-45, Gigabit Ethernet 2ea
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, DHCP, PPPoE,

SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, ONVIF, HTTPS, SNMP
Samsung iPOLiS DDNS
Max. 250Mbps
Search 3 / Live unicast 10 / Live multicast 20
IPv4, IPv6
IP address filtering, User access log, 802.1x authentication
Live, Playback, Setup
English, French, Spanish, Portuguese
Supported OS : Window XP (service pack 2 or above), Vista, 7, 8, 64bit, Mac
MS IE 7.x, 8.x, 9.x, Google Chrome, Safari, Firefox
SSM, Webviewer, Smart Viewer
Support SDK / CGI

Auto, Manual
IP address, Add profile edit, Bitrate, Compression, GOP, Quality

IP PTZ (Via Webviewer, CMS)
Analog PTZ : via RS-485 (Samsung-T/E, Pelco-P/D, Panasonic, Vicon, Honeywell, AD, GE, BOSCH,
Sungjin)

256 presets (Same to camera spec)
Android, iOS
Live 16CH / Playback 4CH
Mouse, Web

HDD action 1ea, RAID status 1ea, Power LED 1ea
1ea (1280 x 720, 1280 x 1024, 1920 x 1080)
BNC
Line in 16ea, D-Sub 8CH RCA 2ea, Line out 1ea (Stereo)
RS-485
RJ-45 Gigabit Ethernet 2ea
In 6ea (Terminal block) / Out 4ea (Terminal block, Relay)
2ea
1ea AC inlet

Max. 20000 (System log, Event log each)

100 ~ 240V AC ±10%, 50/60Hz, 6A ~ 3A
110W with HDD 6ea (Max. 140W)
+5°C ~ +40°C (+41°F ~ +104°F)
0% ~ 90% RH

437.2 x 177.0 x 551.59mm (17.21" x 6.97" x 21.72")
Set : 17.2Kg (37.92 lb), Accessory box : 2.2Kg (4.85 lb)
KC, UL, CE
KC, FCC, CE

Design and specifications are subject to change without notice.
