Samsung SRF583DLS Quick Guide

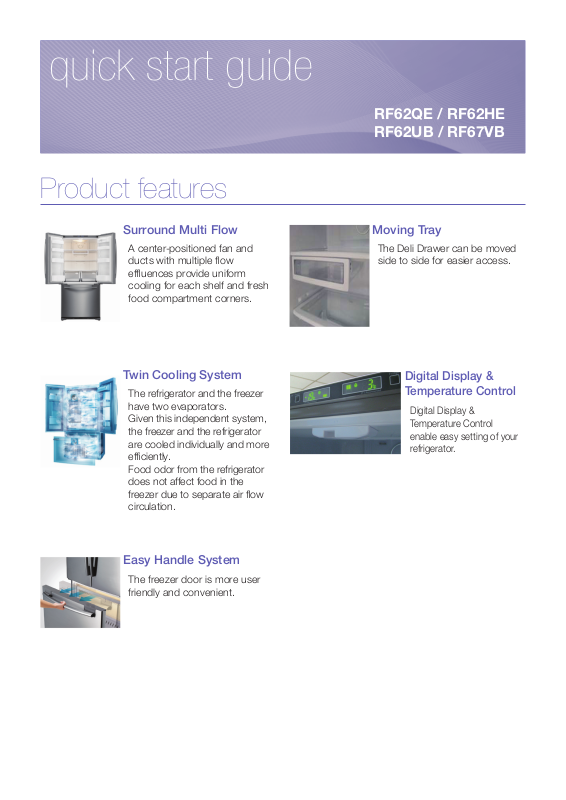

quick start guide
Product features
RF62QE / RF62HE
RF62UB / RF67VB
Surround Multi Flow
A center-positioned fan and
ducts with multiple flow
effluences provide uniform
cooling for each shelf and fresh
food compartment corners.
Twin Cooling System
The refrigerator and the freezer
have two evaporators.
Given this independent system,
the freezer and the refrigerator
are cooled individually and more
efficiently.
Food odor from the refrigerator
does not affect food in the
freezer due to separate air flow
circulation.
Moving Tray
The Deli Drawer can be moved
side to side for easier access.
Digital Display &
Temperature Control
Digital Display &
Temperature Control
enable easy setting of your
refrigerator.
Easy Handle System
The freezer door is more user
friendly and convenient.
The Installation Space
150mm
100mm
100mm
Selecting the best location for the Refrigerator
• A Location with easy access to the water supply.
• A Location without direct exposure to sunlight.
• A Location with level (or nearly level) ooring.
• A Location with enough space for the Refrigerator doors to open easily.
• Allow sufcient space for air circulation of the internal cooling system.
If the Refrigerator does not have enough space, the internal cooling system may not work properly.
First thing! Make sure that you can easily move your Refrigerator to its nal location by measuring doorways
(both width and height), thresholds, ceilings, stairways, etc.
The following chart details the exact height and depth of Samsung French Door Refrigerator.
A
B
C
D
Dimension
(mm)
Model
Capacity (ℓ) 504.0 557.8
Width (A) 817 817
Depth
Height
without door (B) 617 667
with door (C) 774 824
without hinge (D) 1743 1743
with hinge (E) 1772 1772
with cover pcb panel (F) 1798 1798
RF62HE/RF62QE
RF62UB/
RF67VB
F
• Allow clearance to the right, left, back and top when installing.
This will help reduce power consumption and keep your energy bills lower.
• If you install the Refrigerator where is below 10ºC, it may not function optimally.
• Do not locate the refrigerator where the wet condition.
FLOORING
CAUTION
For proper installation, this refrigerator must be placed on a level
surface of hard material that is the same height as the rest of the
flooring. This surface should be strong enough to support a fully
loaded refrigerator, or approximately 106kg. To protect the nish of
the flooring, cut a large section of the cardboard carton and place
under the refrigerator where you are working. When moving the
refrigerator, be sure to pull it straight out and return it to position by
pushing it straight in.
E
Operating your French Door Refrigerator
USING THE CONTROL PANEL
1 2 3 4 5 6
1
) Ice Off Button
(
2
)
(
Power Freeze Button
3
) Freezer Button
(
4
) Fridge Button
(
5
)
(
Power Cool Button
6
) E.Saver Button
(
When the Ice Off Button is pressed, ice will not be produced.
Use this function only when it is needed.
Press this button to freeze food quickly.
(Power Freeze will last 72 hours.)
Freezer temperature set button.
Press this button to set the Freezer temp between -14ºC and -22ºC.
(At initial power on, the default setting is -19ºC.)
Fridge temperature set button.
Press this button to set the Fridge temperature in 1ºC intervals between 7ºC and 1ºC.
(At initial power on, the default setting is 3ºC.)
Press this button to cool the food in the fridge quickly.
(Power Cool will shut off when -4ºC is reached or after 2 and a half hours.
Press the Energy Saver button for better energy efciency.
If water drops appear on the doors, turn the Energy Saver function off.
