8 CHANNEL/ 16 CHANNEL DVR

User Manual

SRD-852D/1652D

overview

FEATURES

The SRD DVR employs H.264 video encoding for 8 to 16 channel inputs and G.723 audio encoding for 4 channels, and supports hard disc recording and playback as well. These DVRs also supports network connectivity, providing remote monitoring from a remote PC transferring video and audio data.

Provides convenient User Interface

•

8/16 CH Composite Input Connectors

•

Supports CIF(S)/2CIF(M)/4CIF(L) recording formats

•

Network transfer supported

•

De-interlacing processor for better picture quality

•

Display of HDD information and status by using HDD SMART

•

CIF(S) Size Recording in 480 (NTSC)/400 (PAL) IPS speed (

•

CIF(S) Size Recording in 240 (NTSC)/200 (PAL) IPS speed (

Hard Disk overwrite function

•

Mass storage hard disk backup through high-speed USB 2.0

•

Backup function using USB 2.0 ﬂ ash memory and external CD/DVD writer

•

Simultaneous Record and Playback of 8/16-channel video data

•

Various Search Modes (Search by Time, Event, Backup, POS and Motion Detection)

•

Various Recording Modes (Time Lapse, Event, Scheduled Recording)

•

Extended Hard Disk Connection (USB 2.0)

•

Alarm Interface

•

Remote Monitoring function by Windows Network Viewer

•

SRD-1652D)

SRD-852D)

2_ overview

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference.

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings, Install in accordance with the manufacturer’s instructions.

Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁ ers) that produce heat.

Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. if the provided plug does not ﬁ t into your outlet, consult an electrician for replacement of the obsolete outlet.

10)

Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11)

Only use attachments/accessories speciﬁ ed by the manufacturer.

12)

Use only with the cart, stand, tripod, bracket, or table speciﬁ ed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13)

Unplug this apparatus during lightning storms or when unused for long periods of time.

14)

Refer all servicing to qualiﬁ ed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

 OVERVIEW

English _3

overview

BEFORE START

This user manual provides Information for using the DVR such as brief introduction, part names, functions, connection to other equipment, menu setup, etc. You have to keep in mind the following notices :

SAMSUNG retains the copyright on this manual.

•

This manual cannot be copied without SAMSUNG’s prior written approval.

•

We are not liable for any or all losses to the product incurred by your use of non-standard product or violation of

•

instructions mentioned in this manual. Prior to opening the case, please consult a qualiﬁ ed technician ﬁ rst. Whenever this is needed power must be

•

removed from the unit. Before installing an additional HDD or connecting an external storage device (USB memory or USB HDD) to this

•

DVR, check the compatibility. Consult your provider for the compatibility list.

Warning

Battery

❖

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. The following are the speciﬁ cations of the battery you are using now.

Normal voltage : 3V

•

Normal capacity : 170mAh

•

Continuous standard load : 0.2mA

•

Operating temperature : -20°C ~ +85°C

•

(-4°F ~ +185°F)

CALIFORNIA USA ONLY

This Perchlorate warning applies only to primary CR (Manganese Dioxide) Lithium coin cells in the product sold or distributed ONLY in California USA.

“Perchlorate Material - special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.”

❖

Turning off the power while the product is in operation, or undertaking improper actions may cause damage or malfunction to the hard drive or the product. Please turn off the power using the Power button on the front of your DVR. After selecting <OK> in the pop-up menu, you can pull off the power cord. You may want to install a UPS system for safe operation in order to prevent damage caused by an unexpected power stoppage. (Any questions concerning UPS, consult your UPS retailer.)

❖

The guaranteed operating temperature range of this product is 0°C ~ 40°C (32°F ~ 104°F). This product may not work properly if you run right after a long period of storage at a temperature below the guaranteed one. Prior to using a device that has been stored for a long period in low temperatures, allow the product to stand at room temperature for a period. Especially for the built-in HDD in the product, its guaranteed temperature range is 5°C ~ 55°C (41°F ~ 131°F). Likewise, the hard drive may not work at a temperature below the guaranteed one.

❖

This equipment is in door use and all the communication wirings are limited to inside of the building.

The Mains plug is used as a disconnect device and shall stay readily operable at any time.



Batteries shall not be exposed to excessive heat such as sunshine, ﬁ re or the like.



System Shutdown

Operating Temperature

Ethernet Port

Connect the power cord into a grounded outlet.



4_ overview

Standards Approvals

of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15



Package Contents

Please unwrap the product, and place the product on a ﬂ at place or in the place to be installed. Please check the following contents are included in addition to the main unit.

 OVERVIEW

Remote Control Power Cable

User Manual Remote Control Battery (AAA)

HDD Fixing Screw

Bracket Fixing Screw(4EA) Bracket Rack

Network Viewer Software /

User Manual CD

SATA Cable

English _5

overview

CONTENTS

OVERVIEW

INSTALLATION

CONNECTING WITH

OTHER DEVICE

2 Features 3 Important Safety Instructions 4 Before Start 8 Part Names and Functions (Front) 10 Part Names and Functions (Rear) 12 Remote Control

14 Checking the installation environment 15 Rack Installation 15 HDD Addition

18 Connecting the Video, Audio, and Monitor 18 Connecting the USB 19 Connecting POS Device 19 Connecting the Alarm Input/Output 20 Connecting the RS-485 Device 21 Connecting the Network

6_ overview

LIVE

USING THE DVR

23 Getting Started 25 Live Screen Configuration 29 Live Mode 31 Spot Out 32 Zoom 32 Audio ON/OFF 32 Freeze 33 Event Monitoring

34 System Setup 44 Setting the Device 52 Setting the Recording 55 Setting the Event 58 Backup 59 Network Configuration 66 Controlling a PTZ device

SEARCH & PLAY

68 Search 71 Playback

WEB VIEWER

BACKUP VIEWER

APPENDIX

73 Introducing Web Viewer 74 Connecting Web Viewer 75 Using Live Viewer 81 Using Search Viewer 85 Viewer Setup 95 About 95 Mobile Viewer

96 SEC Backup Viewer

98 Product Specification 101 Product Overview 102 Default Setting 105 Troubleshooting

 OVERVIEW

English _7

overview

PART NAMES AND FUNCTIONS (FRONT)

SRD-852D

1 3 4

DIGTAL VIDEO RECORDER SRD-852D DVD RECORDER

SRD-1652D

DIGTAL VIDEO RECORDER SRD-1652D DVD RECORDER

OPEN/CLOSE

9 8

OPEN/CLOSE

9 8

ALARM HDD NETWORK BACKUP REC

1234

5678

REC

ZOOM

FREEZE

TELE WIDE VIEW PRESET

MODE

AUDIO

1 3 4

ALARM HDD NETWORK BACKUP REC

1234

5678

9 101112

13 14 15 16

REC

ZOOM

FREEZE

TELE WIDE VIEW PRESET

MODE

AUDIO

7 6 5

BACKUP

ALARM

RETURN

6 5

BACKUP

ALARM

RETURN

USB

8_ overview

Part Names Functions

ALARM : Lights on when an event occurs.

HDD : Displays the normal access to HDD.

Upon access to HDD, LED repeats on and off.

LED Indicator

Camera Control

REC Starts or ends the recording.

/



►/

/

Direction / Select Button

NETWORK : Displays both network connection and data transfer status.

BACKUP : Displays when Backup is in progress.

REC : Lights on when recording is in progress.

PTZ : Sets PTZ Mode ON/OFF.

ZOOM(TELE) : Sets the screen to the x2 digital zoom.

FREEZE(WIDE) : Runs the FREEZE function in the Live Mode.

BACKUP(VIEW) : Runs the BACKUP function.

SEARCH(PRESET) : Goes to the search screen.

Step Rewind ( Fast Rewind () : Used for quick backward search while in Play.

Stop : Used to stop the playback.

Play/Pause : Used to pause or resume the screen.

Fast Forward () : Used for quick forward playback. Step Forward (

Used to change a value or move the cursor up/down/left/right (◄ ►). Selects a menu item or executes the selected menu.

Runs the TELE function in the PTZ Mode.

Runs the WIDE function in the PTZ Mode.

Runs the Preset View function in the PTZ Mode.

Runs the Preset Setup function in the PTZ Mode.

) : Used for backward frame-by-frame search while in PAUSE.

) : Used for forward frame-by-frame search while in PAUSE.

 OVERVIEW

USB Port 1 / 2 Connects the USB devices.

MODE

AUDIO Sets Audio ON/OFF.

ALARM

MENU/RETURN Either goes to the system menu screen or moves to the upper menu from the lower menu.

Channel

Jog shuttle

OPEN/CLOSE

Power

Each time you press the button in Live mode, the screen mode will be switched in sequence. Each time you press the button in play mode, the screen mode will be switched in sequence. (1 live channel + (N-1) live channel)

Cancels the ALARM LED and the audible alarm when the alarm is going off, and to remove the icon.

Used to select channel numbers directly in the Live Mode, or numbers in the numeric input mode.

When a scroll bar appears in each menu, acts as a scrolling. In Play mode, - Jog : Pauses the playback and steps backward or forward.

- Shuttle : Fast playback forward or backward.

Used to open and close the DVR-RW disc tray.

Power LED : Displays the power ON/OFF status. Power Button : Used to turn the DVR ON/OFF.

English _9

overview

PART NAMES AND FUNCTIONS (REAR)

SRD-852D

132

SRD-1652D

132

4 5 7 8 9 106

10_ overview

Part Names Functions

AUDIO IN Audio input signal port (RCA jack).

AUDIO OUT Audio Signal Output Port (RCA jack).

VIDEO IN Composite Video Signal Input Port (BNC type connector).

VIDEO OUT Composite Video Signal Output Port (BNC type connector).

VGA VGA Video Signal Output Port.

SPOT A live screen output port, separate from the VIDEO OUT.

NETWORK NETWORK connector port.

RS-485 Used for RS-485 communication. (TX+, TX-, RX+, RX-)

- ALARM IN 1~16 (

ALARM

AC 100-240V~ IN AC 100~240V(50~60Hz)

- ALARM IN 1~8 (

- ALARM RESET IN : Alarm Reset port.

- ALARM OUT 1~4 : Alarm Output port.

SRD-1652D) : Alarm Input port.

SRD-852D) : Alarm Input port.

 OVERVIEW

English _11

overview

REMOTE CONTROL

DVR

Available after switching to DVR mode by pressing the [DVR] button on the remote control.

Displays the search menu.

Changes the screen mode.

Displays the Exit pop up screen.

Used as the numeric input keys, or displays a single

Skip Backward (by unit time),

Slow Rewind, Slow Forward,

Skip Forward (by unit time)

Goes to the system menu screen.

Up/Down/Left/Right(▲▼◄ ►)/ENTER

Moves the cursor up/down/left/right, and runs the

Freezes the screen temporarily.

Runs the digital zoom (x2) function.

Starts or ends the live recording.

Runs the View function in the PTZ mode.

MODE

POWER

NUMBER [0~+10]

channel.

T/W

Zooms in or out.

Select Menu.

FREEZE

ZOOM

REC

VIEW

BACKUP

Displays the Backup Menu.

OPEN/CLOSE

Opens or closes the CD tray.

DVR

Activates the DVR function.

Sets the ID of the system. Select 2 digits from 0 ~ 9 while pressing the ID Key.

Move Frame

While paused, moves to the previous/next frame.

FR, STOP, PLAY/PAUSE, FF

PTZ

Displays or ends PTZ.

SCROLL ,.

Moves the menu scroll.

RETURN

Returns to the previous screen.

AUDIO

Turns Audio on/off.

ALARM

Cancels the Alarm.

REC LOCK

Selects the recording lock function.

PRESET

Displays the Preset Setup.

Using the Numeric buttons

CHANNEL 1–9 Press each button between 1 to 9.

CHANNEL 10 Press the [+10] button ﬁ rst, then press the 0 button again within 3 seconds.

CHANNEL 11–16 Press the [+10] button ﬁ rst, then press any number between 1 to 6 within 3 seconds.

12_ overview

MONITOR

Available after switching to Monitor mode by pressing the [MONITOR] button on the remote control.

Selects the screen status automatically.

AUTO

ID RESET

Initializes the ID value to 00.

Selects the screen mode.

Turns the monitor power on/off.

Changes the system ID.

Adjusts the audio volume.

Displays the Setup Menu.

Up/Down/Left/Right(▲▼◄ ►)/ENTER

Moves the cursor up/down/left/right, and runs the

Displays the video screen within a screen.

P.MODE

POWER

NUMBER [0~9]

+/–

Select Menu.

FREEZE

Screen Freeze.

UNDER SCAN

MONITOR

Activates the monitor function.

Sets the ID. Select 2 digits from 0 ~ 9 while pressing the ID Key.

MUTE

Mutes the audio out.

SOURCE

Selects the input signal source.

PIP

Selects or deselects the PIP function.

 OVERVIEW

Using the Numeric buttons

CHANNEL 1–9 Press any button among 1 to 9.

Changing the Remote Control ID

Press the ID button of the remote control and check the ID displayed on the DVR screen.

1. The factory default ID of the remote control is 00.

Enter 2 digits of your selection in order, while pressing the system [ID] button.

2. When ID input is done, press the system [ID] button again to check the setting.

If you want to change the remote control ID to 08: Press 0 and 8 in order while the system [ID] button is pressed.



Remote control's ID and DVR’s ID should be matched for proper operation. Refer to “Remote Devices”. (Page

48)

English _13

installation

Please take note of the followings before using this product.

Do not use the product outdoor.

•

Do not spill water or liquid in the connection part of the product.

•

Do not impose the system to excessive shock or force.

•

Do not pull out the power plug forcefully.

•

Do not disassemble the product on your own.

•

Do not exceed the rated input/output range.

•

Use a certiﬁ ed power cord only.

•

For the product with an input ground, use a grounded power plug.

•

CHECKING THE INSTALLATION ENVIRONMENT

Samsung Digital Video Recorder (“DVR” hereinafter) is a state-of-art security device, and contains mass storage hard disk(s) and critical circuits inside.

When the temperature rises inside the product, the product may breakdown and the product life be shortened. Please pay attention to the following recommendations before installation.

The followings are the recommendations when Samsung DVR is installed on a rack.

Please ensure that the rack inside is not sealed.

Please ensure the air is circulated through the inlet/outlet as shown in the picture.

If the DVR or other devices on a rack is to be stacked as in the picture, provide a suitable space or install a ventilating opening for air circulation.

For natural air convection, place the inlet at the bottom of the rack and the outlet on top.

It is strongly recommended that a fan motor is installed at the inlet and the outlet for air circulation. (Please ﬁ t a ﬁ lter at the inlet to screen dust or foreign substances.)

Please maintain the temperature inside the rack or surrounding areas between 0°C ~ 40°C (32°F ~ 104°F) as shown in the ﬁ gure 1.

Rack Mount Instructions - The following or similar rack-mount instructions are included with the installation instructions :

A) Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the

operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature (Tma) speciﬁ ed by the manufacturer.

B) Reduced Air Flow - Installation of the equipment in a rack should be such that the

amount of air ﬂ ow required for safe operation of the equipment is not compromised.

C) Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous condition is

not achieved due to uneven mechanical loading.

D) Circuit Overloading - Consideration should be given to the connection of the equipment to the supply circuit

and the effect that overloading of the circuits might have on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

E) Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular attention should

be given to supply connections other than direct connections to the branch circuit (e.g. use of power strips).

Temperature Unit: ºC

One Year: 24HR X 365 DAY =8,760 HR

Life (Unit: HOURS)

[Figure 1]

[Figure 2]

14_ installation

RACK INSTALLATION

Install the Bracket-Rack as shown in the ﬁ gure, and then fasten the screws on both sides (2 screws on each side).

Fix the screws not to be loosened by vibrations.



HDD ADDITION

You can install additional HDDs. Make sure to unplug the power cord from the wall outlet to prevent possible electric shock, injury or product damage. Please consult your provider for further information on HDD installation since improper installation or settings may damage the product.

Number of HDDs supported : Default 1 HDD + Up to 3 HDDs added



Make sure to unplug the power cord from the wall outlet before proceeding with the installation.



By factory default, the unit is equipped with one HDD.



Cautions for data loss (HDD care)

Please pay attention so that the data inside the HDD is not damaged. Before adding a HDD, please check the compatibility with this DVR product. HDD is vulnerable to malfunction due to its sensitive nature especially against shock when operating. Please ensure that the HDD is free from such shock. We are not liable for any damage to the HDD incurred by user’s carelessness or miss use..



Cases might cause damage to HDD or recorded data

To minimize the risk of data loss from a damaged HDD, please backup data as often as possible. Data may be lost due to external impacts during disassembly or installation of the DVR. HDD may be damaged if the DVR is suddenly stopped by a power cut or power off during operation. HDD or ﬁ les stored inside may be damaged if the main body is moved or impacted during the HDD operation.

 INSTALLATION

Cautions when adding a HDD

When adding a HDD, ensure that the cable does not get caught or the insulation does not come off.

Pay attention so as not to lose the disassembly screws or accessories.

If the screws or accessories are not put together correctly, the product may breakdown or not operate properly.



Please check the HDD compatibility before adding a HDD.

Please contact your nearest dealer to obtain the list of compatible devices.



English _15

installation

If adding HDDs

The following ﬁ gures are based on Model SRD-1652D.



First, loosen the screws on both sides and remove

the cover.

Disconnect the power and HDD Signal cable from

the existing HDDs, then loosen the screws (x4) in the left/right and upper sides and remove the upper brackets.

Cover

Upper Bracket

Lower Bracket

Install HDDs (x3) on the upper bracket and ﬁ x them

with screws.

16_ installation

Upper Bracket

Lower Bracket

When the installation of additional HDDs is done,

insert the lower and upper brackets into the DVR and ﬁ x them with the provided screws.

When the installation of additional HDDs is done,

connect the power cable and connect the HDD data cables (SATA Cable) to connectors c ~ the main board.

Note that the number of a HDD data calbe is nothing to



do with operation of the HDD. Just make arrangements of the connectors considering the length of each connector.

 INSTALLATION

f on

Check if the connectors are properly connected

and there is no problem with wiring, and close the cover and ﬁ x it with screws.

Cover

English _17

connecting with other device

The following ﬁ gures are based on Model SRD-1652D.



CONNECTING THE VIDEO, AUDIO, AND MONITOR

AC 100-240V~IN

AUDIO OUT VIDEO IN

AUDIO IN

VIDEO OUT

(composite)

VIDEO IN

SPOT

VIDEO OUT

(VGA)

CONNECTING THE USB

By factory default, a USB port is provided for external connection.

You can connect a USB HDD, USB CD/DVD player, USB memory or mouse to the USB port.

If a USB HDD is connected to the system, recognition and settings are available in “Menu > Setting the Device >

Storage Device”. (Page

This product supports hot-plugging, which connects/removes the USB device during the system operation.

46)

If you use the USB device for Backup purposes, format it with FAT32 on PC if it is not formatted on the DVR.



18_ connecting with other device

CONNECTING POS DEVICE

You can connect a POS device to the RS-232C port on the product’s rear side when you connect it directly with

a RS-232C cable.

Connection setup for the RS-232C port is available in “Menu > Device > POS Devices”, press the

<POS Device Setup> button and set <Baudrate, Parity, Data, Stop bit and Transfer Type>. (Page

49)

CONNECTING THE ALARM INPUT/OUTPUT

The Alarm In/Out port at the back is composed of the following.

Alarm In Port for

Alarm In Port for SRD-1652D

SRD-852D

 CONNECTING WITH OTHER DEVICE

Alarm Out Port

English _19

connecting with other device

•

ALARM IN 1 ~ 8 (SRD-852D) : Alarm Input Port

•

ALARM IN 1 ~ 16 (

•

ALARM RESET : On receiving an Alarm Reset signal, the system cancels the current Alarm Input and resumes sensing.

•

ALARM OUT 1 ~ 4 : Alarm Output Port

CONNECTING THE RS-485 DEVICE

Connect the RS-485 device through the back port.

SRD-1652D) : Alarm Input Port

ALARM OUT ALARM IN ALARM IN

You can connect and control the PTZ camera which supports the RS-485 communication.



Transfer Type : You may select either Half Duplex or

•

Full Duplex as the data transfer type. Baud Rate : Supported Baud rates are 600/1200/

•

2400/4800/9600/19200/38400.

Check if the RS-485 device is compatible with the



product ﬁ rst.

Pay attention not to change the polarity (+/–) of the



RS-485 device when connecting it.

Depending on camera’s type, connection polarity can be



different. For further information, refer to the respective PTZ Camera’s documentation.

PTZ device

Half Duplex Type

Data (–)

Data (+)

Full Duplex Type

Rx(+)

Rx(–)

Tx(–)

Tx(+)

Rear

Tx(–)

Tx(+)

Rx(–)

Rx(+)

20_ connecting with other device

CONNECTING THE NETWORK

Connecting to Internet through Ethernet (10/100BaseT)

 CONNECTING WITH OTHER DEVICE

RJ-45 Ethernet Cable (Direct Cable)

INTERNET

Hub/Switcher

Back Bone

Connecting to the Internet using the router

INTERNET

xDSL or Cable

Router

Modem

Hub/Switcher

Windows Network Viewer

xDSL or Cable

Modem

External Remote

DDNS Server (Data Center)

English _21

connecting with other device

Connecting to Internet through ADSL

RJ-45 Ethernet Cable (Direct Cable)

INTERNET

Hub/Switcher

Phone(ADSL) Line

ADSL MODEM

Windows Network Viewer

22_ connecting with other device

live

GETTING STARTED

Starting the system

Connect the power cable of the DVR to the wall outlet.

Press the Power button on the front panel.

You will see the initialization screen. The initialization process will last about 1 minute. If a new HDD is installed, the initialization process may take longer.

The live screen appears with a beep.

 LIVE

REC

2011-01-01 01:10:25

Shutting Down the System

You can shut down the system only if you have logged in to the DVR. You require permission to shut down the system if you are not logged in as admin.

Press the [POWER] button on the remote control or the front panel, or right-click to display the context sensitive menu and select <Shutdown>.

The “Shutdown” conﬁ rmation window appears.

Use the arrow keys on the remote control or the front panel to move to <OK> and press the [ENTER] button or click <OK>. The system will shut down.



For the permission management, refer to “Permission Management > Setting Permissions”. (Page 39)

2011-01-01 01:10:25

Shutdown

Are you sure to shutdown?

OK Cancel

English _23

live

To access a DVR or restricted menu, you should have logged in to the DVR.

In live mode, right-click any area of the screen. You will see the context sensitive menu as in the right ﬁ gure.

Click <Login>. The login dialog appears. You can also see the login dialog to access a desired menu by pressing the [MENU] button on the remote control or the front panel.

The login dialog will also appear if you press a menu button on



the remote control or the front panel of the DVR when the corresponding menu requires logging in.

By default, initial ID and password are set to “admin”, and



“4321”.

2011-01-01 01:10:25

ID admin

Password

OK Cancel

Scene Mode ZOOM Audio Off Freeze Stop Alarm Record Play Search Backup Main Menu Shutdown Hide Launcher Login



For the restricted permission, refer to “Permission Management > Setting Permissions”. (Page 39)



Locking All Buttons

This will restrict access to all buttons available in the DVR.

In Live mode, press buttons in the order of [STOP (@)] [FREEZE][STOP (@)][FREEZE][MENU]. All buttons will be locked.

In the lock condition, press any button to display a dialog

where you are prompted to enter the password for unlocking the buttons. The button lock will be released if you enter the admin password.



Key Lock Password

2011-01-01 01:10:25

ID admin

Password

OK Cancel

24_ live

LIVE SCREEN CONFIGURATION

CAM 01

Icons on the Live Screen

You can check the status or operation of the DVR with the icons on the live screen.

2011-01-01 00:00:01

CAM 01

Name Description

Current Date, Time

Displays the current time and date.

When you are logged in, the “LOG ON” icon will be displayed.

Displayed if the zoom function is activated.

Displayed if you press the Pause button.

Screen Mode

Displayed in Auto Sequence mode where all channels are switched at the speciﬁ c time interval.

Displayed if the recording is in process. M To cancel the recording, enter the password.

Displayed if there is a problem with the cooling fan.

Displayed if the HDD is full and the DVR has an insufﬁ cient space to record.

System Operation

Displayed if no HDD is installed or the existing HDD should be replaced.

Displayed if the HDD needs a technical examination.

Displayed if a new ﬁ rmware is found from the network.

Video Input Status

Displayed if no input is entered in the condition that the camera is set to <ON>.

Nothing will be displayed on the screen if the camera is set to <OFF>.

 LIVE

Camera Name/ Channel

Camera Operation

Displays the camera name and the changed channel, if any.

Displays the resolution of the recording screen. (Page 54)

Displayed in PTZ setting, and highlighted yellow if PTZ is in operation.

Displays AUDIO ON/MUTE. Not displayed in video mode if deactivated.

If the sensor is set to <ON>, the input signal will be displayed on the screen of the connected channel.

Displayed if a motion detected in the condition that the motion detection is set to <ON>.

Displays the current record mode from Record/Event/Schedule.

English _25

live

Error Information

If the internal HDD is not connected, the “NO HDD”( ) message will appear; if there occurs a problem,

•

you will see the “HDD FAIL”( service center for assistance as this may cause a failure of recording, playback or backup.

•

If the cooling fan does not work properly or has a problem, the <Fan Information> window will appear and the fan error icon (

) will be displayed on the top left corner. In this case, check to see if the internal fan works. As a fan error can shorten the product life, make sure you contact the service center for assistance.

If you see the fan error icon or No HDD, HDD FAIL icons on the screen, contact the service center for more details.



Live Screen Menu

In addition to the buttons on the front panel or the remote control, you can access a desired menu by rightclicking the mouse any area in live mode. The context sensitive menu that appears by right-clicking the screen may differ, depending on the login/ logout, screen split mode and DVD operation mode.

Menu items of Search, Record, Backup, Shutdown and PTZ can be deactivated, depending on the user permission.



) message in the top left corner. In this case, make sure you contact the

2011-01-01 01:10:25

< Split Mode Menu >

Scene Mode ZOOM Audio Off Freeze Stop Alarm Record Play Search Backup Main Menu Shutdown Hide Launcher Login



2011-01-01 01:10:25

< Single Mode Menu >

Scene Mode PTZ Control ZOOM Audio Freeze Stop Alarm Record Play Search Backup Main Menu Shutdown Hide Launcher Login

Split Mode Menu

The context sensitive menu in split mode differs, depending on the login/logout status.

Scene Mode Spot Out ZOOM Audio Off Freeze Stop Alarm Record Play Search Backup Main Menu Shutdown Hide Launcher Logout

2011-01-01 01:10:25



2011-01-01 01:10:25



26_ live

Menu Description

Scene Mode Refer to “Live Mode”. (Page 29)

Spot Out Refer to “Spot Out”. (Page 31)

ZOOM Refer to “Zoom”. (Page 32)

Audio On/Off Refer to “Audio ON/OFF”. (Page 32)

Freeze Refer to “Freeze”. (Page 32)

Stop Alarm Stops the alarm output and the event monitoring. Refer to “Event Monitoring”. (Page 33)

Record/Stop Starts/stops the standard recording.

 LIVE

Play Plays the search result (data). Refer to “Search & Play > Play”. (Page

71)

Search Refer to “Search & Play > Search”. (Page 68)

Backup Refer to “Using the DVR > Setting the Backup”. (Page 58)

Main Menu Accesses the main menu. Refer to the Using the DVR section. (Page 34)

Shutdown

Show/Hide Launcher

Turns down the DVR.

Shows or hides the launcher. Refer to “View the Launcher Menu”. (Page 28)

Single Mode Menu

The single mode menu is available only in Single Mode. The context sensitive menu for the One Channel mode, in Split mode is different from that of the Single mode.

2011-01-01 01:10:25

Full Screen Spot Out PTZ Control ZOOM Audio Freeze Stop Alarm Record Play Shutdown Hide Launcher Logout

2011-01-01 01:10:25



PTZ Alarm Freeze

Menu Description

Full Screen

PTZ Control

Select and click a desired channel in Split mode to switch to the full screen of the selected channel.

Accesses the PTZ Control menu. The PTZ menu is activated only in One-Channel Live mode. (Page

66)

ZOOM Enlarges the selected image. (Page 32)

English _27

live

View the Launcher Menu

The Launcher menu appears on the bottom of the live screen.

In Live mode, right-click to display the context menu and

select <Show Launcher>.

Move the cursor to the bottom and click a desired item in

the Launcher menu.

If no input is entered for 10 seconds, the menu will disappear.



The Launcher menu can be accessed only by using the mouse.



SRD-852D do not support the 16-split screen mode.



Menu Description

2011-01-01 01:10:25

PTZ

2011-01-01 01:10:25

Alarm Freeze

Date/Time

Screen Mode

Menu Expansion Button Click to display the hidden menu to the right.

Audio Turns ON/OFF the sound of the selected channel.

Zoom Enlarges the selected area. This is available only in Single Live mode.

PTZ Runs the PTZ Control launcher. This is available only in Single Live mode.

Alarm Stops the alarm if it's activated.

Freeze Freezes the Live screen temporarily.

Play Enters Play mode if a ﬁ le to play exist, and if not, enters Search mode.

Record Start/End recording the Live screen.

Displays the current time and date. The indication of AM/PM is displayed if you set 12 hours for the time format in “System > Date/Time/Language > Time”. (Page

Press this button to switch the screen mode in sequence. The current mode is highlighted in white.

34)

28_ live

LIVE MODE

SRD-1652D display Live images from 16 channels in a total of 8 layout of split screens.

Switching the screen mode

To switch the split mode, select a screen mode in the launcher menu, or right-click to select a screen mode in the context menu. Press the [MODE] button on the front panel or the remote control to switch the mode in the sequence of the launcher menu items.

SRD-852D do not support the 16-split screen mode.



 LIVE

CH1 CH2 CH3 CH4

CH5 CH6 CH7 CH8

CH9 CH10 CH11 CH12

CH13 CH14 CH15 CH16

CH1

CH2 CH3

CH4 CH5 CH6

CH7 CH8 CH9

CH1

CH3 CH4

CH2

CH1

CH4 CH5 CH6

CH3

16-split mode 9-split mode 4-split mode 6-split mode

CH2

CH3

CH1

CH5 CH6 CH7 CH8

CH4

8-split mode 13-split mode PIP

CH3 CH4 CH5

CH6

CH8

CH10 CH11 CH12 CH13

CH1

CH7

CH9

CH1

CH2

CH1

Auto Sequence

Switching the split mode

SRD-1652D display 16 Live images in the sequence of Single, 4-split and 9-split modes.

Auto Sequence

CH1

Single mode



CH1

CH1 CH2

CH3 CH4

CH1 CH2

CH3 CH4

4-split mode

1-4

5-8

13-16

9-12

CH1 CH2 CH3

CH4 CH5 CH6

CH7 CH8 CH9

9-split mode

10-16

1-9

In Single mode, If you have set <SEQ-Dwell Time> in “Setting the Device > Camera”, Auto Sequence will be conducted at the set interval. (Page

44)

In a split mode, If you have set <Multi CH SEQ Time> in “Setting the Device > Monitor”, Auto Sequence will be conducted at the set interval. (Page

50)

English _29

live

Manual Switching

Press the left/right button on the front panel or the remote control, or click the arrow <◄/►> key to move to the next split mode.

•

If pressing the right [ 9-split (CH 1~9) mode  9-split (CH 10~16) mode  Auto Sequence

►

] button in 9-split mode :

CH1 CH2 CH3

CH4 CH5 CH6

CH7 CH8 CH9

•

If pressing the right [



►

] button in 4-split mode :

CH10 CH11 CH12

CH13 CH14 CH15

CH16

CH1 CH2 CH3

CH4 CH5 CH6

CH7 CH8 CH9

10-16

1-9

Channel (CH 1~4)  Channel (CH 5~8)  Channel (CH 9~12)  Channel (CH 13~16)  Auto Sequence

CH1 CH2

CH5 CH6

CH9 CH10

CH13 CH14



CH3 CH4

CH7 CH8

CH11 CH12

CH15 CH16



CH1 CH2

Channel Setting

CH1 CH2

CH3 CH4

1-4

13-16

9-12

5-8

You can display the channel in a desired area of a split screen.

Place the cursor over the camera name of each channel to display the <▼> key to the right on the screen.

Click a camera name to display a channel list where you can select a different channel.

Select a desired channel and click it. The current channel will be switched to the selected one. Use the cursor to select a channel to move, and drag and drop it to a desired channel; this can also change the channel position.

Ex : if switching CH 1 to CH 7



CH1 CH2 CH3 CH4

CH5 CH6 CH7 CH8

CH9 CH10 CH11 CH12

CH13 CH14 CH15 CH16



CH7 CH2 CH3 CH4

CH5 CH6 CH1 CH8

CH9 CH10 CH11 CH12

CH13 CH14 CH15 CH16

30_ live

Switching to Single Mode

When in split mode, select and double-click a desired channel to switch to its Single mode. Press the number corresponding to a desired channel on the front panel or the remote control to switch to its Single mode. Refer to “Remote Control > Using the numeric buttons”. (Page 13)

Ex : If double-clicking CH 3 or pressing the number “3” on the remote control or the front panel.



CH1 CH2 CH3 CH4

CH5 CH6 CH7 CH8

CH9 CH10 CH11 CH12

CH13 CH14 CH15 CH16



CH3

SPOT OUT

The Spot Out monitoring is independent of the Live mode, which monitors a speciﬁ c channel through the Spot Out port.

Selecting a Spot Out mode

If an event occurs such as sensor, motion or alarm from the Spot Out port in connection with a monitor, you can select a output screen mode.

In Live mode, right-click any area on the screen. The Live menu appears.

Click Spot Out. Supports Auto Sequence and Single modes.

Scene Mode

Spot Out

ZOOM Audio Off Freeze Stop Alarm Record Play Search Backup Main Menu Shutdown Hide Launcher Logout

2011-01-01 01:10:25



2011-01-01 01:10:25



Spot Out 1



Auto Sequence

Single

CH1 CH2 CH3



CH4 CH5 CH6 CH7 CH8 CH9 CH10 CH11 CH12 CH13 CH14 CH15 CH16

 LIVE

< Multichannel Live Menu >

English _31

live

ZOOM

This is available only in Single Live mode. In Single mode, select a desired area and use the Zoom function to enlarge it twice.

Select <ZOOM> in the right-click menu.

Press the [ZOOM] button on the front panel or the remote control, or simply click < > in the launcher menu. The zoom box appears.

Use the direction keys, or drag and drop to specify an area to enlarge.

Press the [ENTER] button, or double-click the selected area to enlarge it twice.

In the enlarged image, use the direction buttons (◄ ►) on the remote control or the front panel to move the



enlarged area.

Press the [ZOOM] button on the front panel or the remote control, or simply click < > in the launcher

menu to release the zoom.

2011-01-01 01:10:25



AUDIO ON/OFF

You can turn the sound on/off corresponding to the channel in Live mode.

AUDIO ON/OFF in Single mode

Click the audio icon ( ) on the screen, or press the [AUDIO] button on the front panel or the remote control to turn it on/off.

Only the channel where <AUDIO> is set to <ON> in “Device > Camera” displays the audio icon ( ) in Live



mode that you can use to turn the sound on/off.

FREEZE

This is available only in Live mode, this pauses playing the Live image temporarily.

Press the [FREEZE] button on the front panel or the remote control, or click <

menu. The playback of the image is stopped temporarily.

Press the [FREEZE] button again, or click <

This will release the freeze.

Freeze

> in the launcher

32_ live

EVENT MONITORING

This will display the channel in sync with a speciﬁ c event (Sensor/Motion/Video Loss) if it occurs. In “Monitor > Event Display”, set the event monitoring to ON/OFF and specify the event display time. (Page

•

If multiple events occur simultaneously, the screen will switch to a split mode.

- 2~4 events : 4-split mode

- 5~9 events : 9-split mode

- 10~16 events : 16-split mode

•

If the second event occurs within the set time of <Event Display>, the ﬁ rst event will last until the second one is terminated. (Page

Ex : If you set <Event Display> to 5 seconds, and only one event occurs in CH 1.



Event occurrence 5 seconds

CH1

Ex : If you set <Event Display> to 5 seconds, and the second event occurs in CH 2 within the set time after the ﬁ rst



event occurred in CH 1.

50)

Stop alarm

50)

 LIVE

Event occurrence 4 seconds 9 seconds

Stop alarm

CH1 CH2

CH1

Press the [ALARM] button to reset the alarm settings and to release the event mode.



If an alarm activates in the condition you have set the event record, and pre/post alarm times, the event record will



be performed.

This will also apply to the Spot Out monitor.



English _33

using the DVR

You can setup the system properties, devices, and options for recording, event, backup and network.

SYSTEM SETUP

You can setup Date/Time/Language, Permission, System Properties and Log.

Date/Time/Language

You can check and setup the current Date/Time and time related properties, as well as the language used for the interface on the screen.

Setting the Date/Time/Language

Set the Date/Time/Language

Using the mouse may help make setup easier.

Press the [MENU] button on the remote control or on the front panel.

If not logged in, it prompts with login window.



Refer to “Login”. (Page 24)

2011-01-01 01:10:25

Use the left/right buttons (

◄ ►

) to select the <System>.

System property setup menu is selected.

Use the up/down buttons () to select <Date/Time/ Language> and press the [ENTER] button.

Select <Date/Time/Language>.

A dialog to setup Date, Time and Language.

Use direction buttons (

◄ ►

) to select an item to set

System

Date/Time/Language Permission Management System Management Log Information

and make your changes.

Date : Sets the date that will appear on the screen.

•

You can select the date format. Time : Sets the time and its format that will appear on the

•

screen. Select either one from <24 Hours, 12 Hours (AM/PM)>.

•

Time Zone : Sets the time zone of your area based on the Greenwich Mean Time (GMT).

GMT (Greenwich Mean Time) is standard World Time and the



basis of world time zone.

Time Sync. : You can set the DVR’s current time

•

Date/Time/Language

Date

Time 08:14:24 24 Hours

Time Zone GMT

Time Sync.

DST

Language English

Holiday

2011-01-01 YYYY-MM-DD

Setup

Dec First (Sun) 0 Dec First (Sun) 0

OK Cancel

synchronized to a selected <Time Server> regularly if you select to use <Time Server>. In this case, <Date/Time/Language> setup does not allow time adjustment.

Logout

Exit

34_ using the DVR

- Time Server : Enter an IP or URL address of the time server.

- Last Sync Time : Displays the most recent synchronization time from the selected time server.

- Activate as Server : Set to <Use> to allow the DVR to act as a Time Server for other DVRs.

•

DST : Set up Daylight Saving Time with its period to make the time earlier than the GMT of its time zone by 1 hour during the set period.

•

Language : Select your language. Sets the language for the

Date/Time/Language

Date

Time Synchronization Setup

Synchronization Use

Time 08:14:24 24 Hours

Time Server 203.248.240.103

Time Zone GMT+08:00

Last Sync Time Fail

Time Sync.

Activate as Server Use

DST

Language English

Holiday

2011 -01-01 YYYY-MM-DD

Setup Not Used

Dec First (Sun) 0H Dec First (Sun) 0H

OK Cancel

interface. English, French, German, Spanish, Italian, Chinese, Russian, Korean, Polish, Japanese, Dutch, Portuguese, Turkish, Czech, Danish, Swedish, Thai, Romanian, Serbian, Croatian, Hungarian and Greek are available.

When the Date/Time/Language setup is done, press <OK>.

You can also use numeric buttons on the remote control or front panel to enter values for Date, Time and other



numeric ﬁ elds.

Setting Holiday

You can set speciﬁ c dates to Holidays according to your preferences. Holidays are applied to <Recording Schedule> and <Alarm Schedule> too.

Using the mouse may help make setup easier.

Use the up/down buttons () in <Date/Time/Language> window to select <Date/Time/Language>, and

press the [ENTER] button.

Select <Holiday>. A calendar for Holiday setup appears.

Use the left/right <

> buttons to select year or month,

and press the [ENTER] button.

Date/Time/Language

2011 Jan

Sun Mon Tue Wed Thu Fri Sat 1

30 31

Holiday

2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29

 USING THE DVR

Use direction buttons (

◄ ►

) to select a desired date,

and press the [ENTER] button. You will see the “Setting Holiday” screen.

Ex : Select January 10th and check on <1/10> only to make



every January 2nd Mon> to make every January

10th a holiday. Check both on <1/10> and <Jan

10th and 2nd Monday of

January holidays.

When the Holiday setup is done, press <OK>.

Using the Calendar

Using the mouse may help make setup easier.



Select year and month. Select the left/right < adjust by 1 year/month.



Use direction buttons to select a date and press [ENTER] button.

A date with recorded data to be searched will appear in yellow in the System Log, Event Log, Time Search and Event



Search.

> key on the left/right side of year/month and press [ENTER] button to

OK Cancel

Date/Time/Language

2011 Jan

Setting Holiday

Sun Mon Tue Wed Thu Fri Sat 1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29

30 31

Holiday

1 / 10 Jan 2nd Mon

OK Cancel

English _35

using the DVR

Permission Management

You can set permissions of each user over the DVR's speciﬁ c function and settings.

Setting the Administrator

You can set and change Administrator’s ID and password. The administrator can use and set all menu items and functions.

Using the mouse may help make setup easier.

Use the up/down buttons () in <System> window to

move to <Permission Management>, and press [ENTER] button.

Select <Admin>.

A dialog for Admin ID and Password input appears.

Use direction buttons (

◄ ►

) to move to a desired

item, and set the ID and password.

Permission Management

Admin

ID admin

Password

Conﬁ rm P/W

Group

********

User Setup

“4321”.

When the administrator setup is done, press <OK>.

By default, initial ID and password are set to “admin”, and



Using Virtual Keyboard



For alphanumeric inputs, the virtual keyboard window

appears.



Use direction buttons (

character, and press the [ENTER] button.



In the upper text input box of the virtual keyboard, there

displays a list of candidate words containing the selected character.



Select a word from the list, or use the keyboard to enter the

whole word.

If there are many of candidate words, use < , > buttons to move between them forward and backward.



You can use mouse wheel and jog shuttle button too.



Select <OK>.



Entered word is applied.

For upper case letters, use <Caps Lock> button.



For special characters, use <Shift> button.



Using the virtual keyboard is the same to a normal keyboard use in your region.



You can enter only lower-case alphabets and numeric values for the user ID.



For the password, use alphabets and special characters excluding < \ > and <“>.



You can use number buttons on the remote control or front panel.

◄ ►

) to move to a desired

OK Cancel

` 1 2 3 4 5 6 7 8 9 0 - = q w e r t y u i o p [ ] \ a s d f g h j k l ; ‘ z x c v b n m , . / Space Ctrl

OK Cancel

Caps Lock

Shift



Del

36_ using the DVR

Setting the Group

You can create user groups and setup permissions for those user groups. You can register a user for each group in <User>.

Using the mouse may help make setup easier.

Use the up/down buttons () in <System> window to

move to <Permission Management>, and press [ENTER] button.

Select <Group>.

A window for <Add>, <Delete>, <Rename>, and <Group Authority> setup appears.

Use direction buttons (

◄ ►

) to move to a desired

item, and set the value.

Add, Delete, Rename : You can add, delete, rename a

•

group or modify the permissions given to the group. The virtual keyboard appears when <Add> or <Rename> was selected. You can add up to 10 groups.

Add : When you ﬁ rst run the DVR with the admin account, only the admin account exists. Add has already been deactivated. Select to display the virtual keyboard. Enter a group name. You can add up to 10 groups.

- Delete : Deletes a user group that is already registered. Selecting Delete will delete all user accounts belonging to that group.

- Rename : Renames a group that is already registered. Select <Rename> to display the virtual keyboard.

For entering a group name, refer to “Using Virtual Keyboard”. (Page 36)



Group Authority : Sets permissions to access menu items of each group.

•

Users of a group can access checked functions.

When the group setup is done, press <OK>.

Permission Management

Admin

Group

Group Authority

Group

Live View Search Backup Menu Record Lock PTZ Remote Alarm Out Shutdown

Setup Setup Setup Setup

User

Add Delete Rename

OK Cancel

Setup

 USING THE DVR

To set the group authority

You can set the permissions of the group users to access the menu according to the channel.

Select a menu to which the group permission is assigned.

The menu where the group permission is assigned will be displayed in the Live menu when a group user logs in.

Live View : You can set the permission to access the Live

•

screen according to the channel.

Search : You can set the permission to access the Search

•

menu according to the channel.

Backup : You can set the permission to access the Backup

•

menu according to the channel.

Menu : You can set menus accessible with a speciﬁ c

•

permission. Group users can access the permitted menus only. Select a menu to display the Menu Permission screen.

Record Lock, PTZ, Remote Alarm Out, Shutdown : Select

•

an item so that the item will be added to the permissions.

Select <OK>.

Select and assign a group user so that the user can access the speciﬁ ed menu.

Permission Management

Admin

Group ABC

Group Authority

Permission Management

Menu Permission

Admin

All

System

Group ABC

Group Authority

Date/Time/Language Date/Time/Language Holiday System Management System Information Settings Log Information System Log Event Log Backup Log

Group

Channel Setup

Live View Search Backup Menu Record Lock PTZ Remote Alarm Out Shutdown

Setup

All

Setup

1 2 3 4

Setup

5 6 7 8

Setup

9 10 11 12 13 14 15 16

Group

Device Record Event Backup Network

Setup Setup Setup Setup

OK Cancel

User

Add Delete Rename

User

Add Delete Rename

Setup

English _37

using the DVR

To restrict the user permissions

If the admin restricts all permissions of an added group, the users belonging to that group can access only the default minimum menus and can change the user’s own password only.

Start the DVR.

If all permissions are restricted, only the Login dialog should appear.

Right-click any area on the screen.

If all permissions are restricted, only the accessible context menus should appear.

ID abc

Password

2011-01-01 01:10:25

OK Cancel

Scene Mode Audio Off Freeze Stop Alarm User Menu Hide Launcher Logout



2011-01-01 01:10:25

To change the user password

If you log in with a user account that is restricted to access the menu, you can change your own password only.

Select <User Menu>.

The Permission Management setup screen appears.

Select <Permission Management>.

The Password setup dialog appears.

Enter a new password.

Select <OK>.

You change to the password will be applied.

Permission Management

User

Password

Conﬁ rm P/W

abc

********

OK Cancel

38_ using the DVR

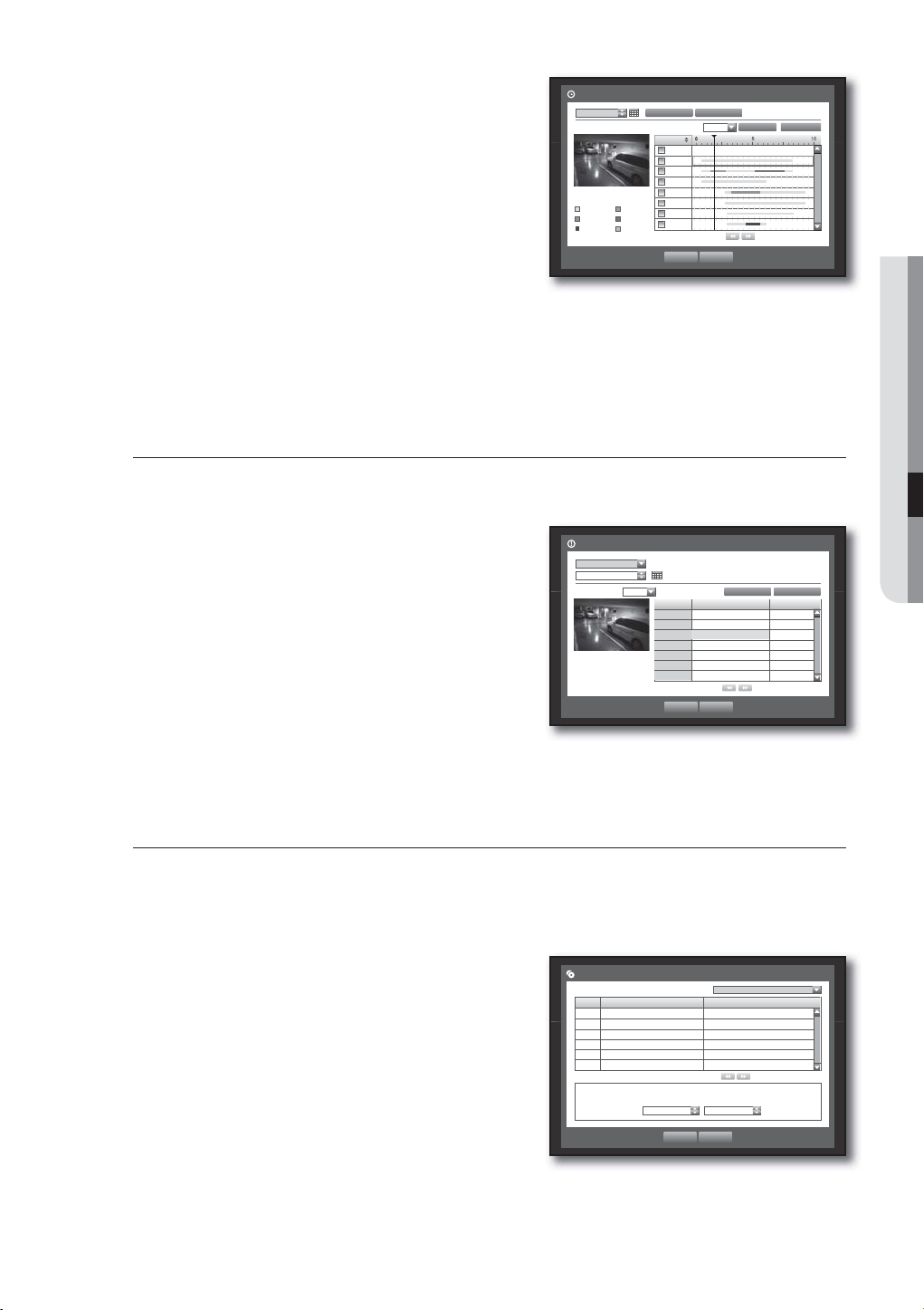

Setting the User

Users can be added only if a group was created in <Group> menu.

Using the mouse may help make setup easier.

Use the up/down buttons () in <System> window to

move to <Permission Management>, and press [ENTER] button.

Select <User>.

A window for Add User appears.

Use direction buttons (

window. A window for “Add User” appears. You can conﬁ gure the Network Viewer settings including name, ID, viewer, Select Group and password. Result of the user setup appears in the <User> window. To change the user property, use “Edit User”. The “Edit User” window appears when you select a desired item to be changed in the <User> window.

Viewer : If you select <Use>, you will be given access to the

•

Web Viewer and Network Viewer.

Refer to “Connecting Web Viewer”. (Page 74)



For more information about use of Network Viewer, refer to the Network Viewer's user guide. (Page 5)

When the user setup is done, press <OK>.

◄ ►

) to select <Add> from the

Permission Management

Admin

Group All Group

Group Name ID Viewer Delete

Permission Management

Admin

Group All Group

Group Name ID Viewer Delete

Group

Add User

Name Kim

ID ksh

Viewer Not Used

Select Group ABC

Password

Conﬁ rm P/W

User

OK Cancel

User

******** ********

OK Cancel

Setup

Previous/Next Page

Setup

Previous/Next Page

Add

 USING THE DVR

Add

Setting Permissions

You can set restricted access for all general users. Items with restrictions will require logging in for use.

Using the mouse may help make setup easier.

Use the up/down buttons () in <System> window to

move to <Permission Management>, and press [ENTER] button.

Select <Setup>.

The Restricted Access, Restriction on Network Access, Auto Log out, Manual Input of ID setup screen appear.

Use direction buttons (

◄ ►

) to move to a desired

item, and set the value.

Restricted Access : All menu items allowed for a user can

•

be set with restricted access.

- Checked (

- Not checked (

If it is not checked ( ) in <Restricted Access>, any user can access the item no matter what the <Group Authority>



) : Restricted

) : Accessible

setting.

If it is checked (



) in <Restricted Access>, a user can access the item only if the user has permission in <Group

Authority> setting.

Restriction on Network Access : Restricts remote access from a <Restricted Access> network.

•

- All Network : Restricts all access instances via Network Viewer and Web Viewer.

- Web Viewer : Restricts access via the Web Viewer.

Auto Log out : A user will be automatically logged out if there is no operation on DVR for over set period of

•

time.

Permission Management

Admin

Restricted Access

Restriction on Network Access

Auto Log out 3 min

Manual Input of ID ON

Group

Live View Backup Record Lock Search PTZ Remote Alarm Out Shutdown All

All Network Web Viewer

User

OK Cancel

Setup

English _39

using the DVR

Manual Input of ID : Prompts you to enter the user ID

•

manually for the login process.

- Checked ( [½] symbols. Use the virtual keyboard to enter the user ID.

When the permission setup is done, press <OK>.

System Management

You can check the system version, update to a newer version, as well as data backup and initialization.

Checking the System Information

You can check the current system version, broadcasting system, MAC address. You can update the system.

Using the mouse may help make setup easier.

Use the up/down buttons () in <System> window to

move to <System Management>, and press [ENTER] button.

Check the Version, Broadcast Format, and MAC Address.

System Information : Shows the current system’s

•

information. The values can not be changed by a user.

S/W Upgrade : Updates the DVR’s software up to date.

•

) : Encloses the registered user IDs with the

*****

Password

OK Cancel

System Management

System Information

Software Version V1.00h_100315180929

Broadcast Format

MAC Address 00:00:F0:54:FF:FF

S/W Upgrade

Device USB2FlashStorage

Version V1.00h_100315180929

Settings

NTSC

Upgrade

40_ using the DVR

Updating the Software

•

Connect a device storing the software to be updated.

(It may take about 10 seconds to recognize the device.)

Upgradeable devices include USB memory, CD/DVD and



network device.

To update the network, the current DVR should have been



connected to the network. Upgrade via the proxy server may not be enabled due to the

System Management

System Information

Software Version V1.00h_100315180929

System Upgrade

Broadcast Format

MAC Address 00:00:F0:54:FF:FF

Current Version V1.00h_100315180929 New Version V1.00h_100320180929

S/W Upgrade

Do you want to upgrade?

Device USB2FlashStorage

Version V1.08_090731 170402

Settings

NTSC

OK Cancel

restricted access.

Select <System Management> from <System> window.

Select <System Information>.

When the recognized device appears, select <Upgrade>.

The <Upgrade> button will be activated only if the current <Software Version> of the <System Information> is



same to or older than that of <S/W Upgrade>.

Press <OK> in the “System Upgrade” window.

While updating, it shows the progress.



Updating progresses with 3 steps as shown in the ﬁ gure.

•

System Management

System Information

Software Version V1.00h_100315180929

Broadcast Format

S/W Upgrade

MAC Address 00:00:F0:54:FF:FF

Software upgrading...

S/W Upgrade

Device USB2FlashStorage

Version V1.08_090731 170402

Settings

NTSC

Upgrade

 USING THE DVR

Upgrade

When the updating is done, it automatically restarts.

Do not turn the power off until it ﬁ nishes restarting.

When you experience continued failure, consult the service

If “Upgrade Failed” appears, retry from the step 4.



center for assistance.

System Management

System Information

Software Version V1.00h_100315180929

Broadcast Format

S/W Upgrade

MAC Address 00:00:F0:54:FF:FF

Software upgrading...

S/W Upgrade

Device USB2FlashStorage

Version V1.08_090731 170402

Settings

NTSC

Software upgrading...

Do not turn off during the upgrade.

Upgrade

English _41

using the DVR

Settings

You can copy and import the DVR settings by using a storage media.

Using the mouse may help make setup easier.

Use the up/down buttons () in <System> window to

move to <System Management>, and press [ENTER] button.

Select <Settings>.

A window of storage device and load factory default appears.

Use direction buttons (

◄ ►

item, and export or import settings data to a storage device.

Storage Device : Shows the connected storage device.

•

Export : Exports DVR settings to the connected storage device.

•

Import : Imports DVR settings from the storage device and applies to the DVR.

•

If <Include Network Settings> is checked, the network settings will be imported too.



Load Factory Default : If <Default> is selected, a

•

conﬁ rmation dialog for “Load Factory Default” prompts. Press <OK> to initialize the system to the factory default.

To move to the previous menu, press <Previous>.

) to move to a desired

System Management

System Information

Storage Device 0 MB (Remained Capacity)

DVRUSB

USBDVR

Include Network Settings

Load Factory Default

System Management

System Information

Storage Device 0 MB (Remained Capacity)

Load Factory Default

DVRUSB

USBDVR

Sure to Default Setting?

Include Network Settings

Load Factory Default

38010100 No data

Default

38010100 No date

OK Cancel

Default

Settings

Export Import

Log Information

You can browse logs on the system and events.

System Log

System Log shows log and timestamp on every system start up, system shutdown, and changes on system settings.

Using the mouse may help make setup easier.

Use the up/down buttons () in <System> window to move to <Log Information>, and press [ENTER] button.

Select <System Log>.

Refer to “Using the Calendar”. (Page 35)



Click on the calendar <

Type : When there are too many logs, you can display logs of

•

> to display the calendar window.

the desired format by selecting the type.

Use direction buttons (

◄ ►

) to move to a desired item,

and press <Search>.

Log Information

System Log

Search Day 2011-01-01

First Page

No. Log List Date/Time

Event Log

Last Page

Backup Log

Type View all

Previous/Next Page

42_ using the DVR

Event Log

Event log shows recorded events on alarms, motion detections and video loss. It also shows the log and its timestamp.

Using the mouse may help make setup easier.

Use the up/down buttons () in <System> window to

move to <Log Information>, and press [ENTER] button.

Select <Event Log>.

Use direction buttons (

◄ ►

) to move to the desired

item.

Set Search Day, Channel and Type and the press

<Search>.

Refer to “Using the Calendar”. (Page 35)



Click on the calendar <

> to display the calendar window.

Log Information

System Log

Search Day 2011-01-01

No. Log List Date/Time

7 Motion Detection [CH 7] 2011-01-01 00:02:18 6 Motion Detection [CH 6] 2011-01-01 00:02:18 5 Motion Detection [CH 5] 2011-01-01 00:02:18 4 Motion Detection [CH 4] 2011-01-01 00:02:18 3 Motion Detection [CH 3] 2011-01-01 00:02:18 2 Motion Detection [CH 2] 2011-01-01 00:02:18 1 Motion Detection [CH 1] 2011-01-01 00:02:18

First Page

Event Log

Last Page

CH All CHs Type View all

Backup Log

Previous/Next Page

Backup Log

You can ﬁ nd out who backed up and the details (backup time, channel, device to use, ﬁ le format, etc.).

Using the mouse may help make setup easier.

In the <System> window, press the up/down ()

button to move to <Log Information> and press the [ENTER] button.

Select <Backup Log>.

Use the four direction buttons (

◄ ►

) to move to a

desired item.

Specify a search term and select <Search> in the right

corner. Backup details for the search term will be listed.

Log Information

System Log

Search Day 201 1-01-01 ~ 2011-01-02

First Page

No. User Date/Time

Event Log

Last Page

Backup Log

Previous/Next Page

 USING THE DVR

English _43

using the DVR

SETTING THE DEVICE

You can setup Camera, Storage Device, Remote Device, POS Device and Monitor.

Camera

Setting the Camera

You can set Video, Audio, Channel Name and Dwell Time of a Camera.

Using the mouse may help make setup easier.

Press the [MENU] button on the remote control or front

panel.

◄ ►

Use the left/right button (

Device setting menu is selected.

Use the up/down buttons (

and press [ENTER] button.

Select <Camera>.

You will see a window where you can conﬁ gure the camera settings including Video, Audio, Channel Name, Dwell Time and Progressive.

Use direction buttons (

item, and set the value.

Video

•

- <ON/OFF> : You can turn ON/OFF the selected

channel’s camera.

- <Covert1> : Shows information other than the video of the selected channel.

For privacy protection, it does not display the video while the recording continues.



- <Covert2> : Shows nothing but an empty screen while the recording continues.

) to select <Device>.



) to move to <Camera>,

◄ ►

) to move to a desired

Device

Camera Storage Device Remote Device POS Device Monitor

Camera

CH Video  Audio  CH Name SEQ-Dwell Time  Progressive

1 ON  OFF  CAM 01 5 sec  OFF 2 ON  OFF  CAM 02 5 sec  OFF 3 ON  OFF  CAM 03 5 sec  OFF 4 ON  OFF  CAM 04 5 sec  OFF 5 ON  OFF CAM 05 5 sec  OFF 6 ON  OFF CAM 06 5 sec  OFF 7 ON  OFF CAM 07 5 sec  OFF 8 ON  OFF CAM 08 5 sec  OFF

Screen Setup

PTZ

OK Cancel

Logout

Previous/Next Page

Exit



Audio

•

- If set to <ON>, you can turn the audio of the channel ON/OFF on the Live screen.

- If set to <OFF>, the channel’s audio is off on the Live screen and not recorded.

Audio output is available for only 1 channel.



You can set audio inputs only between 1ch and 4ch.



CH Name : Up to 15 characters including blanks are allowed. (The ﬁ rst character should not be empty.)

•

Refer to “Using Virtual Keyboard”. (Page 36)



SEQ-Dwell Time : You can set the dwell time between channels for the Live screen and Spot Out.

•

If set to <OFF>, the channel is not listed in the Auto Sequence mode.



44_ using the DVR

Progressive : You can set the progressive camera to ON/OFF.

•

If you set it to <ON> for the progressive camera, screen ﬂ ickering will be reduced.



Screen Setup : The video appeared on the screen may vary

•

depending on the channel’s camera, conﬁ gure the DVR display to your preferences. Select a channel and adjust the <

(Contrast)>, and <(Color)> of the selected channel.

Press the <Init> to initialize settings back to the default 50.

•

When the camera setup is done, press <OK>.

(Brightness)>,

Screen Setup

CH1 50 50 50

OK Cancel

Init Apply to All CH

Setting the PTZ

To use Camera’s PTZ functions, ID and protocols of each camera and DVR should be matched. For other settings, refer to the “Remote Devices” settings. (Page 48)

Using the mouse may help make setup easier.

Use the up/down buttons () in <Device> window to

move to <Camera>, and press [ENTER] button.

Select <PTZ>.

A window of PTZ settings appears.

Use direction buttons (

◄ ►

) to move to a desired

item, and select it.

ID : Set the ID of the connected camera of each channel.

•

You can easily setup by using the numeric buttons on the remote control or front panel.

Protocol : Set the protocol of the connected camera of each

•

channel.

Camera

CH ID Protocol

1 0 > None 2 1 > None 3 2 > None 4 3 > None 5 4 > None 6 5 > None 7 6 > None 8 7 > None

PTZ



Previous/Next Page

OK Cancel

 USING THE DVR



(Page

67)

When the PTZ setup is done, press <OK>.

You can check the camera’s ID and protocol if you turn the camera off and on after connecting it to the DVR.



English _45

using the DVR

Storage Device

You can check information on storage devices.

Conﬁ rming Devices

You can check storage devices and their free space, usage as well as status. Devices available are HDD, and USB devices (Memory, HDD, CD/DVD).

Using the mouse may help make setup easier.

Use the up/down buttons () in <Device> window to

move to <Storage Device>, and press [ENTER] button.

Select <Device>.

No. : Shows the assigned number of the internal HDD.

•

To see the detailed positioning of the HDD according to the



number, refer to <HDD Map>.

Used/Total : Shows the used/total capacity of the storage

•

device. Usage : Sets the storage device’s usage.

•

- USB memory is used only for backups.

External USB HDD, SATA HDD are used for extension and backup.



A maximum of 2TB for each port is supported for backup on a high capacity SATA HDD such as RAID equipment



(ex: SVS-5R), and a maximum of 4TB for extension purposes. SVS-5R supports only RAID1 and RAID5.



Status/Management : Shows the current status of the HDD, as in Normal/Check/Replace.

•

- Normal : Available to use

- Check : Available to use but recommended to replace

- Replace : Requires immediate replacement.

HDD Map : Shows the internal HDD’s locations according to

•

assigned numbers.

Refer to this for servicing or additional HDD installation.



Storage Device

Device

Device No. Used/Total Usage Status/Management

HDD 1 12.28G/499.37G Internal Normal CD/DVD – 0 / 0 Backup Normal

HDD Map

Format

OK Cancel

HDD Alarm

To move to the previous menu, press <OK>.

46_ using the DVR

<SRD-852D/1652D>

Formatting

You can format a storage device.

Using the mouse may help make setup easier.

Use the up/down buttons () in <Device> window to

move to <Storage Device>, and press [ENTER] button.

Select <Format>.

A window for selection of device for formatting appears.

Use direction buttons (

◄ ►

formatted.

Select <Format> on the bottom of the screen.

Press <OK> on the “Manage” conﬁ rmation window will start formatting the selected device.

When the formatting is done, press <OK>.

) to select a device to be

Storage Device

Device

Device Select Used/Total Usage

HDD 1 12.28G/499.37G Internal CD / DVD – 0 / 0 Backup

Format

Storage Device

Device

Device Select Used/Total Usage

HDD 1 12.28G/499.37G Internal CD / DVD – 0 / 0 Backup

Format

Manage

Format

HDD Alarm

OK Cancel

HDD Alarm

Formatting deletes all recordings.

Proceed formatting?

OK Cancel

 USING THE DVR

HDD Alarm

You can set alarm settings for HDD defects such as Check Alarm Output Port, Replace Alarm Output Port, and its duration.

Using the mouse may help make setup easier.

Use the up/down buttons () in <Device> window to

move to <Storage Device>, and press [ENTER] button.

Select <HDD Alarm>.

A window for setting HDD check and replace output ports and their durations appears.

Use direction buttons (

◄ ►

) to move to the desired

item.

•

Alarm

- Alarm signal will output through the alarm out port on the

rear side when selected <1>, <2>, <3>, and <4>.

- If <BEEP> was selected, a beep will sound.

- If <All> was selected, both beep sound and alarm signal through rear side ports will output.

•

Check Alarm Output Port : If HDD generates check alarm, the alarm signal will output to the speciﬁ ed alarm output port.

•

Replace Alarm Output Port : If HDD generates replace alarm, the alarm signal will output to the speciﬁ ed alarm output port.

Storage Device

Device

Check Alarm Output Port

Duration OFF

Replace Alarm Output Port

Duration OFF

Format

1 2 3 4 BEEP All

OK Cancel

HDD Alarm

English _47

using the DVR

•

Duration : Sets the alarm duration for the alarm signal and beep sound.

- Check Alarm, Replace Alarm signals will output through the selected alarm out ports (1, 2, 3, and 4).

- If <BEEP> was selected, a beep will sound.

- If <All> was selected, both beep sound and alarm signal through rear side ports will output.

<Check> status means that the HDD is operating but it has problems that require technical examination.



Remote Devices

You can set the RS-485 communication for use of PTZ Camera and system keyboard with the DVR.

Using the mouse may help make setup easier.

•

(

) appears on the Live screen.

<Replace> status means that the HDD has defect and requires immediate replacement.



(

) appears on the Live screen.

When the HDD Alarm setup is done, press <OK>.

Use the up/down buttons () in <Device> window to move to <Remote Device>, and press [ENTER] button.

Use direction buttons (

◄ ►

) to move to the desired

item, and press [ENTER] button.

Set the values of each communication setup of the remote

Remote Device

Baudrate Parity Data Stop Bit Transfer type

9600  None  8  1  Half Duplex

System Keyboard OFF ID 00

Remote Control ON ID 00

device.

Baudrate : Baud rate settings of the DVR, PTZ camera and system keyboard should be matched for proper operations.

Make sure to match IDs of the DVR, System Keyboard and Remote Control, and press <OK>.

OK Cancel



For changing the remote control’s ID, refer to “Changing the Remote Control ID”. (Page 13)



POS Devices

You can set properties of POS devices connected to the DVR. A POS device connection requires channel, preset, and Port/Ethernet settings.

Using the mouse may help make setup easier.

Use the up/down buttons () in <Device> window to

move to <POS Device>, and press [ENTER] button.

Use direction buttons (

item, and set the value.

•

POS USE : When selected <POS USE>, DVR and POS will be connected.

the <POS USE> is not checked, the changes for POS device

If you change settings for the device and press <OK> while



will not be saved.

48_ using the DVR

◄ ►

) to move to a desired

POS Device

POS USE

POS CH Preset  Port/Ethernet

1 None No preset None 2 None No preset None 3 None No preset None 4 None No preset None 5 None No preset None 6 None No preset None 7 None No preset None 8 None No preset None

OK Cancel

POS Device Setup

Previous/Next Page

POS Device Setup : Sets the communication setups for the

•

POS device and DVR.

It is independent to the Remote Device setup.



CH : Select the camera to be synchronized to the POS

•

device.

If selected a channel input ﬁ eld, “Sync Channel Setup” window



appears.

One POS device can be synchronized to up to 16 cameras



(channels), however one channel cannot be synchronized to multiple POS devices.

Channels to be synchronized to a POS device should be set to



“Event” in “Main Menu > Record > Recording Schedule”. (Page

52)

Preset : Sets the name, start and end strings of the receipt

•

for the preset.

Preset name should be unique.



Use <Add> button to display “Add Preset” window, and set its



name, start string, and end string.

Port/Ethernet : Sets the port number for the DVR and POS

•

device connection.

COM1 : For RS-232C connections



7001~7016 : For Ethernet connections

POS Device

POS USE

POS CH Preset  Port/Ethernet

1 None No preset None 2 None No preset None

POS Device Setup

3 None No preset None

Baudrate Parity Data Stop bit Transfer type

4 None No preset None

9600  None  8  1  Half Duplex

5 None No preset None 6 None No preset None 7 None No preset None 8 None No preset None

OK Cancel

POS Device Setup

Previous/Next Page

POS Device

POS USE

POS CH Preset  Port/Ethernet

1 None No preset None 2 None No preset None

Sync Channel Setup

3 None No preset None

1 2 3 4 5 6 7 8

4 None No preset None

9 10 11 12 13 14 15 16

5 None No preset None 6 None No preset None 7 None No preset None 8 None No preset None

OK Cancel

POS Device Setup

Previous/Next Page

POS Device

POS USE

Preset Setup

POS CH Preset Port/Ethernet

Add Preset

1 None No preset None

No. Name Start End Input char. Set Del

2 None No preset None

Name

3 None No preset None 4 None No preset None

Start Keyword

5 None No preset None

End Keyword

6 None No preset None 7 None No preset None 8 None No preset None

OK Cancel

POS Device Setup

Previous/Next Page

Add



 USING THE DVR

When the POS Device setup is done, press <OK>.

English _49

using the DVR

Monitor

You can conﬁ gure information to be displayed and its format for Spot Out monitor.

Setting the Monitor

Using the mouse may help make setup easier.

Use the up/down buttons () in <Device> window to

move to <Monitor>, and press [ENTER] button.

Select <Monitor>.

Use direction buttons (

◄ ►

) to move to a desired

item, and set the value.

Event Display : Sets the dwell time of the event channel

•

display on the monitor when an event occurs. If selected <Continuous>, it displays the channel until you press [ALARM] button to release it.

Display : Displays only checked items on the monitor

•

screen. Multi CH SEQ Time : Sets the interval between automatic display switching in 4-split and 9-split mode of

•

the Live screen. Sharpness : You can adjust the sharpness of the video output signal.

•

When the monitor setup is done, press <OK>.

Monitor

Event Display OFF

Display Date Time CH Name Icon

Multi CH SEQ Time

VGA 800x600

Sharpness Level1 (Low)

Display Position Setup

Spot Out

5 sec

OK Cancel

Mode

Screen Setup

Some monitors many not display information (camera name, icon, time information, etc.) about the DVR, depending on the condition. Then, you can change the display position of the data.

In the <Device> window, press the up/down () button to move to <Monitor> and press the [ENTER]

button.

Select the <Monitor> item.

Select <Display Position Setup> in the bottom.

You will move to the <Display Position Setup> window.

Use the four direction buttons or the number buttons on

the front panel or the remote control to adjust the data position.

Display Position Setup

2011-01-01 01:10:25

30 30

OK Cancel

50_ using the DVR

Setting the Spot Out

You can set the DVR to output information / video apart from the monitor out.

Using the mouse may help make setup easier.

Use the up/down buttons () in <Device> window to

move to <Monitor>, and press [ENTER] button.

Select <Spot Out>.

Use direction buttons (

◄ ►

) to move to a desired

item, and set the value.

Monitor

Spot Out 1

Spot Out

Single

OK Cancel

Mode

Set Mode Set Mode Set Mode Set Mode

CH 1

 USING THE DVR

Spot Out 1 :

•

Specify a single channel for output.

You can set the dwell time between the screen switching in “Setting the Device > Camera > SEQ-Dwell Time”. (Page

44)

You can setup using the mouse right button in Live screen.



Refer to “Spot Out”. (Page

When the Spot Out is done, press <OK>.

31)

Setting the Screen Mode

You can conﬁ gure the Live screen and Split Screens.

Using the mouse may help make setup easier.

Use the up/down buttons () in <Device> window to move to <Monitor>, and press [ENTER] button.

Select <Mode>.

Use direction buttons ( item, and set the value.

•

Live Screen : Select split modes for the Live screen. 16-, 9-, and 4-split screens are included by default.

•

Play Screen : Select split modes for the playback screen. Only the 13-split screen is optional. Black shows the playback while white shows the Live screen.

When the screen mode setup is done, press <OK>.

◄ ►

) to move to a desired

Monitor

Spot Out 1

Monitor

Monitor Spot Out

Spot Out

Single

Set Spot Out

1 2 3 4

5 6 7 8 9 10 11 12 13 14 15 16

OK Cancel

Live Screen

Play Screen

OK Cancel

Mode

Set Mode Set Mode Set Mode Set Mode

Mode

CH 1

Live Play

English _51

using the DVR

SETTING THE RECORDING

You can setup scheduled recording, event recording and other recording related settings.

Recording Schedule

Make your reservation on a date and time to schedule the recording on speciﬁ ed time.

Using the mouse may help make setup easier.

Press the [MENU] button on the remote control or front

panel.

Use the left/right button (

Record menu is selected.

Use the up/down buttons () to move to <Recording

Schedule>, and press [ENTER] button.

Select <Recording Schedule>.

A window of scheduled recording setup appears.

Use direction buttons (

item, and set the value.

◄ ►

) to select <Record>.

◄ ►

) to move to a desired

Record

Recording Schedule Event Record Duration REC Quality & Resolution Record Option

Recording Schedule

CH1

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

All

Sun Mon Tue Wed Thu Fri Sat Hol

No Recording Continuous Event Both(Cont&Evnt)

Logout

Exit

Apply to All CH

Apply to All CH : If selected <Apply to All CH>, “Apply to

•

All CH” window appears. Press <OK> to apply the setup to all channels.

When the recording schedule setup is done, press <OK>.

Event recording and scheduled recording starts about 3



seconds prior to the event/schedule for guaranteed recording.

52_ using the DVR

OK Cancel

Recording Schedule

CH1

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

All

Sun

Apply to All CH

Mon Tue Wed

Apply recording schedule to all channels?

Thu Fri Sat Hol

No Recording Continuous Event Both(Cont&Evnt)

OK Cancel

Apply to All CH

OK Cancel

Recording Color Tags

Color Function Description

White No Recording No schedule / event recording

Orange Continuous Scheduled recording only

Blue Event Event recording only

Green Both(Cont&Evnt) Both scheduled / event recordings

Each press of a selected cell will cycle through <No Recording>-<Continuous>-<Event><Both(Cont&Evnt)>.

Event Record Duration

You can set the beginning and ending point of a recording on an event.

Using the mouse may help make setup easier.

Use the up/down buttons () in <Record> window to

move to <Event Record Duration>, and press [ENTER] button.

Use direction buttons (

◄ ►

) to move to a desired

item, and set the value.

•

Pre Event : The recording of an event will start at a pre-determined time prior to the actual occurrence of the event. If it is set to 5 seconds, the recording begins from 5 seconds before the event.

•

POST Event : The recording will continue for a pre-determined time after the actual end of an event. If it is set to 5 seconds, the recording ends in 5 seconds after an event.

Event Record Duration

CH Pre Event  POST Event

1 OFF 2 OFF 3 OFF 4 OFF 5 OFF 6 OFF 7 OFF 8 OFF

OK Cancel

1 min



1 min



1 min



1 min



1 min



1 min



1 min



1 min



Previous/Next Page

 USING THE DVR



When the event recording duration setup is done, press <OK>.

REC Quality / Resolution

You can set resolution, IPS, and quality of recordings by channel, and by recording type of standard / event.

Setting Standard Recording Properties

You can set each channel’s resolution, quality and IPS for normal recordings.

Using the mouse may help make setup easier.

Use the up/down buttons () in <Record> window to move to <REC Quality & Resolution>, and press [ENTER] button.

Select <Standard>.

When the recording setup is done, press <OK>.

•

Remaining count : If you change the settings of the resolution and the remaining rate, the frame rate available for each resolution will be recalculated.

REC Quality & Resolution

Standard

Remaining count : 4CIF(L) : 0 2CIF(M) : 0 CIF(S) : 0 CH Resolution  Record Rate  Record Quality

1 CIF(S)  7.5ips  Level4 2 CIF(S)  7.5ips  Level4 3 CIF(S)  7.5ips  Level4 4 CIF(S)  7.5ips  Level4 5 CIF(S)  7.5ips  Level4 6 CIF(S)  7.5ips  Level4 7 CIF(S)  7.5ips  Level4 8 CIF(S)  7.5ips  Level4

Event

OK Cancel

Previous/Next Page



English _53

using the DVR

Setting Event Recording Properties

You can set each channel’s resolution, quality and IPS for event recordings.

Using the mouse may help make setup easier.

Use the up/down buttons () in <Record> window to

move to <REC Quality & Resolution>, and press [ENTER] button.

Select <Event>.

Event recording setup window appears.

Use direction buttons (

item, and select it.

Resolution : Sets the resolution of the recorded screen.

•

If you set the resolution to <4CIF(L)>, up to 4 channels are



supported.

Record Rate : Image Per Second, means the frames recorded per a second.

•

Record Quality : Sets the recording quality.

The remaining rate for each channel displayed in DVR is a sum of frame rates in both standard recording and event



recording.



You cannot increase the remaining count if the current remaining count has reached zero or there is no available remaining count from any other page. If this is the case, reduce the remaining count for the current page, or do so for the same channel on any other page.



Only if the resolution is set to 4CIF, you can select Level 9 for the recording quality.

◄ ►

) to move to a desired

REC Quality & Resolution

Standard

Remaining count : 4CIF(L) : 0 2CIF(M) : 0 CIF(S) : 0 CH Resolution  Record Rate  Record Quality

Event

OK Cancel

Previous/Next Page



When the Event recording setup is done, press <OK>.

Record Option

You can set the recording to stop or overwrite when the HDD is full.

Using the mouse may help make setup easier.

Use the up/down buttons () in <Record> window to move to <Record Option>, and press [ENTER] button.

Use direction buttons (

◄ ►

) to move to a desired

item, and set the value.

Disk End Mode : If selected <Overwrite>, recording will

•

continue despite the HDD full while overwriting the oldest. If selected <Stop>, the recording will stop when the HDD is full.

•

Disk End Beep : If selected <Stop>, the button is activated. If you check it, the beep will sound on the disk full and the recording stops.

Auto Delete : If you check it, Record Period setup is activated.

•

If you specify the auto deletion period, the recording data before the period will be deleted automatically. (This option will be enabled only if Disk End Mode is set to “Overwrite”.)

When the recording option setup is done, press <OK>.

Record Option

Disk End Mode Overwrite

Disk End Beep

Auto Delete

180 day

The recording information will be deleted.

Do you want to proceed?

OK Cancel

54_ using the DVR

SETTING THE EVENT

You can set recording options for sensor, motion, and video loss event.

Sensor Detection

You can set the sensor’s operating condition and connected camera, as well as alarm output and its duration.

Using the mouse may help make setup easier.

Press the [MENU] button on the remote control or front

panel.

Use the left/right button (

◄ ►

) to select <Event>.

Event setting menu is selected.

Use the up/down buttons (



) to move to <Sensor

Detection>, and press [ENTER] button.

A window of sensor detection setup appears.

Use direction buttons (

◄ ►

) to move to a desired

item, and set the value.

•

Sensor Operation : Sets the operation mode of sensors.

- <OFF> : Sensor does not operate.

- <N.O (Normal Open)> : Sensor is opened.

If the sensor is closed, it generates alarm.

- <N.C (Normal Close)> : Sensor is closed.

If the sensor is open by interruption, it generates alarm.

Cam : Select a channel to be connected to the sensor.

•

If selected camera, “Cam Preset setup” window appears. Select a channel and setup the preset.

Preset setup can be done in PTZ mode.



Refer to “Preset Setting”. (page

67)

Sensor Detection Motion Detection Video Loss Detection Alarm Schedule

Sensor Detection

Sensor

Sensor Operation  Cam  Alarm  Duration

1 OFF  1 None 10 sec 2 OFF  2 None 10 sec 3 OFF  3 None 10 sec 4 OFF  4 None 10 sec 5 OFF  5 None 10 sec 6 OFF  6 None 10 sec 7 OFF  7 None 10 sec 8 OFF  8 None 10 sec

OK Cancel

Sensor Detection

Cam Preset setup

Sensor

Sensor Operation  Cam  Alarm  Duration

1 OFF  1 None 10 sec

CH  Preset

2 OFF  2 None 10 sec

1 None

3 OFF  3 None 10 sec

2 None

4 OFF  4 None 10 sec

3 None

5 OFF  5 None 10 sec

4 None

6 OFF  6 None 10 sec

5 None

7 OFF  7 None 10 sec

6 None

8 OFF  8 None 10 sec

7 None 8 None



OK Cancel

Logout

Event

Previous/Next Page

CH  Preset

9 None 10 None 11 None 12 None 13 None 14 None 15 None

Previous/Next Page

16 None

 USING THE DVR

Exit



Alarm : Sets the alarm output method.

•

For further information on alarm output, refer to “HDD Alarm >



Alarm”. (Page

Duration : Sets the duration of alarm signal and alarm

•

47)

sound.

When the sensor detection setup is done, press <OK>.

Sensor Detection

Sensor

Sensor Operation  Cam  Alarm  Duration

1 OFF  1 None 10 sec 2 OFF  2 None 10 sec

Alarm Setup

3 OFF  3 None 10 sec 4 OFF  4 None 10 sec 5 OFF  5 None 10 sec 6 OFF  6 None 10 sec 7 OFF  7 None 10 sec 8 OFF  8 None 10 sec

1 2 3 4 BEEP All

OK Cancel



Previous/Next Page

English _55



using the DVR

Motion Detection

You can set target detection region and motion, as well as the alarm signal output. When the motion detection region is set, it detects motion within the area.

Using the mouse may help make setup easier.

Use the up/down buttons () in <Event> window to

move to <Motion Detection>, and press [ENTER] button. A window of motion detection area setup appears.

Use direction buttons (

◄ ►

) to move to a desired

item, and set the value.

Mode : Sets whether to activate motion detection.

•

Sensitivity : Sets the sensitivity level of the motion detection.

•

Alarm : Sets the alarm output method.

•

For further information on alarm output, refer to “HDD Alarm >



Alarm”. (Page 47)

Alarm Duration : Sets the duration of alarm signal and alarm sound.

•

When the motion detection setup is done, press <OK>.

Setting the Motion Detection Area



Select <Motion Region>.



When “Motion Region” window appears, select a channel for detection and set the area of motion detection.

To set the area in “Motion Region” window

•

In the “Motion Region” window, select desired region from <

To set the area using <Individual> selection

•

In the “Motion Region” window, you can select cells individually by using <Individual>. When selected <Individual>, “Motion Region” window disappears and you can select cells one by one.

When the motion area setup is done, press the <Menu> on the screen or the [MENU] button on the remote control or front panel to display the “Motion Region” window again.

- Select : Selected cell is set to be a part of motion detection area.

- Unselect : Selected cell is removed from the motion detection area.

- Inverse : Unselected cells are set to be the motion detection area.

- Menu : After selecting individual motion areas, move to the “Motion Region” window.

If selected <Apply to All CH>, selected motion area is applied to all channels.





When the motion detection setup is done, press <OK>.

Motion Detection

CH Mode  Sensitivity  Alarm  Alarm Duration

1 OFF  Level10(High)  None 10 sec 2 OFF  Level10(High)  None 10 sec 3 OFF  Level10(High)  None 10 sec 4 OFF  Level10(High)  None 10 sec 5 OFF  Level10(High)  None 10 sec 6 OFF  Level10(High)  None 10 sec 7 OFF  Level10(High)  None 10 sec 8 OFF  Level10(High)  None 10 sec

Motion Region

1 CH

OK Cancel

Individual

OK Cancel

Previous/Next Page

Apply to All CH



Motion Region

Select Unselect Inverse Menu

56_ using the DVR

Video Loss Detection

You can set the alarm to be generated on a camera disconnection, which causes a video loss.

Using the mouse may help make setup easier.

Use the up/down buttons () in <Event> window to

move to <Video Loss Detection>, and press [ENTER] button. A window of video loss detection area setup appears.

Use direction buttons (

◄ ►

) to move to a desired

item, and set the value.

Video Loss State : Sets whether to activate video loss

•

Video Loss Detection

CH Video Loss State  Alarm  Alarm Duration

1 OFF  None 10 sec 2 OFF  None 10 sec 3 OFF  None 10 sec 4 OFF  None 10 sec 5 OFF  None 10 sec 6 OFF  None 10 sec 7 OFF  None 10 sec 8 OFF  None 10 sec

Previous/Next Page

detection. Alarm : Sets the alarm output method.

•

For further information on alarm output, refer to “HDD Alarm >



Alarm”. (Page

Alarm Duration : Sets the duration of alarm signal and alarm sound.

•

When the video loss detection setup is done, press <OK>.

47)

OK Cancel

Alarm Schedule

You can set the conditions and operating hours for scheduled alarms.

Using the mouse may help make setup easier.

Use the up/down buttons () in <Event> window to move to <Alarm Schedule>, and press [ENTER] button.

A window of <Alarm Schedule> settings appears.

•

Alarm : Sets the alarm output method.

For further information on alarm output, refer to “HDD Alarm >



Alarm”. (Page

<ON> : Marked in orange, and always generates alarm on

•

47)

scheduled time. <OFF> : Marked in white, no alarm is generated even if an

•

event occurs. Event Sync : Marked in Blue, generates alarm only when an

•

event occurs. Apply to All Alarm : Applies the conﬁ gured schedule to all

•

alarms.

When the alarm is generated on the scheduled time, you can



stop the alarm by canceling the schedule.

When the Alarm Schedule setup is done, press <OK>.

Alarm Schedule

Alarm1

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

All

Sun Mon Tue Wed Thu Fri Sat Hol

OFF ON Event Sync

OK Cancel

Alarm Schedule

Alarm1

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

All

Sun

Apply to All Alarm

Mon Tue Wed

Apply the alarm scheduling to all?

Thu Fri Sat Hol

OFF ON Event Sync

OK Cancel

Apply to All Alarm



 USING THE DVR

OK Cancel

English _57

using the DVR

BACKUP

You can check the backup device and set the backup schedule by channel or by time. The product only supports external HDD of USB memory/DVD and USB/SATA type. (Page

Setting the Backup

You can backup the desired data to a connected device.

Using the mouse may help make setup easier.

Press the [MENU] button on the remote control or front panel.

Use the left/right button ( Backup menu is selected.

Press the [ENTER] button. A backup window appears. You can directly access it from the “Live screen menu”. (Page

26)

Use direction buttons ( item, and set the value.

•

Backup Range : Sets the <Start> and <End> time for the backup.

•

Channel : Sets the channel to backup. You can select multiple channels.

•

Device : Select a backup device from the recognized devices. If the built-in internal CD/DVD or external USB CD/DVD is used for the backup, you can select the format of recording between AVI and SEC.

•

Type : Sets the backup data format.

- AVI : Saves the CODEC information provided by the DVR with the recording data, and saved data can be played back by using external viewers (such as Windows Media Player) on a PC.

- DVR : Saved data can be played back only by the DVR.

- SEC : Saves data in the Samsung’s proprietary format with built-in viewer, which supports immediate playback on a PC.

Filename : You can set the back ﬁ le name.

•

Refer to “Using Virtual Keyboard”. (Page 36)



Check capacity : Shows the size of the selected backup data, used and available capacity of the selected

•

backup device. Overlap : Shows a list of overlapping data on a same time according to the number of data.

•

It appears when one channel has multiple data on a certain time point due to changing of time or time zone settings, etc.

Refer to time and time zone of “Setting the Date/Time/Language”. (Page 34)



◄ ►

) to select <Backup>.

◄ ►

) to move to a desired

Backup

Start x End

2011-01-01 00:01:06 ~ 2011-01-01 08:25:45

Overlap List0

1 2 3 4 5 6 7 8

ALL

9 10 11 12 13 14 15 16

Device USB-Storage

20110101\

Folder \

Check capacity

98)

OK Cancel

Type AVI

Filename 0001

Logout

Backup

Backup Used Free

Exit

Change

58_ using the DVR

When the backup setup is done, press <OK>.

If no available device is recognized for backup, <OK> button is not activated.



The application may slow down during the backup.

You can switch to the menu screen during the backup in operation, but playback of data is not available.



When a CD/DVD or memory device is used for backup, it is not available to use the full capacity of the media since



the system consumes a part of its capacity.

If a CD or DVD media causes errors, the disc tray opens and closes a several times, and eventually backup process



will fail. In this case, replace the CD/DVD media and try again.

If backup has failed, select “Device > Storage Device” and check the free space of the HDD and check also if the



HDD is properly connected.

Pressing the <Exit> during the backup will return to the previous menu, while the backup progresses.



NETWORK CONFIGURATION

It provides networked monitoring of Live screen from a remote place, and supports mail forwarding function with events. You can conﬁ gure the network environment which enables such functions.

Connection Mode

You can set the network connection route and protocol.

 USING THE DVR

Setting the Connection

Sets the protocol and environment of the network.

Using the mouse may help make setup easier.

Press the [MENU] button on the remote control or front

panel.

◄ ►

Use the left/right button (

Network menu is selected.

Use the up/down buttons () to move to <Connection

Mode>, and press [ENTER] button.

Select <Connection>.

A window of connection mode setup appears.

Use direction buttons (

item, and set the value.

Connection Mode : Sets the network connection mode.

•

Bandwidth : Sets the maximum data ﬂ ow to be transferred.

•

(Upload speed) Options will vary depending on the selected connection mode.

- For <Static IP>, <Dynamic IP> : Select one from 50

kbps ~ 2Mbps, and Unlimited.

- For <ADSL>, select one from 50 kbps ~ 600 kbps.

) to select <Network>.

◄ ►

) to move to a desired

Connection Mode DDNS Live Transfer Mailing Service

Connection Mode

Connection

Connection Mode Static IP

Bandwidth 2Mbps

IP 192.168. 1.200

Gateway 192.168. 1. 1

Subnet Mask 255.255.255. 0

DNS

Protocol

Manual 168.126. 63. 1

OK Cancel

Logout

Exit

Network

English _59

using the DVR

•

IP, Gateway, Subnet Mask, and DNS

- For <Static IP> : You can directly input IP address,

Gateway, Subnet Mask and DNS.

- For <Dynamic IP> : IP address, Gateway, and Subnet

Mask are set automatically.

- For <ADSL> : IP address, Gateway, and Subnet Mask

are set automatically.

User ID, Password : In case you selected ADSL, provide the

•

“User ID” and its “Password”.

DNS server for <Dynamic IP> and <ADSL> can be set by user only if you selected <Manual>.



When the connection setup is done, press <OK>.

Setting the Protocol

Use the up/down buttons () in <Network> window to

move to <Connection Mode>, and press [ENTER] button.

Select <Protocol>.

Use direction buttons (

◄ ►

item, and set the value.

Protocol Type : Select the protocol type between TCP and

•

UDP.

If selected UDP, selections of Port (TCP), Port (UDP), and Unicast/



Multicast are activated.

Port (TCP) : Initially, <554~558> is set. It increases / decreases by 5.

•

- TCP: It has better stability and lower speed when compared to UDP, and recommended for internet environments.

Port (UDP) : Initially, <8000~

•

- UDP : It has less stability and faster speed when compared to TCP, and recommended for local area network (LAN) environments.

•

Unicast/Multicast : Select one between Unicast and Multicast. If selected Multicast, Multicast IP and TTL are activated.

- Unicast : Transfers data (UDP, TCP) individually to each connecting client.

- Multicast : Multiple client can receive the data (only in UDP) without putting additional trafﬁ c load to the network.

•

Multicast IP : User can directly input.

•

TTL : Select from 0 ~ 255. Initial value for the TTL is set to <5>.

•

Webviewer Port : Enter the port number for the Web Viewer. Initially, it is set to <80>.

When the protocol setup is done, press <OK>.

) to move to a desired

8160> is set. It increases / decreases by 160.

Connection Mode

Connection

Connection Mode ADSL

Bandwidth 600kbps

Gateway

Subnet Mask

DNS Manual 168.126. 63. 1

User ID ID

Password

Connection Mode

Connection

Protocol Type TCP

Port(TCP) 554 ~

Port(UDP)

Unicast/Multicast

Multicast IP

TTL

Webviewer Port 80

Protocol

192.168. 1.200

192.168. 1. 1

255.255.255. 0

********

OK Cancel

Protocol

8000 ~ 8160 Unicast

224.126. 63. 1 5

OK Cancel

558

60_ using the DVR

DDNS

You can set the DDNS site for a remote user’s network connection.

Using the mouse may help make setup easier.

Use the up/down buttons () in <Network> window to move to <DDNS>, and press [ENTER] button.

Use virtual keyboard to enter user inputs.

Refer to “Using Virtual Keyboard”. (Page 36)



If selected <OFF> or <Samsung DDNS>, input ﬁ elds are

DDNS

DDNS Site OFF

Host Name

User Name

User Password

********

 USING THE DVR

deactivated.

If you select <Samsung DDNS>, the “DDNS host address”



item will be displayed.

When the DDNS setup is done, press <OK>.

Refer to <DDNS Setting>. (Page 63)



OK Cancel

Connecting and Setting the Network

Networking may differ from the connection method, check your environment before setting the connection mode.

When no router is used

Static IP mode

•

- Internet connection : Static IP ADSL, leased line, and LAN environments allows connection between the DVR and remote user.

- DVR Network Settings : Set the <Connection Mode> in <Connection> menu of the connected DVR to <Static IP>.

Consult your network manager for IP, Gateway and Subnet Mask.



Connection Mode

Connection

Connection Mode Static IP

Bandwidth 2Mbps

IP 192.168. 1.200

Gateway 192.168. 1. 1

Subnet Mask 255.255.255. 0

DNS

Protocol

Manual 168.126. 63. 1

OK Cancel

Dynamic IP (DHCP) mode

•

- Internet connection : Connect the DVR directly to a cable modem, DHCP ADSL modem or FTTH network.

- DVR Network Settings : Set the <Connection Mode> in <Connection> menu of the connected DVR to <Dynamic IP>.

ADSL (PPPoE: ID and password certiﬁ cation)

•

- Internet connection : An ADSL modem is directly connected to the DVR, where the ADSL connection requires user ID and password.

- DVR Network Settings : Set the <Connection Mode> in <Connection> menu of the connected DVR to <ADSL>.

ADSL <User ID> and <Password> should be the same to the



ADSL user information. If you don’t know the ID and password, consult your ADSL service provider.

Connection Mode

Connection

Connection Mode ADSL

Bandwidth 600kbps

Gateway

Subnet Mask

DNS Manual 168.126. 63. 1

User ID ID

Password

Protocol

192.168. 1.200

192.168. 1. 1

255.255.255. 0

********

OK Cancel

English _61

using the DVR

When a router is used

To avoid IP address conﬂ ict with the DVR's static IP, check followings :



Setting the DVR with a static IP

•

- Internet connection : You can connect the DVR to a router which is connected to an ADSL/Cable modem or a router in a Local Area Network (LAN) environment.

Setting the DVR Network

•

Set the <Connection Mode> in <Connection> menu of the connected DVR to <Static IP>.

Check whether the set IP address is in the static IP range provided by the Broadband Router.

IP, Gateway, and Subnet Mask : Consult your network manager.

Check whether the set IP address is in the static IP range provided by the Broadband Router.



If a DHCP server is conﬁ gured with starting address (192.168.0.100) and end address (192.168.0.200), you should



•

- Once connected to the Broadband Router, it prompts with password. While entering nothing to the User

- Access the router’s DHCP conﬁ guration menu and set its DHCP server activation, and provide the start and

set the IP address out of the conﬁ gured DHCP range (192.168.0.2 ~ 192.168.0.99 and 192.168.0.201 ~

192.168.0.254).

Check the Gateway address and subnet mask are equal to those set in the Broadband Router.

Setting the DHCP IP Address of the Broadband Router

To access the Broadband Router’s conﬁ gurations, open a web browser on the local PC that is connected to the Broadband Router and enter the router’s address (ex : http://192.168.1.1).

At this stage, make the local PC's windows network conﬁ gurations to the below example : Ex) IP : 192.168.1.2

Subnet Mask : 255.255.255.0 Gateway : 192.168.1.1

Name ﬁ eld, enter “admin” into the password ﬁ eld and press <OK> to access the router conﬁ gurations.

end address. Set the start address (192.168.0.100) and end address (192.168.0.200).

Above steps may differ from the router devices depending on the manufacturer.



Setting Router’s Port Forwarding

•

Set the protocol to <TCP>.

External Port Range : Enter the TCP Port set in the

<Port(TCP)> in <Protocol> menu of the connected DVR. If more than one DVRs are connected to the router, the TCP port can be different.

Internal PC IP Address : Enter the IP address set to the

<IP> in <Connection> menu of the connected DVR.

Internal Port Range : Set the same to the “External Port

Range”.

Port forwarding is required when you want to access the DVR connected to the router from outside of the router’s

Above steps may differ from the router devices depending on the manufacturer.



network.

62_ using the DVR

Connection Mode

Connection

Protocol Type TCP

Port(TCP) 554 ~

Port(UDP)

Unicast/Multicast

Multicast IP

TTL

Webviewer Port 80

Protocol

8000 ~ 8160 Unicast

224.126. 63. 1 5

OK Cancel

558

DDNS Setting

DDNS is a short form of Dynamic Domain Naming System. DNS (Domain Name System) is a service that routes a domain name consisting of user friendly characters (ex : www.google.com) to an IP address consisting of numbers (64.233.189.104). DDNS (Dynamic DNS) is a service that registers a domain name and the ﬂ oating IP address with the DDNS server so that the domain name can be routed to the IP address even if the IP is changed in a dynamic IP system.

Setting DDNS in the DVR

•

Set <Protocol Type> in the <Protocol> menu of the connected DVR to the following :

Ex) Protocol Type : TCP

Port (TCP) : 0554, 0555, 0556, 0557, 0558 DDNS Site : Samsung DDNS

DDNS Settings of the Router

•

Select the corresponding menu for the network transfer protocol of the router.

Live Transfer

Sets the quality of the image that is transferred from the DVR to the network.

Using the mouse may help make setup easier.

In the <Network> setting window, press the up/down (



) button to move to <Live Transfer> and press the

[ENTER] button. The Live Transfer window appears.

Use the direction buttons (

◄ ►

) to move to a desired

item and set the value.

When the live transfer is done, press <OK>.

The resolution for real-time (live) transfer will be set to CIF(S).



(Page 54)

Live Transfer

Resolution

Quality Low

CIF(S)

OK Cancel

 USING THE DVR

English _63

using the DVR

Mailing Service

You can send an e-mail to a DVR-registered user at a speciﬁ c time interval, or if an event occurs.

If an event occurs with a channel where the camera’s video is set to <OFF> or the remaining recording count is set



SMTP Setting

Sets the SMTP mail server.

Using the mouse may help make setup easier.

•

to <OFF>, only the text notiﬁ cation will be sent to the applicable email address.

In the <Network> setting window, press the up/down



) button to move to <Mailing Service> and press the

( [ENTER] button.

Select <SMTP>. You will see the SMTP setting window.

Use direction buttons (

◄ ►

) to move to a desired item

and set the value.

ServerType : Displays the connected server type. Server : Enter a server to connect to.

Mailing Service

SMTP

ServerType SMTP mail Server

Server

Port 25

User

Password

Secure Transfer Never

Sender ex. user@example.net

TEST

Event

Use Authentication

********

OK Cancel

Port : Sets the communication port. Use Authentication : Check this if the SMTP server uses user authentication.

The account input box will be activated. User : Enter a user to use authentication when connecting to the SMTP server. Password : Enter the password of the SMTP server user. Secure Transfer : Select one from <Never> and <TLS (if available)>. Sender : Use the virtual keyboard to enter the sender’s e-mail address.

Refer to “Using Virtual Keyboard”. (Page 36)



TEST : Conducts the test on the server settings.

When the SMTP setting is done, press <OK>.

Group Recipient

Event Setting

You can set the interval and type of the event that will be sent to the user.

Using the mouse may help make setup easier.

In the <Network> setting window, press the up/down

() button to move to <Mailing Service> and press the [ENTER] button.

Select <Event>.

Use direction buttons (

◄ ►

) to move to a desired item

and set the value.

Event Interval : Set the event interval.

•

If a series of events occurs, the e-mail will be sent at the speciﬁ ed



interval, not on each event.

Use Event Transfer : Select an event type to send if an event occurs.

•

If the selected event occurs, the e-mail will be sent to the group that has the recipient authority.

When the event setting is done, press <OK>.

64_ using the DVR

Mailing Service

SMTP

Event Interval 10 min

Use Event Transfer

Event

Sensor Motion

Change P/W HDD Info V ideo Loss Power On/Off Manual Record

OK Cancel

Group

Recipient

Group Setting

You can set the group to whom the e-mail is sent, and specify the permission for each group. You can add recipients for each group in the <Recipient> menu item. The recipient is set separately from the DVR user group.

Using the mouse may help make setup easier.

In the <Network> setting window, press the up/down



) button to move to <Mailing Service> and press the

( [ENTER] button.

Select <Group>.

Use direction buttons (

◄ ►

) to move to a desired item

Mailing Service

SMTP

Group

Recipient Permission

Event

Sensor Motion

Change P/W HDD Info V ideo Loss Power On/Off Manual Record

Group

Add Delete Rename

and set the value.

Add : Select <Add> and use the virtual keyboard to add a

•

group.

Refer to “Using Virtual Keyboard”. (Page 36)



Delete : Deletes the selected group.

•

Rename : You can reset the recipient permission of an existing group.

•

Recipient Permission : Set the permission of the recipient group.

•

When the group setting is done, press <OK>.

OK Cancel

Recipient Setting

You can add/remove a recipient(s) to/from the speciﬁ ed group and edit the group if necessary.

Using the mouse may help make setup easier.

In the <Network> setting window, press the up/down (



) button to move to <Mailing Service> and press the

[ENTER] button.

Select <Recipient>.

Use direction buttons (

◄ ►

) to move to a desired item

and set the value.

Mailing Service

SMTP

Group All Group

Group Name e-Mail Address Delete

Event Group

Recipient

 USING THE DVR

Recipient

Add

•

Add : You can select a recipient name, e-mail address or group. You should have created a group in the <Group> menu item before you can add a user to the group.

For inputting the recipient name and email address, refer to



“Using Virtual Keyboard”. (Page 36)

When the recipient setting is done, press <OK>.

Previous/Next Page

OK Cancel

Mailing Service

SMTP

Group ABC

Group Name e-Mail Address Delete

Event Group

Add recipient

Name

Select Group ABC

OK Cancel

Recipient

Previous/Next Page

English _65

Add

using the DVR

CONTROLLING A PTZ DEVICE

The DVR enables you to adjust the settings of a PTZ camera as well as an ordinary one to your preference.

PTZ Device

The PTZ device can be activated only if a channel in connection with the PTZ camera is selected.

Getting started with PTZ

The PTZ camera is available, only if a channel is selected, in the following way :

Using the button on the remote control or the front panel



Select the [PTZ] button on the remote control or the front panel.



Using the launcher menu

PTZ

Click PTZ <



Using the right-click menu in Live mode Right-click any area on the screen to display the context menu, and select <PTZ Control>.



Using icons on the live screen Click the PTZ <

> to display the live launcher.

> icon on the live screen.

2011-01-01 01:10:25

Scene Mode Spot Out

PTZ Control

ZOOM Audio Freeze Stop Alarm Record Play Search Backup Main Menu Shutdown Hide Launcher Logout



PTZ Alarm Freeze



The PTZ function is available only if the PTZ camera is connected so that the PTZ icon is displayed on the screen.

Using the PTZ camera

You can use one camera to perform all functions of PAN, TILT and ZOOM for monitoring multiple places and set the preset to your preference in a desired mode.

Launch the <PTZ Control> menu.

As the PTZ <

> icon on the bottom right corner turns

yellow, you access the “PTZ Control” mode to display the “PTZ Control” menu.

operation, since the PTZ Working(Active) mark can be

PTZ Control CAM01

Be sure to conﬁ gure PTZ working environments before



appeared to be activated even when PTZ is not operative.

Use direction keys in the launcher menu or use direction

buttons (

◄ ►

) on the remote control or the front panel

to move the target area to record.

PTZ Wheel : Clicking a nearer point to the center will move in that direction slowly; clicking a farther point

•

from the center will move fast.

Keep clicking left to rotate the lens counter clockwise; keep clicking right to rotate the lens clockwise.



2011-01-01 01:10:25

Auto Pan

Select

Scan

Select

Pattern

Select

Preset

Select

Exit

Camera Setup

Select Preset

Save Rename

Delete Delete All

Zoom : You can use the Zoom function of the PTZ camera.

•

IRIS : Adjusts the intensity of radiation incoming to the iris.

•

66_ using the DVR

Focus : Enables you to adjust the focus manually.

SAMSUNG PROTOCOL

ADDR 0 TYPE RS-485,HALF BAUD 9600 LENS OK! TILT OK! PAN OK!

MAIN MENU

... VIDEO SET... PRESET... ZONE SET... AUTO SET... ALARM SET... OTHER SET... CLOCK SET... SYSTEM INFO...

•

Auto Pan : The camera automatically runs between the two points that you selected.

•

Scan : The camera moves to the preset points in the speciﬁ ed sequence.

•

If multiple presets are speciﬁ ed, the PTZ camera will automatically move to all of the preset points one at a time.

Pattern : Makes the PTZ camera remember and follow the past route.

•

The functions of Auto Pan, Scan and Pattern are supported in the protocols of Samsung, Panasonic and Pelco, and are



different in terms of the name and setting, depending on the protocols of Samsung, Panasonic and Pelco. (Panasonic : Auto Pan, Sequence, Sort / Pelco : Auto Pan, Frame Scan(Scan), Pattern)

(Page

45)

Before entering the PTZ device control mode, set the values of the PTZ device in the <Setting the PTZ> menu.



Preset Setting

A preset is a set of speciﬁ c target points of a PTZ camera, and up to 20 presets per a camera can be stored.

Using the mouse may help make setup easier.

In PTZ Control mode, use the direction buttons to adjust the camera in a desired direction.

Select the <Save> key.

The virtual keyboard for inputting the preset will appear.

Refer to “Using Virtual Keyboard”. (Page 36)



Save : You can add and save the preset.

•

Rename : You can change the settings of the existing presets.

•

Delete : Deletes the selected preset.

•

Delete All : Deletes all existing presets.

•

 USING THE DVR

accordingly.

Press <OK>.

If you replace the camera of the channel that stores the preset list with a new one, you should reset the preset



The preset will be saved as a name that you entered.

Camera Setting

A PTZ camera has its own menu system. Optimize the PTZ camera according to the DVR.

Using the mouse may help make setup easier.

Connect the PTZ camera to the DVR and run the PTZ

camera again to display the camera’s protocol setting window.

Check the protocol ID of the camera.

In “Device > Setting the PTZ”, enter the PTZ camera ID in the



ID input box of the channel that is connected to the PTZ camera. (Page

45)

Select <Camera Setup> in the PTZ Control menu.

The camera-speciﬁ c menu appears.

You can conﬁ gure the settings of only those cameras that support



the protocols of Samsung, Pelco D/P, AD and Panasonic.

If you are setting Auto Pan or Pattern in the camera menu, press



and hold the appropriate button for a certain time so that the button operation can be different from that in normal PTZ setting.

2011-01-01 01:10:25

SAMSUNG PROTOCOL

ADDR 0 TYPE RS-485,HALF BAUD 9600 LENS OK! TILT OK! PAN OK!

2011-01-01 01:10:25

MAIN MENU

Camera Setup



Exit

CAMERA SET

VIDEO SET... PRESET... ZONE SET... AUTO SET... ALARM SET... OTHER SET... CLOCK SET... SYSTEM INFO...

...

English _67

search & play

You can perform the search for recorded data by the time or by the search criteria such as an event. You can access the <Search> menu directly in Live mode.

In Live mode, right-click any area of the screen. The Live menu appears.

Select <Search>. Or, press the [SEARCH] button on the remote control or the front panel.

The Search menu appears.

If you have not checked “POS USE” in the “Main Menu >



Device > POS Device” menu, the Search menu does not include the “POS Search” item. (Page

The search can be restricted by the Auto Delete function.

48)

Refer to “Setting the Recording > Record Option”. (Page

54)

Overlapped data : It only appears if there exists overlapped



data on a certain time, produced due to the change of DVR’s time setup. The latest data comes ﬁ rst, from <List0>. It does not appear in <Backup Search>.

2011-01-01 01:10:25

Time Search Event Search Backup Search POS Search Motion Search

Return

Scene Mode Spot Out ZOOM Audio Off Freeze Stop Alarm Record Play

Backup Main Menu Shutdown Hide Launcher Logout



Time Search

You can search for recorded data of a desired time. As the time to display may be different depending on the time zone and the DST standard time, the time of data recorded in the same time can be displayed differently depending on time zone and DST settings.

Using the mouse may help make setup easier.

Select <Time Search> in the <Search> menu.

Select a date to search.

Refer to “Using the Calendar”. (Page 35)



The record data on the speciﬁ c date will be listed.

The display bar is different according to the data type. So check the data type for the color in the left pane.

Use direction buttons (

◄ ►

) to set the search criteria

and press the [ENTER] button.

Go to First : Moves to the earliest date.

•

Go to Last : Moves to the most recent date.

•

Time : Enter a time to perform the search or use the up/down button <

•

Previous/Next Page : Moves to the previous / next page. (Use the remote control or the buttons on the front panel.)

68_ search & play

Time Search

2011-01-01

2011

/01/01 00:01:17

Standard Schedule Motion Sensor V.Loss Etc

> to select one.

Go to First Go to Last

Overlapped Data List1

00:01

All Data

CAM 01 CAM 02 CAM 03 CAM 04 CAM 05 CAM 06 CAM 07

Play Return

Zoom In Zoom Out

Previous/Next Page

Zoom In : The map enlarges in detail.

•

It will switch in the sequence of 24 hours - 16 hours - 8 hour

- 4 hours. Zoom Out : The map will switch in the reverse order of the

•

detailed mode above. It will switch in the sequence of 4 hours - 8 hour - 16 hours 24 hours.

Double-click a desired time to zoom it in/out.



Preview : Click <Channel> and select (click, drag) a time in

•

Time Search

2011-01-01

2011

/01/01 00:01:17

Standard Schedule Motion Sensor V.Loss Etc

Go to First

Overlapped Data List1

00:01

All Data

CAM 01 CAM 02 CAM 03 CAM 04 CAM 05 CAM 06 CAM 07

Play Return

<Duration> to display a still image for the portion.

- If the selected channel does not contain any recorded data, it will be marked black.

Select a data item and click <Play>.

The screen switches to the data playback mode.

Event Search

You can search for events by the channel and play them.

Using the mouse may help make setup easier.

Select <Event Search> in the <Search> menu.

Use direction buttons (

◄ ►

) to set the search criteria

and press the [ENTER] button.

All record events on a speciﬁ c date will be found. (Normal/



Schedule recording included)

Date/Time Preview : If you select a data item in the list, the

•

still image of the selected data will be displayed in the left preview pane.

Event : Displays the type of the event that occurred.

•

Select a data item and click <Play>.

The screen switches to the event data playback mode.

Event Search

CAM 01 2011-01-01

Overlapped Data List1

2011/01/01 00:01:22

No. Date/Time Preview Event

3 02:47:54 ~ 02:48:59 Motion 2 00:39:06 ~ 00:40:30 Motion 1 00:01:22 ~ 00:02:28 Motion

Play Return

Go to Last

Zoom In Zoom Out

Previous/Next Page

 SEARCH & PLAY

Go to First Go to Last

Previous/Next Page

Backup Search

Searches for backup data in the connected backup device. Only data in the format of DVR is included in the search. Refer to <Type> in “Backup > Setting the Backup”. (Page 58)

Using the mouse may help make setup easier.

Select <Backup Search> in the <Search> menu.

Use direction buttons ( and press the [ENTER] button.

Record Period : Displays the record period.

•

Channel : Displays the recorded channel.

•

Play Start Time : Select a time that you start playing.

•

Select a data item and click <Play>.

The screen switches to the backup data playback mode.

◄ ►

) to set the search criteria

Backup Search

No. Folder Name File Name

1 20110101 16190000

File Name 16190000 x Channel 1

Record Period

Play Start Time

2011-01-01 01:01:01 - 2011-01-01 01:01:10 2011-01-01 16:30:52

USB:USB2FlashStorage

Previous/Next Page

Play Return

English _69

search & play

POS Search

You can search for data in the POS device that is connected to the DVR.

You can use the mouse to select the related items.

Select <POS Search> in the <Search> menu.

Use direction buttons (

◄ ►

and press the [ENTER] button.

You can enter speciﬁ c text to reﬁ ne your search.



Keyword : Use the virtual keyboard to enter a keyword.

•

Search Criteria :

•

- <Case Sensitive> : If selected, search will be performed

case-sensitively.

- <Whole Word> : If selected, only the exact matches with

the keyword will be found.

Preview : Select a data item in the list to display the preview image.

•

Information about the image will be displayed on the bottom of the screen.

•

: You can use these buttons to accelerate your search if you have a huge list of search results.

Select a data item and click <Play>. The screen switches to the POS data playback mode.

) to set the search criteria

POS Search

Date/Time 2011-01-01 01:01:01 2011-01-01 03:41:18 Keyword Case Sensitive Whole Word

Overlapped Data List1

2011/01/01 03:41:15

CHANGE

5.95

Go to First Go to Last

POS CH Start Date/Time Keyword

1 1 2011-01-01 03:41:15 CHANGE _ 1 1 2011-01-01 03:41:15 CASH _ 1 1 2011-01-01 03:41:10 CASH _

Previous/Next Page

Play Return

Motion Search

If a motion is detected in each channel, you can set a desired area to perform the search.

You can use the mouse to select the related items.

Select <Motion Search> in the <Search> menu.

Use direction buttons (

◄ ►

) to set the search criteria

and press the [ENTER] button.

If you set the motion area to <Manual Area>, the <Setup>



button will be activated.

Motion Region : Select an area to perform the search.

•

- All Area : Searches for all areas of the selected channel.

- Current Area : Searches for the motion area for each

channel speciﬁ ed in “Motion Detection > Setting the Motion Detection Area”. (Page

56)

- Manual Area : You can set the motion area manually.

Setup : The Setup button will be activated only if you have

•

set the motion area to Manual. Press this button to display the area setting window.

Date/Time : The Date/Time will be automatically set by the

•

hour, and the end time will be automatically set to one hour later than the start time if it is set.

Preview : Select a data item in the list to display the still

•

image of the item.

Motion Search

Channel CAM 01 Motion Region All Area Date/Time 2011-01-01 03:41:18 2011-01-01 05:11:44

No. Start Time

7 01:01:30 6 01:01:25 5 01:01:20 4 01:01:15

2011

/01/01 01:01:30

3 01:01:10 2 01:01:05 1 01:01:01

Motion Region

1 CH

Play Return

Individual

OK Cancel

Go to First Go to LastOverlapped Data List1

Apply to All CH

Setup

Previous/Next Page

Select a data item and click <Play>.

The screen switches to the motion data playback mode.

70_ search & play

PLAYBACK

Play

You can play data stored in the HDD and backup a desired portion of the data.

Using the mouse may help make setup easier.

In Live mode, click <Play> in the right-click menu or

> in the launcher menu, or press the Play button on

the remote control or the front panel.



Use the up/down button (

For data search, refer to <Search>. (Page 68)



Select a data item and click <Play> in the Search menu.

The selected data is played and the play launcher appears on the screen.

If there is an existing data, <Play> will start immediately



without performing the search.

Playback Information : Displays the date and time of the

•

current data in the top corner.

) to select a menu.

2011-01-01 01:10:25

Scene Mode Spot Out ZOOM Audio Off Freeze Stop Alarm Record

Play

Search Backup Main Menu Shutdown Hide Launcher Logout



PTZ Alarm Freeze

 SEARCH & PLAY

Backup : Click <

•

> to set the current time to the start time of backup; you can specify a backup area using the mouse (yellow triangle). Click < > again to set the current time to the end time of the backup and the “Backup Range” window appears.

- Type : Supports formats of DVR, AVI and SEC.

Refer to a list of formats in “Setting the Backup”. (Page

58)

- Device : Select a backup device.

- Check Capacity : Enables you to check the capacity of the

selected storage device.

If you want to return to the Live screen in Play mode, click <

] button on the remote control or the front panel.

[



REC

2011-01-01 01:10:25

Backup Range

Start x End

2011-01-01 00:01:06 2011-01-01 08:25:45

Device USB-Storage x Type DVR

20110101\ x Filename 0001

Folder \

Check capacity

Backup Cancel

> in the launcher menu or press the

Backup 0 Used 0 Free 0

Change

English _71

search & play

Using the Playback Button

Part Names Functions

Play Timeline Indicates the current playback point, and can be used to move.

Skip Backward Moves backward by unit time.

REC

Backward Fast Play

Backward Slow Play

Step Backward Moves backward by one frame at a time.



Stop Stops playback and moves to the live screen.

Step Forward Moves forward by one frame at a time.

Forward Slow Play

Forward Fast Play

Skip Forward Moves forward by unit time.

Audio Sets Audio ON/OFF.

Used for quick backward search while in Play.

Used for backward frame-by-frame search while in PAUSE.

Pause

Ensured to play forward up to 4 channels simultaneously at a low speed.

In a split mode, the real time playback may not be supported, depending on the record



quality, resolution and number of channels. And some frame rates may be supported.

Used for quick forward playback.

Return to the previous.

REC Records all channels in Live mode.

Partial Backup

Mode Switch

72_ search & play

Begins backup of the selected section of the video being played, with the speciﬁ ed starting/ ending point.

Click a desired playback mode or press [MODE] to switch the screen mode in sequence.

The grey area in the center of the 13-split mode plays the Live channel.



The default channel of the Live mode is CH1, which can be changed later.

web viewer

INTRODUCING WEB VIEWER

What is Web Viewer?

Web Viewer allows remote access to your DVRs. You have access to live video, archived video, PTZ control (if conﬁ gured), etc.

PRODUCT FEATURES

•

Remote access from a standard browser

•

Supports PTZ camera controls

•

Supports 1, 4, 8, 16 camera viewing formats (maximum of 16 cameras in the list).

•

Gets JPEG format images to print and save to “Print or Save JPEG format images”.

•

Record video in AVI format-compatible with popular media players. (needed the Xvid codec)

SYSTEM REQUIREMENTS

The following lists the minimum suggested hardware and operating system requirements needed to run the Web Viewer.

Windows XP Professional

Web Browser Internet Explorer 6.0.2900.2180 or higher

CPU Intel Pentium 4.2 GHz

Windows 2000 Windows Vista Home Basic /Premium Windows 7

 WEB VIEWER

Memory 512 MB

Monitor High Color 16-bit 1024 x 768

50 MB(Installation space required)

HDD

* Additional HDD space required for recording.

Recorded ﬁ le size will vary depending on recording quality settings.

English _73

web viewer

CONNECTING WEB VIEWER

Open your web browser and type the IP address or URL

of DVR into the URL address box.

The basic URL of the DVR is as following in case of MAC

address :

00-00-F0-ab-cd-ef : nabcdef.websamsung.net



00-16-6c-ab-cd-ef : mabcdef.websamsung.net



00-68-36-ab-cd-ef : pabcdef.websamsung.net



00-09-18-ab-cd-ef : iabcdef.websamsung.net



You can also use registered URL which setups up in the Setup menu of your DVR.



Set the Admin ID and password same to those of the DVR

Admin. For general users, enter the DVR user ID and password.

It allows up to 10 simultaneous access including the Admin



and general users.

It does not allow multiple login of the Admin user.



Initial password of the Admin user is set to “4321”.



Password of the Admin and general users can be changed in <Permission Management> menu of the DVR.



Normal users should have set <Viewer> under <Permission Management> to “Use” before connecting to the



Web Viewer. (Page

All settings are applied by the DVR’s settings.



39)

Click <Install ActiveX Control…>.

Downloading Active-X control may take several minutes according to the security settings on your PC.

Click <Install>.

You may have “Windows Security Alert” that attempts to

block this with the Windows Firewall. In that case, click <Unblock> to start Web Viewer.

Installation is complete.

Now you can see the main screen of Live Viewer.

74_ web viewer

USING LIVE VIEWER

 WEB VIEWER

The Live Viewer screen consists of following :

This displays the IP address and the model name of the connected DVR.

These menus consist of <LIVE>, <SEARCH>, <SETUP>, <ABOUT>.

These buttons are used for the screen split and full screen mode.

Shows the IP address and model name of the connected DVR.

Select <DVR Time> or <PC Time> for the OSD time information display setting of the Live Viewer.

These buttons are used for sequence and changing the screen channel.

These buttons are used for capture, print, and save the image.

Shows the channel of the connected DVR.

These buttons are used for PTZ related functions.

This displays the screen for connected camera with DVR.

The resolution is set to 1024X768 pixels.



The initial split-screen mode is set according to the number of channels connected to DVR. You can change the



split-screen mode by clicking buttons for split-screen modes.

English _75

web viewer

OSD INFORMATION DISPLAY

The channel number, video size, and IP address of the connected

DVR are displayed.

The current date and time will be displayed according to the

selected time information display setting <DVR Time> or <PC Time>.

Alarm icon appears when alarm is issued.

It disappears when pressed the [ALARM] button of the DVR.

Motion icon appears when motion is detected.

It disappears when pressed the [ALARM] button of the DVR.

It displays whether the PTZ controls are active.

If you have set PTZ cameras for the DVR, “PTZ” is displayed on the



SPLIT-SCREEN

You can change the split mode by clicking each number icon.

screen. Select a PTZ camera channel and use the [PTZ] button for camera control.

SINGLE MODE QUAD MODE NINE MODE SIXTEEN MODE

•

Click < The screen displays the selected camera connected to the DVR in “SINGLE MODE”.

Click <

•

The screen displays the selected camera connected to the DVR in “QUAD MODE”.

Click <

•

The screen displays the selected camera connected to the DVR in “NINE MODE”.

Click <

•

The screen displays the selected camera connected to the DVR in “SIXTEEN MODE”.

Click <

•

The screen displays the selected camera connected to the DVR in “FULL SCREEN MODE”. Double clicking on the screen or pressing any button of the keyboard returns to the previous mode.

> button.

76_ web viewer

CONNECTED DVR

This displays the IP address and the status of the connecting DVR.

Connection failure message



No Response : Appears when the DVR does not respond. Access Denied : Appears when the maximum number of users is exceeded.



The number of simultaneous connections are limited to 10.

Setting the display of the OSD time information

Select <DVR Time> or <PC Time> for the OSD time information display setting.

DVR Time : Based on the time of the connected DVR

•

PC Time : Based on the time of the PC currently running the Web Viewer.

•

 WEB VIEWER

CHANGING THE LIVE SCREEN MODE

16-split mode does not support “SEQUENCE”, “PREVIOUS” and “NEXT”.



SEQUENCE : When this button is clicked, screens are switched at a

•

preset interval.

In SINGLE MODE, the channel numbers are sequentially switched from

1 to 16.

In QUAD MODE, the screens are changed like 1st 4 channels (1~4)

 2nd 4 channels (5~8)  3rd 4 channels (9~12)  4th 4 channels

(13~16).

In NINE MODE, the screens are changed from 9 channels (1~9) to 7

channels (10~16).

In SIXTEEN MODE, the screen refreshes at the preset interval.

Preset interval (10 seconds)



PREVIOUS : When this button is clicked, the previous screen appears.

•

In SINGLE MODE, the channel numbers are switched in reverse order.

In QUAD MODE, the screens are changed like 1st 4 channels (1~4) 

2nd 4 channels (13~16)  3rd 4 channels (9~12)  4th 4 channels (5~8).

In NINE MODE, the screens are changed from 9 channels (1~9) to

7 channels (10~16).

In SIXTEEN MODE, the screen is refreshed.

English _77

web viewer

NEXT : When this button is clicked, the next screen appears.

•

In SINGLE MODE, the channel numbers are sequentially switched from 1 to 16. In QUAD MODE, the screens are changed like 1st 4 channels (1~4)  2nd 4 channels (5~8)  3rd 4 channels (9~12)  4th 4 channels (13~16). In NINE MODE, the screens are changed from 9 channels (1~9) to 7 channels (10~16). In SIXTEEN MODE, the screen is refreshed.

If 16-channel DVR is connected, clicking “NEXT” in QUAD MODE is to change the screen as shown in the picture.



(CH1 to CH4)



(CH5 to CH8) (CH9 to CH12) (CH13 to CH16)



16-channel DVR

SAVING THE LIVE SCREEN ON THE PC

CAPTURE : Saves the current screen into a BMP or JPEG

•

ﬁ le.

The default saving path is “C:\Program Files\Samsung\Dvr



•

Web Viewer\SnapShot\Live”. To change the saving path, click <SAVE PATH ( )> button and then select the path you want. For Windows Vista or 7, the saving path is “C:\ users\(user ID)\AppData\LocalLow\Samsung\DVR Web Viewer\Snapshot\” by default, which cannot be modiﬁ ed.



The ﬁ le is automatically named as following : “IP address_Port number_YYYYMMDD_camera number_index” Ex) 192.168.1.200_554_20

PRINT : Prints out the selected screen out of the currently displayed live screens. It also prints the IP address, time, camera number and the current event status together.

110101_134132_01_00

78_ web viewer

RECORD : Saves the current image on the screen and

•

saves it as a avi video ﬁ le.

To record it, it is required at least 1GB of available space.



The default saving path is “C:\Program Files\Samsung\Dvr Web Viewer\VideoClip\Live”. To change the saving path, click <SAVE PATH ( want. For Windows Vista or 7, the saving path is “C:\ users\(user ID)\AppData\Local-Low\Samsung\DVR Web Viewer\VideoClip\” and it cannot be modiﬁ ed.

The ﬁ le is automatically named as following : “IP address_Port number_YYYYMMDD_camera number_index”



Ex) 192.168.1.200_554_20



For AVI Save, you need the Xvid codec for playing saved ﬁ les. HDD Minimum Free Size : During the recording, if there is no more capacity available in the HDD than set free space



will prompt with a popup message : “Cannot record due to insufﬁ cient disc space in the HDD”.

)> button and then select the path you

110101_135105_01_00

CHANGING THE LIVE SCREEN CHANNEL

Blue numbers : The channel connected to the current live

•

screen

Gray numbers : The channel not connected to the current

•

live screen

 WEB VIEWER

USING PTZ CAMERA

Click the direction buttons to control the camera.

•

You can zoom in or out an image by using the ZOOM button.

•

You can adjust the entering light amount by using the IRIS button.

•

You can adjust the focus by using the FOCUS button.

English _79

web viewer

•

MENU : Appears the camera menu screen.

•

PRESET : Moves the lens direction to a preset direction.

If you click a preset, the camera moves to the selected preset's position.

You can delete the selected preset or all presets.

You can save a new preset number and name.

You can save presets up to 20.



AUTOPAN : Moves the camera lens direction between

•

2 points set for the camera.

SCAN : Moves the camera lens direction between 2 preset

•

points of the camera.

PATTERN : You can set camera various movement

•

patterns such as zoom, move, etc. so that a camera automatically moves according to the pattern.

control the camera. Camera menu setup is only available for camera supporting



the function.



Each function of PTZ is same to that of the DVR. Pan/Tilt of the Smart dome camera is manipulated



automatically to center the camera to the mouse clicked point.



If you drag the mouse using the left button on a certain point, Pan/Tilt of the Smart dome camera is manipulated automatically to center the camera to the middle point between the dragging start and end position. Upward dragging will zoom out, while downward dragging will zoom in.

Tilt of Power PTZ operates properly within 45°.



Power and Pan Tilt functions are only available for camera supporting the functions.



Ex : Samsung SCC-C6475

While the DVR controls a PTZ camera, Web Viewer cannot



80_ web viewer

USING SEARCH VIEWER

 WEB VIEWER

The Search Viewer screen consists of following :

This displays the IP address and the model name of the connected DVR.

These menus consist of <LIVE>, <SEARCH>, <SETUP>, <ABOUT>.

These buttons are used for the screen split and full screen mode.

Shows the IP address and model name of the connected DVR.

These buttons are used for capture, print, and save the image.

This displays a calendar at which you can search the recorded video.

This displays a timeline at which you can search the recorded video by the time.

These buttons are used for controlling playback.

This displays the screen for playback of recorded video.

<SEQUENCE>, <PREVIOUS>, <NEXT> buttons are not available in SEARCH menu.



English _81

web viewer

SPLIT-SCREEN

You can change the split mode by clicking each number icon.

SINGLE MODE QUAD MODE

•

Click < The screen displays the selected camera connected to the DVR in “SINGLE MODE”.

•

Click < The screen displays the selected camera connected to the DVR in “QUAD MODE”.

> button.

Only SINGLE and QUAD MODE are available in SEARCH menu.



If 16 channel DVR is connected, you can select a mode from SINGLE to



SIXTEEN MODE.

CONNECTED DVR

This displays the IP address and the status of the connecting DVR.

Connection failure message



No Response : Appears when the DVR does not respond. Access Denied : Appears when the maximum number of users is exceeded.

The number of simultaneous connection is limited to 3.



82_ web viewer

SAVING THE LIVE SCREEN ON THE PC

•

CAPTURE : Saves the current screen into a BMP or JPEG ﬁ le.

The default saving path is “C:\Program Files\Samsung\Dvr



•

Web Viewer\SnapShot\Search”. To change the saving path, click <SAVE PATH ( you want. For Windows Vista or 7, the saving path is “C:\ users\(user ID)\AppData\LocalLow\Samsung\DVR Web Viewer\Snapshot\”and it cannot be modiﬁ ed.

The ﬁ le is automatically named as following : “IP address_Port number_YYYYMMDD_camera number_index”



Ex) 192.168.1.200_554_20

PRINT : Print out the current screen. It also prints IP address, time, camera number and current event state.

)> button and then select the path

110101_134132_01_00

 WEB VIEWER

RECORD : While in playback, press this button saves the

•

video data of the selected channel as an AVI ﬁ le. (It is saved in the designated folder on your PC.) To stop recording, click this button again.

To record it, it is required at least 1GB of available space.



The default saving path is “C:\Program Files\Samsung\Dvr Web Viewer\VideoClip\Search”. To change the saving path, click <SAVE PATH ( “C:\users\(user ID)\AppData\LocalLow\Samsung\DVR Web Viewer\VideoClip\” and it cannot be modiﬁ ed.

The ﬁ le is automatically named as following : “IP address_Port number_YYYYMMDD_camera number_index”



Ex) 192.168.1.200_554_20 For AVI save, you need the Xvid codec for playing saved ﬁ les.



)> button and then select the path you want. For Windows Vista or 7, the saving path is

110101_135105_01_00

English _83

web viewer

SEARCHING THE RECORDED VIDEO IN THE CALENDAR

If the video data has been recorded on a date, the date is distinguished in green. If you click the date, the recorded video information is displayed in the time line. When you click <Today>, it will be synchronized with the system time (date) of the current PC.

SEARCHING THE RECORDED VIDEO IN THE TIMELINE

It displays the recorded video data status on the DVR after a date is selected. The normal mode displays the time ranging from 0 to 24 Hours while the extension mode displays the time every 2 hours.

[Normal Mode]

If you click <

•

Each time line represents 1 hour.

> button, it changes to the extension mode.

[Extension Mode]

•

If you click < > button, it changes to the normal mode.

•

Each time line represents 5 minutes.

The channels are ranging from CH01 to CH16.



84_ web viewer

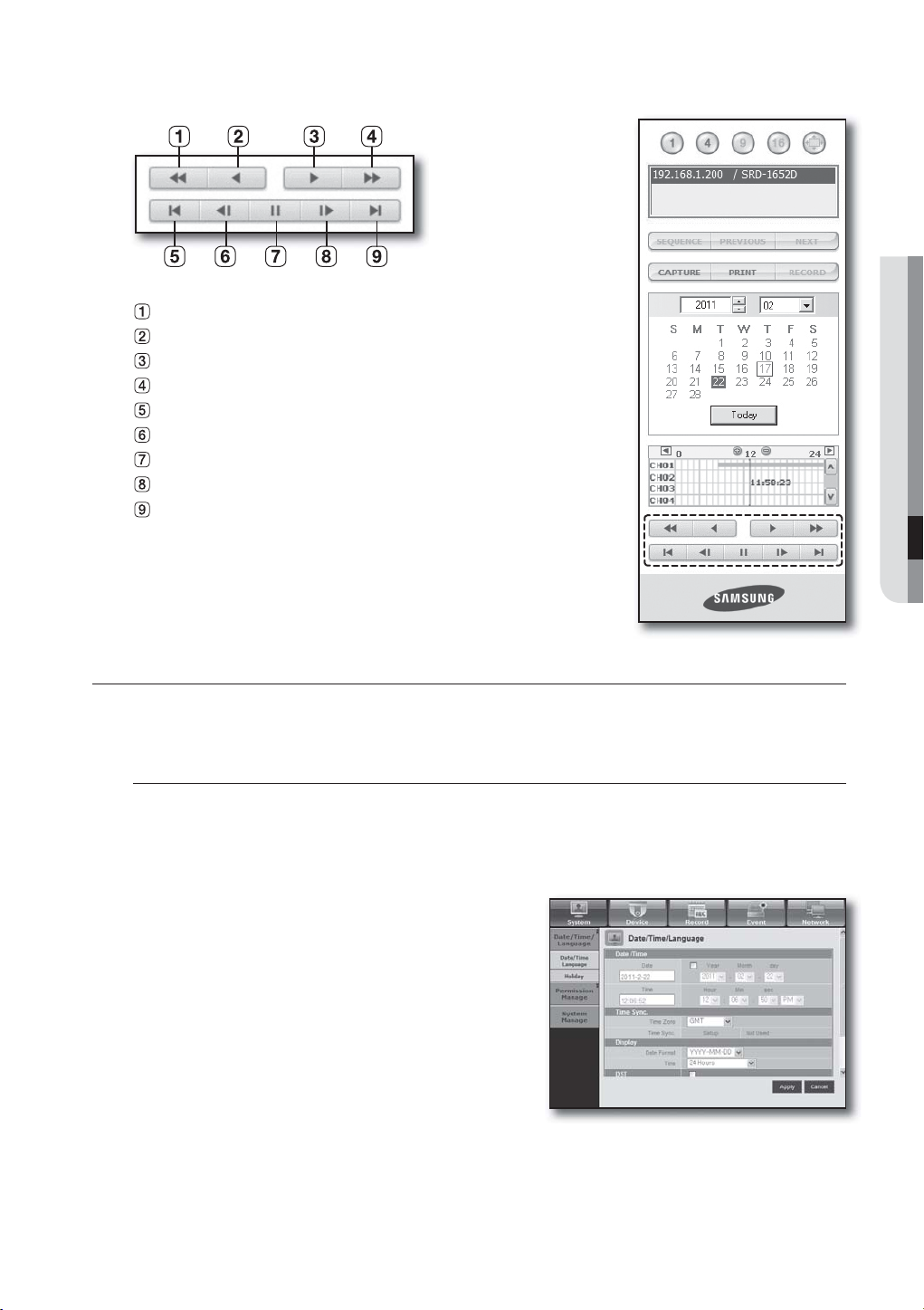

CONTROLLING PLAYBACK

Fast Backward : Reverse-plays faster(2x).

Reverse Play : Performs Reverse Play.

Play : Performs playback.

Fast Forward : Plays faster(2x).

Go to First :

Step Backward : Performs one step reverseplay by one frame.

Pause : Stops the playback temporarily.

Step Forward : Performs one step forward by one frame.

Go to Last : Moves the last time of recorded video in the time line.

Moves the beginning time of recorded video in the time line.

 WEB VIEWER

VIEWER SETUP

You can conﬁ gure the DVR settings remotely on the network.

To conﬁ gure the DVR settings, click <Setup>.

System

You can conﬁ gure the various settings of the DVR system.

Date/Time/Language

For more information, refer to <Date/Time/Language> in the <System Setup> menu. (Page 34)

Select <Date/Time/Language> in the System menu.

Conﬁ gure the DVR settings according to your system environment.

•

Date/Time

Set the date and time.

English _85

web viewer

•

Time Synchronization Setup

Set the time synchronization.

•

Display

Date Format : Set the date type.

Time : Select a time format to display on the screen.

•

DST (Daylight Saving Time)

DST is displayed an hour ahead of the standard time of the time zone.

•

Language

Select a preferred language for the DVR.

Holiday

You can set speciﬁ c dates to Holidays according to your preferences. For more information, refer to <Setting Holiday> in the <System Setup> menu. (Page

35)

Permission Management

For more information, refer to <Permission Management> in the <System Setup> menu. (Page 36)

•

Admin

You can change the admin ID or the password.

86_ web viewer

Group

•

Users are classiﬁ ed into groups and the permission can be set according to the group.

First of all, add a group.



User

•

You can add, change or remove a user or users.

Setup

•

You can set the user permission.

 WEB VIEWER

System Management

For more information, refer to <System Management> in the <System Setup> menu. (Page 40)

System Information

•

You can see information of the current system. Check the software version, broadcast format and MAC address.

English _87

web viewer

Device

You can check a list of devices that are connected to the DVR and conﬁ gure the necessary settings. Click <Device> in the menu screen. For more information, refer to “Setting the Device”. (Page 44)

Camera

•

You can conﬁ gure the settings of the camera that is connected to the DVR.

PTZ

•

You can conﬁ gure the settings of the PTZ camera that is connected to the DVR. Set the ID and protocol.

Storage Device

You can check and change the settings of the storage device.

Device

•

You will see a list of storage devices that are connected to the DVR. You can check the type, used/total, usage and status of the device.

88_ web viewer

HDD Alarm

•

You can set the alarm output channel and the alarm duration for an error.

Remote Device

You can see a list of remote devices including PTZ cameras and system keyboards that are connected to the RS-485 port of the DVR and conﬁ gure the necessary settings.

 WEB VIEWER

POS Device

You can set the channel, preset and communication port of the POS device that is connected to the DVR.

You cannot set to use the POS device remotely.



Monitor

•

You can conﬁ gure the monitoring screen settings and set the output system.

English _89

web viewer

Spot Out

•

If an event occurs such as sensor, motion or alarm from the Spot Out port in connection with a monitor, you can select a output screen mode.

•

Mode

You can switch between live mode and play mode.

Record

For more information, refer to <Setting the Recording>. (Page 52)

Recording Schedule

If you set a recording schedule for a speciﬁ c date and time, the recording will start at that speciﬁ c time.

- Apply to All CH : Click <Apply to All CH> to display the

conﬁ rmation window.

90_ web viewer

Event Record Duration

You can set the start and end times of recording that will be activated if an event occurs.

REC Quality & Resolution

Standard/Event

•

You can set the resolution, frame rate and recording quality for each channel.

 WEB VIEWER

Record Option

You can set the Disk End Mode.

Event

For more information, refer to <Setting the Event>. (Page 55)

Sensor Detection

You can set the sensor operation mode and the synchronized camera as well as the alarm output type and the duration.

English _91

web viewer

Motion Detection

You can set the motion detection mode and the sensitivity as well as the alarm output type and the duration.

•

Motion Region

Set the target motion detection area

Video Loss Detection

You can set the alarm output time if a video loss occurs.

Alarm Schedule

You can schedule the alarm output according to the day of the week and the time. The default setting is Event Sync, which activates the alarm only if an event occurs.

92_ web viewer

Network

For more information, refer to <Network Conﬁ guration>. (Page 59)

Connection

A remote user can access the DVR via the network to check the current mode and the IP address.

Connection

•

You can set the network connection route.

Protocol

•

You can conﬁ gure the protocol related settings.

 WEB VIEWER

DDNS

You can check the DDNS settings.

Live Transfer

A remote user can set the images of the DVR.

Live Transfer

•

The image resolution for the data received by the remote user will be ﬁ xed to CIF.

English _93

web viewer

Mailing Service

You can specify the SMTP server that sends a mail if an event occurs and set the recipient group and users.

SMTP

•

You can set the server that sends mails and specify if you use the authentication process.

Event

•

You can set the event interval and specify which events the server sends mails for.

Group

•

You can add a group to receive the mail if an event occurs and set the permission to receive the event mail for each group.

Recipient

•

You can add a user or users who will receive the mail.

94_ web viewer

ABOUT

Click <ABOUT>.

Displays the model name of connected DVR and the version of Web Viewer.

MOBILE VIEWER

What is Mobile Viewer?

Mobile Viewer is management software that enables you to connect to DVR (Digital Video Recorder) remotely and control the video playback and PTZ operations (if conﬁ gured) in real time.

 WEB VIEWER

Key Features

Remote access via Smart phone

•

Voice Recognition

•

1-split and 4-split modes supported in Live Viewer

•

(However, search is not available). Switch channels using the touch-sensitive LCD panel

•

PTZ camera operations supported (complies with the

•

protocol of the connected DVR) Up to 16 channels supported

•

English _95

backup viewer

SEC BACKUP VIEWER

You can play a ﬁ le that is backed up in the format of SEC.

Backup in the format of SEC will involve in generating two ﬁ les: one for the backup data and one for the viewer.

If you run the backup ﬁ le viewer, the backup data ﬁ le will be automatically played.

Recommended System Requirements

PCs with a lower speciﬁ cation than the recommended below may not fully support forward/backward and high-speed playback.

OS : Windows XP professional, Windows Vista, Windows 7

•

CPU : Intel Core2-Duo 2.4GHz or higher

•

RAM : DDR PC-3200 1G or more

•

VGA : Geforce 6200 or higher

•

96_ backup viewer

Name Description

A toggle button. Each time you press this button, the audio output will toggle

Audio

between activated and deactivated.

You can adjust the volume level from 0 to 100.

Screen Printout

File Tamper

Detection

Deinterlace You can enable the De-interlace function.

Zoom In/Out

Display of storage time range

Saves the current screen as an image ﬁ le. Supported ﬁ le formats include BMP and JPEG.

Prints out the current screen. You should have installed the appropriate printer driver before you can print out the screen.

A toggle button. Each time you press this button, it will toggle between activated and deactivated. The closed lock icon indicates activation of the ﬁ le

tamper detection, which will blink the screen three times and stop playing if an unauthorized manipulation of a data ﬁ le is detected.

A message of "The ﬁ le is forged” will display in the menu bar.



Collapses the time range that is displayed on the range bar of the storage time. You can collapse the range bar until the overall range is shortened to 24 hours.

Enlarges the time range that is displayed on the range bar of the storage time. You can enlarge the range bar until the overall range is extended to 1 minute.

Displays the time range of a stored video ﬁ le. You can move the gridline of the range bar to select a time point to play.

A toggle button; each time you press this button, the "Slow Playback " icon changes its color to display it’s activated/deactivated. If it is activated, you can use the play speed control to adjust the play speed up to x1/16 forward and backward respectively, whereas if deactivated, you can adjust up to x16 forward and backward.

 BACKUP VIEWER

A toggle button; each time you press this button, the "Lock Speed" icon changes its color to display it’s activated/deactivated.

Speed

Play

If activated, the adjusted speed will be kept even if you release the mouse on the speed bar. If deactivated, the adjusted speed will be applied only while you use the mouse to hold the adjusted speed, and if you release the mouse, the speed will restore to x1.

You can adjust the play speed up to x16 forward and backward respectively, which varies according to the frame rate per second of the source. Fast playback maximum is limited to x2 for footages recorded at 20 ~ 30 ips (frames per second), x4 for 11 ~ 19 ips, x8 for 6 ~ 10 ips, and x16 for footages recorded at slower than 6 ips.

Displays the next frame. This is available only if the playback is stopped.

A toggle button. Press it once to start playing the video and switch the button mode to 'Pause', and press it again to switch the button mode to Play and stop playing temporarily.

Displays the previous frame. This is available only if the playback is stopped.

English _97

appendix

PRODUCT SPECIFICATION

Item

Video

Live

Performance

OS Embedded Linux

Recording

Inputs 16 composite video 0.5–1 Vpp

Resolution 704x480 NTSC, 704x576 PAL

Frame rate 480ips NTSC, 400ips PAL

Resolution 704x480 NTSC, 704x576 PAL

Multi Screen display 1/4/6/8/9/13/16/PIP

Compression H.264

NTSC : Up to 120ips @ 704x480 PAL : Up to 100ips @ 704x576

Record Rate

Mode

NTSC : Up to 240ips @ 704x240 PAL : Up to 200ips @ 704x288

NTSC : Up to 480ips @ 352x240 PAL : Up to 400ips @ 352x288

NTSC :

- Manual

- Schedule (Continuous/Event)

- Event(Pre/Post)

- Time lapse (0.9/1.9/3.8/7.5/15/30 ips)

PAL :

- Manual

- Schedule (Continuous/Event)

- Event(Pre/Post)

- Time lapse (0.8/1.6/3.1/6.2/12.5/25 ips)

Details

SRD-1652D SRD-852D

8 composite video 0.5–1 Vpp

240ips NTSC, 200ips PAL

1/4/6/8/9/13/PIP

NTSC : Up to 60ips@ 704x480 PAL : Up to 50ips@ 704x576

NTSC : Up to 120ips @ 704x240 PAL : Up to 100ips @ 704x288

NTSC : Up to 240ips @ 352x240 PAL : Up to 200ips @ 352x288

Search &Playback

98_ appendix

Overwrite modes Continuous

Pre-alarm Up to 5sec

Post-Alarm Up to 6 hour. (5, 10, 20, 30 sec,1, 3, 5, 10, 20 min,1, 2, 3, 4, 5, 6 hour)

Search mode

Playback function

Date/time, Event, Back up, Pos, Motion (※All Search Included

Fast Forward / Backward Slow Forward / Backward Step Forward / Backward

Preview Function)

Item

Details

SRD-1652D SRD-852D

Network

Storage

Security

Interface

Transmission speed

Bandwidth control Selectable

Stream H.264(Max CIF 120ips)

Remote users Maximum

Protocol support TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP

Monitoring Net-i Viewer, Smart viewer, Webviewer, Smart Phone Viewer

Internal HDD Up to 4 SATA HDDs

External HDD -

DVD Writer (Back-up) YES

USB (Back-up) USB 2.0, 2 ports(Front)

File Format (Back-up) AVI, BU (DVR Play back), EXE (Include Player)

Password Protection

Data Authentication Watermark

Up to (8)Mbps, Unlimited(8M)/2/1.5/1Mbps/800/600/500/400/300/200/100/ 50kbps

Search(3) / Live Unicast(10) / Live Multicast(20)

1Admin, 10 Group , 10 User per 1 Group, User can be assigned authority for function



APPENDIX

Smart phone

Monitors

Smart Phone Android, i-Phone

Protocol support RTSP/RTP(UDP), CGI, HTTP

Transmission speed

Remote users Maximum

VGA Analog RGB 800x600, 1024x768, 1280x1024 resolution

HDMI -

Main Composite BNC, 1 Vp-p, 75 ohm

Spot Composite Analog Spot (1) (Single Channel, No OSD)

Loop Outputs -

Wi-Fi : CIF Max 4ips(Single Channel) / CIF Max 4ips(Quad Channel)

3G : CIF Max 4ips(Single Channel) / CIF Max 4ips(Quad Channel)

Live(1)

English _99

appendix

Audio

Alarm

Connections

General

Electrical

Item

Inputs / Output 4 line in (Built in 4CH, RCA) / 1 line out (RCA)

Compression ADPCM

Sampling rate 16KHz

Inputs / Outputs

Remote notiﬁ cation Notiﬁ cation via e-mail

Ethernet 1 RJ45 10/100 Base-T

Serial interface RS-232/RS-485 for PTZ, System Keyboard

USB USB 2.0, 2 ports(Front)

e-SATA -

Application Supoort Mouse, Remote Controller

PTZ Protocol support

Input Voltage /Current 100 to 240 VAC ±10%; 50/60 Hz, Autoranging

Power consumption Max. 55 W (with 1x HDD)

Terminal 16(8) inputs (NO/NC),Terminal 1 inputs (Alarm Reset), Terminal 4 relay outputs (NO/NC), Rating : 24V DC/1A, 125V AC / 0.5A

Samsung-E/ Samsung-T/ Pelco-D/ ERNA/ GE/ VCL TP/VICON

SRD-1652D SRD-852D

Details

Pelco-P / Panasonic/ Phillips/ AD/ DIAMOND/

Environmental

Mechanical

Lauguage

100_ appendix

Operating Temperature / Humidity

Dimension (W x H x D)

Weight (With hard disks)

Rack mount kit 2 EA

+0°C to +40°C (+32°F to +104°F)/20%RH to 85%RH

440 x 88 x 426.8 mm (17.32 x 3.46 x 16.80 inch)

Approx. 7.5 kg

Korean, Japanese, Chinese, English, French, German, Spanish, Italian, Russian, Polish, Czech, Turkish, Netherlands, Portuguese,Swedish,Danish, Thailandais, Rumania, Serbia, Croatia, Hungary, Greek (22 Language)

Samsung SRD-852D User Manual 2

Specifications and Main Features

Frequently Asked Questions

User Manual
