4 CHANNEL DVR

User Manual

SRD-473D

4 Channel DVR

User Manual

Trademark

The name of this product is the registered trademark of Samsung Techwin Co., Ltd. Other trademarks mentioned in this manual are the registered trademark of their respective company.

Restriction

Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document shall be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.

Disclaimer

Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user's own responsibility. Samsung Techwin reserves the right to change the contents of this document without prior notice.

Design and specifications are subject to change without prior notice.

The initial administrator ID is “admin” and the passwor d should be set when logging in for the fir st time.

Set password for your wireless net work if you use the pr oduct with a wireless router. Being not protec ted with password or using the default wireless router password may expose your video data to potential threat. Please change your password every three months to safely protect personal information and to prevent the damage of the information theft. Please, take note that it’s a user’s responsibility for the security and any other problems caused by mismanaging a pas sword.

is the registered logo of S amsung Techwin Co., Ltd.

overview

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings, Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. if the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

● OVERVIEW

English _3

overview

BEFORE START

This manual provides operational information necessary for using the product and contains a description about each component part and its function as well as menu or network settings. You have to keep in mind the following notices :

• SAMSUNG retains the copyright on this manual.

• This manual cannot be copied without SAMSUNG’s prior written approval.

• We are not liable for any or all losses to the product incurred by your use of non-standard product or violation of

instructions mentioned in this manual.

• Prior to opening the case, please consult a qualified technician first. Whenever this is needed power must be removed from the unit.

• Before installing additional HDD or connecting the SATA device to this product, check if it is compatible with the product.

Warning

Battery

It is essential that when changing the battery in the unit, the replacement battery must be of the same type otherwise there may be a possibility of an explosion. The following are the specifications of the battery you are using now.

• Normal voltage : 3V

• Normal capacity : 220mAh

• Discharge Current : 0.2mA

• Operating temperature : -20°C ~ +85°C

(-4°F ~ +185°F)

CALIFORNIA USA ONLY

This Perchlorate warning applies only to primary CR (Manganese Dioxide) Lithium coin cells in the product sold or distributed ONLY in California USA.

“Perchlorate Material - special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.”

Caution

• Connect the power cord into a grounded outlet.

• The Mains plug is used as a disconnect device and shall stay readily operable at any time.

• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

• Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used Batteries According to the

Instructions.

System Shutdown

Turning off the power while the product is in operation, or undertaking improper actions may cause damage or malfunction to the hard drive or the product. To safely cut off power, press the front Power button on the product to display the confirmation message. Click <OK> and then unplug the power cable. You may want to install a UPS system for safe operation in order to prevent damage caused by an unexpected power stoppage. (Any questions concerning UPS, consult your UPS retailer.)

4_ overview

Operating Temperature

The guaranteed operating temperature range of this product is 0°C ~ 40°C (32°F ~ 104°F). This product may not work properly if you run right after a long period of storage at a temperature below the guaranteed one. Prior to using a device that has been stored for a long period in low temperatures, allow the product to stand at room temperature for a period. Especially for the built-in HDD in the product, its guaranteed temperature range is 5°C ~ 55°C (41°F ~ 131°F). Likewise, the hard drive may not work at a temperature below the guaranteed one.

Ethernet Port

This equipment is in door use and all the communication wirings are limited to inside of the building.

Security Precautions

The initial administrator ID is “admin” and the password should be set when logging in for the first time. Set password for your wireless network if you use the product with a wireless router. Being not protected with password or using the default wireless router password may expose your video data to potential threat. Please change your password every three months to safely protect personal information and to prevent the damage of the information theft. Please, take note that it’s a user’s responsibility for the security and any other problems caused by mismanaging a password.

● OVERVIEW

English _5

overview

CONTENTS

OVERVIEW

CONNECTING WITH OTHER DEVICE

LIVE

3 Important Safety Instructions 4 Before Start 6 Contents 8 Features 10 Part Names and Functions (Front) 12 Part Names and Functions (Rear) 13 Remote Control

14 Installation 14 Checking the installation environment 15 Connecting External Devices 17 Connecting the Network

19 Getting Started 22 Live Screen Configuration 27 Live Mode 29 Spot Out 29 Zoom 30 Audio ON/OFF 30 Freeze 31 Event Monitoring

6_ overview

MAIN MENU

32 System Setup 42 Setting the Device 52 Setting the Recording 55 Setting the Event 58 Backup 60 Network Configuration 73 Controlling a PTZ device

SEARCH & PLAY

76 Search 79 Playback

WEB VIEWER

BACKUP VIEWER

111

APPENDIX

113

81 Introducing Web Viewer 82 Connecting Web Viewer (Windows) 84 Using Live Viewer (Windows) 89 Controlling a Connected PTZ Camera 92 Using Search Viewer 95 Viewer Setup 106 About 107 Connecting Web Viewer (Mac) 108 Using Live Viewer (Mac) 110 Mobile Viewer

111 SEC Backup Viewer

113 Product Specification 116 Product Overview 117 Default Setting 120 Troubleshooting 123 Open Source Announcement

● OVERVIEW

English _7

overview

FEATURES

The product compresses camera inputs from 4 channels with H.264 video codec, and supports simultaneous recording and playback of 4-channel audio input to/from HDD. These DVRs also supports network connectivity, providing remote monitoring from a remote PC transferring video and audio data.

• Provides a convenient User Interface

• 4 CH Composite Input Connectors

• Supports CIF(S)/2CIF(M)/4CIF(L)/WD1 recording formats

• With the network specific codec, network transfer enabled regardless of the recording conditions

• Display of HDD information and status by using HDD SMART

• HDD overwrite function

• Mass storage HDD backup through high-speed USB 2.0

• Simultaneous Record and Playback of 4-channel video data

• Various Search Modes (Time, Event, Backup, POS, Motion Detection)

• Various Recording Modes (Manual, Event, Scheduled Recording)

• Alarm Interface

• Remote Monitoring function by Network Viewer, Smart Viewer and Mobile Viewer

• Supports coaxial protocols

• Tampering Detection

8_ overview

Standards Approvals

` This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Package Contents

Please unwrap the product, and place the product on a flat place or in the place to be installed. Please check the following contents are included in addition to the main unit.

DVD RECORDER

DVR Adapter / Power Cable

● OVERVIEW

Mouse User Manual or Quick Manual

Network Viewer Software /

User Manual CD

Terminal Block (12 pin)

Remote Control /

Remote Control Battery (AAA)

HDD Fixing Screw

(for models having no installed HDD)

English _9

overview

PART NAMES AND FUNCTIONS (FRONT)

a b c d f

DVD RECORDER

Part Names Functions

Power

Remote Control Receiver

MODE

AUDIO

ALARM

REC

&/(

+/#

)/*

Power LED : Displays the power ON/OFF status.

Power Button : Used to turn the DVR ON/OFF.

Input the remote control signal.

In Live mode, pressing it will switch the mode to 4-split, PIP, and Auto Sequence in sequence. Each button press in Search mode will toggle the screen mode between 4-split and single screen.

` For the Play Screen mode, refer to “Play”. (page 79)

Sets Audio ON/OFF.

Used to acknowledge the alarm which will clear alarm LED, sound and icon when alarm has been generated.

Starts or ends the recording.

Step Rewind (& Fast Rewind (() : Used for quick backward search while in Play.

Stop : Used to stop the playback.

Play/Pause : Used to pause or resume the screen.

Fast Forward ()) : Used for quick forward playback. Step Forward ( *) : Used for forward frame-by-frame search while in PAUSE.

) : Used for backward frame-by-frame search while in PAUSE.

ghij

10_ overview

Open/Close

Used to open and close the DVR-RW disc tray.

Part Names Functions

REC : Lights on when recording is in progress.

HDD : Displays the normal access to HDD.

Upon access to HDD, LED is on.

LED Indicator

Direction & Select

Button

Camera Control

ALARM : Lights on when an event occurs.

NETWORK : Displays both network connection and data transfer status.

BACKUP : Displays when Backup is in progress.

Used to change a value or move the cursor up/down/left/right (▲▼_ +). Selects a menu item or executes the selected menu.

PTZ : Sets PTZ Mode ON/OFF.

ZOOM(TELE) : Sets the screen to the x2 digital zoom.

Runs the TELE function in the PTZ Mode.

FREEZE(WIDE) : Runs the FREEZE function in the Live Mode.

Runs the WIDE function in the PTZ Mode.

SEARCH(VIEW) : This is the function that switches over to the Search mode.

(Perform the VIEW function when selecting the PTZ button.)

MENU : Used to access the Menu screen or move to the previous menu.

● OVERVIEW

i j

Channel

USB Port

Used to select channel numbers directly in the Live Mode, or numbers in the numeric input mode.

Connects the USB devices.

English _11

overview

PART NAMES AND FUNCTIONS (REAR)

a b c d

Part Names Functions

COM NO

NO NC COM

eghik j f

VGA

SERIAL

AUDIO OUT

NETWORK

DC 12V

ALARM IN

ALARM OUT

RS485

USB

HDMI

AUDIO IN 1~4

SPOT

VIDEO IN

` [CONSOLE] is designed for the service repair purpose only.

Output port for VGA video signal.

Serial port for connecting to a POS device.

Output port (RCA jack) for the audio signal.

` It is recommended to use an amplifier-integrated speaker for the output of the audio signal.

Network connection port.

Port to be connected to the 12V power source.

1~4, G : Alarm input ports.

1, 2, COM : Alarm output ports.

Used to establish RS485 communications. (TX+, TX-)

USB connection port.

HDMI connector port.

Output ports (RCA jacks) for the audio signal.

BNC type of output port for the Spot signal.

Input port for the composite video signal. Supports both NTSC and PAL video signal.

12_ overview

REMOTE CONTROL

Displays the search menu.

Changes the screen mode.

Displays the Exit pop up screen.

Used as the numeric input keys, or displays a single

Skip Backward (by unit time),

Slow Rewind, Slow Forward,

Skip Forward (by unit time)

Goes to the system menu screen.

Up/Down/Left/Right(

Moves the cursor up/down/left/right, and runs the Select

Freezes the screen temporarily.

Runs the digital zoom (x2) function.

Starts or ends the live recording.

Runs the View function in the PTZ mode.

MODE

POWER

NUMBER [0~+10]

channel.

T/W

Zooms in or out.

)/ENTER

$%_ +

Menu.

FREEZE

ZOOM

REC

VIEW

BACKUP

Displays the Backup Menu.

OPEN/CLOSE

Opens or closes the DVD tray.

DVR

Activates the DVR function.

Sets the ID of the system. Select 2 digits from 0 ~ 9 while pressing the ID Key.

Move Frame

While paused, moves to the previous/next frame.

FR, STOP, PLAY/PAUSE, FF

PTZ

Displays or ends PTZ.

SCROLL

Moves the menu scroll.

RETURN

Returns to the previous screen.

AUDIO

Turns Audio on/off.

ALARM

Cancels the Alarm.

REC LOCK

Selects the recording lock function.

PRESET

Displays the Preset Setup.

● OVERVIEW

Using the Numeric buttons

1. Press any button among 1 to 4.

2. Move to the selected channel number.

Changing the Remote Control ID

Remote control’s ID and DVR’s ID should be matched for proper operation.

1. Press the [ID] button of the remote control and check the ID displayed on the DVR screen.

The factory default ID of the remote control is 00.

2. Enter 2 digits of your selection in order, while pressing the [ID] button of the remote control.

3. When ID input is done, press the [ID] button of the remote control again to check the setting.

` If you want to change the remote control ID to 08: Press 0 and 8 in order while the [ID] button of the remote control is

pressed. For changing the ID of remote device, refer to “Remote Devices”. (Page 48)

English _13

connecting with other device

MODE

AUDIO ALARM

DIGITAL VIDEO RECORDER SRD-470D

REC

ZOOM

BACKUP

FREEZE

TELE WIDE VIEW

NETWORK

ALARM

HDD

REC

DIGITAL VIDEO RECORDER SRD-470D

INSTALLATION

Please take note of the followings before using this product.

• Do not use the product outdoor.

• Do not spill water or liquid in the connection part of the product.

• Do not impose the system to excessive shock or force.

• Do not pull out the power plug forcefully.

• Do not disassemble the product on your own.

• Do not exceed the rated input/output range.

• Use a certified power cord only.

• For the product with an input ground, use a grounded power plug.

CHECKING THE INSTALLATION ENVIRONMENT

This product is a top-notch security device that is equipped with a high-capacity HDD and other key circuit boards.

Temperature Unit: ºC

One Year: 24HR X 365 DAY =8,760 HR

When the temperature rises inside the product, the product may breakdown and the product life be shortened. Please pay attention to the following recommendations before installation.

[Figure 1]

When mounting the product on a rack, comply with the following instructions.

1. Please ensure that the rack inside is not sealed.

2. Please ensure the air is circulated through the inlet/outlet as shown in the picture.

3. If you pile up the prudcts or other rack-mount devices as shown in figure 2, secure

room for ventilation or install a vent. For natural air convection, place the inlet at the bottom of the rack and the outlet on top.

5. It is strongly recommended that a fan motor is installed at the inlet and the outlet for air

circulation. (Please fit a filter at the inlet to screen dust or foreign substances.)

6. Please maintain the temperature inside the rack or surrounding areas between 0°C ~

40°C (32°F ~ 104°F) as shown in the figure 1.

Rack Mount Instructions - The following or similar rack-mount instructions are included with the installation instructions :

A) Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the

operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature (Tma) specified by the manufacturer.

B) Reduced Air Flow - Installation of the equipment in a rack should be such that the

amount of air flow required for safe operation of the equipment is not compromised.

C) Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous condition is

not achieved due to uneven mechanical loading.

D) Circuit Overloading - Consideration should be given to the connection of the equipment to the supply circuit

and the effect that overloading of the circuits might have on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

E) Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular attention should

be given to supply connections other than direct connections to the branch circuit (e.g. use of power strips).

14_ connecting with other device

Life (Unit: HOURS)

DIGITAL VIDEO RECORDER SRD-470D

MODE

AUDIO

ALARM

REC

ZOOM

FREEZE

TELE WIDE VIEW

DIGITAL VIDEO RECORDER SRD-470D

MODE

AUDIO

ALARM

REC

ZOOM

FREEZE

TELE WIDE VIEW

DIGITAL VIDEO RECORDER SRD-470D

MODE

AUDIO

ALARM

REC

ZOOM

FREEZE

TELE WIDE VIEW

DIGITAL VIDEO RECORDER SRD-470D

MODE

AUDIO

ALARM

REC

ZOOM

FREEZE

TELE WIDE VIEW

[Figure 2]

REC

HDD

ALARM

NETWORK

BACKUP

REC

HDD

ALARM

NETWORK

BACKUP

REC

HDD

ALARM

NETWORK

BACKUP

REC

HDD

ALARM

NETWORK

BACKUP

CONNECTING EXTERNAL DEVICES

VIDEO OUT

(VGA)

VIDEO IN

SPOT1

SPOT2

AUDIO OUT

CH1

CH3

AUDIO IN

SERLAL

CH2

CH4

COM

+ -

RS485

● CONNECTING WITH OTHER DEVICE

AC 100-240V~IN

SPOT

AUDIO IN

AUDIO OUT

HDMI

Connecting the USB

1. By factory default, a USB port is provided for external connection.

2. You can connect a USB HDD, USB CD/DVD player, USB memory or mouse to the USB port.

If a USB HDD is connected to the system, recognition and settings are available in “Main Menu >

Device

Storage Device”. (Page 45)

4. The product supports hot plugging function that enables connecting/disconnecting USB devices while in

operating the system.

` If the USB storage media for backup is not formatted by the product, format it as FAT32 file system with a PC.

Connecting POS Device

You can connect a POS device to the RS-232C port on the product’s rear side when you connect it directly with a RS-232C cable. Connection setup for the RS-232C port is available in “Main Menu > Device > POS Devices”, press the <POS Device Setup> button and set <Baudrate, Parity, Data, Stop bit>. (Page 49)

English _15

connecting with other device

Connecting the Alarm Input/Output

The Alarm In/Out port at the back is composed of the following.

Connecting alarm inputs

The terminal is used to connect alarm inputs.

One of the (two) signal lines for various sensors is connected to the alarm input number and the other is connected to the [G] terminal.

VIDEO IN

SERLAL

AUDIO OUT

SPOT1

CH1

CH2

SPOT2

CH3

CH4

AUDIO IN

COM

+ -

RS485

Sensors

Connecting alarm outputs

The terminal is used to connect alarm outputs.

One of the (two) signal lines for external devices is connected to the alarm output terminal and the other is connected to the [COM] terminal.

VIDEO IN

Alarm

SERLAL

AUDIO OUT

SPOT1

CH1

CH2

SPOT2

CH3

CH4

AUDIO IN

COM

+ -

RS485

16_ connecting with other device

Connecting the RS-485 Device

Connect the [RS485 +, -] device through the back port.

VIDEO IN

SERLAL

AUDIO OUT

SPOT1

CH1

CH2

SPOT2

CH3

CH4

AUDIO IN

● CONNECTING WITH OTHER DEVICE

COM

+ -

RS485

PTZ camera

system keyboard

` You can connect and control the PTZ camera which supports the RS-485 communication.

` Check if the RS-485 device is compatible with the product first.

` Pay attention not to change the polarity (+/-) of the RS-485 device when connecting it.

` Depending on camera’s type, connection polarity can be different.

For further information, refer to the respective PTZ Camera’s documentation.

CONNECTING THE NETWORK

Connecting to Network through Ethernet (10/100/1000BaseT)

VIDEO IN

Hub/Switcher

RJ-45 Ethernet Cable

(Direct Cable)

SERLAL

AUDIO OUT

SPOT1

CH1

CH2

SPOT2

CH3

CH4

AUDIO IN

COM

+ -

RS485

Windows

Network Viewer

Back Bone

NETWORK

Hub/Switcher

English _17

connecting with other device

Connecting to the Network using the router

VIDEO IN

Broadband Router

External Remote PC

xDSL or Cable Modem

SERLAL

AUDIO OUT

SPOT1

CH1

CH2

SPOT2

CH3

CH4

AUDIO IN

NETWORK

COM

+ -

RS485

xDSL or Cable Modem

DDNS Server (Data Center)

Connecting to Network through PPPoE

VIDEO IN

Windows

Network Viewer

PPPoE MODEM

RJ-45 Ethernet Cable

(Direct Cable)

AUDIO OUT

SPOT1

CH1

SPOT2

CH3

AUDIO IN

Phone(PPPoE) Line

SERLAL

CH2

CH4

COM

+ -

RS485

NETWORK

Hub/Switcher

18_ connecting with other device

live

2013-01-01 01:10:25

GETTING STARTED

Starting the system

1. Connect power cable to the product’s rear.

2. Press the power button on the front.

` It takes about 10 seconds to display the start screen after

booting.

3. The boot up screen appears.

Booting up may take about 3 minute, as indicates progress with icons. If a new HDD is installed, the initialization process may take longer.

4. The live screen appears with a beep.

● LIVE

REC

English _19

live

2013-01-01 01:10:25

Shutting Down the System

You can shut down the system only if you have logged in to the DVR. You require permission to shut down the system if you are not logged in as admin.

1. Hold the [POWER] button on the front or the remote control or right click and click <Shutdown>.

2. The “Shutdown” confirmation window appears.

3. Use the arrow keys on the remote control or the front

panel to move to <OK> and press the [ENTER] button or click <OK>. The system will shut down.

` For the permission management, refer to “Permission

Management > Setting Permissions”. (Page 37)

To access a DVR or restricted menu, you should have logged in to the DVR.

1. In live mode, right-click any area of the screen. You will see the context sensitive menu as in the right figure.

Shutdown

Are you sure to shutdown?

OK Cancel

Scene Mode

Spot Out 1

Spot Out 2

Audio Off

Freeze

Stop Alarm

Record

Play

Backup

Main Menu

Shutdown

Hide Launcher



2. Click <Login>. The login dialog appears. You can also see the login dialog to access a desired menu by pressing the [MENU] button on the remote control or the front panel.

20_ live

ID admin



Password

` The login dialog will also appear if you press a menu button on the

remote control or the front panel of the DVR when the corresponding



OK Cancel

menu requires logging in.

` After logged in, press [RETURN] on the remote control to display the

logout dialog.

` For the restricted permission, refer to “Permission Management > Setting Permissions”. (Page 37)

` The initial administrator ID is “admin” and the password should be set when logging in for the first time.

2013-01-01 01:10:25

` Set password for your wireless network if you use the product with a wireless router. Being not protected with password or

using the default wireless router password may expose your video data to potential threat.

` Please change your password every three months to safely protect personal information and to prevent the damage of the

information theft. Please, take note that it’s a user’s responsibility for the security and any other problems caused by mismanaging a password.

Locking All Buttons

This will restrict access to all buttons available in the DVR.

1. In Live mode, press buttons in the order of [STOP (@)] [FREEZE][STOP (@)][FREEZE][MENU]. <All Key Lock> confirmation window appears.

2. Select <OK>. All keys are locked.

3. In the lock condition, press any button to display a dialog where you are prompted to enter the password for unlocking the buttons. The button lock will be released if you enter the admin password.

All Key Lock

Are you sure to all key lock?

OK Cancel

● LIVE

English _21

live

LIVE SCREEN CONFIGURATION

Icons on the Live Screen

You can check the status or operation of the DVR with the icons on the live screen.

a b

CAM 01

Part Names Functions

Current Date, Time Displays the current time and date.

Displayed if the recording is in process.

` To cancel the recording, enter the password.

Displayed if the zoom function is activated.

Screen Mode

Displayed if you press the Freeze button.

a b c

2013-01-01 01:10:25

22_ live

System

Operation

Displayed in Auto Sequence mode where all channels are switched at the specific time interval.

Displayed if the HDD is full and the DVR has an insufficient space to record.

Displayed if no HDD is installed or the existing HDD should be replaced.

Displayed if the HDD needs a technical examination.

Displayed while the backup is in process or if the backup data is played.

Displayed if a new firmware is found from the network.

Part Names Functions

2013-01-01 01:10:25

Video Input

Status

Camera Name/ Channel Displays the camera name and the changed channel, if any.

Displayed if no input is entered in the condition that the camera is set to <ON>.

Nothing will be displayed on the screen if the camera is set to <OFF>.

Displayed in PTZ setting, and highlighted yellow if PTZ is in operation.

Displays AUDIO ON/MUTE. Not displayed in video mode if deactivated.

If the sensor is set to <ON>, the input signal will be displayed on the screen of the

Camera

Operation

connected channel.

Displayed if a motion detected in the condition that the motion detection is set to <ON>.

Appears when the Tampering Detection is set to <ON> and a tampering attempt is detected.

Displays the current record mode from Record/Event/Schedule.

Error Information

• If the internal HDD is not connected, the “NO HDD”( ) message will appear; if there occurs a problem,

you will see the “HDD FAIL”( service center for assistance as this may cause a failure of recording, playback or backup.

` If you see the NO HDD or HDD FAIL icon on the screen, contact the service center for more details.

) message in the top left corner. In this case, make sure you contact the

● LIVE

Live Screen Menu

In addition to the buttons on the front panel or the remote control, you can access a desired menu by rightclicking the mouse any area in live mode. Right click opens the context menu which shows different menu items according to the situation, such as logged in/out state, split screen mode, and various operational conditions.

` Menu items of Search, Record, Backup, Shutdown and PTZ can be deactivated, depending on the user permission.

Scene Mode

Spot Out 1

Spot Out 2

Audio Off

Freeze

Stop Alarm

Record

Play

Backup

Main Menu

Shutdown

Hide Launcher

Logout

< Split Mode Menu >



< Single Mode Menu >

Scene Mode

Spot Out 1

Spot Out 2

PTZ Control

Zoom In

Audio

Freeze

Stop Alarm

Record

Play

Backup

Main Menu

Shutdown

Hide Launcher

Logout



English _23

live

2013-01-01 01:10:25

Split Mode Menu

The context sensitive menu in split mode differs, depending on the login/logout status.

Scene Mode

Spot Out 1

Spot Out 2

Audio Off

Freeze

Stop Alarm

Record

Play

Backup

Main Menu

Shutdown

Hide Launcher

Logout



Menu Functions

Scene Mode Refer to “Live Mode”. (Page 27)

Spot Out1/2 Refer to “Spot Out”. (Page 29)

Audio On/Off Refer to “Audio ON/OFF”. (Page 30)

Freeze Refer to “Freeze”. (Page 30)

Stop Alarm Stops the alarm output and the event monitoring. Refer to “Event Monitoring”. (Page 31)

Record/Stop Starts/stops the standard recording.

Play Plays the search result (data). Refer to “Search & Play > Play”. (Page 79)

Search Refer to “Search & Play > Search”. (Page 76)

Backup Refer to “Main Menu > Setting the Backup”. (Page 58)

Main Menu Accesses the main menu. Refer to the Using the DVR section. (Page 32)

Shutdown Turns down the DVR.

Show/Hide Launcher Shows or hides the launcher. Refer to “Show / Hide the Launcher Menu”. (Page 26)

24_ live

Single Mode Menu

2013-01-01 01:10:25

The single mode menu is available only in Single Mode. The menu, which appears as <Screen Mode> on a single screen, appears as <Full Screen> after selecting only one channel on a split screen.

Scene Mode



Spot Out 1



Spot Out 2



PTZ Control

Zoom In

Audio

Freeze

Stop Alarm

Record

Play

Backup

Main Menu

Shutdown

Hide Launcher

Logout

< Single Mode Menu >

Menu Functions

Full Screen

PTZ Control

Zoom In Enlarges the selected image. (Page 29)

Select and click a desired channel in Split mode to switch to the full screen of the selected channel.

Accesses the PTZ Control menu. The PTZ menu is activated only in One-Channel Live mode. (Page 73)

Full Screen

Spot Out 1



Spot Out 2



PTZ Control

Zoom In

Audio

Freeze

Stop Alarm

Record

Play

Backup

Main Menu

Shutdown

Hide Launcher

Logout

< Menu after selecting one channel

on the split screen >

● LIVE

English _25

live

01:10:25

2013-01-01 01:10:25

01:10:25

Show / Hide the Launcher Menu

The Launcher menu appears on the bottom of the live screen.

1. In Live mode, right-click to display the context menu and select <Show Launcher> or <Hide Launcher>. If selected <Hide Launcher>, the launcher menu disappears on the bottom of the live screen.

2. If <Show Launcher> is selected, the launcher menu appears at the bottom of the screen. If you click the launcher menu using the mouse, it directly goes into the menu.

` If no input is entered for 10 seconds, the menu will disappear.

` The Launcher menu can be accessed only by using the mouse.

2013-01-01

a c d e f g h ijb

Menu Functions

Displays the current time and date.

Date/Time

Screen Mode

The indication of AM/PM is displayed if you set 12 hours for the time format in “System > Date/Time/Language > Time”. (Page 32)

Press this button to switch the screen mode in sequence. The current mode is highlighted in white.

26_ live

Menu Expansion Button Click to display the hidden menu to the right.

Audio Turns ON/OFF the sound of the selected channel.

Zoom Enlarges the selected area. This is available only in Single Live mode.

PTZ

Alarm Stops the alarm if it's activated.

Freeze Freezes the Live screen temporarily.

Play Enters Play mode if a file to play exist, and if not, enters Search mode.

Record Start/End recording the Live screen.

Runs the PTZ Control launcher. The PTZ control launcher will be active on the Live screen after you select a single channel.

LIVE MODE

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH15

CH11

CH16

CH12

CH7

CH3

CH8

CH4

CH13

CH9

CH14

CH10

CH5

CH1

CH6

CH2

CH3 CH2

CH1 CH4

CH6 CH7

CH3

CH2

CH4

CH1

CH5

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH15

CH11

CH16

CH12

CH7

CH3

CH8

CH4

CH13

CH9

CH14

CH10

CH5

CH1

CH6

CH2

CH1 CH2

CH3 CH4

CH3 CH2

CH1 CH4

CH6 CH7

CH3

CH2

CH4

CH1

CH5

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH10 CH11 CH12 CH13 CH14 CH15 CH16

CH12

CH1

CH13

CH19

CH4

CH7

CH5

CH10

CH8

CH11

CH6

CH2 CH3

CH1

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH3 CH2

CH1 CH4

CH6 CH7

CH3

CH2

CH4

CH1

CH5

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH10 CH11 CH12 CH13 CH14 CH15 CH16

CH1

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH3 CH2

CH1 CH4

CH6 CH7

CH3

CH2

CH4

CH1

CH5

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH10 CH11 CH12 CH13 CH14 CH15 CH16

CH1

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH3 CH2

CH1 CH4

CH6 CH7

CH3

CH2

CH4

CH1

CH5

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH10 CH11 CH12 CH13 CH14 CH15 CH16

CH1

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH3 CH2

CH1 CH4

CH6 CH7

CH3

CH2

CH4

CH1

CH5

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH10 CH11 CH12 CH13 CH14 CH15 CH16

CH1

Four live videos are displayed in three-split mode on the screen.

Switching the screen mode

To switch the split mode, select a screen mode in the launcher menu, or right-click to select a screen mode in the context menu. Press the [MODE] button on the front panel or the remote control to switch the mode in the sequence of the launcher menu items.

CH1 CH2

● LIVE

PIP

CH2

CH1

CH3 CH4

4-split mode

CH1

Automatically switching the screen mode

Four live videos can be watched in the single order.

CH1

Single mode

` In Single mode, If you have set <SEQ-Dwell Time> in “Setting the Device > Camera”, Auto Sequence will be conducted

at the set interval. (Page 43)

Auto Sequence

English _27

live

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH15

CH11

CH16

CH12

CH7

CH3

CH8

CH4

CH13

CH9

CH14

CH10

CH5

CH1

CH6

CH2

CH3 CH4

CH3 CH2

CH1 CH4

CH6 CH7

CH3

CH2

CH4

CH1

CH5

CH1 CH4

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH15

CH11

CH16

CH12

CH7

CH3

CH8

CH4

CH13

CH9

CH14

CH10

CH5

CH1

CH6

CH2

CH3 CH4

CH3 CH2

CH1 CH4

CH6 CH7

CH3

CH2

CH4

CH1

CH5

CH3 CH2

CH1 CH4

CH1 CH2

CH1

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH1 CH2

CH3 CH4

CH9 CH10

CH11 CH12

CH13 CH14

CH15 CH16

CH3

Channel Setting

You can display the channel in a desired area of a split screen.

1. Place the cursor over the camera name of each channel to display the <%> key to the right on the screen.

2. Click a camera name to display a channel list where you can select a different channel.

3. Select a desired channel and click it.

The current channel will be switched to the selected one. Use the cursor to select a channel to move, and drag and drop it to a desired channel; this can also change the channel position.

` Ex : if switching CH 1 to CH 3

CH1 CH2

CH3 CH2

;

Switching to Single Mode

When in split mode, select and double-click a desired channel to switch to its Single mode. Press the number corresponding to a desired channel on the front panel or the remote control to switch to its Single mode. Refer to “Remote Control > Using the numeric buttons”. (Page 13)

` Ex : If double-clicking CH 3 or pressing the number “3” on the remote control or the front panel.

CH1 CH2

;

28_ live

SPOT OUT

2013-01-01 01:10:25

The Spot Out monitoring is independent of the Live mode, which monitors a specific channel through the Spot Out port.

Selecting a Spot Out mode

If an event occurs such as sensor, motion or alarm from the Spot Out port in connection with a monitor, you can select a output screen mode.

1. In Live mode, right-click any area on the screen.

The Live menu appears.

2. Click Spot Out.

The split screen appears according to the Spot Out source. (Page 51)

` Spot Out 1: It supports auto sequence and single mode by default,

and additionally supports 4-split modes if selected <Multi Spot> out.

` Spot Out 2: It supports auto sequence and single mode.

Scene Mode

Spot Out1

Spot Out2

Audio Off

Freeze

Stop Alarm

Record

Play

Backup

Main Menu

Shutdown

Hide Launcher

Logout



Auto Sequence

CH1

CH2

CH3

CH4

ZOOM

This is available only in Single Live mode. In Single mode, select a desired area and use the Zoom function to enlarge it twice.

1. Select <Zoom In> in the right-click menu. Press the [ZOOM] button on the front panel or the remote control, or simply click < menu. The zoom box appears.

2. Use the direction keys, or drag and drop to specify an area to enlarge.

3. Press the [ENTER] button, or double-click the selected area to enlarge it twice.

` In the enlarged image, use the direction buttons (▲▼_ +) on the remote control or the front panel to move the enlarged

area.

> in the launcher

● LIVE

4. Press the [ZOOM] button on the front panel or the remote control to release the zoom.

2013-01-01 01:10:25

;

English _29

live

AUDIO ON/OFF

You can turn the sound on/off corresponding to the channel in Live mode.

AUDIO ON/OFF in Single mode

Click the audio icon ( ) on the screen, or press the [AUDIO] button on the front panel or the remote control to turn it on/off.

` Only the channel where <Audio> is set to <ON> in “Device > Camera” displays the audio icon ( ) in Live mode that

you can use to turn the sound on/off.

FREEZE

This is available only in Live mode, this pauses playing the Live image temporarily.

Press the [FREEZE] button on the front panel or the remote control, or click <

The playback of the image is stopped temporarily.

` Sound continues to play during the pause.

> in the launcher menu.

2. Press the [FREEZE] button again, or click <

This will release the freeze.

30_ live

EVENT MONITORING

CH1

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH1

This will display the channel in sync with a specific event (Sensor/Motion/Video Loss/Tampering) if it occurs. In “Monitor > Event Display”, set the event monitoring to ON/OFF and specify the event display time. (Page 50)

• If multiple events occur simultaneously, the screen will switch to a split mode.

2~4 events : 4-split mode

-

• If the second event occurs within the set time of <Event Display>, the first event will last until the second

one is terminated. (Page 50)

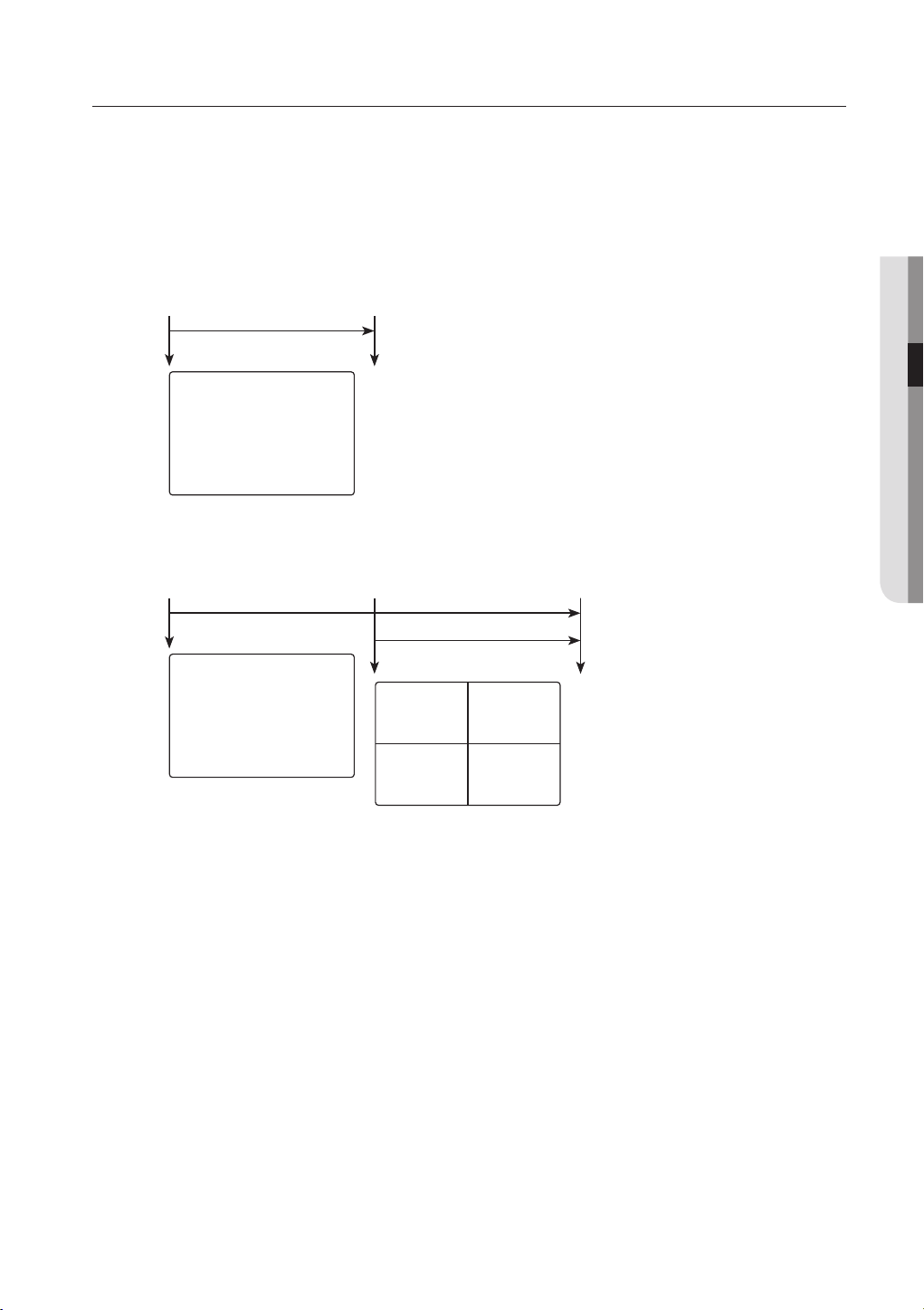

Ex : If you set <Event Display> to 5 seconds, and only one event occurs in CH 1.

Event occurrence 5 seconds

Stop alarm

CH1

Ex : If you set <Event Display> to 5 seconds, and the second event occurs in CH 2 within the set time after the first event occurred in CH 1.

Event occurrence 4 seconds 9 seconds

● LIVE

Stop alarm

CH1 CH2

` Press the [ALARM] button to reset the alarm settings and to release the event mode.

` If an alarm activates in the condition you have set the event record, and pre/post alarm times, the event record will be

performed.

` This will also apply to the Spot Out monitor.

` In case of continuous events such as motion detection, switching to another split mode display may not immediate if

concatenating events follow, even when you stopped alarm of the event.

English _31

main menu

You can setup the system properties, devices, and options for recording, event, backup and network.

SYSTEM SETUP

You can setup Date/Time/Language, Permission, System Properties and Log.

Date/Time/Language

You can check and setup the current Date/Time and time related properties, as well as the language used for the interface on the screen.

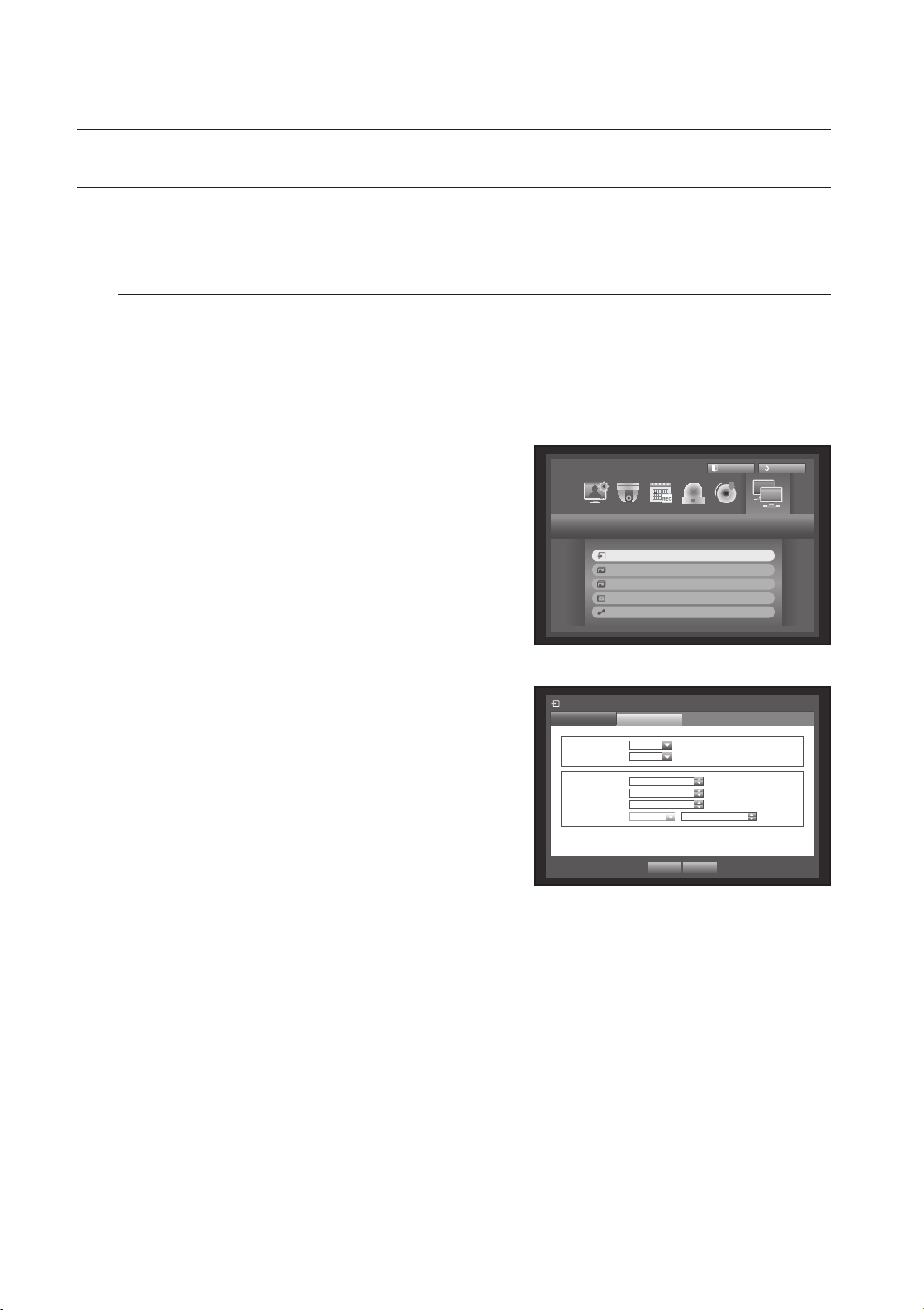

Setting the Date/Time/Language

Set the Date/Time/Language

Using the mouse may help make setup easier.

1. Press the [MENU] button on the remote control or on the front panel.

` If not logged in, it prompts with login window.

Refer to “Login”. (Page 20)

2. Use the left/right buttons (_ +) to select the <System>.

System property setup menu is selected.

3. Use the up/down buttons (▲▼) to select <Date/Time/

Language> and press the [ENTER] button.

4. Select <Date/Time/Language>.

A dialog to setup Date, Time and Language.

5. Use direction buttons (▲▼_ +) to select an item to set

System

Date/Time/Language

Permission Management

System Management

Log Information

and make your changes.

•Date : Sets the date that will appear on the screen. You can select the date format.

•Time : Sets the time and its format that will appear on the screen. Select either one from <24 Hours, 12 Hours (AM/PM)>.

•Time Zone : Sets the time zone of your area based on the Greenwich Mean Time (GMT).

GMT (Greenwich Mean Time) is standard World Time and the basis of world time zone.

Date/Time/Language

Date 2013-01-01 YYYY-MM-DD



Time 08:14:24 24 Hours



Time Zone GMT



Time Sync. Setup



DST Dec First (Sun) 0 Dec First (Sun) 0



Language English



Holiday

OK Cancel

•Time Sync. : You can set the DVR’s current time synchronized to a selected <Time Server> regularly if you select to use <Time Server>. In this case, <Date/Time/Language> setup does not allow time adjustment.

Logout

Return

32_ main menu

- Time Server : Enter an IP or URL address of the time server.

- Last Sync Time : Displays the most recent synchronization time from the selected time server.

- Activate as Server : Set to <Use> to allow the DVR to act as a Time Server for other DVRs.

•DST : Set up Daylight Saving Time with its period to make the time earlier than the GMT of its time zone by 1 hour during the set period.

•Language : Select your language. Sets the language for the interface.

Date/Time/Language

Date 2013 -01-01 YYYY-MM-DD



Time Synchronization Setup

Synchronization Use



Time 08:14:24 24 Hours



Time Server 203.248.240.103



Time Zone GMT+08:00



Last Sync Time Fail



Time Sync. Setup Not Used



Activate as Server Use



DST Dec First (Sun) 0H Dec First (Sun) 0H



Language English



Holiday

OK Cancel

English, French, German, Spanish, Italian, Chinese(Simplified), Russian, Korean, Polish, Japanese, Dutch, Portuguese, Turkish, Czech, Danish, Swedish, Thai, Romanian, Serbian, Croatian, Hungarian, Greek, Chinese (Traditional), Finnish and Norwegian are available.

6. When the Date/Time/Language setup is done, press <OK>.

` You can also use numeric buttons on the remote control or front panel to enter values for Date, Time and other numeric

fields.

Setting Holiday

You can set specific dates to Holidays according to your preferences. Holidays are applied to <Recording Schedule> and <Alarm Schedule> too.

Using the mouse may help make setup easier.

Use the up/down buttons (▲▼) in <Date/Time/Language> window to select <Date/Time/Language>, and press the [ENTER] button.

2. Select <Holiday>.

A calendar for Holiday setup appears.

3. Use the left/right <

> buttons to select year or month,

and press the [ENTER] button.

Date/Time/Language

2013 Jan

Sun Mon Tue Wed Thu Fri Sat 1 2 3 4 5

6 7 8 9 10 11 12

13 14 15 16 17 18 19

20 21 22 23 24 25 26

27 28 29 30 31

Holiday

● MAIN MENU

OK Cancel

4. Use direction buttons (▲▼_ +) to select a desired date,

and press the [ENTER] button. You will see the “Setting Holiday” screen.

` Ex : Select January 14th and check on <1/14> only to make every

January 14th a holiday. Check both on <1/14> and <Jan 2nd Mon> to make every January 14th and 2nd Monday of January holidays.

Date/Time/Language

2013 Jan

Setting Holiday

Sun Mon Tue Wed Thu Fri Sat 1 2 3 4 5

6 7 8 9 10 11 12

13 14 15 16 17 18 19

20 21 22 23 24 25 26

27 28 29 30 31

Holiday

1 / 14

Jan 2nd Mon

OK Cancel

5. When the Holiday setup is done, press <OK>.

OK Cancel

Using the Calendar

Using the mouse may help make setup easier.



Select year and month. Select the left/right < > key on the left/right side of year/month and press [ENTER] button to adjust by 1 year/month.



Use direction buttons to select a date and press [ENTER] button.

A date with recorded data to be searched will appear in yellow in the System Log, Event Log, Time Search and Event Search.

English _33

main menu

Permission Management

You can set permissions of each user over the DVR's specific function and settings.

Setting the Administrator

You can set and change Administrator’s ID and password. The administrator can use and set all menu items and functions.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <System> window to

move to <Permission Management>, and press [ENTER] button.

2. Select <Admin>.

A dialog for Admin ID and Password input appears.

3. Use direction buttons (▲▼_ +) to move to a desired item,

and set the ID and password.

Permission Management

Admin

ID admin



New Password



Conrm P/W



Group

************

User Setup

` The initial administrator ID is “admin” and the password should

be set when logging in for the first time.

OK Cancel

` Please change your password every three months to safely protect personal information and to prevent the damage of the

information theft. Please, take note that it’s a user’s responsibility for the security and any other problems caused by mismanaging a password.

4. When the administrator setup is done, press <OK>.

Using Virtual Keyboard



For alphanumeric inputs, the virtual keyboard window

appears.



Use direction buttons (▲▼_ +) to move to a desired

character, and press the [ENTER] button.



In the upper text input box of the virtual keyboard, there

displays a list of candidate words containing the selected character.



Select a word from the list, or use the keyboard to enter the whole word.

` If there are many of candidate words, use < , > buttons to move between them forward and backward.



Select <OK>.

Entered word is applied.

` For upper case letters, use <Caps Lock> button. ` For special characters, use <Shift> button. ` Using the virtual keyboard is the same to a normal keyboard use in your region. ` You can enter the ID with case-insensitive alphanumeric characters only. ` For the password, use alphabets and special characters excluding <

` You can use number buttons on the remote control or front panel.

` 1 2 3 4 5 6 7 8 9 0 - =

q w e r t y u i o p [ ] \

a s d f g h j k l ; ‘

z x c v b n m , . /

Space Ctrl

OK Cancel

> and <">.

Caps Lock

Shift



Del

34_ main menu

Setting the Group

You can create user groups and setup permissions for those user groups. You can register a user for each group in <User>.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <System> window to

move to <Permission Management>, and press [ENTER] button.

2. Select <Group>.

A window for <Add>, <Delete>, <Rename>, and <Group Authority> setup appears.

3. Use direction buttons (▲▼_ +) to move to a desired item,

and set the value.

•Add, Delete, Rename : You can add, delete, rename a group or modify the permissions given to the group. The virtual keyboard appears when <Add> or <Rename> was selected.

- Add : When you first run the DVR with the admin account, only the admin account exists. Add has already

been deactivated. Select <Add> to display the virtual keyboard. Enter a group name. You can add up to 10 groups.

- Delete : Deletes a user group that is already registered. Selecting Delete will delete all user accounts belonging to that group.

- Rename : Renames a group that is already registered. Select <Rename> to display the virtual keyboard.

For entering a group name, refer to “Using Virtual Keyboard”. (Page 34)

•Group Authority : Sets permissions to access menu items of each group. Users of a group can access checked functions.

4. When the group setup is done, press <OK>.

Permission Management

Admin

Group



Group Authority



Group

Live View

Backup

Bi-directional audio

Record Lock PTZ Remote Alarm Out Shutdown

Setup

User

Add Delete Rename

OK Cancel

Setup

● MAIN MENU

To set the group authority

You can set the permissions of the group users to access the menu according to the channel.

1. Select a menu to which the group permission is assigned.

The menu where the group permission is assigned will be displayed in the Live menu when a group user logs in.

•Live View : You can set the permission to access the Live screen according to the channel.

•Search : You can set the permission to access the Search menu according to the channel.

•Backup : You can set the permission to access the Backup menu according to the channel.

•Menu : You can set menus accessible with a specific permission. Group users can access the permitted menus only. Select a menu to display the Menu Permission screen.

•Bi-directional audio: You will be given permission to use two-way audio features.

•Record Lock, PTZ, Remote Alarm Out, Shutdown : Select an item so that the item will be added to the permissions.

2. Select <OK>.

Select and assign a group user so that the user can access the specified menu.

Permission Management

Admin

Group ABC



Group Authority



Permission Management

Menu Permission

Admin

All

System

Group ABC



Group Authority

Date/Time/Language

Date/Time/Language Holiday

System Management

System Information

Log Information

System Log Event Log Backup Log

Group

Channel Setup

Live View

Backup

Bi-directional audio

Record Lock PTZ Remote Alarm Out Shutdown

Live View

Backup

Record Lock PTZ Remote Alarm Out Shutdown

Setup

All

Setup

1 2 3 4

Setup

Group

Device Record Event Backup Network

Setup

OK Cancel

User

Add Delete Rename

User

Add Delete Rename

Setup

English _35

main menu

2013-01-01 01:10:25

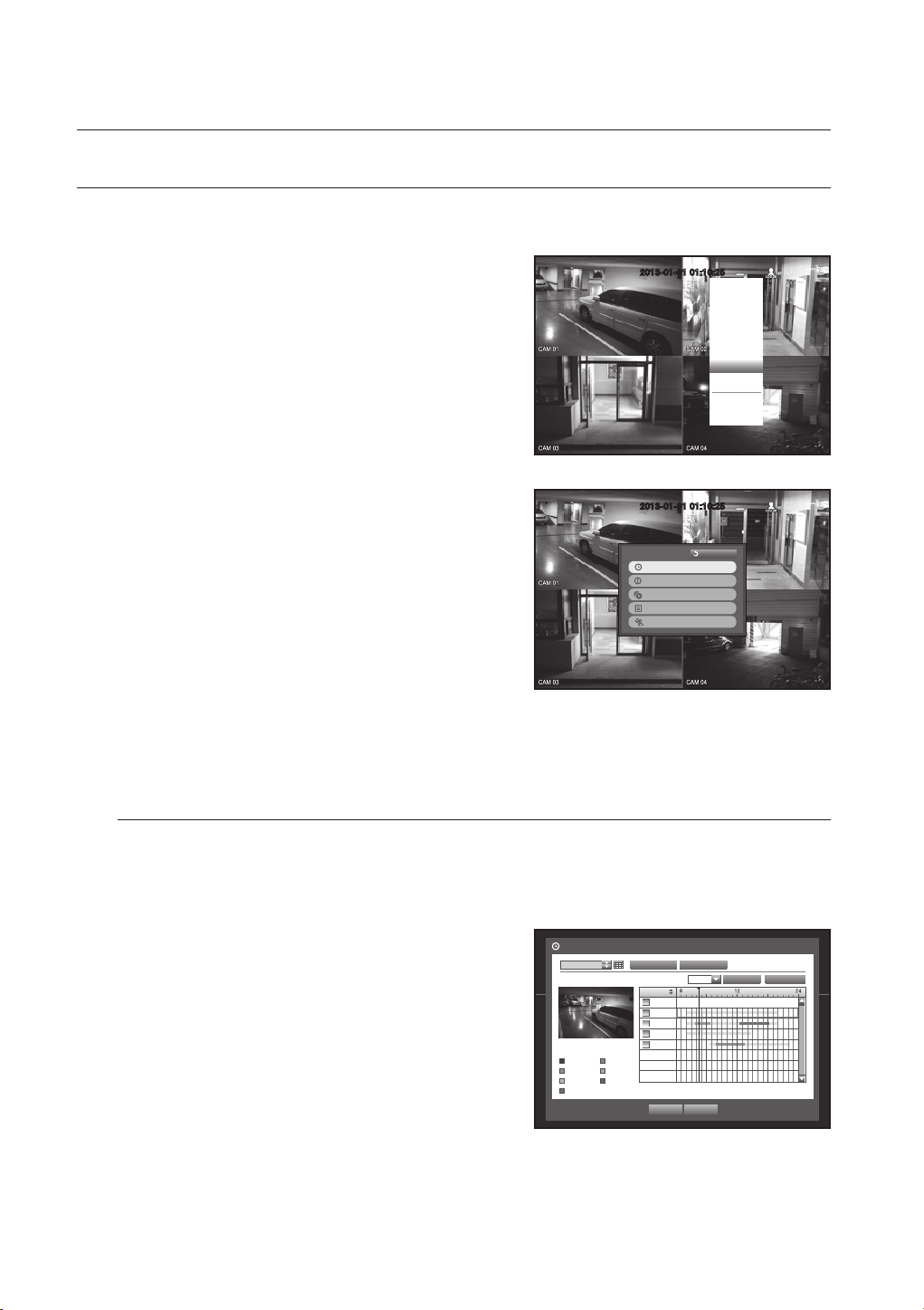

To restrict the user permissions

If the admin restricts all permissions of an added group, the users belonging to that group can access only the default minimum menus and can change the user’s own password only.

1. Start the DVR.

If all permissions are restricted, only the Login dialog should appear.

2. Log in with a registered user ID.

3. Right-click any area on the screen.

If all permissions are restricted, only the accessible context menus should appear.

ID abc



Password



OK Cancel

Scene Mode



Audio Off

Freeze

Stop Alarm

Record

User Menu

Hide Launcher

Logout

To change the user password

If you log in with a user account that is restricted to access the menu, you can change your own password only.

1. Log in with your account.

2. Select <User Menu>.

The Permission Management setup screen appears.

3. Select <Permission Management>.

The Password setup dialog appears.

4. Enter a new password.

5. Select <OK>.

You change to the password will be applied.

Permission Management

User

ID USER



New Password



Conrm P/W



************

OK Cancel

36_ main menu

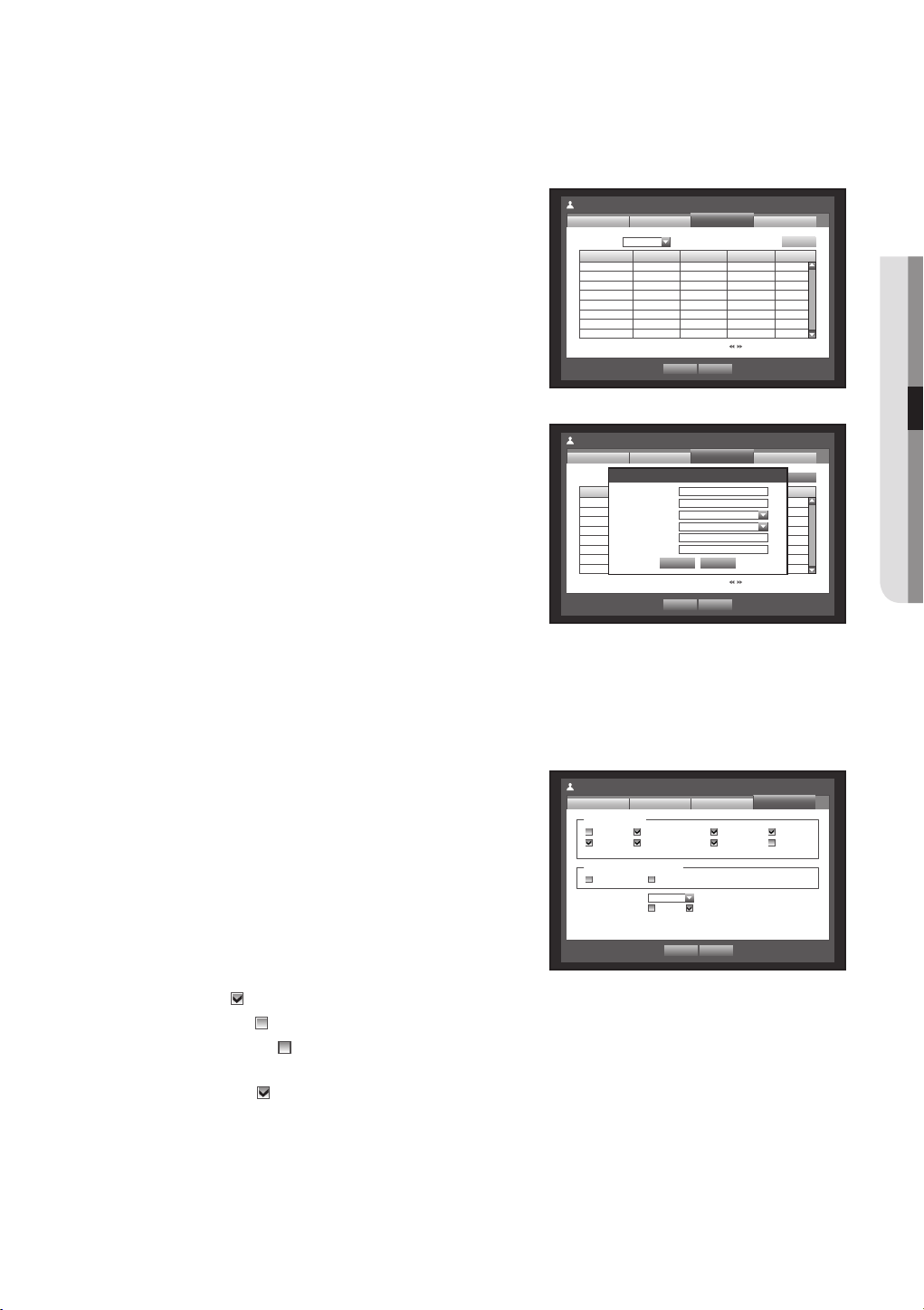

Setting the User

You can add a user and edit information of a registered user. Users can be added only if a group was created in <Group> menu.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <System> window to

move to <Permission Management>, and press [ENTER] button.

2. Select <User>.

A window for Add User appears.

3. Use direction buttons (▲▼_ +) to select <Add> from the

window. A window for “Add User” appears.

4. You can configure the Network Viewer settings including

name, ID, viewer, Select Group and password. Result of the user setup appears in the <User> window. To change the user property, use “Edit User”. The “Edit User” window appears when you select a desired item to be changed in the <User> window.

•Viewer : If you select <Use>, you will be given access to the Web Viewer and Network Viewer.

Refer to “Connecting Web Viewer (Windows)”. (Page 82)

For more information about use of Network Viewer, refer to the Network Viewer's user guide.

5. When the user setup is done, press <OK>.

Permission Management

Admin

Group All Group



Group Name ID Viewer Delete

Permission Management

Admin

Group All Group



Group Name ID Viewer Delete

Group

Add User

Name



Viewer Not Used



Select Group ABC



Password



Conrm P/W



OK Cancel

User

Setup

Previous/Next Page

Setup

Previous/Next Page

Add

● MAIN MENU

Add

Setting Permissions

You can set restricted access for all general users. Items with restrictions will require logging in for use.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <System> window to

move to <Permission Management>, and press [ENTER] button.

2. Select <Setup>.

The Restricted Access, Restriction on Network Access, Auto Log out, Manual Input of ID setup screen appear.

3. Use direction buttons (▲▼_ +) to move to a desired item,

and set the value.

•Restricted Access : All menu items allowed for a user can be set with restricted access.

- Checked (

- Not checked (

If it is not checked ( ) in <Restricted Access>, any user can access the item no matter what the <Group Authority>

) : Restricted

) : Accessible

setting.

If it is checked ( ) in <Restricted Access>, a user can access the item only if the user has permission in <Group Authority> setting.

•Restriction on Network Access : Restricts remote access from a <Restricted Access> network.

- All Network : Restricts all access instances via Network Viewer and Web Viewer.

- Web Viewer : Restricts access via the Web Viewer.

•Auto Log out : A user will be automatically logged out if there is no operation on DVR for over set period of time.

Permission Management

Admin

Restricted Access



Live View Backup Record Lock Search

PTZ Remote Alarm Out Shutdown All

Restriction on Network Access



All Network Web Viewer

Auto Log out OFF



Manual Input of ID ON OFF



Group

OK Cancel

User

Setup

English _37

main menu

•Manual Input of ID : Prompts you to enter the user ID manually for the login process.

- Checked ( [] symbols. Use the virtual keyboard to enter the user ID.

4. When the permission setup is done, press <OK>.

System Management

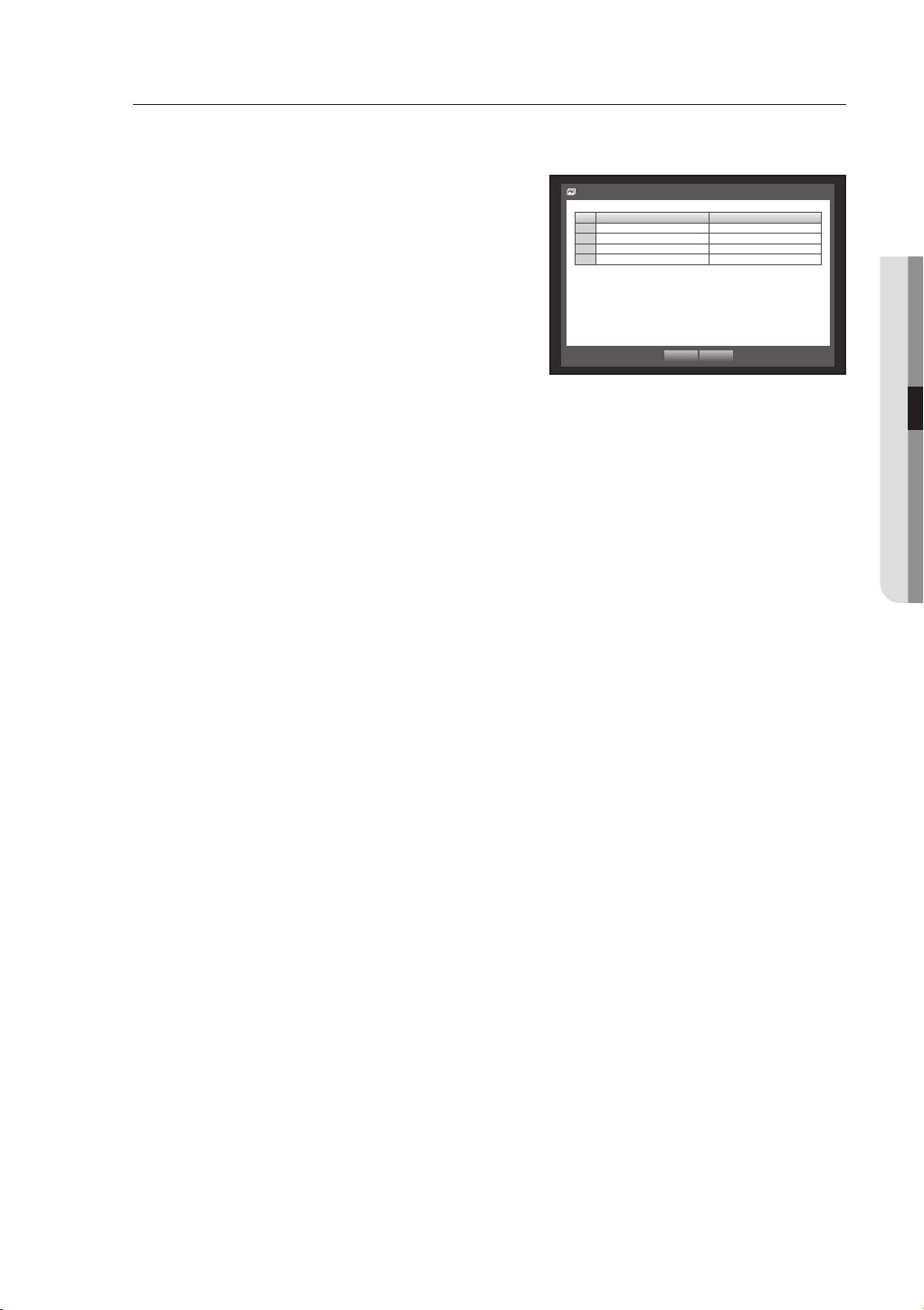

You can check the system version, update to a newer version, as well as data backup and initialization.

Checking the System Information

You can check the current system version, broadcasting system, MAC address. You can update the system.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <System> window to

move to <System Management>, and press [ENTER] button.

2. Check the Software Version, Broadcast Format and MAC

Address.

•System Information : Shows the current system’s information. The values can not be changed by a user.

•S/W Upgrade : Updates the DVR’s software up to date.

•DVR Name : Assigned name will be displayed in Network

Viewer, when connected to the DVR.

) : Encloses the registered user IDs with the



*****

Password



OK Cancel

System Management

System Information



Software Version v1.0xh_yymmddhhmmss



Broadcast Format



MAC Address 00:00:F0:54:FF:FF



S/W Upgrade



Device Network



Version No S/W Data



DVR Name DVR



Settings

NTSC

38_ main menu

•Updating the Software

1. Connect a device storing the software to be updated. (It may take about 30 seconds to recognize the

device.)

` Upgradeable devices include USB memory, CD/DVD and network device.

` To update the network, the current DVR should have been connected to the network.

Upgrade via the proxy server may not be enabled due to the restricted access.

2. Select <System Management> from <System> window.

3. Select <System Information>.

4. Press <Search> button to display updated image, then the <Search> button switches to <Upgrade>.

` The <Upgrade> button will be activated only if the current <Software Version> of the <System Information> is same to

or older than that of <S/W Upgrade>.

● MAIN MENU

5. Press <Upgrade> button to display confirmation popup

for upgrading. Press <OK> in the “System Upgrade” window.

` While updating, it shows the progress.

6. When the updating is done, it automatically restarts.

Do not turn the power off until it finishes restarting.

System Management

System Information



Software Version v1.0xh_yymmddhhmmss



System Upgrade

Broadcast Format



MAC Address 00:00:F0:54:FF:FF



Current Version v1.0xh_yymmddhhmmss New Version v1.0xh_yymmddhhmmss

S/W Upgrade



Device Network



Version No S/W Data



DVR Name DVR



Settings

NTSC

Do you want to upgrade?

OK Cancel

System Management

System Information



Software Version v1.0xh_yymmddhhmmss



Broadcast Format



S/W Upgrade

MAC Address 00:00:F0:54:FF:FF



Software upgrading...

S/W Upgrade



Device Network



Version No S/W Data



DVR Name DVR



Settings

NTSC

` If “Upgrade Failed” appears, retry from the step 4.

When you experience continued failure, consult the service center for assistance.

` When you perform S/W update remotely using Smart Viewer,

it may take a max of 3 minutes to complete the update since Smart Viewer popped up a confirmation message. This is to guarantee that the DVR set operates stably. For a faster update, use the USB cable to connect to the DVR set.

English _39

main menu

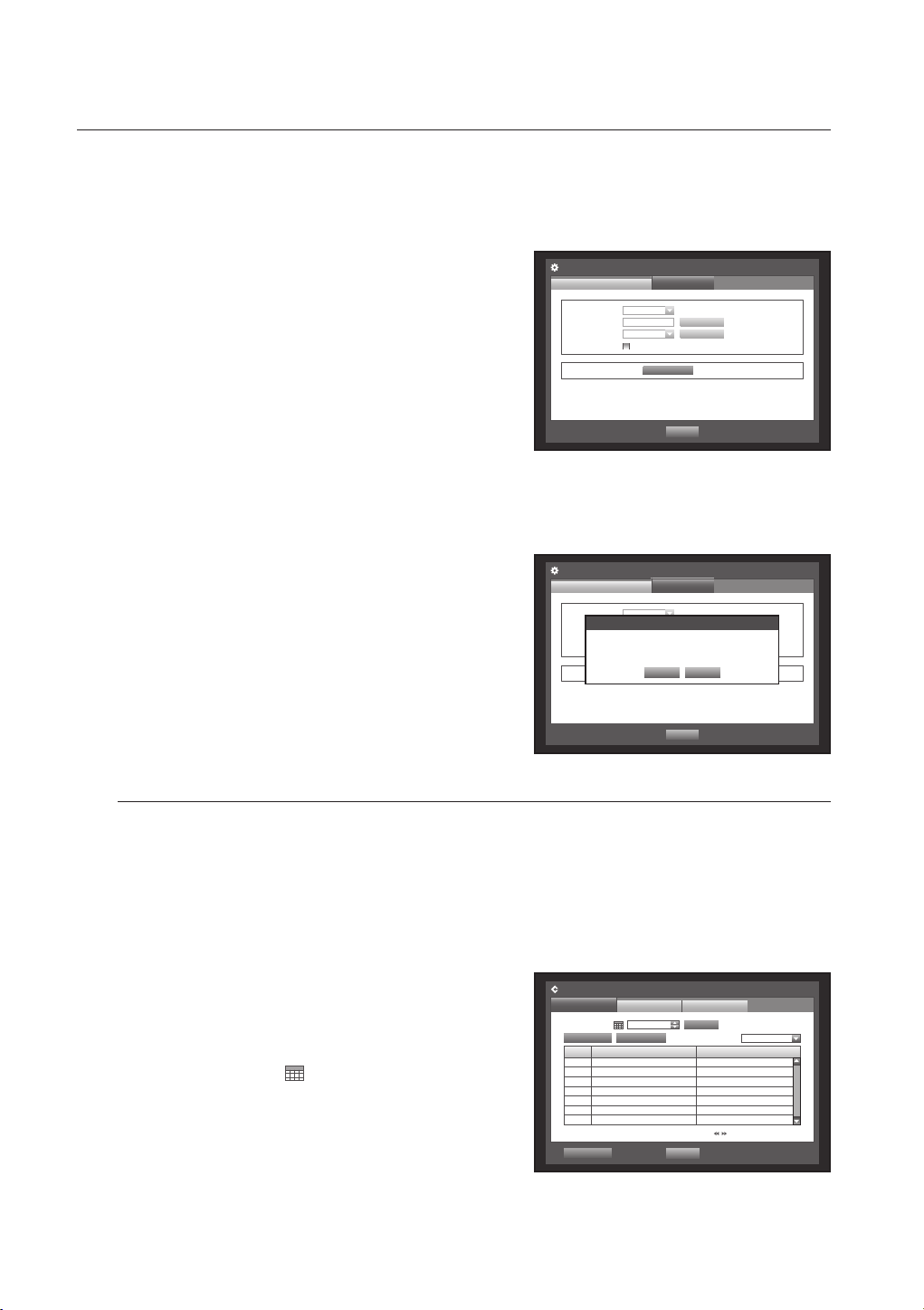

Settings

You can copy and import the DVR settings by using a storage media.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <System> window to

move to <System Management>, and press [ENTER] button.

2. Select <Settings>.

A window of storage device and load factory default appears.

3. Use direction buttons (▲▼_ +) to move to a desired item,

and export or import settings data to a storage device.

•Storage Device : Shows the connected storage device.

•Export : All logs recorded in the DVR are exported to the

storage media.

•Import : Imports DVR settings from the storage device and applies to the DVR.

If <Include Network Settings> is checked, the network settings will be imported too.

•Load Factory Default : If <Default> is selected, a confirmation dialog for “Load Factory Default” prompts. Press <OK> to initialize the system to the factory default.

4. To move to the previous menu, press <Previous>.

System Management

System Information

Storage Device 0 MB (Remained Capacity)



DVRUSB 38010100



USBDVR No data



Include Network Settings

Load Factory Default



System Management

System Information

Storage Device 0 MB (Remained Capacity)



Load Factory Default

DVRUSB 38010100



USBDVR No date



Include Network Settings

Load Factory Default



Settings

Export

Import

Default

Settings

Export

Import

Sure to Default Setting?

Recording stops few second.

OK Cancel

Default

Log Information

You can browse logs on the system and events.

System Log

System Log shows log and timestamp on every system start up, system shutdown, and changes on system settings.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <System> window to

move to <Log Information>, and press [ENTER] button.

2. Select <System Log>.

` Refer to “Using the Calendar”. (Page 33)

Click on the calendar < > to display the calendar window.

•Type : When there are too many logs, you can display logs of the desired format by selecting the type.

•Export : All logs recorded in the DVR are exported to the storage media.

3. Use direction buttons (▲▼_ +) to move to a desired item, and press <Search>.

Log Information

System Log

Search Day 2013-01-01

First Page

No. Log List Date/Time

Export

Event Log

Last Page

Backup Log

Type View all

Previous/Next Page

40_ main menu

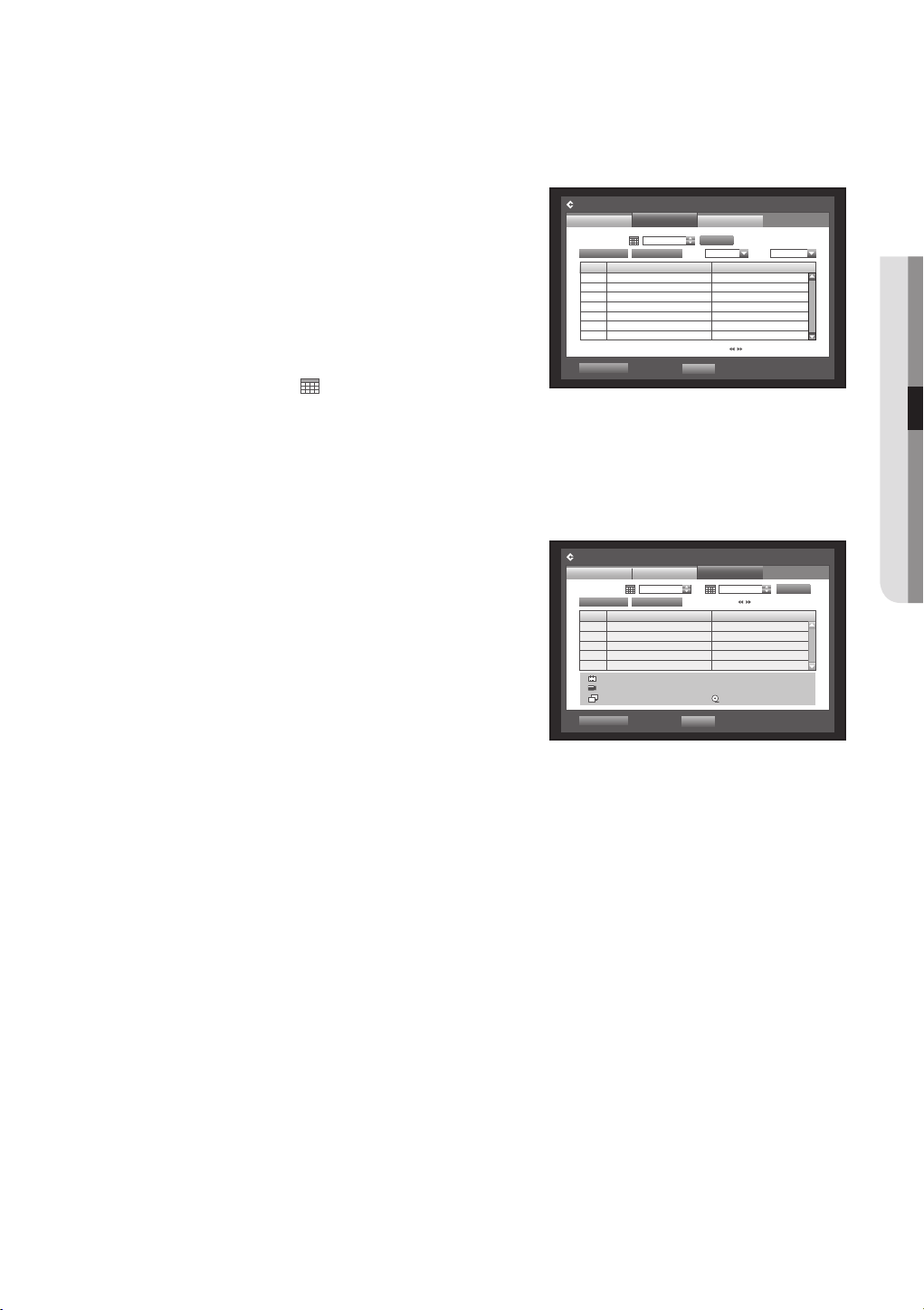

Event Log

Event log shows recorded events on alarms, motion detections and video loss. It also shows the log and its timestamp.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <System> window to

move to <Log Information>, and press [ENTER] button.

2. Select <Event Log>.

3. Use direction buttons (▲▼_ +) to move to a desired item,

and select it.

4. Set Search Day, Channel and Type and the press <Search>.

` Refer to “Using the Calendar”. (Page 33)

Log Information

System Log

Search Day 2013-01-01

No. Log List Date/Time

7 Motion Detection [CH 7] 2013-01-01 00:02:18

6 Motion Detection [CH 6] 2013-01-01 00:02:18

5 Motion Detection [CH 5] 2013-01-01 00:02:18

4 Motion Detection [CH 4] 2013-01-01 00:02:18

3 Motion Detection [CH 3] 2013-01-01 00:02:18

2 Motion Detection [CH 2] 2013-01-01 00:02:18

1 Motion Detection [CH 1] 2013-01-01 00:02:18

First Page

Export

Event Log

Last Page

CH All CHs Type View all

Backup Log

Previous/Next Page

Click on the calendar < > to display the calendar window.

Backup Log

You can find out who backed up and the details (backup time, channel, device to use, file format, etc.).

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <System> window to move to <Log Information>, and press [ENTER] button.

2. Select <Backup Log>.

3. Use direction buttons (▲▼_ +) to move to a desired item,

and select it.

4. Specify a search term and select <Search> in the right corner. Backup details for the search term will be listed.

Log Information

System Log

Search Day 2013-01-01 ~ 2013-01-02

First Page

No. User Date/Time

Event Log

Last Page

Export

Backup Log

Previous/Next Page

● MAIN MENU

English _41

main menu

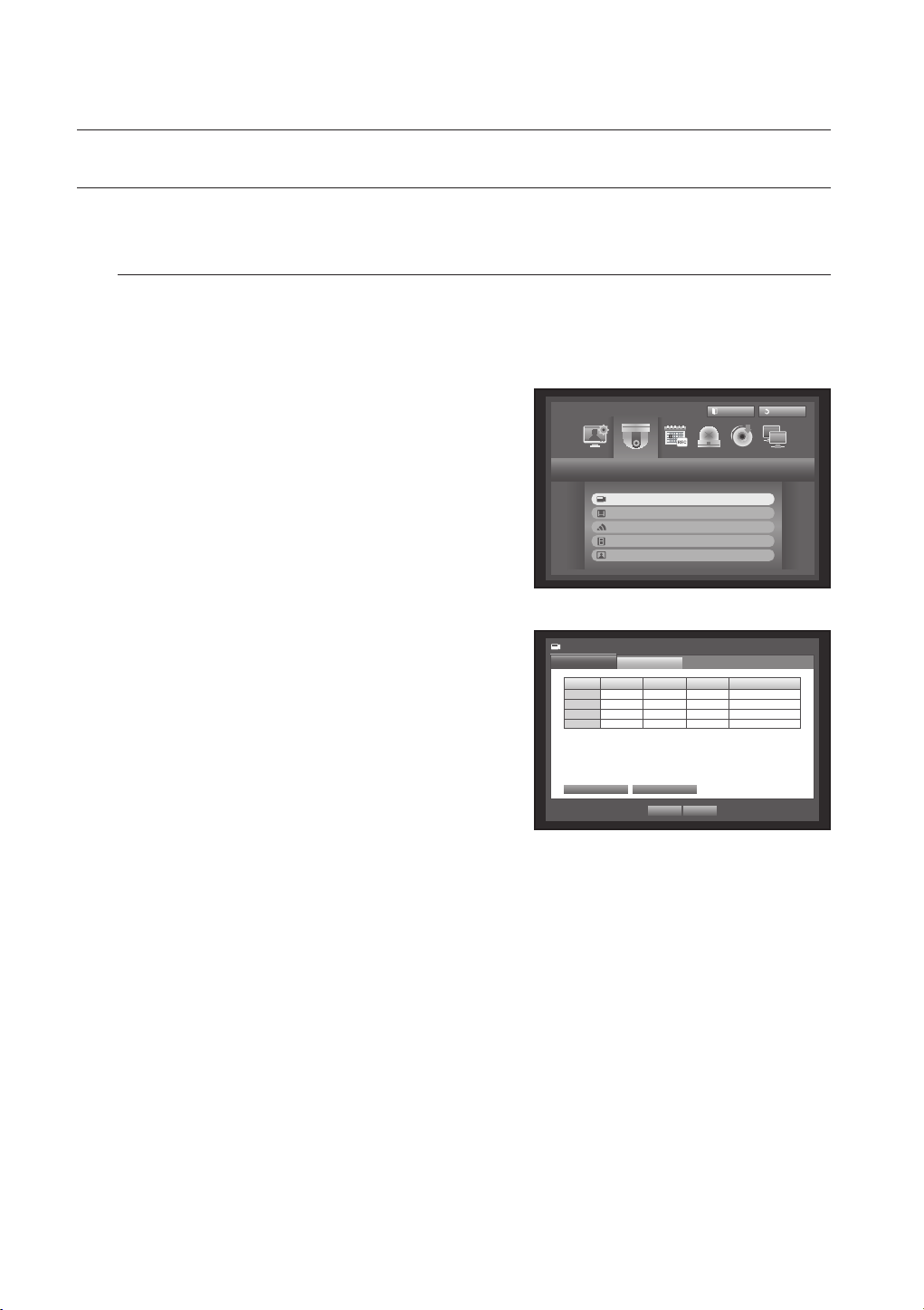

SETTING THE DEVICE

You can setup Camera, Storage Device, Remote Device, POS Device and Monitor.

Camera

Setting the Camera

You can set Video, Audio, Channel Name and Dwell Time of a Camera.

Using the mouse may help make setup easier.

1. Press the [MENU] button on the remote control or front

panel.

2. Use the left/right button (_ +) to select <Device>.

Device setting menu is selected.

3. Use the up/down buttons (▲▼) to move to <Camera>,

and press [ENTER] button.

Device

Camera

Storage Device

Remote Device

POS Device

Monitor

Logout

Return

4. Select <Camera>.

Displays settings window for Video, Audio, CH Name, SEQ-Dwell Time, Screen Setup and Privacy Region.

5. Use direction buttons (▲▼_ +) to move to a desired item,

and set the value.

Camera

CH Video  Audio CH Name SEQ-Dwell Time

1 ON  OFF  CAM 01 5 sec

2 ON  OFF  CAM 02 5 sec

3 ON  OFF  CAM 03 5 sec

4 ON  OFF  CAM 04 5 sec

PTZ



•Video

- <ON/OFF> : You can turn ON/OFF the selected channel’s

camera.

- <Covert1> : Shows information other than the video of

Screen Setup Privacy Region

OK Cancel

the selected channel.

` For privacy protection, it does not display the video while the recording continues.

- <Covert2> : Shows nothing but an empty screen while the recording continues.

` If the channel is set to <Covert1> or <Covert2> mode, the channel’s sound is not hearable.

However, the channel’s sound is recorded if its Audio setting is set to <ON>, even the sound is not heard in Live mode.

•Audio

- If set to <ON>, you can turn the audio of the channel ON/OFF on the Live screen.

- If set to <OFF>, the channel’s audio is off on the Live screen and not recorded.

` Audio output is available for only 1 channel.

•CH Name : Up to 15 characters including blanks are allowed. (The first character should not be empty.)

Refer to “Using Virtual Keyboard”. (Page 34)

42_ main menu

•SEQ-Dwell Time : You can set the dwell time between channels for the Live screen and Spot Out.

If set to <OFF>, the channel is not listed in the Auto Sequence mode.

•Screen Setup : The video appeared on the screen may vary

depending on the channel’s camera, configure the DVR display to your preferences. Select a channel and adjust the <(Brightness)>, <

(Contrast)>, and <(Color)> of the selected channel.

Press the <Init> to initialize settings back to the default 50.

•Privacy Region : You can specify a certain area of the

camera video to be protected for your privacy.

Screen Setup

CH1 50 50 50

OK Cancel

Init Apply to All CH

6. When the camera setup is done, press <OK>.

To set the privacy zone



Select <Privacy Region>.



When “Privacy Region” window appears, select a

channel and set the area of privacy zone.

• To set the area in “Privacy Region” window

In the “Privacy Region” window, select desired region from <

• Privacy Region

You can specify up to 4 privacy zones for each channel, which can be identified by the color.

Purple 2 Green 3 Blue 4 Yellow

• To set the area using <Individual> selection

In the “Privacy Region” window, you can select cells individually by using <Individual>. When selected <Individual>, “Privacy Region” window disappears and you can select cells one by one. When the privacy area setup is done, Right-click to select <Menu> in the context menu or the [MENU] button on the remote control to display the “Privacy Region” window again.

- Clear All : Selected cell is removed from the Privacy Region.

- Menu : After selecting individual privacy areas, move to the “Privacy Region” window.

If selected <Apply to All CH>, selected privacy area is applied to all channels.



When completing the privacy zone settings, click <OK>.

Privacy Region

CH1

Privacy Region1

Individual

OK Cancel

Apply to All CH

Clear All

● MAIN MENU

English _43

main menu

Setting the PTZ

To use Camera’s PTZ functions, ID and protocols of each camera and DVR should be matched. For other settings, refer to the <Remote Devices> settings. (Page 48)

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Device> window to

move to <Camera>, and press [ENTER] button.

2. Select <PTZ>.

A window of PTZ settings appears.

3. Use direction buttons (▲▼_ +) to move to a desired item,

and select it.

•Port : Select a port control method for the camera that is connected to a channel.

You have two choices : <RS-485> and <Coaxial>.

•ID : Set the ID of the connected camera of each channel. You can easily setup by using the numeric buttons on the remote control or front panel.

•Protocol : Set the protocol of the connected camera of each channel.

` You can check the camera’s ID and protocol if you turn the camera off and on after connecting it to the DVR.

` For the <Coaxial> type, CCVC and PELCO-C protocols are supported.

4. When the PTZ setup is done, press <OK>.

Camera

CH Port

1 RS-485  0 > None

2 RS-485  1 > None

3 RS-485  2 > None

4 RS-485  3 > None

PTZ

 

ID Protocol

OK Cancel



44_ main menu

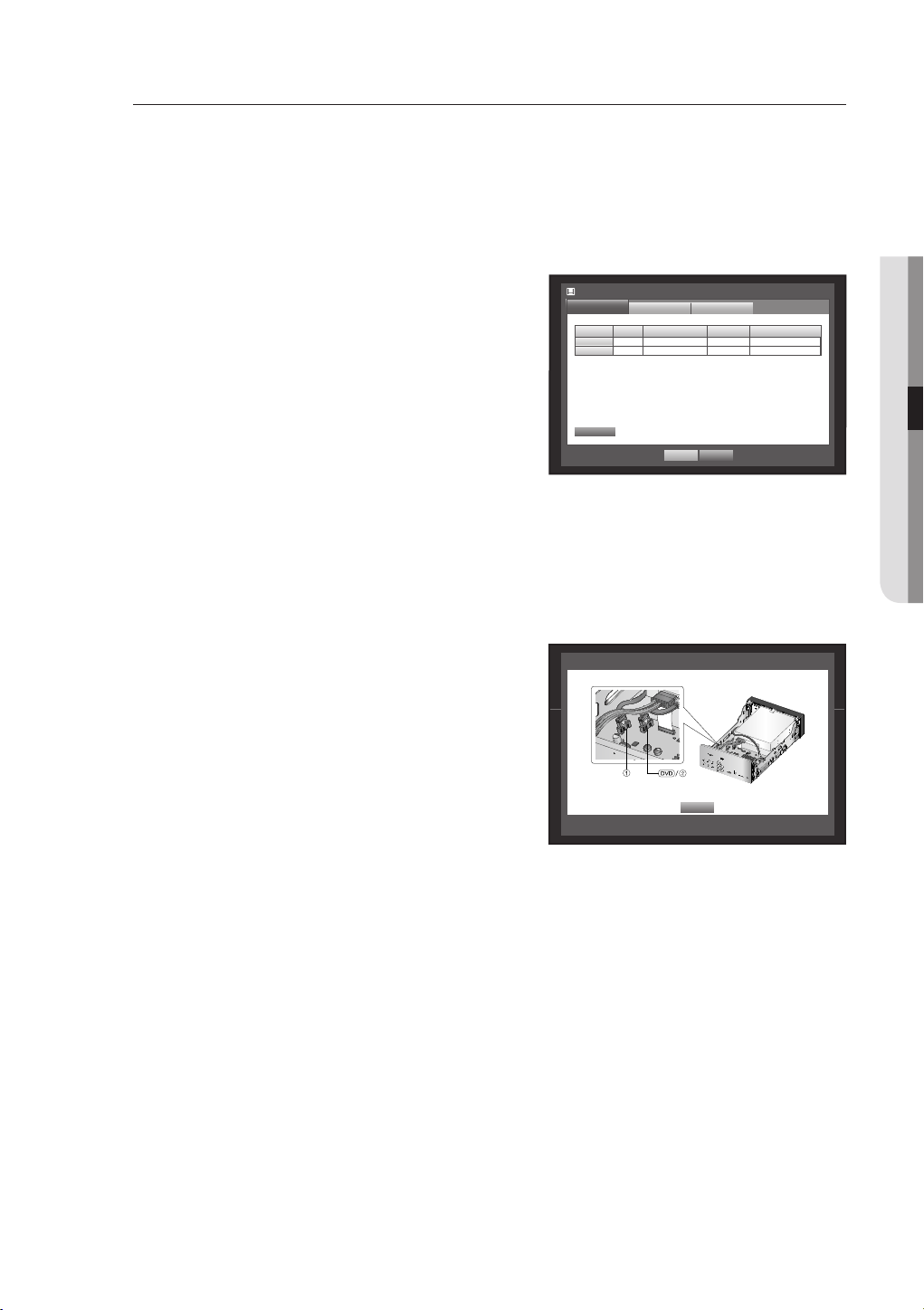

Storage Device

You can check information on storage devices.

Confirming Devices

You can check storage devices and their free space, usage as well as status. Devices available are HDD, and USB devices (Memory, HDD, CD/DVD).

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Device> window to

move to <Storage Device>, and press [ENTER] button.

2. Select <Device>.

•No. : Shows the assigned number of the internal HDD.

To see the detailed positioning of the HDD according to the number, refer to <HDD Map>.

•Used/Total : Shows the used/total capacity of the storage device.

•Usage : Sets the storage device’s usage.

- USB memory is used only for backups.

External USB HDD, SATA HDD are used for extension and backup.

•Status/Management : Shows the current status of the HDD, as in Normal/Check/Replace.

- Normal : Available to use

- Check : Available to use but recommended to replace

- Replace : Requires immediate replacement

•HDD Map : Shows the internal HDD’s locations according to assigned numbers.

Refer to this for servicing or additional HDD installation.

Storage Device

Device

Device No. Used/Total Usage Status/Management

HDD 1 2.31G/494.75G Internal Normal CD/DVD – 0 / 0 Backup Normal

HDD Map

Format

OK Cancel

HDD Alarm

● MAIN MENU

3. To move to the previous menu, press <OK>.

English _45

main menu

Formatting

You can format a storage device.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Device> window to

move to <Storage Device>, and press [ENTER] button.

2. Select <Format>.

A window for selection of device for formatting appears.

3. Use direction buttons (▲▼_ +) to select a device to be

formatted.

Storage Device

Device

Device Select Used/Total Usage

HDD 1 2.31G/494.75G Internal CD / DVD – 0 / 0 Backup

Format

OK Cancel

HDD Alarm

4. Select <Format> on the bottom of the screen. Press <OK> on the “Manage” confirmation window will start formatting the selected device.

5. When the formatting is done, press <OK>.

Storage Device

Device

Device Select Used/Total Usage

HDD 1 2.31G/494.75G Internal CD / DVD – 0 / 0 Backup

Format

Manage

Format

HDD Alarm

Formatting deletes all recordings.

Proceed formatting?

Recording stops few second.

OK Cancel

46_ main menu

HDD Alarm

You can set alarm settings for HDD defects such as Check Alarm Output Port, Replace Alarm Output Port, and its duration.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Device> window to

move to <Storage Device>, and press [ENTER] button.

2. Select <HDD Alarm>.

A window for setting HDD check and replace output ports and their durations appears.

3. Use direction buttons (▲▼_ +) to move to the desired

item.

•Alarm

- Alarm signal will output through the alarm out port on the

rear side when selected <1> or <2>.

- If <BEEP> was selected, a beep will sound.

- If <All> was selected, both beep sound and alarm signal through rear side ports will output.

•Check Alarm Output Port : If HDD generates check alarm, the alarm signal will output to the specified alarm output port.

•Replace Alarm Output Port : If HDD generates replace alarm, the alarm signal will output to the specified alarm output port.

•Duration : Sets the alarm duration for the alarm signal and beep sound.

- Check Alarm, Replace Alarm signals will output through the selected alarm out ports (1, 2).

- If <BEEP> was selected, a beep will sound.

- If <All> was selected, both beep sound and alarm signal through rear side ports will output.

Storage Device

Device

Check Alarm Output Port



Duration OFF



Replace Alarm Output Port



Duration OFF



Format

OK Cancel

HDD Alarm

1 2

BEEP All

1 2

BEEP All

● MAIN MENU

` <Check> status means that the HDD is operating but it has problems that require technical examination.

(

) appears on the Live screen.

` <Replace> status means that the HDD has defect and requires immediate replacement.

(

) appears on the Live screen.

` If the installed HDD is not recognized properly, a confirmation popup will appear.

4. When the HDD Alarm setup is done, press <OK>.

English _47

main menu

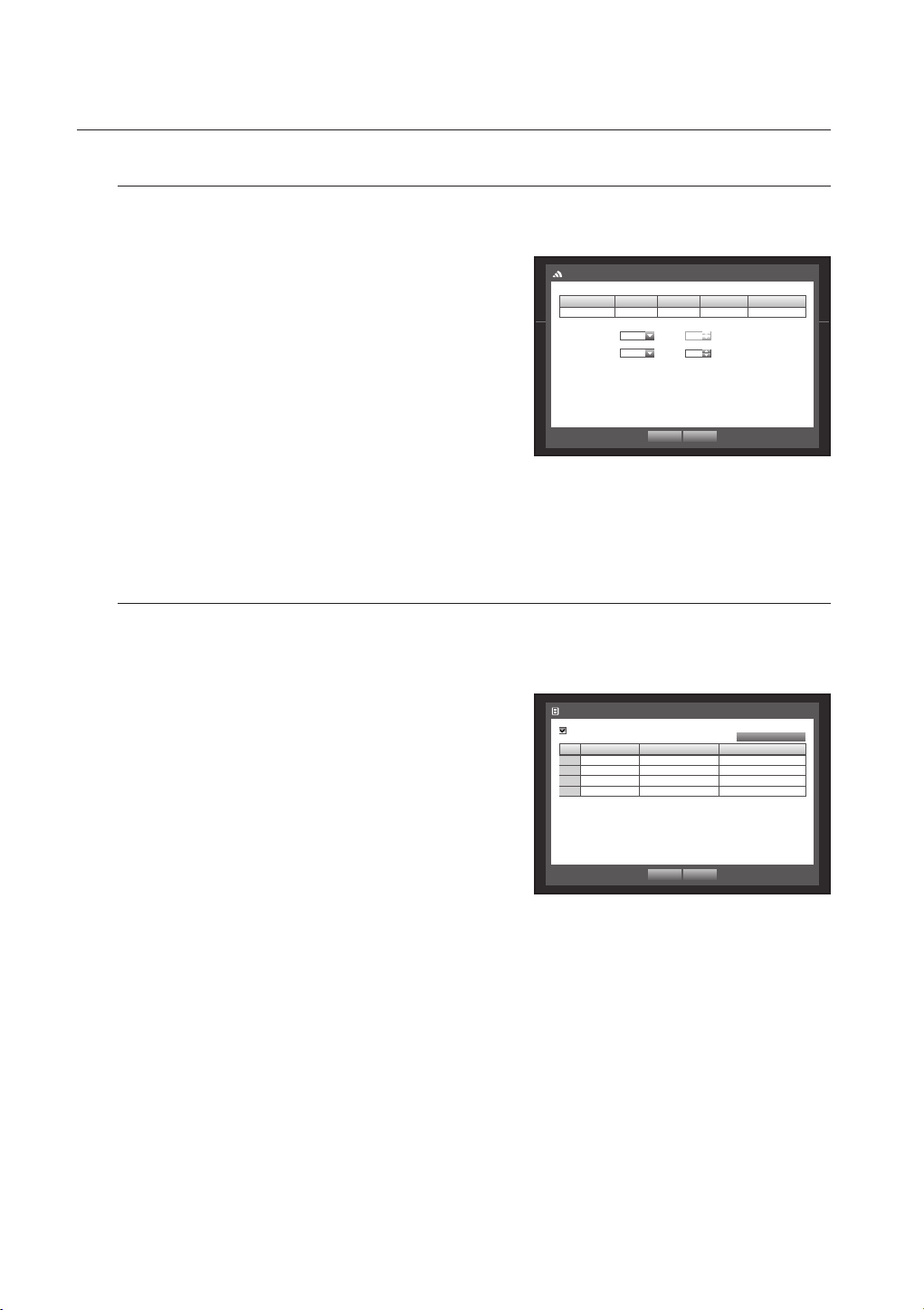

Remote Devices

You can set the RS-485 communication for use of PTZ Camera and system keyboard with the DVR.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Device> window to

move to <Remote Device>, and press [ENTER] button.

2. Use direction buttons (▲▼_ +) to move to the desired

item, and press [ENTER] button.

3. Set the values of each communication setup of the remote

device.

•Baudrate : Baud rate settings of the DVR, PTZ camera and system keyboard should be matched for proper operations.

4. Make sure to match IDs of the DVR, System Keyboard

and Remote Control, and press <OK>.

` For changing the remote control’s ID, refer to “Changing the Remote Control ID”. (Page 13)

POS Devices

You can set properties of POS devices connected to the DVR. A POS device connection requires channel, preset, and Port/Ethernet settings.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Device> window to

move to <POS Device>, and press [ENTER] button.

2. Use direction buttons (▲▼_ +) to move to a desired item,

and set the value.

•POS USE : When selected <POS USE>, DVR and POS will be connected.

Remote Device

Baudrate Parity Data Stop Bit Transfer type

9600 None  8 1 Half Duplex

System Keyboard OFF ID 1

Remote Control ON ID 0

OK Cancel

POS Device

POS USE

POS CH Preset  Port/Ethernet

1 None No preset None

2 None No preset None

3 None No preset None

4 None No preset None

POS Device Setup

` If you change settings for the device and press <OK> while the

<POS USE> is not checked, the changes for POS device will not be saved.

48_ main menu

OK Cancel

•POS Device Setup : Sets the communication setups for the POS device and DVR.

It is independent to the Remote Device setup.

POS Device

POS USE

POS CH Preset  Port/Ethernet

1 None No preset None

2 None No preset None

POS Device Setup

3 None No preset None

Baudrate Parity Data Stop bit

4 None No preset None

1200  None  7  1

OK Cancel

POS Device Setup



● MAIN MENU

•CH : Select the camera to be synchronized to the POS device.

If selected a channel input field, “Sync Channel Setup” window appears.

One POS device can be synchronized to up to 4 cameras (channels), however one channel cannot be synchronized to multiple POS devices.

Channels to be synchronized to a POS device should be set to “Event” in “Main Menu > Record > Recording Schedule”. (Page 52)

•Preset : Sets the name, start and end strings of the receipt for the preset.

Preset name should be unique.

Use <Add> button to display “Add Preset” window, and set its name, start string, and end string.

•Port/Ethernet : Sets the port number for the DVR and POS device connection.

COM1 : For RS-232C connections

7001~7016 : For Ethernet connections

3. When the POS Device setup is done, press <OK>.

POS Device

POS USE

POS CH Preset  Port/Ethernet

1 None No preset None

2 None No preset None

Sync Channel Setup

3 None No preset None

4 None No preset None

1 2 3 4CH

OK Cancel

POS Device Setup

POS Device

POS USE

Preset Setup

POS CH Preset  Port/Ethernet

Add Preset

1 None No preset None

No. Name Start End Input char. Set Del

2 None No preset None

Name



3 None No preset None

4 None No preset None

Start Keyword



5 None No preset None

End Keyword



6 None No preset None

7 None No preset None

8 None No preset None

OK Cancel

POS Device Setup

Previous/Next Page

Add

English _49

main menu

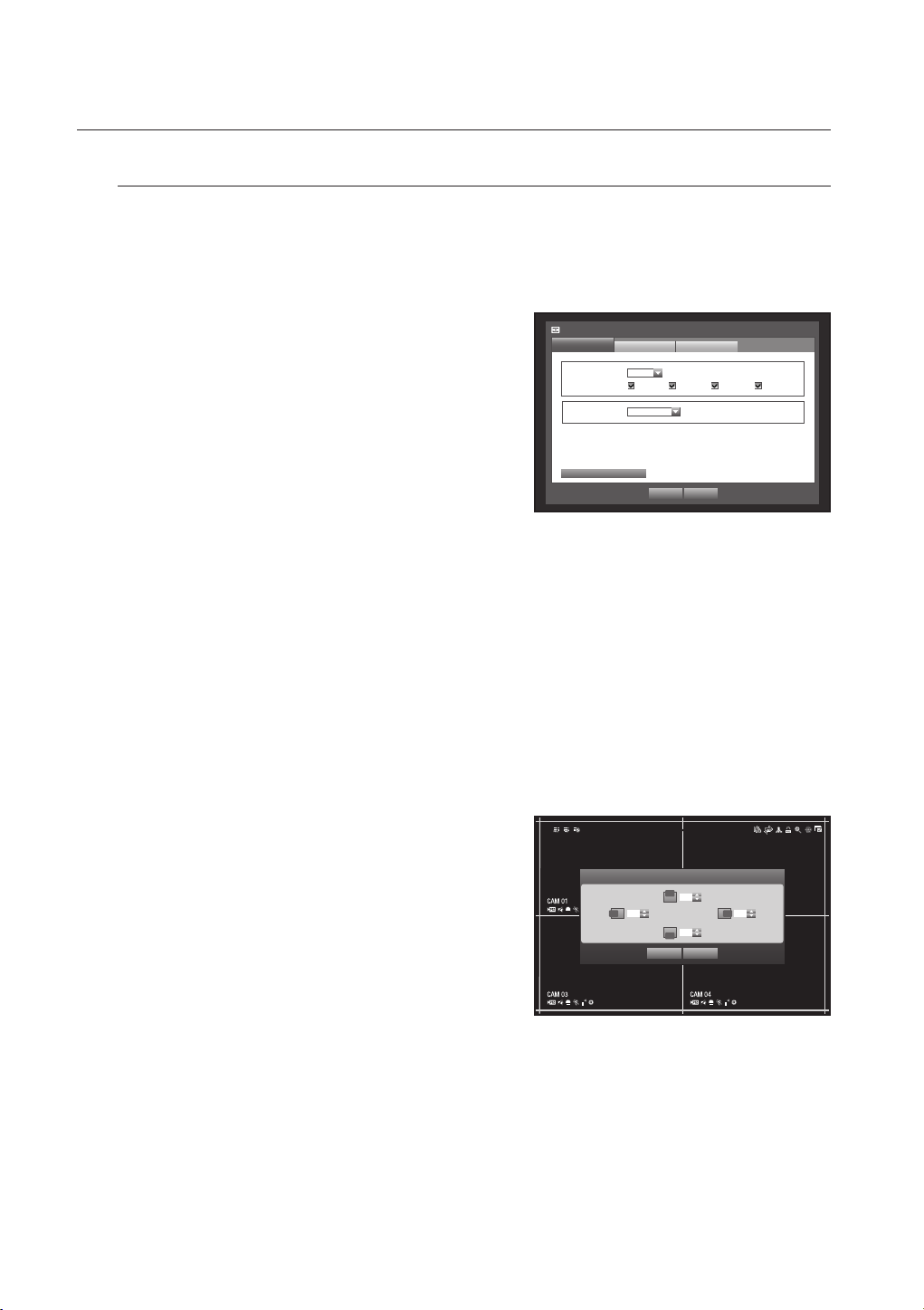

Monitor

You can configure information to be displayed and its format for Spot Out monitor.

Setting the Monitor

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Device> window to

move to <Monitor>, and press [ENTER] button.

2. Select <Monitor>.

3. Use direction buttons (▲▼_ +) to move to a desired item,

and set the value.

•Event Display : Sets the dwell time of the event channel display on the monitor when an event occurs. If selected <Continuous>, it displays the channel until you press [ALARM] button to release it.

•Display : Displays only checked items on the monitor screen.

•VGA/HDMI : Set your preferred screen resolution to <VGA> or <HDMI>. If the monitor does not support selected resolution of <VGA> or <HDMI>, it may not display video properly.

4. When the monitor setup is done, press <OK>.

Monitor

Event Display OFF



Display Date Time CH Name Icon



Display Position Setup

VGA/HDMI

Spot Out

1280X1024

Mode

OK Cancel

Screen Setup

Some monitors may not display information (camera name, icon, time information, etc.) about the DVR, depending on the condition. Then, you can change the display position of the data.

1. In the <Device> window, press the up/down (▲▼) button to move to <Monitor> and press the [ENTER]

button.

2. Select the <Monitor> item.

3. Select <Display Position Setup> in the bottom.

You will move to the <Display Position Setup> window.

4. Use the four direction buttons or the number buttons on

the front panel or the remote control to adjust the data position.

2013-01-01 01:10:25

Display Position Setup

30 30

OK Cancel

CAM 03

50_ main menu

Setting the Spot Out

You can set the DVR to output information / video apart from the monitor out.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Device> window to

move to <Monitor>, and press [ENTER] button.

2. Select <Spot Out>.

` The number of Spot Out terminals differs according to the model.

3. Use direction buttons (▲▼_ +) to move to a desired item,

and set the value.

Monitor

Spot Out 1 Multi Spot





Spot Out 2 SEQ



Event Display OFF



Spot Out

SEQ

OK Cancel

Mode

Set Mode

All

● MAIN MENU

•Spot Out 1 : It supports auto sequence and single mode by default, and additionally supports 4-split modes if selected <Multi Spot> out.

•Spot Out 2 : It supports auto sequence and single mode.

•Set Mode : A window for “Set Spot Out” appears and you

can set the channel for it. You can set the dwell time between the screen switching in “Setting the Device > Camera > SEQ-Dwell Time”. (Page 43)

•Event Display : Sets the duration for the Spot Out on an event. If selected <OFF>, an event will not output to the Spot Out.

` You can setup using the mouse right button in Live screen.

Refer to “Spot Out”. (Page 29)

` If selected <Multi Spot> double frame function is deactivated.

4. When the Spot Out is done, press <OK>.

Setting the Screen Mode

You can configure the Live screen and Split Screens.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Device> window to

move to <Monitor>, and press [ENTER] button.

2. Select <Mode>.

3. Use direction buttons (▲▼_ +) to move to a desired item,

and set the value.

•Live Screen : Select split modes for the Live screen. The basic option includes four-split mode screen.

•Play Screen : Displays the split screen to be displayed while playing the video.

4. When the screen mode setup is done, press <OK>.

Monitor

Spot Out 1 Multi Spot





Spot Out 2 SEQ



Event Display OFF



Monitor

Monitor Spot Out

Spot Out

Set Spot Out

SEQ

1 2 3 4

OK Cancel

Live Screen



Play Screen



OK Cancel

Mode

Set Mode

All

Set Mode

All

Mode

Live Play

English _51

main menu

SETTING THE RECORDING

You can setup scheduled recording, event recording and other recording related settings.

Recording Schedule

Make your reservation on a date and time to schedule the recording on specified time.

Using the mouse may help make setup easier.

1. Press the [MENU] button on the remote control or front

panel.

2. Use the left/right button (_ +) to select <Record>.

Record menu is selected.

3. Use the up/down buttons (▲▼) to move to <Recording

Schedule>, and press [ENTER] button.

Recording Schedule

Event Record Duration

REC Quality & Resolution

Record Option

Record

Logout

Return

4. Select <Recording Schedule>.

A window of scheduled recording setup appears.

5. Use direction buttons (▲▼_ +) to move to a desired item,

and set the value.

•Channel : Select a channel to set the recording schedule time and date format.

•Recording type : Select each time cell, and then select a type to start recording.

•Apply to All CH : If selected <Apply to All CH>, “Apply to All CH” window appears. Press <OK> to apply the setup to all channels.

6. When the recording schedule setup is done, press <OK>.

` Event recording and scheduled recording starts about 3 seconds

prior to the event/schedule for guaranteed recording.

Recording Schedule

CH1

00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23

All

Sun

Mon

Tue

Wed

Thu

Fri

Sat

Hol

No Recording Continuous

Event Both(Cont&Evnt)

OK Cancel

Recording Schedule

CH1

00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23

All

Sun

Apply to All CH

Mon

Tue

Wed

Thu

Fri

Sat

Hol

No Recording Continuous

Event Both(Cont&Evnt)

Apply recording schedule to all channels?

OK Cancel

Apply to All CH

52_ main menu

Recording Color Tags

Color Part Names Functions

White No Recording No schedule / event recording

Orange Continuous Scheduled recording only

Blue Event Event recording only

Green Both(Cont&Evnt) Both scheduled / event recordings

Each press of a selected cell will cycle through <No Recording>-<Continuous>-<Event><Both(Cont&Evnt)>.

Event Record Duration

You can set the beginning and ending point of a recording on an event.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Record> window to

move to <Event Record Duration>, and press [ENTER] button.

2. Use direction buttons (▲▼_ +) to move to a desired item,

and set the value.

• Pre Event : The recording of an event will start at a pre-determined time prior to the actual occurrence of the event. If it is set to 5 seconds, the recording begins from 5 seconds before the event.

•POST Event : The recording will continue for a pre-determined time after the actual end of an event. If it is set to 5 seconds, the recording ends in 5 seconds after an event.

3. When the event recording duration setup is done, press <OK>.

Event Record Duration

CH Pre Event  POST Event

1 OFF

2 OFF

3 OFF

4 OFF

OK Cancel

1 min



1 min



1 min



1 min



● MAIN MENU



REC Quality / Resolution

You can set resolution, FPS, and quality of recordings by channel, and by recording type of standard / event.

For more information about the resolution, refer to the “Product Specification” section. (Page 113)

Setting Standard Recording Properties

You can set each channel’s resolution, quality and FPS for normal recordings.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Record> window to

move to <REC Quality & Resolution>, and press [ENTER] button.

2. Select <Standard>.

3. When the recording setup is done, press <OK>.

REC Quality & Resolution

Standard

CH Resolution  Record Rate  Record Quality

1 CIF  7fps  Level4

2 CIF  7fps  Level4

3 CIF  7fps  Level4

4 CIF  7fps  Level4

Event

OK Cancel

English _53



main menu

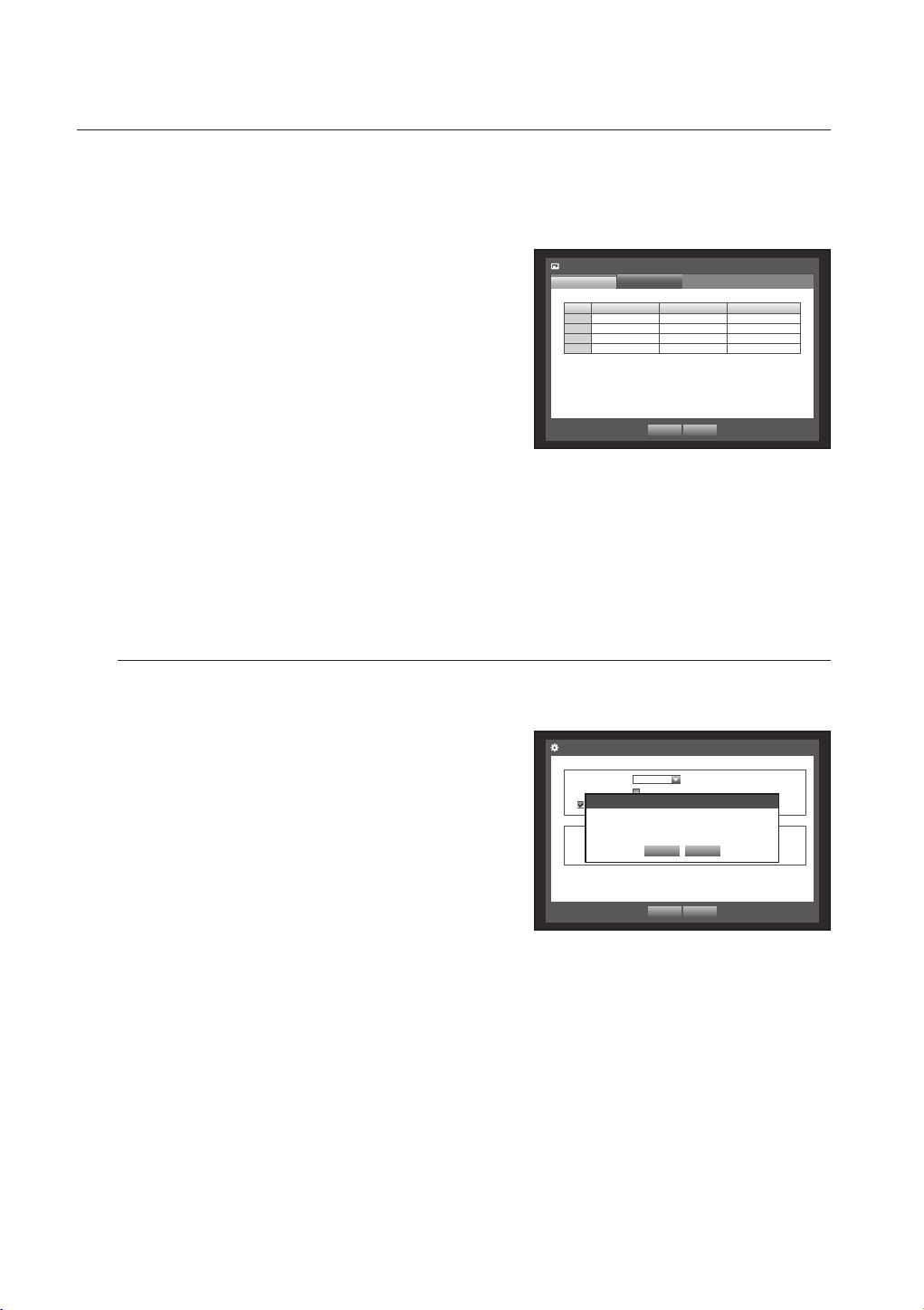

Setting Event Recording Properties

You can set each channel’s resolution, quality and FPS for event recordings.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Record> window to

move to <REC Quality & Resolution>, and press [ENTER] button.

2. Select <Event>.

Event recording setup window appears.

3. Use direction buttons (▲▼_ +) to move to a desired item,

and select it.

•Resolution : Sets the resolution of the recorded screen.

•Record Rate : Image Per Second, means the frames

recorded per a second.

•Record Quality : Sets the recording quality.

` You cannot increase the remaining count if the current remaining count has reached zero or there is no available remaining

count from any other page. If this is the case, reduce the remaining count for the current page, or do so for the same channel on any other page.

4. When the Event recording setup is done, press <OK>.

Record Option

REC Quality & Resolution

Standard

CH Resolution  Record Rate  Record Quality

1 4CIF  7fps  Level4

2 4CIF  7fps  Level4

3 4CIF  7fps  Level4

4 4CIF  7fps  Level4

Event

OK Cancel



You can set the recording to stop or overwrite when the HDD is full.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Record> window to

move to <Record Option>, and press [ENTER] button.

2. Use direction buttons (▲▼_ +) to move to a desired item,

and set the value.

•Disk End Mode : If selected <Overwrite>, recording will

continue despite the HDD full while overwriting the oldest. If selected <Stop>, the recording will stop when the HDD is

Record Option

Disk End Mode Overwrite



Disk End Beep

Auto Delete

Auto Delete 180 day



The recording information will be deleted.

Record Status

HDD Free Space : 986 GB / 989 GB



Recordable (Date/Time) :



Do you want to proceed?

OK Cancel

full.

•Disk End Beep : If selected <Stop>, the button is activated.

OK Cancel

If you check it, the beep will sound on the disk full and the recording stops.

•Auto Delete : If you check it, Record Period setup is activated. If you specify the auto deletion period, the recording data before the period will be deleted automatically.

This option will be enabled only if Disk End Mode is set to <Overwrite>.

•HDD Free Space : Shows remaining free space available on the HDD.

•Recordable (days/hours) : Shows estimation of remaining days and hours for recording, based on the

remaining free space.

3. When the recording option setup is done, press <OK>.

54_ main menu

SETTING THE EVENT

You can set recording options when sensor, motion, image loss detection or tampering event occurs.

Sensor Detection

You can set the sensor’s operating condition and connected camera, as well as alarm output and its duration.

Using the mouse may help make setup easier.

1. Press the [MENU] button on the remote control or front

panel.

2. Use the left/right button (_ +) to select <Event>.

Event setting menu is selected.

Sensor Detection

Motion Detection

Video Loss Detection

Tampering Detection

Alarm Schedule

Logout

Event

Return

● MAIN MENU

3. Use the up/down buttons (▲▼) to move to <Sensor

Detection>, and press [ENTER] button.

A window of sensor detection setup appears.

4. Use direction buttons (▲▼_ +) to move to a desired item,

and set the value.

•Sensor Operation : Sets the operation mode of sensors.

- <OFF> : Sensor does not operate.

- <N.O> : Sensor is opened.

If the sensor is closed, it generates alarm.

- <N.C> : Sensor is closed.

If the sensor is open by interruption, it generates alarm.

•Cam : Select a channel to be connected to the sensor.

If selected camera, “Cam Preset setup” window appears. Select a channel and setup the preset.

Preset setup can be done in PTZ mode. Refer to “Preset Setting”. (page 75)

•Alarm : Sets the alarm output method.

For further information on alarm output, refer to “HDD Alarm > Alarm”. (Page 47)

•Duration : Sets the duration of alarm signal and alarm sound.

5. When the sensor detection setup is done, press <OK>.

Sensor Detection

Sensor

Sensor Operation  Cam  Alarm  Duration

1 OFF  1 None 10 sec

2 OFF  2 None 10 sec

3 OFF  3 None 10 sec

4 OFF  4 None 10 sec

OK Cancel

Sensor Detection

Cam Preset setup

Sensor

Sensor Operation  Cam  Alarm  Duration

1 OFF  1 None 10 sec

 Preset

2 OFF  2 None 10 sec

1 None

3 OFF  3 None 10 sec

2 None

4 OFF  4 None 10 sec

3 None



4 None



OK Cancel

 Preset

Sensor Detection

Sensor

Sensor Operation  Cam  Alarm  Duration

1 OFF  1 None 10 sec

2 OFF  2 None 10 sec

Alarm Setup

3 OFF  3 None 10 sec

4 OFF  4 None 10 sec

1 2 BEEP

All

OK Cancel



OK Cancel

English _55

main menu

Motion Detection

You can set target detection region and motion, as well as the alarm signal output. When the motion detection region is set, it detects motion within the area.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Event> window to

move to <Motion Detection>, and press [ENTER] button. A window of motion detection area setup appears.

2. Use direction buttons (▲▼_ +) to move to a desired item,

and set the value.

•Mode : Sets whether to activate motion detection.

•Sensitivity : Sets the sensitivity level of the motion detection.

•Alarm : Sets the alarm output method.

For further information on alarm output, refer to “HDD Alarm > Alarm”. (Page 47)

•Alarm Duration : Sets the duration of alarm signal and alarm sound.

3. When the motion detection setup is done, press <OK>.

Setting the Motion Detection Area



Select <Motion Region>.



When “Motion Region” window appears, select a

channel for detection and set the area of motion detection.

• To set the area in “Motion Region” window

In the “Motion Region” window, select desired region from <

• To set the area using <Individual> selection

In the “Motion Region” window, you can select cells individually by using <Individual>. When selected <Individual>, “Motion Region” window disappears and you can select cells one by one. When the motion area setup is done, press the <Menu> on the screen or the [MENU] button on the remote control or front panel to display the “Motion Region” window again.

- Select : Selected cell is set to be a part of motion detection area.

- Unselect : Selected cell is removed from the motion detection area.

- Inverse : Unselected cells are set to be the motion detection area.

- Menu : After selecting individual motion areas, move to the “Motion Region” window.

If selected <Apply to All CH>, selected motion area is applied to all channels.



When the motion detection setup is done, press <OK>.

CH Mode  Sensitivity  Alarm  Alarm Duration

1 OFF  Level10(High)  None 10 sec

2 OFF  Level10(High)  None 10 sec

3 OFF  Level10(High)  None 10 sec

4 OFF  Level10(High)  None 10 sec

Motion Detection

Motion Region

CH1

OK Cancel

Individual

Apply to All CH

Select

Unselect

Inverse

Motion Region



56_ main menu

Video Loss Detection

You can set the alarm to be generated on a camera disconnection, which causes a video loss.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Event> window to

move to <Video Loss Detection>, and press [ENTER] button.

2. Use direction buttons (▲▼_ +) to move to a desired item,

and set the value.

Video Loss Detection

CH Video Loss State  Alarm  Alarm Duration

1 OFF  None 10 sec

2 OFF  None 10 sec

3 OFF  None 10 sec

4 OFF  None 10 sec



•Video Loss State : Sets whether to activate video loss detection.

•Alarm : Sets the alarm output method.

For further information on alarm output, refer to “HDD Alarm >

OK Cancel

Alarm”. (Page 47)

•Alarm Duration : Sets the duration of alarm signal and alarm sound.

3. When the video loss detection setup is done, press <OK>.

Tampering Detection

You can set to detect tampering attempts and trigger events, such as sudden change of camera’s framing direction, blocked lens and other overall change of scenes from the video.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Event> window to

move to <Tampering Detection>, and press [ENTER] button. Tampering detection settings screen appears.

2. Use direction buttons (▲▼_ +) to move to a desired item,

and set the value.

•Mode : Set whether to use Tampering Detection or not.

•Sensitivity : Set the sensitivity level of tampering detection.

•Alarm : Set the alarm output method.

• Duration : Set the alarm signal output and its dwell time.

3. When the tampering detection setup is done, press <OK>.

Tampering Detection

CH Mode  Sensitivity  Alarm  Duration

1 OFF  Medium  None 10 sec

2 OFF  Medium  None 10 sec

3 OFF  Medium  None 10 sec

4 OFF  Medium  None 10 sec

OK Cancel



● MAIN MENU

` Since the tampering detection is designed and optimized to function in accordance with the user defined sensitivity level, it

may not render a significant difference in detection with varied sensitivity in general monitoring situations.

When the tempering detection mode is set <ON>, it is recommended that the pre event recording time of the corresponding channel should be set to 10 seconds or longer.

English _57

main menu

Alarm Schedule

You can set the conditions and operating hours for scheduled alarms.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Event> window to

move to <Alarm Schedule>, and press [ENTER] button.

2. Use direction buttons (▲▼_+) to move to a desired item,

and set the value.

•Alarm : Sets the alarm output method.

For further information on alarm output, refer to “HDD Alarm > Alarm”. (Page 47)

•ON : Marked in orange, and always generates alarm on scheduled time.

•OFF : Marked in white, no alarm is generated even if an event occurs.

•Event Sync : Marked in Blue, generates alarm only when an event occurs.

•Apply to All Alarm : Applies the configured schedule to all

alarms.

` When the alarm is generated on the scheduled time, you can

stop the alarm by canceling the schedule.

3. When the Alarm Schedule setup is done, press <OK>.

Alarm Schedule

Alarm1

00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23

All

Sun

Mon

Tue

Wed

Thu

Fri

Sat

Hol

OFF ON Event Sync

OK Cancel

Alarm Schedule

Alarm1

00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23

All

Sun

Apply to All Alarm

Mon

Tue

Wed

Thu

Fri

Sat

Hol

OFF ON Event Sync

Apply the alarm scheduling to all?

OK Cancel

Apply to All Alarm

OK Cancel

BACKUP

You can check the backup device and set the backup schedule by channel or by time. The product only supports external HDD of USB memory, CD/DVD and USB/SATA type. (Page 114)

Setting the Backup

You can backup the desired data to a connected device.

Using the mouse may help make setup easier.

1. Press the [MENU] button on the remote control or front

panel.

2. Use the left/right button (_ +) to select <Backup>.

Backup menu is selected.

Backup

Logout

Backup

Return

58_ main menu

3. Press the [ENTER] button.

A backup window appears. You can directly access it from the “Live screen menu”. (Page 23)

4. Use direction buttons (▲▼_ +) to move to a desired item,

and set the value.

•Backup Range : Sets the <Start> and <End> time for the

backup.

•Channel : Sets the channel to backup.

Backup

Start 2013-01-01 00:01:06  End 2013-01-01 08:25:45



Overlap List0



1 2 3 4

ALL

Device Internal CD/...



Folder \20130101\



Check capacity

Type SEC



File Name 0001



OK Cancel

Backup :

Used :

Free :

Change

You can select multiple channels.

•Device : Select a backup device from the recognized devices.

•Type : Sets the backup data format.

- DVR : Saved data can be played back only by the DVR.

- AVI : You can set recording options when sensor, motion, image loss detection or tampering event occurs.

` If you need to install a codec in Windows, run the x264_dvr.exe file in the codec folder that is created when you back up an

AVI file.

- SEC : Saves data in the Samsung’s proprietary format with built-in viewer, which supports immediate playback on a PC.

•File Name : You can set the back file name.

Refer to “Using Virtual Keyboard”. (Page 34)

•Check capacity : Shows the size of the selected backup data, used and available capacity of the selected backup device.

•Overlap : Shows a list of overlapping data on a same time according to the number of data. It appears when one channel has multiple data on a certain time point due to changing of time or time zone settings, etc.

Refer to time and time zone of “Setting the Date/Time/Language”. (Page 32)

● MAIN MENU

5. When the backup setup is done, press <OK>.

` If no available device is recognized for backup, <OK> button is not activated.

` The application may slow down during the backup.

` You can switch to the menu screen during the backup in operation, but playback of data is not available.

` The data can be played back on a Webviewer while the backup is in progress but audio does not function.

` When a CD/DVD or memory device is used for backup, it is not available to use the full capacity of the media since the

system consumes a part of its capacity.

` If a CD or DVD media causes errors, the disc tray opens and closes a several times, and eventually backup process will fail.

In this case, replace the CD/DVD media and try again.

` If backup has failed, select “Device > Storage Device” and check the free space of the HDD and check also if the HDD is

properly connected.

` Pressing the <Exit> during the backup will return to the previous menu, while the backup progresses.

English _59

main menu

NETWORK CONFIGURATION

It provides networked monitoring of Live screen from a remote place, and supports mail forwarding function with events. You can configure the network environment which enables such functions.

Connection Mode

You can set the network connection route and protocol.

Setting the Connection

Sets the protocol and environment of the network.

Using the mouse may help make setup easier.

1. Press the [MENU] button on the remote control or front

panel.

2. Use the left/right button (_ +) to select <Network>.

Network menu is selected.

3. Use the up/down buttons (▲▼) to move to <Connection

Mode>, and press [ENTER] button.

Connection Mode

DDNS

Live Transfer

Mailing Service

SNMP

Logout

Return

Network

4. Select <Interface>.

A window of connection mode setup appears.

5. Use direction buttons (▲▼_ +) to move to a desired item,

and set the value.

•IP Type : Sets the network connection mode.

•Transfer Bandwidth : Sets the maximum data flow to be

transferred. (Upload speed) Options will vary depending on the selected connection mode.

- For <Static>, <DHCP> : Select one from 50 kbps ~

2Mbps, and Unlimited.

- For <PPPoE>, select one from 50 kbps ~ 600 kbps.

Connection Mode

Interface

IP Type Static



Transfer Bandwidth 2Mbps



IP Address 192.168.1.200



Gateway 192.168.1.1



Subnet Mask 255.255.255.0



DNS Manual 168.126.63.1



Port

OK Cancel

60_ main menu

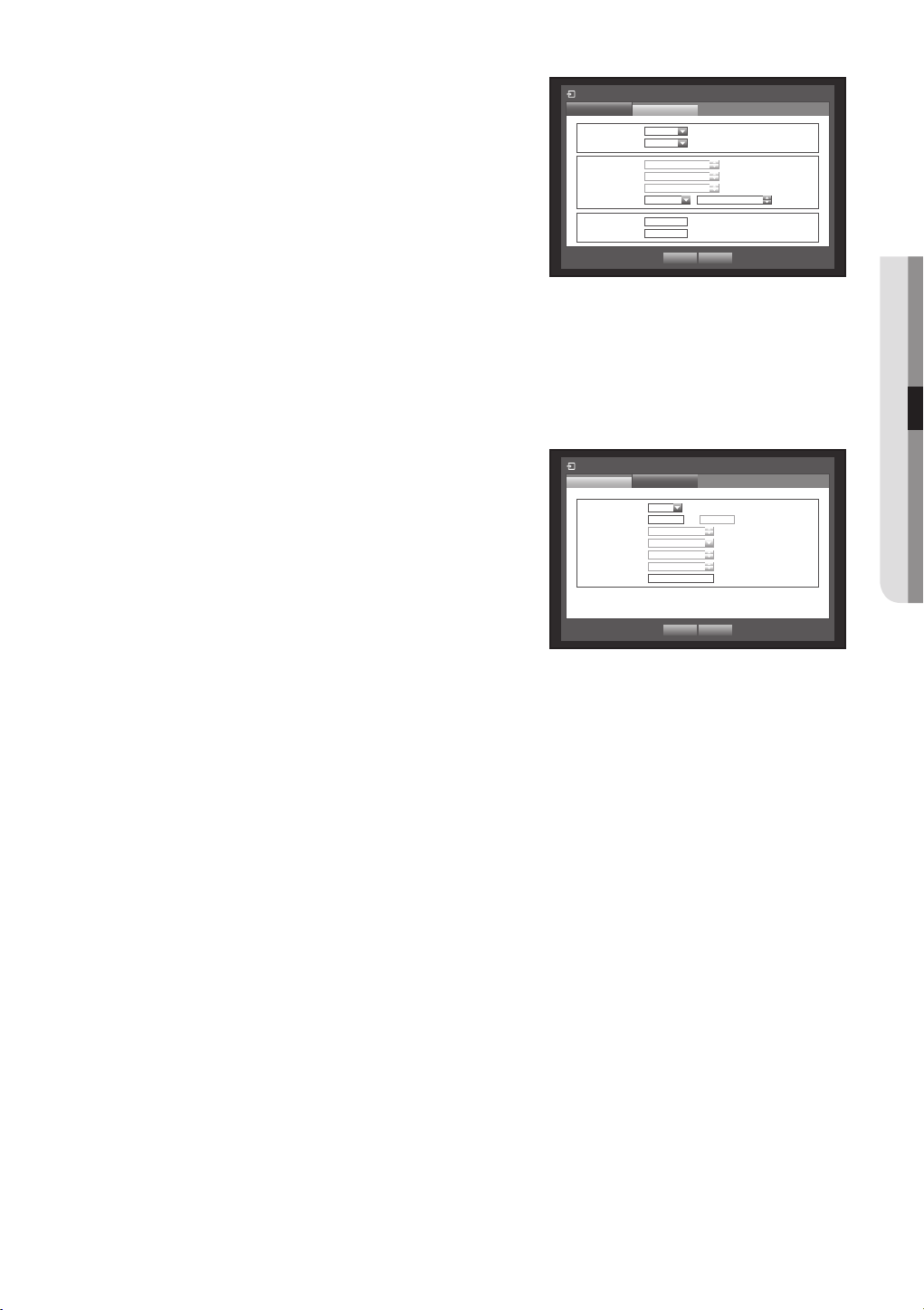

•IP Address, Gateway, Subnet Mask, and DNS

- For <Static> : You can directly input IP Address, Gateway,

Subnet Mask and DNS.

- For <DHCP> : IP Address, Gateway, and Subnet Mask

are set automatically.

- For <PPPoE> : IP Address, Gateway, and Subnet Mask

are set automatically.

•ID, Password : In case you selected PPPoE, provide the “ID” and its “Password”.

` DNS server for <DHCP> and <PPPoE> can be set by user only if you selected <Manual>.

6. When the connection setup is done, press <OK>.

Setting the Port

Connection Mode

Interface

IP Type PPPoE



Transfer Bandwidth 600kbps



IP Address 192.168.1.200



Gateway 192.168.1.1



Subnet Mask 255.255.255.0



DNS Manual 168.126.63.1



ID ID



Password



Port

************

OK Cancel

● MAIN MENU

1. Use the up/down buttons (▲▼) in <Network> window to

move to <Connection Mode>, and press [ENTER] button.

2. Select <Port>.

3. Use direction buttons (▲▼_ +) to move to a desired item,

and set the value.

•Protocol Type : Select the protocol type between TCP and UDP.

- TCP : If compared to UDP, TCP connection is more stable

Connection Mode

Interface

Protocol Type TCP



Device Port 4520 ~ 4524



UDP Port 8000 ~ 8160



Unicast/Multicast Unicast



Multicast IP Address 224.126.63.1



Multicast TTL 5



HTTP Port 80



* Multi Browser Support: Device Port 4505~4530, HTTP Port 80

Port

OK Cancel

but slow. Recommended for Internet connection.

- UDP : If compared to TCP, UDP connection is less stable but fast. Recommended for use in LAN environment.

If selected UDP, selections of Device Port, UDP Port and Unicast/Multicast are activated.

If setting the connection mode to PPPoE, you cannot select UDP for the protocol type.

•Device Port : Initially, <4520~4524> is set. It increases / decreases by 5.

- TCP: It has better stability and lower speed when compared to UDP, and recommended for internet environments.

•UDP Port : Initially, <8000~8160> is set. It increases / decreases by 160.

•Unicast/Multicast : Select one between UDP-Unicast and UDP-Multicast.

If selected Multicast, Multicast IP and TTL are activated.

- UDP- Unicast : Transfers data packet to an individual client.

- UDP-Multicast : Allows data communication to multiple clients causing no additional traffic to the network.

•Multicast IP Address : User can directly input.

•Multicast TTL : Select from 0 ~ 255. Initial value for the TTL is set to <5>.

•HTTP Port : Enter the port number for the Web Viewer. Initially, it is set to <80>.

•Multi Browser Support : The Web Viewer can be used with a browser that supports the Silverlight.

The multi viewer can be used only if the HTTP port is set to 80, protocol type is TCP and device ports range within 4505-4530. This is for the Siliverlight’s security purposes.

4. When the protocol setup is done, press <OK>.

English _61

main menu

Notification

` In a multi-browser environment, the <HTTP Port> should be set to 80 (private port).

Select one between 4505 and 4530 for RTSP

• Network Overview

Router (External IP: 109.112.92.133,

Local IP: 192.168.1.1

Cable/ADSL

Modem

Internet

DDNS Server (www.samsungipolis.com)

DVD RECORDERDVD RECORDER

Local PC

DVR 1

DVR 2

DVR 1 DVR 2

System

WEB RTSP WEB RTSP

IP 192.168.1.200 192.168.1.200 192.168.1.202 192.168.1.202

Protocol TCP TCP TCP TCP

Private Port 80 4520~4524 81 4525~4529

Public Port 80 4520~4524 81 4525~4529

Connection Mode

Interface

IP Type Static



Transfer Bandwidth 2Mbps



IP Address 192.168.1.200



Gateway 192.168.1.1



Subnet Mask 255.255.255.0



DNS Manual 168.126.63.1



Port

OK Cancel

Connection Mode

Interface

Protocol Type TCP



Device Port 4520 ~ 4524



UDP Port 8000 ~ 8160



Unicast/Multicast Unicast



Multicast IP Address 224.126.63.1



Multicast TTL 5



HTTP Port 80



* Multi Browser Support: Device Port 4505~4530, HTTP Port 80

Port

OK Cancel

Connection Mode

Interface

IP Type Static



Transfer Bandwidth 2Mbps



IP Address 192.168.1.202



Gateway 192.168.1.1



Subnet Mask 255.255.255.0



DNS Manual 168.126.63.1



Port

OK Cancel

Connection Mode

Interface

Protocol Type TCP



Device Port 4525 ~ 4529



UDP Port 8000 ~ 8160



Unicast/Multicast Unicast



Multicast IP Address 224.126.63.1



Multicast TTL 5



HTTP Port 81



* Multi Browser Support: Device Port 4505~4530, HTTP Port 80

Port

OK Cancel

62_ main menu

• 1st Set Port Forwarding Setting

Port Forwarding is 4520~4524

(4520, 4521, 4522, 4523, 4524)

Port Forwarding is 80

SRD-473D

192. 168. 1. 200

TCP

4520

• 2nd Set Port Forwarding Setting

Port Forwarding is 4525~4529 (4525, 4526, 4527, 4528, 4529)

SRD-473D

192. 168. 1. 202

TCP

4525

SRD-473D

192. 168. 1. 200

TCP

Port Forwarding is 81

SRD-473D

192. 168. 1. 202

TCP

● MAIN MENU

English _63

main menu

Connecting and Setting the Network

Networking may differ from the connection method, check your environment before setting the connection mode.

When no router is used

•Static mode

- Internet connection : Static PPPoE, leased line, and LAN environments allows connection between the DVR and remote user.

- DVR Network Settings : Set the <Connection Mode> in <Interface> menu of the connected DVR to <Static>.

Consult your network manager for IP Address, Gateway and Subnet Mask.

•DHCP mode

- Internet connection : Connect the DVR directly to a cable modem, DHCP PPPoE modem or FTTH network.

- DVR Network Settings : Set the <Connection Mode> in <Interface> menu of the connected DVR to <DHCP>.

•PPPoE mode

- Internet connection : An PPPoE modem is directly connected to the DVR, where the PPPoE connection requires user ID and password.

- DVR Network Settings : Set the <Connection Mode> in <Interface> menu of the connected DVR to <PPPoE>.

<ID> and <Password> should be the same to the PPPoE user information. If you don’t know the ID and password, consult your PPPoE service provider.

Connection Mode

Interface

IP Type Static



Transfer Bandwidth 2Mbps



IP Address 192.168.1.200



Gateway 192.168.1.1



Subnet Mask 255.255.255.0



DNS Manual 168.126.63.1



Connection Mode

Interface

IP Type PPPoE



Transfer Bandwidth 600kbps



IP Address 192.168.1.200



Gateway 192.168.1.1



Subnet Mask 255.255.255.0



DNS Manual 168.126.63.1



ID ID



Password



Port

OK Cancel

Port

************

OK Cancel

64_ main menu

When a router is used

` To avoid IP address conflict with the DVR's static IP, check followings :

•Setting the DVR with a static IP

- Internet connection : You can connect the DVR to a router which is connected to an ADSL/Cable modem or a router in a Local Area Network (LAN) environment.

•Setting the DVR Network

1. Set the <Connection Mode> in <Interface> menu of the connected DVR to <Static>.

2. Check whether the set IP address is in the static IP range provided by the Broadband Router.

IP Address, Gateway, and Subnet Mask : Consult your network manager.

` Check whether the set IP address is in the static IP range provided by the Broadband Router.

` If a DHCP server is configured with starting address (192.168.0.100) and end address (192.168.0.200), you should set

the IP address out of the configured DHCP range (192.168.0.2 ~ 192.168.0.99 and 192.168.0.201 ~ 192.168.0.254).

3. Check the Gateway address and subnet mask are equal to those set in the Broadband Router.

•Setting the DHCP IP Address of the Broadband Router

1. To access the Broadband Router’s configurations, open a web browser on the local PC that is connected

to the Broadband Router and enter the router’s address (ex : http://192.168.1.1).

2. At this stage, make the local PC's windows network configurations to the below example :

Ex) IP Address : 192.168.1.2

Subnet Mask : 255.255.255.0 Gateway : 192.168.1.1

- Once connected to the Broadband Router, it prompts with password. While entering nothing to the User Name field, enter “admin” into the password field and press <OK> to access the router configurations.

- Access the router’s DHCP configuration menu and set its DHCP server activation, and provide the start and end address. Set the start address (192.168.0.100) and end address (192.168.0.200).

● MAIN MENU

` Above steps may differ from the router devices depending on the manufacturer.

English _65

main menu

•Setting Router’s Port Forwarding

1. Set the protocol to <TCP>.

2. External Port Range : Enter the TCP Port set in the

<Device Port> in <Port> menu of the connected DVR. If more than one DVRs are connected to the router, the TCP port can be different.

3. Internal PC IP Address : Enter the IP address set to the <IP Address> in <Interface> menu of the connected DVR.

4. Internal Port Range : Set the same to the “External Port Range”.

` Above steps may differ from the router devices depending on the manufacturer.

Port forwarding is required when you want to access the DVR connected to the router from outside of the router’s network.

DDNS

You can set the DDNS site for a remote user’s network connection.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Network> window to move to <DDNS>, and press [ENTER] button. DDNS Setup screen appears.

2. Use the virtual keyboard to enter the <Product ID>.

` Refer to “Using Virtual Keyboard”. (Page 34)

` If selected <OFF> input fields are deactivated.

` If selected <iPOLiS>, the server name field is disabled.

•DDNS Site : Set whether to use DDNS or not, and select

the DDNS site if enabled.

•Server Name : Enter the server name of the selected DDNS site.

•Product ID : Enter the product ID which was registered to the DDNS site.

•Quick Connect : Appears if the <DDNS Site> is set to <iPOLiS>.

To use this feature, connect the DVR to a UPnP router and set to <Use>.

Connection Mode

Interface

Protocol Type TCP



Device Port 4520 ~ 4524



UDP Port 8000 ~ 8160



Unicast/Multicast Unicast



Multicast IP Address 224.126.63.1



Multicast TTL 5



HTTP Port 80



* Multi Browser Support: Device Port 4505~4530, HTTP Port 80

DDNS

DDNS Site iPOLiS



Server Name www.samsungipolis.com



Product ID



Quick Connect Not Used Use



DDNS Host Address http://www.samsungipolis.com/



Port

OK Cancel

` If the quick connect setup has been cancelled while progressing, it is automatically set to <Not Used>.

3. When the DDNS setup is done, press <OK>.

66_ main menu

DDNS Setting

DDNS is a short form of Dynamic Domain Naming System. DNS (Domain Name System) is a service that routes a domain name consisting of user friendly characters (ex : www.google.com) to an IP address consisting of numbers (64.233.189.104). DDNS (Dynamic DNS) is a service that registers a domain name and the floating IP address with the DDNS server so that the domain name can be routed to the IP address even if the IP is changed in a dynamic IP system.

•Setting DDNS in the DVR

Set <Protocol Type> in the <Port> menu of the connected DVR to the following :

Ex) Protocol Type : TCP

Device Port : 4520~4524 DDNS Site : iPOLiS

•DDNS Settings of the Router

Select the corresponding menu for the network transfer protocol of the router.

•SETTING UP SAMSUNG iPOLiS DDNS

Go to Your PC

1. Open your browser and go to http://www.samsungipolis.com and click <LOGIN>.

2. You first need to create an account.

Click <SIGN UP>.

3. Follow the account registration instructions on the website.

4. After completing the account registration, login to your

account.

5. Add your DVR to your account. Click <PRODUCT REGISTRATION>.

● MAIN MENU

6. Create a name(Product ID) for your DVR. Use 4 to 20 alphanumeric characters without spaces. Select classification, model number of the DVR and click <REGISTER>.

7. After registration, you should see your product in the list.

English _67

main menu

Go back to DVR

1. From network tab, click on <DDNS>.

Connection Mode

DDNS

Live Transfer

Mailing Service

SNMP

Logout

Return

Network

2. Under DDNS Site, select <iPOLiS>.

3. Under Product ID, enter the product ID you created on the

Samsung iPOLiS website. Under Quick Connect, select <Use> and click <OK>.

` If the connection was not successful, your router may not be

supporting UPNP. For more information on enabling UPNP on your router, please see Router manual.

DDNS

DDNS Site iPOLiS



Server Name www.samsungipolis.com



Product ID



Quick Connect Not Used Use



DDNS Host Address http://www.samsungipolis.com/



OK Cancel

DDNS

DDNS Site iPOLiS



Server Name www.samsungipolis.com



Product ID srd473d



Quick Connect Not Used Use



DDNS Host Address http://www.samsungipolis.com/srd473d



OK Cancel

DDNS

DDNS Site iPOLiS



Server Name www.samsungipolis.com



Connection

Product ID srd473d



Quick Connect Not Used Use



DDNS Host Address http://www.samsungipolis.com/srd473d



Quick Connect Success

68_ main menu

OK Cancel

Live Transfer

Sets the quality of the image that is transferred from the DVR to the network.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Network> window to move to <Live Transfer>, and press [ENTER] button. The Live Transfer window appears.

2. Use direction buttons (▲▼_ +) to move to a desired item, and set the value.

•Resolution: Shows the selected network profile’s resolution

setting.

•Quality: Shows the selected network profile’s image quality

setting.

3. When the live transfer is done, press <OK>.

Live Transfer

CH Resolution  Quality

1 CIF

2 CIF

3 CIF

4 CIF

Low



Low



Low



Low



OK Cancel



● MAIN MENU

English _69

main menu

Mailing Service

You can send an e-mail to a DVR-registered user at a specific time interval, or if an event occurs.

` If an event occurs with a channel where the camera’s video is set to <OFF> or the remaining recording count is set to

<OFF>, only the text notification will be sent to the applicable email address.

` If you set the interval of the e-mail notice too short, the e-mail server may consider it as spam that will not be transferred

normally.

SMTP Setting

Sets the SMTP mail server.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Network> window to

move to <Mailing Service>, and press [ENTER] button.

2. Select <SMTP>.

You will see the SMTP setting window.

3. Use direction buttons (▲▼_ +) to move to a desired item,

and set the value.

•ServerType : Displays the connected server type.

•Server Address : Enter a server to connect to.

•Port : Sets the communication port.

•Use Authentication : Check this if the SMTP server uses user authentication.

The account input box will be activated.

•ID : Enter a user to use authentication when connecting to the SMTP server.

•Password : Enter the password of the SMTP server user.

•Secure Transfer : Select one from <Never> and <TLS (if available)>.

•Sender Address : Use the virtual keyboard to enter the sender’s e-mail address.

Refer to “Using Virtual Keyboard”. (Page 34)

•E-mail Test : Conducts the test on the server settings.

4. When the SMTP setup is done, press <OK>.

Mailing Service

SMTP

ServerType SMTP mail Server



Server Address



Port 25



Password

Secure Transfer Never



Sender Address ex. user@example.net



E-mail Test

Event

Use Authentication

OK Cancel

Group Recipient

70_ main menu

Event Setting

You can set the interval and type of the event that will be sent to the user.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Network> window to move to <Mailing Service>, and press [ENTER] button.

2. Select <Event>.

3. Use direction buttons (▲▼_ +) to move to a desired item,

and set the value.

Mailing Service

SMTP

Event Interval 10 min



Use Event Transfer



Event

Sensor Motion Tampering

Change P/W HDD Info Video Loss

Power On/Off Manual Record

Group

•Event Interval : Set the event interval.

If a series of events occurs, the e-mail will be sent at the specified interval, not on each event.

OK Cancel

•Use Event Transfer : Select an event type to send if an event

occurs. If the selected event occurs, the e-mail will be sent to the group that has the recipient authority.

4. When the event setup is done, press <OK>.

Group Setting

You can set the group to whom the e-mail is sent, and specify the permission for each group. You can add recipients for each group in the <Recipient> menu item. The recipient is set separately from the DVR user group.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Network> window to move to <Mailing Service>, and press [ENTER] button.

2. Select <Group>.

3. Use direction buttons (▲▼_ +) to move to a desired item,

and set the value.

•Add : Select <Add> and use the virtual keyboard to add a

group.

Refer to “Using Virtual Keyboard”. (Page 34)

•Delete : Deletes the selected group.

•Rename : You can reset the recipient permission of an existing group.

•Recipient Permission : Set the permission of the recipient group.

4. When the group setup is done, press <OK>.

Mailing Service

SMTP

Group



Recipient Permission

Sensor Motion Tampering

Change P/W HDD Info Video Loss

Power On/Off Manual Record

Event

Group

Add Delete Rename

OK Cancel

Recipient

● MAIN MENU

Recipient

English _71

main menu

Recipient Setting

You can add/remove a recipient(s) to/from the specified group and edit the group if necessary.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Network> window to

move to <Mailing Service>, and press [ENTER] button.

2. Select <Recipient>.

3. Use direction buttons (▲▼_ +) to move to a desired item,

and set the value.

Mailing Service

SMTP

Group All Group



Group Name e-Mail Address Delete

Event Group

OK Cancel

Recipient

Add

Previous/Next Page

•Add : You can select a recipient name, e-mail address or group. You should have created a group in the <Group> menu item before you can add a user to the group.

For inputting the recipient name and email address, refer to “Using Virtual Keyboard”. (Page 34)

4. When the recipient setup is done, press <OK>.

SNMP

You can configure the settings for the SNMP protocol.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Network> window to

move to <SNMP>, and press [ENTER] button. The SNMP setup screen appears.

2. Use direction buttons (▲▼_ +) to move to a desired item,

and set the value.

•Enable SNMP v1 : SNMP version 1 will be active.

•Enable SNMP v2c : SNMP version 2 will be active.

- Read Community : Read community where you can access objects that support the SNMP protocols.

- Write Community : Write community where you can access objects that support the SNMP protocols.

3. When the SNMP setup is done, press <OK>.

Mailing Service

SMTP

Group ABC



Group Name e-Mail Address Delete

SNMP

Enable SNMP v1



Enable SNMP v2c



Read Community public

Write Community write

Event Group

Add recipient

Name



Select Group ABC



OK Cancel

Recipient

Previous/Next Page

Add

72_ main menu

CONTROLLING A PTZ DEVICE

2013-01-01 01:10:25

The DVR enables you to adjust the settings of a PTZ camera as well as an ordinary one to your preference.

PTZ Device

The PTZ device can be activated only if a channel in connection with the PTZ camera is selected.

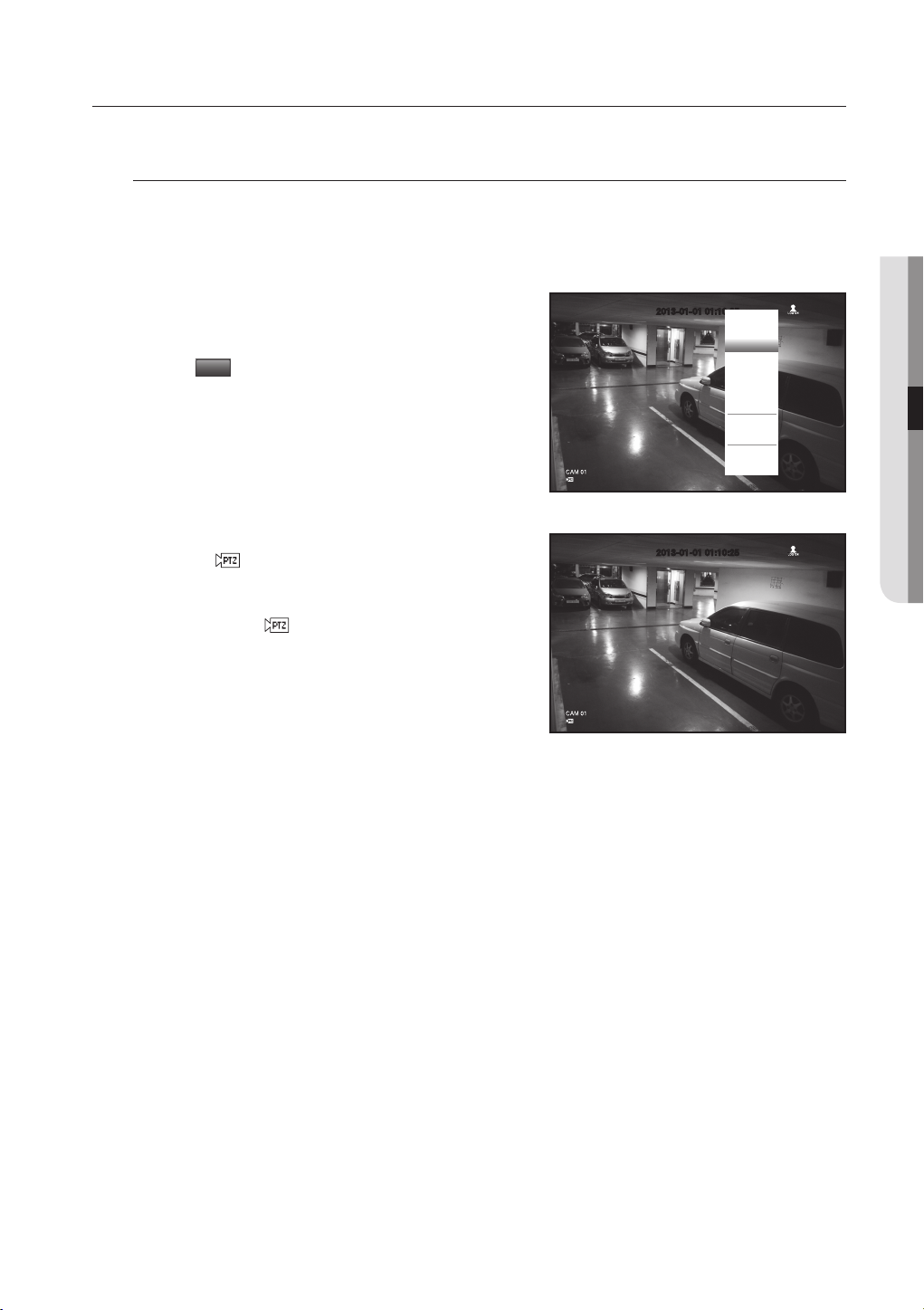

Getting started with PTZ

The PTZ camera is available, only if a channel is selected, in the following way :

` Using the remote control buttons

Press the [PTZ] button on the remote control.

` Using the launcher menu

PTZ

Click <

> to display the live launcher.

` Using the right-click menu in Live mode

Right-click any area on the screen to display the context menu, and select <PTZ Control>.

` Using icons on the live screen

Click the < > icon on the live screen.

` The PTZ function is available only if the PTZ camera is connected

so that the < > icon is displayed on the screen.

Scene Mode

Spot Out 1

Spot Out 2

PTZ Control

Zoom In

Audio

Freeze

Stop Alarm

Record

Play

Backup

Main Menu

Shutdown

Hide Launcher

Logout

● MAIN MENU



English _73

main menu

2013-01-01 01:10:25

Using the PTZ camera

You can use one camera to perform all functions of PAN, TILT and ZOOM for monitoring multiple places and set the preset to your preference in a desired mode.

1. Launch the <PTZ Control> menu.

As the < yellow, you access the “PTZ Control” mode to display the “PTZ Control” menu.

` Be sure to configure PTZ working environments before operation,

2. Use the PTZ wheel in the launcher menu to adjust the

monitoring area, or use the direction buttons (▲▼_ +) on the remote control to move the camera to a desired place.

•PTZ Wheel : Clicking a nearer point to the center will move in that direction slowly; clicking a farther point from the center will move fast.

Keep clicking left to rotate the lens counter clockwise; keep clicking right to rotate the lens clockwise.

•Zoom ( ) : You can use the Zoom function of the PTZ camera.

•IRIS (

•Focus (

•Swing : Moves between the preset start point and end point.

•Group : Moves in the path specified by combining the preset, pattern and auto pan.

•Trace : Moves camera’s framing in the predefined path.

•Preset : Sets the preset position for camera framing and moves to designated preset position when

selecting a desired preset.

•Tour : Moves in the path specified by combining multiple groups.

For the coaxial communications, the operation may differ depending on the protocol.

> icon on the bottom right corner turns

since the PTZ Working(Active) mark can be appeared to be activated even when PTZ is not operative.

) : Adjusts the intensity of radiation incoming to the iris.

) : Enables you to adjust the focus manually.

PTZ Control CAM01

Swing Group Trace Preset Tour

Select Select Select Select

Exit

Camera Setup

Select Preset

Save Rename

Delete Delete All

` Before entering the PTZ device control mode, set the values of the PTZ device in the <Setting the PTZ> menu.

(Page 44)

` For camera specifications that supports PTZ comtrol depending on communication method, refer to our web site.

74_ main menu

Preset Setting

2013-01-01 01:10:25

A preset is a set of specific target points of a PTZ camera, and up to 127 presets per a camera can be stored.

Using the mouse may help make setup easier.

1. In PTZ Control mode, use the direction buttons to adjust the camera in a desired direction.

2. Select the <Save> key.

The virtual keyboard for inputting the preset will appear.

` Refer to “Using Virtual Keyboard”. (Page

)

•Save : You can add and save the preset.

•Rename : You can change the settings of the existing presets.

•Delete : Deletes the selected preset.

•Delete All : Deletes all existing presets.

` If you replace the camera of the channel that stores the preset list with a new one, you should reset the preset accordingly.

3. Press <OK>.

The preset will be saved as a name that you entered.

Camera Setting

A PTZ camera has its own menu system. Optimize the PTZ camera according to the DVR.

Using the mouse may help make setup easier.

•Select <Camera Setup> in the PTZ Control menu.

The camera-specific menu appears.

You can configure the settings of only those cameras that support the protocols of Samsung, Pelco D/P, AD and Panasonic.

If you are setting Auto Pan or Pattern in the camera menu, press and hold the appropriate button for a certain time so that the button operation can be different from that in normal PTZ setting.

Camera Setup



Exit

● MAIN MENU

English _75

search & play

2013-01-01 01:10:25

You can perform the search for recorded data by the time or by the search criteria such as an event. You can access the <Search> menu directly in Live mode.

1. In Live mode, right-click any area of the screen.

The Live menu appears.

2. Select <Search>.

Or, press the [SEARCH] button on the remote control or the front panel.

3. The Search menu appears.

` If you have not checked <POS USE> in the “Main Menu > Device

> POS Device” menu, the Search menu does not include the <POS Search> item. (Page 48)

4. The search can be restricted by the Auto Delete function.

Refer to “Setting the Recording > Record Option”. (Page 54)

Time Search

Event Search

Backup Search

POS Search

Motion Search

Return

Scene Mode

Spot Out 1

Spot Out 2

Audio Off

Freeze

Stop Alarm

Record

Play

Backup

Main Menu

Shutdown

Hide Launcher

Logout



` Overlapped data : It only appears if there exists overlapped data

on a certain time, produced due to the change of DVR’s time setup. The latest data comes first, from <List0>. It does not appear in <Backup Search>.

Time Search

You can search for recorded data of a desired time. As the time to display may be different depending on the time zone and the DST standard time, the time of data recorded in the same time can be displayed differently depending on time zone and DST settings.

Using the mouse may help make setup easier.

1. Select <Time Search> in the <Search> menu.

2. Select a date to search.

` Refer to “Using the Calendar”. (Page 33)

3. The record data on the specific date will be listed.

The display bar is different according to the data type. So check the data type for the color in the left pane.

4. Use direction buttons (▲▼_ +) to set the search criteria

and press the [ENTER] button.

•Go to First : Moves to the earliest date.

•Go to Last : Moves to the most recent date.

•Time : Enter a time to perform the search or use the up/down button <>> to select one.

Time Search

2013-01-01

2013/01/01 00:01:17

Standard Schedule

Motion Sensor

V.Loss Etc

Tampering

Go to First Go to Last

Overlapped Data List1

00:01

All Data

CAM 01

CAM 02

CAM 03

CAM 04

Play Return

Zoom In Zoom Out

76_ search & play

•Zoom In : The map enlarges in detail. It will switch in the sequence of 24 hours - 16 hours - 8 hours - 4 hours.

•Zoom Out : The map will switch in the reverse order of the

Time Search

2013-01-01

Go to First

Overlapped Data List1

All Data

detailed mode above. It will switch in the sequence of 4 hours - 8 hours - 16 hours

- 24 hours.

` Double-click a desired time to zoom it in/out.

2013/01/01 00:01:17

Standard Schedule

Motion Sensor

V.Loss Etc

Tampering

•Preview : Click <Channel> and select (click, drag) a time in <Duration> to display a still image for the portion.

- If the selected channel does not contain any recorded data, it will be marked black.

5. Select a data item and click <Play>.

The screen switches to the data playback mode.

Event Search

You can search for events by the channel and play them.

Using the mouse may help make setup easier.

1. Select <Event Search> in the <Search> menu.

2. Use direction buttons (▲▼_ +) to set the search criteria

and press the [ENTER] button.

` All record events on a specific date will be found. (Normal/Schedule

recording included)

•Date/Time Preview : If you select a data item in the list, the still image of the selected data will be displayed in the left preview pane.

•Event : Displays the type of the event that occurred.

3. Select a data item and click <Play>.

The screen switches to the event data playback mode.

Event Search

CAM 01

2013-01-01 View all

Overlapped Data List1

2013/01/01 00:01:22

No. Date/Time Preview Event

3 02:47:54 ~ 02:48:59 Motion

2 00:39:06 ~ 00:40:30 Motion

1 00:01:22 ~ 00:02:28 Motion

Go to Last

00:01

CAM 01

CAM 02

CAM 03

CAM 04

Play Return

Zoom In Zoom Out

● SEARCH & PLAY

Go to First Go to Last

Previous/Next Page

Backup Search

Searches for backup data in the connected backup device. Only data in the format of DVR is included in the search. Refer to <Type> in “Backup > Setting the Backup”. (Page 58)

Using the mouse may help make setup easier.

1. Select <Backup Search> in the <Search> menu.

2. Use direction buttons (▲▼_ +) to set the search criteria

and press the [ENTER] button.

•Record Period : Displays the record period.

•Channel info : Displays the recorded channel.

•Play Start Time : Select a time that you start playing.

3. Select a data item and click <Play>.

The screen switches to the backup data playback mode.

Backup Search

No. Folder Name File Name

1 20130101 16190000

File Name  Channel info



Record Period 2013-01-01 01:01:01 - 2013-01-01 01:01:10



Play Start Time 2013-01-01 16:30:52



USB:USB2FlashStorage

Previous/Next Page

Play Return

English _77

search & play

POS Search

You can search for data in the POS device that is connected to the DVR.

You can use the mouse to select the related items.

1. Select <POS Search> in the <Search> menu.

2. Use direction buttons (▲▼_ +) to set the search criteria

and press the [ENTER] button.

` You can enter specific text to refine your search.

•Keyword : Use the virtual keyboard to enter a keyword.

•Search Criteria :

- <Case Sensitive> : If selected, search will be performed

case-sensitively.

- <Whole Word> : If selected, only the exact matches with

the keyword will be found.

•Preview : Select a data item in the list to display the preview image. Information about the image will be displayed on the bottom of the screen.

•

3. Select a data item and click <Play>.

: You can use these buttons to accelerate your search if you have a huge list of search results.

The screen switches to the POS data playback mode.

POS Search

Date/Time 2013-01-01 02:41:18 2013-01-01 03:41:18

Keyword Case Sensitive Whole Word

Overlapped Data List1

2013/01/01 03:41:15

CHANGE

5.95

Go to First Go to Last

POS CH Start Date/Time Keyword

1 1 2013-01-01 03:41:15 CHANGE _

1 1 2013-01-01 03:41:15 CASH _

1 1 2013-01-01 03:41:10 CASH _

Previous/Next Page

Play Return

Motion Search

If a motion is detected in each channel, you can set a desired area to perform the search.

You can use the mouse to select the related items.

1. Select <Motion Search> in the <Search> menu.

2. Use direction buttons (▲▼_ +) to set the search criteria

and press the [ENTER] button.

` If you set the motion area to <Manual Area>, the <Setup> button

will be activated.

•Motion Region : Select an area to perform the search.

- All Area : Searches for all areas of the selected channel.

- Current Area : Searches for the motion area for each

channel specified in “Motion Detection > Setting the Motion Detection Area”. (Page 56)

- Manual Area : You can set the motion area manually.

•Setup : The Setup button will be activated only if you have set the motion area to Manual. Press this button to display the area setting window.

•Date/Time : The Date/Time will be automatically set by the hour, and the end time will be automatically set to one hour later than the start time if it is set.

•Preview : Select a data item in the list to display the still image of the item.

3. Select a data item and click <Play>.

The screen switches to the motion data playback mode.

Motion Search

Channel CAM 01 Motion Region All Area

Date/Time 2013-01-01 03:41:18 2013-01-01 05:11:44

No. Start Time

7 01:01:30

6 01:01:25

5 01:01:20

4 01:01:15

2013/01/01 01:01:30

3 01:01:10

2 01:01:05

1 01:01:01

Play Return

Motion Region

CH1

OK Cancel

Individual

Go to First Go to LastOverlapped Data List1

Previous/Next Page

Apply to All CH

Setup

78_ search & play

PLAYBACK

2013-01-01 01:10:25

Play

You can play data stored in the HDD and backup a desired portion of the data.

Using the mouse may help make setup easier.

1. In Live mode, click <Play> in the right-click menu or

< > in the launcher menu, or press the Play button on the remote control or the front panel.

2. Use the up/down button (▲▼) to select a menu.

` For data search, refer to <Search>. (Page 76)

3. Select a data item and click <Play> in the Search menu.

The selected data is played and the play launcher appears on the screen.

` If there is an existing data, <Play> will start immediately without

performing the search.

•Playback Information : Displays the date and time of the current data in the top corner.

Scene Mode

Spot Out 1

Spot Out 2

Audio Off

Freeze

Stop Alarm

Record

Play

Backup

Main Menu

Shutdown

Hide Launcher

Logout



● SEARCH & PLAY

•Backup : Click <

> to set the current time to the start time of backup; you can specify a backup area using the mouse (yellow triangle). Click <

> again to set the current time to the end time of

the backup and the “Backup Range” window appears.

- Type : Supports formats of DVR, AVI and SEC.

Refer to a list of formats in “Setting the Backup”. (Page 58)

- Device : Select a backup device.

- Check Capacity : Enables you to check the capacity of the selected storage device.

4. If you want to return to the Live screen in Play mode, click <

[@] button on the remote control or the front panel.

Backup Range

Start 2013-01-01 00:01:06  End 2013-01-01 01:10:25



Device Internal CD/...  Type SEC



Folder \20130101\  File Name 0001



Check capacity

OK Cancel

> in the launcher menu or press the

Backup :

Used :

Free :

REC

Change

English _79

search & play

Using the Playback Button

a p

Part Names Functions

Play Timeline Indicates the current playback point, and can be used to move.

Skip Backward Moves backward by unit time. (Move by 10 minutes)

REC

onmlkjihgfedcb

Backward Fast

Play

Backward Slow

Play

Step Backward Moves backward by one frame at a time.

Pause Stops playing the current video temporarily.

Stop Stops playback and moves to the live screen.

Step Forward Moves forward by one frame at a time.

Forward Slow

Play

Forward Fast Play Used for quick forward playback. (2 - 64x speed)

Skip Forward Moves forward by unit time. (Move by 10 minutes)

Return Return to the search setup screen.

Audio Sets Audio ON/OFF.

REC Records all channels in Live mode.

Partial Backup

Used for quick backward playback. (2 - 64x speed)

Used for backward frame-by-frame search while in PAUSE. (1/2 - 1/8x speed)

Ensured to play forward up to 4 channels simultaneously at a low speed. (1/2 - 1/8x speed)

` In a split mode, the real time playback may not be supported, depending on the record quality,

resolution and number of channels. And some frame rates may be supported.

Begins backup of the selected section of the video being played, with the specified starting/ending point.

Mode Switch Click a desired playback mode or press [MODE] to switch the screen mode in sequence.

80_ search & play

web viewer

INTRODUCING WEB VIEWER

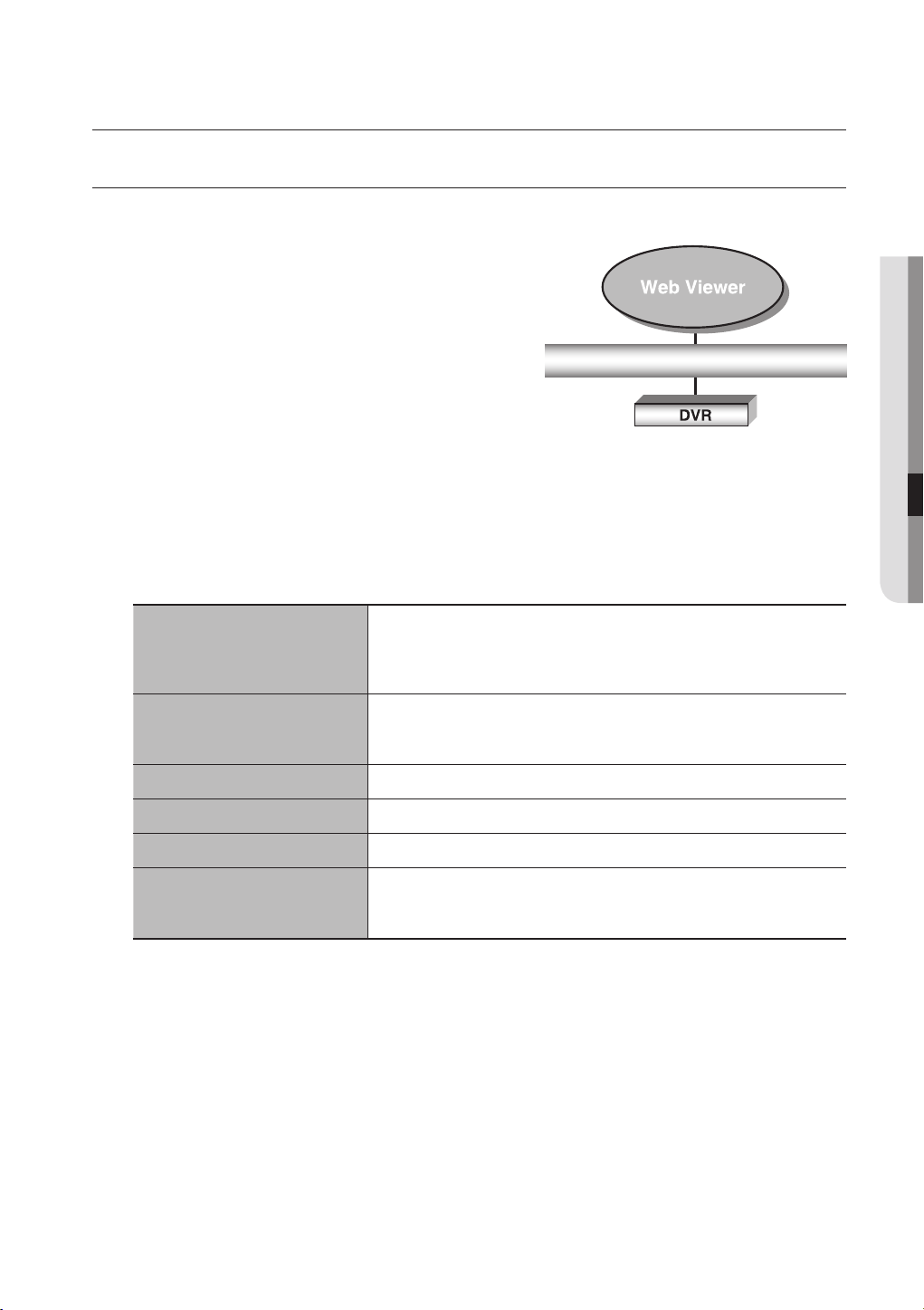

What is Web Viewer?

Web Viewer allows remote access to your DVRs. You have access to live video, archived video, PTZ control (if configured), etc.

Product Features

• Remote access from a standard browser

• Supports PTZ camera controls

• Supports 1, 4 channel (maximum of 4 cameras in the list).

• Gets jpeg, bmp or png format images to print and save to

“Print or Save jpeg, bmp or png format images”.

• Record video in AVI format-compatible with popular media players. (needed the H.264 codec)

Network

System Requirements

The following lists the minimum suggested hardware and operating system requirements needed to run the Web Viewer.

Windows XP Professional

Web Browser

Windows Vista Home Basic / Premium Windows 7 Mac OS 10.6 and later versions

- Windows OS : Internet Explorer 7.0 or higher, Firefox 3.6 or higher, Chrome 12 or higher

- Mac OS : Safari 5 or higher, Firefox 3.6 or higher.

● WEB VIEWER

CPU Intel Pentium 4.2 GHz

Memory 512 MB

Monitor High Color 16-bit 1024 x 768

HDD

50 MB(Installation space required) * Additional HDD space required for recording.

Recorded file size will vary depending on recording quality settings.

English _81

web viewer

CONNECTING WEB VIEWER (Windows)

1. Open your web browser and type the IP address or URL of

DVR into the URL address box.

“192.168.1.200” is set to IP by default.

Set to an available IP address in IP Installer or "Network > Connection Mode”.

The URL connection will be enabled only when the DDNS connection settings have been completed.

2. A user with the admin permissions should provide the

admin ID and password. A registered user should provide the user ID and password.

The initial administrator ID is “admin” and the password

should be set when logging in for the first time.

Please change your password every three months to safely protect personal information and to prevent the damage of the information theft. Please, take note that it’s a user’s responsibility for the security and any other problems caused by mismanaging a password.

It allows up to 10 simultaneous access including the Admin and general users.

It does not allow multiple login of the Admin user.

Password of the Admin and general users can be changed in <Permission Management> menu of the DVR.

Normal users should have set <Viewer> under <Permission Management> to <Use> before connecting to the Web Viewer. (Page 34)

All settings are applied by the DVR’s settings.

If you change such as the permission settings with logged in to the Web Viewer, you may go back to the log in screen.

3. Click <Install ActiveX Control...>.

4. When the installation confirm message appear, click [Yes]

button.

82_ web viewer

5. When a program installation wizard window appears, press

the [Install] button to install the program.

6. When the program installation is complete, the Explorer

window closes. Open the web viewer window again to log in. Live Viewer's main screen appears when you log in successfully after installing the program.

● WEB VIEWER

English _83

web viewer

USING LIVE VIEWER (Windows)

The Live Viewer screen consists of following :

b c

d e

j i

Menu Selection

Address, Name, Time

DVR Time, PC Time

Split Mode Selection

Change Channel

CAPTURE

AVI Save

Audio

OSD

Menu Functions

Switches into corresponding menu screen by clicking each menu.

Displays the IP, model name, time, etc. of connected DVR.

Select <DVR Time> or <PC Time> for the OSD time information display setting of the Live Viewer.

Selects the type of split screen and specify the channel displayed in Display Pane.

Switches into previous/next channel or perform Auto Sequence. Click Auto Sequence button to display the Time Interval Selection menu.

Saves current video for selected channel in designated path.

Prints current video image for selected channel through designated printer.

Records the live video in AVI file format in designated path, and then stops recording. Recording status icon is displayed on screen during recording.

Sets the sound connected to each channel to ON/OFF.

Select the format of OSD information that will be displayed.

84_ web viewer

Menu Functions

h i j

PTZ

OSD Menu

Display Pane

Logout

Controls connect PTZ camera(s).

Goes to the relevant menu screen of a camera, which supports OSD menu and changes the menu.

Displays the video of camera connected to DVR.

Performs logout process.

Displays the connected user ID.

OSD Information Display

a The channel number of the connected DVR are displayed. b Either the <DVR Time> or the <PC Time> will be displayed as the

current date and time, according to your configuration.

c It displays whether the PTZ controls are active. d Shows Audio On/Off status. e Alarm icon appears when alarm is issued.

It disappears when pressed the [ALARM] button of the DVR.

f Motion icon appears when a motion is detected. g Tampering icon appears when a tampering is detected. h Shows the recording status.

If you have set PTZ cameras for the DVR, “PTZ” is displayed on the

screen. Select a PTZ camera channel and use the [PTZ] button for camera control.

● WEB VIEWER

a b

c d e f g h

Connected DVR

This displays the IP address and the status of the connecting DVR.

Connection failure message

No Response : Appears when the DVR does not respond. Access Denied : Appears when the maximum number of

users is exceeded.

The number of simultaneous connections are limited to 10.

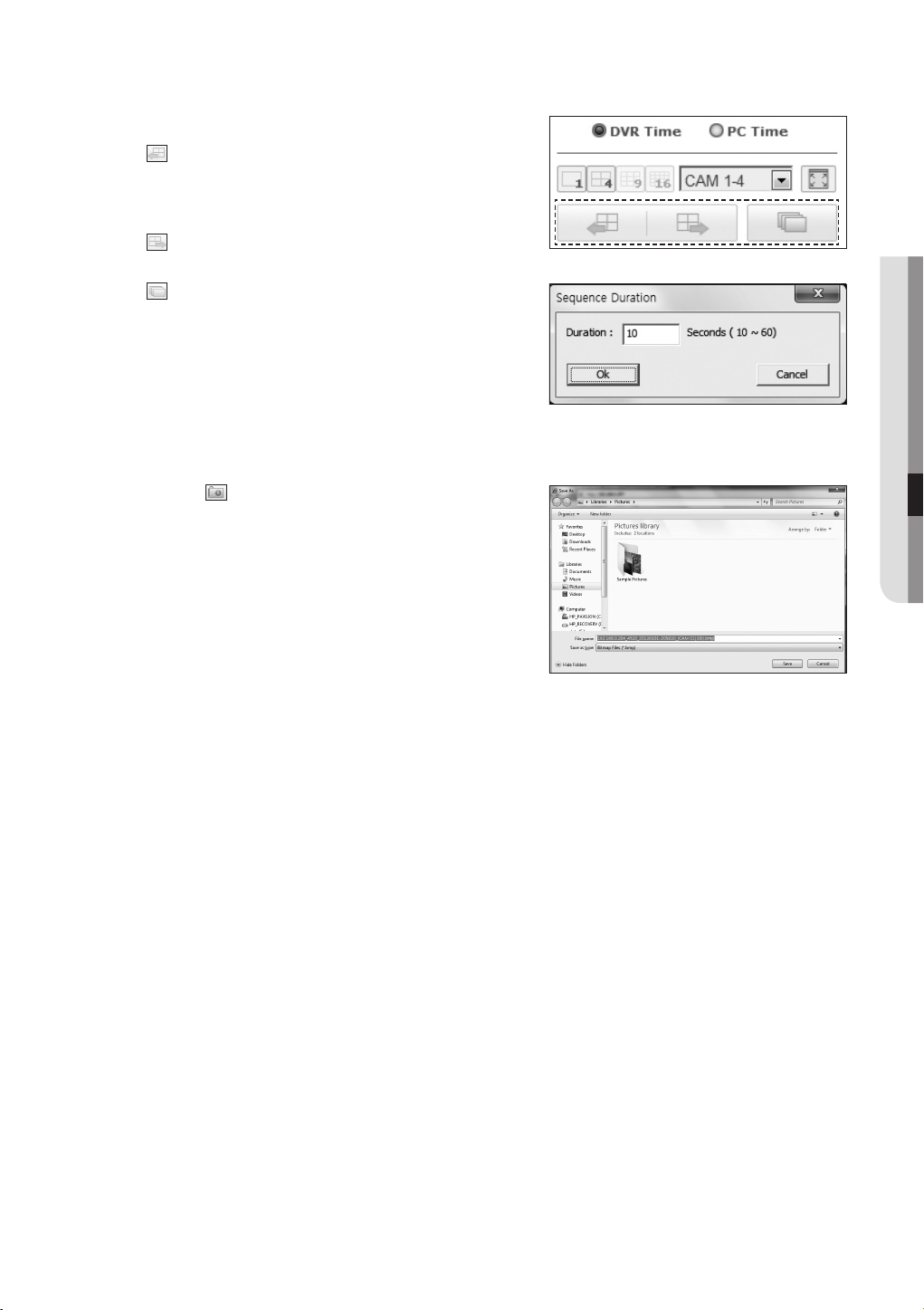

Setting the Display of the OSD Time Information

Select <DVR Time> or <PC Time> for the OSD time information display setting.

• DVR Time : Based on the time of the connected DVR

• PC Time : Based on the time of the PC currently running

the Web Viewer.

English _85

web viewer

Split-Screen

Click split mode selection button to switch to the corresponding screen mode.

SINGLE MODE QUAD MODE

To switch to full screen mode

Click < >. Current split screen appears in full screen. Press the [ESC] key to exit the full screen mode.

86_ web viewer

Changing the Live Screen Mode

4-split mode does not support “Sequence”, “Previous” and “Next”.

• : When this button is clicked, the previous screen appears.

- In SINGLE MODE, the channel numbers are switched in reverse order.

: When this button is clicked, the next screen appears.

•

- In SINGLE MODE, the channel numbers are sequentially switched from 1 to 4.

: When this button is clicked, screens are switched at a

•

preset interval.

- In SINGLE MODE, the channel numbers are sequentially switched from 1 to 4.

Default setting time (10 seconds)

To capture a screen

1. Click < > button.

When a pop-up window appears, select the saving path for captured image.

2. Select the path and name the file. And then click the <Save> button.

3. Save current camera’s video image as .bmp, .jpg or .png file.

● WEB VIEWER

If the viewer is running without the administrator’s permission

in Windows Vista/7, you may not save the captured image as .bmp, .jpg or .png file.

English _87

web viewer

To print a screen

1. Click < > button.

2. Print current camera’s video image with the printer

connected to the PC operating the Web Viewer.

To save as AVI

1. Click < > button. When “AVI Setup” window appears, select the record saving path and capacity.

2. Select a desired path, enter the maximum recording capacity, and then click <OK> button.

Save current channel’s video as AVI file.For playing a video clip, you can use the free video player to play the video. (ex: GOM Player, KM Player, etc.)

After saving an AVI file, install the CODEC when playing it in Windows Media Player.

However, the video may not played properly, depending on the CODEC compliance of the player. At least 1GB of free space is required for recording.

While recording current data in Web Viewer, you cannot select Split Mode buttons, switch to the previous/next

screen, or activate Auto Sequence function.

If the viewer is running without the administrator’s permission in Windows Vista / 7, you may not change a folder when saving a video as AVI file.

Audio

• : Sets audio of each connected channel to On/Off.

OSD

• : Select Show OSD on the Live screen.

88_ web viewer

CONTROLLING A CONNECTED PTZ CAMERA

Controlling PTZ

If PTZ camera is connected, the < > icon appears on screen. When selecting corresponding camera channel, the PTZ tab is provided to allow you to control the PTZ.

● WEB VIEWER

Part Names Functions

Direction Adjustment

PT Speed

Preset

Swing

Group

Tour

Trace

dc e f g h

Adjusts the direction of a camera.

Adjusts the PAN, TILT reaction speed.

Sets the preset position for camera framing and moves to designated preset position when selecting a desired preset.

Moves between the preset start point and end point.

Moves in the path specified by combining the preset, pattern and auto pan.

Moves in the path specified by combining multiple groups.

Moves camera’s framing in the predefined path.

h i j k

PowerPTZ

Focus

IRIS

ZOOM

Click or drag on the screen to control PTZ.

Adjusts the focus of the camera.

Adjusts image’s brightness by controling the camera’s iris.

Zooms in/out the image by controling camera’s zoom.

English _89

web viewer

To set a preset

1. Click < > button to display “Preset” window.

2. Click <

3. Enter the name of preset.

4. Use direction keys to adjust the direction which camera

aims at.

5. Click the <RECORD> button.

To activate the preset

1. Click < > button to display “Preset” window.

2. Select a desired preset to activate from the list.

The camera’s framing moves to the preset position.

> to select a desired preset number.

To activate Swing, Group, Tour and Trace

You can activate listed functions in the same manner as using a preset. For more information, refer to corresponding user manual of applicable camera.

Only selective functions of the camera can be supported, depending on camera.

90_ web viewer

Controlling OSD Menu

If connected network camera supports the OSD menu, press the < > to enter camera’s menu screen to change its settings.

Part Names Functions

Direction Adjustment

You can go to a desired menu.

ENTER

Menu On/Off

For more information about camera’s OSD menu, refer to corresponding user manual of each camera.

Selects a desired item.

You can On/Off camera’s OSD menu settings.

● WEB VIEWER

English _91

web viewer

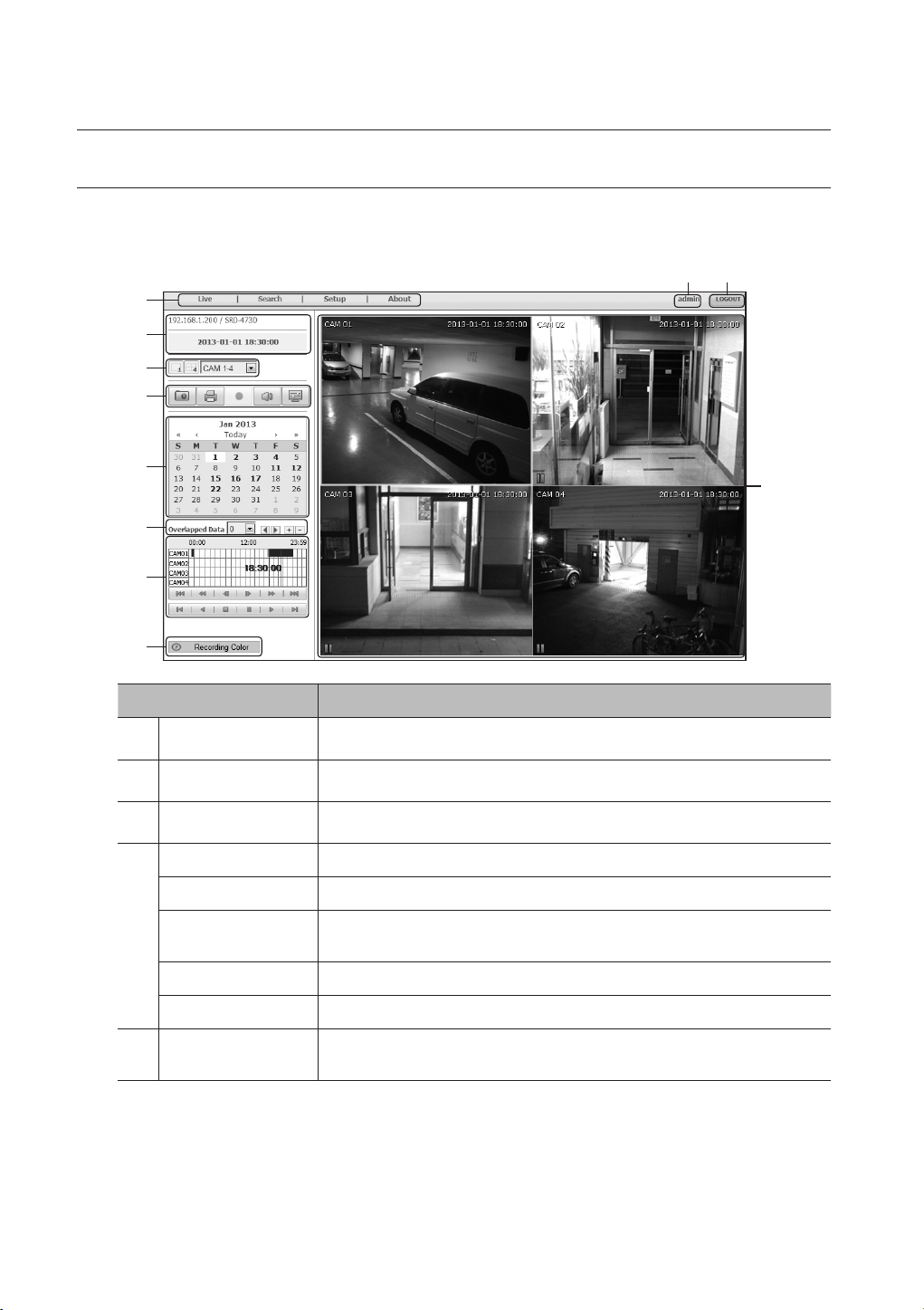

USING SEARCH VIEWER

The Search Viewer screen consists of following :

Up to 3 users can access simultaneously.

c d

k j

Menu Selection

Address, Name, Time

Split Mode Selection

CAPTURE

AVI Save

Audio

OSD

Calendar

Menu Functions

Switches to the corresponding menu screen by clicking each menu.

Displays the IP, model name, time, etc. of connected DVR.

Selects the type of split screen and selects the channel displayed in Display Pane.

Saves current video for selected channel in designated path.

Prints current video image for selected channel through designated printer.

Records the live video in AVI file format in designated path, and then stops recording. Recording status icon is displayed on screen during recording.

Sets the sound connected to each channel to ON/OFF.

Select the format of OSD information that will be displayed.

Displays the video-recorded date in blue and today in white. Click the date in blue color to display the recorded video information in timeline.

92_ web viewer

Menu Functions

i j k

Overlapped Data

Play Control

Recording Color

Display Pane

Logout

Displays and zooms in/out recorded video data. If overlapping data found, this function selects one of them to play.

Adjusts current video’s playback speed and played time position.

Displays the corresponding color depending on recorded data type if you place your mouse cursor on that area.

Plays corresponding data on the screen if you select a search result.

Performs logout process.

Displays the connected user ID.

Searching the Recorded Video in the Calendar

Dates having recorded video are marked in blue. Click a date marked blue to display video information on the timeline. When you click < with the system time (date) of the current PC.

>, it will be synchronized

To search by date

You can select the search date by using calendar.

1. Click <

2. Click <

The date including data appears in blue and today appears in white.

3. Click the date to search in calendar.

The first image of searched video data on the date is displayed on screen and the data is displayed in the timeline.

4. To search video data on today, click <

Today’s date is selected.

> or < > to select the year to search.

> or < > to select the month to search.

● WEB VIEWER

To adjust timeline

If searched data are overlapping, you can select a desired data, move its playback time point, and zoom in/ out the timeline.

1. Select the number of data to search if data is overlapping. It appears only when data are overlapped and assigns <0> to the most recent data.

2. Click your desired time point to play on the timeline. The playback start point is moved.

3. Click <

4. To show the previous/next timeline in zoomed-in status, click <

>, < > to zoom in/out the zoom factor to display time.

> or < > to go to the left or right.

English _93

web viewer

Names and Functions of Play Buttons

a Moves backward by 10 minutes from the current playing

point.

b Plays in reverse at doubled speed. The playback speed is

doubled up to 64x speed.

c Moves backward by 1 second from current playing point. d Moves forward by 1 second from current playing point.

Plays at doubled speed. The playback speed is doubled up to

e f Moves forward by 10 minutes from the current playing point. g Moves to the recording start point on the corresponding timeline. h Plays in reverse. i Stops playing. When resuming playback, it is played from the recording start point. j Pauses playing. When resuming playback, it is played from the stopped point. k Plays normally. l Moves to the recording end point on the corresponding timeline.

a b c d e f

g h i j k l

64x

speed.

94_ web viewer

VIEWER SETUP

You can configure the DVR settings remotely on the network.

To configure the DVR settings, click <Setup>.

System

You can configure the various settings of the DVR system.

Date/Time/Language

For more information, refer to <Date/Time/Language> in the <System Setup> menu. (Page 32)

1. Select <Date/Time/Language> in the System menu.

2. Configure the DVR settings according to your system environment.

• Date/Time

Set the date and time.

• Time Synchronization Setup

Set the time synchronization.

• Display

Date Format : Set the date type.

Time : Select a time format to display on the screen.

• DST (Daylight Saving Time)

DST is displayed an hour ahead of the standard time of the time zone.

• Language

Select a preferred language for the DVR.

● WEB VIEWER

English _95

web viewer

Holiday

You can set specific dates to Holidays according to your preferences. For more information, refer to <Setting Holiday> in the <System

Setup> menu. (Page 33)

Permission Management

For more information, refer to <Permission Management> in the <System Setup> menu. (Page 37)

• Admin

You can change the admin ID or the password.

You can type the ID with alphanumeric characters only.

For the password, use alphabets and special characters excluding <\> and <">.

• Group

Users are classified into groups and the permission can be set according to the group.

First of all, add a group.

96_ web viewer

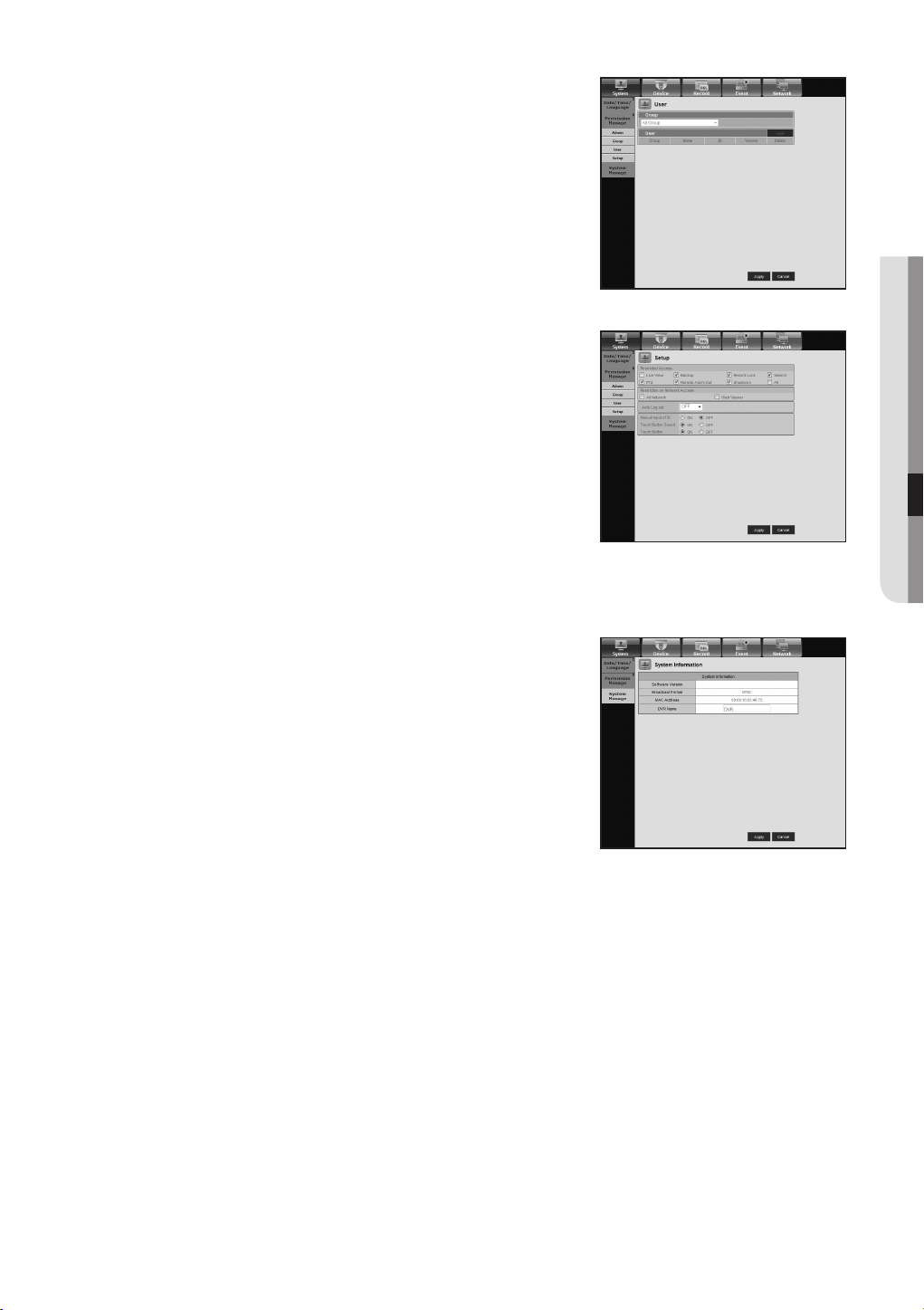

• User

You can add, change or remove a user or users.

• Setup

You can set the user permission.

System Management

● WEB VIEWER

For more information, refer to <System Management> in the <System Setup> menu. (Page 38)

• System Information

You can see information of the current system. Check the Software Version, Broadcast Format and MAC Address.

V1.0xh_yymmddhhmmss

English _97

web viewer

Device

You can check a list of devices that are connected to the DVR and configure the necessary settings. Click <Device> in the menu screen. For more information, refer to “Setting the Device”. (Page 42)

Camera

• Camera

You can configure the settings of the camera that is connected to the DVR.

• Privacy Region

You can specify a certain area of the camera video to be protected for your privacy.

• PTZ

You can configure the settings of the PTZ camera that is connected to the DVR. Set the ID and protocol.

98_ web viewer

Storage Device

You can check and change the settings of the storage device.

• Device

You will see a list of storage devices that are connected to the DVR. You can check the type, used/total, usage and status of the device.

• HDD Alarm

You can set the alarm output channel and the alarm duration for an error.

● WEB VIEWER

Remote Device

You can see a list of remote devices including PTZ cameras and system keyboards that are connected to the RS-485 port of the DVR and configure the necessary settings.

English _99

web viewer

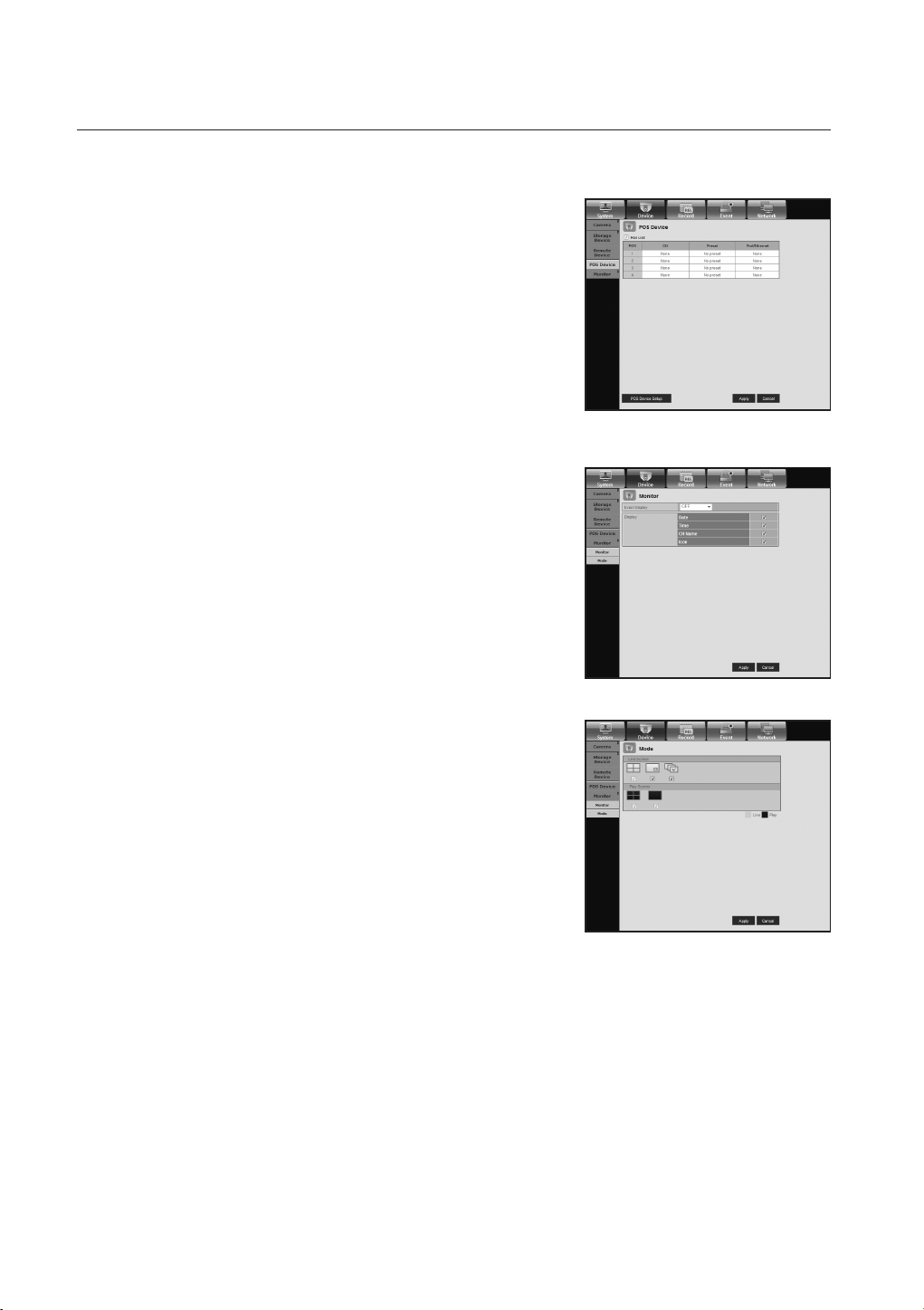

POS Device

You can set the channel, preset and communication port of the POS device that is connected to the DVR.

You cannot set to use the POS device remotely.

Monitor

• Monitor

You can configure the monitoring screen settings and set the output system.

• Mode

You can switch between live mode and play mode.

100_ web viewer

Samsung SRD-473D User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
