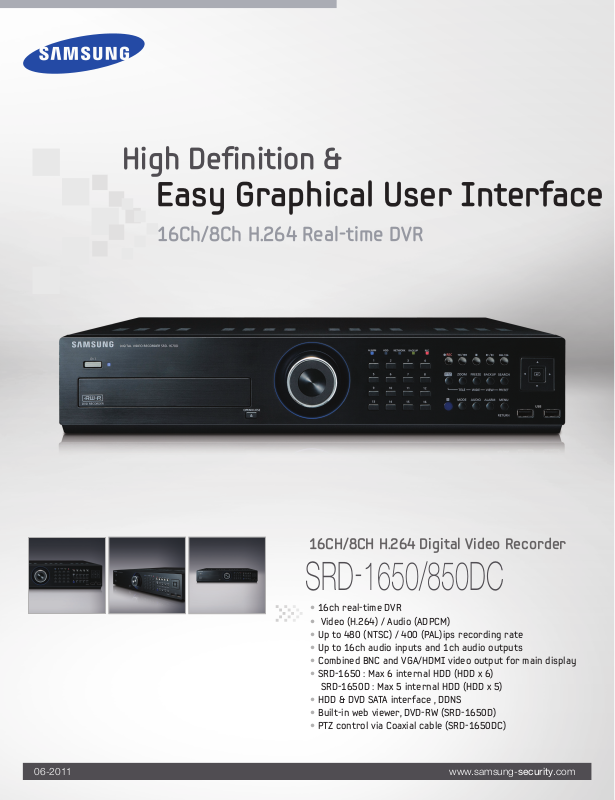

High Definition &
Easy Graphical User Interface
16Ch/8Ch H.264 Real-time DVR
06-2011
16CH/8CH H.264 Digital Video Recorder
SRD-1650/850DC
• 16ch real-time DVR
• Video (H.264) / Audio (ADPCM)
• Up to 480 (NTSC) / 400 (PAL)ips recording rate
• Up to 16ch audio inputs and 1ch audio outputs
• Combined BNC and VGA/HDMI video output for main display
• SRD-1650 : Max 6 internal HDD (HDD x 6)
SRD-1650D : Max 5 internal HDD (HDD x 5)
• HDD & DVD SATA interface , DDNS
• Built-in web viewer, DVD-RW (SRD-1650D)
• PTZ control via Coaxial cable (SRD-1650DC)
www.samsung-security.com
16CH H.264 Digital Video Recorder
440 (17.32")
430 (16.93")88 (3.46")10.5 (0.41") 11.4 (0.45")
440 (17.32")
430 (16.93")88 (3.46")10.5 (0.41") 11.4 (0.45")
440 (17.32")
430 (16.93")88 (3.46")10.5 (0.41") 11.4 (0.45")
440 (17.32")
430 (16.93")
11.4 (0.45")
440 (17.32")
430 (16.93")88 (3.46")10.5 (0.41") 11.4 (0.45")
SRD-1650DC
Dimensions
16CH
Specifications
DISPLAY
Video
Live
PERFORMANCE
Operating System
Recording
Search &
Playback
Network
Smart Phone
Unit : mm (inch)
11.4 (0.45")
430 (16.93")
440 (17.32")
88 (3.46")10.5 (0.41")
SAMSUNG TECHWIN AMERICA Inc.
100 Challenger Road, Suite 700, Ridgefield Park, NJ 07660, UNITED STATES
Tol Free : 1-877-213-1222 Fax : 1-201-373-0124
www.samsungsecurityusa.com
Storage
Security
INTERFACE
Monitors
Audio
Alarm
Connections
GENERAL
Electrical
Environmental
Mechanical
Language
H.264
480ips(N)
400ips(P)
Inputs
Resolution
Frame Rate
Resolution
Multi Screen Display
Embedded
Compression
Record Rate
Mode
Overwrite Modes
Pre-alarm
Post-alarm
Search Mode
Playback Function
Transmission Speed
Bandwidth
Bandwidth Control
Stream
Max. Remote Users
Protocol Support
Monitoring
Smart Phone
Protocol Support
Transmission Speed
Max. Remote Users
Internal HDD
External HDD
DVD Writer (Back up)
USB (Back up)
File Format (Back up)
Password Protection
Data Authentication
VGA
HDMI
Main Composite
Spot Composite
Loop Outputs
Inputs / Output
Compression
Sampling Rate
Inputs / Output
Remote Notification
Ethernet
Serial Interface
USB
eSATA
Application Support
Protocol Support
Input Voltage / Current
Power Consumption
Operating Temperature / Humidity
Dimensions (WxHxD)
Weight (With hard disks)
Rack Mount Kit
Design and specifications are subject to change without notice.
Max.6TB HDD
SRD-1650DC
16 Composite video 0.5-1 Vp-p, 75 ohm automatic termination
NTSC : 704 x 480 / PAL : 704 x 576
NTSC : 480fps / PAL : 400fps
NTSC : 704 x 480 / PAL : 704 x 576
1 / 4 / 6 / 8 / 9 / 13 / 16 / PIP
Linux
H.264
NTSC : Up to 120fps@704 x 480 / PAL : Up to 100fps@704 x 576
NTSC : Up to 240fps@704 x 240 / PAL : Up to 200fps@704 x 288
NTSC : Up to 480fps@352 x 240 / PAL : Up to 400fps@352 x 288
NTSC : Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (0.9 / 1.9 / 3.8 / 7.5 / 15 / 30fps)
PAL : Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (0.8 / 1.6 / 3.1 / 6.2 / 12.5 / 25fps)
Continuous
Up to 30sec (5, 10, 20, 30sec)
Up to 6hour (5,10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)
Date/Time, Event, Back up, Pos, Motion (*All search include preview function)
Fast forward / backward, Slow forward / backward, Step forward / backward
CIF 480/400fps
Up to 8Mbps, Unlimited (8M) / 2 / 1.5 / 1Mbps / 800 / 600 / 500 / 400 / 300 / 200 / 100 / 50kbps
Selectable
H.264 (4CIF / 2CIF / CIF selectable)
Search 3 / Live unicast 10 / Live multicast 20
TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP
NET-i viewer, SmartViewer, Webviewer
Android, i-Phone
RTSP/RTP (UDP), CGI, HTTP
Wi-Fi : CIF Max. 4fps (Single channel) / CIF Max. 4fps (Quad channel)
3G : CIF Max. 4fps (Single channel) / CIF Max. 4fps (Quad channel)
Live 1
Up to 5 SATA HDDs
Up to 2 expansion bay (Up to 4 HDD each)
Yes
3 USB ports
AVI, BU (DVR player), EXE (Include player)
1 Admin, 10 Group, 20 User per 1 group, User can be assigned authority for function
Watermark
1 VGA (800 x 600, 1024 x 768, 1280 x 1024)
480p / 720p / 1080p resolution
1 BNC, 1 Vp-p, 75 ohm
Digital spot (1 BNC, 1 Vp-p, 75 ohm), support multi screen and camera title
16
16CH line in (Built-in 4CH, option : audio extension cable) / 1CH line out
ADPCM
16KHz
Terminal 16 inputs (NO/NC) / Terminal 4 relay outputs (NO/NC),
Rating : 30V DC / 2A, 125V AC / 0.5A
Notification via e-mail
1 RJ-45 10/100/1000 Base-T
RS-232/RS-485 for PTZ, Samsung system keyboard
USB 2.0, 3 ports
2 External SATA ports
Mouse, Remote controller
Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD,
DIAMOND, ERNA, KALATEL, VCL TP, Vicon
PTZ control via coaxial cable [Samsung CCVC, Pelco-C (Coaxitron)]
100 ~ 240V AC ±10%, 50/60Hz, Autoranging
Max. 60W (With 1x HDD)
+0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 85% RH
440.0 x 88.0 x 426.8mm (17.32" x 3.46" x 16.80")
Approx. 7.5Kg (16.53 lb)
2ea
Korean, Japanese, Chinese, English, French, German, Spanish, Italian, Russian,
Polish, Czech, Turkish, Netherlands, Portuguese, Swedish, Danish, Thailandais,
Rumanian, Serbian, Croatian, Hungarian, Greek (22 Language)
DISTRIBUTED BY
The Eco mark represents
Samsung Techwin’s will to create
environment-friendly products,and indicates
that the product satisfies the EU RoHS Directive.
