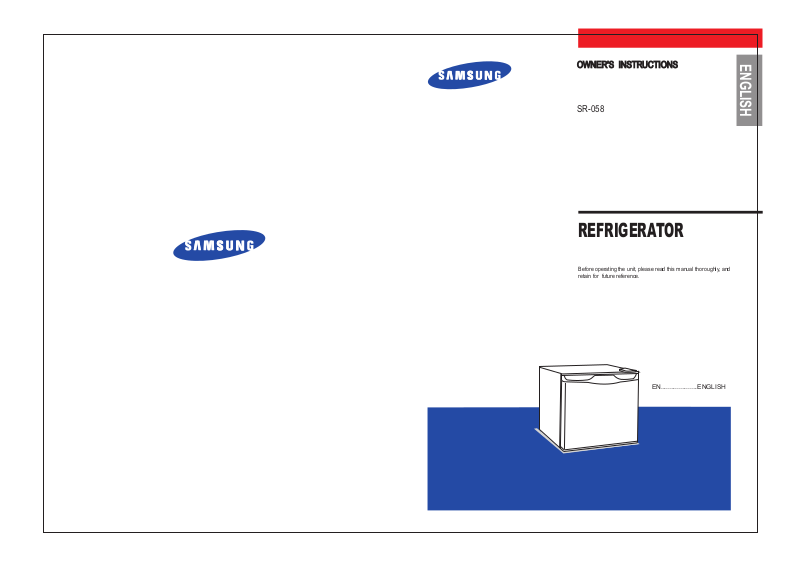

OWNER'S INSTRUCTIONS
OWNER'S INSTRUCTIONS
SR-058
REFRIGERATOR
Before operating the unit, please read this manual thoroughly, and
retain for future reference.
ENGLISH
EN....................ENGLISH
Page 2
SAFETY PRECAUTIONS
Read Instructions
EN:All the safety and operating instructions should be read
before the appliance is operated.
Retain Instructions
EN:The safety and operating instructions should be retained
for future reference.
Heed Warnings
EN:All warnings on the appliance and in the operating
instructions should be adhered to.
Follow Instructions
EN: All operating and use instructions should be followed
Model and serial numbers
EN:Please refer to both model and serial numbers in any cor respondence concerning your freezer/refrigerator.
Data of Purchased:............................
Model No:...............................................
Serial No ...................................................
CONTENTS/INDICE
SAFETY PRECAUTIONS...............................................................................................1
SAFETY INSTRUCTIONS..............................................................................................2
NAME OF REFRIGERATOR AND OPERATION............................................................4
TEMPERATURE CONTROL...........................................................................................6
TO MAKE ICE CUBES....................................................................................................7
DEFROSTING.................................................................................................................8
STORAGE AND CLEANING...........................................................................................9
TROUBLESHOOTING .................................................................................................11
1
Page 3
SAFETY INSTRUCTIONS
INSTALLATION
EN:
Keep regular intervals
- Leave a space of 50mm between refrigerator back and wall be hind. If your refrigerator is going into a recessed area in the wall,
allow at least 10inches or more clearance above the refrigerator.
This refrigerator is designed for free standing only.
- This refrigerator should not be recessed or built in.
Avoid the direct sunlight or heater
- As plastic and electrical components are affected by direct heat,
never place the unit near cookers, radiators or in places exposed
to direct sunlight.
- Normal room temperature is recommended.
Never install the unit near water.
- Avoid locations which may be affected by delete or dampness
as this will impair the efficiency of the insulation.
MEMO
Install on a stable, level surface.
- Make sure it is placed on a flat, level surface .
For personal safety, this appliance must be properly grounded.
- This refrigerator should not be grounded with telephone line,gas
pipe,etc.
30cm
2
Page 4
CAUTIONS WHILE USING
EN:
Do not use the appliance if it is not operating correctly or has
been damaged. Disconnect it from the power supply and call
your local service center.
Be careful not to splash water on the back of the refrigerator.
-The insulation of the electric parts will be impaired by water.
Avoid leaving the door open any longer than necessary as this
will impair the efficiency of the unit making it more costly to run.
Do not use flammable sprays such as lacquer and paint near
the refrigerator, because there is a possible danger of ignition.
Do not put volatile chemicals such as ether and benzene in the
refrigerator, because there is a danger of explosion.
Don't allow children to hang on the door.
-Children should not be left alone or unattended in an area where
the appliance is in use. They may be hurt and could damage the
refrigerator.
COMING EVENTS
EN:
When out of operated for a long time .
- Remove all food and disconnect the power supply cord.Dry your refrigerator, opening the door for 2-3days.
When you get ready to move
- Securely fasten removable interior part (or remove and package them separately).
- Do not place your refrigerator horizontally, or compressor may be damaged.
Power failure
- You should keep the door closed. while the power is off (1-2 hours).
- During power failure of longer periods take steps to protect your frozen food by placing block of dry-ice on top of packages
- If dry-ice is not available see if you can temporarily use a freezer in your local locker plant
£¬ ¡£
£¬ ¡£
If the power is damaged, avoid a hazard by replacing it
through the manufacturer or its service agent or a
similarly qualified person.
,
Don t use the appliance outdoors or let it be
rained on.
3
12
Page 5
PARTS AND OPERATION
FRONT OF THE REFRIGERATOR
8
6
1
2
4
7
EN:
1.Freezing Compartment
Use for making ice cubes and for storage of frozen foods
and ice cream.
But not suitable for long term stroage of frozen foods.
2.Drip Tray
Catches melted water on defrosting.
3.Cold Control Knob
Rotate this to adjust refrigerator temperature and to
defrost.
4.Slide Out Shelf
Odor resistant,rustproof plastic coated steel shelf.
5.Guard Rack,A
6.Ice tray
Plastic made,Easy to remove ice cubes.
7.Guard Rack,B
8.Freezer Cover
TROUBLESHOOTING
SYMPTOMS
EN: Refrigerator does not operate
3
5
EN: Refrigerator is warmer than usual
EN: There are unusual noises
- Check if there is electrical power to equipment
EN:
- Check if the home's main circuit breakerbox is
working .
- The refrigerator control dial "on".
- Check if control is set properly.
En:
- Check if the door has been open for a long time.
- Have you recently added a large quantity of food?
- Check if the unit is installed in a firm place or not.
EN:
- Is shelving or storage loose inside the unit?
- Is evaporating tray inserted properly?
CHECKS
4
11
Page 6
CLEANING THE REFRIGERATOR
PREPARATIONS FOR USE
EN: All of the following should be satisfed when tested in the following order .If not check electricity supply.When cause of
trouble can not be located contact your dealer.
EN:
1. Place all shelves, all kinds of vessels in their proper positions
which have been removed for transportation.
2. Clean refrigerator and parts to remove dust incurred during
shipping.
3. Set cold control knob at "COLD" position and let refrigerator oper ate for one hour. Freezer compartment should get slightly chilled
and motor should run smoothly with no noise but soft hum.
4. Store food after the temperature in the refrigerator gets suffi ciently low. It takes a few hours after starting the refrigerator to
reach the proper temperature.
5. Your refrigerator is operated by a compressor which switchs "on
and off" to maintain the intemal temperature. When the compre ssor is new it requires running in for a period of up to 2 months.
During this period it may operate a little noiser than normal. This
is quite normal and does not represent a fault.
£¬
£¬
HOW TO CLEAN THE UNIT
EN:
Exterior
- Wipe with a damp sudsy cloth, then dry.
- For stubborn strains and for periodic waxing, use silicon wax.
Interior
- Wash entire compartments with a baking soda solution (two table spoon of baking soda to one quart of warm water). Rinse and dry.
Interior parts
- Wash compartment shelves, door shelves etc.
With either the baking soda solution or a mild detergent and warm
water. Rinse and dry.
Magnetic door gaskets
-Wash with warm sudsy water,rinse throughly and dry.
The drained water evaporating tray
- To take out the drained water tray placing under evaporator
lift upward slightly and put it being likely slide out downward
£¨ £¬
slant .Clean it once in a month.
£©
- It it is not inserted properly, drained water is full of tray and it cannot
be vaporized or it will cause unusual vibrating noises.
The finishing touch
-Insert all parts to proper location and set "Temperature control
to desired setting.
£¬
"
5
10
Page 7
TEMPERATURE CONTROL
STORAGE AND CLEANING
TEMPERATURE CONTROL
Winter
Normal
Summer
OFF
MAX
OFF
MAX
OFF
MAX
TEMPERATURE
CONTROL
DEF
4
DEF
4
DEF
4
EN: To adjust the refrigerator s temperature,adjust the temperature
control dial.
Do not set the refrigerator temperature lower than necessary.
After operation as continuous operation,be sure to adjust the
thermostat to original position.
TO STORE FOOD EFFICIENTLY
SITUATION
EN: The nearer to 1 the dial setting,the warmer
it will become.
.....................When small quantity of foods are stored.
1
2
3
EN:
Do not load your refrigerator or freezer with hot food. Allow sufficient time for cooling.
It saves energy consumption and for freezing .
time
Be sure not to store bottles such as beer, cokes, etc. in the
freezer compartment.
Do not overload your set with a lot of foods.
EN: To maintain the optimum inside condition food
storage condition set the control dial at 4 position
.................For normal use.
1
2
3
This refrigerator is not suitable for storing s cientific items
or medicines.
The procedures for replacing the bulb:
1.Unplug and disconnect the power.
EN: The nearer to MAX the dial setting,the colder it
will become.
.................When large quantity of foods are stored.
.................For quick ice-marking,set the dial at
1
2
3
MAX position.
2.Open the door and remove the water tray.
3.Remove the burned out bulb by rotating it.
4.Replace it with a new bulb.
5.Put the water tray back and plug the power.
OFForDEF
EN: Set the dial at DEF or OFF position with the door
opened.
DEF
OFF
MAX
1
2
3
4
.................After about 40 minutes, the frost on the
surface of the evaporator will begin to
melt and can be easily removed.
6
9
Page 8
TO MAKE ICE CUBES
DEFROSTING
FREEZER
COMPARMENT
EN: Fill water into the ice tray to the about 80%capacity.
EN: When you want to make ice cubes rapidly, the
thermostat should be set at MAX .
EN: If you want to make ice cubes put the ice tray in
the freezer compartment.
EN: Slide the ice tray into the freezer compartment.
EN: Hold both ends of the ice tray, remove the
ice cubes from the tray by twisting it gently.
Do not bend the ice tray or it will crack.
HOW TO DEFROST
1
Empty freezer.
EN: Remove ice tray and frozen foods to the
fresh food compartment.
3
Remove the frost with a soft cloth only.
EN: Remove the frost with a cloth and wipe the
freezer bottom.
Set the temperature control to "OFF".
2
EN: With the freezer door opened, set the temperature
control to "OFF" . In 30 to 40 minutes, the frost on the
freezer wall will begin to melt and can be easily re moved.
DEF
OFF
1
MAX
2
3
4
Do not use sharp objects.
4
EN: If the frost is forced off with a knife or a screwdriver,
the surface of the freezer will be damaged or have
a hole made in it. From the hole ,refrigerator would
leak and result in inability to refrigerate.
MAX
DEF
OFF
1
2
3
4
7
