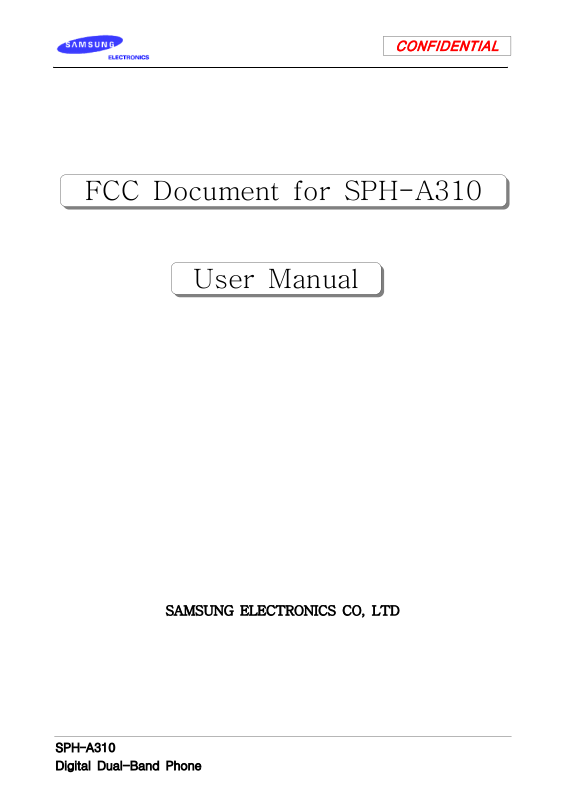

FCC Document for SPH-A310
User Manual
SAMSUNG ELECTRONICS CO, LTD
SPH-A310
Digital Dual-Band Phone
CONFIDENTIAL
9. User Manual
SPH-A310
Digital Dual-Band Phone
*Depending on the software installed or your service provider, some of the descriptions in this manual may not match from your phone.
*Depending on your country, your phone and accessories may appear different from the illustrations in this manual.
|
Printed in Korea |
|
|
World Wide Web |
Code No.:GH68-xxxxA |
http://www.samsungmobile.com |
English. 08/2008. Rev 1.0 |
SPH-A310
User’s Guide
For Draft Version
Dial Features
This section describes the Basic Features
of your Jitterbug™ Dial phone and how to use them.
Topics Covered
•List of Key Features
•Closed View (Front and Back)
•Open View of Your Phone
•Your Display Screen
•Your Phone Settings
–Adjust Ringer Volume
–Speakerphone
–Emergency Callback
FACT |
The first cellular phone weighed 40 ounces. |
|
Your Jitterbug Dial weighs only 4.5 ounces. |
||
|
||
|
|
For more information or to see the latest products and services visit us online at www.myjitterbug.com
Key Features
Your Jitterbug phone was designed to be easy to use and helpful.
•Easy to use ,
,
buttons
•Soft ear cushion reduces outside noise so sound is loud and clear.
•Bright screen with large easy to read text.
•Big, backlit buttons.
•Scrolling button for searching through your Phone List.
Your Jitterbug includes the following standard services:
Phone List Up to 50 of the numbers you call most often stored right in your phone. Our operators can even set up the Phone List for you. See Section 5 (pg 47) for more details.
Call History An easy way to review your last ten incoming, outgoing and missed calls.
Jitterbug Operator Greets you by name, makes calls for you and assists when you need it most. (per minute surcharge may apply).
Emergency call back service Just in case you ever need it.
The following OPTIONAL SERVICES can be turned on or off at your request:
Voice Dialing Speak a name exactly as it appears in your Phone List and your Jitterbug will connect you right away.

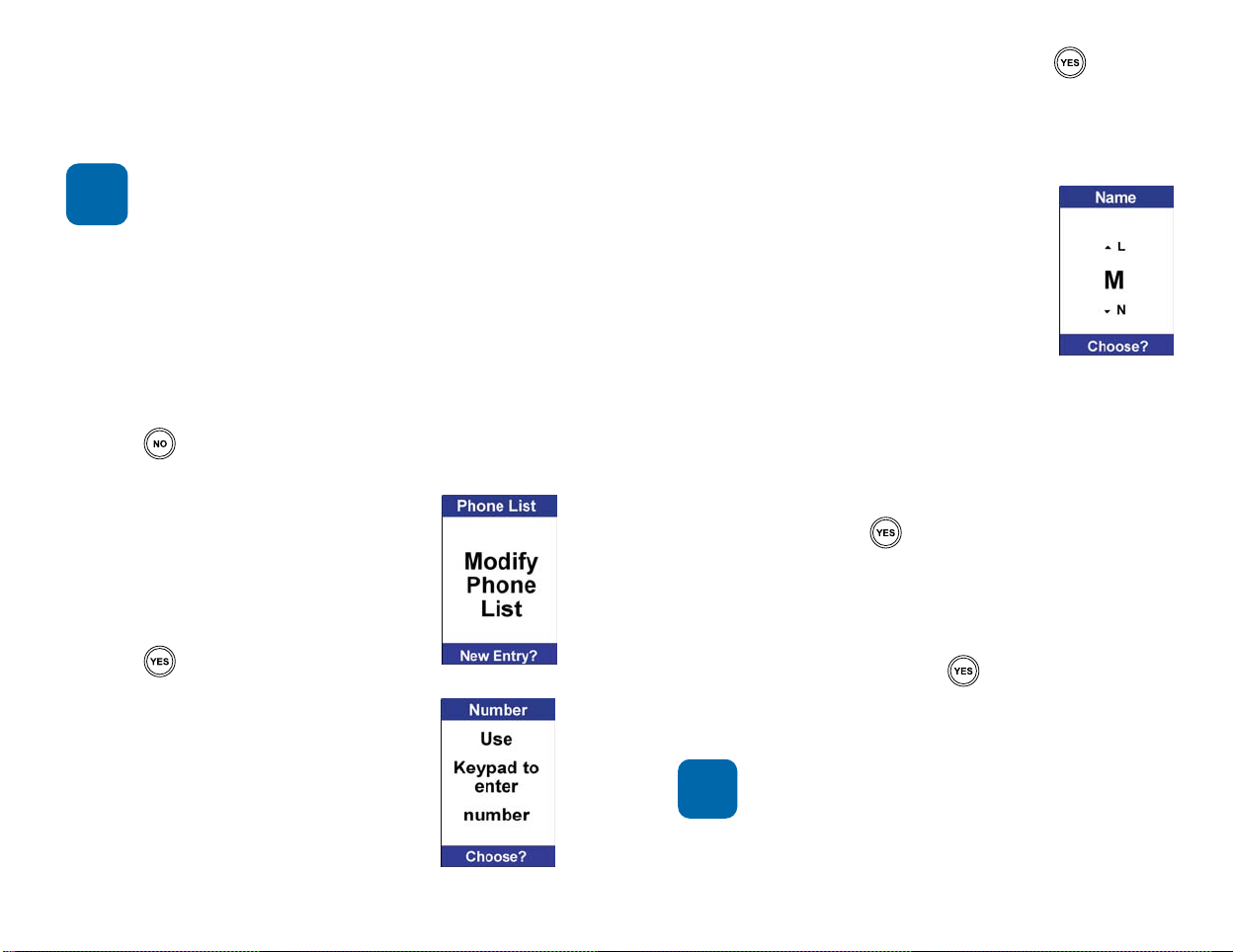

Phone List Updating Select simple or advanced ways to change and save numbers.
Voicemail Makes it easy to retrieve any missed messages (service fees and airtime may apply).
How to Guide Provides simple instruction on navigating Jitterbu features.
For help with any of the above optional features, please call the Jitterbug operator for assistance anytime 24 hours a day.
12 Dial Features
Jitterbug Menu Navigation
We designed Jitterbug with the easiest to use menu system ever found on a cellular phone. And you can do it all by with three simple buttons located at the top of the keypad.
Press up or down to scroll quickly through a list of features. Each menu option is asked in the form of a question.
Press to choose the feature or item displayed on your screen.
Press to continue to the next feature or item.
User Guide
Try it out yourself! Take a look at this built-in guide for an easy, interactive tutorial about your new Jitterbug.
User Guide
Built-in
User Guide
available
Need Help?
User Guide
“Yes” will perform the action and “No” will select the next feature
More Help?
Yes
Yes
User Guide
Every screen
asks a Yes question which
may be answered by pressing “Yes” or “No”
More Help?
User Guide
The arrow keys (▼▲) allow you to choose alternate content, if available
Exit Help?
Yes No
Closed View of Your Phone (Front)
C
1. Internal Antenna Connects with the cellular network so you can use your phone.
2. Display Window Shows time, day and date (when your phone is on). Indicates when you have an incoming call or message.
3. Volume Button Adjusts the ringer or the voice volume during a call. (To silence the ringer during an incoming call, tap the volume button.)
4. Accessory Connector Links accessories to your phone.
5. Power Connector Connects the AC Power Charger to your phone.
6. Light Alert The area around the volume button will illuminate for various indications.
ON STEADY (Phone not plugged in) Phone turned on.
CONSTANT FLASH (Phone not plugged in) Phone needs recharging
SHORT FLASH (Phone not plugged in) Incoming call or message
ON BRIEFLY (Phone plugged in) Charging has begun
ON STEADY (Phone plugged in) Charging complete
C |
Closed View of Your Phone (Back) |
1. Battery Delivers power to make your phone function.
2. Battery Latch Slides to open for battery removal.
3. Lanyard Connector Makes it easy to attach a hand-strap to carry your phone.
18 Dial Features |
Dial Features 19 |
SECTION 2
Open View of Your Phone
1.Speaker Hear the caller and other phone sounds.
2.Display Screen Shows all the information you need to operate your phone.
3.Up/Back Arrow Button Return to previous screen on your Phone List or Call History
4. and
Buttons Responds to questions or commands on the screen.
5.Down/More Arrow Button Advance to next screen on your Phone List or Call History list.
6.Accessory Connector Accessories such as a hands-free car kit conncect into your phone here.
7.Power Connector AC Power Charger and Car Power Charger connect here to recharge your phone.
8.Microphone Picks up the sound of your voice for calls and voice calling.
9.Power Button Turns your phone on and off.
10.Softcell Ear Pad Fits comfortably around your ear while reducing unwanted noise.
2 SECTION
20 Dial Features |
Dial Features 21 |
SECTION 2
Display Screen
This is what you may see on the screen while using your Jitterbug.
1 Call History(01/10)
|
|
|
|
back |
|
|
|
|
|
|
|
|
|||
3 |
|
|
|
Outgoing |
|
||
|
|
|
|
||||
|
|
|
Dr Jones |
2 |
|||
|
|
|
214-555-1793 |
|
|||
|
|
|
|
|
more
4 Show Details?
1.Feature Area Identifies the feature you are using.
2.Additional Entries Indicates when entries are available before or after the current page. Use the Up/Down arrow buttons to scroll through entries.
•“Back” Entries available before the current page.
•“More” Entries available after the current page.
3.Detail Area Displays individual entries from your Phone List, phone call status and received messages in adjustable type size (shorter messages appear in larger type).
4. Command Area Displays questions or commands you can choose or bypass by pressing or
.
Remember to read the Command TIP Area line and respond by using the
or
buttons.
2 SECTION
22 Dial Features |
Dial Features 23 |
Adjusting the ringer volume
1.Open your phone and confirm it’s turned on.
2.Press the Up/Down volume button on the outside of the phone below the display window. Each press will cycle through the below options.
•Ringer Volume Ring Max
•Ringer Volume High
•Ringer Volume Med
•Ringer Volume Low
•Ringer Volume Silent
The ringer and keypad can be silenced TIP by pressing the volume button Down
until “Silent” appears on the screen. Your Jitterbug will now only vibrate to alert you to incoming calls (This can come in handy at a movie, a library or any other location where a ringer may be a distraction.)
Adjusting the ear piece volume
When you’re on a call, press the Volume button up or down until the sound reaches
a comfortable volume.
24 Dial Features
Speakerphone
Use the Speakerphone setting to conduct a call without holding the phone to your ear (and allow others to participate in your phone call).
Don’t hold the phone up to your ear
when it’s in Speakerphone mode. ALERT The volume will be too loud and may
harm your ear.
You must be on a call to use this NOTE setting.
Using the Speakerphone:
1.When you have made or answered a call, you will see a "Connected to…” message on the screen, as shown.
2.Press the Volume button Up repeatedly until you see "Press Yes for SPKR Phone," as shown.
3.Press the button.
Exiting Speakerphone Mode:
While you’re on a call, press the volume button Down to turn this feature off.
Your phone automatically exits the
NOTE Speakerphone setting when youDialendFeaturesa call. 25
SECTION 2
Emergency Callback Mode
When you dial 9-1-1, your phone automatically enters Emergency Callback mode for 30 minutes. While in this mode, you cannot make
other calls.
Making an Emergency Call:
1. Dial the numbers 9-1-1. “Calling Emergency” appears on the screen.
2. When the 911 operator answers, |
Connected to |
|
“Connected to Emergency” appears |
Emergency |
|
911 |
||
on the screen, as shown. |
||
|
||
|
|
|
|
No to Hang up |
|
|
||
Ending an Emergency Call: |
|
1.If the “No to Hang up” command is showing at the bottom of the screen, press .
2.Your Emergency Callback setting is now
active. To reconnect to the 911 operator, press the button.
You will know that you are in the Emergency Callback mode when you open your phone and see “Emergency Callback” on the screen.
Exiting “Emergency Callback” Mode: SECTION 2 You must remove your battery to exit the emergency callback setting. See page 8 for information about removing a battery.
Why do I have an Emergency Callback setting?
If you dial 9-1-1, your mobile phone line is kept free so that the 911 operator can call you back or stay on the line with you.
If you mistakenly call 9-1-1, end the TIP call as soon as possible by pressing to Hang up or close your phone.
Every day in the U.S., more than 200,000 wireless
FACT calls are made to 911.
26 Dial Features |
Dial Features 27 |
SECTION 2
28 Dial Features
The Basics
This section explains how to use your phone’s
Calling and Answering features.
Topics Covered
• Answering a Call
• Ending a Call |
SECTION |
|
|
||
• Ignoring a Call |
|
|
• Placing a Call |
3 |
|
– Dialing Manually |
||
|
||
– Calling the Jitterbug Operator |
|
|
■ Non-Phone List Numbers |
|
|
■ Phone List Numbers |
|
FACT More than 196 million Americans subscribe to a wireless service.
For more information or to see the latest products and services visit us online at www.myjitterbug.com
The Basics 29
When someone calls you
Your phone rings or vibrates (depending on how you set the volume level) to indicate an incoming call. Additionally there are other indications of incoming calls:
If your phone is open:
• A phone number or name appears if the caller’s name and number are stored on your Phone List.
•If the caller can’t be identified, you will see one of the following messages:
•Call from unavailable number
•Call from restricted number
•No number
If your phone is closed: |
Call from |
|
|
|
817-555-2872 |
•The volume button on the front of your phone flashes.
•A phone number or name appears in the display window, as shown.
Answering a call if the phone is open: |
Connected to |
|
|
|
|
1. Press the |
button. |
Betty |
909-555-2334 |
||
|
|
|
|
|
No to Hang Up |
2. A “Connected To...” message will appear on the screen. The caller’s voice can be heard through the earpiece.
Answering a call if the phone is closed:
1.Open the phone. The ring tone will stop.
2.A “Connected To...” message will appear on the screen. The caller’s voice can be heard.
Ending a call:
1.During calls, the “No to Hang Up” command appears at the bottom of the screen.
2.To end a call, press the button or close the phone.
Connected to
310-555-1234
Hang up?
Connected to Amy
909-555-2334
No to Hang Up
Ignoring a call when the phone is closed:
When the phone is ringing you can press the volume button to mute the ringer and ignore the call.
If Voicemail is not active, callers will get a message that you are not available.
Ignoring a call when the phone is open:
You can send a caller directly to your Voicemail by pressing the button when you see “Answer?” at the bottom of the screen. This will also give an unavailable message if you do not have voicemail.
Your phone continues to ring until: TIP • You answer the call.
•The calling party ends the call.
•You mute the ringer.
•The call is sent to Voicemail.
Silencing a Call
Turn the ringer off by opening the phone and pressing the volume button until “Silent” appears on the screen. Your phone will vibrate to alert you to incoming calls.
Placing a Call
Dialing Manually:
You can directly dial a number from any screen on your phone.
1.Dial the full ten digit number using your keypad.
2.Press the button when you see “Call?” at the bottom of your screen.
3.If you make a mistake while entering the number, pressing the key works like a backspace or delete button.
|
A dial tone means service is available. |
TIP |
If it’s not, you’ll see “No Service.” |
Always dial the full ten digit number NOTE including area code (except 911) even
if it’s a local call.
Calling via the Jitterbug Operator:
The Jitterbug Operator can connect you to anyone on your Phone List or to any number in the United States or Canada.
1.Press the “O” button.
2.Press the button when you see “Call?” at the bottom of the screen. “Calling” will appear.
3.When the operator answers, “Connected” will appear.
4.Tell the operator the name of the person or service you want to call.
You can end any call or exit any screen TIP by closing, then re-opening your
phone.
Calling Non-Phone List Numbers
To call numbers that are not stored on your
Phone List or Call History list, you can dial the number yourself or ask the operator to call for you in the U.S. or Canada.
For security, you may be asked for a Personal ID Number (PIN) if you have set one up at www.myjitterbug.com.

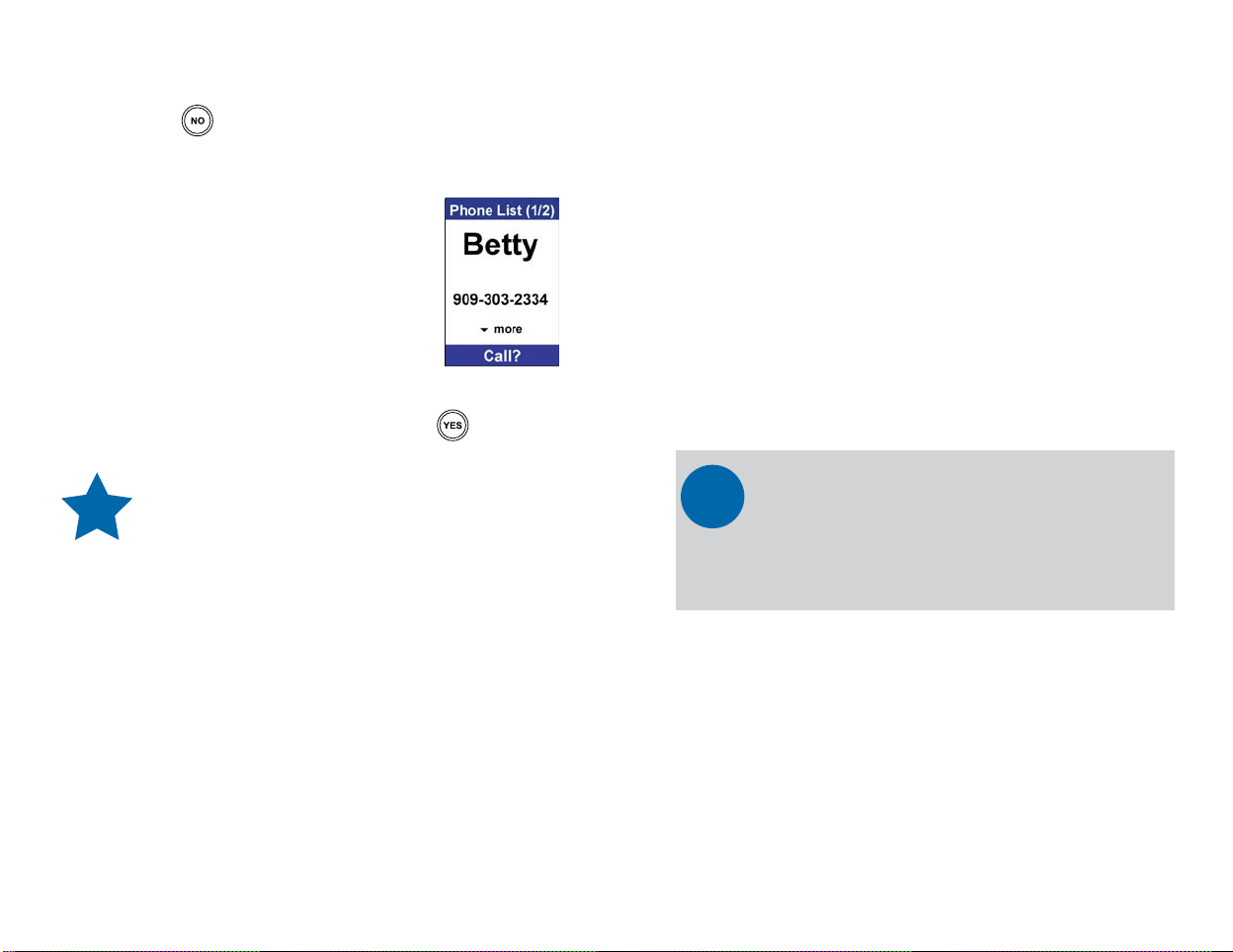

Using your Phone List to make a Call
Your Jitterbug Dial phone can store up to
50 numbers and contact names on your Phone List. To place a call to a number on the list:
1.Press the button until a Phone List screen appears.
2.Press the Up/Down arrow button to move back and forward through your Phone List until you find the number you want to call.
3.Press when you see the “Call?” question at the bottom of your screen.
You can control the order of the NOTE numbers on your Phone List from your
personal page at www.myjitterbug.com
Moving from Feature to Feature on Your Phone
This section explains how to move in and out of the features on your phone.
Topics Covered
•Accessing Features
•Examples of Feature Navigation
For more information or to see the latest products and services visit us online at www.myjitterbug.com
Accessing Features
It’s easy to find what you want on your Jitterbug Dial.
How to navigate using buttons:
1.Press the button to browse through the feature choices on your phone.
2.Press the Up/Down arrow button to move through the entries within a feature.
3.Press the button to select the action displayed at the bottom of the screen.
Follow these steps as you look at the screen images in the examples on the next page.
Feature Navigation
All Jitterbug phones include a pre-programmed Phone List. (See Section 5 for details about your Phone List.) Additional features, such as built in
User Guide, Voice Dialing, Voicemail, Call History, and Phone Info, can be turned on or off by calling 1-800-733-6632.
Features on your Jitterbug are accessible in the following order:
1.User Guide
2.Voice dialing
3.Phone List
4.Call History
5.Phone Info

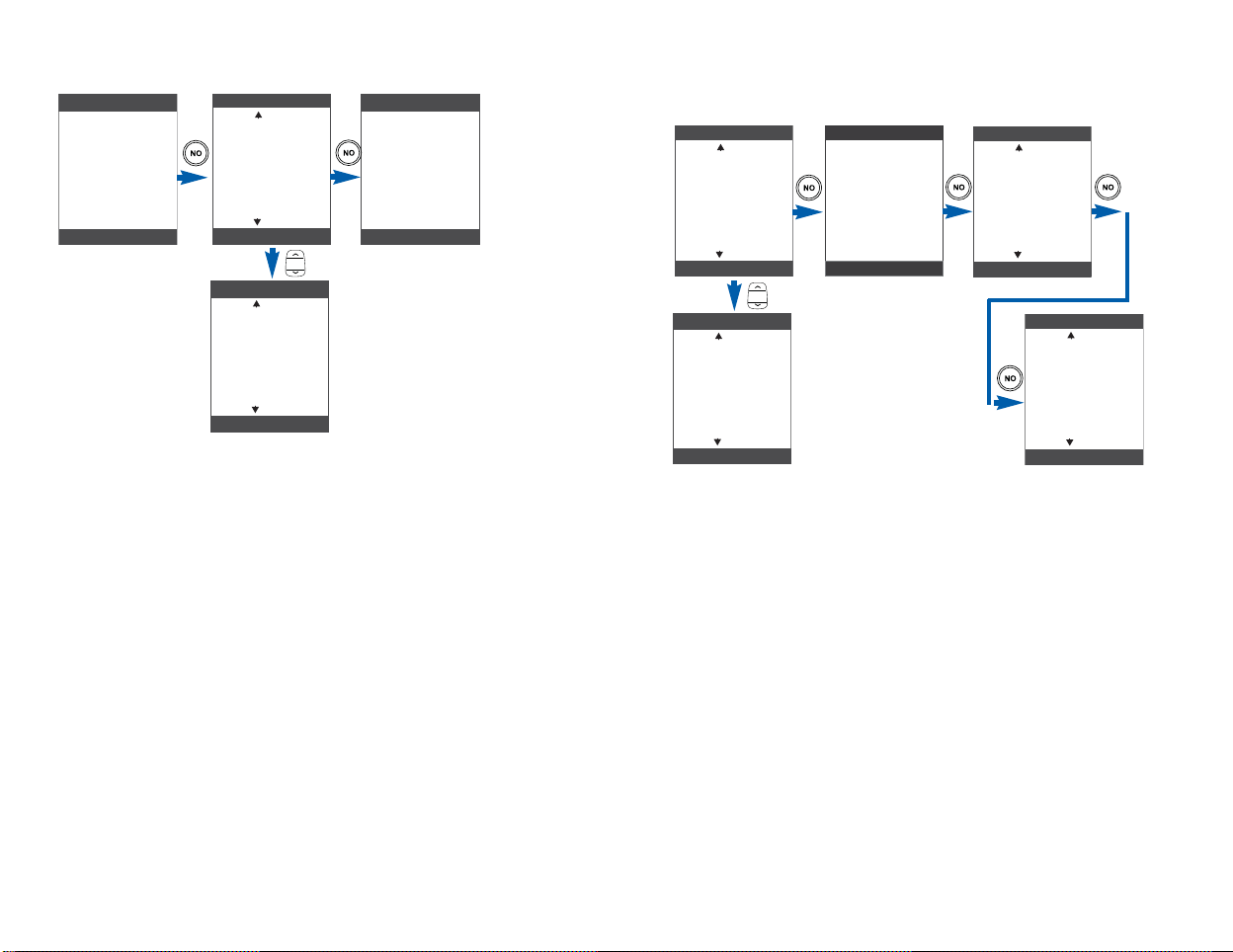

Examples of the screens you’ll see when navigating through features are included below.
Feature 1. Phone List with voicemail.
The following diagrams illustrate how to navigate through features should they all be activated. If a certain feature isn’t activated on your phone, pressing “NO” will advance to the next active feature.
Phone List (01/02) |
|
Voicemail |
|
Phone List (01/02) |
|||
|
|
||||||
|
|||||||
back |
|
|
|
back |
|||
Amy |
|
|
|
Amy |
|||
Smith |
|
Check for |
|
Smith |
|||
|
|
|
|
|
Saved |
|
|
909-555-2334 |
|
messages |
|
909-555-2334 |
|||
|
|
|
|||||
more |
|
|
|
more |
|||
|
|
|
|
|
|
|
|
Call? |
|
Listen? |
|
Call? |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
Phone List (02/02) |
|
|
|
|
|||
back |
|
|
|
|
|||
George |
|
|
|
|
|||
Baker |
|
|
|
|
|||
972-555-6149 |
|
|
|
|
|||
more |
|
|
|
|
|||
|
|
|
|
|
|||
Call? |
|
|
|
|
