Owner’s Instructions
SP42L6HN
SP46L6HN
SP50L6HN
SP56L6HN
SP61L6HN
Register your product at www.samsung.com/global/register
BP68-00582A-00Eng(cover) 1/27/06 9:10 AM Page 3
English - 2
A Guide to Digital TV
• What is Digital Television?
Digital television (DTV) is a new way of transmitting high quality video and audio to your TV set.
Using DTV, broadcasters can transmit high definition TV (HDTV) images, Dolby digital surround
audio, and new services such as multicasting (transmitting more than one program on the same
TV channel) and datacasting. Several of these services can be combined into a single digital
broadcast.
Digital Television Services
• Digital Picture Quality
DTV programs are transmitted in two different formats. The first is Standard Definition Television
(SDTV) and the second is High Definition Television (HDTV).
• SDTV program formats include 480-line interlaced (480i) and 480-line progressive (480p) video.
480i programs are essentially a digital version of our current analog TV programs, while the 480p
format offers improved image detail over 480i. Some 480p programs are broadcast in widescreen
and are comparable to progressive-scan DVD movies in image quality.
• HDTV program formats include 1080-line interlaced (1080i) and 720-line progressive (720p).
Both HDTV formats are always broadcast in widescreen, and offer much higher picture quality than
SDTV.
• Dolby Surround Sound
With DTV, you can listen to a variety of Dolby digital audio formats from Dolby Surround 2.0 to
Dolby Digital 5.1 surround, using your home audio system. Many HDTV programs are now
broadcast with DD 5.1 soundtracks.
U.S.A Only
Other countries
The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third
parties. In particular, this product is licensed under the following US patents:
5,991,715, 5,740,317, 4,972,484, 5,214,678, 5,323,396, 5,539,829, 5,606,618, 5,530,655, 5,777,992,
6,289,308, 5,610,985, 5,481,643, 5,544,247, 5,960,037, 6,023,490, 5,878,080, and under US Published
Patent Application No. 2001-44713-A1.
This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are
granted for commercial use. The license does not cover any product unit other than this product unit and the license
does not extend to any unlicensed product unit or process conforming to ISO/IEC 11172-3 or ISO/IEC 13818-3 used
or sold in combination with this product unit. The license only covers the use of this product unit to encode and/or
decode audio files conforming to the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are granted under this license
for product features or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3.
The product unit accompanying this user manual is licensed under certain intellectual property rights of certain
third parties. This license is limited to private non-commercial use by end-user consumers for licensed contents.
No rights are granted for commercial use. The license does not cover any product unit other than this product unit
and the license does not extend to any unlicensed product unit or process conforming to ISO/IEC 11172-3 or
ISO/IEC 13818-3 used or sold in combination with this product unit. The license only covers the use of this
product unit to encode and/or decode audio files conforming to the ISO/IEC 11172-3 or ISO/IEC 13818-3.
No rights are granted under this license for product features or functions that do not conform to the ISO/IEC
11172-3 or ISO/IEC 13818-3.
BP68-00582A-00Eng(002~015) 1/12/06 9:06 AM Page 2
English - 3
Q&A
1. Is the antenna I use for existing TV reception good enough for DTV?
Over-the-air (OTA) digital TV broadcasting uses the same channels as analog TV and works well
with many existing TV antennas. However, DTV broadcast channel assignments are different than
analog channels. You should find out whether your local DTV broadcasts are on VHF (channels
2-13) or UHF (channels 14-69) to see if you need a different antenna.
If your DTV channels are on UHF and you already get good UHF reception, your present antenna
may work fine. The same holds true for VHF DTV reception. Note that in some markets, both VHF
and UHF channels are used for DTV broadcasts.
You can find out the latest DTV channel assignments for your area by browsing selected Internet
web sites such as www.titantv.com, www.10000watts.com, and www.fcc.gov.
2. How difficult is it to receive DTV signals indoors?
This depends on whether your local DTV stations are running full power or not and how close your
location is to the transmission tower. DTV receivers do not require as much signal as analog TV
receivers to produce high-quality images and sound.
Once the DTV signal level exceeds a certain threshold at the receiver, the digital video and audio
data is decoded at the same quality it was originally encoded for broadcast.
This is a big advantage for DTV over analog TV - there is no noise, ghosting, static, or scratchy
audio.
3. How can I connect an antenna in my townhouse, co-operative apartment,
condominium, or apartment?
The Federal Communications Commission’s OTARD Rule (part of the Telecommunications Act of
1996) allows residents of condominiums, townhouse, or members of neighborhood associations to
put up outside antennas for reception of broadcast TV signals as long as those antennas are not
located in common areas and are no more than 12’ in height.
Residents of rental units (apartments, etc.) are not covered by the OTARD rules and will have to use
indoor antennas to receive DTV broadcasts. It is possible that the landlord of an apartment complex
can provide broadcast DTV signals via a master TV antenna system to each apartment.
4. Can I connect my DTV set-top receiver to my cable TV service?
Cable TV systems use a different method for transmitting digital TV programs that is currently
incompatible with broadcast DTV set-top receivers. So you will still need to use an outdoor or
indoor antenna to receive OTA broadcast DTV programs.
The good news is that you won’t have to pay a monthly or per-program charge to watch OTA DTV
and HDTV programs. They’re free, unlike subscription satellite TV or premium cable TV. All you
need is an antenna and a DTV set-top receiver to enjoy clear, sharp widescreen images and
high-quality audio.
BP68-00582A-00Eng(002~015) 1/12/06 9:06 AM Page 3
Table of Contents
English - 4
Your New Wide TV...................................................................................8
Viewing Position ......................................................................................................8
List of Features.........................................................................................................9
Checking Accessories...............................................................................................9
Right side buttons...................................................................................................10
Side Panel Jacks ................................................................................................... 10
Front Panel LED Indicators.......................................................................................11
Rear Panel Jacks....................................................................................................12

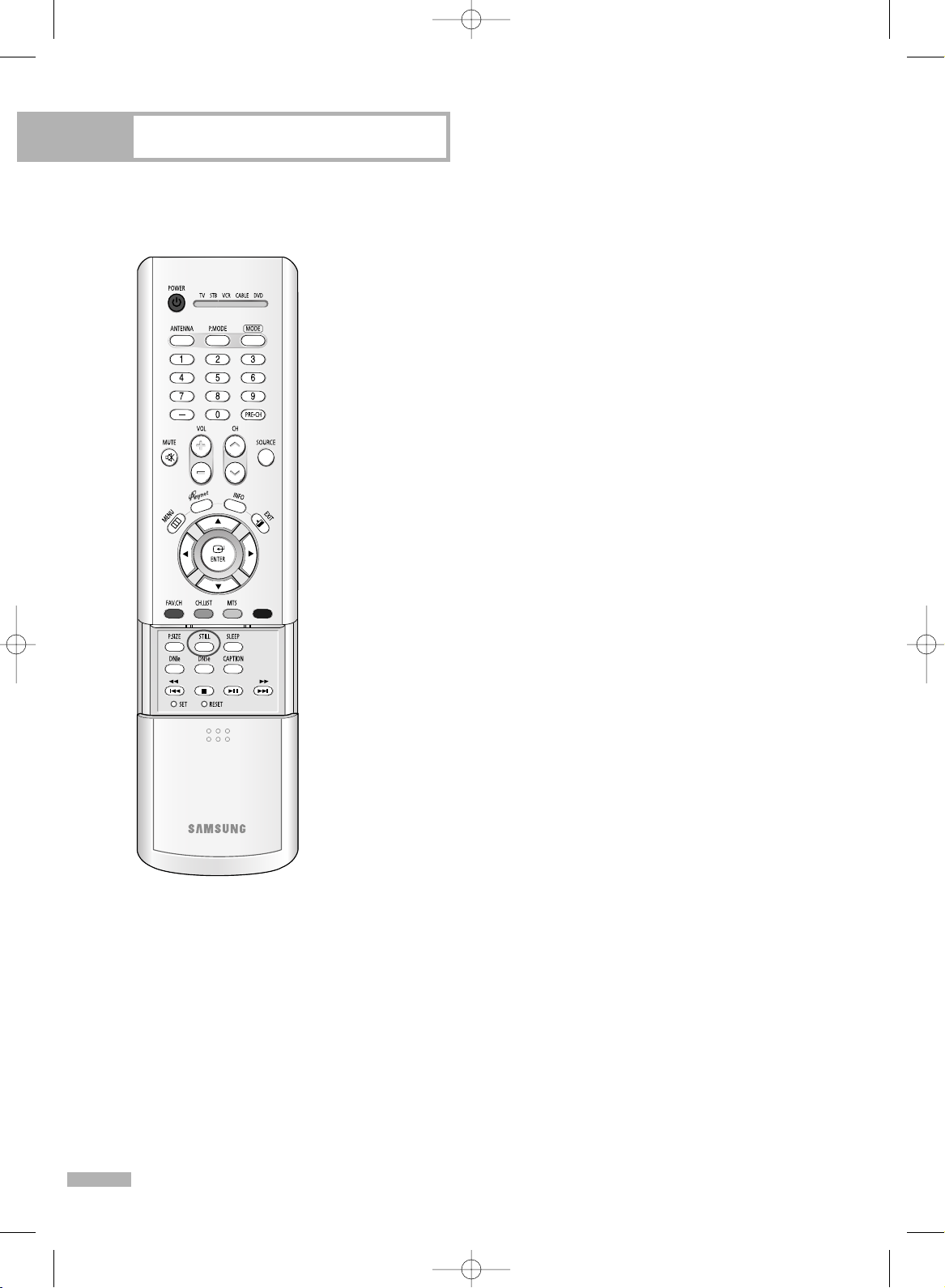

Remote Control......................................................................................................13
Connections ...........................................................................................16
Connecting VHF and UHF Antennas ........................................................................16
Antennas with 75-ohm Round Leads ..............................................................16
Connecting Cable TV .............................................................................................17
Cable without a Cable Box...........................................................................17
Cable with a Cable Box that Descrambles All Channels...................................17
Cable with a Cable Box that Descrambles Some (But Not All) Channels ............18
Connecting a VCR .................................................................................................19
Connecting a VCR to the Video or S-Video/Audio jack....................................19
Connecting a Camcorder .......................................................................................20
Connecting a DVD Player .......................................................................................21
Connecting to Y, P
B, PR.................................................................................21
Connecting to Audio and Video Jacks............................................................21
Connecting a DTV Set-Top Box ................................................................................22
Connecting to Y, P
B, PR.................................................................................22
Connecting to DVI (Digital Visual Interface) ....................................................22
Connecting to HDMI (High Definition Multimedia Interface) ..............................23
Connecting a Digital Audio System..........................................................................24
Connecting to an Analog Amplifier..........................................................................24
Operation ..............................................................................................26
Turning the TV On and Off .....................................................................................26
Viewing the Menus and On-Screen Displays .............................................................26
Selecting a Menu Language....................................................................................27
Memorizing the Channels .......................................................................................28
Adding and Erasing Channels.................................................................................30
Changing Channels ...............................................................................................31
Customizing Your Remote Control ............................................................................32
Remote Control Codes............................................................................................33
Setting the Clock....................................................................................................34
Setting the On/Off Timer........................................................................................36
Setting the Sleep Timer ...........................................................................................37
Viewing an External Signal Source ..........................................................................38
Assigning Names to External Input Mode .................................................................39
BP68-00582A-00Eng(002~015) 1/12/06 9:06 AM Page 4
English - 5
Channel Control .....................................................................................42
Selecting Your Favorite Channels .............................................................................42
Labeling the Channels ............................................................................................43
Fine Tuning Analog Channels ........................................................................44
Checking the Digital-Signal Strength ..............................................................45
LNA (Low Noise Amplifier) .....................................................................................46
Picture Control........................................................................................48
Picture Control.......................................................................................................48
Changing the Picture Size.......................................................................................51
Digital Noise Reduction..........................................................................................52
Viewing the DNIe Demonstration.............................................................................53
Setting the My Color Control Mode .........................................................................54
Using the Color Weakness Enhancement Feature.......................................................56
Setting the Film Mode ............................................................................................57
Freezing the Picture................................................................................................58
Setting the Blue Screen Mode..................................................................................59
Sound Control ........................................................................................62
Sound Control .......................................................................................................62
Auto Volume..........................................................................................................64
Choosing a Multi-Channel Sound (MTS) track .................................................65
Choosing a Multi-Channel Sound (MTS) track .................................................66
Choosing a Digital Sound Format ..................................................................67
Selecting the Internal Mute......................................................................................68
Setting the On/Off Melody.....................................................................................69
Setting up DNSe (Digital Natural Sound engine) .......................................................70
Special Features .....................................................................................72
Setting the Function Help ........................................................................................72
Menu Transparency Level........................................................................................73
Using the V-Chip....................................................................................................74
Viewing Closed Captions (On-Screen Text Messages) ......................................84
Viewing Closed Captions (On-Screen Text Messages) ......................................86
Using the Guide ....................................................................................................88
Using Game Mode ................................................................................................90
Appendix..............................................................................................92

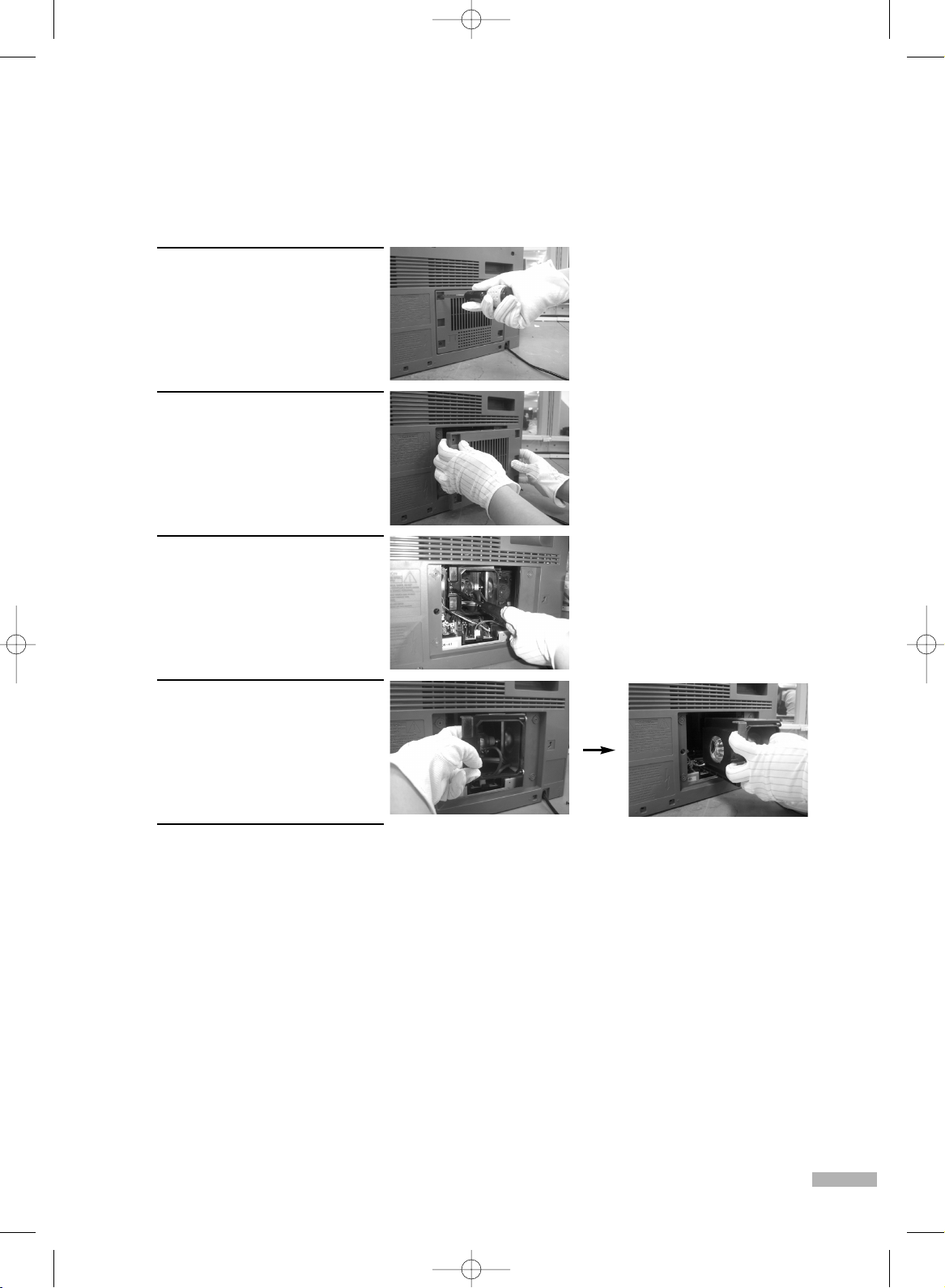

Replacing the Lamp................................................................................................92
Troubleshooting .....................................................................................................94
Cleaning and Maintaining Your TV ..........................................................................95
Using Your TV in Another Country ...........................................................................95
Specifications ........................................................................................................95
Analog
Analog
Digital
Digital
Digital
Digital
Analog
BP68-00582A-00Eng(002~015) 1/12/06 9:06 AM Page 5
SAMSUNG
BP68-00582A-00Eng(002~015) 1/12/06 9:06 AM Page 6
Your New Wide TV
BP68-00582A-00Eng(002~015) 1/12/06 9:06 AM Page 7
Viewing Position
To optimize your viewing comfort, please follow the guidelines below for viewing distance.
If viewing for an extended period of time, sit as far back from the screen as possible.
Your New Wide TV
English - 8
When installing the product, make sure to keep
it away from the wall (more than 10 cm/4 inches)
for ventilation purposes.
• Poor ventilation may cause an increase in the
internal temperature of the product, resulting
in a shortened component life and degraded
performance.
BP68-00582A-00Eng(002~015) 1/12/06 9:06 AM Page 8
English - 9
List of Features
Your TV was designed and engineered using the latest technology. It is a full-featured, high-performance
unit that exceeds industry standards. In addition, it has these special features:
• Easy-to-operate remote control
• Easy-to-use on-screen menu system you can access from right side buttons or remote control
• Automatic timer to turn the TV on and off at any time you choose
• Adjustable picture and sound settings and the ability to memorize your favorite settings
• Automatic channel tuning for up to 181 channels
• A special filter to reduce or eliminate reception problems
• Fine tuning control for the sharpest picture possible
• A built-in multi-channel sound decoder for stereo and bilingual listening
• Built-in, dual channel speakers
• A special sleep timer
• Widescreen TV with adjustable image size
• Life-like clear images provided by DNle technology
• My Color Control Mode for corresponding with your color style
• Color weakness Mode
• Digital Input (HDMI/DVI IN) jack
• Digital Audio Output (OPTICAL) jack
• AV network system (Anynet) that enables you to easily control Samsung audio-video(AV) devices from
this TV.
Checking Accessories
Antenna Cable
Anynet Cable
(BN39-00518B)
Component Cables (RCA)HDMI/DVI cable
Owner’s Instructions
Remote Control (BP59-00084B)/
AAA Batteries
S-VIDEO Cable
HDMI Cable
The following parts are sold separately and are available at most electronics stores.
Once you have unpacked your TV, check to make sure that you have all the parts shown here.
If any piece is missing or broken, call your dealer.
Optical Cable
BP68-00582A-00Eng(002~015) 1/12/06 9:06 AM Page 9
Right side buttons
The buttons on the right side panel control your TV’s basic features, including the on-screen menu system.
To use the more advanced features, you must use the remote control.
Side Panel Jacks
Use the right side panel jacks to connect a component that is used only occasionally (a camcorder or
video game, for example).
Your New Wide TV
English - 10
Press to switch between viewing TV programs and signals from connected components.
Press to see the on-screen menu.
Press to raise or lower the volume and to select items when using the on-screen menu.
Press to change channels and move between items on the on-screen menu.
Press to activate (or change) a particular item.
Connect the video signal from a camcorder or video game.
Connect the audio signal from a camcorder or video game.
Connect an S-Video signal from a camcorder or video game.
(S-Video 3 jack and Audio L/R input 3 are used in conjunction.)
BP68-00582A-00Eng(002~015) 1/12/06 9:06 AM Page 10
English - 11
Front Panel LED Indicators
The three lights on the front panel indicate the status of your TV.
Indicator Light Key
TIMER
Standby state.
The picture will automatically appear in about 15 seconds.
Auto Timer ON/OFF has been set and the set will automatically be
turned on in about 25 seconds.
A cooling fan inside the set is not operating normally.
Lamp cover on the rear of the set is not properly shut.
Check if the ventilation hole on the rear of the set is blocked, because
if the inner temperature is too high, the power will shut off.
Lamp may be defective. Please contact a certified technician.
LAMP STAND BY/TEMP Indication
: Light is On
: Light is Blinking
: Light is Off
Remote Control Sensor
Aim the remote control towards this spot on the TV.
POWER
Press to turn the TV on and off.
• It takes about 30 seconds for the TV to warm up, so normal brightness may not appear immediately.
• The TV has a fan to keep the inside lamp from overheating. You’ll occasionally hear it working.
BP68-00582A-00Eng(002~015) 1/12/06 9:06 AM Page 11
Rear Panel Jacks
Use the rear panel jacks to connect components such as a VCR. You can connect different components
such as VCRs, Set-Top Box and a DVD player etc., because there are two sets of video input jacks and
two sets of component video input jacks on the rear panel of your TV. For more information, see
“Connections”.
Your New Wide TV
English - 12
Œ
ANTENNA terminals
Two independent cables or antennas can be connected to
these terminals. Use “ANT 1 IN (CABLE)” and “ANT 2 IN (AIR)”
terminals to receive a signal from VHF/UHF antennas or your
cable system. (Refer to pages 16~18)
´
SERVICE
This jack is for software upgrades.
ˇ
S-VIDEO INPUT jacks
Connects an S-Video signal from an S-VHS VCR or DVD player.
(Refer to page 20)
¨
DVI (Digital Video Interface) AUDIO INPUT jacks
Connect to the digital audio output jacks of a device with DVI
output. (Refer to page 22)
ˆ
VIDEO/AUDIO INPUT jacks
Connect video/audio signals from external sources, such as VCR
or DVD players. (Refer to page 21)
Ø
VIDEO/AUDIO OUTPUT jacks
Sends video/audio signals from the TV to an external source,
such as a VCR. These jacks are available only in RF, Video and
S-Video modes.
∏
COMPONENT1, 2 jacks (Y, P
B
, PR, AUDIO L/R)
Use these jacks to connect the component video/audio signals
from a DVD player or a Set-Top Box. (Refer to pages 21~22)
”
DIGITAL AUDIO OUT (OPTICAL) jack
Connect to a Digital Audio Component. (Refer to page 24)
’
Anynet
Please refer to the Anynet Owner’s Instruction. This jack is for
connecting to other Samsung Anynet-enabled devices.
˝
HDMI (High Definition Multimedia Interface)/
DVI INPUT jack
Connect to the HDMI jack of a device with HDMI output.
These inputs can also be used as a DVI connection with separate
analog audio inputs. An optional HDMI/DVI cable will be
necessary to make this connection. When using the optional
HDMI/DVI adapter, the DVI analog audio inputs on your TV
allow you to receive left and right audio from your DVI device.
(Not compatible with PC) (Refer to pages 22~23)
BP68-00582A-00Eng(002~015) 1/12/06 9:06 AM Page 12
English - 13
Remote Control
You can use your remote control within a distance of 23 feet and an angle of 30 degrees from the left
and right sides of the TV’s remote control receiver. You can also use your remote control to operate your
VCR, Cable box, DVD player or some Samsung Set-top boxes. See pages 32~33 for details.
1. POWER
Turns the TV on and off.
2. P.MODE
Adjust the TV picture by selecting one of
the preset factory settings (or select your
personal, customized picture settings.)
3. ANTENNA
Press to select “AIR” or “CABLE”.
4. CHANNEL NUMBER
Press to directly tune to a particular channel.
5.
-
Press to select additional channels (digital
and analog) being broadcast by the same
station. For example, to select channel
“54-3”, press “54”, then press “
-
” and “3”.
6. VOL +, VOL
-
Press to increase or decrease the volume.
7. MUTE
Press to mute the TV sound.
8. Anynet
Runs the Anynet view functions and sets up
Anynet devices. Please refer to the Anynet
Owner’s Instruction.
9. MENU
Displays the main on-screen menu.
10. CH.LIST
Displays the channel list.
11. FAV.CH (Favorite Channel)
Press to switch between your favorite
channels.
12. MODE
Selects a target device to be controlled by
the Samsung remote control (i.e., TV, STB,
VCR, CABLE, or DVD).
13. PRE-CH
Tunes to the previous channel.
14. SOURCE
Press to display all of the available video
sources (i.e., TV, Set-Top Box, VCR, DVD,
DTV).
15. CH /
Press to change channels.
Moves from one set of screen information to
the next in TV Guide menu.
16. INFO
Press to display information on the TV
screen.
17. EXIT
Press to exit the menu.
18. ▲, ▼, œ, √, ENTER
Press to select highlight up, down, left, or
right. While using the on-screen menus,
press ENTER to activate (or change) a
particular item.
19. MTS (Multichannel Television
Stereo)
Press to choose Stereo, Mono or SAP
(Secondary Audio Program).
20. STILL
Press to pause the current screen.
21. P.SIZE
Press to change the screen size.
22. DNSe
DNSe enhances the sound quality,
automatically controls output,
and prevents sound distortion.
Press this button to set it On or Off.
23. DNIe (Digital Natural Image
engine)
Activates DNIe Demo mode.
24. SET
Used during set up of this remote control,
so that it will work compatibly with other
devices (some Samsung Set-top boxes, VCR,
Cable box, DVD, etc.)
25. SLEEP
Press to select a preset time interval for
automatic shut off.
26. CAPTION
Controls the caption decoder.
27. VCR/DVD Controls
Controls VCR or DVD functions: Rewind, Stop,
Play/Pause, Fast Forward.
28. RESET
If your remote control is not functioning
properly, take out the batteries and press
the reset button for about 2~3 seconds.
Re-insert the batteries and try using the
remote control again.
The blue button is only
used during the channel
list as an EXIT button.
BP68-00582A-00Eng(002~015) 1/12/06 9:06 AM Page 13
Installing Batteries in the Remote Control
With normal use, the batteries in the remote control should last about a year. If you notice a performance
degradation while using the remote, the batteries may need to be replaced. Make sure you replace both
batteries and do not mix old and new batteries in the remote control. If you won’t be using the remote
control for a long time, remove the batteries and store them in a cool dry place.
1
Slide the back cover all the way out to open
the battery compartment of the remote control.
2
Install two AAA size batteries. Make sure to
match the “+” and “–” ends of the batteries
with the diagram inside the compartment.
3
Slide the cover back into place.
NOTE
• Do not mix battery types, i.e, alkaline and manganese.
Your New Wide TV
English - 14
BP68-00582A-00Eng(002~015) 1/12/06 9:06 AM Page 14
Connections
BP68-00582A-00Eng(002~015) 1/12/06 9:06 AM Page 15
Connections
English - 16
Connecting VHF and UHF Antennas
If you do not have a cable system, you will need to connect an antenna to your TV.
Antennas with 75-ohm Round Leads
If your antenna looks like this: it has 75-ohm round leads.
1
Plug the antenna lead into
the ANT 2 IN (AIR) on the
rear panel of your TV.
BP68-00582A-00Eng(016~025) 1/12/06 9:06 AM Page 16
English - 17
Connecting Cable TV
You can connect different cable systems to your TV, including cable without a Cable box,
and cable with a Cable box that descrambles some or all channels.
Cable without a Cable Box
1
Plug the incoming cable into
the ANT 1 IN (CABLE) on the
rear panel of your TV.
Cable with a Cable Box that Descrambles All Channels
1
Find the cable connected to
the ANTENNA OUT
terminal on your Cable box.
This terminal might be
labeled “ANT OUT”, “VHF
OUT” or simply “OUT”.
2
Connect the other end of
the cable to the “ANT 1 IN
(CABLE)” terminal on the
rear panel of your TV.
BP68-00582A-00Eng(016~025) 1/12/06 9:06 AM Page 17
Connections
English - 18
Cable with a Cable Box that Descrambles Some (But Not All) Channels
To complete this connection you will need a two-way splitter, an RF (A/B) switch, and four coaxial
cables (which you can buy from your Samsung dealer or any electronics store).
1
Find and disconnect the
cable that is connected to
the ANTENNA IN terminal
of your Splitter.
This terminal might be
labeled “ANT IN”, “VHF IN”
or simply, “IN”. Connect this
cable to a two-way splitter.
2
Connect a coaxial cable
between an OUT terminal
of the splitter and the IN
terminal of the Cable box.
3
Connect a coaxial cable
between the ANTENNA OUT
terminal of the Cable box
and the B-IN terminal of the
RF (A/B) switch.
4
Connect another cable
between the other OUT
terminal on the splitter and
the A-IN terminal on the
RF (A/B) switch.
5
Connect the last coaxial
cable between the OUT
terminal of the RF (A/B)
switch and the ANT 1 IN
(CABLE) on the TV.
After you’ve made this connection, set the A/B switch to the “A” position for normal viewing.
Set the A/B switch to the “B” position to view scrambled channels. (When you set the A/B switch
to “B”, you will need to tune your Set-Top Box to the Cable box's output channel, which is usually
channel 3 or 4.)
BP68-00582A-00Eng(016~025) 1/12/06 9:06 AM Page 18
English - 19
Connecting a VCR
Connecting a VCR to the Video or S-Video/Audio jack
1
Connect the Video/Audio
cables between the VIDEO
or S-VIDEO/AUDIO input
jacks on the TV and VIDEO
or S-VIDEO/AUDIO output
jacks on the VCR.
NOTES
• For better video, use an
S-Video cable.
• Please be sure to match the
color coded input terminals
and cable jacks.
TV Rear Panel
Incoming
Cable or
Antenna
Stereo VCR
or
1
BP68-00582A-00Eng(016~025) 1/12/06 9:06 AM Page 19
Connecting a Camcorder
The side panel jacks on your TV make it easy to connect a Camcorder to your TV.
You can use your camcorder to view tapes without using a VCR.
1
Locate the A/V output jacks
on the camcorder. They are
usually found on the side or
back of the camcorder.
2
Connect a set of audio
cables between the AUDIO
IN jacks on the TV and the
AUDIO OUT jacks on the
camcorder. If you have a
mono Camcorder, connect
L(mono) to the Camcorder
audio out using only one
audio cable.
3
Connect a video cable
between the VIDEO IN (or
S-VIDEO IN) jack on the TV
and the VIDEO OUT jack
on the Camcorder. The
audio-video cables shown
here are usually included
with a Camcorder. (If not,
check your local electronics
store.) If your Camcorder is
stereo, you need to connect
a set of two cables.
NOTE
• Please be sure to match the
color coded input terminals
and cable jacks.
Connections
English - 20
Camcorder
Output Jacks
1
TV Rear of right side
or
Camcorder
2
3
BP68-00582A-00Eng(016~025) 1/12/06 9:06 AM Page 20
Connecting a DVD Player
The rear panel jacks on your TV make it easy to connect a DVD player to your TV.
Connecting to Y, PB
, PR
1
Connect a set of audio
cables between the
COMPONENT (1 or 2)
AUDIO (L, R) IN jacks on
the TV and the AUDIO OUT
jacks on the DVD player.
2
To enable Component video
viewing, connect a set of
video cables between the
COMPONENT (1 or 2)
VIDEO (Y, P
B
, PR) IN jacks
on the TV and VIDEO
(Y/P
B/PR
or Y/CB/CR) OUT
jacks on the DVD player.
Connecting to Audio and Video Jacks
1
Connect a set of audio
cables between the AUDIO
IN (1 or 2) jacks on the TV
and the AUDIO OUT jacks
on the DVD player.
2
Connect a video cable
between the VIDEO IN (1
or 2) jack on the TV and the
VIDEO OUT jack on the
DVD player.
NOTES
•For an explanation of
Component video, see your
DVD player’s owner’s
manual.
• Please be sure to match the
color coded input terminals
and cable jacks.
DVD Player
Incoming
Cable or
Antenna
TV Rear Panel
DVD Player
Incoming
Cable or
Antenna
TV Rear Panel
1
1
2
2
BP68-00582A-00Eng(016~025) 1/12/06 9:06 AM Page 21
Connecting a DTV Set-Top Box
Connecting to Y, PB
, PR
1
Connect a set of audio
cables between the
COMPONENT (1 or 2)
AUDIO (L, R) IN jacks on
the TV and the AUDIO OUT
jacks on the Set-Top Box.
2
Connect a set of video
cables between the
COMPONENT (1 or 2)
VIDEO (Y, P
B
, PR) IN jacks
on the TV and VIDEO
(Y/P
B/PR
or Y/CB/CR) OUT
jacks on the Set-Top Box.
NOTE
• Please be sure to match the
color coded input terminals
and cable jacks.
Connecting to DVI (Digital Visual Interface)
1
Connect a set of audio
cables between the DVI
AUDIO (L, R) IN jacks on the
TV and the AUDIO OUT
jacks on the Set-Top Box.
2
Connect an HDMI/DVI
video cable between the
HDMI/DVI IN jack on the
TV and the DVI OUT jack
on the Set-Top Box.
NOTES
•For an explanation
of Component video, see
your Set-Top Box owner’s
manual.
• Requires a Cable Converter.
• Make sure the DVI source’s
power is on, or you will be
unable to select it in the
TV menu's source list.
• The HDMI/DVI IN jack is not
compatible with PC.
Connections
English - 22
TV Rear Panel
DTV Set-Top Box
Incoming
Cable or
Antenna
TV Rear Panel
DTV Set-Top Box
Incoming
Cable or
Antenna
1
1
2
2
BP68-00582A-00Eng(016~025) 1/12/06 9:06 AM Page 22
English - 23
Connecting to HDMI (High Definition Multimedia Interface)
1
Connect an HDMI cable
between the HDMI/DVI IN
jack on the TV and the HDMI
OUT jack on the Set-Top Box.
NOTE
• Make sure the HDMI/DVI
source’s power is on, or you
will be unable to select it in the
TV menu’s source list.
TV Rear Panel
DTV Set-Top Box
Incoming
Cable or
Antenna
1
BP68-00582A-00Eng(016~025) 1/12/06 9:06 AM Page 23
Connecting a Digital Audio System
There are many types of digital audio systems on the market today.
A simplified illustration of an audio system is shown below. For more information, see your
audio system owner’s manual.
1
If your audio system has an
optical digital audio input,
connect to the “DIGITAL
AUDIO OUT (OPTICAL)” jack
on the TV.
NOTE
• OPTICAL: converts the electric
signal into an optical light
signal, and transmits it through
glass fibers.
See page 67 to set the digital
output format (Dolby Digital or
PCM) appropriate to your
digital audio component.
Connecting to an Analog Amplifier
1
The “AUDIO OUT” terminals
cannot be used for external
speakers. You must hook
them up to an amplifier.
When an audio amplifier is
connected to the “AUDIO
OUT” terminals: Decrease
the gain (volume) of the TV,
and adjust the volume level
with the Amplifier’s volume
control.
NOTE
• If using the HDMI or Component
input on the TV, the audio output
signal is available only when the
TV’s Internal Mute is set to on.
(Refer to page 68)
Connections
English - 24
TV Rear Panel
Audio System
TV Rear Panel
Amplifier
1
1
BP68-00582A-00Eng(016~025) 1/12/06 9:06 AM Page 24
Operation
BP68-00582A-00Eng(016~025) 1/12/06 9:06 AM Page 25
Turning the TV On and Off
Press the POWER button on the remote control.
You can also use the POWER button on the front panel.
Viewing the Menus and On-Screen Displays
The on-screen menu system allows you to control the settings of your TV. Access the on-screen menu
system by pressing the MENU button on the remote control. Once the on-screen menu appears, use
the …/†/œ/√/ENTER buttons on your remote control to select menu items and make adjustments.
You can also view the on-screen menu system and make some adjustments using the TV’s side panel
buttons.
English - 26
Operation
Viewing the Menus
1
Press the MENU button.
The main menu is displayed.
There are six menu groups:
“Input”, “Picture”, “Sound”,
“Channel”, “Setup”, and
“Guide”.
2
Press the … or † button to
select an item you want
in the menu.
Press the œ, √ or ENTER
button to display, change,
or use the selected items.
Use the ENTER button to
enter items in the menu.
3
Press the EXIT button to exit.
Viewing the Display
Press the INFO button on the
remote control.
The TV displays the current
channel, the status of certain
picture and sound settings and
the current time.
The information displayed varies
according to the selected source.
Cable 3
Picture Mode
Sound Mode
MTS
Caption
V-Chip
No Time Information
Standard
Custom
Stereo
Off
Off
Mode : Standard
√
Size : 16:9
√
Digital NR : On
√
DNIe Demo : Off
√
My Color Control
√
Film Mode : Off
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Input
Source List : TV
√
Edit Name
√
Anynet
Move
Enter
Exit
Input
Sound
Channel
Setup
Guide
BP68-00582A-00Eng(026~047) 1/12/06 9:09 AM Page 26
English - 27
Selecting a Menu Language
1
Press the MENU button.
Press the … or † button to
select “Setup”, then press the
ENTER button.
2
Press the ENTER button to
select “Language”.
Press the … or † button to
select “English”, “Español”
or “Français”, then press the
ENTER button.
Press the EXIT button to exit.
Setup
Language : English
√
Time
√
V-Chip
√
Caption
√
Menu Transparency
: Medium
√
Blue Screen : Off
√
Color Weakness
√
Function Help
: Off
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Setup
Language : English
Time
V-Chip
Caption
Menu Transparency
: Medium
Blue Screen : Off
Color Weakness
Function Help
: Off
Move Enter Return
Input
Sound
Channel
Setup
Guide
English
Español
Français
BP68-00582A-00Eng(026~047) 1/12/06 9:09 AM Page 27
Operation
English - 28
Memorizing the Channels
Your TV can memorize and store all of the available channels for both “off-air” (antenna) and cable
channels. After the available channels are memorized, use the CH and CH buttons to scan
through the channels. This eliminates the need to change channels by entering the channel digits.
There are three steps for memorizing channels: selecting a broadcast source, memorizing the channels
(automatic) and adding and deleting channels (manual).
1
Press the MENU button.
Press the … or † button to
select “Channel”, then press
the ENTER button.
2
Press the ENTER button to
select “Antenna”.
Press the … or † button to
select “Air” or “Cable”, then
press the ENTER button.
3
Press the … or † button to
select “Auto Program”, then
press the ENTER button.
Continued....
NOTE
• All available DTV and analog channels are automatically stored
in memory.
Selecting the Video Signal Source
Before your television can begin memorizing the available channels,
you must specify the type of signal source that is connected to the TV
(i.e., an antenna or cable system).
Channel
Antenna : Cable
Auto Program
Add/Delete
Favorite Channels
Name
Fine Tune
Signal Strength
LNA : Off
Move Enter Return
Input
Sound
Channel
Setup
Guide
Channel
Antenna : Air
√
Auto Program
√
Add/Delete
√
Favorite Channels
√
Name
√
Fine Tune
√
Signal Strength
√
LNA : On
√
Move Enter
Return
Input
Sound
Channel
Setup
Guide
Channel
Antenna : Air
√
Auto Program
√
Add/Delete
√
Favorite Channels
√
Name
√
Fine Tune
√
Signal Strength
√
LNA : On
√
Move
Enter
Return
Input
Sound
Channel
Setup
Guide
Air
Cable
BP68-00582A-00Eng(026~047) 1/12/06 9:09 AM Page 28
English - 29
4
Press the … or † button to select the
Antenna connection, then press the
ENTER button.
When selecting Cable TV system:
Press the ENTER button to start the auto
program. By default, the cable TV system
is set to “STD”.
If you want to select another type of
cable system, press the œ button and
use the … or † button to select
Analog or Digital “STD”, “HRC” or
“IRC”. Press the ENTER button.
5
Press the √ button to select “Start”, then
press the ENTER button to start the auto
program. The TV begins memorizing all
available stations. Press the ENTER button
at any time to interrupt the memorization
process.
Press the EXIT button to exit.
• Air : “Air” antenna signal
Cable : “Cable” antenna signal
Air+Cable : “Air” and “Cable”
antenna signals
• STD, HRC and IRC identify various types of cable TV systems.
Contact your local cable company to identify the type of cable system
that exists in your particular area.
At this point the signal source has been selected.
Auto Program
Move Enter Return
Input
Sound
Channel
Setup
Guide
Auto Program
Enter Return
Auto Program in progress
Cable Channel 26
• The TV must be connected to an
antenna in order to receive digital TV
signals. Even if a particular channel
is deleted from the memory, you can
always tune to that channel directly
by using the number buttons on the
remote control.
Stop
Select the antennas to memorize.
Air
Cable
Air+Cable
Auto Program
Move Enter Return
Input
Sound
Channel
Setup
Guide
Start
Select the cable system.
Analog
Digital
STD ✔
HRC
IRC
STD ✔
HRC
IRC
Start
Start
Start
Auto Program
Enter
Return
Input
Sound
Channel
Setup
Guide
Select the cable system.
Analog
Digital
STD ✔
HRC
IRC
STD ✔
HRC
IRC
Start
Move
BP68-00582A-00Eng(026~047) 1/12/06 9:09 AM Page 29
Operation
English - 30

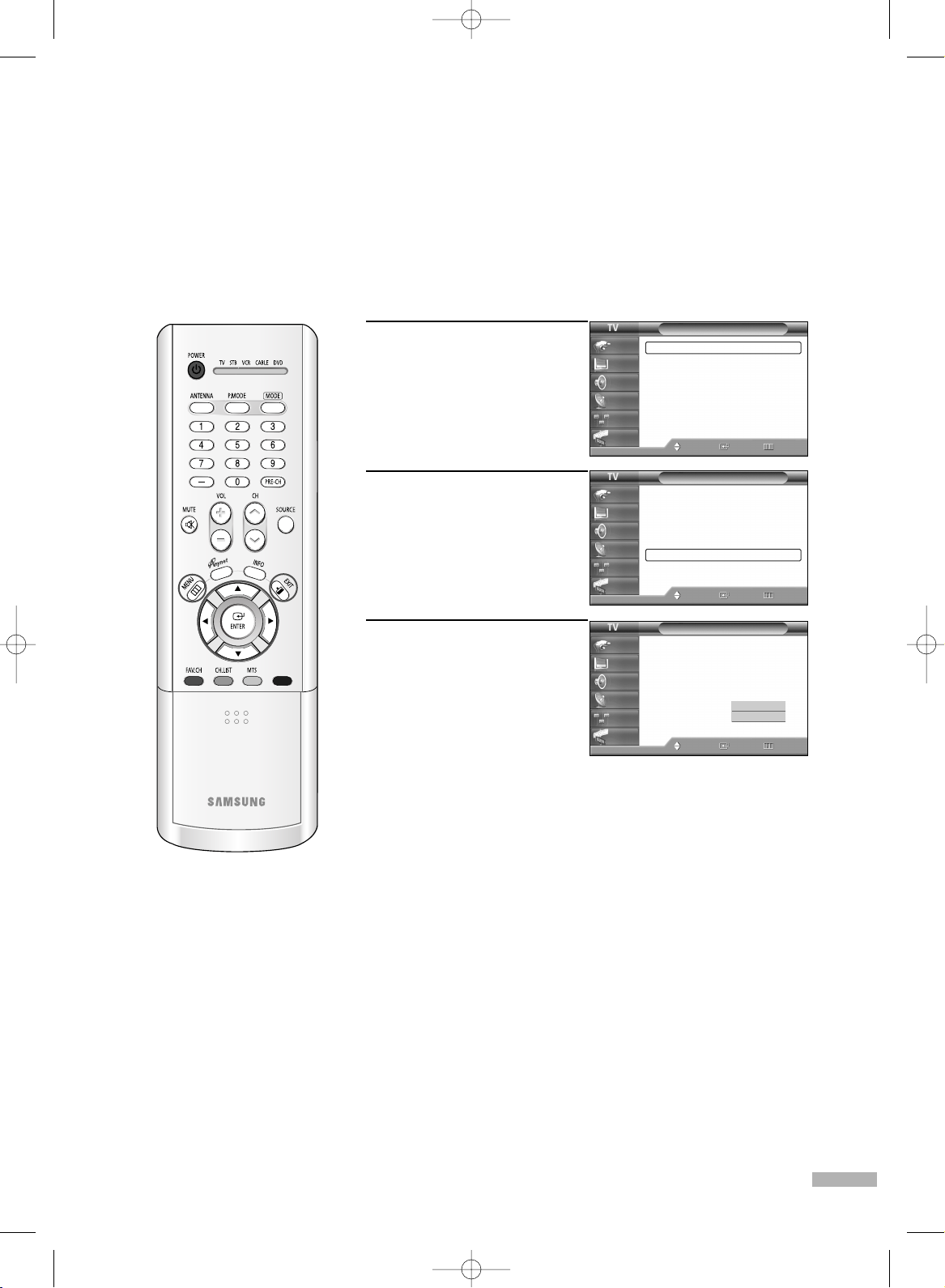

Adding and Erasing Channels
You can add channels that were not memorized (or delete unwanted channels from memory).
1
Press the MENU button.
Press the … or † button to
select “Channel”, then press
the ENTER button.
2
Press the … or † button to
select “Add/Delete”, then
press the ENTER button.
3
Repeatedly pressing the
ENTER button will alternate
between add channel and
delete channel.
Press the CH or CH
button to switch to the
appropriate channel, then
repeat above.
Press the EXIT button to exit.
Channel
Antenna : Air
√
Auto Program
√
Add/Delete
√
Favorite Channels
√
Name
√
Fine Tune
√
Signal Strength
√
LNA : On
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Channel
Antenna : Air
√
Auto Program
√
Add/Delete
√
Favorite Channels
√
Name
√
Fine Tune
√
Signal Strength
√
LNA : On
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Add/Delete
EnterMove Return
Cable 26 Not In Memory
Press ENTER to add the channel.
Add/Delete
EnterMove Return
Cable 26 In Memory
Press ENTER to delete the channel.
Add
Delete
BP68-00582A-00Eng(026~047) 1/12/06 9:09 AM Page 30
English - 31

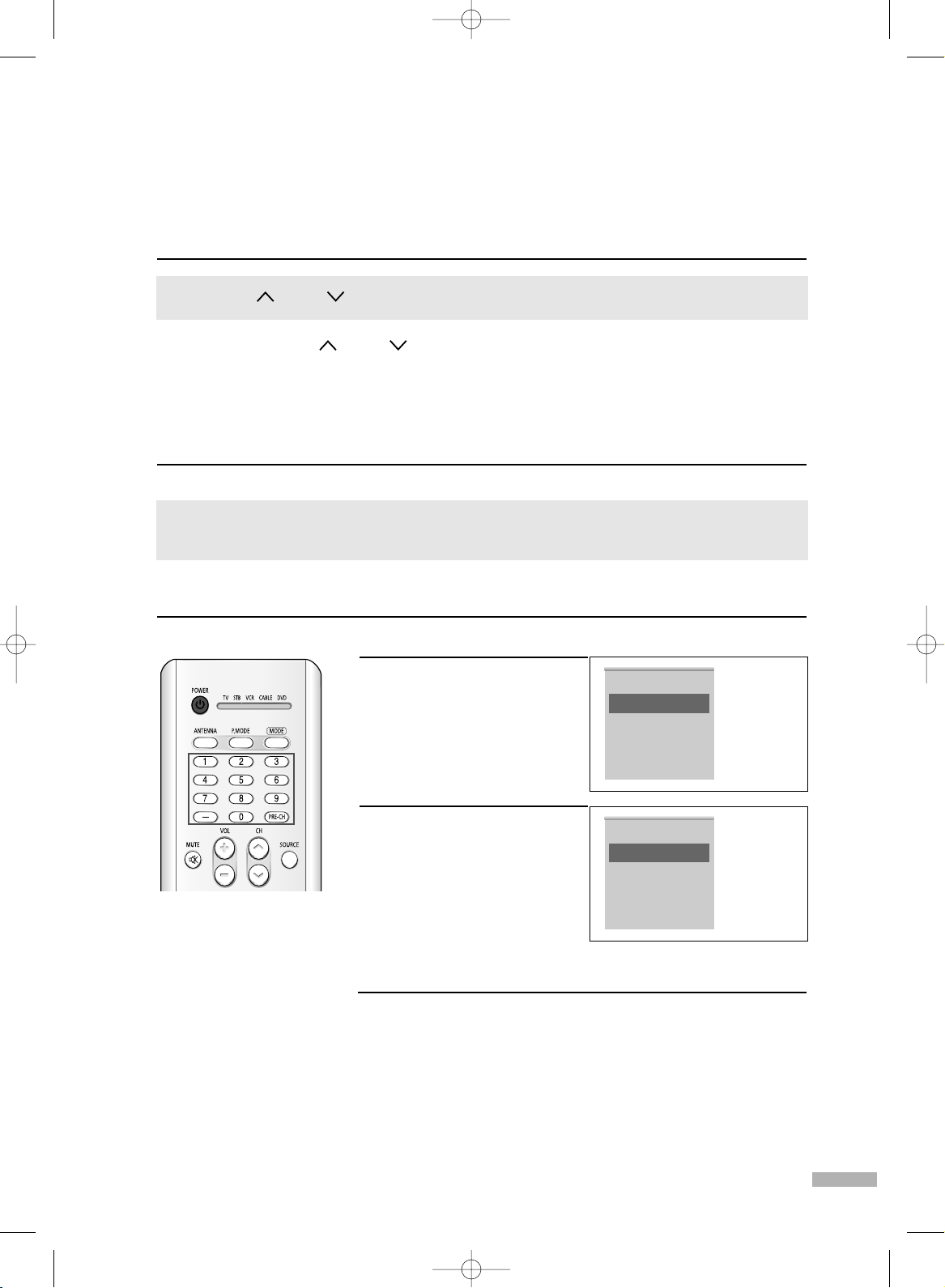

Changing Channels
Using the Channel Buttons
When you press the CH or CH button, the TV changes channels in sequence.
You will see all the channels that the TV has memorized.
(The TV must have memorized at least three channels.)
You will not see channels that were either erased or not memorized.
Using the Number Buttons
Use the number buttons to quickly switch to any channel.
Using the “
-
” Button
The “-” button is used to select stations that broadcast both a digital and analog signal.
For example, for channel 7-1
(digital), press “7”, then “
-
”,
then “1”, and you will see as right.
For channel 7-2 (analog), press
“7”, then “
-
”, then “2”, and you
will see as right.
Using the Previous Channel
Press the PRE-CH button.
The TV changes to the last channel you were watching.
Press the CH or CH button to change channels.
Press the number buttons to go directly to a channel. For example, to select channel 27, press
“2,” then “7.” The TV will change channels when you press the second number.
NOTE
• HD indicates the TV is
receiving a Digital High
Definition signal.
SD indicates the TV is
receiving a Analog
standard definition
signal.
DTV Air
7-1
English
Picture Mode Standard
Sound Mode Standard
MTS English
Caption On
V-Chip Off
12:00 am
Air 7-2
Mono
Picture Mode Standard
Sound Mode Standard
MTS Stereo
Caption On
V-Chip Off
12:00 am
BP68-00582A-00Eng(026~047) 1/12/06 9:09 AM Page 31
Operation
English - 32

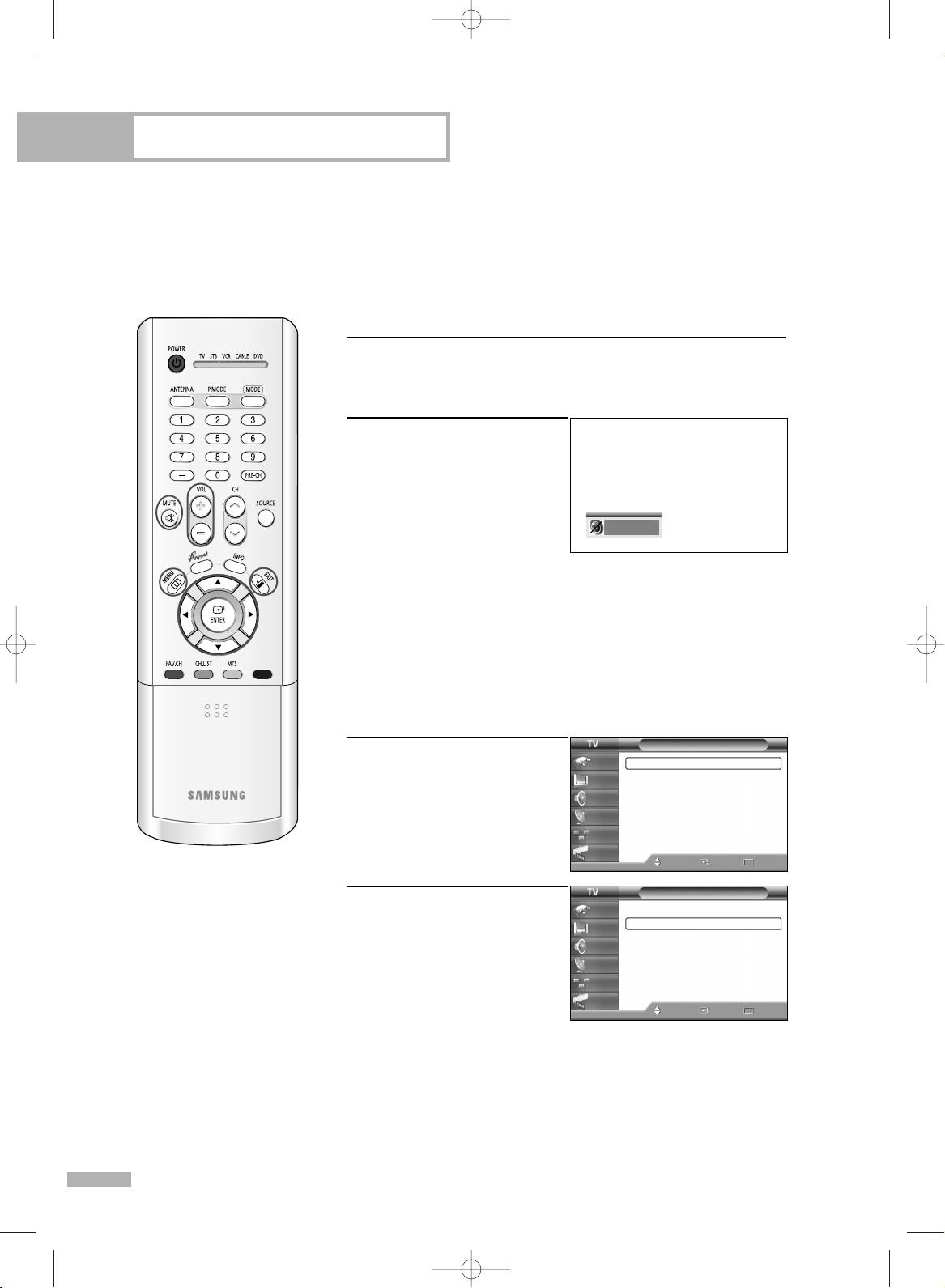

Customizing Your Remote Control
Your TV comes equipped with a universal remote control. In addition to controlling the TV, the universal
remote control can also operate a VCR, Cable box, DVD, and some Samsung Set-top boxes (even if
your VCR, Cable box and DVD are made by manufacturers other than Samsung).
NOTE
• The remote control might not be compatible with all DVD Players, VCRs, Cable boxes, and
Set-Top Boxes.
Setting Up Your Remote Control to Operate Your VCR (Cable box or
DVD player)
1
Turn off your VCR (Cable box or DVD player).
2
Press the MODE button to switch the remote control to the VCR
(CABLE or DVD) mode.
The remote control has five modes: TV, STB, VCR, CABLE, and
DVD.
3
On your Samsung remote control, press the SET button.
4
Enter 3 digits of the VCR (Cable box or DVD player) code listed
on next page for your brand of VCR (Cable box or DVD player).
Make sure you enter 3 digits of the code, even if the first digit is
a “0”. (If more than one code listed, try the first one.)
5
Press the POWER button. Your VCR (Cable box or DVD player)
should turn on. If your VCR (Cable box or DVD player) turns on,
your remote control is now set correctly.
If your VCR (Cable box or DVD player) does not turn on, repeat
steps 2, 3, and 4, but try one of the other codes listed for the
brand of your particular VCR (Cable box or DVD player).
6
Once your remote control is set up, press the MODE button any
time you want to use the remote to operate your VCR (Cable box
or DVD player).
NOTES
•When your remote is in the TV mode, the VCR (or DVD player)
control buttons (REW, STOP, PLAY/PAUSE, and FF) will still operate
your VCR (or DVD player).
•When your remote control is in the STB, VCR, CABLE, or DVD mode,
the volume buttons still control your TV’s volume.
BP68-00582A-00Eng(026~047) 1/12/06 9:09 AM Page 32
English - 33
Remote Control Codes
VCR Codes
DVD Codes
Cable Box Codes
BP68-00582A-00Eng(026~047) 1/12/06 9:09 AM Page 33
Operation
English - 34

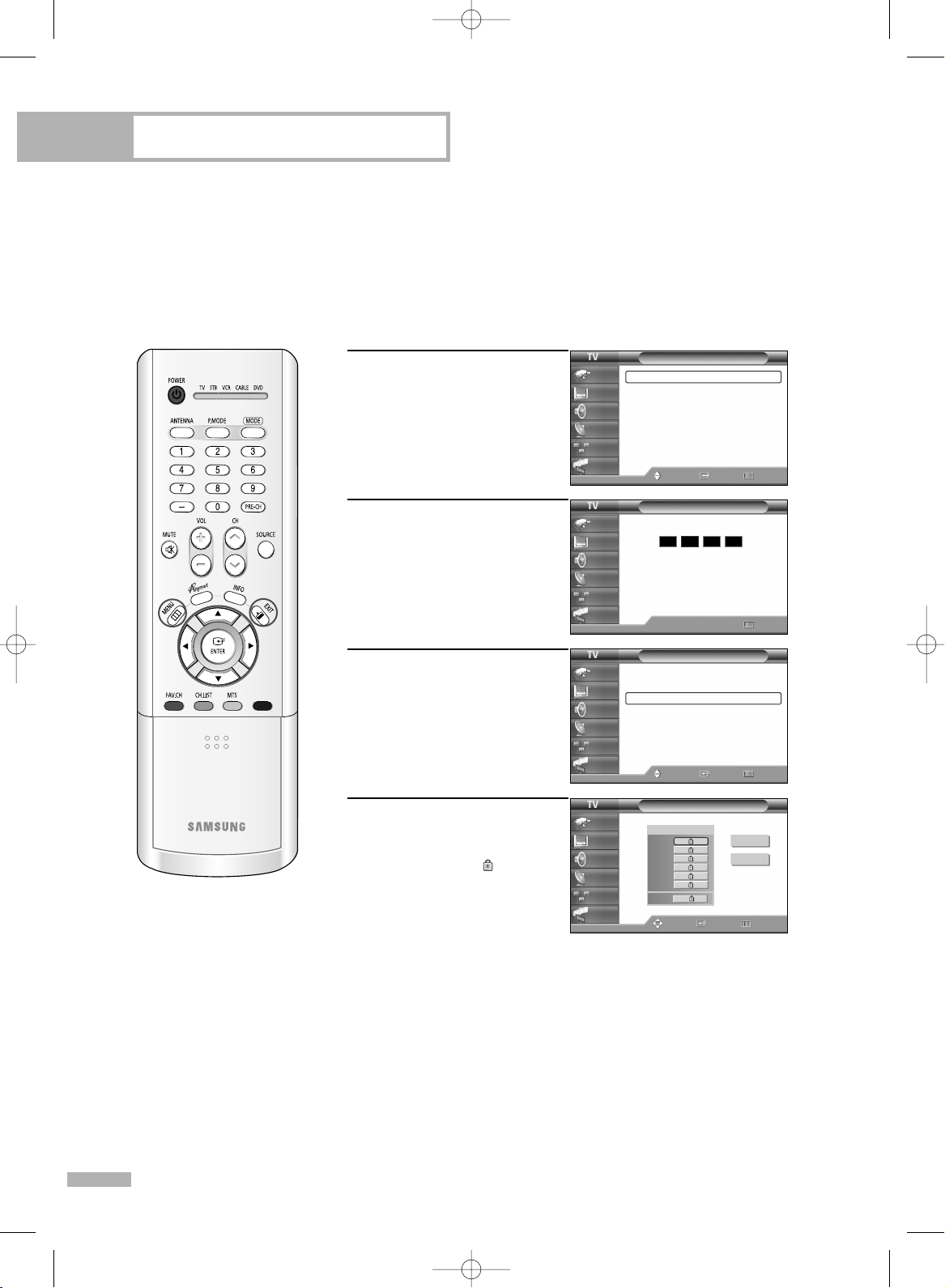

Setting the Clock
Setting the clock is necessary in order to use the various timer features of the TV.
Also, you can check the time while watching the TV. (Just press the INFO button.)
1
Press the MENU button.
Press the … or † button to
select “Setup”, then press
the ENTER button.
2
Press the … or † button to
select “Time”, then press the
ENTER button.
Press the ENTER button to
select “Clock”.
3
Press the ENTER button to
select “Clock Mode”.
Press the … or † button to
select “Manual”, then press
the ENTER button.
4
Press the … or † button to
select “Clock Set”, then
press the ENTER button.
5
Press the œ or √ button to
move to “Month”, “Day”,
“Year”, “Hour”, “Minute”,
or “am/pm”. Set the clock
you want by pressing the
… or † button, then press
the ENTER button.
Press the EXIT button to exit.
Option 1: Setting the Clock Manually
•You can set the month,
day, year, hour and minute
directly by pressing the number
buttons on the remote control.
Setup
Language : English
√
Time
√
V-Chip
√
Caption
√
Menu Transparency
: Medium
√
Blue Screen : Off
√
Color Weakness
√
Function Help
: Off
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Time
--/ --/ ----/ -- : -- --
Clock
√
Sleep Timer : Off
√
On Timer : Inactivated
√
Off Timer : Inactivated
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Clock
--/ --/ ----/ -- : -- --
Clock Mode : Auto
Clock Set
Time Zone
DST : No
Move Enter Return
Input
Sound
Channel
Setup
Guide
Clock
--/ --/ ----/ -- : -- --
Clock Mode : Manual
√
Clock Set
√
Time Zone
√
DST : No
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Clock Set
Move Adjust Return
Input
Sound
Channel
Setup
Guide
Enter the current date and time.
Hour
Minute am/pm
-- -- --
Month
Day Year
▲
-- -- ----
▼
Manual
Auto
NOTE
• The current time will
appear every time you
press the INFO button.
BP68-00582A-00Eng(026~047) 1/12/06 9:09 AM Page 34
English - 35

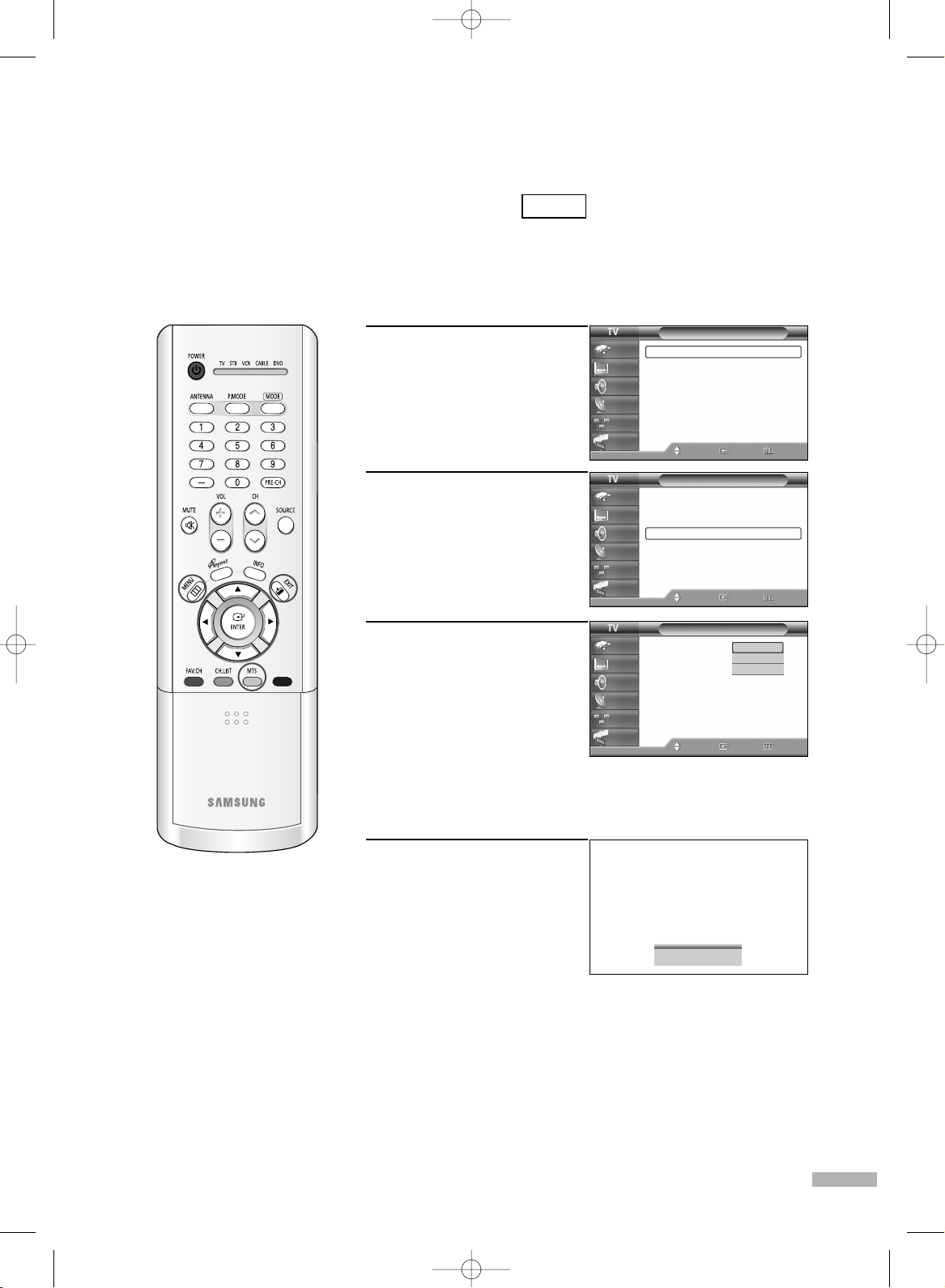

Option 2: Setting the Clock Automatically
The Clock can be set automatically if you are receiving a digital signal.
1
Press the MENU button.
Press the … or † button to select “Setup”,
then press the ENTER button.
2
Press the … or † button to select “Time”,
then press the ENTER button.
Press the ENTER button to select “Clock”.
3
Press the ENTER button to select “Clock
Mode”.
Press the … or † button to select “Auto”,
then press the ENTER button.
4
Press the … or † button to select “Time
Zone”, then press the ENTER button.
Press the … or † button to highlight the
time zone for your local area (and to
move the highlight to the appropriate time
zone on the map of the United States),
then press the ENTER button.
5
Press the … or † button to select
“DST”(Daylight Saving Time), then press
the ENTER button.
Press the … or † button to select “Yes” or
“No”, then press the ENTER button.
Press the EXIT button to exit.
• When you set up Auto Time, the set time may
not be correct depending on the broadcasting
station and signal. If there is a difference
between the real time and set time, please set
the time manually.
Setup
Language : English
√
Time
√
V-Chip
√
Caption
√
Menu Transparency
: Medium
√
Blue Screen : Off
√
Color Weakness
√
Function Help
: Off
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Time
--/ --/ ----/ -- : -- --
Clock
√
Sleep Timer : Off
√
On Timer : Inactivated
√
Off Timer : Inactivated
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Clock
--/ --/ ----/ -- : -- --
Clock Mode : Auto
Clock Set
Time Zone
DST : No
Move Enter Return
Input
Sound
Channel
Setup
Guide
Clock
--/ --/ ----/ -- : -- --
Clock Mode : Auto
Clock Set
Time Zone
DST : No
Move Enter Return
Input
Sound
Channel
Setup
Guide
Time Zone
Move Enter Return
Input
Sound
Channel
Setup
Guide
Atlantic
Eastern
Central
Mountain
Pacific
Alaska
Hawaii
Select the time zone where you locate.
Manual
Auto
Yes
No
BP68-00582A-00Eng(026~047) 1/12/06 9:09 AM Page 35
Operation
English - 36

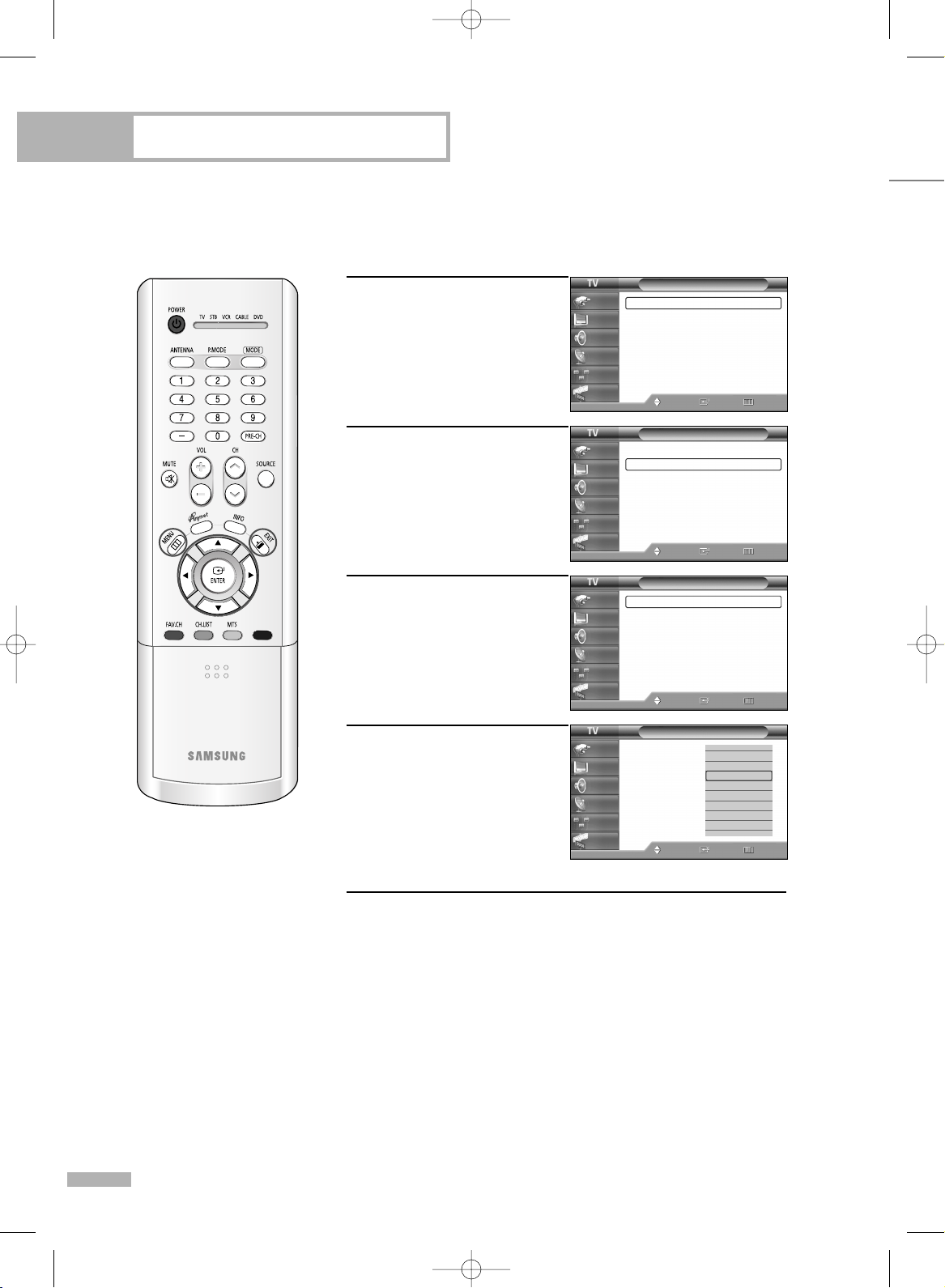

Setting the On/Off Timer
1
Press the MENU button.
Press the … or † button to
select “Setup”, then press
the ENTER button.
2
Press the … or † button to
select “Time”, then press the
ENTER button.
Press the … or † button
to select “On Timer”, then
press the ENTER button.
Press the … or † button to
adjust “Hour”, then press
the √ button to move to the
next step.
Set other items using the
same method as above.
To activate On Timer with
the setting entered, set
Activation to “Yes” by
pressing … or † button.
When finished, press the MENU button to return.
3
Press the … or † button to
select “Off Timer”, then
press the ENTER button.
Press the … or † button to
adjust “Hour”, then press
the √ button to move to the
next step. Set other items
using the same method as
above.
To activate Off Timer with the setting entered, set Activation to
“Yes” by pressing … or † button.
When finished, press the EXIT button to exit.
Setup
Language : English
√
Time
√
V-Chip
√
Caption
√
Menu Transparency
: Medium
√
Blue Screen : Off
√
Color Weakness
√
Function Help
: Off
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Time
1/ 1/ 2005/ 12 : 00 am
Clock
√
Sleep Timer : Off
√
On Timer : Inactivated
√
Off Timer : Inactivated
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
•You can set the hour, minute, channel, and volume directly
by pressing the number buttons on the remote control.
On Timer
Move Adjust Return
Input
Sound
Channel
Setup
Guide
Enter the On Timer options.
Channel
Volume Activation
3 10 No
Hour Minute am/pm Antenna
▲
12 00 am Air
▼
Off Timer
Move Adjust Return
Input
Sound
Channel
Setup
Guide
Enter the Off T imer options.
Hour Minute am/pm
Activation
▲
12 00 am No
▼
NOTE
• Auto Power Off
When you set the timer
“On”, the television will
eventually turn off, if no
controls are operated for
3 hours after the TV was
turned on by the timer.
This function is only
available in timer “On”
mode and prevents
overheating or leakage,
which may occur if a TV
is on for too long (when
you are on vacation, for
example).
BP68-00582A-00Eng(026~047) 1/12/06 9:09 AM Page 36
English - 37
Setting the Sleep Timer
The sleep timer automatically shuts off the TV after a preset time (from 30 to 180 minutes).
1
Press the MENU button.
Press the … or † button to
select “Setup”, then press
the ENTER button.
2
Press the … or † button to
select “Time”, then press the
ENTER button.
Press the … or † button to
select “Sleep Timer”, then
press the ENTER button.
3
Press the … or † button to
adjust “Minute”.
4
Setting the Timer sets the
Activation to “Yes”
automatically.
Press the EXIT button to exit.
Alternate method
Press the SLEEP button under the
remote’s cover repeatedly until the
appropriate time interval appears
(any of the preset values from
“30 min” to “180 min”).
Time
1/ 1/ 2005/ 12 : 00 am
Clock
√
Sleep Timer : Off
√
On Timer : Inactivated
√
Off Timer : Inactivated
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Setup
Language : English
√
Time
√
V-Chip
√
Caption
√
Menu Transparency
: Medium
√
Blue Screen : Off
√
Color Weakness
√
Function Help
: Off
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Sleep Timer
Move Adjust Return
Input
Sound
Channel
Setup
Guide
Set sleep timer.
Minute
Activation
---
No
▲
▼
Sleep Timer
Move Adjust Return
Input
Sound
Channel
Setup
Guide
Set sleep timer.
Minute
Activation
30 Yes
▲
▼
Sleep Timer : 90 min
BP68-00582A-00Eng(026~047) 1/12/06 9:09 AM Page 37
English - 38
Operation
Viewing an External Signal Source
Use the remote control to switch between viewing signals from connected equipment,
such as a VCR, DVD, Set-Top Box or the TV source (broadcast or cable).
Setting the Signal Source
1
Press the MENU button.
Press the ENTER button to
select “Input”.
2
Press the ENTER button to
select “Source List”.
Press the … or † button to
select a signal source, then
press the ENTER button.
Alternate method
Press the SOURCE button on the
remote control repeatedly to
select an external signal source.
NOTES
• Before selecting an input source, connect an external device first.
• HDMI input can be selected only when the external device is
turned on and connected to the TV.
AV1
• When you connect
equipment to the TV,
you can choose
between the following sets of jacks: “AV1”, “AV2”,
“S-VIDEO1”, “S-VIDEO2”, “COMPONENT1”,
“COMPONENT2”, or “HDMI/DVI” on the TV’s rear
panel and “AV3” or “S-VIDEO3” on the TV’s side panel.
Input
Source List : TV
√
Edit Name
√
Anynet
Move Enter Return
Input
Sound
Channel
Setup
Guide
Source List
TV
AV1
----
AV2
----
AV3
----
S-Video1
----
S-Video2
----
S-Video3
----
▼ More
Move Enter Return
Input
Sound
Channel
Setup
Guide
BP68-00582A-00Eng(026~047) 1/12/06 9:09 AM Page 38
English - 39
Assigning Names to External Input Mode
This feature enables you to name the input source you have connected.
1
Press the MENU button.
Press the ENTER button to
select “Input”.
2
Press the … or † button to
select “Edit Name”, then
press the ENTER button.
3
Press the … or † button to
select a signal source to
edit, then press the ENTER
button.
4
Press the … or † button to
select the external device :
VCR, DVD, D-VHS, Cable
STB, HD STB, Satellite STB,
PVR STB, AV Receiver,
DVD Receiver, GAME,
Camcorder, DVD Combo,
DVD HDD Recorder, Internet
TV Recv., Interactive TV Recv.,
VOD (Video On Demand) STB, TV.
Press the ENTER button.
Set other signal sources
(AV2, AV3, S-Video1,
S-Video2, S-Video3,
Component1, Component2,
HDMI) using the same
method as listed above.
Press the EXIT button to exit.
Input
Source List : TV
√
Edit Name
√
Anynet
Move Enter Return
Input
Sound
Channel
Setup
Guide
Input
Source List : TV
√
Edit Name
√
Anynet
Move Enter Return
Input
Sound
Channel
Setup
Guide
Edit Name
AV1 :
----
√
AV2 :
----
√
AV3 :
----
√
S-Video1 :
----
√
S-Video2 :
----
√
S-Video3 :
----
√
Component1 :
----
√
▼ More
Move Enter Return
Input
Sound
Channel
Setup
Guide
Edit Name
AV1 :
---
AV2 :
---
AV3 :
---
S-Video1 :
---
S-Video2 :
---
S-Video3 :
---
Component1 :
----
▼ More
Move Enter Return
Input
Sound
Channel
Setup
Guide
----
VCR
DVD
D-VHS
Cable STB
HD STB
Satellite STB
PVR STB
▼
BP68-00582A-00Eng(026~047) 1/12/06 9:09 AM Page 39
SAMSUNG
BP68-00582A-00Eng(026~047) 1/12/06 9:09 AM Page 40
Channel Control
BP68-00582A-00Eng(026~047) 1/12/06 9:09 AM Page 41
Channel Control
English - 42
Selecting Your Favorite Channels
You can store your favorite channels for each available input source (such as TV and CATV).
This allows you to quickly and easily find frequently watched channels by pressing the FAV.CH button on
the remote control.
To Store Your Favorite Channels:
1
Press the MENU button.
Press the … or † button to
select “Channel”, then press
the ENTER button.
2
Press the … or † button to
select “Favorite Channels”,
then press the ENTER button.
Press the … or † button to
select a channel, then press
the ENTER button and a
check mark will appear.
Press the ENTER button
again to deselect the
selected channel and the
check mark will disappear.
Press the EXIT button to exit.
NOTES
• Only memorized channels can be set as Favorite channels.
• Select All : Press to select all channels.
• Clear All : Press to clear all channels.
To View Your Favorite Channels:
Press the FAV.CH button repeatedly to jump from one favorite channel
to another.
Channel
Antenna : Air
√
Auto Program
√
Add/Delete
√
Favorite Channels
√
Name
√
Fine Tune
√
Signal Strength
√
LNA : On
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Favorite Channels
Move Enter Return
Input
Sound
Channel
Setup
Guide
Air
2 ✔
Air
3
Air
4
Air
5
Air
6
Air
7
Air
8
▼
Select All
Clear All
BP68-00582A-00Eng(026~047) 1/12/06 9:09 AM Page 42
English - 43

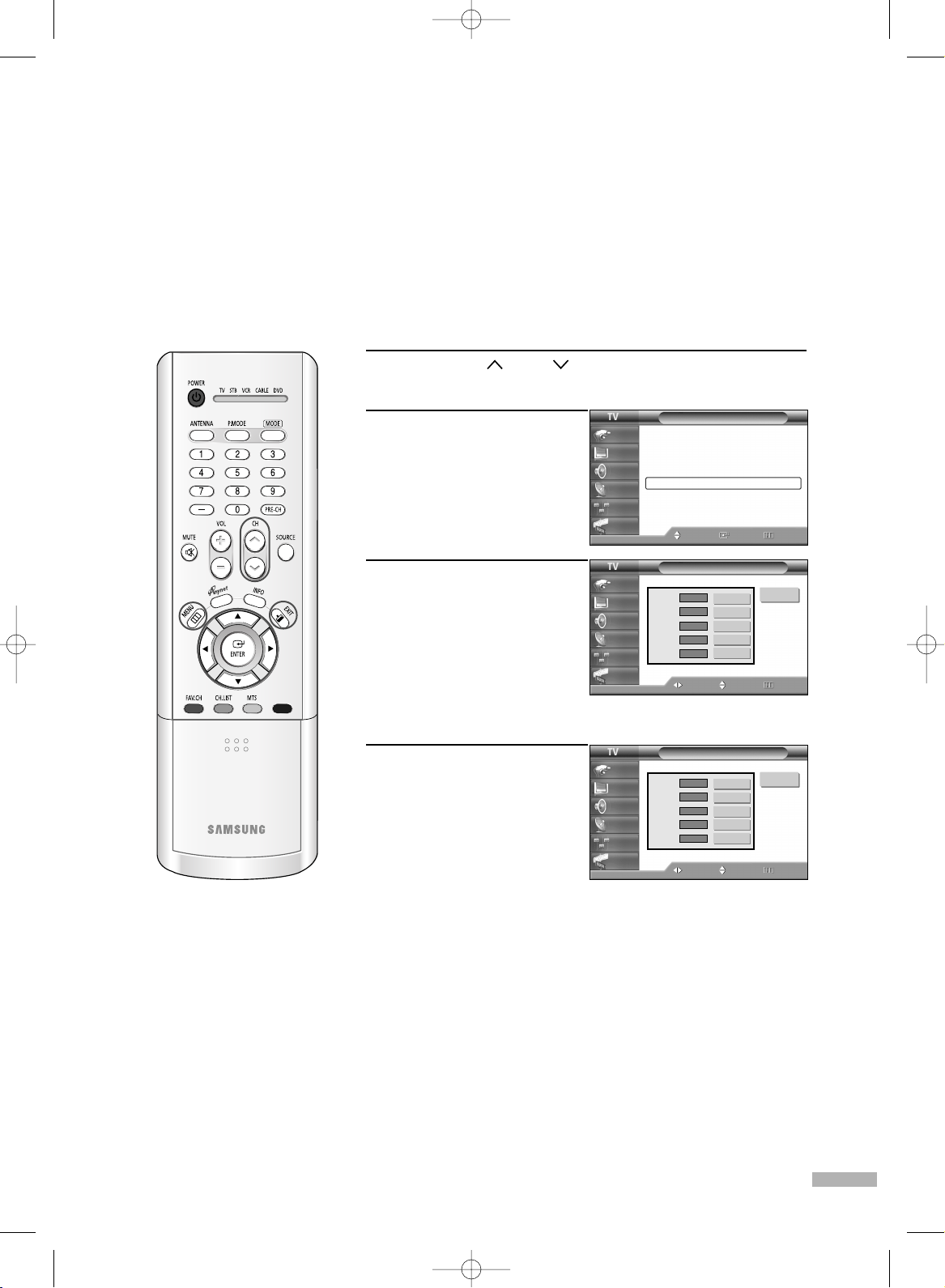

Labeling the Channels
Use this feature to assign an easy-to-remember label to analog channels (i.e., “CBS”, “ESPN”,
“PBS2”, CNN02”, etc.) A label consists of five fields, where each field is a letter, a number or a
blank. When the INFO button is pressed, the channel label will appear below to the channel number.
1
Press the CH or CH button to tune to the channel that
will be labeled.
2
Press the MENU button.
Press the … or † button to
select “Channel”, then press
the ENTER button.
Press the … or † button to
select “Name”, then press
the ENTER button.
3
Press the … or † button to
move to the channel to be
assigned to a new name,
then press the ENTER button.
Press the … or † button to
select a letter, a number or a
blank. (Results in this
sequence: A...Z, 0...9, +,
-
,
✽, /, blank).
4
Press the √ button to switch
to the next field, which will
be selected.
Select a second letter or digit
pressing … or † button, as
above.
Repeat the process to select
the last three digits.
After all settings are completed, select OK using the √ button.
Press the ENTER button to save the settings and return to the
previous menu.
To erase the assigned new name, select “Clear” by pressing
the œ or √ button, then press the ENTER button.
Press the EXIT button to exit.
NOTE
• If you add or delete a
TV channel, the
labeled channels will
also be added or
deleted.
Channel
Antenna : Air
√
Auto Program
√
Add/Delete
√
Favorite Channels
√
Name
√
Fine Tune
√
Signal Strength
√
LNA : On
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Name
Move Adjust Return
Input
Sound
Channel
Setup
Guide
Clear
Clear
Clear
Clear
Clear
Air
2 A
Air
3
Air
4
Air
5
Air
6
▲
▼
▼
Name
Move
Adjust Return
Input
Sound
Channel
Setup
Guide
Clear
Clear
Clear
Clear
Clear
Air
2 CNN02
Air
3
Air
4
Air
5
Air
6
▲
▼
OK
OK
▼
BP68-00582A-00Eng(026~047) 1/12/06 9:09 AM Page 43
English - 44
Channel Control
Fine Tuning Analog Channels
Use fine tuning to manually adjust a particular channel for optimal reception.
1
Press the MENU button.
Press the … or † button to
select “Channel”, then press
the ENTER button.
2
Press the … or † button to
select “Fine Tune”, then press
the ENTER button.
3
Press the œ or √ button to
adjust the fine tuning.
4
To store the fine tuning
setting in the TV’s memory,
press the ENTER button.
To reset the fine tuning
setting, press the † button to
select “Reset”, then press the
ENTER button.
5
Press the EXIT button to exit.
NOTE
• Only analog TV
channels can be fine
tuned.
Channel
Antenna : Cable
√
Auto Program
√
Add/Delete
√
Favorite Channels
√
Name
√
Fine Tune
√
Signal Strength
√
LNA : Off
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Channel
Antenna : Cable
√
Auto Program
√
Add/Delete
√
Favorite Channels
√
Name
√
Fine Tune
√
Signal Strength
√
LNA : Off
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Fine Tune
Cable 26 Not Fine Tuned
0
Move Enter Return
Reset
Fine Tune
Cable 26 Not Fine Tuned
3
Adjust Save Return
Reset
Fine Tune
Cable 26 Fine Tuned
3
Adjust Save Return
Reset
Analog
BP68-00582A-00Eng(026~047) 1/12/06 9:09 AM Page 44
English - 45
Checking the Digital-Signal Strength
Unlike analog channels, which can vary in reception quality from “snowy” to clear, digital (HDTV)
channels have either perfect reception quality or you will not receive them at all. So, unlike analog
channels, you cannot fine tune a digital channel.
You can, however, adjust your antenna to improve the reception of available digital channels.
1
Press the MENU button.
Press the … or † button to
select “Channel”, then press
the ENTER button.
2
Press the … or † button to
select “Signal Strength”, then
press the ENTER button.
If the signal strength meter
indicates that the signal is
weak, physically adjust your
antenna to increase the
signal strength. Continue to
adjust the antenna until you
find the best position with
the strongest signal.
Press the EXIT button to exit.
Channel
Antenna : Cable
√
Auto Program
√
Add/Delete
√
Favorite Channels
√
Name
√
Fine Tune
√
Signal Strength
√
LNA : Off
√
Move Enter Retu rn
Input
Sound
Channel
Setup
Guide
Channel
Antenna : Cable
√
Auto Program
√
Add/Delete
√
Favorite Channels
√
Name
√
Fine Tune
√
Signal Strength
√
LNA : Off
√
Move Enter Retu rn
Input
Sound
Channel
Setup
Guide
Signal Strength
Enter Ret urn
Input
Sound
Channel
Setup
Guide
OK
Digital
BP68-00582A-00Eng(026~047) 1/12/06 9:09 AM Page 45
Channel Control
English - 46
LNA (Low Noise Amplifier)
If the TV is operating in a weak-signal area, sometimes the LNA function can improve
the reception (a low-noise preamplifier boosts the incoming signal).
1
Press the MENU button.
Press the … or † button to
select “Channel”, then press
the ENTER button.
2
Press the … or † button to
select “LNA”, then press the
ENTER button.
3
Press the … or † button to
select “On” or “Off”, then
press the ENTER button.
4
Press the EXIT button to exit.
NOTES
• LNA functions only when antenna is set to Air.
The settings will be stored separately in each channel.
• If the picture is noisy with the LNA set to On, select Off.
• The LNA setting must be made separately for each channel.
Channel
Antenna : Air
√
Auto Program
√
Add/Delete
√
Favorite Channels
√
Name
√
Fine Tune
√
Signal Strength
√
LNA : On
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Channel
Antenna : Air
Auto Program
Add/Delete
Favorite Channels
Name
Fine Tune
Signal Strength
LNA : On
Move Enter Return
Input
Sound
Channel
Setup
Guide
Channel
Antenna : Air
√
Auto Program
√
Add/Delete
√
Favorite Channels
√
Name
√
Fine Tune
√
Signal Strength
√
LNA : On
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Off
On
BP68-00582A-00Eng(026~047) 1/12/06 9:09 AM Page 46
Picture Control
BP68-00582A-00Eng(026~047) 1/12/06 9:09 AM Page 47
Picture Control
English - 48
Picture Control
You can select the type of picture which best corresponds to your viewing requirements.
Changing the Picture Standard
1
Press the MENU button.
Press the … or † button to
select “Picture”, then press
the ENTER button.
2
Press the ENTER button
again to select “Mode”.
3
Press the ENTER button.
Press the … or † button to
select the desired picture
mode (Dynamic, Standard,
Movie, Custom), then press
the ENTER button.
Press the EXIT button to exit.
Alternate method
Press the P.MODE button on the
remote control repeatedly to select
the desired picture mode.
•Choose “Dynamic” for viewing the TV during the day or when
there is a bright light in the room.
• Choose “Standard” for the standard factory settings.
• Choose “Movie” when viewing a movie.
• Choose “Custom” if you want to adjust the settings according to
personal preference (see “Customizing the Picture Settings”,
page 49).
Mode : Standard
√
Size : 16:9
√
Digital NR : On
√
DNIe Demo : Off
√
My Color Control
√
Film Mode : Off
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Mode
Mode : Standard
√
Contrast 90
Brightness 50
Sharpness 65
Color 60
Tint G 50 R 50
Color Tone : Cool1
√
Reset
Move Enter Return
Input
Sound
Channel
Setup
Guide
Mode
Mode : Standard
Contrast 90
Brightness 50
Sharpness 65
Color 60
Tint G 50 R 50
Color Tone : Cool1
Reset
Move Enter Return
Input
Sound
Channel
Setup
Guide
Dynamic
Standard
Movie
Custom
Standard
BP68-00582A-00Eng(048~061) 1/12/06 9:09 AM Page 48
English - 49
1
Press the MENU button.
Press the … or † button to
select “Picture”, then press the
ENTER button.
2
Press the ENTER button to
select “Mode”.
3
Press the ENTER button.
Press the … or † button to
select the desired picture mode
(Dynamic, Standard, Movie,
Custom), then press the ENTER
button.
4
Press the … or † button to
select a particular option
(Contrast, Brightness,
Sharpness, Color, or Tint),
then press the ENTER button.
Press the œ or √ button to
decrease or increase the value
of a particular item.
Continued...
Customizing the Picture Settings
You can use the on-screen menus to change the “Contrast”, “Brightness”, “Sharpness”, “Color”,
“Tint”, and “Color Tone” according to personal preference. You can select “Standard” which
automatically recalls your personalized picture settings.
Mode : Standard
√
Size : 16:9
√
Digital NR : On
√
DNIe Demo : Off
√
My Color Control
√
Film Mode : Off
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Mode
Mode : Standard
√
Contrast 90
Brightness 50
Sharpness 65
Color 60
Tint G 50 R 50
Color Tone : Cool1
√
Reset
Move Enter Return
Input
Sound
Channel
Setup
Guide
Mode
Mode : Dynamic
√
Contrast 100
Brightness 45
Sharpness 75
Color 55
Tint G 50 R 50
Color Tone : Cool1
√
Reset
Move Enter Return
Input
Sound
Channel
Setup
Guide
Mode
Mode : Standard
Contrast 100
Brightness 45
Sharpness 75
Color 55
Tint G 50 R 50
Color Tone : Cool1
Reset
Move Enter Return
Input
Sound
Channel
Setup
Guide
Dynamic
Standard
Movie
Custom
▲
Contrast
▼
90
•You can also select these
options (Contrast, Brightness,
Sharpness, Color, or Tint) by
pressing the … or † button.
NOTES
•“Tint” doesn’t operate in HDMI or 480p Component or higher modes.
• The Tint cannot be adjusted while watching Digital TV.
BP68-00582A-00Eng(048~061) 1/12/06 9:09 AM Page 49
Picture Control
English - 50
5
Press the ENTER button to return to
“Mode”.
Press the … or † button to select
“Color Tone”, then press the ENTER
button.
6
Press the … or † button to select a
particular option (Cool2, Cool1, Normal,
Warm1, or Warm2), then press the
ENTER button.
Press the EXIT button to exit.
NOTE
• Color tone is not available in the “Movie” picture mode.
7
To return the factory defaults, select
“Reset” by pressing the … or † button.
Press the ENTER button.
Press the EXIT button to exit.
• The previously adjusted settings will
be reset to the factory defaults.
Resetting the Picture Settings to the Factory Defaults
Mode
Mode : Dynamic
√
Contrast 100
Brightness 45
Sharpness 75
Color 55
Tint G 50 R 50
Color Tone : Cool1
√
Reset
Move Enter Return
Input
Sound
Channel
Setup
Guide
Mode
Mode : Dynamic
Contrast 100
Brightness 45
Sharpness 75
Color 55
Tint G 50 R 50
Color Tone : Warm1
Reset
Move Enter Return
Input
Sound
Channel
Setup
Guide
Cool2
Cool1
Normal
Warm1
Warm2
Mode
Mode : Dynamic
√
Contrast 100
Brightness 45
Sharpness 75
Color 55
Tint G 50 R 50
Color Tone : Cool1
√
Reset
Move Enter Return
Input
Sound
Channel
Setup
Guide
BP68-00582A-00Eng(048~061) 1/12/06 9:09 AM Page 50
English - 51
Changing the Picture Size
You can select the picture size which best corresponds to your viewing requirements.
1
Press the MENU button.
Press the … or † button to
select “Picture”, then press
the ENTER button.
Press the … or † button to
select “Size”, then press the
ENTER button.
2
Press the œ or √ button to
select the screen format you
want, then press the ENTER
button.
Press the EXIT button to exit.
Alternate method
Press the P.SIZE button under the remote’s cover repeatedly to select
one of the picture size settings.
• “16:9”: Sets the picture to 16:9 wide mode.
• “Panorama”: Sets the picture to the wide aspect ratio of a
panoramic picture.
• “Zoom1”: Magnifies the size of the picture on screen.
• “Zoom2”: Magnifies the size of the picture more than “Zoom1”.
• “4:3”: Sets the picture to 4:3 normal mode.
This is a standard TV screen size.
NOTES
• Supported screen resolution modes may differ depending on the model of the product.
•You can select only the 16:9 and 4:3 screen sizes in the DTV or Component (720p, 1080i) mode.
• For Zoom1 and Zoom2, you can adjust the size by using the
…
or †button after pressing the
P.SIZE button under the remote’s cover.
Mode : Standard
√
Size : 16:9
√
Digital NR : On
√
DNIe Demo : Off
√
My Color Control
√
Film Mode : Off
√
Move
Enter Return
Input
Sound
Channel
Setup
Guide
Size
Move Enter Return
Input
Sound
Channel
Setup
Guide
16:9 Panorama Zoom1 Zoom2 4:3
BP68-00582A-00Eng(048~061) 1/12/06 9:09 AM Page 51
Picture Control
English - 52
Digital Noise Reduction
If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction
feature to help reduce any static and ghosting that may appear on the screen.
1
Press the MENU button.
Press the … or † button to
select “Picture”, then press
the ENTER button.
2
Press the … or † button to
select “Digital NR”, then
press the ENTER button.
3
Press the … or † button to
select “Off” or “On”, then
press the ENTER button.
Press the EXIT button to exit.
Mode : Standard
√
Size : 16:9
√
Digital NR : On
√
DNIe Demo : Off
√
My Color Control
√
Film Mode : Off
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Mode : Standard
√
Size : 16:9
√
Digital NR : On
√
DNIe Demo : Off
√
My Color Control
√
Film Mode : Off
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Mode : Standard
Size : 16:9
Digital NR : On
DNIe Demo : Off
My Color Control
Film Mode : Off
Move Enter Return
Input
Sound
Channel
Setup
Guide
Off
On
BP68-00582A-00Eng(048~061) 1/12/06 9:09 AM Page 52
English - 53
Viewing the DNIe Demonstration
This TV includes the DNIe function so as to provide a high visual quality.
If you set DNIe Demo to On, you can view an applied DNIe and normal picture on the screen
simultaneously, for demonstration purposes. Using this function, you can view the difference in the
visual quality.
1
Press the MENU button.
Press the … or † button to
select “Picture”, then press
the ENTER button.
2
Press the … or † button to
select “DNIe Demo”, then
press the ENTER button.
3
Press the … or † button to
select “Off” or “On”, then
press the ENTER button.
Press the EXIT button to exit.
Alternate method
Press the DNIe button under the remote’s cover repeatedly to select
one of the settings.
• On: Switches on the DNIe Demo mode.
•Off: Switches off the DNIe Demo mode.
NOTE
• DNIeTM(Digital Natural Image engine)
This feature brings you a more detailed image with 3D noise
reduction and detail, contrast and white enhancement.
DNIe Demo
DNIe On DNIe Off
Mode : Standard
√
Size : 16:9
√
Digital NR : On
√
DNIe Demo : Off
√
My Color Control
√
Film Mode : Off
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Mode : Standard
√
Size : 16:9
√
Digital NR : On
√
DNIe Demo : Off
√
My Color Control
√
Film Mode : Off
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Mode : Standard
Size : 16:9
Digital NR : On
DNIe Demo : Off
My Color Control
Film Mode : Off
Move Enter Return
Input
Sound
Channel
Setup
Guide
Off
On
BP68-00582A-00Eng(048~061) 1/12/06 9:09 AM Page 53
Picture Control
English - 54
Setting the My Color Control Mode
My Color Control allows you to adjust colors according to your preference, by adjusting skin, sky,
and grass tones using the predefined settings (“Blue”, “Green”, “Pink”, “Standard”, and “Custom”)
without affecting other colors on the screen.
Using the Easy Control Menu
1
Press the MENU button.
Press the … or † button to
select “Picture”, then press
the ENTER button.
2
Press the … or † button to
select “My Color Control”,
then press the ENTER button.
3
Press the ENTER button to
select “Easy Control”.
Press the œ or √ button to
select one of the picture
settings you want.
The original picture (before
adjustment) is shown
on the left side, while the
selected mode is shown
on the right side.
Press the ENTER button to
accept the selected mode.
Press the EXIT button to exit.
• “Blue”: Emphasizes Clear Blues.
• “Green”: Emphasizes Mild Greens.
• “Pink”: Emphasizes Warm Skin Colors.
• “Standard”: Standard Picture.
NOTE
• Changing the settings
in the “Detail Control”
menu (see next page)
will automatically set
the My Color Control
mode to “Custom”.
œ√
Easy Control
Move
Return
Enter
Original Custom
Mode : Standard
√
Size : 16:9
√
Digital NR : On
√
DNIe Demo : Off
√
My Color Control
√
Film Mode : Off
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Mode : Standard
√
Size : 16:9
√
Digital NR : On
√
DNIe Demo : Off
√
My Color Control
√
Film Mode : Off
√
Move Enter
Return
Input
Sound
Channel
Setup
Guide
My Color Control
Easy Control : Custom
√
Detail Control
√
Move
Enter Ret urn
Input
Sound
Channel
Setup
Guide
Standard Custom
BP68-00582A-00Eng(048~061) 1/12/06 9:09 AM Page 54
English - 55
Custom Settings
1
Press the MENU button.
Press the … or † button to
select “Picture”, then press
the ENTER button.
Press the … or † button to
select “My Color Control”,
then press the ENTER button.
2
Press the … or † button to
select “Detail Control”, then
press the ENTER button.
3
Press the … or † button to
select the desired My Color
Control, then press the
ENTER button.
There are three colors:
“Pink”, “Green” and “Blue”.
Press the œ or √ button to
adjust the value of a color
selected.
Changing the adjustment
value will refresh the
adjusted screen.
Resetting the My Color Control Colors to the Factory Defaults
You can return to the factory default settings for My Color Control
colors.
4
Press the MENU button to
display the “Detail Control”
menu.
Press the … or † button to
select “Reset”, then press the
ENTER button.
The previously adjusted My
Color Control colors will be
reset to the factory defaults.
Press the Exit button to exit.
▲
Pink
▼
Detail Control
Move Return
Adjust
Original Adjusted
50
Mode : Standard
√
Size : 16:9
√
Digital NR : On
√
DNIe Demo : Off
√
My Color Control
√
Film Mode : Off
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
My Color Control
Easy Control : Custom
√
Detail Control
√
Move Enter Retu rn
Input
Sound
Channel
Setup
Guide
Detail Control
Pink 50
Green 50
Blue 50
Reset
Move Enter Return
Input
Sound
Channel
Setup
Guide
Detail Control
Pink 50
Green 50
Blue 50
Reset
Move Enter Return
Input
Sound
Channel
Setup
Guide
BP68-00582A-00Eng(048~061) 1/12/06 9:09 AM Page 55
Picture Control
English - 56
Using the Color Weakness Enhancement Feature
This feature adjusts the Red, Green or Blue color to enhance the picture according to the user’s
particular color weakness.
1
Press the MENU button.
Press the … or † button to
select “Setup”, then press
the ENTER button.
2
Press the … or † button to
select “Color Weakness”,
then press the ENTER button.
3
Press the ENTER button to
select “Color Weakness”.
Press the … or † button to
select “On”, then press the
ENTER button.
4
Press the … or † button to
select a color to be adjusted,
then press the ENTER button.
Press the œ or √ button to
adjust the value of a color
selected.
Press the EXIT button to exit.
0
Color Weakness
AdjustMove Return
▲
Red
▼
Setup
Language : English
√
Time
√
V-Chip
√
Caption
√
Menu Transparency
: Medium
√
Blue Screen : Off
√
Color Weakness
√
Function Help
: Off
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Setup
Language : English
√
Time
√
V-Chip
√
Caption
√
Menu Transparency
: Medium
√
Blue Screen : Off
√
Color Weakness
√
Function Help
: Off
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Color Weakness
Color Weakness
Red 0
Green 0
Blue 0
Move Enter Return
Input
Sound
Channel
Setup
Guide
Off
On
Color Weakness
Color Weakness
: On
√
Red 0
Green 0
Blue 0
Move Enter Return
Input
Sound
Channel
Setup
Guide
•You can also select these
options (Red, Green or
Blue) by pressing the …
or † button.
BP68-00582A-00Eng(048~061) 1/12/06 9:09 AM Page 56
English - 57
Setting the Film Mode
You can automatically sense and process film signals from all sources and adjust the picture for
optimum quality.
1
Press the MENU button.
Press the … or † button to
select “Picture”, then press
the ENTER button.
2
Press the … or † button to
select “Film Mode”, then
press the ENTER button.
3
Press the … or † button to
select “Off” or “On”, then
press the ENTER button.
Press the EXIT button to exit.
NOTE
• Film mode is supported in 480i only.
Mode : Standard
√
Size : 16:9
√
Digital NR : On
√
DNIe Demo : Off
√
My Color Control
√
Film Mode : Off
√
Move Enter Retu rn
Input
Sound
Channel
Setup
Guide
Mode : Standard
√
Size : 16:9
√
Digital NR : On
√
DNIe Demo : Off
√
My Color Control
√
Film Mode : Off
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Mode : Standard
Size : 16:9
Digital NR : On
DNIe Demo : Off
My Color Control
Film Mode : Off
Move Enter Return
Input
Sound
Channel
Setup
Guide
Off
On
BP68-00582A-00Eng(048~061) 1/12/06 9:09 AM Page 57
Picture Control
English - 58
Freezing the Picture
Press the STILL button to freeze a moving picture. (Normal sound will
still be heard.)
Press again to cancel.
BP68-00582A-00Eng(048~061) 1/12/06 9:09 AM Page 58
English - 59
Setting the Blue Screen Mode
If no signal is being received or the signal is very weak, a blue screen automatically replaces the
noisy picture background. If you wish to continue viewing the poor picture, you must set the “Blue
Screen” mode to “Off”.
1
Press the MENU button.
Press the … or † button to
select “Setup”, then press
the ENTER button.
2
Press the … or † button to
select “Blue Screen”, then
press the ENTER button.
3
Press the … or † button to
select “On” or “Off”, then
press the ENTER button.
Press the EXIT button to exit.
Setup
Language : English
√
Time
√
V-Chip
√
Caption
√
Menu Transparency
: Medium
√
Blue Screen : Off
√
Color Weakness
√
Function Help
: Off
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Setup
Language : English
√
Time
√
V-Chip
√
Caption
√
Menu Transparency
: Medium
√
Blue Screen : Off
√
Color Weakness
√
Function Help
: Off
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Setup
Language : English
Time
V-Chip
Caption
Menu Transparency
: Medium
Blue Screen : Off
Color Weakness
Function Help
: Off
Move Enter Return
Input
Sound
Channel
Setup
Guide
On
Off
BP68-00582A-00Eng(048~061) 1/12/06 9:10 AM Page 59
SAMSUNG
BP68-00582A-00Eng(048~061) 1/12/06 9:10 AM Page 60
Sound Control
BP68-00582A-00Eng(048~061) 1/12/06 9:10 AM Page 61
Sound Control
English - 62
Sound Control
You can control and customize the sound levels and settings of the TV with the remote control.
Adjusting the Volume
Press the VOL+ or VOL– button to increase or decrease the volume.
Using the MUTE Button
At any time, you can temporarily
cut off the sound.
Press the MUTE button on the
remote control.
The message “Mute” is displayed
and the sound cuts off.
To turn mute off, press the MUTE
button again or press either the
VOL+ or VOL– button.
Customizing the Sound
The sound settings can be adjusted to suit your personal preference.
(Alternatively, you can use one of the automatic settings. See next
page.)
1
Press the MENU button.
Press the … or † button to
select “Sound”, then press
the ENTER button.
2
Press the … or † button to
select “Equalizer”, then
press the ENTER button.
Continued...
Mute
Sound
Mode : Custom
√
Equalizer
√
DNSe : Off
√
Multi-Track Options
√
Auto Volume : Off
√
Internal Mute : Off
√
Digital Output :
Dolby Digital
√
Melody : On
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Sound
Mode : Custom
√
Equalizer
√
DNSe : Off
√
Multi-Track Options
√
Auto Volume : Off
√
Internal Mute : Off
√
Digital Output :
Dolby Digital
√
Melody : On
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
BP68-00582A-00Eng(062~071) 1/12/06 9:10 AM Page 62

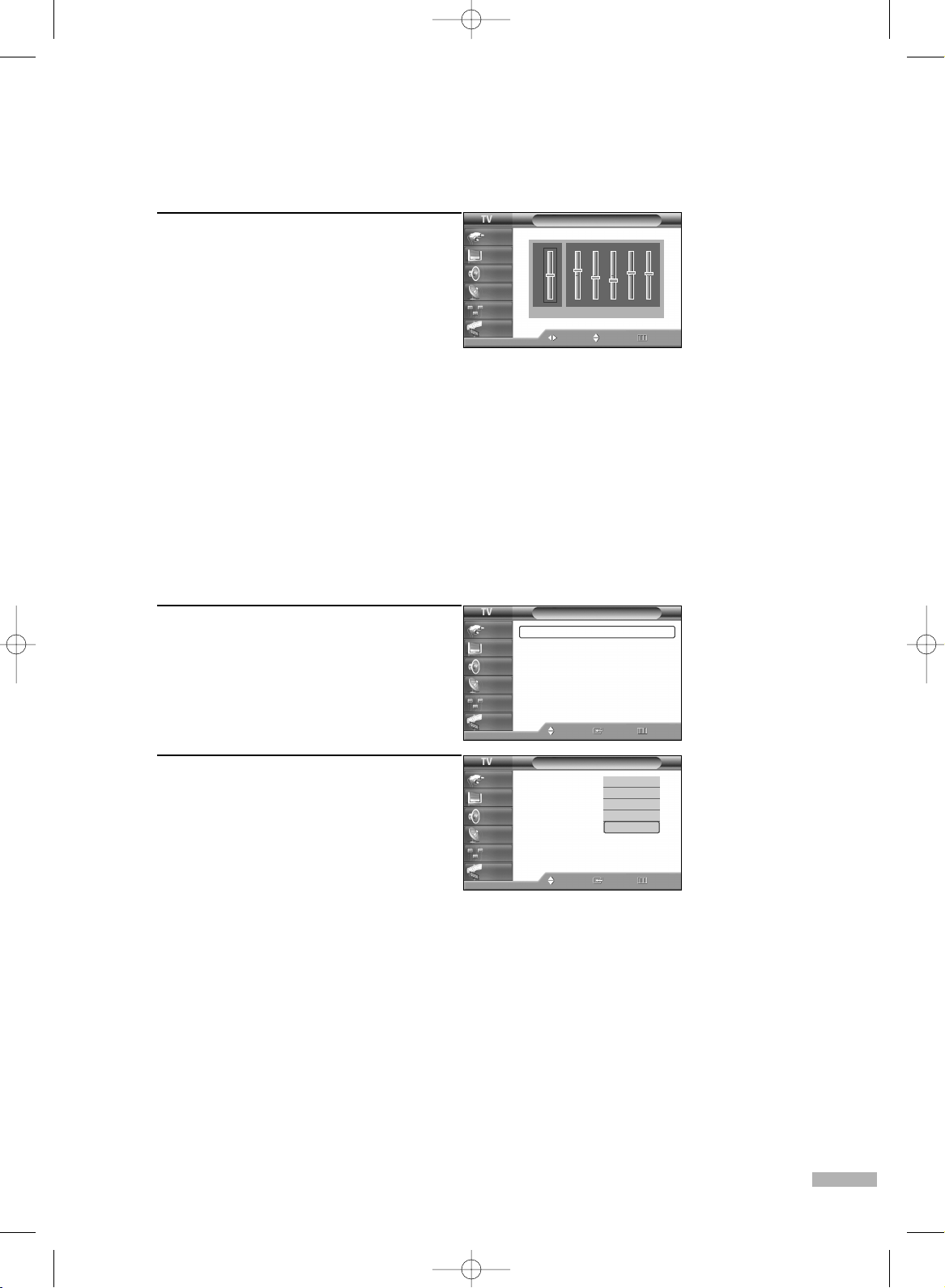

English - 63
3
Press the œ or √ button to select a
particular item to be changed.
Press the … or † button to increase or
decrease the selected frequency.
Press the EXIT button to exit.
NOTES
• If you make any changes to the equalizer settings, the sound mode is automatically switched
to the custom mode.
•
L/R Sound Balance Adjustment
To adjust the sound balance of the L/R speakers.
•
Bandwidth Adjustment (100Hz, 300Hz, 1KHz, 3KHz, 10KHz)
To adjust the level of different bandwidth frequencies.
Using Automatic Sound Settings
Your TV has automatic sound settings (“Standard”, “Music”, “Movie”, and “Speech”) that are preset
at the factory. You can select “Custom”, which automatically recalls your personalized sound settings.
1
Press the MENU button.
Press the … or † button to select
“Sound”, then press the ENTER button.
2
Press the ENTER button to select “Mode”.
Press the … or † button to select a
particular item, then press the ENTER
button.
Press the EXIT button to exit.
NOTES
• Choose “Standard” for the standard factory settings.
•Choose “Music” when watching music videos or concerts.
• Choose “Movie” when watching movies.
• Choose “Speech” when watching a show that is mostly dialog (i.e., news).
•Choose “Custom” to recall your personalized settings.
Equalizer
Move Adjust Return
Input
Sound
Channel
Setup
Guide
Balance 100Hz 300Hz 1KHz 3KHz 10KHz
R
L
+
0
-
Sound
Mode : Custom
√
Equalizer
√
DNSe : Off
√
Multi-Track Options
√
Auto Volume : Off
√
Internal Mute : Off
√
Digital Output :
Dolby Digital
√
Melody : On
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Sound
Mode : Custom
Equalizer
DNSe : Off
Multi-Track Options
Auto Volume : Off
Internal Mute : Off
Digital Output :
Dolby Digital
Melody : On
Move Enter Return
Input
Sound
Channel
Setup
Guide
Standard
Music
Movie
Speech
Custom
BP68-00582A-00Eng(062~071) 1/12/06 9:10 AM Page 63
Sound Control
English - 64
Auto Volume
Each broadcasting station has its own signal conditions, and it is inconvenient to adjust the volume
every time the channel is changed. “Auto Volume” automatically adjusts the volume of the desired
channel by lowering the sound output when the modulation signal is high or by raising the sound
output when the modulation signal is low.
1
Press the MENU button.
Press the … or † button to
select “Sound”, then press
the ENTER button.
2
Press the … or † button to
select “Auto Volume”, then
press the ENTER button.
3
Press the … or † button to
select “Off” or “On”, then
press the ENTER button.
Press the EXIT button to exit.
Sound
Mode : Custom
√
Equalizer
√
DNSe : Off
√
Multi-Track Options
√
Auto Volume : Off
√
Internal Mute : Off
√
Digital Output :
Dolby Digital
√
Melody : On
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Sound
Mode : Custom
√
Equalizer
√
DNSe : Off
√
Multi-Track Options
√
Auto Volume : Off
√
Internal Mute : Off
√
Digital Output :
Dolby Digital
√
Melody : On
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Sound
Mode : Custom
Equalizer
DNSe : Off
Multi-Track Options
Auto Volume : Off
Internal Mute : Off
Digital Output :
Dolby Digital
Melody : On
Move Enter Return
Input
Sound
Channel
Setup
Guide
Off
On
BP68-00582A-00Eng(062~071) 1/12/06 9:10 AM Page 64
English - 65
Choosing a Multi-Channel Sound (MTS) track
The digital-TV transmission system is capable of simultaneous transmission of many audio tracks
(for example, simultaneous translations of the program into foreign languages).
The availability of these additional “multitracks” depends upon the program.
1
Press the MENU button.
Press the … or † button to
select “Sound”, then press
the ENTER button.
2
Press the … or † button to
select “Multi-Track Options”,
then press the ENTER button.
3
Press the ENTER button to
select “Preferred Language”.
Press the … or † button to
choose the language
(English, Spanish or French)
you want, then press the
ENTER button.
Press the EXIT button to exit.
Alternate method
Press the MTS button on the
remote control.
You can listen in a language
other than the favorite language
by pressing the MTS button.
NOTE
•You can only select the language from among the actual
languages broadcast by the broadcasting station.
That is, if the current program is broadcast with a configured
language (e.g. French), you will listen to the program in the
configured Preferred Language. However, if the program is not
broadcast with the configured language, you will listen to the
program in the default language determined by the broadcasting
station (e.g. English).
Sound
Mode : Custom
√
Equalizer
√
DNSe : Off
√
Multi-Track Options
√
Auto Volume : Off
√
Internal Mute : Off
√
Digital Output :
Dolby Digital
√
Melody : On
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Sound
Mode : Custom
√
Equalizer
√
DNSe : Off
√
Multi-Track Options
√
Auto Volume : Off
√
Internal Mute : Off
√
Digital Output :
Dolby Digital
√
Melody : On
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Multi-Track Options
Preferred Language
: English
Multi-Track Sound
: Stereo
Move Enter Return
Input
Sound
Channel
Setup
Guide
Spanish
French
English
Digital
1. English
BP68-00582A-00Eng(062~071) 1/12/06 9:10 AM Page 65
Sound Control
English - 66
Choosing a Multi-Channel Sound (MTS) track
Depending on the particular program being broadcast, you can listen to Mono, Stereo or SAP.
1
Press the MENU button.
Press the … or † button to
select “Sound”, then press
the ENTER button.
2
Press the … or † button to
select “Multi-Track Options”,
then press the ENTER button.
3
Press the … or † button to
select “Multi-Track Sound”,
then press the ENTER button.
Press the … or † button to
select a setting you want,
then press the ENTER button.
Press the EXIT button to exit.
Alternate method
Press the MTS button on the
remote control repeatedly to select
an external signal source.
NOTES
•Choose “Mono” for channels that are broadcasting in mono, or
if you are having difficulty receiving a stereo signal.
• Choose “Stereo” for channels that are broadcasting in stereo.
• Choose “SAP” to listen to the Separate Audio Program, which is
usually a foreign-language translation.
Sound
Mode : Custom
√
Equalizer
√
DNSe : Off
√
Multi-Track Options
√
Auto Volume : Off
√
Internal Mute : Off
√
Digital Output :
Dolby Digital
√
Melody : On
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Sound
Mode : Custom
√
Equalizer
√
DNSe : Off
√
Multi-Track Options
√
Auto Volume : Off
√
Internal Mute : Off
√
Digital Output :
Dolby Digital
√
Melody : On
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Multi-Track Options
Preferred Language
: English
Multi-Track Sound
: Stereo
Move Enter Return
Input
Sound
Channel
Setup
Guide
Mono
Stereo
SAP
Stereo
Analog
BP68-00582A-00Eng(062~071) 1/12/06 9:10 AM Page 66
English - 67
Choosing a Digital Sound Format
Digital sound can be output from the rear-panel connector on your TV. The digital sound
output is an optical connector labeled “Optical Out”. After connecting an optical digital-audio
component, you must specify the transmission format (Dolby or PCM, as appropriate to your
digital audio component). See the owner's manual of your Digital Audio component for further
information.
1
Press the MENU button.
Press the … or † button to
select “Sound”, then press
the ENTER button.
2
Press the … or † button to
select “Digital Output”, then
press the ENTER button.
Press the … or † button to
select “Dolby Digital” or
“PCM”, then press the
ENTER button.
Press the EXIT button to exit.
Sound
Mode : Custom
√
Equalizer
√
DNSe : Off
√
Multi-Track Options
√
Auto Volume : Off
√
Internal Mute : Off
√
Digital Output :
Dolby Digital
√
Melody : On
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Sound
Mode : Custom
Equalizer
DNSe : Off
Multi-Track Options
Auto Volume : Off
Internal Mute : Off
Digital Output : PCM
Melody : On
Move Enter Return
Input
Sound
Channel
Setup
Guide
Dolby Digital
PCM
Digital
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby
Laboratories.
BP68-00582A-00Eng(062~071) 1/12/06 9:10 AM Page 67
English - 68
Sound Control
Selecting the Internal Mute
When using a device such as a Home Theater or Amplifier with external speakers, you can set
Internal Mute to On to cut off sound from the TV’s internal speakers.
1
Press the MENU button.
Press the … or † button to
select “Sound”, then press
the ENTER button.
2
Press the … or † button to
select “Internal Mute”, then
press the ENTER button.
3
Press the … or † button to
select “On”, then press the
ENTER button.
Pressing the … or † button
will alternate between “On”
and “Off”.
Press the EXIT button to exit.
NOTES
• The VOL +, VOL
-
and MUTE buttons do not operate when the
Internal Mute is set to On.
•When Internal Mute is set to “On”, Sound menus except
Multi-Track Options and Digital Output cannot be adjusted.
Sound
Mode : Custom
√
Equalizer
√
DNSe : Off
√
Multi-Track Options
√
Auto Volume : Off
√
Internal Mute : Off
√
Digital Output :
Dolby Digital
√
Melody : On
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Sound
Mode : Custom
√
Equalizer
√
DNSe : Off
√
Multi-Track Options
√
Auto Volume : Off
√
Internal Mute : Off
√
Digital Output :
Dolby Digital
√
Melody : On
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Sound
Mode : Custom
Equalizer
DNSe : Off
Multi-Track Options
Auto Volume : Off
Internal Mute : Off
Digital Output : PCM
Melody : On
Move Enter Return
Input
Sound
Channel
Setup
Guide
Off
On
BP68-00582A-00Eng(062~071) 1/12/06 9:10 AM Page 68
English - 69
Setting the On/Off Melody
A melody sound can be set to come on when the TV is powered On or Off.
1
Press the MENU button.
Press the … or † button to
select “Sound”, then press
the ENTER button.
2
Press the … or † button to
select “Melody”, then press
the ENTER button.
Press the … or † button to
select “On” or “Off”, then
press the ENTER button.
Press the EXIT button to exit.
Sound
Mode : Custom
√
Equalizer
√
DNSe : Off
√
Multi-Track Options
√
Auto Volume : Off
√
Internal Mute : Off
√
Digital Output :
Dolby Digital
√
Melody : On
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Sound
Mode : Custom
Equalizer
DNSe : Off
Multi-Track Options
Auto Volume : Off
Internal Mute : Off
Digital Output :
Dolby Digital
Melody : On
Move Enter Return
Input
Sound
Channel
Setup
Guide
Off
On
BP68-00582A-00Eng(062~071) 1/12/06 9:10 AM Page 69
Sound Control
English - 70
Setting up DNSe (Digital Natural Sound engine)
DNSe enhances the sound quality, automatically controls output, and prevents sound distortion.
1
Press the MENU button.
Press the … or † button to
select “Sound”, then press
the ENTER button.
2
Press the … or † button to
select “DNSe”, then press
the ENTER button.
3
Press the … or † button to
select “On”, then press the
ENTER button.
Pressing the … or † button
will alternate between “On”
and “Off”.
Press the EXIT button to exit.
Alternate method
Press the DNSe button under the
remote’s cover repeatedly to select
“On” or “Off”.
Sound
Mode : Custom
√
Equalizer
√
DNSe : Off
√
Multi-Track Options
√
Auto Volume : Off
√
Internal Mute : Off
√
Digital Output :
Dolby Digital
√
Melody : On
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Sound
Mode : Custom
√
Equalizer
√
DNSe : Off
√
Multi-Track Options
√
Auto Volume : Off
√
Internal Mute : Off
√
Digital Output :
Dolby Digital
√
Melody : On
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Sound
Mode : Custom
Equalizer
DNSe : Off
Multi-Track Options
Auto Volume : Off
Internal Mute : Off
Digital Output :
Dolby Digital
Melody : On
Move Enter Return
Input
Sound
Channel
Setup
Guide
Off
On
DNSe : On
BP68-00582A-00Eng(062~071) 1/12/06 9:10 AM Page 70
Special Features
BP68-00582A-00Eng(062~071) 1/12/06 9:10 AM Page 71
Special Features
English - 72
Setting the Function Help
Displays Help on the menu functions.
1
Press the MENU button.
Press the … or † button to
select “Setup”, then press
the ENTER button.
2
Press the … or † button to
select “Function Help”, then
press the ENTER button.
3
Press the … or † button to
select “On” or “Off” then
press the ENTER button.
Press the EXIT button to exit.
Setup
Language : English
√
Time
√
V-Chip
√
Caption
√
Menu Transparency
: Medium
√
Blue Screen : Off
√
Color Weakness
√
Function Help
: Off
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Setup
Language : English
√
Time
√
V-Chip
√
Caption
√
Menu Transparency
: Medium
√
Blue Screen : Off
√
Color Weakness
√
Function Help
: Off
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Setup
Language : English
Time
V-Chip
Caption
Menu Transparency
: Medium
Blue Screen : Off
Color Weakness
Function Help
: Off
Switches the Function Help on.
Move Enter Return
Input
Sound
Channel
Setup
Guide
Off
On
BP68-00582A-00Eng(072~095) 1/12/06 9:11 AM Page 72
English - 73
Menu Transparency Level
Adjusts the transparency of the menu screen.
1
Press the MENU button.
Press the … or † button to
select “Setup”, then press
the ENTER button.
2
Press the … or † button to
select “Menu Transparency”,
then press the ENTER button.
Press the … or † button to
select level, then press the
ENTER button.
Press the EXIT button to exit.
Setup
Language : English
√
Time
√
V-Chip
√
Caption
√
Menu Transparency
: Medium
√
Blue Screen : Off
√
Color Weakness
√
Function Help
: Off
√
Move Enter Retu rn
Input
Sound
Channel
Setup
Guide
Setup
Language : English
Time
V-Chip
Caption
Menu Transparency
: Medium
Blue Screen : Off
Color Weakness
Function Help
: Off
Move Enter Retu rn
Input
Sound
Channel
Setup
Guide
High
Medium
Low
Opaque
BP68-00582A-00Eng(072~095) 1/12/06 9:11 AM Page 73

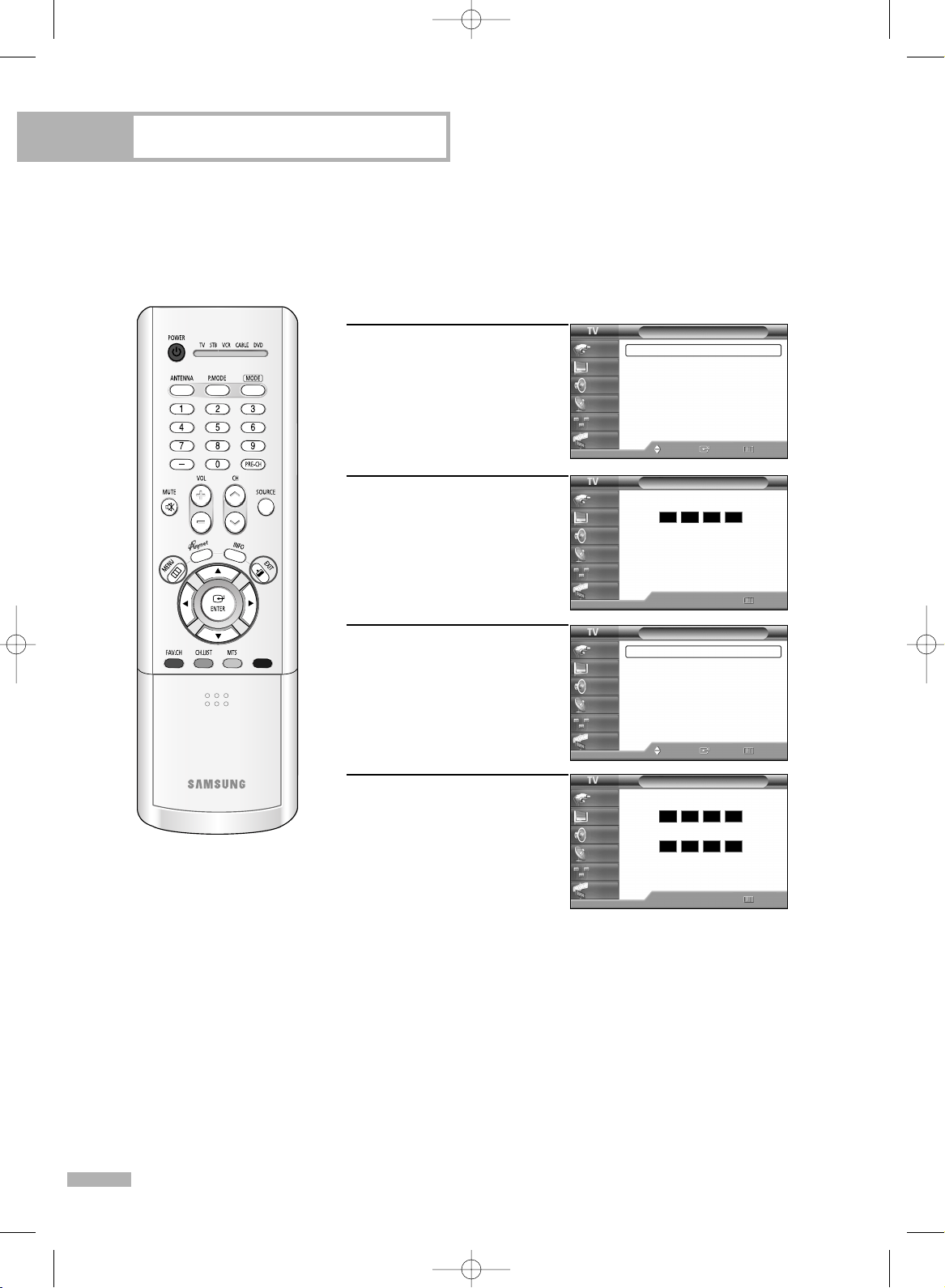

Special Features
English - 74
Using the V-Chip
Access to channels and programs is controlled by a password (i.e., a 4-digit secret code that is
defined by the user). The on-screen menu will instruct you to assign a password (you can change it
later, if necessary).
How to Change Your Password
1
Press the MENU button.
Press the … or † button to
select “Setup”, then press
the ENTER button.
Press the … or † button to
select “V-Chip”, then press
the ENTER button.
2
Press the number buttons to
enter your current 4-digit pin
number.
(The default pin number for
a new TV set is “0000”.)
The “V-Chip” menu is
displayed.
3
Press the … or † button to
select “Change PIN”, then
press the ENTER button.
4
Press the number buttons to
enter your new 4-digit pin
number.
Re-enter your new pin
number to confirm.
Press the EXIT button to exit.
Setup
Language : English
√
Time
√
V-Chip
√
Caption
√
Menu Transparency
: Medium
√
Blue Screen : Off
√
Color Weakness
√
Function Help
: Off
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
V-Chip
Return
Input
Sound
Channel
Setup
Guide
Enter PIN
*
0~9 Enter PIN
Change PIN
Return
Input
Sound
Channel
Setup
Guide
Enter New PIN
Confirm New PIN
0~9 Enter PIN
NOTES
• If you forget the pin number, press the remote control buttons in the
following sequence, which resets the pin to 0-0-0-0: POWER (Off),
MUTE, 8, 2, 4, POWER (On).
• The V-Chip function only works in RF, AV mode and S-Video mode.
V-Chip
V-Chip Lock : Off
√
TV Parental Guidelines
√
MPAA Rating
√
Canadian English
√
Canadian French
√
Change PIN
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
BP68-00582A-00Eng(072~095) 1/12/06 9:11 AM Page 74
English - 75
How to Enable/Disable the Rating Controls
1
Press the MENU button.
Press the … or † button to
select “Setup”, then press
the ENTER button.
Press the … or † button to
select “V-Chip”, then press
the ENTER button.
2
Press the number buttons to
enter your current 4-digit pin
number.
(The default pin number for
a new TV set is “0000”.)
The “V-Chip” menu is
displayed.
3
The “V-Chip” screen will
appear. To enable the
V-Chip feature, press the
ENTER button so that the
“V-Chip Lock” field is “On”.
(Pressing the … or † button
will alternate between “On”
and “Off”.)
Press the ENTER button.
Press the EXIT button to exit.
Continued....
Setup
Language : English
√
Time
√
V-Chip
√
Caption
√
Menu Transparency
: Medium
√
Blue Screen : Off
√
Color Weakness
√
Function Help
: Off
√
Move Enter Retu rn
Input
Sound
Channel
Setup
Guide
V-Chip
V-Chip Lock : Off
TV Parental Guidelines
MPAA Rating
Canadian English
Canadian French
Change PIN
Move Enter Retu rn
Input
Sound
Channel
Setup
Guide
Off
On
V-Chip
Return
Input
Sound
Channel
Setup
Guide
Enter PIN
*
0~9 Enter PIN
BP68-00582A-00Eng(072~095) 1/12/06 9:11 AM Page 75
Special Features
English - 76
How to Set up Restrictions Using the “TV Parental Guidelines”
The parental restrictions can be set up using either of two methods: The “TV Parental Guidelines” or
“MPAA Rating”.
1
Press the MENU button.
Press the … or † button to
select “Setup”, then press
the ENTER button.
Press the … or † button to
select “V-Chip”, then press
the ENTER button.
2
Press the number buttons to
enter your current 4-digit pin
number.
(The default pin number for
a new TV set is “0000”.)
The “V-Chip” menu is
displayed.
3
Press the … or † button
to select “TV Parental
Guidelines”, then press the
ENTER button.
Continued....
Setup
Language : English
√
Time
√
V-Chip
√
Caption
√
Menu Transparency
: Medium
√
Blue Screen : Off
√
Color Weakness
√
Function Help
: Off
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
V-Chip
V-Chip Lock : Off
√
TV Parental Guidelines
√
MPAA Rating
√
Canadian English
√
Canadian French
√
Change PIN
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
V-Chip
Return
Input
Sound
Channel
Setup
Guide
Enter PIN
*
0~9 Enter PIN
BP68-00582A-00Eng(072~095) 1/12/06 9:11 AM Page 76

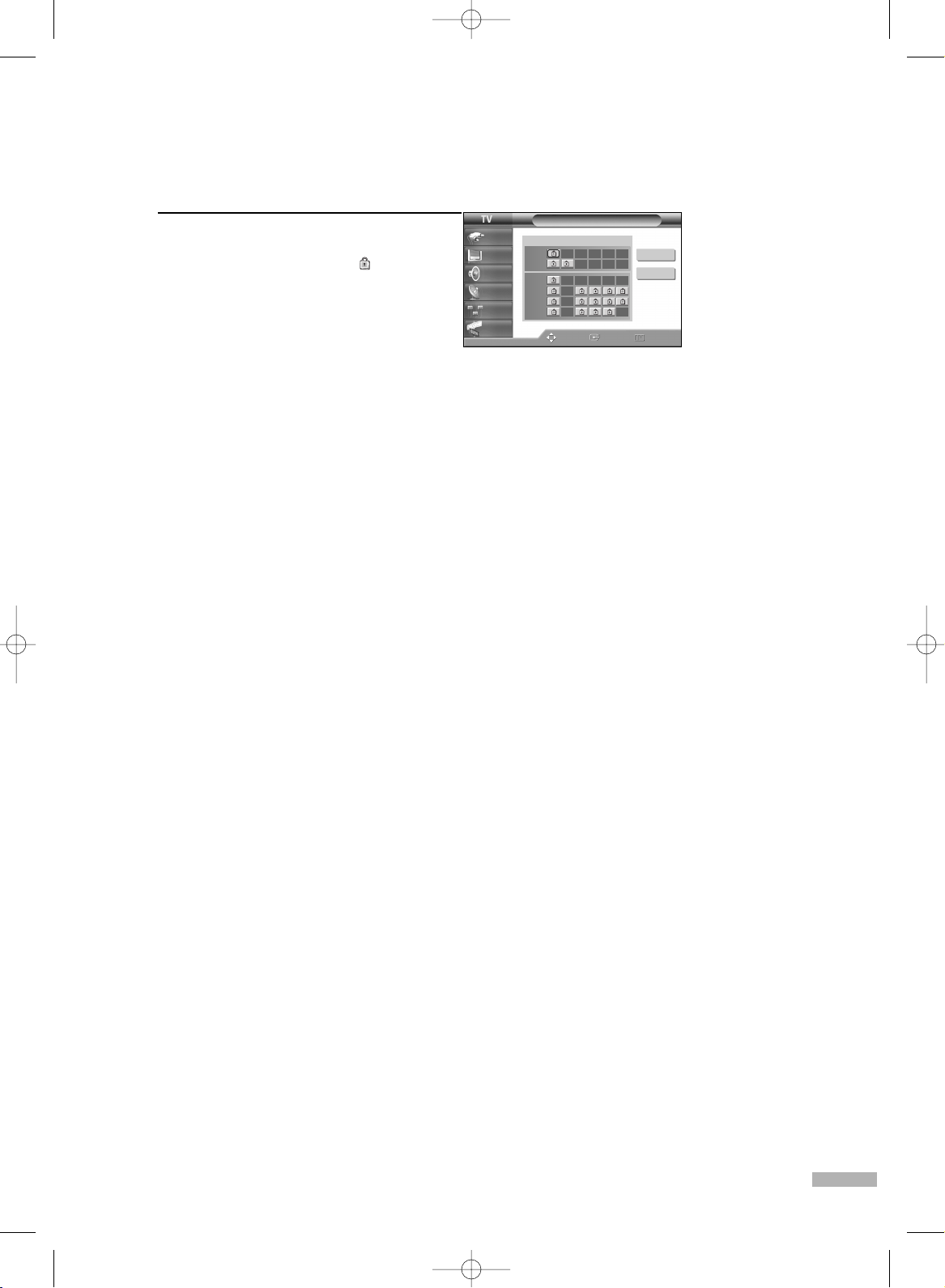

English - 77
4
You can independently lock the TV
ratings. The locked TV (FCC) ratings are
indicated by the symbol “ ”.
To unlock a locked channel, press the
ENTER button again.
Press the …/†/œ/√ buttons and the
ENTER button to activate the appropriate
restrictions for TV (FCC) rating system.
TV-Y : Young children
TV-Y7 : Children 7 and over
TV-G : General audience
TV-PG : Parent Guidance
TV-14 : Viewers 14 and over
TV-MA : Mature Audience
Press the EXIT button to exit.
NOTES
• These categories consist of two separate groups: “TV-Y” and “TV-Y7” (young children
through age 7), and “TV-G” through “TV-MA” (everybody else).
• The restrictions for these two groups work independently: If a household includes
very young children as well as young adults, the TV parental guidelines must be
set up separately for each age group. (See page 79.)
TV Parental Guidelines
Input
Sound
Channel
Setup
Guide
ALL FV V S L D
TV-Y
TV-Y7
TV-G
TV-PG
TV-14
TV-MA
Move Enter Return
Allow All
Block All
NOTES
• Allow All : Press to unlock
all TV ratings.
• Block All : Press to lock all
TV ratings.
BP68-00582A-00Eng(072~095) 1/12/06 9:11 AM Page 77
Special Features
English - 78
How to Set up Restrictions Using the “MPAA Rating”
The Movie rating system uses the “MPAA” (Motion Picture Association of America) system, and its
main application is for movies.
When the rating control is on, the TV will automatically block any programs that are coded with
objectionable ratings (either “MPAA Rating” or “TV Parental Guidelines”).
1
Press the MENU button.
Press the … or † button to
select “Setup”, then press
the ENTER button.
Press the … or † button to
select “V-Chip”, then press
the ENTER button.
2
Press the number buttons to
enter your current 4-digit pin
number.
(The default pin number for
a new TV set is “0000”.)
The “V-Chip” menu is
displayed.
3
Press the … or † button to
select “MPAA Rating”, then
press the ENTER button.
4
You can independently lock
the movie ratings. The locked
movie ratings are indicated
by the symbol “ ”.
To unlock a locked channel,
press the ENTER button
again.
Press the …/†/ENTER
buttons to activate the
appropriate restrictions for
movie rating system.
Press the EXIT button to exit.
Setup
Language : English
√
Time
√
V-Chip
√
Caption
√
Menu Transparency
: Medium
√
Blue Screen : Off
√
Color Weakness
√
Function Help
: Off
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
MPAA Rating
Input
Sound
Channel
Setup
Guide
Move Enter Return
Block
G
PG
PG-13
R
NC-17
X
NR
Allow All
Block All
NOTES
• Allow All : Press to unlock all movie ratings.
• Block All : Press to lock all movie ratings.
V-Chip
V-Chip Lock : Off
√
TV Parental Guidelines
√
MPAA Rating
√
Canadian English
√
Canadian French
√
Change PIN
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
V-Chip
Return
Input
Sound
Channel
Setup
Guide
Enter PIN
*
0~9 Enter PIN
BP68-00582A-00Eng(072~095) 1/12/06 9:11 AM Page 78
English - 79
Important Notes About Parental Locks
Explanation of the MPAA and TV (FCC) Rating Systems:
TV (FCC) Age-Based Ratings
TV-MA
Mature audiences only. This program may
contain mature themes, profane language,
graphic violence and explicit sexual content.
TV-14
Parents strongly cautioned. This program may
contain sophisticated themes, sexual content,
strong language and more intense violence.
TV-PG
Parental guidance suggested. The program
may contain infrequent coarse language,
limited violence, some suggestive sexual
dialog and situations.
TV-G
General audience. It contains little or no
violence, no strong language, and little or no
sexual dialog or situations.
TV-Y7
Directed to older children. Themes and
elements in this program may include mild
physical or comedic violence, or may frighten
children under the age of seven.
TV-Y
All children. The themes and elements in this
program are specifically designed for a very
young audience, including children from ages
two – six.
TV (FCC) Content Category
V Violence.
S Sexual content.
L Offensive language.
D Dialog sexual innuendo.
FV Fantasy or cartoon violence.
MPAA Rating System (Movies)
G General audience. No restriction.
PG Children under 13 should be accompanied
by an adult.
PG-13 Parental guidance suggested. Children
under 13 should be accompanied by an
adult.
R Restricted. Viewers should be 17 or older.
NC-17 Not classified. Viewers should be 17 or
older.
X Adults only.
NR Not rated.
• TV (FCC) ratings : The particular rating that you have selected will be locked (and indicated as
a red “L” on a blue background). Also, all of the age-based ratings will be locked within the
particular group (i.e., “group 1” or “group 2”). Suppose that the TV-G rating and all of its
contents (V, S, L, and D) are locked. In that case, more restrictive ratings (TV-PG, TV-14, and
TV-MA) and all of their contents (V, S, L, and D) are automatically locked as well.
•MPAA ratings : The particular rating that you have selected will be locked. In addition, more
restrictive ratings will be locked as well.
• Neither TV (FCC) ratings nor MPAA ratings apply to news programs.
BP68-00582A-00Eng(072~095) 1/12/06 9:11 AM Page 79
Special Features
English - 80
How to Set up Restrictions Using Canadian English
1
Press the MENU button.
Press the … or † button to
select “Setup”, then press
the ENTER button.
Press the … or † button to
select “V-Chip”, then press
the ENTER button.
2
Press the number buttons to
enter your current 4-digit pin
number.
(The default pin number for
a new TV set is “0000”.)
The “V-Chip” menu is
displayed.
3
Press the … or † button to
select “Canadian English”,
then press the ENTER button.
Continued...
V-Chip
V-Chip Lock : Off
√
TV Parental Guidelines
√
MPAA Rating
√
Canadian English
√
Canadian French
√
Change PIN
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Setup
Language : English
√
Time
√
V-Chip
√
Caption
√
Menu Transparency
: Medium
√
Blue Screen : Off
√
Color Weakness
√
Function Help
: Off
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
V-Chip
Return
Input
Sound
Channel
Setup
Guide
Enter PIN
*
0~9 Enter PIN
BP68-00582A-00Eng(072~095) 1/12/06 9:11 AM Page 80
English - 81
4
Press the … or † button to select a
appropriate restriction.
Press the ENTER button to activate the
restriction selected.
The “ ” symbol is indicated.
To unlock a locked channel, press the
ENTER button again.
Press the EXIT button to exit.
E Exempt programming includes...news, sports,
documentaries and other information programming,
talk shows, music videos, and variety programming.
C Programming intended for children under age 8.
C8+ Programming generally considered acceptable for
children 8 years and over to watch on their own.
G General programming, suitable for all audiences.
PG Parental Guidance.
14+ Programming contains themes or content which may
not be suitable for viewers under the age of 14.
18+ Adult programming.
Canadian English
Input
Sound
Channel
Setup
Guide
Move Enter Return
Allow All
Block All
Block
E
C
C8+
G
PG
14+
18+
NOTES
• Allow All : Press to unlock
all TV ratings.
• Block All : Press to lock all
TV ratings.
BP68-00582A-00Eng(072~095) 1/12/06 9:11 AM Page 81
Special Features
English - 82
How to Set up Restrictions Using Canadian French
1
Press the MENU button.
Press the … or † button to
select “Setup”, then press
the ENTER button.
Press the … or † button to
select “V-Chip”, then press
the ENTER button.
2
Press the number buttons to
enter your current 4-digit pin
number.
(The default pin number for
a new TV set is “0000”.)
The “V-Chip” menu is
displayed.
3
Press the … or † button to
select “Canadian French”,
then press the ENTER button.
Continued...
V-Chip
V-Chip Lock : Off
√
TV Parental Guidelines
√
MPAA Rating
√
Canadian English
√
Canadian French
√
Change PIN
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Setup
Language : English
√
Time
√
V-Chip
√
Caption
√
Menu Transparency
: Medium
√
Blue Screen : Off
√
Color Weakness
√
Function Help
: Off
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
V-Chip
Return
Input
Sound
Channel
Setup
Guide
Enter PIN
*
0~9 Enter PIN
BP68-00582A-00Eng(072~095) 1/12/06 9:11 AM Page 82
English - 83
4
Press the … or † button to select a
appropriate restriction.
Press the ENTER button to activate the
restriction selected.
The “ ” symbol is indicated.
To unlock a locked channel, press the
ENTER button again.
Press the EXIT button to exit.
E Exempt programming includes...news, sports,
documentaries and other information programming,
talk shows, music videos, and variety programming.
G General.
8 ans+ 8+ General-Not recommended for young children.
13 ans+ Programming may not be suitable for children under the
age of 13.
16 ans+ Programming is not suitable for children under the age of
16.
18 ans+ Programming restricted to adults.
Canadian French
Input
Sound
Channel
Setup
Guide
Move Enter Return
Allow All
Block All
Block
E
G
8 ans
+
13 ans
+
16 ans
+
18 ans
+
NOTES
• Allow All : Press to unlock
all TV ratings.
• Block All : Press to lock all
TV ratings.
BP68-00582A-00Eng(072~095) 1/12/06 9:11 AM Page 83
Special Features
English - 84
Viewing Closed Captions (On-Screen Text Messages)
The Analog Caption function operates in either analog RF channel mode or external signal mode.
(Depending on the broadcasting signal, the Analog Caption function may operate on digital
channels.)
1
Press the MENU button.
Press the … or † button to
select “Setup”, then press
the ENTER button.
2
Press the … or † button to
select “Caption”, then press
the ENTER button.
3
Press the ENTER button to
select “Caption”.
Press the … or † button to
select “On”, then press the
ENTER button.
Continued...
Setup
Language : English
√
Time
√
V-Chip
√
Caption
√
Menu Transparency
: Medium
√
Blue Screen : Off
√
Color Weakness
√
Function Help
: Off
√
Move Enter
Return
Input
Sound
Channel
Setup
Guide
Setup
Language : English
√
Time
√
V-Chip
√
Caption
√
Menu Transparency
: Medium
√
Blue Screen : Off
√
Color Weakness
√
Function Help
: Off
√
Move Enter
Return
Input
Sound
Channel
Setup
Guide
Caption
Caption : On
Mode : Default
Caption Options
Move Enter
Return
Input
Sound
Channel
Setup
Guide
Off
On
Analog
BP68-00582A-00Eng(072~095) 1/12/06 9:11 AM Page 84
English - 85
4
Press the … or † button to select “Mode”,
then press the ENTER button.
Press the … or † button to select submenu
(CC1~CC4 or Text1~Text4) you want,
then press the ENTER button.
Press the EXIT button to exit.
NOTES
• The default is “CC1”.
CC1 : The Primary Synchronous Caption Service. These are captions in the
primary language that must be in sync with the sound, preferably
matched to a specific frame.
CC2 : The Special NonSynchronous Use Captions. This channel carries data
that is intended to augment information carried in the program.
CC3 : Secondary Synchronous Caption Service. Alternate program-related
caption data, typically second language captions.
CC4 : Special Non-Synchronous Use Captions. Similar to CC2.
Text1 : First Text Service. This may be various non-program related data.
Text2 : Second Text Service. Additional data, usually not program related.
Text3/Text4 : Third and Fourth Text Services. These data channels should be
used only if Text1 and Text2 are not sufficient.
• The Caption feature only works in RF, AV and S-Video mode.
• The availability of captions depends on the program being broadcast.
Caption
Caption : On
Mode : Default
Caption Options
Move
Enter
Return
Input
Sound
Channel
Setup
Guide
Default
CC1
CC2
CC3
CC4
Text1
Text2
Text3
†
BP68-00582A-00Eng(072~095) 1/12/06 9:11 AM Page 85
Special Features
English - 86
Viewing Closed Captions (On-Screen Text Messages)
The Digital Captions function operates on digital channels.
1
Press the MENU button.
Press the … or † button to
select “Setup”, then press
the ENTER button.
2
Press the … or † button to
select “Caption”, then press
the ENTER button.
3
Press the ENTER button to
select “Caption”.
Press the … or † button to
select “On”, then press the
ENTER button.
4
Press the … or † button to
select “Mode”, then press
the ENTER button.
Press the … or † button to
select submenu (Service 1
~Service 6, CC1~CC4 or
Text1~Text4) you want, then
press the ENTER button.
5
Press the … or † button to
select “Caption Options”,
then press the ENTER button.
Continued...
NOTE
• “Caption Options” are
available only when
“Service1 ~ Service6” can
be selected in “Caption
Mode”.
Setup
Language : English
√
Time
√
V-Chip
√
Caption
√
Menu Transparency
: Medium
√
Blue Screen : Off
√
Color Weakness
√
Function Help
: Off
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Setup
Language : English
√
Time
√
V-Chip
√
Caption
√
Menu Transparency
: Medium
√
Blue Screen : Off
√
Color Weakness
√
Function Help
: Off
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Caption
Caption : On
Mode : Default
Caption Options
Move Enter Return
Input
Sound
Channel
Setup
Guide
Off
On
Caption
Caption : On
Mode : Default
Caption Options
Move Enter Return
Input
Sound
Channel
Setup
Guide
Default
Service 1
Service 2
Service 3
Service 4
Service 5
Service 6
CC1
†
Caption
Caption : On
√
Mode : Default
√
Caption Options
√
Move Enter Return
Input
Sound
Channel
Setup
Guide
Digital
BP68-00582A-00Eng(072~095) 1/12/06 9:11 AM Page 86
English - 87
6
Press the … or † button to select “Size”,
then press the ENTER button.
Press the … or † button to select one you
want, then press the ENTER button.
Set other listed options below using the
same method as above.
Press the EXIT button to exit.
NOTE
• The availability of captions depends on the program being broadcast.
Alternate method
Press the CAPTION button under the remote’s
cover repeatedly to select “On” or “Off”.
Size
This option consists of “Default”, “Small”, “Standard”, and “Large”.
The default is “Standard”.
Font Style
This option consists of “Default”, “Style0 ~ Style 7”.
You can change the font you want. The default is “Style 0”.
Foreground Color
This option consists of “Default”, “White”, “Black”, “Red”, “Green”,
“Blue”, “Yellow”, “Magenta”, and “Cyan”.
You can change the color of the letter. The default is “White”.
Background Color
This option consists of “Default”, “White”, “Black”, “Red”, “Green”,
“Blue”, “Yellow”, “Magenta”, and “Cyan”. You can change the
background color of the caption. The default is “Black”.
Foreground Opacity
This option consists of “Default”, “Transparent”, “Translucent”,
“Solid”, and “Flashing”. You can change the opacity of the letter.
Background Opacity
This option consists of “Default”, “Transparent”, “Translucent”,
“Solid”, and “Flashing”. You can change the background opacity of
the caption.
Return to Default
This option sets each of “Size”, “Font Style”, “Foreground Color”,
“Background Color”, “Foreground Opacity”, and “Background
Opacity” Color to its default.
Caption Options
Size : Default
√
Font Style : Default
√
Foreground Color
: Default
√
Background Color
: Default
√
Foreground Opacity
: Default
√
Background Opacity
: Default
√
Return to Default
Move Enter Return
Input
Sound
Channel
Setup
Guide
Caption : On
BP68-00582A-00Eng(072~095) 1/12/06 9:11 AM Page 87
Special Features
English - 88
Using the Guide
You can display a list of all channels or your favorite channels.
1
Press the MENU button.
Press the … or † button to
select “Guide”, then press
the ENTER button.
2
Press the … or † button to
select “Channel List” or
“Favorite Channel List”, then
press the ENTER button.
Press the CH or CH
button to display the previous
or next channel list page.
Alternate method
Press the CH.LIST button
on the remote control to
display a list of channels.
Guide
Channel List
√
Edit Channel List
√
Favorite Channel List
√
Move Enter Retu rn
Input
Sound
Channel
Setup
Guide
Channel List
All 2/3
ExitEditFavorite
29 37 45
30 38 46
31 39 47
32 40 48
33 41 49
34 42 50
35 43 51
36 44 52
▼ More
▲ More
Channel List
All 1/3
21020
31121
41222
51324
61425
71526
81727
91928
▼ More
•Yellow button : Press to edit channels.
The edit channel menu is displayed.
(See next page for details.)
•Green button : Press to toggle between your all or favorite
channels.
• Blue or EXIT button : Press to exit.
Page Move Watch Return
Page Move Watch Exit
Exit
EditFavorite
BP68-00582A-00Eng(072~095) 1/12/06 9:51 AM Page 88
English - 89
Adding and Erasing Channels
1
Press the MENU button.
Press the … or † button to
select “Guide”, then press
the ENTER button.
2
Press the … or † button to
select “Edit Channel List”,
then press the ENTER button.
3
Press the … or † button to
change channels you want
to add or delete.
Repeatedly pressing ENTER
button will alternate between
“Add” and “Delete”.
Press the … or † button to select favorite channel you want
to add, then press the yellow button.
The check (
✔
) mark will appear.
Press the yellow button again to deselect the selected channel
and the check (
✔
) mark will disappear.
Press the CH or CH button to display the previous or
next channel list page.
Channel List
Edit 2/3
Page Move Delete Return
Exit
Favorite
• Red button : Press to add all channels of the channel list.
•Green button : Press to delete all channels of the channel list.
•Yellow button : Press to add favorite channels.
• Blue or EXIT button : Press to exit.
NOTE
•To use Favorite Channels, first add channels.
Delete AllAdd All
29 37 45
30 38 46
31 39 47
32 40 48
33 41 49
34 42 50
35 43 51
36 44 52
▼ More
▲ More
Guide
Channel List
√
Edit Channel List
√
Favorite Channel List
√
Move Enter Retu rn
Input
Sound
Channel
Setup
Guide
Guide
Channel List
√
Edit Channel List
√
Favorite Channel List
√
Move Enter Retu rn
Input
Sound
Channel
Setup
Guide
BP68-00582A-00Eng(072~095) 1/12/06 9:11 AM Page 89
Special Features
English - 90
Using Game Mode
When connecting to a game console such as PlayStationTMor XboxTM, you can enjoy a more
realistic gaming experience by selecting Game mode.
1
Press the MENU button.
Press the ENTER button to
select “Input”.
2
Press the … or † button to
select “Edit Name”, then
press the ENTER button.
3
Press the … or † button to
select a signal source to
edit, then press the ENTER
button.
4
Press the … or † button to
select “GAME”, then
press the ENTER button.
Press the EXIT button to exit.
Restrictions on Game Mode (Caution)
•To Disconnect the game console and connect another external
device, cancel Game mode in the Edit name menu.
• If you display the TV menu in Game mode, the screen shakes slightly.
NOTES
•Game mode is only available for AV1, AV2, AV3, S-Video1, S-Video2,
S-Video3, Component1 and Component2.
• For Component input, Game mode only supports a resolution of 480i.
•Since selecting Anynet cancels Game mode, to play a game, select
Game mode again.
•You cannot rename an input port to which an Anynet device is
connected after setting Anynet.
•To set the game mode of the input port, set Anynet again after
connecting a game console.
• Some menus are disabled when Game mode is selected.
Input
Source List : AV1
√
Edit Name
√
Anynet
Move Enter Return
Input
Sound
Channel
Setup
Guide
Input
Source List : AV1
√
Edit Name
√
Anynet
Move Enter Return
Input
Sound
Channel
Setup
Guide
Edit Name
AV1 :
---
AV2 :
---
AV3 :
---
S-Video1 :
---
S-Video2 :
---
S-Video3 :
---
Component1 :
----
▼ More
Move Enter Return
Input
Sound
Channel
Setup
Guide
▲
AV R eceiver
DVD Receiver
GAME
Camcorder
DVD Combo
DVD HDD Recorder
Internet TV Recv.
Interactive TV Recv.
▼
Edit Name
AV1 :
----
√
AV2 :
----
√
AV3 :
----
√
S-Video1 :
----
√
S-Video2 :
----
√
S-Video3 :
----
√
Component1 :
----
√
▼ More
Move Enter Return
Input
Sound
Channel
Setup
Guide
BP68-00582A-00Eng(072~095) 1/12/06 9:11 AM Page 90
Appendix
BP68-00582A-00Eng(072~095) 1/12/06 9:11 AM Page 91
Appendix
English - 92
Replacing the Lamp
• Why do I need to replace the lamp?
The lamp used in a DLP TV has a limited lifespan. For the best screen quality it needs to be
replaced periodically. After replacing the lamp, the screen quality will be bright and clear as new.
• When do I need to replace it?
It should be replaced when the screen becomes darker, less clear or when all three LEDs on the
front (TIMER, LAMP, & STAND BY/TEMP) are flashing.
• Check before lamp replacement
1. The lamp must be the same code number and type.
2. The lamp type is indicated on the right side of the TV. It is also indicated on the lamp case.
3. After checking the code number for the lamp, give the code number to the store where you
purchased the TV or to a Samsung Service center.
• Caution
1. Replace with the correct code numbered lamp to avoid damage to the TV.
2. Turn the power off and wait for 30 minutes before replacing the lamp as it will be hot.
3. Do not touch the glass part of the lamp with your bare hands nor insert any foreign object
inside the cover as it may cause poor screen quality, electric shock or fire.
4. Do not place the old lamp near flammable objects or within the reach of children.
5. Be sure to connect this TV directly to an AC wall outlet. If the TV’s AC plug is connected to a
cable box or other source, it will not allow for proper cool down time.
BP68-00582A-00Eng(072~095) 1/12/06 9:11 AM Page 92
English - 93
• For replacement, you will need a 5.91-Inch screwdriver and a pair of gloves.
1
Unplug TV, then use a
screwdriver to remove the
screws.
2
Remove the Lamp cover.
3
Remove the screw securing
the Lamp by using a
screwdriver.
4
Separate the Lamp from the
engine by holding the handle
and pulling it out.
5
To reinstall the Lamp, follow
these steps in reverse order.
NOTES
• Be sure the replacement Lamp is the same type.
• After replacing the lamp, align the lamp cover with the groove and secure the screws.
• The TV will not turn on if the lamp cover is not correctly closed (as this will activate the protective
circuit).
BP68-00582A-00Eng(072~095) 1/12/06 9:11 AM Page 93
Appendix
English - 94
Troubleshooting
If the TV seems to have a problem, first try this list of possible problems and solutions. If none of these
troubleshooting tips apply, then call your nearest Samsung authorized service center.
Possible Solution
Try another channel. Adjust the antenna.
Check all wire connections.
Try another channel. Adjust the antenna.
Make sure the MUTE button is off.
Try another channel. Press the SOURCE button.
Make sure the TV is plugged in.
Check the antenna connections.
Check that the Mute feature is off.
Make sure the program is broadcasted in color.
Adjust the picture settings.
Adjust the antenna. Check all wire connections.
If you are using a VCR, check the tracking.
Unplug the TV for 30 seconds, then try operating it
again.
Press the MODE button to put your remote control
into TV mode. Make sure the remote has batteries.
Make sure the wall outlet is working.
Make sure the TV is plugged in.
Make sure the remote has batteries.
Please check the digital signal strength and input
antenna.
The visual qualities of digital channels may vary
depending on the original production method (analog
or digital).
➔ Classification by the information displayed when
switching channels.
➔ If the original production method is digital: High
visual quality program.
➔ If the original production method is analog: The
digital program displayed on the screen is
originally an analog program which has been
converted. The visual quality is of an SD grade.
The HD caption that appears when switching channels
or when pressing the Information button on the remote
control means the selected channel is simply a digital
channel. If the broadcasting station converts an
analog signal into digital and transmits the signal,
the visual quality may not be perfect.
(Applied to Set Top Box built-in model only.)
Problem
Poor picture quality.
Poor sound quality.
No picture or sound.
No color, wrong colors or tints.
Picture rolls vertically.
The TV operates erratically.
Your remote control does not
operate your TV.
The TV won’t switch on.
Digital broadcasting screen
problem.
The visual qualities of digital
channels vary.
Although the TV caption shows HD,
the visual quality is not satisfactory.
• The display panel used for the DLP TV is composed of many tiny pixels.
These pixels may occasionally appear on the screen.
BP68-00582A-00Eng(072~095) 1/12/06 9:11 AM Page 94
English - 95
Cleaning and Maintaining Your TV
Please follow these guidelines to get the maximum performance from your TV.
Placement
• Do not put the TV near extremely hot, cold, humid or dusty places.
• Do not place the TV near appliances with electric motors that create magnetic fields, such as
vacuum cleaners.
• Keep the ventilation openings clear; do not place the TV on a soft surface, such as cloth or
paper.
• Place the TV in a vertical position only.
Liquids
• Do not handle liquids near or on the TV. Liquids that spill into it can cause serious damage.
Cabinet
• Never open the cabinet or touch the parts inside.
•Wipe your TV with a clean, dry cloth. Never use water, cleaning fluids, wax, or chemicals.
• Do not put heavy objects on top of the cabinet.
• This DLP TV projects the image onto a large screen by applying an optical system.
If you place the TV set face down, it might cause a problem because dirt, or some other
contaminant may become attached to the inside of the TV set.
Temperature
• If your TV is suddenly moved from a cold to a warm place, unplug the power cord, and allow
at least two hours for moisture that may have formed inside the unit to dry completely.
Using Your TV in Another Country
If you plan to take your TV with you to a foreign country, please be aware of the different
television systems that are in use around the world. A TV designed for one system may not work
properly with another system due to differences in the TV channel frequencies.
Specifications
Model
Voltage
Frequency of Operation
Power Consumption
Dimensions
(W x D x H)
Weight
SP56L6HN
AC 110-220V
60Hz
230W
52.36 x 15.59 x 37.89 inches
1330 x 396 x 962.5 mm
41.0 Kg / 90.39 lbs
SP61L6HN
AC 110-220V
60Hz
230W
56.93 x 18.27 x 41.65 inches
1446 x 464 x 1058 mm
47.5 Kg / 104.72 lbs
SP42L6HN
AC 110-220V
60Hz
230W
39.33 x 13.03 x 29.74 inches
999 x 331 x 755.5 mm
26.5 Kg / 58.42 lbs
SP46L6HN
AC 110-220V
60Hz
230W
43.07 x 13.35 x 32.05 inches
1094 x 339 x 814 mm
31.0 Kg / 68.34 lbs
SP50L6HN
AC 110-220V
60Hz
230W
46.54 x 14.13 x 34.25 inches
1182 x 359 x 870 mm
34.5 Kg / 76.06 lbs
BP68-00582A-00Eng(072~095) 1/12/06 9:11 AM Page 95
BP68-00582A-00
Contact SAMSUNG WORLD-WIDE
If you have any questions or comments relating to Samsung products,
please contact the SAMSUNG customer care center.
Country
ARGENTINE
BRAZIL
CHILE
COSTA RICA
ECUADOR
EL SALVADOR
GUATEMALA
JAMAICA
MEXICO
PANAMA
PUERTO RICO
REP. DOMINICA
TRINIDAD & TOBAGO
VENEZUELA
Customer Care Center
0800-333-3733
0800-124-421
800-726-7864 (SAMSUNG)
0-800-507-7267
1-800-10-7267
800-6225
1-800-299-0013
1-800-234-7267
01-800-SAMSUNG (7267864)
800-7267
1-800-682-3180
1-800-751-2676
1-800-7267-864
1-800-100-5303
Web Site
www.samsung.com/ar
www.samsung.com/br
www.samsung.com/cl
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/mx
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
BP68-00582A-00Eng(cover) 1/27/06 10:01 AM Page 2
Loading...
