3M
Key Features
REVISED 09-2012
• Max. 3M (2048 x 1536) resolution
• 16 : 9 Full HD (1080p) resolution support
• H.264, MJPEG dual codec
• Multiple streaming
• Smart compression (ROI encoding)
• Intelligent video analytics
• PoE, SD memory, Bi-directional audio support

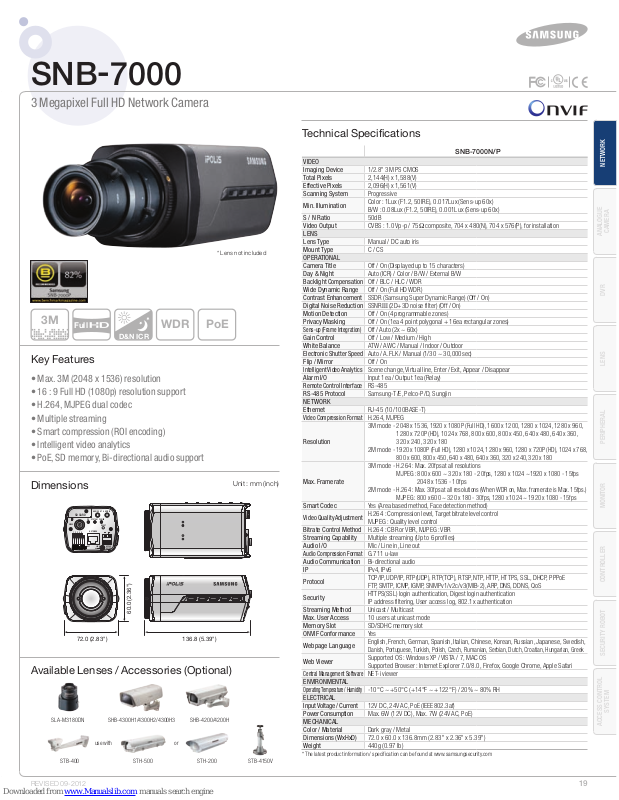

SNB-7000
3 Megapixel Full HD Network Camera
Dimensions
Available Lenses / Accessories (Optional)
Unit : mm (inch)
D&N ICR
PoE
Technical Specifications
SNB-7000N/P
VIDEO
Imaging Device
1/2.8" 3M PS CMOS
Total Pixels
2,144(H) x 1,588(V)
Effective Pixels
2,096(H) x 1,561(V)
Scanning System
Progressive
Min. Illumination
Color : 1Lux (F1.2, 50IRE), 0.017Lux (Sens-up 60x)
B/W : 0.08Lux (F1.2, 50IRE), 0.001Lux (Sens-up 60x)
S / N Ratio
50dB
Video Output
CVBS : 1.0 Vp-p / 75Ω composite, 704 x 480(N), 704 x 576(P), for installation
LENS
Lens Type
Manual / DC auto iris
Mount Type
C / CS
OPERATIONAL
Camera Title
Off / On (Displayed up to 15 characters)
Day & Night
Auto (ICR) / Color / B/W / External B/W
Backlight Compensation
Off / BLC / HLC / WDR
Wide Dynamic Range
Off / On (Full HD WDR)
Contrast Enhancement
SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction
SSNR
III
(2D+3D noise filter) (Off / On)
Motion Detection
Off / On (4 programmable zones)
Privacy Masking
Off / On (1ea 4 point polygonal + 16ea rectangular zones)
Sens-up (Frame Integration)
Off / Auto (2x ~ 60x)
Gain Control
Off / Low / Medium / High
White Balance
ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed
Auto / A.FLK / Manual (1/30 ~ 30,000sec)
Flip / Mirror
Off / On
Intelligent Video Analytics
Scene change, Virtual line, Enter / Exit, Appear / Disappear
Alarm I/O
Input 1ea / Output 1ea (Relay)
Remote Control Interface
RS-485
RS-485 Protocol
Samsung-T/E, Pelco-P/D, Sungjin
NETWORK
Ethernet
RJ-45 (10/100BASE-T)
Video Compression Format
H.264, MJPEG
Resolution
3M mode -
2048 x 1536, 1920 x 1080P (Full HD), 1600 x 1200, 1280 x 1024, 1280 x 960,
1280 x 720P (HD), 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360,
320 x 240, 320 x 180
2M mode -
1920 x 1080P (Full HD), 1280 x 1024, 1280 x 960, 1280 x 720P (HD), 1024 x 768,
800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Max. Framerate
3M mode -
H.264 : Max. 20fps at all resolutions
MJPEG : 800 x 600 ~ 320 x 180 - 20fps, 1280 x 1024 ~1920 x 1080 - 15fps
2048 x 1536 - 10fps
2M mode -
H.264 : Max. 30fps at all resolutions (When WDR on, Max. framerate is Max. 15fps.)
MJPEG : 800 x 600 ~ 320 x 180 - 30fps, 1280 x 1024 ~ 1920 x 1080 - 15fps
Smart Codec
Yes (Area based method, Face detection method)
Video Quality Adjustment
H.264 : Compression level, Target bitrate level control
MJPEG : Quality level control
Bitrate Control Method
H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability
Multiple streaming (Up to 6 profiles)
Audio I/O
Mic / Line in, Line out
Audio Compression Format
G.711 u-law
Audio Communication
Bi-directional audio
IP
IPv4, IPv6
Protocol
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE
FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS
Security
HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Streaming Method
Unicast / Multicast
Max. User Access
10 users at unicast mode
Memory Slot
SD/SDHC memory slot
ONVIF Conformance
Yes
Webpage Language
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish,
Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek
Web Viewer
Supported OS : Windows XP / VISTA / 7, MAC OS
Supported Browser : Internet Explorer 7.0/8.0, Firefox, Google Chrome, Apple Safari
Central Management Software
NET-i viewer
ENVIRONMENTAL
Operating Temperature / Humidity
-10°C ~ +50°C (+14°F ~ +122°F) / 20% ~ 80% RH
ELECTRICAL
Input Voltage / Current
12V DC, 24V AC, PoE (IEEE802.3af)
Power Consumption
Max. 6W (12V DC), Max. 7W (24V AC, PoE)
MECHANICAL
Color / Material
Dark gray / Metal
Dimensions (WxHxD)
72.0 x 60.0 x 136.8mm (2.83" x 2.36" x 5.39")
Weight
440g (0.97 Ib)
19
* The latest product information / specification can be found at www.samsungsecurity.com
SYSTEM
AUDIO OUT AUDIO IN
SD
RESET
ACT LINK
GND
AC 24V
DC 12V
NETWORK
POWER
VIDEO
SD CARD
1 2 3 4 5
72.0 (2.83") 136.8 (5.39")
60.0 (2.36")
136.8 (5.39")72.0 (2.83")
60.0 (2.36")
* Lens not included
SLA-M3180DN SHB-4300H1/4300H2/4300H3
STH-500 STH-200STB-400
SHB-4200/4200H
STB-4150V
use with or
