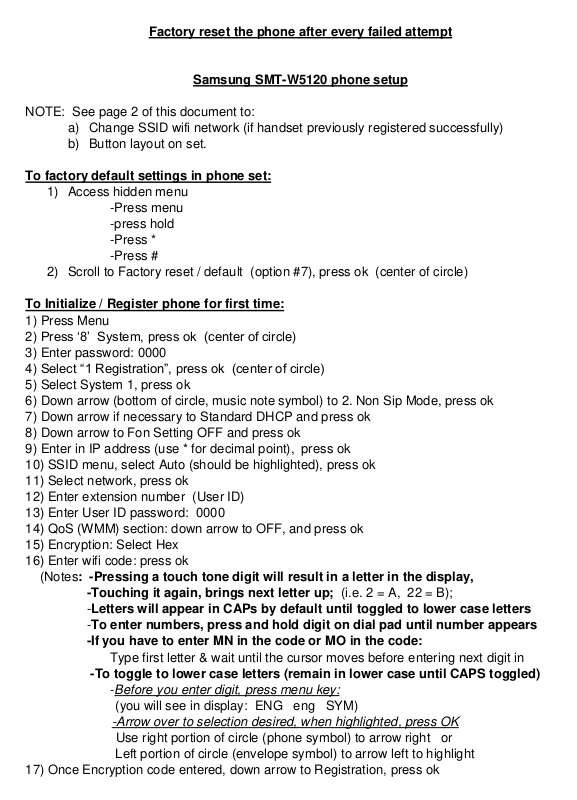

Page 1
Factory reset the phone after every failed attempt
Samsung SMT-W5120 phone setup
NOTE: See page 2 of this document to:
a) Change SSID wifi network (if handset previously registered successfully)
b) Button layout on set.
To factory default settings in phone set:
1) Access hidden menu
-Press menu
-press hold
-Press *
-Press #
2) Scroll to Factory reset / default (option #7), press ok (center of circle)
To Initialize / Register phone for first time:
1) Press Menu
2) Press ‘8’ System, press ok (center of circle)
3) Enter password: 0000
4) Select “1 Registration”, press ok (center of circle)
5) Select System 1, press ok
6) Down arrow (bottom of circle, music note symbol) to 2. Non Sip Mode, press ok
7) Down arrow if necessary to Standard DHCP and press ok
8) Down arrow to Fon Setting OFF and press ok
9) Enter in IP address (use * for decimal point), press ok
10) SSID menu, select Auto (should be highlighted), press ok
11) Select network, press ok
12) Enter extension number (User ID)
13) Enter User ID password: 0000
14) QoS (WMM) section: down arrow to OFF, and press ok
15) Encryption: Select Hex
16) Enter wifi code: press ok
(Notes: -Pressing a touch tone digit will result in a letter in the display,
-Touching it again, brings next letter up; (i.e. 2 = A, 22 = B);
-Letters will appear in CAPs by default until toggled to lower case letters
-To enter numbers, press and hold digit on dial pad until number appears
-If you have to enter MN in the code or MO in the code:
Type first letter & wait until the cursor moves before entering next digit in
-To toggle to lower case letters (remain in lower case until CAPS toggled)
-Before you enter digit, press menu key:
(you will see in display: ENG eng SYM)
-Arrow over to selection desired, when highlighted, press OK
Use right portion of circle (phone symbol) to arrow right or
Left portion of circle (envelope symbol) to arrow left to highlight
17) Once Encryption code entered, down arrow to Registration, press ok
Page 2
Note: Phone will attempt to setup, if setup fails, power down unit & repower – see if it sets up
To change the registration to the SSID:
1) Press Menu
2) Press ‘8’ System, press ok (center of circle)
3) Enter password: 0000
4) Select “9 SSID”, press ok (center of circle)
5) SSID menu, select Auto (should be highlighted), press ok
6) Select Network, press ok
7) Encryption: Select Hex
8) Enter wifi code: press ok
(Notes: -Pressing a touch tone digit will result in a letter in the display,
-Touching it again, brings next letter up; (i.e. 2 = A, 22 = B);
-Letters will appear in CAPs by default until toggled to lower case letters
-To enter numbers, press and hold digit on dial pad until number appears
-If you have to enter MN in the code or MO in the code:
Type first letter & wait until the cursor moves before entering next digit in
-To toggle to lower case letters (remain in lower case until CAPS toggled)
-Before you enter digit, press menu key:
(you will see in display: ENG eng SYM)
-Arrow over to selection desired, when highlighted, press OK
Use right portion of circle (phone symbol) to arrow right or
Left portion of circle (envelope symbol) to arrow left to highlight
9) Once Encryption code entered, down arrow to Registration, press ok
Note: Phone will attempt to setup, if setup fails, power down unit & repower – see if it sets up
Buttons on phone:
Menu Circle Speaker
Handset Phone/Power
TRSF C Hold
1 2 ABC 3 DEF
4 GHI 5 JKL 6 MNO
7 PRS 8 TUV 9 WXYZ
* 0 [_] # @ Lock
Circle :
…. (Top button on circle)
Envelope (left button on circle) OK Telephone (right button on circle)
Music notes (bottom button on circle)
