Samsung SM-T116BU, SM-T116NU User Guide

SM-T116BU SM-T116NU

User Manual

English (SEA). 03/2015. Rev.1.2

www.samsung.com

Table of Contents

Read me first

Getting started

6 Package contents

7 Device layout

9 Using the SIM or USIM card and

battery

12 Using a memory card

14 Turning the device on and off

15 Locking and unlocking the screen

Basics

16 Using the touch screen

19 Home screen layout

Network connectivity

32 Mobile data

32 Wi-Fi

33 Tethering and Mobile hotspot

Motions & usability features

35 Multi window

Personalising

38 Managing the Home and Apps screens

40 Setting wallpaper and ringtones

41 Changing the screen lock method

42 Transferring data from your previous

device

23 Notifications and quick setting panels

26 Opening apps

26 Installing or uninstalling apps

28 Entering text

30 Screen capture

30 My Files

31 Power saving feature

31 Viewing help information

43 Setting up accounts

Phone

44 Making calls

45 Receiving calls

46 Options during calls

Table of Contents

Contacts

48 Adding contacts

49 Importing and exporting contacts

49 Searching for contacts

Messages & email

50 Messages

51 Email

Camera

54 Basic shooting

55 Shooting modes

Connecting with other devices

67 Bluetooth

69 Wi-Fi Direct

71 Mobile printing

Device & data manager

72 Upgrading the device

73 Transferring files between the device

and a computer

74 Backing up and restoring data

75 Performing a data reset

56 Camera settings

Gallery

58 Viewing content on the device

Useful apps and features

59 S Planner

60 Video

61 Clock

63 Calculator

63 Memo

64 Hancom Office Viewer

Settings

76 About Settings

76 CONNECTIONS

79 DEVICE

83 PERSONAL

85 SYSTEM

Troubleshooting

64 Google apps

Read me first

Please read this manual before using the device to ensure safe and proper use.

•

Descriptions are based on the device’s default settings.

•

Some content may differ from your device depending on the region, service provider, or device’s software.

•

Content (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Apps related to the content may not work properly depending on the device’s specifications and the environment that it is used in.

•

Samsung is not liable for performance issues caused by apps supplied by providers other than Samsung.

•

Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or apps to work improperly.

•

Software, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media.

•

You may incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services depending on your data plan. For large data transfers, it is recommended to use the Wi-Fi feature.

•

Default apps that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an app provided with the device, contact a Samsung Service Centre. For user-installed apps, contact service providers.

•

Modifying the device’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty.

•

Depending on the region or model, some devices are required to receive approval from the Federal Communications Commission (FCC). If your device is approved by the FCC,

→

you can view the FCC ID of the device. To view the FCC ID, tap

Settings

→

About

device

Read me first

Instructional icons

Warning: situations that could cause injury to yourself or others

Caution: situations that could cause damage to your device or other equipment

Note: notes, usage tips, or additional information

Getting started

Package contents

Check the product box for the following items:

•

Device

•

Quick start guide

•

The items supplied with the device and any available accessories may vary depending on the region or service provider.

•

The supplied items are designed only for this device and may not be compatible with other devices.

•

Appearances and specifications are subject to change without prior notice.

•

You can purchase additional accessories from your local Samsung retailer. Make sure they are compatible with the device before purchase.

•

Use only Samsung-approved accessories. Using unapproved accessories may cause the performance problems and malfunctions that are not covered by the warranty.

•

Availability of all accessories is subject to change depending entirely on manufacturing companies. For more information about available accessories, refer to the Samsung website.

Getting started

Multipurpose jack

Device layout

Earpiece

Touch screen

Home button

Recent apps button

Headset jack

GPS antenna

Front camera

Power button

Volume button

Back button

Microphone

Main antenna

SIM card slot

Speaker

Memory card slot

Rear camera

Getting started

•

Do not cover the antenna area with your hands or other objects. This may cause connectivity problems or drain the battery.

•

Using a Samsung-approved screen protector is recommended. Unapproved screen protectors may cause the sensors to malfunction.

Buttons

Button Function

•

Press and hold to turn the device on or off.

Power

•

Press to turn on or lock the screen.

•

Tap to open the list of recent apps.

Recent apps

Home

Back

Volume

•

Tap and hold to access additional options for the current screen.

•

Press to turn on the screen while the screen is locked.

•

Press to return to the Home screen.

•

Press and hold to launch

•

Tap to return to the previous screen.

•

Press to adjust the device volume.

Google

Getting started

Using the SIM or USIM card and battery

Installing the SIM or USIM card

Insert the SIM or USIM card provided by the mobile telephone service provider.

Only microSIM cards work with the device.

Open the cover of the SIM card slot.

Insert the SIM or USIM card with the gold-coloured contacts facing downwards.

Push the SIM or USIM card into the slot until it locks in place.

•

Do not insert a memory card into the SIM card slot. If a memory card happens to be lodged in the SIM card slot, take the device to a Samsung Service Centre to remove the memory card.

•

Use caution not to lose or let others use the SIM or USIM card. Samsung is not responsible for any damages or inconveniences caused by lost or stolen cards.

Close the cover of the SIM card slot.

Getting started

Removing the SIM or USIM card

Open the cover of the SIM card slot.

Push the SIM or USIM card until it disengages from the device, and then pull it out.

Pull out the SIM or USIM card.

Charging the battery

Use the charger to charge the battery before using it for the first time. A computer can be also used to charge the battery by connecting them via the USB cable.

Use only Samsung-approved chargers, batteries, and cables. Unapproved chargers or cables can cause the battery to explode or damage the device.

•

When the battery power is low, the battery icon appears empty.

•

If the battery is completely discharged, the device cannot be turned on immediately when the charger is connected. Allow a depleted battery to charge for a few minutes before turning on the device.

•

If you use multiple apps at once, network apps, or apps that need a connection to another device, the battery will drain quickly. To avoid disconnecting from the network or losing power during a data transfer, always use these apps after fully charging the battery.

Getting started

Connect the USB cable to the USB power adaptor and then plug the end of the USB cable into the multipurpose jack.

Connecting the charger improperly may cause serious damage to the device. Any damage caused by misuse is not covered by the warranty.

•

The device can be used while it is charging, but it may take longer to fully charge the battery.

•

If the device receives an unstable power supply while charging, the touch screen may not function. If this happens, unplug the charger from the device.

•

While charging, the device may heat up. This is normal and should not affect the device’s lifespan or performance. If the battery gets hotter than usual, the charger may stop charging.

•

If the device is not charging properly, take the device and the charger to a Samsung Service Centre.

After fully charging, disconnect the device from the charger. First unplug the charger from the device, and then unplug it from the electric socket.

To save energy, unplug the charger when not in use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The charger should remain close to the electric socket and easily accessible while charging.

Getting started

Reducing the battery consumption

Your device provides options that help you save the battery power. By customising these options and deactivating features in the background, you can use the device longer between charges:

•

When you are not using the device, switch to sleep mode by pressing the Power button.

•

Close unnecessary apps using the task manager.

•

Deactivate the Bluetooth feature.

•

Deactivate the Wi-Fi feature.

•

Deactivate auto-syncing of apps.

•

Decrease the backlight time.

•

Decrease the screen brightness.

Using a memory card

Installing a memory card

Your device accepts memory cards with maximum capacities of 32 GB. Depending on the memory card manufacturer and type, some memory cards may not be compatible with your device.

•

Some memory cards may not be fully compatible with the device. Using an incompatible card may damage the device or the memory card, or corrupt the data stored in it.

•

Use caution to insert the memory card right-side up.

•

The device supports the FAT and the exFAT file systems for memory cards. When inserting a card formatted in a different file system, the device asks to reformat the memory card.

•

Frequent writing and erasing of data shortens the lifespan of memory cards.

•

When inserting a memory card into the device, the memory card’s file directory appears in the

My Files

→

SD card

folder.

Getting started

Open the cover of the memory card slot.

Insert a memory card with the gold-coloured contacts facing downwards.

Push the memory card into the slot until it locks in place.

Close the cover of the memory card slot.

Removing the memory card

Before removing the memory card, first unmount it for safe removal. On the Home screen, tap

→

Settings

Open the cover of the memory card slot.

Push the memory card until it disengages from the device, and then pull it out.

Close the cover of the memory card slot.

Do not remove the memory card while the device is transferring or accessing information. Doing so can cause data to be lost or corrupted or can damage the

→

Storage

→

Unmount SD card

memory card or device. Samsung is not responsible for losses that result from the misuse of damaged memory cards, including the loss of data.

Getting started

Formatting the memory card

A memory card formatted on a computer may not be compatible with the device. Format the memory card on the device.

On the Home screen, tap

→

Erase everything

Before formatting the memory card, remember to make backup copies of all important data stored in the device. The manufacturer’s warranty does not cover loss of data resulting from user actions.

→

Settings

→

Storage

→

Format SD card

→

Format SD card

Turning the device on and off

Press and hold the Power button for a few seconds to turn on the device.

When you turn on your device for the first time or after performing a data reset, follow the onscreen instructions to set up your device.

To turn off the device, press and hold the Power button, and then tap

Follow all posted warnings and directions from authorised personnel in areas where the use of wireless devices is restricted, such as aeroplanes and hospitals.

Power off

Getting started

Locking and unlocking the screen

Pressing the Power button turns off the screen and locks it. Also, the screen turns off and automatically locks if the device is not used for a specified period.

To unlock the screen, press the Power button or the Home button and flick your finger in any direction within the unlock screen area.

You can change the unlock code to unlock the screen. Refer to Changing the screen lock

method for more information.

Basics

Using the touch screen

•

Do not allow the touch screen to come into contact with other electrical devices. Electrostatic discharges can cause the touch screen to malfunction.

•

To avoid damaging the touch screen, do not tap it with anything sharp or apply excessive pressure to it with your fingertips.

•

The device may not recognise touch inputs close to the edges of the screen, which are outside of the touch input area.

•

Leaving the touch screen idle for extended periods may result in afterimages (screen burn-in) or ghosting. Turn off the touch screen when you do not use the device.

•

It is recommended to use fingers when you use the touch screen.

Tapping

To open an app, to select a menu item, to press an on-screen button, or to enter a character using the keyboard on the screen, tap it with a finger.

Basics

Tapping and holding

Tap and hold an item or the screen for more than 2 seconds to access available options.

Dragging

To move an item, tap and hold it and drag it to the target position.

Double-tapping

Double-tap on a webpage or image to zoom in. Double-tap again to return.

Basics

Flicking

Flick left or right on the Home screen or the Apps screen to see another panel. Flick up or down to scroll through a webpage or a list of items, such as contacts.

Spreading and pinching

Spread two fingers apart on a webpage, map, or image to zoom in a part. Pinch to zoom out.

Basics

Home screen layout

Home screen

The Home screen is the starting point for accessing all of the device’s features. It displays widgets, shortcuts to apps, and more. Widgets are small apps that launch specific app functions to provide information and convenient access on your Home screen.

To view other panels, scroll left or right, or tap one of the screen indicators at the bottom of the screen. To customise the Home screen, refer to Managing the Home screen.

A widget

A folder

An app

Screen indicators

Basics

Home screen options

On the Home screen, tap and hold an empty area, or pinch your fingers together to access the available options.

Basics

Apps screen

The Apps screen displays icons for all apps, including newly installed apps.

On the Home screen, tap

to open the Apps screen. To view other panels, scroll left or right, or select a screen indicator at the bottom of the screen. To customise the Apps screen, refer to

Managing the Apps screen.

Access additional options.

An app

Screen indicators

Basics

Indicator icons

Indicator icons appear on the status bar at the top of the screen. The icons listed in the table below are most common.

The status bar may not appear at the top of the screen in some apps. To display the status bar, drag down from the top of the screen.

Icon Meaning

No signal

Signal strength

Roaming (outside of normal service area)

GPRS network connected

EDGE network connected

UMTS network connected

HSDPA network connected

HSPA+ network connected

Wi-Fi connected

Bluetooth feature activated

GPS activated

Call in progress

Missed call

Synced with the web

Connected to computer

No SIM or USIM card

Basics

Icon Meaning

New text or multimedia message

Alarm activated

Mute mode activated

Vibration mode activated

Flight mode activated

Error occurred or caution required

Battery power level

Notifications and quick setting panels

Using the notifications panel

When you receive new notifications, such as messages or missed calls, indicator icons appear on the status bar. To see more information about the icons, open the notifications panel and view the details.

To open the notifications panel, drag the status bar downwards. To close the notifications panel, drag the bar from the bottom of the screen upwards.

Basics

Launch Settings.

You can use the following functions on the notifications panel.

Activate or deactivate options.

Tap and hold a button to view

more detailed settings.

Tap a notification and perform

various actions.

View all quick setting buttons.

Clear all notifications.

Adjust the brightness.

Adjust the volume.

Rearranging quick setting buttons

To rearrange quick setting buttons on the notifications panel, tap → , tap and hold an item, and then drag the item to another location.

Basics

Using the quick setting panel

You can activate or deactivate some features on the notifications panel. To activate or deactivate more features, open the quick setting panel.

To open the quick setting panel, drag the status bar downwards with two fingers. Alternatively, tap from the bottom of the screen upwards.

Tap the following options to activate or deactivate them. You can view more detailed settings if you tap and hold a button.

•

Wi-Fi

: Refer to Wi-Fi for more information.

•

Location

•

Sound

: Refer to Location for more information.

Vibrate

on the notifications panel. To close the quick setting panel, drag the bar

Mute

: Select a sound mode.

•

Screen rotation

Some apps do not allow screen rotation.

•

Bluetooth

•

Mobile data

•

U. power saving

•

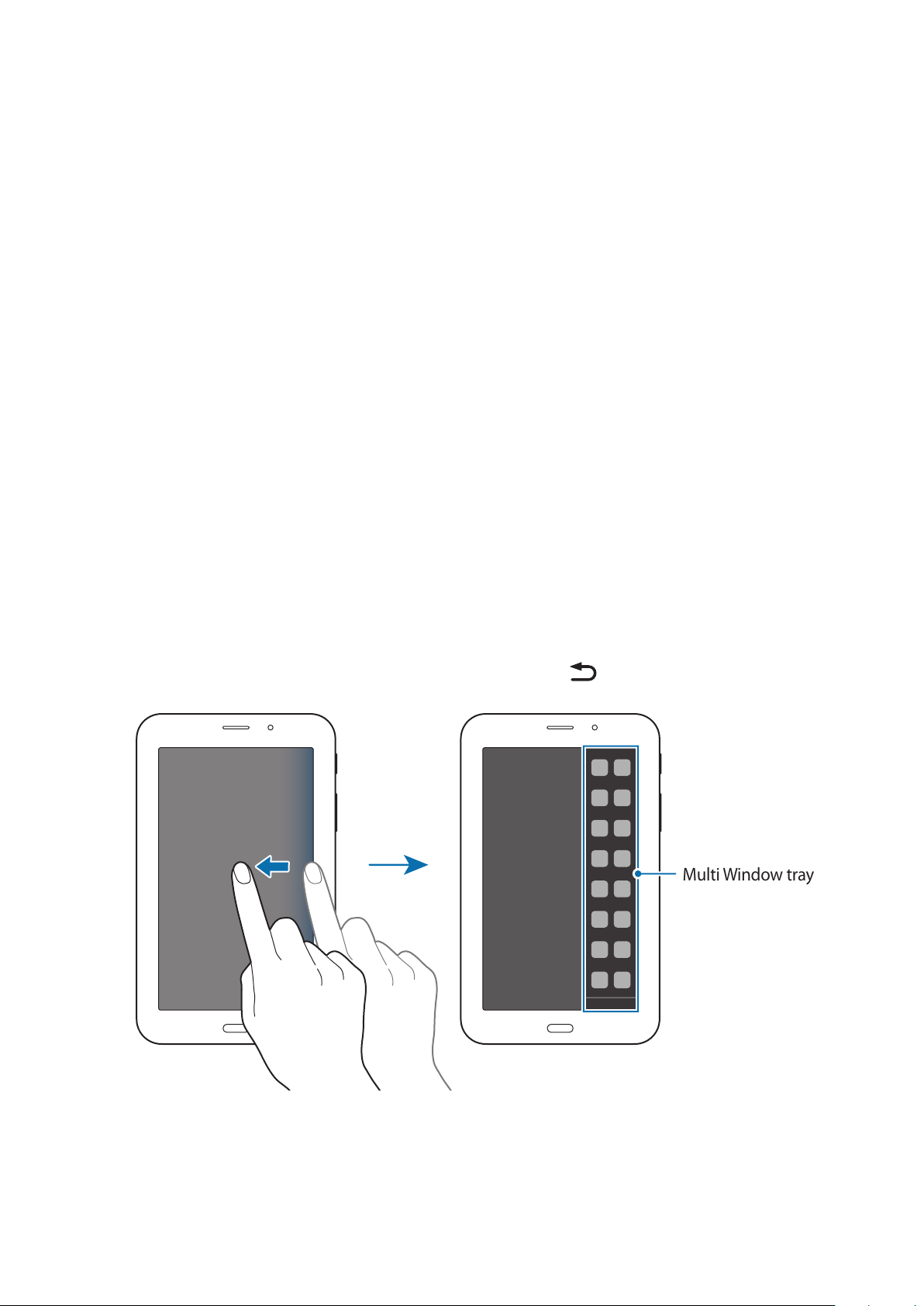

Multi window

•

Mobile hotspot

•

Sync

: When you activate this feature, the device automatically syncs apps, such as

calendar or email.

•

Flight mode

: Refer to Bluetooth for more information.

: Allow or prevent the interface from rotating when you rotate the device.

: Refer to Data usage or Mobile networks for more information.

: Refer to Ultra power saving mode for more information.

: Refer to Multi window for more information.

: Refer to Tethering and Mobile hotspot for more information.

: Refer to Flight mode for more information.

Basics

Opening apps

On the Home screen or the Apps screen, select an app icon to open it.

To open the list of recently-used apps, tap

and select an app icon to open.

Closing an app

Tap and drag an app icon to the top or bottom to close it. To close all running apps, tap

Close all

Installing or uninstalling apps

Samsung GALAXY Apps

Use this app to purchase and download apps.

Tap

GALAXY Apps

This app may not be available depending on the region or service provider.

on the Apps screen.

Installing apps

Browse apps by category or tap to search for a keyword.

Select an app to view information about it. To download free apps, tap and download apps where charges apply, tap the button that shows the app’s price.

To change the auto update settings, tap → then select an option.

Settings

→

Install

Auto update apps

. To purchase

, and

Basics

Play Store

Use this app to purchase and download apps.

Tap

Play Store

Installing apps

Browse apps by category or tap to search for a keyword.

on the Apps screen.

Select an app to view information about it. To download free apps, tap and download apps where charges apply, tap the price and follow the on-screen instructions.

To change the auto update settings, tap → then select an option.

SETTINGS

→

INSTALL

Auto-update apps

. To purchase

, and

Managing apps

Uninstalling or disabling apps

To disable default apps, open the Apps screen and tap → appears on the apps that you can disable. Select an app and tap

To uninstall downloaded apps, open the Apps screen and tap

Uninstall

app, and then tap

. Alternatively, on the Apps screen, tap

Uninstall

Settings

Uninstall/disable apps

→

Downloaded apps

→

Application manager

→ →

, select an

Enabling apps

On the Apps screen, tap → Alternatively, on the Apps screen, tap select an app, and then tap

•

Hiding apps: Hide apps in the Apps screen only. You can continue to use hidden apps.

•

Disabling apps: Disable selected default apps that cannot be uninstalled from the device. You cannot use disabled apps.

•

Uninstalling apps: Uninstall downloaded apps.

Show disabled apps

Enable

Settings

, select apps, and then tap

→

Application manager

Done

, scroll to

DISABLED

Basics

Delete a preceding character.

Entering text

Keyboard layout

A keyboard appears automatically when you enter text to send messages, create memos, and more.

Text entry is not supported in some languages. To enter text, you must change the input language to one of the supported languages.

Enter punctuation marks.

Break to the next line.

Enter uppercase. For all caps,

tap it twice.

Move the cursor.

Change the keyboard settings.

Enter a space.

Changing the input language

Tap → more languages, you can switch between the input languages by sliding the space key left or right.

Select input languages

, and then select the languages to use. If you select two or

Basics

Using additional keyboard functions

Tap and hold to use various functions. Other icons may appear instead of depending on the last function that was used.

•

: Enter text by voice.

Change the language.

Open the keyboard.

Start or pause entering text by voice.

•

: Change the keyboard settings.

•

: Enter emoticons.

•

: Change the keyboard type. You can move the keyboard to another location by

dragging

Switch to the standard

keyboard.

Copying and pasting

Tap and hold over text.

Drag or to select the desired text, or tap

Select all

to select all text.

Tap

Copy

Cut

Place the cursor where the text is to be inserted and tap →

. The selected text is copied to the clipboard.

Paste

Basics

Search for files or folders.

View files that are grouped by

Screen capture

Capture a screenshot while using the device.

Press and hold the Home button and the Power button simultaneously. The image is saved in the

Gallery

the image and share it with others.

→ →

It is not possible to capture a screenshot while using some apps.

Album

→

Screenshots

folder. After capturing a screenshot, you can edit

My Files

Use this app to access various files stored in the device.

Tap

My Files

View files stored in the device.

View the download history.

on the Apps screen. Alternatively, tap on the Home screen.

View shortcuts to folders.

View files by categories.

date.

Access additional options.

Change the view mode.

+ 67 hidden pages
