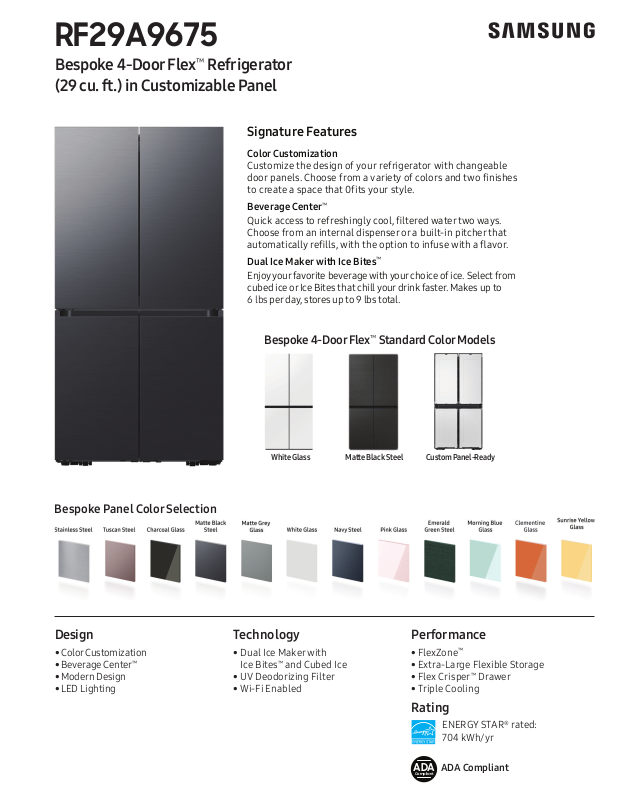

Page 1

RF29A9675

Navy Glass

Champagne Steel

Black Matte Steel

FactoryInstalled

Navy Steel

Bespoke 4-Door Flex™ Refrigerator (29 cu. ft.) in Customizable Panel

Signature Features

Color Customization

Customize the design of your refrigerator with changeable door panels. Choose from a variety of colors and two finishes to create a space that 0fits your style.

Beverage Center

Quick access to refreshingly cool, ﬁ ltered water two ways.

Choose from an internal dispenser or a built-in pitcher that

automatically reﬁ lls, with the option to infuse with a ﬂ avor.

Dual Ice Maker with Ice Bites

Enjoy your favorite beverage with your choice of ice. Select from cubed ice or Ice Bites that chill your drink faster. Makes up to

6 lbs per day, stores up to 9 lbs total.

™

Bespoke Panel Color Selection

Bespoke 4-Door Flex™ Standard Color Models

Matte Black SteelWhite Glass

Custom Panel-Ready

Design

• Color Customization

• Beverage Center

• Modern Design

• LED Lighting

™

Technology

• Dual Ice Maker with Ice Bites™ and Cubed Ice

• UV Deodorizing Filter

• Wi-Fi Enabled

Performance

• FlexZone

• Extra-Large Flexible Storage

• Flex Crisper™ Drawer

• Triple Cooling

™

Rating

ENERGY STAR® rated: 704 kWh/yr

ADA

ADA Compliant

Compliant

Page 2

RF29A9675

125° 125°

21/4"

59"

/4"

21/4"

Bespoke 4-Door Flex™ Refrigerator (29 cu. ft.) in Customizable Panel

Installation Specifications

1. Measure the height, width and depth of the opening, making sure to include baseboards, molding tile, countertop overhang, etc. Check to be sure there is enough room to open the door (consider walls, islands or other obstacles when measuring).

2. Refer to illustration below to determine dimensions.

3. Allow 2.5" of clearance on hinge side of refrigerator when installing next to a wall

where handle may make contact.

4. Allow 1" minimum clearance at rear for proper air circulation and water/electrical connections. Allow a 3/8" minimum clearance at sides and top for ease of installation.

5. Ensure each door and entryway in the home is wide enough for the refrigerator

to be moved through easily.

For optimal usage and ability to open refrigerator doors completely, do not install next to a wall.

Please note: The following dimension and cutout information is for planning purposes only. For complete installation details, consult manual packed with product or download manual online at samsung.com.

Measure height including flooring. Be sure to allow for hinge clearance height if needed.

Measure width including countertop overhang.

Measure depth including molding or trim.

Dimensions

/4"

125° 125°

59"

/ 29

113/4"

21/4"

341/4"

703/4"

293/8"

/8"

73"

Total Capacity: 29 cu. ft.

Refrigerator: 17.4 cu. ft.

• 4 Tempered Glass Spill-Proof Shelves

• 2 Clear Drawers: Flex Crisper™ and Crisper+

• 6 Door Bins Right: 1 Gallon Bin, 2 Regular Bins Left: 1 Gallon Bin, 2 Regular Bins

• LED Lighting

Freezer: 11.6 cu. ft.

• Dual Ice Maker in Freezer (Cubed Ice or Ice Bites™) 2 Ice Buckets with Cover and 1 Scoop

• 3 Slide-Out Shelves

• 2 Clear Drawers

• 6 Door Bins

• LED Lighting

Accessories

Water Filter: HAF-QIN

Warranty

One (1) Year Parts and Labor on Refrigerator Two (2) Years Parts and Labor on Ice Maker Five (5) Years Parts and Labor on

Sealed Refrigeration System Only* Ten (10) Years Parts and Five (5) Years

Labor on Digital Inverter Compressor

*Compressor, evaporator, condenser, drier and connecting tubing.

Product Dimensions

Dimensions (WxHxD with hinges and doors): 357/8" x 73" x 341/4"

Dimensions (WxHxD without hinges and door): 357/8" x 703/4" x 293/8"

Shipping Dimensions (WxHxD)

Dimensions: 381/4" x 785/8" x 361/4"

Color Model # UPC Code Product & Shipping Weight (lbs)

Matte Black Steel RF29A9675MT 887276525785 352.7 374.8

White Glass RF29A967512 887276651385 361.6 383.6

Custom Panel-Ready RF29A9675AP 887276525778 330.7 352.7

Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
