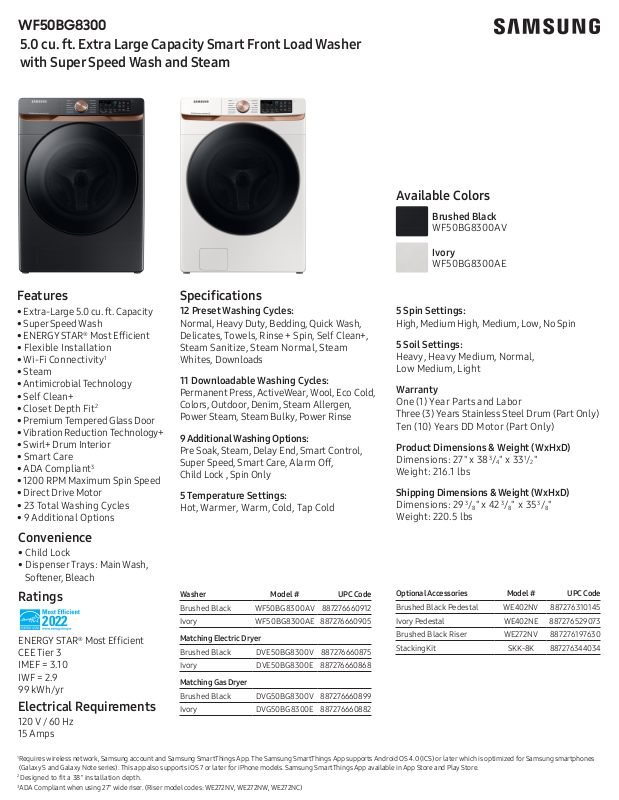

Page 1
WF50BG8300
5.0 cu. ft. Extra Large Capacity Smart Front Load Washer
with Super Speed Wash and Steam
Available Colors
Brushed Black
WF50BG8300AV
Ivory
WF50BG8300AE
Features
• Extra-Large 5.0 cu. ft. Capacity
• Super Speed Wash
• ENERGY STAR® Most Efcient
• Flexible Installation
• Wi-Fi Connectivity
1
• Steam
• Antimicrobial Technology
• Self Clean+
• Closet Depth Fit
2
• Premium Tempered Glass Door
• Vibration Reduction Technology+
• Swirl+ Drum Interior
• Smart Care
• ADA Compliant
3
• 1200 RPM Maximum Spin Speed
• Direct Drive Motor
• 23 Total Washing Cycles
• 9 Additional Options
Convenience
• Child Lock
• Dispenser Trays: Main Wash,
Softener, Bleach
Ratings
2022
ENERGY STAR® Most Efcient
CEE Tier 3
IMEF = 3.10
IWF = 2.9
99 kWh/yr
Electrical Requirements
120 V / 60 Hz
15 Amps
Specifications
12 Preset Washing Cycles:
Normal, Heavy Duty, Bedding, Quick Wash,
Delicates, Towels, Rinse + Spin, Self Clean+,
Steam Sanitize, Steam Normal, Steam
Whites, Downloads
11 Downloadable Washing Cycles:
Permanent Press, ActiveWear, Wool, Eco Cold,
Colors, Outdoor, Denim, Steam Allergen,
Power Steam, Steam Bulky, Power Rinse
9 Additional Washing Options:
Pre Soak, Steam, Delay End, Smart Control,
Super Speed, Smart Care, Alarm Off,
Child Lock , Spin Only
5 Temperature Settings:
Hot, Warmer, Warm, Cold, Tap Cold
Washer Model # UPC Code
Brushed Black WF50BG8300AV 887276660912
Ivory WF50BG8300AE 887276660905
Matching Electric Dryer
Brushed Black DVE50BG8300V 887276660875
Ivory DVE50BG8300E 887276660868
Matching Gas Dryer
Brushed Black DVG50BG8300V 887276660899
Ivory DVG50BG8300E 887276660882
5 Spin Settings:
High, Medium High, Medium, Low, No Spin
5 Soil Settings:
Heavy, Heavy Medium, Normal,
Low Medium, Light
Warranty
One (1) Year Parts and Labor
Three (3) Years Stainless Steel Drum (Part Only)
Ten (10) Years DD Motor (Part Only)
Product Dimensions & Weight (WxHxD)
Dimensions: 27" x 383/4" x 331/2"
Weight: 216.1 lbs
Shipping Dimensions & Weight (WxHxD)
Dimensions: 293/8" x 423/8" x 353/8"
Weight: 220.5 lbs
Optional Accessories Model # UPC Code
Brushed Black Pedestal WE402NV 887276310145
Ivory Pedestal WE402NE 887276529073
Brushed Black Riser WE272NV 887276197630
Stacking Kit SKK-8K 887276344034
1
Requires wireless network, Samsung account and Samsung SmartThings App. The Samsung SmartThings App supports Android OS 4.0 (ICS) or later which is optimized for Samsung smartphones
(Galaxy S and Galaxy Note series). This app also supports iOS 7 or later for iPhone models. Samsung SmartThings App available in App Store and Play Store.
2
Designed to fit a 38" installation depth.
3
ADA Compliant when using 27" wide riser. (Riser model codes: WE272NV, WE272NW, WE272NC)
Page 2
331/2"
27"
5213/16"
38
3
/4"
54
13
/16"
Depth with door open 90°
1"
Depth including washer clearance
1" 1"
2"
1"
33
1
/2"
Closet or Door
1"
1
7
/8"
2
13
/16"
Gas Dryer
only
7"
6
15
/16"
6
1
/8"
1
7
/8"
33
3
/8"
41
1
/2"
Gas Dryer
only
54
13
/16"
Depth with door open 90°
Area:
48 in.
2
3"
6"
78
1
/2"
331/2"
27"
13
/16"
3
/4"
54
13
/16"
Depth with door open 90°
Closet or Door
1
7
/8"
WF50BG8300
5.0 cu. ft. Extra Large Capacity Smart Front Load Washer
with Super Speed Wash and Steam
Dimensions
Required dimensions for
installation with pedestal:
383/4"
5213/16"
27"
331/2"
Installation Specifications – Side-by-Side
If the washer and dryer are installed together or the dryer alone, the closet front must have two unobstructed air
openings for a combined minimum total area of 72-inch2. Your washer alone does not require a specific air opening.
Recessed Area Side View Conned
Alcove or closet installation
Minimum clearance for
closet and alcove installations:
1"
Depth with door open 90°
13
54
/16"
Depth including washer clearance
33
1
/2"
Connection Dimensions
Back view of washer
LEGEND:
Cold Water Connection
•
Hot Water Connection
•
Actual color may vary. Design, specifications,
and color availability are subject to change without
notice. Non-metric weights and measurements are
approximate.
©2022 Samsung Electronics America, Inc.,
85 Challenger Road, Ridgeeld Park, NJ 07660.
Tel: 800-SAMSUNG. samsung.com. Samsung is a
registered trademark of Samsung Electronics Co., Ltd.
1" 1"
2"
1"
1"
33
10
6
3
1
/4"- Cold Water
5
/16" - Hot Water
/8"
Page 3
4
/8"
1"1"
1"
Area:
48 in.
2
Area:
24 in.
2
3"
3"
4
5
/8"
1"1"
1"
6"
78
1
/2"
7
1
/8"
42
11
/16"
10
1
/4"- Cold Water
33
3
/8"
14
7
/8"
6
1
/8"
45
3
/4"
42
11
/16"
6
5
/16" - Hot Water
4
5
/8"
1"1"
78
1
/2"
10
1
/4"- Cold Water
33
3
/8"
14
7
/8"
6
1
/8"
45
3
/4"
42
11
/16"
5
WF50BG8300
5.0 cu. ft. Extra Large Capacity Smart Front Load Washer
with Super Speed Wash and Steam
Installation Specifications – Stacked Pair
Clearances indicated are for stacked pairs. The closet front must have two unobstructed air openings for a combined minimum total area of 72-inch2.
6"
781/2"
Connection Dimensions
Back and side views of stacked pair
147/8"
7
1
/8"
Gas Dryer
only
1
6
/8"
5
LEGEND:
Cold Water Connection
•
Hot Water Connection
•
Gas Connection
•
Actual color may vary. Design, specifications,
and color availability are subject to change without
notice. Non-metric weights and measurements are
approximate.
©2022 Samsung Electronics America, Inc.,
85 Challenger Road, Ridgeeld Park, NJ 07660.
Tel: 800-SAMSUNG. samsung.com. Samsung is a
registered trademark of Samsung Electronics Co., Ltd.
11
42
10
/16"
3
45
/4"
1
/4"- Cold Water
5
6
/16" - Hot Water
7
1
/8"
411/2"
3
33
/8"
42
11
/16"
