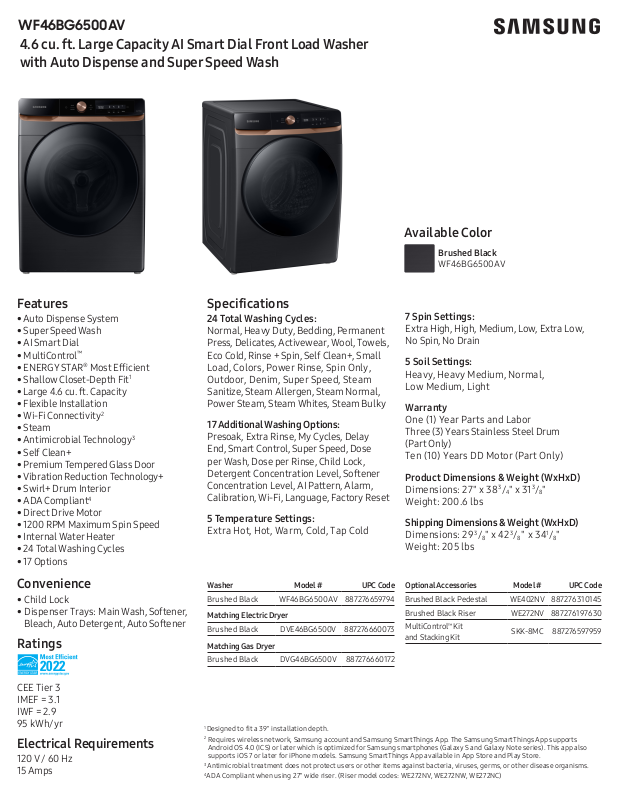

Page 1
WF46BG6500AV
4.6 cu. ft. Large Capacity AI Smart Dial Front Load Washer
with Auto Dispense and Super Speed Wash
Available Color
Brushed Black
WF46BG6500AV
Features
• Auto Dispense System
• Super Speed Wash
• AI Smart Dial
• MultiControl
™
• ENERGY STAR® Most Efcient
• Shallow Closet-Depth Fit
1
• Large 4.6 cu. ft. Capacity
• Flexible Installation
• Wi-Fi Connectivity
2
• Steam
• Antimicrobial Technology
3
• Self Clean+
• Premium Tempered Glass Door
• Vibration Reduction Technology+
• Swirl+ Drum Interior
• ADA Compliant
4
• Direct Drive Motor
• 1200 RPM Maximum Spin Speed
• Internal Water Heater
• 24 Total Washing Cycles
• 17 Options
Convenience
• Child Lock
• Dispenser Trays: Main Wash, Softener,
Bleach, Auto Detergent, Auto Softener
Ratings
2022
Specifications
24 Total Washing Cycles:
Normal, Heavy Duty, Bedding, Permanent
Press, Delicates, Activewear, Wool, Towels,
Eco Cold, Rinse + Spin, Self Clean+, Small
Load, Colors, Power Rinse, Spin Only,
Outdoor, Denim, Super Speed, Steam
Sanitize, Steam Allergen, Steam Normal,
Power Steam, Steam Whites, Steam Bulky
17 Additional Washing Options:
Presoak, Extra Rinse, My Cycles, Delay
End, Smart Control, Super Speed, Dose
per Wash, Dose per Rinse, Child Lock,
Detergent Concentration Level, Softener
Concentration Level, AI Pattern, Alarm,
Calibration, Wi-Fi, Language, Factory Reset
5 Temperature Settings:
Extra Hot, Hot, Warm, Cold, Tap Cold
Washer Model # UPC Code
Brushed Black WF46BG6500AV 887276659794
Matching Electric Dryer
Brushed Black DVE46BG6500V 887276660073
Matching Gas Dryer
Brushed Black DVG46BG6500V 887276660172
7 Spin Settings:
Extra High, High, Medium, Low, Extra Low,
No Spin, No Drain
5 Soil Settings:
Heavy, Heavy Medium, Normal,
Low Medium, Light
Warranty
One (1) Year Parts and Labor
Three (3) Years Stainless Steel Drum
(Part Only)
Ten (10) Years DD Motor (Part Only)
Product Dimensions & Weight (WxHxD)
Dimensions: 27" x 383/4" x 313/8"
Weight: 200.6 lbs
Shipping Dimensions & Weight (WxHxD)
Dimensions: 293/8" x 423/8" x 341/8"
Weight: 205 lbs
Optional Accessories Model # UPC Code
Brushed Black Pedestal WE402NV 887276310145
Brushed Black Riser WE272NV 887276197630
MultiControl™ Kit
and Stacking Kit
SKK-8MC 887276597959
CEE Tier 3
IMEF = 3.1
IWF = 2.9
95 kWh/yr
Electrical Requirements
120 V / 60 Hz
15 Amps
1
Designed to fit a 39" installation depth.
2
Requires wireless network, Samsung account and Samsung SmartThings App. The Samsung SmartThings App supports
Android OS 4.0 (ICS) or later which is optimized for Samsung smartphones (Galaxy S and Galaxy Note series). This app also
supports iOS 7 or later for iPhone models. Samsung SmartThings App available in App Store and Play Store.
3
Antimicrobial treatment does not protect users or other items against bacteria, viruses, germs, or other disease organisms.
4
ADA Compliant when using 27" wide riser. (Riser model codes: WE272NV, WE272NW, WE272NC)
Page 2
313/8"
27"
5213/16"
38
3
/4"
52
3
/8"
Depth with door open 90°
1"
Depth including washer clearance
1" 1"
2"
1"
31
3
/8"
Closet or Door
1"
1
7
/8"
2
13
/16"
Gas Dryer
only
7"
7"
6
1
/8"
1
7
/8"
33
3
/8"
41
1
/2"
Gas Dryer
only
52
3
/8"
Depth with door open 90°
Area:
48 in.
2
3"
6"
78
1
/2"
313/8"
27"
13
/16"
3
/4"
52
3
/8"
Depth with door open 90°
Closet or Door
1
7
/8"
WF46BG6500AV
4.6 cu. ft. Large Capacity AI Smart Dial Front Load Washer
with Auto Dispense and Super Speed Wash
Dimensions
Required dimensions for
installation with pedestal:
383/4"
5213/16"
27"
313/8"
Installation Specifications – Side-by-Side
If the washer and dryer are installed together or the dryer alone, the closet front must have two unobstructed air
openings for a combined minimum total area of 72-inch2. Your washer alone does not require a specific air opening.
Recessed Area Side View Conned
Alcove or closet installation
Minimum clearance for
closet and alcove installations:
1"
Depth with door open 90°
3
52
/8"
Depth including washer clearance
31
3
/8"
Connection Dimensions
Back view of washer
LEGEND:
Cold Water Connection
•
Hot Water Connection
•
Actual color may vary. Design, specifications,
and color availability are subject to change without
notice. Non-metric weights and measurements are
approximate.
©2022 Samsung Electronics America, Inc.,
85 Challenger Road, Ridgeeld Park, NJ 07660.
Tel: 800-SAMSUNG. samsung.com. Samsung is a
registered trademark of Samsung Electronics Co., Ltd.
1" 1"
2"
1"
1"
33
10
6
3
1
/4"- Cold Water
5
/16" - Hot Water
/8"
Page 3
5
/8"
1"1"
1"
Area:
48 in.
2
Area:
24 in.
2
3"
3"
5
1
/8"
1"1"
1"
6"
78
1
/2"
6
15
/16"
42
11
/16"
10
1
/4"- Cold Water
33
3
/8"
14
7
/8"
6
1
/8"
45
3
/4"
42
11
/16"
6
5
/16" - Hot Water
5
1
/8"
1"1"
78
1
/2"
10
1
/4"- Cold Water
33
3
/8"
14
7
/8"
6
1
/8"
45
3
/4"
42
11
/16"
5
WF46BG6500AV
4.6 cu. ft. Large Capacity AI Smart Dial Front Load Washer
with Auto Dispense and Super Speed Wash
Installation Specifications – Stacked Pair
Clearances indicated are for stacked pairs. The closet front must have two unobstructed air openings for a combined minimum total area of 72-inch2.
6"
781/2"
Connection Dimensions
Back and side views of stacked pair
147/8"
7
1
/8"
Gas Dryer
only
1
6
/8"
1
LEGEND:
Cold Water Connection
•
Hot Water Connection
•
Gas Connection
•
Actual color may vary. Design, specifications,
and color availability are subject to change without
notice. Non-metric weights and measurements are
approximate.
©2022 Samsung Electronics America, Inc.,
85 Challenger Road, Ridgeeld Park, NJ 07660.
Tel: 800-SAMSUNG. samsung.com. Samsung is a
registered trademark of Samsung Electronics Co., Ltd.
11
42
10
/16"
3
45
/4"
1
/4"- Cold Water
5
6
/16" - Hot Water
6
15
/16"
411/2"
3
33
/8"
42
11
/16"
