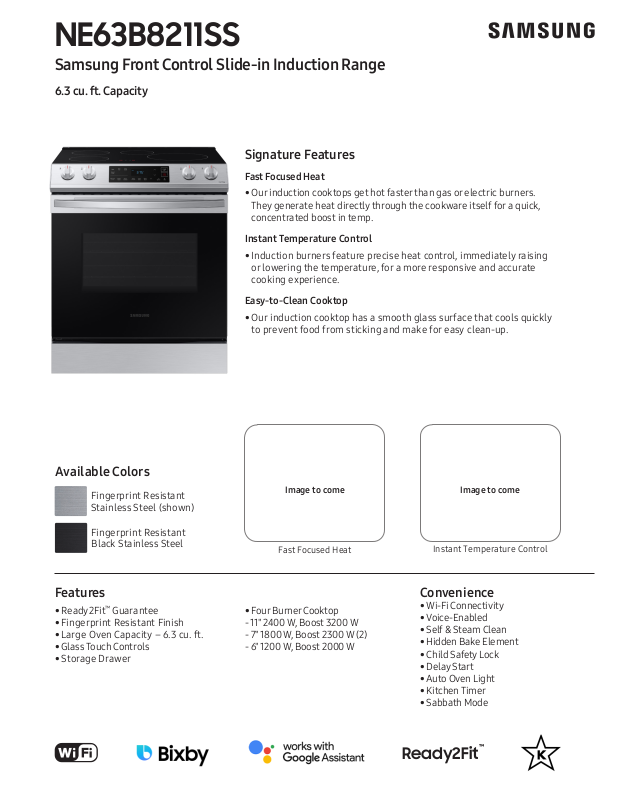

Page 1
NE63B8211SS
Samsung Front Control Slide-in Induction Range
6.3 cu. ft. Capacity
Signature Features
Fast Focused Heat
• Our induction cooktops get hot faster than gas or electric burners.
They generate heat directly through the cookware itself for a quick,
concentrated boost in temp.
Instant Temperature Control
• Induction burners feature precise heat control, immediately raising
or lowering the temperature, for a more responsive and accurate
cooking experience.
Easy-to-Clean Cooktop
• Our induction cooktop has a smooth glass surface that cools quickly
to prevent food from sticking and make for easy clean-up.
Available Colors
Fingerprint Resistant
Stainless Steel (shown)
Fingerprint Resistant
Black Stainless Steel
Features
• Ready2Fit™ Guarantee
• Fingerprint Resistant Finish
• Large Oven Capacity – 6.3 cu. ft.
• Glass Touch Controls
• Storage Drawer
Image to come Image to come
Fast Focused Heat
• Four Burner Cooktop
- 11" 2400 W, Boost 3200 W
- 7" 1800 W, Boost 2300 W (2)
- 6" 1200 W, Boost 2000 W
Instant Temperature Control
Convenience
• Wi-Fi Connectivity
• Voice-Enabled
• Self & Steam Clean
• Hidden Bake Element
• Child Safety Lock
• Delay Start
• Auto Oven Light
• Kitchen Timer
• Sabbath Mode
™
Ready2Fit
Page 2
NE63B8211
B
29
3
⁄4"
35
7
⁄8"
25"
24"
6"
3"
24"
3"
Samsung Front Control Slide-in Induction Range
6.3 cu. ft. Capacity
Installation Specifications
3"
25"
24"
357⁄8"
6"
A
36"-363⁄4"
2915⁄16"
293⁄4"
2811⁄16"
267⁄16"
491⁄4"
A: Cabinet opening min 30"
B: Acceptable electrical outlet area
IMPORTANT: If your cabinets are over 363⁄4" high, you must install this range
on a hard, heat-resistant support that raises the surface of the range so that
it is about even with the countertop.
24"
3"
B
Power Source
240V/208V/60 Hz/40A
Electric Ceramic Cooktop
• Right Front: 11", 2400 W, Boost 3200 W
• Left Front: 7", 1800 W, Boost 2300 W
• Right Rear: 6", 1200 W, Boost 2000 W
• Left Rear: 7", 1800 W, Boost 2300 W
Oven
• Capacity: 6.3 cu. ft.
• Hidden Bake Element
• Bake
• Variable Broil: Low/High
• Bread Proof
• Favorite Cook (App Based)
• Keep Warm
Warranty
One (1) Year Parts and Labor
Product Dimensions & Weight (WxHxD)
Oven Interior Dimensions:
2413/16" x 227/16" x 193/4"
Outside Net Dimensions:
2915/16" x 36- 363/4" (Adjustable) x 2811/16"
Weight: 166 lbs
Shipping Dimensions & Weight (WxHxD)
* 30" minimum clearance between the top
of the cooking surface and the bottom of an
30"
* 30"
** 15"
unprotected wood or metal cabinet; or 24"
minimum when the bottom of the wood or
metal cabinet is protected by not less than
¼" of flame retardant millboard covered
with not less than no.28 MSG sheet steel,
0.015" stainless steel, 0.024" aluminum,
or 0.020" copper.
** 15" minimum between the countertop
and the adjacent cabinet bottom.
IMPORTANT: Consult with Installation
Manual for detailed instructions before
installing. All ranges must be installed
with the Anti-Tip device that is included.
Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
©2022 Samsung Electronics America, Inc. 85 Challenger Road, Ridgeeld Park, NJ 07660. Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co. Ltd.
Dimensions:
331/16" x 413/4" x 305/16"
Weight: 189 lbs
Color Model # UPC Code
Fingerprint Resistant
Stainless Steel NE63B8211SS 887276627656
Fingerprint Resistant
Black Stainless Steel NE63B8211SG 887276627649
