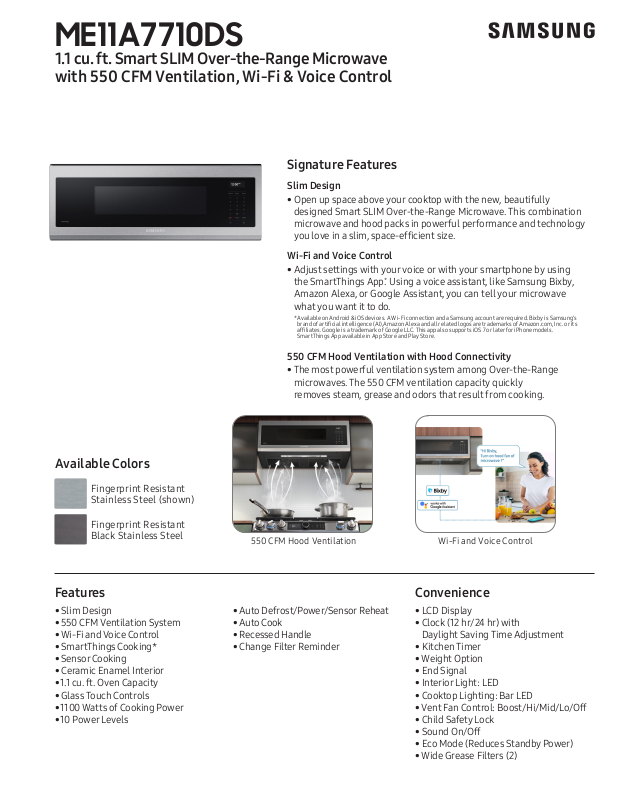

Page 1

ME11A7710DS

Stainless Steel

1.1 cu. ft. Smart SLIM Over-the-Range Microwave with 550 CFM Ventilation, Wi-Fi & Voice Control

Signature Features

Slim Design

• Open up space above your cooktop with the new, beautifully designed Smart SLIM Over-the-Range Microwave. This combination microwave and hood packs in powerful performance and technology you love in a slim, space-efficient size.

Wi-Fi and Voice Control

• Adjust settings with your voice or with your smartphone by using the SmartThings App.* Using a voice assistant, like Samsung Bixby, Amazon Alexa, or Google Assistant, you can tell your microwave what you want it to do.

* Availab le on Android & i OS devices . A Wi-Fi conn ection a nd a Samsung ac count are req uired. Bixb y is Samsung ’s

brand of a rticia l intelligen ce (AI),Ama zon Alexa and all re lated logo s are trademar ks of Amazon .com, Inc. or it s af liates. Go ogle is a tradema rk of Google LL C. This app als o support s iOS 7 or later for iP hone model s. Smar tThings App avai lable in App Stor e and Play Store.

Available Colors

Fingerprint Resistant Stainless Steel (shown)

Fingerprint Resistant Black Stainless Steel

Features

• Slim Design

• 550 CFM Ventilation System

• Wi-Fi and Voice Control

• SmartThings Cooking*

• Sensor Cooking

• Ceramic Enamel Interior

• 1.1 cu. ft. Oven Capacity

• Glass Touch Controls

• 1100 Watts of Cooking Power

• 10 Power Levels

550 CFM Hood Ventilation with Hood Connectivity

• The most powerful ventilation system among Over-the-Range microwaves. The 550 CFM ventilation capacity quickly removes steam, grease and odors that result from cooking.

• Auto Defrost/Power/Sensor Reheat

• Auto Cook

• Recessed Handle

• Change Filter Reminder

Wi-Fi and Voice Control550 CFM Hood Ventilation

Convenience

• LCD Display

• Clock (12 hr/24 hr) with Daylight Saving Time Adjustment

• Kitchen Timer

• Weight Option

• End Signal

• Interior Light: LED

• Cooktop Lighting: Bar LED

• Vent Fan Control: Boost/Hi/Mid/Lo/Off

• Child Safety Lock

• Sound On/Off

• Eco Mode (Reduces Standby Power)

• Wide Grease Filters (2)

Page 2

ME11A7710DS

1.1 cu. ft. Smart SLIM Over-the-Range Microwave with 550 CFM Ventilation, Wi-Fi & Voice Control

Dimensions

191/8"

Installing Your Microwave

• This microwave oven is designed for adaptation to the following three types of ventilation:

A. Outside Top Exhaust (Vertical Duct)

B. Recirculating (Non-vented Ductless)

C. Outside Back Exhaust

(Horizontal Duct)

• The space between the cabinets must be 30" wide and free of obstructions.

• This microwave oven is for installation over ranges up to 36" wide.

• The microwave must be level. Use a level to make sure the cabinet bottom is level. If the cabinets have a front overhang only, with no back or side frame, install the mounting plate down the same distance as the front overhang depth. This will keep the microwave level.

297/8"

12" max

161/2"

30"

103/4"

30" min.

Specifications

• Oven Cavity: 1.1 cu. ft.

• Power Output: 1100W

• Power Consumption: 1650 W/14.5 Amps

• Power Source: 120 V/60 Hz

• Control Method: Glass Touch

• Display: White LCD

• Cooking Control: 10 Power Levels, Including Defrost

• Cooking Timer: Digital, up to 99 Minutes, 99 Seconds

• Microwave Distribution System: Turntable

• Glass Turntable Diameter: 111⁄2"

• Vent Fan: 4-Speed/550 CFM

• Vent Fan Control: Boost/Hi/Mid/Lo/Off

• Interior Light: LED

• Cooktop Lighting: Bar LED

Warranty

One (1) Year Parts and Labor Ten (10) Years Parts on Magnetron

Product Dimensions & Weight (WxHxD)

Cavity Dimensions: 181/2" x 615/16" x 1415/16" Outside Net Dimensions: 297/8" x 103/4" x 191/8" Weight: 58.9 lbs

Shipping Dimensions & Weight (WxHxD)

Dimensions: 331/4" x 157/16" x 221/8" Weight: 65.3 lbs

Color Model # UPC Code

Fingerprint Resistant Stainless Steel ME11A7710DS 887276551456

Fingerprint Resistant Black Stainless Steel ME11A7710DG 887276577418

FOR EASIER INSTALLATION AND PERSONAL SAFETY, WE RECOMMEND THAT TWO PEOPLE INSTALL THIS MICROWAVE OVEN. IMPORTANT: Do not grip or use handle during installation.

NOTE: If your cabinet is metal, use the nylon grommet around the power cord hole to prevent cutting of the cord.

NOTE: We recommend using ller blocks if the cabinet front hangs below the cabinet bottom shelf.

IMPORTANT: If ller blocks are not used, case damage may occur from overtightening screws.

NOTE: When mounting the microwave oven, thread power cord through hole in bottom of top cabinet. Do not pinch cord or lift oven by pulling cord.

Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
