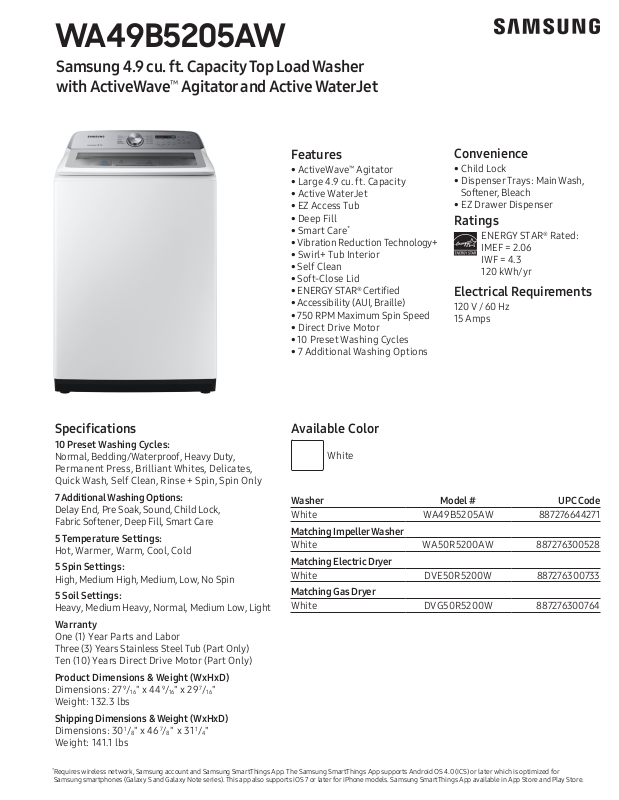

Page 1
WA49B5205AW
Samsung 4.9 cu. ft. Capacity Top Load Washer
with ActiveWave™ Agitator and Active WaterJet
Specifications
10 Preset Washing Cycles:
Normal, Bedding/Waterproof, Heavy Duty,
Permanent Press, Brilliant Whites, Delicates,
Quick Wash, Self Clean, Rinse + Spin, Spin Only
7 Additional Washing Options:
Delay End, Pre Soak, Sound, Child Lock,
Fabric Softener, Deep Fill, Smart Care
5 Temperature Settings:
Hot, Warmer, Warm, Cool, Cold
5 Spin Settings:
High, Medium High, Medium, Low, No Spin
5 Soil Settings:
Heavy, Medium Heavy, Normal, Medium Low, Light
Warranty
One (1) Year Parts and Labor
Three (3) Years Stainless Steel Tub (Part Only)
Ten (10) Years Direct Drive Motor (Part Only)
Product Dimensions & Weight (WxHxD)
Dimensions: 279/16" x 449/16" x 297/16"
Weight: 132.3 lbs
Shipping Dimensions & Weight (WxHxD)
Dimensions: 301/8" x 467/8" x 311/4"
Weight: 141.1 lbs
Features
• ActiveWave™ Agitator
• Large 4.9 cu. ft. Capacity
• Active WaterJet
• EZ Access Tub
• Deep Fill
• Smart Care
• Vibration Reduction Technology+
• Swirl+ Tub Interior
• Self Clean
• Soft-Close Lid
• ENERGY STAR® Certied
• Accessibility (AUI, Braille)
• 750 RPM Maximum Spin Speed
• Direct Drive Motor
• 10 Preset Washing Cycles
• 7 Additional Washing Options
*
Convenience
• Child Lock
• Dispenser Trays: Main Wash,
Softener, Bleach
• EZ Drawer Dispenser
Ratings
ENERGY STAR® Rated:
IMEF = 2.06
IWF = 4.3
120 kWh/yr
Electrical Requirements
120 V / 60 Hz
15 Amps
Available Color
White
Washer Model # UPC Code
White WA49B5205AW 887276644271
Matching Impeller Washer
White WA50R5200AW 887276300528
Matching Electric Dryer
White DVE50R5200W 887276300733
Matching Gas Dryer
White DVG50R5200W 887276300764
*
Requires wireless network, Samsung account and Samsung SmartThings App. The Samsung SmartThings App supports Android OS 4.0 (ICS) or later which is optimized for
Samsung smartphones (Galaxy S and Galaxy Note series). This app also supports iOS 7 or later for iPhone models. Samsung SmartThings App available in App Store and Play Store.
Page 2
WA49B5205AW
4"
297/16"
585/16"
1"
1"
1"
1"
5
/16"
279/16"
449/16"
4"
27"
44
4"
297/16"
585/16"
1"1"
301/4"
1"
1"
5
15
/16"
21"
279/16"
449/16"
4"
27"
44
6
1
/8"
4"
27"
44
Samsung 4.9 cu. ft. Capacity Top Load Washer
with ActiveWave™ Agitator and Active WaterJet
Dimensions
Required dimensions
for installation:
279/16"
4"
449/16"
297/16"
Installation Specifications – Side-by-Side or Stand-alone
If the washer and dryer are installed together or the dryer alone, the closet front must have two unobstructed air
openings for a combined minimum total area of 72-inch2. Your washer alone does not require a specific air opening.
585/16"
Alcove or closet installation
Minimum clearance for
closet and alcove installations:
Connection Dimensions
Back view of washer
Recessed Area
15
13
7
/16"- Hot Water
1
/16" - Cold Water
Side View Conned
21"
301/4"
Depth including dryer clearance
15
LEGEND:
Hot Water Connection
•
Cold Water Connection
•
Actual color may vary. Design, specifications,
and color availability are subject to change without
notice. Non-metric weights and measurements are
approximate.
©2022 Samsung Electronics America, Inc.,
85 Challenger Road, Ridgeeld Park, NJ 07660.
Tel: 800-SAMSUNG. samsung.com. Samsung is a
registered trademark of Samsung Electronics Co., Ltd.
15
39
/16"
