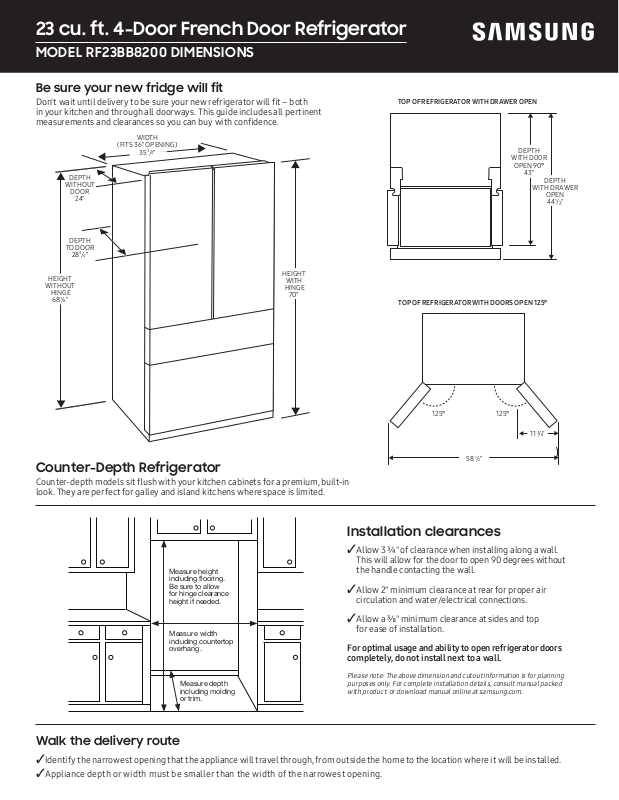

23 cu. ft. 4-Door French Door Refrigerator

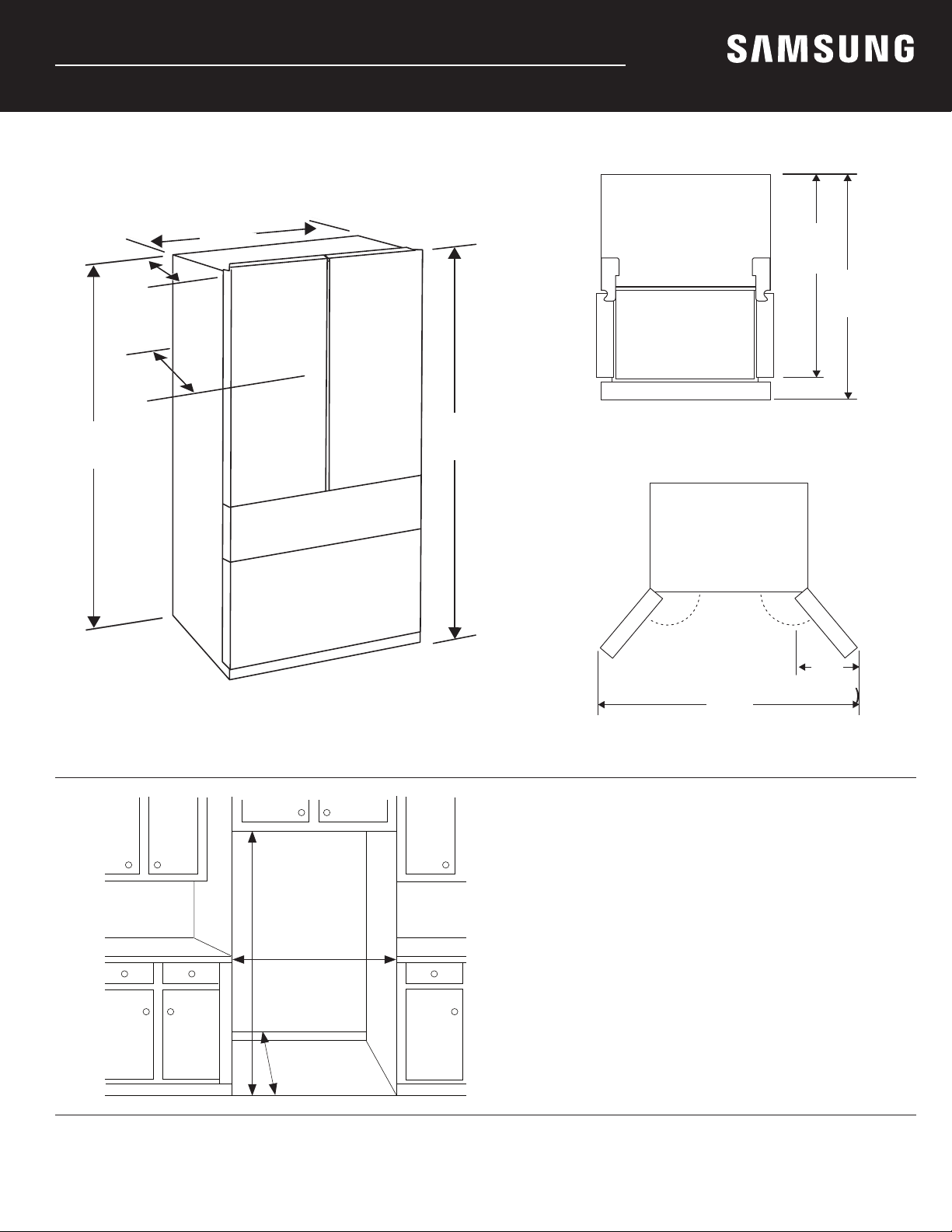

MODEL RF23BB8200 DIMENSIONS
Be sure your new fridge will fit
Don't wait until delivery to be sure your new refrigerator will t – both
in your kitchen and through all doorways. This guide includes all pertinent
measurements and clearances so you can buy with condence.
WIDTH
(FITS 36" OPENING)
3
4
/
"
35
DEPTH
A
WITHOUT
DOOR
24 "
DEPTH
TO DOOR
4
283/
"
TOP OF RE FRIGERATOR W ITH DRAWER OP EN
DEPTH
WITH D00R
OPEN 90°
43"
WITH DRAWER
DEPTH
OPEN
441/₂"
HEIGHT
WITHOUT
HINGE
8
687/
"
HEIGHT
WITH
D
HINGE
70"
Counter-Depth Refrigerator
Counter-depth models sit ush with your kitchen cabinets for a premium, built-in
look. They are perfect for galley and island kitchens where space is limited.
Measure height
including flooring.
Be sure to allow
for hinge clearance
height if needed.
TOP OF RE FRIGERATOR W ITH DOORS O PEN 125°
125° 125°
11 3/8"
58 1/2"
Installation clearances
3Allow 3 ¾" of clearance when installing along a wall.
This will allow for the door to open 90 degrees without
the handle contacting the wall.
3Allow 2" minimum clearance at rear for proper air
circulation and water/electrical connections.
3Allow a ⅜" minimum clearance at sides and top
Measure width
including countertop
overhang.
Measure depth
including molding
or trim.
for ease of installation.
For optimal usage and ability to open refrigerator doors
completely, do not install next to a wall.
Please note: The above dimension and cutout information is for planning
purposes only. For complete installation details, consult manual packed
with product or download manual online at samsung.com.
Walk the delivery route
3Identify the narrowest opening that the appliance will travel through, from outside the home to the location where it will be installed.
3Appliance depth or width must be smaller than the width of the narrowest opening.
