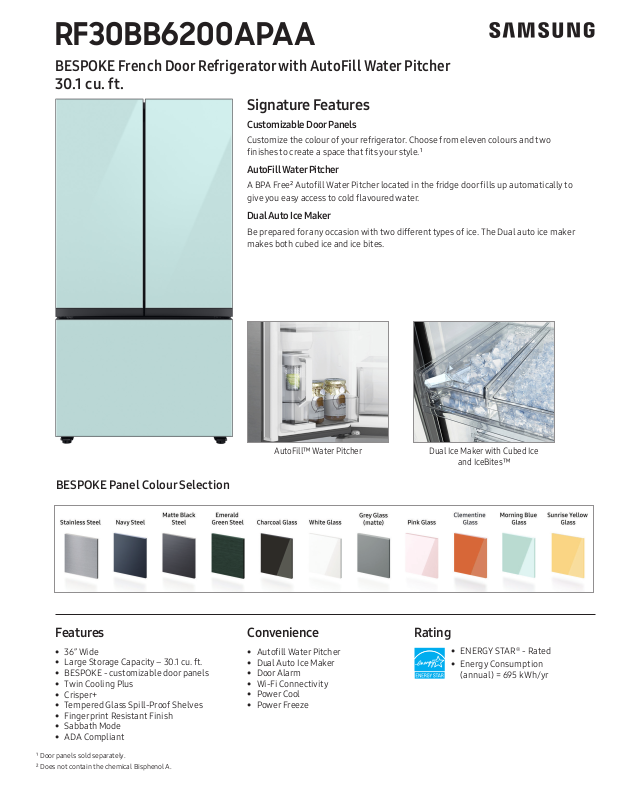

Page 1
RF30BB6200APAA
BESPOKE French Door Refrigerator with AutoFill Water Pitcher
30.1 cu. ft.
Signature Features
Customizable Door Panels
Customize the colour of your refrigerator. Choose from eleven colours and two
nishes to create a space that ts your style.¹
AutoFill Water Pitcher
A BPA Free² Autoll Water Pitcher located in the fridge door lls up automatically to
give you easy access to cold avoured water.
Dual Auto Ice Maker
Be prepared for any occasion with two different types of ice. The Dual auto ice maker
makes both cubed ice and ice bites.
BESPOKE Panel Colour Selection
Features
• 36” Wide
• Large Storage Capacity – 30.1 cu. ft.
• BESPOKE - customizable door panels
• Twin Cooling Plus
• Crisper+
• Tempered Glass Spill-Proof Shelves
• Fingerprint Resistant Finish
• Sabbath Mode
• ADA Compliant
AutoFill™ Water Pitcher
Convenience
• Autoll Water Pitcher
• Dual Auto Ice Maker
• Door Alarm
• Wi-Fi Connectivity
• Power Cool
• Power Freeze
Dual Ice Maker with Cubed Ice
and IceBites™
Rating
• ENERGY STAR® - Rated
• Energy Consumption
(annual) = 695 kWh/yr
¹ Door panels sold separately.
² Does not contain the chemical Bisphenol A.
Page 2
RF30BB6200APAA
BESPOKE French Door Refrigerator with AutoFill Water Pitcher
30.1 cu. ft.
Installation Specications
1. Measure the height, width and depth of the opening, making sure to
include baseboards, molding tile, countertop overhang, etc. Check to
be sure there is enough room to open the door (consider walls, islands or
other obstacles when measuring).
2. Refer to illustration below to determine dimensions.
3. Allow 11 3/8” of clearance on hinge side of refrigerator when installing
next to a wall where door may make contact.
4. Allow 2” minimum clearance at rear for proper air circulation and water/
electrical connections. Allow a 3/8” minimum clearance at sides and
top for ease of installation.
5. Ensure each door and entryway in the home is wide enough for the
refrigerator to be moved through easily.
For optimal usage and to be able to open refrigerator doors completely, do
not install next to a wall.
Please note: The following dimension and cutout information is for
planning purposes only. For complete installation details, consult manual
packed with product, or download manual online at samsung.com.
Measure height
including ooring.
Be sure to allow
for hinge clearance
height if needed.
Measure width
including
countertop
overhang.
Measure depth
including
molding or trim.
Dimensions
35 6/8”
50 mm
11 3/8”
Total Capacity: 30.1 cu. ft.
Refrigerator: 21.1 cu. ft.
4 Tempered Glass Spill-Proof Shelves
2 Clear Drawers including Crisper+
8 Door Bins
- Right: 1 Gallon Bin, 3 Regular Bins
- Left: 1 Gallon Bin, 3 Regular Bins
LED Lighting
Freezer: 9 cu. ft.
Dual Ice Maker in Freezer (Cubed Ice or Ice Bites)
- 2 Ice Buckets with Cover and 1 Scoop
2 Boxes
LED Lighting
Accessories
Water Filter: HAF-QIN
Volt/Amps 115V / 60Hz / 3.5A
Power Cord Length 2 meters
Warranty
One (1) Year Parts and Labour on Refrigerator
Ten (10) Years Parts on Digital Inverter Compressor
Product Dimensions & Weight (WxHxD)
Dimensions (WxHxD with hinges, handles and doors):
35 6/8” x 70” x 34 1/4”
Dimensions (WxHxD without hinges and door):
35 6/8” x 68 7/8” x 29 3/8”
Dimensions (WxHxD with hinge and door, no handle):
35 6/8” x 70” x 34 1/4”
Weight: 313.1 lbs (142 kg)
Shipping Dimensions & Weight (WxHxD)
Dimensions: 38 1/4” x 76 3/4” x 36 1/4”
Weight: 337 lbs (153 kg)
34 1/4”
68 7/8”
70”
125°
125°
Style Model # UPC
Without Panels RF30BB6200APAA 887276624389
Pre-Built Stainless
Steel Panels RF30BB6200QLAA 887276624396
58 2/4”
29 3/8”
Actual colour may vary. Design, specications and colour availability are subject to change without notice. Non-metric weights and measurements are approximate.
© 2022 Samsung Electronics Canada Inc. All rights reserved. Samsung is a registered trademark of Samsung Electronics Co., Ltd., used with permission.
2 1/8”
48 2/4”
53 1/4”
