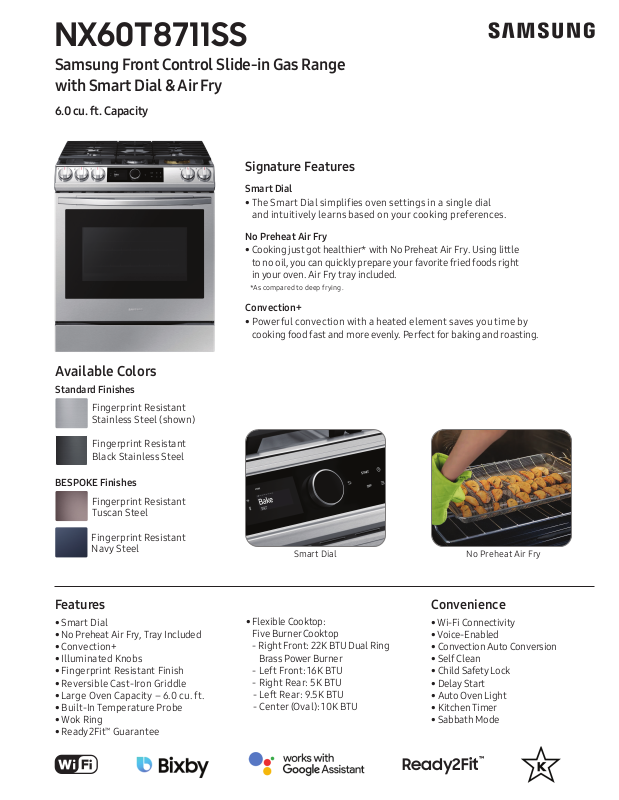

NX60T8711SS
Samsung Front Control Slide-in Gas Range
with Smart Dial & Air Fry
6.0 cu. ft. Capacity
Signature Features
Smart Dial
• The Smart Dial simplifies oven settings in a single dial
and intuitively learns based on your cooking preferences.
No Preheat Air Fry
• Cooking just got healthier* with No Preheat Air Fry. Using little
to no oil, you can quickly prepare your favorite fried foods right
in your oven. Air Fry tray included.
*As compared to deep frying.
Convection+
• Powerful convection with a heated element saves you time by
cooking food fast and more evenly. Perfect for baking and roasting.
Available Colors
Standard Finishes
Fingerprint Resistant
Stainless Steel (shown)
Fingerprint Resistant
Black Stainless Steel
BESPOKE Finishes
Fingerprint Resistant
Tuscan Steel
Fingerprint Resistant
Navy Steel
Features
• Smart Dial
• No Preheat Air Fry, Tray Included
• Convection+
• Illuminated Knobs
• Fingerprint Resistant Finish
• Reversible Cast-Iron Griddle
• Large Oven Capacity – 6.0 cu. ft.
• Built-In Temperature Probe
• Wok Ring
• Ready2Fit™ Guarantee
• Flexible Cooktop:
Five Burner Cooktop
- Right Front: 22K BTU Dual Ring
Brass Power Burner
- Left Front: 16K BTU
- Right Rear: 5K BTU
- Left Rear: 9.5K BTU
- Center (Oval): 10K BTU
No Preheat Air FrySmart Dial
Convenience
• Wi-Fi Connectivity
• Voice-Enabled
• Convection Auto Conversion
• Self Clean
• Child Safety Lock
• Delay Start
• Auto Oven Light
• Kitchen Timer
• Sabbath Mode
Ready2Fit
™
Page 2
NX60T8711SS
Samsung Front Control Slide-in Gas Range
with Smart Dial & Air Fry
Installing Your Range
3"
25"
24"
30"
357/8"
6"*
Below Cooking
Top and at Rear
0" Clearance
and Sides of
Range
18"
293/4"
1
36
/4"-37"
2915/16"
A: Cabinet opening 30"
IMPORTANT: If your cabinets are over 37" high, you must install this range on a hard, heat-resistant support
that raises the surface of the range so that it is about even with the countertop.
4"*
24" Lower
36"
IMPORTANT: Consult with Installation Manual for detailed instructions before installing.
All ranges must be installed with the Anti-Tip device that is included.
Cabinet
Depth
*Side clearance above cooking surface to any objects, i.e., wall.
2811/16"
267/16"
491/4"
30"
24"
3"
A
13"
Overhead
Cabinet
Depth
241/4"
Power Source
120V/60Hz/20A
Total Power (BTU)
62,500 BTU
Black Enamel 5-Burner Cooktop
• Right Front: 22K BTU Dual Ring, Brass
• Left Front: 16K BTU
• Right Rear: 5K BTU
• Left Rear: 9.5K BTU
• Center (Oval): 10K BTU
Oven
• Capacity: 6.0 cu. ft.
• Convection Element/Heater
• Convection Bake
• Convection Roast
• Bake
• Variable Broil: Low/High
• Air Fry
• Bread Proof
• Dehydrate
Warranty
One (1) Year Parts and Labor
Product Dimensions & Weight (WxHxD)
Actual Oven Dimensions:
13
/16" x 215/8" x 195/8"
24
Outside Dimensions:
2915/16" x 361/4-37 " (Adjustable) x 2811/16"
0"
Weight: 220 lbs
Shipping Dimensions & Weight (WxHxD)
Dimensions:
331/16" x 413/4" x 305/16"
Weight: 246 lbs
Recommended Locations for Gas Piping and Electrical Outlets
Recommended
17 in
position
Standard Finishes Model # UPC Code
Fingerprint Resistant
Stainless Steel
Fingerprint Resistant
Black Stainless Steel
NX60T8711SS 887276409139
NX60T8711SG 887276409122
BESPOKE Finishes
Gas Wall Area
Recommended area for
through-the-wall and through-
the-floor connection of gas
pipe stub and shut-off valve.
9 in
2 in
Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
©2021 Samsung Electronics America, Inc. 85 Challenger Road, Ridgeeld Park, NJ 07660. Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co. Ltd.
Gas Floor Area
12 in
30 in (76.2 cm)
Cabinet Opening
Recommended area for
120 V electrical outlet
on rear wall
17 in
Fingerprint Resistant
Tuscan Steel
Fingerprint Resistant
Navy Steel
NX60T8711ST 887276409269
NX60A8711QN 887276585949
