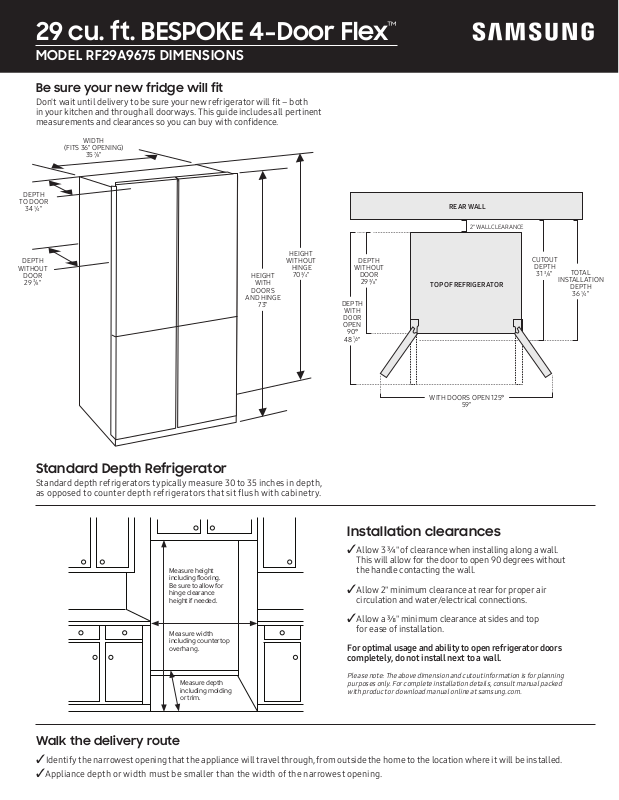

29 cu. ft. BESPOKE 4-Door Flex
MODEL RF29A9675 DIMENSIONS
Be sure your new fridge will fit
Don't wait until delivery to be sure your new refrigerator will t – both
in your kitchen and through all doorways. This guide includes all pertinent
measurements and clearances so you can buy with condence.
WIDTH
(FITS 36" OPENING)
7
35
/8"
DEPTH
TO DOOR
4
34 1/
"
™
REAR WALL
2 " WALL CLEARANCE
DEPTH
WITHOUT
DOOR
3
8
/
29
"
HEIGHT
WITH
DOORS
AND HINGE
73"
Standard Depth Refrigerator
Standard depth refrigerators typically measure 30 to 35 inches in depth,
as opposed to counter depth refrigerators that sit ush with cabinetry.
HEIGHT
WITHOUT
HINGE
70 3/4"
DEPTH
WITHOUT
DOOR
8
29 3/
DEPTH
WITH
D00R
OPEN
90°
48 1/2"
"
TOP OF REFRIGERATOR
WITH DOORS OPEN 125°
59"
Installation clearances
CUTOUT
DEPTH
8
31 3/
"
TOTAL
INSTALLATION
DEPTH
4
36 1/
"
3Allow 3 ¾" of clearance when installing along a wall.
Measure height
including flooring.
Be sure to allow for
hinge clearance
height if needed.
This will allow for the door to open 90 degrees without
the handle contacting the wall.
3Allow 2" minimum clearance at rear for proper air
circulation and water/electrical connections.
3Allow a ⅜" minimum clearance at sides and top
Measure width
including countertop
overhang.
Measure depth
including molding
or trim.
for ease of installation.
For optimal usage and ability to open refrigerator doors
completely, do not install next to a wall.
Please note: The above dimension and cutout information is for planning
purposes only. For complete installation details, consult manual packed
with product or download manual online at samsung.com.
Walk the delivery route
3Identify the narrowest opening that the appliance will travel through, from outside the home to the location where it will be installed.
3Appliance depth or width must be smaller than the width of the narrowest opening.
