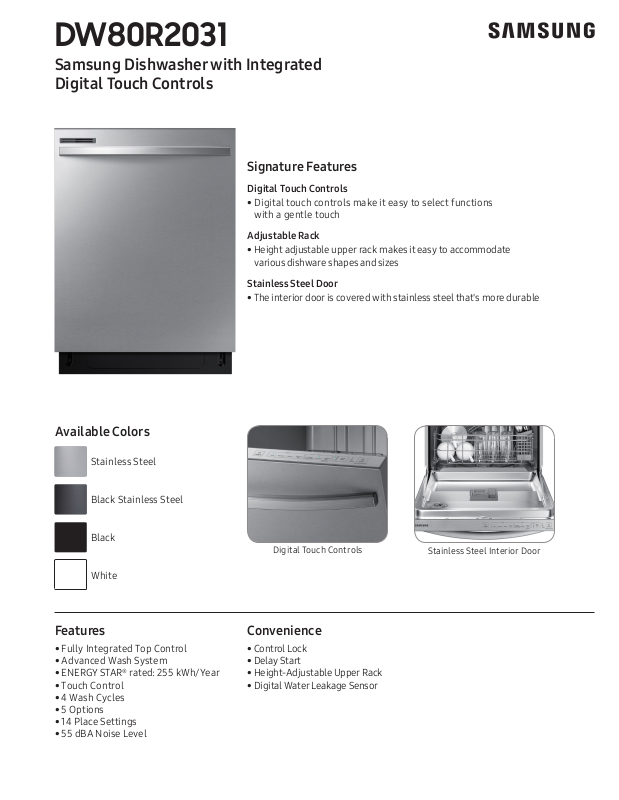

Page 1

DW80R2031

Samsung Dishwasher with Integrated Digital Touch Controls

Signature Features

Digital Touch Controls

• Digital touch controls make it easy to select functions with a gentle touch

Adjustable Rack

• Height adjustable upper rack makes it easy to accommodate various dishware shapes and sizes

Stainless Steel Door

• The interior door is covered with stainless steel that's more durable

Available Colors

Stainless Steel

Black Stainless Steel

Black

White

Features

• Fully Integrated Top Control

• Advanced Wash System

• ENERGY STAR® rated: 255 kWh/Year

• Touch Control

• 4 Wash Cycles

• 5 Options

• 14 Place Settings

• 55 dBA Noise Level

Digital Touch Controls

Convenience

• Control Lock

• Delay Start

• Height-Adjustable Upper Rack

• Digital Water Leakage Sensor

Stainless Steel Interior Door

Page 2

DW80R2031

Samsung Dishwasher with Integrated Digital Touch Controls

Installation Specifications

24" minimum

/8"

minimum

24"

minimum

Dimensions

Side View Rear View

267/8"

Features

• 4 Wash Cycles: Auto, Normal, Heavy, Express 60

• 5 Options: Hi-Temp Wash, Sanitize (Anti-BacterialNSF), Delay Start, Control Lock, Heated Dry

Convenience

• Control Lock

• Digital Water Leakage Sensor

• Height-Adjustable Upper Rack

• Polypropylene Racking

• Silverware Basket

Warranty

One (1) Year All Parts and Labor Five (5) Year Limited on Printed Circuit Board

Product Dimensions & Weight (WxHxD)

Dimensions: 233/4" x 333/4" x 245/8" Weight: 64 lbs

Shipping Dimensions & Weight (WxHxD)

Dimensions: 26" x 35" x 291/7" Weight: 73.9 lbs

Color Model # UPC Code

Stainless Steel DW80R2031US 887276305004 Black Stainless Steel DW80R2031UG 887276523071 Black DW80R2031UB 887276454047 White DW80R2031UW 887276454030

333/4"

201/2"

245/8"

25/16"

Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.

61/16"

233/4"

The water supply line, power cable and drain hose should go through this space behind the dishwasher. Then, the power cable runs in channels under the dishwasher to connections in the front.
