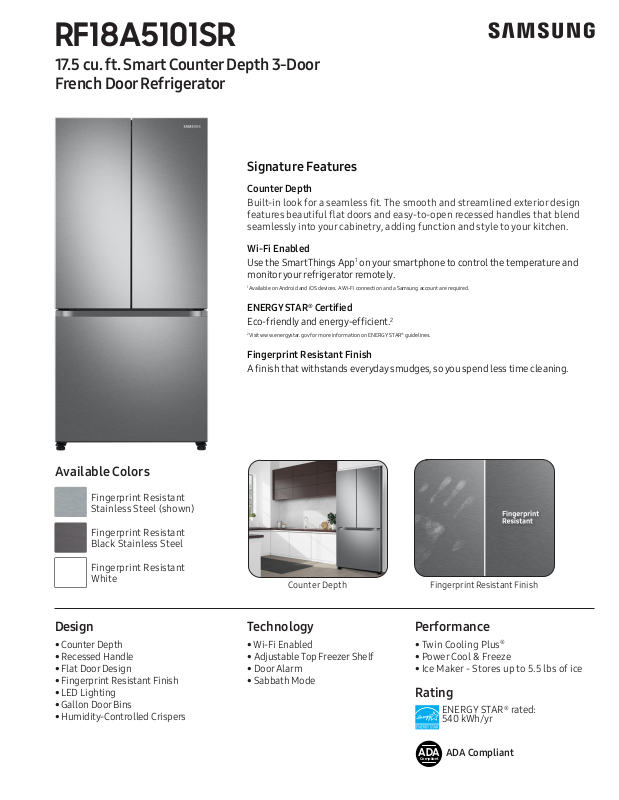

Page 1

RF18A5101SR

Stainless Steel

17.5 cu. ft. Smart Counter Depth 3-Door French Door Refrigerator

Signature Features

Counter Depth

Built-in look for a seamless t. The smooth and streamlined exterior design features beautiful at doors and easy-to-open recessed handles that blend seamlessly into your cabinetry, adding function and style to your kitchen.

Wi-Fi Enabled

Use the SmartThings App1 on your smartphone to control the temperature and monitor your refrigerator remotely.

Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required.

ENERGY STAR® Certified

Eco-friendly and energy-efcient.

Visit www.energystar.gov for more information on ENERGY STAR® guidelines.

Available Colors

Fingerprint Resistant Stainless Steel (shown)

Fingerprint Resistant Black Stainless Steel

Fingerprint Resistant White

Design

• Counter Depth

• Recessed Handle

• Flat Door Design

• Fingerprint Resistant Finish

• LED Lighting

• Gallon Door Bins

• Humidity-Controlled Crispers

Fingerprint Resistant Finish

A nish that withstands everyday smudges, so you spend less time cleaning.

Counter Depth

Technology

• Wi-Fi Enabled

• Adjustable Top Freezer Shelf

• Door Alarm

• Sabbath Mode

Fingerprint Resistant Finish

Performance

• Twin Cooling Plus

• Power Cool & Freeze

• Ice Maker - Stores up to 5.5 lbs of ice

Rating

ENERGY STAR® rated: 540 kWh/yr

ADA

ADA Compliant

Compliant

Page 2

RF18A5101SR

321/8"

/4"

547/8"

/2"

135° 135°

321/8"

/4"

17.5 cu. ft. Smart Counter Depth 3-Door French Door Refrigerator

Installation Specifications

1. Measure the height, width and depth of the opening, making sure to include baseboards, molding tile, countertop overhang, etc. Check to be sure there is enough room to open the door (consider walls, islands or other obstacles when measuring).

2. Refer to illustration below to determine dimensions.

3. Allow 1" of clearance on hinge side of refrigerator when installing next to a wall

where door may make contact.

4. Allow 2" minimum clearance at rear for proper air circulation and water/electrical connections. Allow a " minimum clearance at sides and top for ease of installation.

5. Ensure each door and entryway in the home is wide enough for the refrigerator

to be moved through easily.

For optimal usage and ability to open refrigerator doors completely, do not install next to a wall.

Please note: The following dimension and cutout information is for planning purposes only. For complete installation details, consult manual packed with product or download manual online at samsung.com.

Measure height including flooring. Be sure to allow for hinge clearance height if needed.

Measure width including countertop overhang.

Measure depth including molding or trim.

Total Capacity: 17.5 cu. ft.

Refrigerator: 11.7 cu. ft.

• 3 Tempered Glass Spill-Proof Shelves

• 2 Humidity-Controlled Crispers

• 6 Door Bins

– Right Door: 1 Gallon Bin, 2 Regular Bins – Left Door: 1 Gallon Bin, 2 Regular Bins

• LED Lighting

Freezer: 5.8 cu. ft.

• Automatic Ice Maker

• EZ-Open Handle

™

• LED Lighting

Warranty

One (1) Year Parts and Labor on Refrigerator Five (5) Years Parts and Labor on

Sealed Refrigeration System Only* Ten (10) Years Parts and Five (5) Years

Labor on Digital Inverter Compressor

*Compressor, evaporator, condenser, drier and connecting tubing.

Product Dimensions & Weight

Dimensions (WxHxD with hinges, and doors): 321/8" x 70" x 281/8"

Dimensions (WxHxD without hinges and door): 321/8" x 687/8" x 241/2"

Weight: 205 lbs

Shipping Dimensions & Weight (WxHxD)

Dimensions: 345/8" x 75" x 301/2" Weight: 223 lbs

Color Model # UPC Code

Dimensions

321/8"

/2"

281/8"

/8"

/2"

135° 135°

70"

547/8"

321/8"

/4"

Fingerprint Resistant Stainless Steel

Fingerprint Resistant Black Stainless Steel

Fingerprint Resistant White

RF18A5101SR 887276455167

RF18A5101SG 887276465449

RF18A5101WW 887276465456

Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
