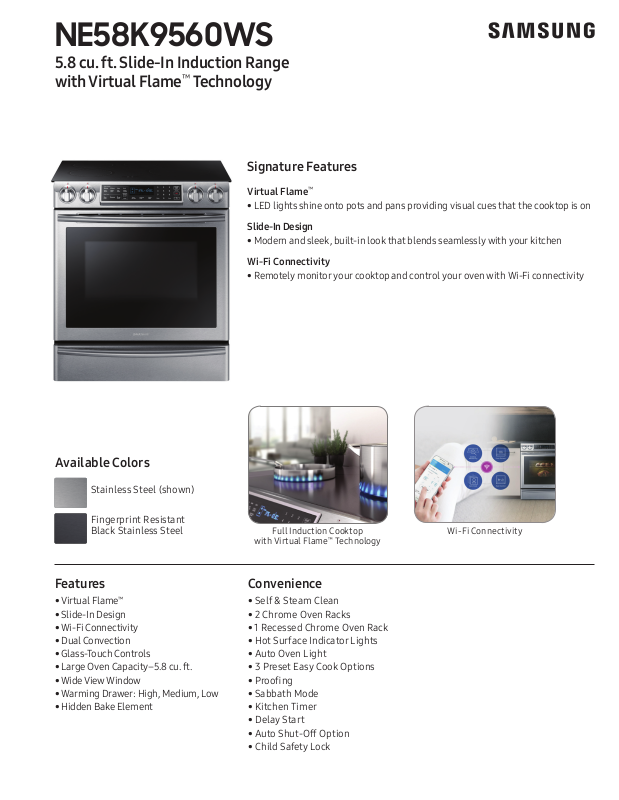

Page 1
NE58K9560WS
5.8 cu. ft. Slide-In Induction Range
with Virtual Flame™ Technology
Signature Features
Available Colors
Virtual Flame
• LED lights shine onto pots and pans providing visual cues that the cooktop is on
Slide-In Design
• Modern and sleek, built‐in look that blends seamlessly with your kitchen
Wi-Fi Connectivity
• Remotely monitor your cooktop and control your oven with Wi-Fi connectivity
™
Stainless Steel (shown)
Fingerprint Resistant
Black Stainless Steel
Features
• Virtual Flame
• Slide-In Design
• Wi-Fi Connectivity
• Dual Convection
• Glass-Touch Controls
• Large Oven Capacity–5.8 cu. ft.
• Wide View Window
• Warming Drawer: High, Medium, Low
• Hidden Bake Element
™
Full Induction Cooktop
with Virtual Flame
™
Technology
Convenience
• Self & Steam Clean
• 2 Chrome Oven Racks
• 1 Recessed Chrome Oven Rack
• Hot Surface Indicator Lights
• Auto Oven Light
• 3 Preset Easy Cook Options
• Proong
• Sabbath Mode
• Kitchen Timer
• Delay Start
• Auto Shut-Off Option
• Child Safety Lock
Wi-Fi Connectivity
Page 2
NE58K9560WS
SLIDE-IN CUTOUT FREESTANDING CUTOUT
A
B
6
"
25
"
3
"
24
"
3
"
5.8 cu. ft. Slide-In Induction Range
with Virtual Flame™ Technology
Installation Specifications
* 30" minimum clearance between the top
30"
* 30"
** 15"
** 15" minimum between the countertop
IMPORTANT: Consult with Installation
Manual for detailed instructions before
installing. All ranges must be installed
with the Anti-Tip device that is included.
Slide-In Cutout
Hatched Faces should be
flat and leveled.
11/16
35-7/8"
"
36"~36-3/4"
29-15/16"
4-1/2"
23-3/16"
6-5/16"
31"
26-5/16"
28-5/8"
24-
48"
26-5/16"
of the cooking surface and the bottom of an
unprotected wood or metal cabinet; or 24"
minimum when the bottom of the wood or
metal cabinet is protected by not less than
¼" of flame retardant millboard covered
with not less than no.28 MSG sheet steel,
0.015" stainless steel, 0.024" aluminum,
or 0.020" copper.
and the adjacent cabinet bottom.
3"
24"
B
A
1" min.
3"
23-3/16"
1/2" min.
25"
6"
Power Source
240V/60 Hz/40A
Induction Cooktop
• Right Front: 11", 2.3 kW (Boost 3.3 kW)
• Left Front: 7", 1.8 kW (Boost 1.8 kW)
• Right Rear: 6", 1.2 kW (Boost 2.0 kW)
• Left Rear: 7", 1.8 kW (Boost 1.8 kW)
Oven
• Capacity: 5.8 cu. ft.
• Hidden Bake Element: 3000W
• Bake: 175°F - 550°F
• Convection Bake: 175°F - 550°F
• Convection Roast: 175°F - 550°F
• Broil (Low – High)
• Convection Element/Heater: 1250W
• Proofing
• Sabbath Mode
Warming Drawer
• Capacity: 0.7 cu. ft.
• Heating Performance: 600W (4 pass)
• Temperature Settings: High, Medium, Low
Warranty
One (1) Year All Parts and Labor
Five (5) Years Electric Cooktop
Product Dimensions & Weight (WxHxD)
Actual Oven Dimensions: 25" x 191/4" x 2525/32"
Outside Net Dimensions: 2915/16" x 36-363/4" x 285/8"
Weight: 211 lbs
Shipping Dimensions & Weight (WxHxD)
Dimensions: 331/16" x 413/4" x 305/16"
Weight: 237 lbs
Freestanding Cutout
3
"
25
"
6
"
A: Cabinet opening min. 30"
B: Acceptable electrical outlet area
Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
©2019 Samsung Electronics America, Inc., 85 Challenger Road, Ridgeeld Park, NJ 07660. Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co., Ltd.
24
"
3
"
B
A
Color Model # UPC Code
Stainless Steel NE58K9560WS 887276132273
Fingerprint Resistant
Black Stainless Steel
NE58R9560WG 887276317878
